USER MANUAL BG-C5 Vello

B BA Design

BG-C5

BATTERY GRIP

Designed For The Canon T2i/T3i

VELLO™

Introduction

Thank you for choosing Vello and congratulations on your new BG-C5 battery grip purchase. Enjoy the many benefits that a battery grip offers, such as extended shooting time and more control and comfort when shooting in a vertical (portrait) orientation.

The Vello BG-C5 is compatible with the Canon T2i/T3i SLR camera. The BG-C5 accepts two Canon LP-E8 rechargeable batteries, or six AA batteries (alkaline, Ni-MH, lithium, or nickel-manganese) can be used instead for added convenience. The BG-C5 is equipped with an alternate shutter-release button, aperture/ exposure compensation button, AF point selection/ magnify button, AE lock/FE lock/Index/Reduce button, and main dial for shooting in a vertical position.

e) can be used

Please read through this entire manual before using the BG-C5 battery grip.

Precautions

1. The BG-C5 should only be used with compatible devices specified in this manual.
2. Only use with batteries and battery holders recommended in this manual.
3. Cover the power terminals with the contact cap when the BG-C5 is not in use. This prevents electrical shorts caused by metal objects touching the power terminals.
4. When the battery holder is removed from the grip, remove the batteries or place the holder in a container to prevent electrical shorts caused by contact with other metal objects.
5. If you notice smoke, an unusual smell or noise from the battery pack, discontinue use immediately.

Remove the batteries and take the device to a Vello authorized reseller.

1. Turn the grip power off when not shooting vertically.
2. The battery level may not display properly if batteries are inserted before mounting the grip.
3. Remove batteries from the grip when not in use.
4. Do not attempt to disassemble.
5. Avoid water or extreme humidity and keep in a dry and cool place.
   II. Keep out of reach of children.

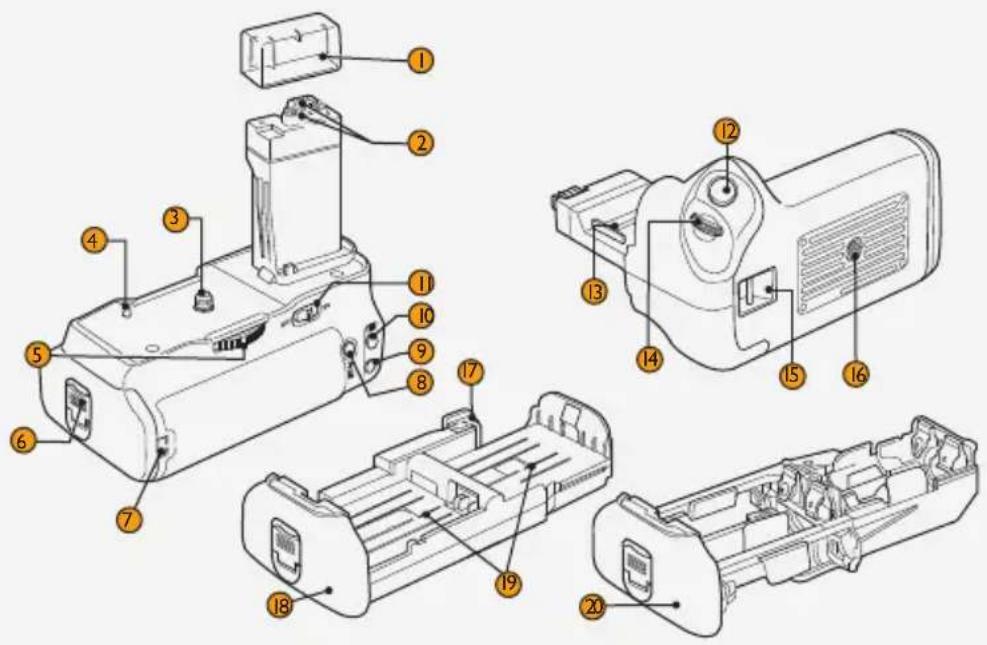

Overview

Exploded view diagram of a battery pack with numbered parts for identification

Contact Cap

Protects grip contacts. Keep covered when the grip is not in use.

② Electrical Contacts

Communicates with the camera electronics.

③ Mounting Screw

Aligns with the camera's tripod socket.

④ Guide Pin

Helps align the camera to the grip.

⑤ Attachment Wheel

Secures the grip to the camera.

⑥ Battery Chamber Latch

Locks and unlocks the battery chamber.

⑦ DC Coupler Cord Mount

Groove for use with the Canon AC Power Adapter (ACK-E8).

⑧ Aperture/Exposure Compensation Button*

⑨ AF Point Selection/Magnify Button*

⑩ AE Lock/FE Lock/Index/Reduce Button*

⑪ Grip Power Switch

Turns the grip power on and off.

12 Shutter-Release Button*

⑬ Camera Battery Chamber Cover Holder

Stores the cover when the grip is mounted.

14 Main Dial\*

15 Hand Strap Mount

Optional hand strap may be mounted for a secure hold while shooting.

16 Tripod Socket

For mounting on a tripod.

⑰ Battery Holder Protective Cover

18 LP-E8 Battery Holder

Holds up to two Canon LP-E8 batteries.

19 Dual Battery Compartment

20 AA Battery Holder

Holder for six AA batteries.

* Performs the same function as on the camera.

Attaching The Grip

OFF ON

1. Ensure that the power is turned off on the camera and that the power switch is set to OFF on the battery grip.

Diagram of a device's internal components with an orange arrow pointing to a component (no text or symbols visible)

1. Remove the battery from the camera battery compartment.

Autobox

1. Open the camera battery chamber cover at a 35^ angle and gently pull the cover to remove it.

Technical diagram of a mechanical assembly with a highlighted component (no text or symbols visible)

1. To prevent loss, place the camera battery chamber cover into the BG-C5 battery chamber holder.

Diagram showing a mechanical component with an arrow indicating direction, labeled with number 1

1. Remove the protective cap and connect the BG-C5 grip to the camera, while aligning the grip's mounting screw with the camera's tripod socket.

Diagram of a device with a highlighted orange arrow and number ②, showing no text or symbols.

1. Rotate the attachment wheel in the direction shown by the arrow until it is firmly tightened.

When removing the grip, tum the camera power off, remove batteries, and replace protective contact cap.

Inserting Batteries

Diagram showing mechanical assembly steps with highlighted components and directional arrows indicating motion

1. Ensure that the power is turned off on the camera and turn the battery-chamber latch counterclockwise to open the battery chamber door.

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

1. Canon LP-E8 Batteries: Insert up to two batteries (into any slot) by matching the power contacts with the LP-E8 battery holder. Press the battery down and slide it in the direction of the arrow.

Technical diagram showing two mechanical components with labeled parts and directional arrows indicating movement or force.

1. Insert the BG-H1 battery holder into the grip and turn the latch to lock it, as indicated by the arrows.

Technical line drawing of a mechanical assembly with multiple cylindrical components and mounting holes (no text or symbols)

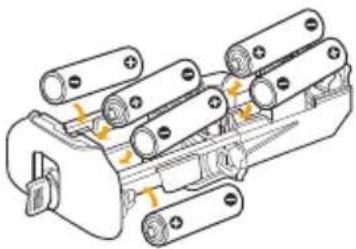

1. AA Batteries: Place six new AA batteries of the same type into the AA battery holder as shown, while ensuring that they are in the correct orientation.

ON OFF

1. Insert the holder into the grip and lock as Switch the grip power to ON and then turn on the camera's power. Check the battery level in the control panel or viewfinder.

Diagram showing mechanical assembly steps with labeled components and directional arrows

1. Household Power Outlet: shown The Canon ACK-E8 AC Power Adapter Kit (sold separately) can be connected to the grip. Place the DC coupler through the small groove on the back of the grip. Ensure that the cord doesn't get pinched by the battery holder.

Specifications

Power Source 1. One or two Canon LP-E8 rechargeable Li-ion batteries2. Six AA/LR6 Alkaline batteries3. Works with the Canon AC Adapter Kit ACK-E8 (sold separately)

Operating Temperature 32 – 104 °F (0 – 40 °C)

Dimensions Approximately 131.8 x 108 x 79.9 mm/5.2 x 4.3 x 3.1 in.

Weight Approximately 230 g (8.1 oz.) excluding holder and batteries

* Approximate measurements.

Specifications and design are subject to change without notice.

AA batteries do not provide as much shooting time as LP-E8 rechargeable batteries. Performance of AA batteries may also be dependent on brand and storage conditions. AA batteries may not function under 68^ F ( 20^ C).

Warranty

Vello provides a limited warranty that this product is free from defects in materials and workmanship to the original purchaser under normal use for a period of one (1) year from the original purchase date. Vello's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at its option, of any product which fails during normal consumer use. This warranty does not extend to damage or failure which results from misuse, neglect, accident, alteration, abuse, improper installation or maintenance. To obtain a replacement during the time of this warranty, please return the defective item with proof of purchase along with an RMA number to the place of purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
