Introduction

Thank you for choosing Vello, and congratulations on your new BG-C14 battery grip purchase. Enjoy the many benefits that a battery grip offers, such as extended shooting time and more control and comfort when shooting in portrait orientation.

The Vello BG-C14 is compatible with the Canon 5D Mark IV SLR camera. The BG-C14 accepts up to two Canon LP-E6 or LP-E6N rechargeable batteries. This grip is equipped with an alternate shutter release button, AF area selection, AF start button, AF point selection, AE lock button, multi-controller button, multi-function button, and main dial for shooting in a vertical position.

SET LOCK AF-NO Please read through this entire

Please read through this entire manual before using the BGC14 battery grip.

Precautions

1. The BG-C14 should be used with the compatible devices specified in this manual.
2. Use only with the batteries and battery holders recommended in this manual.
3. Cover the power terminals with the contact cap when the BG-C14 is not in use. This prevents electrical shorts caused by metal objects touching the power terminals.
4. When the battery holder is removed from the grip, remove the batteries or place the holder in a container to prevent electrical shorts caused by contact with other metal objects.

5. If you notice smoke, an unusual smell, or noise from the battery pack, discontinue use immediately. Remove the batteries, and take the device to a Vello authorized reseller.

6. Turn the grip power off when not shooting vertically.

7. The battery level may not display properly if batteries are inserted before mounting the grip.
8. Remove batteries from the grip when not in use.
9. Do not attempt to disassemble.
10. Avoid water or extreme humidity, and keep in a dry and cool place.
11. Keep out of reach of children.
12. All images are for illustrative purposes only.

Overview

Labeled diagram of a battery pack with numbered components for identification

Technical diagram of a device with numbered parts for identification and assembly reference.

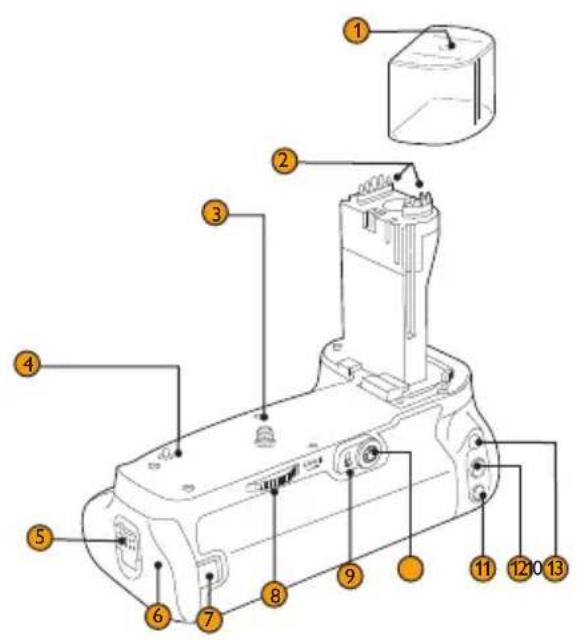

① Contact Cap

Protects grip contacts. Keep covered when the grip is not in use.

② Electrical Contacts

Communicate with the camera electronics.

③ Mounting Screw

Aligns with the camera's tripod socket.

④ Guide Pin

Helps align the camera to the grip.

⑤ Battery Tray Lever

Locks and unlocks the battery compartment door.

⑥ Battery Tray Compartment

Houses the battery tray.

⑦ DC Coupler Cord Mount

Groove for use with the Canon AC Power Adapter (ACK-E6).

⑧ Attachment Wheel

Secures the grip to the camera.

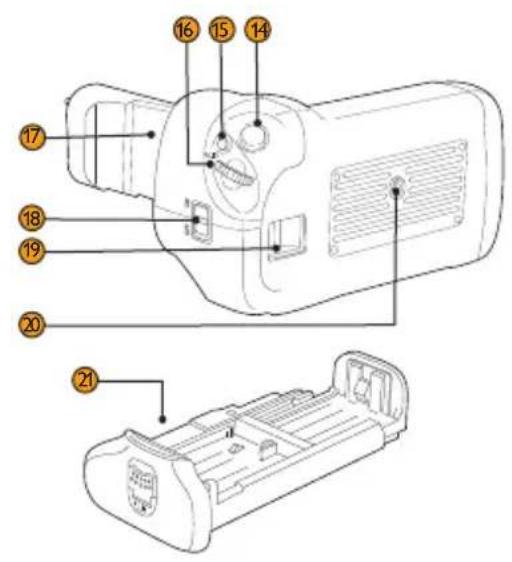

⑨ AF area selection button*

10 Multi-controller Button*

11 AF Point Selection*

12 AE Lock*

13 AF Start Button*

14 Shutter-Release Button*

15 Multi Function Button*

16 Main Dial*

17 Camera Battery Chamber Cover Holder

Stores the cover when the grip is mounted.

18 Grip Power ON/OFF

To prevent accidental triggering, the Grip Power ON/OFF switch disables or enables the BG-C14's controls. Your camera will continue to draw power from the BG-C14 when the switch is in the OFF position. Unlock prior to use by switching to the ON position.

19 Hand Strap Mount

20 Tripod Socket

21 Battery Tray

Holds up to two Canon LP-E6 or LP-E6N batteries.

* Performs the same function as on the camera.

Attaching the Grip

Line drawing of a car interior with dashboard, steering wheel, and air vent (no text or symbols)

1. Ensure that the power is turned off on the camera and that the power switch is set to OFF on the battery grip.

Diagram of a car interior showing a mechanical component with an arrow indicating direction (no text or symbols present)

1. Open the camera battery chamber cover, and remove the battery from the camera battery compartment.

Diagram of a car interior showing a valve mechanism with orange arrows indicating flow or movement (no text or symbols present)

1. Slide the camera battery chamber cover's locking pin, as indicated above, and remove the cover.

Technical illustration of a mechanical device with orange arrows indicating motion or force direction (no text or symbols present)

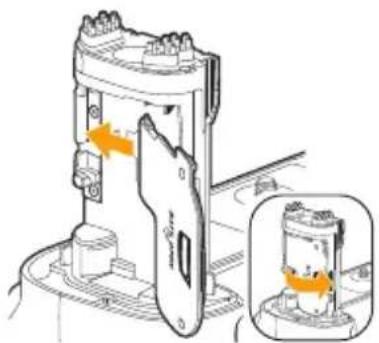

1. To prevent loss, remove the protective cap and place the camera battery chamber cover into the BG-C14 battery chamber holder as indicated above. Swing the battery chamber cover shut so that it locks into place.

Mechanical assembly diagram showing a bracket with an orange arrow indicating direction (no text or symbols present)

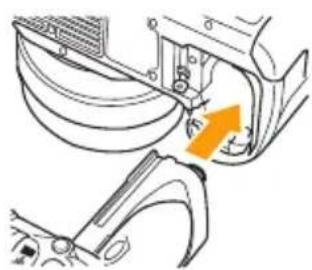

1. Connect the BG-C14 grip to the camera.

Pure mechanical diagram showing a lever mechanism with an orange arrow indicating motion (no text or symbols)

1. Rotate the attachment wheel in the direction shown by the arrow until it is firmly tightened.

When removing the grip, turn the camera power off, remove the batteries, and replace the protective contact cap.

Inserting Batteries

Diagram of a camera shift lever mechanism with orange arrows indicating motion direction (no text or symbols present)

1. Ensure that the power is turned off on the camera and the grip. Use your fingernail to protrude the battery tray lever so you can rotate and pull as indicated above, and slide the battery tray out of the grip.

Diagram of a mechanical device with arrows indicating motion or force (no text or symbols present)

1. Canon LP-E6 or LP-E6N Batteries: Insert up to two batteries by placing them into either slot in the battery tray, while ensuring the correct orientation as shown on the tray.

Diagram of a car interior showing a device with attached pipes and a highlighted component, alongside two views of the interior frame (no text or symbols present)

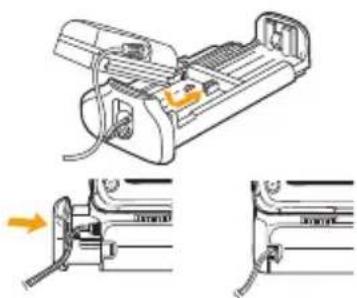

Household Power Outlet: The Canon ACK-E6 AC Power Adapter Kit (sold separately) can be connected to the grip. Place the DC coupler through the small groove on the back of the grip. Ensure that the cord doesn't get pinched by the battery holder.

Mechanical component diagrams showing two views of a mechanical assembly with orange arrows indicating motion direction (no text or symbols)

1. Rotate the battery tray lever counterclockwise, and slide the battery tray all the way into the grip. Rotate the lever as indicated above, and push the it back into place to lock the tray.

Diagram of a car interior with labeled parts and directional arrow indicating motion or movement

1. Switch the grip power to ON, and then turn on the camera's power. Check the battery level in the control panel or viewfinder.

Specifications

Power Source	1. One or two Canon LP-E6 or LP-E6N rechargeable batteries2. Works with the Canon AC Adapter Kit ACK-E6 (sold separately)
Operating Temperature 32°F–104°F	(0°C–40°C)
Dimensions 5.9 × 4.6 × 3.3 in. (15.0 × 11.7 × 8.5 cm)
Weight 10.9 oz. (308 g) excluding batteries

Specifications and design are subject to change without notice.
