SPUH 90 A1 PROJECTION ALARM CLOCK - Projection alarm clock SILVERCREST - Free user manual and instructions

Product type	Projector alarm clock
Brand	SILVERCREST
Model	SPUH 90 A1
Dimensions (W × D × H)	15,6 × 10,2 × 4,1 cm
Weight	272 g
Power supply	2 AAA/LR03 1.5 V batteries for radio, display and projection; 1 CR2032 3 V battery for the clock; 3 V power adapter (not included)
Radio frequency ranges	FM: 87.5 – 108 MHz; AM: 526.5 – 1606.5 kHz
Main functions	Time projection (ceiling/wall), radio or sound alarm wake-up, dual alarm (AL1/AL2), snooze function, digital display with backlight
Projection distance	0.4 to 3 meters
Projection adjustment	Focus via FOCUS wheel, orientation of the projector element
Care and cleaning	Clean with a soft, dry cloth; do not use solvents; remove batteries if not used for a long time
Safety	Do not expose to moisture; do not open the housing; do not look directly into the projected beam
Operating temperature	+5 °C to +35 °C
Storage temperature	0 °C to +50 °C
Permissible humidity	5 – 90 % (non-condensing)
Batteries included	2 × AAA/LR03, 1 × CR2032
Included accessories	Instruction manual

Frequently Asked Questions - SPUH 90 A1 PROJECTION ALARM CLOCK SILVERCREST

How to set the time on the SILVERCREST SPUH 90 A1 alarm clock?

Press the TIME button for 2 seconds until the time flashes. Use the HOUR and MIN buttons to set the hours and minutes. Press TIME again to confirm.

How to program an alarm?

Press AL1 or AL2 for 2 seconds. The time flashes. Set the alarm time with HOUR and MIN, then press the same alarm button again to confirm.

How to choose between radio alarm or sound alarm?

Press AL1 or AL2 repeatedly until you see the radio icon (for radio alarm) or the bell icon (for sound alarm) on the display.

How to activate the time projection?

Press the PROJECTION LIGHT (SNOOZE) button for 2 seconds. The projection turns on. Adjust sharpness with the FOCUS wheel and orient the projector. Press again for 2 seconds to turn off.

What to do if the projection is blurry?

Ensure the distance between the projector and the surface is between 40 cm and 3 m. Adjust the focus with the FOCUS wheel located next to the lens.

How to replace the batteries?

Open the battery compartment on the back (SPUV) or underside (SPUH). Insert 2 AAA/LR03 batteries and 1 CR2032 battery, observing the indicated polarities. Close the cover.

Can I use a power adapter?

Yes, but it is not included. Use a 3 V DC adapter, at least 300 mA, with the indicated polarity (center positive). A CR2032 battery must remain in place to keep the time.

How to disable an alarm?

Press the AL1 or AL2 button repeatedly until the alarm icon disappears from the display. After 5 seconds, the alarm is disabled.

What to do if the alarm clock does not turn on?

Check that the batteries are correctly inserted and in good condition. If using an adapter, ensure it is plugged in and working. Replace the batteries if necessary.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button (center of the unit). The alarm stops for about 10 minutes, then sounds again. To stop it completely, press I/O.

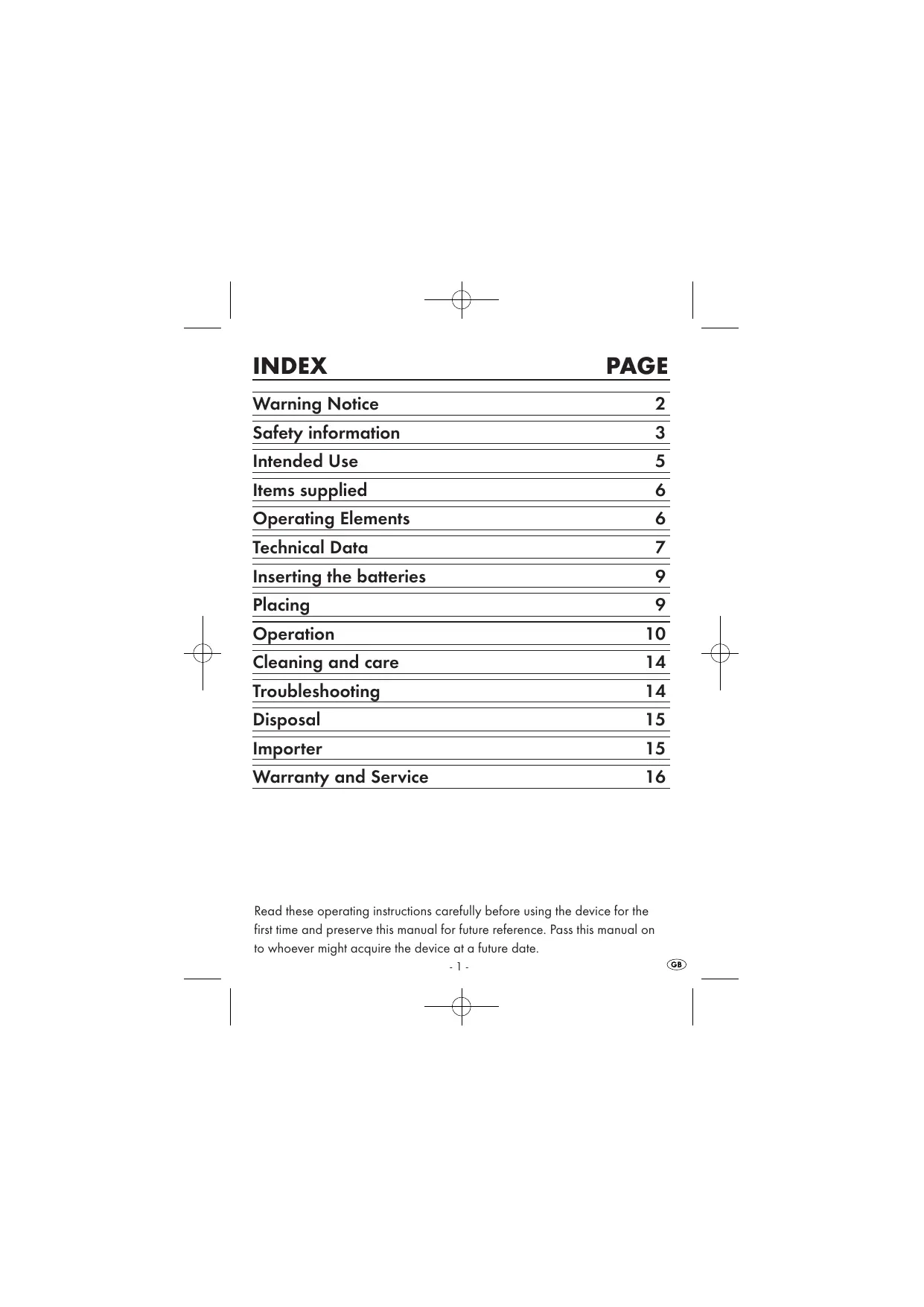

USER MANUAL SPUH 90 A1 PROJECTION ALARM CLOCK SILVERCREST

Warning Notice 2
Safety information 3
Intended Use 5
Items supplied 6
Operating Elements 6
Technical Data 7
Inserting the batteries 9
Placing 9
Operation 10
Cleaning and care 14
Troubleshooting 14
Disposal 15
Importer 15
Warranty and Service 16

Read these operating instructions carefully before using the device for the first time and preserve this manual for future reference. Pass this manual on to whoever might acquire the device at a future date.

PROJECTION ALARM CLOCK

This documentation is copyright protected.

All rights including those of photographic reproduction, duplication and distribution by means of particular methods (for example data processing, data carriers and data networks), wholly or partially as well as substantive and technical changes are reserved.

Warning Notice

In the existing operation instructions the following warnings are used:

Warning

A warning of this danger level signifies a possible dangerous situation. If the dangerous situation is not avoided it can lead to injuries. The directives in this warning are there to avoid personal injuries.

Important

A warning of this danger level signifies possible property damage. If the situation is not avoided it can lead to property damage. The directives in this warning are there to avoid property damage.

① Note

A notice signifies additional information that assists in the handling of the device.

Warning

To avoid potentially fatal electric shocks:

• Only use the device in dry rooms.
• Never allow fluids or other objects to get into the device.
• Do not place objects containing fluids, e.g. flower vases, on the device.
• Never open the housing of the device or of the mains power adapter (not supplied) and do not attempt to repair the device yourself, it does not contain any user serviceable elements.

Warning

To avoid the risk of personal injury:

• This device is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the device is to be used.
• Children should be supervised to ensure that they do not play with the device.

Important

To avoid the risk of fire:

• Place the device in an open and well ventilated area so that heat pockets cannot be created within it. Never cover the ventilation slits!
• Do not place open fire sources, e.g. candles, on the device.
• Avoid close proximity to heat sources, e.g. direct solar radiation, heaters and other devices etc..!

① Note:

This device is equipped with non slip rubber pads. As floor and furniture upper surfaces comprise of various materials and are cleaned with various types of polishes and/or cleaning agents, it cannot be completely excluded that some of these substances contain components that could attack the rubber pads and soften them. If possible place an anti slip material under the pads of the device.

① Note:

In certain countries there could be exceptional regulations for the allocated radio frequency ranges.

Take note that you may not exploit irregularly received radio services, pass them on to third parties or improperly misuse them.

Information regarding the handling of batteries

The device uses batteries. When handling batteries, please observe the following:

Warning

• Do not throw batteries into a fire. Do not recharge the batteries.
• Never open batteries, never solder or weld batteries. The risk of explosions and injuries exists!
• Regularly check the condition of the batteries. Leaking batteries can cause damage to the device.

• If you do not intend to use the device for an extended period, remove the batteries.

• In the event of the batteries leaking acids, put on a pair of protective gloves.

• Clean the battery compartment and the battery contacts with a dry cloth.
• Keep batteries away from children. Children could put batteries into their mouths and swallow them. If a battery is swallowed, medical assistance must be sought IMMEDIATELY.

① Note:

No liability/warranty claims will be considered for damage to the device caused by the effects of moisture, water penetration or overheating!

Intended Use

This device is designed to wake you by means of an alarm tone or radio and also for the reception of radio transmissions. Any other usage of, or modification to, the device is deemed to be improper usage and carries the risk of serious personal injury. The manufacturer accepts no liability for damages that result from an improper use of the device or that are caused by an in correct operation of it. It is not intended for commercial use.

Items supplied

1 Projection Alarm Clock
1 Operating instruction
2×1.5V Type Micro/AAA/LR03
1×3VTypeCR2032

After unpacking, immediately check the contents for completeness and fault free condition of the appliance. Remove all packaging materials and the protective foil from the device.

Operating Elements

Projection lens
2 Projektion focus (FOCUS)
SNOOZE/PROJECTION LIGHT button
4 HOUR button
MIN button
AL1 button
7 AL2 button
TIME button
9 I/O button
10 Telescopic aerial
1 Frequency scale
TUNING regulator
B Wave band selector FM/AM
14 Connection for 3V power adapter
Sound level regulator VOLUME
16 Display
17 Battery compartment

Technical Data

This device satisfies the fundamental requirements and other relevant regulations of the EMC Directive 2004/108/EC.

Operating temperature range: +5° +35°C

Storage temperature range: 0° + 50°C

Humidity: 5 90%

(no condensation)

SPUV 90 A1

Weight: 248g

Dimensions: 15.5 × 10.3 × 3.7 cm

SPUH 90 A1

Weight: 272 g

Dimensions: 15.6 × 10.2 × 4.1 cm

Battery operation: 2 × 1.5 V Type Micro/AAA/LR03 for radio operation, display illumination and projection.

1 × 3 V Type CR2032 for the clock

Frequency range :

FM (USW): 87.5 108 MHz

AM (MW): 526.5 1606.5 kHz

The technical details of the device allow for a setable frequency range outside of the permissible 87.5 108 MHz and/or 526.5 1606.5 kHz. In different countries various national regulations regarding the allocated radio frequency range can exist. Please note that information received outside of the assigned radio frequency ranges may not be used, passed on to third parties or otherwise misused.

Power supply operation:

(Mains adapter not supplied)

Input voltage: 230V 50Hz

Output voltage: DC 3V (+/5%)---

Rated current: min. 300mA

Polarity:

Even when using 3V mains adapter, a battery of the type CR2032 must be inserted. If it is not, the clock will not function.

Important:

When using a power adapter the mains power socket must be easily accessible, so that in the case of an emergency the power adapter can be quickly disconnected.

Important:

Ensure that you have the correct polarities with the batteries and the power adapter.

False polarity will damage the device.

The device can be operated as follows:

only with batteries,
- with a power adapter and a battery of the type CR2032 for the clock.

Inserting the batteries

SPUV 90 A1:

You require 2 × 1.5V batteries of the type Micro/AAA/LR03 and 1 battery of the type CR 2032 (all items supplied).

1. Open the cover of the battery compartment 17 at the rear of the device.
2. Insert the batteries into the battery compartment 17, paying heed to the polarity markings shown in the battery compartment 17.
3. Close the cover of the battery compartment 17, such that it engages firmly.

SPUH 90 A1:

You require 2 × 1.5V batteries of the type Micro/AAA/LR03 and 1 battery of the type CR 2032 (all items supplied).

1. Open the cover of the battery compartment ⑦ on the underside of the device.
2. Insert the batteries into the battery compartment 17, paying heed to the polarity markings shown in the battery compartment 17.
3. Close the cover of the battery compartment 17, such that it engages firmly.

Placing

• Place the projection clock onto a level surface.
• Position the projection clock such that the projection lens ① is directed onto an empty surface. The distance from the projection lens to the projection area (ceiling or wall) must lie between 0,4m and 3m .

Radio operation

1. Press the button I/O to switch the device on.
2. Using the sound level controller VOLUME 15, select the desired sound level.
3. Place the waveband selector switch 18 at the desired frequency range (FM/AM).
4. Adjust the TUNING regulator 12 to select the desired radio station. The frequencies can be read off from the frequency scale 11.
5. Press the button I/O to switch the device off.

Setting up the telescope aerial

• Remove the telescope aerial 10 from its retainer and set it up.
• Extend the telescope aerial 10 completely.

To improve reception in the FM frequency range, slowly turn the end of the telescope aerial 10 in various directions. As soon as you have found a position with good reception from your desired radio station, leave the telescope aerial 10 in this position. For the reception of AM transmissions, an antenna is built into the device. For improved reception, alter the position of the device in radio mode.

Setting the time

1. Press the button TIME 8 for 2 seconds. The time indicator in the display 15 blinks.
2. Press or hold the button HOUR 4 to set the hours.
3. Press or hold the button MIN 5 to set the minutes.
4. Press the button TIME ⑧ once again. The programmed time will be taken over.

Setting the alarm time

If the clock is set correctly, as described above:

1. Press the button AL1 ⑥ resp. AL2 ⑦ for 2 seconds. In the display ⑩ the indicator for the alarm function ⑪ resp. ⑫ appears and the time indicator blinks.
2. Press or hold the button HOUR 4 to set the hours.
3. Press or hold the button MIN 5 to set the minutes.
4. Press the button AL1 ⑥ resp. AL2 ⑦ once again. The programmed alarm time will be taken over.

Radio alarm call

When the alarm time is set correctly, as described above:

1. Select and set the desired radio station, and the sound volume, with which you wish to be woken (see also chapter Radio Operation).
2. Repeatedly press the button AL1 ⑥ resp. AL2 ⑦ until the symbol for radio reception appears in the display ⑩. At the programmed time the radio will now switch itself on.
3. Press the button I/O to switch the radio off until the following day.
4. To deactivate the alarm function, repeatedly press the button AL1 ⑥ resp. AL2 ⑦ until a symbol is no longer shown next to the indicator for the alarm function ① resp. ② in the display ⑥. After about 5 seconds the device returns to just a time display and the indicator for the alarm function disappears.

Wakening with the alarm tone

When the alarm time is set correctly, as described above:

1. Repeatedly press the button AL1 ⑥ resp. AL2 ⑦ until the symbol for the alarm tone appears in the display ⑩. At the programmed time the alarm tone will now switch itself on.
2. Press the button I/O 9 to switch the alarm tone off until the following day.
3. To deactivate the alarm function, repeatedly press the button AL1 6 resp. AL2 7 until a symbol is no longer shown next to the indicator for the alarm function ① resp. ② in the display ⑥. After about 5 seconds the device returns to just a time display and the indicator for the alarm function disappears.

Snoopze Function

Activation of the button SNOOZE ③ interrupts the alarm tone or the radio for about 10 minutes. After these 10 minutes the alarm procedure is repeated.

• Press the button I/O to switch the alarm function off until the following day.

Projection

Attention:

When used properly, the radiation from the projection of the display is not at all dangerous!. However, avoid looking directly into the light beam and do not aim the beam at other persons or at animals.

To display the time correctly on a wall or the ceiling, the hinged projection element needs to be swivelled into the correct position and the room must be appropriately darkened.

1. Press the button PROJECTION LIGHT 3 for 2 seconds.
   The time projection switches itself on.
2. Adjust the projection element as desired. The time is projected onto the required position. The projection distance is approx. 40cm 3m.
3. Adjust the clarity of the projection with the projection focus ②
4. Press the button PROJECTION LIGHT ③ once again for 2 seconds to switch the time projection off.

Background lighting for the display and projection

One time activation of the button PROJECTION LIGHT ③ activates the display illumination for about 8 seconds.

Important:

Never permit fluids to permeate inside the device. The device could also be irreparably damaged!

• Keep the device and the ventilation openings clean at all times.
• Use a soft and dry cloth to clean the device housing.
• Never use detergents or solvents that could damage plastics.
• Check the state and charge condition of the inserted batteries at least once a year.
• If you do not intend to use the device for an extended period, remove the batteries.
• Store the appliance at a dry and clean location with an ambient temperature of approx. 0° + 50°C .

Troubleshooting

The device does not function.

• Batterie have not been inserted. Insert batteries.
• The batteries are exhausted. Exchange the batteries.
• The batteries have been inserted incorrectly. Check the poling of the batteries and, if necessary, correct it.

The projection is fuzzy.

• The focus is not correctly programmed. Adjust the clarity of the projection with the projection focus 2.
• The distance to the projection area is too small or too large. Place the Projection Alarm Clock at a distance of between 40cm and 3m from the projection area.

Do not dispose of the device in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC.

Dispose of the device through an approved disposal centre or at your community waste facility.

Observe the currently applicable regulations.

In case of doubt, please contact your waste disposal centre.

Disposal of batteries/accumulators

Used batteries/rechargeable batteries may not be disposed of in household waste. All consumers are statutorily obliged to dispose of batteries at a collection site of their community/city district or at a retail store.

The purpose of this obligation is to ensure that batteries are disposed of in a non polluting manner. Only dispose of batteries when they are fully dis charged.

Dispose of all packaging materials in an environmentally friendly manner.

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase.

The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appli- ance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB DES UK LTD

Tel.: [phone] (£ 0.10 / minute)

E Mail: [e-mail]

IE Kompernass Service Ireland

Tel.: [phone] (0,082 EUR/Min.)

Standard call rates apply. Mobile operators may vary.

E Mail: [e-mail]

SISÄLLYSLUETTELO

SIVU
