USER MANUAL SFB 10.1 A1 10-IN-1 REMOTE CONTROL SILVERCREST

10-in-1 Remote Control

SuvRCRIST SFB 10.1 A1

&D 10-in-1 Remote Control Operating manual

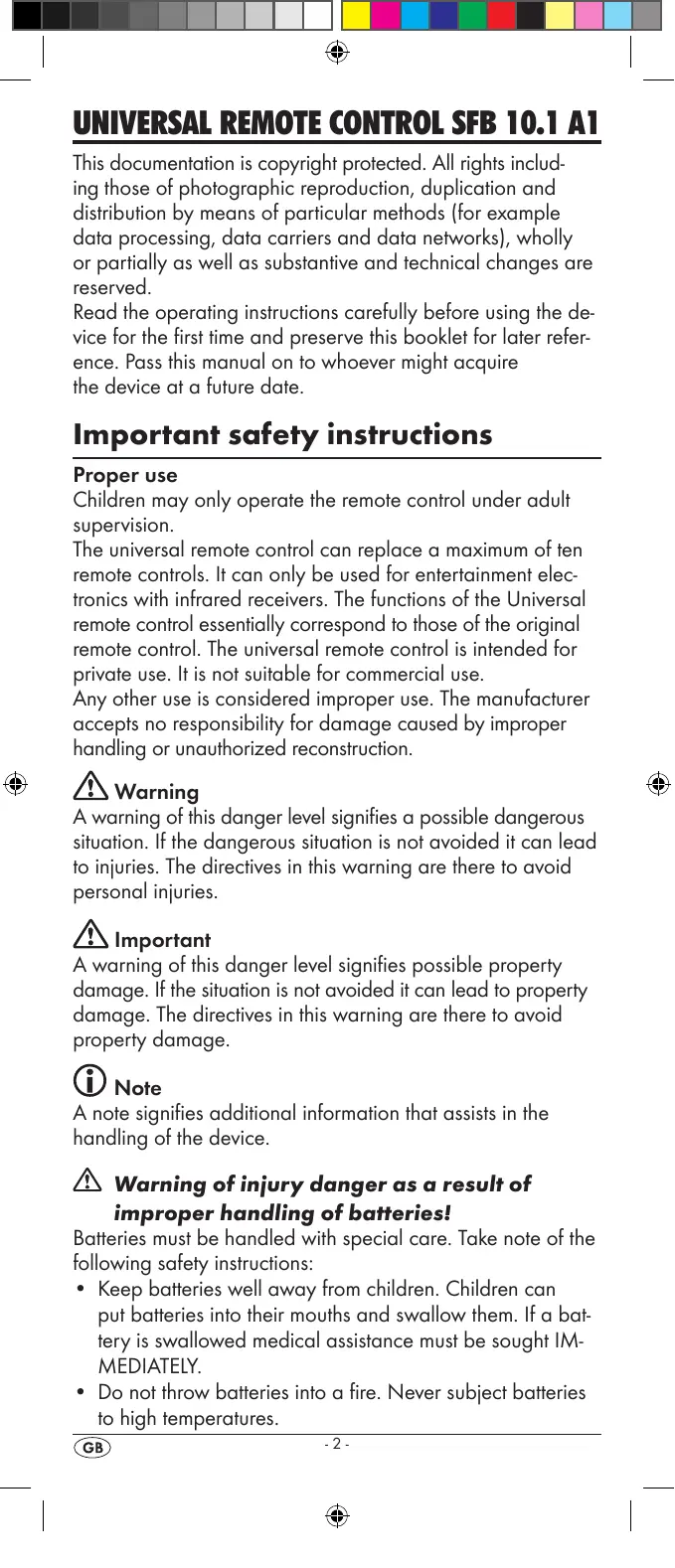

UNIVERSAL REMOTE CONTROL SFB 10.1 A1

This documentation is copyright protected. All rights includ- ing those of photographic reproduction, duplication and distribution by means of particular methods [for example data processing, data carriers and data networks), wholly or partially as well as substantive and technical changes are reserved.

Read the operating instructions carefully before using the de- vice for the first time and preserve this booklet for later refer- ence. Pass this manual on to whoever might acquire

the device at a future date.

Important safety instructions

Children may only operate the remote control under adult supervision.

The universal remote control can replace a maximum of ten remote controls. lt can only be used for entertainment elec- tronics with infrared receivers. The functions of the Universal remote control essentially correspond to those of the original remote control. The universal remote control is intended for private use. lt is not suitable for commercial use.

Any other use is considered improper use. The manufacturer accepis no responsibility for damage caused by improper handling or unauthorized reconstruction.

A warning of this danger level signifies a possible dangerous situation. If the dangerous situation is not avoided it can lead to injuries. The directives in this warning are there to avoid personal injuries.

A warning of this danger level signifies possible property damage. If the situation is not avoided it can lead to property damage. The directives in this warning are there to avoid property damage.

A note signifies additional information that assists in the handling of the device.

À Warning of injury danger as a result of improper handling of batteries!

Batteries must be handled with special care. Take note of the

following safety instructions:

+ Keep batteries well away from children. Children can put batteries into their mouths and swallow them. If a bat- tery is swallowed medical assistance must be sought 1M- MEDIATELY.

+ Do not throw batteries into a fire. Never subject batteries to high temperatures.

eo F Explosion hazard! Non-rechargeable batteries must never be recharged.

+_ Do not open the batteries or short-circuit them.

Battery acid leaking from a battery can cause inflamma- tion of the skin. In event of contact with the skin, rinse with large amounts of water. IFthe liquid comes into contact with your eyes, rinse thoroughly with water, do not rub and immediately consult a doctor.

The Universal remote control contains an infrared diode

of laser class 1. In order to avoid eye injuries do not look at the diode with optical devices.

Damage to the device

If the device is defective, do not attempt to repair it your- self. In case of damage, contact the manufacturer or the manufacturer's service hotline (see Warranty information). If liquid escapes from the device or if the device has been otherwise damaged, it must be inspected by the manu- facturer or the manufacturer's service hotline. Contact the manufacturer or the manufacturer's service hotline (see Warranty information].

Take the batteries out of the battery compartment as soon as they are depleted.

If you will not be using the device for a long period of time, remove the batteries to prevent them from discharging. Always change all batteries at the same time and always use batteries of the same type.

Button for one or two digit programme numbers © Teletext function buttons © Illumination button

+_The functions described here pertain to the theoretically ideal circumstance that the button structure of the respec- tive original remote control is identical to this universal remote control. This only occurs, however, in rare cases. If, therefore, not all of the original remote control's functions can be reproduced it is not due to a dificiency in the Uni- versal remote control.

All the brand names used in these instructions or in the accompanying code list are trademarks of the correspond- ing companies.

Unpacking the device/checking the package contents

AN Warning! Keep the plastic packaging well away from small children. There is a risk of suffocation! + Unpack the device and accessories. + Check the package contents - Universal remote control (URC), - Operating instructions, - Manufaciurers directory with device code list: -2 x 1,5 V Batteries, type AAA/LRO3 (Micro)

Inserting the batteries

À Attention! The Universal remote control must only be operated with 1.5 Volt batteries (Type AAA, LRO3).

Carry out the battery change as quickly as possible. Preset settings will remain saved for approx. 1 minute. If new baïter- ies have not been installed within this time all of the settings Will have to be carried out again. The time of day and date will, however, be lost in either case.

1. Open the battery compartment cover @ in the direction ofthe arrow.

2. Insert the batteries as shown in the diagram and close the battery compartment.

The LCD display @ is activated as long as batteries are

installed. The following diagram shows the LCD display @

after the batteries have been installed or changed.

Operating components

LCD display The LCD display @ is divided into fields. @

Text field @ Here is shown the currently selected device, for example DVD, TV VCR etc.

Infrared symbol @ Every time a button is pressed, with which an infrared signal is to be sent the Infrared symbol illuminates.

Here is shown the device code of the relevent selected de- vice or the time of day. With the time of day indicator ":" the numbers blink in the middle.

Day of the week field ® Here you can read the English shortened form of the current day of the week after you have entered the date.

ON = Monday TUE = Tuesday WEB = Wednesday

THU Thursday FRI = Friday SAT = Saturday SU = Sunday

D display: FR. 00:00

The standard readout of the LCD display @ consists of the details for the relevent device, for example, "TV", the initial for the day of the week and the time of day indicator.

O/ALL OFF button. @ ALL OFF Switch device on/off. hold down for approx. 5 seconds to switch all devices on/off. &

Device buttons @ The device buttons are used to select the device that should be operated.

Analogue satellite receiver Audio amplifier

Digital satellite receiver

The mentioned button allocation is not compulsory. You can, for example, also save the code for the video recorder on the TV slot.

Hold down for 3 seconds to access the SETUP menu, press briefly to superimpose the date and/or to open access to addi- tional functions such as EPG or PIP.

Move up, right, left and down in menus.

EXIT button @ Move a level backward in the menu.

ä P Change the reception channel.

MACRO button @ MACRO button @ followed by a number MACRO button © 1-6 activates a previously saved chain of commands.

Number buttons @ Enter programme and device code numbers.

Button for one/two digit programme numbers ®

For two digit programme numbers (depend- ing on the device type) first press

the © button then via the number buttons @ enter the programme number.

When pressed again the display becomes single digit once more.

Teletext function buttons © In teletext operation the buttons have the following functions:

Access the teletext function.

In normal TV operation first press the

S button @ followed by the button to control the “PIP" function (picture in picture) of your television set.

Stop automatic paging forward for multi-page teletexts.

Enlarge page presentation

other To end the teletext function.

EN Screen text and TV image one upon the [ET]

The teletext function is only available in the European TV mode and your TV device must have a teletext module. In addition the P +/- buttons @ control the following teletext functions:

P+ Leaf one page forward

P- Leaf one page backwards

Record/playback buttons ® The playback buttons ® control devices such as DVD/CD players and video recorders:

[=— | Start playback

ASPECT Image format switching with TV operation. | e | Record

OK button ® Cox] You can confirm a menu selection with the OK button.

Press he FAV/EPG pute lo access your previously programmed favourite station. To access the electronic programme guide of the target device first press briefly the S button @ and then the FAV/EPG button.

SETUP - System settings

In the system settings you undertake the following:

+_ Programming the remote control to the devices to be con- trolled

+_ Settng the time of day, date, display contrast, background

illumination, volume, lock function as well as system reset.

+ The "learning" of designated button commands

+ Assigning favourites

On the following page you can see a summary of the menu structure. m | |C0DE |25 ENTER FR! 00.00 2% SETUP ler CODE

(SYSTEM 1 TIME SETUP ex |SETUP

IFAV CH CLERR Code Setup (Programming the remote control)

3 Programming methods are available for the remote control: Programming by brand code search, by automatic code search and by direct code input (manual).

First you should use the brand code search since this method is the fastest way of programming if the manufacturer of your de- vice is itemized in the code list. As second is recommended the direct code input followed by the automatic code search.

Programming by brand code search

With this method you select the brand and code direct via the LCD display ©.

Observe the following operational references to programme the remote control:

1. Press the device button @ for the device that you want to programme the remote control.

2. Hold down the S button @ for a little longer than 3 sec- onds. Carry out entries in the menu quickly because after approx. 15 seconds without an entry the menu will be ended.

3. In the LCD display @ "CODE SETUP" appears. Press the OK button ®. "ENTER CODE" now appears in the LCD display @. With the à + buttons @ select "BRAND CODE" and confirm with the OK button @®.

4. Now appears the alphabetical first brand name from the list of pre-programmed devices.

5. Withthe 4 » buttons @ select the various brand names.

6. To make access easier you can skip directly to specific let- ters of the alphabet with the number buttons @: 2=>A 3=>D 4=>G 5=>)J 6=>M 7=>P 8=>T 9=>W Example With button number 5 the display skips to the letter "J", The first brand is "JVC"*. If, for example, you own a "Kenwood"* brand device, continue leafing with the } button @ until this brand name appears. (* All brand names used here are trademarks of the corre- sponding manufacturer.)

7. The majority of manufacturers use several different codes for the remote control. You must now ascertain which of the available codes is best suited to your device. On the right underneath the brand name the relevent code will be shown in the LCD display ©.

8. Point the remote control to the relevent device and press the function buttons to test the code (except à + 4 > ©, OK @, EXIT 6, or the number buttons @).

9. 1F most of the buttons function press the OK button @ to save the setting. In the LCD display @ "OK" appears. Subsequenily the menu will close automatically.

10. If, however, none or only a few of the buttons function select with the 4 or + button @ the next code and test again as described in step 8.

11. With the EXIT button @ you will move one level upwards in the menu.

Repeat these operational steps for all devices that you would

like to control with the remote control.

Programming by manual code input

In this mode the remote control can be programmed by direct input of a code number. You can obtain the necessary code number from the enclosed manufacturers directory with device code list. In the event that the new code is invalid the last valid programmed code will be restored.

1. Press the device button @ for the device that you want to programme the remote control.

2. Hold down the S button @ for a little longer than 3 sec- onds.

3. In the LCD display @ "CODE SETUP" appears. Press the OK button ®. "ENTER CODE" now appears in the LCD display @. To access this function press the OK button ®.

4. In the LCD display @ appears the presenily used code for the selected device. Now the first digit of the code blinks & and waiïts for your code input. Enter the new four digit code via the number buttons ©.

5. Ifthe entered CODE is valid the code will be saved. In the LCD display @ "OK" appears briefly. Subsequenily the menu will close automatically. In the event of failure the LCD display @ shows briefly "ERROR" and waiïts for a new code entry. Then you repeat step 4.

6. With the EXIT button @ you will move one level upwards in the menu.

Programming by automatic code search

This process can take several minutes per device since all codes for the selected device have to be gone through. Therefore this method should only be used when the device cannot be programmed via brand code search or direct code input or if your device is not listed at all in the manufac- turers directory with device code list.

Follow the steps listed below to carry out programming by means of the automatic code search.

1. Press the device button © for the device that is to be con- trolled (i.e. VCR).

2. Switch the device that is to be controlled with the remote control on. With VCR/DVD/CD devices please insert a tape and/or disc.

3. Hold down the S button @ for a little longer than 3 sec- onds.

4. In the LCD display @ "CODE SETUP" appears. Press the OK button ®. "ENTER CODE" now appears in the LCD display @. Press the 4 or + button @ until "SEARCH CODE" is shown in the LCD display @. Point the remote control to the device and then press the OK button ® to access the mode "automatic code search".

5. The search begins. Thereby the device sends, one after the other, the code numbers in ascending order. The infra- red symbol @ indicates this.

6. When the device reacts by switching off press immedli- ately the OK button ® to save the relevent code. The LCD display @ shows briefly "OK".

7. Check to see if the majority of your device's functions can now be controlled with the remote contol. If yes you have most probably found the correct code. In the event that a few functions are not working you can start the automatic code search again beginning with step 1.

However, with a renewed code search, point the URC first to the target device after the previously found inad- equate code has run its course.

8. However if the device does not react any more you prob- ably did not press the OK button ® quick enough in step 6. Then press repeatedl} the EXIT button @ to exit the menu and return to the standard display.

9. Now hold down the device button @ of the device for which you have just sought the relevent code. Below on the right in the LCD display @ will thereby be shown the relevent code. Make a note of this number.

10. Then proceed as described in the preceding chapter "Programming by manual code entry" and check to see

ifthe code with the next lowest number combination will function.

1. When code search is activated all buttons except OK ® and EXIT @ are ignored.

2. Ifthe automatic search has reached the end of the code list it stops there. The display then returns to "SEARCH CODE".

The LCD display @ shows you the time of day. You set this as follows:

1. Hold down the S button @ for a little longer than 3 seconds. The notice "CODE SETUP" appears. If appox. 15 seconds passes without an entry the device exits the menu and returns to the standard display.

2. Withthe 4 or + button @ select "SYSTEM SETUP" and confirm with the OK button @.

3. In the LCD display @ "TIME SETUP" appears. Confirm With the OK button ®. The LCD display @ now shows "TIME" and the time format (24 HR) blinks.

4. Withthe 4 or + button @ you can switch to the other time format (72 HR). After which the time display for the time of day will show an “A” or “P" before the time. ,R" stands fpr “AM” = “ante meridium” (Morning, 0:00 o‘clock midnight to 12:00 o'clock midday). ,P" stands for “PM" = “post meridium” (Afternoon and evening, 12:00 o‘clock midday to 0:00 o’clock midnight]. Press the OK button ® to confirm.

5. Now the hour indicator blinks. With the 4 or + button @ select the hour number for the present time of day and press the OK button ®.

6. Now the minute indicator blinks. With the 4 or + button L © select the minute number for the present time of day & and press the OK button @® to save. The "TIME SETUP" notice appears again.

7. To exit this or the following menus press repeatedly the EXIT button @ until the standard display appears in the LCD display @.

The LCD display @ shows you the date when you press the S button ©. You set the date in this way:

1. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

2. Withthe 4 or + button @ select "SYSTEM SETUP" and confirm with the OK button @.

3. In the LCD display @ "TIME SETUP" appears. Press the w button @ to change to "DATE SETUP". Confirm with the OK button @.

4. In the display the year "2010" blinks. With the 4 or + button @ you can change the year and confirm with the OK button ®. With the 4 or + button @ you can change the now blinking month and confirm with the OK button ®. Now the day indicator blinks which you can also change with the 4 or + button @.

5. To save press the OK button ®. The "DATE SETUP" notice appears again.

æ LE Adjust contrast You can set the display's contrast as follows:

1. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

2. Withthe 4 or + button @ select "SYSTEM SETUP" and confirm with the OK button @.

3. Withthe 4 or + button @ select "CONTRAST SETUP" and confirm with the OK button ®.

4. In the LCD display @ the contrast value now blinks which you can set with the 4 or + button @. Display readout:

O = highest contrast:

15 = lowest contrast

5. With the OK button ® you can save the desired setting. The notice "CONTRAST SETUP" appears again.

Background Illumination

You can set how long the LCD display's @ background and the button illuminations remain alight after completion of the operation. Thereby taking into account that the longer the il lumination remains lit the shorter the battery life will be.

1. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

2. Withthe 4 or + button @ select "SYSTEM SETUP" and confirm with the OK button @.

3. Withthe 4 or + button @ select "BACKLIT SETUP" and & confirm with the OK button @.

4. In the LCD display @ now blinks the second count for the length of time that the light is to be left on which you can set with the « + buttons @ from O to 60. If you select "O" the background illumination will shut off completely.

5. With the OK button ® you can save the desired setting. The notice "BACKLIT SETUP" appears again.

Setting the global volume/mute switching

So that you don't always have to first press a device button for the volume control and mute switching, for these functions the URC always only responds to an individual device,

by default the television set. You can determine this target device yourself.

1. Hold the S button @ down for a little longer than 3 seconds. The notice ,CODE SETUP" appears.

2. Withthe 4 or + button @ select "SYSTEM SETUP” and confirm with the OK button ®.

3. Withthe = or + button @ select “VOL/MUTE SETUP" and confirm with the OK button @.

4. The LCD display @ shows "ALL VOL SET”. Press the OK button ®, the display changes to ,ALL VOL MODE".

5. Now press the device button @ for the device that is to be controlled by the global volume control.

6. lfthe specified device is equipped with a volume control, "SUCCESS" will be displayed briefly and the menu will close. From now on the volume control functions on the device just specified.

7. IFthis device is not equipped with its own volume control the URC will not allow this selection and shows "VOLUME ERROR". Even then the menu will close. The volume con- trol will then continue to function on the former device.

You can also deactivate the global volume control for specific devices.

1. For this purpose select in the VOL/MUTE SETUP with the A or + button @ the function MODE VOL SET and confirm with the OK button ®.

2. Now press the device button @ for the device that is to be excluded from the global volume control. The LCD display @ shows , SUCCESS" and the global volume control is deactivated if the URC is working in the opera- tional mode of one of the selected devices.

You can also cancel the settings again in VOL/MUTE SETUP.

1. For this purpose select in the VOL/MUTE SETUP with the A or + button @ the function VOL/MUTE RESET and confirm with the OK button ®.

2. The LCD display @ prompts you, with CONFIRM RESET, to a confirmation which is done by pressing the OK but- ton ®. Press the OK button ® If you want to delete the settings, the SUCCESS indicator then confirms the dele- tion. Otherwise you press the EXIT button @ to abort the deletion.

Setting the lock function

With the lock function you can block access to all setup menus.

1. Hold down the S button @ for a little longer than 3 sec- onds.

2. Withthe 4 or + button @ select ,SYSTEM SETUP” and confirm with the OK button ®.

3. Withthe 4 or + button @ select ‘LOCK SETUP and confirm with the OK button ®. The LCD display @ shows the current settings.

4. Withthe « or + button @ now select between ,LOCK" (Block) or ,UNLOCK” (Unblock).

5. With the OK button ® you save the setting. In the LCD display @ ,LOCK SETUP" then appears again.

Via this function you can reset the URC to its factory default settings. Thereby all settings made by you will be deleted.

1. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

2. Withthe 4 or + button @ select "SYSTEM SETUP" and confirm with the OK button @.

3. Withthe 4 or + button @ select "SYSTEM RESET" and confirm with the OK button @.

4. In the LCD display @ now appears "CONFIRM RESET". Confirm the reset with the OK button ®. Then the LCD display @ shows “SUCCESS RESET”. AIl settings are now deleted and the menu is closed. Otherwise you can exit the menu by pressing the EXIT button @. Then the set- tings remain preserved.

The URC offers 2 timer modes, sleep timer and event timer.

1. Press the device button © for the device that is to be con- trolled (i.e. VCR).

2. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

3. Pressthe 4 or + button @ until "TIMER SETUP" is shown. Press the OK button ® "TIMER SLEEP" appears in d the LCD display @. Confirm the selection of this function & with the OK button ®.

4. Now, below to the right in the LCD display @ blinks the minutes for the remaining time of the selected device. Set with the 4 or + button @ the desired value from 1 to 99 minutes. Press the OK button @ to confirm. With programmed sleep-timer the LCD display @ shows “zZ” on the right next to the time.

5. Position the remote control in such a way that your infra- red signal can reach the device to be switched off. After expiration of the set time the remote control will switch the device off.

6. IF you now press the S button @ “SL” is shown in the dis- play @ below on the left.

The remote control has 4 event timers available via which you are allowed to send out specific series of button combi- nations at designated times.

1. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

2. Withthe 4 or + button @ select 'TIMER SETUP" and confirm with the OK button @. "TIMER SLEEP" appears in the LCD display @. With the 4 or + button @ select the desired memory slot "TIMER SETUP 1" to "TIMER SETUP 4" and confirm with the OK button @®.

3. Now the hour of the time of day, to which the desired button combinations are to be carried out, blinks. Set with the 4 or + button @ the desired hour and press for con- firmation the OK button ®@.

4. Now the minutes of the time of day, to which the desired button combinations are to be carried out, blinks. Set with the 4 or + button @ the desired minutes and press for confirmation the OK button @.

5. In the LCD display @ you will see "TIMER X KEY" (X stands for the desired timer). Now press the desired device button @ followed by the desired sequence of the button commands.

6. Press the S button @ to save your entry and to return to the timer menu.

7. Procede in a similar manner in order to, if required, programme the other timer memory slots also.

8. With programmed event timer the LCD display @ shows the timer symbol ,©)” on the right next to the time.

. Per timer memory slot a maximum of 14 buttons can be programmed. After entry of the 14th button the sequence Will be automatically saved and "FULL" is shown in the LCD display @.

2. In this menu also the device will return to the standard dis- play after approx. 15 seconds without an entry.

The Universal remote control (URC) can learn and save but- ton signals of an original remote control. If the URC does not work after applying the programming methods already de- scribed or cannot carry out all commands please attempt to teach the URC with the help of the original remote control.

+ Use new batteries for the URC and the original remote control.

Maintain a distance of at least one metre from other light sources. The light sources could disrupt the infrared trans- mission.

Place the URC and the original remote control at a dis- tance of 20 to 50 mm from each other on an even surface 50 that the infrared diodes @ are facing each other.

Do not use the following buttons for the learn function: all device buttons @, MACRO ©, S button @, EXIT ©.

2. Press briefly the button of the original RC. When “SUC- CESS” appears in the LCD display @ the button com- mand has been successfully learnt. However, if ,LEARN ERROR" (Failure) appears you must repeat the procedure.

3. Ifwhen teaching, during the notice "LEARNING", no button is pressed on the original RC after 25 seconds the learn menu will end. This mode can not be ended by pressing a button on the URC.

4. The memory can accommodate 150 button commands. IFthe memory is full the LCD display @ shows "LEARN FULL" and the learn mode will end.

5. With the EXIT button @ you return to the previous status (except with a notice of "LEARN KEY" and/or "LEARN- ING').

1. Press the device button © for the device that the URC should learn a button code.

2. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

3. Withthe 4 or + button @ select the menu "LEARN SETUP" and then press the OK button ®.

4. In the LCD display @ "LEARN SET" appears. Then press the OK button @. In the LCD display @ "LEARN KEY" ap- pears.

5. First press the button on the URC that is to be taught. In the LCD display @ "LEARNING" appears. The URC now waits for the infrared signal from the original remote control. © Note:

Should the notice not change to "LEARNING" you have selected a button for which no button code can be taught.

6. Point the infrared sensors @ of both remote controls towards each other.

7. Now hold down the desired button of the original remote control until "SUCCESS" or "LEARN ERROR" appears in the display @ of the URC.

8. Ifin the LCD display @ "SUCCESS" appears (process successful), you can teach further buttons begining with step 5. IF"LEARN ERROR" appears {process unsuccessful) repeat the process in any case from step 5.

9. To cancel/terminate the learning process, during the display “LEARN SET”, repeatedly the EXIT button @ until the standard display is show in the LCD display @. Dur- ing the notice "LEARN KEY" and/or "LEARNING" simply allow 30 seconds to pass without any operation then the device will end the menu.

Delete all programmed buttons of all devices

1. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

2. Withthe 4 or + button @ select the menu "LEARN SETUP" and then press the OK button @. In the LCD display @ "LEARN SET" appears.

3. Withthe 4 or + button @ select "LEARN CLEAR" (taught delete) and confirm with the OK button @. In the LCD display @ "CONFIRM CLEAR" (confirm delete] appears.

4. Confirm with the OK button @. In the LCD display @ "SUCCESS" appears. All programmed buttons are de- leted. Finally the menu will automatically end.

With the MACRO function up to 16 button commands can be carried out with the press of a single button, that is to say, several previously saved control commands can be deleted With one MACRO button. There are 6 Macro memory slots available for you.

To programme a Macro For Macro programming proceed as follows:

1. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

2. Withthe 4 or + button @ select "MACRO SETUP" and confirm with the OK button @. In the display "MACRO SETUP 1" appears.

3. Withthe = or + button @ select the memory slot to be programmed (MACRO SETUP 1 - 6] and confirm with the OK button @.

4. In the LCD display @ "MACRO STEP" appears. Now press, one after the other, the desired buttons (max. 16).

The sequence should begin with a device button @.

5. By default the Macro commandés are sent in intervals of 1 every second. Since many devices react sluggishly it is & possible that the sequence of the Macro commands are sent too quickly to the device. Then you have the option of programming, before a button command, a pause of between 5 - 21 seconds. For this purpose press, if nec- essary repeatedly, the MACRO button @. Below and to the right the LCD display @ shows the current pause length in seconds.

6. When the maximum number of button commandés is reached the LCD display @ shows "FULL".

7. Save the entry with the S button @. In the LCD display @ "MACRO SETUP" appears.

8. If, with the selection of the Macros to be programmed (step 3), you select a memory slot that is already occupied the existing Macro will be overwritten.

9. Repeat the process from step 3 to create further Macros.

10. With the EXIT button @ you move a level upwards in the

menu except during the entry of the button commands.

1. À maximum of 16 button commands can be saved in a Macro. After input of the 16th button command, “FULL” appears in the LCD display @.

2. To exit the mode without saving allow approx. 15 sec- onds to pass without an entry.

Example: You want to save a command chain in a Macro. We begin in the mode "MACRO STEP".

Desired command chain: Switch on TV => PAUSE => switch to the AV input => switch on DVD => PAUSE => Playback DVD.

In the mode "MACRO STEP", for this you enter the following button commands:

lo (Pause time) => EN Execute a Macro To execute a pre-programmed Macro proceed as follows:

1. Press the MACRO button @.

2. With the corresponding number button @ you access the desired Macro (1-6). Example: If Macro 3 is to be imple- mented press first the Macro button @ and then, within 5 seconds, the number button "Ie".

To delete all Macros To delete all pre-programmed Macros proceed as follows:

1. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

2. Withthe 4 or + button @ select "MACRO SETUP" and confirm with the OK button @. In the display "MACRO SETUP 1" appears.

3. Withthe 4 or + button @ select "MACRO CLEAR" and confirm with the OK button @.

4. In the LCD display @ "CONFIRM CLEAR" (confirm delete) appears. Confirm the delete process with the OK button ®. The LCD display @ shows "SUCCESS". All Macros are now deleted and the menu will end.

2. Individual Macros can not be deleted they can only be overwritten.

To programme favourites Your favourite stations are saved as follows:

1. Press the device button @ for the device that you want to save a favorite.

2. Hold down the S button @ for a little longer than 3 sec- onds. The notice "CODE SETUP" appears.

3. Withthe 4 or + button @ select "FAV CH SETUP" and confirm with the OK button ®. In the display "FAV CH SETUP 1" appears.

4. Withthe 4 or + button @ select the memory slot to be programmed (FAV CH SETUP 1 - 4) and confirm with the OK button @.

5. In the LCD display @ "FAV CH STEP" appears. Now press, one after the other, the buttons (max. 4) for access to your desired favourite stations.

6. When the maximum number of button commandés is reached the LCD display @ shows "FULL".

7. Save the entry with the S button @. In the LCD display @ "FAV CH SETUP" appears.

8. If, with the selection of the favourites to be programmed (step 4), you select a memory slot that is already occu- pied the existing favourite will be overwritten.

9. Repeat the steps to apply further favourites.

10. With the EXIT button @ you move a level backwards in the menu except during the entry of the button commands.

with multi-digit channel numbers you must first press the BEEN button ®.

To access favourites

To access a pre-programmed favourite press the FAV/EPG & button ® followed by the corresponding number button for

the desired memory slot [1 - 4).

Delete All FAV channels To delete all pre-programmed favourites proceed as follows:

1. Hold down the S button @ for a little longer than 3 sec- onds.

2. Withthe 4 or + button @ select "FAV CH SETUP" and confirm with the OK button ®. In the display "FAV CH SETUP 1" appears.

3. Withthe 4 or + button @ select "FAV CH CLEAR" and confirm with the OK button @.

4. In the LCD display @ "CONFIRM CLEAR" (confirm delete) appears. Confirm the delete process with the OK button ®. The LCD display @ shows "SUCCESS". AIl favourites are now deleted and the menu will end.

1. When the LCD display @ shows "CONFIRM CLEAR" you can stop the delete process with the EXIT button @.

2. Individual favourites can not be deleted they can only be overwritten.

Vol +/—, X (Mute switching)

Press the "VOL+" button to increase the volume. With the "VOL —" button you reduce the volume. To mute the sound press the ME-button ®. À further press of this button turns the sound back on.

When you activate the VOL +/— buttons ® on the URC basi- cally the volume adjustment on the TV device is addressed, regardless thereof, which device button @ was pressed previously. However, this does not apply to the following devices: “AMP”, “DVD”, "ASAT”, and “DSAT” since it can be assumed that these devices are equipped with their own volume control.

With the button ES ALL OFF (all off) @ all devices that are switched on can be automatically switched off. This func- tion can switch on again devices that have already been switched off (depending on the device]. For this hold down the ALL OFF button @ for approx. 5 seconds. This will only function under the following circumstances:

1. A visible connection exists between all the devices and the URC.

2. Automatic code search, brand code search and MACRO function are not active.

3. All target devices must be suitable for remote control switch off.

Cleaning and storage

À Attention! Ensure that moisture cannot permeate into the device during cleaning! Otherwise there is the danger of causing irreparable damage to the device! © Clean the housing of the device exclusively with a soft moist cloth and a mild dishwashing detergent. © Store the device exclusively in an environment that com- plies with the specifications given in the technical data. © Before storing remove the batteries so that they will not cause damage to the device if, during storage, they happen to leak.

Your device does not react to the URC. © Check the batteries. They must have enough voltage and be properly installed. © Firstly have you pressed the correct device button @ for the desired target device? © Check to see that the correct code is programmed in for the target device (see section "Code Setup"). &

The URC is transmitting the commandés incorrecily.

The URC does not change the station on the device.

Some buttons on the URC do not function properly.

æ FF The URC stops reacting after a button is pressed.

The LCD display @ shows nothing.

Disposal Do not dispose of the device in your normal D

domestic waste. This product is subject to the

European directive 2002/96/EC.

Universal remote control

+ Have the universal remote control or parts of it disposed of by a professional disposal company or by your commu- nal disposal facility.

+ Observe the currently applicable regulations. In case of doubt contact your disposal facility.

Batteries/rechargeable batteries

+ Used batteries/rechargeable batteries may not be dis- posed of in household waste.

+ Batteries can contain poisons which are damaging to the environment. Therefore, dispose of the batteries/recharge- able batteries in accordance with statutory regulations.

+ _ Every consumer is legally obliged to surrender batteries/ rechargeable batteries to a community collection centre in their district or to a dealer. The purpose of this obliga- tion is to ensure that batteries are disposed of in a non- polluting manner.

+ Only dispose of batteries when they are fully discharged.

Dispose of packaging materials in an environmentally

Controllable devices: 10

LxW xH: 217 x 50 x 22 mm

Weight : 102 g (without batteries]

Infrared LED: Laser class 1

Batteries: 2 x 1.5 V, type AAA/LRO3 (micro) (supplied)

Operating temperature: + 5 - +35°C Storage temperature : -20-+50 °C Humidity: 5-90 % (No condensation]

Note regarding conformity CE This device satisfies the fundamental requirements and other relevant regulations of the EMC Directive 2004/108/EC.

You receive a 3-year warranty for this appliance as of the purchase date. This appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free des- patch for your goods be assured.

The Warranty covers only claims for material and manufactur- ing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries.

This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive

. . : Le. r and improper handling, use of force and internal modifica- & tions not carried out by our authorized Service Centre.

Your statutory rights are not restricted in any way by this war- ranty.

The warranty period is not extended through repairs made under Warranty. This applies also for replaced or repaired parts. Any damages or deficiencies found on purchase must be reported as soon as possible after unpacking, at the lat- est two days after purchase. On expiry of the warranty, all repairs carried out are subject to payment.

CD DES UK LTD Tel.: 0871 5000 700 (£ 0.10 / minute) e-mail: supportuk@kompernass.com

Pole dni tygodnia ® Tutaj wy$wietlaja sie skrécone nazwy angielskich dni tygodnia po wprowadzeniu daty.

ON = Monday = Poniedziatek TUE = Tuesday = Wiorek WEB = Wednesday = $roda

THU Thursday Czwartek FRI = Friday = Piatek UN = Saturday = Sobota UN = Sunday = Niedziela

MD standardowe: FR! 00:00

FAP CH FAP CH SETUP a

Manufacturer List with Device Code List
