EN 0) © COS mm Introduction MP3-Car Radio - Recorder © CDslot KH 2389 @ CD eject button @ IR sensor (remote control) © Unlock button # Introduction © 0 “A/PS" button © Skip button (backward) For your personal safety © Skip button (forward) @ “REC./SCN” button Please read the operating instructions carefully; to @ “ENT/BD* button do so, unfold the pages featuring the illustrations. (E] “AF' button Pay precise attention to the notes when taking the @ “TA” button device into operation. Should you have any further © “PTY” button questions on how to use this car radio — recorder, (O] “6” button please contact your national service point. Store the @ “5” button operating instructions safely for later reference and @ “4/RDM” button hand them to third parties when passing your car © “3/INT” button radio — recorder to a new user. @ “2/RPT" button @ “1/PAU" button @ “MD/LD” button Proper Use @ “DISP” button @ “SEL/VOL" dial The MP3 car radio - recorder KH 2389 is designed @ [© ]nim “DIM/POWER" for private use to receive radio stations broadcasting (O) on FM/AM/LW frequencies and to play audio storage Rear of Control Panel (see fig. B) media like CD, CD-R, CD-RW, USB stick, MP3 player, SD and MMC. it is suitable to record MP3 or WMA @ Unlock mechanism formats on SD or MMC (not included) of the played @ Cable connector broadcastings. The MP3 car radio recorder has a removable control panel and an IR remote control Front of MP3 Car Radio - Recorder (control whose power is supplied exclusively with 1x Lithium panel removed) (see fig. C) battery, type CR2025, 3 V DC. The power for the MP3 car radio - recorder must be supplied exclusively by @ Front connecting it to 12 V DC. The device is designed to @ SD and MMC plug-in connect four loudspeakers with impedance of @ USB plug-in 4-8 Ohm/output max. 4x45 W, a final amplifier and 6) CD tray a CD changer. Any careless use or use that is notin @> Attachment point 2 x compliance with the intended purpose of the device @ Eject mechanism entails a loss of warranty. @ Connector socket @ LED (red) @ Reset button Features Front of MP3 Car Radio — Recorder (control panel Front of Control Panel (Fig. A) and ABS plastic frame removed) (see fig. C) @ Control panel @ Unlock aperture © ABS plastic frame

Rear of MP3 Car Radio - Recorder (see fig. D) Metal casing with vents 1S0 plug jack to connect loudspeaker Plug-in rear right loudspeaker (+) Plug-in rear right loudspeaker (-) Plug-in front right loudspeaker (+) Plug-in front right loudspeaker (-) Plug-in front left loudspeaker (+) Plug-in front left loudspeaker (-) Plug-in rear left loudspeaker (+) Plug-in rear left loudspeaker (-) Flat blade fuse socket Flat blade fuse 7.5 À 1S0 plug jack for 12 V DC power supply (incl. connection of powered aerial) Plug-in for 12 V DC constant current Plug-in powered aerial Plug-in for 12 V DC ignition current Plug-in minus/ ground connection vehicle LINE IN R-Cinch plug-jack (red/right) LINE IN L-Cinch plug-jack (white /left) REAR Cinch R-plug-jack (loudspeaker connection (red/rear right)) REAR Cinch L-plug-jack (loudspeaker connection (white /rear left)) FRONT-Cinch-plug-jack (loudspeaker connection (red/front right)) FRONT-Cinch-plug-jack (loudspeaker connection (white /front left)) Aerial socket © © © © 660066006006 666666666066 Top of MP3 Car Radio - Recorder (see fig. E) @) Transport safety screw 2x Front of Remote Control (see fig. F) “DIM/POWER” button “SEL” button “TUNE/SEEK” button multi-functional key à “VOL” button (upper) a Skip button (backward)

@ Skip button (forward) KH2389_Radio_content_UKindd 7 DIN 8 pole plug-jack AUX (CD changer connection) Fastening screw (incl. M5 nut and plain washer) Introduction ® w “VOL button (lower) @ “MODE/LOUD" button @ P3 AS/PS" button @ EX 5 “D-UP/5" button ) DN/6" button [D] TY*button ) FA/TP” button LE] “DISP" button ) “SCAN/REC." button © UE =} ‘4/RDM button @ “3/INT" button @ “2/RPT" button @ EE 57 “/PAU button @ “BAND/ENTER" button Rear of Remote Control (see fig. G) © Battery compartment @ Battery holder @ Unlock button Scope of Delivery/ . Supplied Accessories & 1x MP3 car radio - recorder (inclusive control panel) 4xIR remote control {inclusive 1 x Lithium battery type CR2025, 3 V DC) 1x storage box 1x DIN assembly bracket 2x installation key 1x operation manual Technical Information Car Radio - Recorder Nominal voltage: 13.8 V DC (minus pole negative, connected to vehicle's chassis) Power consumption: 10 A Output: max. 4x45 W active power factor Distortion: - 40 dB (1%) Amplifier TAD 7386 4 4 band preset EQ cm 7

08.09.2005 11:39:00 Uhr

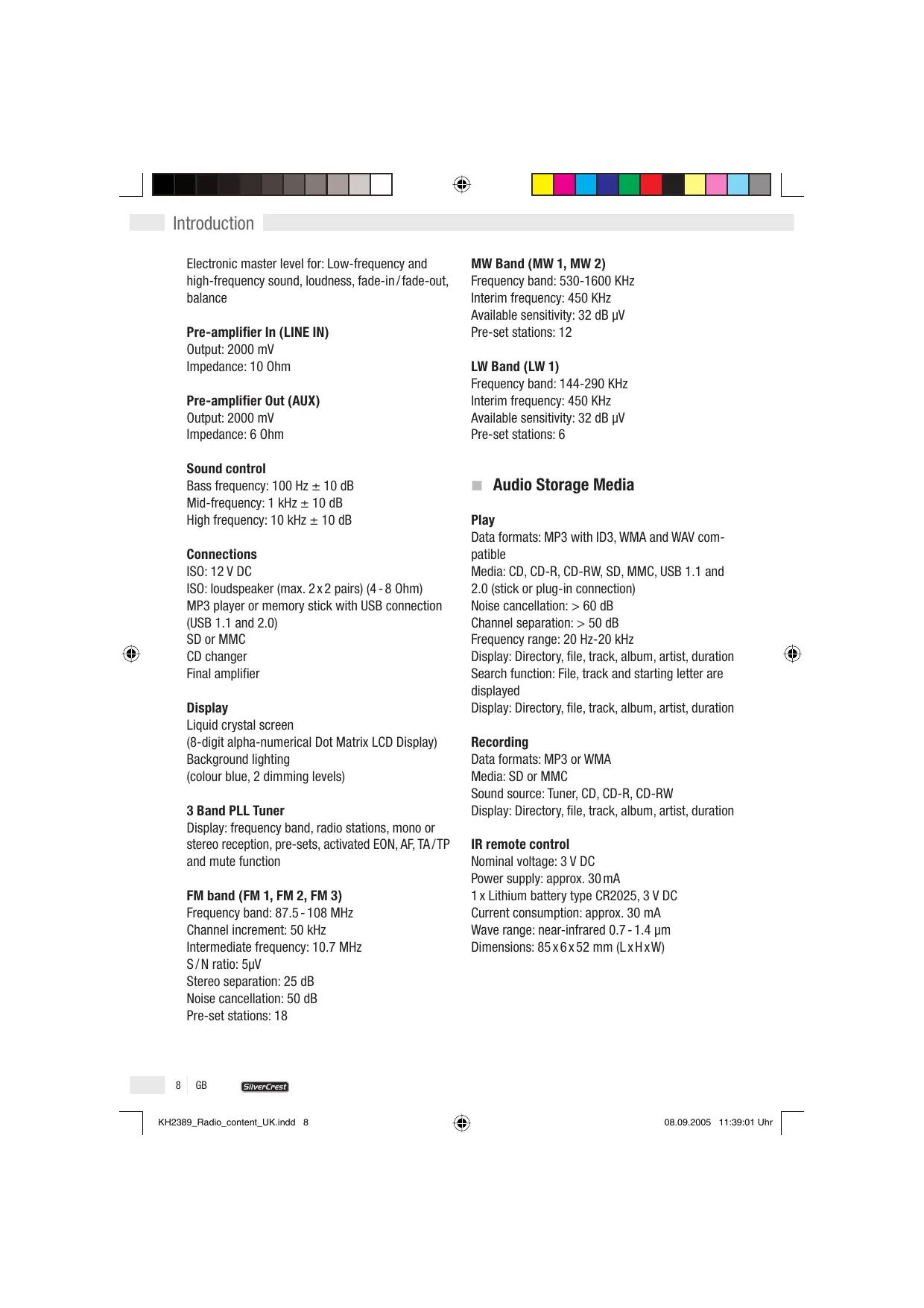

BY __ LDH] Introduction Electronic master level for: Low-frequency and high-frequency sound, loudness, fade-in/fade-out, balance Pre-amplifier In (LINE IN) Output: 2000 mV Impedance: 10 Ohm Pre-amplifier Out (AUX) Output: 2000 mV Impedance: 6 Ohm Sound control Bass frequency: 100 Hz + 10 dB Mid-frequency: 1 kHz + 10 dB High frequency: 10 KHz + 10 dB Connections

150: loudspeaker (max. 2x2 pairs) (4-8 Ohm) MP3 player or memory stick with USB connection {USB 1.1 and 2.0) SD or MMC CD changer Final amplifier Display Liquid crystal screen (8-digit alpha-numerical Dot Matrix LCD Display) Background lighting (colour blue, 2 dimming levels) 3 Band PLL Tuner Display: frequency band, radio stations, mono or stereo reception, pre-sets, activated EON, AF, TA/TP and mute function FM band (FM 1, FM 2, FM 3) Frequency band: 87.5-108 MHz Channel increment: 50 kHz Intermediate frequency: 10.7 MHz S/N ratio: 5uV Stereo separation: 25 dB Noise cancellation: 50 dB Pre-set stations: 18

CHR (mi MW Band (MW 1, MW 2) Frequency band: 530-1600 KHz Interim frequency: 450 KHz Available sensitivity: 32 dB V Pre-set stations: 12 LW Band (LW 1) Frequency band: 144-290 KHz Interim frequency: 450 KHz Available sensitivity: 32 dB V Pre-set stations: 6 Audio Storage Media Play Data formats: MP3 with ID3, WMA and WAV com- patible Media: CD, CD-R, CD-RW, SD, MMC, USB 1.1 and

2.0 (stick or plug-in connection)

Noise cancellation: > 60 dB Channel separation: > 50 dB Frequency range: 20 Hz-20 kHz Display: Directory, file, track, album, artist, duration Search function: File, track and starting letter are displayed Display: Directory, file, track, album, artist, duration Recording Data formats: MP3 or WMA Media: SD or MMC Sound source: Tuner, CD, CD-R, CD-RW Display: Directory, file, track, album, artist, duration IR remote control Nominal voltage: 3 V DC Power supply: approx. 30 mA 1x Lithium battery type CR2025, 3 V DC Current consumption: approx. 30 mA Wave range: near-infrared 0.7 -1.4 um Dimensions: 85x6x52 mm (LxHxW)

08.09.2008 11:39:01 Uhr

KH2389_Radio_content_UK.indd 9 BY __ LDH] m Safety VAN Important specific notes on safety The following notes are for your safety and satisfaction in operating the device. Please observe that non-com- pliance with these safety notes may lead to substantial risks caused by accident. Explanation of the icons and terminology used. À Danger! Avoid risk to life! À Caution! Avoid risk of injury and damage to property! © Tip! What to do! À Danger! + Do not allow small children unsupervised near the packaging material! Risk of suffocation! Do not allow infants and children unsupervised into the vicinity of the device! + Protect yourself against an electric shock! Avoid any short circuits during connections: - with the vehicle's 12 V DC power supply - With the max. 2 pairs of loudspeakers with the impedance 4-8 Ohm - with a CD changer - With a terminal amplifier + Before connecting to the 12 V DC power supply of a car, obtain information on how to maintain electrical safety based on the vehicle‘s opera- tion manual! + Ensure that when connecting to a vehicle‘s 12 V DC power supply, there is no voltage in the ve- hicle‘s connecting cables. Equip the connecting cords with fuse holders (2x8 A)! + Wheninstalling into a car, ensure that the vehicle is out of operation and in a secure standstill position! Turn off the ignition and bring the vehicle into parking position with applied hand-brake. + Complete the connection to the 12 V DC power supply while fully protected against humidity! + Complete the installation in a car, the assembly, the maintenance and the service disconnected from the 12 V DC power supply! + Do not expose the device to moisture, fire, heat

Safety and sustained temperature in excess of 50° C! Do not damage any lines carrying fuel or for electricity, brakes, hydraulics, water or data transfer when tightening the screws! Ensure that the 12 V DC constant current plug- in 6, the 12 V DC ignition current plug-in @) and possibly the powered aerial plug-in @> do not come into contact with a fuel line (e.g. petrol-carrying line)! Do not allow yourself to be distracted while driving by operating the car radio or from its displays! Familiarise yourself with its operation before driving and practise the safe use of the car radio's features! Set the volume only to such level that the sirens of emergency vehicles can be heard on time. Caution! Avoid injuries and damage to the sensitive sense of hearing of passengers (in particular infants, children and pets) while in the car! Adjust the volume and balance of the loudspeakers for all passengers to a healthy and comfortable level! Before operation, check if all components have been assembled in accordance with the operating instructions! Before assembly and operation, check the delivery for damage and completeness! Use the MP3 car radio — recorder only with the supplied original parts! Do not cover the metal casing @ with objects! Protect all electronic contact areas against short circuiting, humidity, damage and impurities! Do not place the device on or near a car battery! Prevent a short circuit and damage! Ensure that no alien matter or objects can access the inside! Disconnect the MP3 car radio — recorder in the event of operational malfunctioning and damage instantly from the 12 V DC power supply! Perform the connection to loudspeakers, the CD changer, final amplifier and audio storage media (CD, CD-R, CD-RW, USB stick, MP3 player, SD and MMC) in accordance with the respective operating instructions! Have the MP3 car radio — recorder repaired exclusively by authorised and trained professional Staff! In the event of repairs, contact your national

KH2389_Radio_content_UKindd 10 EN 0) © COS mm Safety service point! PLL (Phase-locked-loop): Electronic switching Do not expose the device to mechanical stress! Avoid theft and unauthorised use especially if the device has been installed in a car! Before leaving the parked vehicle, remove the control panel of the MP3 car radio — recorder and store it safely in the plastic box (ABS). Exchange any defect fuses only against new fuses of the same type with identical À (Ampere) rating! If not used for extended periods of time, remove the battery from the remote control! Tip! What to do! Please observe the national copyright regulations ofthe country in which you use the device to record radio programmes /CD tracks. Prepare yourself and take your time when famil- iarising yourself with the car radio's operation! Ensure a tidy environment in which you are not disturbed and perform the initial operation with maximum concentration. Carefully plan the assembly point. Observe that the assembled MP3 car radio — recorder does not cause obstruction while driving the vehicle. The audio data of a CD-R, CD-RW can only be played if they were fully burnt on to the media. Use the highly sensitive CD-R, CD-RW in accord- ance with their operating instructions! Avoid interruptions while playing audio storage media! Clean the CD, CD-R and CD-RW before use with a dry anti-static cloth, wiping from the centre toward the edge of the disk! Ensure that the playing of audio storage media is not interrupted by condensation! Remove the CD, CD-R, CD-RW in the case of high humidity and low ambience temperatures from the device. Use audio storage media only with completely dry surfaces. Store audio storage media outside of the device in an appropriate protective cover. Obtain an overview of the most important specific terminology: Receiver: Electronic receiver for radio broad- castings and sound data of storage media and simultaneously pre-amplifier. Tuner: Receives and issues radio signals. which enables precision reception of radio fre- quencies. FM (Ultra-short wave): Band receiver for radio broadcasting (Frequency range: 87.5 - 108 MHz). MW (Medium wave): Band receiver for radio broadcasting (Frequency range: 530 - 1600 KHz). LW (Long wave): Band receiver for radio broad- casting (Frequency range: 144-290 KHz). CD/CD-R/CD-RW (Compact Disc): Storage medium for sound and image data (disk © approx. 120 mm). USB (Universal Serial Bus): Universal interface for data transmission SD (Secure Digital Card): Storage medium for sound and image data (rectangular approx. 24x1x32 mm). MMC (Multimedia Card): Storage medium for sound and image data (rectangular approx. 24x1x32 mm). MP3 (Moving Picture Experts Group Layer 3): Condensed data format. 1D3: Additional information which provides de- ; tails on track and artist of audio files (e.g. MP3). (O) WMA (Windows Media Audio): Condensed data format. WAV: Data format serves the purpose of digitally storing audio data. LINE OUT: Connection to send out audio data from a HiFi device. Cinch: Standardised plug connector to transfer electrical signals. RDS (Radio Data System): Encrypted additional information broadcast by radio stations in addition to conventional music and language. AF (Alternative frequency): Function to automati- cally receive the optimum frequency of the programme tuned into. TA/TP (Traffic Announcement/Traffic Program): Function to receive traffic updates. EON (Enhanced Other Networks): If TA/TP function is activated, while listening to a broadcasting of a radio station the programme switches auto- matically as soon as traffic updates are broadcast. Traffic updates are then broadcast at a pre-set volume. PTY (Program Type): Function to receive special

08.09.2005 11:39:02 Uhr

BY __ LDH] program (e.g. rock music). © HiFi (High Fidelity): Quality standard for audio replay devices. © DIN8 pole plug (adapter to connect electronic HiFi device in accordance with DIN standard (e.g. CD changer connection to a MP3 car radio recorder). © 10 plug: Adapter to connect electronic HiFi devices in accordance with International Organization for Standardization. æ Preparation The following auxiliaries and tools are required for the connection and for the assembly, which are not included in the delivery: 1x 10 plug to connect car's loudspeaker 1x 10 plug to make 12 V DC connection 1x Powered aerial connection with connector 1x Pair of loudspeakers impedance 4-8 Ohm, ca- pacity max. 45 W (incl. feed line) 3x Fuse holder with fuse 8 A 1x DIN assembly cut-out in car's instrument panel 9x Biscuit connectors 1x Stripping tongs or cable stripping knife 1x Screw driver 1x Biro To connect a CD changer you require: 1x Connecting line with DIN-8-pole plug To connect a final amplifier you require: 5x Cinch connecting cable {insulation and plug: white/red) To record MP3 or WMA formats you require: 1x MMC approx. 64 MB storage capacity

1x SD approx. 64 MB storage capacity # Assembly Remove the control panel @ from the MP3 car radio -recorder. KH2389_Radio_content_UK.indd 11

Safety/Preparation/Assembly Avoid touching the display window @. Press the unlock button © and remove the con- trol panel D from the MP3 car radio-recorder. Store the control panel @ in the storage box. Installation of the DIN assembly bracket into the car’s instrument panel Completely unscrew the safety transport screws @? from the metal casing 6 (see Fig. E) and carefully remove the ABS plastic frame @) from the front of the device @. Slide both installation keys between the metal casing @ and the pre-assembled DIN assembly bracket until they distinctly catch. Ensure that the convex side points to the outside respec- tively. Store the installation keys in a safe place for later use Completely attach the ABS plastic bracket (2) to the front of the device @3. Remove the DIN assembly bracket and place it flush with the DIN assembly cut-out of the car's instrument panel. Secure the DIN assembly bracket against pulling out. Bend approx. ten tin dog points respectively to the top and bottom of the DIN assembly bracket from the inside out. Ensure that the DIN assembly bracket is fitted flush with the DIN assembly cut-out. Connection to the car’s loudspeaker Tip! Use an ISO plug. Carefully guide the connecting cord of the loudspeakers fitted in the car out of the front of the DIN assembly bracket. Hook up the connecting cable of the ISO plug with the connecting cable of the loudspeakers fitted in the car with the help of eight biscuit connectors. Ensure that the connection of the eight biscuit connectors does not cause any short circuits and that the fixing screws are firmly tightened.

BY __ LDH] Assembly CHR (mi

KH2389_Radio_content_UKindd 12 Hook up the connecting lead of the plug in @ with the (+) lead for the rear right loudspeaker. Hook up the connecting lead of the plug in @ with the (-) lead for the rear right loudspeaker. Hook up the connecting lead of the plug in @ with the (+) lead for the front right loudspeaker. Hook up the connecting lead of the plug in @ with the (-) lead for the front right loudspeaker. Hook up the connecting lead of the plug in @ with the (+) lead for the front left loudspeaker. Hook up the connecting lead of the plug in @ with the (-) lead for the front left loudspeaker. Hook up the connecting lead of the plug in @ with the (+) lead for the rear left loudspeaker. Hook up the connecting lead of the plug in @ with the (-) lead for the rear left loudspeaker. Connection with car’s 12 V DC power supply Danger! Before hooking up to the car's 12 V DC power supply consult the vehicle's operation manual on how to observe electrical safety! Ensure that when connecting the 12 V DC power supply there is no voltage on the vehicle's con- necting cords. Do not damage any safety facilities, e.g. board computer and alarm system of vehicle. Connect the 12 V DC power supply with the 3x 8 A fuse holders! During vehicle installation ensure that the vehicle is out of operation and is in safe standstill! Turn off the ignition and bring the vehicle into parking position with activated hand-brake! During connection, use tools with double-insu- lated handle! Avoid electrical short circuits when connecting to the 12 V DC power supply. Connect the MP3 car radio -recorder with the 12 V DC power supply while fully protected against humidity! Tip! Use an ISO plug. Ensure that the fault-free flat blade fuse 7.5 A @ is inserted all the way to the catch of the flat blade fuse socket @ Carefully guide the connecting cable to hook up the 12 V DC power supply through the front out of the DIN assembly bracket. Connect the ISO plug with the connecting cables ofthe 12 V DC power supply with the 3x8 A fuse holders. Ensure that the connections of the 3x8 A fuse holders do not cause any short cir- cuits and that the fixing screws are firmly tightened. Connect the cable for the 12 V DC constant cur- rent plug-in 6) using a 8 À safety holder with the vehicle's connecting cable for the 12 V DC constant current. Connect the cables for the 12 V DC ignition cur- rent plug-in @ and powered aerial plug-in 62 with the help of one 8 A safety fuse each with the vehicles connecting cable for 12 V DC ignition current. With this step the MP3 car radio-recorder and a powered aerial can only consume the vehicles power when the ignition is switched on. Connect the cable for the vehicle's minus/ground connection plug-in 6) with the help of a biscuit connector with the car's connection cable for the minus pole (battery's minus pole which by standard is connected with the car's chassis). Connect the cable for the powered aerial plug in @ with the connection for the vehicle's 12 V DC ignition power (current only active when ignition is switched on). Connect the cable for the vehicle’s minus/ ground connection plug-in @ with the help of a biscuit connector with the car's connection cable for the minus pole (battery's minus pole which by standard is connected with the car's chassis). Connection with CD Changer Tip! Use a connecting cable with DIN 8-pole plug. Install the connecting cable with the DIN 8-pole plug in accordance with its operation manual in the car. Guide the connecting cable with the DIN 8-pole plug to the CD changer and carefully out of the front of the DIN assembly bracket.

08.09.2005 11:39:03 Uhr

KH2389_Radio_content_UKindd 13 BY __ LDH] Insert the DIN 8-pole plug of the connecting cable until it catches into the DIN 8-pole plug jack AUX @ to the rear of the casing. Insert the DIN 8-pole plug to the other end of the connecting cable until it catches into the DIN 8-pole plug-jack AUX of the CD changer. Connection with a Final Amplifier Tip! Use five Cinch connecting cables (insulation and plug: white /red). Install the five Cinch connecting cables in the vehicle in accordance with their operation manual. Guide the five Cinch connecting cables to the final amplifier and carefully out of the front of the DIN assembly bracket. Insert the red plug of the first Cinch connecting cable until it catches into the LINE IN R-Cinch plug jack (red/right) @. Then insert the second red plug of the first Cinch connecting cables until it catches into the LINE OUT R-Cinch-plug jack (red/right) of the final amplifier. Insert the white plug of the second Cinch connect- ing cable until it catches into the LINE IN L-Cinch plug jack (white /left) 6 Then insert the second white plug of the second Cinch connecting cable until it catches into the LINE OUT R-Cinch-plug-jack (white/left) of the CD changer. Insert the red plug of the third Cinch connecting cable until it catches into the REAR Cinch R plug jack (loudspeaker connection (red/rear right) @. Then insert the second red plug of the third Cinch connecting cable until it catches into the REAR Cinch R plug jack (loudspeaker connection {red/rear right)) of the final amplifier. Insert the white plug of the fourth Cinch connect- ing cable until it catches into the REAR Cinch L plug jack (loudspeaker connection (white /rear left) © Then insert the second white plug of the fourth Cinch connecting cable until it catches into the REAR Cinch L-plug jack (loudspeaker connection {white /rear left)) of the final amplifier. Insert the red plug of the fifth Cinch connecting

CHR (mi Assembly cable until it catches into the FRONT-Cinch plug jack (loudspeaker connection (red/front right)) @. Then insert the second red plug of the fifth Cinch connecting cable until it catches into the FRONT- Cinch plug jack (loudspeaker connection (red/ front right) of the final amplifier. Insert the white plug of the fifth Cinch connecting cable until it catches into the FRONT-Cinch plug-jack (loudspeaker connection (white/front left) @. Then insert the second white plug of the fifth Cinch connecting cable until it catches into the FRONT-Cinch-plug-jack (loudspeaker connection {white / front left)) of the final amplifier. Connecting the vehicle’s aerial Guide the coaxial connecting cord of the vehicle's aerial (powered aerial) carefully out of the front of the DIN assembly bracket to the MP3 car ra- dio-recorder. Insert the plug of the coaxial connecting cable of the vehicle's aerial (powered aerial) until it catches into the aerial jack @> of MP3 car radio - recorder. Connect the 12 V DC connecting cable of a powered aerial with the aerial's plug-in @. Attaching to the DIN assembly bracket Insert the MP3 car radio-recorder with its rear, jointly with the connected cables carefully into the DIN assembly bracket. Be sure that the cable connector @ is located in front of the connection jack @. Ensure that nothing covers the vents of the metal casing @. Ensure that there is no cable caught between the metal casing 63 and the DIN assembly bracket. Avoid pinching as damage may lead to short circuits and an interruption of the con- nection cable. Insert the MP3 car radio - recorder into the DIN assembly bracket until it distinctly snaps on. CRE

BY __ LDH] Assembly /Operation CHR (mi

KH2389_Radio_content_UKindd 14 Attach the fixing screw @ with the M5 nut and washer to the holder and assembly cut-out of the car. Ensure that there is voltage on the vehicle's connection cables for the 12 V DC power supply. The LED (red) @ flashes. With a tip of a biro press the Reset button @ to the front of the device once (see Fig. C). Attaching the control panel © Take the control panel © from the storage box. Avoid touching the display window @. Place the rear left edge of the control panel © to the attaching points @ to the front of the device. Carefully press the rear right edge of the control panel D against the eject mechanism 63 of the devices front until it distinctiy snaps on. æ Operation Turning On Press and hold the [©] button @ for two seconds. The device is supplied with the following fac- tory settings = The display window @ reads [WELCOME]. The background is lit blue (to be adjusted in 2 levels). Tip thi dimming level. The tuner is activated and the display window © reads FM 1,

87.50 (broadcasting frequency), [EON] flashes,

[AF] flashes as does the volume level The loudspeakers play the tuner reception. Set the desired volume by turning the SEL/VOL dial @. oiM button @ and adjust the Turning off Press and hold the oiM button @ for two seconds. The background light of the control panel @ goes out and the display window @ reads [GOODBYE]. When turning off, the device stores all settings from the last operation. When turning the device on again, the last used audio storage medium or the tuner starts to play. Selection and setting of sound settings Your settings are stored automatically VOL: Volume of loudspeakers Press the SEL/VOL dial @ until the display reads [VOL]. Set the desired volume of the loudspeakers by turning the SEL/VOL dial @. BAS: Bass Press the SEL/VOL dial @ until the display reads [BAS]. Set the desired bass level by turning the SEL/ VOL dial @. TRE: Treble Press the SEL/VOL dial @ until the display reads [TRE]. Set the desired treble level by turning the SEL/ VOL dial @. BAL: Balance (loudspeaker ratio between left and right) Press the SEL/VOL dial @ until the display reads [BAL] Set the desired balance level by turning the SEL/VOL dial @ FAD: Fade in and fade out (loudspeaker ratio of front and rear loudspeakers) Press the SEL/VOL dial @ until the display reads [FAD] Set the desired fading level by turning the SEL/ VOL dial @.

BY __ LDH] CHR (mi Operation KH2389_Radio_content_UKindd 15 Selection and setting of play functions Your settings are stored automatically Press and hold the SEL/VOL dial @ for two seconds INVOL: Volume when switching on. Set the desired volume of the MP3 car radio- recording by turning the SEL/VOL dial 6 when switching on the radio. Press the SEL/VOL dial @) again to select the function 47 ADJ: Time display. Set the desired hour setting by turning the SEL/ VOL dial @ clockwise. Set the desired minute setting by turning the SEL/VOL dial @ counter clockwise Press the SEL/VOL dial @) again to select the function +1 TAVOL: Tuner volume for traffic update. Set the desired volume for the traffic update broadcast from the tuner with the SEL/VOL dial @). Please be sure to be able to hear this im- portant traffic information at a sufficient volume. Press the SEL/VOL dial @) again to select the function 43 EON: (ON/OFF): EON function on or off. Turn the SEL/VOL dial @ until the display reads [EON ON]; the EON function is now acti- vaied. Turn the SEL/VOL dial @ until the display reads LEON OFF]; the EON function is now deactivated. Press the SEL/VOL dial @) again to select the function +1 REC: (MP3/WMA): Select condensed data format when recording on SD or MMC. Turn the SEL/VOL dial @ until the display reads ÎREC MP3]; recording on SD or MMC is then in MP3 data format. Turn the SEL/VOL dial @ until the display reads ÎREC WM!; recording on SD or MMC is then in WMA data format. Press the SEL/VOL dial @) again to select the function +1 DSP: (NONE/CLAS/ROCK/POP /FLAT): Select sound settings for various types of music and language with pre-set treble and bass levels. Tum the SEL/VOL dial @ until the display reads INONE]; your sound setting for [BAS] and [TRE] is now activated. Tum the SEL/VOL dial @ until the display reads ICLAS EQ]; the sound settings for classical music are now activated Tum the SEL/VOL dial @ until the display reads [ROCK EQ]; the sound settings for rock music are now activated Tum the SEL/VOL dial @ until the display reads [POP EQ}; the sound settings for pop music are now activated Tum the SEL/VOL dial @ until the display reads [FLAT EQ]; the sound settings for spoken language are now activated. Adjusting volume Increase the volume by turning the SEL/VOL dial @ clockwise. Reduce the volume by turning the SEL/VOL dial @) counter clockwise. Mute Function The Mute function mutes the loudspeakers. Tip on the @ nisP button @. Playing is muted and the display reads [MUTE] Tip on the @ SP button @ again. Playing resumes at the volume levels set before activating the MUTE function and [MUTE] disappears from the display. Loudness Function The Loudness function enables to step up the bass level in the sound setting. Press and hold the © Mo/LD button @ for ap- pro. two seconds. The Loudness function is ac- tivated, the display reads [LOUD ON] and then [LOUD] Press and hold the © MD/LD button @ again for approx. two seconds. The Loudness function is deactivated and the display reads [LOUD OFF] and [LOUD] disappears. GB 15

08.09.2005 11:39:04 Uhr

16 GB KH2389_Radio_content_UKindd 16 BY __ LDH] Operation Setting 3 Band PLL Tuner There are 3x FM frequencies (FM1, FM2 and FM3), 2x medium wave frequencies (MW1 and MW2) and 1x long wave frequency band for selection. Every frequency band has six pre-settings for storing radio stations. + Pressthe @ ENT button @ and select the fre- quency band that you wish to receive. The display reads the frequency band, e.g. [FM2], the fre- quency, e.g. [99.20] of a broadcasting station received or the programme ID during stereo reception and [TP] for traffic updates. Auto station search Start the station search on lower frequencies by briefly touching the [_K_] button @. The tuner tunes automatically into the next broad- casting station that can be received and indicates the station in the display. Start the station search on higher frequencies by briefly touching the [_w1_] button @. The tuner tunes automatically into the next broad- casting station that can be received and indicates the station in the display. Manual station search Press and hold the [_#_T button © to search manually for a radio station on lower frequencies. The display reads [MANUAL]. Press and hold the [_#_]button again until the desired radio station is tuned into. Press and hold the [_ »_]@ to manually search for a broadcasting station at a higher frequency. The display reads [MANUAL]. Press and hold the [ m_]@ again until the desired radio station is tuned into. Determine the pre-set number of the radio station tuned into. Press for approx. two seconds the button for the desired pre-set number: button @ button @ button @ C5 button @ C6 button @ Automatic radio station search and memory This function automatically searches for six radio stations with sufficient intensity within the selected frequency band button (@) to start the func- tion. The automatic radio search stops for 5 seconds as soon as a radio station is tuned into. The display flashes the details of the radio station tuned into and reads the pre-set number, e.g. [4]. The MP3 car radio - recorder stores the radio station on pre-setting 4. You can determine the pre-set station of the radio station tuned into. Press during the five seconds of the details flashing on the display the button for the de- sired pre-set number: button @ C5 button @ C6 button @ Playing pre-set radio stations Press the button of the desired pre-set radio station: button @ button @ C5 button @ C6 button @

CHR (mi Operation/ Playing from audio storage media Fade traffic updates into play mode Activate the EON function. button @ once for traffic up- dates to interrupt play mode. The display reads [TA] if the radio station tuned into broadcasts traffic updates. The display flashes [TA] if the radio station tuned into does not broadcast traffic updates. The tuner tunes automatically dur- ing a radio broadcasting for the duration of a broadcast traffic update into a radio station that broadcasts traffic updates. button @ again to deactivate the function AF function (alternative frequencies) This function enables the tuner to permanently op- timise the reception of a radio station tuned into. Tip on the @ button @; the display reads [AF] The tuner searches for and receives the optimally receivable frequency on which the radio station tuned into is played. Press the @ button @ and the display reads [REG ON]. The tuner searches within the sur- rounding region for identical radio stations of the broadcasting service. PTY Function Select this function to receive radio stations with special programmes. button ®; the display reads button @ again for the display to show one of the descriptions: [TRAVEL] [LEISURE] [JAZZ] [COUNTRY] [NATION M] [OLDIES] [FOLK M] [DOCUMENT] [TEST] (general information) [ALARM] (breaking news) [NEWS] [AFFAIRS] [INFO] [SPORT] [EDUCAT] [DRAMA] [CULTURE] SCIENCE] [VARIE] [POP M] [ROCK M] [EASY M] ILIGHT M] ICLASSICS] [OTHER M] [WEATHER] [FINANCE] CHILDREN] [SOCIAL] RELIGION] IPHONE IN.] Immediately after turn the SEL/VOL dial 6 and " select further types of programme. [CO] m Playing from audio storage media CD, CD-R and CD-RW © Tip! The audio data of a CD-R, CD-RW can only be played if their buming process was fully completed. Use the highly sensitive CD-R, CD-RW in ac- cordance with their operating instructions! Avoid interruptions while playing audio storage media! Clean the CD, CD-R and CD-RW before use with a dry anti-static cloth, wiping from the centre toward the edge of the disk! Ensure that the playing of audio storage media is not interrupted by condensation! Remove the CD, CD-R, CD-RW in the case of high humidity and low ambience temperatures from the device. Use audio storage media only with completely dry surfaces. Store audio storage media outside of the device c 17

08.09.2005 11:39:05 Uhr

BY __ LDH] Playing from audio storage media in an appropriate protective cover. Inserting the CD Carefully slide the CD or CD-R or CD-RW through the CD slot ® into the CD compart- ment @. Ensure that the side carrying audio data is facing downward. Playing starts automatically and the display @ reads the details about: track, play time, storage frequency, number and status of pre-sets. Selecting a track Determine the playing sequence. Press the [_&_] button © until the desired track is played which is before the currently playing track. Press the C_»_]@ until the desired track is played which follows the currently playing track. Pause Press the button @ to interrupt playing, Press the button @) again to resume playing mode. Repeat Press the T] button @ and the currently playing track will repeat constantly. The dis- play @ reads [RPT ONE]. The current track will be played repeatedly. button @ again. The display reads [RPT DIR] (for MP3 files only). The current file will be played repeatedly. button @ again. The display reads [RPT ALL]. Al tracks are played repeatedly (RPT disappears from the display @ ). Interval Press the CSINT] button @ to play the first seconds of all tracks. Press the CSINT] button @ again to resume regular playing mode. Random playing Press the button @® to activate random playing of all tracks.

Press the button @ again to resume regular playing mode. Remove Press the CD eject button @ and the CD, or CD-R, or CD-RW is pushed out of the CD tray 6) through the CD slot @. Remove the CD, CD-R, or CD-RW. USB Memory Stick/MP3 Player or SD/MMC À Caution! Optimum data transfer at the USB plug-in @ can only be guaranteed with a USB memory stick. Because of the many USB memory sticks that are available, compatibility with all current and future USB products can not be vouched for. © Tip! Use the highly sensitive USB Memory Stick/ MP3 Player, SD/MMC in accordance with their operation instructions! Inserting Insert the USB plug of the USB audio storage medium (MP3 player or USB Memory Stick) {with data in MP3 or WMA format) completely into the USB plug-in connection @.

Insert the SD/MMC (with data in MP3 or WMA format) completely into the SD and MMC plug- in connection @). Ensure that the flat corner points down and the contact surface to the left. Play mode Playing starts automatically and the display reads the following details: track, play time, storage fre- quency, number and status of pre-sets. button @) . On the display @) the third pre-set position flashes [001]. Turn the SEL/VOL dial @ , select the third pre- CHR (mi

BY __ LDH] CHR (mi Playing from audio storage media/Save/delete recording for SD or MMC KH2389_Radio_content_UKindd 19 set position of the desired track and press the SEL/WOL dial @ . On the display @ the second pre-set position flashes. Turn the SEL/VOL dial @ , select the second pre-set position of the desired track and press the SEL/VOL dial @ . On the display ® the first pre-set position flashes. Press the @ ENT button @ and the desired tracks will be played Selecting files -_ Pressthe button @) twice. On the dis- play © the first position of the file entry [A**] flashes. Turn the SEL/VOL dial @) , select the first posi- tion of the file (number/letter) of the desired track and press the SELWOL dial @ . On the display @ the second position of the file flashes. Turn the SEL/VOL dial @) , select the second position of the file of the desired track and press the SEL/VOL dial @ . On the display @ the third position of the file flashes. Press the 6 ENT button @ once to display the file details (e.g. [VANI]). Turn the SEL/VOL dial 6? and select the de- sired track. Press the @ ENT button @ once; this is fol- lowed by the playing of the desired file. Selecting tracks + Pressthe [_&_]Skip button © until the de- sired track is played which is before the cur- rently playing track. Press the [_»_]Skip @ until the desired track is played which follows the currently playing track. Pause Press the button @) to temporarily in- terrupt playing. Press the button @) again to resume play mode. button @ and the currently playing track is constantly played. The display @ reads [RPT ONE]. This is followed by the re- peated play of the current track. Press the 2 RPT button @ again. The display @ reads [RPT DIR]. This is followed by the re- peated play of the current folder. Press the 2 RPT button @ again. The display @ reads [RPT ALL]. This is followed by the re- peated play of all tracks. Interval Press the button @ to play the first seconds of all tracks. Press the button @ again to resume regular play mode. Random play Press the button @ to play the tracks at random. Press the button @ again to resume regular play mode. Disconnect Disconnect the USB plug of the USB audio storage medium fully from the USB plug-in connection G .

Disconnect the SD/MMC fully from the SD and MMC plug-in connection @ . m Save/delete recording for SD or MMC Recordings from the tuner can either be stored on an SD or MMC. The recordings are performed con- secutively and end automatically once the memory ofthe SD or MMC is completely exhausted. Insert an SD or MMC in the SD and MMC plug- in connection @) as described above. Use the © MD/LD button @ to select the de- sired play mode.

BY __ LDH] CHR (mi Save/delete recording for SD or MMC/Remote control /Troubleshooting

Start recording + Press and hold the [SEN ]REce button @ for two seconds. The display D reads: [RPT MMC]. Press and hold within five seconds the [ENT BD] button @ for two seconds. The display © reads: [RECORD], followed by [R] (flashing), the pre-set number (e.g. [01]) and the duration ofthe recording (e.g. [19.58]). End recording Press the @ ENT button @ . Start deleting + Start playing the track you wish to delete. Press and hold the [SCN ]REce button @ for two seconds. The display © reads: [DELETE] Press the @ ENT button @ . The current track is automatically deleted. # Remote control The car radio — recorder can also be operated us- ing the remote control Familiarise yourself on how to use the buttons of the same function on the remote control (see fig. Ensure that the front edge of the remote control is directed toward the IR sensor @) of the control panel © - Please observe that the AF function can only be performed with the @ button @ directly on the control panel © . Also observe the changed procedure on how to: Set the volume Increase the volume by pressing the 4 but- ton @ Reduce the volume by pressing the os button

Insert the battery Activate the unlock button @ and pull the bat- tery holder @ from the battery compartment KH2389_Radio_content_UKindd 20 @ (see Fig. G). Place a Lithium battery type CR2025, 3 V DC into the battery holder € so that one side marked with + faces up. Then slide the battery holder @ into the battery compartment @ un- til it distinctly catches. # Troubleshooting Operate D» Error » Cause [> Remedy > The device can not be switched on or the display indicates ERROR. The connections for the 12 V DC power supply are faulty. Have the errors remedied. Then press the RE- SET button @ with the tip of a biro. The flat blade fuse 7.5 À @ in the flat fuse jack @ is defective Replace the used flat blade fuse against a new flat blade fuse 7.5 A. Then press the RESET button @ with the tip of a biro. A 8 A fuse of the fuse holder of the 12 V DC power supply is defective. Replace the used fuse against a new flat blade fuse 7.5 A. Then press the RESET button @ with the tip of a biro. The device is defective. Contact your national service point. » The device can not be operated The control panel © is incorrectiy connected. Ensure the fault-free connection of the control panel @.

The battery of the remote control is exhausted. Replace the used battery against a new Lithi- um battery type CR2025, 3 V DC.

The IR sensor © of the control panel D and/ or the remote control may be dirty.

CHR (mi Troubleshooting/Maintenance and Service /Disposal/Information KH2389_Radio_content_UK.indd 21 Poss. clean the IR sensor () of the control panel @ or the remote control. m Maintenance and Service Switch off the device The device is maintenance free. Clean plastic surfaces of the device and of the remote control with a dry cloth. Do not use sol- vents or other aggressive cleaning agents Ghanging the battery of the remote control Activate the unlock button @) and pull the bat- tery holder @ from the battery compartment @ (see Fig. G). Place a Lithium battery type CR2025, 3 V DC into the battery holder @ so that one side marked with + faces up. Then slide the battery holder @ into the battery compartment @ un- til it distinctly catches. æ Disposal VAN The packaging material comprises 100% environmentally friendly materi- als which can be disposed of at local recycling points. K Do not dispose of electronic appliances == in household waste! In accordance with the European Directive 2002/96/EG on Waste Electrical and Electronic Equipment and its implementation into national law, waste electrical appliances must be separately collected and recycled in an environmentally friendly manner. Information on disposal options for waste electrical equipment can be obtained from your local or mu- nicipal administration You as the end consumer are statutorily obliged (battery code) to return all used batteries. Batteries containing hazardous materials are marked with the following symbol, which indicates their prohibi- tion of being disposed of with regular household waste. The designations for the decisive heavy metal are: Cd = Cadmium, Hg = quicksilver, Pb = lead Please take used batteries to a disposal facility of your town or municipality or return to the dealer. In doing so you meet a statutory obligation and con- tribute substantially to the protection of our envi- ronment. # Information Service Your national service point is listed in your warran- ty documents. Importer KompernaB GmbH Burgstr. 21 D-44867 Bochum Germany Subject to technical changes due to further development. @ 21

Warranty MP3 car radio - recorder KH 2389 Kompernass Service To warrant a free repair please contact the service United Kingdom hotline. Hold you purchase receipt ready. 08707/876177 Kompernass Service Ireland 087-99 62 077 Please write return address in capital letters: www.mysilvercrest.de Complete this in full and include with the device! Name: First name : Street: Postal code/city: © Country: Telephone: Date/signature: Description of defect:
