USER MANUAL WA-TR300 SHARP

To prevent fire or shock hazard, do not expose this appliance to dripping or splashing. No objects filled with liquids, Such as vases, shall be placed on the apparatus.

At full power prolonged listening to a personal stereo may damage the user's hearing.

The model is in compliance with the law in case of using it with the SHARP earphones.

Information on Proper Disposal

A. Information on Disposal for Users (private households) 1. In the European Union Attention: If ou want to dispose of this equipment, please do not use the ordinary dustbin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facllties free of charge”. In some countries” Your local retailer may also take back your old product free of charge if you purchase a similar new one. ‘) Please contact your local authority for further details. If your used electrical or electronic equipment has bafleries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recyclng and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling 2. In other Countries outside the EU if you wish to discard this product, please contact your local authorities and ask for the correct method of disposal For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you dont purchase a new product. Further collection facilities are listed on the homepage of www.Swico.ch or wrw.sens.ch.

B. Information on Disposal for Business Users 1. In the European Union

I the product is used for business purposes and you want to discard It

Please contact your SHARP dealer who wi inform you about the take-back of tne produet. You might be charged for the costs arising from ake-back and recycling. Small products (and small amounts) might be taken back by Your local collection facilities

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

if you wish lo discard of this product, please contact your local authorities and ask for the correct method of disposal

Attention: Your prod- uct is marked with this symbol. It means that used electrical and elec- tronic products should not be mixed with general house- hold waste. There is à separate collec- tion system for these products.

Thank you for purchasing this SHARP product. For the best performance, read this manual carefully. It will guide you in operating your SHARP product.

IBM and PC/AT are registered trademarks of International Business Machines Corporation.

Macintosh is a trademark of Apple Computer, Inc. registered in the United States and other countries.

Microsoft Windows and Windows Media are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Al brand names and product names are trademarks or registered trademarks of their respective owners.

Back up your audio data stored on this product periodically in case of accidental loss or alteration.

SHARP shall not be liable for any damages or loss of audio data resulting from defects in this product or your computer.

Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications (via Internet, intranets and/or other networks), other revenue- generating content distribution systems (pay-audio or audio-on- demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http:/mpälicensing.com MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

WA-TRSO(BKY{W WA-TR30O(BK) AU)

S S = & £ £ = = S ü a rc] LS)

WA-TR3O(BK){W WA-TR300(BK(V)

= £ = & Ê £ £ & ä = F5 ©

Please confirm that only the following accessories are included.

Earphones x 1 {with the ear pads)

©! you use a PC running Windows 98 Second Edition, install a USB driver from this supplied CD-ROM (see page 8).

Œ General Information Accessories Precautions . Controls an System requirements .

B Preparation for Use Battery installation . SD/MMC card installa Turning the unit on/off . Hold function . : Changing the display languagi Connecting the unit to a PC & Windows Media Player Ripping tracks from audio CD to PC . Transferring audio data from PC to the unit. B Playback Disconnecting the unit Playing transferred audio data Advanced playback . Playing selected data

& FM Radio FM transmitter function . Listening to the FM radio

Œ Recording Recording with the built-in Recording from the FM radio Œ Advanced Features Deleting selected data Changing default settings .…. Checking memory status H References Firmware update . Troubleshooting . Error messages . Maintenance Specifications .

@ 1f you experience ringing in your ears, reduce the volume or discontinue use.

To avoid accidental electric shock or other possible problems, observe the precautions listed below.

Œ Storing the unit Avoid using or leaving the unit in the following places.

e places where sand can easily enter the inside of the unit (beaches etc.).

@ Ifthe unit is used near radio tuners or TVS, noise and/or picture interference may result. If you experience these problems, move the unit away from such devices.

Itis not recommended to put this unit into a rear pocket, as this may damage the product when Sitting.

Using this unit near mobile phones may cause noise pickup. If it occurs, move it away from them.

Duplicated material is limited to private use only. Use of materials beyond this limit or without permission of copyright holders may constitute copyright infringement, and be subject to criminal punishment.

WA-TRSO(BKY{W WA-TR30O(BK) AU)

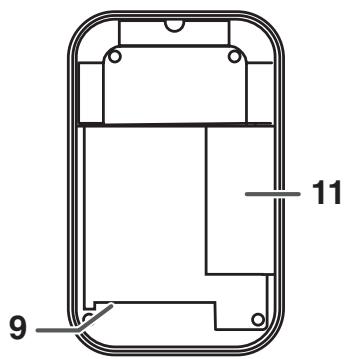

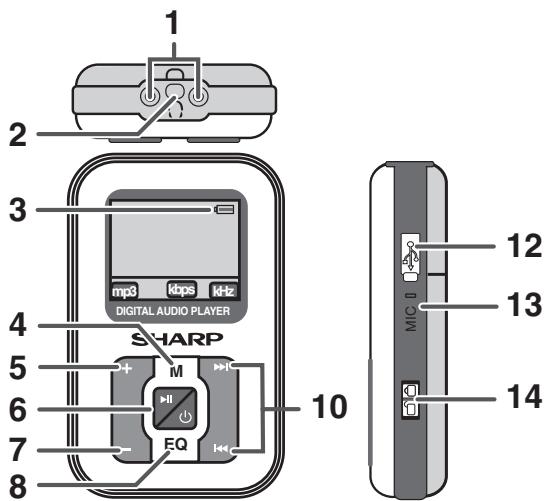

mew Controls and indicators

S Il IN Fa To protect the USB port, cover it with the USB

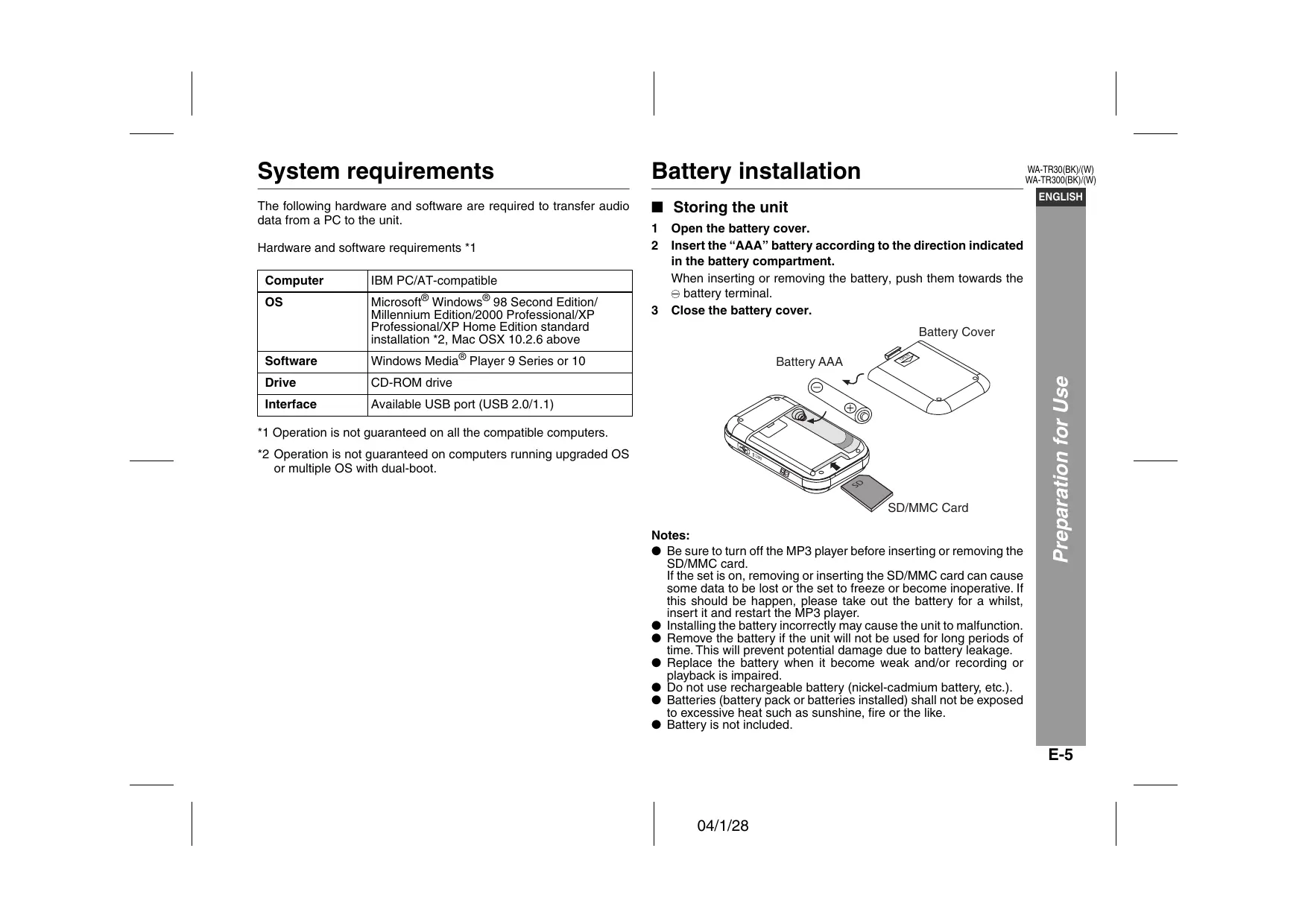

System requirements Battery installation To

The following hardware and software are required to transfer audio If Storing the unit data from a PC to the unit.

1 Open the battery cover.

Hardware and software requirements “1 2 _insertthe “AAA” battery according to the direction indicated in the battery compartment. Computer IBM PC/AT-compatible When inserting or removing the battery, push them towards the & battery terminal. os Microsof® Windows® 98 Second Edition/ een emma Millennium Edition/2000 Professional/XP 3 Close the battery cover. Professional XP Home Edition standard installation *2, Mac OSX 10.2.6 above Battery Cover F2 Software Windows Media® Player 9 Series or 10 #< SK Drive CD-ROM drive À Interface Available USB port (USB 2.0/1.1) ro

“1 Operation is not guaranteed on all the compatible computers.

*2 Operation is not guaranteed on computers running upgraded OS or multiple OS with dual-boot.

© Be sure to turn off the MP3 player before inserting or removing the SD/MMC card. Ifthe set is on, removing or inserting the SD/MMC card can cause some data to be lost or the set to freeze or become inoperative. If this should be happen, please take out the battery for a whilst, insert it and restart the MP3 player.

Nstalling the battery incorrectly may cause the unit to malfunction. © Remove the battery if the unit will not be used for long periods of time. This will prevent potential damage due to battery leakage. © Replace the battery when it become weak and/or recording or

layback is impaired. © Do not use rechargeable battery (nickel-cadmium battery, etc.). Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. © Battery is not included.

8 =) L £ S £ = Ë S as à

WA-TR3O(BK){W WA-TR3OO(BKV)

FA S = £ es £ = È S à

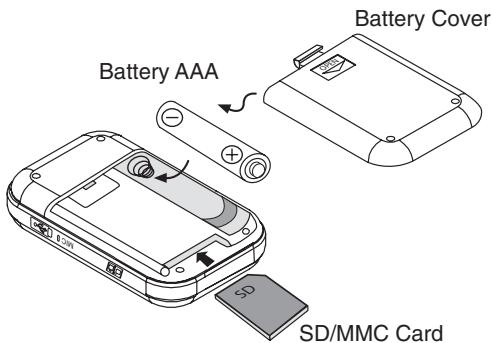

Q SD/MMC card installation

Turning the unit on/off

SD/MMC card installation 1. Open the battery cover. 2. Insert the SD or MMC card. 3. Close the battery cover.

@ Files compressed in MP3 and/or WMA format can be played back when connected to the SD terminal.

SD/MMC card cannot be operate if battery power is low.

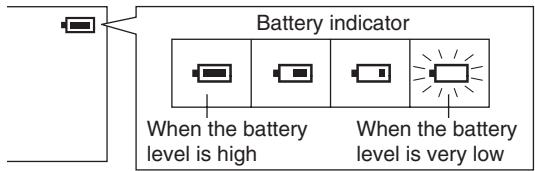

Æ Checking the remaining amount of battery level The battery level is shown by the battery indicator during operation.

ls Battery indicator

Ù When the battery level is very low

‘© When the battery has run out completely “121 Shut down.” will appear. Then, the power will be disconnected automatically.

time may be shortened by iisuse, etc.

& To turn on the unit Press the 11 / © button.

Œ Back to previous level/screen Press Volume (+) button for return to previous level/screen.

Changing the display language

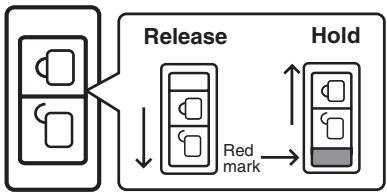

When the hold function is turned on, all buttons on the unit will be inactive. To make changes to the operation of the unit, switch the HOLD off.

Move the HOLD switch to the safety position (direction indicated by the arrows).

Note: Ifthe hold function is active when the unit is turned off, the unit cannot be turned on by mistake and the battery will not be drained.

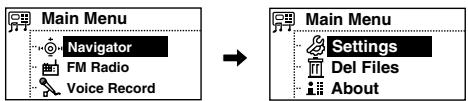

You can see information in a selected language.

English () Spanish Russian Italian German Chinese TRA French Portuguese

() indicates default setting

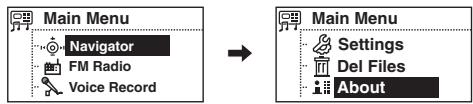

Bisetines | Menu button. À DelFlles ài About 4 Within 20 seconds, press H« or >» [Es button to select “Language” and [Fe nc sa press Menu button. Lyric 5 Within 20 seconds, press H« or »»i button to selectthe desired language |‘ tue » and press Menu button. English

8 =) L £ S £ = Ë S as à

Note: The display language setting is retained even after the unit is turned off.

WA-TR3O(BK){W WA-TR3OO(BKV)

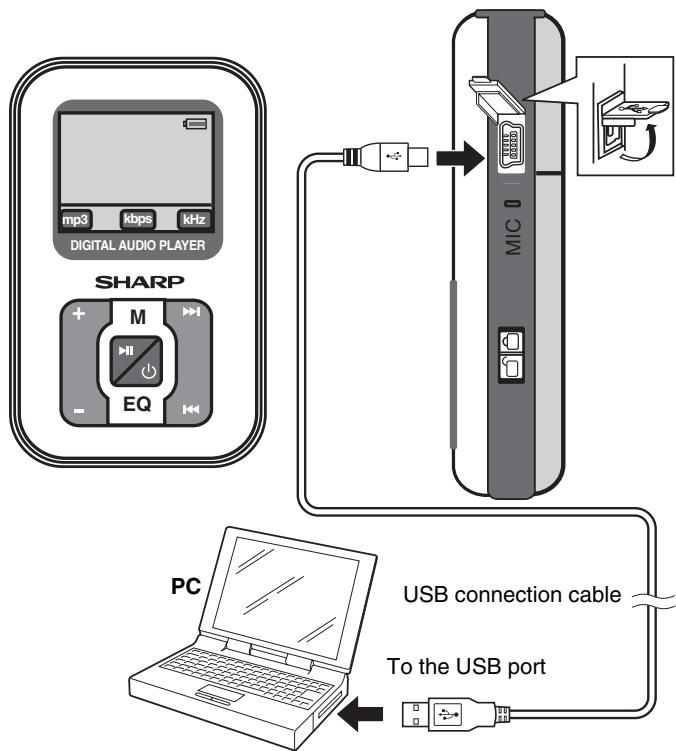

Q Connecting the unit to a PC

DIGITAL AUDIO PLAYER H Connect the unit to a PC to transfer audio data Open the USB port cover, connect

the unit to a PC with a USB Ver 875.833.XXX connection cable. Whilst the unit is connected to the PC,

the screen below appears.

@ We do not guarantee operation of the unit with self-built PCS or PCs with modified motherboards.

e Make sure to use the supplied USB cable. Use of other cables (two-way cables, extension cables, etc.) degrades the quality of connection and may cause a malfunction/radiation.

The operation buttons on the main unit do not work if itis connected

to a PC. Disconnect from the PC to operate on the unit.

Œ Installing a USB driver

If you use a PC running Windows 98 Second Edition, install a USB

driver from the supplied CD-ROM.

@ The installation is not necessary for a PC running Windows Millennium Edition, Windows 2000 Professional, Windows XP Professional or Windows XP Home Edition.

T_insertthe supplied CD-ROM into your CD-ROM drive. 2 Connect the unit to a PC by USB cable. The ‘The wizard searches for new drivers." screen appears.

3 Click the “Next” button. The “What you want Windows to do?" screen appears.

4 Select “Search for the best driver...” and click “Next” button. The “Windows will search for new drivers...” screen appears.

5 Select “CD-ROM drive” and click “Next” button. The “Windows driver file search for the device” screen appears.

6 Click the “Next” button. The “USB Mass Storage Device..." screen appears.

7 Click the “Finish” button.

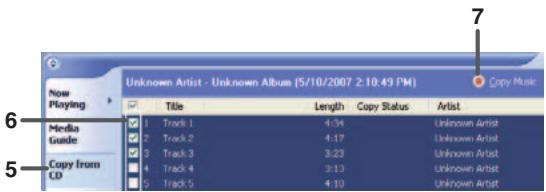

Ripping tracks from audio CD to PC TN Using Windows Media Player, fi tracks from your favorite audio mg For Windows Media Player 9 Series

CDs to a PC. Ripped tracks are stored on PC as audio data. You can enjoy music on the unit by transferring audio data from the PC. 1

Windows Media Player 9

2 On the “Tools” menu, click “Options...” and then “Copy

Music” and select “Copy protect music”. 3 Click “OK”.

4 Insert an audio CD into the PC. The audio CD may play automatically depending on settings on

the PC. In this case, stop playback. 5

5 Click “Copy from CD” on the taskbar to show tracks on the >

6 Select the check boxes of tracks to rip. =

7 Click “Copy Music” to start ripping. 5

| Pugins | Privacy | Secuiy À Fieïypes | DVD | New | 5

Ifthe PC is connected to the internet, information (artist or album Oo

AIT name, tlle, genre, etc.) appears. Information may not be available È

M depending on the audio CD. 8

aroeou Ripping tracks from audio CD to PC (continued)

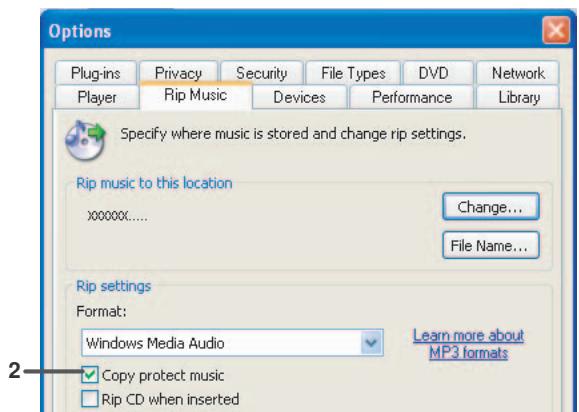

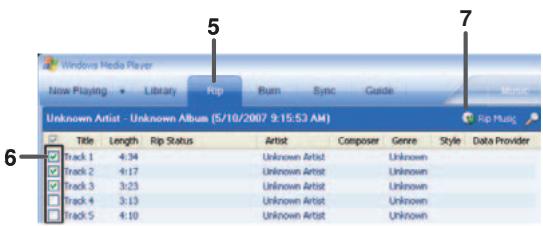

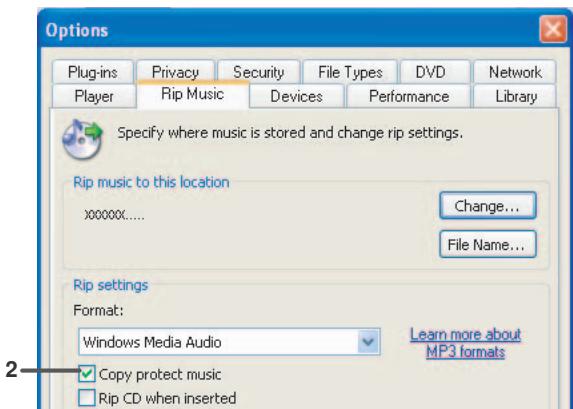

2 On the “Tools” menu, click “Options...” and then “Rip Music” and select “Copy protect music”.

3 4 insert an audio CD into the PC. The audio CD may play automatically depending on settings on

Cri €D when inserted

U RU Lie name, title, genre, etc.) appears. Information may not be available È rt depending on the audio CD. S 00000 £ = Rip settings

2 Copy protect music

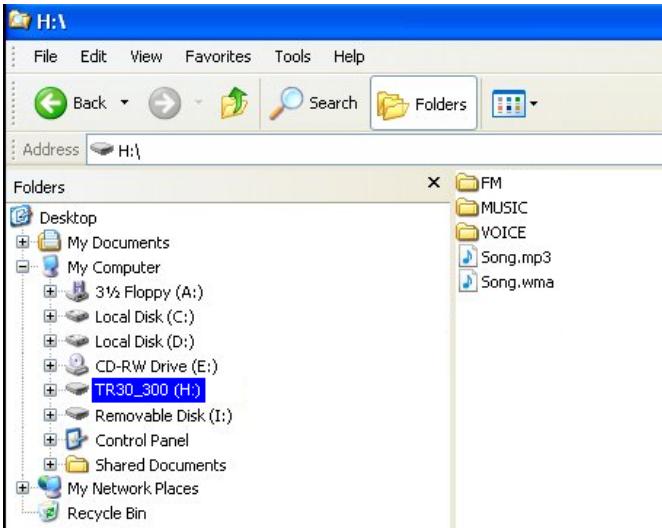

Transferring audio data from PC to the unit

You can transfer audio data (MP3, WMA or WAV format) to the unit

1. Connect the unit to PC.

2. Open “My Computer’ and copy or move the selected audio data to the unit (TR30_300) or SD/MMC card (indicated as “Removable Disc”).

Notes: © This unit can be used as a USB storage device. © “FAV.TXT'"is system created file in the unit.

WA-TRSO(BKY{W WA-TR30O(BK) AU)

When using Windows Media Player 9 series, select the “MUSIC” folder to transfer the audio data.

You need to create Music Folder. Create them in the level indicated in “About folder tree”.

When using Windows Media Player 10, subfolders with an artist or album name are automatically created in the “MUSIC”

le subfolders with an artist or album name automatically, ) to display properties and select “Create folder hierarchy on device”.

Click this to display properties

VOICE Data recorded with microphone. = FM Recorded FM Radio programmes. = MUSIC Music data copy from PC. ©

L & è £ ë = l'a ë T È Ë

Transferring audio data from PC to the unit (continued)

You can enjoy music on the unit by transferring ripped audio files (protected) or licensed WMA files (DRM) from PC to the unit.

H For Windows Media Player 9 Series

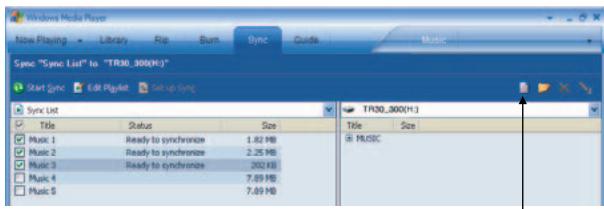

Œ For Windows Media Player 10

Î Connect the unit to a PC (see page 8).

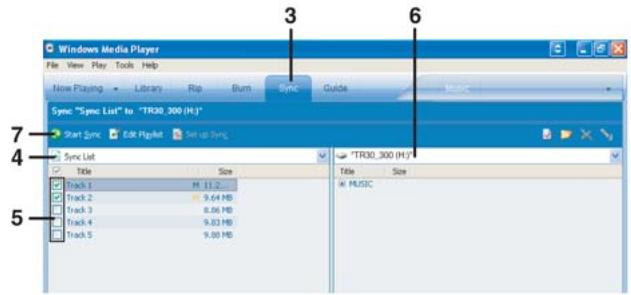

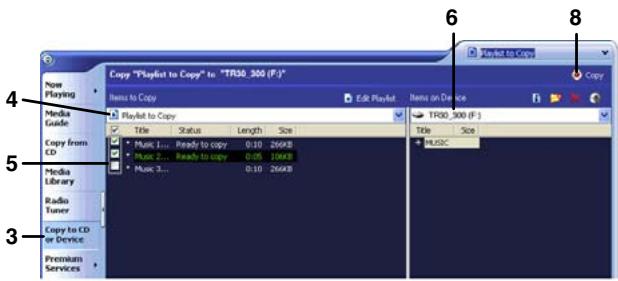

Î Connect the unit to a PC (see page 8). 2 Launch Windows Media Player. 2 Er os Media Player. Sun. er Programs — Windows Media Player

Start —> All Programs — Windows Media Player 3 Click “Sync” on the taskbar. 3 Click “Copy to CD or Device” on the taskbar. 4° From the drop-down list of “Sync List”, window shown on 4 Fromthe drop-down list of “items to Copy”, window shown the left, select a list with desired audio data.

on the left, select a list with desired audio data. 5 Select the check boxes of audio data to transfer. 5 Select the check boxes of audio data to transfer. 6 Setthe unit as a destination. 6 Setthe unit as a destination. 7 Click the “Start Sync” button to start transfer. 7 Select the folder. Caution:

Far faider, refer to page 15. © On Windows Media Player 10 to create subolders with an artist or 8 Clickthe “Copy” button to start transfer. gloum name uomatcaly, clik [3 1, display properties and

Disconnecting the unit

@ The drive letter for the unit may change depending on the environment of the connected PC.

MP3 (MPEG-1 Audio Layer 3): MPEG is an international standard developed by Moving Picture Experts Group, a Working group of ISO.

WMA (Windows Media Audio): WMA is an audio compression format developed by Microsoft Corporation.

About DRM (Digital Rights Management):

@This product supports Windows Media Digital Rights Management 9 Series. Using Windows Media Player 9 Series or 10, you can transfer licensed WMA files to the unit for playback.

@ Some WMA files may not be playable/transferable onto this products due to their license agreements with copyright holders.

File format of transferred audio data:

© On Windows Media Player 10, you can change this setting and transfer audio data without conversion. To do so, click [à and select “Quality” to uncheck “Convert files as required by the device (recommended).

For details, refer to the operation manual for the PC.

Æ Windows 98 Second Edition

1. Click “Safely remove hardware” on the taskbar.

3. “Safely remove hardware” appears. Click the “OK” button and disconnect the USB cable from the PC.

= Windows Millennium Edition

1. Click “Unplug or Eject Hardware” on the taskbar.

2. Click “Stop USB Disc-Drive(“:)".

3. “Safe To Remove Hardware” appears. Click the “OK” button and disconnect the USB cable from the PC.

= Windows 2000 Professional

1. Click “Unplug or Eject Hardware” on the taskbar.

2. Click “Stop USB Disc-Drive(“:)".

3. “Safe To Remove Hardware” appears. Click the “OK” button and disconnect the USB cable from the PC.

1. Click “Safely remove hardware” on the taskbar.

3. “Safe To Remove Hardware” appears. Click the message and disconnect the USB cable from the PC. *:) Drive letter of this unit.

@ After the above operation, the USB connection display still remains on the unit (the display changes when you disconnect the USB cable).

Playing transferred audio data

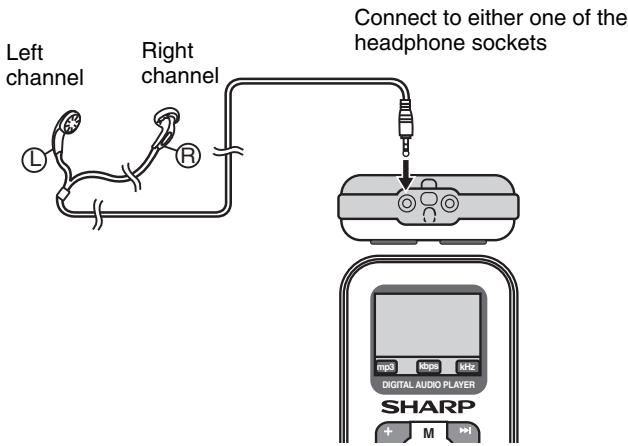

Connect to either one of the headphone sockets

Left Right channel 20 à CE, EH Playback À Press »11 / © button to turn the power on. 2 Use the H« or >» button to select (Playback Window) an audio data and press m1 / & [je su ©

To stop playback: Hold down »11 / button for 1 second.

Resume play: When you turn off the unit and turn it back on, playback starts from the beginning of the audio data which was stopped.

& To locate the beginning of audio data To move to the beginning of the next audio data: Press the 1 button.

To replay the current audio data:

To skip some data at one time, press the H#« or »»1 button as many times as required until the desired audio data appears.

& To locate the desired portion

Normal playback will resume when the H« or æ1 button is released.

B Repeat play or shuffle play or preview Whilst in stop mode, press the Menu button repeatly until the desired

+ i+ CAS + (Repeat 1) (Repeat AI) (Shuffle)

play mode appears. (Preview)

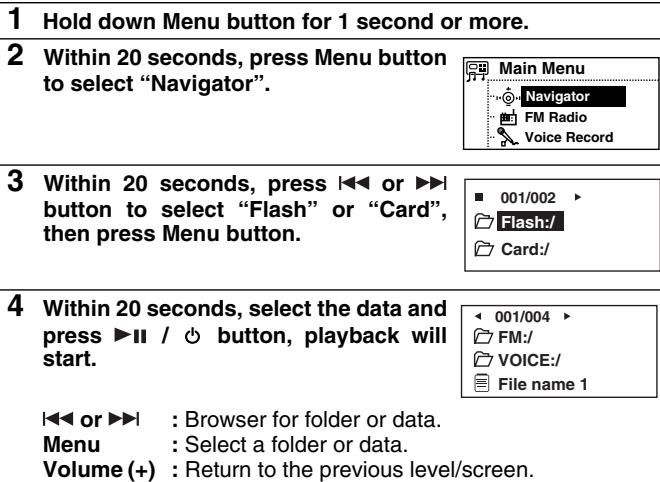

1 Press »11 / © button to turn the power on.

second or more. fre Meur ten ve 1 4 Fu Radio . Voice Record 3 Within 20 seconds, press HA or >» GE ann en button to select “Settings” and press Menu button.

Playing selected data To

4 Within 20 seconds, press H« or >bi [5 crue button to select “Playmode” and |”

You can select and play the audio data transferred from PC or data recorded with the unit.

() indicates default setting

The unit plays each data for 10 seconds when play with preview mode.

EH Repeat A-B You can play the desired portion repeatedly by specifying it during playback.

press Menu button. lmea 1_ Hold down Menu button for 1 second or more.

À Whilst playback, press Menu button. This registers the start point (A).

2 Press the Menu button again to enter the end point (B). This starts A-B repeat from the start point (A) to the end point (B).

3 Press the Menu button again to return to the previous playback mode.

After perform repeat or preview play, be sure to press 11 / & button to stop or pause the playback. Otherwise, it will playback continuously.

press »11 / © button, playback will | Fu start. @ voice: © File name 1

H« or pi: Browser for folder or data. Menu : Select a folder or data. Volume (+)_: Return to the previous level/screen.

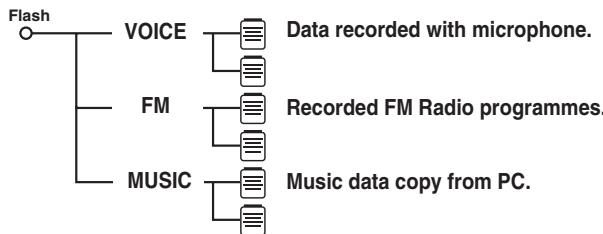

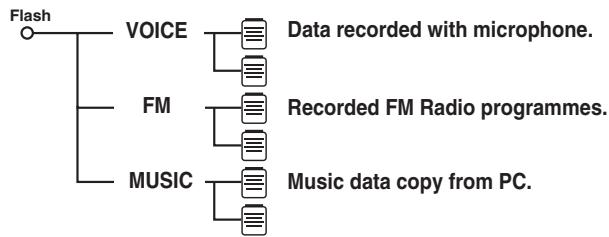

VOICE Data recorded with microphone. FM TÈ Recorded FM Radio programmes.

MUSIC Music data copy from PC.

This product supports: © Up to 140 folders (including the “VOICE” and “FM' folders). © Up to 200 files (each folcers).

Up to 30 characters as a file name.

Playing selected data (continued)

M Equaliser setting Whilst stop or play mode, press the EQ button repeatly until the desired sound mode appears.

Œ Customising sound quality

Perform step 1 - 4 on page 16.

NOR —} ROCK —b POP —b JAZZ -p CUST (Normal) (ustm) |

Alternative method to change sound mode.

À Press »11 / © button to turn the power on.

2 Hold down the Menu button for 1 second or more.

(Normal _: The sound is not modified Rock + For rock music

Custom _: Sound quality can be customise (see page 16)

Note: Distortion may occur depending on the equaliser setting. In this case, change the type or turn down the volume. () indicates default setting

2 Within 20 seconds, press 4 or >»

5 Repeat steps 3 and 4 to adjust each frequency.

6 Within 20 seconds, press Menu button.

Note: The “Custom” settings will remain in the memory even after you switch to another equaliser mode.

This unit can be use as a FM transmitter

You can enjoys music sound at FM receiver by playback at the unit.

1 Press »11 / © button to turn the power on.

2 Hold down the Menu button for 1 second or more.

Mar Menu PA Navigator

WA-TRSO(BKY{W WA-TR30O(BK) AU)

6 Transmission icon and select frequency (*) will appear on screen {playback window) when transmitter function is setting on.

© The transmitter function will regulate the volume and transmit to FM receiver by this unit. If a big sound occur at FM receiver even not adjust to maximum volume level, manually decrease the volume level at this unit (FM transmitter).

@ Earphones are not required to plug into the unit for FM transmission. The FM transmitter aerial is built inside the unit.

Listening to the FM radio

FM aerial: The earphones lead works as an FM aerial. Keep it as straight as possible.

Press the 11 / & button to turn the power on.

Hold down the Menu button for 1 second or more. Press >» button to select “FM Radio”, then press the Menu button.

3 Press H« or >» button to select the preset channel number. Press the Menu button to store that station in

ët st TOë nd ë st “TO CHE Mono Co] Mono

Æ Storing station automatically (auto scan) With this function, the auto tuning memorises the received stations automatically. The unit will stop after scanning the full range of frequencies and storing stations.

1 Press »11 / © button to enter search mode. Hold down the

EH Manual Tuning and memorising a station

À Press >ii / © button to enter search mode.

2 Press H&« or »»1 button as many times as required to tune into the desired station. Press and hold down the Menu button for more than 1 second to enter the preset tuning saving mode.

To exit Tuner mode: Press Menu button.

Recording with the built-in microphone To

Check the memory status beforehand. If the memory is low, move Note: some data to a PC to make some room. Data recorded with the built-in microphone are named automatically, ie VOO1.WAV, VO02.WAV... etc.

Note: Newly saved files are numbered sequentially following the largest This microphone is monaural and omni- number among the existing file names. It is recommended to delete directional. However, it is recommended to direct or move some iles to PC.

ittowards the source for better recording.

For long recording time, “Saving.

indicator will appear after a few seconds (Data saved).

H Changing sound quality for microphone

recording T Press» n/ 6 button to turn the power on. 1 Hold down the Menu button to enter main menu screen. Within 20 seconds, press the H« or »»1 button to select Hold down the Menu button for 1 second or more. “Settings”, then press Menu button.

sou Recording from the FM radio

Deleting selected data

Check the memory status beforehand. If the memory is low, move some data to a PC to make some room.

The earphones lead works as an FM aerial. Keep it as straight as possible.

À Tune in to the desired station.

2 Hold down EQ button for 1 second or

more. Recording will be started. En

To interrupt recording: Press the »11 / © button. To resume recording, press the »11 / © button again.

To save recording: Press the Menu button or EQ button. Data will be saved.

Data recorded from the FM radio are named automatically, ie F001.WAV, FO02.WAV... etc.

Newly saved files are numbered sequentially following the largest number among the existing file names. It is recommended to delete or move some files to PC.

For long recording time, “Saving.” indicator will appear after a few seconds (Data saved).

T_Hold down Menu button for 1 second or more.

2 Within 20 seconds, press H« or >»

“Folder” or “File”, then press Menu

button. Ê File name 1 5 Delete (X) marking will display for + 003020 > selected file(s). & Voice!

@ To cancel delete (X) marking, press | & rite name 1 Menu button. x

“Yes” if confirmed to delete file(s), Yes EI then press Menu button. 7 File(s) deleted. Files Deleted!

Caution: Deleted data cannot be restored.

At “Del Files” mode, display will not able to automatically return to playback screen.

Changing default settings To

You can change the default setting. Rec Set Source : Mic Set the microphone recording 1. Press the » 11 / & button to turn the power on. Rate: Normal sound quality. 2. Hold down the Menu button for 1 second or more. Middle” 8. Within 20 seconds, press H« or »»1 button to select “Settings”, High then press Menu button. Lyrics Always" Display of lyrics when lyrics is _ … Of available Sting ce bu estinge) Description Language |Engien Sor Re display language For tre Playmode | Normal” Adjust of playback mode. German Repeat one French Repeat all Spanish Shuffle Italian Preview Chinese TRA (Traditional) _ Portuguese Eq Normal” Adjust of playback sound quai. Rock Factory No* Reset the unit to default setting Pop Seting Yes © LEZ om Exit Exit setting mode. Contrast oo To adjust display contrast level. M About auto-power off

When the auto power off is set, the unit turns off automatically after

$ È «o] Fa 8 Ô $ > à <

so a time period in the stop or pause mode. (The auto-power off does 10/0 not work when listening to the FM Radio.) Backignt | Of Set backlight lighting time. À Press »i1 / © button to turn the power on. secs 10 secs, 2 Hold down the Menu button for 1 — secs second or more. (F3. Main Menu Ways + CET Transmitter | Off Set the FM transmitter EE FM Radio frequency | 88.1 frequency. À. Voice Record 88.3 885 3 Within 20 seconds, press H« or »»1 EE button to select “Settings” and press [F7 Mar Menu 80.1 Menu button. SELLES a 1 Del Files àë About Power Disable Set auto-power off time. Min The unit tums off automatically 4 Within 20 seconds, press K< or »»i 2 Mins after a time period in the stop «D on TB Setings ÉMnee Mode, button to select “Power” and press (-E 40 Mins Note: The auto-power off does Menu button. : Transnitier

not work when istening to FM à DT Continued to the next page "E_21

Disable _:_Autopower off does not work. 1-2-5-10 : In the stop mode, the unit turns off automatically Minutes after a set time period.

3 Within 20 seconds, press H« or »>1 button to off or on the lyric display and press Menu button.

The setting is completed.

H Changing the display contrast You can change the display contrast.

Î Perform steps 2 to 3 on page 21.

3 Within 20 seconds, press H« or »>>1 button to adjust contrast and press Menu button.

The setting is complete. @ The playback screen returns after 20 seconds.

H Changing the Lyric display You can off or on the lyric display (Audio Data with LRC only).

Î Perform steps 2 to 3 on page 21.

2 Within 20 seconds, press H« or »>1 button to select “Lyric” and press

Menu button. L E. Setings Rec Set

Note: The name of lyric songs should keep in pace with the name of the

song data. If the present song has the corresponding Iyric file, “L’ indicator will

B Changing the backlight lighting time You can change the lighting time of the display backlight.

1 Perform steps 2 to 3 on page 21.

2 Within 20 seconds, press H« or »»i

off : Backlight remains off. 5-10-30 seconds _: Backlight iluminates for a set time period. Always : Backlight remains on.

Checking memory status sen

B Reset the factory setting You can check the memory status before starting long hours of You can reset all function to the factory setting (default). recording, etc.

1_ Hold down the Menu button for 1 second or more.

2 Within 20 seconds, press H#« or >» button to select “About”, then press Menu button.

1 Hold down the Menu button for 1 second or more.

2 Within 20 seconds, press H« or »»1 button to select

he playback screen returns after 20 seconds.

“Settings” and press Menu button. LES He nu GS Main Menu QE Mer Menu [ES Main Menu —— & Satings EN avionter ss ET SRE + | Foeries 1 FU Radio FA Del Files AL voice Record i SL. Voice Record 4 About —— 3 Firmware version, memory and free space will 3 Within 20 seconds, press H« or »p1 display. Press H« or »»1 button to display internal flash mn button to select “Factory Setting” [.Setines memory or SD/MMC. FA and press Menu button. È È x _ 875.833. 0X = mirauoous | mp | Tone $ 4 Within 20 seconds, press H« or »»1 lot Free OO L button to select “Yes” and press | Reset Factory Setting? DT Menu button. No Intemal Memory External SD/MMC card memory ê “No” Note: is © Select “No” to cancel. The playback screen returns after 20 seconds. S D <

Caution: This function reset the following setting:

Language, volume, equaliser, repeat play, lyric, FM station, FM auto scan, FM area, FM transmitter, record settings, auto-power off, contrast, backlight.

H Installing the update tool

If you use a PC running Windows Millennium Edition, Windows 2000 Professional, Windows XP Professional or Windows XP Home Edition, install the upgrade tool as follows.

1_ insert the supplied CD-ROM into your CD-ROM drive.

Many potential “problems” can be resolved by the owner without calling a service technician. If something seems to be wrong with this product, check the following before calling your authorised SHARP dealer or service centre.

2 Select and click “FIRMWARE RECOVERY” on the screen (AutoRun) or pen the “Firmware Recovery” folder on the CD-ROM and double-click “setup.exe”.

Click the “Next” button. The “License Agreement” screen appears.

The unit does not turn on.

Click the “accept” and “Next” button. The “Choose Destination Location” screen appears.

The “Select Program Folder” screen appears.

Click the “Next” button. The “Ready to Install the Program” screen appears.

Click the “Install” button. When the installation is completed, the “Install Shield Wizard Complete” screen appears.

8 Click the “Finish” button.

Æ Updating the firmware If you have update firmware from website, follow below procedure.

3 4 5 Click the “Next” button. 6 7

1 Decompress the downloaded file.

Replace the file in “C:\Program Files\SHARP\WA-TR30_ 300” with the decompressed file.

2 3 Connect the unit to a PC with the USB cable. 4

Start the update tool.

From the “Start” menu, click ‘AIl Programs”, “WA-TR30_300

MP3 Audio player’ and then “Firmware Download”.

5 Click the “Start” button.

When the buttons are pressed, the unit does not respond. s there playable audio data on the unit?

The operation is unstable whilst the PC and the unit are connected.

The FM radio makes unusual noises continuously. @ Is a TV or computer near the unit?

The FM transmitter does not work. @ Is the FM transmitter is setting on?

FM transmission noises.

Is the unit bring it close to metal or put on a metal desk?

@ 1 there a thing intercepting an electric wave generator and an electric wave interfering with an FM electric wave?

B Resetting the unit

If the unit does not work properly, reset it as follows.

The unit may work properly.

1. Disconnect the USB cable.

2. Remove the battery.

3. Leave the unit completely unpowered for approximately 30 seconds.

4. Insert the battery.

5. Operate the unit.

If the unit still does not work properly, do as follows: 1. Disconnect the USB cable.

2. Remove the battery.

3. Connect the unit to a PC.

4. Proceed to the firmware update procedure (see page 24). 5. Insert the battery.

6. Operate the unit.

ERROR MESSAGE Shut down...

MEANING The baïlery has run out {Replace the battery)

The battery levelis low {cannot operate SD/MMC card)

Insufficient power to operate External Devices

Locked The HOLD switch is turned ON (Turn off the HOLD switch)

When the unit becomes dirty Clean it with a soft cloth. When the unit is excessively dirty, use a soft cloth dampened in water (external surfaces only).

Clean the plugs and the connecting sockets. Ifthe plugs or Sockets are dirty, noise may be heard. Cleaning will prevent noise.

As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Power source DC 1.5 V: AAA size, alkaline battery (LROS or similar) x 1

DC 5 V: USB bus power

Dimensions 80 mm (3-3/16") ght: 48 mm (1-7/8") Depth: 18 mm (11/16") Weight 36 g (1.28 oz.) without battery and SD/MMC card Sockets Earphones (impedance: 32 ohms)

USB port (Normal type) 20 - 20,000 Hz

5 mW +5 mW (earphones: 32 ohms) {maximum output level)

Continuous playback: Approx 6 hours

Frequency response Output power

Battery life {Alkaline Battery)

Frequency range Storage media

1 GB Flash Memory (WA-TR30) 2 GB Flash Memory (WA-TR300) 88.1 MHZ - 89.3 MHz

FM transmission Frequency range

PCM (sampling frequency: 8 - 16 kHz) FM recording

PCM (sampling frequency: 44 kHz)

PC interface Compatible with USE 2.0 and USB 1.1

@ A combination of sampling frequency and bit rate differs

depending on audio format.

Actual battery life will vary with use.
