Product type	Freestanding refrigerator-freezer
Brand	SHARP
Model	SJ-WS360T
Power supply	230 V, 50 Hz
Refrigerant	R600a (isobutane)
Number of refrigerator shelves	3
Vegetable crisper	Yes, with air flow adjustment
Ice making	Yes, with ice cube tray
Reversible door	Yes (kit required)
Lighting	LED (replacement by authorized service)
Cooling technology	Hybrid aluminum panel (indirect cooling)
Functions	Plasmacluster ionizer, express freezing, holiday mode, child lock, door alarm, energy saving
Refrigerator temperature setting	0°C to 6°C (in 1°C or 0.5°C steps)
Freezer temperature setting	-13°C to -21°C (in 1°C steps)
Defrosting	Automatic
Maintenance and cleaning	Clean with a soft cloth and soapy water; do not use solvent
Safety	Flammable refrigerant, do not use electrical appliances inside, do not puncture the circuit
Repairability	Contact an authorized SHARP service center
Country of manufacture	Thailand

Frequently Asked Questions - SJ-WS360T SHARP

How to activate the Plasmacluster ionizer?

Press the selection key to choose the Plasmacluster icon, then press ▲ to activate it. Press ◇ to confirm.

How to set the refrigerator temperature?

Press the selection key to choose the R icon, then use ▲/▼ to set the temperature from 0°C to 6°C. Confirm with ◇.

What to do if the door is heavy to open?

If one side is heavy, lower the adjustable foot on the opposite side. If both sides are heavy, tilt the refrigerator slightly backward by placing a wooden board under the rear casters.

How to reverse the door opening direction?

A specific hinge kit (SJ-LR320TD) is required. Contact an authorized SHARP after-sales service to perform the modification.

What to do in case of a power failure?

The power failure icon flashes if the internal temperature exceeds R:7°C or F:-10°C. Check the quality of food before consumption. Press ◇ to cancel the flashing.

How to clean the refrigerator?

Unplug the appliance. Clean the interior with a cloth soaked in warm water with biodegradable dish soap. Rinse and wipe dry. Do not use solvents or abrasive powder.

Why does the refrigerator make noise?

Noises are normal: compressor noise at startup, refrigerant gurgling, cracking of walls during contraction/expansion. The noise usually decreases after a few moments.

How to activate the energy saving mode?

Press ▲ and ◇ simultaneously for 3 seconds. The energy saving symbol appears. The internal temperature rises slightly (R:+1°C, F:+2°C). Disable it if freshness is insufficient.

How to use the express freezing function?

Press the selection key to choose the express freezing icon, then press ▲ to activate it. The operation lasts 2 hours and ends automatically.

What does the temperature indicator in the refrigerator mean?

The indicator is BLUE if the temperature is correct. If it turns WHITE, the temperature is too high; increase the refrigerator setting and check after 6 hours.

USER MANUAL SJ-WS360T SHARP

Line drawing of a double door with handles and a central button (no text or symbols)

SJ-WS360T
SJ-WP360T

Line drawing of a refrigerator with lid and front panel (no text or symbols)

SJ-RP360T
SJ-RM360T

Device of this mark is a trademark of Sharp Corporation.

Plasmacluster is a registered trademark or a trademark of Sharp Corporation.

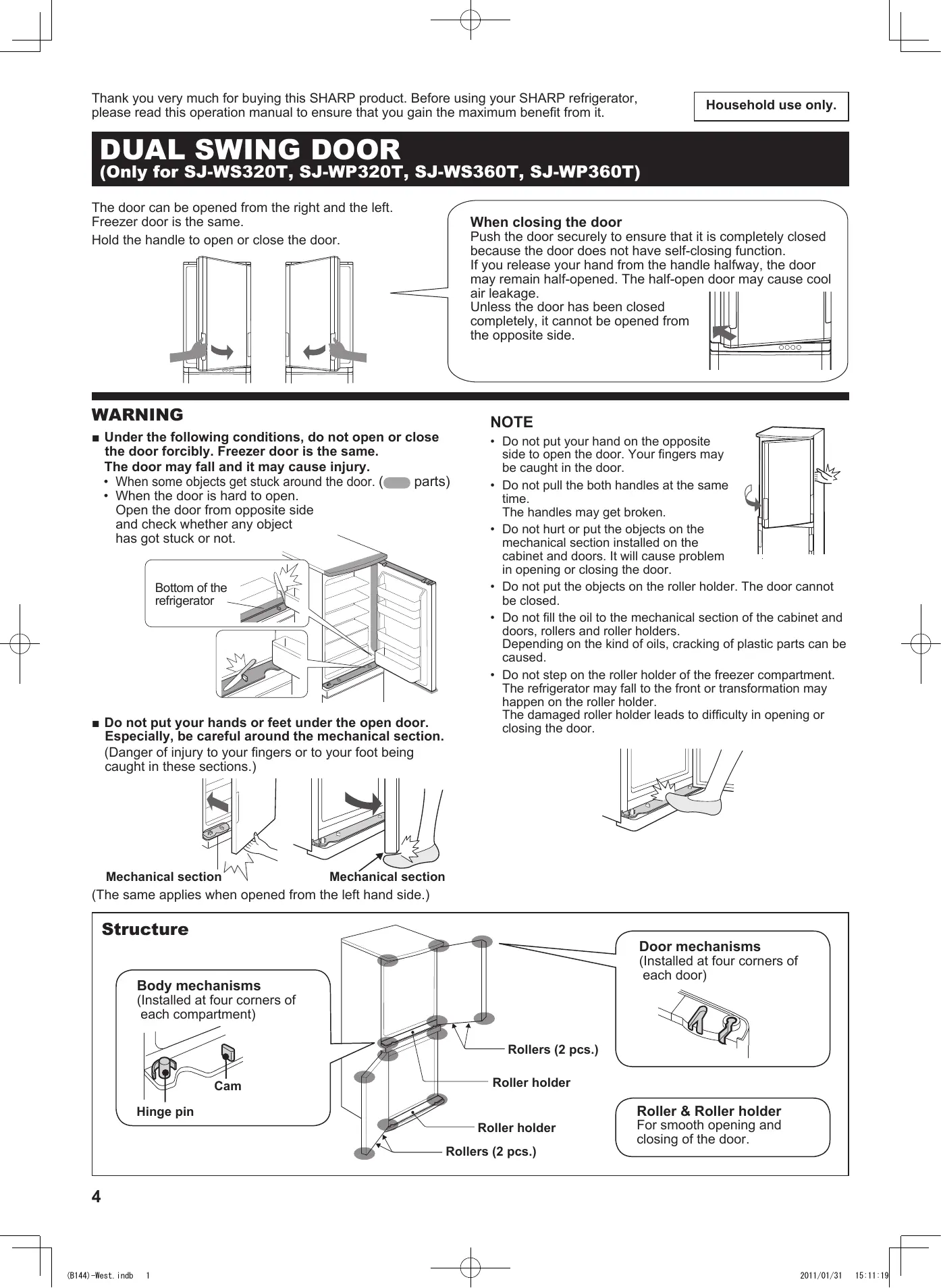

(Only for SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

The door can be opened from the right and the left. Freezer door is the same.

Hold the handle to open or close the door.

Diagram of a door frame with a hand pressing a button, showing an arrow indicating direction (no text or symbols present)

Diagram of a door with a hand pressing a button, showing left-hand rule (no text or symbols)

When closing the door

Push the door securely to ensure that it is completely closed because the door does not have self-closing function. If you release your hand from the handle halfway, the door may remain half-opened. The half-open door may cause cool air leakage.

Unless the door has been closed completely, it cannot be opened from the opposite side.

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

WARNING

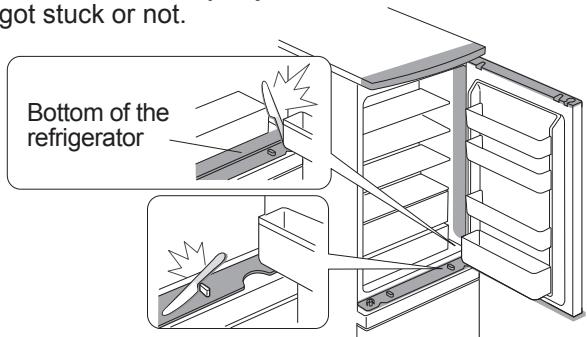

■ Under the following conditions, do not open or close the door forcibly. Freezer door is the same. The door may fall and it may cause injury.

• When some objects get stuck around the door. (parts)
• When the door is hard to open. Open the door from opposite side and check whether any object has got stuck or not.

■ Do not put your hands or feet under the open door. Especially, be careful around the mechanical section.

(Danger of injury to your fingers or to your foot being caught in these sections.)

Mechanical section

(The same applies when opened from the left hand side.)

NOTE

• Do not put your hand on the opposite side to open the door. Your fingers may be caught in the door.
• Do not pull the both handles at the same time. The handles may get broken.
• Do not hurt or put the objects on the mechanical section installed on the cabinet and doors. It will cause problem in opening or closing the door.
• Do not put the objects on the roller holder. The door cannot be closed.
• Do not fill the oil to the mechanical section of the cabinet and doors, rollers and roller holders. Depending on the kind of oils, cracking of plastic parts can be caused.
• Do not step on the roller holder of the freezer compartment. The refrigerator may fall to the front or transformation may happen on the roller holder.

The damaged roller holder leads to difficulty in opening or closing the door.

Illustration of a person's foot pressing down on a mechanical component (no text or symbols visible)

Structure

Body mechanisms

(Installed at four corners of each compartment)

Hinge pin

Door mechanisms

(Installed at four corners of each door)

Roller & Roller holder

For smooth opening and closing of the door.

WARNING

■ This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.

- The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.

- Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)

- Do not use electric appliances inside the refrigerator.

- Use only the specified parts for the refrigerator compartment light.

- Do not block the openings on the circumference of the refrigerator.

- Do not use flammable sprays, such as spray paint near the refrigerator. It may cause explosion or fire.

- If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.

- This refrigerator should be disposed appropriately. Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases.

■ Do not store highly volatile and flammable materials such as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc. These materials are liable to explode.

■ Dust deposited on the power plug may cause fire. Wipe it off carefully.

■ Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

■ Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

CAUTION

■ Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.

■ Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite.

■ Do not use an extension cord or adapter plug.

■ Do not place bottled and canned drinks in the freezer as they may crack when frozen.

■ Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.

■ Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.

■ Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.

■ In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.

■ Do not place objects containing liquid or unsteady objects on top of refrigerator.

■ This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator.

Information on Disposal for Users (private households)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Attention:

Your product is marked with this symbol.

It means that used electrical and electronic products should not be mixed with general household waste.

There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

WARNING

■ Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leakage. Condensation may also build on the outer cabinet and cause rust.
■ In order to prevent possible electric shock, connect the receptacle of earth to the earth terminal properly.

1 Keep adequate ventilation space around the refrigerator.

• The figure shows the minimum required space for installing the refrigerator. The measurement condition of power consumption is conducted under a different space dimension.
• By keeping greater space, the refrigerator may be operated under a less amount of power consumption.
• If using the refrigerator in the smaller space dimension than the below figure, it may cause the temperature rise in the unit, loud noise and failure.

2 Use the two front adjustable feet, to ensure that the refrigerator is positioned firmly and flat on the floor.

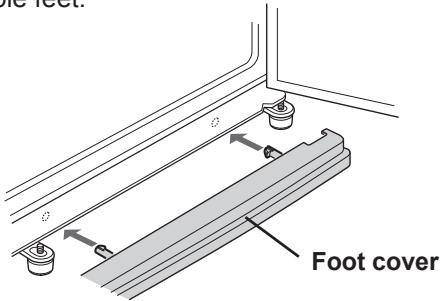

3 Clip the foot cover (supplied inside the refrigerator compartment) in the position on the front of the two adjustable feet.

NOTE

• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground.
  Provide suitable stand.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

Before transporting

• Wipe up water in the evaporating pan.
  Before wiping up the water, wait more than 1 hour after pulling out the plug because the refrigeration cycle equipment is extremely hot.
  (The evaporating pan is located on the rear of the product.)

NOTE

- Do not bend or damage the ductwork located on the inside of the evaporating pan. It may cause failure.

When transporting

• The casters allow the refrigerator to move back and forth.
• Carry the refrigerator by holding the handles located on the rear and the bottom.

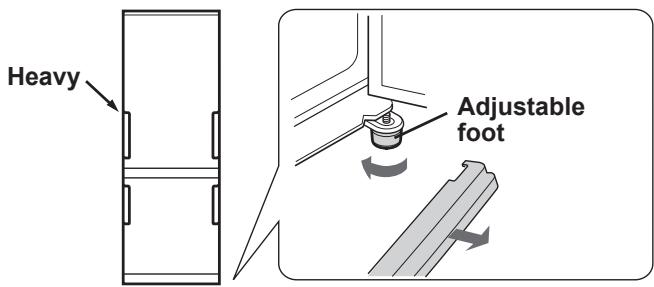

When the door is heavy to open

(Only for SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

When one side door is heavy

• When the left side is heavy, lower the right side adjustable foot.
  (Until the opposite side adjustable foot is slightly off-ground.)

- When the right side is heavy, lower the left side adjustable foot.

When both sides are heavy

- When the refrigerator is tilted backwards, insert a wooden board (with relatively large width), etc. between the rear of the refrigerator and the floor to adjust the tilting.

Reversible door

(Only for SJ-RP320T, SJ-RM320T, SJ-RP360T, SJ-RM360T) It is possible to change the door to left side opening. To modify the door a REFRIGERATOR HINGE KIT (for left side opening) will be required, SJ-LR320TD. For details of the kit and the modification work, please contact the service agent approved by SHARP.

CAUTION SHARP recommends that all modification work will be carried out by the approved service agent.

1. LED lights
2. Hybrid cooling panel (Aluminum panel)

The panel is cooled from the rear, thus indirectly cools the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

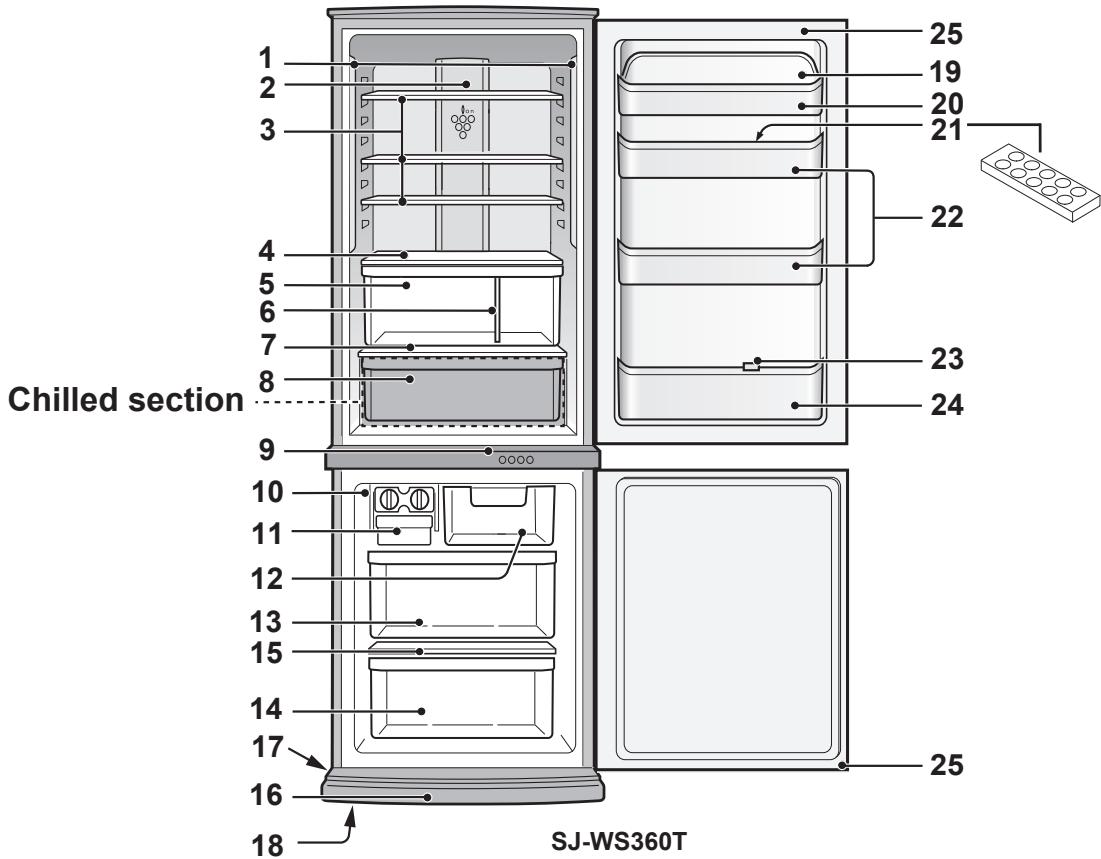

1. Refrigerator shelves

(SJ-WS320T,SJ-RP320T . 2 pcs )
SJ-WP320T,SJ-RM320T
(SJ-WS360T,SJ-RP360T . 3 pcs )
SJ-WP360T,SJ-RM360T

1. Fruit & vegetable shelf

The airflow to the vegetable crisper can be controlled by moving the vent hole lever to the right or left.

1. Fruit & vegetable crisper
2. Divider
3. Shelf
4. Chilled case

5. Control panel

6. Ice cube maker

1) Do not over fill the ice cube trays; otherwise the ice cubes will be joined together when frozen.
2) When the ice cubes are made, turn the lever clockwise to empty the ice into the ice cube box.

NOTE

To prevent damage to the ice cube box, do not make ice in the ice cube box or pour oil into it.

1. Ice cube box
2. Freezer case (top)
3. Freezer case (middle)
4. Freezer case (bottom)

Diagram of a mechanical device with a top view and internal components, no text or symbols present

1. Freezer shelf
2. Foot cover
3. Casters (4 pcs.)
4. Adjustable feet (2 pcs.)
5. Utility pocket cover
6. Utility pocket
7. Egg holder
8. Door pockets (2 pcs.)
9. Bottle stopper / Tube stand

Prevents bottles etc. from falling. Stick-type food products stored inside.

1. Bottle pocket
2. Magnetic door seals (2 pcs.)

Deodorizing unit

Deodorizing catalyst is installed on the routes of cold air. No operation and cleaning are required.

More foods can be stored by removing the following accessories as indicated in the figure below.

Chilled case, Ice cube maker, Ice cube box, Freezer case (top & middle)

• If the refrigerator is operated with these accessories taken out, it will work under the most energy-efficient condition.
• Please do not remove Freezer case (bottom).

Line drawing of a refrigerator with doors, shelves, and storage compartments (no text or symbols)

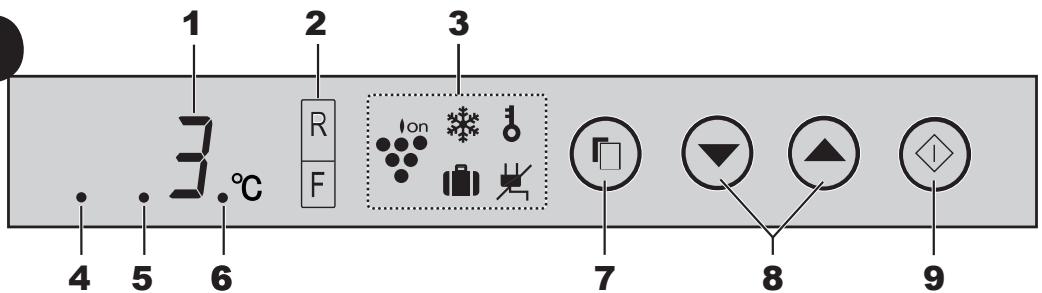

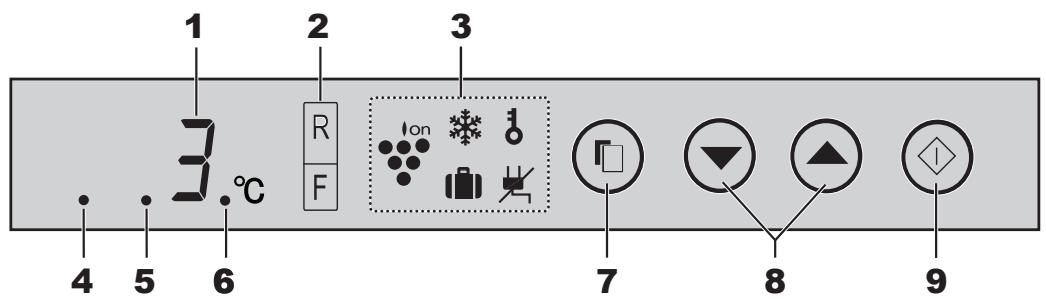

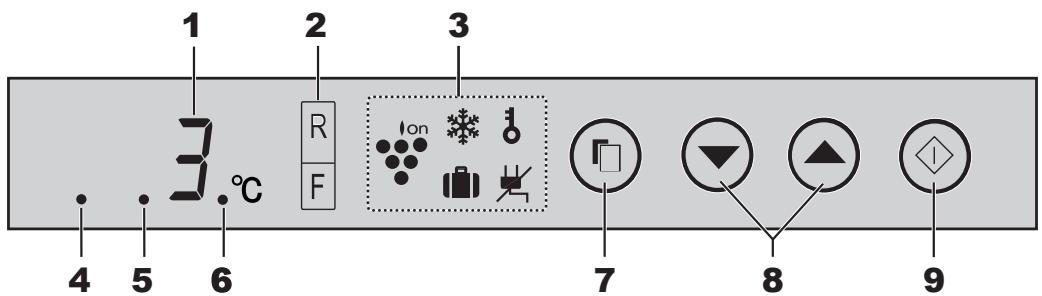

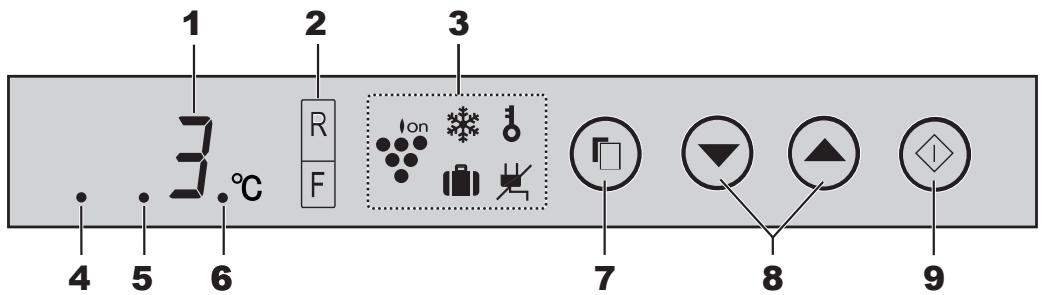

Control panel

1. Display for temperature setting

The preset temperature of selected compartment is displayed. It is not the actual temperature in the compartment.

1. Display for controlling temperature

The temperature of refrigerator and freezer can be selected. The indicator of the temperature will light when the compartment is selected to change its temperature.

1. Display for feature icon

Icons of features in operation are displayed.

Plasmacluster

Child lock*

Express Freezing*

Power failure

Vacation mode*

(*: Except for SJ-RM320T, SJ-RM360T)

1. Energy saving indication

This indication shows energy saving "ON".

1. Sound ON/OFF indication

This indication shows sound "OFF".

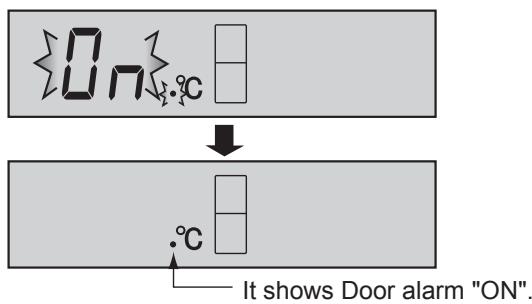

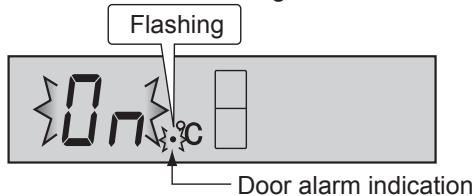

1. Door alarm indication

This indication shows door alarm "ON".

(Door alarm is only for the refrigerator compartment.)

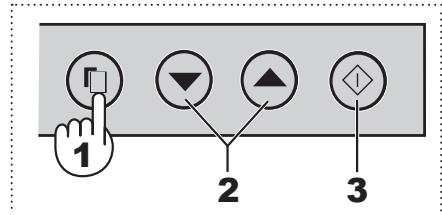

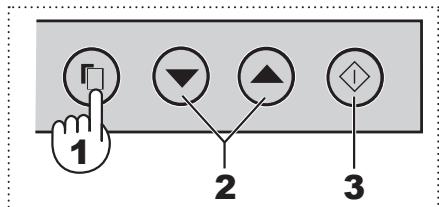

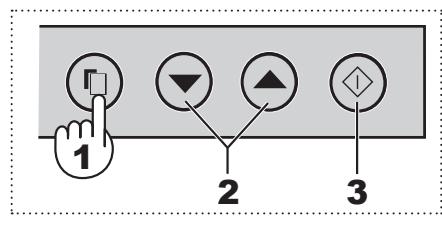

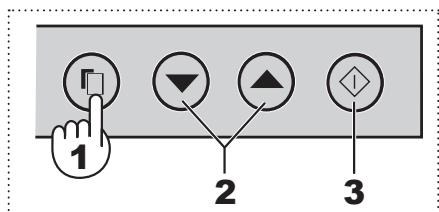

1. Select button

Press to select feature icon and door alarm signal.

1. ▼ / ▲ button

Press to select feature ON/OFF or temperature setting.

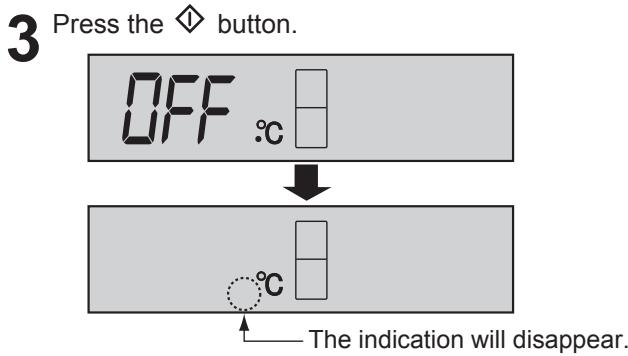

1. ◇ (Enter) button

Finalize the setting.

NOTE

- Features start automatically like right figure when inserting the power plug. (The initial content is only Door alarm "ON".)

- When there is no operation for 1 minute, the display will automatically return to the initial content. Additionally, the display will be turned off when there is no operation for 1 minute.

- When either of the button is pressed, the display will blink once and show the initial content. When the refrigerator stops with power failure, the display shows similarly as before having a power failure at the time of re-power distribution. However, when it has a power failure during operation of Express Freezing, the operation is stopped at the time of re-power distribution.

Plasmacluster

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the refrigerator compartment.

These ion clusters inactivate airborne mold fungus.

1 Press the Select button and select Plasmacluster icon.

2 Press the ▲ button. [▲ : ON, ▼ : OFF ]

3 Press the ◆ button.

To cancel operation

It is the same method as starting operation.

Press the ▼ button in step 2.

NOTE

- There may be a slight odor in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator.

Express Freezing (Except for SJ-RM320T, SJ-RM360T)

High-quality frozen foods can be made using this feature and is convenient for home-freezing.

1 Press the select button and select express freezing icon.

2 Press the ▲ button. [▲ : ON, ▼ : OFF ]

3 Press the ◆ button.

Vacation Mode

(Except for SJ-RM320T, SJ-RM360T)

Use this feature when going on a trip or leaving the house for a long time.

1 Press the select button and select vacation mode icon.

2 Press the ▲ button. [▲ : ON, ▼ : OFF ]

2 Press the ◇ button.

To cancel operation

Press the ▼ button in step 2.

NOTE

• The temperature inside the refrigerator compartment will be adjusted to about 10^ C.
• Food storage period in the refrigerator compartment becomes approx. 1/2-1/3 of normal operation. Please utilize only when there is no perishable food.
• Temperature of refrigerator compartment cannot be modified. ("10°C" is indicated on the display.)

To cancel operation

It is the same method as starting operation. Press the ▼ button in step 2.

NOTE

• Express Freezing ends automatically in about 2 hours. (The icon will disappear.)
  • Large foods cannot be frozen in a single operation.
• Express Freezing may require more than 2 hours in the case operation overlaps with defrosting as operation is started after defrosting is completed.
• Avoid opening the door as much as possible during operation of this feature.

Child Lock

(Except for SJ-RM320T, SJ-RM360T)

Key operation of the control panel will be locked. Use this feature to prevent the panel from being used unintentionally by children or someone.

1 Press the select button and select the child lock icon.

2 Press the ▲ button. [▲ : ON, ▼ : OFF ]

3 Press the ◆ button.

To cancel operation

It is the same method as starting operation. Press the ▼ button in step 2.

Controlling Temperature

The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows.

Refrigerator compartment

Adjustable between 0^ C and 6^ C in steps of 1^ C.

1 Press the select button and select R icon.

2 Press the ▲ / ▼ button and set the temperature.

[▲ : increase, ▼ : decrease ]

NOTE

- During vacation mode is operating, this compartment cannot be set. ("10°C" is indicated on the display.)

2 Press the ◆ button.

Freezer compartment

Adjustable between -13^ and -21^ in steps of 1^ .

1 Press the select button and select F icon.

2 Press the ▲ / ▼ button and set the temperature. [▲ : increase, ▼ : decrease ]

2 Press the ◆ button.

Advanced Setting of Refrigerator compartment

The temperature of refrigerator compartment can be adjusted in steps of 0.5^ C by following steps ① to ③ below.

① Select R icon.
② Press ◆ button continuously for 3 seconds or more.
③ Adjust the temperature in the same way as steps 2 to 3 above.

Follow steps ① to ② again if you want to adjust the temperature in steps of 1°C.

Beep beep beep

Indicator of Temperature

This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the refrigerator compartment.

(The door pocket positioned at the same height isn't the coldest zone.)

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control. To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again.

Symbol

BLUE

Correct setting

WHITE

Temperature too high, adjust the refrigerator temp. control.

NOTE

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.
• When fresh food has been introduced or the door has been left open for some time, it is normal for the indicator of temperature to turn WHITE.

GB

Power Failure

While this feature is operating, it will indicate the rise of inside temperature caused by power failure or something.

1 Press the select button and select the power failure icon. (The icon is orange.)

2 Press the ▲ button. [▲ : ON, ▼ : OFF ]

3 Press the ◆ button.

To cancel operation

It is the same method as starting operation. Press the ▼ button in step 2.

Indication of power failure

- At the time of repower, if the inside temperature of the refrigerator and freezer compartment becomes as follows, R: more than 7°C, F: more than -10°C, power failure icon will blink slowly.

- Check the quality of food before you eat.

How to cancel the indicator blink

Press the ◆ button while the icons are blinking.

Door Alarm

• When the refrigerator door is left open, the door alarm will sound.
• The door alarm will sound in 1 minute after opening the door and again after 1 minute (once in each case).
• If the door is left open for approx. 3 minutes, the alarm will sound continuously.
• At first, door alarm is set "ON".

To cancel operation

1 Press the select button and select the door alarm indication like the below figure.

To start operation

It is the same method as canceling operation. Press the ▲ button in step 2.

Use this feature to turn off the sound of key operation.

1 Press the ▼ button and ◆ button simultaneously and continuously for 3 seconds or more.

To set sound "ON"

Press the ▼ button and ◊ button simultaneously and continuously for 3 seconds or more again.

Energy Saving

Use this feature when you want to switch the appliance to energy-saving operation.

1 Press the ▲ button and ◇ button simultaneously and continuously for 3 seconds or more.

To cancel operation

Press the ▲ button and ◊ button simultaneously and continuously for 3 seconds or more again.

NOTE

• While this feature is operating, the inside temperature of the refrigerator and freezer compartment will be higher than the preset temperature as follows; R: about 1°C, F: about 2°C. (If the preset temperature is set at R: 3°C, F: -18°C.) The displayed temperature will not be changed.
• The efficiency of power saving depends on the usage environment (controlling temperature, ambient temperature, frequency of opening or closing the door, amount of food). If express freezing is operated at the same time, the efficiency of power saving will also change.
• Cancel this feature when you feel the beverages are not cooled enough or ice making takes time.

Tips for saving energy

• Keep the ventilation space as much as possible around the refrigerator.
• Keep your refrigerator out of direct sunlight, and do not place next to heat generating appliance.
  ■ Open your refrigerator door as briefly as possible.
  ■ Hot foods should be cooled before storing.
  ■ Place the food evenly on the shelves to allow the cooling air to circulate efficiently.

The amount of power consumption of this model is measured according to the international standard of the refrigerator performance.

• The amount of power consumption of this model is measured under the space dimensions on the right figure.
• The amount of power consumption of this model is measured with some accessories taken out as indicated in the right figure.

Line drawing of an refrigerator interior showing front and side views (no text or symbols)

GB

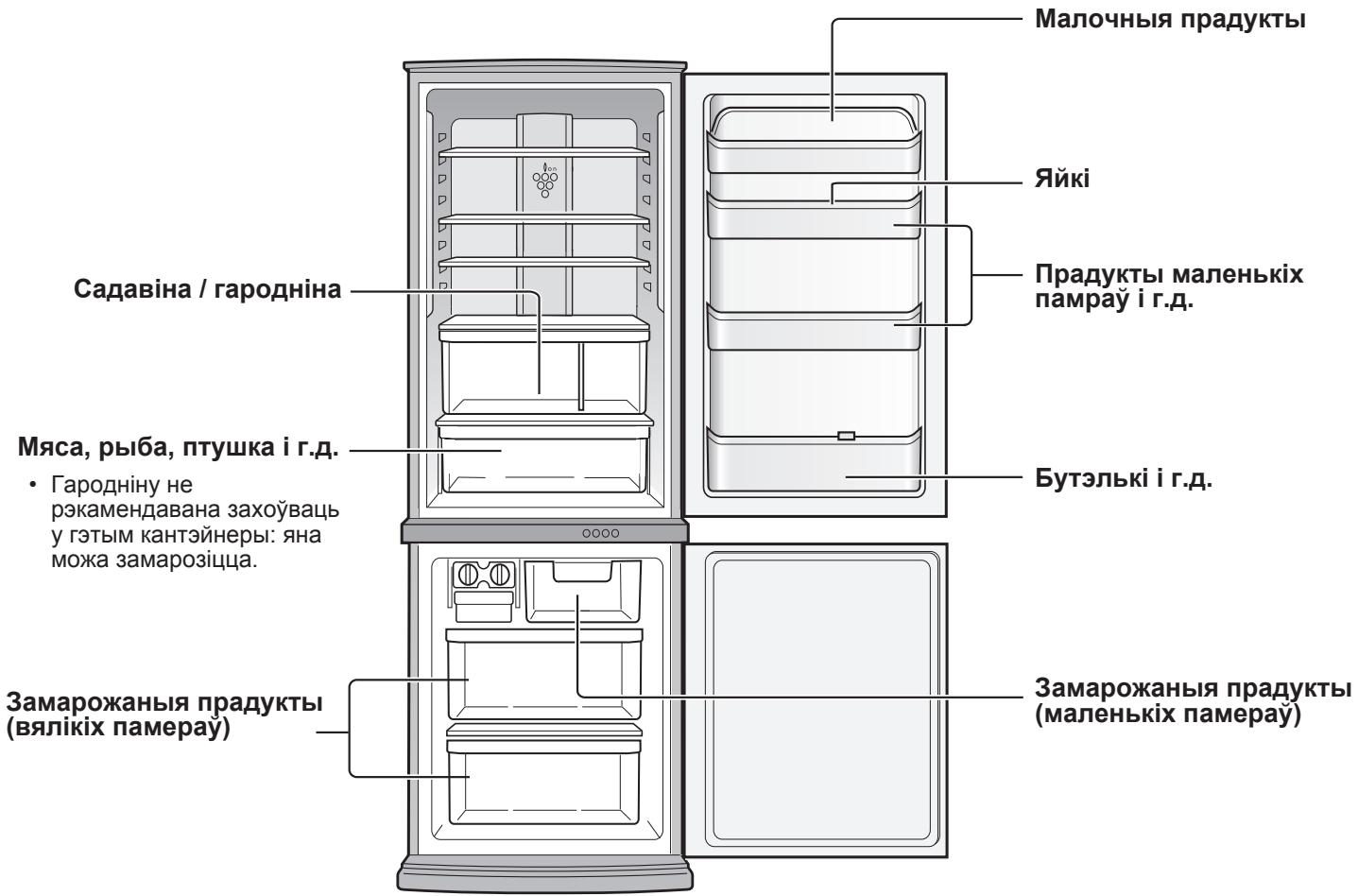

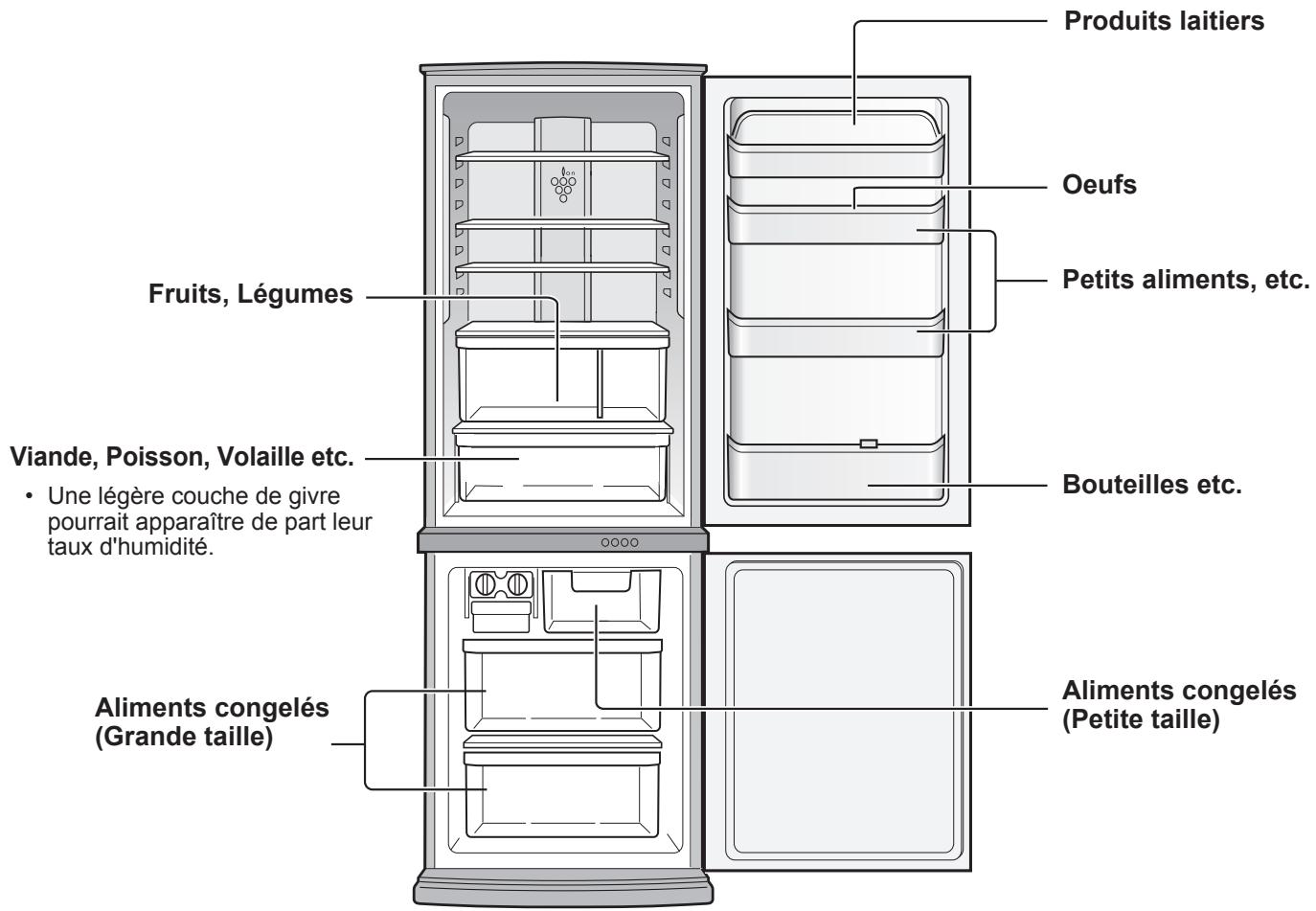

Refrigeration reduces the rate of food spoilage.

To maximize the shelf life of perishable food products, ensure that the food is the freshest possible quality. The following is a general guide to help promote longer food storage.

Fruit / Vegetables

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the vegetable crisper.

Dairy Products & Eggs

• Most dairy products have a use by date on the outer packaging which informs the recommended temperature and shelf life of the product.
• Eggs should be stored in the Egg holder.

Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

NOTE

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.
• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.
• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.
• Keep the door securely closed.

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

For best freezing

• Quality of foods should be fresh.
- Freeze small quantities of food at a time to freeze them quickly.
- Food should be properly sealed, sealed tightly or covered.
• Evenly place the food in the freezer.
- Label bags or containers to keep an inventory of freezing food.

WARNING

■ Unplug the refrigerator first to prevent electric shock.
- Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT

To prevent cracking on inside surfaces and plastic components, follow these tips.

• Wipe any food oils adhered to plastic components.
• Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.

1 Remove the accessories e.g. shelves from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry.
2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water.
3 Wipe the exterior with a soft cloth each time it is soiled.
4 Clean the magnetic door seal with a toothbrush and warm soapy dishwashing water.
5 Wipe the control panel with the dry cloth.

NOTE

• To prevent damage to your refrigerator, do not use heavy duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.)
• If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.
• The glass shelves weigh approximately 2kg each. Hold firmly when removing from the cabinet or carrying.
• When dropped the juice and the like near the control panel, wipe off directly. It becomes cause of failure of the control panel.
• Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.

Defrosting

Defrosting is fully automatic due to a unique energy saving system.

When the compartment light is blown

Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualified service personnel.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

Problem	Solution
The outside of the cabinet is hot when touched.	It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise.	It is normal for the refrigerator to produce the following sounds.Loud noise produced by the compressor when operation starts--- Sound becomes quieter after a while.Loud noise produced once a day by the compressor--- Operating sound produced immediately after automatic defrost operation.Sound of flowing fluid (gurgling sound, fizzing sound)--- Sound of refrigerant flowing in pipes (sound may become louder from time to time).Cracking or crunching sound, squeaking sound--- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frosting or dew generation occurs inside or outside the refrigerator.	This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.When the ambient humidity is high.When the door is frequently opened and closed.When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator compartment freeze.	Is the refrigerator operated for a long time with refrigerator temp. control set at 0°C?Is the refrigerator operated for a long time with freezer temp. control set at -21°C?Low ambient temperature may cause placed foods to freeze even if refrigerator temp. control is set to 6°C.
It smells in the compartment.	Wrapping is required for the foods with strong smell.Deodorizing unit cannot remove all of the smell.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

Diagram showing two views of a refrigerator with hands holding keys, no text or symbols present

Al cerrar la puerta

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

ADVERTENCIA

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Line drawing of a foot pressing down on a wall-mounted bracket (no text or symbols)

Estructura

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Atención:

Diagram of a mechanical device with a central component and directional arrow, no text or symbols present.

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

FUNCIONAMIENTO

Panel de control

NOTAS

PARA ALMACENAR LOS ALIMENTOS

(Solo per i modelli SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a door with a hand pressing a button, showing an arrow indicating left motion (no text or symbols present)

Diagram of a door with a hand pressing a button, showing left-hand rule (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

AVVERTENZE

Simple line drawing of a cabinet with an arrow indicating motion or force, no text or symbols present.

Line drawing of a foot pressing down on a mechanical component (no text or symbols)

Struttura

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Attenzione:

SJ-RP320T
SJ-RM320T
SJ-RP360T
SJ-RM360T
SJ-WS320T
SJ-WP320T
S.J-WS360T
SJ-WP360T

(Solo per i modelli SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a mechanical device with a lever and directional arrow, no text or symbols present

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Comparto freezer

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Diagram showing two views of a refrigerator with hands holding keys, no text or symbols present

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

AVERTISSEMENT

Diagram showing a foot pressing down on a metal bracket with an arrow indicating motion (no text or symbols present)

Illustration of a person's foot pressing down on a mechanical component (no text or symbols visible)

Simple line drawing of a cabinet with an arrow indicating motion, no text or symbols present

Structure

Mécanismes du corps

(Installé aux quatre coins de chaque compartiment)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Illustration of four workers in hard hats lifting a large cylindrical object (no text or symbols present)

Diagram of a mechanical device with a lever and directional arrow, no text or symbols present

Bac à glaçons

NOTE

Line drawing of a refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

UTILISATION

Congélation express *

Panne de courant

Mode vacances *

NOTES

CONSERVATION DES ALIMENTS

Diagram showing two views of a refrigerator with hands holding keys, no text or symbols present

Ao fechar a porta

Pure technical diagram showing a mechanical or structural component with no text, numbers, or symbols

AVISO

Illustration of a person's foot stepping on a mechanical component with bolts and a spring (no text or symbols)

Estrutura

Mecanismos do corpo

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

Atenção:

Line drawing of a kitchen sink with a bucket and drawer (no text or symbols)

Diagram of a mechanical device with a lever and directional arrow, no text or symbols present

OBSERVAÇÕES

Line drawing of a refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

FUNCIONAMENTO

Painel de controlo

2 Prima o botão ▲. [▲: ON (LIGADO), ▼: OFF (DESLIGADO)]

2 Prima o botão ▲. [▲: ON (LIGADO), ▼: OFF (DESLIGADO)]

2 Prima o botão ▲. [▲: ON (LIGADO), ▼: OFF (DESLIGADO)]

2 Prima o botão ▼/▲ e regule a temperatura. [▲ : aumentar, ▼ : diminuir ]

OBSERVAÇÕES

OBSERVAÇÕES

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Diagram showing two views of a refrigerator with hands holding keys, no text or symbols present

Pure technical diagram showing a mechanical or structural component with no text, numbers, or symbols.

ΠΡΟΣΟΧΗ

Diagram showing a foot pressing down on a metal bracket with an arrow indicating motion (no text or symbols)

Diagram of a foot stepping on a mechanical component with bolts and a foot (no text or symbols)

Δομή

Μηχανισμοί σώματος

Diagram of a mechanical device with a table and directional arrow, no text or symbols present

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Πίνακας ελέγχου

[▲: ON (ENEPΓΟ), ▼: OFF (ANENEPΓΟ)]

ΣΗΜΕΙΩΣΗ

Line drawing of a refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

Diagram showing two views of a refrigerator with hands holding keys, no text or symbols present

Pure technical diagram showing a mechanical or structural component with no text, numbers, or symbols.

VORSICHT

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Simple line drawing of a cabinet with a handle and a scroll, no text or symbols present

Line drawing of a foot pressing down on a mechanical component (no text or symbols)

Aufbau

Gehäusemechanismen

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Illustration of a person pushing a door with an arrow indicating left motion (no text or symbols)

Rollfüße (4 St.)

Illustration of four workers in hard hats pulling a large cylindrical object (no text or symbols visible)

Diagram of a mechanical setup with a table and control panel (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Bedienfeld

[▲: ON (EIN), ▼: OFF (AUS)]

1. Wahltaste

Tiefkühlabteil

Temperaturanzeige

HINWEISE

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Diagram showing two identical mechanical or architectural views of a device with hands operating, no text or symbols present.

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

WAARSCHUWING

Illustration of a hand using a tool to cut a door panel with an arrow indicating left motion (no text or symbols)

Diagram showing a foot pressing down on a metal bracket with an arrow indicating motion (no text or symbols)

Line drawing of a foot pressing down on a mechanical component (no text or symbols)

Structuur

Inhoudsmechanismen

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Let op:

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

N.B.

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Bedieningspaneel

2 Druk op de ▲ toets. [▲: ON (AAN), ▼: OFF (UIT)]

2 Druk op de ▲ toets. [▲: ON (AAN), ▼: OFF (UIT)]

2 Druk op de ▲ toets. [▲: ON (AAN), ▼: OFF (UIT)]

Vriesgedeelte

N.B.

Line drawing of an refrigerator interior showing front and side views (no text or symbols)

Diagram showing two mechanical assembly steps with hands holding a component, no text or symbols present

Zamykanie drzwi

Pure technical diagram showing a mechanical or structural component with no text, numbers, or symbols.

OSTRZEŻENIE

Diagram showing a foot pressing a mechanical component with an arrow indicating motion (no text or symbols present)

Części mechaniczne

Części mechaniczne

Line drawing of a foot pressing down on a mechanical component (no text or symbols)

Struktura

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

UWAGA

Illustration of a person pushing a door with an arrow indicating left motion (no text or symbols)

Kółka (4 sztuki)

Illustration of four workers in hard hats lifting a large cylindrical object (no text or symbols visible)

Diagram of a mechanical device with a table and control panel, showing no text or symbols.

Line drawing of an refrigerator interior showing front and rear panels (no text or symbols)

Panel sterujący

[▲: ON (WŁĄCZONY), ▼: OFF (WYŁĄCZONY)]

Wyłączenie funkcji

Komora zamrażarki

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Diagram of a door handle opening with an arrow indicating left motion (no text or symbols)

Diagram of a door with a hand pressing a button, showing directional arrow (no text or symbols)

Pure mechanical diagram showing a bracket with arrows indicating direction (no text or symbols)

FIGYELMEZTETÉS

Diagram showing a foot pressing down on a metal bracket with an arrow indicating motion (no text or symbols)

Mechanikai rész

MEGJEGYZÉS

Illustration of a human foot stepping on a mechanical component with no visible text or symbols

Mechanikai rész

Symbol of a trash bin crossed with a diagonal line, no text or labels present

$$ \begin{array}{l} (S J - W S 3 2 0 T, S J - R P 3 2 0 T. 2 d b) \ \left. \left(S J - W P 3 2 0 T, S J - R M 3 2 0 T \cdot 2 ^ {a b}\right) \right. \ (S J - W S 3 6 0 T, S J - R P 3 6 0 T \cdot 2 d b) \ \left(S J - W P 3 6 0 T, S J - R M 3 6 0 T \cdot 3 d b\right) \ \end{array} $$

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

MÜKÖDTETÉS

Vezérlőpanel

Fagyasztótér

Hőmérsékletjelző

MEGJEGYZÉS

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

(Numai pentru SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a door handle opening with an arrow indicating leftward movement (no text or symbols)

Diagram of a door with a hand pressing a button, showing left-hand rule (no text or symbols)

La închiderea uşii

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

AVERTISMENT

Diagram showing a foot pressing down on a metal bracket with an arrow indicating motion (no text or symbols)

Line drawing of a foot pressing down on a mechanical component (no text or symbols)

Structură

Mecanisme corp

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Atentie:

Illustration of four workers in hard hats pulling a large cylindrical object (no text or symbols visible)

(Numai pentru SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

NOTĂ

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

(Cu exceptia SJ-RM320T, SJ-RM360T)

(Cu exceptia SJ-RM320T, SJ-RM360T)

NOTĂ

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

PĂSTRAREA ALIMENTELOR

(Pouze pro SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two mechanical assembly states with hands holding a component, no text or symbols present

Při zavírání dveří

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

BEZPEČNOSTNÍ POKYNY

Diagram showing a foot pressing a mechanical component with an arrow indicating motion (no text or symbols present)

Line drawing of a foot pressing down on a mechanical component (no text or symbols)

Struktura

Tělo mechanismu

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

SJ-RP320T
00-RP 9201 S L RM320T
SJ-RM3201
SJ-RP360T
SJ-RM360T
SJ-WS320T
SU-W0320T SJ WDR220T
SJ-WP3201
SJ-WS360T
SJ-WP360T

Illustration of a person pushing a door with an arrow indicating left motion (no text or symbols)

Kolečka (4 ks)

Illustration of four workers in hard hats handling a large cylindrical object (no text or symbols visible)

(Pouze pro SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a mechanical device with a top view and internal components, no text or symbols present

Line drawing of a refrigerator with doors and shelves (no text or symbols)

OBSLUHA

Ovládací panel

Zrušení operace

Indikátor teploty

POZNÁMKA

(Iba SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two views of a refrigerator with hands holding keys, no text or symbols present

Pri zatváraní dverí

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

UPOZORNENIE

Diagram showing a foot pressing down on a metal bracket with an arrow indicating motion (no text or symbols)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Konštrukcia

Mechanizmus zavesenia

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Pozor:

(Iba SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

$$ \begin{array}{l} (S J - W S 3 2 0 T, S J - R P 3 2 0 T. 2 k s) \ \left(S J - W P 3 2 0 T, S J - R M 3 2 0 T \cdot Z K S\right) \ (S J - W S 3 6 0 T, S J - R P 3 6 0 T. \quad 3 k s) \ \left(S J - W P 3 6 0 T, S J - R M 3 6 0 T \cdot S K S\right) \ \end{array} $$

1. Polička na ovocie a zeleninu

Diagram of a device with a screen and control panel, no text or symbols present

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Ovládací panel

1 Stlačte tlačidlo vol'by a vyberte ikonu Plasmacluster.

2 Stlačte tlačidlo ▲ [▲: ON (ZAP), ▼: OFF (VYP)]

Zrušit' činnost'

(Okrem SJ-RM320T, SJ-RM360T)

POZNÁMKA

Line drawing of an refrigerator interior showing front and side views (no text or symbols)

SKLADOVANIE POTRAVÍN

Diagram showing two views of a refrigerator with hands holding keys, no text or symbols present

Uždarydami duris

Pure mechanical diagram showing a bracket with arrows indicating direction (no text or symbols)

ISPÈJIMAS

Illustration of a foot pressing down on a mechanical component (no text or symbols visible)

Simple line drawing of a cabinet with an arrow indicating motion, no text or symbols present

Struktūra

Korpuso mechanizmai

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Dèmesio:

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

APTARNAVIMAS

Valdymo pultas

3 Paspauskite mygtuka „◇“.

PASTABA

PASTABA

Diagram of a door with a hand pressing a button, showing an arrow indicating leftward movement (no text or symbols present)

Diagram of a door with a hand pressing a button, showing a left-side arrow (no text or symbols)

Durvju aizvēršana

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

BRĪDINĀJUMS

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Illustration of a foot pressing down on a mechanical component (no text or symbols visible)

Simple line drawing of a cabinet with an arrow indicating motion, no text or symbols present

Uzbūve

Korpusa mehānisms

Diagram of a mechanical device with a lever and directional arrow, no text or symbols present

Line drawing of an open refrigerator with doors and shelves (no text or symbols)

Vadības panelis

Ledusskapja nodalijuma papildu iestatijumi iestatijumi

PIEZİME

Line drawing of an refrigerator interior showing front and side views (no text or symbols)

PÄRTIKAS UZGLABÄŠANA

Diagram showing two views of a refrigerator with hands holding keys, no text or symbols present

Ukse sulgemine

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

ETTEVAATUST

Line drawing of a person's foot stepping on a mechanical component with bolts and a foot (no text or symbols)

Simple line drawing of a cabinet with an arrow indicating motion, no text or symbols present

Ehitus

Põhiosa mehhanismid

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Illustration of a person adjusting a door panel with directional arrows indicating movement (no text or symbols)

Rattad (4 tk)

Illustration of four workers in hard hats handling a large cylindrical object (no text or symbols visible)

Diagram of a mechanical device with a lever and directional arrow, no text or symbols present

Line drawing of a refrigerator with doors open and one side showing the interior shelves (no text or symbols)

Juhtpaneel

2 Vajutage ▲ -nuppu. [▲: ON (SEES), ▼: OFF (VÄLJAS)]

3 Vajutage ◆ -nuppu.

Puhkuserežiim

2 Vajutage ▲ -nuppu. [▲: ON (SEES), ▼: OFF (VÄLJAS)]

3 Vajutage ◇ -nuppu.

2 Vajutage ▲ -nuppu. [▲: ON (SEES), ▼: OFF (VÄLJAS)]

3 Vajutage ◇ -nuppu.

2 Vajutage ▲ -nuppu. [ ▲: ON (SEES), ▼: OFF (VÄLJAS) ]

3 Vajutage ◇ -nuppu.

MÄRKUS

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

TOIDUAINETE HOIDMINE

(Le za SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a door frame with a hand pressing a button, showing an arrow indicating leftward movement (no text or symbols present)

Diagram of a door frame with a hand pressing a button, showing no text or symbols

Zapiranje vrat

Potisnite vrata in se prepričajte, da so dobro zaprta, saj nimajo funkcije samodejnega zapiranja.

Pure mechanical diagram showing a bracket with arrows indicating direction (no text or symbols)

OPOZORILO

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Mehanski del

Line drawing of a foot pressing down on a mechanical component (no text or symbols)

Simple line drawing of a cabinet with an arrow indicating motion, no text or symbols present

Tehnični sestav

Mehanizem na ohišju

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Pozor:

1040mm
SJ-RP320T
SJ-RM320T
SJ-RP360T
SJ-RM360T
1350mm
SJ-WS320T
SJ-WP320T
SJ-WS360T
SJ-WP360T

Illustration of four workers in hard hats pulling a large cylindrical object (no text or symbols visible)

(Le za SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a mechanical device with a top view and internal components, showing no text or symbols.

Škatla za ledene kocke

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Nadzorna plošča

1. Prikaz za nastavljanje temperature

Prikazana je prednastavljena temperatura izbranega predela. To ni dejanska temperatura v predelu.

1. Prikaz za nadzor temperature

1 Pritisnite gumb za izbiro in izberite ikono Plasmacluster.

2 Pritisnite gumb ▲. [▲: ON (VKLOP), ▼: OFF (IZKLOP)]

1. Izbirni gumb

Pritisnite za izbiro ikone funkcije in alarmnega signala vrat.

1. Gumb ▼ / ▲

2 Pritisnite tipko ▲ / ▼ in nastavite temperaturo.

Zamrzovalni predel

Nastavljivo od -13 °C do -21 °C v korakih po 1 °C.

1 Pritisnite gumb za izbiro in izberite ikono F.

2 Pritisnite tipko ▲ / ▼ in nastavite temperaturo. [▲: povečanje, ▼: zmanjšanje ]

3 Pritisnite gumb ◆.

1 Hkrati pritisnite gumba ▼ in ◊ ter ju držite 3 sekunde ali več.

Za VKLOP zvoka

Znova hkrati pritisnite gumba ▼ in ◊ ter ju držite 3 sekunde ali več.

OPOMBA

Diagram showing two views of a refrigerator with hands holding keys, indicating left and right motion (no text or symbols)

Закривання дверей

Line drawing of a person's foot pressing down on a mechanical component (no text or symbols)

Simple line drawing of a cabinet with an arrow indicating motion, no text or symbols present

Будова

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Увага:

Illustration of a person installing or adjusting a door panel with an arrow indicating left motion (no text or symbols present)

Ролики (4 шт.)

Illustration of workers in hard hats lifting a large cylindrical object (no text or symbols present)

Diagram of a mechanical device with a lever and directional arrow, no text or symbols present

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

ЕКСПЛУАТАЦІЯ

Панель керування

ПРИМИТКА

(Само за SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two views of a refrigerator with hands holding keys, no text or symbols present

Pure technical diagram showing a mechanical or structural component with no text, numbers, or symbols

ПРЕДУПРЕЖДЕНИЕ

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a foot pressing down on a metal bracket with an arrow indicating force direction (no text or symbols)

Механични елементи
Механични елементи

Line drawing of a person's foot pressing down on a mechanical bracket (no text or symbols)

Simple line drawing of a cabinet with arrows indicating motion or force (no text or symbols)

Конструкция

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Внимание:

(Camo SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Line drawing of a refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

РАБОТА

Контролен панел

1. Дисплей за зададена температура

(Не важи за SJ-RM320T, SJ-RM360T)

(Не важи за SJ-RM320T, SJ-RM360T)

Фризерно отделение

ЗАБЕЛЕЖКА

(Толькі для мадэляў SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two identical views of a refrigerator with hands holding keys, no text or symbols present

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

ПАПЯРЭДЖАННЕ

Diagram showing a foot pressing down on a metal bracket with an arrow indicating force direction (no text or symbols present)

Diagram of a human foot stepping on a mechanical component with no visible text or symbols

Структура

Механізмы корпуса

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Увага:

Line drawing of a kitchen appliance with a lid and drawer (no text or symbols)

Выпарная чаша

УВАГА

Illustration of four workers in hard hats pulling a large cylindrical object (no text or symbols visible)

(Толькі для мадэляў SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a mechanical device with a lever and directional arrow, no text or symbols present

Line drawing of a refrigerator with doors open and shelves inside (no text or symbols)

KIPABAHHE

Панэль кіравання

Адмена аперацыі

УВАГА

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

ЗАХОЎВАННЕ ПРАДУКТАЎ

Federal Republic of Germany

Printed in Thailand
