Product type	Fridge-freezer
Brand	SHARP
Model	SJ-CT480R
Power supply	220-240 V ~ 50 Hz
Refrigerant	R600a (isobutane), flammable
Insulating blowing gas	Cyclopentane
Net capacity	Approximately 480 litres (estimate)
Climate class	Not specified
Freezer star rating	2 stars (**)
Refrigerator compartment	With hybrid aluminium panel
Compressor	Compressor block with hot parts
Main functions	Ice making, temperature indicator, automatic defrost, catalytic deodorisation, coldest zone
Interior lighting	Lamp replaceable by a qualified technician
Settings	Separate temperature adjustment buttons for refrigerator and freezer
Included accessories	Ice cube tray, ice cube box, egg tray, door shelves, glass shelves, kickplate
Installation	Adjustable front feet, rear wheels, minimum required ventilation space
Maintenance and cleaning	Clean with a soft cloth and soapy water, automatic defrost, do not use solvents
Safety	Flammable refrigerant, do not use mechanical devices, do not store explosive substances, special power cord
Spare parts	Lamp, power cord, magnetic door seals, glass shelves
Repairability	Interventions reserved for a SHARP authorised technician
Weight	Not specified (approximately 80-100 kg estimated)
Dimensions (H x W x D)	Not specified (approximately 180 x 60 x 70 cm estimated)

Frequently Asked Questions - SJ-CT480R SHARP

How to adjust the temperature of the refrigerator and freezer?

Use the adjustment buttons located inside the refrigerator. Turn the button for the refrigerator (top part) and that for the freezer (bottom part) according to your needs. The coldest zone is indicated by a symbol.

How to make ice cubes with the SJ-CT480R model?

Fill the ice cube box without overfilling. When the ice cubes are ready, turn the knob clockwise to empty them into the ice cube tray. Do not use the ice cube tray to make ice cubes or to contain oil.

What does the temperature indicator mean?

The temperature indicator is located in the refrigerator compartment. It should remain blue for a correct temperature. If it turns white, the temperature is too high: increase the setting and wait 6 hours before checking again.

How to clean the inside of the refrigerator?

First unplug the appliance. Remove the removable glass shelves and door shelves and wash them with warm soapy water. Clean the inside with a damp cloth and soapy water, then rinse with clean water. Never use solvents or abrasive products.

What to do in case of refrigerant leak?

The R600a refrigerant is flammable. In case of leak, ventilate the room by opening windows, do not touch the appliance or the plug, and contact a SHARP authorised service agent.

How to defrost the freezer?

Defrosting is fully automatic. No manual action is required. In case of malfunction, check that the door is properly closed and that ventilation is sufficient.

The outside of the refrigerator is hot, is this normal?

Yes, it is normal. The hot air tube circulates in the walls to prevent condensation. This is part of normal operation.

What to do if the interior bulb no longer works?

The bulb must only be replaced by a SHARP authorised service technician. Contact customer service to carry out the replacement.

How to save energy with this refrigerator?

Respect the minimum ventilation space around the appliance, do not open the door unnecessarily, allow hot food to cool before placing it inside, and set the temperature correctly.

Where to find the complete manual in French?

The 81-page manual is available for free download in PDF format on notice-facile.com. You can also request a translation by email.

USER MANUAL SJ-CT480R SHARP

Household use only. Free standing type.

FRIGORIFICO-CONGELADOR

E MANUAL DE MANEJO 7

• This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.
• The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.
• Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)
• Do not use electric appliances inside the refrigerator.
• Use only the specified lamp for the refrigerator compartment.
• Do not block the openings on the circumference of the refrigerator.
• If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.
• This refrigerator should be disposed appropriately. Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases.
• Highly volatile and flammable materials such as ether, petrol, propane gas, adhesive agents and pure alcohol etc. are liable to explode. Do not store these materials in the refrigerator.
• Dust deposited on the power plug may cause fire. Wipe it off carefully.
• Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.
• Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

CAUTION

• Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.
• Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite.
• Do not use an extension cord or adapter plug.
• Do not place bottled and canned drinks in the freezer as they may crack when frozen.
• Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.
• Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.
• Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required. In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.
• Do not place objects containing liquid or unsteady objects on top of refrigerator.
• This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator.

INSTALLATION

WARNING

• Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust.

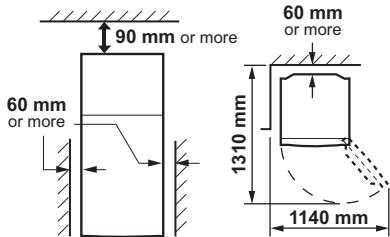

1 Keep adequate ventilation space around the refrigerator.

• The figure shows the minimum required space for installing the refrigerator. It differs from the space in the measurement condition of the amount of power consumption.
• It is possible to use the refrigerator with a lower amount of power consumption by keeping greater space.
• If using the refrigerator in the space below the dimension of the figure, it may cause the temperatures in the unit to rise, loud noise, and failure.

2 Using the two front adjustable feet, ensure that the refrigerator is positioned firmly and level on the floor. 3 Remove the 2 screws of the cabinet lower part, and use these to fit the foot covers. (supplied inside the refrigerator compartment)

NOTE

• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground.

Provide suitable stand.

When transporting

• Using the casters, it is possible to move back and forth.
• Carry the refrigerator by holding the handles located on the rear and bottom.

Caster

rear

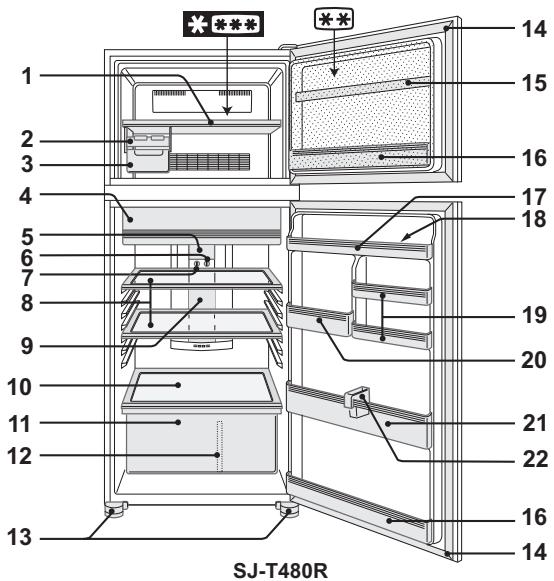

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

- 2 star section for storing frozen food only.

1. Freezer shelf
2. Ice cube maker

(SJ-T440R, SJ-T480R)

Ice cube tray

(SJ-CT440R, SJ-CT480R)

SJ-CT440R, SJ-CT480R

1. Ice cube box
2. Fresh case & door
3. Refrigerator light
4. Freezer temp. control knob
5. Refrigerator temp. control knob
6. Refrigerator shelf (2 pcs.)
7. Hybrid cooling panel (Aluminum panel) (Only for SJ-T440R, SJ-T480R)
8. Fruit and vegetable shelf
9. Fruit and vegetable crisper
10. Divider
11. Adjustable feet & cover (2 pcs.)
12. Magnetic door seal (2 pcs.)
13. Freezer bar
14. Door pocket (2 pcs.)
15. Refrigerator pocket
16. Egg holder
17. Utility pocket (2 pcs.)

SJ-T440R, SJ-CT440R

1. Utility pocket (large)

(Only for SJ-T480R, SJ-CT480R)

• Do not swap the left and right positions of the utility pocket and the utility pocket (large).
• Bottle pocket
• Tube stand

(Only for SJ-T440R, SJ-T480R)

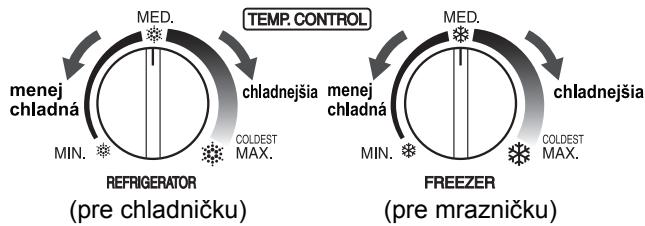

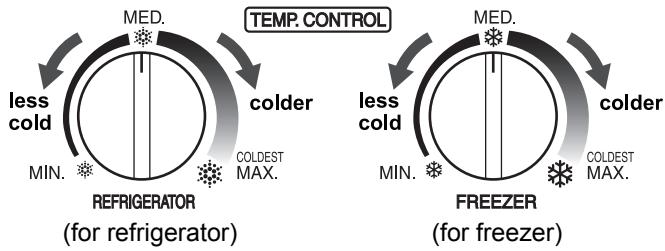

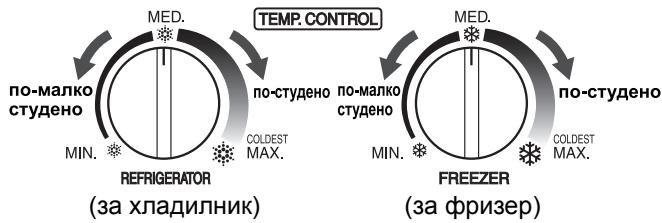

Controlling temperature

Adjustable by turning each knob.

Hybrid cooling panel (Aluminum panel)

The panel is cooled from the rear, thus indirectly cooling the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

Deodorizing unit

Deodorizing catalyst is installed on the routes of cold air. No operation and cleaning are required.

Hints when making ice

1 Do not overfill the ice cube trays; otherwise the ice cubes will be joined together when frozen. 2 SJ-T440R, SJ-T480R

When the ice cubes are made, turn the lever clockwise to empty the ice into the Ice cube box.

When the ice cubes are made, hold the Ice cube tray upside down whilst twisting either end in opposite directions, allowing the ice cubes to drop out.

Ice cube box

Ice cube tray

NOTE

To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it.

Tube stand

Prevents bottles etc. from falling. Stick-type food products can also be stored inside.

INDICATOR OF TEMPERATURE

This refrigerator is provided with a indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the refrigerator compartment. (The door pocket positioned at the same height isn't the coldest zone.)

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control as indicated in the chapter "Controlling Temperature".

To maintain a correct temperature inside the appliance, check that the temperature indicator is always BLUE. If the temperature indicator turns WHITE, the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 6 hours before checking the temperature indicator again.

NOTE

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored, and the frequency of door opening.
• When fresh food has been introduced or the door has been left open for some time, it is normal for the temperature indicator to turn WHITE.

BLUE Correct setting

WHITE Temperature too high, adjust the refrigerator temperature control.

STORING FOOD

Refrigeration reduces the rate of food spoilage.

To maximize the shelf life of perishable food products, ensure that the food is the freshest possible quality. The following is a general guide to help promote longer food storage.

• Ensure all cooked food is wrapped securely or placed in an airtight container.
• To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material such as wrap or bags (do not seal) and placed in the fruit and vegetable crisper.
• Eggs should be stored in the egg holder.
• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.
• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.
• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise, the foods will not be evenly cooled throughout the refrigerator.
• Keep the door securely closed.

For best freezing

• Quality of foods should be fresh.
• Freeze small quantities of food at a time to freeze them quickly.
• Food should be properly stored or covered and the air should be removed to seal tightly.
• Evenly place the food in the freezer.
• Label bags or containers to keep an inventory of freezing food.

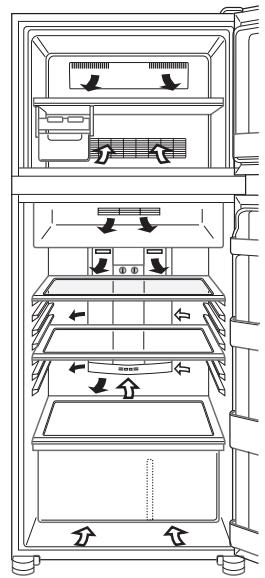

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

CARE AND CLEANING

WARNING

• Unplug the refrigerator first to prevent electric shock.
• Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT

To prevent cracking on inside surfaces and plastic components, follow these tips.

• Wipe any food oils adhered to plastic components.
• Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.

1 Remove the shelves and pockets from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry. (Only fruit and vegetable shelf is not removable.) 2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water. 3 Wipe the exterior with a soft cloth each time it is soiled. 4 Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water.

NOTE

• To prevent damage to your refrigerator, do not use heavy duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.).
• If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.
• The glass shelves weigh approximately 2 kg each. Hold firmly when removing from the cabinet or carrying.
• Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.

Defrosting

Defrosting is fully automatic due to a unique energy saving system.

When the compartment light is blown

Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualified service personnel.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

WHAT TO DO BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

Problem	Solution
The outside of a cabinet is hot when touched.	It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise.	It is normal for the refrigerator to produce the following sounds. • Loud noise produced by the compressor when operation starts --- Sound becomes quieter after a while. • Loud noise produced once a day by the compressor --- Operating sound produced immediately after automatic defrost operation. • Sound of flowing fluid (gurgling sound, fizzling sound) --- Sound of refrigerant flowing in pipes (sound may become louder from time to time). • Cracking or crunching sound, squeaking sound --- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frosting or dew generation occurs inside or outside the refrigerator.	This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew. • When the ambient humidity is high. • When the door is frequently opened and closed. • When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator compartment freeze.	• Is the refrigerator operated for a long time with temp. control set at MAX? • Low ambient temperature may cause placed foods to freeze even if refrigerator temp. control is set to MIN.
It smells in the compartment.	• Wrapping is required for the foods with strong smell. • Deodorizing unit cannot remove all of smell.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge. In some countries your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

Remove the drawers and shelves, and then pull the drawers out completely by lifting the front slightly and pulling towards you until they stop.

Drawer for cutlery, drawer with cutlery

NOTE

Do not place cutlery in the drawer for cutlery if it is not dry. The drawer for cutlery may become wet.

Shelf support

Suitable for storing bottles and cans so that they do not fall. Place them on the shelf support with the front facing up.

TEMPERATURE INDICATOR

This refrigerator comes with a temperature indicator inside the refrigerator compartment so that you can easily check the average temperature at the coldest point.

To open the door of the refrigerator, pull the handle. (If the door is closed, the handle is attached to the door, so it opens the refrigerator door.)

Checking the temperature in the refrigerator

You can perform periodic checks to ensure the temperature in the refrigerator is correct, and if necessary, adjust the temperature of the refrigerator, as indicated in the chapter "Temperature Check".

To maintain the temperature inside the device, ensure that the temperature setting is always ON. If the temperature setting is turned OFF, the temperature will be too high. Adjust the temperature setting of the refrigerator and wait a while before checking the temperature again.

NOTE

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

CALL FOR REPAIR

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

1. Ice maker (SJ-T440R, SJ-T480R) Ice cube tray (SJ-CT440R, SJ-CT480R)

3. Ice storage bin

1. Door compartment to keep food fresh
2. Refrigerator lighting
3. Freezer temperature control
4. Refrigerator temperature control
5. Refrigerator shelf (2 pcs)
6. Hybrid cooling panel (aluminum panel) (Only SJ-T440R, SJ-T480R)
7. Fruit and vegetable shelf
8. Fruit and vegetable drawer

12. Divider board

1. Adjustable foot with cover (2 pcs)
2. Magnetic door gasket (2 pcs)
3. Freezer panel
4. Door shelf (2 pcs)
5. Refrigerator shelf
6. Egg holder
7. Multi-purpose shelf (2 pcs)

1. Bottle holder (Only SJ-T440R, SJ-T480R)

Temperature control

Set the temperature by turning each knob.

2 SJ-T440R, SJ-T480R

SJ-CT440R, SJ-CT480R

When the ice cubes are ready, hold the ice cube tray upside down and bend it until the ice cubes fall out.

NOTE:

Do not make ice in the ice maker or pour oil into it. The ice maker may crack.

Bottle holder

Protects bottles and similar items from tipping over. Food of cylindrical shape can also be stored inside.

Ice tray Ice cube tray

TEMPERATURE INDICATOR

SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

When ice cubes form, turn the ice tray upside down and bend both ends up and down to release the ice cubes.

NOTE

To avoid damaging the ice tray, do not make ice in the ice tray and do not pour oil into it.

Tube stand

SJ-CT440R, SJ-CT480R

1. Freezer shelf
2. Ice cube tray (SJ-T440R, SJ-T480R) Ice cube tray (SJ-CT440R, SJ-CT480R)
3. Ice cube scoop
4. Fresh food compartment divider
5. Refrigerator light
6. Freezer temperature control button
7. Refrigerator temperature control knob
8. Refrigerator shelf (2 pcs.)
9. Hybrid cooling panel (aluminum panel) (Only SJ-T440R, SJ-T480R)
10. Fruit and vegetable shelf
11. Fruit and vegetable compartment
12. Divider
13. Adjustable legs and cover (2 pcs.)
14. Magnetic door gasket (2 pcs.)
15. Freezer compartment shelf
16. Door compartment (2 pcs.)
17. Refrigerator compartment
18. Egg holder
19. Additional compartment (2 pcs.)

1. Additional compartment (large) (SJ-T480R, SJ-CT480R only)
2. Do not swap the left and right positions of the additional compartment and the additional compartment (large).
3. Bottle compartment
4. Pipe stand (SJ-T440R, SJ-T480R only)

SJ-CT440R, SJ-CT480R

When the ice cubes are ready, hold the ice cube tray upside down and twist the ends in opposite directions to release the ice cubes from the molds.

CAUTION

To avoid damaging the ice cube tray, do not make ice in it or pour oil into it.

Pipe stand

SJ-CT440R, SJ-CT480R

(SJ-T440R, SJ-T480R)

(SJ-CT440R, SJ-CT480R)

SJ-CT440R, SJ-CT480R

(For SJ-T440R, SJ-T480R)

(For SJ-T480R, SJ-CT480R)

(Le Za SJ-T440R, SJ-T480R)

Temperature control

2 SJ-T440R, SJ-T480R

When the ice cubes are ready, turn the handle clockwise to empty the ice into the ice cube box. SJ-CT440R, SJ-CT480R

SJ-CT440R, SJ-CT480R

1 Do not overfill the ice tray; when freezing, the cubes will stick together. 2 SJ-T440R, SJ-T480R

When the ice cubes are ready, turn the handle clockwise to empty the ice into the ice cube container.

SJ-CT440R, SJ-CT480R

When the ice cubes are ready, turn the handle for making ice upside down and slightly twist its edge in the opposite direction to release the ice cubes.

SJ-CT440R, SJ-CT480R

1. Ice cube tray

4. Spare parts storage For fresh food

5. Refrigerator lamp

1. Thermostat freezer
2. Thermostat for refrigerator
3. Shaft for refrigerator (2 pcs.)
4. Cooling hinge for door (Adjustable hinge) (Only for SJ-T440R, SJ-T480R)
5. Shaft for fruits and vegetables 11. Drawer for fruits and vegetables
6. Dividers
7. Adjustable door shelf (2 pcs.)
8. Magnetic gasket for door (2 pcs.) 15. Freezer shelf
9. Door gasket (2 pcs.)
10. Ice tray 18. Egg tray
11. Shelf for bottles (2 pcs.)

1. Supply for different wines (whole)

(Only for SJ-T480R, SJ-CT480R)

• Do not place the bottle supply for different wines on the whole supply for different wines.
• Supply for bottles
• Required stand (Only for SJ-T440R, SJ-T480R)

Temperature control

Adjusted by turning the knob.

Cooling panel (aluminum panel)

The panel is cooled from behind, and thus indirectly cools the refrigerated compartment. This method of cooling keeps food fresh, without exposing it to a strong air flow.

Deodorizer

The deodorizer is mounted on the path of the cold air. It requires no control or maintenance.

Ice making

1 Do not interrupt the ice making process; otherwise, the ice cubes will be ready where they are made. 2 SJ-T440R, SJ-T480R

When the cube tray is ready, close the door to the freezer compartment to prevent the cubes from melting.

SJ-CT440R, SJ-CT480R

When the cube tray is ready, twist the ice tray by turning both ends in opposite directions to release the ice cubes.

Ice tray / Ice cube tray

CAUTION

To avoid damaging the ice tray, do not make ice in it and do not pour oil into it.

Bottle rack

Bottle rack and similar. It can also hold cans and thin items according to product shape.

TEMPERATURE INDICATOR

The refrigerator is equipped with a temperature indicator in the cooling compartment, which allows you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the cooling compartment. (The door shelves, which are located at the top, are not included in the coldest zone.)

Tips for saving energy

Keep the ventilation space as much as possible around the refrigerator.

Printed in Thailand

Printed in Thailand

Printed in Thailand
