USER MANUAL PMT1G Speco Technologies

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical bracket with mounting holes and a central circular feature (no text or symbols)

Pole Mount

Quick Start Guide

Thank you for purchasing our product. All examples and pictures used in the manual are only for reference purpose.

Installation

Pole mounting examples

Here we only take some camera models for example to introduce their pole mounting with the junction box and other brackets.

- Pole Mounting of Dome Camera with Wall Mount

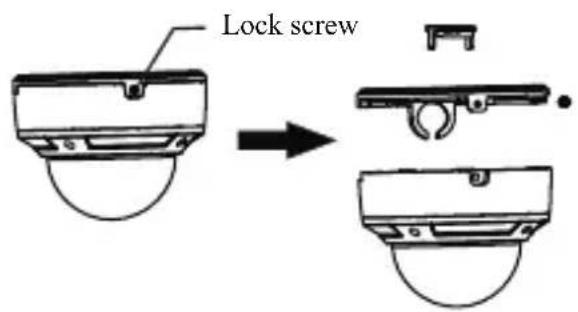

1. Loosen the lock screw to remove the mounting base.

2. Fix the wall mount to the pole mount with the bolts and nuts provided.

Lock screw

Wall mount

1. Install the pole mount to the pillar.

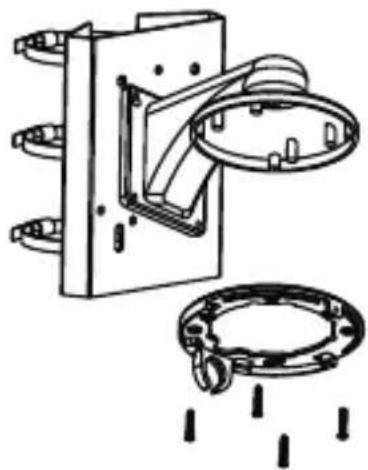

2. Screw the mounting base of the dome camera onto the wall mount.

Technical line drawing of a mechanical device with a cylindrical shaft and three vertical supports (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a flange (no text or symbols)

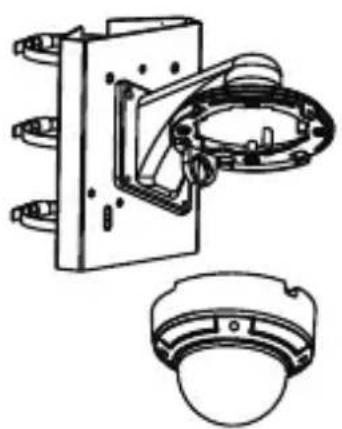

1. Route and connect cables. Then mount the camera to the mounting base.

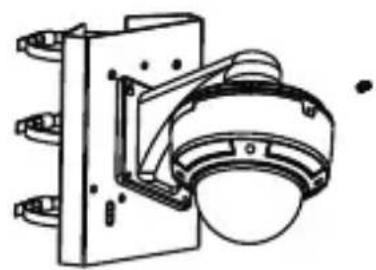

2. Fix the camera with lock screw.

Technical line drawing of a mechanical assembly with housing and component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

- Pole Mounting of Bullet Camera with Junction Box

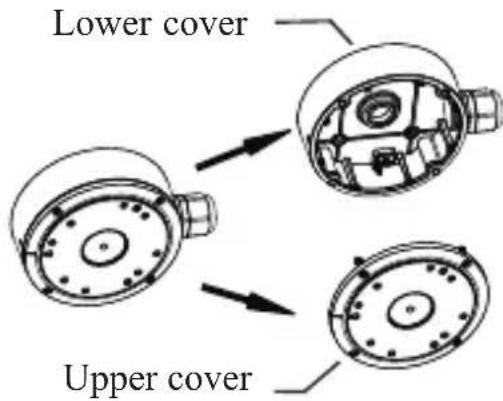

1. Open the covers of the junction box.

Lower cover Upper cover

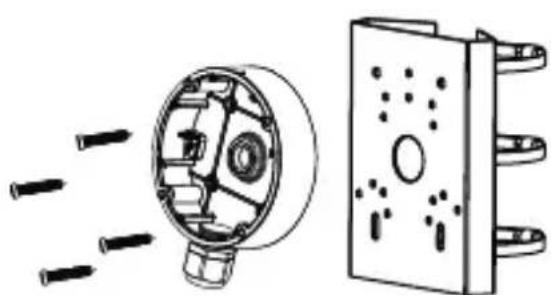

1. Fix the lower cover of the junction box to the pole mount with the bolts and nuts provided.

2. Screw the camera to the upper cover of the junction box.

Technical line drawing of a mechanical component with no visible text or symbols

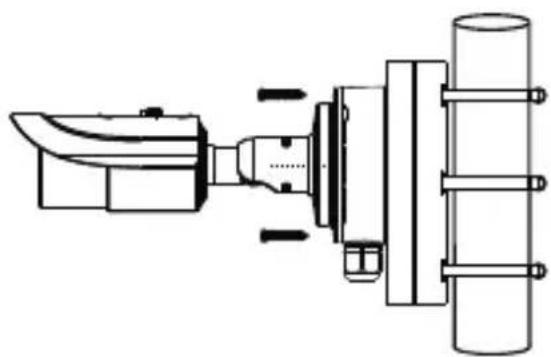

1. Install the pole mount to the pillar. Then connect cables and fasten the upper cover with the camera to the junction box.

Technical illustration of a mechanical component with exploded view and exploded view (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

- Pole Mounting of Bullet Camera

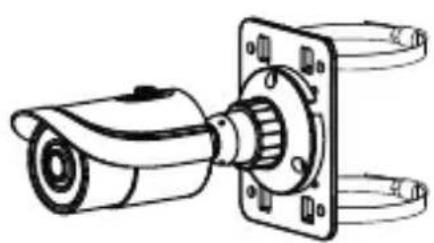

1. Fix the bullet camera to the pole mount with screws provided.

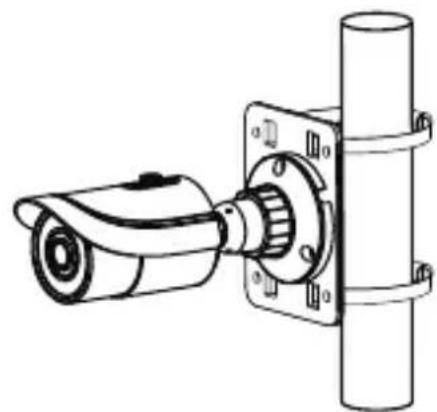

2. Connect cables and then fasten the the pole mount to the pillar.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a surveillance camera mounted on a cylindrical pipe (no text or symbols)

● Pole Mounting of PTZ Camera with Wall Mount

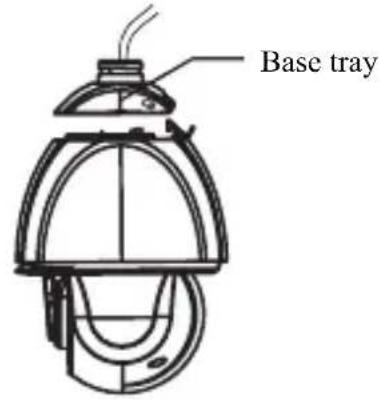

1. Remove the base tray from the PTZ camera.

Base tray

1. Install the base tray to the wall mounting bracket with screws.

Technical line drawing of a mechanical assembly with no visible text or symbols

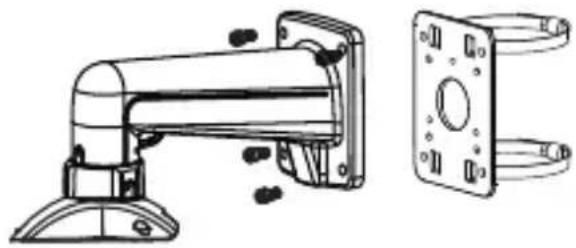

1. Fix the wall mounting bracket onto the pole mount with the bolts and nuts provided.

Technical line drawing of a mechanical device with two views: top shows a cylindrical component, bottom shows a flanged housing (no text or symbols)

1. Fasten the pole mount to the pillar.

Technical line drawing of a mechanical device with a cylindrical shaft beside it (no text or symbols)

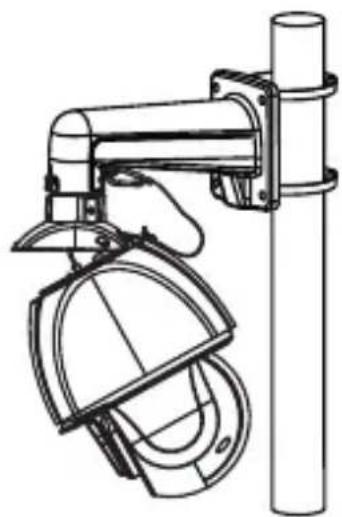

1. Connect cables and then hang the PTZ camera to the base tray. Hook the safety wire to the wall mounting bracket as well.

Technical line drawing of a mechanical device with a dome-shaped component attached to a vertical pole (no text or symbols)

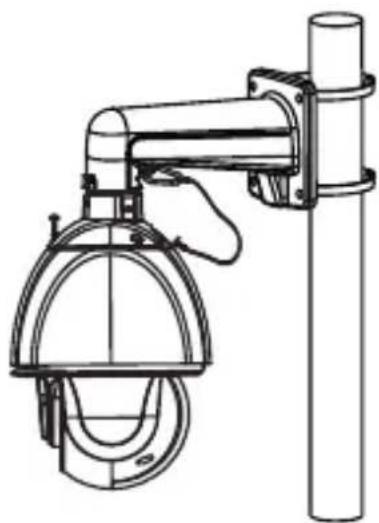

1. Fix the PTZ camera to the base tray with screws.

Technical line drawing of a security camera mounted on a vertical pole (no text or symbols)
