Product Type	Junction Box for Cameras
Brand	Speco Technologies
Model	JB3G
Compatible Cameras	Bullet and Dome Cameras
Material	Metal and Plastic
Mounting Type	Wall Mount
Cable Entry	Side Conduit or Bottom
Weight	Approx. 0.5 kg
Dimensions (Approx.)	120 mm x 120 mm x 50 mm
Color	White or Off-White
Installation	Includes drill template, screws, and expansion plugs
Weatherproof	Yes, designed for outdoor use
Safety	Ensure wall can support 3x weight of junction box and camera
Maintenance	Periodically check screws and seals for tightness
Spare Parts	Upper cover, mounting base, screws
Accessories Included	Drill template, expansion screws, mounting screws
Repairability	Modular design; replaceable cover and base
Operating Temperature	-30°C to 60°C
Ingress Protection	IP66 rated (estimated)
Warranty	Manufacturer warranty (check with retailer)

Frequently Asked Questions - JB3G Speco Technologies

What cameras are compatible with the Speco Technologies JB3G junction box?

The JB3G is designed for bullet cameras and dome cameras from Speco Technologies or other brands with similar mounting dimensions.

How do I install the junction box on a wall?

Use the included drill template to mark screw holes, drill, insert expansion plugs (except wooden walls), and secure the mounting base with screws. Then attach the camera to the upper cover.

Can I use the JB3G outdoors?

Yes, the junction box is weatherproof and suitable for outdoor installations. Ensure all cable entries are sealed properly to maintain protection.

What tools are needed for installation?

You will need a drill, screwdriver, and possibly a wrench for tightening screws. All mounting hardware is included in the box.

How do I route cables through the junction box?

Open the upper cover, pass cables through the side conduit or bottom cable hole, and connect them to the camera. Ensure cables are not pinched when closing the cover.

What is the maximum weight the junction box can support?

The wall must support at least 3 times the combined weight of the junction box and the camera. The box itself weighs approx. 0.5 kg.

Can I adjust the camera angle after installation?

Yes, for dome cameras, you may need to remove the lower dome to adjust the view angle. For bullet cameras, use the adjustable bracket.

Is the junction box made of metal or plastic?

The JB3G is constructed from a combination of metal and plastic for durability and lightweight.

How do I clean or maintain the junction box?

Use a soft, damp cloth to clean the exterior. Periodically check screws for tightness and seals for wear to ensure weatherproofing.

Can I purchase replacement parts for the JB3G?

Yes, the upper cover and mounting base are available as spare parts. Contact Speco Technologies or your retailer for availability.

USER MANUAL JB3G Speco Technologies

Technical line drawing of a circular mechanical component with mounting holes and central hub (no text or symbols)

Junction Box

Quick Star t Guide

Thank you for purchasing our products. All examples and pictures used in this manual are only for reference purpose. Please take the real object as the standard.

Before installation, make sure that the wall is strong enough to withstand 3 times the weight of the junction box and the camera. We only introduce the installation of some cameras with junction box in this manual.

● Mount the Junction Box and Bullet Camera

1. Drill the screw holes on the wall according to the drill template.

Pure technical diagram showing a circular component with cross symbol inside, supported by vertical lines (no text or labels)

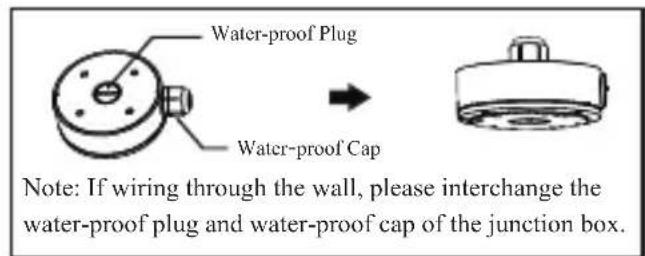

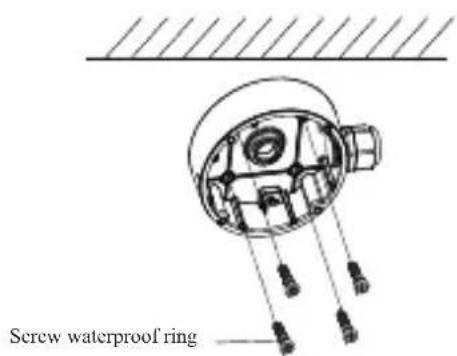

1. Push the expansion screws into the screw holes (if the wall is wooden, please skip this step) and then fix the mounting base of the junction box to the wall with screws.

1. Reinstall the upper cover to the junction box.

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

1. Open the mounting base and the upper cover of the junction box.

1. Fix the mounting base of the camera to the upper cover of the junction box. Then route the cables through the cable hole (take side conduit cabling for example) and connect the cables.

Technical line drawing of a mechanical assembly or lifting device (no text or symbols present)

1. Adjust the view angle of the camera.

Technical line drawing of a mechanical assembly with a rotating component (no text or symbols)

● Mount the Junction Box and Dome Camera (1)

1. Drill the screw holes on the wall according to the drill template.

Pure electrical circuit lines without any symbols

1. Secure the mounting base of the junction box to the wall.

1. Route the cables through the cable hole (take side conduit cabling for example) and connect the cables. Then reinstall the upper cover to the junction box.

Technical line drawing of a mechanical assembly with internal components and alignment lines (no text or symbols)

1. Open the mounting base and the upper cover of the junction box.

1. Fix the camera to the upper cover of the junction box.

Technical line drawing of two mechanical components with mounting holes and connecting rods (no text or symbols)

1. Adjust the view angle of the camera.

Technical line drawing of a mechanical component with no visible text or symbols

● Mount the Junction Box and Dome Camera (2)

The step 1 and step 2 are the same as the above-mentioned step 1 and step 2.

1. Secure the mounting base of the junction box to the wall.

Technical line drawing of a mechanical component with wires and housing (no text or symbols)

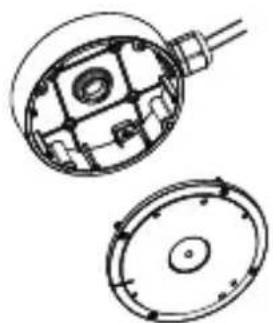

1. Unscrew the lock screw and then remove the mounting base of the camera.

1. Connect the cables and then fix the lower dome to the mounting base by tightening the lock screw.

Technical diagram of a mechanical component with two views (top and side), no visible text or symbols

1. Route the cables through the cable hole (take side conduit cabling for example). Then reinstall the upper cover to the junction box.

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)

1. Mount the mounting base of the camera to the junction box.

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

1. Remove the lower dome to adjust the view angle. After that, reinstall the lower dome to complete the installation.
