USER MANUAL N16WNRMM Speco Technologies

Network Video Recorder User Manual

N8NRE/N16NRE/N32NRE/N4NRN/N8NRN/ N16NRN/ N32NRN/N4NRL/N8NRL/ N8NRP/ N16NRP/N64NR N4NRM/N8NRM/N16NRM/N8NRX/N16NRX

Notes

• Please read this user manual carefully to ensure that you can use the device correctly and safely.
• There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this manual. The contents of this manual are subject to change without notice.
• This device should be operated only from the type of power source indicated on the marking label. The voltage of the power must be verified before using the same. Kindly remove the cables from the power source if the device is not to be used for a long period of time.
• Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat.
• Do not install this device near water. Clean only with a dry cloth.
• Do not block any ventilation openings and ensure proper ventilation around the machine.
• Do not power off the device at normal recording condition.
• This machine is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get inside the machine's case, please turn off the device immediately and get it checked by a qualified technician.
• Do not try to repair the device by yourself without technical aid or approval.

Contents

1 Introduction....1

1.1 Welcome .... 1
1.2 Features .... 1
1.3 Front Panel Descriptions .... 3
1.4 Rear Panel Descriptions .... 3
1.5 Connections .... 3

2 Basic Operation Guide ....4

2.1 Startup & Shutdown......4

2.1.1 Startup 4
2.1.2 Shutdown 4

2.2 Remote Control....4

2.3 Mouse Control 5

2.4 Text-input Instruction....5

2.5 Common Button Operation....6

3 EZ Setup & Main Interface....7

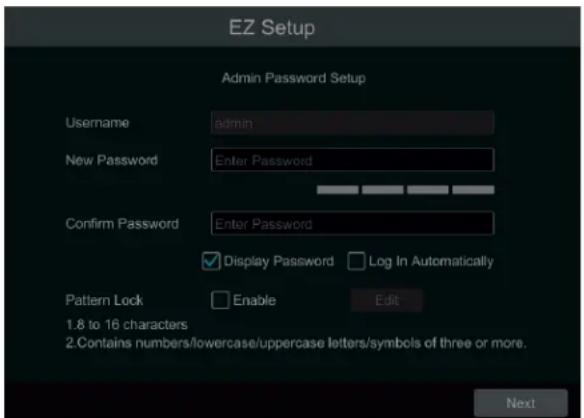

3.1 EZ Setup 7

3.2 Main Interface....10

3.2.1 Main Interface Introduction....10
3.2.2 Setup Panel 12
3.2.3 Main Functions....13

4 Camera Management 14

4.1 Add/Edit Camera....14

4.1.1 Add Camera....14
4.1.2 Edit Camera 16

4.2 Add/Edit Camera Group 16

4.2.1 Add Camera Group.... 16
4.2.2 Edit Camera Group....17
4.2.3 IP Planning....17

5 Live View Introduction 19

5.1 Live View Interface Introduction....19

5.2 View Mode....20

5.2.1 Display Mode 20
5.2.2 Quick Sequence View....21
5.2.3 Camera Group View In Sequence....21
5.2.4 Scheme View In Sequence 22

5.3 Image Configuration....22

5.3.1 OSD Settings....22

5.3.2 Image Settings.... 23

5.3.3 Mask Settings 23

5.3.4 Image Adjustment....24

5.3.1 OSD Settings....22 5.3.2 Image Settings....23 5.3.3 Mask Settings....23 5.3.4 Image Adjustment....24

5.3.5 Fisheye Settings....26

6 PTZ 27

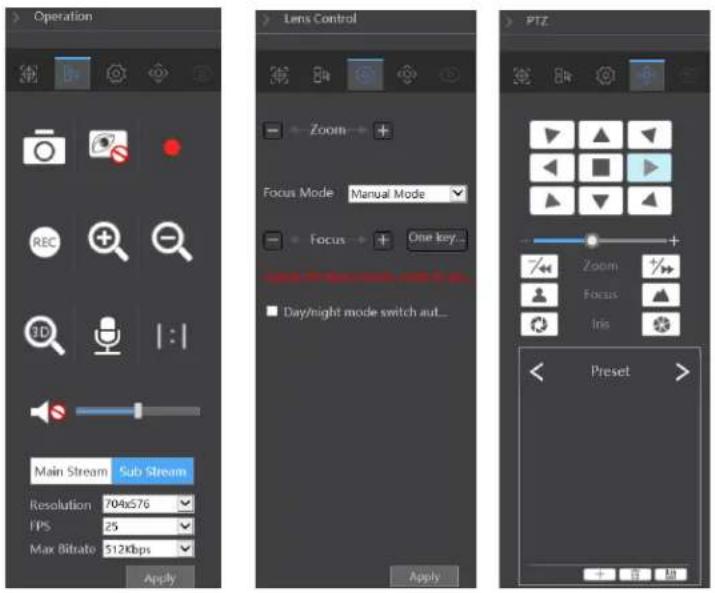

6.1 PTZ Control Interface Introduction....27
6.2 Preset Setting....30
6.3 Cruise Setting 31
6.4 Cruise Group Settings....32
6.5 Trace Settings 32
6.6 Task Settings....33
6.7 Smart Tracking....33

7 Record & Disk Management.... 36

7.1 Record Configuration 36

7.1.1 Mode Configuration 36
7.1.2 Schedule Settings 37
7.1.3 Advanced Configuration.... 39

7.2 Encode Parameters Setting 39

7.3 Record Mode....40

7.3.1 Manual Recording 40
7.3.2 Timing Recording....40
7.3.3 Motion Based Recording 40
7.3.4 Sensor Based Recording....40
7.3.5 AI Event Recording 40

7.4 Disk....40

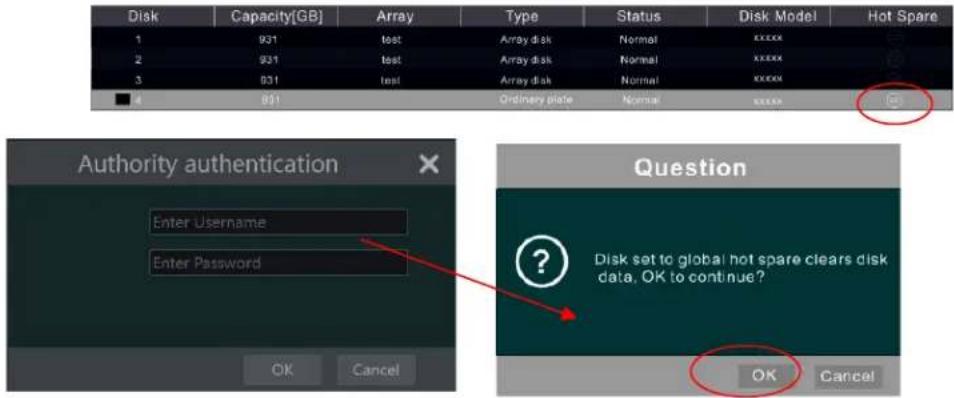

7.4.1 Disk Management 40
7.4.2 Storage Mode Configuration 42
7.4.3 View Disk and S.M.A.R.T. Information 43

8 Playback & Backup....45

8.1 Instant Playback 45
8.2 Playback Interface Introduction 45
8.3 Smart Playback....47

8.3.1 Smart Playback Settings 48

8.3.2 Smart Playback Based on Motion Detection 48
8.3.3 Smart Playback by Face Search 49
8.3.4 Smart Search by License Plate....49
8.3.5 Smart Search by Object Attributes....50

8.4 Record Search, Playback & Export 51

8.4.1 EZ Search 51
8.4.2 Time Search....52
8.4.3 Event Search....53
8.4.4 Bookmark Search 53
8.4.5 Snapshots 54
8.4.6 View Export Status 54

9 AI Event Management....55

9.1 Face Recognition 55

9.1.1 Face Detection Settings....55
9.1.2 Face Database Management....56
9.1.3 Face Recognition Settings 58

9.2 License Plate Recognition....59

9.2.1 License Plate Detection Settings 59
9.2.2 Plate Database Management 60
9.2.3 License Plate Recognition Settings....61

9.3 Perimeter Detection....61

9.3.1 Line Crossing Detection 62
9.3.2 Region Intrusion Detection 62
9.3.3 Region Entrance Detection 63
9.3.4 Region Exiting Detection 63

9.4 Abandoned/Missing Object Detection....63

9.5 Crowd Density Detection 64
9.6 Target Counting 64
9.7 Tampering Detection....66
9.8 Fire Detection....66
9.9 Temperature Detection 67

9.10 Audio Exception 67

9.11 Loitering Detection 68
9.12 Illegal Parking Detection 69
9.13 Video Metadata 69

10 Intelligent Analytics 71

10.1 Target Detection View 71

10.1.1 Human Body/Vehicle Detection View 71
10.1.2 Face Detection/Match View 71

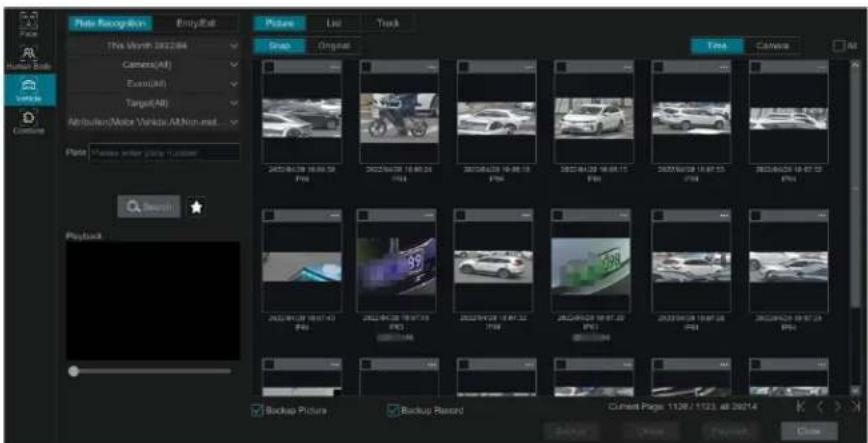

10.1.3 License Plate Detection/Recognition View....73
10.1.4 Object Attribute View 75

10.2 Smart Search 75

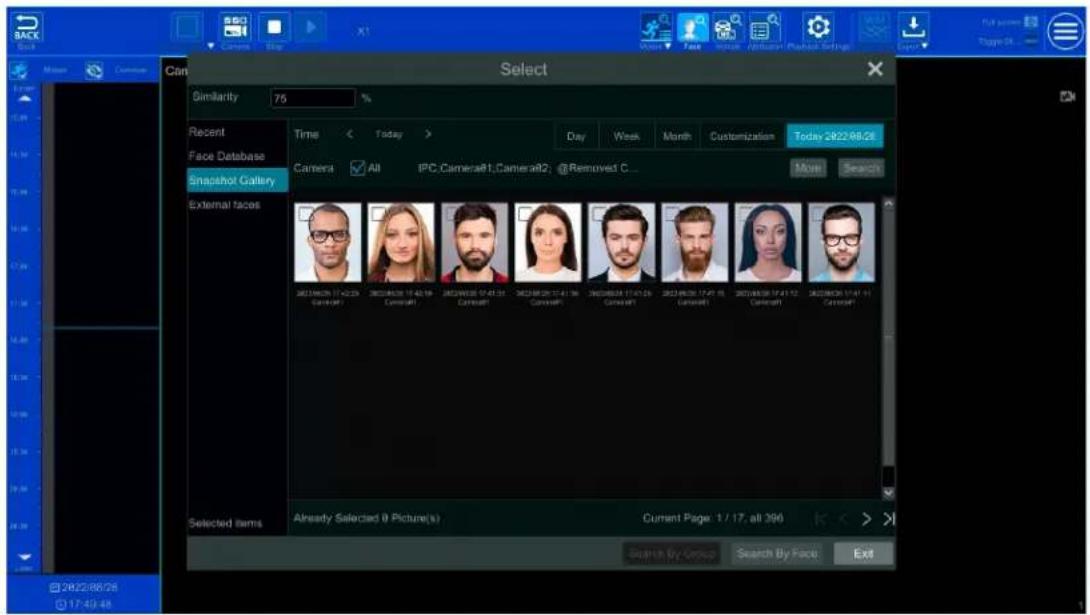

10.2.1 Face Search 75
10.2.2 Track Playback 78
10.2.3 Face Search by Snapshot 80
10.2.4 Human Body Search 80
10.2.5 Vehicle Search 81
10.2.6 Combination Search 82

10.3 View Statistical Information 82

11 General Event Management....84

11.1 Sensor Alarm 84

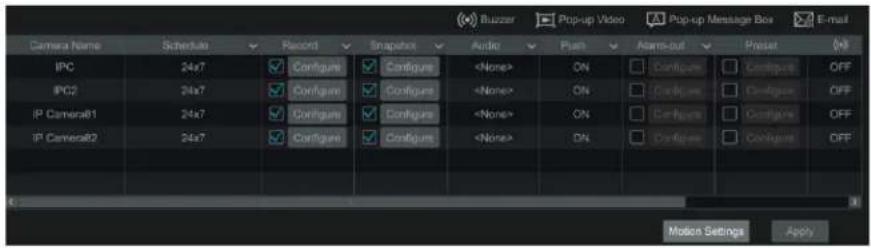

11.2 Motion Alarm 84

11.2.1 Motion Configuration....84
11.2.2 Motion Alarm Handling Configuration 85

11.3 Combination Alarm 85
11.4 IPC Offline Settings....86

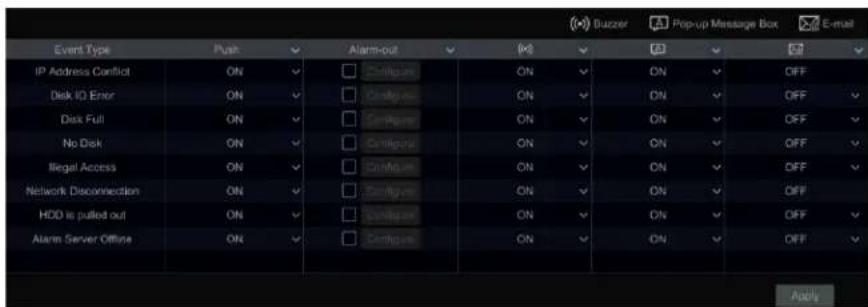

11.5 Exception Alarm Settings 86

11.6 Alarm Event Notification 86

11.6.1 Alarm-out 86
11.6.2 E-mail 87
11.6.3 Display 87
11.6.4 Buzzer 87

11.6.5 Push....87

11.6.6 Digital Deterrent....88
11.6.7 Light....89
11.6.8 Alarm Server 89

11.7 Manual Alarm 90
11.8 View Alarm Status....90
11.9 System Disarming....91

12 Application 92

12.1 Face Attendance....92
12.2 Fack Check-In....92

12.3 Parking Lot Settings....93

12.3.1 Basic Settings 93
12.3.2 Parking Space Settings 93
12.3.3 Entrance/Exit Management 94
12.3.4 Parking Lot Management 94
12.3.5 Search Vehicle Entry/Exiting Records....95

12.4 Access Control Management 95

12.4.1 Access Control Settings 95
12.4.2 Open the Door Manually....96

13 Account & Permission Management 97

13.1 Account Management....97

13.1.1 Add User....97
13.1.2 Edit User 97

13.2 User Login & Logout....99

13.3 Permission Management 99

13.3.1 Add Permission Group 99
13.3.2 Edit Permission Group....100

13.4 Block and Allow List 100
13.5 Preview On Logout....100
13.6 Network Security.... 101

13.7 Password Security 101
13.8 View Online User....101

14 Device Management....102

14.1 Network Configuration.... 102

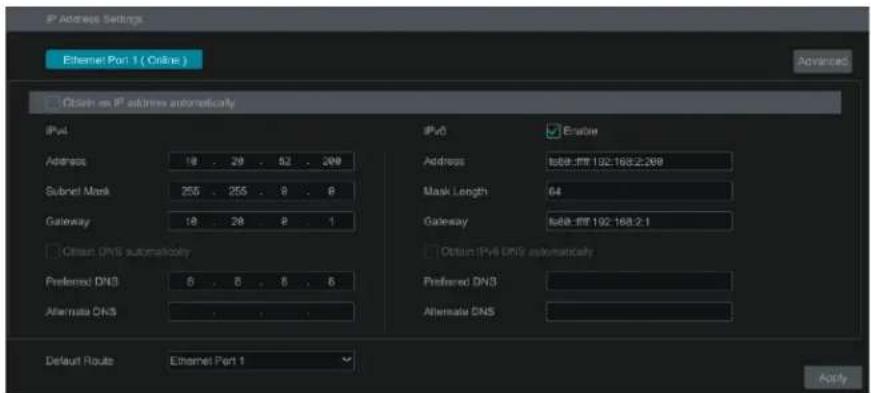

14.1.1 TCP/IP Configuration 102
14.1.2 Port Configuration.... 102
14.1.3 PPPoE Configuration 104
14.1.4 DDNS Configuration 105
14.1.5 E-mail Configuration.... 105
14.1.6 UPnP Configuration....106
14.1.7 802.1X 106
14.1.8 NAT Configuration 106
14.1.9 Cloud Upgrade 107
14.1.10 Platform Access....108
14.1.11 UPnP Report Access 108
14.1.12 ONVIF 108
14.1.13 Network Status.... 109

14.2 Basic Configuration 109

14.2.1 General Configuration.... 109
14.2.2 Date and Time Configuration 110
14.2.3 Recorder OSD Settings 111
14.2.4 PoE Settings.... 111

14.3 Factory Default.... 112

14.4 Device Software Upgrade.... 112
14.5 Backup and Restore.... 113
14.6 Restart Automatically.... 113
14.7 View Log 113
14.8 View System Information.... 114

15 Remote Surveillance 115

15.1 Mobile Client Surveillance 115
15.2 Web LAN Access.... 115
15.3 Web WAN Access 115
15.4 Web Remote Control....116

15.4.1 Remote Preview 117
15.4.2 Remote Playback....120
15.4.3 Remote Export 120
15.4.4 Intelligent Analysis 120
15.4.5 Remote Configuration 121

Appendix A FAQ 122

Appendix B Calculate Recording Capacity 126

1 Introduction

1.1 Welcome

Thank you for purchasing this NVR.

If technical assistance is needed, please contact Speco Technologies Technical Support.

Phone: [phone] option 3

Email: [e-mail]

1.2 Features

Basic Functions

● Supports network device access including IP camera/dome and the third party IP cameras
● The NVR supports the latest H.265 video coding stream and a mixture input of H.265 and H.264 IP cameras

● Supports standard ONVIF protocol

● Supports dual stream recording of each camera

● Supports IP cameras to be added quickly or manually

● Supports collective or individual configuration of the cameras' OSD, video parameters, mask, motion and so on

- Support IPC's multiple smart detection access and linkage, such as scene change, video color cast detection, video blur detection, intrusion detection (region entrance/exiting detection), target counting, abandoned object detection, missing object detection, crowd density detection, face detection, license plate detection, smart tracking, fire detection, temperature detection, video metadata, etc.

● Supports a maximum of 8 user permission groups including Administrator, Advanced and Common which are the default permission groups of the system

- Supports a maximum of 16 users to be created, multiple web clients login by using one username at the same time and the user's permission control to be enabled or disabled

● Supports multiple web clients login at the same time

Live View

● Supports 4K×2K/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high definition synchronous display

● Supports multi-screen modes such as 1 / 4 / 6 / 8 / 16 / 32 (varies by models)

- Supports auto adjustment of the camera's image display proportion

● Supports audio monitoring of the camera to be enabled or disabled

● Supports manual snapshot of the camera

● Supports the sequence of the cameras to be adjusted

● Supports display mode to be added and saved and the saved modes can be called directly

● Supports quick tool bar operation of the preview window

● Supports camera group view and scheme view in sequence, quick sequence view and dwell time setting

● Supports motion detection and video mask

● Supports multiple popular P.T.Z. control protocol and setup of the preset and cruise

● Supports direct mouse control of the IP dome including rotating, zoom, focusing and so on

● Supports single camera image to be zoomed by sliding the scroll wheel of the mouse

● Supports any area of the image to be zoomed in to a maximum of 16 times of the current size

● Supports image and lens adjustment (only available for some cameras)

● Supports quick camera adding in the camera window of the live view interface

- The live camera sequence of the web client will keep consistent with that of the NVR after adjusting the live camera sequence of the NVR, but the live camera sequence of the NVR will not be changed if that of the web client is changed

Disk Management

● Each SATA interface of the NVR supports the HDDs with max 14TB storage capacity
● Supports disk group configuration and management and each camera can be added into different disk groups with different storage capacity
● Supports disk information and disk working status viewing

Record Configuration

● Supports main stream and sub stream recording at the same time and collective or individual configuration of the record stream
● Supports manual and auto record modes
● Supports schedule recording, sensor alarm recording and motion detection recording, etc
● Supports schedule recording and event recording setting with different record streams
● Supports record schedule setting and recycle recording

● Supports pre recording and delay recording configuration of the event recording

Record Playback

● Supports time scale operation in quick playback and the playback date and time can be set randomly by scrolling the mouse; the time interval of the time scale can be zoomed

● Supports record searching by time slice/time/event/tag
● Supports time view and camera view in searching by EZ mode
● Supports EZ search by month, by day, by hour and by minute and time slice to be displayed with camera thumbnail
● Supports a maximum of 4/8/16 cameras to be searched by time
● Supports event search by manual/motion/sensor/intelligent events
● Supports bookmark search by the manual added bookmarks
● Supports instant playback of the selected camera in the live view interface
● Supports a maximum of 8 synchronous playback cameras
- Supports acceleration (maximum 32 times of the normal speed), deceleration (minimum 1/32 times of the normal speed) and 30s' addition or reduction to current playing time

Record Export

● Supports record to be exported through USB (U disk, mobile HDD).
● Supports record to be exported by time/event/image search
● Supports record cutting for exporting when playing back
● Supports a maximum of 10 export tasks in background and export status viewing

Alarm Management

● Supports alarm schedule setting
● Supports enabling or disabling of the motion detection, external sensor alarm input, intelligence alarm and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable
● Supports IPC offline alarm trigger configuration of PTZ, snapshot, pop-up video, etc.
● Supports event notification modes of alarm-out, pop-up video, pop-up message box, buzzer, e-mail and so on
● The captured images can be attached into the e-mail when alarm linkage is triggered
● Supports alarm status view of alarm-in, alarm-out, motion detection and exception alarm
● Supports alarm to be triggered and cleared manually
● Supports system auto reboot when exception happens
● Supports face detection and face match alarm

Face Function

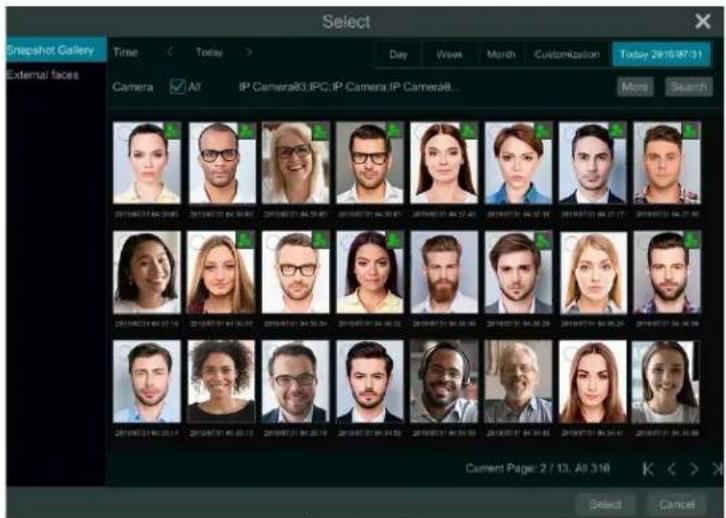

● Supports adding 5000 face pictures to the face database (some models support adding 10,000 face pictures to the face database)
● Supports image search by image, track playback and database management
● Supports face attendance and face check in
● Supports face information statistics
● Supports face match alarm

LPR Function

● Support 50,000 license plate register
● Support license plate detection, match and search
● Support vehicle information statistics
● Support license plate match alarm

Network Functions

● Supports TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on
● Supports allow and block list function and the allow and block IP address/IP segment address can be set
● Supports multiple browsers including IE8/9/10/11, Firefox, Opera, Chrome (available only for the versions lower than 45) and Safari in MAC system
● Supports remote achievement, configuration, import and export of the NVR parameters and other system maintenance operations including remote upgrading and system restart

● Supports remote camera configuration of the NVR including video parameters, image quality and so on
● Supports remote search, playback and export of the NVR
● Supports manual alarm to be triggered and cleared remotely
● The motorized zoom camera can be adjusted through web client (Supports zoom in/out, but one key focus is not currently supported)
● Supports NVMS or other platform management software to access the NVR and manage it
● Supports NAT function and QRCode scanning by mobile phone and PAD
● Supports mobile surveillance by phones or PADs with iOS or Android OS

● Supports NVR to be accessed remotely through telnet and the telnet function can be enabled or disabled
- If one camera recording is enabled or disabled manually through web client, it will be simultaneously enabled or disabled in the NVR

Other Functions

● The NVR can be controlled and operated by the buttons on the front panel, the remote controller and the mouse
- Setting interfaces can be switched to one another conveniently by clicking the main menus on the top of the setting interfaces
● Supports NVR information viewing including basic, camera status, alarm status, record status, network status, disk and export status
● Supports factory restoring, import and export of the system configuration, log view and export and local upgrading by USB mobile device
● Supports auto recognition of the displayer's resolution

● You can click the right mouse button at any interface to go back to the upper interface

● You can click the mouse wheel at any interface to go to the live view interface

● The display language and video format of the NVR will not be changed and the system logs will be reserved if you reset the NVR to factory default

- Press and hold the right mouse button for 5 seconds in any interface to switch the output to VGA and the NVR will display the video at the lowest resolution which the NVR supports

1.3 Front Panel Descriptions

The following descriptions are for reference only.

Name	Descriptions
REC	When recording, the light is blue
Net	When access to network , the light is blue
Power	Power indicator, when connected, the light is blue

1.4 Rear Panel Descriptions

To quickly get started, connect the following to your recorder in the following order, please refer to the following figure (N8NRE shown for reference).

Diagram of a network device rear panel with labeled ports, connectors, and hardware components including VGA or HDMI and audio output.

1. Connect IP cameras to the PoE ports of the recorder.
2. Connect a monitor to the recorder via VGA or HDMI cable (not included).
3. Connect the included optical mouse into any USB port of the recorder.
4. Connect the power adapter to the recorder and plug power cord into a 120VAC 50/60Hz outlet.
5. Connect recorder to network (optional)
6. Turn on power switch and allow recorder to boot up.

1.5 Connections

- Video Connections

Video Output: Supports VGA/HDMI video output. You can connect to monitor through these video output interfaces simultaneously or independently.

● Audio Connections

Audio Input: Connect to microphone, pickup, etc.

Audio Output: Connect to headphone, sound box or other audio output devices.

2 Basic Operation Guide

2.1 Startup & Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expending the life of your device.

2.1.1 Startup

① Connect the output display device to the VGA/HDMI interface of the NVR.
② Connect with the mouse and power. The device will boot and the power LED would turn blue.
③ EZ setup window will pop up (you should select the display language the first time you use the NVR). Refer to 3.1 EZ Setup for details.

2.1.2 Shutdown

You can power off the device by using remote control or mouse.

By remote control:

① Press Power button. This will take you to a shutdown window. The unit will power off after a while by clicking "OK" button.
② Disconnect the power.

By mouse:

① Click Start→Shutdown to pop up the Shutdown window. Select "Shutdown" in the window. The unit will power off after a while by clicking "OK" button.
② Disconnect the power.

2.2 Remote Control

① It uses two AAA size batteries.
② Open the battery cover of the remote control.
③ Place batteries. Please take care the polarity (+ and -).
④ Replace the battery cover.

Key points to check in case the remote doesn't work.

1. Check batteries polarity.
2. Check the remaining charge in the batteries.
3. Check IR controller sensor for any masking.

If it still doesn't work, please contact your distributor. You can just turn the IR sensor of the remote control towards the IR receiver of the NVR to control it when you are controlling multiple devices by remote control.

The interface of remote controller is shown as below.

There are two kinds of remote controller. The interface of remote controller is shown as below.

REC Search MENU EXIT ENTER ZIPM POP Multi Next SEQ INFO

Button	Function
REC	Record manually
Search	To enter search mode
MENU	Toenter menu
Exit	To exit the current Interface
ENTER	To confirm the choice or setup
Direction button	To move cursor in setup
ZOOM	To zoom in
PIP	No function temporarily
	To control playback. Play(Pause)/Next Frame/Speed Up/Stop/Previous Frame/Speed Down
Multi	To choose multi screen display mode
Next	To switch the live image
SEQ	To go to sequence view mode
INFO	Get information about the device

REC 1 2 3 4 5 6 7 8 9 + - 0 Fn1 Multi Next SEQ Audio SPOT ENTER Menu Exit + IRIS+ Focus P.T.Z + - IRIS- Zoom - Preset Cruise Wiper Light Track Clear Fn2 INFO ▶▶ ■ Snap Search ◀◀ ▶ Cut Backup ◀◀ ▶ Zoom PIP

Button	Function
	Switch off—to stop the device
Record Button	To start recording
-/-- /0-9	Input number or choose camera
Fn1 Button	Unavailable temporarily
Multi Button	To choose multi screen display mode
Next Button	To switch the live image
SEQ	To go to sequence view mode
Audio	To enable audio output in live mode
Switch	No function temporarily
Direction button	To move cursor in setup or pan/title PTZ
Enter Button	To confirm the choice or setup
Menu Button	Togoto menu
Exit Button	To exit the current interface
Focus/IRIS/Zoom/PTZ	To control PTZ camera
Preset Button	To enter into preset setting in PTZ mode
Cruise Button	To go to cruise setting in PTZ mode
Track Button	No track function temporarily
Wiper Button	No function temporarily
Light Button	No function temporarily
Clear Button	No function temporarily
Fn2 Button	No function temporarily
Info Button	Get information about the device
	To control playback. Play (Pause)/Stop/Previous Frame/Next Frame/Speed Down/Speed Up
Snap Button	To take snapshots manually
Search Button	Togoto search mode
Cut Button	No function temporarily
Backup Button	Togoto backup mode
Zoom Button	To zoom in the images
PIP Button	Not active

2.3 Mouse Control

Mouse control in Live Display & Playback interface

In the live display & playback interface, double click on any camera window to show the window in single screen mode; double click the window again to restore it to the previous size.

In the live display & playback interface, if the interfaces display in full screen, move the mouse to the top of the interface to pop up a tool bar. The tool bar will disappear automatically after you move the mouse away from it for some time; move the mouse to the right side of the interface to pop up a panel and the panel will disappear automatically after you move the mouse away from it.

Mouse control in text-input

Move the mouse to the text-input box and then click the box. The input keyboard will pop up automatically.

Note: Mouse is the default tool for all operations unless an exception as indicated.

2.4 Text-input Instruction

1 2 3 4 5 6 DEL 7 8 9 0 .

1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ←x ↑ z x c v b n m ← a EN/CN @ . #?!

The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below.

Button	Meaning	Button	Meaning
	Backspace key		Switch key of punctuation character
	Delete Key		Enter key
	Switch key between upper and lower letter		Space key
EN/CN	Switch key of language

2.5 Common Button Operation

Button		Meaning
		Click to show the menu list.
		Click to change the sequence of the list.
	[4AZS]	Click to change the camera displaying mode.
	[04Z2]	Click to close the current interface.
	[30HX]	Click to go to the earliest date of camera recording.
		Click to go to the latest date of camera recording.

3 EZ Setup & Main Interface

3.1 EZ Setup

The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons (☐: no disk; ☐: unavailable disk; ☑: RW available disk).

You can quickly configure the NVR by clicking "OK" to make the NVR work normally. You must configure the wizard if you start the NVR for the first time (or click "Skip" to cancel the EZ Setup next time).

EZ Setup OK Enable EZ setup next time. Skip

Click "OK" to start wizard. The setting steps are as follows.

① System Login. Set your own password when you use the wizard for the first time (the default username of the system is admin); select the login username and enter the password you set by yourself.

Note: The default password level is "Strong". We highly recommend you create 8\~16 characters, including upper case letters, lower case letters, numbers and symbols to increase the security of your product.

EZ Setup Admin Password Setup Username admin New Password Enter Password Confirm Password Enter Password ✓ Display Password Log In Automatically Pattern Lock Enable Edit 1.8 to 16 characters 2.Contains numbers/lowercase/uppercase letters/symbols of three or more. Next

Click "Next" to set the default password which is used to activate IPC.

Click "Next" to set questions and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details.

Click "Next" to continue the wizard.

② Disk Settings. You can view the disk number, disk capacity of the NVR and serial number, R&W status of the disk. Click "Format" to format the disk. Click "Next" to continue. Then click "EZ Setup".
③ Network Settings. Select the network work pattern as required. Check "Obtain an IP address automatically" and "Obtain DNS automatically" to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually enter them. Enter the HTTP port, RTSP port and Server port (please see Port Configuration for details). Click "Next" to continue.

EZ Setup EZ Network * Ethernet Port 1 ( Online ) ✓ Obtain an IP address automatically (use DHCP) Address Subnet Mask Gateway ✓ Obtain DNS automatically Preferred DNS Ethernet DNS Port HTTP Port Server Port Internal Ethernet Port ( Online ) Address 192 168 78 1 Subset Mask 295 265 258 6 Mode Non-long line mode HTTPS Port 443 Pressure Next Cancel

If you use the NVR with the PoE network ports, the online state of the internal Ethernet port will be shown on the interface.

If the NVR has two network ports or above, you can select the network work pattern as required. Network Fault Tolerance and Multiple Address Setting are available.

④ Other Network Settings.

UPnP settings: Check "Enable" in the interface and enter the port of external and then click "Test" to test the effectiveness of the input information. If the UPnP status were "Invalid UPnP", the port number may be wrong. Click 📋 to modify the port until the UPnP status turns to "Valid UPnP". Refer to the following picture. You can view the external IP address of the NVR. Enter the external IP address plus port in the address bar of your browser to access the NVR (please see UPnP Configuration for details).

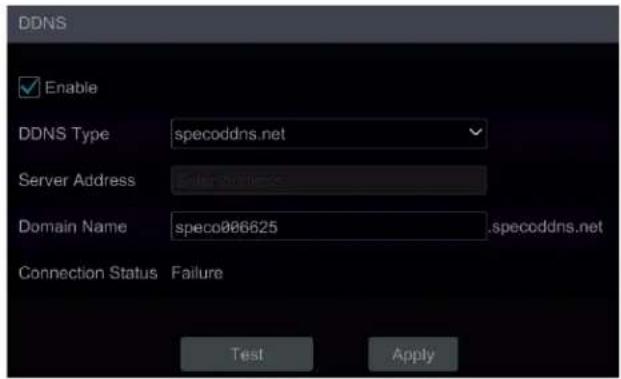

DDNS Settings: Check "Enable" and then select the DDNS type. Enter the server address, domain name, username and password according to the selected DDNS type. And then click "Register" or "Test" to test the effectiveness of the domain name. If it is effective, you can enter the domain name in the address bar of your browser to access the NVR (please see DDNS Configuration for details).

Note: Make sure the router supports UPnP function and the UPnP is enabled in the router. Set the NVR's IP address, subnet mask and gateway and so on corresponding to the router.

EZ Setup UFP Enable Map Type Auto Port Type External Port External IP Address Port UFP Status Edit HTTP Port 68 88 No Ready HTTPS Port 443 443 No Ready Server Port 0826 0826 No Ready RTSP Port 554 554 No Ready SDNS Enable SDNS Type Specific Data Server Address Domain Name SpecificData .specodots.net Preview Next Cancel

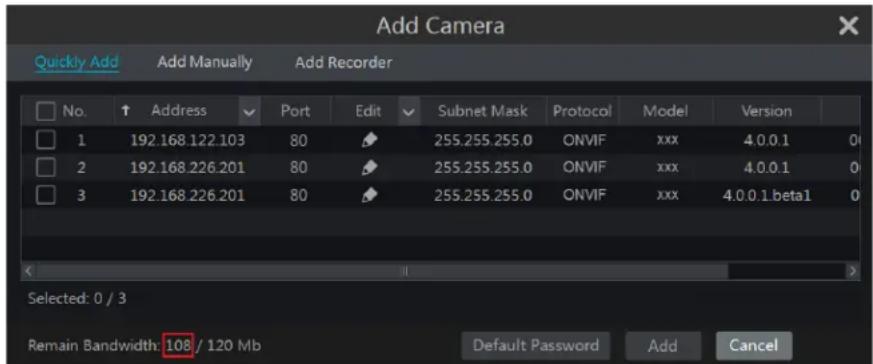

⑤ Add Camera. Add cameras via PoE first before adding any cameras from the LAN. Speco cameras added via the PoE ports will automatically be added to the corresponding channel. To add cameras from the LAN, make sure all cameras are set to DHCP. Click "Refresh" to refresh the list of online IP cameras which are in the same local network with NVR and then click + to add the searched camera. Click "Add All" to add all the cameras in the list. Click 📋 to delete the added camera. Click "Delete All" to delete all the added cameras.

Wizard Network Settings > Add Camera > No Active State Address Edit Port Protocol Model Version Add 1 Activated 192.168.226.201 9865 IP Camera IP Camera 5.1.2.6 Reman Bandwidth: 59 / 56 Mb Refresh Add All Denate All Activate No IP Camera Name Address Protocol Status Edit Delete 1 IPC 19.15.1.201 IP Camera Online 窗 2 IPC 19.15.1.202 IP Camera Online 窗 3 IPC 19.15.1.203 IP Camera Online 窗 4 IPC03 172.28.74.201 IP Camera Online 窗 5 IPC01 192.168.258.105 IP Camera Online 窗 6 IPC02 192.168.258.103 IP Camera Online 窗 Previous Next Cancel

For the unactivated devices, you can activate one by one or in batches. Check the unactivated device and click "Activate" to display an activation box.

Activate Use Default Password to Activate New Password Enter Password Confirm Password Enter Password Display Password OK Cancel

You can use default password to activate.

If your camera needs to be activated by self-defined password, you need to manually enter the password to activate.

Click to edit the searched IP camera as shown on the below left. Enter the new IP address, subnet mask, gateway, username and the password of the camera. You can check "Sync to IPC" to modify the IP address of the IPC via different network segments for being in the same network segment with the NVR. Click "OK" to save the settings.

Edit IP MAC Address Address 102 158 2 268 Subnet Mask 265 255 255 0 Gateway 192 168 2 1 Username Password OK Cancel

Edit Camera Camera Name: IP Camera1 Address: IP Port: 965 Protocol: IP Camera2 Model: IP-103 Username: 40001 Password: ****** Text OK Cancel

Click to edit the added camera as shown on the above right. Enter the new camera name, IP address, port, username and the password of the camera. You can click "Test" to test the effectiveness of the input information. Click "OK" to save the settings. You can change the IP camera name only when the added camera is online. Click "Next" to continue.

Tips: Please skip Step ⑥ and ⑦ if the NVR does not support RAID function.

⑥ Disk Mode. Click "Enable RAID" to enable the RAID function. Click "Next" to continue.

⑦ Create an array. Set the array name and select array type which including RAID0, RAID1, RAID5, RAID6 and RAID10. The global hot spares and array capacity can also be viewed here. See Disk for details. Click "Next" to continue.

⑧ EZ Record Settings. Two record modes are available: auto and scheduled.

Auto: Select one auto mode in the interface as shown below and then click "Next" button to save the settings. Click "Advanced" to self-define record mode. See Mode Configuration for details.

EZ Setup EZ Network > Other Network Settings > EZ Camera > EZ Record > GIF Date Mode Auto Motion Record Sensor Record Motion Record+Sensor Record Continuous Record+Motion Record Continuous Record+Sensor Record Continuous Record+Motion Record+Sensor Record Continuous Record+Motion Record+Sensor Record+AI Record Advanced Previous Next Cancel

Scheduled: Set the "Sensor Record", "Motion Record" and "Schedule Record" of each camera. Click "OK" to save. See Mode Configuration for details.

EZ Setup EZ Network > Other Event Settings > EZ Gamma > EZ Record> Mode Envast Current Name Sensor Record Motion Record All Record Schedule Record IPC Status Schedule Preview Next Cancel

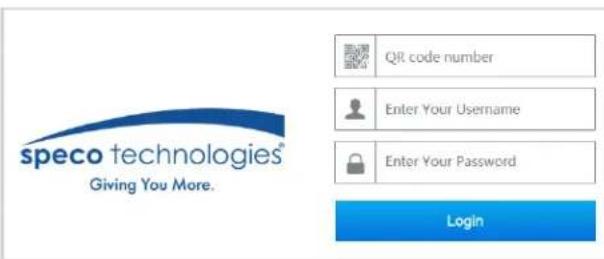

⑨ QRCode. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to NAT Configuration for details). You can scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras. Please refer to Mobile Client Surveillance for details. Click "OK" to save the settings.
⑩ Cloud Upgrade. Enable "Cloud Upgrade" and then click "OK" to save. If this function is enabled, you can get the latest version from the cloud server. Please refer to Cloud Upgrade section for details.

3.2 Main Interface

3.2.1 Main Interface Introduction

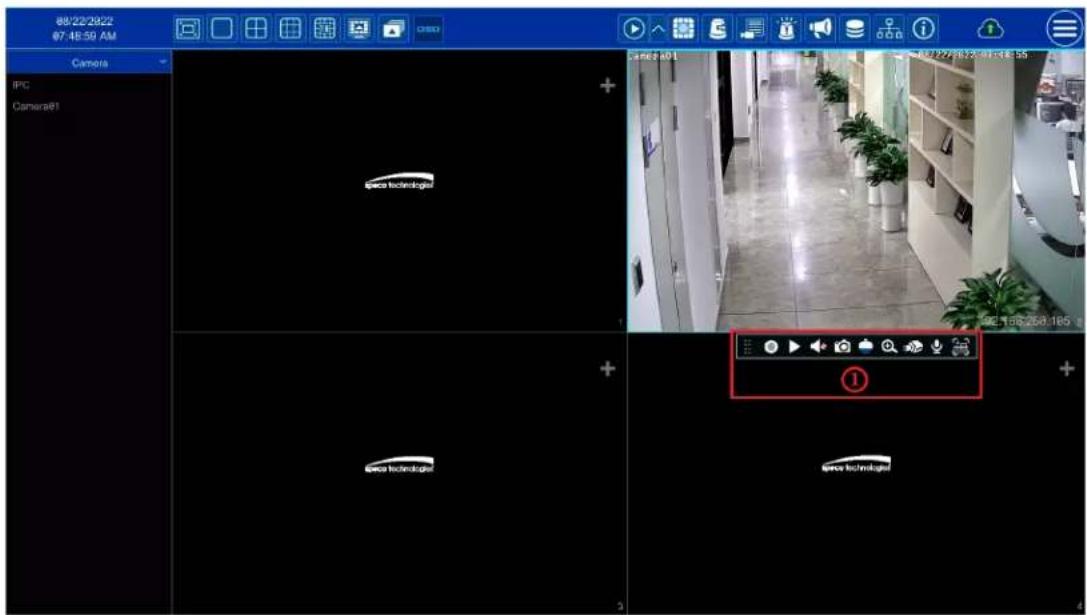

01/24/2024 01:49:28 AM Target Detection + + + admin Intelligent Analytics Search and... Playback Layout Application Settings Buildsm EZ Setup Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology Speed Technology

The buttons in area ① are introduced in the table below.

Button	Meaning
	Start button. Click to pop up area 3).
	Full screen button. Click to show full screen; click it again to exit the full screen.
	Screen mode button.
	Dwell button (see Quick Sequence View and Scheme View In Sequence for details).
	Click to enable OSD; click again to disable OSD.
	Click to set the default playback time before starting instant playback (Instant Playback) or going to the playback interface for playback operations (Playback Interface Introduction); click to go to the playback interface. For instance, if you choose "5 minutes ago" as the default playback time, you can playback the record from the past five minutes.
	Manual record button. Click to enable/disable record.
	Manual alarm button. Click to trigger or clear the alarm-out manually in the popup window.
	Record status button. Click to view the record status.
	Alarm status button. Click to view the alarm status.
	Voice broadcast button. Click to select the channel to broadcast.
	Disk status button. Click to view the disk status and RAID status.
	Network status button. Click to view the network status.
	Information button. Click to view system information.
	Click this button to enable cloud upgrade.

Introduction of area ②:

Click "Camera" to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one camera in the list to preview the camera image in the selected window.

Click "Single Channel Sequences" to view all the added groups in the group list; click one group in the list to view all the added cameras in the group (refer to Add/Edit Camera Group for detail configuration of the camera group). Select one camera window on the left side of the interface

and then double click one group in the group list to preview the cameras' images one by one in the selected window.

Click "Customize Layout" to view all the display modes in the display mode list (refer to Display Mode for detail configuration of the display mode).

Double click one display mode in the list to switch to the display mode for previewing.

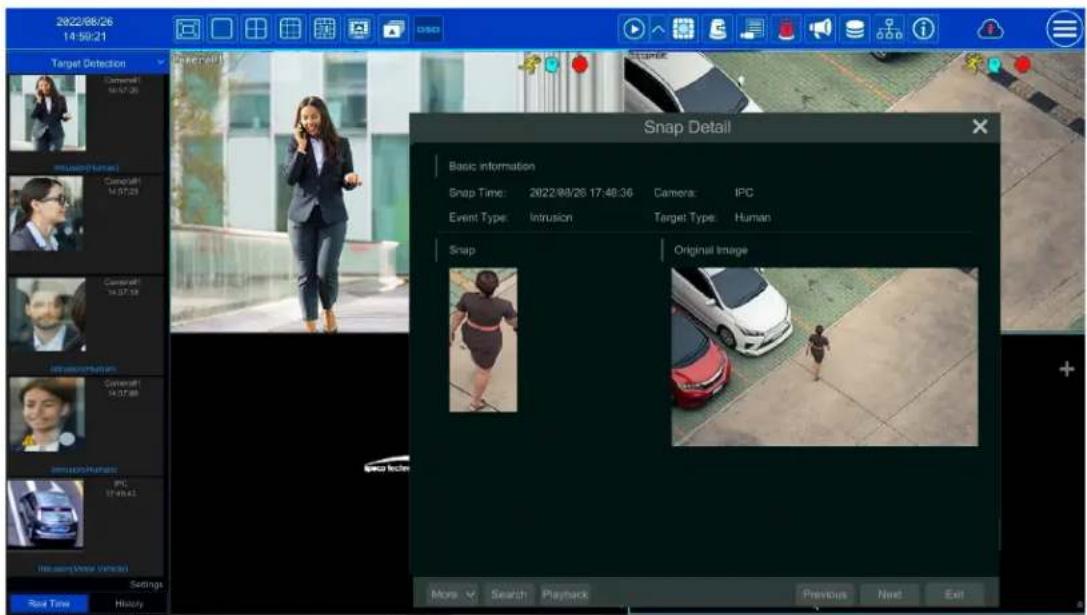

Click "Target Detection" to go to target detection interface. This tab will show the captured human, vehicles, license plates and face images. (This function is only available for some models).

Introduction of area ③:

Icon / Button		Meaning
		It shows the current login user. Click the QR code icon to view the QR code and security code. User can quickly add the NVR to the server list of the mobile APP by scanning this QR code.
		Click to go to the intelligent analytics interface.
		Click to go to record search and export interface, see Record Search,Playback & Export for details.
		Click to go to playback interface (click on the tool bar at the top of the live view interface to set the default playback time), see Playback Interface Introduction for details.
		Click to pop up the setup panel, see Setup Panel for details.
		Click to log out the system.

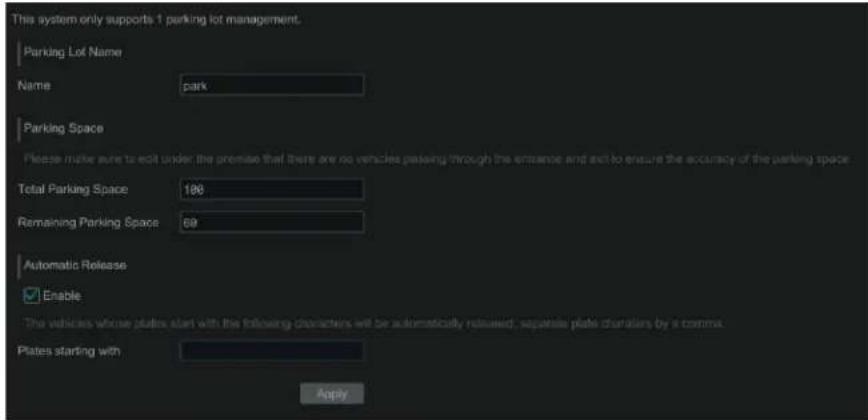

		Click to set parking lot, access control, face attendance and face check-in (varies by models)
		Click and then select "Logout", "Reboot" or "Shutdown" in the popup window.
		Click to go to the EZ setup.

3.2.2 Setup Panel

Click Start→Settings to pop up the setup panel as shown below.

The setup panel includes seven modules. Each module provides some function entries with links for convenient operation.

Here we take Camera module as an example. The Camera module provides convenient links such as "Add Camera", "Edit Camera", "Image Settings", "Motion", "Intelligence Analysis" and "PTZ". Click Camera to go to the camera management interface as shown below.

Edit Camera Edit Camera Group IP Planning Search Camera Add Camera No Camera Name Address Port Status Protocol Model Preview Edit Upgrade Version 1 IP Camera1 19.19.7.180 9065 Online IP Camera 9583E2 4.1.8.6

There are some function items on the left side of the camera management interface. Click each item to go to corresponding interface or window.

For instance, click "Add Camera" to display the window as shown below.

Add Camera Quickly Add Add Manually No. Address Port Edit Subset Mask Protocol Model 1 10.20.17.9 9008 255.255.0.0 IP Camera 2 10.20.17.10 9008 255.255.0.0 IP Camera 3 10.20.18.4 9008 255.255.0.0 IP Camera 4 10.20.18.8 9008 255.255.0.0 IP Camera 5 10.20.18.15 9008 255.255.0.0 IP Camera 6 10.20.18.22 9008 255.255.0.0 IP Camera Selected: 0 / 23 Refresh Add Delete All No. IP Camera Name Address Protocol Status Edit Delete 1 IPC 10.20 14.194 IP Camera Offline! 2 IPC 192.168.226.201 IP Camera Offline! Remain Bandwidth: 46 / 50 Mb Advanced Cancel

Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance, you can go to the system setup interface by clicking "System" tag.

Live View Camera Record AI / Event Disk Network Account and Authority System

3.2.3 Main Functions

Camera

The module covers the functions such as Camera Management (see Camera Management for details), Image Settings (see Image Configuration for details), Motion (see Motion Configuration for details), and PTZ (see PTZ for details) and so on.

Record

The module covers the functions such as Encode Parameters and Record Schedule and so on. Please see Record & Disk Management for details.

AI/Event

The module covers the functions such as Sensor and Motion Alarm Handling and Alarm Out Settings. Please see AI Event Management and Chapter 11 General Event Management for details.

Disk

The module covers the functions such as Disk Management, Storage Mode and Disk Information and so on. Please see Record & Disk Management for details.

Network

The module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status and so on. Please see Network Configuration for details.

Account and Authority

The module covers the functions such as Account Management (see Account Management for details) and Permission Management (see Permission Management for details) and so on.

System

The module covers the functions such as Basic Configuration (see Basic Configuration for details), Device Information (see View System Information for details), Log Information (see View Log for details) and Configuration File Import&Export (see Backup and Restore for details) and so on.

4 Camera Management

4.1 Add/Edit Camera

4.1.1 Add Camera

The network of the NVR should be set before adding IP camera (see TCP/IP Configuration for details).

Refer to the pictures below. Click Add Camera in the setup panel or + in the top right corner of the preview window to pop up the "Add Camera" window as shown below. You can quickly add or add the IP camera manually.

Camera Add Camera Edit Camera Image Settings | Motion | PTZ

Add Camera Quickly Add Add Manually Add Recorder Refresh No. Activated State Address Port Edit Subnet Mask Protocol 1 Activated 18.15.1.202 9888 255.255.255.0 IP Camera 2 Activated 18.15.1.201 9888 255.255.255.0 IP Camera Tc Selected: 0 / 2 Refresh Add Delete All No. IP Camera Name Address Protocol Status Edit Delete Remain Bandwidth: 320 / 320 Mb Activate Advanced Cancel

> Quickly Add

Check the cameras and then click "Add" to add cameras. Click 📋 to edit the camera's IP address, username and password and so on. Click "Refresh" to refresh the device list. Click "Advanced" to set the default username and password of cameras.

If the activation state is "Unactivated", you can check the device and click "Activate" to activate it. Note that the NVR and the unactivated cameras must be in the same local network segment.

Add Manually

Enter the IP address or domain name (click √ in the IP address column to pop up the domain name input window, enter the domain name of the IPC in the window and then click "OK" button), port, username and password of the camera and then select the protocol. Click "Test" to test the effectiveness of the input information and then click "Add" button (you can input one camera's information or above such as IP address, username and password before clicking "Add" button). Click 🔒 to delete the camera. Click "Default Password" to set the default username and password of each camera.

Add Camera Quickly Add Add Manuals Add Recorder Address Port Username Password Protocol Test Delete 0.0.0.0 554 admin *** 5000 Test 1 Add Delete A3 No IP Camera Name Address Protocol Status Edit Delete 1 IPC 192.168.79 192 IP Camera OFFed Premi Bandwidth: 98 / 98 Mb Advanced Cancel

Note: Some models may not support this function.

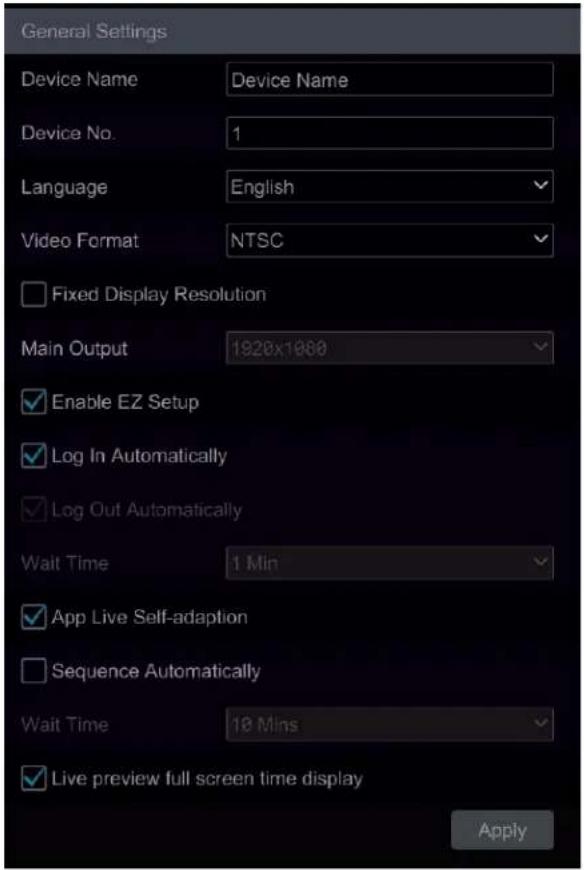

Click Start→Settings→System→Basic→General Settings to check "Enable Add IPC by Zero Operation". If the NVR has unoccupied channels, it can add IPC without any operation by restarting.

Add Recorder

Add Camera Quickly Add Add Manually Add Receptive Address Port---------------------------- EmployeePassword Protocol controlled Test Delete Add Delete All No. IP Camera Name Address Protocol Status_Edit Delete 1 IPC 10.20 14.194 IP Camera Offline ✓ 2 IPC 192 168 226 201 IP Camera Offline ✓ Remain Bandwidth: 310 / 320 Mb Advanced Manual Add Cancel

• Quickly Add: Select the searched NVR/DVR and the click "Add" to add NVR in the same local network.
• Manually Add: Click "Manual Add" and then enter the IP address or domain name, port, username and password of the NVR/DVR. Check the added remote channel number and click "Test" to test the effectiveness of the input information. Then click "OK" button to return to the previous interface.

Add Recorder Channel Address 192 168 12 35 Domain Name Server Port 6036 HTTP Port 80 Channels 8 Username admin Password ****** Remote Channel No. Camera Name Model 1 2 3 4 5 6 7 8 Selected: 0 / 8 Test OK Cancel

Note: Only the local NVR has unoccupied channels, may the IPC of other NVR/DVR in the same local network be added. And the added IPC supports previewing and recording.

4.1.2 Edit Camera

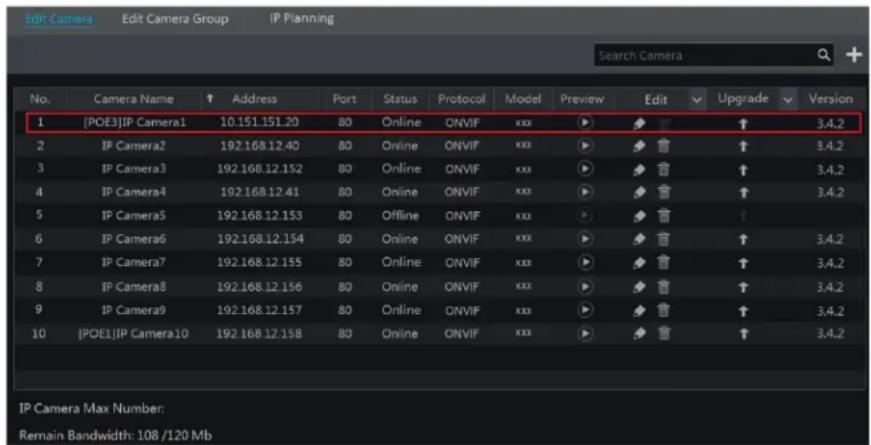

Click "Edit Camera" in the setup panel to go to the interface as shown below. Click ▶ to view the live image of the camera in the popup window. Click 🔑 to edit the camera (see Add camera in EZ Setup for details). Click 🔑 to delete the camera. Click √ in the "Operation" header line and then click "Modify IPC Password" to pop up a window (check the IPCs in the window, set the new password and then click "OK" button; only the online IPCs' passwords can be modified and a batch of IPCs' passwords can be modified at the same time). Click ↑ to upgrade an online IPC (or click √ in the "Upgrade" header line and then click "IPC Batch Upgrade" to upgrade a batch of IPCs), select the device which stores the upgrade file in the "Device Name" item of the popup window and the upgrade file in the list(you should select the upgrade IPC model in the window if a batch of IPCs' passwords need to be modified) and then click "Upgrade" button to start upgrading(the IPC will restart automatically after the upgrade is completed successfully).

No.	Camera Name	↑ Address	Port	Status	Protocol	Model	Preview	Edit	✓ Upgrade	✓ Version
1	[POE3]IP Camera1	10.151.151.20	80	Online	ONVIF	xxx			↑	3.4.2
2	IP Camera2	192.168.12.40	80	Online	ONVIF	xxx			↑	3.4.2
3	IP Camera3	192.168.12.152	80	Online	ONVIF	xxx			↑	3.4.2
4	IP Camera4	192.168.12.41	80	Online	ONVIF	xxx			↑	3.4.2
5	IP Camera5	192.168.12.153	80	Offline	ONVIF	xxx
6	IP Camera6	192.168.12.154	80	Online	ONVIF	xxx			↑	3.4.2
7	IP Camera7	192.168.12.155	80	Online	ONVIF	xxx			↑	3.4.2
8	IP Camera8	192.168.12.156	80	Online	ONVIF	xxx			↑	3.4.2
9	IP Camera9	192.168.12.157	80	Online	ONVIF	xxx			↑	3.4.2
10	[POE1]IP Camera 10	192.168.12 158	80	Online	ONVIF	xxx			↑	3.4.2

The IP cameras with PoE function which directly connect to the PoE port of the NVR will be displayed automatically in the camera list. Refer to the picture below. The PoE camera directly connected to the PoE port has a prefix shown before its camera name. The prefix consists of PoE plus PoE port number. The PoE camera which directly connects to the PoE port cannot be deleted from the camera list manually.

● The IP camera which directly connects to the PoE port of the NVR through private protocol will be shown automatically in the camera list.
- One of the two conditions must be met if the IP camera which directly connects to the PoE port of the NVR through ONVIF protocol should be shown automatically in the camera list.
√ The IP camera which directly connects to the PoE port is in the same network segment with the internal Ethernet port.
√ The DHCP (obtain an IP address automatically) of the IP camera which directly connects to the PoE port is enabled.

If the IP camera which connects to the PoE port cannot be displayed automatically in the camera list, please refer to Q6 in Appendix A FAQ for details.

4.2 Add/Edit Camera Group

4.2.1 Add Camera Group

Click "Edit Camera Group" in the above interface to go to the interface as shown below.

Edit Camera Edit Camera Library IP Planning Add Group group Dwell Time (1 Min) Number of Cameras (2)

Click + to pop up the window as shown below. Set the group name and dwell time (the dwell time of the camera group sequence view) in the window. Check the cameras and then click "Add" to add group. Click √ to view the cameras in the group after adding group.

Add Group Group Name Enter Group Name Dwell Time 1 Min Search Camera All IP Camera03 IP Camera02 Selected: 8 / 2 Add Cancel

You can also add the camera group in the live view interface. Click 🚙 on the top right corner of the live view interface and then select "Single Channel Sequences". Click 🔒 add the camera group

Single Channel Sequences Add Modify Delete

4.2.2 Edit Camera Group

Edit Camera IP Camera 01 IP Planning Add Group group1 Duration (1 Min) Number of Camera(2) IP Camera01 IP Camera02

Click to modify the group information such as group name and dwell time. Click to delete the group.

4.2.3 IP Planning

Some models may not support this function.

Click "IP Planning" to go to the interface as shown below. This function supports searching other NVRs/DVRs that is in the same local network as the local NVR. The user may add camera channels of other NVRs/DVRs into the unoccupied channels of the local NVR.

Device Name (Local) 192.168.12.200 8/8 P Camera 1 P Camera 2 P Camera 3 P Camera 4 P Camera 5 P Camera 6 P Camera 7 Recorder_1 P Camera 6 172.16.29.20 Protocol: ON/OF Model: XXX Device Name(NVR) 192.168.12.198 1/4 No. ↑ Address Edit Add Protocol Model 1 192.168.12.30 + XXX XX

Click to edit the IP address, user name or password and other information of the NVRs.

Click ☑ behind "Add" button to add the camera channels selected and the user may edit the IP address, user name or password by clicking behind "Edit" button.

5 Live View Introduction

5.1 Live View Interface Introduction

You should add camera first after logging on to the system (see Add Camera for details). Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging.

The record symbols with different colors in the live view window refer to different record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for motion based record, blue stands for schedule record and cyan stands for intelligence record.

88/22/2022 @7:48:59 AM Camera IPC Camera#1 spec technologies 1 166:258.165

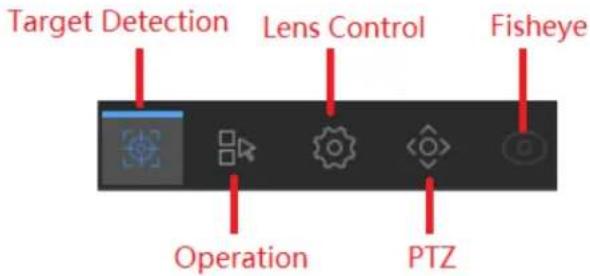

Click the preview window to show the tool bar as shown in area ①; right click the preview window to show the menu list. The tool bar and menu list are introduced in the table below.

Button	Menu List	Meaning
	--	Move tool. Click to move the tool bar anywhere.
	Manually Record On	Click to start recording.
	Instant Playback	Click playback the record; click “Instant Playback” to select or self-define the instant playback time. See Instant Playback for details.
	Enable Audio	Click to enable audio. You can listen to the camera audio by enabling audio.
	Snap	Click to pop up the snap window. Click “Save” in the window to save the image. Click “Export” to export the image.
	PTZ Control	Click to go to PTZ control interface. See PTZ for details.
	Zoom In	Click to go to single channel amplification interface.
	--	Click to go to image adjustment interface. Refer to Image Adjustment for details.
	Start Talk	Click to start two-way talk. Only some cameras support.
	Target detection	Click to go to single channel target detection interface; the target includes faces, human bodies and vehicles.
--	Camera Info	Click to view the camera information.

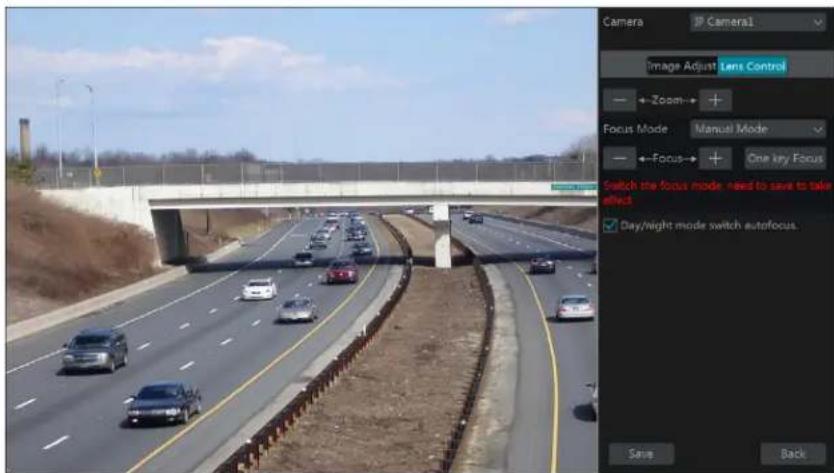

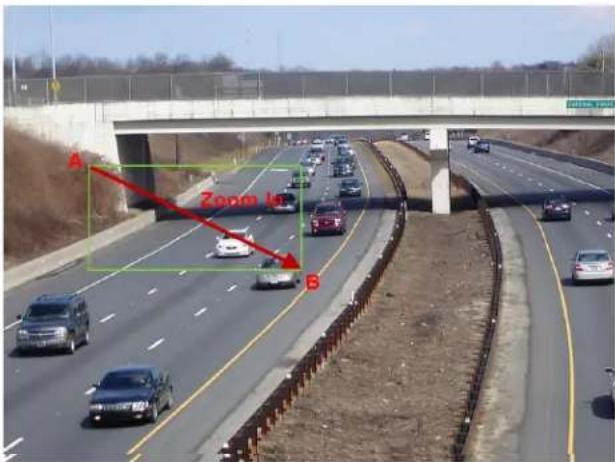

The single channel amplification interface is as shown below. Press and drag the blue box to select the zoom in area. Click / to zoom the image. Click the camera selection box to select other cameras for amplification. Click "Back" to return to the live view interface.

Highway traffic scene with multiple lanes and cars, inset shows a close-up of a highway with lane markings (no visible text or symbols)

5.2 View Mode

5.2.1 Display Mode

Set different screen modes and cameras' display sequences as needed and then save the display modes classified by surveillance areas, priorities and so on. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode.

88/22/2022 @7:55:18 AM Customize Layout Space Technology Space Technology Space Technology 07:27:28:29 07:55:15 07:13:25:16:5

Add Display Mode

Method One:

① Click "Customize Display Modes" in the above interface
② Click ☐ to add a display mode name and then set the screen mode.
③ Add the cameras and adjust the cameras' display sequence as required.
④ Click under the display mode list.

Method Two:

① Click Start→Settings→System→Basic→Output Settings to go to the interface and then set the screen mode.
② Double click the camera or camera group in the list to add them to the selected window.
③ Click ★ to save the current display mode (refer to Scheme View in Sequence for detail configurations). The display mode will be saved and displayed in the display mode list in the live preview interface.

Edit Display Mode

Click "Customize Display Modes" tab in the live preview interface and then select one display mode in the list. Click to edit the display mode

name; click delete the display mode.

5.2.2 Quick Sequence View

You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to Scheme View in Sequence for details.

88/22/2022 @7:56:49 AM Customize Layout 30 Secs Space Technology Space Technology Space Technology 02/22/16:27 01:56:48 02:16:25:01:165

Go to the live view interface and then click ▶ to pop up a little window. Set the dwell time in the window and then click ▶ to view the live group by group according to the camera number of the current screen mode. Double click the sequence view interface to pause the view; double click again to restore the view. Click ▶ to stop the view.

5.2.3 Camera Group View In Sequence

You can start camera group view in sequence if camera group has been created (see Add Camera Group for details).

① Go to the live view interface and then select a camera window.

Single Channel Sequences IPC Camera91 Video Technologies Video Technologies 192 158,256,185

② Double click one camera group on the right side of the interface. The cameras in the group will start camera group view one by one in the selected camera window.

You can also drag the group directly to any preview window. Right click on the group view window and then click "Close Dwell" button to stop the

view.

You can also add camera group in the live view interface. Select "Single Channel Sequences" and then click to add camera group. Click to modify the group name and sequence interval. Click to delete the group.

5.2.4 Scheme View In Sequence

Click Start→Settings→System→Basic→Output Settings to go to the interface as shown below.

Area ① displays all the dwell schemes; area ② shows the detailed information of the scheme; area ③ displays all the cameras and groups; area ④ is the tool bar (☐: clear button; ★: favorite button, click it to pop up a window, enter the display mode name in the window and then click "OK" to save the current display mode; other buttons are screen mode buttons).

Main Output Sequence View 1 + ① ② Camera Single Channel Sequences IPC Camera#1 ③ ★ ④ Apply

Add Scheme

Click + in area ① to create a new scheme. Click ✗ on the top right corner of the scheme to delete it.

Configure Scheme

a) Select a scheme in area ① and then click the screen mode button on the tool bar to set the screen mode of the scheme.
b) Select a camera window in area ② and then double click the camera or group in area ③. The camera or group will be added into the selected window. One camera in the same scheme cannot repeat. You can click the right-click menu "Clear" in area ② to remove a single camera or click to remove all the cameras.
c) Click "Apply" to save the settings.

Start Sequence View

Go to the live view interface and then click 📋 to open a window. Set the dwell time in the window and then click 📋 to start scheme view in sequence. Double click the sequence view interface to pause the view; double click again to restore the view. Click 📋 to stop the view.

5.3 Image Configuration

5.3.1 OSD Settings

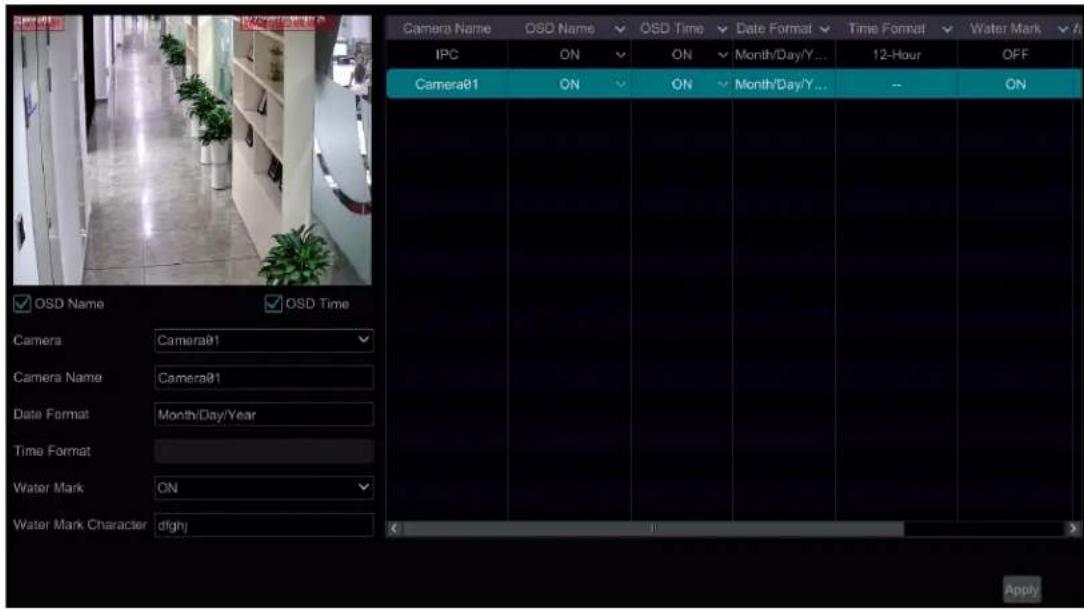

Click Start→Settings→Camera→Image→OSD Settings to go to the interface as shown below. Select the camera, enter the camera name (or double click the camera name in the camera list to change the camera name), enable or disable the name and time OSDs (if enabled, drag the red name and time OSDs directly in the image view area to change the OSDs' display position) and select the date and time formats. Click "Apply" to save the settings.

Camera Name OSD Name ON ON Month/Day/Y... 12-Hour OFF IPC ON ON Month/Day/Y... -- ON Camera01 ON ON Month/Day/Y... -- OSD Name OSD Time Camera Camera01 Camera Name Camera01 Date Format Month/Day/Year Time Format Water Mark ON Water Mark Character dighj Apply

5.3.2 Image Settings

Click Start→Settings→Camera→Image→Image Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click "Advanced" button or in the camera list on the right side of the interface to pop up "Image Adjust" interface and then set the relevant setting items. Please refer to Image Adjustment for detailed introductions of these items.

You can click "Default" to restore the image settings to the default factory settings.

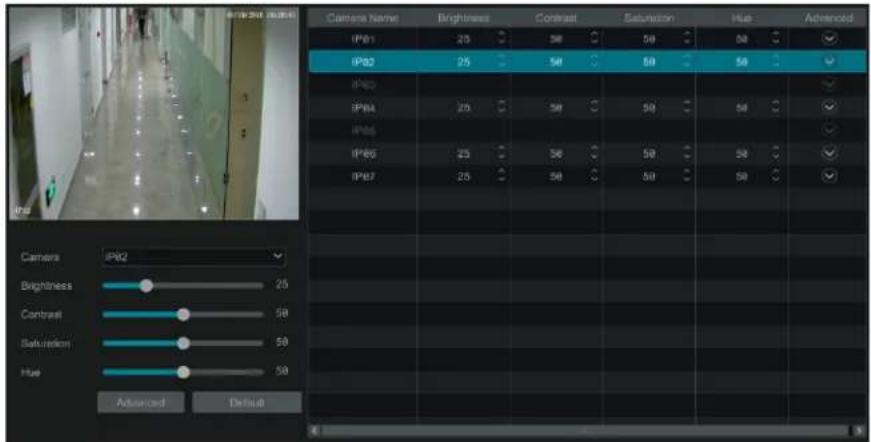

Camera Name Brightness Contrast Saturation Hub Advanced IPK1 25 50 50 50 IPK2 25 50 50 50 IPK3 IPK4 25 50 50 50 IPK5 IPK6 25 50 50 50 IPK7 25 50 50 50 Camers IPK2 Brightness 25 Contrast 50 Saturation 50 Hue 50 Advanced Default

5.3.3 Mask Settings

Some areas of the image can be masked for privacy. Up to four mask areas can be set for each camera. Click Start→Settings→Camera→Image→Mask Settings to go to the interface as shown below. Select the camera and enable the mask. Click "Draw" button and then drag the mouse on the image area to set the mask area; click "Delete" button to delete the mask areas; click "Apply" to save the settings.

Camera Name Mask Color IP01 OFF Black IP02 OFF Black IP03 OFF Black IP04 OFF Black IP05 OFF Black IP06 OFF Black IP07 OFF Black Draw Delete Camera IP01 Mask OFF Apply

5.3.4 Image Adjustment

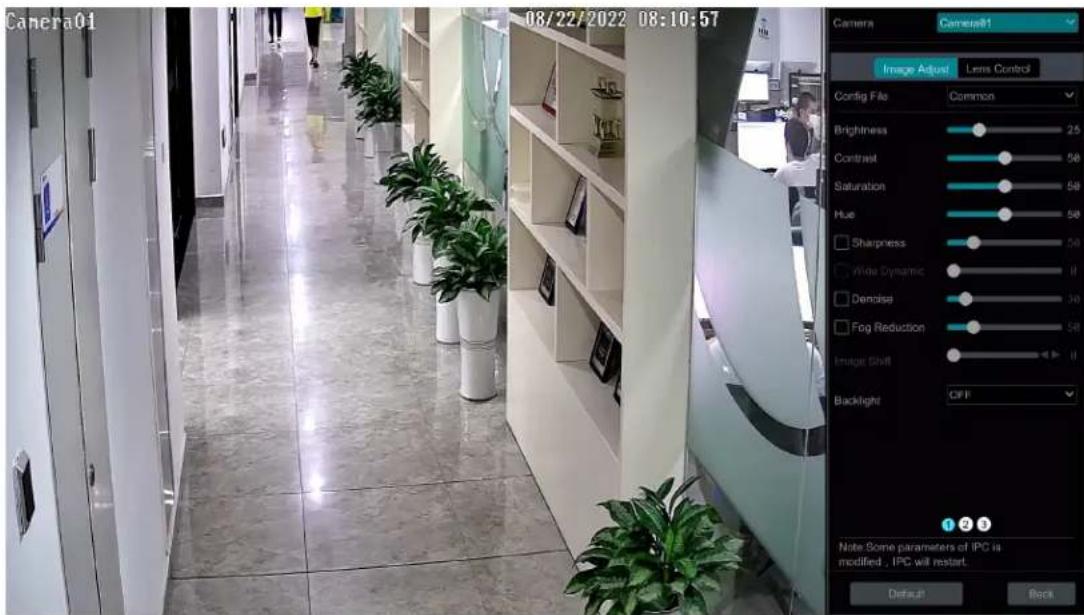

Go to the live view interface and then click button on the tool bar under the camera window to go to the image adjustment interface.

Canera01 08/22/2022 08:10:57 Camera Camera01 Image Adjust Lens Control Config File Common Brightness 25 Contrast 50 Saturation 50 Hue 50 Sharpness 50 Wide Dynamic 11 Denosse 30 Fog Reduction 50 Image Shift 11 Backlight CFF Note Some parameters of IPC is modified, IPC will restart. Default Back

Image Adjustment

Select the camera and then click "Image Adjustment" to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera's brightness, contrast, saturation and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click "Default" button to set these parameters to default values.

Note: For some IPCs, if you have set HWDR in the NVR, these IPCs will automatically reboot after setting the following image parameters, including exposure/shutter mode, gain mode, gain, corridor pattern or smart IR. After these IPCs successfully reboot, HWDR will be disabled.

The introductions of these parameters are as follows:

Parameter	Meaning
Brightness	It is the brightness level of the camera's image.
Contrast	It is the color difference between the brightest and darkest parts.
Saturation	It is the degree of color purity. The color is purer, the image is brighter.
Hue	It relates to the total color degree of the image.
Sharpen	It relates to the resolution level of the image plane and the sharpness level of the image edge.
Wide Dynamic	The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.
Denoise	Decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.
White Balance	Adjust the color temperature according to the environment automatically.
BLC	HLC: lowers the brightness of the entire image by suppressing the brightness of the image's bright area and reducing the size of the halo area.BLC: If enabled, the auto exposure will activate according to the scene so that the object of the image in the darkest area will be seen clearly.
Corridor Pattern	0°, 90°, 180° or 270° can be selected. (Only some cameras support this pattern)
Image Mirror	Turn the current video image horizontally.
Image Flip	Turn the current video image vertically.
High FPS Mode	High frame rate mode, if is it enabled, the frame rate of the camera's main stream can be set to 1080P/720P @60fps/50fps. (Only some cameras support this mode)
Gain Mode	Choose "Auto" or "Manual". If "Auto" is selected, the gain value will be automatically adjusted according to the actual situation. If "Manual" is selected, the gain value shall be set manually. The higher the value is, the brighter the image is.
Infrared Mode	Choose "Auto", "On" or "Off" as needed.
Shutter Mode	Choose "Auto" or "Manual". If manual is chosen, the digital shutter speed can be adjusted.
Day & Night Mode	Choose "Auto", "Day", "Night" or "Timing" as needed.
White Light Mode	"Auto", "Manual" or "Off" can be selected. (Only some cameras support this mode).
EIS	Electronic image stabilization; increase the stability of video image by using jitter compensation technology (only some IPCs support this function)
Digital Zoom	Please select it as needed (only some PTZ cameras support this function)
Supplement Light Mode	Choose "White Light", "Infrared Light" or "Smart Supplement Light" as needed(this function is only available for dual-illumination cameras)

Note: The above-mentioned descriptions of the image parameters are for reference only. The cameras made by different manufacturers may have different parameter settings.

Lens Control

Select the camera and then click "Lens Control" to go to lens control tab. Click - or + to adjust the zoom and focus parameters of the camera's lens. Click "Save" to save the settings.

Camera Camera1 Image Adjust Lens Control →Zoom → + Focus Mode Manual Mode →Focus → + One key Focus Switch the focus mode need to save to take effect Day/night mode switch autofocus. Save Back

The introductions of these parameters and buttons are as follows.

Button/Parameter	Meaning
	Click / to zoom in/out the image.
Focus Mode	If manual mode is selected, focus button & “One Key Focus” & “Day/night mode switch autofocus” will be available; if auto mode is selected, the time interval setup will be available.
	Click / [S87W] to increase/decrease the focal length.
One key Focus	Click to focus instantly.
Day/night mode switch autofocus	If checked, the lens will focus automatically when the camera is switching day/night mode.
Time Interval	It is the time interval when camera lens is auto-focusing. The interval can be set in the drop-down list.

Note: This function is only available for motorized zoom camera, or the settings here are ineffective.

5.3.5 Fisheye Settings

Some models may not support this function.

Click Start→Settings→Camera→Image→Fisheye Settings to go to the interface as shown below. Select the camera and the mode of fisheye and installation.

Camera Name Fisheye Mode Installation Mode Enable Camera01 Fisheye+4PTZ Desktop Camera Camera01 Fisheye Mode Fisheye+4PTZ Installation Mode Desktop Enable Apply

6 PTZ

6.1 PTZ Control Interface Introduction

You can control the IP dome or PTZ which connects to the IP camera for PTZ control.

Click ☐ on the tool bar at the bottom of the live preview window to go to the PTZ control interface as shown below.

PTZ Control Zoom → + Focus → + Inte → + Speed

The direction, zoom, focus, iris and speed can be controlled in the small PTZ control window.

Right click the PTZ/speed dome camera window and select "PTZ Control" to go to the PTZ control panel as shown below.

Security camera screenshot showing a person standing at a parking lot with visible red arrows and a circled number 10, alongside multiple parked cars.

Introductions of the buttons on the bottom right of the interface:

Button	Meaning
	Click / / / / / / / / / / / to rotate the dome. Click to stop rotating the dome.
	Click / - to zoom in / out the camera image.
	Click + / - to increase / decrease the focal length.
	Click + / - to increase / decrease the iris of the dome.
	Drag the slider to adjust the rotating speed of the dome.
	Click to / stop recording.
	Click / / to hide / show the analog joystick.
to next	Click to return to the live view interface.

➢ Analog Joystick Control

The analog joystick on the left side of the interface provides quick PTZ control. The dome or PTZ will rotate when you drag the analog joystick. The farther you drag the analog joystick from the middle of the image, the faster the dome or PTZ rotates. The dome or PTZ will stop rotating when you

stop dragging the analog joystick.

3D Control

Click the camera image on any area and then the image will be centered on the clicked point.

Refer to the picture as shown below. Drag the mouse from A to B to get a green rectangle and the rectangle area will be zoomed in.

A Zoom Is B

Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out.

Highway scene with vehicles and a red annotation box highlighting 'Zoosun Road' and location markers

Advanced 3D Control

Double click the left button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked point.

Press and hold the left button of the mouse on any area of the camera image to zoom in the image; press and hold the right button to zoom out the image.

Move the cursor of the mouse to the camera image and then slide the scroll wheel of the mouse forward to zoom in the image, slide the scroll wheel of the mouse backward to zoom out the image.

Preset Setting

Click "Preset" to go to preset operation tab and then click "Add" button to pop up a window as shown below. Select the preset and then enter the preset name in the window; finally click "OK" button to save the settings. You can add 255 presets for each dome at most.

Add Preset Preset 2 Preset Name preset2 OK Cancel

Adjust the dome's direction and then click "Save Position" to save the current preset position (you can also click another preset in the preset list and then save the preset position after adjusting the dome's direction); click ↗ in the preset list to call the preset; click "Delete" button to delete the selected preset.

You can also go to preset setting interface for preset setting, see Preset Setting for details.

Cruise Setting

Click "Cruise" to go to cruise operation tab and then click "Add" button to pop up a window as shown below left. You can add 8 cruises for each dome at most.

Add Cruise Cruise Name offset Project Project Name Speed Time Edit Continue Add Preset Add Preset Preset Name Time 5 Secs Speed 5 OK Cancel

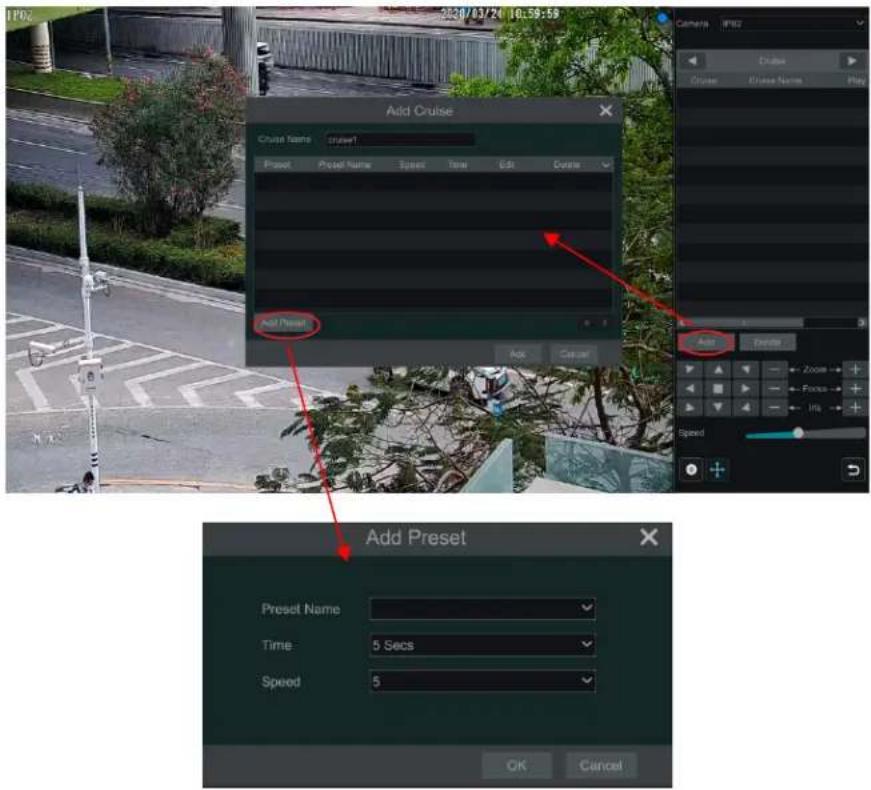

① Enter the cruise name in the "Add Cruise" window and then click "Add preset" to pop up the "Add Preset" window (Before adding preset to the cruise, please add preset of the dome first).
② In the "Add Preset" window, select the preset name, preset time and preset speed and then click "OK" button.
③ In the "Add Cruise" window, you can click to reselect the preset, then change the preset time and speed. Click to delete the preset. Click "Add" button to save the cruise.

Click ▶ to start the cruise and click □ to stop the cruise in the cruise list of the cruise operation tab; click "Delete" button to delete the selected cruise.

You can also go to cruise setting interface for cruise setting, see Cruise Setting for details.

Cruise Group Settings

On the right panel, click ▶ to go to the cruise group setting tab. Click "Add" to add a cruise group as shown below.

CORNER NEWS GROCERY STORE Add Cruise OK Cancel Apply Play Save

In the "Add Cruise" window, select the cruise line name. After that, click "Play" to play the cruise lines in sequence.

Trace Settings

On the right panel, click ▶ to go to the trace setting tab. Click "Add" to add the trace name. Then click "OK" to save this name. Please refer to the following picture.

Add Trace Trace Name Input OK Cancel Action Trace Trace Name Control 1 Add Sub-Stream

After that, click "Start Record" to record the trace. Then click "Stop Record" to finish recording. Click to play the recorded trace. Click to delete the trace.

6.2 Preset Setting

Click Start→Settings→Camera→PTZ→Preset to go to the interface as shown below.

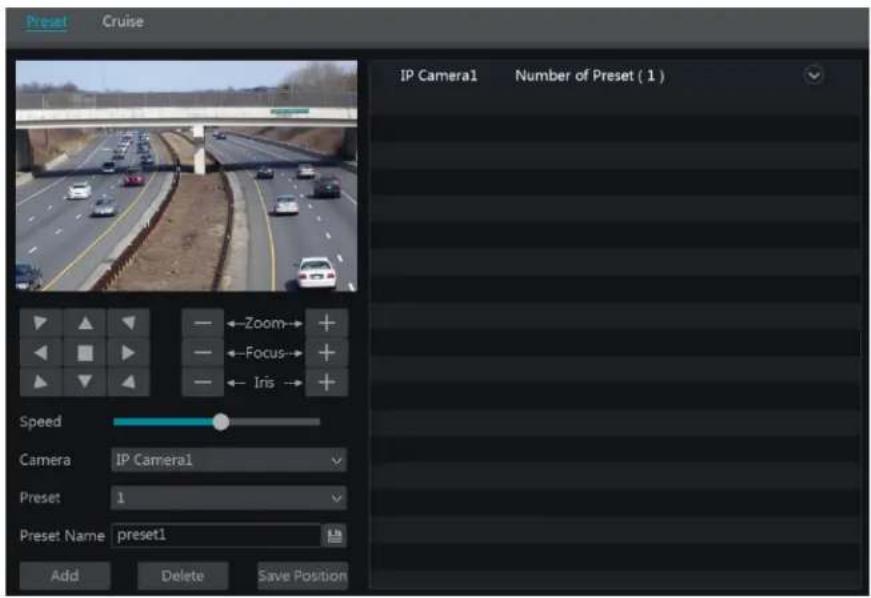

Preset Cruise IP Camera1 Number of Preset ( 1 ) Zoom Focus Iris Speed Camera IP Camera1 Preset 1 Preset Name preset1 Add Delete Save Position

Add preset

Select camera and then click "Add" button to add preset; or click in the camera list on the right side of the interface to display the preset information of the dome and then click to add preset. The operations of the "Add Preset" window are similar to that of the PTZ control interface; please see PTZ Control Interface Introduction for details.

Edit preset

Select camera and preset. You can enter the new name of the preset and then click to save the new preset name. Adjust the rotating speed, position, zoom, focus and iris of the preset and then click "Save Position" to save the preset.

Delete Preset

Select camera and preset and then click "Delete" to delete the preset.

6.3 Cruise Setting

Click Start→Settings→Camera→PTZ→Cruise to go to the interface as shown below.

Preset Cruise IP Camera1 Number of Cruise( 1 ) cruise1 + Camera IP Camera1 Cruise cruise1 Cruise Name cruise1 Preset Preset Name Speed Time Edit 1 preset1 5 5 Secs 2 preset2 5 5 Secs Add Preset

Add Cruise

Click in the camera list on the right side of the interface to display the cruise information of the dome and then click to add cruise. The operations of the "Add Cruise" window are similar to that of the PTZ control interface; please see PTZ Control Interface Introduction for details.

Edit Cruise

Select the camera and cruise in the "Cruise" interface. Enter the new cruise name and then click 📄 to save the cruise name. Click "Add Preset" to add preset to the cruise. Click 🔒 to edit the preset. Click 🔒 to delete the preset from the cruise. Click one preset in the preset list and then click 🔒 to move down the preset and click 🔒 to move up the preset. Click 🔒 to start the cruise and click 🔒 to stop it.

Delete Cruise

Click in the camera list on the right side of the interface to display the cruise information of the dome and then click on the top right corner of the cruise to delete the cruise.

6.4 Cruise Group Settings

Click Start→Settings→Camera→PTZ→Cruise Group to go to the interface as shown below.

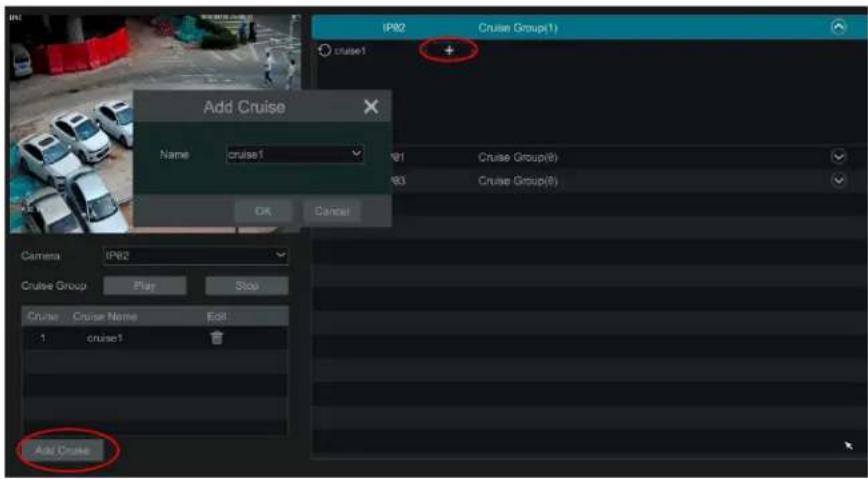

Add Cruise Name cruise1 OK Cancel Cruise Group(8) Cruise Group(9) Add Cruise

Add Cruise Group

Click "Add Cruise" to add the cruise, or click √ to extend the cruise list and then click + to add the cruise. After that, click "Play" on the left panel as shown below to play the cruise lines in sequence.

Delete Cruise

In the cruise list, click 📄 to delete the cruise.

6.5 Trace Settings

Click Start→Settings→Camera→PTZ→Trace to go to the interface as shown below.

Trace Record

Select the PTZ camera and then click "Add" or extend the IPC information by clicking √ and then click + to add a trace name. After that, click "Start Record" and move the speed dome to change its position and set its trace. Then click "Stop Record" to complete the trace record.

IP62 Trace(1) Ctrace1 IP61 Trace(8) IP63 Trace(9) Speed Camera IP62 Trace 1 Trace Name trace1 Add Delete Start Recurs

Play or Stop Trace

Select the trace and click ▶ to play the trace; click □ to stop the trace.

Modify the Trace Name

On the left panel, enter new trace name and click 📄 to modify and save the trace name.

Delete the Trace

Click 📄 to delete the trace. Or put the cursor on the trace name (right panel) and then ✕ will appear on the right corner of the trace name; click it to delete this trace.

6.6 Task Settings

Click Start→Settings→Camera→PTZ→Task to go to the interface as shown below.

IP62 Task Number(1) Sequence Enolte Start Time End Time Function Name Operation 1 OFF 80:00 80:00 No No Camera IP62 Function No Name No Start Time 80:00 End Time 80:00 And IP61 Task Number(0) IP63 Task Number(0)

① Select a PTZ camera.
② Select function, such as preset, cruise, trace, random scanning, etc.
③ Select a name, such as preset name, cruise name, etc.
④ Select the start and end time.
⑤ Click "Add" to add the task.
⑥ Click ▼ to extend the tasks of the PTZ camera. Click ▼ beside "Enable" to enable the task. After the task is enabled, the PTZ camera will start the specific task at the specified time.

6.7 Smart Tracking

This function is only available for AI PTZ camera. Please add the AI PTZ camera to the NVR first. Then this function will take effect.

Smart Tracking: When people or vehicle cross the alarm line or intrude the predefined area, the PTZ camera can automatically track them and the

target image will be automatically zoomed in and centered on the screen until the target disappears on the screen. After that, the PTZ camera will return to the tracking start position.

To set smart tracking:

1. Click Settings→Camera→Smart Tracking to go to the smart tracking interface.

Image Tracking Camera Format Bit Time Hearing Time(s) P92 Close # Camera P92 Tracking mode PTZ Auto Tracking Property Shift Time 0.01

1. Select the tracking mode and set the still time as needed.

Tracking Mode: PTZ Auto Tracking Priority or Manual PTZ Control Priority can be optional.

PTZ Tracking Priority: if this mode is selected, after enabling "Trigger track" in one of the following events, you cannot control PTZ by clicking the buttons on the PTZ control panel in the live view interface.

Manual PTZ Control Priority: if this mode is selected, after enabling "Trigger track" in one of the following events, you can control PTZ by clicking the buttons on the PTZ control panel in the live view interface during the process of smart tracking. After you stop controlling for 5 seconds, the PTZ camera will return to the pre-defined detection area and start tracking again when detecting a target.

Still time: If it is enabled and the time is set, when the target stops or hides behind an obstacle, or the target tracking is complete and there is no target appearing in the detection area during the set time, the PTZ camera will return to the tracking start position. Of course, during this time, if there are targets moving, the PTZ will continue tracking. If it is not enabled, when the target stops or there is no target appearing in the detection area for 5 seconds, the PTZ camera will return to the start tracking position.

For example: in the crossroad, if a car is waiting for the red light for 30 seconds, and the still time is set as 20 seconds, then the tracking will stop following; but if the still time is set as 40 seconds, after the red light start to change into green light, then the car re-start to move, and the PTZ will keep on tracking this car.

1. Click Settings→AI/Event→AI Event. Select the AI PTZ camera and the event as needed (Line Crossing/Intrusion). For example: region intrusion.

Enable Detection by IPC Parameter Settings Detection Target Trigger Mode Schedule Schedule 24x7 Manage Rule Duration 20 Secs Area 1 2 3 4 PTZ Locked:The PTZ control is unavailable in locked status Display all areas Clear Clear All Click on the close area to start drawing points, and double-click to end drawing; up to 6 points are supported Zoom + Focus + Iris + Speed

1. Enable the event, set the rule and then click "Locked". This button will be changed to "Unlock". Now the PTZ control panel in the above interface will be activated. Set the detection area by clicking the directional buttons in the above interface. After that, click "Unlock" to lock the detection area.

Note: The home position of the PTZ must be locked, or the smart tracking cannot take effect.

1. Click "Draw area" and then draw the intrusion region on the screen. After that, check "Trigger Track" and click "Apply" to save the settings.

2. Set the detection target.

3. Click "Apply" to save settings.

Additionally, you also need to check "Trigger Track" in the PTZ camera.

7 Record & Disk Management

7.1 Record Configuration

7.1.1 Mode Configuration

Please format the HDDs before recording (refer to Disk Management for details). Click Start→Settings→Record→Mode Settings to go to the mode settings interface. You can set the record time under the "Manual Record Settings" and then click "Apply" to save the settings. There are two record modes: auto mode and scheduled mode.

Record Settings Advanced Record Mode Mode Auto Motion Record Sensor Record Motion Record+Sensor Record Continuous Record+Motion Record Continuous Record+Sensor Record Continuous Record+Motion Record+Sensor Record Continuous Record+Motion Record+Sensor Record+AI Record Advanced Manual Record Settings Record Time Manual Apply

Auto Mode

Motion Record: Motion alarm record will be enabled when motion alarm happens.

Sensor Record: Sensor alarm record will be enabled when sensor alarm happens.

Motion Record+Sensor Record: Motion/sensor alarm record will be enabled when motion/sensor alarm happens.

Continuous Record+Motion Record: Normal record is enabled all the time; motion alarm record will be started when motion alarm happens.

Continuous Record+Sensor Record: Normal record is enabled all the time; sensor alarm record will be started when sensor alarm happens.

Continuous Record+Motion Record+Sensor Record: Normal record is enabled all the time; motion/sensor alarm record will be enabled when motion/sensor alarm happens.

Continuous Record+Motion Record+Sensor Record+ AI Record: Normal record is enabled all the time; motion/sensor/analytics alarm record will be enabled when motion/sensor/intelligence analytics alarm happens.

You can add more auto modes on intelligence record. Click "Advanced" button to pop up a window as shown below. Check the modes in the window and then click "Add" button to show the modes in the record mode list (in the window, the checked modes can be showed in the record mode list while the unchecked modes cannot; you shall check "AI Record").

Add Record Mode Motion Record Sensor Record Continuous Record AI Record Add Cancel

Select one auto mode to pop up the corresponding window. Set the encode, GOP, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click "OK" to save the settings. Please adjust the parameters according to the actual condition.

Motion Record+Sensor Record Camera Name Stream Type Encode Resolution FPS Bitrate Type Quality Max Bitrate Bitrate Limit Recommended Range Audio GOP IPC Main Stream H.265 2592x1529 30 VBR Higher 3872Kbps 5377-8961Kbps ON 60 Camera01 Main Stream H.265 1928x1880 30 VBR Higher 2646Kbps 2838-4716Kbps ON 60 Remain: Bandwidth: 69 / 96 Mb OK Cancel

Video Encode: the available options will be H.265 and H.264 if the connected IP camera supports H.265, or the option will be H.264 only. Resolution: the higher the resolution is, the clearer the image is.

FPS: the higher the frame rate is, the more fluency the video is. However, more storage room will be taken up.

Bitrate Type: CBR and VBR are optional. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according to scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This will help to optimize the network bandwidth.

Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose, the more bitrate will be required.

Max Bitrate: 32Kbps \~10240Kbps are optional.

GOP: group of pictures.

Scheduled Mode

If the scheduled mode is selected, you need to set the record schedules of each camera. See Schedule Settings for details.

7.1.2 Schedule Settings

Add Schedule

Click Start→Settings→Record→Mode Setting to go to the mode setting interface. Then select "Scheduled" mode and click "Schedule Management" to set the schedule as shown below. "24 x 7", "24 x 5" and "24 x 2" are the default schedules; you cannot edit or delete "24 x 7" while "24 x 5" and "24 x 2" can be edited and deleted. Click the schedule name to display the detailed schedule information on the left side of the interface. The seven rows stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for unselected time.

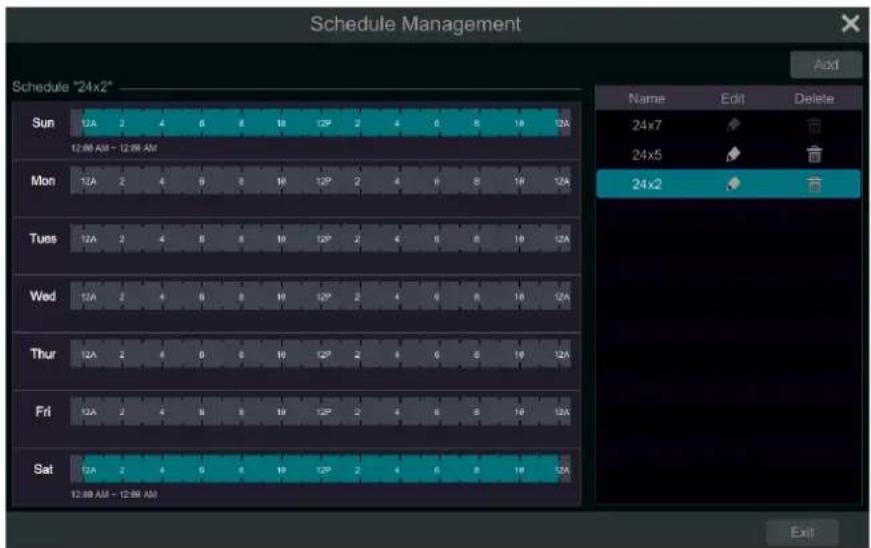

Schedule Management Schedule "24x2" Sun 12:00 AM - 12:00 AM Mon 12A 2 4 6 8 10 12P 2 4 6 8 10 12A Tue 12A 2 4 6 8 10 12P 2 4 6 8 10 12A Wed 12A 2 4 6 8 10 12P 2 4 6 8 10 12A Thur 12A 2 4 6 8 10 12P 2 4 6 8 10 12A Fri 12A 2 4 6 8 10 12P 2 4 6 8 10 12A Sat 12A 2 4 6 8 10 12P 2 4 6 8 10 12A

Click "Add" to add a new schedule. Refer to the picture below.

Set the schedule name and schedule time and then click "Add" to save the schedule. You can set day schedule or week schedule. 📄: add button; delete button.

Set Day Schedule

Click 📄 and then drag the cursor on the time scale to set record time; click 📋 and then drag the cursor on the time scale to delete the selected area.

You can manually set the record start time and end time. Click 📄 or 📋 and then click "Manual" on each day to pop up a window as shown below. Set the start and end time in the window and then click "OK" to save the settings.

Added time manually Start Time 19:48 End Time 29:48 OK Cancel

Click "All" to set all day recording; click "Reverse" to swap the selected and unselected time in a day; click "Clear All" to clear all the selected area in a day.

Click "Copy To" to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click "OK" to save the settings.

Copy To ✓ Mon ✓ Tues ✓ Wed ✓ Thur ✓ Fri ✓ Sat OK Cancel

Set Week Schedule

Click 📋 or 📋 and then click "Manual" beside 📋 to set the week schedule. Refer to the picture below. Set the start and end time, check the days in the window and then click "OK" to save the settings.

Added time manually Start Time 19:48 End Time 28:48 Sun Mon Tues Wed Thur Fri Sat OK Cancel

Click "All" to set all week recording; click "Reverse" to swap the selected and unselected time in a week; click "Clear All" to clear all the selected area in a week.

7.1.3 Advanced Configuration

Click Start→Settings→Record→Advanced to go to the following interface. Enable or disable overwrite mode (overwrite mode: the earliest record data will be replaced by the latest when the disks are full). Choose the record stream. Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click "Apply" to save the settings.

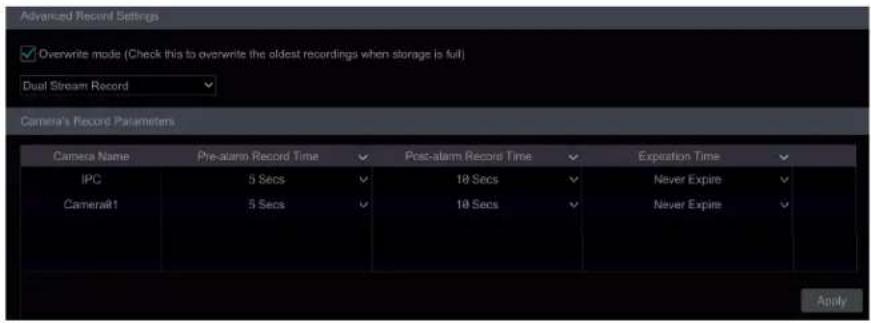

Advanced Record Settings ✓ Overwrite mode (Check this to overwrite the oldest recordings when storage is full) Dual Stream Record Camera's Record Parameters Camera Name Pre-alarm Record Time Post-alarm Record Time Expiration Time IPC 5 Secs 18 Secs Never Expire Cameral1 5 Secs 18 Secs Never Expire Apply

Pre-alarm Record Time: set the time to record before the actual recording begins.

Post-alarm Record Time: set the time to record after the actual recording is finished.

Expiration Time: set the expiration time for recorded video. If the set date is overdue, the recorded data will be deleted automatically.

7.2 Encode Parameters Setting

Click Start→Settings→Record→Encode Parameters to go to the interface as shown below. Set the encode, resolution, FPS, GOP, bitrate type, quality, max bitrate and audio of main stream for each camera in "Event Recording Settings" and "Schedule Recording Settings" interfaces. Click "Apply" to save the settings. You can set the record stream of each camera one by one or batch set them for all cameras.

Live Record Settings Schedule Recording Settings Record Substrains Camera Name Stream Type Encode Resolution FPS Bitrile Type Quality Max Bitrile Bitrile Limit Recommendation IPC Main Stream H.265 2592x1528 30 VBR Higher 3872Kbps 5327~8961Kbps Camera81 Main Stream H.265 1928x1888 30 VBR Higher 2648Kbps 2830~4716Kbps X Remain Bandwidth: 59 / 96 Mb Predict Record Time:7 Days Apply

Click the "Record Substream" tab to set the record substream. Select "Auto" and then the system will automatically set the record substream. Select "Manual" to set the encode, resolution, frame rate and max birate of the record substream manually.

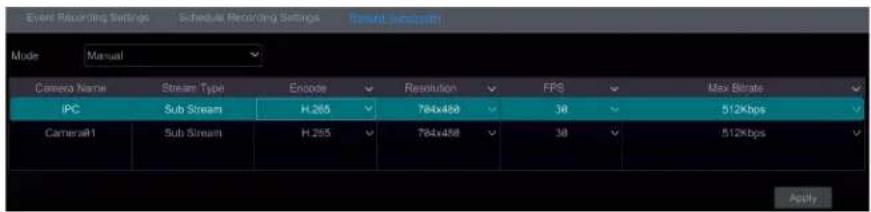

Event Recording Settings Schedule Recording Settings E-mail Subscash Mode Manual Camera Name Stream Type Encode Resolution FPS Max Bibrate IPC Sub Stream H.265 784x458 38 512Kbps CameraR1 Sub Stream H.265 784x458 38 512Kbps Apply

7.3 Record Mode

7.3.1 Manual Recording

on the tool bar at the top of the live view interface to enable recording of the camera.

Method Two: Go to the live view interface and then click the right-click menu "Manually Record On" in the camera window or click on the tool bar under the camera window to start recording.

Note: Click Start→Settings→Record→Mode Settings and then set the manual record time in the interface. Click "Apply" to save the settings.

7.3.2 Timing Recording

Timing Recording: the system will record automatically according to the schedule.

Set the timing record schedule of each camera. See Schedule Settings for details.

7.3.3 Motion Based Recording

Motion Based Recording: the system will start motion based recording when the motion object appears in the setup schedule. The setup steps are as follows:

① Set the motion based recording schedule of each camera. See Schedule Settings for details.
② Enable the motion and set the motion area of each camera. See Motion Alarm for details.

The camera will start motion based recording once you finish the above settings.

7.3.4 Sensor Based Recording

① Set the sensor based recording schedule of each camera. See Schedule Settings for details.
② Set the NO/NC type of the sensor, enable the sensor alarm and then check and configure the "Record". See Sensor Alarm for details.

7.3.5 AI Event Recording

① Set the analytics recording schedule of each IP camera. See Schedule Settings for details.
② Enable the intelligence alarm detection (object detection, exception, tripwire or intrusion) and draw alert surface or warning area of each IP camera. See AI Event Management for details.

The camera will start analytics recording once you finish the above settings. This function is only available for some IPCs.

7.4 Disk

7.4.1 Disk Management

Disk Management

Click Start→Settings→Disk→Disk Management to go to disk management interface. You can view the NVR's disk number and disk status and so on in the interface. Click "Format" button to format the HDD.

For the model with 8HDDs or more, in order to avoid video frame loss, it is recommended to use 7200RPM HDDs or above and add cameras to different disk groups or create one or more RAIDs (if applicable) to record.

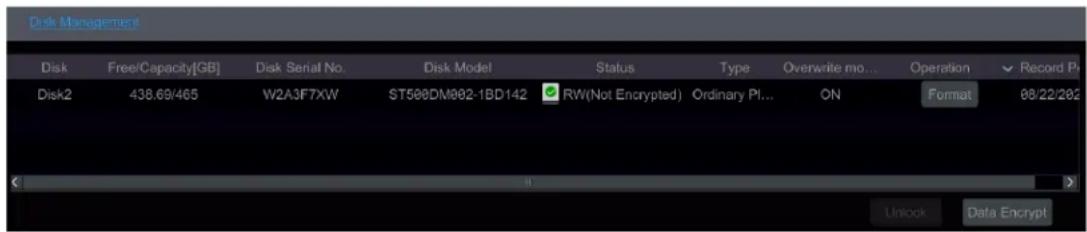

Disk Management Disk Free/Capacity[GB] Disk Serial No. Disk Model Status Type Overwrite mo... Operation Record Pi Disk2 438.69/465 W2A3F7XW ST500DM002-1BD142 RW(Not Encrypted) Ordinary Pi... ON Format 08/22/202 Unlock Data Encrypt

Data Encryption:

① Click "Data Encrypt".
② Enter the username and password used to log in the NVR. This username and password shall have the permission of disk management.
③ Check the disk you want to encrypt and then enter the password.

After you encrypt the data of a disk, this disk cannot be read by other NVRs unless it is unlocked.

Data Decryption:

① Click "Change Encrypt".
② Enter the username and password used to log in the NVR. This user shall have the permission of disk management.
③ Check the disk you want to decrypt and then empty the password.
④ Click "Close Encrypt".

Unlock the disk: when one encrypted disk is transferred from another NVR to this NVR, it will be in locked status. Then you can select this locked disk and click "Unlock". After you enter the password of its data encryption, its status will be "Read Only". Now you can read the data of this disk but it cannot be written anything.

Some models may not support RAID function. The settings of RAID are as followings. Please skip the settings of physical disk, array and disk mode if the NVR doesn't support this function.

RAID

① Enable RAID

(Go to Start→Settings→Disk→Disk Mode)

Disk Management Physical Disk Array Disk Mode Enable RAID

② Create an array. (Go to Start→Settings→Disk→Physical Disk)

a. Click "Physical Disk" tab and then click "Create an array".
b. Enter the user name and password which has the authority of Disk Management. If you don't have one, you can use the user name and password that you login system (the default username: admin; the default password:123456).
c. Enter array name and select array type (like RAID5).

Disk Management Physical Disk Array Disk Mode Disk Capacity/IG Create an array Disk Model Hot Space DM003-1CH162 URX-03FH1Y8 VX809-1CU16 Array Name test Array Type RAID5 Physical Disk RAID6 Global Hot Spores RAID1 RAID5 Array Capacity RAID6 RAID10 Authority authentication Enter Username Enter Password OK Cancel a Create an array

d. Select physical disk.

If you have 16 disks, please check 15 disks. The remaining one should be set to a hot spare.

If higher data security is needed, you can decrease physic disks and increase hot spare disks. Please set them as needed.

Create an array Array Name test Array Type RAID 5 Physical Disk 1 2 3 4 Global Hot Spares None Array Capacity 106300 Add Cancel

e. Select a hot spare. In the physical disk interface, select the disk that is not in the array and click as shown in the following pictures.

Disk Capacity[GB] Array Type Status Disk Model Hot Spare 1 931 test Array disk Normal xxxxx 2 931 test Array disk Normal xxxxx 3 931 test Array disk Normal xxxxx 4 931 Ordinary plate Normal xxxxx Authority authentication Enter Username Enter Password OK Cancel Question Disk set to global hot spare clears disk data, OK to continue? OK Cancel

- RAID Rebuilding

If one of your disks is broken, the disk indicator on the front panel will turn red. Of course, a warning tip will pop up if the relevant HDD exception alarm is set. You need to rebuild the RAID after you replace the broken disk with a new one.

Disk Management Physical Disk Array Disk Mode No Name Capacity[GB] Physical Disk Hot Spare Position Status Type Rebuild 1 Inst 1862 23 4 Downgrade RAID6

Click the above circled icon and then select the physical disk to rebuild.

Rebuilding an array Array name test Array Type RAID 5 Array disk 2 3 Physical Disk ● 1 OK Cancel

7.4.2 Storage Mode Configuration

Click Start→Settings→Disk→Storage Mode to go to the interface as shown below.

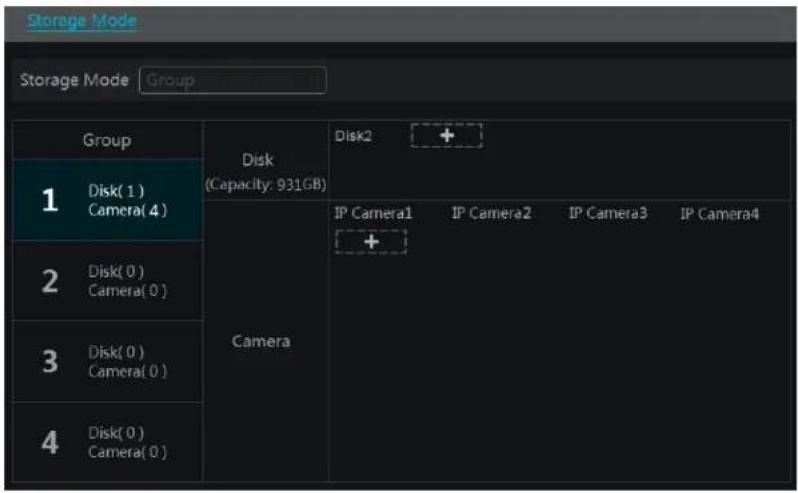

Storage Mode Storage Mode Group Group Disk (Capacity: 931GB) Disk2 + 1 Disk(1 ) Camera(4) Camera IP Camera1 IP Camera2 IP Camera3 IP Camera4 2 Disk(0 ) Camera(0) 3 Disk(0 ) Camera(0) 4 Disk(0 ) Camera(0)

By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The NVR with e-SATA interface supports e-SATA recording.

The added disks and cameras will be added into group one automatically. The disks and cameras in the groups can be deleted except group one (select a disk group and then click ☒ on the top right corner of the added disk or camera to delete it from the group). The deleted disks and cameras will be moved into group one automatically.

Each group can add the disks and cameras from other groups. Each disk and camera can only be added into one group. Select a disk group and then click + in the disk or camera row to pop up a window. Check the disks or cameras in the window and then click "Add".

For the model with 2 or 4 HDD slots, BK group can be added.

Click + to add the backup HDD. After account verification, select an HDD and then this HDD will be removed from the normal group to the backup group. Simultaneously, it will be formatted. Please back up all data of this HDD in advance when you want to remove it to the backup group.

You can add cameras to this HDD. The added cameras can exist and be recorded both in one HDD of the normal group and the backup group. Note: Each HDD only can exist in one group.

For the model with 2 or 4 HDD slots, BK group can be added as shown below.

Storage Mode Group Normal Group 1 Disk (1) Camera 3 ) Backup Group BK Disk (4 ) Camera 8 ) Disk (1) (Capacity:611GB) Disk 1 IP通道64 IPCAM6 IPCB5 Camera

Click + to add the backup HDD. After account verification, select a HDD and then this HDD will be removed from the normal group to the backup group. Simultaneously, it will be formatted. Please back up all data of this HDD in advance when you want to remove it to the backup group.

You can add cameras to this HDD. The added cameras can exist and be recorded both in one HDD of the normal group and the backup group. Note: Each HDD only can exist in one group.

7.4.3 View Disk and S.M.A.R.T. Information

Click Start→Settings→Disk→View Disk Information to view the HDD information; click "S.M.A.R.T. Information" to view the working status of the HDD (refer to the picture below); click "Health Status Check" to check the western digital purple disks' health status.

Disk Disk Management Disk Management Storage Mode Storage Mode Settings Disk View Disk Information SMART Information Disk SMART Information Disk Disk 2 Disk Serial No. XXXI Disk Model XXXI Temperature 187 Power-on-Time (day) 31 Disk SMART Status Normal ID Attribution Value Worst Value Threshold Raw Value Status Dx01 Read Error Rate 100 100 42 0 Normal Dx02 Througput Performance 100 100 40 0 Normal Dx03 Split-Up Time 234 234 33 1 Normal Dx04 Start/Stop Count 100 100 0 96 Normal Dx05 Reallocated Sector Count 100 100 5 0 Normal Dx07 Seek-Error Rate 100 100 87 0 Normal Dx08 Seek Time Performance 100 100 40 0 Normal Dx09 Power On Hours 99 99 0 724 Normal Dx10 Spin Retry Count 100 100 60 0 Normal Dx11 Power Cycle Count 100 100 0 93 Normal Dx12 G sense Error Rate 100 100 0 0 Normal Dx13 Power-off Retract Count 100 100 0 58 Normal Dx14 Load Cycle Count 100 100 0 8815 Normal Dx15 Temperature 187 187 0 1638432 Normal Dx16 Reallocation Event Count 100 100 0 6 Normal Dx17 Current Penning Sector Count 100 100 0 0 Normal Dx18 Unconnectable Sector Count 100 100 0 0 Normal Dx19 UltraDMA CRC Error Count 200 200 0 0 Normal Dx20 Load/Unload Retry Count 100 100 0 0 Normal

In addition, you can view the plugging-in or pulling-out details of the HDD from the logs to check whether someone moves your HDD or not. Click Start→Settings→System→View Log.

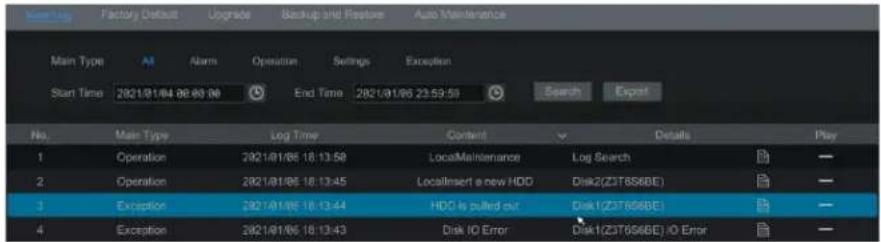

Start Log Factory Default Upgrade Backup and Replace Auto Maintenance Main Type Alt Alarm Operation Settings Exception Start Time 2021/01/06 08:09:00 End Time 2021/01/06 23:53:53 Search Export No. Main Type Log Time Content Details Play 1 Operation 2021/01/06 18:13:58 LocalMaintenance Log Search — 2 Operation 2021/01/06 18:13:45 LocaInsert a new HDD Disk2(Z3T6S6BE) — 3 Exception 2021/01/06 18:13:44 HDD is pulled out Disk1(Z3T6S6BE) — 4 Exception 2021/01/06 18:13:43 Disk IO Error Disk1(Z3T6S6BE) IO Error

8 Playback & Backup

8.1 Instant Playback

Click ▶ on the tool bar at the bottom of the preview camera window to play back the record (click ▶ on the tool bar at the top of the live view interface to set the default playback time). Refer to the picture below. Drag the playback progress bar to change the playback time. You can also click the right-click menu "Instant Playback" in the camera window and then set the instant playback time to play back the record.

Interior view of a modern office lobby with glass flooring and potted plants, no visible text or symbols

8.2 Playback Interface Introduction

Click 🏠 on the tool bar at the top of the live view interface or click Start→Playback to go to the playback interface as shown below (click 🏠 on the tool bar at the top of the live view interface to set the default playback time).

Camera01 08/23/2022 11:4 Intelligent Analytics Search unit Lock Window B8:22:28:22 11:56:25 PM

The panel on the left will show you're the channel number and their recorded data coded by color. The bar that runs across them represents the playback time being viewed. You can move this bar around. To export, highlight a section of the desired recording, click export and follow the prompts. You can export single or multiple channels at the same time.

The added cameras will playback their records in the playback interface automatically. You can also add the playback camera manually. Click in the playback window to pop up the "Add Camera" window. Check the cameras in the window and then click "Add" to add playback camera. The system supports a maximum of 16 synchronous playback cameras.

The buttons on the tool bar (area ①) at the top of the playback interface are introduced in the table below.

Button		Meaning
	[swed]	Start button. Click to pop up area 2.
	[swed]	Full screen button. Click to show full screen; click it again to exit the full screen.
	[swed]	Screen mode button.
	[ssd]	OSD ON button. Click to enable OSD; click it again to disable OSD.
	[ssd]	Quick channel selection button
	[ssd]	Stop button.
	[ssd]	Rewind button. Click to play video backward.
	[ssd]	Play button. Click to play video forward.
	[ssd]	Pause button.
	[ssd]	Deceleration button. Click to decrease the playing speed.
	[ssd]	Acceleration button. Click to increase the playing speed.
	[ssd]	Previous frame button. It works only when the forward playing is paused in single screen mode.
	[ssd]	Next frame button. It works only when the forward playing is paused in single screen mode.
	[ssd]	Clickto step backward 30s and clickto step forward 30s.
	[ssd]	Click to enter the smart playback interface
	[ssd]	Event list/tag button. Click to view the event record of manual/schedule/sensor/ motion and the tag information.
	[ssd]	Watermark button. Click to enable watermark; click it again to disable watermark.
	[ssd]	Backup button. Drag the mouse on the time scale to select the time periods and cameras, and then click the button to back up the record.Backup status button. Click to view the backup status.
	[ssd]	Back button. Click to return.

Introduction of area ②:

Button	Meaning
	Click to go to record search and export interface; see Record Search, Playback & Backup for details.
	Click to Go to the live view interface; see Live View Introduction for details.
	Click to go to the intelligent analytics interface.

Click on the playback window to show the tool bar as shown in area ③; right click on the window to show the menu list. The tool bar and menu list are introduced in the table below.

Button	Menu List	Meaning
	--	Move tool. Click to move the tool bar anywhere.
	Enable Audio	Click to enable audio. You can listen to the camera audio by enabling audio.
	Snapshot	Click to snap.
	Zoom In	Click to go to the zoom in interface. The zoom in interface is similar to that of the camera window in the live view interface.Clickto pause the record playing; clickto play the record. When the record is paused in forward playing mode, you can clickto view the previous frame and clickto view the next frame.
	Add Tag	Click to add tag. You can play back the record by searching the added tag. Click it and then enter the tag name in the popup window. Click “Add” to add tag.
	Switch Camera	Click to switch the playback camera. Click it and then check the camera in the popup window. Click “OK” to change the camera.
	Close Camera	Click to close the playback camera.

Introduction of area ④:

Click to set the date; click to set the time and then the playback camera will play the record from the time you set. You can check the record type as required for record playback; first you should click on the tool bar at the top of the interface to clear all the playback camera, then check the record type ( : manual record; : sensor based record; : motion based record; : schedule record; : AI record; if you want view the detailed smart playback icons, click to switch). Finally, click in the playback window to add camera for playback (the record time scale will show the record data of the checked record type only after the above operations).

Introduction of the record time scale (area ⑤):

Click to set the date; click to set the time and then the playback camera will play the record from the time you set.

A tool bar will appear after moving the mouse to the record time scale. Click / to zoom the timeline; click to recover the timeline to 24 hours' ratio. Drag the timeline or slide the scroll wheel of the mouse on the time scale to show the hidden time on the top or bottom of the timeline. You can also click to show the hidden time on the top of the timeline or click to show the hidden time on the bottom of the timeline. Drag the slider at the bottom of the time scale to show the hidden playback cameras.

The record time scale shows different record types with different colors. The green block stands for manual record, red block stands for sensor based record, yellow block stands for motion based record, blue block stands for schedule record and cyan block stands for intelligence record. Click the record block to set the time and then the playback camera will play the record from the time you set.

Drag the color block on the time scale to select the backup area and then right click the area or click 📁 to pop up an export information window. Click 🔒 button in the window to pop up the export window. Select the device, export path and format and then click "Export" button to start the backup.

8.3 Smart Playback

In the playback interface, click 🔒 to go to the smart playback interface.

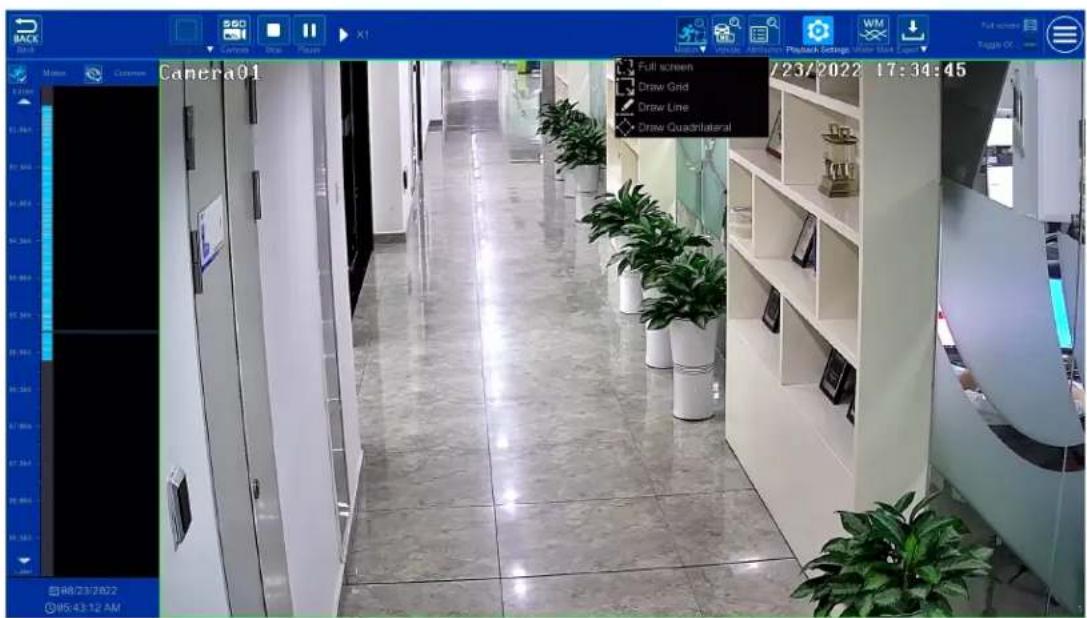

Back S6C Camera Draw Player X1 Main Vehicle Settings Playback Settings Water Stock Capm Full screen Toggle CX... Mbox Customer Canera01 Full screen Draw Grid Draw Line Draw Quadrilateral 7/23/2022 17:34:45 08/23/2022 WS 43:12 AM

The descriptions of buttons in the smart playback interface

按钮		Description
		Full screen motion button.
		Draw grid. You can search the record of motion detection in the pre-defined area.
		Draw line. You can search the record of crossing the line after drawing the
			line.
			Draw quadrilateral. You can search the record in this quadrilateral after drawing it.
	[DAKB]		Search by license plate number
			Search by face (only N8NRE/N16NRE/N32NRE supports)
			Playback settings button
			Return button. Click to return to the previous interface.

8.3.1 Smart Playback Settings

Click to set "Motion/Face/Vehicle video playback speed", "Ordinary video playback speed".

You can disable "Common" to view motion/face vehicle video playback in the right corner of the smart playback interface.

Playback Settings Ordinary video playback speed 1 Motion video playback speed 1 OK Cancel

8.3.2 Smart Playback Based on Motion Detection

● Smart Playback by Drawing Grid

Click 📄 and draw a rectangle in the desired area. Then the system will automatically search the record files of this area. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record.

● Smart Playback by Drawing Line

Click ☐ and draw a line in the desired area. Then the system will automatically search the record files about crossing this line. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record.

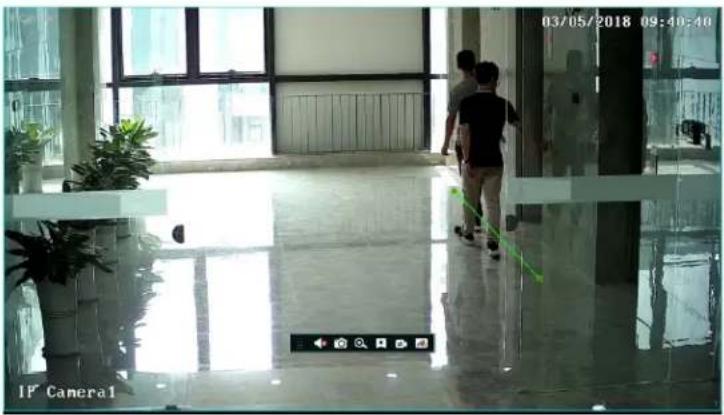

Interior view of a modern building hallway with glass walls and potted plants, no visible text or symbols

● Smart Playback by Drawing Quadrilateral

Click and draw a quadrangle in the desired area. Then the system will automatically search the record files of this area. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record.

05/03/2018 17:16:20 JP. Camer 2003

8.3.3 Smart Playback by Face Search

Before starting this function, the face recognition function shall be enabled. Please see Face Recognition for details. If your device doesn't support such function, please skip the following instructions.

① In the smart playback interface, click 📄 to pop up the following window.

Back SBC SN Camera Snap Select Similarity 75 % Recent Face Database Snapshot Gallery External faces Time Day Week Month Customization Today 2022/08/26 Camera All IPC:Camera81:Camera82: @Removed C... Move Search Selected Items Already Selected @ Picture(s) Current Page: 1 / 17, all 396 Search By Group Search By Face Exit

① Set similarity. The higher the sensitivity value is, the lower the searching accuracy is, and vice versa.
② Select targets. You can select targets from recent, face database, snapshot gallery or external faces.
③ Select search mode. There are two search modes: search by group and search by face.

Search by group: Choose "Face Database" and then click "More" to choose one or more groups.

Move the cursor to the time block where the record exists and click to play those records.

You can only check "Face" to view the face records.

8.3.4 Smart Search by License Plate

Before starting smart search by plates, please add ANPR cameras first and enable the LPR function. Please refer to License Plate Recognition for details.

Click

button to go to the following interface.

Back Camera01 Select Plate Recent Plate Database Customization Plate Group All(default) Search by keyword No. Plate Vehicle Type Vehicle Owner Mobile 1 A22571 x xx 12233333444 Search Exit 262298256 17:49:48

Select the plate from "Recent", "Plate Database" or "Customization" and then click "Search" to search recorded files and play. Here we take an example of search plate from "Plate Database".

Click to choose a group. Then plates will be listed in the table automatically. Click "Search" to play.

Nighttime photo of a car at a parking checkpoint with visible signage and timestamp, showing vehicle headlights and lane markings.

8.3.5 Smart Search by Object Attributes

Before searching objects by attributes, please enable video metadata function of cameras. Click to select the attributes. Select the attributes of human/motor vehicle/non-motor vehicle as needed to search the results.

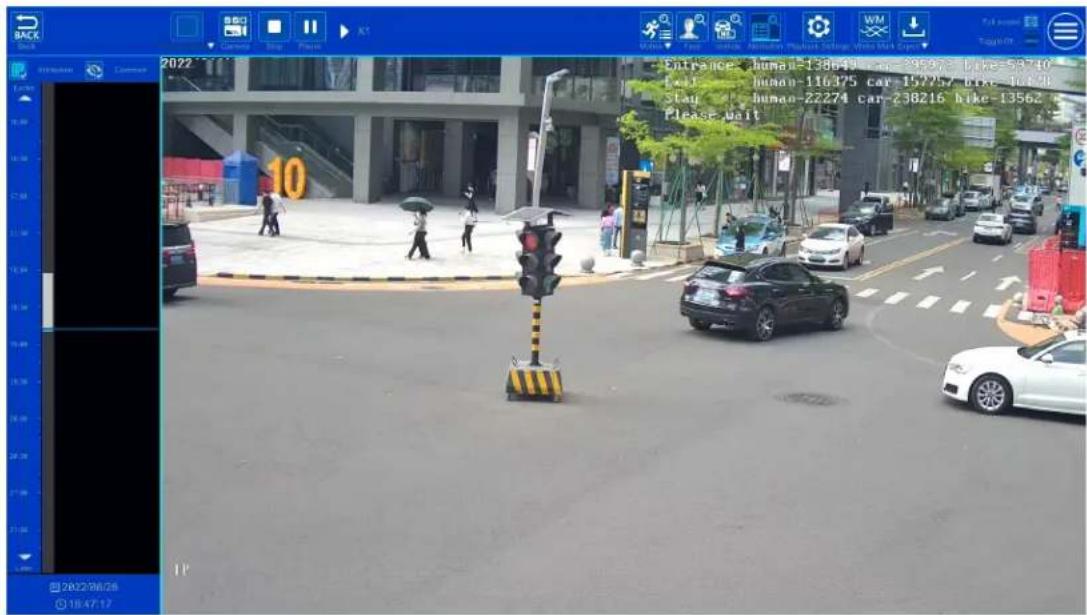

2022 Entrance human-138649 car-395973 bike-58740 Exi1 human-116375 car-152757 bike-16630 Stay human-22274 car-238216 bike-13562 Please wait 图 20220828 18:47:17

8.4 Record Search, Playback & Export

The record data and the captured pictures can be exported through network, USB (U disk or USB mobile HDD). The file system of the export devices should be FAT32 format.

8.4.1 EZ Search

① Click Start→Search and Export→EZ Search to go to the "EZ Search" tab. There are two view modes: by time and by camera. In the time view mode, a maximum of 64 camera thumbnails can be showed. If the camera thumbnail number is more than 64, the cameras will be listed directly by their camera name, not the thumbnail. A maximum of 196 camera names can be listed. If the camera name number is more than 196, the time view mode will be disabled and the camera view mode will be available only.

Search and Export AC search Time Snapshot Event Search Book/marks Snapshots Export Status Camera Thumbnails View Mode Time 04/07/2020 Camera#1 Camera#2 Unknown Camera#1 Unknown Camera#2 Unknown Camera# 04/06/2020 Camera#1 Camera#2 Unknown Camera#1 Unknown Camera#2 Unknown Camera# 04/05/2020 Camera#1 Camera#2 Unknown Camera#1 Unknown Camera#2 Unknown Camera# 04/04/2020 Open Exit

② Select one camera in the interface and then click "Open" button.
③ Click the image box to play the record in the small playback box on the left side of the interface (the box which has image inside indicates that the record data exist).
④ Refer to the picture below. Drag the color blocks on the time scale to select the record data and then click "Export" button to pop up the "Record Backup" window as shown below. Select the device name, backup format and path and then click "Export" button to start the backup.

Record Backup Device Name ExternalStorage1-689B-4AC4 Refresh Free:28.96 GB.All:29.27 GB Name Type Size Modify Date Backup Directory 8.00 KB 2015/11/03 16:58:53 Format Private New Folder Delete Export Cancel

Note: If you back up the record in private format, the system will back up a RPAS player to USB device automatically. The private format record can be played by RPAS player only.

⑤ Click "Playback" button to play the record in the playback interface (refer to Playback Interface Introduction for details). Click "Exit" to exit the interface.

Search and Export Camera Thuneral > IP Camera43 > PS2018 > 71 Playback Set Backup Time Search Search Time Search Event Search Bookmarks Scanets Export Status Preview Hour 4/24 Search Search Time Search Event Search Bookmarks Scanets Export Status Playback Set Backup Time Search Search Exit

Time Slice Search:

Method One: Click "Year", "Month" or "Day" button under the record time scale to select the time slice mode. In "Day" mode, click / on the left/right side of the time scale to view the record of the last/next day; click "Minute" in the "Picture" option under the time scale to select "Minute" mode (in "Minute" mode, click the time scale to change the time of the 60 display windows) and click "Hour" to select "Hour" mode.

Method Two: Click > beside "Camera Thumbnail" on the left top corner of the interface to select the time slice mode.

Method Three: Right-click the mouse on any area of the time-sliced interface to go back to the upper interface.

8.4.2 Time Search

① Click Start→Search and Export→Time Search to go to the "Time Search" tab as shown below.
② Click + on the bottom of the interface to add playback camera. A maximum of 16 cameras can be added for playback. Click "Modify" on the top right corner of the camera window to change the camera and click "Clear" to remove the camera.
③ Click the camera window to play the record in the small playback box on the left side of the interface. You can set the date on the top left of the interface, check the event type as required and click the time scale or click under the time scale to set the time. The camera window will play the record according to the time and event type you set.
④ Drag the color blocks on the time scale to select the record data (or click "Set Backup Time" button on the bottom left corner of the interface to set the backup start time and end time) and then click "Export" button for record backup. Click "Playback" button to play the record in the playback interface.

Search and Export L2 search Search Photo Search Search Search Export Status Sunt Main 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230

8.4.3 Event Search

① Click Start→Search and Export→Event Search to go to "Event Search" tab as shown below.

Search and Export Start Time: 01/24/2024 12:39:46 AM End Time: 01/24/2024 11:59:50 PM Search Camera IPC Unknown Camera... Unknown Camera... Unknown Camera... Search EC search Time Search Auto Query Stock-ins Default Export Status Excel Manual Video AI Motion No. Camera Name Type Time Period Duration Cancel Size Playback Export Help 1 IPG Motion 01/24/2024 88:47:53 PM-01/24/2024 88:48:39 PM 37s 1MB Current Page 1:1, all 1 Cancel Previous Exit

② Check the event type in the interface as required.

③ Click ⬇ to set the start time and end time on the top left of the interface. Click ⬇ to filter targets. Select "Human" or "Motor Vehicle" to show motion (human/motor vehicle) as shown below. If only "None" is selected, all events will be searched except motion (human/motor vehicle). Note: Only the camera with SMD function has the data of motion (human/vehicle classification).

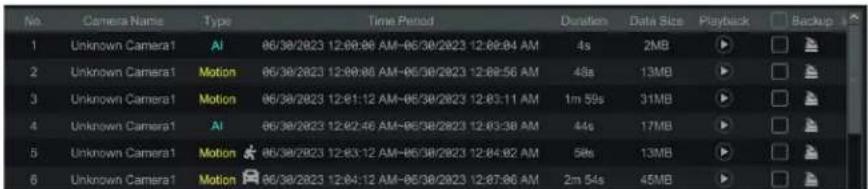

No. Camera Name Type Time Period Duration Data Size Playback Backup 1 Unknown Camera1 AI 06/30/2023 12:00:00 AM-05/30/2023 12:00:04 AM 4s 2MB ▶ 2 Unknown Camera1 Motion 06/30/2023 12:00:00 AM-05/30/2023 12:00:56 AM 48s 13MB ▶ 3 Unknown Camera1 Motion 06/30/2023 12:01:12 AM-05/30/2023 12:03:11 AM 1m 59s 31MB ▶ 4 Unknown Camera1 AI 06/30/2023 12:02:46 AM-05/30/2023 12:03:38 AM 44s 17MB ▶ 5 Unknown Camera1 Motion 06/30/2023 12:03:12 AM-05/30/2023 12:04:02 AM 58s 13MB ▶ 6 Unknown Camera1 Motion 06/30/2023 12:04:12 AM-05/30/2023 12:07:06 AM 2m 54s 45MB ▶

④ Check cameras on the left side of the interface or check "All" to select all the cameras and then click search to search the record. The searched record will be displayed in the list.
⑤ Click ▶ in the list to play back the record in the popup window. Click ▶ to back up one record data or check multiple record data in the list and then click "Backup" button for record batch backup.
⑥ Select one record data in the list and then click "Playback" button to play the record in the playback interface.

8.4.4 Bookmark Search

Only if you add the tags can you play the record by tag search. Click Start→Playback to go to the playback interface and then click 📄 on the bottom of the camera window to add bookmarks when you want to mark the playback time point of the selected camera.

Click Start→Search and Export→Bookmarks to go to "Bookmarks" tab.

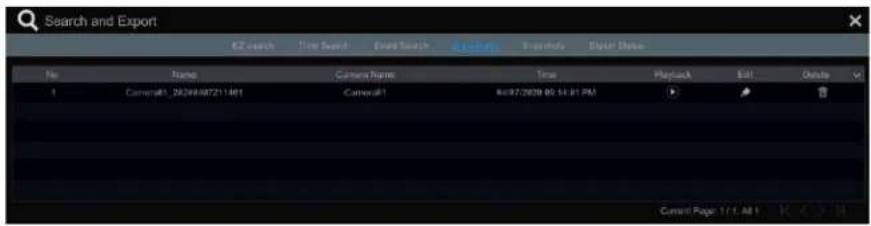

Search and Export E2 Search Time Search Email Search SearchInfo SearchInfo Mapter Name: No. Name Current Name: Time Playback Edit Delete 1 Camera81_39268487211481 Camera81 04/07/2028 00:14:01 PM Current Page 1 / 1, All 1

Click 📋 in the interface to play the record. Click 🔔 to edit the tag name. Click 🔔 to delete the tag.

8.4.5 Snapshots

Click Start→Search and Export→Snapshots to go to "Snapshots" tab. The system will display all the captured images automatically in the list.

Search and Export No. Camera Name Snapshot Mode Snapshot Time Creator Browse Export Delete 1 Camera02 Alarm 04/07/2028 09:24:46 PM Camera02 2 Camera02 Alarm 04/07/2028 09:24:46 PM Camera02 3 Camera02 Alarm 04/07/2028 09:23:41 PM Camera02

Click 📄 to delete the image. Click 🔒 to pop up the "Export" window. Select the device name and save path in the window and then click "Save" button.

Click to pop up the "View Image" window. Click to export the image. Click to view the previous image; click to view the next image; click to delete the image; click to play all the images.

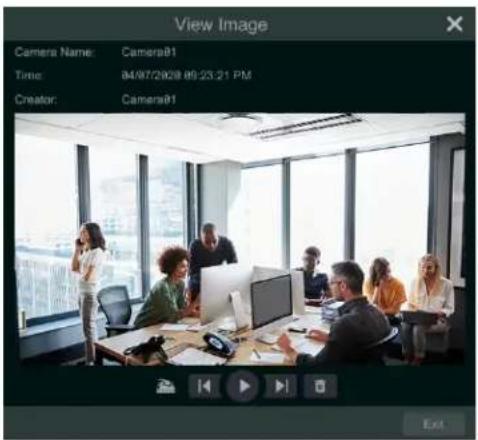

View Image Camera Name: Camera81 Time: 04/07/2028 09:23:21 PM Creator: Camera81

8.4.6 View Export Status

Click Start→Search and Export→Export Status or click ⓘ on the tool bar at the bottom of the playback interface to view the export status.

9 AI Event Management

9.1 Face Recognition

Only some models support alarm based on face comparison. If your device doesn't support face recognition function, please skip the face database and face recognition instructions.

Please set face recognition function according to the following procedures for the first time.

9.1.1 Face Detection Settings

Face Detection: Alarms will be triggered if someone intrudes into the pre-defined alarm areas.

① Click Start→Settings→AI/Event→AI Event→Face Recognition→Detection to go to the following interface.

The following picture is for reference only. The parameter settings may vary by models.

Enable Detection by IPC Parameter Settings Trigger Mode Schedule Schedule 24x7 Rule Duration 20 Secs Snapshot Interval 30 Secs Snapshot Number 3 Face exposure 50 Face Size(Range : 3%~50%) Max 50 % Min 3 % Display range Press the left mouse button to drag the drawing area Clear Advanced SD Card storage Original picture Target picture Exit Apply

② Select the camera, check "Enable Detection by IPC" and set the duration.
Note: 1. Some models may support face detection by NVR. For these models, the camera without AI function also can be added and used to detect faces through NVR. But if face detection by NVR is enabled for one camera (without AI), the people/vehicle perimeter detection cannot be enabled simultaneously, and vice-versa.
2. Some AI cameras support event type classification. If the event type is not face event, you need to select face event by clicking Start→Setting→AI/Event→Enable Event. After the camera restarts, face detection of the IPC can be enabled.

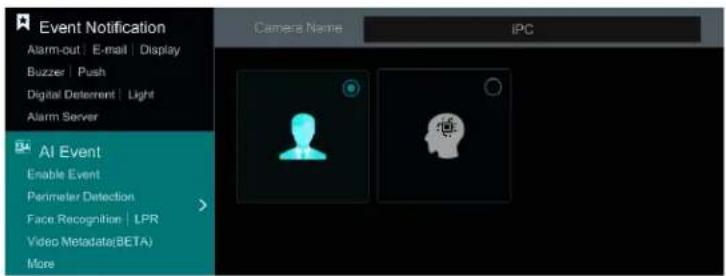

Event Notification Alarm-out | E-mail | Display Buzzer | Push Digital Deterrent | Light Alarm Server AI Event Enable Event Perimeter Detection Face Recognition | LPR Video Metadata(BETA) More Camera Name IPC

③ Set the schedule. Click "Manage" to set the desired schedule. Please refer to Schedule Settings for details.
④ Set the snapshot interval and snapshot number. The snapshot interval refers to the time interval that the camera captures the same face during its continuous tracking period. The snapshot number refers to the picture number of the same face captured during its continuous tracking

period (For example: the snapshot interval is set to "30 seconds" and the snapshot number is set to "3"; then the camera will capture the same face once every 30 seconds and it will capture this face 3 times at most during its continuous tracking period).

⑤ Enable face match exposure as need. When the brightness of the captured face is not enough, it can be enabled. (Only some IPCs support this function)
⑥ Set the alarm area. Drag the mouse to draw a detection area. Click "Clear" to delete the alarm area. Then set the detectable face size by defining the maximum value and the minimum value (The default size range of a single face image occupies from 3% to 50% of the entire image).
⑦ Enable "Original picture" or/and "Target picture" as needed. If enabled, the system will automatically save the corresponding images on the SD card.
⑧ Click "Apply" to save the settings.
⑨ Click "Trigger Mode" to go to face detection alarm linkage setting interface:

Parameter Settings Trigger Mode Voice Prompt None Trigger General Record Configure Alarm-out Configure Camera Name Preset Name Snapshot IP91 Push Buzzer Pop-up Video E-mail IP91 None IP92 None Apply

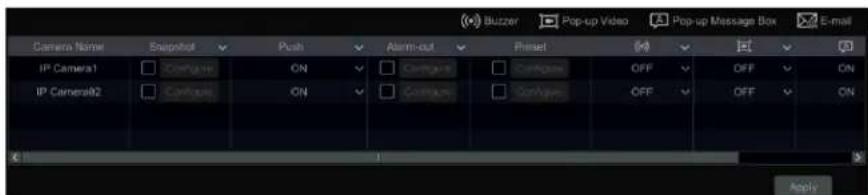

Face Detection Alarm Linkage Configuration:

① Trigger "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail" as needed.

Record: Click the "Configure" button to pop up the window. Select camera on the left side and then click to set the camera as the trigger camera. Select trigger camera on the right side and then click to cancel the trigger camera. Click "OK" to save the settings. The trigger cameras will record automatically when faces are detected.

Alarm-out: Click the "Configure" button to pop up the window. Then the "Trigger Alarm-out" window will pop up automatically. Configure the trigger alarm-out in the window. The system will trigger the alarm-out automatically when faces are detected. You need to set the delay time and the schedule of the alarm outputs. See Alarm-out for details.

Preset: Click ▼ and then select the preset for each camera. To add presets, please see Preset Setting for details.

Snapshot: check it. The current camera will capture images automatically when faces are detected.

Push: If it is enabled, the system will send messages when faces are detected.

Buzzer: if it is enabled, the system will begin to buzz when faces are detected. To set the delay time of the buzzer, please see Buzzer for details.

Pop-up Video: if it is enabled, the system will pop up the corresponding video automatically when faces are detected. To set the duration time of the video, please see Display for details.

E-mail: if it is enabled, the system will send an e-mail when faces are detected. Before you enable the email, please configure the recipient's e-mail address first (see E-mail for details).

Enable "IPC_Digital Deterrent" or "IPC_Light" as needed (only some IPCs support these two functions). To set the IPC voice and its times and volume, please refer to Digital Deterrent for details. To set the light flashing time and frequency of the IPC, please refer to Light for details.

⑩ Click "Apply" to save the settings.

9.1.2 Face Database Management

This function is only available for N8NRE/N16NRE/N32NRE/N8NRX/N16NRX.

① Click Start→Settings→AI/Event→AI Event→Face Recognition→Face Database to go to the following interface as shown below.

Face Plate Add Group Group Name vp OK Cancel Add Group Import and Expert Face Recognition Add Face Add Group

For the first time, you can click "+" or "Add Group" to add groups.

② To add targets for each group.
② Select a list and then click 🤨 to expand the list as shown below.

Intelligent Analytics Add Name: Size: Name Birthday 2024/03/19 Native Pass ID Type: ○ Card ID Number Mobile No. Remark Group: HP Add Group Add Face Reset Face Entryed: Mostly Yes Entry Run Entry Cancel Face Recognition Add Face Add Group Import and Export

③ Click "Add" and then click "Select Face" to add face images. You can add faces from snapshot gallery or external faces.

Adding faces from snapshot gallery: Select search time or self define the search time and then click "Search" to search target faces. Then select the desired faces and click "Select".

Note: The picture marked with a green icon can be added to the face database.

Select Snapshot Gallery Time: Today Day Week Month Customization Today 29/15/07/31 External faces Camera Air IP Camera83;IPC; IP Camera; IP Camera8... More Search Current Page: 2 / 13, All 319 K < > > Select Cancel

Add external faces

Save the face pictures in your USB storage device and then insert the USB storage device into the USB port of the NVR.

Go to the face database interface. Click ☑ to expand the group and then click "Add". Select "External faces" to select face pictures. You can select one face to add or multiple faces to add.

To add multiple faces: a. put face pictures and the description file (.csv or .txt) to one specific folder (please edit the detailed descriptions of these pictures according to the personal information description); b. click "All" to select all face pictures; c. click "Full Entry".

Note: the added image must be less than 70KB and the image format shall be ".jpg" and ".jpeg".

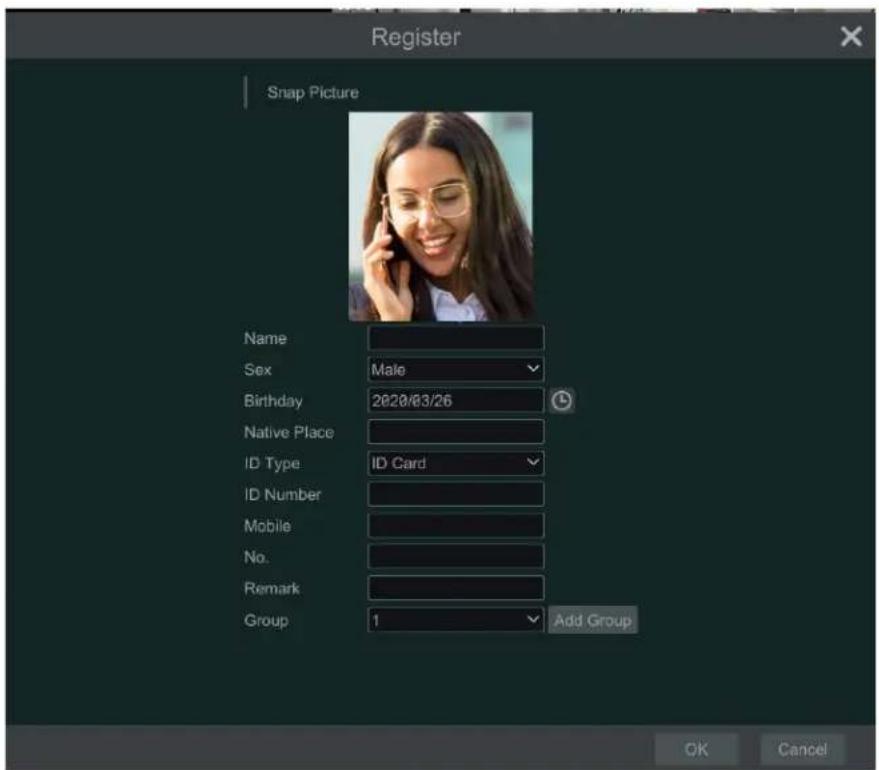

④ After that, add the corresponding information, like name, gender, birthday, ID number, phone number and so on.

Having saved the target image, click the image and then the detailed information will be listed on the right.

No. Group Operation Expand/Collapse 1 1(1) Add Modify Delete Clear Add Search face by name All(default) Name Birthday Native Place ID Type ID Number Mobile No. Remark Current Page: 1 / 1, all: 1 Face Recognition Add Face Add Group Import and Export

⑤ Import and Export Face database

Insert your mobile storage device into the USB interface of the NVR and then click "Import and Export" to import or export the face database settings.

The exported face database file (cvs+jpg) can be directly imported to the face database. So it is very convenient for you to transfer the face database file to other devices.

9.1.3 Face Recognition Settings

This function is only available for N8NRE/N16NRE/N32NRE N8NRX/N16NRX.

After the face database and face pictures are added, click "Face Recognition" to return to the face recognition setting interface. Click the "Recognition" tab to go to the following interface.

Enable Successful Recognition Stranger Parameter Settings Successful Recognition Stranger Face Group All 1 Schedule 24x7 Manage Text Prompt Voice Prompt None Enable alarm output pulse(Access Control) Trigger General Record Configure Alarm-cut Configure Snapshot Configure Camera Name Reset Name Push IPC82 Buzzer Pop-up Video E-mail Pop-up Message Box IPC82 IPC62 None IPC63 None IPC63 None Apply

① Enable "Successful Recognition" or "Stranger". Click "Parameter Settings" to set the similarity of the matching face group.

Disable live display: if checked, the live view interface (target detection tab) will not display captured faces in real time.

② Set the alarm linkage items of successful recognition.

• Select one or more face groups and then choose the schedule. Click "Manage" to set the schedule.
• Set the text prompt and voice prompt. When the captured face is matched successfully, the text will appear on the right of the live view interface and broadcast the audio.
  ● Enable alarm output pulse (access control).
• Trigger record, snapshot, alarm-out, buzzer, push, pop-up video, E-mail and pop-up message box as needed. The alarm linkage settings are similar to the face detection alarm (see Face Detection Settings for details).
• Click "Apply" to save the settings.

③ Set the stranger alarm linkage items. When the captured face picture doesn't match the face pictures in the face database or their similarity is lower than the set value, the captured person will be regarded as a stranger.

Enable ✓ Successful Recognition ✓ Stranger Parameter Settings Successful Recognition Stranger Schedule None Manage Text Prompt Voice Prompt None Trigger General Record Configure Alarm-out Configure Snapshot Configure Camera Name Preset Name ✓ Push IP Camera#1 ✓ Buzzir ✓ Pop-up Video ✓ E-mail ✓ Pop-up Message Box IP Camera#1 None Apply

• Configure the schedule
• Set the text prompt and voice prompt. The text will show on the captured picture and the voice will be broadcasted when detecting a stranger.
• Trigger record, snapshot, alarm-out, buzzer, push, pop-up video, E-mail and pop-up message box as needed. The alarm linkage settings are similar to the face detection alarm (See Face Detection Settings for details).
• Click "Apply" to save the settings.

① Click "+" to add more successful recognition tasks. Select the added task and then click "-" to delete it.

9.2 License Plate Recognition

Please add the ANPR camera before you using this function. If your camera doesn't support this function, please skip the following instruction. Please set face recognition function according to the following procedures for the first time.

9.2.1 License Plate Detection Settings

Click Start→AI/Event→AI Event→LPR to go to the following interface. Select an ANPR camera and click the "Detection" tab as shown below.

Enable Parameter Settings Schedule Schedule 24x7 Manage Area Detection Area 1 Blocked Area 1 2 3 4 Rule Plate Detection Area CN Plate Exposure Capture Plate Absence Vehicle Plate Size(Range : 1%~50%) Min 0 % Max 0 % Display range Apply

• Set the schedule.
• Set the area and plate exposure as needed.

Set the alarm area. Drag the mouse to draw a detection area. Click "Clear" to delete the alarm area.

Set the blocked area. Select the number and then draw a blocked area. Up to 4 areas can be set up. After you set the blocked area, this area will not be detected.

Click "Display all area" to view all blocked and detection areas.

Click "Clear All" to clear all blocked and detection areas.

• Check "Capture plate absence vehicle" as needed.
• Set the plate size by defining the maximum value and the minimum value (The default size range of a single plate occupies from 5% to 50% of the entire image).
  ● Display range: if enabled, the set maximum detection box and the minimum detection box can be displayed on the left window.
• Click "Advanced" to set the recognition mode as needed (only some LPR cameras support).

9.2.2 Plate Database Management

In the LPR interface, click the "Plate Database" tab to go to the plate database management interface as shown below.

For the first time, you can click "+" or "Add Group" to add groups.

Add Group Group Name: OK Cancel Add Group

Add plates to each group:

① Click 🧑 to extend the group. Click "Add Plate" to pop up the following window.

Add Form Group 1 wp(4) Operation Extend/Discaper No. Place 1 0°-20 2 0°-20 3 0°-20 4 0°-20 Add Search by Advanced Add Place Operator ● 有 ● 有 ● 有 ● 有 Status Type: car Vehicle Center: Mode: Group: up Just Group OK Cancel Current Page 1 / 1, all 4 Add Place Add Group Import and Export

② Enter the plate, vehicle owner and mobile phone number.
③ Select the vehicle type and group.
④ Enable validity period to set the start and end time
⑤ Finally click "OK" to complete.

Select the added plate and then click 📄 to modify its information; click 📄 to delete this plate. The plates can be imported and exported in bulk by clicking "Import and Export". You can click "Plate Information Description" to view the detailed information about how to import or export the plate list.

9.2.3 License Plate Recognition Settings

① In the LPR interface, click the "Recognition" tab. Then enable "Successful Recognition" or "Strange Plate".

Enable ✓ Successful Recognition ✓ Strange Plate Successful Recognition Strange Plate Plate Group All(default) Schedule None Manage Text Prompt Voice Prompt None Enable alarm output pulse(Access Control) Trigger General Record Configure Alarm-out Configure Snapshot Configure Camera Name Preset Name ✓ Push Camera02 ✓ Buzzer ✓ Pop-up Video ✓ E-mail ✓ Pop-up Message Box IPC None Camera01 None Camera02 None Apply

② Set the successful recognition alarm linkage.

• Select one or more plate groups and then choose the schedule. Click "Manage" to set the schedule.
• Set the text prompt. When the captured plate is matched successfully, the text will appear on the right of the live view interface.
  ● Enable alarm output pulse (access control).
• Trigger record, snapshot, alarm-out, buzzer, push, pop-up video, E-mail and pop-up message box as needed. The alarm linkage settings are similar to the face detection alarm (See Face Detection Settings for details).

③ Set the strange plate alarm linkage. When the captured plate picture doesn't match the plates in the plate database or their similarity is lower than the set value, the captured plate will be regarded as a strange plate.

9.3 Perimeter Detection

Note:

1. Some models may support perimeter detection (line crossing, region intrusion/entrance/exiting) by NVR. For these models, the camera without

AI function also can be added and used to detect line crossing, region intrusion, region entrance and region exiting events through NVR. However, if perimeter detection by NVR is enabled for a camera (without AI), face detection cannot be enabled simultaneously, and vice-versa.

1. Some AI cameras support event type classification. If the event type is face event, you need to select by clicking Start→Setting→AI/Event →Enable Event. After the camera restarts, perimeter detection of the IPC can be enabled.

9.3.1 Line Crossing Detection

Line Crossing Detection:

Alarms will be triggered if the people or vehicles cross the pre-defined alarm line.

① Click Start→Settings→AI/Event→AI Event→Line Crossing to go to the following interface.

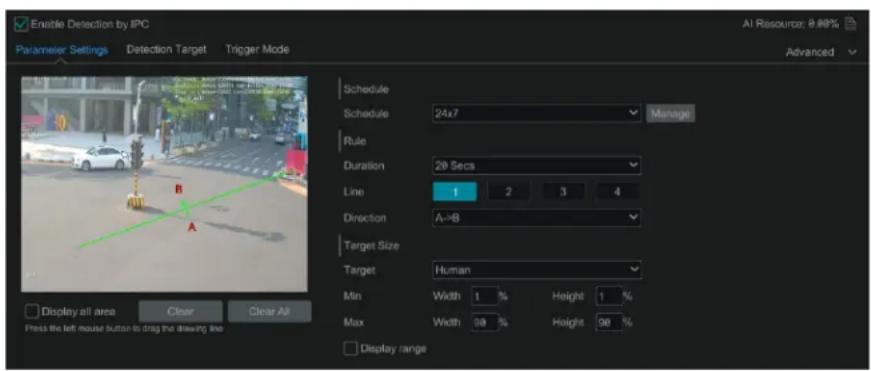

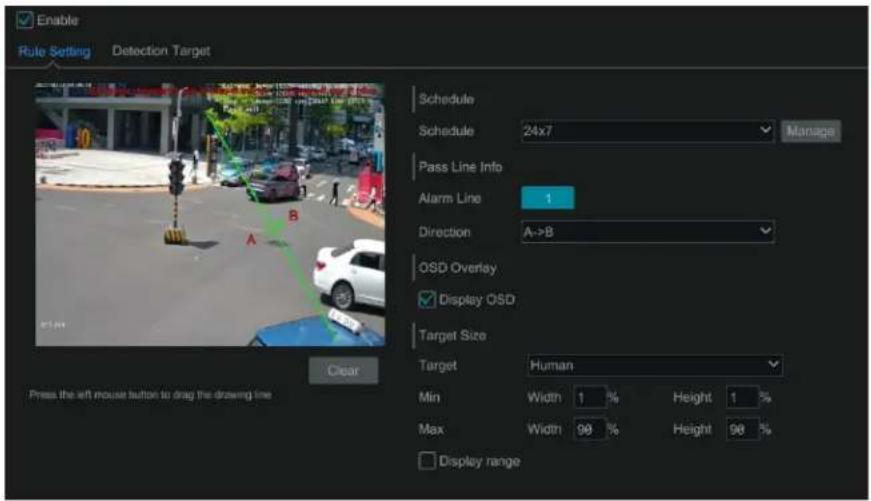

Enable Detection by IPC Parameter Settings Detection Target Trigger Mode Schedule Schedule 24x7 Manage Rule Duration 20 Secs Line 1 2 3 4 Direction A->B Target Size Target Human Min Width 1 % Height 1 % Max Width 00 % Height 00 % Display all area Clear Clear All Press the left mouse button to drag the drawing line AI Risource: 0.00% Advanced Display range

② Select the camera, enable line crossing detection by IPC and set the duration.

Note: Some models may support line crossing detection by NVR.

③ Set the schedule.

④ Select the direction.

Direction: A<->B, A->B and A<-B optional. It is the crossing direction of the target that crosses over the alert line.

A<->B: the alarm triggers when the target crosses over the alert line from B to A or from A to B.

A->B: the alarm triggers when the target crosses over the alert line from A to B.

A<-B: the alarm triggers when the target crosses over the alert line from B to A.

⑤ Draw line. Refer to the interface as shown above. Drag the mouse in the image to draw an alert line. Click the "Clear" to delete the alert line.
⑥ Set target size. Check "Display range" and then select target. Enter the width and height value to set the size; click the set min./max. box and then four dots will be shown at the four corners of the min./max. box. Now, drag one of the four lines of the min./max to change its position. Note that only some IPCs support target size settings. If the added camera doesn't support this function, please skip this step.
⑦ Click “Detection Target” to choose the detection target and the sensitivity. The detection target includes people, vehicle and non-vehicle. Only some IPCs can detect human or vehicle separately. If the camera doesn’t support this function, please skip this step.
⑧ Click "Advanced" to choose "Original picture" or "Target picture" on the SD card of the camera. (If your camera doesn't support this function, please skip this step).
⑨ Click "Trigger Mode" to configure tripwire alarm linkage items.
- Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Face Detection for details).
- Enable "IPC_Digital Deterrent" or "IPC_Light" as needed (only some IPCs support these two functions). To set the IPC voice and its times and volume, please refer to Digital Deterrent for details. To set the light flashing time and frequency of the IPC, please refer to Light for details.
⑩ Click "Apply" to save the settings.

9.3.2 Region Intrusion Detection

Intrusion Detection Configuration:

Alarms will be triggered if the people or vehicles intrude into the pre-defined area.

① Click Start→Settings→AI/Event→AI Event→Perimeter Detection→Intrusion to go to the following interface.
② Select the camera, enable the intrusion detection by IPC and set the duration.
③ Set the schedule.
④ Select regional activities. "Appear" or "Cross" can be selected (if your camera doesn't support region entrance/exiting detection, "Cross" will not be enabled). If "Cross" is selected, you can choose the crossing direction.
⑤ Select the alarm area. Up to 4 alarm areas can be set up.
⑥ Draw the alarm area of the intrusion detection. Refer to the interface as shown below. Click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area).

Enable Detection by IPC Parameter Settings Detection Target Trigger Mode Schedule Schedule 24x7 Manage Rule Regional Activities Appear Direction Exchange Duration 3 Secs Area 1 2 3 4 Display all areas Clear Clear All Click on the city area to start drawing points, and double-click to end drawing, up to 8 points are supported

⑦ Set target size. Please refer to the target size setup of line crossing for details. Note that only some IPCs support target size settings. If the added camera doesn't support this function, please skip this step.
⑧ Click "Detection Target" to choose the detection target and the sensitivity. The detection target includes people, vehicle and non-vehicle.
⑨ Click "Trigger Mode" to configure intrusion detection alarm linkage items.
- Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Face Detection Settings for details).
- Enable "IPC_Audio" or "IPC_Light" as needed. (only some IPCs support these two functions). To set the IPC voice and its times and volume, please refer to Digital Deterrent for details. To set the light flashing time and frequency of the IPC, please refer to Light for details.
⑩ Click "Copy To" to copy all settings to other cameras.

Click "Apply" to save the settings.

9.3.3 Region Entrance Detection

Region Entrance: Alarms will be triggered if the target enters the pre-defined areas.

Click Start→Settings→AI/Event→AI Event →Perimeter Detection→Regional Entry. The setup steps are the same as Region Intrusion. See Region Intrusion Detection for details.

9.3.4 Region Exiting Detection

Region Exiting: Alarms will be triggered if the target exits from the pre-defined areas.

Click Start→Settings→AI/Event→AI Event→Perimeter Detection→Regional Leave. The setup steps are the same as Region Intrusion. See Region Intrusion Detection for details.

9.4 Abandoned/Missing Object Detection

① Click Start→Settings→AI/Event→AI Event→Object Abandoned/Missing to go to the following interface.
② Set the schedule
③ Select the camera, enable the object detection and set the duration and detect type. There are two detection types: Abandoned object and missing object.

Abandoned object: Alarms will be triggered if there are articles left in the pre-defined detection area.

Missing object: Alarms will be triggered if there are articles missing in the detection area drew by the users.

④ Select the alarm area and area name. A maximum of 4 alarm areas can be set.
⑤ Draw the alarm area of the object detection. Refer to the interface as shown below. Click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). Click the "Clear" to delete the alarm area.

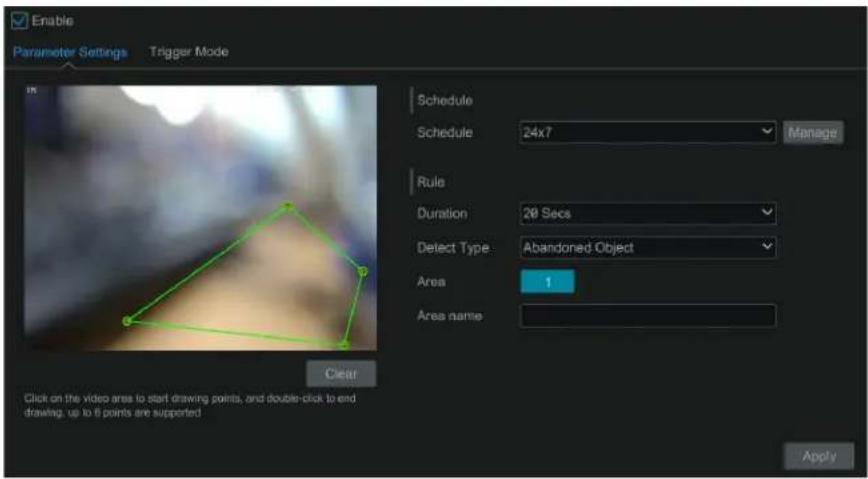

Enable Parameter Settings Trigger Mode Schedule Schedule 24x7 Manage Rule Duration 20 Secs Detect Type Abandoned Object Area 1 Area name Clear Click on the video area to start drawing points, and double-click to end drawing, up to 6 points are supported Apply

⑥ Click "Trigger Mode" to configure abandoned/missing object detection alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Face Detection Settings for details).

⑦ Click "Apply" to save the settings.

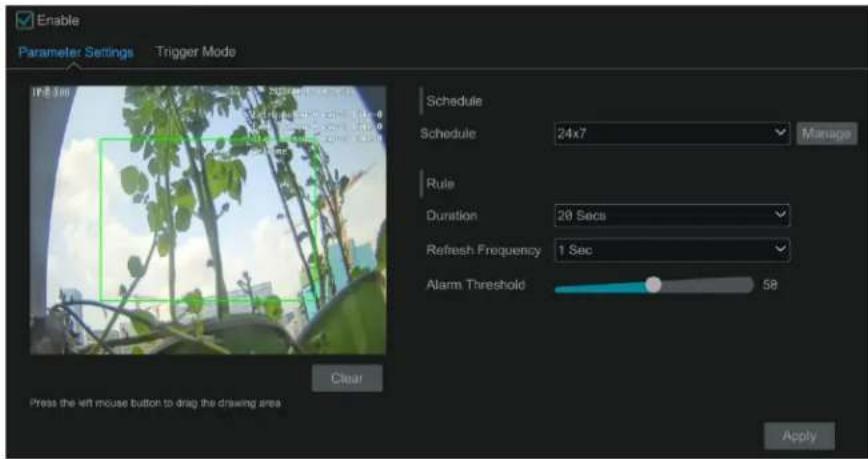

9.5 Crowd Density Detection

Only some IPCs may support this function.

Crowd Density Configuration:

Alarms will be triggered if the crowd density exceeds the set threshold value in the pre-defined area.

① Click Start→Settings→AI/Event→AI Event→More→Crowd Density to go to the following interface.

Enable Parameter Settings Trigger Mode IF8.1m Schedule Schedule 24x7 Manage Rule Duration 20 Secs Refresh Frequency 1 Sec Alarm Threshold 59 Clear Press the left mouse button to drag the drawing area Apply

② Select the camera, enable the crowd density detection and set the schedule, duration, refresh frequency and alarm threshold. Refresh Frequency: It refers to the refresh time of the detection result report.

Alarm Threshold: Alarms will be triggered once the percentage of the crowd density in a specified area exceeds the pre-defined threshold value.

③ Select the alarm area. Draw the alarm area of the crowd density detection. Refer to the interface as shown below. Check "Draw Area" and then drag the mouse to draw a rectangle area. Uncheck the "Draw Area" if you finish the drawing. Click the "Clear" to delete the alarm area.
① Click Trigger Mode to configure crowd density detection alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Face Detection Settings for details).
⑤ Click "Apply" to save the settings.

9.6 TargetCounting

Only some IPCs may support this function.

● Human/Motor Vehicle/Non-Motor Vehicle Counting

The information of human/motor vehicle/non-motor vehicle can be calculated and sent by day, by week and by month, so that you can receive and analyze these statistics on time.

Only some IPCs support this function. If your camera doesn't support this function, please skip the following instructions.

① Click Start→Settings→AI/Event→AI Event→More→Target Counting to go to the following interface.

Enable Rule Setting Detection Target Schedule Schedule 24x7 Manage Pass Line Info Alarm Line 1 Direction A->B OSD Overlay Display OSD Target Size Target Human Min Width 1 % Height 1 % Max Width 98 % Height 98 % Display range Press the left mouse button to drag the drawing line

② Enable line crossing counting.
③ Set the schedule.
④ Drag the mouse on the small window to draw the crossing line. Click "Clear" to delete the alert line.

Direction: A->B and A<-B are optional. It is the crossing direction of the target that crosses over the alert line.

⑤ Check "Display OSD", the statistical information will be displayed on the live view interface.
⑥ Set target size. Please refer to the target size setup of line crossing for details. Note that only some IPCs support target size settings. If the added camera doesn't support this function, please skip this step.
⑦ Click the "Detection Target" tab to set the detection target, including human, motor vehicle and non-motor vehicle.
⑧ Click "Advanced" to open the following window. You can select "Save original picture" or "Save target picture", and set reset information manually or enable "Auto Reset" as needed.

SD Card storage Original picture Target picture Send Email Enable Send mode Daily Weekly Monday Monthly 1 Time 02:00 Recipients Add Tip: The sending time is not covered by the schedule so that the mail can not be received. Reset Information Auto Reset Enable Mode Daily Time Manual Reset Reset Close

In the above interface, you can send Email to the specified person daily/weekly/monthly regarding the target counting. Click "Add" to add the recipient", and then enable "Send Email" and select "Send mode" and time.

⑨ Click "Apply" to save the settings.

9.7 Tampering Detection

Tampering Detection Configuration:

① Click Start→Settings→AI/Event→AI Event→More→Tampering to go to the following interface.

Parameter Settings Trigger Mode 3F Corrects 10.27.11 16.25.25 Rule Duration 20 Secs Scene Change OFF Video Blurred OFF Video Color Cast OFF Sensitivity 1

② Select the camera and detection duration and then enable the relevant detection as needed.

Scene Change: Alarms will be triggered if the scene of the monitor video has changed.

Video Blurred: Alarms will be triggered if the video becomes blurry.

Video Color Cast: Alarms will be triggered if the video becomes obscured.

③ Set the sensitivity of the exception detection.
④ Click "Trigger Mode" to configure exception alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Face Detection Settings for details).
⑤ Click "Apply" to save the settings.

9.8 Fire Detection

Only when the security thermal cameras are connected, can the fire detection be available.

Fire Detection: Alarms will be triggered when the camera detects the fire source.

① Click Start→Settings→AI/Event→AI Event→Fire Detection to go to the following interface.

Enable Parameter Settings Trigger Mode Schedule Schedule 24x7 Manage Rule Duration 20 Secs Apply

② Set the schedule and the alarm duration time.
③ Click "Trigger Mode" to configure exception alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Sensor Alarm for details).
④ Click "Apply" to save the settings.

9.9 Temperature Detection

Only when the security thermal cameras are connected, can the temperature detection be available.

Temperature Measurement: When detecting the temperature of the pre-defined point/line/area exceeds the temperature threshold value, alarms will be triggered.

① Click Start→Settings→AI/Event→AI Event→Temperature Detection to go to the following interface.

Enable Parameter Settings Trigger Mode Schedule Schedule 24x7 Manage Rule Duration 28 Secs Sequence Enable Name Type Emissivity Distance(m) Reflected lamp 1 Point 0.96 5.00 25.00 2 Point 0.96 5.00 25.00 3 Point 0.96 5.00 25.00 4 Point 0.96 5.00 25.00 5 Point 0.96 5.00 25.00 6 Point 0.96 5.00 25.00 7 Point 0.96 5.00 25.00 8 Point 0.96 5.00 25.00 Apply

② Set the schedule and the alarm duration time.
③ Set thermography rule. Select the rule type, including Point, Line and Area.

Emissivity: Set the emissivity of the target. The emissivity of each object is different.

Distance: The distance between the target and the camera.

Reflected temperature: If there is any object with high emissivity in the scene, set the reflective temperature to correct the ambient temperature.

The reflective temperature should be set the same as the temperature of the high emissivity object.

Set the alarm rule, alarm temperature and alarm output. For example, select Alarm Rule as Above (Average Temperature), set the alarm temperature to 100^ C and check alarm output. Then alarms will be triggered when the average temperature of the target is higher than 100^ C.

④ Set the point, line or area on the small window.

Point setting: After the type is set to "Point", click on the image to set the point. Up to 10 points can be set in the above interface.

Line setting: After the type is set to "Line", drag the mouse on the image to draw a line. To ensure the accuracy of temperature measurement, it is recommended to set not more than two lines at the same time.

Area setting: Click around the area where you want to set as the alarm area on the image (the alarm area should be a closed area). To ensure the accuracy of temperature measurement, it is recommended to set not more than two areas at the same time.

⑤ Click "Trigger Mode" to configure exception alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Sensor Alarm for details).
⑥ Click "Apply" to save the settings.

9.10 Audio Exception

Only some IPCs support this function. If the camera you added doesn't support this function, please skip the following instructions.

Audio Exception: Alarms will be triggered when the abnormal sound is detected in the surveillance scene, such as the sudden increase/decrease of the sound intensity.

① Click Start→Settings→AI/Event→AI Event→More→Audio Exception to go to the following interface.

Enable Parameter Settings Trigger Mode Real time audio Schedule Schedule 24x7 Manage Rule Duration 20 Secs Sudden Increase of Sound Intensity Detection Sensitivity 50 Sound Intensity Threshold 50 Sudden Decrease of Sound Intensity Detection Sensitivity 50

② Set the schedule and alarm duration.

Sudden Increase of Sound Intensity Detection: Detect sudden increase of sound intensity. If enabled, sensitivity and sound intensity threshold are configurable. Alarms will be triggered when the detected sound intensity exceeds the sound threshold.

Sensitivity: The higher the value is, the easier the alarm will be triggered.

Sound Intensity Threshold: It is the sound intensity reference for the detection. The lower the value is, the easier the alarm will be triggered. It is recommended to set as the average sound intensity in the environment. The louder the environment sound, the higher the value should be. Please adjust it according to the actual environment condition.

Sudden Decrease of Sound Intensity Detection: Detect sudden decrease of sound intensity. Please set the sensitivity as needed. The higher the value is, the easier the alarm will be triggered.

Real-time audio graphic:

Red wavy line stands for the current detected sound intensity.

Navy blue line stands for the environment (background) sound intensity.

Green line stands for the sound intensity threshold.

In order to reduce false alarm, it is recommended to set the sensitivity and sound intensity threshold according to the real-time audio graphic.

③ Click "Trigger Mode" to configure audio exception alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Face Detection Settings for details).

④ Click "Apply" to save the settings.

9.11 Loitering Detection

Only some IPCs support this function. If the camera you added doesn't support this function, please skip the following instructions.

Loitering Detection: when someone entering and loitering in a pre-defined area exceeds the threshold, alarms will be triggered until the object leaves this area.

① Click Start→Settings→AI/Event→AI Event→More→Loitering Detection to go to the following interface.

Enable Detection by IPC Parameter Settings Trigger Mode Advanced Schedule Schedule 24x7 Manage Rate Area 1 2 3 4 Duration 29 Sacs Time Thresholds) 18 Sensitivity 50 Target Size Target Human Min Width 1 % Height 1 % Max Width 90 % Height 90 % Display range Display all areas Clear Clear All Click on the video area to start drawing points, and double-click to end drawing, up to 0 points are supported

② Set the schedule, duration, time threshold and sensitivity.

Sensitivity: The higher the value is, the easier the alarm can be triggered.

Time Threshold: the time that a person is allowed to stay in the area. If a person staying and moving in the specified area exceeds the threshold, alarms will be triggered until this person leaves or stops moving.

For example: Set the threshold to "60seconds; when a person staying and moving in the specified area exceeds 60seconds, an alarm is triggered and continues. 2 minutes later, this person stops moving in the specified area, and then the alarm stops. However, the alarm will continue once this person moves again in the specified area unless the person leaves this area.

③ Set the alarm area. Up to four alarm areas can be set. Click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area).

④ Set target size. Please refer to the target size setup of line crossing for details. Note that only some IPCs support target size settings. If the added camera doesn't support this function, please skip this step.

⑤ Click "Trigger Mode" to configure loitering detection alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Face Detection Settings for details).

⑥ Click "Apply" to save the settings.

9.12 Illegal Parking Detection

Only some IPCs support this function. If the camera you added doesn't support this function, please skip the following instructions.

Illegal Parking Detection: when a vehicle (like a car, truck, motorcycle, etc.) staying in a no-parking zone exceeds the threshold, alarms will be triggered until the vehicle is driven away.

① Click Start→Settings→AI/Event→AI Event→More→Illegal Parking Detection to go to the following interface.

Enable Detection by IPC Parameter Settings Detection Target Trigger Mode Schedule Schedule 24x7 Manage Rule Area 1 2 3 4 Duration 20 Secs Time Threshold(s) 18 Target Size Target Motor Vehicle Min Width 1 % Height 1 % Max Width 98 % Height 90 % Display all area Clear Clear All Click on the video area to start drawing points, and double-click to end drawing, up to 6 points are supported

② Set the schedule and alarm duration.

Sensitivity: the higher the value is, the easier the alarm can be triggered.

Time Threshold: the time that a vehicle is allowed to stay in the specified area. If a vehicle staying in the area exceeds the threshold, alarms will be triggered until it is driven away. For example, the time threshold is set to 30s. When the system detects a vehicle stopping in the set no-parking zone, it will start counting. Alarms will be triggered after it stays for more than 30s. And the illegal parking alarm will not stop until the vehicle is driven away from the non-parking zone.

Duration: it is the time that the alarm extends for after the overstaying vehicle leaves.

③ Set the alarm area. Up to four alarm areas can be set. Click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area).

④ Set target size. Please refer to the target size setup of line crossing for details. Note that only some IPCs support target size settings. If the added camera doesn't support this function, please skip this step.

⑤ Click "Trigger Mode" to configure exception alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", and "E-mail". The alarm linkage settings are the same as the face detection alarm (see Face Detection Settings for details).

9.13 Video Metadata

Video Metadata: Human, motor vehicle and non-motor vehicle in the video can be classified, counted and captured and the relevant features can be extracted and displayed on the live interface.

① Click Start→Settings→AI/Event→AI Event→Video Metadata to go to the following interface.

Enable Parameter Settings Detection Target(Image Overlay Schedule Schedule 24x7 Rule Detection Area 1 2 3 4 Blocked Area 1 2 3 4 OSD Overlay Display OSD Human Car Motorbike Target Size Target Human Min Width 1 % Height 1 % Max Width 98 % Height 98 % Display range

② Enable video metadata and then set the schedule.
③ Set the detection area and blocked area.

Detection Area: 4 detection areas can be set. Targets that enter in the pre-defined detection area will be counted and captured.

Blocked Area: 4 blocked areas can be set. Targets that enter in the pre-defined blocked area will not be counted and captured.

To set detection area: Select the number and then set the detection area. Then click around the area where you want to set as the alarm area on the image (the alarm area should be a closed area).

To set blocked area: Select the number and then set the blocked area. The setting steps are the same as detection area settings.

Display OSD: If enabled, you can see the statistical information of human, motor vehicle and non-motor vehicle on the screen. The statistical OSD information can be customized as needed.

④ Advanced settings. Click "Advanced" to enter the advanced setting interface. Select SD card storage type and the reset information. Auto reset or manual reset can be set as needed.
⑤ Set the detection target and sensitivity.
⑥ Select the attribute information of the target. When the target is detected, the information you select will be displayed under the captured image.
⑦ Click "Apply" to save the settings

10 Intelligent Analytics

10.1 Target Detection View

10.1.1 Human Body/Vehicle Detection View

Only when the camera supports human body/vehicle detection, can you view the real-time captured people or vehicle pictures. The setting steps are as follow:

① Enable the line crossing/ Region Intrusion/Region Entrance/Region Exiting/Loitering Detection/Target counting/Video Metadata function of IPCs/NVR, draw the line or area and choose the detection target(see the corresponding sections for details).
② Go to live view interface and then click 📄 to go to the target detection interface of this channel. In this interface, you can switch the channel on the top right. You can also choose the target detection tab on the left panel of the live view interface to go to the target detection interface of multi-channel as shown below. Note that only some models support multi-channel target detection function. Click the captured picture on the right of the live interface to see the snapshot detailed information, such as snapshot time, camera, event type and target type.

2022/08/26 14:59:21 Target Detection Cannell 16:57:26 Cannell 14:57:26 Cannell 14:57:26 Cannell 14:57:26 Cannell 14:57:26 Cannell 14:57:26 Cannell 14:57:26 Cannell 14:57:26 Cannell 14:57:26 Caccnell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Cannell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccnell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell CaccmCell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell Caccmcell CaccmCELLs10.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.00.0

Click "More" to bring up a dropdown list. You can export the captured pictures by clicking "Export" or view the target ID by clicking "Information". Click "Search" to go to smart human body/vehicle search interface. The system will automatically search captured people/vehicles. Click "Playback" to go to the playback interface.

10.1.2 Face Detection/Match View

Only the face recognition NVR supports the following functions. If your NVR doesn't support them, please skip the following instructions. The setting steps are as follow:

① Enable face detection function (see Face Detection Settings for details).
② Enable face recognition function and set the alarm linkage items (see Face Recognition Settings for details).
③ Go to live view interface and click on a face detection channel. This will bring a toolbar under the channel. Then click to go to the target detection interface of this channel. In this interface, you can switch the channel on the top right.

2022/08/26 19:03:07 Target Detection Commerell 19:45:02 Commerell 19:46:15 Commerell 19:50:02 IPC Mate Youth Music off No Hat With Glasses IPC Mate Youth Your Mask No Hat With Glasses IPC Settings Real Time History Space Technologies Space Technologies

For unknown faces, you can select this face and click ✝ under the captured face to register this face (see the following picture); click 🔒 to quickly go to the smart face search interface where you can search the matching face information; click ▶ to quickly go to the smart face playback interface; click ⚡ view snapshot details.

Register Snap Picture Name Sex Male Birthday 2020/03/26 Native Place ID Type ID Card ID Number Mobile No. Remark Group 1 Add Group OK Cancel

Before registering target face pictures, please add groups for them in advance (see Face Database Management for details).

After the face pictures are registered, the system will compare them automatically once the corresponding faces are captured next time. Refer to the following picture.

2022/08/26 19:14:18 Target Detection Camera81 Face Detail Basic Information Snap Time: 2022/08/26 19:13:52 Camera: Camera81 Event Type: Face Recognition-S... Target Type: Face Snap Face Library Preview 100% Similarity People Information Name: 5 Gender: Male Birthday: 2022/09/26 Native Place: ID Type: ID Card ID Number: Mobile: No: Remark: Group: 1 More Search Playback Previous Next Exit Real Time History

Double click the face picture to see the snapshot details, such as snapshot picture, original image, snapshot time and camera. Click "more" and then a dropdown list will display. Click "Register" to register the current snapshot. Click "Search" to go to face search interface. Click "Playback" to go to the playback interface. Click "Export" to export this snapshot details. Click "Information" to view face ID.

In the face match interface, click "Settings" to pop up the following window.

Settings Target Detection Display ✓ Face Display Strategy Comparison Priority ✓ Human ✓ Vehicle ✓ Plate Video Overlay Display ✓ Target Box ✓ Rule Line and Area

Target Detection Display: Face, human body, vehicle or plate can be enabled. If disabled, the captured target picture will not be displayed under the target detection tab in the live view interface.

Display Strategy: Two options-Comparison priority and only comparison

Video Overlay Display:

If "Target box" is clicked, you will see the target traced by a little red box.

If "Rule Line and Area" is checked, you will see the rule line of line crossing detection and detection area of intrusion detection displayed on the screen. You can select the color of the rule line and area as needed.

When the captured face pictures are successfully recognized, click the picture on the right to pop up a face detail window as shown above. In this window, you can see the captured face picture, the matched picture of face library and the relevant information. You also can view the original image, search image by snapshot, play back by snapshot and export the face details by clicking "More" button.

Additionally, you can view the historical captured face pictures and face match information in the face match interface by clicking "History" tab. Besides registering face pictures in the live view interface, you can also add target face pictures in the face database interface.

Note: if you enter the remark when adding a face picture to the face database, instead of the name, the remark information will be shown under the face library picture after successful recognition.

10.1.3 License Plate Detection/Recognition View

Only when the ANPR camera is added and enabled, can license plates be captured and matched. The setting steps are as follows

① Enable the plate detection function (See License Plate Detection Settings for details). Then you can see the captured plates displayed in the live view interface as shown below.

Target Detection Camera 401 18:22/08/24, 15:30:42 Camera 401 18:22/08/24, 15:30:42 Camera 401 18:22/08/24, 15:30:42 Camera 401 18:22/08/24, 15:30:42 Camera 401 18:22/08-24, 15:30:42 Camera 401 18:22/08/24, 15:30:42 Camera 401 18:22/08/24, 15:30:42 Camera 401 18:22/08/24, 15:30:42 Camera 96 18:22/08/24, 15:30:42 Camera 96 18:22/08/24, 15:30:42 Camera 96 18:22/08/24, 15:30:42 Camera 96 18:22/08/24, 15:31:04 Camera 96 18:22/08/24, 15:31:04 Camera 96 18:22/08/24, 15:31:04 Camera 96 18:22/08/24, 15:31:04 Camera 96 18:22/08/24,15:30:42 Camera 96 18:22/08/24, 15:30:42 Camera 96 18:22/08/24, 15:30:42 Camera 96 18:22/08/24, 15:30:42 Camera 96 18:27/08/24, 15:30:42 Camera 96 18:27/08/24, 15:30:42 Camera 96 18:27/08/24, 15:30:42 Camera 96 18:27/08/24, 15:30:42 Camera96 18:30:30 Camera96 18:30:30 Camera96 18:30:30 Camera96 Settings Real Time History

Put the cursor on the captured plate picture and then click ✝ to register this plate as shown below.

Add Plate Vehicle Type Vehicle Owner Mobile Group 1 Add Group OK Cancel

Click 🐎 to view the captured detail information. Click 🔒 to quickly enter the vehicle search interface. You can search the matched plate information in this interface. Click ▶ to go to the smart playback interface.

② Enable license plate recognition function and set the alarm linkage items (see License Plate Recognition Settings for details).
③ Go to live view interface and click k ☐ on the top right corner of the live view interface and then choose the target detection tab to go to the target detection interface of multi-channel as shown below. When the plate is captured, it will be displayed on the right panel. The strange plate will show "Strange plate" under the plate picture.

2022/08/26 20:15:56 Target Detection Camera 01.1 Snap Detail Basic information Snap Time: 2022/08/26 20:06:25 Event Type: Plate Detection Camera: Camera82 Target Type: Plate Snap Original Image 1M8B2 Plate: B11M8D2 Move Or Search Playback Preview Next Exit New Time History 2022/08/26 20:15:56 172.20 74.261 z be technoluget

Click the captured plate picture and then it will pop up the detailed information window. You can view the snapshot picture, original picture, snapshot time, camera, etc. Click "More" to view the ID information of the target and export the captured picture. Click "Search" to go to the vehicle search interface. Click "Playback" to go to the playback interface.

10.1.4 Object Attribute View

① Enable video metadata function and then select the detection target and display attributes (see Video Metadata for details).
② Go to live view interface and click on an AI camera channel (video metadata function is supported). This will bring a toolbar under the channel.

Then click 📄 to go to the target detection interface of this channel. In this interface, you can switch the channel on the top right.

Click "Settings" at the bottom right to select the attribute information of people/motor vehicle/non-motor vehicle you want to view under the captured picture.

Click the captured picture to view the details. In the detail interface, you can view the captured picture, original picture, object attributes, etc.

10.2 Smart Search

10.2.1 Face Search

Only some models support this function. If your device doesn't support it, please skip the following instructions.

Face Search by Event

① Click Start→ Intelligent Analytics → Search→Face to go to the following interface.

Event Search By Face Picture List Snap Original Time Camera All(default) Day Week Customization Today 2022/06/29 Human Body Vehicle Combine All Events Successful Recognition Stranger Search Playback Backup Picture Backup Record Current Page: 1 / 84, all 1564 Backup All Count Delete Playups Exit

② Click ▼ to choose face detection cameras.
③ Select all events, successful recognition or stranger.
④ Click "Search" to search face pictures. You can view face pictures by time or by camera.
⑤ Click the searched face picture to play in the small playback window; select a face picture and click "Backup" to export it.

Click "Original" to see the original image as shown below.

Picture List Snap Original Time Camera All(default) 19:35:38 Camera#1 19:35:24 Camera#1 19:34:12 Camera#1 19:33:38 Camera#1 19:32:25 Camera#1 19:32:24 Camera#1 Backup Picture Backup Record Current Page: 1 / 84, all 1584 Backup All Export Delete Playback Exit

Click "List" to view the snapshot information list. Click 📋 to view the detail information; click 📋 to back up the image.

Face Search by Face

In the face picture search interface, click "By Face" to go to the following interface.

① Click to add the target face which can be searched and added from recent, face database, snapshot gallery and external faces. A single face picture or multiple face pictures can be added and searched. (Take a single face picture for example)

Event Search Recent Face Database Day Week Custom Snapshor Gallery External faces Similarity Playback Selected items Select Face Group All 1 Search face by name 9 2 3 Already Selected @ Picture(s) Current Page: 1 / 1, all 3 Select Group Select Face Exit Camera All(default) Exen Order Remark Exit

To add target face from recent

a. Choose the face.
b. Click "Select Face".

To add target face from face database:

a. Click "More" to choose groups.
b. Select a target face and click "Select Face".

To add target face from snapshot gallery:

a. Select time and click "More" to choose cameras.
b. Click "Search".
c. Check a face and click "Select Face".

To add target face from external face:

a. Save the target face to the mobile storage device and then insert this device into the USB interface of NVR.
b. Select "External Face" to import the face in this interface.

② Set similarity and then click "Search".
③ Click the searched image to play records in the small window.
④ Select the searched image and click "Backup Picture" or "Backup Record". Then click "Backup" to build backups for pictures or records.

Event Search By Face Picture List Track Day Week Customization News 28/24/06.06 Shop Match Original Human Body Vehicle Combine Today > Muddy Clear Name: 5 Birthday: 2022/08/26 ID Number: Mouse Similarity 75 % Search Playback Backup Picture Backup Record Current Page: 1 / 1, all 4 Export Delete Playback Exit

• View Image by List

Click "List" tab to view images by time as shown below.

Event Search By Face Picture List Track Day Week Customization Today 2022/08/26 Today Modify Clear Name: $ Birthday 2022/08/26 © Number Music Similarity 75 % Search Playback 2022/08/26 19:13:55 (100%) 5 Camera01 19:13:52 (100%) 5 Camera01 19:13:48 (100%) 5 Camera01 19:13:33 (100%) 5 Camera01 Backup Picture Backup Record Current Page: 1 / 1, all 4 Export Delete Playback Exit

Click the searched image to play. Click 📄 to view the detail information of the compared target face.

• View Match Images

Click "Match" tab to view match images as shown below.

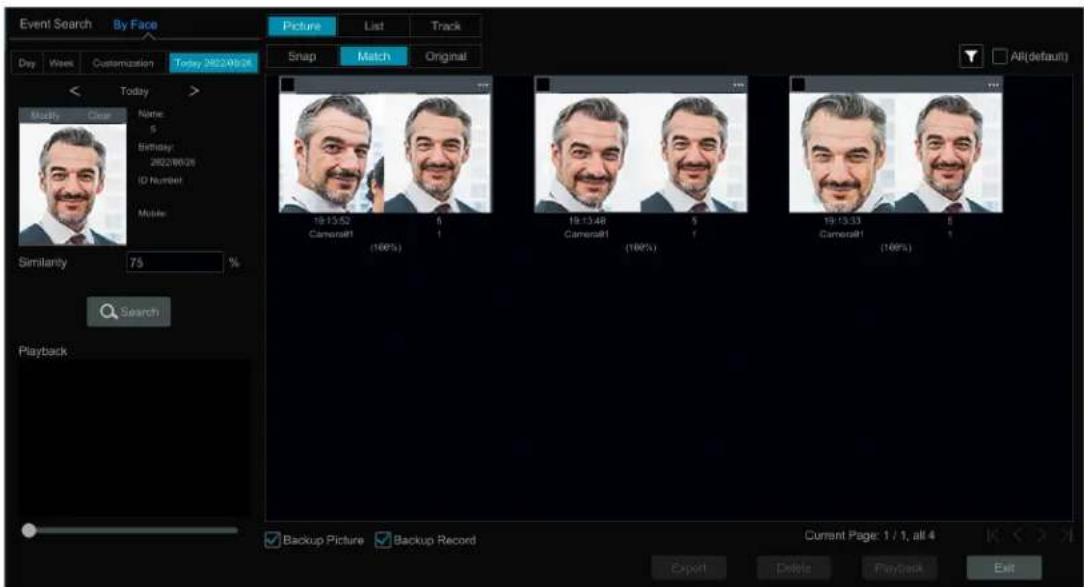

Event Search By Face Picture List Track Snap Match Original Day Week Customization Today 2022/06/24 Today Modify Clear Name: 5 Birthday: 2022/06/28 ID Number: Mouse Similarity 75 % Search Playback Backup Picture Backup Record Current Page: 1 / 1, all 4 Export Delete Playback Exit All(default)

10.2.2 Track Playback

Select "Track" to go to the following interface.

Day Week Customization 19:00 11:26:2018 Today Modify Close Camera Name: info Snap Time: 11:25/28/9 16:25:32 Similarity 75 Search IP86 Playback 19:25:38 10:25:37 11/26/29/18 16:25:12 Person Time Track P86 List (13) Session at 13:00 01/18/2015 19:49:04 01/18/2015 19:49:04 01/18/2015 19:49:04 01/18/2015 11:48:44 01/18/2015 11:48:45 01/18/2015 11:41:01 01/18/2015 11:41:01 01/18/2015 12:43:58

Note: Only when two or more cameras detect this person, can his/her track can be viewed here.

Descriptions of buttons on the track interface

		Fixed Window		Frame
		Followed Window		Fast Forward (x2;x4)
		Exchange Window	X1	Normal Speed
		Stop		Start/Stop Track
		Play		Edit Map
		Previous		Edit Color
		Next

Click on the camera name and then an event list appears. Click one item to play the record.

Click button beside the fixed window icon to show "Followed Window" and "Exchange Window" icons. The small playback window will float on the map window by clicking "Followed Window" as shown below.

Pictures List Track PPT1 Playback 01:15/2019 11:48:47 11:48:33

Click 1x to switch play speed. 1x and 2x can be switched. Click to view event list. Click one item to play this event. Click "Exchange Window" to switch the position of the map window and the playback window. Click button to go to the following interface.

Edit Map Name Color Color Global World Local Map OK Cancel 2020/03/27 00:55:14 Close

Click "Load Map" to add a map. Then drag the camera names on the map to change their locations. Choose a color on the left color list to set your favorite color for camera names.

Load Map: ① Save the map to the USB storage device and then insert the USB storage device into the NVR. ② Click "Load Map" button to upload the map.

Click button to modify the colors of camera name and track line and set the line width.

10.2.3 Face Search by Snapshot

In the live or playback interface, click on a face detection camera and then select 📷 on the toolbar. This will bring the following window.

Manually Snapshot Camera Name : T0-9423 Time : 01/16/2019 22:53:01 Size : 1028*1088 Drag the inside to select it face. Search By Face Export Save Cancel

Drag the mouse to select a face and then click "Search by Face" to go to the face search by face interface. You can see its snapshot pictures, match pictures, original pictures and so on by clicking the corresponding tab.

10.2.4 Human Body Search

Click Start→ Intelligent Analytics→Smart Search→Human Body to go to the human body search interface. Select the search time, camera and event and then click "Search" to view the searched pictures.

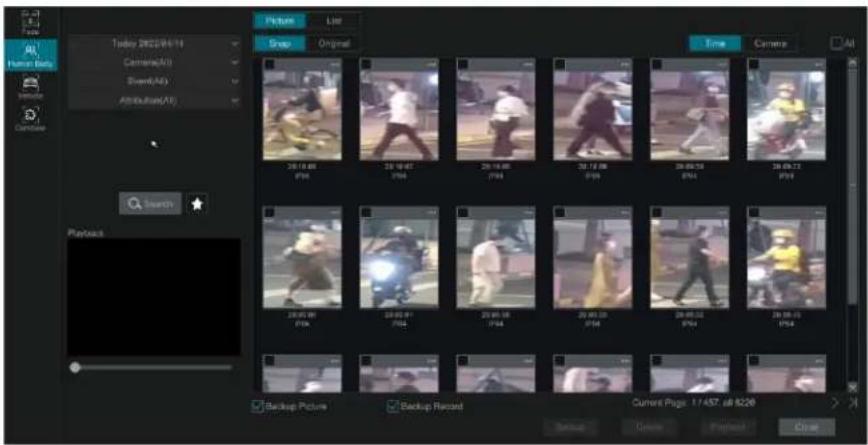

Today 08/23/04/19 Camera(All) Show(AI) Add(AI) Capture Search Playback Picture List Snap Original Time Camera All 20:05:00 20:05:01 20:05:02 20:05:03 20:05:04 Backup Picture Backup Record Current Pages: 17,457, 68,828 BackUp Down Preview Close

You can also select the attributes of people to filter (like gender, age, mask-wearing status, glasses-wearing status, color of clothes, etc.). Note that only the searched camera with video metadata function can filter attributes.

Click the searched picture to play the record in the small window. Select pictures and check "Backup Picture" and/or "Backup Record" and then click "Backup" to back up the pictures and /or records. Click "Original" to view the captured original pictures. Click "List" to view the file list of the captured pictures.

Click ★ and select "Add to favorite" to add a favorite group and save the current searched pictures to the favorite group. Then you can quickly view these figure pictures by clicking ★ and choosing the group name.

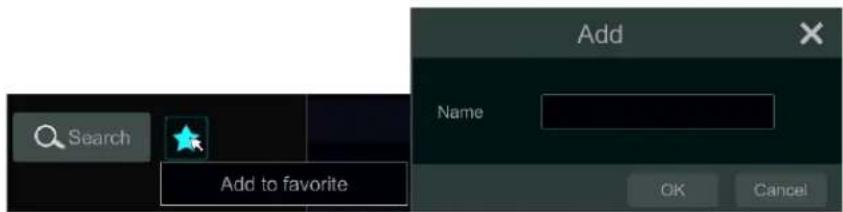

Search Add to favorite Add Name OK Cancel

10.2.5 Vehicle Search

① Click Start→ Intelligent Analytics→Smart Search→Vehicle to go to the vehicle search interface.
② Select the time, camera, event and vehicle type. Then click "Search" to search vehicles.

Event: Intrusion, Line Crossing, Target Counting, Plate Detection, Plate Match-Successful Recognition and Plate Match-Strange Plate can be selected.

Attribution: Vehicle or non-vehicle attributes can be selected as needed. For example, you can search vehicles according to the color, brand or type. Note that only the searched camera with video metadata function can filter attributes.

You can view face pictures by time or by camera.

Photo Recognition Entry/End Picture List Track Drop Original FPA Camera 40 This motion 2022.04 Camera(All) Event(All) Target(All) Attribution/Motor Verkehr All/Non-Inst... Plate Search Playback Backup Picture Backup Record Current Page 1126 / 1123 at 20214 Close Close Finish Close

Click a searched vehicle picture to play it in the small window. Select vehicle pictures and check "Backup Picture" and/or "Backup Record" and then click "Backup" to back up the pictures and /or records.

③ Click "Original" to see the original pictures; click "List" to view the snapshot information list. Click to view the detail information; click to back up the image.

Select "Plate Detection" or "Plate Match" to view plate image. You can also enter the plate number to search the plate pictures. Then you can view the track of this vehicle.

Face Recognition Record Picture List Track Snap Original Time Camera All Toolie 28/22/04/14 Camera(N) Paste Detection Targets Attributions/Motor Verknec All Pass-not Paste Place entry pair Number Search Playback Backup PicturePlate List Backup Record Current Page 1 / 43. all 756 BackUp All Backup Update Print BackUp Close Close

Click "Track" to view the track of the vehicle.

Note: Only one plate can be traced at a time and there must be two or more ANPR cameras detect this vehicle, thus, you can view the track of this vehicle.

The track setting steps are similar to the face track settings. Please refer to face track settings for details.

Click ★ to add a favorite group and save the current searched pictures to the favorite group. Then you can quickly view these vehicle pictures by clicking ★ choosing the group name.

10.2.6 Combination Search

If you want to view the human body, vehicle or face pictures simultaneously, you can choose combination search.

① Click "Combine".

② Select the search time, camera, event and vehicle as needed.

Click a searched picture to play it in the small window. Select pictures and check "Backup Picture" and/or "Backup Record" and then click "Backup" to back up the pictures and /or records.

Click to add a favorite group and save the current searched pictures to the favorite group. Then you can quickly view these pictures by clicking choosing the group name.

10.3 View Statistical Information

Click Start→ Intelligent Analytics→Statistics to go to the following interface. In this interface, you can view the people and vehicle statistical information or you can customize the statistical information.

View People Information:

Note: The person information includes face information and figure information.

① Select the time.
② Select cameras.
③ Select events as needed, such as face detection, face recognition, region intrusion, line crossing, target counting, etc.

Note: Face match events (successful recognition & stranger) are available for some models. If Face Match-Successful Recognition event is selected, you can choose "Detail Chart" to view.

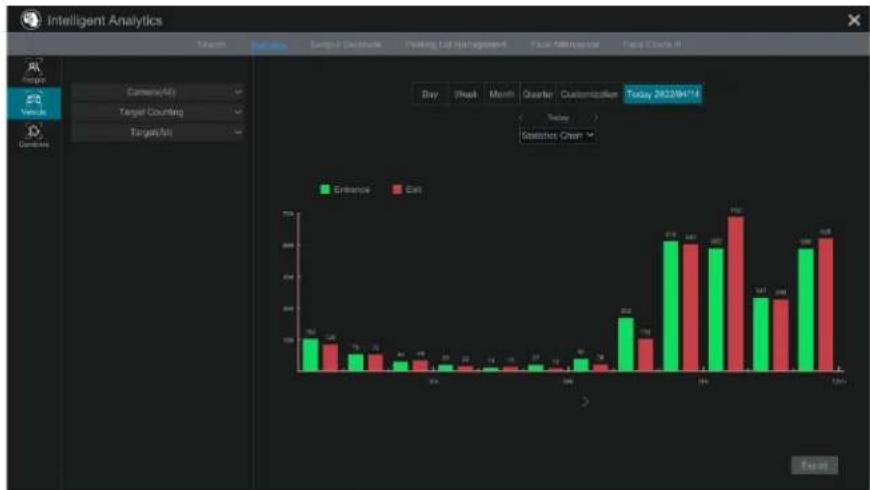

View Vehicle Information:

• Click "Vehicle"
• Select the time and cameras.
• Select events as needed.
• Select the vehicle attribution.

If "Remove duplicate license plate numbers" is checked, the duplicate statistics of the same license plate in the same day will not be displayed in the chart.

To customize statistical information:

Click "Combine" and then select events, people and vehicle as needed.

11 General Event Management

11.1 Sensor Alarm

To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera.

① Click Start→Settings→Alarm→Sensor to go to the following interface.

No. Alarm Name Schedule Type Enable Duration Recall Snapshot Push Alarm-out Local-1 Sensor1 24x7 NO ON 30 Secs Configur Congru ON Congru Local-2 Sensor2 24x7 NO ON 30 Secs Configur Congru ON Congru Local-3 Sensor3 24x7 NO ON 30 Secs Configur Congru ON Congru Local-4 Sensor4 24x7 NO ON 30 Secs Configur Congru ON Congru Local-5 Sensor5 24x7 NO ON 30 Secs Configur Congru ON Congru Local-6 Sensor6 24x7 NO ON 30 Secs Configur Congru ON Congru Local-7 Sensor7 24x7 NO ON 30 Secs Configur Congru ON Congru Local-8 Sensor8 24x7 NO ON 30 Secs Configur Congru ON Congru Apply

② Select the alarm type (NO or NC) according to trigger type of the sensor.
③ Enable the sensor alarm of each camera and select the schedule.
④ Check the "Duration", "Record", "Snapshot", "Push", "Alarm-out" and "Preset" and enable or disable the "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail" as required.
⑤ Click "Apply" to save the settings.

The configuration steps of the above mentioned alarm linkages are as follows.

Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

Record: check it and then the "Trigger Record" window will pop up automatically (you can also click the "Configure" button to pop up the window).

Select camera on the left side and then click to set the camera as the trigger camera. Select trigger camera on the right side and then click

to cancel the trigger camera. Click "OK" to save the settings. The trigger cameras will record automatically when the sensor alarm is triggered.

Snapshot: check it and then the "Trigger Snapshot" window will pop up automatically. Configure the trigger camera in the window. The trigger cameras will capture images automatically when the sensor alarm is triggered.

Push: check it and choose ON or OFF. If it is ON, the system will send messages when the sensor alarm is triggered.

Alarm-out: check it and then the "Trigger Alarm-out" window will pop up automatically. Configure the trigger alarm-out in the window. The system will trigger the alarm-out automatically when the sensor alarm is triggered. You need to set the delay time and the schedule of the alarm outputs. See Alarm-out for details.

Preset: check it and then the "Trigger Preset" window will pop up automatically. Configure the trigger preset of each camera. To add presets, please see Preset Setting for details.

Buzzer: if enabled, the system will begin to buzz when the sensor alarm is triggered. To set the delay time of the buzzer, please see Buzzer for details.

Pop-up Video: After camera setting, the system will pop up the corresponding video automatically when the sensor alarm is triggered. To set the duration time of the video, please see Display for details.

Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. To set the duration time of the message box, please see Display for details.

E-mail: if enabled, the system will send an e-mail when the sensor alarm is triggered. Before you enable the email, please configure the recipient's e-mail address first (see E-mail Configuration for details).

Virtual alarm: This function should be used with API server. If you want to enable it, please make sure the API Server is enabled first (Start→Network→Port) and then set the authentication as "Digest".

11.2 Motion Alarm

Motion Alarm: when the motion object appears in the specified area, it will trigger the alarm. You should enable the motion of each camera first and then set the alarm handling of the camera to complete the whole configuration of the motion alarm.

11.2.1 Motion Configuration

① Click Start→Settings→Camera→Motion Settings to go to the following interface.

Camera Name: Motion Sensitivity Duration IPC ON 4 20 Secs IPC2 ON 4 20 Secs IP Camera81 ON 4 3 Secs IP Camera82 OFF 4 20 Secs All Reverse Clear Camera IP Camera82 Motion OFF Sensitivity 4 Duration 20 Secs Detection Target Human Motor Vs... Processing Mode Apply

② Select the camera, enable the motion and set the sensitivity and duration of the camera.

Sensitivity: the higher the value is, the more sensitive it is to motion. You should adjust the value according to the practical conditions since the sensitivity is influenced by color and time (day or night).

Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

Detection Target: For the camera with SMD function, you can check the detection target as needed. If "Human/Motor Vehicle" is enabled, the camera will only detect the movement of human/motor vehicle. If no target is enabled, alarms will be triggered when the moving object appears on the image, including human, vehicle or other moving objects.

③ Drag the camera image to set the motion area. You can set more than one motion area. Click "All" to set the whole camera image as the motion area. Click "Reverse" to swap the motion area and the non-motion area. Click "Clear" to clear all the motion areas.
④ Click "Apply" to save the settings. Click "Processing Mode" to go to the alarm handling configuration interface of the motion alarm.

11.2.2 Motion Alarm Handling Configuration

① Click Start→Settings→Alarm→Motion Alarm to go to the following interface.

Buzzer Popup Video Pop-up Message Box E-mail Camera Name Schedule Record Snapshot Audio Push Abnormal Reset IPC 24x7 Configure Configure ON Configure Configure OFF IPC2 24x7 Configure Configure ON Configure Configure OFF IP Camera81 24x7 Configure Configure ON Configure Configure OFF IP Camera82 24x7 Configure Configure ON Configure Configure OFF Motion Settings Apply

② Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The alarm handling setting of motion alarm is similar to that of the sensor alarm (see Sensor Alarm for details).
③ Click "Apply" to save the settings. You can click "Motion Settings" to go to the motion configuration interface.

11.3 Combination Alarm

① Click Start→Settings→Alarm→Combination Alarm to go to the following interface.
② Customize combination alarm. Set alarm name and click "Configure" under the Combined Alarm Configuration item. Then select alarm type and alarm source. Finally, click "OK" to save the settings.
③ Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The alarm handling setting of combination alarm is similar to that of the sensor alarm (see Sensor Alarm for details).
④ Click "Apply" to save the settings.

Alarm Name Combined Alarm Configu... Record Snapshot Push Alarm-out Prasad 1 Configure Configure Configure ON Configure Configure Customized Alarm1 Configure Configure Configure Combined Alarm Configuration ON Configure Configure Customized Alarm2 Configure Configure Configure Customized Alarm3 Configure Configure Configure Customized Alarm4 Configure Configure Configure Customized Alarm5 Configure Configure Configure Customized Alarm6 Configure Configure Configure Customized Alarm7 Configure Configure Configure Customized Alarm8 Configure Configure Configure Customized Alarm9 Configure Configure Configure Customized Alarm10 Configure Configure Configure Customized Alarm11 Configure Configure Configure Customized Alarm12 Configure Configure Configure Configure Customized Alarm13 Configure Configure Configure Configure Customized Alarm14 Configure Configure Configure Configure ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON OK Cancel

11.4 IPC Offline Settings

① Click Start→Settings→AI/Event→IPC Offline Settings to go to the interface as shown below.
② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The IPC Offline Settings are similar to that of the sensor alarm (see Sensor Alarm for details).
③ Click "Apply" to save the settings.

Camera Name Snapshot Push Alarm-out Preset OFF OFF ON IP Camera1 Connect ON Connect ON OFF OFF ON IP Camera02 Connect ON Connect ON OFF OFF ON Apply

11.5 Exception Alarm Settings

① Click Start→Settings→AI/Event→Exception Alarm to go to the interface as shown below.

Event Type Push Alarm-out OK ON ON ON ON OFF IP Address Conflict ON Cancel ON ON ON OFF Disk ID Error ON Cancel ON ON ON OFF Disk Full ON Cancel ON ON ON OFF No Disk ON Cancel ON ON ON OFF Illegal Access ON Cancel ON ON ON OFF Network Disconnection ON Cancel ON ON ON OFF HDD is pulled out ON Cancel ON ON ON OFF Alarm Server Offline ON Cancel ON ON ON OFF Apply

② Enable or disable "Push", "Alarm-out", "Buzzer", "Pop-up Message Box" and "E-mail". The exception handling settings are similar to that of the sensor alarm (see Sensor Alarm for details).
③ Click "Apply" to save the settings.

11.6 Alarm Event Notification

11.6.1 Alarm-out

① Click Start→Settings→AI/Event→Event Notification to go to the following interface.

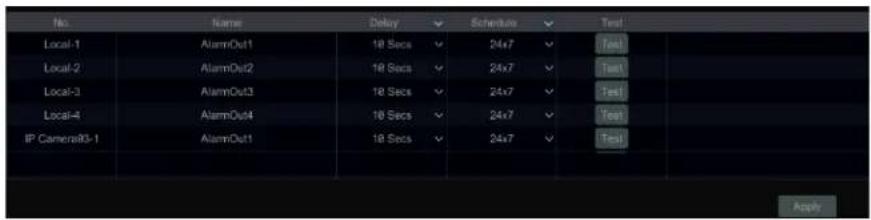

No. Local-1 Local-2 Local-3 Local-4 IP CameraID-1 Name AlarmOut1 AlarmOut2 AlarmOut3 AlarmOut4 AlarmOut1 Delay 18 Secs 18 Secs 18 Secs 18 Secs 18 Secs 24x7 24x7 24x7 24x7 24x7 24x7 Test Test Test Test Test Apply

② Set the delay time and the schedule of each alarm-out. You can click "Edit Schedules" to edit the schedules (see Schedule Settings for details).
③ Click "Apply" to save the settings. You can click "Test" to test the alarm output.

11.6.2 E-mail

Click Start→Settings→AI/Event→Event Notification→E-mail to go to the e-mail configuration interface. Set the e-mail address of the recipients. See E-mail Configuration for details.

11.6.3 Display

Click Start→Settings→AI/Event→Event Notification→Display to go to the display configuration interface. Set the duration time of the pop-up video and the pop-up message box. If your device support two outputs, please set the output of the pop-up video as needed. After that, click "Apply" to save the settings.

Pop-up Video Duration 10 Secs Output Main Output Pop-up Message Box Don't show later Duration 10 Secs Apply

11.6.4 Buzzer

Click Start→Settings→AI/Event→Event Notification→Buzzer to go to the buzzer configuration interface. Set the delay time of the buzzer and then click "Apply" to save the setting. You can click "Test" to test the buzzer.

Buzzer Delay 5 Secs Test Apply

11.6.5 Push

Click Start→Settings→AI/Event→Event Notification→Push to go to the interface as shown below. Check "Enable", select the schedule and then click "Apply" to save the settings. If Push Server is online, it will push text to the mobile clients according to the set schedule.

Push Enable Push Schedule 24x7 Schedule Management Test Apply

11.6.6 Digital Deterrent

Click Start→Settings→AI/Event→Event Notification→Digital Deterrent to go to the interface as shown below.

Camera Audio Voice Broadcast Audio Device Camera IPC Voice Howling alarm sound Add Delete Listen Times 5 Volume 38 Language English Apply

Camera audio settings:

For perimeter alert cameras, voice broadcast can be set up. Select the camera, voice, broadcast times, volume and language. Then click "Apply" to save the settings. When an alarm is triggered, camera will broadcast the voice you set.

Voice: click "Add" to add the alarm voice in wav. format. Click "Listen" to listen to the uploaded audio.

Click "Audio Device" to set the audio of the camera.

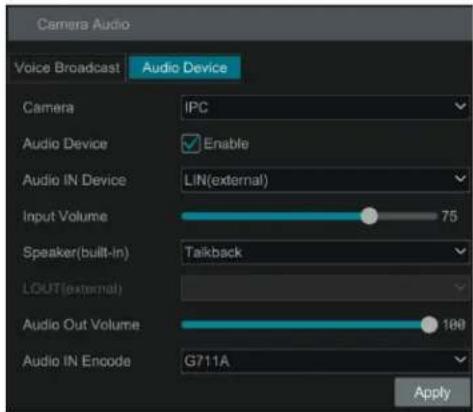

Camera Audio Voice Broadcast Audio Device Camera IPC Audio Device Enable Audio IN Device LIN(external) Input Volume 75 Speaker(built-In) Talkback LOUT(external) Audio Out Volume 100 Audio IN Encode G711A Apply

Select the camera and then enable audio device.

Audio In Device: Please select it according to the actual device configuration.

Input Volume: Set the audio input volume as needed.

Speaker (built-in): Please select its function as needed.

LOUT: external audio output device, please select its function as needed.

Audio Out Volume: Set the audio output volume as needed.

Audio Input Encode: G711A/G711U

Note: The speaker (built-in) and LOUT (external) cannot be enabled simultaneously for some cameras. Please select it as needed.

Audio Linage Schedule: Set the schedule of audio linkage alarm. After the schedule is set, the audio alarm will be triggered by events within the schedule.

Audio Linkage Schedule Schedule 24x7 Manage *Schedule settings for IPC audio warning trigger Apply

Local Audio Alarm

Set the audio alarm of local NVR.

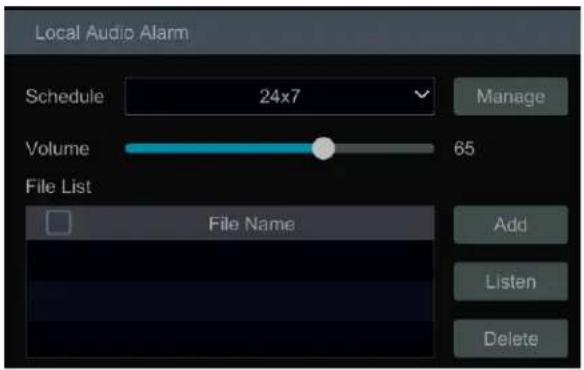

Local Audio Alarm Schedule 24x7 Volume 65 File List File Name Manage Add Listen Delete

In this interface, you can set the schedule and volume of the local audio alarm. Click "Manage" to set the schedule. Click "Add" to upload the audio file (.mp3 format). Choose the uploaded audio file and then click "Listen" to listen to it; click "Delete" to delete this file.

11.6.7 Light

Click Start→Settings→Alarm→Event Notification→Light to go to the interface as shown below. In this interface, you can set the light flashing time and frequency when an alarm is triggered.

Camera Flashing Time Flashing Frequency IPC 28.Low

Flashing light linkage schedule: Set the schedule of light linkage alarm. After the schedule is set, the light alarm will be triggered by events within the schedule.

Flashing Light Linkage Schedule Schedule 24x7 Manage *Schedule settings for IPC flashing light trigger

11.6.8 Alarm Server

Go to Alarm→Alarm Server interface as shown below.

Enable the alarm server and enter server address, URL and port of the alarm server. Then select protocol. If "Send Heartbeat" is enabled, set the interval times. After that, test the effectiveness of the alarm server. Having tested successfully, please click "Apply". When an alarm occurs, the device will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no need to configure this section.

Alarm Server Enable Server Address Enter Address URL Port 80 Protocol XML Send Heartbeat Interval Time(s) 14 Schedule 24x7 Manage Alarm Type Configure Motion Alarm Sensor Alarm IPC Offline Object Abandoned/Missing Video Exception Line Crossing Text Apply

11.7 Manual Alarm

Click 📁 on the tool bar at the bottom of the live preview interface to pop up a window. Click "Trigger" to start alarm. Click "Clear" to stop alarm.

AlarmOut1 Name AlarmOut1 AlarmOut2 AlarmOut3 AlarmOut4 IP Camera1_AlarmOut1 IP CameraB2_AlarmOut1 Status Trigger Trigger Trigger Trigger Trigger Trigger Trigger Trigger Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear

11.8 View Alarm Status

Click Start→Settings→Alarm→Alarm Status or click on the tool bar at the bottom of the live preview interface to view the alarm status.

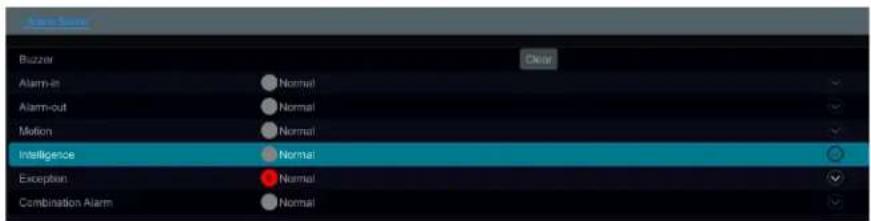

Bluzzer Alarm-in Alarm-out Motion Intelligence Exception Combination Alarm Normal Normal Normal Normal Normal

Click "Clear" to stop the buzzer when the buzzer alarm happens. Click to view the detail information as shown below.

Alarm Alarm-1 Alarm-out Motion Intelligence Exception Device Name 05/08/2018 16:14:43 Status - No Drak Trigger Alarm-out : None Trigger Buzzer : ON Close

If the exception information is more than one page, you can enter the number in the box and then click to jump to the specified page. Click / to view the exception alarm information in the previous/next page.

11.9 System Disarming

You can quickly disarm the device through the alarm host and remote client (like mobile APP).

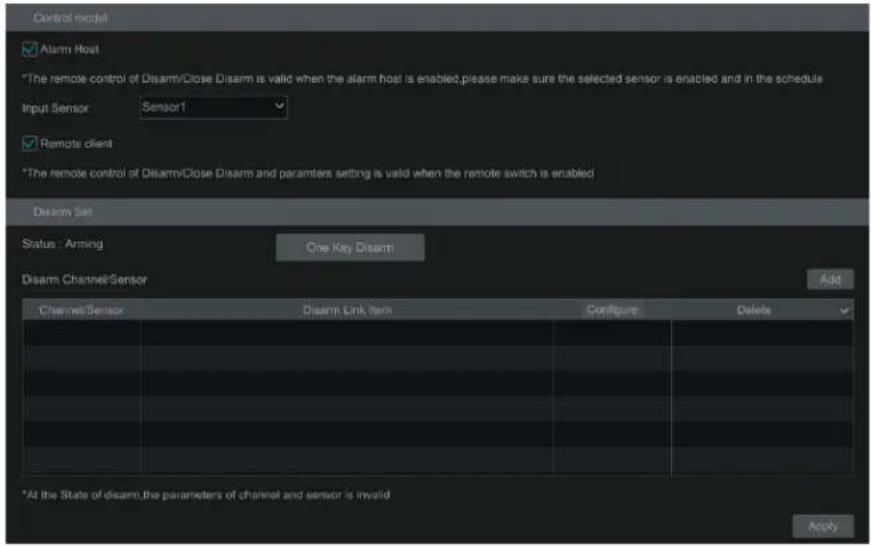

Control model ✓ Alarm Host *The remote control of Disarm/Close Disarm is valid when the alarm host is enabled,please make sure the selected sensor is enabled and in the schedule Input Sensor Sensor1 ✓ Remote client *The remote control of Disarm/Close Disarm and parameters setting is valid when the remote switch is enabled Disarm Set Status : Arming One Key Dream Disarm ChannelSensor Add Channel/Sensor Disarm Link Item Configure Delete *At the State of disarm,the parameters of channel and sensor is invalid Apply

All alarm linkages of all channels and sensor alarms will be invalid after clicking "One Key Disarm" by default. You can also self-define the channels and sensors you want to disarm by clicking "Add". Only the selected channels and sensors will be disarmed by clicking "One Key Disarm".

Note: If you want to control system disarm by a client, you must check "Remote client" in the above interface, or "One key disarm" function cannot be used in the client (like Web/APP client).

12 Application

12.1 Face Attendance

This function is only available for some models. If your device doesn't support it, please skip the following instructions. Click Start→Application→Face Attendance to go to the following interface.

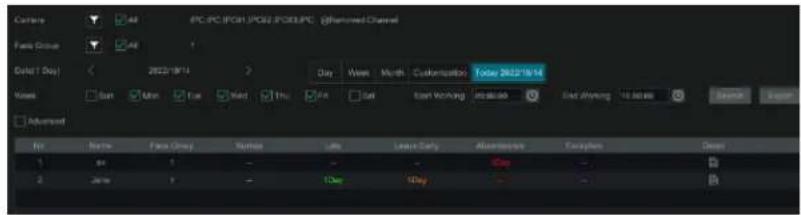

Contacts Facts Group Date 1 Day 2022/08/14 Day: Week Month Customization Today 2022/10/14 Notes Start Main End Next Thu Set Start Working After Working Last Aftering Adjustment Name Face Group Named Late Leave Day Afternoon Exception Close 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

To search attendance information

① Click ▼ behind camera and group to choose the desired cameras and groups.
② Set the attendance date. You can choose day, week, month and today or customize the time period.
③ Set the start time and the end time of working.
④ Click "Search" to view the attendance state.

If you need to know the attendance status of a specific person, you can click "Advanced" and then enter the name and choose the type. Click "Export" to export the searched attendance information.

Click to view the detailed information of attendance. In this interface, click to go to the face search interface.

XXX Date Dress Type Crack in Time 8/1/16/2019 Wednesday November - 8/1/17/2019 Thursday November - 8/1/18/2019 Friday Late: Leave Early 14:00:51; 14:48:35; 14:05:51; 14 14:00:51 IP:51 Latency 14:00:55 IP:51 8/1/13/2019 Positive Delete OK

12.2 Fack Check-In

Click Start→Application→Face Check-In to go to the following interface.

The search steps of face check-in are as follows.

① Click ▼ behind camera and group to choose the desired cameras and groups.
② Set the check-in date. You can choose day, week, month and today or customize the time period.
③ Set the start time and the end time of face check-in.
④ Click "Search" to view the check-in state.

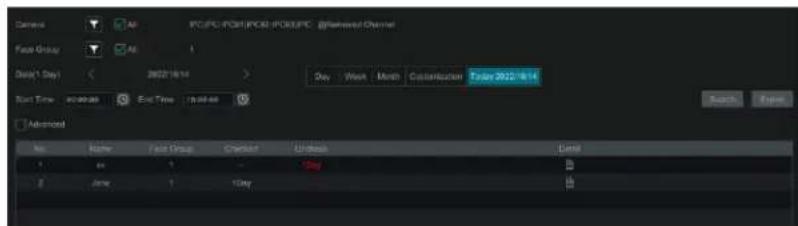

Camera Fasc Group Daily 1 Day Start Time: 28:00:00 End Time: 19:00:00 Advanced No. Name Fact Group Checkout Editbox Date 1 June 1 Day 2 June 1 Day

If you want to know the check-in status of a specific person, please click "Advanced" and then enter the name and choose the type to search.

Click 📄 to view the detailed information. In this interface, the checked image can be viewed.

Click to view the registered face picture of this person.

XXX Date Weeks Type Check in Detail 8/1/16/2019 Wednesday Wednesday Thursday Thursday Friday Checked 14:00:51 14:00:51 14:22:18:14 Sign In 14:00:51 8:00:51 8/1/19/2019 Preview Buy OK

12.3 Parking Lot Settings

You can manage the parking lot through the NVR. Before using this function, please add the professional ANPR camera. Click Start → Application → Parking Lot Management to go to the parking lot setting interface.

This system only supports 1 parking lot management. Parking Lot Name Name park Parking Space Please make sure to exit under the promise that there are no vehicles passing through the entrance and exit to ensure the accuracy of the parking space Total Parking Space 100 Remaining Parking Space 69 Automatic Release Enable The vehicles whose plates start with the following characters will be automatically released; separate plate stolaries by a comma. Plates starting with Apply

12.3.1 Basic Settings

The system only supports one parking lot management. Please enter the parking lot name, total parking space and remaining parking space. To ensure the accuracy of the parking space, Please enter the parking space information when there is no vehicle entering or exiting.

Automatic Release: The barrier gate can be automatically opened for special vehicles after enabling automatic release and entering the special characters. If you want to automatically release multiple vehicle types whose plates starting with special characters, you can enter and separate them with commas (,).

12.3.2 Parking Space Settings

Only the vehicles added into the plate database are allowed to pass through automatically. You can set the parking space according to the vehicle group or directly use the total parking space. For the block-list, you can set "No parking allowed". After that, set the schedule and Email as needed.

Group Name Parking Options Group Total P Group Remal Schedule Email 1 vip Use the total parking space to park 24x7 Parking B Service & Ball Parking List

12.3.3 Entrance/Exit Management

Set the passing direction of vehicles (Enter/Exit/Enter and Exit) and bind LED screen as needed.

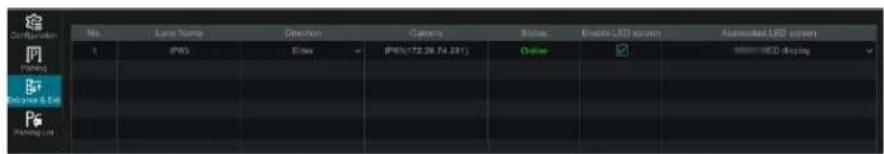

No. Laser Name Direction Camera Blacks Emotion-LCD screen Aluminated LED screen 1 PSX 0.00 (PSX/72.38/74.281) 0.00 0.00 0.00 Plating Blats Extronic & Ext Plating Line

Direction: choose "Close", "Enter", "Exit" or "Enter and Exit" as needed.

If "Close" is selected, the LPR/ANPR camera is only used to recognize plates and doesn't trigger the relevant parking management function. If you want to manage vehicles entering and leaving a park by one LPR/ANPR camera, it is suggested to select "Enter and Exit". In this way, vehicles entering the park trigger alarms by default, but vehicles leaving the park don't trigger alarms. Vehicles entering/leaving are classified by recognition mode of the LPR/ANPR camera (recognizing when approaching or driving away). When there is a vehicle approaching, the LPR/ANPR camera captures and reports its license plate, the direction is recognized as "Enter" and the NVR analyzes whether the parking spaces are full. If there are remaining parking spaces, the parking system opens the gate barrier and reduces a remaining parking space. If the parking spaces are full, the gate barrier cannot be opened. When a vehicle is been driving away, the barrier gate can be controlled by the ground sense coil, the LPR/ANPR camera captures and reports its license plate, the direction is recognized as "Exit/Leave" and the NVR increases a parking space.

Note: Only some LPR/ANPR cameras can simultaneously manage the entry and exiting of vehicles.

If "Enter" or "Exit" is selected, the set direction shall prevail.

12.3.4 Parking Lot Management

After the above settings are completed, click "Parking Lot" on the left menu to go to the following interface.

Screenshot of a vehicle entry tracking system interface showing speed, driving time, and destination status with a 100/100 speed limit display.

In this interface, you can view the detailed information of the parking lot, including the total parking space, remaining parking space, number of vehicle entering today, number of vehicle exiting today and vehicle entry/exit records.

Only vehicles added into the plate database are allowed to pass automatically. If the vehicle is a stranger/unknown vehicle, it cannot be allowed to enter. You can release it manually by clicking "Gate Opening". If the plate number captured is not matched with the actual one, you can click "Correct" to correct it.

Click ☐ view the detail information of vehicle entry/exiting.

Click "More" to register the license plate or view the ID information.

Click go to the parking lot setting interface.

Click go to search the records of vehicle entering/exiting.

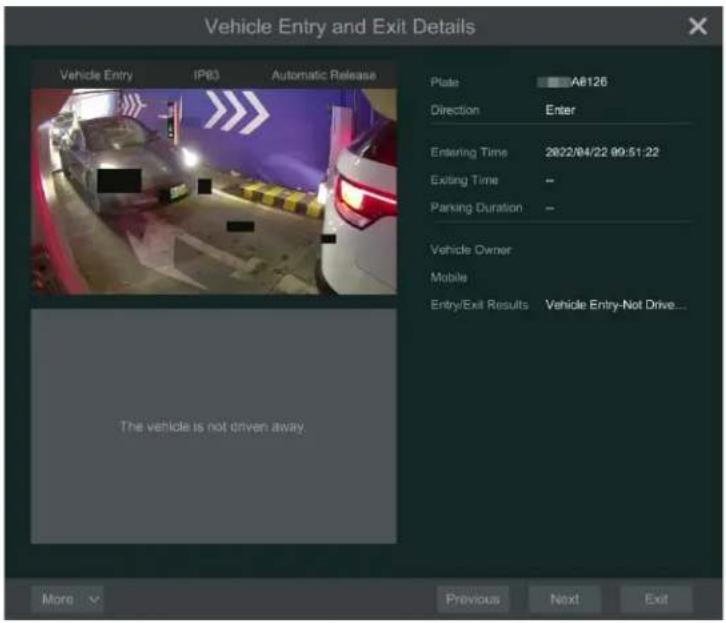

Vehicle Entry and Exit Details Vehicle Entry IP63 Automatic Release Plate A6126 Direction Enter Entering Time 2022/04/22 09:51:22 Exiting Time - Parking Duration - Vehicle Owner Mobile Entry/Exit Results Vehicle Entry-Not Drive... The vehicle is not driven away. More Previous Next Exit

Click "→" to return to the live view interface.

12.3.5 Search Vehicle Entry/Exiting Records

In the parking lot management interface, click ☑ to search the records of vehicles entering/exiting the park lot. You can search these records by setting filtering conditions (including time/direction/license plate). Click *** in the right corner of the searched picture to view the details; click "Backup" to export the searched picture.

Plate Recognition EntryExit Picture List This Month 2022/94 Entrance and Exit(All) Direction(All) Plate: Plano-aster plate-number 2022/94.27 09:13:23 FMS-Door *28 Backup Picture Current Page 1 / 1, all 1 BackUp Close

12.4 Access Control Management

The recorder supports access control parameter configuration and remote door opening. Before using the access control function, please add access control devices (face recognition & access control terminal/panel). Go to Start →Settings→Camera→Add Camera interface to add devices.

12.4.1 Access Control Settings

Click Start → Application → Access Control Management to go to the following interface.

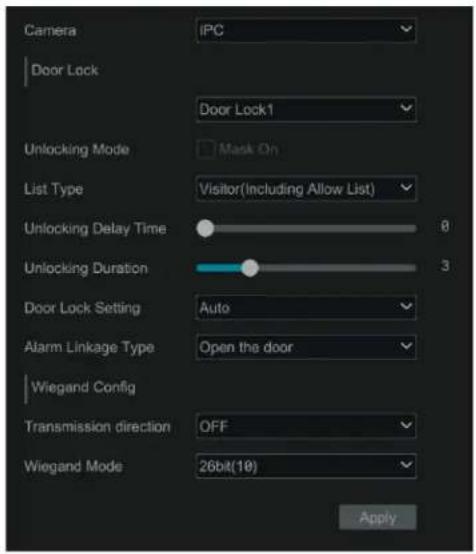

Camera iPC Door Lock Door Lock1 Unlocking Mode Mask On List Type Visitor(Including Allow List) Unlocking Delay Time 0 Unlocking Duration 3 Door Lock Setting Auto Alarm Linkage Type Open the door Wiegand Config Transmission direction OFF Wiegand Mode 26bit(10) Apply

Select the access control device you want to configure the parameters.

Lock: Choose the lock you want to control.

Unlocking Mode: if "Mask On" is selected, the door will be opened when the matched person wearing a mask

List Type: Allow list, visitor (including allow list), stranger (including visitor and allow list).

Unlocking Delay Time: Set the door unlocking delay time. The time range is from 0 to 10 seconds. For example, the unlocking mode is "Face only" and the delay time is set to "2" seconds; the door will be opened 2 seconds later after face recognition.

Unlocking Duration: Set the unlocking duration. The time range is from 0 to 10 seconds. For example, the unlocking mode is "Face only" and the duration is set to "3" seconds; the door will be opened after successfully face comparison, but the opening door will be automatically locked 3 seconds later.

Door Lock Setting: Choose "Auto", "NO" or "NC". Please select it according to your door lock type.

Alarm Linkage Type: Open/close the door

Wiegand Config: Wiegand Input, Wiegand Output or Off can be selected. If the card reader is connected to the Wiegand interface, please select "Wiegand Input". If the access controller is connected to the Wiegand interface, please select "Wiegand Output".

Wiegand Mode: 26bit(8), 26bit(10), 34bit, 37bit, 42bit, 46bit, 58bit or 66bit can be selectable.

After clicking "Apply", the configuration will be synchronized with the camera.

When someone wants to enter, the access control device will open the door according to the set condition.

12.4.2 Open the Door Manually

In the live view interface, select an access control camera. Right click on the window to show a dropdown list. Select "Manually Open the Door" to open the door via the NVR.

IPC02 2022/10/17 09:36:58 Manually Record On Instant Playback Enable Audio Original Proportions Snapshot PTZ Control Zoom In Target Detection Manually Open the Door Camera info

If you want to view the real-time face snapshots and comparison of access control devices, please enable face detection or comparison function as needed. Then the corresponding results will display under the target detection tab in the live interface.

13 Account & Permission Management

13.1 Account Management

Click Start→Settings→Account and Authority→Account→Edit User to go to the interface as shown below.

UiPerCAD Mechanical Permeation Settings ✓ Local Camera ✓ Disk ✓ Network ✓ Record ✓ Remote System ✓ Porting Lot Management ✓ Account and Authority Function ✓ Remote Login ✓ Audio Talk Local Remote Camera Preview Search and Playback Search and Up IPC ON ON IPC ON ON IPCB1 ON ON IPC2 ON ON IPC3 ON ON SC ON ON Search Users Username Group Edit Delete Admin Administrator 1

Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①. There are three default permission groups ("Administrator", "Advanced" and "Common") available when adding accounts. You can manually add new permission group (see Add Permission Group for details). Only admin and the users that have the "Account and Authority" permission can manage the system's accounts. Group "Administrator" owns all the permissions displayed in area ① except "Account and Authority" and its permissions cannot be changed while the permissions of "Advanced" and "Common" can be changed.

13.1.1 Add User

① Click Start→Settings→Account and Authority→Account→Add User or click + beside the search box to pop up the window as shown below.

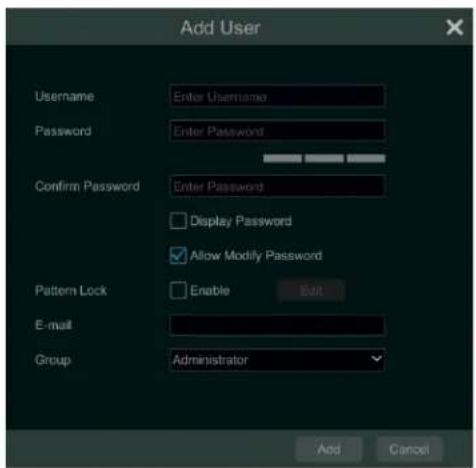

Add User Username Enter Username Password Enter Password Confirm Password Enter Password Display Password Allow Modify Password Pattern Lock Enable Edit E-mail Group Administrator Add Cancel

② Set the username, password and group. User can also set the pattern lock here. The e-mail address is optional. Click "Add" to add the user.

13.1.2 Edit User

Click Start→Settings→Account and Authority→Account→Edit User and then click in the user list or double click the user to edit the user information. Click to delete the user (the user admin cannot be deleted).

Username admin Group Administrator Edit Delete Modify Password Modify Pattern Lock Edit User Edit Security Question 1 Administrator Edit User Recover Password

Edit Security Question

You can set password security only for admin. Click "Edit Security Question" and then set questions and answers in the popup window. If you forget the password for admin, please refer to Q4 in Appendix A FAQ for details. The passwords of other users can be recovered by admin or the users that have the "Account and Authority" permission.

Modify Password

Only the password of admin can be modified. Click "Modify Password" to pop up a window. Enter the current password and then set new password. Click "OK" to save the settings.

Modify Pattern Lock

Some models may not support this function.

Click "Modify Pattern Lock" to pop up a window.

Modify Pattern Lock Current Password Pattern Lock Enable Edit OK Cancel

Enter current password and then check "Enable" to input pattern lock.

Pattern Lock

Modify Password

The password of admin can be modified. Click "Modify Password" to show a window. Enter the current password and then set new password. Click "OK" to save the settings.

In addition, the admin user can modify the common/advanced user's password.

Edit User

Click "Edit User" to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. You can enable or disable other users (if disabled, the user will be invalid), open or close their permission control (if closed, the user will get all the permissions which admin has) and set their permission groups. Click "OK" to save the settings.

Edit User Enable Username admin Close Penetration Control Allow Modify Password E-mail Group Administrator OK Cancel

Edit User Enable Username 1 Close Permission Control Allow Modify Password E-mail Group Administrator OK Cancel

13.2 User Login & Logout

Login: Click Start→Login or directly click the preview interface and then select username and enter the password in the popup window. Click "Login" button to log in the system.

Logout: Click Start→Logout or click Start→Shutdown to pop up the "Shutdown" window. Select "Logout" in the window and then click "OK" button to log out the system.

13.3 Permission Management

13.3.1 Add Permission Group

Click Start→Settings→Account and Authority→Account→Edit Permission Group to go to the interface as shown below.

Group Administrator Permissions Settings ✓ Local Camera ✓ Disk ✓ Network ✓ Record ✓ Remote System ✓ Parking Lot Management ✓ Remote Login ✓ Remote Menu Local Remote Camera Preview Search and Playback Search and Bar IPC ON ON ON IPC ON ON ON IPC01 ON ON ON IPC02 ON ON ON IPC03 ON ON ON IPC ON ON ON

Click + to add permission group. Set the group name, check the permissions as needed and then set the "Local" and "Remote" permissions. Click "Add" to save the settings.

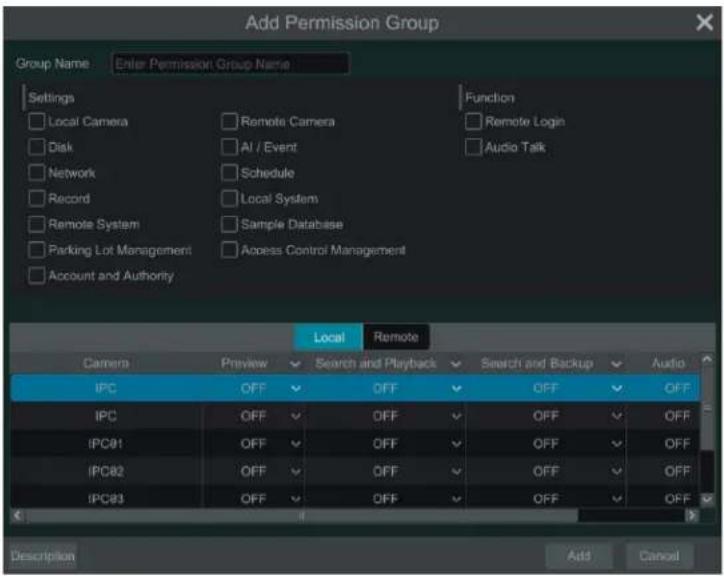

Add Permission Group Group Name Enter Permission Group Name Settings Local Camera Remote Camera Function Disk AI / Event Remote Login Network Schedule Audio Talk Record Local System Remote System Sample Database Parking Lot Management Access Control Management Account and Authority Local Remote Camera Preview Search and Playback Search and Backup Audio IPC OFF OFF OFF OFF IPC OFF OFF OFF OFF IPC#1 OFF OFF OFF OFF IPC#2 OFF OFF OFF OFF IPC#3 OFF OFF OFF OFF Description Add Cancel

13.3.2 Edit Permission Group

Go to "Edit Permission Group" interface and then click in the group list to edit the permission group (the operations of the "Edit Permission Group" are similar to that of the "Add Permission Group", please see Add Permission Group for details). Click to save the group as another group. Click to delete the permission group. The three default permission groups ("Administrator", "Advanced" and "Common") cannot be deleted.

13.4 Block and Allow List

① Click Start→Settings→Account and Authority→Security to go to the following interface.

Add IP Enable IP MAC ADDRESS Add IP Enable IP IP Segment Address OK Cancel Add IP Add MAC Apply

② Check "Enable" and then choose "Enable Allow List" or "Enable Block List" (the PC client of which the IP address is in the allow list can access NVR remotely while the PC client in the block list cannot).
③ Add IP/IP segment/MAC. Click "Add IP" or "Add MAC" button and then check "Enable" in the popup window (only if you check it can the IP/IP segment/MAC you add be effective). Enter the IP/IP segment/MAC and then click "OK" button. In the above interface, click to edit IP/IP segment/MAC, click to delete it. Click "Apply" to save the settings.

13.5 Preview On Logout

Click Start→Settings→Account and Authority→Security→Preview On Logout to go to the following interface.

Set a camera and then enable or disable the preview permission on logout as required. If a camera's preview permission on logout is "ON", you can view the live image of the camera when the system is logged out, or the live image of the camera cannot be seen when logged out.

Camera Name Preview Camera1 ON Camera2 ON Camera3 ON Camera4 ON Camera Camera1 Preview ON Apply

13.6 Network Security

Click Start→Settings→Account and Authority→Security→Network Security to go to the following interface. You can enable APR Guard.

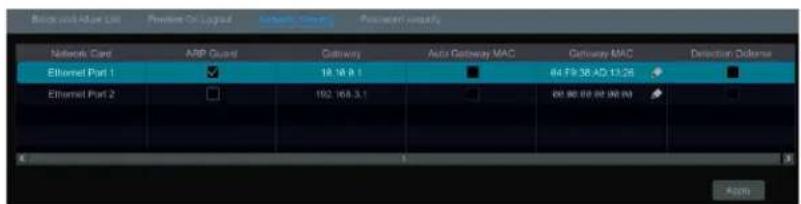

Block and Alt Line Preview On Logback Internet Group PostScript Format Network Card ARP Guard Gateway Auto Gateway MAC Gateway MAC Detection Defense Ethernet Port 1 18.16.0.1 64 F9:38 AD 13:26 Ethernet Port 2 192.163.3.1 00:00:00:00:00:00 420%

ARP Guard: Address Resolution Protocol Guard. This function can protect the LAN from APR attack and make the network run stably. If it is enabled, you can enable auto gateway MAC or manually set gateway MAC. Additionally, detection defense also can be enabled as needed.

13.7 Password Security

Click Start→Settings→Account and Authority→Security→Password Security to go to the following interface.

Password security Level Weak Expiration Time Never Expire Apply

In this interface, you can set the level and expiration time of the password.

13.8 View Online User

Click Start→Settings→Account and Authority→User Status to view the online user information (you can view the online user name, login type, IP address and login time; click 📄 to pop up a window showing the preview occupied channel number and playback occupied channel number).

14 Device Management

14.1 Network Configuration

14.1.1 TCP/IP Configuration

Click Start→Settings→Network→TCP/IP to go to the following interface. Check "Obtain an IPv4 address automatically", "Obtain an IPv6 address automatically" and "Obtain DNS automatically" to get the network addresses automatically, or manually enter the network addresses. You can modify the MTU value according to the network condition (MTU, Maximum Transmission Unit, can be modified according to network condition for higher network transmission efficiency). Click "Apply" to save the settings.

Additionally, if you want to configure multiple IP addresses for a single network card (for example: add devices from different network segments under the same switch), you can click "Advanced" to set a secondary IP address.

IPv4 Address 18 . 29 . 52 . 200 Subnet Mask 255 . 255 . 8 . 6 Gateway 18 . 28 . 9 . 1 ○ Obtain IPv6 DNS automatically Preferred DNS 6 . 8 . 8 . 6 Alternate DNS Default Route Ethernet Port 1 IPv6 Enable Address Is68::ITF 192:168.2:208 Mask Length 64 Gateway Is68::ITF 192:168.2:1 ○ Obtain IPv6 DNS automatically Preferred DNS Alternate DNS Apply

Note:

• Internal Ethernet Port

If you use the NVR with the PoE network ports, click "Internal Ethernet Port" to go to the following interface.

The internal Ethernet port is the port which connects all the PoE ports with the NVR system. The PoE ports are available if the internal Ethernet port is online; if it is offline, all the PoE ports will be unavailable, may be the internal Ethernet port is broken. The network addresses of the internal Ethernet port can be changed to make the port in the same network segment with the IP cameras which directly connect to the PoE ports of the NVR (it is not recommended to change the network addresses of the internal Ethernet port).

Mode: Non-long line mode or long line mode can be selectable. The non-line mode is the default setting. If the transmission performance of your network cables connected the PoE ports and IPC are not so good or these network cables are very long, you can choose long line mode.

IP Address Settings Ethernet Port 1 ( Online ) Internal Ethernet Port ( Online ) Address 192 . 168 . 78 . 1 Address ls66-fff.192-168.78.1 Submit Mask 255 . 255 . 255 . 0 Mask Length 64 Mode Non-long line mode Obtain DNS automatically Preferred DNS Alternate DNS Apply

14.1.2 Port Configuration

Click Start→Settings→Network→Port to go to the interface as shown below. Enter the HTTP port, HTTPS port, server port and RTSP port of the NVR, enable "Anonymous" as needed and then click "Apply" button to save the settings.

Port HTTP Port 80 HTTPS Port 443 Enable Please install the certificate on the web beforehand Server Port 6936 RTSP Port 554 Anonymous URL Example rsp://IP:Port/child=1&streamType=main Apply

HTTP Port: the default HTTP port of the NVR is 80. The port number can be changed to others like 81. The port is mainly used to web client access. If you want to access the NVR through a web browser, you should enter IP address plus HTTP port in the address bar of the web browser like http://192.168.11.61:81.

Note: The HTTP port and server port of the NVR should be mapped to the router before you access the NVR via WAN.

HTTPS Port: the default HTTPS port of the NVR is 443.

HTTPS provides authentication of the web site and protects user privacy. You can enter IP address plus HTTP port in the address bar of the web browser. Then enter username and password to log in. Click Functional Panel→Network→HTTPS to go to the following interface. There are three ways to enable HTTPS service.

A. Create a private certificate.

Function Panel > Https Enable 5 Certificate installation Certificate installation Create a private certificate Signed certificate already available. Install directly Create a certificate request Certificate details Create a private certificate 2 Create 6 Apply Create 3 Country Hostname/IP Validity Period Days* Password State/Province Locality Organization Organizational Unit E-mail OK Cancel

① Select "Create a private certificate".
② Click "Create".
③ Fill out the corresponding information in the above creation box. Enter the country (only two letters available), domain (NVR's IP address/domain), validity date, password, province/state, region and so on.
④ Click "OK".
⑤ Check "Enable" checkbox.
⑥ Click "Apply" to save the setting.

B. Install a signed certificate

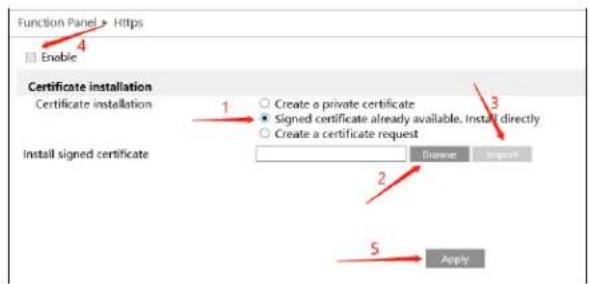

Function Panel > Https Enable Certificate installation Certificate installation 1 Create a private certificate Signed certificate already available. Install directly Create a certificate request Install signed certificate Browse Import 2 5 Apply

① Check "Signed certificate already....".
② Click "Browse" to select the certificate you want to import.
③ Click "Import".
④ Check "Enable".

⑤ Click "Apply" to save the settings.

Please note that the certificate uploaded here shall be a certificate with private key.

How to attach the private key to the certificate?

Please open the certificate and the private key files with the editor (like Notepad++) and then copy the private key to the certificate.

C. Create a certificate request

Function Panel > Https Enable Certificate installation Certificate installation 1 2 3 4 5 6 8 Apply Create a private certificate Signed certificate already available. Install directly Create a certificate request Create | No files Export Show License Accept Create Country Hostname/IP Password State/Province Locality Organization Organizational Unit E-mail OK Cancel Create

① Check "Create a certificate request".
② Click "Create".
③ Fill out the corresponding information in the above creation box. Enter the country (only two letters available), domain (NVR's IP address/domain), validity date, password, province/state, region and so on.
④ Click "OK". Then a certificate request file (CSR) will be created.
⑤ Click "Export" to export the certificate request file. Then send this file to the trusted third-party CA to apply a signed certificate.
⑥ Click "Browse" and select the signed certificate issued by the CA and then import this certificate.
⑦ Click "Enable".
⑧ Click "Apply" to save the settings.

After that, the device can be accessed by entering https://IP: https port via the web browser (eg. https://192.168.1.201:443).

Server Port: the default server port of the NVR is 6036. The server port number can be changed as required. The port is mainly used in network video management system.

RTSP Port: RTSP real-time stream protocol can be used to control the sending of real-time data. By media player (like VLC player) which supports the RTSP real-time stream protocol, you can view the live images synchronously. The default RTSP port is 554 and it can be changed as needed. (The address format: rtsp://IP address:554/chID=1&streamType=main or rtsp://IP address:554/chID=1&streamType=sub; main indicators main stream; sub indicators sub stream; chID indicators channel ID).

Examples: Enable RTSP and "Anonymous". Then open the VLC player and enter the address (for example:

rtsp://192.168.1.88:554/chID=1&streamType=main) in the network address bar of the VLC player. Then you can view the video of channel 1.

14.1.3 PPPoE Configuration

Click Start→Settings→Network→PPPoE to go to the interface as shown below. Check "Enable" in "PPPoE Settings" and then enter the username and password obtained from the dealer. Click "Apply" to save the settings.

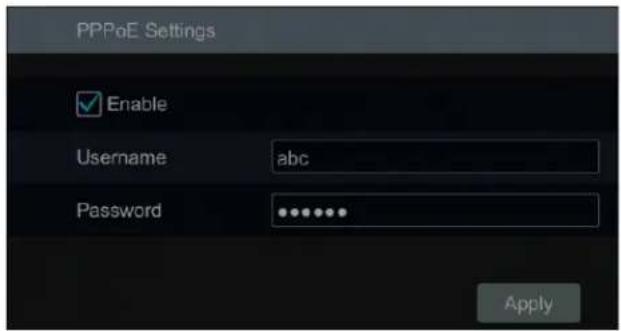

PPPoE Settings Enable Username abc Password ••••••• Apply

14.1.4 DDNS Configuration

The DDNS is used to control the dynamic IP address through domain name. Speco Technologies provides free DDNS service with US-based servers. You can access to the NVR easily if the DDNS is enabled and configured. Click Start→Settings→Network→DDNS to go to the interface as shown below. The default DDNS type will be "specoddns.net". The default domain name will be shown, you can use this for your domain name or enter your own. If invalid or taken, please select another domain name. Click on test to check if ok. If so, you may now go to [your domain name].specoddns.net with Internet Explorer and access your recorder remotely.

DDNS Enable DDNS Type specoddns.net Server Address Domain Name spec006625 specoddns.net Connection Status Failure Test Apply

14.1.5 E-mail Configuration

Click Start→Settings→Network→E-mail to go to the following interface. Enter the sender's name, e-mail address, SMTP server and SMTP port (you can click "Default" to reset the SMTP port to the default value) and then enable or disable the SSL and attaching image.

Attaching Image: Choose "NO", "A Picture" or "Multiple Pictures". If "A Picture" or "Multiple Pictures" is selected, snapshot image or original image can be selected to attach.

Select the username (the username list will be updated automatically according to the email address you input) and enter the password of the sender and then click "Apply" to save the settings (you don't have to enter the username and password if "Anonymous Login" is enabled). Click "Test" to pop up a window. Enter the e-mail address of the recipient in the window and then click "OK" button. The e-mail address of the sender will send an e-mail to the recipient. If the e-mail is sent successfully, it indicates that the e-mail address of the sender is configured correctly.

Sender Sender Name Enter Sender Name Email Address Enter Address SMTP Server SMTP Port 465 Default Security SSL Attaching Image A Picture ✓ Snap ✓ Original Anonymous Login Username Password Enter Password Edit Recipient Text Apply

Click "Edit Recipient" to go to the following interface.

E-mail Notification Recipients No. Recipients Schedule Delete 1 abc@*** com 24x7 Schedule Management Edit Sender Apply

Click "Add" and then enter the recipient's e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click "Add" in the window to add the recipient. You can

also change the recipient's receiving schedule by clicking √ in the "Schedule" column. Click 🔒 to delete the recipient in the list. Click "Apply" to save the settings. Click "Edit Sender" to go to the e-mail configuration interface of the sender.

14.1.6 UPnP Configuration

By UPnP you can access the NVR through the web client which is in WAN via router without port mapping.

① Click Start→Settings→Network→UPnP to go to the following interface.
② Make sure the router supports UPnP function and the UPnP is enabled in the router.
③ Set the NVR's IP address, subnet mask and gateway and so on corresponding to the router.
④ Check "Enable" in the interface as shown below and then click "Apply" button.

Click "Refresh" button to refresh the UPnP status. If the UPnP status were still "Invalid UPnP" after refreshing it for many times, the port number would be wrong. Please change the mapping type to "Manual" and then click 📋 to modify the port until the UPnP status turns to "Valid UPnP". Refer to the following picture. You can view the external IP address of the NVR. Enter the external IP address plus port in the address bar of your browser to access the NVR such as http://183.17.254.19:81.

UPnP Enable Map Type Auto Port Type External Port External IP Address Port UPnP Status Edit HTTP Port 88 88 Not Ready HTTPS Port 443 443 Not Ready Server Port 6036 6036 Not Ready RTSP Port 554 554 Not Ready Test Apply

14.1.7 802.1X

If it is enabled, the NVR data can be protected. When the NVR is connected to the network protected by the IEEE 802.1X, user authentication is needed.

8HZ 1x Enable Protocol EXP MKS Eapol Version 1 Username Enter Username Password Enter Password Apply

To use this function, the NVR shall be connected to a switch supporting 802.1x protocol. The switch can be considered as an authentication system to identify the device in a local network. If the NVR connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default settings.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server.

14.1.8 NAT Configuration

Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check "Enable". Click "Apply" to save the settings and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login.

NAT Enable Access Type: NAT2.0(dev-nat20.specobluep2p.com Visit Address: connect.specotech.cloud NAT Status: Success Apply Please use the mobile client to scan the code to add a device Security Code Required when adding to Account/Cloud device list N855888AKDC0 | Not bound | No client yet? click to download

Security Access: Only some models upgraded from a lower version can display this function. New models support this function by default. After you bind the device to your APP account and enable this function, a verification code will be required when logging onto the web client by using the above visit address (different areas and regions maybe have different visit addresses). Please enter the correct verification code that getting from the APP.

Check "Enable" and then select the NAT server address. Click "Apply" to save the settings.

You can scan the QRCode through mobile APP which is installed in the mobile phone or tablet PC to quickly add the device to the server list of the mobile APP.

Access Type: NAT or NAT2.0 can be selected.

Click "Advanced" to select the area as needed.

Note:

1. If you want to use cloud upgrade, you must enable NAT2.0.
2. After the NAT is enabled, use the mobile APP to scan the QRcode and then the device can be added to the server list of the mobile APP.
3. The device can be added to the account of the mobile APP only when NAT2.0 is enabled. After the NAT2.0 is enabled, when you add the device to the account of the mobile APP, you must enter the security code of the device here. Please refer to the mobile surveillance user manual for details.
4. Currently, only the latest APP version can receive the verification code.

After the device is bound to the account of the mobile APP, the blue binding information will be shown under the QRcode. Click this blue information to unbind it.

14.1.9 Cloud Upgrade

Note: Before you use cloud upgrade, please enable NAT2.0.

Device Upgrade

Cloud Upgrade Upgrade Options Accept Notification Only Device Upgrade Channel Upgrade Current Version 1.4.9.68778B239627_N2P_U1(5A816)_beta(2823.66.27) This is the latest version. Automatically upgrade after downloaded. Don't power off during the upgrade process. Check for Updates Upgrade

① Select "Accept Notification Only" or click "Check for Updates" to check whether the current version is the latest. If your software version is not the latest, click "Upgrade" to download and upgrade from the cloud server.

② Please don't power off during the upgrade process.

Camera Upgrade

Click the "Channel Upgrade" tab to automatically check the added camera version. If cameras are not the latest version, click "Check for Updates" to get the latest version from the cloud server. You can upgrade cameras one by one or in batches as needed.

14.1.10 Platform Access

Some models may not support this function.

This function is mainly used for connecting VMS. The setting steps are as follows.

Click Start→Settings→Network→Integration→Platform Access to go to the interface.

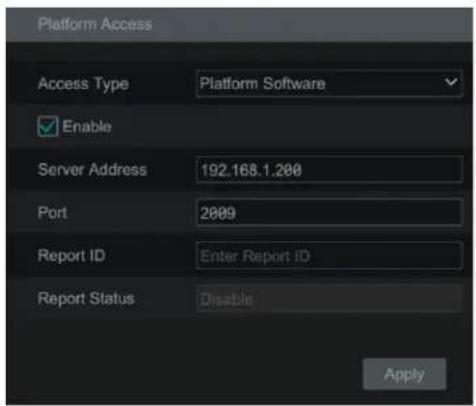

Platform Access Access Type Platform Software Enable Server Address 192.168.1.200 Port 2009 Report ID Enter Report ID Report Status Disable Apply

Platform Access

① Set "Access Type" as "Platform Software" and select "Enable" as shown below.
② Check the IP address and port of the transfer media server in the VMS. The default server port for auto report is 2009. If it is modified, please go to the transfer media interface to check.
③ Enable the auto report in the VMS when adding a new device. Then self-define device ID and complete the remaining information of the device in the VMS.
④ Enter the above-mentioned server address, port and report ID in the server interface. Then click "Apply" to save the settings. Now the VMS system will automatically connect this device.

14.1.11 UPnP Report Access

In this interface, you can also access the third-party platform by UPnP Report. Click Start→Settings→Network→Integration→UPnP Report. If this one is enabled, please enter the server address, port and manufacturer ID.

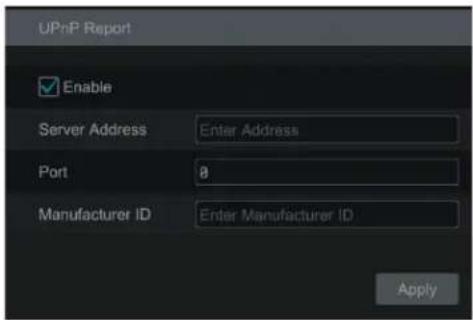

UPnP Report Enable Server Address Enter Address Port 0 Manufacturer ID Enter Manufacturer ID Apply

14.1.12 ONVIF

The device supports ONVIF (Profile G/T/S) and the model name can be searched on ONVIF official website. After the ONVIF is enabled, it can be searched and connected to the third-party platform via ONVIF protocol.

Click Start→Settings→Network→Integration→ONVIF to enter the following interface.

ONVIF Enable ONVI Add User User List No Username Password Enter Username Password Enter Password 1.6 to 16 characters 2. Contains two or more numbers/lowcase/uppercase letters/symbols. Confirm Password Enter Password User Type Video User Operator Admin OK Cancel Apply

Note: when adding the device to the third-party platform with ONVIF protocol, please check "Enable ONVIF" first and then enter the username and password created in the above interface.

14.1.13 Network Status

Click Start→Settings→Network→Network Status to view the network status to view network status conveniently.

Click Start→Settings→Network→Network Status Detection. Enter the IP address and then click "Test" to check the network connection status (like network delay, packet loss).

14.2 Basic Configuration

14.2.1 General Configuration

Click Start→Settings→System→Basic→General Settings to go to the following interface. Set the device name, device No., language, video format and main output. Enable or disable wizard, "Log In Automatically", "Log Out Automatically" (if checked, you can set the wait time), "App Live Self-Adaption" and "Dwell Automatically" (if checked, you can set the wait time). Click "Apply" to save the settings.

General Settings Device Name Device Name Device No. 1 Language English Video Format NTSC Fixed Display Resolution Main Output 1928x1960 Enable EZ Setup Log In Automatically Log Out Automatically Wait Time 1 Min App Live Self-adaption Sequence Automatically Wait Time 10 Mins Live preview full screen time display Apply

Device Name: The name of the device. It may display on the client end or CMS that help user to recognize the device remotely.

Video Format: Two modes: PAL and NTSC. Select the video format according to the camera.

Main Output: Enable "Fixed display resolution" and then select the main output as needed.

Note: You can set the resolutions of the main output and secondary output respectively if the NVR has dual outputs. Refer to the picture as shown below.

Sequence Automatically: Check it and set "wait time". The system will sequence automatically if it is not operated during the time you set.

14.2.2 Date and Time Configuration

Click Start→Settings→System→Basic→Date and Time to go to the interface as shown below.

Set the system time, date format, time format and time zone of the NVR. The default time zone is GMT+08 Beijing, Hong Kong, Shanghai, Taipei. If the selected time zone includes DST, the DST of the time zone will be checked by default. Click "Apply" to save the settings.

You can manually set the system time or synchronize system time with network through NTP.

Manual: select "Manual" in the "Synchronous" option and then click after the "System Time" option to set the system time.

NTP: select "NTP" in the "Synchronous" option and then enter the NTP server.

Date and Time System Time 04/07/2020 18:31:47 PM Date Format Month/Day/Year Time Format 12-Hour Sync Time With Network Synchronous Manual NTP Server time.windows.com Time Zone / DST Time Zone GMT-85 New York, Toronto, Wash DST Enable

14.2.3 Recorder OSD Settings

Click Start→Settings→System→Basic→Recorder OSD settings to go to the following interface. OSD name, icon and address can be enabled here.

14.2.4 PoE Settings

- PoE Management

Click Start→Settings→System→Basic Settings→PoE Power Management to go to the following interface. This function is only available for the POE device.

PoE Power Management PoE Plug-and-Play Settings PoE Port Enable ✓ Current Power PoE[01] ON ✓ 0.00W PoE[02] ON ✓ 0.00W PoE[03] ON ✓ 0.00W PoE[04] ON ✓ 0.00W PoE[05] ON ✓ 0.00W PoE[06] ON ✓ 0.00W PoE[07] ON ✓ 0.00W PoE[08] ON ✓ 0.00W PoE[09] ON ✓ 0.00W PoE[10] ON ✓ 0.00W PoE[11] ON ✓ 0.00W PoE[12] ON ✓ 0.00W PoE[13] ON ✓ 0.00W PoE[14] ON ✓ 0.00W PoE[15] ON ✓ 0.00W PoE[16] ON ✓ 0.00W Total Power: 158.00W, Remain Power: 158.00W Apply

In this interface, you can view the current power consumption of the added POE camera/panel. The PoE power supply of the PoE camera/panel can be enabled or disabled by selecting "ON" or "OFF" as needed.

PoE Plug-and-Play Settings

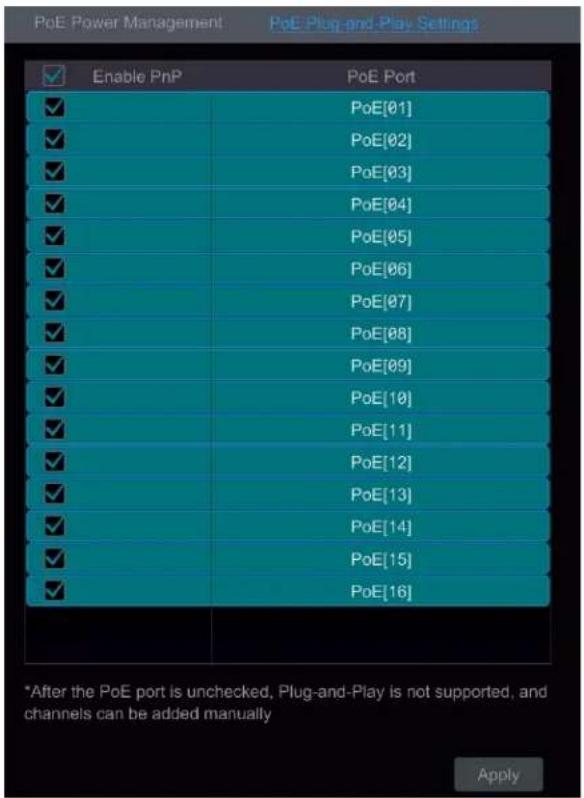

PoE Power Management PoE Plug-and-Play Settings Enable PnP PoE Port ✓ PoE[01] ✓ PoE[02] ✓ PoE[03] ✓ PoE[04] ✓ PoE[05] ✓ PoE[06] ✓ PoE[07] ✓ PoE[08] ✓ PoE[09] ✓ PoE[10] ✓ PoE[11] ✓ PoE[12] ✓ PoE[13] ✓ PoE[14] ✓ PoE[15] ✓ PoE[16] *After the PoE port is unchecked, Plug-and-Play is not supported, and channels can be added manually Apply

The PnP function of each PoE port is enabled by default. You can directly connect the PoE IPC to the PoE port of the NVR with a network cable.

You can also connect the PoE IPC to the NVR via a PoE switch by referring to the following steps.

1. Disable the PnP function of a PoE Port in the above interface.
2. Connect the PoE switch to this PoE port of the NVR with a network cable.
3. Connect the PoE IPCs to the PoE switch with network cables.
4. Go to Start→Settings→Network→Internal Ethernet Port interface. Set the IP address segment and mode as needed.
5. Go to Start→Settings→Camera→Edit Camera interface. Click "Add Camera" to add these PoE IPCs.

Note: If the above-mentioned PoE IPCs are added to the NVR successfully, the corresponding number of PoE ports will be occupied. For example, if the NVR has 16 PoE ports and one of them is used to connect a PoE switch which 8 PoE IPCs are connected to, then only 8 PoE ports of the NVR can be used to directly connect PoE cameras.

14.3 Factory Default

Click Start→Settings→System→Maintenance→Factory Default and then click "Reset to factory default" button in the interface to reset to the factory default settings(check "Reset retain Network Configuration" to retain the network settings).

Note: Resetting to the factory default settings will not change time zone.

14.4 Device Software Upgrade

- Upgrade

You can click Start→Settings→System→Information→Basic to view MCU, kernel version and firmware version and so on. Before upgrade, please get the upgrade file from your dealer.

The upgrade steps are as follows:

① Copy the upgrade software into the USB storage device.
② Insert the USB storage device into the USB interface of the NVR.
③ Click Start→Settings→System→Maintenance→Upgrade to go to "Upgrade" interface. Select the USB device in "Device Name" option and go to the path where the upgrade software exists. Select the upgrade software and then click "Upgrade". The system may automatically restart during upgrading. Please wait for a while and do not power off the NVR during upgrading.

Note: The file system of the USB mobile device which is used for upgrading, backing up and restoring should be FAT32 format.

14.5 Backup and Restore

You can back up the configuration file of the NVR by exporting the file to other storage devices; you can recover the configuration to other NVRs which are of the same model with the NVR by importing the configuration file to other NVRs for time saving.

Insert the USB storage device into the USB interface of the NVR and then click Start→Settings→System→Maintenance→Backup and Restore to go to the interface.

- Backup

Select the USB device in "Device Name" option; go to the path where you want to store the configuration backup file and then click "Backup" button; finally click "OK" button in the popup window.

- Recover

Select the USB device in "Device Name" option; find the configuration backup file and then click "Recover" button; finally click "OK" button in the popup window.

14.6 Restart Automatically

You can set the automatic restart time for the NVR to maintain it regularly. Click Start→Settings→System→Maintenance→Auto Maintenance to go to the interface as shown below. Enable auto maintenance, set the interval days and point of time and then click "Apply" to save the settings. The NVR will restart automatically at the pointed time every interval days.

Auto Maintenance Enable Interval Days 10 Days Point Of Time 23:59 Apply

14.7 View Log

Click Start→Settings→System→Maintenance→View Log to go to the log view interface. Select the log main type, click 📄 to set start time and end time and then click "Search" button. The searched log files will be displayed in the list.

Main Type All Alarm Operation Settings Exception Start Time 04/05/2020 12:00:00 AM End Time 04/07/2020 11:59:59 PM Search Export No Main Type Log Time Content Details Play 1 Alarm 04/07/2020 10:33:52 PM Al Alarm Camera01---Face Detection 2 Alarm 04/07/2020 10:33:44 PM Motion Alarm Camera02 3 Alarm 04/07/2020 10:33:26 PM Al Alarm Camera02---Intrusion 4 Alarm 04/07/2020 10:33:16 PM Motion Alarm Camera01 5 Alarm 04/07/2020 10:33:82 PM Motion Alarm Camera02 6 Alarm 04/07/2020 10:32:46 PM Motion Alarm Camera01 7 Alarm 04/07/2020 10:32:42 PM Motion Alarm Camera02 8 Alarm 04/07/2020 10:32:84 PM Al Alarm Camera01---Face Detection 9 Alarm 04/07/2020 10:31:14 PM Motion Alarm Camera01 10 Alarm 04/07/2020 10:30:36 PM Motion Alarm Camera02 11 Alarm 04/07/2020 10:30:29 PM Al Alarm Camera01---Face Detection 12 Alarm 04/07/2020 10:30:15 PM Motion Alarm Camera02 13 Alarm 04/07/2020 10:29:54 PM Motion Alarm Camera01 14 Alarm 04/07/2020 10:29:38 PM Motion Alarm Camera02 15 Alarm 04/07/2020 10:29:14 PM Motion Alarm Camera01 16 Alarm 04/07/2020 10:29:87 PM Motion Alarm Camera02 17 Alarm 04/07/2020 10:29:82 PM Al Alarm Camera01---Face Detection Current Page: 1 / 58, All 2897 K < > |

Choose the log file in the list and then click "Export" button to export the log file. Click on the "Content" title bar to pop up a menu list. Check contents in the menu list and then the log list will show the checked log contents only. Click to play the video log.

14.8 View System Information

Click Start→Settings→System→Information and then click the corresponding menu to view the "Basic", "Camera Status", "Alarm Status", "Record Status", "Network Status" and "Disk" information of the system.

15 Remote Surveillance

15.1 Mobile Client Surveillance

① Enable NAT in the NVR. Refer to NAT Configuration for details.
② Scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras.
③ Run the mobile client, go to the "Add Device" interface and then click ☐ to scan the QRCode of the NVR (Go to Start→Settings→System→Information→Basic to view the QRCode of the NVR).
④ After scanning the QRCode successfully, enter the login password to log in mobile client.

Server List(2/2) Packing List Menu: 310486 Lab Scan code to a Local Area Net... Generate Device... Sort By Name Manually add Scan code to a

QR Code Scanning Align QR code within frame to scan

15.2 Web LAN Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
② Open the web browser on your computer, enter the IP address of the NVR in the address bar and then press enter to go to the login interface as shown below. You can change the display language on the top right corner of the login interface. Enter the username and password of the NVR in the interface and then click "Login" to go to the live view interface.

Notes: 1. Please make sure that the IP address of the NVR and the computer are both in the same local network segment. For example, supposing that the IP address of the computer is 192.168.1.41, the IP address of the NVR shall be set to 192.168.1.XXX. 2. If the HTTP port of the NVR is not 80, but other number instead, you need to input the IP address plus port number in the IE address bar when accessing the NVR over network. For example, the HTTP port is 81. You should enter http://192.168.1.42:81 in the IE address bar.

15.3 Web WAN Access

① Set the network of the NVR. Please refer to TCP/IP Configuration for details.
② Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check "Enable". Click "Apply" to save the settings and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login.

Note: If your device is bound to the APP, the verification code getting from the APP is needed.

QR code number Enter Your Username Enter Your Password Login speco technologies Giving You More.

PPPoE Access

① Click Start→Settings→Network→PPPoE to go to the "PPPoE" interface. Check "Enable" in the "PPPoE settings" and then enter the username and password you get from your ISP. Click "Apply" to save the settings.
② Click Start→Settings→Network→Network Status to view the IP address of the NVR.
③ Open the web browser on your computer, enter the IP address of the NVR like http://210.21.229.138 in the address bar and then press enter to go to the login interface. Enter the username and password of the NVR in the interface and then click "Login" to go to the live view interface.

Router Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
② Set the HTTP port (it is suggested to modify the HTTP port because the default HTTP port 80 might be taken up) and enable UPnP function in both the NVR and the router. If the UPnP function is not available in the router, you need to forward the LAN IP address, HTTP port and server port of the NVR to the router. Port mapping settings may be different in different routers, so please refer to the user manual of the router for details.
③ Get the WAN IP address of the NVR from the router. Open the web browser on your computer, enter the WAN IP address plus HTTP port like http://116.30.18.215:100 in the address bar and then press enter to go to the login interface. Enter the username and password of the NVR in the interface and then click "Login" to go to the live view interface.

Note: If the WAN IP address is a dynamic IP address, it is necessary for you to use the domain name to access the NVR. Click Start→Settings→Network→DDNS to set DDNS (see DDNS Configuration for details). By using DDNS function you can use the domain name plus HTTP port like http://sunshine.dvrdydns.com:100 to access the NVR via internet.

15.4 Web Remote Control

The NVR supports web client access with plug-in or without plug-in.

The supported browsers (green color) for remote access with the plug-in are as follows. The red color versions are not supported.

When you access the NVR through the above web browser for the first time, the browsers need to download and install the relative components for normal preview and playback.

If the permission of the configuration modification are needed after the plug-in runs, please allow it, or the interface cannot be displayed normally; if the relevant ports of plug-in (port 11563; port 12863; port 13863) are occupied, the system will tell you which program has occupied the port. Please stop the occupied program.

The supported browsers (green color) for remote access without the plug-in are as follows. The red color versions are not supported.

The buttons and icons on the top right corner of the remote interface are introduced as follows.

admin: the current login username.

Logout: click it to log out and return to the login interface.

Modify Password: click it to change the password of the current login user. Enter the current password and then set a new password in the popup window. Click "OK" button to save the new password.

Local Settings: click it to change the local settings. Set the snapshot number and click "Browse" to set the snapshot path and record path as shown below. Click "Apply" button to save the settings.

Snapshots number Save snapshots to C:\Users\bj\Pictures Browse Save record files to C:\Users\bj\Videos Browse Apply

Here we take the web browser with the applicable plug-in installed as an example to introduce.

15.4.1 Remote Preview

Click "Live View" in the remote interface to go to the live view interface. The live view interface consists of the four areas marked in the following picture.

Live View Playback Search and Export Intelligent Analytics Settings Camera (3/3) Search Camera IPC: Camera01 Camera02 Left Panel Preview Area Operation Camera02 10:30:29 Right Panel Camera01 10:38:19 Strangin Camera01 10:37:34 Strangin Real Time History Toolbar

Start Preview

Select a window in the preview area and then click one online camera on the left panel to preview the camera in the window. You can click 📋 in the tool bar to preview all the cameras.

➢ Left Panel Introduction

Click < on the left panel to hide the panel and click > to show the panel. You can view all the added cameras and groups on the left panel.

- View Camera

Click to view the cameras. You can view the number of all the added cameras and the online cameras. For instance, the left number 3 in

Camera (3/3)

on the left panel stands for the number of online cameras; the right number 3 stands for the number of all the added cameras.

Enter the camera name in the search box and then click 🔒 to search the camera. Click 🔒 to refresh the camera list.

• View Group

to view the groups. The up side of the left panel displays all the groups and the down side displays all the cameras in the group.

- View Scheme

to view the scheme. All schemes can be shown in the left panel. Double click the scheme name to invoke it quickly.

Tool Bar Introduction

Button	Meaning
	Screen mode button.
	Click to disable OSD. Click to enable OSD.
	Click to show full screen. Right click on the full screen to exit full screen.
	Click “All Main Stream” or “All Sub Stream” to set the stream of all the cameras.
	Manual alarm button. Click to pop up a window and then trigger and clear the alarm-out in the window manually.
	Click to preview all cameras.
	Click to close all the preview cameras.
	Click to start recording for all cameras to computer. Click to stop recording.
	Click to start manual record for all cameras to the NVR. Click ● to stop manual record for all cameras.
	Click to enable talk with the NVR.

Right Panel Introduction

Click < on the right panel to show the panel and click > to hide the panel.

Target Detection Lens Control Fisheye Operation PTZ

Operation Lens Control Zoom Focus Mode Manual Mode Focus One key... Day/night mode switch aut... Main Stream Sub Stream Resolution 704x576 FPS 25 Max Bitrate 512Kbps Apply PTZ Zoom Focus Ins Preset + 首 粘

Click one camera window in the preview area and then click Main Stream to set the camera's live view stream and record stream to main stream in manual record mode; click Sub-stream to set the camera's live view stream and record stream to sub stream. In sub stream tab, set the resolution, FPS and bitrate and then click "Apply" to save the settings.

Operation panel introduction:

Button	Meaning
	Click to take snapshots.
	Click to start recording to computer; click it again to stop recording.
	Click to zoom in the image of the camera and then drag the mouse on the camera image to view the hidden area.
	Click to zoom out the image of the camera.
	The 3D zoom in function is designed for P.T.Z. Click the button and then drag the image to zoom in or zoom out the image; click the image on different areas to view the image of the dome omni-directionally.
	Click to start record to the NVR
	Click to close the preview camera.
	Click to enable audio and then drag the slider bar to adjust the volume. You can listen to the camera audio by enabling audio.

PTZ panel introduction:

Button	Meaning
	Click ▲ / ▼ / ▼ / ▼ / ▲ / ▲ / ▲ / ▲ to rotate the dome; click to stop rotating the dome.
	Drag the slider to adjust the rotating speed of dome.
	Click /to zoom in/out camera image.
	Click ▲ / ▲ to increase/ decrease the focal length.
	Click / to increase/decrease the iris of the dome.
Preset	Click to view the preset list and then click the button in the list to call the preset. Click to add a preset; click to save the preset setting; click to delete the selected preset
Cruise	Click to view the cruise list. Click + to add a cruise; click to play the cruise; click to stop cruise.
Cruise Group	Click to view the cruise group list. Click + to add a cruise group; click to play the cruise group; click to stop cruise group.
Trace	Click to view the trace list. Click + to add a trace; click ▶ to play the trace click to start record.

15.4.2 Remote Playback

Click "Playback" in the remote interface to go to the playback interface.

① Check the record event types and cameras on the left panel. Set the record date on the calendar beside the time scale.
② Click 🔍 to search the record data and then click 🔍 or directly click the time scale to play the record.

The operation of the playback time scale is similar to that of the time scale in the main program of the NVR. Please refer to Playback Interface Introduction for details.

Introduction of playback control buttons:

Button	Meaning
	Stop button.
	Rewind button. Click to play video backward.
	Play button. Click to play video forward.
	Pause button.
	Deceleration button. Click to decrease the playing speed.
	Acceleration button. Click to increase the playing speed.
	Previous frame button. It works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Clickto step backward 30s and clickto step forward 30s.
	Backup start time button. Click the time scale and then click it to set the backup start time.
	Backup end time button. Click the time scale and then click it to set the backup end time.
	Export button.
	Backup tasks button. Click to view the backup status.
	Event list button. Click to view the event record of manual/schedule/sensor/motion.

15.4.3 Remote Export

Click "Export" in the remote interface to go to the export interface. You can export the record by event search or by time search.

Event Search

Check the record type on the left side of the interface and then click to set the start time and end time; check the cameras and then click on the right side to search the record (the searched record data will be displayed in the list); check the record data in the list and then click "Export" button to export the record.

Time Search

Click to set the start time and end time on the left side of the interface; check the cameras and then click on the right side to backup the record.

Snapshots

The system will display all the captured images automatically in the list. Click 📄 to delete the image. Click 📄 to pop up the "Export" window. Click 📄 to pop up the "View Image" window. Click 📄 to export the image.

View Export Status

Click "Export Status" to view the export status. Click "Pause" to stop the export; click "Resume" to continue the export; click "Delete" to delete the task.

15.4.4 Intelligent Analysis

Click "Intelligent Analysis" in the remote interface to configure smart search, statistics, sample database, parking lot management, face attendance and face check in. All of these settings are similar to that of the NVR. See the configurations of the NVR for details.

15.4.5 Remote Configuration

Click "Function Panel" in the remote interface and then configure the camera, record, alarm, disk, network, account and authority and system of the NVR remotely. All of these settings are the same as the settings of the NVR. See the configurations of the NVR for details.

Jumping to IPC Web Client

Except the IPC access with RTSP protocol, the IPC can be directly jumped from the NVR web client to the IPC web client by clicking in the above-mentioned interface.

1. Please login the Web Client of NVR (See Web LAN Access or Web WAN Access for details).
2. Click Function Panel→Camera→Edit Camera to go to the following interface.

No.	Camera Name	Address	Port	Status	Protocol	Model	Preview	Edit	Delete	Settings	Upgrad	Version
1	IPC	10.15.1.143	9006	Online	IP Camera							5.1.2.0(36402)
2	Camera01	192.168.250.105	9008									5.0.1.0(8874)
3	Camera02	172.20.74.201	9006									5.1.0.0(6797)

1. Select the camera and click ✿ to log in the web client of the camera. Then you can set the parameters of the camera as needed.

Appendix A FAQ

Q1. Why can't I find the HDD?

a. Please check the power and SATA data cables of the HDD to make sure they are well connected.
b. For some NVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the NVR.
c. Please make sure the HDDs are compatible with the NVR. See Appendix C Compatible Device List for details.
d. The HDD could have gone bad. Change a new one.

Q2. Why are there no images output in some or all of the camera windows?

a. Please make sure the resolutions of the cameras are supported by the NVR.
b. Please make sure the network cables of the IP camera and NVR are both connected properly and the network parameters are set correctly.
c. Please make sure the network and the switch both work normally.

Q3. The screen has no output after booting the NVR normally.

a. Please make sure the screen, HDMI or VGA cables are good and well connected.
b. Please make sure the screen supports the resolution of 1280*1024, 1920*1080 or 3840*2160 (4K*2K). The NVR cannot self-adapt to the screen of which the resolution is lower than 1280*1024, and then the screen will remind you that the screen resolution is not supported by the NVR or just have no display. Please change a screen at 1280*1024, 1920*1080 or 3840*2160 resolution before booting the NVR.

Q4. Forget the passwords?

a. The password for admin can be reset through "Edit Security Question" function.
Click "Edit Security Question" button in the login window and then enter the corresponding answer of the selected question in the popup window, the password for admin will be reset to 1234 by default. If you forget the answer of the question, this way will be invalid, please contact your dealer for help.
b. The passwords of other users can be reset by admin, please refer to Edit User for details.

Q5. The NVR cannot add up to the maximum number of IP cameras?

Take the 16 CH NVR as an example. Some 16 CH NVR support a maximum of 120Mbps bandwidth input (please take the real device for standard). Refer to the picture below. The remaining bandwidth should be larger than the bandwidth of the IP camera you want to add, or you would fail to add the IP camera. You should lower the added cameras' bitrate to release the bandwidth. It is recommended to add cameras by "Quickly Add" for batch adding.

Add Camera Quickly Add Add Manually Add Recorder No. Address Port Edit Subnet Mask Protocol Model Version 1 192.168.122.103 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 2 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 3 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1.beta1 0 Selected: 0 / 3 Remain Bandwidth: 108 / 120 Mb Default Password Add Cancel

Q6. The IP camera which connects to the PoE port of the NVR cannot be displayed automatically in the camera list, why?

a. Please check whether the resource of the PoE port is occupied by another IP camera that is added through network(including a PoE switch).
● Take the 16 CH NVR with 8 PoE ports as an example. The resource distribution of the 16 CH IP cameras is shown in the picture below.

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

CH9

CH10

CH11

CH12

CH13

CH14

CH15

CH16

POE-1

POE-2

POE-3

POE-4

POE-5

POE-6

POE-7

POE-8

When you add IP cameras through network, the IP cameras will occupy the resource from CH1, CH2, CH3, CH4... by the adding sequence; if you directly connect the IP cameras to the PoE ports of the NVR, the IP cameras will occupy the resource from CH9 to CH16 according to the number of the PoE port each IP camera is connecting to.

Supposing that 12 CH IP cameras have been added to the NVR through network and no IP camera has been directly connected to the PoE port. The

12 CH IP cameras occupy the 8 network resources from CH1 to CH8 and 4 PoE resources from CH9 to CH12 which are supposed to be occupied by connecting the IP cameras directly. In this situation, if you directly connect one IP camera to PoE5, PoE6, PoE7 or PoE8, the IP camera will be displayed in the camera list automatically; if you connect it to PoE1, PoE2, PoE3 or PoE4, it won't be displayed in the camera list by showing resource conflict; if you just need to connect it to PoE1, PoE2, PoE3 or PoE4, you should first delete the IP camera which occupies the PoE port resource and then reconnect it to the PoE port.

- Take the 8 CH NVR with 8 PoE ports as another example. The resource distribution of the 8 CH IP cameras is shown in the picture below and the adding rules of the IP cameras are similar to the rules mentioned in the above. Please refer to the above for details.

CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
POE-1	POE-2	POE-3	POE-4	POE-5	POE-6	POE-7	POE-8

b. Please make sure that the internal Ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol are in the same network segment.

The internal Ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol should be in the same network segment, or you will fail to add the IP camera. Log in the IP camera's web client and then enable DHCP (obtain an IP address automatically); or manually change the IP address of the IP camera to make it in the same network segment with the internal Ethernet port.

c. Check whether the number of the added IP camera is the maximum.

If the number of the added IP camera is the maximum, the system will show you the message that the IP camera number is beyond the maximum when you directly connect another IP camera to the available PoE port and thus you will fail to add the IP camera.

Q7. The IP camera which directly connects to the PoE port of the NVR through ONVIF protocol is shown in the camera list, but there is no image output, why?

Please make sure the username and password of the IP camera are correct. The IP camera's username and password can be modified through the two ways mentioned as below.

① Click "Edit Camera" in the Camera module of the setup panel to go to the interface as shown below. Click 📋 to modify the username and password of the IP camera (enter the correct username and password of the IP camera in the popup window and then click "OK" button).

Edit Camera Edit Camera Group IP Planning Search Camera No. Camera Name ↑ Address Port Status Protocol Model Preview Edit Upgrade Version 1 [POE3]IP Camera1 10.151.151.20 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 2 IP Camera2 192.168.12.40 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 3 IP Camera3 192.168.12.152 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 4 IP Camera4 192.168.12.41 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 5 IP Camera5 192.168.12.153 80 Offline ONVIF xxx ▶ ♦ ↑ 6 IP Camera6 192.168.12.154 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 7 IP Camera7 192.168.12.155 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 8 IP Camera8 192.168.12.156 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 9 IP Camera9 192.168.12.157 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 10 [POE]IP Camera10 192.168.12.158 80 Online ONVIF xxx ▶ ♦ ↑ ↑ 3.4.2 IP Camera Max Number: Remain Bandwidth: 108 /120 Mb

② Go to the live view interface and then click in the preview window of the IP camera to edit the IP camera's username and password.

Q8. The system cannot record, why?

a. Make sure the HDD was formatted prior to use.
b. The record schedule has not been set in manual record mode. Please refer to Schedule Settings for details.
c. Maybe HDD is full and thus the NVR is not able to record. Check HDD information from Disk Management and if required, please enable the recycle function (please see Advanced Configuration for details).
d. There is no disk but cameras in the disk group, so please add at least one disk to the group. Refer to Storage Mode Configuration for details.
e. The HDD could have gone bad. Please change another one.

Q9. Fail to access the NVR remotely through IE.

a. Please make sure the IE version is IE8 or above.
b. Please check whether the PC has enabled the firewall or installed the antivirus software. Please try to access the NVR again after you disable the firewall and stop the antivirus software.

c. Allow & block list may have been set in Account and Authority setting. The PC of which the IP address is in the block list or out of the allow list cannot access the NVR remotely.

Q10. ActiveX control cannot be downloaded. How can I do?

a. IE browser blocks ActiveX control. Please do setup as per the steps mentioned below.

① Open IE browser. Click →Internet Options.

Print File Zoom (100%) Safety Add site to Start menu View downloads Ctrl+J Manage add-ons F12 Developer Tools Go to pinned sites Compatibility View settings Report website problems Internet options About Internet Explorer

② Select Security→Custom Level. Refer to Fig 10-1.
③ Enable all the sub options under "ActiveX controls and plug-ins". Refer to Fig 10-2.
④ Then click "OK" to finish setup.

b. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings.

Internet Options General Security Privacy Content Connectors Programs Advanced Select a zone to view or change security settings. Internet Local intranet Trusted sites Restricted sites Internet This zone is for Internet websites, except those listed in trusted and restricted zones. Security level for the zone Allowed levels for the zone: Medium to High Medium-high - Appropriate for most websites - Prompts before downloading potentially unsafe content - Unsigned ActiveX controls will not be downloaded ■ Enable Protected Mode (requires restarting Internet Explorer) Custom level... Default level Reset all zones to default level OK Cancel Apply

Fig 10-1

Security Settings - Internet Zone Settings ActiveX controls and plug-in Allow ActiveX Filtering Disable Enable Allow previously unused ActiveX controls to run without prior Disable Enable Allow Scripteds Disable Enable Prompt Automatic prompting for ActiveX controls Disable Enable Binary and script behaviors Administrator approved *Takes effect after you restart your computer Reset custom settings Reset to: Medium high (default) Reset... OK Cancel

Fig 10-2

Q11. How to play the backup file?

a. Record backed up by NVR: insert the USB device in which the record backup files is saved to the USB interface of the PC and then open the USB device path. The record can be backed up in the private format and AVI format by NVR.
- If you select the private format when backing up record by NVR, a RPAS (Recording Player Application Software) compression package will be backed up to the USB device automatically along with the record data. Uncompress the "RPAS.zip" and then click "RPAS.exe" to set up RPAS. After the setup is completed, open RPAS player and then click "Open Folder" button in the middle of the interface to select the record data. Refer to Fig 11-1.

Select camera in the resource tree on the left side of the interface to play the camera record. Click 📷 on the tool bar under the camera image to enable audio. Refer to Fig 11-2.

- If you select the AVI format when backing up record by NVR, the record backup data can be played by the video player which supports this format.

b. Record backed up through web. The record can only be backed up with AVI format through web. The record can be backed up to PC and played by the video player which supports this format.

RPAS Play List + - RPAS Open Folder CPU: 6% RAM: 40% 2015/7/30 15:00:51

Fig 11-1

R#AS Play List + - C:\Users\Administrator\D... 2015-07-24 IP Camera1 Help 2015-07-24 06:30:48 06:35 06:41 06:45 06:50 06:55 06:59 06:63 06:67 06:71 06:75 06:79 Manually Schedule Sensor Motion CPU: 40% Rate: 4.9% 2015/7/01/15/05:38

Fig 11-2

Appendix B Calculate Recording Capacity

The recording capacity is mainly up to the record resolution, record stream and bitrate. Different image quality parameters decide different disk capacity occupation in equal times. The bigger the record resolution, record stream and record bitrate is, the more disk capacity is taken up in equal times. The calculation format of recording capacity is shown as below.

Recording Capacity (MB) = Bitrate (Kbps) ÷ 1024 ÷ 8 × 3600 × Recording hours per day × Record Storage Days × channel numbers 3600 means record for an hour (1TB=1024GB, 1GB=1024MB, 1MB=1024KB, 1Byte=8bit).

Record Bitrate (Kbps)	Used Space (MB/H)	Used Space (MB/D)
10240	4500	108000
8192	3600	86400
6144	2700	64800
4096	1800	43200
3072	1350	32400
2048	900	21600
1024	450	10800
768	337.5	8100
512	225	5400
384	168.75	4050
256	112.5	2700

The table below shows the recording capacity requirements for record storage in 30 days.

Record Bitrate (Kbps)	Recording Capacity (TB)
	1CH	4CH	8CH	16CH	32CH	64CH
10240	3.09	12.36	24.72	49.44	98.88	197.76
8192	2.48	9.89	19.78	39.56	79.11	158.21
6144	1.86	7.42	14.84	29.67	59.33	118.66
4096	1.24	4.95	9.89	19.78	39.56	79.11
3072	0.93	3.71	7.42	14.84	29.67	59.33
2048	0.62	2.48	4.95	9.89	19.78	39.56
1024	0.31	1.24	2.48	4.95	9.89	19.78
768	0.24	0.93	1.86	3.71	7.42	14.84
512	0.16	0.62	1.24	2.48	4.95	9.89
384	0.12	0.47	0.93	1.86	3.71	7.42
256	0.08	0.31	0.62	1.24	2.48	4.95

For instance, there is a 32CH NVR recording 24 hours per day and the record stores for 30 days. The NVR adopts dual stream recording. The main stream is 4096Kbps and the sub stream is 1024Kbps, then the total recording capacity is 49.45TB (39.56TB + 9.89TB). Considering the format loss of the disk is about 10% , the required disk capacity will be 55TB (49.45TB ÷ (1-10%)).

Model: N8NRE/N16NRE/N32NRE/N4NRN/N8NRN/ N16NRN/ N32NRN/N4NRL/N8NRL/ N8NRP/ N16NRP/N64NR/N4NRM/N8NRM/N16NRM/N8NRX/N16NRX

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY 11701

www.specotech.com
