Quick Start Guide
Thank you for purchasing our product. All examples and pictures used in the manual are only for reference purpose. Please take the real object as the standard.
Installation

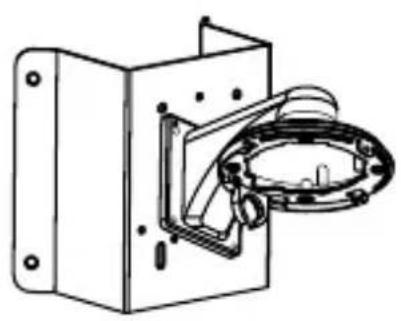

Corner mounting examples of the bracket and junction box.
● Corner Mounting of Dome Camera with Wall Mount
-
Loosen the lock screw to remove the mounting base.
-

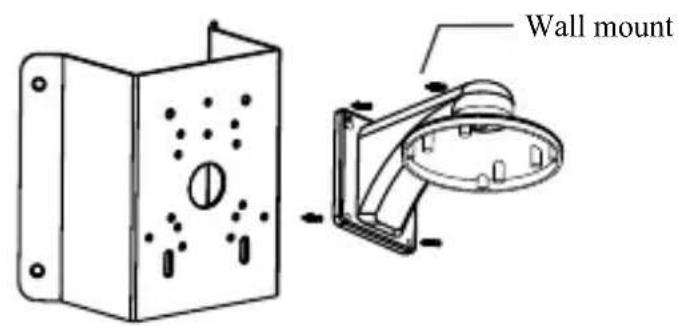

Fix the wall mount to the corner mount with the nuts and bolts.


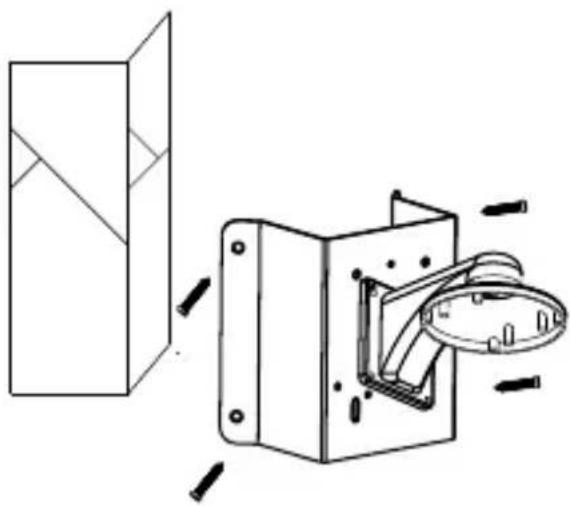

Wall mount- Install the corner mount to the corner.


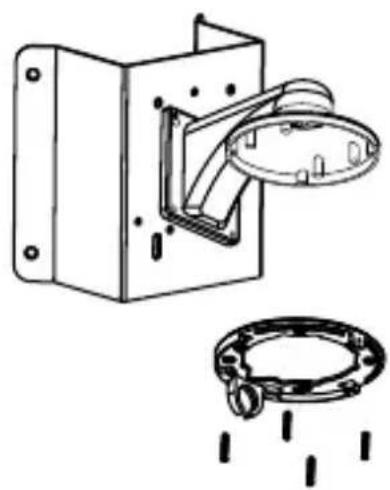

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)- Srew the mounting base of the dome camera to the wall mount with screws.


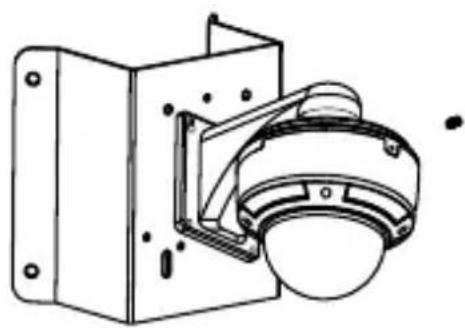

Technical line drawing of a mechanical assembly with a flange and mounting bracket (no text or symbols)- Mount the camera to the mounting base.


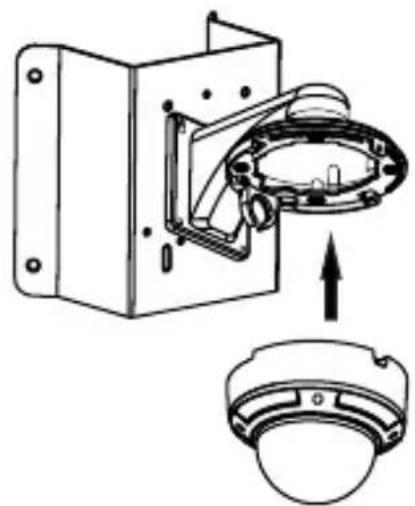

Technical diagram of a mechanical assembly with a housing and component, showing an upward force indicator (no text or labels present)- Fix the camera with lock screw.
-

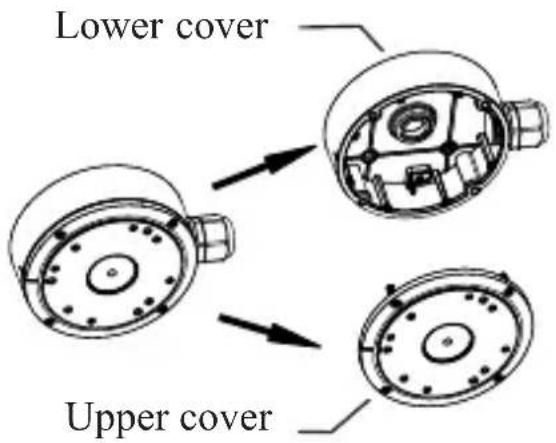

Open the covers of the junction box.
-

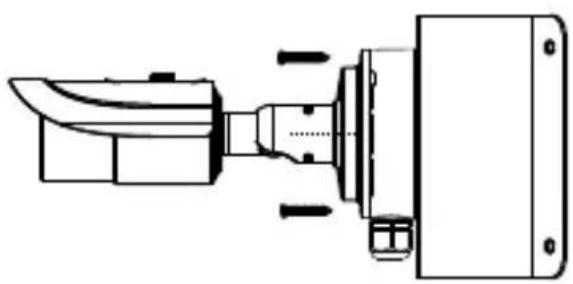

Screw the camera to the upper cover of the junction box.


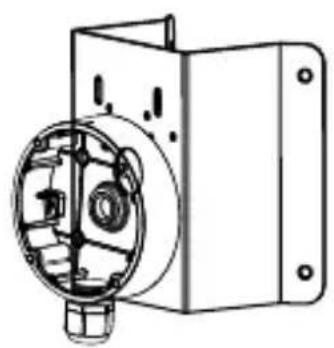

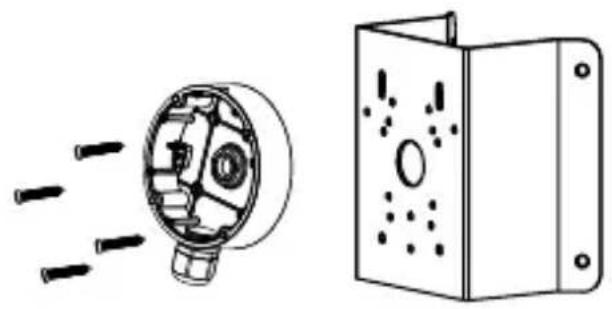

Fix the lower cover of the junction box to the corner mount with the nuts and bolts.
-

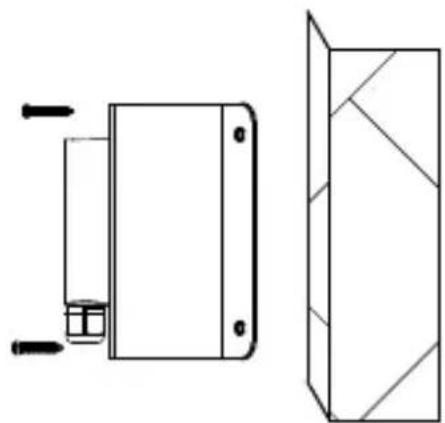

Install the corner mount to the corner.

