USER MANUAL Mylo Bi-Color Mini MB4 Ikan

Mylo Mini Bi-Color Portable Field LED Light Travel Kit

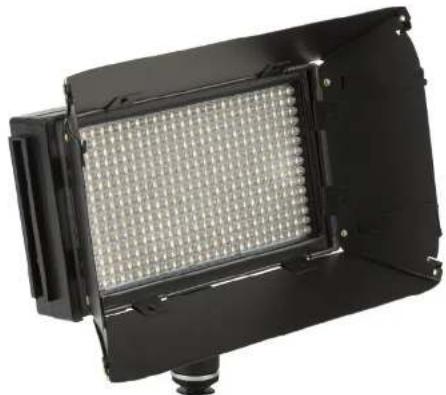

Exterior view of a black rectangular LED array light fixture (no text or symbols visible)

What's Included

General Information

Thank you for choosing Ikan Mylo Mini Bi-Color LED Light. This product will provide you with bright, portable illumination. It can be used in a variety of different scenarios. It features ultra-bright 420 LED bulbs with 45° lens. It has 3200K-5600K variable color temperature. With its removable barn doors and neutral diffusion filter, the Ikan Mylo Mini Light is the best choice for any working professional.

This fixture has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. These instructions contain important information regarding safety during use and maintenance.

Every fixture has been thoroughly tested. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for damage and be sure all accessories necessary to operate the unit have arrived intact. In the event damage has been found or parts are missing, please contact our customer support team for further instructions. Please do not return this unit to your dealer without first contacting customer support at the number listed below. Please do not discard the shipping carton in the trash. Please recycle whenever possible.

What's Included

1 x Mylo Mini Bi-Color LED Light Fixture
1 x Dual Charger
1 x Charger Adapter 12V
1 x Ball Head
1 x Diffuser
1 x Barn Doors
1 x Hard Case
2 x Sony "L" Batteries

Safety Warnings

To guarantee a smooth operation, it is important to follow the guidelines in this manual. The manufacturer of this device will not accept responsibility for damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.

DO NOT try and disassemble or repair the MR4. The fixture must be returned to lian for repair or replacement

Mounting the Mylo Mini to a Stand

The Mylo mini can be attached to a stand as well buy using the supplied shoe mount that come with the fixture. The stands that work most effectively with the Mylo Mini have a 14-20 or 3/8-15 thread on the top of them. The shoe mount must be modified to accept the stand by removing the bottom of the shoe and tightening disk from the mount. This will have a 14-20 insert in the mount and that can be screwed down on the top of the stand. (Removing the 14-20 insert allow for you to use the shoe mount with a 3/8-15 stand instead) The Mylo Mini can now be attached to the top of the shoe mount on the stand. This allows movement of 360 degrees for placement of the fixture in any position that is desired.

Powering the LEDs

The Mylo Mini can be powered by AC power supply or from the supplied Sony "L" Style Batteries. The AC power supply has a 4ft length and allows you to plug the lights into any standard 120-240V outlet. The Mylo Mini can be powered by the supplied Sony "L" Style batteries Either one or two batteries can be used to power up the fixture.

Adjusting the Color & Brightness of the Light

The My Mini LED Light is controlled by the large yellow knob on the rear of the fixture. The knob was designed with the idea that it could be reached and adjusted when the light is up on a stand. The knob has two push settings.

1. The default setting is the brightness, from 10%-100% brightness.
2. By pressing in on the knob the color temperature can be adjusted. (Bi-Color Lights)

Fixture Overview: (Front)

Top-down schematic of a rectangular electronic component with circular holes and mounting brackets (no text or symbols)

Power Options

Mylo Battery Operation

You can charge both your Sony style NP-F750 Batteries at the same time. Connect the power cable to the AC changer and plug it into the wall.

1. Place one or both battery packs onto the charger and slide it towards the indicator lights.
2. The indicator lights will illuminate with how much charge is left on the battery.
3. The charger will begin charging when the battery is fully inserted into the charger. Note: The battery is fully charged when all lights are a solid rod.

Attaching the battery pack to the back of the Myo light fixture can be done by placing the battery against the back of the Mylo battery port and sliding it forward.

Properly store the NP-F750 Battery when not in use. If the NP-F750 Battery will not be used for a while, run down the battery and store it with the Mylo light fixture.

Charging Times

NP-F750 Battery with ICH-DUAL-S: Normal Charge Time: \~225min

Fully Charge Time: \~320 min

Be sure to charge the battery pack before you start using your Mylo Light.

We recommend charging the battery pack in an ambient temperature of between 10°C\~30°C (50°F\~86°F) until the charge lamps are fully lit. It you charge the battery pack outside of this temperature range, you may not be able to charge it efficiently. Battery pack performance decreases when the ambient temperature is 10°C (50°F) or below, and the length of time you can use the battery pack becomes shorter. In that case, do the following to use the battery pack for a longer time. Put the battery pack in a pocket to warm it up, & insert your Mylo light right before you turn it on.

About Battery Life

Battery capacity decreases over time and through re-erated use. If you notice problems with the battery learning charge, it is

Specifications

MB4 Fixture Specifications
Beam Angle 50°
Build Material Heavy Duty Plastic Resin
Cooling System Passive Cooling
Dimming Knob Control
Fixture Size 8 x 5 x 2 in.
Fixture Weight 1 lbs
Head Type BI-Color 3200x-5600K
Lens 45°
Light Source 420 0.06 watt LEDs
Power Supply Input 100-240 VAC Output: 12VDC
Rating 12.6W, 7.4-14.8VDC

Optional Accessories

Some other products that work well with the Mylo Mini available from Ikan include:

SM-301

Heavy Duty Shoe Mount

CV600

Digital LED Light Meter with Exposure & Spectrometer

CP-STND-V3

Compact Light Stand Version 3

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [e-mail]

Ikan: and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.
