USER MANUAL PT4500W-TK Ikan

High Bright 15" Teleprompter with SDI Widescreen Monitor & Travel Case

Two black plastic medical or laboratory equipment cases: a small case and a laptop with green LED display (no visible text or symbols on the devices themselves)

What's Included

□ 1x Teleprompter Base
□ 1x Hood Frame
□ 1x Silicone Hood w/ Canvas Shroud
□ 1x Counterweight
□ 1x Tall Riser
□ 1x Medium Riser
□ 1x DSLR Riser
□ 2x L-Shaped Hex Keys
□ 2x 1/4-20 Camera Screws
□ 1x 15 in. Widescreen Monitor
□ 1x Power Adapter
□ 1x 70/30 15 in. Glass
□ 1x Digital Copy of Prompter Pro4
□ 1x Hard Travel Case

Teleprompter Assembly Setup

Step 1

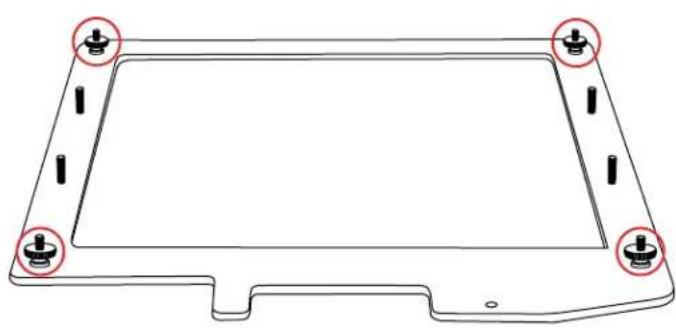

Place the teleprompter glass frame on a flat surface and remove the four screws as shown.

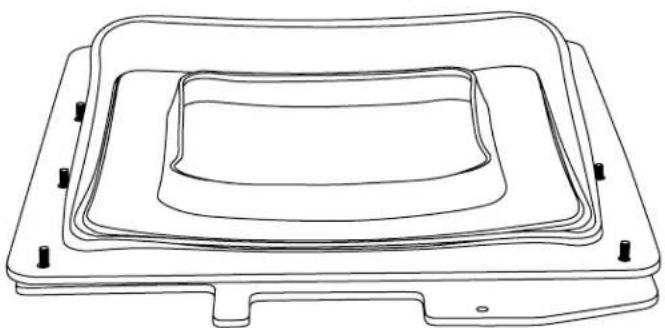

Step 2

Align and attach the teleprompter hood with the 8 screw pegs from the teleprompter frame.

Technical line drawing of a rectangular frame with four red circular markers on top corners (no text or symbols)

Line drawing of a rectangular electronic component with concentric layers and mounting feet (no text or symbols)

Step 3

The metal frame is directional. Make sure the thicker side is on top and the slimmer side is on the bottom.

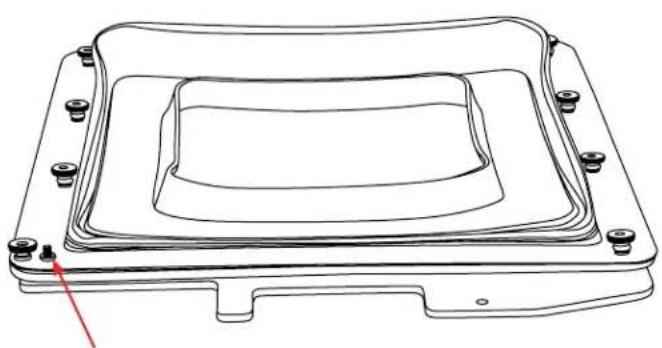

Step 4

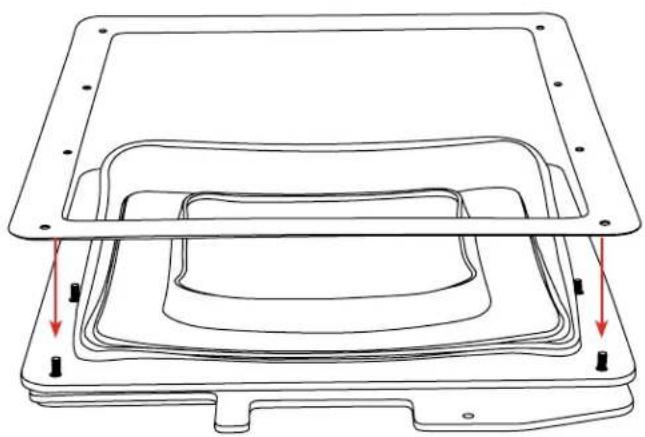

Put the washers on before tightening the screws. The washers and 4 additional screws are inside a bag on the bottom foam.

Technical line drawing of a mechanical component with layered internal structure and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and layered structure (no text or symbols)

Step 5

Extend the teleprompter hood open and attach teleprompter boot using the clips. It is suggested to align the seam with the bottom of the teleprompter hood.

Line drawing of a mechanical device with a dome-shaped component and mounting base (no text or symbols)

Step 6

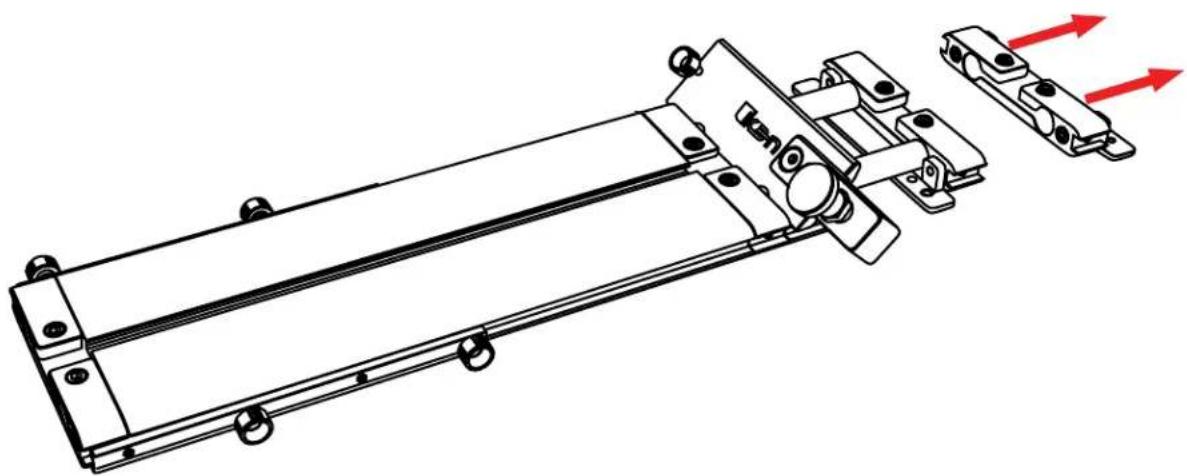

Removethe monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.

Technical line drawing of a mechanical assembly with red directional arrows indicating motion or force (no text or symbols present)

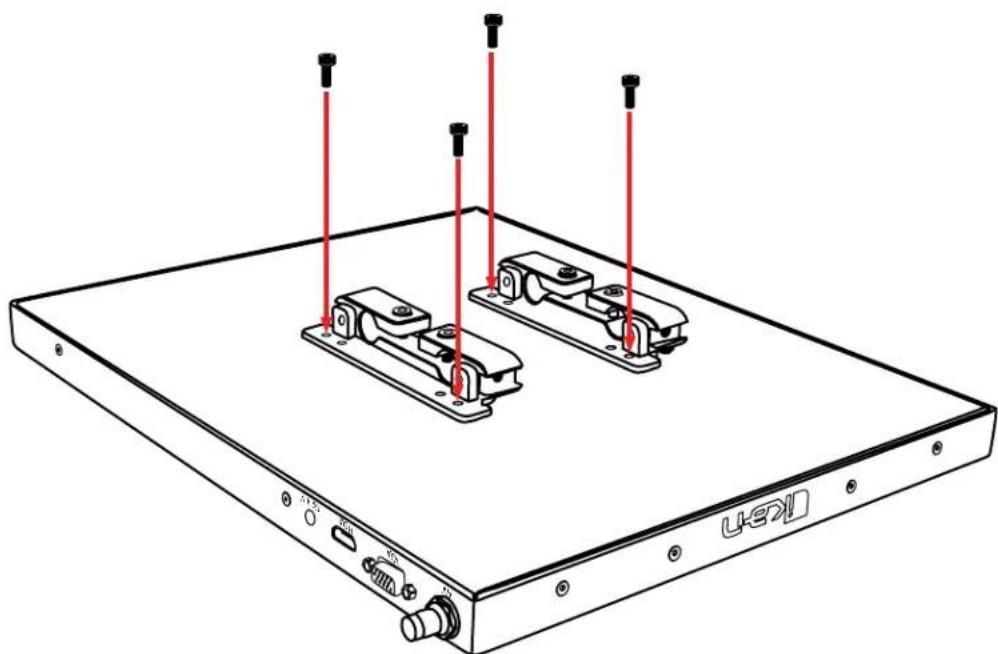

Step 7

Attach the monitor mounts on the back of the monitor's VESA compatible threads using the 4 included screws and provided 2mm hex key.

Technical line drawing of a device chassis with mounting brackets and red vertical rods (no text or symbols)

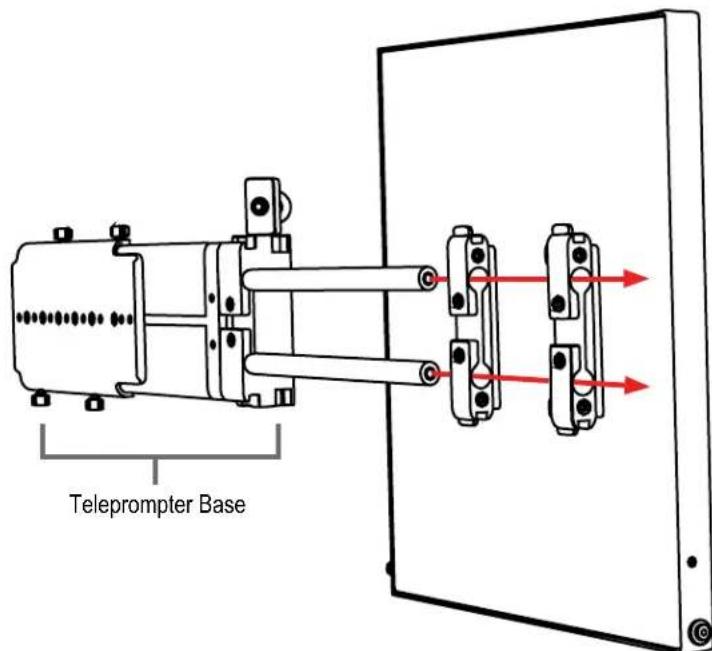

Step 8

After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor. *SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.

Teleprompter Base

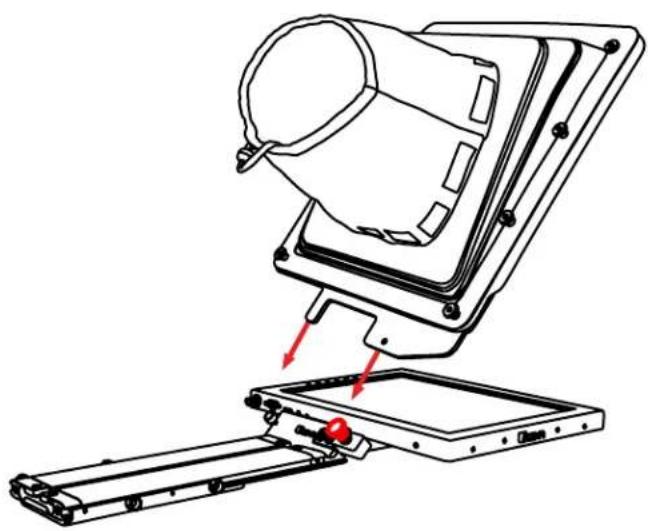

Step 9

While sliding the teleprompter bracket into the slot of the teleprompter base pull on the red knob to allow the bracket to fully slide in.

Step 10

Once the bracket is in place, tighten the side screw to lock in place. Double check and make sure all the screws are tightened with the included hex keys.

Technical diagram of a mechanical assembly with red arrows indicating motion or force direction (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 11 (optional)

Should the teleprompter be too front heavy, you can attach the included counter weight on the back of the teleprompter base.

Foam Case

To make your teleprompter more portable, we packed it in a reusable, high-quality SKB rolling hard case.

Stacked cardboard and plastic mechanical parts, including a box and a black plastic case with checkered lids (no text or symbols visible)

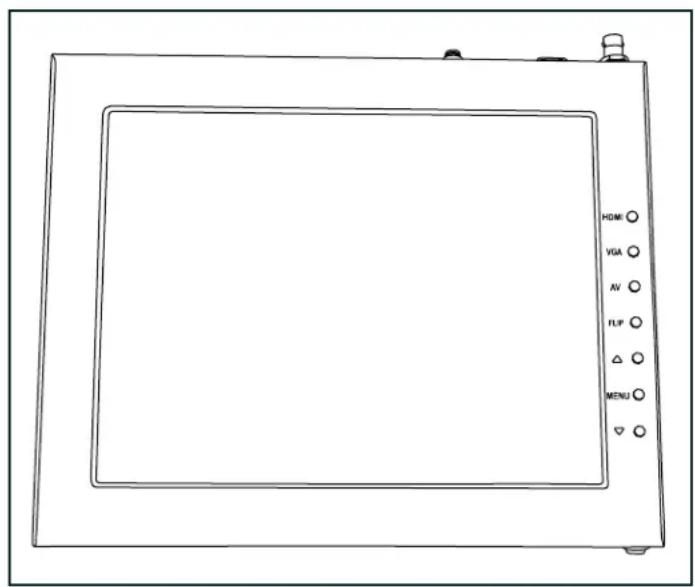

Monitor Ports

GND AV VGA HDMI HDMI USB

BNC- SDI Input

VGA– Video Graphics Array DE15 Connection

HDMI– High-Definition Multimedia Interface Input Connection

Power Port - 12-24v Input

HDMI VGA AV FLIP △ MENU ▽

HDMI– Switch HDMI input

VGA– Switch to VGA input

SDI – Switch to composite SDI input

Flip - Toggle image flip

(Canbe set to horizontal, vertical, or both via menu)

UpArrow - Toggle up to adjust setting

Menu – Access to monitor settings

Down Arrow – Toggle down to adjust setting

Monitor Menu Settings

Video Config

Contrast (White Level)

Brightness (Black Level)

Tint (Chroma Hue)

Chroma (Chroma Saturation)

Sharpness (Detail)

RGBSetup – Manually configure RGB

Return

System Config

Menu Duration – Set duration of how long menu stays on screen

Video Ratio - Set screen aspect ratio 16:9 or 4:3 (4:3 is native resolution, 16:9 will create black bars)

Flip-H – Assign toggle button to flip image horizontally

Flip-V – Assign toggle button to flip image vertically

Reset - Factory reset

Return

PC Setup (Only available for VGA)

H-Position – Adjust horizontal position

V-Position – Adjust vertical position

Auto – Monitor automatically adjust position

Return

Exit

How to set-up FLIP button feature:

1. Press MENUbutton
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to "ON"
5. Exit MENU
6. The FLIP button should now be activated and can be pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-Vis ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both Horizontal and Vertical flip

Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Teleprompters:

ikancorp.com/15-in-videos/

QR code image containing encoded data, no visible human-readable text

Optional Accessories

PT4500-G Replacement Glass for both PT4500-V2

M15W 15" High Bright Widescreen Talent Monitor (for PT4500-SDI-V2)

PT15-SDI-V2 15" High Bright 4:3 Monitor (for PT4500-SDI-V2)

PT-CASE-V2 Rolling Hard Case for PT4500-SDI-V2 Teleprompter

PT-CASE-15TM Hard Case for 15" Talent Monitor

Supported Video Signals

HDMI:

1080p @ 50, 25, 59.94, 60, 23.976, 24, 29.97, 30 Hz

1080i @ 50, 59.94, 60 Hz

720p @ 50, 59.94, 60 Hz

480p @ 59.94 Hz

576p @ 50, 59.94 Hz

576i @ 50 Hz

1920x1200 @ 60 Hz

1600 x 1200 @ 60 Hz

1400x1050 @ 60 Hz

1280x1024 @60 Hz

1280x960 @ 60 Hz

1360x768 @ 60 Hz

1280x768 @ 60 Hz

1024x768 @60 Hz

800x600 @ 60 Hz

640x480 @ 60 Hz

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [e-mail]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

©2024 Ikan International. All rights reserved.

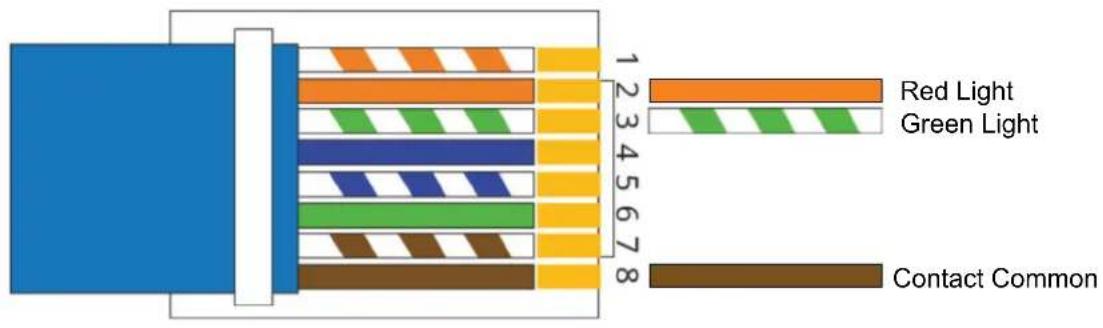

Pinout Diagram for Tally Light

Tally Light Pinout:

Tally Pin Layout Diagram

1 2 3 4 5 6 7 8 Red Light Green Light Contact Common
