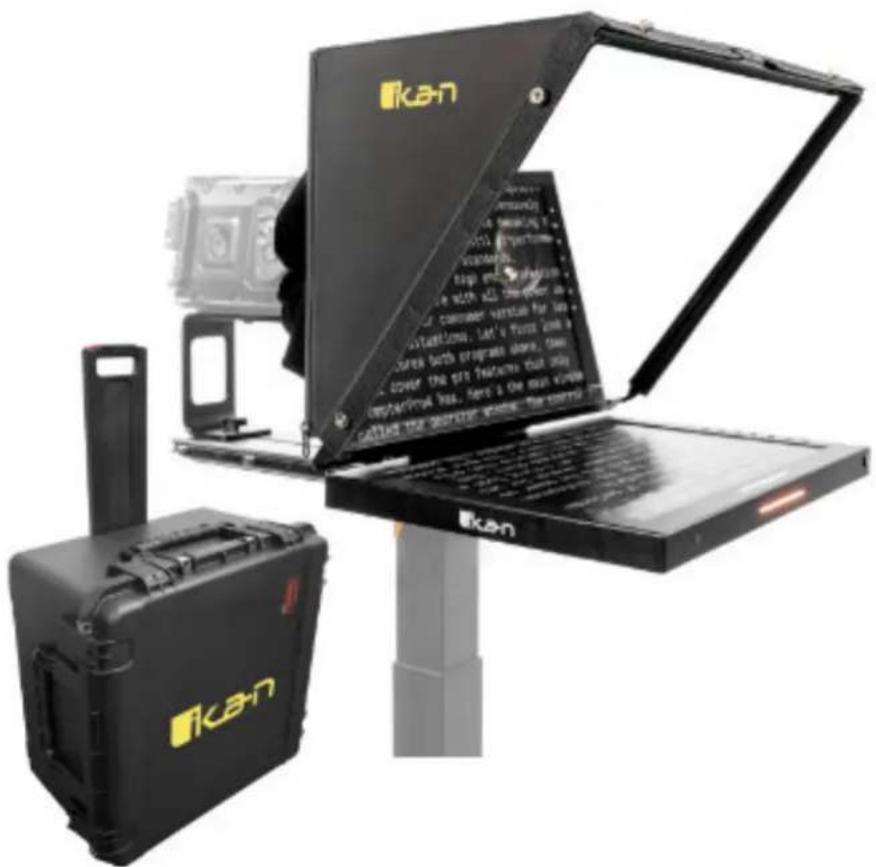

Professional 19" High-Bright Beam Splitter Teleprompter w/ Widescreen SDI Talent Monitor & Travel Kit

Black Ikan device with a laptop and a compact case, no visible text or symbols on the device itself.

OVERVIEW

Ikan's professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The teleprompter includes a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The monitor includes SDI, HDMI, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The widescreen monitor also features a wide viewing angle. This teleprompter kit includes a durable hard case w/ wheels and custom cut foam.

What's Included

Isometric line drawing of a rectangular frame with mounting holes (no text or symbols)

Widescreen Monitor

Line drawing of a metal bracket with cutouts and mounting holes (no text or symbols)

Tall Riser

Technical line drawing of a metal bracket with mounting holes (no text or symbols)

DSLR/Mirrorless Riser

Technical line drawing of a metal plate with slots and mounting feet (no text or symbols)

Short Riser

Technical line drawing of a mechanical component with slots and a curved end (no text or symbols)

Sled

Technical line drawing of a rectangular electronic component or enclosure (no text or symbols)

Base

Technical line drawing of a mechanical component with no visible text or symbols

Glass Frame Holder Bracket w/ Rod Clamps

Simple line drawing of a rectangular frame with vertical bars at corners (no text or symbols)

Glass

Simple line drawing of a rectangular frame with rounded corners and corner dots (no text or symbols)

Hood Attachment Frame

Simple line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Glass Holder Hood

Line drawing of a mechanical bracket or clamp (no text or symbols)

Technical line drawing of two mechanical bracket assemblies (no text or symbols)

Glass Frame Screws 15mm Rod Clamps 15mm Rods Large Riser

Bracket

Teleprompter Assembly Setup

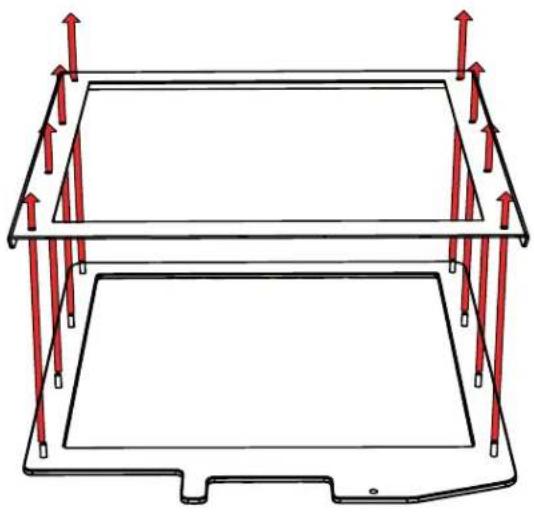

Step 1

Place the Hood Attachment Frame over the Glass Holder. Then place the glass against the Glass Holder. Make sure the screws pass through the holes on the both the Hood Attachment Frame and the Glass Holder.

Diagram of a device with red arrows indicating upward force or movement, no text or symbols present

Step 3

Remove the monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.

Step 2

Secure the Glass Holder by fastening the knurled nuts to the screws as pictured below.

Pure diagram of a rectangular frame with vertical red arrows pointing downward, no text or symbols present

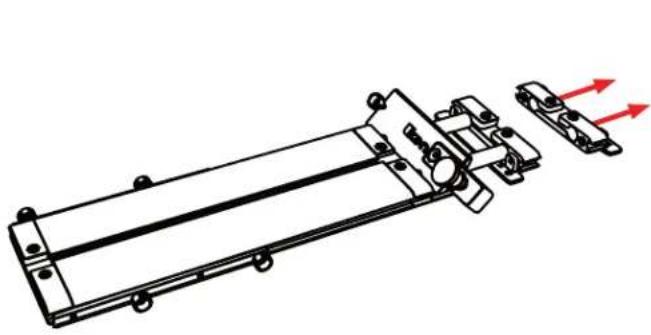

Step 4

Put the washers on before tightening the screws. The washers and 4 additional screws are inside a bag on the bottom foam.

Technical line drawing of a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a device chassis with mounting brackets and red vertical pins (no text or symbols)

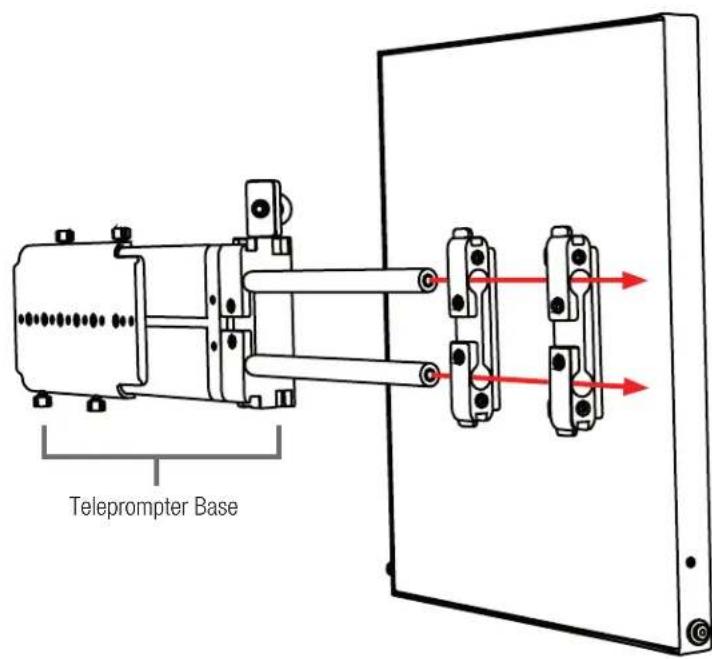

Step 5

After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor. *SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.

Teleprompter Base

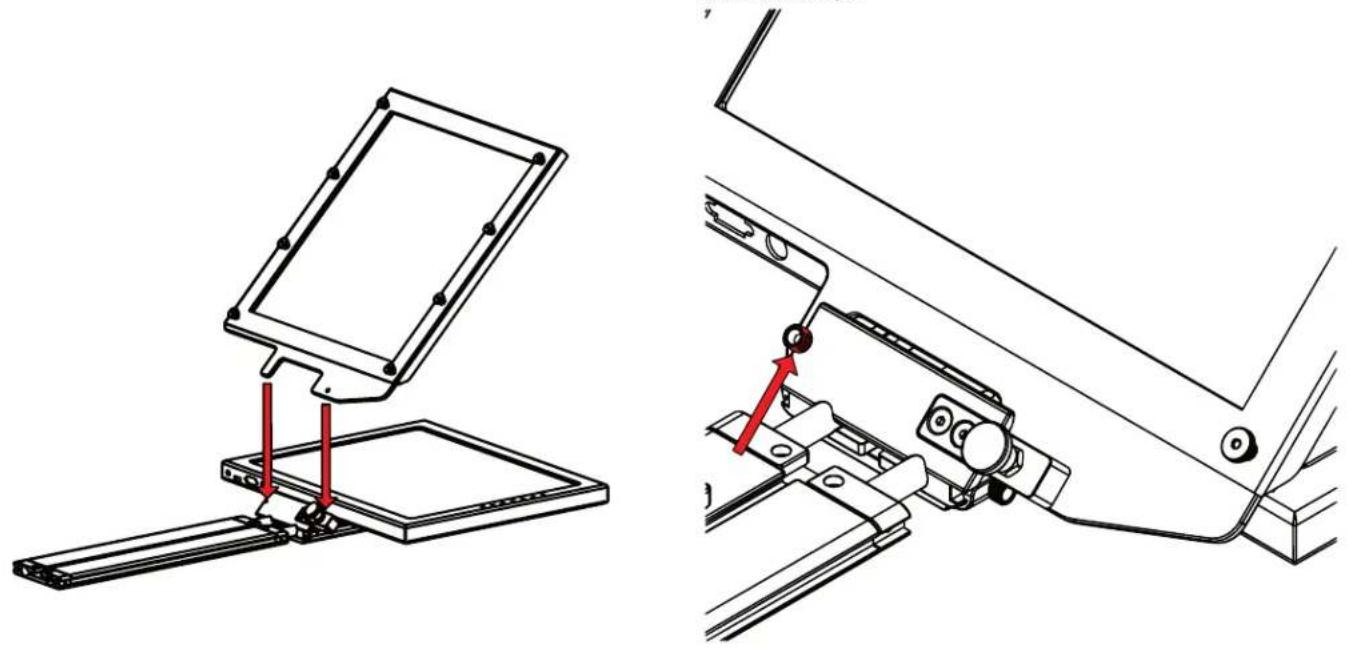

Step 6

While sliding the teleprompter bracket into the slot of the Glass Frame Holder Bracket, pull on the red knob to allow the bracket to fully slide in.

Technical line drawing showing two mechanical assembly steps: one with a flat panel and red arrows indicating movement, the other with a bracket and red arrow indicating force or adjustment (no text or symbols)

Step 7

Once the bracket is in place, tighten the side screw to lock in place. Double check and make sure all the screws are tightened with the included hex keys.

Step 8

Fold the flaps of the Hood alongside the edges of the Hood Attachment Frame. The flaps of the Hood are magnetic so they will automatically attach.

Technical line drawing of a mechanical assembly with red arrows indicating motion or force directions (no text or symbols present)

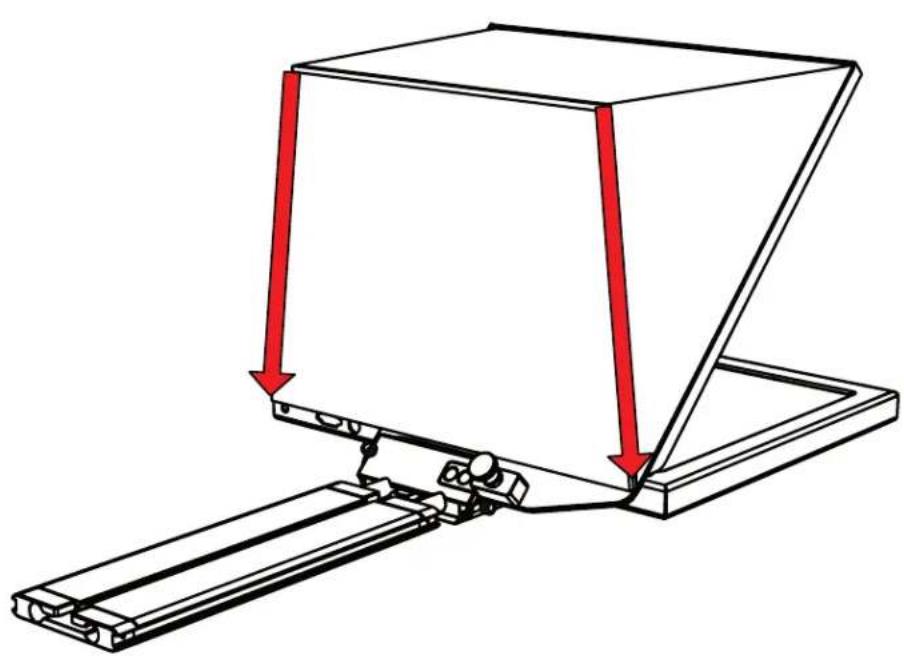

Step 9

To prevent light from leaking through the hood, seal both zippers down.

Diagram of a mechanical device with red arrows indicating assembly or force direction (no text or symbols present)

Step 10

Fold the flaps of the Hood alongside the edges of the Hood Attachment Frame. The flaps of the Hood are magnetic so they will automatically attach.

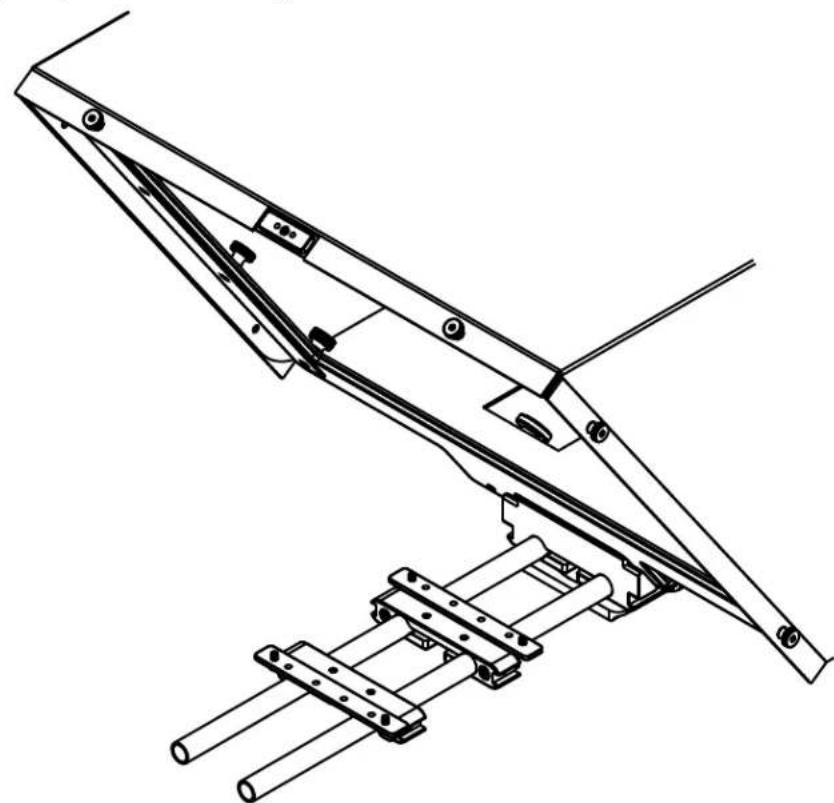

Step 11

To prevent light from leaking through the hood, seal both zippers down.

Technical line drawing of a mechanical assembly with no visible text or symbols

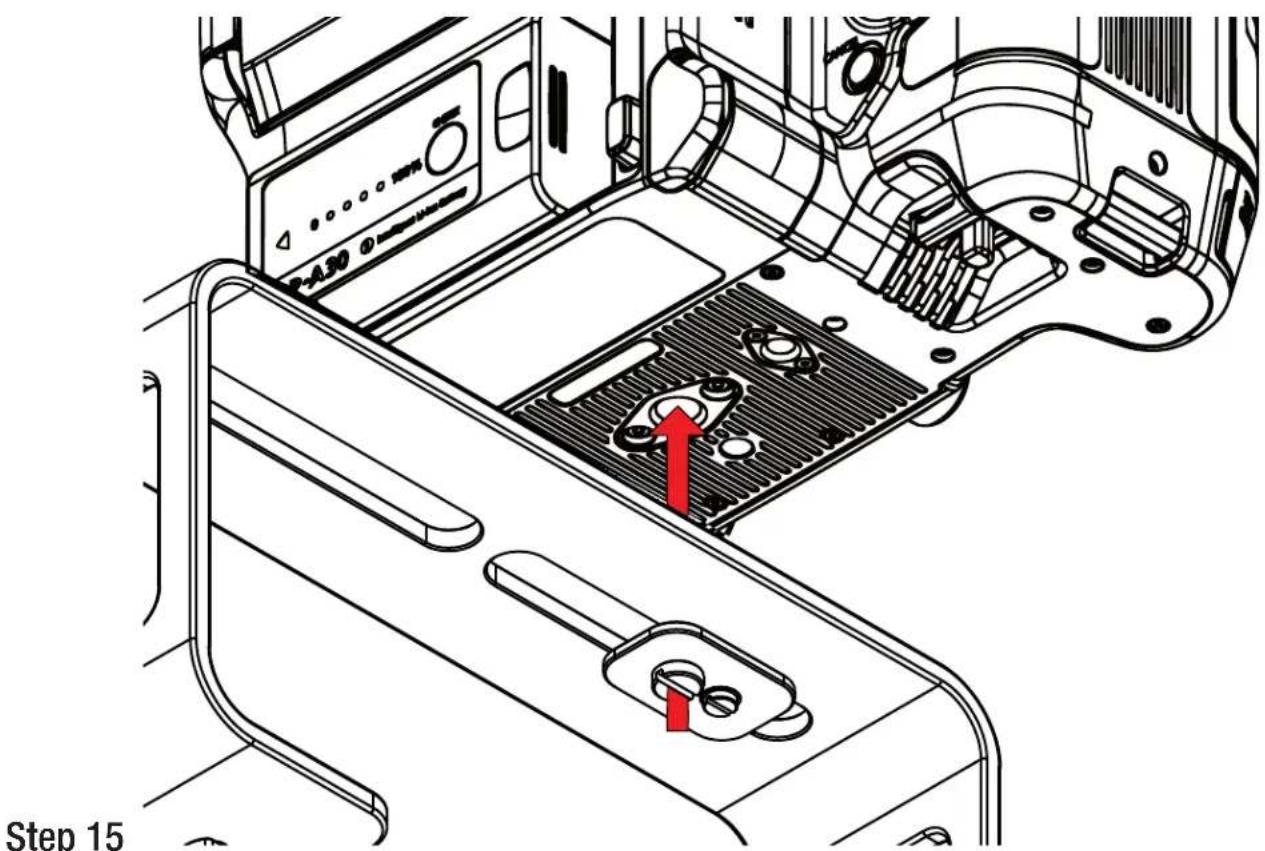

Step 14

Place the riser below your camera and fasten the 1/4-20 camera screw to the bottom of your camera to secure it to the riser plate.

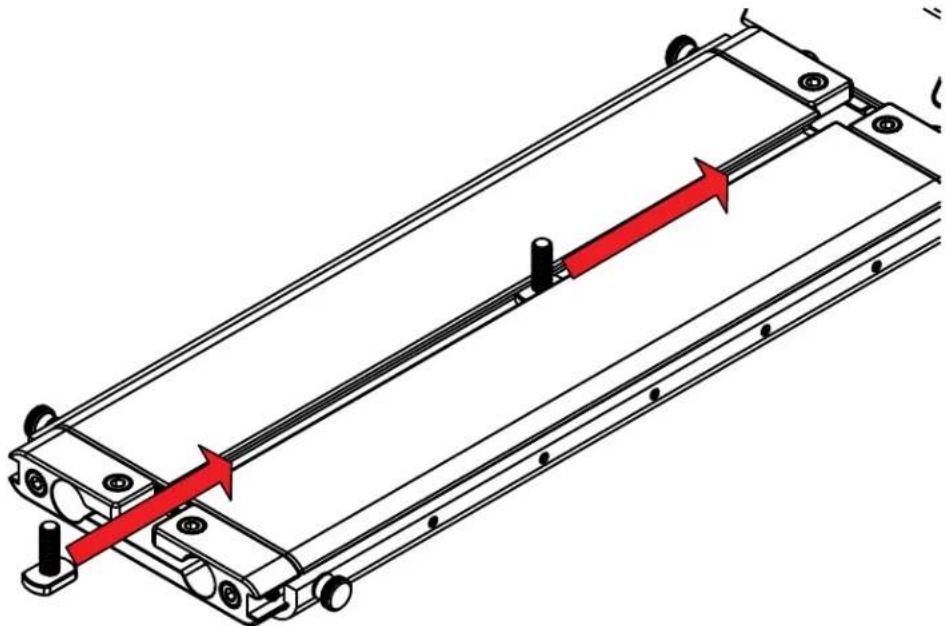

Step 15

Slide the threaded studs into the channel of the base. Make sure they are aligned to the spacing of the holes on the riser plate.

Mechanical assembly diagram showing a linear guide rail with red directional arrows indicating motion (no text or symbols)

Step 12

If you need to use the Tall Riser Plate, you will need to use the Large Riser Bracket. Insert the Large Riser Bracket through the channel on the Tall Riser Plate The Large Riser Bracket includes a location pin for use with cameras that feature a location pin hole. If your camera does not feature a location pin, you can remove the location pin by unscrewing it.

Technical line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

Step 13

Once the Large Riser Bracket is inserted into the channel. Hold it in place and move on to Step 14.

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

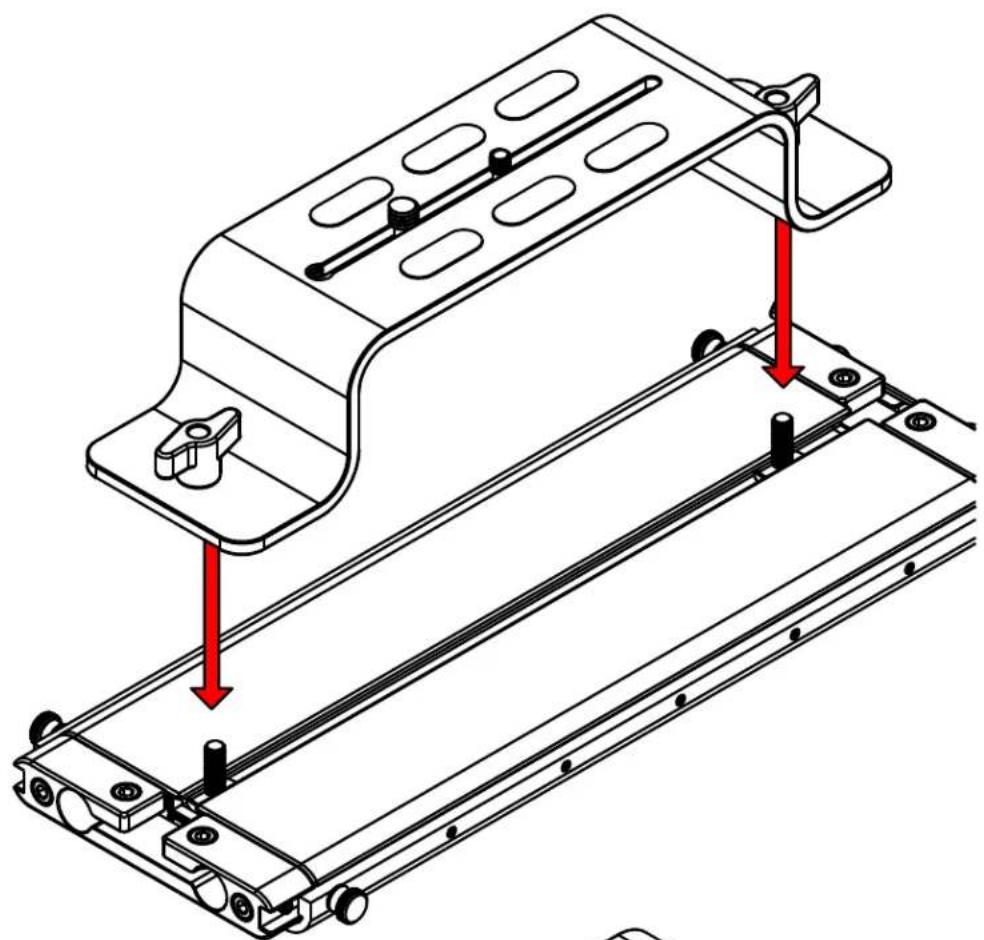

Step 16

Once the threaded studs are aligned to the holes of the riser plate, put the threaded studs through the holes of the riser plate.

Technical line drawing of a mechanical assembly with red arrows indicating assembly steps (no text or symbols present)

Step 17

Fasten the screws to the threaded studs to secure the riser plate to the base.

e threaded studs to secure se.

Step 18

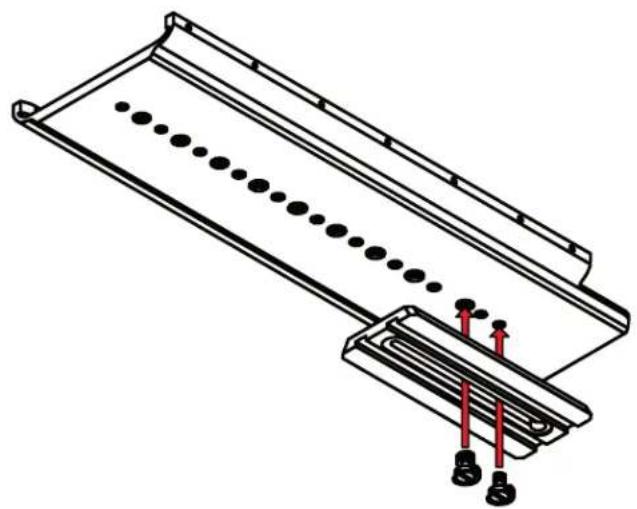

Mount your own tripod plate to the bottom plate by aligning the 1/4-20 and/or 3/8-16 screws and fastening them to the Sled. It is recommended that you connect your tripod plate to front of the Sled so that you can balance your teleprompter easier. Once your tripod plate is connected to the Sled, mount the tripod plate to your tripod head.

Technical line drawing of a mechanical component with dotted lines and red arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical component with multiple slots and a central slot (no text or symbols)

Step 19

Slide the entire teleprompter system into the Sled. Once the teleprompter system is inserted, you can balance it by sliding it along the Sled until the center of gravity is determined.

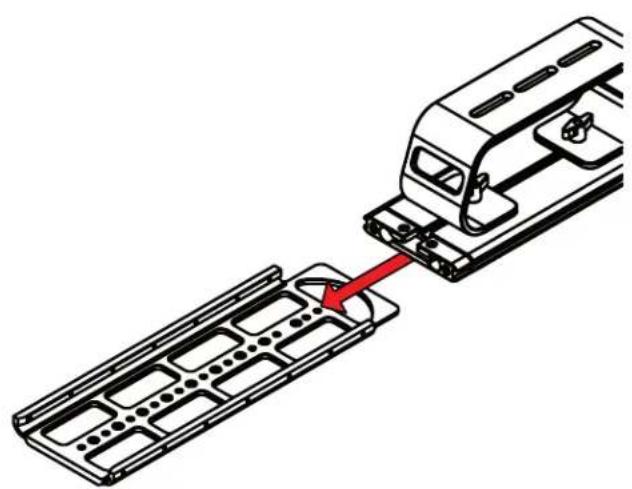

Step 20

Once the center of gravity has been determined, tighten the thumb screws to keep the base from sliding.

Mechanical assembly diagram showing a component being inserted into a grid-like structure with a red arrow indicating direction (no text or symbols present)

Technical diagram of a vehicle chassis with red directional arrows indicating movement or force (no text or symbols present)

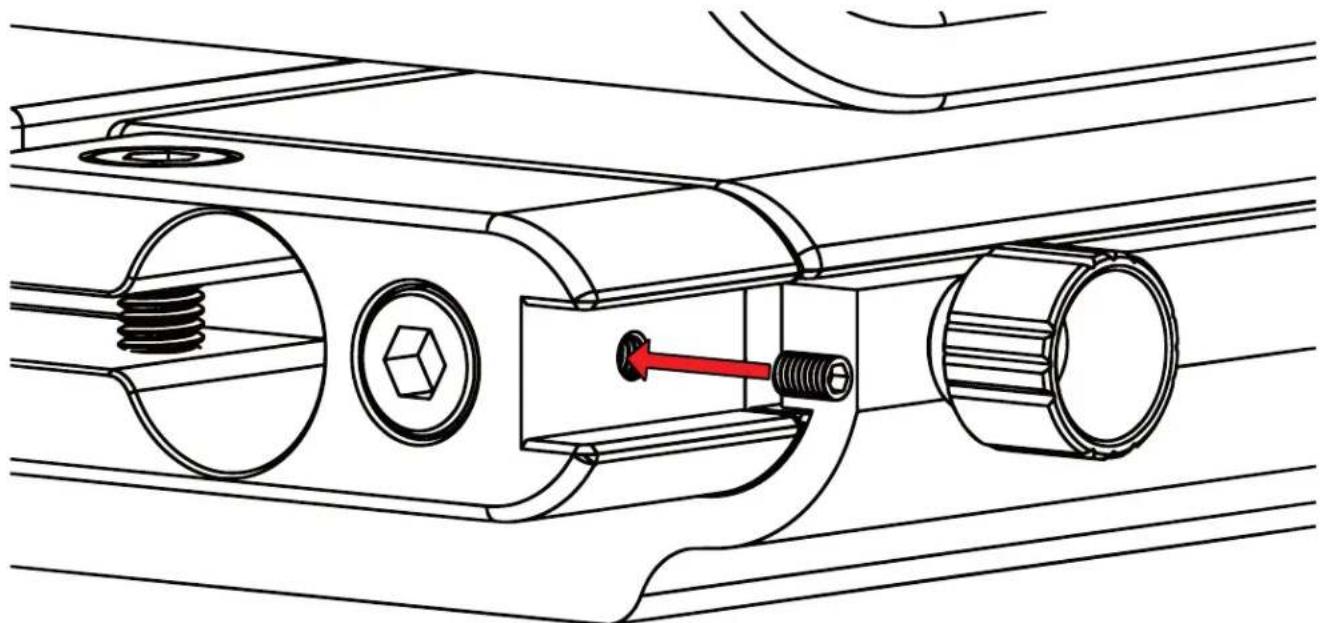

Step 21

To secure your teleprompter system, insert the included headless screws into the threads behind and in front of the Base.

Technical line drawing of a mechanical assembly with springs and shafts (no text or symbols)

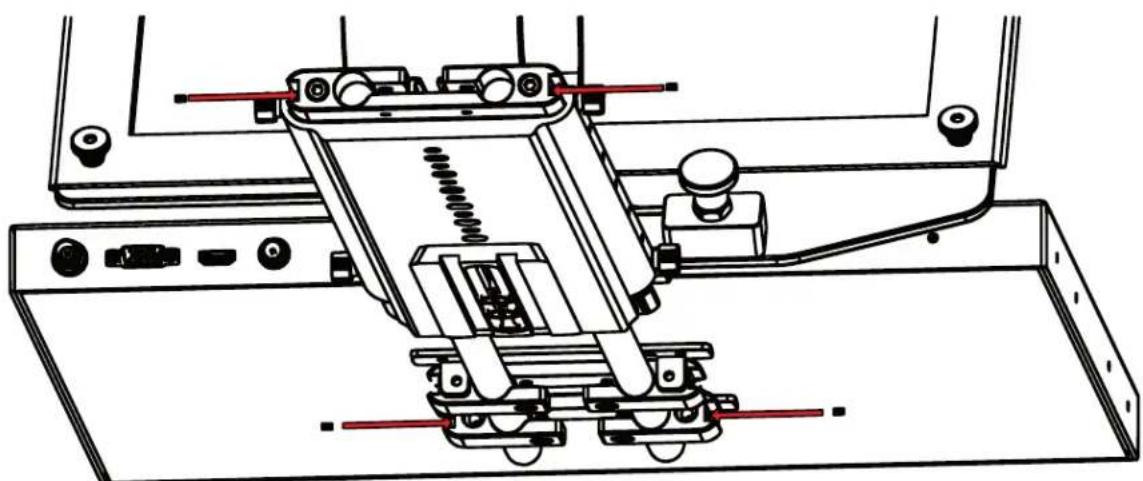

Step 22

The headless screws should be inserted to the threads as pictured below.

Technical line drawing of a mechanical assembly with no visible text or symbols

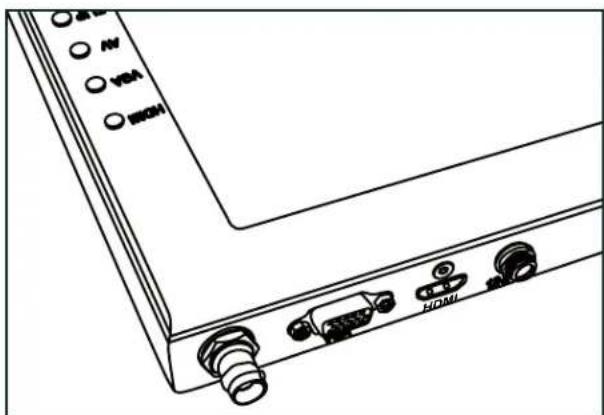

Monitor Ports

Line drawing of a computer monitor rear panel with ports labeled (no text or symbols beyond labels)

BNC - 3G-SDI Connection

VGA – Video Graphics Array DE15 Connection

HDMI – High-Definition Multimedia Interface Input Connection

Power Port - 12-24v Input

Line drawing of a flat-screen monitor with control buttons (no text or symbols on the screen)

HDMI – Switch HDMI input

VGA – Switch to VGA input

SDI – Switch to composite BNC SDI input

Flip - Toggle image flip

(Can be set to horizontal, vertical, or both via menu)

Up Arrow – Toggle up to adjust setting

Menu – Access to monitor settings

Down Arrow – Toggle down to adjust setting

Monitor Menu Settings

Video Config

Contrast (White Level)

Brightness (Black Level)

Tint (Chroma Hue)

Chroma (Chroma Saturation)

Sharpness (Detail)

RGB Setup – Manually configure RGB

Return

System Config

Menu Duration – Set duration of how long menu stays on screen

Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is native resolution, 16:9 will create black bars)

Flip-H – Assign toggle button to flip image horizontally

Flip-V – Assign toggle button to flip image vertically

Reset – Factory reset

Return

PC Setup (Only available for VGA)

H-Position – Adjust horizontal position

V-Position – Adjust vertical position

Auto - Monitor automatically adjust position

Return

Exit

How to set-up FLIP button feature:

1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to "ON"
5. Exit MENU
6. The FLIP button should now be activated and can be pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both Horizontal and Vertical flip

Pinout Diagram for Tally Light

Tally Pin Layout Diagram

1 2 3 4 5 6 7 8 Red Light Green Light Contact Common

Learn More

More dynamic information at official website :www.ikancorp.com

Support

Contact email: [e-mail]

Watch our VIDEO TUTORIAL on how to assemble PT419W Teleprompters:

https://ikancorp.com/pt419-tutorial-videos/
