Product Type	Pedestal Support
Brand	Ikan
Model	PT4900-PEDESTAL
Category	Support
Height Adjustment Range	Adjustable from 28 to 45 inches (71-114 cm)
VESA Compatibility	75x75mm and 100x100mm
Maximum Load Capacity	Up to 30 lbs (13.6 kg)
Material	Steel base with aluminum pole
Base Dimensions	24 x 18 inches (61 x 46 cm)
Net Weight	15.4 lbs (7 kg)
Color	Black
Mounting Pattern	Desk edge or grommet mount
Included Accessories	Mounting hardware, cable management clips
Warranty	1 year limited
Intended Use	Indoor office or studio

Frequently Asked Questions - PT4900-PEDESTAL Ikan

What is the maximum screen size this pedestal can support?

The Ikan PT4900-PEDESTAL can support monitors up to 32 inches, depending on weight (maximum 30 lbs). Always verify your monitor's weight and VESA pattern.

Is the VESA pattern compatible with my monitor?

It supports 75x75mm and 100x100mm VESA patterns. Check your monitor's manual for its specific pattern.

How do I adjust the height of the pedestal?

Loosen the height adjustment knob on the back of the pole, set the desired height, and tighten the knob securely.

Can this be used on any desk?

It is designed for desks with at least a 2-inch thick edge for clamp mounting or a grommet hole (minimum 0.5 inch diameter) for feed-through mounting.

Does it come with a warranty?

Yes, it includes a 1-year limited warranty against manufacturing defects.

Can I route cables through the pole?

Yes, the pole has internal cable management channels. Remove the cover, route cables, and snap the cover back.

How do I clean the pedestal?

Wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents.

Is the base heavy enough to prevent tipping?

The steel base is weighted to provide stability for monitors within the load capacity. Ensure the base is placed on a flat, level surface.

Can I mount two monitors on this pedestal?

No, it is designed for a single monitor only.

What is the return policy?

Return policies vary by retailer. Contact your point of purchase for details. The product is covered by a 1-year manufacturer warranty.

USER MANUAL PT4900-PEDESTAL Ikan

Photography equipment setup including a black tripod-mounted monitor, a black box with a metal frame, and a side-mounted device (no visible text or symbols)

OVERVIEW

Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19" teleprompter, pedestal, and dolly. All of our systems have been tested internally for payload compatibility.

The remaining payload capacity, after mounting the full 19" teleprompter, can accommodate camera setups up to 38.8 lbs. The pedestal, without the teleprompter system, can accommodate cameras up to 61.7 lbs. This solution also includes a hard case for the pedestal and a carrying bag for the dolly.

Black and white photo studio lighting device with a mounted camera (no visible text or symbols)

PT4900-SDI

19" Professional High Bright Beam Splitter Teleprompter with 3G-SDI

What's Included

Technical line drawing of a mechanical bracket or enclosure with cutouts and mounting feet (no text or symbols)

Large Riser

Technical line drawing of a metal bracket with mounting holes and a small inset detail (no text or symbols)

DSLR/Mirrorless Riser

Technical line drawing of a mechanical bracket or housing component (no text or symbols)

Medium Riser

Technical line drawing of a metal tray or rack structure with mounting holes and a curved handle (no text or symbols)

Bottom Plate

Technical line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Base

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Glass Frame Holder Bracket w/ Rod Clamps

Simple geometric diagram of a square frame with side tick marks (no text or symbols)

Glass

Simple line drawing of a rectangular frame with rounded corners and corner dots (no text or symbols)

Hood Attachment Frame

Simple line drawing of a rectangular electronic device with a notch at the bottom (no text or symbols)

Glass Holder Hood

Pure geometric diagram showing overlapping planes and a central cylinder (no text or symbols)

Technical line drawing of three mechanical components with mounting holes (no text or symbols)

Glass Frame Screws 15mm Rod Clamps 15mm Rods Large Riser

Bracket

Teleprompter Assembly Setup

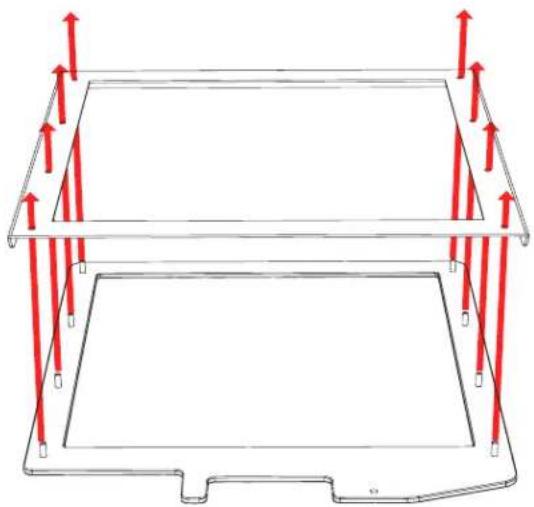

Step 1

Place the Hood Attachment Frame over the Glass Holder. Then place the glass against the Glass Holder. Make sure the screws pass through the holes on the both the Hood Attachment Frame and the Glass Holder.

Technical diagram of a mechanical component with red arrows indicating force or direction (no text or symbols)

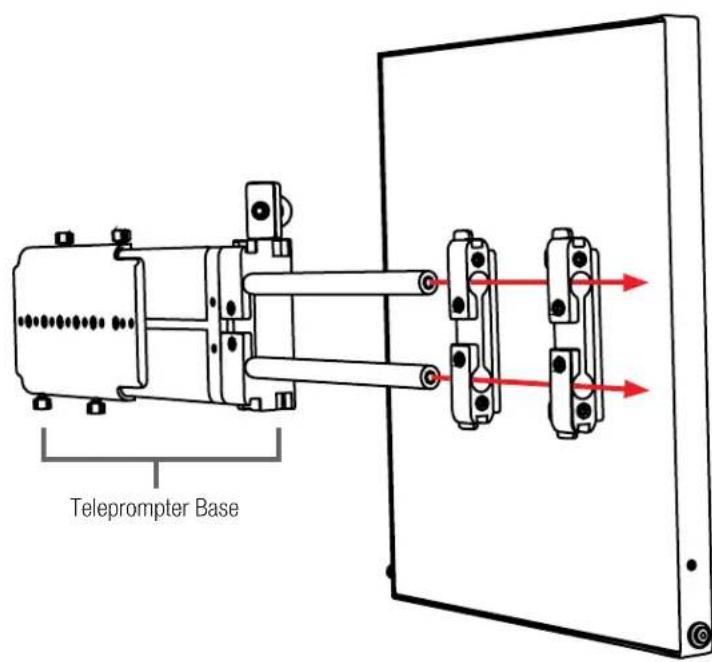

Step 3

Remove the monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.

Step 2

Secure the Glass Holder by fastening the knurled nuts to the screws as pictured below.

Pure diagram of a rectangular plate with vertical red arrows pointing to top and bottom markers (no text or symbols)

Step 4

Put the washers on before tightening the screws. The washers and 4 additional screws are inside a bag on the bottom foam.

Technical illustration of a mechanical assembly with red arrows indicating motion, showing internal components and mounting base (no text or symbols)

Step 5

After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor. *SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.

Step 6

While sliding the teleprompter bracket into the slot of the Glass Frame Holder Bracket, pull on the red knob to allow the bracket to fully slide in.

Technical line drawing showing a mechanical assembly with red arrows indicating parts of a component (no text or symbols present)

Step 7

Once the bracket is in place, tighten the side screw to lock in place. Double check and make sure all the screws are tightened with the included hex keys.

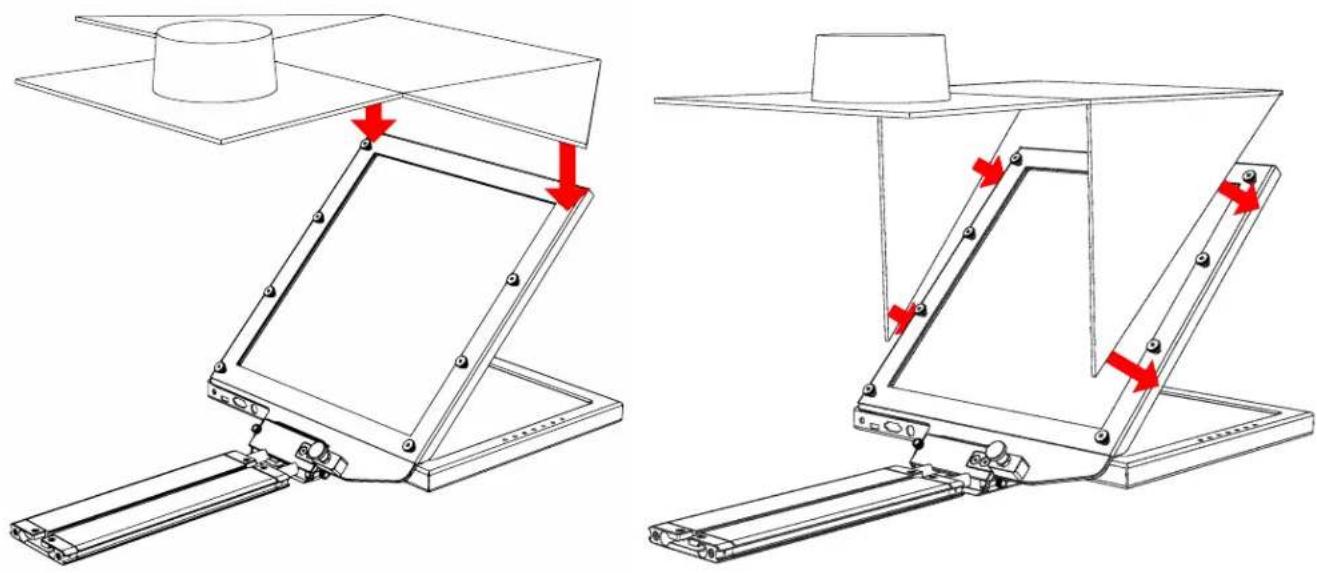

Step 8

Fold the flaps of the Hood alongside the edges of the Hood Attachment Frame. The flaps of the Hood are magnetic so they will automatically attach.

Technical line drawing of a mechanical assembly with red arrows indicating motion or force directions (no text or symbols present)

Step 9

To prevent light from leaking through the hood, seal both zippers down.

Technical line drawing of a mechanical device with red arrows indicating assembly or force direction (no text or symbols)

Step 10

Slide in the Riser plate of your choice by aligning the screws on the riser plate to the slot on the Base. Once the screws are aligned, Slide the riser plate into the Base.

Technical line drawing of a mechanical assembly with a red arrow indicating a component or connection (no text or symbols present)

Step 10

Slide in the Riser plate of your choice by aligning the screws on the riser plate to the slot on the Base. Once the screws are aligned, Slide the riser plate into the Base.

Technical line drawing of a vehicle chassis frame with no visible text or symbols

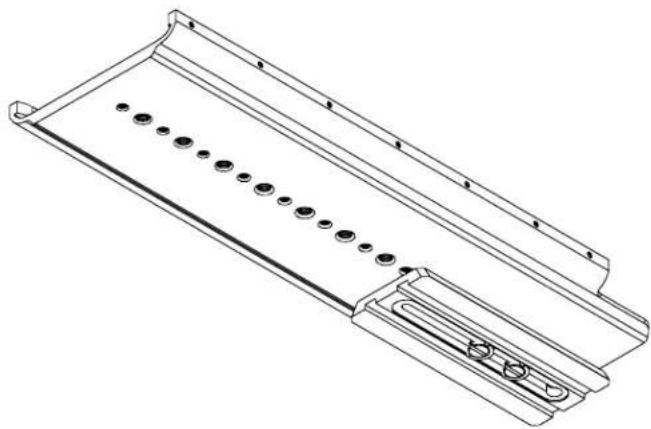

Step 12

Mount your own tripod plate to the bottom plate by aligning the 1/4-20 and/or 3/8-16 screws and fastening them to the Bottom Plate. It is recommended that you connect your tripod plate to front of the Bottom Plate so that you can balance your teleprompter easier. Once your tripod plate is connected to the Bottom Plate, mount the tripod plate to your tripod head.

Technical line drawing of a mechanical component with mounting holes and red arrows indicating assembly or force (no text or symbols)

Technical line drawing of a metal tray or enclosure with multiple circular holes and a recessed slot (no text or symbols)

Step 13

Slide the entire teleprompter system into the Bottom Plate. Once the teleprompter system is inserted, you can balance it by sliding it along the Bottom Plate until the center of gravity is determined.

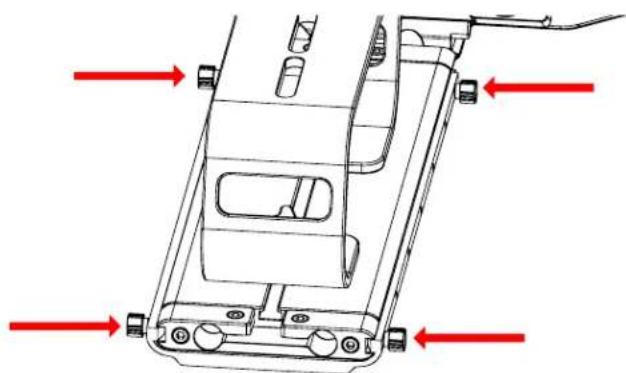

Step 14

Once the center of gravity has been determined, tighten the thumb screws to keep the base from sliding.

Technical illustration of a mechanical assembly with a red arrow pointing to a component inside a frame (no text or symbols present)

Technical line drawing of a vehicle chassis frame with red directional arrows indicating movement or force (no text or symbols present)

Step 15

To secure your teleprompter system, insert the included headless screws into the threads behind and in front of the Base.

Technical line drawing of a mechanical assembly with gears and a central screw (no text or symbols)

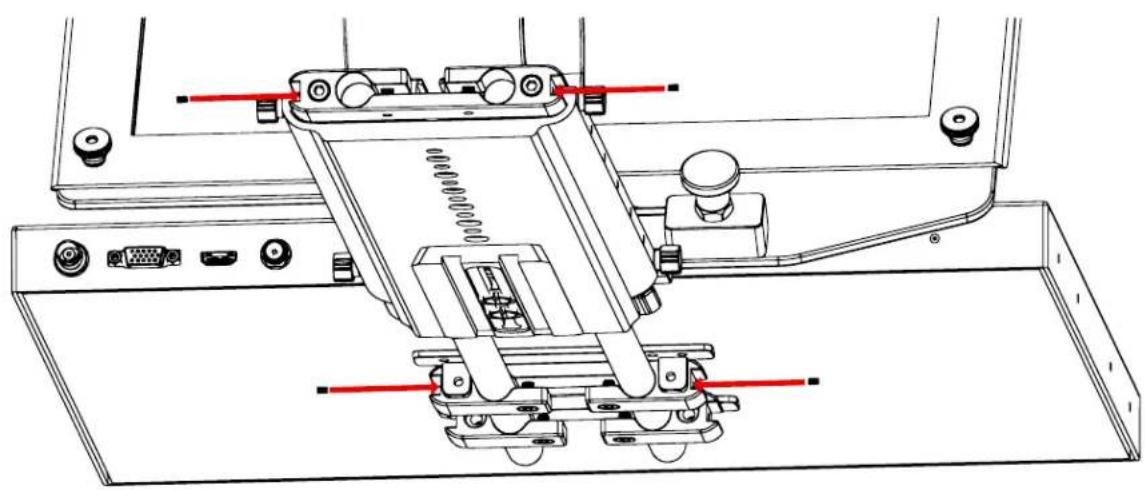

Step 16

The headless screws should be inserted to the threads as pictured below.

Technical line drawing of a mechanical assembly with no visible text or symbols

Monitor Ports

3G-SDI – Serial Digital Interface Connection

VGA – Video Graphics Array DE15 Connection

HDMI – High-Definition Multimedia Interface Input Connection

Power Port - 12-24v Input

HDMI – Switch HDMI input

VGA - Switch to VGA input

SDI - Switch to 3G-SDI input

Flip - Toggle image flip

(Can be set to horizontal, vertical, or both via menu)

Up Arrow – Toggle up to adjust setting

Menu – Access to monitor settings

Down Arrow – Toggle down to adjust setting

Monitor Menu Settings

Video Config

Contrast (White Level)

Brightness (Black Level)

Tint (Chroma Hue)

Chroma (Chroma Saturation)

Sharpness (Detail)

RGB Setup – Manually configure RGB

Return

System Config

Menu Duration – Set duration of how long menu stays on screen

Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is native resolution, 16:9 will create black bars)

Flip-H – Assign toggle button to flip image horizontally

Flip-V – Assign toggle button to flip image vertically

Reset - Factory reset

Return

PC Setup (Only available for VGA)

H-Position - Adjust horizontal position

V-Position - Adjust vertical position

Auto - Monitor automatically adjust position

Return

Exit

How to set-up FLIP button feature:

1. Press MENU button

2. Navigate to SYSTEM CONFIG.

3. Navigate to FLIP-V or FLIP-H

4. Change FLIP-V and/or FLIP-H to "ON"

5. Exit MENU

6. The FLIP button should now be activated and can be pressed to mirror the image Horizontally or Vertically

7. When FLIP-H is ON, the image will flip Horizontally

8. When FLIP-V is ON, the image will flip Vertically

9. If both are ON, the FLIP button will toggle both

Horizontal and Vertical flip

Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Telepromopters:

https://youtube.com/playlist?list=PLcjaK5n9Y8ctrbYS3t2g4nyx2uADOXjuF

Specifications

PT4900-SDI

Aspect Ratio 4:3
Backlight LED
Brightness 1000 nits
Build Material Aluminum Chassis
Diagonal 19"
Input Signal 3G-SDI, HDMI, and VGA inputs
Input Voltage DC 12v / 4A
Power Consumption 10W
Reading Range 25'
Resolution 1280 x 1024
Viewing Angle 160° (H) / 170° (V)
Weight 33.75 lbs
Shipping Weight 36 lbs
Shipping Dimensions	25 x 20 x 16 in

Optional Accessories

PT4900-GM Replacement Glass for PT4900

PT19-SDI-TM 19" 3G-SDI Talent Monitor Add On Kit for PT4900

PT-PEDAL Teleprompter Foot Control Pedal

PT-CASE-V2 Rolling Hard Case for PT4900 Teleprompter

Foam Case

To make your teleprompter more portable, we packed it in a reusable, high-quality foam. The shape and size of the foam was designed to fit into Ikan's PT-CASE-V2.

Stacked cardboard and black plastic case units with open lids, no visible text or symbols

** DO NOT THROW AWAY FOAM CASE **

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [e-mail]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

©2022 Ikan International. All rights reserved.

EP880SK Pedestal

Black tripod-mounted camera with mounted sensor and control unit (no visible text or symbols)

182.0cm 71.7in

tripod-mounted scientific instrument with a mounted probe, no visible text or symbols

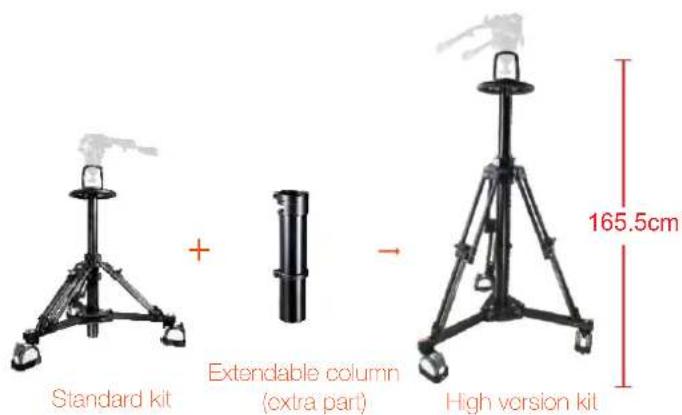

Standard kit

+

Extendable column (extra part)

Black tripod-mounted tripod with a stand and support structure (no visible text or symbols)

High version kit

165.5cm

Close-up of a black tripod-mounted camera with adjustable arms and legs (no visible text or symbols)

Pneumatic column pedestal system

Close-up of a black cylindrical device with a handle, possibly a camera or projector, being held by a hand (no visible text or symbols)

Air-pressure in the pneumatic column can be adjusted

Close-up of a mechanical device with no visible text or symbols

Fluid head with 100mm ball

Close-up of a mechanical assembly with a black frame and circular component (no visible text or symbols)

Double-wheel 125mm casters with adjustable cable guards

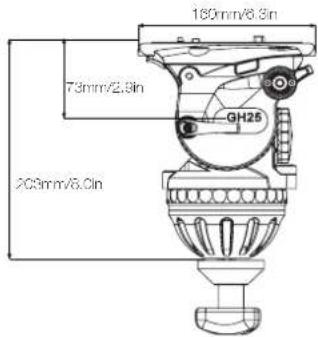

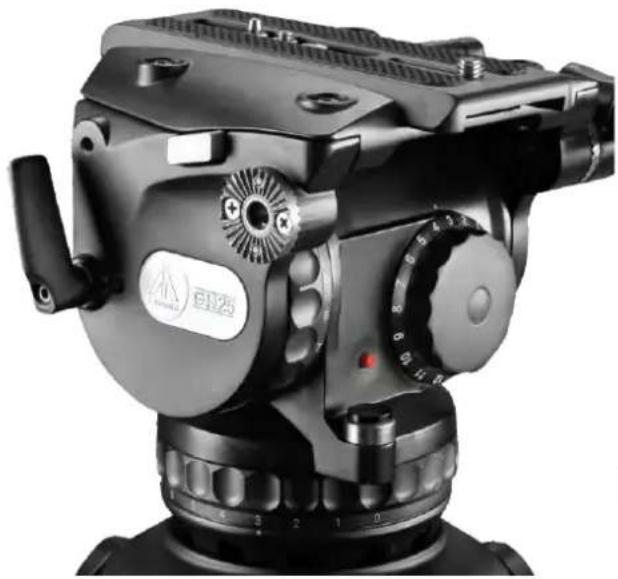

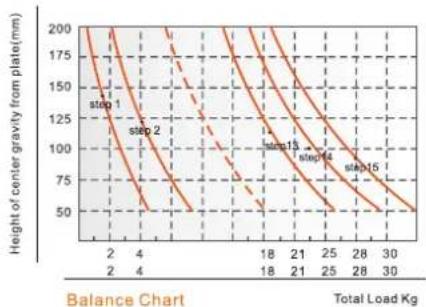

GH25 100mm Fluid Head

Close-up of a black industrial camera with dual-axis and head-mounted components (no visible text or symbols)

100mm

3.0 28.0kg

6.6-61.7lbs

1-15

FEATURES

Close-up of a black industrial camera with visible mechanical components and no text or symbols

7 plus 0 grades of pan & tilt drag

Close-up of a mechanical rotary dial with no visible text or symbols (black and white photo)

16 steps of counterbalance

Close-up of a mechanical component with a red dot and metallic shaft (no visible text or symbols)

Illuminated leveling bubble

Close-up of a mechanical device with a probe inserted, no visible text or symbols

Additiona standard 1/4" & 3/8" screw holes

SPECIFICATIONS

	Model	GH25
	Payload Range	3.0-28.0kg / 6.6-61.7lbs
	Counterbalance Range	1-15
	Grades Of Pan Drag	0-7
	Grades Of Tilt Drag	0-7
	Tilt Range	-65° / +90°
	Temperature Range	-40°C ~ +80°C
	Bowl Size	100mm
	Net Weight	4.2kg / 9.2lbs

EP880S Pedestal

Black tripod-mounted camera with adjustable arms and a handle, shown against a white background (no text or symbols visible)

165.0cm 65.0in

30.0kg 66.1lbs

86.0cm 33.9in

23.9kg 52.7bs

38.0cm 15.0in

100mm

Component:

Pedestal	CP880S
Dolly	EI7007

Close-up of a black tripod with adjustable arms and legs (no visible text or symbols)

Pneumatic column pedestal system

Close-up of a black industrial camera with a hand adjusting its cable (no visible text or symbols)

Air-pressure in the pneumatic column can be adjusted

Close-up of a black mechanical component with a circular ring and handle (no visible text or symbols)

Ergonomic hand wheel

Close-up of a mechanical assembly with a black bracket and circular component (no visible text or symbols)

Double-wheel 125mm casters with adjustable cable guards

El-7007 Super dolly

Designed for pedestal system and other heavy duty system. The 125mm/5inch wheels with cable guard can be individually braked, also the movement direction can be fixed.

Folds for transporting.

FEATURES

Close-up of a black mechanical clamp or bracket component with mounting holes and a red indicator light (no visible text or symbols)

Pull the knob to extend the dolly, easy to go out.

Height : 21.5cm / 8.5in Radius: 50cm / 19.7in

Close-up of a mechanical clamp or measuring device with a 125mm scale indicator (no readable text or symbols)

Casters diameter: 125mm / 4.9in.

The rubber wheels are non-marring during normal use, protecting the floor surface. Each wheel incorporates its own foot-activated brake.

Close-up of a mechanical device with red directional arrows indicating motion or force (no text or symbols visible)

Cable guards and brakes. Supports up to 100kg of tripod, camera and accessories.

A black quadcopter drone with four wheels and a red label indicating payload weight of 100kg (no other text or symbols visible)

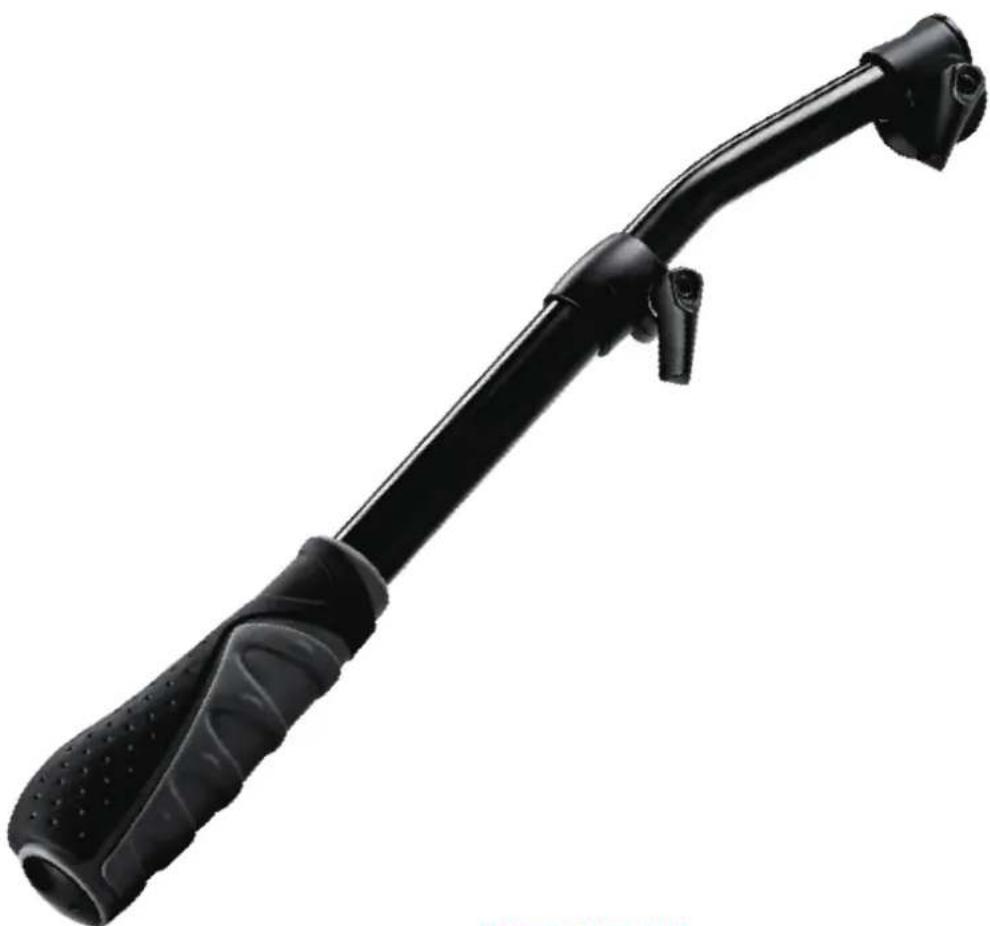

GB3 Pan bar

Telescopic pan bar for GH08L, GH10L, GH15, GH25 heads

Black and white photo of a black bicycle pushpin with textured grip (no text or symbols visible)

SPECIFICATIONS

Length range 405-605mm / 15.9-23.8in

Net weight 385g / 0.8lbs
