Product Type	15\" SDI Tally Teleprompter with Talent Monitor
Monitor Size	15 inches (4:3 SDI monitor and 16:9 widescreen talent monitor)
Inputs	SDI (BNC), HDMI, VGA, Composite (via SDI switch)
Power Input	12-24V DC
Supported Video Signals	1080p, 1080i, 720p, 480p, 576p, 576i, various PC resolutions (640x480 to 1920x1200)
Included Accessories	Teleprompter base, hood frame, silicone hood with canvas shroud, counterweight, tall/medium/DSLR risers, hex keys, camera screws, 2 monitors, power adapter, 70/30 glass, Prompter Pro4 software, hard travel case for teleprompter and talent monitor
Construction	Metal frame with directional assembly (thicker side top, slimmer bottom)
Flip Function	Horizontal and/or vertical flip via button or menu
Menu Languages	English (assumed)
Warranty	1 year free service for manufacturing defects; does not cover abuse, natural disasters, unauthorized modifications
Weight	Approximately 20-30 lbs (estimated with case)
Dimensions (Teleprompter)	Approximately 18 x 15 x 10 inches (with hood and frame)
Monitor Resolution	4:3 native resolution; 16:9 with black bars
Brightness	High bright (specific value not given)
Compatibility	DSLR and professional cameras via included risers
Tally Light	SDI tally with pinout diagram in manual
Software	Includes digital copy of Prompter Pro4
Cleaning	Use soft dry cloth; avoid solvents
Safety	Ensure rods are inserted at least 2 inches into base; tighten all screws
Repairability	Contact [e-mail] for service; user-replaceable glass and monitors available as accessories

Frequently Asked Questions - PT4500S-TMW-TK Ikan

How do I assemble the teleprompter?

Place the glass frame on a flat surface, remove four screws, align the hood with the frame using 8 screw pegs, attach the metal frame (thicker side top), then add washers and tighten. Extend the hood and attach the boot using clips. Then attach monitor mounts to the monitor's VESA threads and adjust rods.

What video signals are supported?

The monitor supports SDI and HDMI signals at resolutions including 1080p (up to 60Hz), 1080i, 720p, 480p, 576p, 576i, and various PC resolutions up to 1920x1200.

How do I flip the image horizontally or vertically?

Press the Menu button, go to System Config, then navigate to Flip-V or Flip-H. Set the desired flip to ON. Exit the menu; pressing the Flip button will now toggle that flip.

What is included in the box?

The package includes: teleprompter base, hood frame, silicone hood with canvas shroud, counterweight, tall/medium/DSLR risers, hex keys, camera screws, 15" SDI 4:3 monitor, 15" SDI 16:9 widescreen monitor, power adapter, 70/30 glass, digital copy of Prompter Pro4, and two hard travel cases.

How do I connect the tally light?

Refer to the tally pinout diagram in the manual. The tally light uses SDI signal; connect via the BNC SDI input and configure in your camera/software accordingly.

Can I replace the glass or monitor?

Yes, optional accessories are available: PT4500-G replacement glass, M15W widescreen talent monitor, and PT15-SDI-V2 4:3 monitor. Contact support or visit ikancorp.com.

What is the warranty coverage?

The product comes with 1 year free service for manufacturing defects. It does not cover damage from abuse, misuse, dismantling, natural disasters, or abnormal voltage.

How do I adjust the monitor settings?

Press the Menu button to access Video Config (contrast, brightness, tint, chroma, sharpness, RGB), System Config (menu duration, video ratio, flip assignment, reset), and PC Setup (position, auto). Use up/down arrows to navigate.

What if the teleprompter is front-heavy?

Attach the included counterweight to the back of the teleprompter base to balance the setup.

How do I contact support?

Email support at [e-mail]. For more information, visit ikancorp.com.

USER MANUAL PT4500S-TMW-TK Ikan

High Bright 15" SDI Tally Teleprompter w/ 15" Widescreen SDI Talent Monitor & Travel Cas

Product display of a black electronic device with a laptop, a video camera, and a Ika-n branded case (no visible text or symbols)

What's Included

□ 1x Teleprompter Base
□ 1x Hood Frame
□ 1x Silicone Hood w/ Canvas Shroud
□ 1x Counterweight
□ 1x Tall Riser
□ 1x Medium Riser
□ 1x DSLR Riser
□ 2x L-Shaped Hex Keys
□ 2x 1/4-20 Camera Screws
□ 1x 15 in. SDI 4:3 Monitor
□ 1x 15 in. SDI 16:9 Widescreen Monitor
□ 1x Power Adapter
□ 1x 70/30 15 in. Glass
□ 1x Digital Copy of Prompter Pro4
□ 1x Hard Travel Case
□ 1x Hard Travel Case for Talent Monitor

Teleprompter Assembly Setup

Step 1

Place the teleprompter glass frame on a flat surface and remove the four screws as shown.

Step 2

Align and attach the teleprompter hood with the 8 screw pegs from the teleprompter frame.

Technical line drawing of a rectangular frame with four red circular markers on top and bottom edges (no text or symbols)

Line drawing of a rectangular electronic component with concentric layers and mounting points (no text or symbols)

Step 3

The metal frame is directional. Make sure the thicker side is on top and the slimmer side is on the bottom.

Step 4

Put the washers on before tightening the screws. The washers and 4 additional screws are inside a bag on the bottom foam.

Technical line drawing of a mechanical component with layered internal structure and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and layered structure (no text or symbols)

Step 5

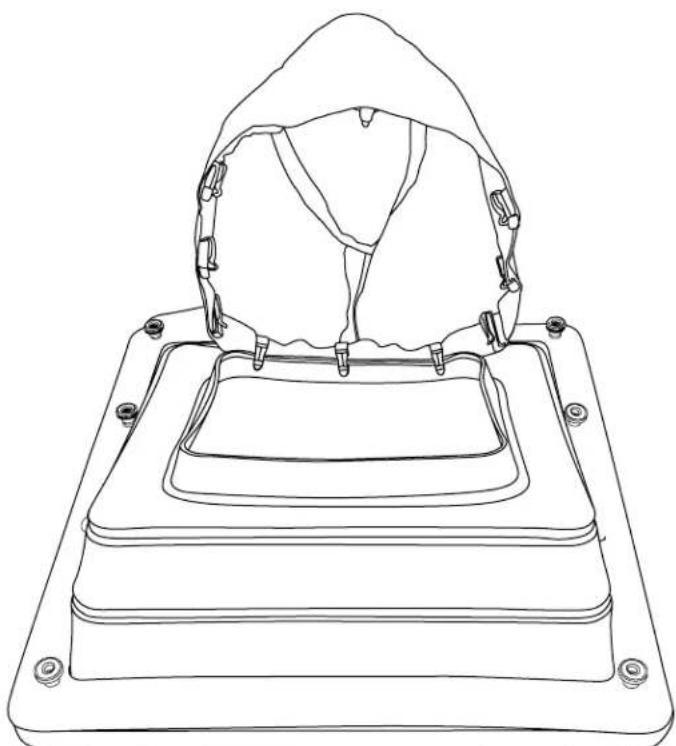

Extend the teleprompter hood open and attach teleprompter boot using the clips. It is suggested to align the seam with the bottom of the teleprompter hood.

Line drawing of a mechanical device with a dome-shaped component and mounting base (no text or symbols)

Step 6

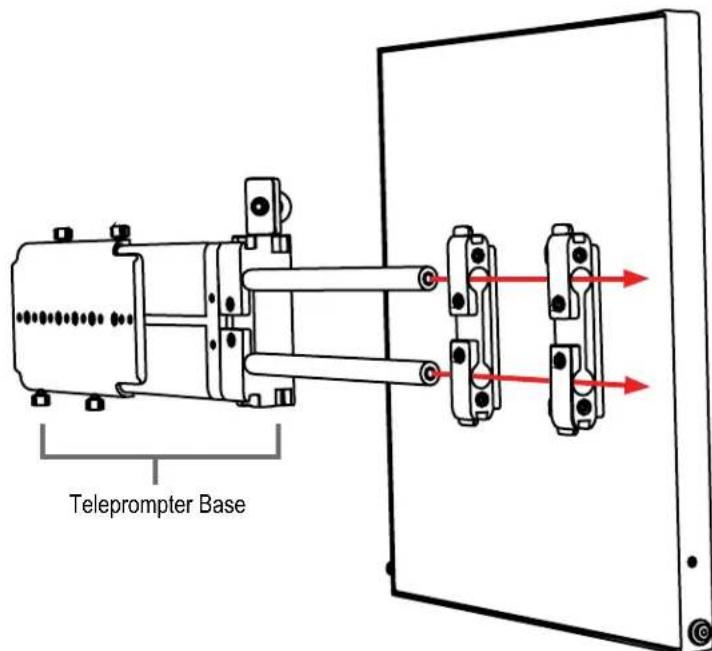

Removethe monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.

Technical line drawing of a mechanical assembly with red directional arrows indicating motion or force directions (no text or symbols present)

Step 7

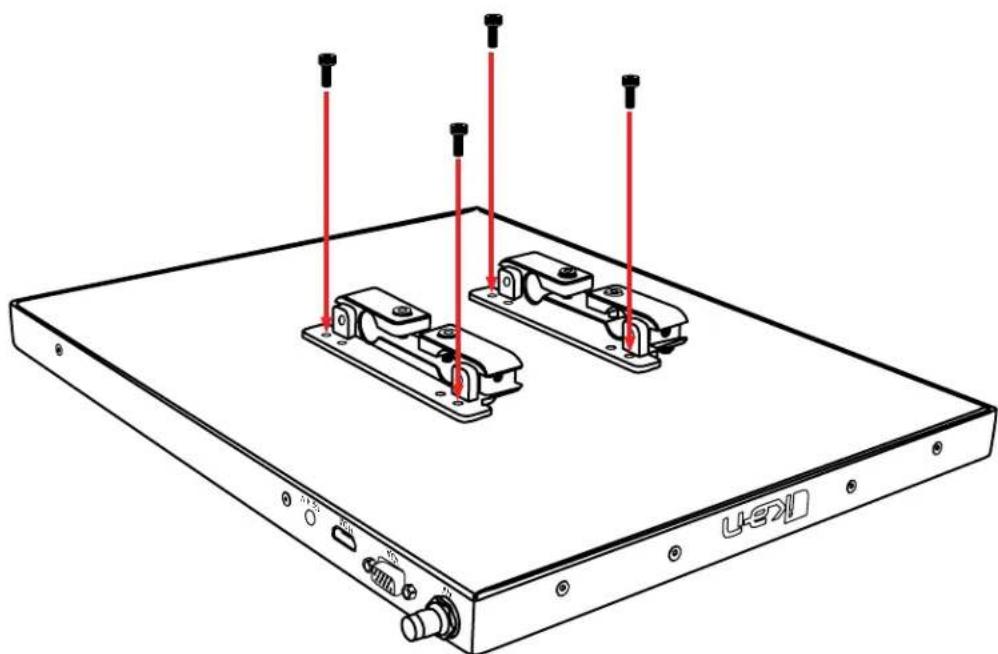

Attach the monitor mounts on the back of the monitor's VESA compatible threads using the 4 included screws and provided 2mm hex key.

Technical line drawing of a device chassis with red vertical rods and mounting brackets (no text or symbols)

Step 8

After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor. *SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.

Step 9

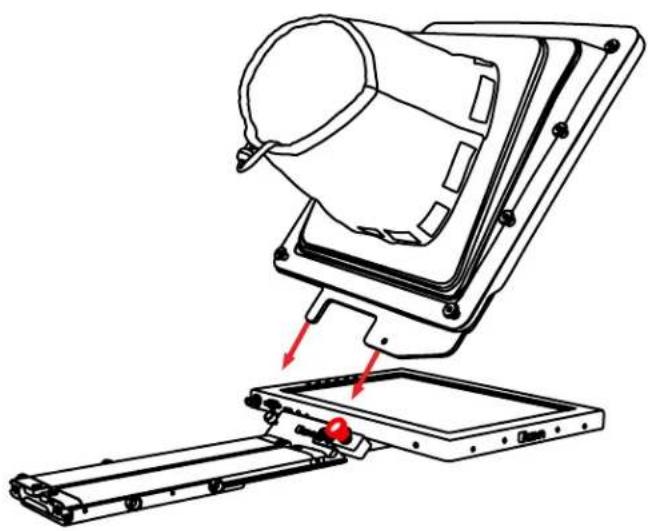

While sliding the teleprompter bracket into the slot of the teleprompter base pull on the red knob to allow the bracket to fully slide in.

Step 10

Oncethe bracket is in place, tighten the side screw to lock in place. Double check and make sure all the screws are tightened with the included hex keys.

Technical line drawing of a mechanical assembly with red arrows indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 11 (optional)

Should the teleprompter be too front heavy, you can attach the included counter weight on the back of the teleprompter base.

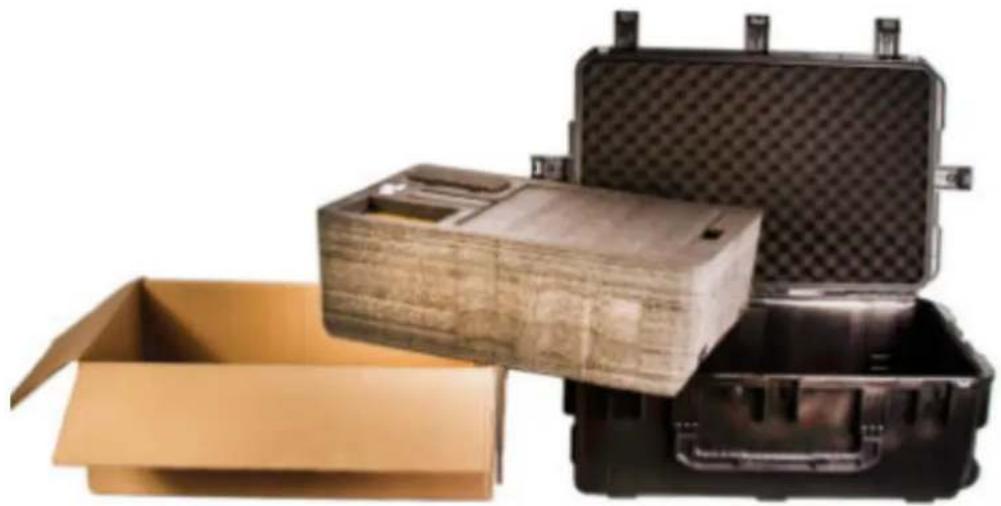

Foam Case

To make your teleprompter more portable, we packed it in a reusable, high-quality SKB rolling hard case.

Stacked cardboard and black plastic medical equipment boxes, no visible text or symbols

Monitor Ports

BNC- SDI Input

VGA– Video Graphics Array DE15 Connection

HDMI– High-Definition Multimedia Interface Input Connection

Power Port - 12-24v Input

HDMI- Switch HDMIinput

VGA- Switch to VGAinput

SDI – Switch to composite SDinput

Flip - Toggle image flip

(Canbe set to horizontal, vertical, or both via menu)

UpArrow - Toggle up to adjust setting

Menu – Access to monitor settings

Down Arrow – Toggle down to adjust setting

Monitor Menu Settings

Video Config

Contrast (White Level)

Brightness (Black Level)

Tint (Chroma Hue)

Chroma (Chroma Saturation)

Sharpness (Detail)

RGBSetup – Manually configure RGB

Return

System Config

Menu Duration – Set duration of how long menu stays on screen

Video Ratio - Set screen aspect ratio 16:9 or 4:3 (4:3 is native resolution, 16:9 will create black bars)

Flip-H – Assign toggle button to flip image horizontally

Flip-V – Assign toggle button to flip image vertically

Reset - Factory reset

Return

PC Setup (Only available for VGA)

H-Position – Adjust horizontal position

V-Position – Adjust vertical position

Auto – Monitor automatically adjust position

Return

Exit

How to set-up FLIP button feature:

1. Press MENUbutton
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-Hto "ON"
5. Exit MENU
6. The FLIP button should now be activated and can be pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-Vis ON, the image will flip Vertically
9. If both are ON, the FLIPbutton will toggle both Horizontal and Vertical flip

Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Teleprompters:

ikancorp.com/15-in-videos/

Optional Accessories

PT4500-G Replacement Glass for both PT4500-SDI-V2

M15W 15" High Bright Widescreen Talent Monitor (for PT4500-SDI-V2)

PT15-SDI-V2 15" High Bright 4:3 Monitor (for PT4500-SDI-V2)

PT-CASE-V2 Rolling Hard Case for PT4500-SDI-V2 Teleprompter

PT-CASE-15TM Hard Case for 15" Talent Monitor

Supported Video Signals

SDI & HDMI:

1080p @ 50, 25, 59.94, 60, 23.976, 24, 29.97, 30 Hz

1080i @ 50, 59.94, 60 Hz

720p @ 50, 59.94, 60 Hz

480p @ 59.94 Hz

576p @ 50, 59.94 Hz

576i @ 50 Hz

1920x1200 @ 60 Hz

1600 x 1200 @ 60 Hz

1400x1050 @ 60 Hz

1280x1024 @60 Hz

1280x960 @ 60 Hz

1360x768 @ 60 Hz

1280x768 @ 60 Hz

1024x768 @60 Hz

800x600 @ 60 Hz

640x480 @ 60 Hz

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [e-mail]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

©2024 Ikan International. All rights reserved.

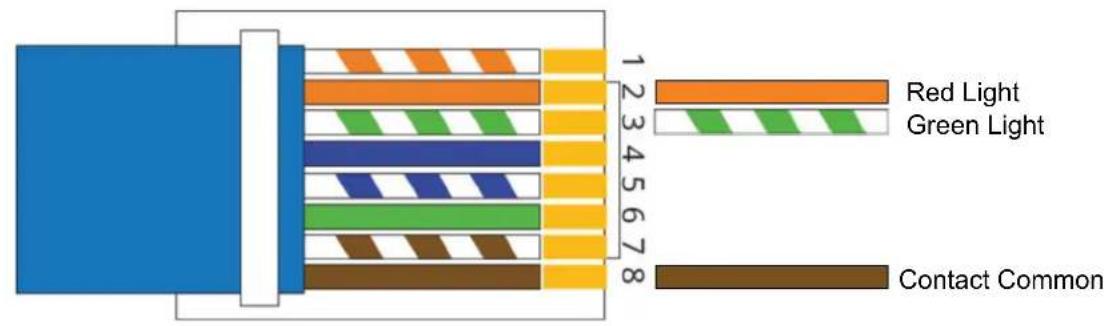

Pinout Diagram for Tally Light

Tally Light Pinout:

Tally Pin Layout Diagram

Learn More

More dynamic information at official website :www.ikancorp.com

Support

Contact email: [e-mail]

©2024 Ikan International. All rights reserved.
