Figure A1. General design of the air purifier OVU-02 RAC-3709.

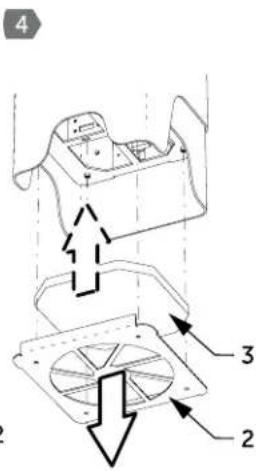

Figure A2. Maintenance (cleaning and replacement) of the air filter of OVU-02 RAC-3709.

Figure A3. Replacement of germicidal lamps in OVU-02 RAC-3709.

Figure A1

1. Front body panel
2. Rear body panel
3. Cover
4. Rocker switch
5. Power cord with plug
6. Fan
7. UV lamp operation indicator
8. Air filter
9. Filter guard

Figure A2

1. Fastening screws
2. Filter guard
3. Air filter

Figure A3

1. Fastening screws
2. Front body panel
3. Internal chassis
4. Lamp holders
5. Germicidal UV lamps

DEAR CUSTOMER!

Thank you for choosing REDMOND household appliances.

REDMOND stands for quality, reliability and consistently attentive attitude to customer needs. We hope you enjoy our products and will also choose our products in the future.

I. GENERAL

Ultraviolet air purifier OVU-02 RAC-3709 is a modern appliance designed for air disinfection (germicidal, virucidal, mycocidal treatment) by UV-C radiation. The air flow disinfection occurs during its forced circulation through the body with a low pressure germicidal ultraviolet lamp inside.

Recirculator RAC-3709 can be used by individual consumers at home, in sports and recreation centers, in schools, preschool institutions, premises of various organizations, offices, utility and technical rooms, production and storage facilities with an area of up to 30 m ^2 .

Recirculator RAC-3709 can be operated in the presence of people, animals and plants.

The air purifier is designed for continuous cyclic operation. The duration of continuous operation should not exceed 8 hours, and the minimum pause between switching on should be at least 15 minutes.

The ultraviolet air purifier OVU-02 RAC-3709 is not a medical device.

Want to know more? Please visit our website www.redmond.company.

There you will find up-to-date information about the offered REDMOND appliances and expected new products, you can get an online consultation, as well as order REDMOND products and original accessories for them in our online store.

REDMOND customer support in Russia: 8-800-200-77-21 (free call in Russia).

Before using this product, please read the Operation Manual carefully and keep it as a reference. Correct use of the appliance will significantly extend its service life.

The safety precautions and instructions contained in this manual do not cover all possible situations that may arise during the appliance operation. When working with the device, the user should use common sense, be careful and attentive.

II. SAFETY MEASURES

• The manufacturer is not responsible for damage caused by non-observance of safety measures and product operation rules.
• This appliance is designed for domestic use and can be used in apartments, country houses, hotel rooms, shop utility rooms, offices, or other similar non-industrial environments. Industrial or any other inappropriate use of the device will be considered a violation of the proper use conditions. In this case, the manufacturer is not responsible for the possible consequences.
• Before connecting the device to the mains, check whether its voltage matches the rated supply voltage of the appliance (see specifications or the product nameplate).
• Use an extension cord rated for the appliance power consumption: inappropriate parameters may cause a short circuit or the cable fire.
• Unplug the appliance after use, or when cleaning or moving it. Remove the power cord with dry hands by holding the plug, not the cord.
• Do not lay the power cord through doorways or near the heat sources. Make sure that the power cord is not twisted or kinked, and does not come into contact with sharp objects, corners and furniture edges.

REMEMBER: Accidental damage to the power cord may result in malfunctions that do not qualify for the warranty, as well as electric shock. If the power cord is damaged, it must be replaced by the manufacturer, customer service or similarly qualified personnel to avoid hazard.

• Use the appliance only for its intended purpose. Using the appliance for purposes other than those specified in this manual is a violation of the operating rules.
• Do not use the appliance outdoors: ingress of moisture or foreign objects inside the device body may cause serious damage.
• Do not use the appliance in rooms with high humidity and in rooms where flammable gases and vapors are present.

- In terms of electrical safety and protection degree, OVU-02 RAC-3709 meets the requirements of GOST 30345.0-95 (IEC 335-1-91) "Safety of Household and Similar Electrical Appliances. General Requirements" and is made in accordance with protection class II. However, we recommend to connect it to domestic mains that have a protective earthing conductor.

- Observe the recommendations and rules for working with the appliance. We recommend to adhere to the instructions of the Manual P3.5.1904-04 “The Use of Ultraviolet Bactericidal Radiation for Disinfection of Air and Surfaces in Rooms” of the Ministry of Health of the Russian Federation dated 04.03.2004.

REDMOND

III. SPECIFICATIONS

Rated recirculator capacity, m³/hour 60

Mains voltage, V / Mains voltage frequency, Hz 230/50

Power consumption, W 50

Ultraviolet lamp power, W / Number of lamps, pcs. 9 / 2

Lamp base type 2G7

Rated lamp life, hours 9000

Maximum UV radiation, within the band, nm 245-265

Replaceable air filter ....removable (replaceable)

Appliance installation type ......desktop

Operating mode ....cyclic

Maximum time of continuous operation, hours 8

Minimum interval between switching on, minutes 15

Dimensions, mm 390x150x150

Weight, kg. 2.6

IV. SCOPE OF SUPPLY

Ultraviolet air purifier OVU-02 REDMOND RAC-3709, pcs. 1

Replaceable air filter, pcs. 1

Operation manual, pcs. 1

Warranty and service book, pcs. 1

Package, pcs. 1

V. DESIGN AND PRINCIPLE OF OPERATION

OVU-02 RAC-3709 is a portable appliance (see Fig. A1), the body of which consists of a front panel (1), a rear panel (2) and a cover (3). The body includes: rocker switch (4), power cord outlet (5), fan (6), UV lamp operation indicator (7), air filter (8). At the top the fan is closed with a cover (3), the air filter is covered with a guard (9).

Due to the constant improvement of the design and production technology, your model of the OVU-02 air purifier may have changes that are not noted in this operation manual and do not worsen its operating parameters.

- The air purifier is placed vertically, the body forms structural legs that provide the necessary height above the surface for optimal fan performance.

Do not place the air purifier on soft or hairy surfaces. This can lead to a change in the

fan operating modes and a decrease in the appliance efficiency.

- The fan provides air intake through the filter in the lower part, its flow inside the body, where it is irradiated with a germicidal UV-C lamps, then the disinfected air is released back into the room. The rated purifier capacity is 60m^3 per hour.

- When the appliance is turned on, a slight blue glow of the UV lamp indicator and the guard slots is observed. This is normal and not a health hazard.

- A characteristic smell may appear during the appliance operation, especially at first. This smell is not a sign of malfunction.

• Unpack the appliance. Make sure that there is no mechanical damage.
• Place the recirculator on a stable horizontal surface such as a table, shelf or floor.
• Plug the power cord into a 230V 50Hz household power outlet.
• Switch on the recirculator using the rocker switch on the back of the body. The key illumination will turn on, indicating the power supply to the appliance circuit.
• When turned on, a slight blue glow will appear in the slots of the indicator and guards, which is a sign of the UV lamps operation.
• The appliance is turned off with the same rocker switch. If you plan to shut down the appliance for a long time, disconnect the power cord from the household power outlet.
• Design time of effective operation against the sanitary indicator Staphylococcus aureus (for a UV lamp installed by the manufacturer with a run time below 1000 hours) with a safety factor of 1.5 is shown in Table 1.

Table 1.

Germicidal efficiency, %	Room volume, m^3
	Up to 30 Up to 50 Up to 70 Up to 100
90.00 40 minutes	1 hour 1 hour	20 min 2 hours
85.00 30 minutes	50 minutes 1 hour	10 min 1 hour	45 min

• To find out the minimum operating time of OVU-02 RAC-3709 required for your room, multiply its area by the ceiling height and find the nearest value in the table. If your room is over 100 meters, calculate the volume ratio and use the resulting factor to recalculate the operating time. For example, if the room volume is 150m^3 , we get a factor of 1.5. For a germicidal efficiency of 90% , a treatment time of 2 hours must be multiplied by 1.5 – the resulting value of 3 hours will be the minimum operating time of the air purifier in a room with a volume of 150m^3 .
• If you need to reduce the minimum time of efficient operation, the installation of additional air purifiers in the room will significantly reduce it. It is also recommended to install additional air purifiers if more than five people are constantly in the room.

VII. AIR PURIFIER MAINTENANCE

• The outer surfaces of the OVU-02 RAC-3709 body should be periodically treated with a 3% hydrogen peroxide solution with the addition of 0.5% detergent. It is allowed to use a 1% solution of chloramine and alcohol-containing disinfectants. For treatment, use a gauze swab moistened with disinfectant.
- If there is a significant amount of dust in the air, the air purifier capacity may decrease over time. The air filter should be cleaned and washed regularly.
- For the air filter maintenance do the following (see Fig. A2):

• Unscrew the four fastening screws (1) of the guard (2) and remove it.
• Remove the air filter (3).
• Clean the air filter with a vacuum cleaner and rinse it under a strong jet of water.
• Dry the air filter without heating appliances.
• Place the filter in the guard.
• Install the guard with the inserted filter on the body and screw in the four fastening screws.

- The UV germicidal lamps installed in the product have a rated life of 9000 hours. This is a fairly significant time – for example, when operating daily for 8 hours, the lamp will work for more than three years. Upon reaching the run time of 9000 hours, the lamps should be replaced. Unfortunately, sometimes lamps fail a little earlier, in which case they should also be replaced in order to maintain the air purifier efficiency.

Please note! Germicidal lamps are consumables, they are not covered by the warranty and should be replaced by yourself or by contacting a service center. Use only ozone-free UV germicidal lamps for replacement.

- To replace the lamps on your own when the run time reaches 9000 hours or in the event of their failure, do the following (see Fig. A3):

• Disconnect the power plug from the mains
• Loosen the fastening screws (1) of the front body panel (2)
• Slide the front body panel up
• Lamp holders (4) with germicidal lamps (5) are installed on the inner chassis (3)
• Carefully remove old lamps and install new lamps.

Please note! Install new germicidal lamps with clean cotton gloves! If you touch the lamp bulb with your hands, wipe the bulb with a swab moistened with isopropyl or ethyl alcohol.

• Reassemble the air purifier in reverse order
• Connect the power plug to the mains, turn on the appliance with the rocker switch.
• Make sure that the lamps turn on (there is a characteristic glow of the Redmond lettering on the front panel) and that there is no characteristic ozone smell.
• If the lamps (lamp) do not light up, disconnect the appliance from the mains, open it as described above and make sure that the lamps are inserted into the holders up to the stop.
• If a characteristic ozone smell appears, immediately turn off the appliance and replace the lamps with ozone-free ones (usually, a special marking is applied to the lamp and its packaging).

VIII. DISPOSAL

- The lamp installed in the OVU-02 RAC-3709 air purifier contains mercury. Therefore, the lamps must be disposed of in accordance with local (municipal, regional) hazardous waste disposal regulations.

REDMOND

- The packaging, user manual and the appliance itself must be disposed of in accordance with local recycling program. Do not dispose of these products with normal household waste.

IX. STORAGE, TRANSPORTATION AND OPERATION CONDITIONS

• The air purifier can be operated in the temperature range from +10^ to +40^ with the maximum relative humidity of 60% at a temperature of 25^ . The concentration of suspended solids in the air should not exceed 0.3mg / m^3 (0.15 mg/m³ at a silicon dioxide concentration >70% ).
• Transportation and storage should be carried out at temperatures ranging from -60^ to +45^ with the maximum relative humidity of 100% at a temperature of 25^ , subject to protection from solar radiation and atmospheric precipitation.

X. ACCEPTANCE

• Ultraviolet air purifier OVU-02 RAC-3709 complies with TS 26.60.13-002-13760586-2020 and is recognized as suitable for operation.
  • The manufacturer guarantees that the product meets requirements of TS 26.60.13-002-13760586-2020 if the consumer observes operation, storage and transportation conditions.
• OVU-02 RAC-3709 complies with CU TR 004/2011, CU TR 020/2011 - Certificate RU C-RU.HB35.B.01034/20 and EAEU TR 037/2016 - Declaration of Conformity RU D-RU.HB35.B.01.01705/20

XI. WARRANTY

• This product is warranted for a period of 1 year from the date of purchase. An additional year of free service is available upon registration in the Ready for Sky app. Information on conditions for your country is available at https://r4s.redmond.company/.
• During the warranty period, the manufacturer undertakes to eliminate by repair, replacement of parts or the entire product any manufacturing defects caused by inadequate quality of materials or workmanship. The warranty is only valid if the date of purchase is confirmed by the store seal and the seller's signature on the original warranty certificate. This warranty is only recognized if the product

has been used in accordance with the operation manual, has not been repaired, disassembled or damaged as a result of improper handling, and the product completeness is preserved.

• This warranty does not cover normal wear and tear of the product and consumables (filter, UV germicidal lamp, etc.). Due to this, an appliance functional check should be carried out in a store. A claim for the UV lamp inoperability is accepted within the first 3 (three) days from the date of purchase of the air purifier.
• The product service life and validity period of the warranty obligations for it are calculated from the date of sale or the date of manufacture of the product (if the date of sale cannot be determined).
• The date of manufacture of the appliance can be found in the serial number located on the identification label on the product body. The serial number consists of 13 characters. 6th and 7th characters indicate the month, the 8th – the year of manufacture of the device.

0000011233333

1 – month of manufacture (01 – January, 02 – February ... 12 – December)
2 - year of manufacture (1 - 2011, 2 - 2012 ... 0 - 2020)
3 - model serial number

• The manufacturer's assigned product service life is 3 years from the date of purchase, provided the product is operated in accordance with this manual and the applicable technical standards.
• Failure of UV lamps during the service life of the appliance is not a warranty case. The lamp must be replaced by the consumer on their own or on a reimbursable basis at the service center.

Manufacturer: "REMO-Tekhnologii, LLC",

50 Let Oktyabrya, 101, Saratov, Russia, 410033

Redmond Industrial Group LLC

One Commerce Plaza, 99 Washington Ave, Ste. 805A,

Albany, New York, 12210, United States

www.redmond.company

www.multivarka.pro

www.store.redmond.company

www.smartredmond.com
