USER MANUAL FFTM25SI Philco

Pure technical line drawing of a rectangular frame with no text, numbers, or symbols

CONTENTS

1 Safety warnings

1.1 Warning 1-2
1.2 Meanings of safety warning symbols 3
1.3 Electricity related warnings 3
1.4 Warnings for using 4
1.5 Warnings for placement 4-5
1.6 Warnings for energy 5
1.7 Warnings for disposal 5

2 Proper use of refrigerators

2.1 Placement 6
2.2 Leveling feet 7
2.3 Door Hinge adjustment 7-10
2.4 Changing the Light....10
2.5 Starting 10
2.6 Energy saving tips 10

3 Structure and functions

3.1 Key components 11
3.2 Functions 12

4 Maintenance and care of the refrigerator

4.1 Overall cleaning 13
4.2 Cleaning the glass shelf 13
4.3 Defrosting 14
4.4 Out of operation 14

5 Trouble shooting 15

1 Safety warnings

1.1 Warning

Warning sign depicting a flame symbol in yellow and black on white background

Warning: risk of fire / flammable materials

THIS appliance is intended to be used in household only, Appliance not applied for such as staff kitchen areas in shops, offices and other working environments; farmhouses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

THIS appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) Children should be supervised to ensure that they do not play or inappropriate use with the appliance.

IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

THE appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded disqualified plug adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

THE refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

REFRIGERANT _a

and cyclopentane foaming material used for the appliance are flammable.

Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

CHILDREN _s

should be supervised to ensure that they do not play with the appliance.

FOR

EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play and inappropriate use with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

TO

avoid contamination of food please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with food and accessible drainage systems.
  – Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days. (Note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star( ^** )frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (Note 2)

One(*), two(**), three(***) and four-star (****) compartments are not suitable for the freezing of fresh food. (Note 3)

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3: Please confirm whether it is applicable according to your product compartment type.

WARNING

:To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

WARNING

Connect to potable water supply only. (Suitable for ice making machine)

TO

Prevent a Child from Being Entrapped, Keep Out of Reach of Children and Not in The Vicinity Of Freezer (Or Refrigerator). (Suitable for products with locks)

In case the refrigerant circuit is damaged, do not use any electric appliances or fire equipment nearby, and open all windows to provide good ventilation. Please also contact your local maintenance agent to follow up.

The user manual should be handed over to any person who would use or handle the refrigerator whenever the refrigerator would be transferred to another location and delivered to a recycling plant.

1.2 Meaning of safety warning symbols

Prohibition symbol	This is a prohibition symbol.Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.
Warning symbol	This is a warning symbol.It is required to operate in strict observance of instructions marked with this symbol; or otherwise, damage to the product or personal injury may be caused.
Note symbol	This is a cautioning symbol.Instructions marked with this symbol require special caution.Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Diagram showing hand gesture with checkmark and magnifying glass, alongside a cartoon character holding a phone.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and appliances, no text or symbols present

Line drawing of a refrigerator with a top-mounted air conditioner unit (no text or symbols)

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

- Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

- Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- Do not use electrical appliances on the top and within the appliance

1.4 Warnings for using

Simple line drawing of a refrigerator with tools and a crossed-out box, no text or symbols present

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a book with a starburst effect, no text or symbols present

- The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.

- DDo not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

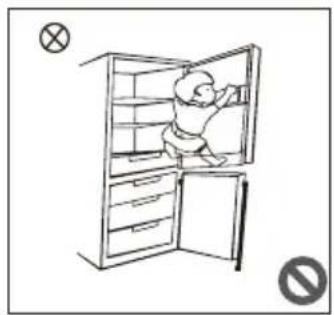

Line drawing of a person climbing an open refrigerator with a cross symbol (no text or labels)

- Do not allow any child to get into or climb the refrigerator; otherwise, suffocation or falling injury of the child may be caused.

Simple line drawing of a distressed trash can with a sad face and a warning symbol (no text or labels)

- Do not place heavy objects on the top of the refrigerator considering that objects may fall when close or open the door, and accidental injuries might be caused.

- Please pull out the plug-in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Illustration showing hands holding a tray with labeled items including a bottle, eraser, and a cross symbol

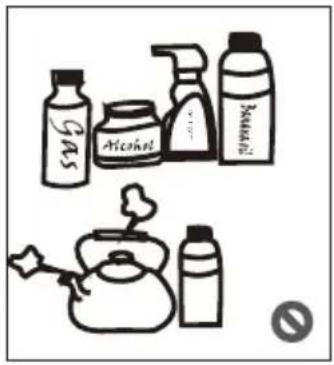

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.

Blood Drugs Natural products

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber Beer

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; or otherwise, the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

Warning for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold.
3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets.
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
6) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

2 Proper use of refrigerators

2.1 Placement

Simple line drawing of a person carrying a cardboard box next to a refrigerator (no text or symbols)

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face, sun, and potted plant (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

- Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a wall-mounted cabinet (no text or symbols)

- The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).

30cm 10cm 10cm

- The top space of the refrigerator shall be greater than 30cm, and the refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

Precautions before installation:

Before installation or adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

2.2 Leveling feet

Schematic diagram of the leveling feet

dic diagram of the leveling feet L H

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator.
b. Turn the feet counterclockwise to lower the refrigerator.
c. Adjust the right and left feet based on the procedures above to a horizontal level.

2.3 Door Hinge adjustment

List of tools to be provided by the user
	Cross screwdriver		Putty knifethin-blade screwdriver
	5/16"socket and ratchet		Masking tape

Parts to be used for door reverse
SN	parts	Quantity	Notes
1	Right upper hinge	1	Pre-installed on the refrigerator and to be used when changing the door
2	Right upper hinge cover	1	Pre-installed on the refrigerator and to be used when changing the door
3	Upper hinge axle sleeve	1	Pre-installed on the refrigerator and to be used when changing the door
4	Upper hinge screw	3	Pre-installed on the refrigerator and to be used when changing the door
5	Hole cover	1	Pre-installed on the refrigerator and to be used when changing the door
6	Middle hinge screw	2	Pre-installed on the refrigerator and to be used when changing the door
7	Middle hinge	1	Pre-installed on the refrigerator and to be used when changing the door
8	Hole plug	2	Pre-installed on the refrigerator and to be used when changing the door
9	Middle beam screw	1	Pre-installed on the refrigerator and to be used when changing the door
10	Middle beam screw cap	1	Pre-installed on the refrigerator and to be used when changing the door
11	Adjustable foot	1	Pre-installed on the refrigerator and to be used when changing the door
12	Lower hinge screw	3	Pre-installed on the refrigerator and to be used when changing the door
13	Lower hinge assembly	1	Pre-installed on the refrigerator and to be used when changing the door
14	Lower end cover screw of freezing door	1	Pre-installed on the refrigerator and to be used when changing the door
15	Lower end cover limiting block of freezing door	1	Pre-installed on the refrigerator and to be used when changing the door
16	Lower end cover screw of refrigerator door	1	Pre-installed on the refrigerator and to be used when changing the door
17	Lower end cover limiting block of refrigerator door	1	Pre-installed on the refrigerator and to be used when changing the door
18	Lower end cover limiting block of refrigerator door	1	Pre-installed on the refrigerator and to be used when changing the door

1) Please power off this appliance before conducting this operation. Remove all food from door shelves.
2) Remove hole cap, the upper hinge cover, fitting screws of upper hinge, upper hinge and sleeve pipe, then uplift the freezer door until it is separated from cabinet completely.

hole cover upper hinge cover screw upper hinge

3) Unscrew the middle hinge screws, remove the middle hinge, and remove the two-hole plug, a screw, a screw cap on the middle beam, then remove the refrigerator door.

hole plug screw screw cap middle hinge screw

4) Remove the adjusting feet, lower hinge screw and lower hinge assembly, then install the lower hinge assembly on the other side of the box and install the adjusting feet on the side of the adjusting feet opening.

Lower hinge assembly screw Adjusting feet

5) Dismantle the limit blocks and screws on the lower cover of both refrigerator door and freezer door, install them on the other side of both doors; then install the sleeve pipe on the upper cover of the refrigerator door on the other side.

sleeve pipe stopper screw limit blocks screw

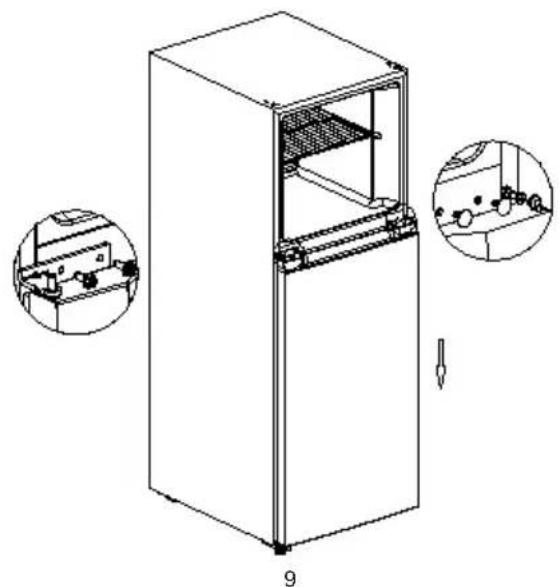

6) Install the Refrigerator compartment door on the lower hinge and then install the middle hinge and hole caps.

Technical line drawing of a refrigerator with internal compartments and labeled parts (no text or symbols)

7) Install the freezer door on the middle hinge, and install the upper hinge, hinge cover and hole cover.

hinge cover screw upper hinge hole cover

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

2.4 Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

2.5 Starting

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

• Before initial start, keep the refrigerator still for two hours before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

545mm 545mm 929mm 135 978mm

- Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.6 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let's await hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
  ● Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time and close the door as soon as possible.

3 Structure and functions

3.1 Key components

Shelf LED light Damper adjusting slider Drawer flip Temperature control panel Refrigerator glass shelf Fruits and vegetables box cover plate Fruits and vegetables box Door tray Door tray

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
  ● Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
  ● The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access. Please be noted food shall be consumed within the shelf time.
  ● Freezing Star Rating : 4 star
  • 1 One gear (8°C)
  2 Two gear (6°C)
  3 Three gear (4°C)
  4 Four gear (2°C)
  5 Five gear (0°C)

3.2 Functions

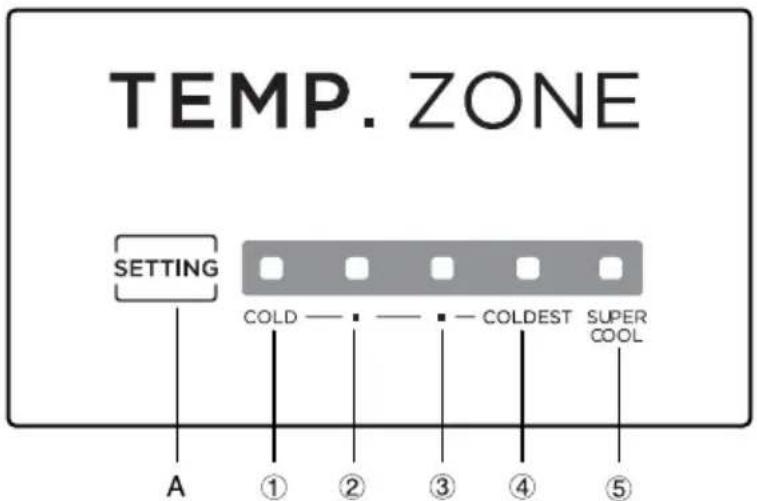

TEMP. ZONE SETTING COLD — — — COLDEST SUPER COOL A ① ② ③ ④ ⑤

Notes:

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

1) Setting button,
A: Setting button
2) Display screen
3) LED: ① level

(COLD)

LED: ② level

LED: ③ level (MID) LED: LED: ④ level

LED: ⑤ level (COLDER)

4) Display

When the refrigerator is on power, the display screen all LED light for 3 seconds, the default temperature is MID (③ level).

When there is a failure, the LED light shows the fault code (loop display), the LED light displays as following table:

Error code Error description
LED5, 4 flashing Temperature sensor failure of refrigerating chamber
LED5, 3 flashing	Defrost temperature sensor failure of freezing chamber
LED5, 2 flashing	The ambient temperature sensor failure

5) Level setting

Every time you press setting button, the level changes once, after setting the level 15s, the refrigerator will run according to the setting value.

Level adjustment to:

1 level 2 level 3 level 4 level 5 level → → →

6) Memory Function

The refrigerator can keep memory of following running status when power off.

7) Damper adjusting slider

COLDER FRIDGE COLDER FREEZER

The initial position of the damper adjusting slider is on the far-right side.

For better user experience, it is recommended to push the slider to right position, and turn the SETTING KEY to MID position. If it is not enough cool inside the refrigerator compartment, please check whether the slider is in left position, turn the slider to the right side.

4. Maintenance and care of the appliance

4.1 Overall cleaning

• BeDusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Please unplug the refrigerator for defrost and cleaning.

Illustration of various household items including a gas cylinder, a microlife bulb, a bottle with spray, and a kettle with steam (no text or symbols)

4.2 Cleaning the glass shelf

• Lift up the front of glass shelf, and then pull out;
• Remove the glass shelf and clean as needed.
  ● The reverse operation is for installation of glass shelf.

Line drawing of a cabinet interior with hand inserting a valve into the door (no text or symbols)

4.3 Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4.4 Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time non-use: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally or be vibrated; the inclination during movement shall be no more than 45°.

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise, the service life may be impaired.

5 Trouble shooting

You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contact.Check whether the voltage is too low.Check whether there is a power failure or partial circuits have tripped.
Odor	Odorous foods shall be tightly wrapped.Check whether there is any rotten food.Clean the inside of the refrigerator.
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is high.It is not recommended having too much food in the appliance at the same time.Food shall get cool before being put into the appliance.The doors are opened too frequently.
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged.
Doors cannot be properly closed	The door is stuck by food packages.The refrigerator is tilted.
Loud noise	Check whether the floor is level and whether the refrigerator is placed stably.Check whether accessories are placed at proper locations.
Door seal fails to be tight	Remove foreign matters on the door seal.Heat the door seal and then cool it for restoration(or blow it with anelectrical drier or use a hot towel for heating).
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting.
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal.When housing becomes hot due to high ambient temperature and storage of too much food, it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

請記錄下列產品資料

a Gilman Group Company

使用說明書

FFTM25SI

Pure architectural line drawing of a two-story building facade with no text or symbols

目錄

1 安全警告事項

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

火災/易燃材料警告

Diagram showing hand holding a checkmark next to a hand holding a magnifying glass, with a cartoon character pointing at it.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and equipment (no text or symbols)

Simple line drawing of a refrigerator with a top-mounted appliance and a hanging door (no text or symbols)

Simple line drawing of a refrigerator with tools and a crossed-out box, no text or symbols present

Simple line drawing of a hand holding a book with a starburst effect, no text or symbols present

Line drawing of a person installing or adjusting the door of an open refrigerator (no text or symbols)

Simple line drawing of a distressed container with a sad face and warning symbols (no text or labels)

Illustration of hands holding a tray with a bottle, blocks, and an orange cross symbol (no text or labels)

Before After After next

Simple line drawing of a person pushing a cardboard box into a refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sad face, sun, and potted plant (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Technical line drawing of a refrigerator with internal compartments and two circular insets showing mechanical components (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

545mm 545mm 978mm 135 929mm

Illustration of various household items including a gas cylinder, alcohol spray bottle, and a kettle with a flame (no text or symbols)

Line drawing of a door with a handle and angle measurement, no text or symbols present

4.3 除霜

a Gilman Group Company
