USER MANUAL TOYK980 American International

Exploded view diagram of a multi-case electronic device housing assembly (no text or labels)

VEHICLE APPLICATIONS

Toyota

2007

CAMRY

TOY-K980 Mounting Kit

DASH DISASSEMBLY AND RADIO REMOVAL INSTRUCTIONS

1. Carefully pry the vent assembly above the radio forward to release, disconnect the attached harness and remove vent assembly.
2. Remove the (2) 10mm bolts securing the top radio mounting brackets to the sub-dash.
3. Unclip and remove the individual side trims from each side of the center stack pocket.
4. Unscrew and remove the shifter knob.
5. Lift upward on the shifter knob trim and remove.
6. Open the center console arm rest.
7. Lift upward and remove the top section of the center console.
8. Remove the (2) Phillips screws securing the center stack pocket, pull pocket forward and disconnect all attached harnesses and remove pocket.
9. Remove the (2) 10mm bolts securing the bottom Radio/Climate control mounting brackets.
10. Carefully pull Radio/Climate control assembly forward, disconnect the wire harnesses and antenna lead and remove assembly.

** Remove the (2) phillips screws securing the Climate control module to the factory mounting brackets, and remove the module.

KIT ASSEMBLY INSTRUCTIONS

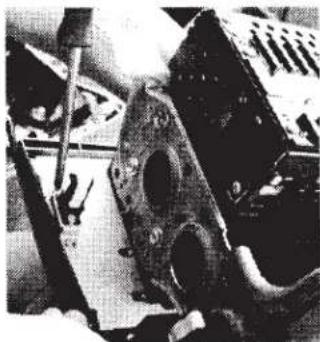

1. Remove the factory radio (upper side) mounting brackets, as shown in Fig. D below, and attach to the rear side of the TOY-K980 main bezel using the screws from the factory radio.

Fig. D

Close-up of mechanical components including a piston and crankshaft, with no visible text or symbols.

Single DIN Mount Applications

1. Attach the left and right side brackets to the main bracket. See Figure B opposite page.
2. Insert pocket (part # POC-980) into lower section of the main frame.
3. Attach left and right side brackets to the rear of the pocket using screws supplied.
4. Attach climate control module bracket and secure using the factory screws.
5. Insert DIN sleeve from your new radio into the upper section of the installation kit.

6. Depress the tabs from inside the sleeves opening upward, outward, and downward to secure sleeve to the installation kit.

7. Install radio into sleeve and lock into place.

8. Attach a rear support bracket to the rear of the new radio and adjust as necessary to attach to the rear support stud located on the back of the pocket using the small phillips screw supplied with kit.

NOTE: ISO trim ring (ITR-980) may be used in place of after-market radio's removable trim ring.

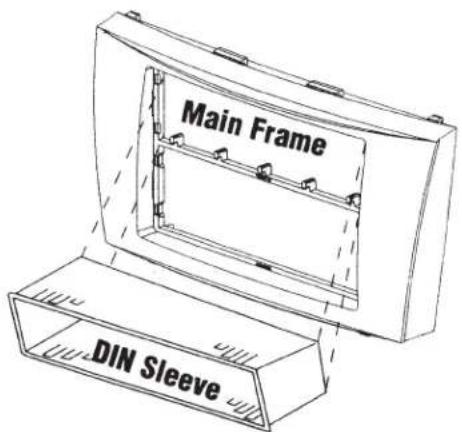

Main Frame DIN Sleeve

KIT ASSEMBLY INSTRUCTIONS

Single ISO Mount Applications

1. Attach the left and right side brackets to the main bracket. See Figure B.
2. Insert pocket (part # POC-980) into lower section of the main frame.
3. Attach left and right side brackets to the rear of the pocket using screws supplied.
4. Attach climate control module bracket and secure using the factory screws.
5. Attach (1) ISO Spacer to the inside of upper section on both Left & Right mounting brackets as shown in Fig. A. (See note #2 below)
6. Insert ISO mountable radio between ISO mount brackets and loosely attach to sides of radio using screws provided with radio when possible or hardware included with kit.
7. Slide radio component forward or backward for desired look and tighten screws.
8. Attach a rear support bracket to the rear of the new radio a.d adjust as necessary to attach to the rear support stud located on the back of the pocket using the small phillips screw supplied with kit.

NOTE: #1 - ISO trim ring (ITR-980) may be used in place of after-market radio's removable trim ring. #2 - Spacers must read upright (This side up for single ISO install).

For ISO mount only: Attach (1) ISO Spacer to the inside of upper section (See note #2) on both Left & Right mounting brackets as shown in Fig. A. Fig. A Left IMB-980L Fig. B ITR-980 (Top) Main Frame POC-980 Right IMB-980R

KIT ASSEMBLY INSTRUCTIONS

Double DIN & Double ISO Mount Applications

1. Attach the left and right side brackets to the main frame. See figure C below.
2. For double DIN radio applications ONLY cut and remove center rib from DITR-980 and file edges smooth.
3. Follow steps 4-7 from single ISO instructions on page 3. (See note #2 below)
4. Attach a rear support bracket to the rear of the radio components and adjust as needed to allow rear support bracket to rest in the sub-dash.

NOTE: #1 - ISO trim ring (DITR-980) must be used in place of after-market radio's trim rings. For ISO mount applications, mount after-market radio components to side brackets using screws provided with radio when possible or hardware included with kit.

2 - Spacers must read upright (This side up for DBL ISO install).

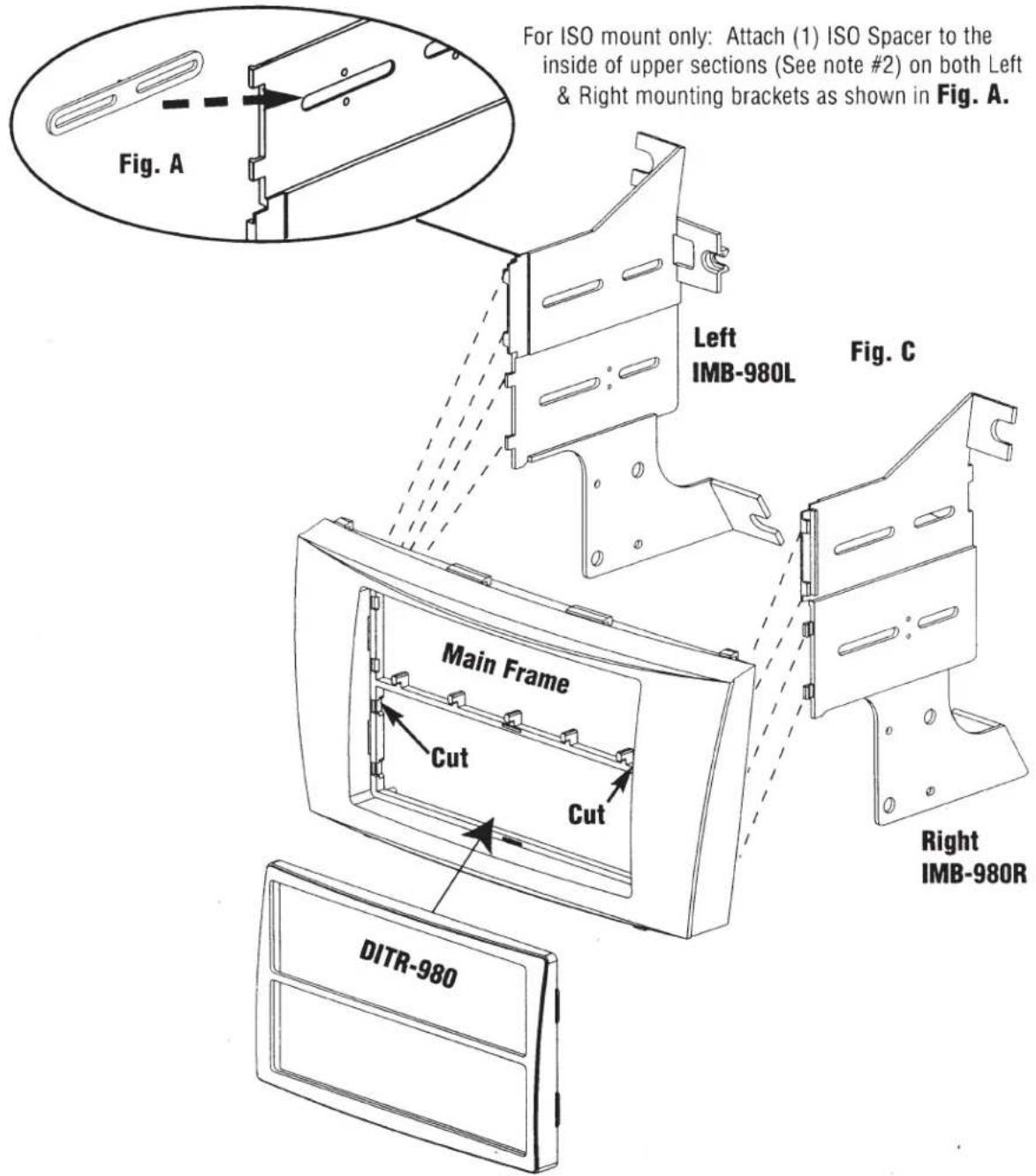

Fig. A For ISO mount only: Attach (1) ISO Spacer to the inside of upper sections (See note #2) on both Left & Right mounting brackets as shown in Fig. A. Left IMB-980L Fig. C Main Frame Cut Cut Right IMB-980R DITR-980
