USER MANUAL 92-3056P Metra

Before starting, compare items on your invoice with items received. Carefully check through packaging material.

If an item is missing, please call:

Crutchfield at 1-888-955-6000

120 92-3056P

Chevrolet

Revision 09/18/03

Parts Supplied:

Isometric line drawing of a rectangular enclosure with multiple circular holes and mounting holes (no text or symbols)

Isometric line drawing of a trimplate component (no text or symbols)

Isometric line drawing of a support tray component (no text or symbols)

Mounting Bracket

(4) 1/4" Hex Screws

(2) Studs

(2) 3/8" Nuts

Kit assembly instructions are on the following pages.

CRUTCHFIELD®

Copyright 2003 Crutchfield Corporation

Installation Kit

120 92-3056P

Chevrolet

DIN Receiver Assembly

1. Press posts on trimplate into holes on kit frame to snap parts together and secure with hex screws (Figure 1).
2. Use a utility knife to cut out shaft supports in trimplate to create a DIN opening (Figure 2).
3. Push clips on support tray into slots on rear of kit frame to secure (Figure 1).
4. Secure mounting bracket to bottom of kit frame with studs and nuts supplied (Figure 1).
5. Remove DIN sleeve from receiver and slide into opening in trimplate. Secure sleeve to trimplate by bending the securing tabs (Figure 3).
6. Slide receiver into sleeve/kit assembly.

FIGURE 2 Shaft Supports Trimplate Support Tray Hex Screws Kit Frame DIN Sleeve Mounting Bracket Nut STUD FIGURE 1

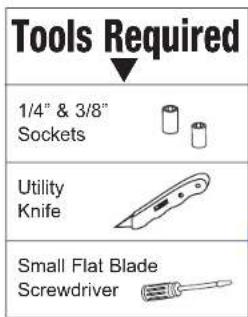

Tools Required 1/4" & 3/8" Sockets Utility Knife Small Flat Blade Screwdriver

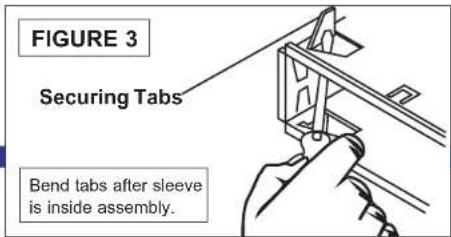

FIGURE 3 Securing Tabs Bend tabs after sleeve is inside assembly.

CRUTCHFIELD®

Copyright 2003 Crutchfield Corporation

Installation Kit

120 92-3056P

Chevrolet

Shaft Receiver Assembly

1. Press posts on trimplate into holes on kit frame to snap parts together and secure with hex screws (Figure 1).
2. Push clips on support tray into slots on rear of kit frame to secure (Figure 1).
3. Secure mounting bracket to bottom of kit assembly with studs and nuts supplied (Figure 1).
4. Choose the proper spacers (supplied with your order) to allow receiver nosepiece to extend 1/8" to 1/4" beyond face of trimplate (Figure 2).
5. Insert receiver shafts (with spacers in place) through openings in trimplate. Secure receiver and faceplate with shaftnuts supplied with receiver.
6. Attach control knobs.

FIGURE 1

Support Tray Kit Frame Trimplate Control Knobs Hex Screws Stud Mounting Bracket Faceplate Shaftnuts Nut SPacers (supplied with your order)

Tools Required

FIGURE 2 1/8"-1/4" Spacer
