USER MANUAL 92-3050P Metra

Before starting, compare items on your invoice with items received. Carefully check through packaging material.

If an item is missing, please call:

Crutchfield at 1-888-955-6000

Chevrolet

Revision 12/10/03

Page 1 of 3

Parts Supplied:

Isometric line drawing of a rectangular enclosure with circular cutouts and mounting holes (no text or symbols)

Isometric line drawing of a trimplate component (no text or symbols)

Isometric line drawing of a support tray component (no text or symbols)

Left Mounting Brackets Right

(2) Studs

(2) 3/8" Nuts

Kit assembly instructions are on the following pages.

CRUTCHFIELD®

Copyright 2003 Crutchfield Corporation

Installation Kit

120 90-3050P

Chevrolet

DIN Receiver Assembly

1. Press posts on trimplate into holes on kit frame to snap parts together (Figure 1).
2. Use a utility knife to cut out shaft supports in trimplate to create a DIN opening (Figure 2).
3. Push clips on support tray into slots on rear of kit frame to secure (Figure 1).
4. Using pliers, break off the tabs on the side mounting brackets labeled "B" that are shown as shaded (Figure 3). The "A" tabs must remain.
5. Secure mounting brackets to sides of kit frame with studs and nuts supplied (Figure 1).
6. Remove DIN sleeve from receiver and slide into opening in trimplate. Secure sleeve to trimplate by bending the securing tabs (Figure 4).
7. Slide receiver into sleeve/kit assembly.

FIGURE 2 Shaft Supports Left Mounting Bracket Kit Frame Support Tray Trimplate Stud Nut Right Mounting Bracket DIN Sleeve FIGURE 1

Tools Required 3/8" Socket Utility Knife Small Flat Blade Screwdriver Pliers

FIGURE 3 These "A" tabs remain Break off these "B" (shaded tabs) on both brackets

FIGURE 4 Securing Tabs Bend tabs after sleeve is inside assembly.

CRUTCHFIELD®

Copyright 2003 Crutchfield Corporation

Installation Kit

120 90-3050P

Chevrolet

Shaft Receiver Assembly

1. Press posts on trimplate into holes on kit frame to snap parts together (Figure 1).
2. Push clips on support tray into slots on rear of kit frame to secure (Figure 1).
3. Using pliers, break off the tabs on the side mounting brackets labeled "B" that are shown as shaded (Figure 2). The "A" tabs must remain.
4. Secure mounting brackets to sides of kit assembly with studs and nuts supplied (Figure 1).
5. Choose the proper spacers (supplied with your order) to allow receiver nosepiece to extend 1/8" to 1/4" beyond face of trimplate (Figure 3).
6. Insert receiver shafts (with spacers in place) through openings in trimplate. Secure receiver and faceplate with shaftnuts supplied with receiver.
7. Attach control knobs.

FIGURE 1

Support Tray Left Mounting Bracket Nut Control Knobs Stud Kit Frame Right Mounting Bracket Trimplate Faceplate Shaftnuts 1/8"-1/4" FIGURE 3

Tools Required 3/8" Socket Deep Socket (size depends upon receiver) Pliers

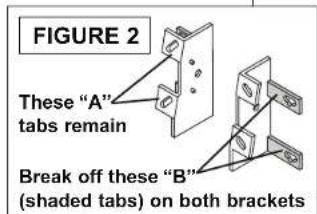

FIGURE 2 These "A" tabs remain Break off these "B" (shaded tabs) on both brackets

FIGURE 3 1/8" -1/4" Spacer
