IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING

• Do not plug in if control knob is not in OFF position. Personal injury or product damage could result.
• Keep children away and beware of obstructions when rewinding the cord to prevent personal injury The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use.

Failure to do so could result in electrical shock or personal injury.

- Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes.

Doing so could result in death, fire or electrical shock.

- Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

- Do not handle plug or vacuum cleaner with wet hands.

Doing so could result in death or electrical shock.

- Do not unplug by pulling on cord.

Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.

- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Failure to do so could result in electrical shock or personal injury or fire or product damage.

- The hose contains electrical wires. Do not use it if it is damaged, cut punctured.

Failure to do so could result in death, or electrical shock.

- Do not allow to be used as toy. Close attention is necessary when used by or near children.

Personal injury or product damage could result.

• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use vacuum cleaner if it has been under water. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner.

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not put fingers near the gear.

Failure to do so could result in personal injury.

gear ×

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

- Do not put any objects into openings.

Failure to do so could result in product damage.

- Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow.

Failure to do so could result in product damage.

- Do not use vacuum cleaner without the dust tank and/or filters in place.

Failure to do so could result in product damage.

• Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.

These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.

- Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.

They may damage the cleaner or dust bin.

- Store the vacuum cleaner indoors.

Put the vacuum cleaner away after use to prevent tripping over it.

- The vacuum cleaner is not intended to use by young children or infirm people without supervision.

Failure to do so could result in personal injury or product damage.

- Only use parts produced or recommended by LG Electronics Service Agents.

Failure to do so could result in product damage.

- Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.

Failure to do so could result in personal injury or product damage.

- To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.

Failure to do so could result in personal injury or product damage.

- Use accessory nozzles in sofa mode.

Failure to do so could result in product damage.

- Don't grasp the tank handle when you are moving the vacuum cleaner.

The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you are moving the vacuum cleaner. (Page 23)

- If after emptying the dust tank the alarm sounds, clean the dust tank.

Failure to do so could result in product damage.

- Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.

Failure to do so could result in product damage.

- Do not dry the filter in an oven or microwave.

Failure to do so could result in fire hazard.

- Do not dry the filter in a clothes dryer.

Failure to do so could result in fire hazard.

- Do not dry near an open flame.

Failure to do so could result in fire hazard.

- Do not use filters that is not dried.

- If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch. If the vacuum cleaner still does not run, contact a qualified electrician.

How to use Assembling vacuum cleaner

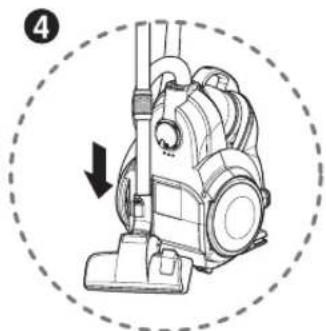

① Carpet and floor nozzle (depend on model)

Push the nozzle into the telescopic pipe.

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner. To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

How to use Operating vacuum cleaner

Mechanical assembly diagram showing a valve mechanism with a downward arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner inside a dashed circular frame (no text or symbols)

No liquid suction. Liquid suction can cause defects.

ПОПЕРЕДЖЕННЯ

How to use Using carpet and floor nozzle and Hard floor nozzle

Simple line drawing of a Y-shaped tool inside a dashed circular border (no text or symbols)

This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

- Carpet or rug position

Press the pedal (☐) to lower brush.

- Hard floor position (tiles, parquets floor)

Press the pedal (###) to lift the brush up.

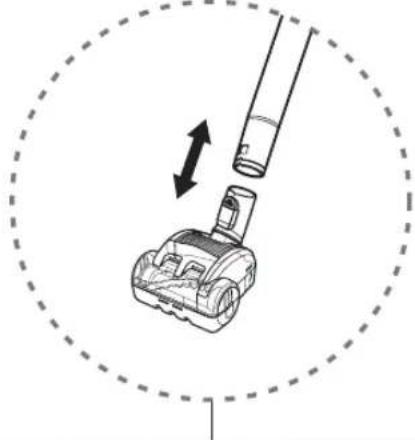

How to use Using carpet master nozzle and mini turbine nozzle

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows

Diagram of a vacuum cleaner with a lever and directional arrow, enclosed in a dashed circular border (no text or symbols)

③ Carpet master (depend on model)

• Cleaning turbine brush nozzle.
• Press the button on the rear side of the nozzle to separate the air cover.
• Use the crevice tool to clean the brush and the fan.

How to use Using 2 in 1 nozzle

Diagram of a car seatbelt with a tool inserted, showing no text or symbols

Illustration of a microscope on a stand with a paper labeled 'ATAG249' and a numbered circle (6), no text or symbols beyond the label.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

How to use Using accessory nozzles

Illustration of a car seat with a tool inserted, no text or symbols present

Illustration of a desk lamp with a pen and paper nearby, enclosed in a dashed circular frame (no text or symbols)

Crevice tool is for vacuuming in those normally hard-toreach place such as reaching cobwebs or between the cushions of sofa.

Upholstery nozzle is for vacuuming upholstery, mattresses etc. The thread collectors help to pick up the threads and fluff.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

- Accessory nozzles included in the "PE BAG" with owner's manual(depend on model)

How to use Emptying dust tank

The dust tank needs emptying when the dust tank level reaches the MAX line.

① Turn off the vacuum cleaner and unplug it.
② Grasp the handle of the tank and then press the tank separation lever. Pull out the dust tank.
③ Empty the tank and then assemble the dust tank as below.
Пылесборник требует опустошения, если уровень пыли достигает уровня МАХ.
① Отключите пылесос и отсоедините его от сети.
② Возьмитесь за ручку контейнера и нажмите кнопку отделения контейнера. Вытащите контейнер для пыли.
③ Опустошите контейнер от пыли и установите его обратно, как показано на рисунке.
Пилозбірник необхідно очистити, коли рівень пилу досягає лінії MAX.
① Вимкніть пилосос та вийміть вилку із розетки.
② Візьміться за ручку пилозбірника та натисніть на кнопку зняття пилозбірника. Вийміть пилозбірник.
③ Видаліть пил з пилозбірника та установіть його на місце, як показано на малюнку. Шаңға арналған қаптың іші толып ең жоғары дәреже сызығына жеткенде қаптың ішін босатып қойу керек.
① Шансорғышты өшіріп, желіден ажыратыңыз.
② Ыдыстың түтқасын ұстан, содан кейін ыдысты ажырату түймешігін басыңыз. Шаң ыдысын шығарыңыз.
③ ыдысты босатып, содан кейін шаң ыдысын көрсетілгендей жинаңыз.

Diagram illustrating a mechanical device operation, showing hand positioning and disassembly steps with labeled parts.

Moving the vacuum cleaner

• Don't grasp the tank handle when you are moving the vacuum cleaner.
  The vacuum cleaner's body may fall when separating tank and body.
  You should grasp the carrier handle when you are moving the vacuum cleaner.

Illustration of a person holding a backpack and hand, with no visible text or symbols

How to use Cleaning dust tank

① Press tank separation lever and pull out dust tank.
② Raise dust tank cap
③ Wash dust tank.
④ Dry fully in shade so that moisture is entirely removed.

If suction power decreases after cleaning the dust tank, clean the air filter and the motor safety filter.

→ Next page

ПРИМЕЧАНИЕ

How to use Cleaning air filter and motor safety filter

Dry fully for more than 24 hours in shade.

ОПАСНО

• Open the vacuum cleaner cover by pushing the button.
• Grasp the handle of the dust separator and take out it
• Open the guide cover by pulling the guide cover lever and remove the dust.
• Open the air filter cover by pushing the air filter cover lever and take out the air filter.
• Separate the motor safety filter from the dust separator.
• Wash the air filter and the motor safety filter.
• Do not wash filters with hot water.
• Dry fully in shade so that moisture is entirely removed.
  • The air filter and the motor safety filter should be cleaned as above the figure.

If filters are damaged, do not use them.

In this cases, contact LG Electronics Service Agent.

Wash filters at least once a month.

ПРИМЕЧАНИЕ

How to use Cleaning exhaust filter

• The exhaust filter is reusable.
① To clean the exhaust filter, remove the exhaust filter cover on the body by pulling it out.
② Separate the exhaust filter.
③ Dust off filter.(Do not wash filter with water.)
④ Insert the projection of exhaust filter into the grooves on the body and push the exhaust filter.

Exhaust filter cover assembling

The exhaust filter should be cleaned at least a year.

ПРИМЕЧАНИЕ

Check that the vacuum cleaner is plugged in correctly and that the electrical socket is working.

What to do when suction power decreases

• Turn off the vacuum cleaner and unplug it.
• Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
  Check that the dust tank is not full. Empty if necessary.
• Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
• Check that the air filter and the motor safety filter are not clogged. Clean the them if necessary.
• Check the inside of the dust separator. Clean the inside of the dust separator if necessary.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.
