USER MANUAL SHD-3000F3 Hanwha

Installation Instructions

Installation (OUTDOOR TYPE) 4

Product Specifications 9

2_SHD-3000F3

oVERVIEW

This In-CEILING HOUSING is a mounting ADAPTOR that is designed to mount the smart dome camera in built-in style on a double-layer ceiling.

WHAT's InCluDED

HOUSING SAFETY BRACKET (1EA)

SAFETY WIRE (1SET)

TEMPLATE (1EA)

SCREW (3EA)

Lower bracket (1EA)

INSTALLATION MANUAL

SHD-3000F3 _3

InsTAllATION InsTRuCTIons

1. Select an installation position or place that can endure more than 4 times of the total weight of the installation structure.
2. At least 250mm or more of spare height is required above the CEILING BOARD.
3. CEILING BOARD's thickness should be less than 40mm.
4. Be sure to secure the SAFETY WIRE to avoid a product fall.
5. If you want to attach the camera to the ADAPTOR, use the only provided SCREWS.

More than 250mm CEILING BOARD Less than 40mm

InstAllATION (OUTDOOR TYPE)

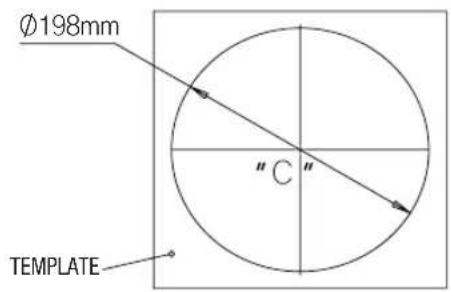

1. Place the TEMPLATE on the CEILING BOARD and drill a guided hole.

① Remove the round filling ("C") from the TEMPLATE.
2 Place TEMPLATE A onto the CEIIIInG BoARD to which you will attach the ceiling mount ADAPTOR and drill a hole of ∅198mm in diameter.
See the figure below for the hole shape.

Ø198mm " C " TEMPLATE

Ø198mm CEILING BOARD

4_SHD-3000F3

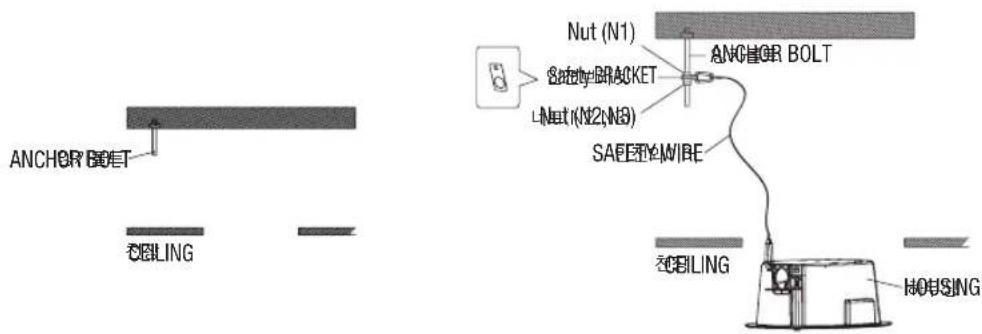

1. Fix the ANCHOR BOLT onto the concrete CEILING, and secure the SAFETY WIRE to the ANCHOR BOLT as below:

① Tighten the nut ("N1") on the ANCHOR BOLT.
2 Insert the provided SAFETY BRACKET into the ANCHOR BOLT.
3 Tighten two nuts ("N2", "N3") onto the ANCHOR BOLT.
4 Hook and fix one end of the SAFETY WIRE onto the SAFETY BRACKET.
5 Hook and fix the other end of SAFETY WIRE onto the HOUSING as shown below.

ANCHOR BOLT CEILING Nut (N1) ANCOR BOLT Safety BRACKET Nut (N2,N3) SAFETY WIRE CEILING HOUSING

✗ The ANCHOR BOLTs and nuts are optional and not included in the product package.

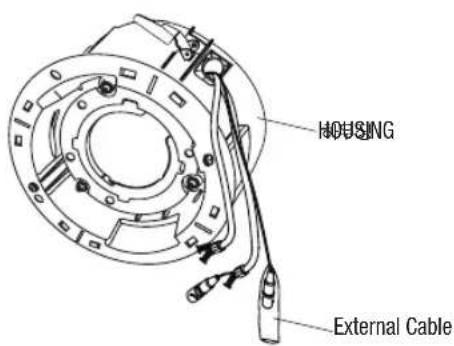

1. To connect to the camera, insert the external cable through the side hole on the housing to the inside of the housing as shown in the figure.

- Refer to the installation manual of the camera that you want to install, and prepare necessary cables for camera connection.

CEILING Hole HOUSING

HOUSING External Cable

SHD-3000F3_5

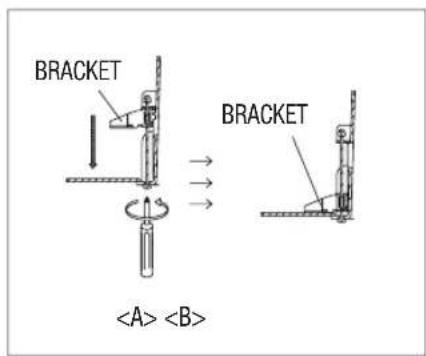

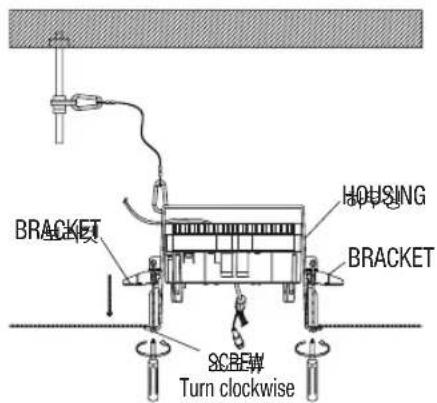

1. Push the HOUSING inside the CEILING through the CEILING hole, and tighten the SCREWs (x2) clockwise to fix the HOUSING on the CEILING. (The BRACKET will be positioned from to as shown.)

■ Ensure that the HOUSING is firmly secured to the CEILING BOARD.

BRACKET HOUSING BRACKET SCBE Turn clockwise

BRACKET BRACKET

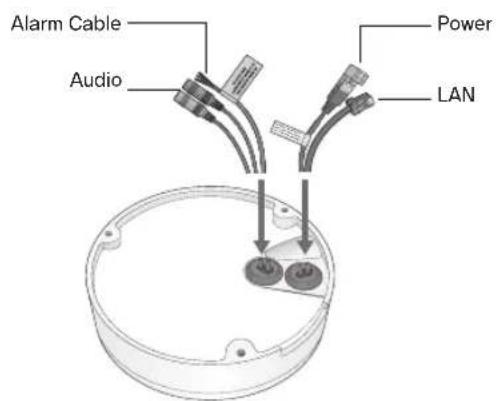

1. As shown in the figure, pull out the protrusions of the rubber cap in the bottom to make a small hole and remove the cable through it to connect to the external cable.

Alarm Cable Audio Power LAN

If waterproofing in the connected cable jacket is poor, it may cause leaks. Make sure you tape it tight and thoroughly.
■ The butyl rubber tape for waterproofing can extend at least twice as long as the original length.

6_SHD-3000F3

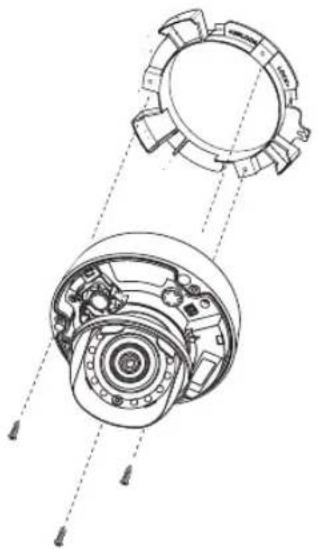

1. Combine the dome camera and the bracket using three screws.

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components without any text or symbols.

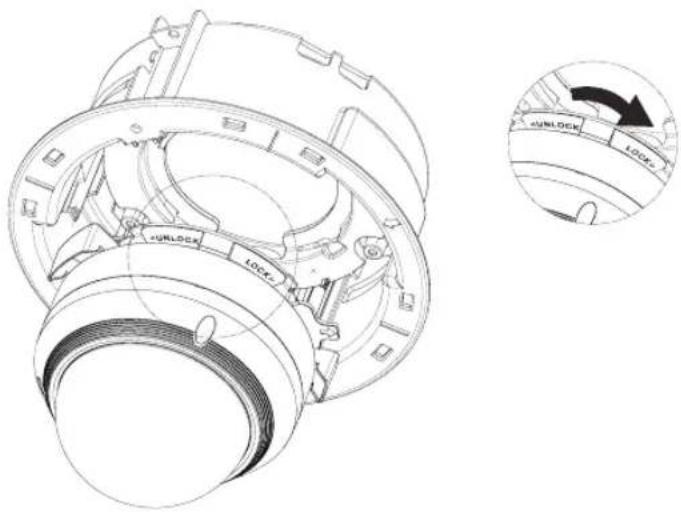

1. Insert the bracket where the camera is mounted into the housing and fix it by turning it in the LOCK direction.

- When the installation is completed, remove both PROTECTIVE TAPE and PRETOECTIVE COVER from the lens.

Technical line drawing of a mechanical component with an inset showing a circular arrow indicating rotational direction (no text or symbols present)

SHD-3000F3 _7

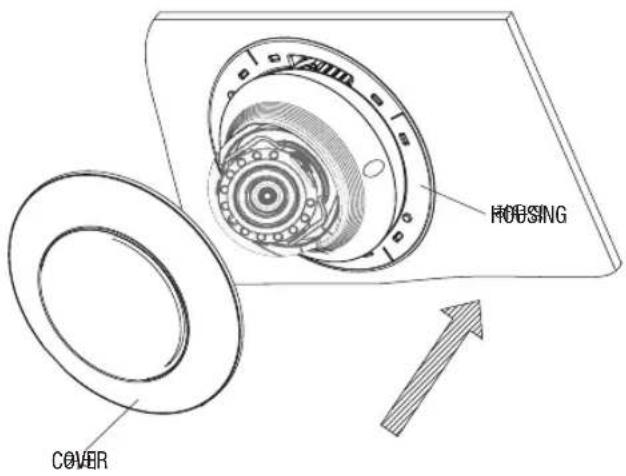

1. Attach the CoVER to the HousInG.

HOBSING COVER

Technical line drawing of a mechanical assembly with no visible text or symbols

※ Assemble the network cable through the hole on the bottom part of the housing.

8_SHD-3000F3

PRoDuCT sPECIFICATIONS

Item Specifications
Dimension (mm)	D224 X H106.9
Weight	490g
Temperature	-10°C ~ 50°C
Material	PC
Color Ivory

ENG

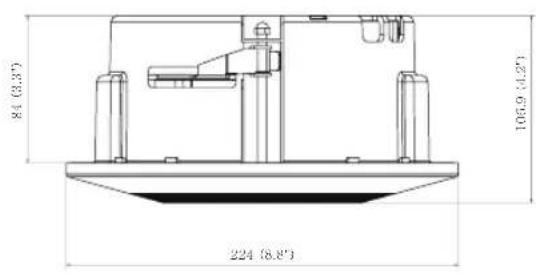

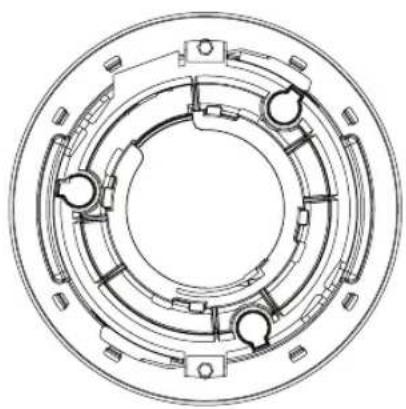

Unit : mm (Inches)

84 (3.37) 106.9 (4.21) 224 (8.8°)

Technical line drawing of a circular mechanical component with internal slots and mounting holes (no text or symbols)

SHD-3000F3_9
