USER MANUAL SMT-1912P SAMSUNG

Please read the following safety instructions as they are designed to prevent damage to property and harm to the user.

Warning / Caution

Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment.

Notational Conventions

Prohibited

Important to read and understand at all times

Do not disassemble

Disconnect the plug from the outlet

Do not touch

Ground to prevent an electric shock

Power

When not used for extended period of time, set your computer to DPM.

If using screen saver, set it to active screen mode.

The images here are for reference only, and are not applicable in all cases (or countries).

Shortcut to Anti-Afterimage Instructions

Do not use damaged or loose plug.

• This may cause electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

• This may cause electric shock or fire.

Use only a properly grounded plug and receptacle.

- An improper ground may cause electric shock or equipment damage. (Class 1 Equipment only.)

Insert the power plug firmly so that it does not come loose.

• A bad connection may cause fire.

Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.

• This may cause electric shock or fire.

Do not connect too many extension cords or plugs to one outlet.

• This may cause fire.

Do not disconnect the power cord while using the monitor.

- A surge may be caused by the separation and may damage the monitor.

Do not use the power cord when the connector or plug is dusty.

- If the connector or plug of the power cord is dusty, clean it with a dry cloth.

- Using the power cord with a dusty plug or connector may cause an electric shock or fire.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

• This may cause electric shock or fire.

Installation

Be sure to contact an authorized Service Centerwhen installing your monitor in a location with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it operates for 24 hours such as at airports, train stations etc.

Failure to do so may cause serious damage to your monitor.

Place your monitor in a location with low humidity and a minimum of dust.

- Failure to do so may cause electric shock or fire inside the monitor.

Do not drop the monitor when moving it.

- This may cause damage to the product or the person carrying it.

Install the monitor base in a showcase or shelf so that the end of the base does not protrude from the showcase or shelf.

- Dropping the product may cause damage to the product or the person carrying it.

Do not place the product on an unstable or small surface area.

- Place the product on an even and stable surface, as the product may fall and cause harm to someone walking by, specifically children.

Do not place the product on the floor.

• Take care, as someone, specifically children may trip over it.

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

- Otherwise, this may cause fire.

Keep any heating devices away from the power cable.

- A melted coating may cause electric shock or fire.

Do not install the product in places with poor ventilation, for instance, a bookshelf, closet, etc.

- Any increase in the internal temperature may cause fire.

Put down the monitor carefully.

- Failing to do so may damage the monitor.

Do not place the monitor face down.

• This may damage the TFT-LCD surface.

The installation of the bracket must be done by a qualified professional.

• Installing the bracket by unqualified personnel may result in injury.

• Always use the mounting device specified in the owner's manual.

When installing the product, make sure to keep it away from the wall (more than 10 cm / 4 inches) for ventilation purposes.

- Poor ventilation may cause an increase in the internal temperature of the product, resulting in a shortened component life and degraded performance.

Keep the plastic packaging (bag) out of children's reach.

- The plastic packaging (bag) may cause suffocation if children play with it.

If the height of your monitor is adjustable, do not place any object or part of your body on the stand when lowering it.

• This may cause damage to the product or the person carrying it.

Clean

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a slightly moistened, soft fabric.

Do not spray water or detergent directly onto the monitor.

• This may cause damage, electric shock or fire.

Use the recommended detergent with a smooth cloth.

If the connector between the plug and the pin is dusty or dirty, clean it properly using a dry cloth.

- A dirty connector may cause electric shock or fire.

Make sure to unplug the power cord before cleaning the product.

- Otherwise, this may cause electric shock or fire.

▶ Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth.

- Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent.

Others

Do not remove the cover (or back).

• This may cause electric shock or fire.

• Refer to a qualified servicing company.

If your monitor does not operate normally - in particular, if there is any unusual sound or smell coming from the monitor - unplug it immediately and contact an authorized dealer or the Service Center.

• This may cause electric shock or fire.

Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle.

• This may cause a malfunction, electric shock or fire.

• In particular, avoid operating the monitor near water or outdoors where the monitor could be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off and unplug the power cord. Then contact the Service Center.

• The monitor may malfunction, causing electric shock or fire.

Disconnect the plug from the outlet during storms or lightning or if it is not used for a long period of time.

- Failure to do so may cause electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal cable.

- This may cause a breakdown, electric shock or fire due to damage to the cable.

Do not move the monitor right or left by pulling only the wire or the signal cable.

- This may cause a breakdown, electric shock or fire due to damage to the cable.

Do not cover the vents on the monitor cabinet.

- Bad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects on the monitor.

• This may cause a malfunction, electric shock or fire.

- If a foreign substance enters the monitor, unplug the power cord and contact the Service Center.

Keep the product away from combustible chemical sprays or inflammable substances.

• This may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

• This may cause electric shock, fire or injury.

Do not insert metal objects such as chopsticks, wire and tools or inflammable objects such as paper or matches into the vent, headphone port or AV ports or etc.

- This may cause electric shock or fire. If an alien substances or water enters the product, turn the product off, unplug the power connector from the wall outlet and contact the Service Center.

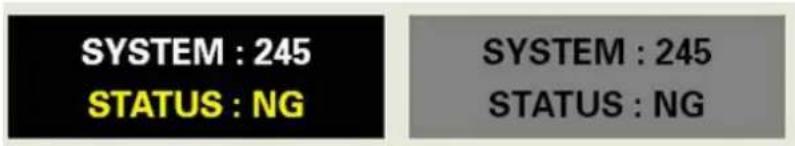

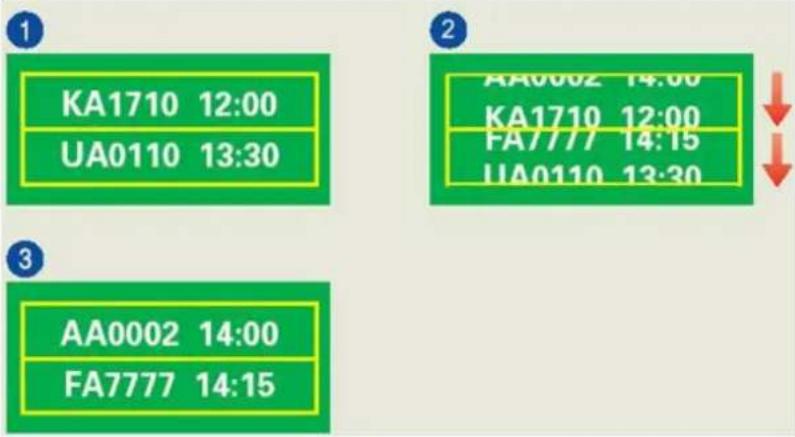

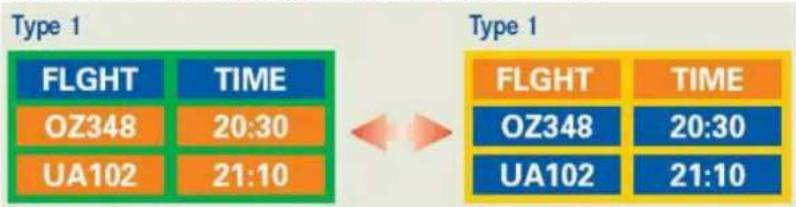

When viewing a fixed screen for an extended period of time, residual image or blurriness may appear.

- Change the mode to energy saving mode or set a screensaver to a changing picture when away from the monitor for an extended period of time.

Adjusts the resolution and frequency to the level appropriate for the model.

- An inappropriate resolution may cause undesirable picture quality.

Viewing the monitor continuously at a too close angle may result in damage to your eyesight.

To ease eye strain, take at least a five-minute break after every hour of using the monitor.

Do not install the product on an unstable, uneven surface or a location prone to vibrations.

- Dropping the product may cause damage to the product or the person carrying it. Using the product in a location prone to vibrations may shorten the lifetime of the product or may cause the product to catch fire.

When moving the monitor, turn off and unplug the power cord. Make sure that all cables, including the antenna cable and cables connected to other devices, are disconnected before moving the monitor.

- Failure to disconnect cables may damage it and cause fire or electric shock.

Place the product out of children's reach, as they could damage by hanging onto it.

• A falling product may cause injury to the person or even fatality.

When not using the product for an extended period of time, keep the product unplugged.

- Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, causing electric shock or fire.

Do not place your children's favorite toys or any other objects of interest on the product.

• Children may try to climb on the product to retrieve an object. The product could fall, causing injury or even fatality.

When lifting up or moving the monitor, do not lift the monitor upside down while holding only the stand.

- This may cause your monitor to fall, and become damaged or cause personal injury.

Illustration of a person sitting at a desk using a computer, with a 50 cm measurement label on the screen (no other text or symbols)

Good Postures When Using the Monitor

Try to maintain a good posture when using the monitor.

- Keep your back straight.

- Keep a distance of about 45 \~ 50 cm between your eyes and the monitor screen. Look at the screen from slightly above it, and have the monitor directly in front of you.

- Tilt the monitor upwards by 10 \~ 20 degrees. Adjust the monitor height so that the top of the monitor is slightly below eye level.

- Adjust the monitor angle so that there is no reflected light on the screen. Try to maintain your arms perpendicular to your armpits.

- Keep your arms level with the back of your hands.

• Keep the angle of the elbow perpendicular.
• Keep the angle of the knees at more than 90 degree. Do not let your feet fall up from the floor. Adjust the arm position so that it is below the heart.

Introduction

Package Contents

Note

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

Black computer monitor with a circular base and stand (no visible text or symbols)

Monitor & Simple stand

Black vertical monitor stand with a flat top and circular base (no text or symbols visible)

Note

MagicRotation program can not be provided as Simple Stand does not support Pivot function.

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca- tions)

User's Guide

Cables

VGA Cable Power Cord

Your Monitor

Initial Settings

The optimal resolution for this monitor is as follows. 1280 x 1024 60 Hz Follow the above settings to set the resolution English

Select the language using the up or down key.

The displayed content will disappear after 40 seconds.

Turn the Power button off and on. It will be displayed again.

It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before reaching the maximum count.

Note

The resolution displayed on the screen is the optimal resolution for this product.

Adjust your PC resolution so that it is the same as the optimal resolution for this product.

Front

Black computer monitor with a circular base and stand (no visible text or symbols)

MENU/□□ □/▼ ▲/☀ 📷 AUTO Ⓧ

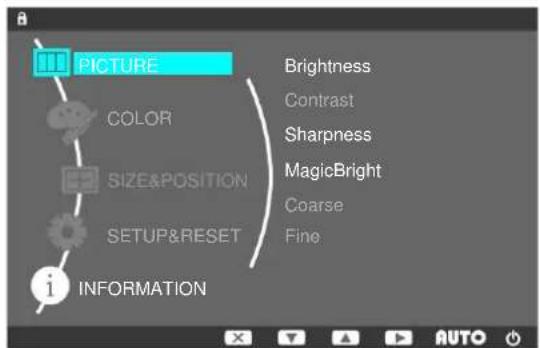

1 MENU button [MENU/7]

Opens the on-screenmenu and exits from the menu. Also use to exit the OSD menu or return to the previous menu.

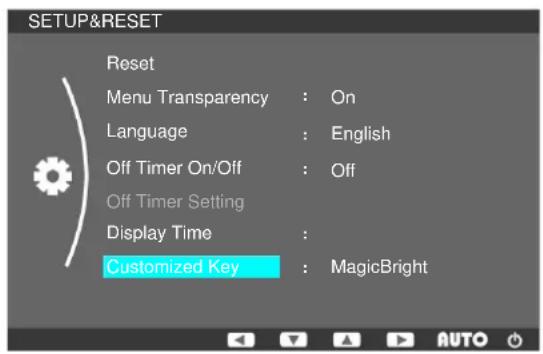

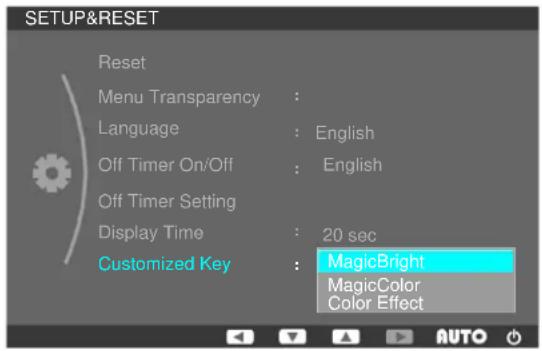

2 Customized Key[]

You can customize key assignment for the Custom button according to your preferences.

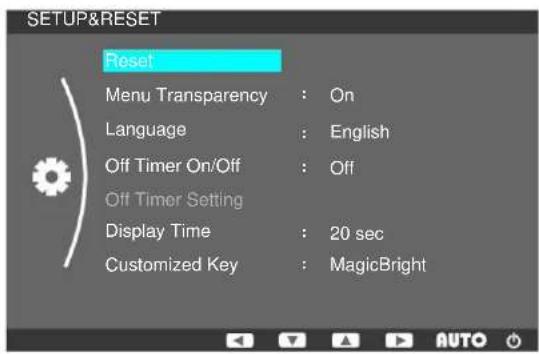

You can configure the customized key for a required function via Setup > Customized Key.

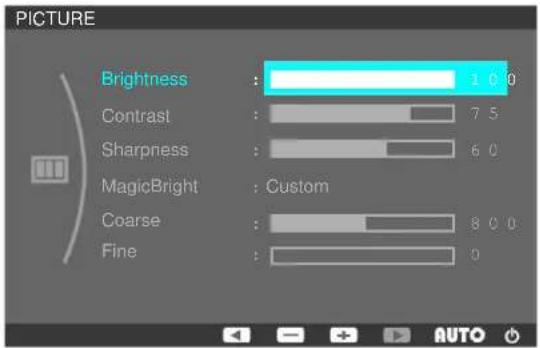

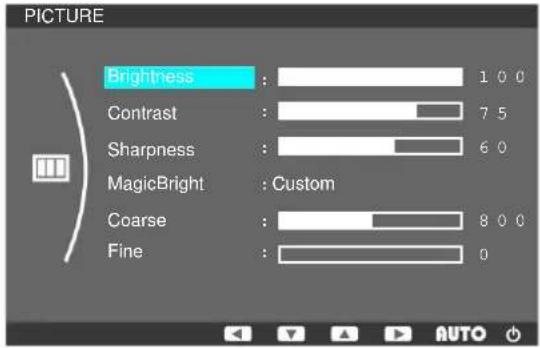

3 Brightness button [Ø]

When OSD is not on the screen, push the button to adjust brightness.

Click here to see an animation clip

2,3 Adjust buttons [▼/▲

These buttons allow you to adjust items in the menu.

4 Enter button [∅]

Activates a highlighted menu item.

5 AUTO button

Use this button for auto adjustment.

Click here to see an animation clip

6 Power button [∅]

Use this button for turning the monitor on and off.

7 Power Indicator

This light glows blue during normal operation, and blinking blue once as the monitor saves your adjustments.

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed or when leaving it unattended for long periods.

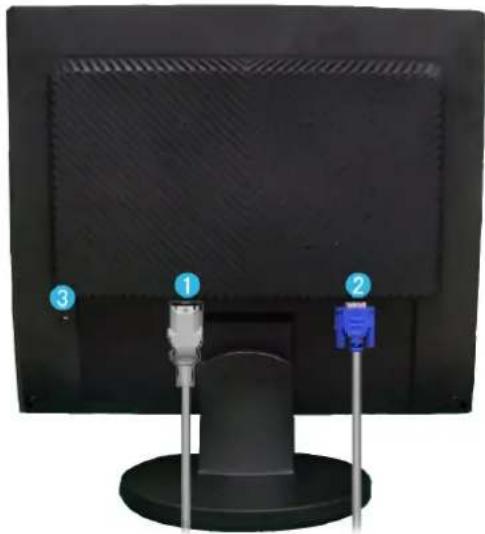

Rear

Computer monitor with three labeled connectors (blue and gray) mounted on a stand, no visible text or symbols on the device itself.

1 POWER port

Connect the power cord for your monitor to the POWER port on the back of the monitor.

2 VGA IN port

Connect the VGA cable to the 15-pin, VTA port on the back of your monitor.

3 Kensington Lock

The Kensington lock is a device used to physically fix the system when using it in a public place. (The locking device has to be purchased separately.) For using a locking device, contact where you purchase it.

Note

See Connecting Cables for further information regarding cable connections.

Diagram showing a device with a small inset image of a bowl on top, connected to a monitor (no text or symbols present)

Cable holding ring

- Fix the cables using the holding ring, as shown in the figure.

Connections

Connecting Cables

Diagram showing connection between a computer monitor and server rack via two labeled ports (2-1 and 2-2), with blue connectors indicating port connections.

1 Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

2 Use a connection appropriate for your computer.

2-1 Using the VGA (Analog) connector on the video card.

- Connect the signal cable to the 15-pin, VGA port on the back of your monitor.

[VGA IN]

2-2 Connected to a Macintosh.

- Connect the monitor to the Macintosh computer using the VGA connection cable.

Note

If the monitor and the computer are connected, you can turn them on and use them.

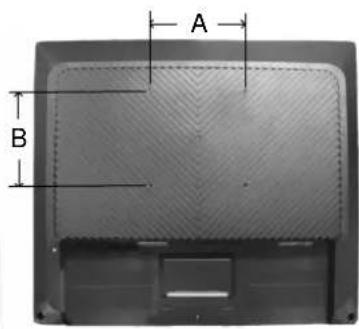

A B

A. Monitor

B. Mounting interface pad (Sold separately)

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.

3. Remove four screws and then remove the stand from the LCD monitor.

4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure it with four screws that came with the arm-type base, wall mount hanger or other base.

- Do not use screws longer than the standard dimension, as they may damage the inside of the Monitor.

- For wall mounts that do not comply with VESA standard screw specifications, the length of the screws may differ depending on their specifications.

- Do not use screws that do not comply with the VESA standard screw specifications.

Do not fasten the screws too tightly, as this may damage the product or cause the product to fall, leading to personal injury.

Samsung is not liable for these kinds of accidents.

- Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

• To mount the monitor on a wall, you should purchase the wall mounting kit that allows you to mount the monitor at least 10 cm away from the wall surface.

- Contact the nearest Samsung Service Center for more information. Samsung Electronics will not be responsible for damages caused by using a base other than those specified.

- Please use Wall Mount according to the International standards.

Using the Software

Monitor Driver

Note

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

Internet web site :

http://www.samsung.com/ (Worldwide)

Installing the Monitor Driver (Automatic)

1. Insert CD into the CD-ROM drive.
2. Click "Windows".
3. Choose your monitor model in the model list, then click the "OK" button.

SAMSUNG monitor installer Select the display adapter on which you want to install the monitor 1. RADEON 9550 Plug and Play Monitor Select the monitor which you want to install Samsung **** OK CANCEL

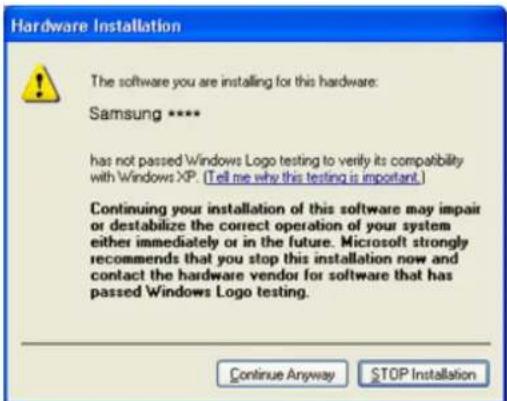

1. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button (Microsoft® Windows® XP/2000 Operating System).

Hardware Installation The software you are installing for this hardware: Samsung **** has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Note

This monitor driver is under certifying MS logo, and this installation doesn't damage your system.

The certified driver will be posted on Samsung Monitor homepage.

http://www.samsung.com/

Installing the Monitor Driver (Manual)

Microsoft® Windows Vista™, Operating System

1. Insert your Manual CD into your CD-ROM drive.

2. Click (Start) and "Control Panel". Then, double-click on "Appearance and Personalization".

Microsoft Start Menu E-mail Microsoft Excel Welcome Cardnet Windows Mobile Player Windows Mobile Guide Windows Link Explorer (Dsncl# Windows Marketing Teams Windows Logitech Internet Photoshop CSV SolidDiv Command Prompt All Programs Microsoft Documents Photo Music Spreads Search Recent Notes Language Microsoft Connected To Download Page1 Default Programs Help and Alert

System and Maintenance Set stored with Windows Enter for your computer Security Check the system Check the computer to access the Windows program through Windows Personal Network and Internet Check the system to access the Windows program Hardware and Sound Ask US or other networks automatically Show Show Programs Check the system Change trading programs User Accounts Edit in a website for user accounts Capabilities and Personalization Change the requirement of https://www.123.com/s/123.com/s/123.com/s/ Change the requirements for user accounts in the following: Use desktops to access these services: Use desktops to access these services: Click Language and Program Change the network to other local methods: Change the network protocol Ease of Action Let User Information to access the Options: Use Media Tools Additional Options

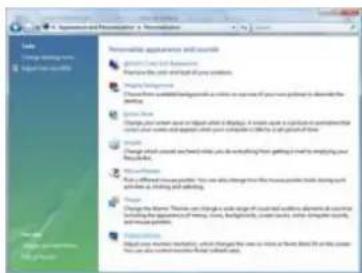

1. Click "Personalization" and then "Display Settings".

C:\Users\Field's Experience\Performance 2 Description History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of theInternet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the Internet History of the互联网

1. Click "Advanced Settings...".

Display Settings Monitor Drag the scores to match your monitors. Identify Monitors 1 [ Multiple Monitors ] an NVIDIA GeForce 8005 LE (Microsoft Corporation ... This is my main program Entered the desktop only this monitor Resolution Low High Colors: Highest (32 bits) 1200 by 1024 pixels How do I get the best display? Advanced Settings... OK Cancel Help

1. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

Generic PrP Monitor and NVIDIA GeForce 8600 LE (Microsoft Co... Adapter Monitor Troubleshoot Color Management Monitor Type Generic PrP Monitor Properties Monitor Settings Screen refresh rate: 50 MHz ✓ side nodes that the monitor cannot display Clearing this check box allows you to select display modes that the monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

User Account Control Windows needs your permission to continue. If you started this action, continue. Device Properties Microsoft Windows Details Continue Cancel User Account Control helps stop unauthorized changes to your computer.

Note

This monitor driver is under certifying MS logo, and this installation doesn't damage your system.

The certified driver will be posted on Samsung Monitor homepage.

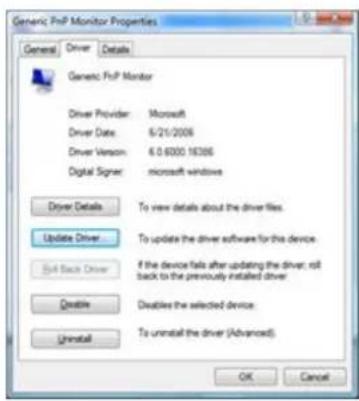

1. Click "Update Driver..." in the "Driver" tab.

Generic Prp Monitor Properties General Driver Details Generic Prp Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location: an NVIDIA GeForce 9600 LE (Microsoft Corp) Device status This device is working property. OK Cancel

Generic FnP Monitor Properties General Driver Details Generic FnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2008 Driver Version: 6.0.6000 16396 Digital Signor: microsoft windows Driver Details To view details about the driver files. Update Driver To update the driver software for this device. Set Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Delete Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

1. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

Update Driver Software - Gamble PDF Manager How do you want to search for driver software? • Search automatically for updated driver software Windows will search your computer and the internal for the latest driver software for your device. • Again my computer for driver software Locate and install driver software manually. Cancel

Update Driver Software - Getaway PDF Monitor Browse for driver software on your computer Search for drive software in this location: Browse... Include subsets Let me pick from a list of device drivers on my computer. This list will also install driver software compatible with the device, and all driver software in the same category is the device. Next Cancel

1. Click "Have Disk..." and select the folder (for example, D:\Drive) where the driver setup file is located, and click "OK".

Update Driver Software - Getting PhF Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install. Click Now Disk. ✓ Drive compatible hardware Model Genes PhF Monitor The driver is digitally signed. Set us to drive access to monitors Have Disk Next Cancel

Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from: Browse...

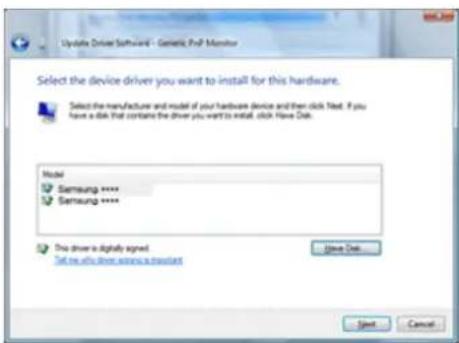

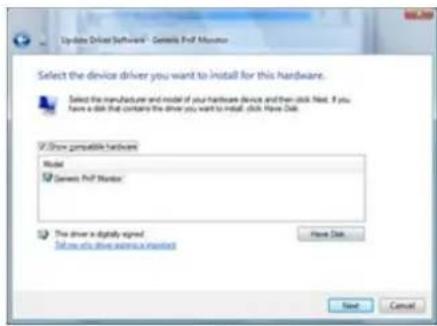

1. Select the model that matches your monitor from the list of monitor models on the screen, and click "Next".

Update Driver Software - Genetic PDF Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Next Disk. Model Samsung **** Samsung **** This driver is digitally signed. Set me all drive some a result Save Disk... Start Cancel

1. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Update Driver Service - Samsung **** Windows has successfully updated your driver software Windows has finished installing the driver software for this device Samsung ****

Samsung **** Properties General Driver Details Samsung ***** Driver Provider: Samsung Driver Date: 4/14/2005 Driver Version: 2:0:0 Digital Signor: microsoft windows hardware compatibility publicl Driver Details To view details about the driver files. Update Driver To update the driver software for this device. Build Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Delete Disables the selected device. Uninstall To uninstall the driver (Advanced). Close Cancel

Generic PrNP Monitor and NVIDIA GeForce 6600 LE (Microsoft Co... Adapter Monitor Troubleshoot Color Management Monitor Type Generic PrNP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz ✓ Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 Samsung **** on NVIDIA GeForce 6600 LE (Microsoft Corpo This is my main monitor Extend the desktop onto this monitor Resolution: Low High Colors: Highest (32 bit) 1280 by 1024 pixels How do I get the best display? Advanced Settings... OK Cancel Apply

Microsoft ^® Windows ^® XP Operating System

1. Insert CD into the CD-ROM drive.

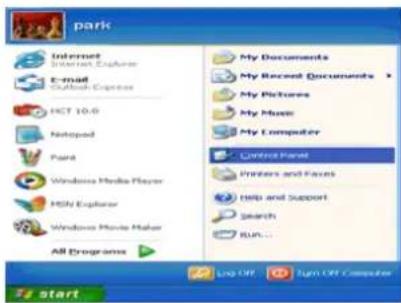

2. Click "Start" → "Control Panel" then click the "Appearance and Themes" icon.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Nettoped Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Confra Panel Printers and Faces Help and Support Search BUY... Log Off Turn Off Computer start

Create a Excel Find it a New Excel Save As Remove As Help and Support Pick a category Remove and Remove Change the previous of the categories, and if there are more than one subject to use the product, it should be further displayed. Add to other categories Make the new category, and Processed Name, Text, and Style Elements Remove All Options Performing and Remove

1. Click "Display" icon and choose the "Settings" tab then click "Advanced...".

Pick a task... or pick a Control Panel Icon Design: 100% Design: 100%

Display Properties Themes | Desktop | Screen Save | Appearance | Settings Display: Play and Play Monitor on 3D Prophet III Screen saturation Less More 1024 by 768 pixels Color quality Highest (32 bit) Defaultset Advanced OK Cancel OK

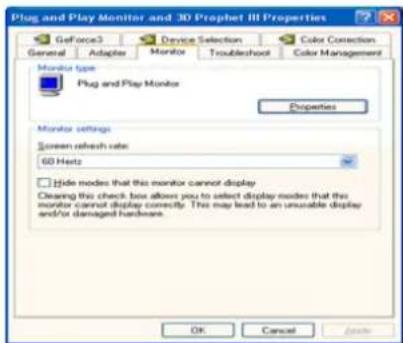

1. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Connection General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hz Hide modes that the monitor cannot display Cleaning this check box allows you to select display modes that the monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

Plug and Play Monitor Properties General Drivers Plug and Play Monitor Device type Monitors Manufacturer (Standard monitor types) Location,on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshoot. Troubleshoot... Device usage: Use this device (available) OK Cancel

1. Click "Update Driver..." and select "Install from a list or..." then click "Next" button.

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signor: Microsoft Windows XP Publisher Driver Details: To view details about the drive files. Update Driver: To update the driver for this device. Roll Back Driver: If the device falls after updating the driver, roll back to the previously installed driver. Uninstall: To uninstall the driver (Advanced) OK Cancel

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware case with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Reconnended) ● Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

1. Select "Don't search, I will..." then click "Next" and then click "Have disk".

Hardware Update Wizard Please choose your search and installation options. Search for the best driver in these locations. Use the check boxes below to list or expand the default search, which includes local paths and renewable media. The best driver found will be installed. Search renewable updates (RPPs) (1) ROM... Include the location in the search. A: Browse Don't search. I will choose the driver to install. Choose this option to select the device driver from a lot. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

Hardware Update Wizard Select the device driven you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the drive you want to install, click Have Disk. Show compatible hardwires Model Plug and Play Monitor This driver is digitally signed. Tell me why drive signs is important Save Disk < Back Next > Cancel

1. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next" button.

Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from: D1 Browse...

Hardware Update Wizard Select the device drivers you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Model Samsung **** This driver is not digitally signed! Tell me who drives coming is important Have Disk < Back Next > Cancel

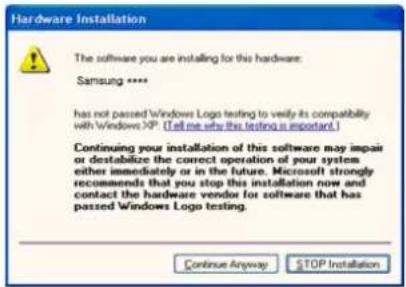

1. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button.

Hardware Installation The software you are installing for this hardware: Samsung **** has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Note

This monitor driver is under certifying MS logo, and this installation doesn't damage your system.

The certified driver will be posted on Samsung Monitor homepage.

http://www.samsung.com/

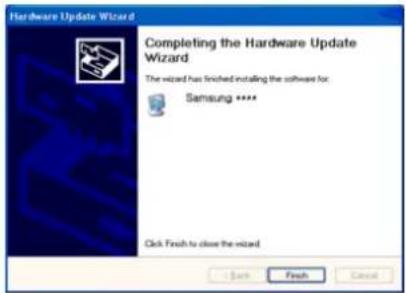

1. Click the "Close" button then click "OK" button continually.

Hardware Update Wizard Completing the Hardware Update Wizard The wizard has finished installing the software for: Samsung **** Click Finish to close the wizard Back Finish Cancel

Samsung ***** General Driver Samsung ***** Driver Provider: Samsung Driver Date: 9/11/2001 Driver Version: 1.0.0.0 Digital Signor: Not digitally signed Driver Details: To view details about the driver files. Update Driver: To update the driver for this device. Roll Back Driver: If the device fails after updating the driver, call back to the previously installed driver. Uninstall: To uninstall the driver (Advanced) Close Cancel

Plug and Play Monitor and 3D Prophet III Properties General Adaptive Monitor Touchleshoot Color Connection Monitor type Plug and Play Monitor Explorer Monitor settings Screen refresh rate: 40 Hz:\ Hide modes that the monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display currently. This may lead to an accessible display and/or damaged hardware OK Cancel Finish

1. Monitor driver installation is completed.

Microsoft ^® Windows ^® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "Insert disk" window.
2. Click the "Browse" button on the "File Needed" window.
3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

How to install

1. Click "Start", "Setting", "Control Panel".
2. Double click the "Display" icon.
3. Select the "Settings" tab and click "Advanced Properties" button.
4. Choose "Monitor".

Case1 : If the "Properties" button is inactive, it means your monitor is properly configured. Please stop installation

Case2 : If the "Properties" button is active, click the "Properties" button then follow next steps continually.

1. Click "Driver" and then click on "Update Driver..." then click on the "Next" button.

2. Choose "Display a list of the known drivers for this device so that I can choose a specific driver" then click "Next" and then click "Have disk".

3. Click the "Browse" button then choose A:(D:\Driver).

4. Click the "Open" button, then click "OK" button.

5. Choose your monitor model and click the "Next" button then click "Next" button.

6. Click the "Finish" button then the "Close" button.

If you can see the "Digital Signature Not Found" window then click the "Yes" button. And click the "Finish" button then the "Close" button.

Microsoft ^® Windows ^® Millennium Operating System

1. Click "Start", "Setting", "Control Panel".
2. Double click the "Display" icon.

3. Select the "Settings" tab and click "Advanced Properties" button.

4. Select the "Monitor" tab.

5. Click the "Change" button in the "Monitor Type" area.
6. Choose "Specify the location of the driver".
7. Choose "Display a list of all the driver in a specific location..." then click "Next" button.
8. Click the "Have Disk" button.
9. Specify A: D: then click "OK" button.
10. Select "Show all devices" and choose the monitor that corresponds to the one you connected to your computer and click "OK".
11. Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue box.

Microsoft ^® Windows ^® NT Operating System

1. Click "Start", "Settings", "Control Panel", and then double-click "Display" icon.
2. In Display Registration Information window, click Settings Tab and then click "All Display Modes".
3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then click "OK".
4. Click "Apply" button if you see the screen working normally after clicking "Test". If the screen is not normal, change to a different mode (lower mode of resolution, colors or frequency).

Note

If there is no Mode at All Display Modes, select the level of resolution and vertical frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press "Enter" at the first and the second screen after executing the X86Config file.
2. The third screen is for setting your mouse.
3. Set a mouse for your computer.
4. The next screen is for selecting a keyboard.
5. Set a Keyboard for your computer.
6. The next screen is for setting your monitor.
7. First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)
8. Set a vertical frequency for your monitor. (You can enter the frequency directly.)
9. Enter the model name of your monitor. This information will not affect the actual execution of X-Window.
10. You have finished setting up your monitor. Execute X-Window after setting other requested hardware.

Natural Color

Natural Color Software Program

SAMSUNG ELECTRONICS Natural Color Pro color management system Monitor Cal. & Profiling Color Preference Copyright© 2003 Samsung Electronics Co., Ltd

One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor. The Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images. For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program Natural Color will be executed. Click Natural Color on the initial screen to install the Natural Color software.

To install the program manually, insert the CD included with the Samsung monitor into the CD-ROM Drive, click the [Start] button of Windows and then select [Run...]. Enter D:\color\NCProSetup.exe and then press the [Enter] key. (If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select "Setting/Control Panel" on the "Start" menu and then double-click "Add/Delete a program". Select Natural Color from the list and then click the "Add/Delete" button.

MagicTune™

MagicTune™ HELP

Installation

1. Insert the installation CD into the CD-ROM drive.
2. Click the MagicTune™ installation file.

If the popup window to install the software for the main screen is not displayed, proceed with the installation using the MagicTune executable file on the CD.

1. Select installation Language, Click "Next".
2. When the Installation Shield Wizard window appears, click "Next".
3. Select "I agree to the terms of the license agreement" to accept the terms of use.
4. Choose a folder to install the MagicTune ^TM program.
5. Click "Install".
6. The "Installation Status" window appears.
7. Click "Finish".
8. When the installation is complete, the MagicTune™ executable icon appears on your desktop. Double-click the icon to start the program.

MagicTune™ execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key.

Installation Problems

The installation of MagicTune ^TM can be affected by such factors as the video card, motherboard and the network environment.

System Requirements

os

• Windows 2000
• Windows XP Home Edition
• Windows XP Professional
• Windows Vista™

It is recommended using MagicTune ^TM in Windows ^® 2000 or later.

Hardware

• 32 MB Memory above
- 60 MB Hard disk space above

For more information, visit the MagicTune ^TM website.

Uninstall

The MagicTune™ program can be removed only by using the "Add or Remove Programs" option of the Windows® Control Panel.

Perform the following steps remove MagicTune ^TM .

1. Go to [Task Tray] → [Start] → [Settings] and select [Control Panel] in the menu. If the program runs on Windows® XP, go to [Control Panel] in the [Start] menu.
2. Click the "Add or Remove Programs" icon in Control Panel.
3. In the "Add or Remove Programs" screen, scroll down to find "MagicTunc™." Click on it to highlight it.
4. Click the "Change/Remove" button to remove the program.
5. Click "Yes" to begin the uninstall process.
6. Wait until the "Uninstall Complete" dialog box appears.

Note

Visit the MagicTune™ website for technical support for MagicTune™, FAQs (questions and answers) and software upgrades.

The MagicTune™ program is an additional program for monitor products.

Some computing systems that install either an older or the latest video driver are not compatible with MagicTune™.

Please visit the MagicTune™ Website for technical support for MagicTune™.

Specifications subject to change without notice. MagicTune™ is a trademark of SAMSUNG ELECTRONICS CO., Inc. Windows™ is a registered trademark of Microsoft Corp. Other trademarks are property of their respective holders.

MagicRotation

MagicRotation Help

Installation

1. Insert the installation CD into the CD-ROM drive.
2. Click the MagicRotation installation file.

If the popup window to install the software for the main screen is not displayed, proceed with the installation using the MagicTune executable file on the CD.

1. Select installation Language, Click "Next".
2. When the Installation Shield Wizard window appears, click "Next".

3. Select "I agree to the terms of the license agreement" to accept the terms of use.

4. Choose a folder to install the MagicRotation program.

5. Click "Install".

6. The "Setup Status" window appears.

7. Click "Finish".

Have to reboot the system in order for the MagicRotation to work properly.

1. When the installation is complete, the MagicRotation executable icon appears on your desktop.

MagicRotation

Installation Problems

The installation of MagicRotation can be affected by such factors as the video card, motherboard and the network environment.

Limitation

1. The "Display Driver" should be properly loaded for the MagicRotation to work properly.

The installed "Display Driver" should be the latest driver supplied by the vendor.

1. If some applications like Windows Media Player, Real Player, etc. are not displaying movie files properly in 90, 180 and 270 orientations then do the following :

2. Close the application.

3. Select the Orientation (90, 180, 270) you want to view the application.
4. Relaunch the application.

In most cases this should fix the problem.

1. User Applications using OpenGL and DirectDraw (3D drawing) will not function as per the orientation mode selected (90, 180, 270).

e.g. 3D games

1. DOS based applications in Full Screen Mode will not function as per the orientation mode selected (90, 180, 270).
2. Dual is not supported in Windows ^® , 98, ME, NT 4.0.
3. MagicRotation does not provide support for 24 bits per pixel (Bit depth/Color Quality).
4. If you are changing your Graphic Card it is recommended that you uninstall the MagicRotation Software before doing so.

System Requirements

OS

• Windows 98 SE

• Windows ME

• Windows NT 4.0

• Windows 2000
  • Windows XP Home Edition
  • Windows XP Professional
• Windows Vista™

Hardware

• 128 MB Memory above (recommended)
• 25 MB Hard disk space above

Service Packs

- It is recommended that your System has the latest Service Pack installed.

- For Windows ^ , NT 4.0, it is recommended to install Internet Explorer 5.0 and above with Active Desktop component.

For more information, visit the MagicRotation website.

Windows ^® , is registered trademark of Microsoft Corporation, Inc.

Uninstall

The MagicRotation program can be removed only by using the "Add or Remove Programs" option of the Windows® Control Panel.

Perform the following steps remove MagicRotation.

1. Go to [Task Tray] → [Start] → [Settings] and select [Control Panel] in the menu. If the program runs on Windows ^® XP, go to [Control Panel] in the [Start] menu.
2. Click the "Add or Remove Programs" icon in Control Panel.
3. In the "Add or Remove Programs" screen, scroll down to find "MagicRotation." Click on it to highlight it.
4. Click the "Change/Remove" button to remove the program.
5. Click "Yes" to begin the uninstall process.
6. Wait until the "Uninstall Complete" dialog box appears.
7. After uninstall restart the system to complete the uninstallation.

Note

Visit the MagicRotation website for technical support for MagicRotation, FAQs (questions and answers) and software upgrades.

Windows ^® , is registered trademark of Microsoft Corporation, Inc

The specifications are subject to change without notice. MagicRotation is a trademark of SAMSUNG ELECTRONICS CO., LTD. All other product trademarks mentioned in this document may be registered trademarks of their respective companies.

Adjusting the Monitor

Direct Functions

AUTO

Auto Adjustment : 50 %

When the 'AUTO' button is pressed, the auto adjustment screen appears as shown in the animated screen on the center.

Auto adjustment allows the monitor to self-adjust to the incoming Analog signal. The values of Fine, Coarse and Position are adjusted automatically.

(Available in Analog mode only)

To make the automatic adjustment function sharper, execute the 'AUTO' function while the AUTO PATTERN is on.

If auto adjustment does not work properly, press 'AUTO' button again to adjust picture with more accuracy.
If you change resolution in the control panel, auto function will be executed automatically.

OSD Lock & Unlock

When pressing the AUTO button after locking the OSD

Auto Adjustment : Locked

When pressing the MENU button after locking the OSD

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION Brightness Contrast Sharpness MagicBright Coarse Fine 1

This is the function that locks the OSD in order to keep the current states of settings or prevent others from adjusting the current settings.

Lock : Hold down the MENU button for more than five (5) seconds to activate the OSD adjustment lock function.

Unlock : Hold down the MENU button for more than five (5) seconds to deactivate the OSD adjustment lock function.

Note

Though the OSD adjustment lock function is activated, you can still adjust the brightness and contrast, and adjust Customized Key ( ) using the Direct button.

Customized key

MagicBright Custom Text Internet Game Sport Movie Dynamic Contrast

You can customize key assignment for the Custom button according to your preferences.

To view the operating screen displayed when pressing the [ ↑ ] button after configuring the customized key for a function, click the name of each function.

(MagicBright - MagicColor - Color Effect)

Note

You can configure the customized key for a required function via Setup > Customized Key.

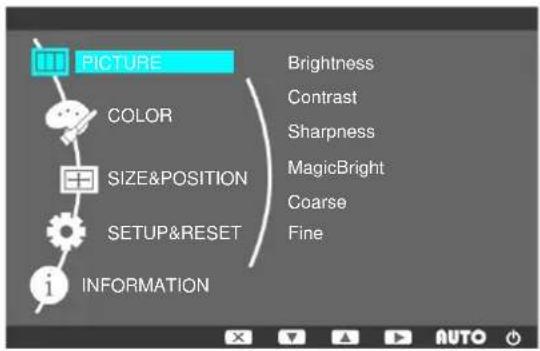

Brightness

Brightness : 100 AUTO

When OSD is not on the screen, push the Brightness (☐) button to adjust brightness.

OSD Function

COLOR

MagicColor Red Green Blue Color Tone Color Effect Gamma Signal Balance :On R-Gain G-Gain B-Gain R-Offset G-Offset B-Offset

SIZE&POSITION

SETUP&RESET


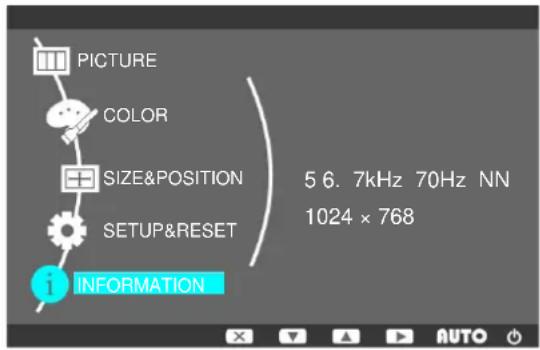

INFORMATION


Brightness

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION Brightness Contrast Sharpness MagicBright Coarse Fine AUTO

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0 AUTO

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0

(Not available in MagicBright mode of Dynamic Contrast.)

You can use the on-screen menus to change the brightness according to personal preference.

MENU → ← →, ← MENU

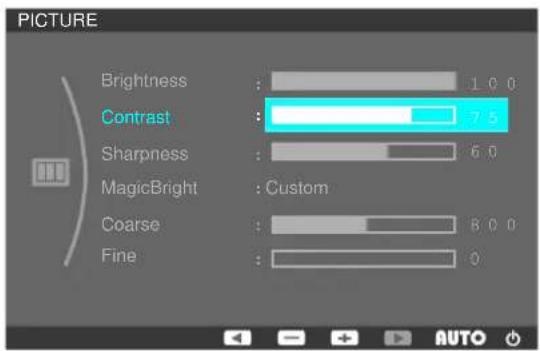

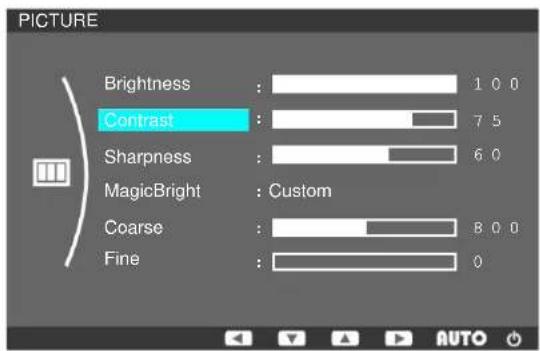

Contrast

(Not available in MagicBright mode of Dynamic Contrast.)

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0

PICTURE Brightness : 1 0 0 Contrast : 7.5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0 AUTO

You can use the on-screen menus to change the contrast according to personal preference.

( Not available in MagicColor mode of Full and Intelligent. )

MENU → ↻ → ▼, ↽ → ↻ , ↗ → MENU

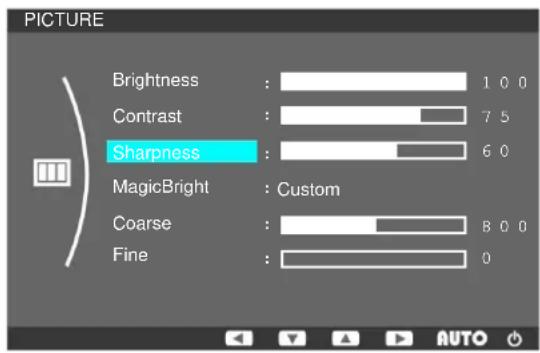

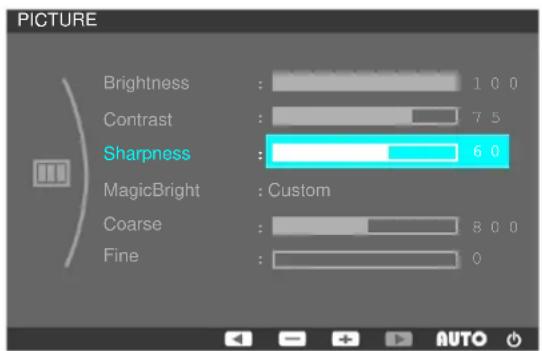

Sharpness

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0

Changes the clearance of image.

( Not available in MagicColor mode of Full and Intelligent. )

MENU → ▲, ▼→ ⇌ , ▲→▼→ ⇌ → MENU

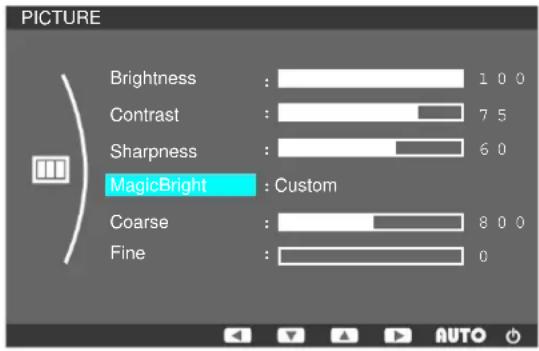

MagicBright

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Text Internet Game Sport Movie Dynamic Contrast Coarse : 0 Fine :

Push the button to circle through available preconfigured modes.

MagicBright is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently seven different modes are available: Custom, Text, Internet, Game, Sport, Movie and Dynamic Contrast. Each mode has its own pre-configured brightness value. You can easily select one of seven settings by simply pressing Customized Key control button.

- Custom

Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste.

If this is the case, adjust the brightness and contrast by using the OSD menu.

- Text

For documentations or works involving heavy text.

- Internet

For working with a mixture of images such as texts and graphics.

• Game

For watching motion pictures such as a game.

- Sport

For watching motion pictures such as a sport.

- Movie

For watching motion pictures such as a DVD or Video CD.

- Dynamic Contrast

Dynamic Contrast is to automatically detect distribution of inputted visual signal and adjust to create optimum contrast.

MENU → ↙ → ▲, ↘ → ↗, ▲ → MENU

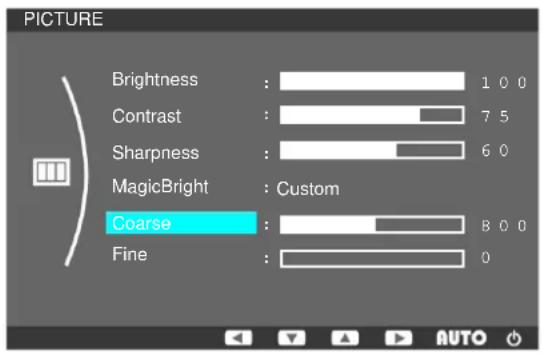

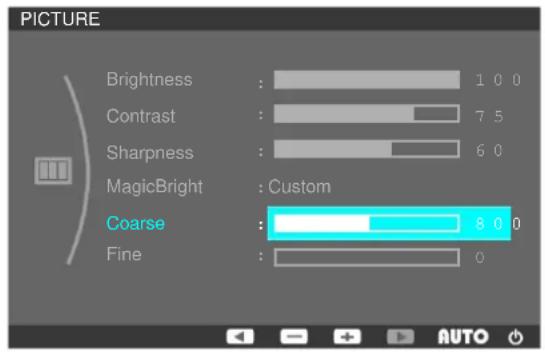

Coarse

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0

Removes noise such as vertical stripes.

Coarse adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu.

(Available in Analog mode only)

MENU → ▲, ▼→ ➕ → ➕ → ▲MENU

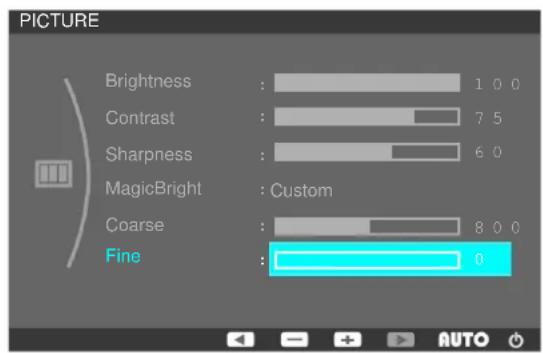

Fine

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0

PICTURE Brightness : 1 0 0 Contrast : 7 5 Sharpness : 6 0 MagicBright : Custom Coarse : 8 0 0 Fine : 0

Removes noise such as horizontal stripes.

If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).

(Available in Analog mode only)

MENU → ▲, ▼→ 📋, ▲→▼→ 📋→ MENU

Color

(Not available in MagicBright mode of Dynamic Contrast.)

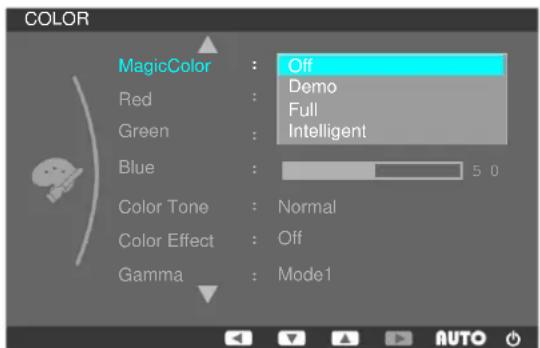

MagicColor

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION MagicColor Red Green Blue Color Tone Color Effect Gamma

COLOR MagicColor : Off Red : 5.0 Green : 5.0 Blue : 5.0 Color Tone : Normal Color Effect : Off Gamma : Mode1

COLOR MagicColor : Off Red : Demo Green : Full Blue : Intelligent 5 0 Color Tone : Normal Color Effect : Off Gamma : Mode1

MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.

• Off - Returns to the original mode.
• Demo - The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.
  • Full - Displays not only vivid natural color but also more realistic natural skin color with clearness.
• Intelligent - Displays vivid natural color with clearness.

MENU → □, ▼ → ➕→ ➕→ □→ □MENU

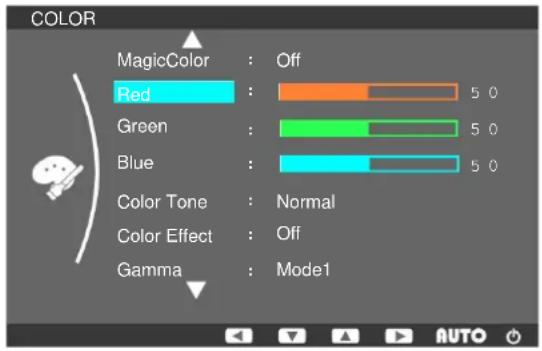

Red/Green/Blue

COLOR MagicColor : Off Red : 5 0 Green : 5 0 Blue : 5 0 Color Tone : Normal Color Effect : Off Gamma : Mode1

COLOR MagicColor : Off Red : 5.0 Green : 5.0 Blue : 5.0 Color Tone : Normal Color Effect : Off Gamma : Mode1

Adjusts individual Red, Green, Blue color balance.

( Not available in MagicColor mode of Full and Intelligent. )

MENU → ▲, ▼→ ↔ , ▲→▼→ ↔ → ▲→▼, → MENU▼

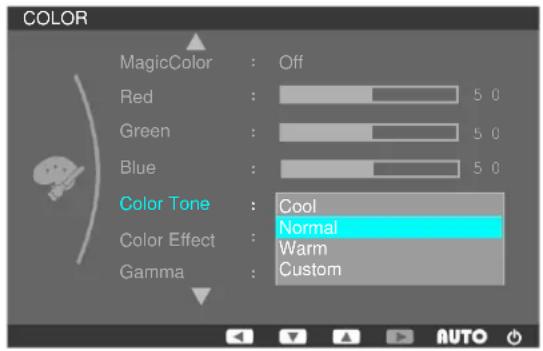

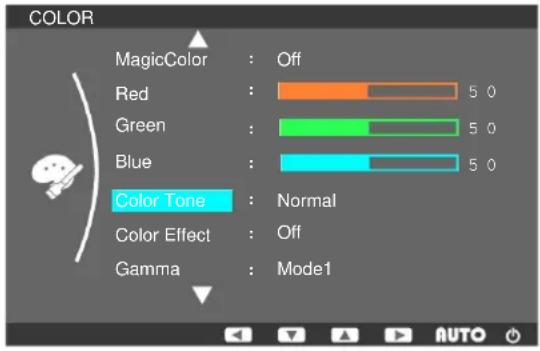

Color Tone

COLOR MagicColor : Off Red : 5.0 Green : 5.0 Blue : 5.0 Color Tone : Normal Color Effect : Off Gamma : Mode1

COLOR MagicColor : Off Red : 5.0 Green : 5.0 Blue : 5.0 Color Tone : Cool Color Effect : Normal Gamma : Warm Custom

The tone of the color can be changed and one of four modes can be selected.

• Cool - Makes whites bluish.
• Normal - Keeps whites white.
- Warm - Makes whites reddish.

- Custom - Select this mode when you want to adjust the image according to your preferences.

( Not available in MagicColor mode of Full and Intelligent. )

MENU → ■, ↗ → ➕, ➔ → ↙ → ←→ MENU

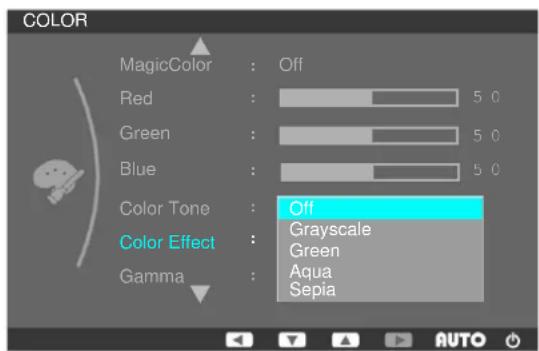

Color Effect

COLOR MagicColor : Off Red : 5.0 Green : 5.0 Blue : 5.0 Color Tone : Normal Color Effect : Off Gamma : Mode1

COLOR MagicColor : Off Red : 5.0 Green : 5.0 Blue : 5.0 Color Tone : Off Color Effect : Grayscale Green Aqua Sepia Gamma :

You can change the overall mood by changing the screen colors.

( Not available in MagicColor mode of Full and Intelligent. )

- Off - Grayscale - Green - Aqua - Sepia

• Off - This applies an achromatic color to the screen to adjust the screen effects.
• Grayscale - The default colors of black and white are displayed.
• Green - This applies the green color effect to a black and white screen.
• Aqua - This applies the aqua color effect to a black and white screen.
• Sepia - This applies the Sepia color effect to a black and white screen.

MENU → ▲, ▼→ 📋, ▲→▼→ 📋→ MENU

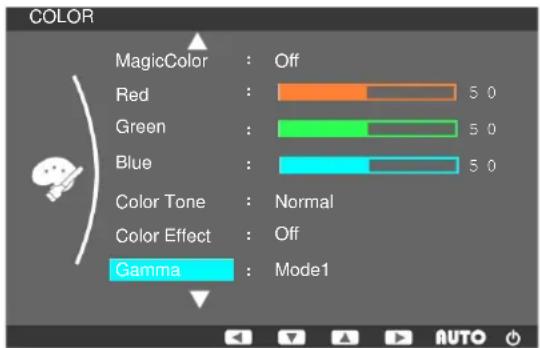

Gamma

COLOR MagicColor : Off Red : 5 0 Green : 5 0 Blue : 5 0 Color Tone : Normal Color Effect : Off Gamma : Mode1

COLOR MagicColor : Off Red : 5.0 Green : 5.0 Blue : 5.0 Color Tone : Normal Color Effect : Mode1 Gamma : Mode2 Mode3

Gamma correction changes the luminance of the colors with intermediate luminance.

- Mode 1 • Mode 2 • Mode 3

MENU → □, ▼→ ➕, □→ ▼→ ➕→ MENU

Signal Balance

This is used to make up for the weak RGB signal transmitted by a long signal cable.

MENU→▼→ENTER→[COLOR] → ENTER →▼→▼→▼→▼→▼→▼ → [Signal Balance]

(Available in PC mode only)

Selects either On or Off with the signal control.

Only select On with the Signal Balance, the below menu like:

R-Gain, G-Gain, B-Gain, R-Offset, G-Offset, B-Offset can be used.

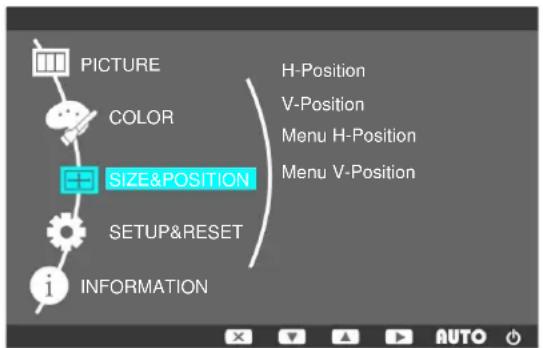

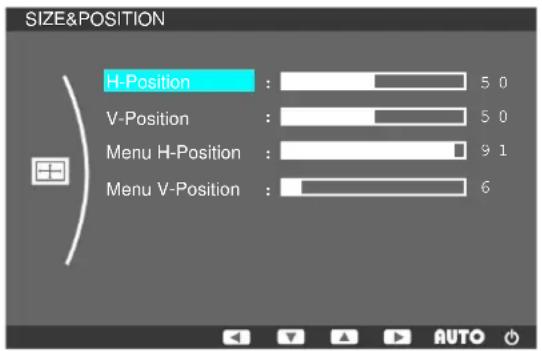

SIZE&POSITION

H-Position

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION H-Position V-Position Menu H-Position Menu V-Position 1

Changes the horizontal position of the monitor's entire display.

(Available in Analog mode only)

MENU → □, ▼→ ⇧, □→▼→ ⇧→ MENU

V-Position

Changes the vertical position of the monitor's entire display.

(Available in Analog mode only)

MENU → □, ▼→ ⇧, □→▼→ ⇧→ MENU

Menu H-Position

You can change the horizontal position where the OSD menu appears on your monitor.

MENU → ▲, ▼ → ➕, ▲ → ▼ → ➕→ MENU

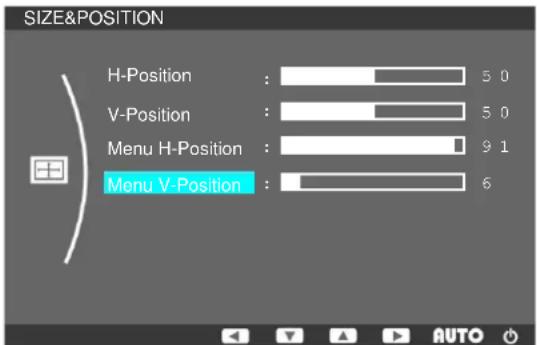

V-Position

You can change the vertical position where the OSD menu appears on your monitor.

MENU → ▲, ▼→ 📋, ▲→▼→ 📋→ MENU

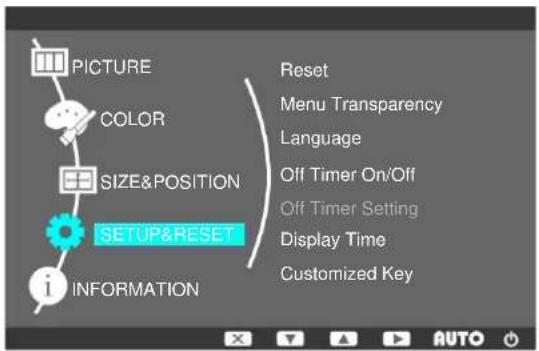

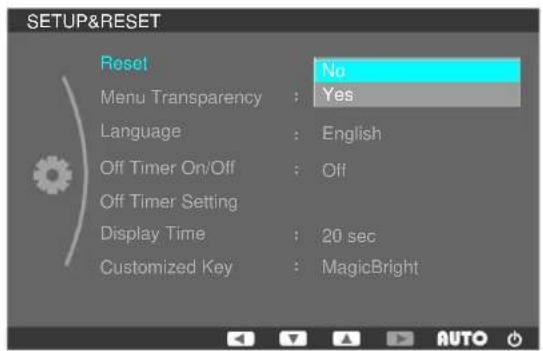

Reset

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION Reset Menu Transparency Language Off Timer On/Off Off Timer Setting Display Time Customized Key

SETUP&RESET Reset Menu Transparency : On Language : English Off Timer On/Off : Off Off Timer Setting Display Time : 20 sec Customized Key : MagicBright

SETUP&RESET Reset No Menu Transparency : Yes Language : English Off Timer On/Off : Off Off Timer Setting Display Time : 20 sec Customized Key : MagicBright

Reverts the product settings to factory defaults.

- No - Yes

Change the transparency of the background of the OSD.

- Off - On

You can choose one of nine languages.

- English, Deutsch, Español, Français, Italiano, Svenska, Русский, Português, Türkçe

Note

The language chosen affects only the language of the OSD. It has no effect on any software running on the computer.

MENU → ■, ▼→ ➕ → ➕, → MENU

Off Timer

SETUP&RESET Reset Menu Transparency : On Language : English Off Timer On/Off : Off Off Timer Setting Display Time : 20 sec Customized Key : MagicBright

SETUP&RESET Reset Menu Transparency : Language : English Off Timer On/Off : Off Off Timer Setting : On Display Time : 20 sec Customized Key : MagicBright

The monitors will turn off automatically at the specified time.

- Off - On

MENU → ▲, ▼→ ↔ , ▲→▼→ ↔ → ▲→▼, → MENU▼

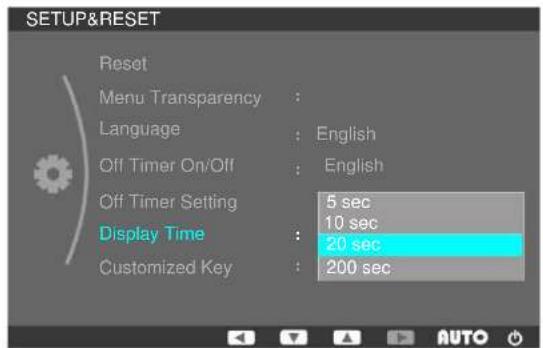

Display Time

SETUP&RESET Reset Menu Transparency : On Language : English Off Timer On/Off : Off Off Timer Setting Display Time : 20 sec Customized Key : MagicBright

SETUP&RESET Reset Menu Transparency : Language : English Off Timer On/Off : English Off Timer Setting 5 sec Display Time 10 sec Customized Key 20 sec 200 sec

The menu will be automatically turned off if no adjustments are made for a certain time period.

You can set the amount of time the menu will wait before it is turned off.

5 sec

• 10 sec

• 20 sec

• 200 sec

MENU → 📄, ↗ → ➕, ➔ ↙ → ➕→ MENU

Customized Key

SETUP&RESET Reset Menu Transparency : On Language : English Off Timer On/Off : Off Off Timer Setting Display Time : Customized Key : MagicBright

SETUP&RESET Reset Menu Transparency : Language : English Off Timer On/Off : English Off Timer Setting Display Time : 20 sec Customized Key : MagicBright MagicColor Color Effect

You can specify a function which will be activated when the Customized Key () is pressed.

MENU → □, ▼→ ➕, □→ ▼→ ➕→ MENU

i Information

PICTURE COLOR SIZE&POSITION SETUP&RESET 5 6. 7kHz 70Hz NN 1024 × 768 i INFORMATION

Shows a video source, display mode on the OSD screen.

MENU → ■, ↗→MENU

Troubleshooting

Self-Test Feature Check

Note

Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.

If the monitor is functioning properly, you will see a box in the illustration below.

Check Signal Cable

This box appears during normal operation if the video cable becomes disconnected or damaged.

1. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after using the previous procedure, check your video controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the screen goes blank although the power indicator LED is still on. The message may indicate that the monitor is out of scan range or that you need to check the signal cable.

Not Optimum Mode Recommended Mode : 1280 x 1024 60 Hz

Environment

The location and the position of the monitor may influence the quality and other features of the monitor.

If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room.

Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.

Useful Tips

A monitor recreates visual signals received from the computer. Therefore, if there is a problem with the computer or the video card, this can cause the monitor to become blank, have poor coloring, become noisy, and video mode not supported, etc. In this case, first check the source of the problem, and then contact the Service Center or your dealer.

Judging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1280 x 1024 60 Hz" message comes up, disconnect the cable from the computer while the monitor is still powered on.

If there is a message coming up on the screen or if the screen goes white, this means the monitor is in working condition.

In this case, check the computer for trouble.

Check List

Note

Before calling for assistance, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer.

No images on the screen. I cannot turn on the monitor.

Q: Is the power cord connected properly?

A: Check the power cord connection and supply.

Q: Can you see "Check Signal Cable" on the screen?

A: (Connected using the VGA cable)

Check the signal cable connection.

Q: If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.

A: If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.

(Refer to the Preset Timing Modes)

If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.

Q: Can you see "Not Optimum Mode", "Recommended Mode 1280 x 1024 60 Hz" on the screen?

A: You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.

A: Adjust the maximum resolution and frequency that the monitor can handle properly.

A: If the display exceeds SXGA or 75 Hz, a "Not Optimum Mode", "Recommended Mode 1280 x 1024 60 Hz" message is displayed. If the display exceeds 85 Hz, the display will work properly but the "Not Optimum Mode", "Recommended Mode 1280 x 1024 60 Hz" message appears for one minute and then disappears.

Please change to the recommended mode during this one-minute period.

(The message is displayed again if the system is rebooted.)

Q: There is no image on the screen. Is the power indicator on the monitor blinking at 1 second intervals?

A: The monitor is in PowerSaver mode.

A: Press a key on the keyboard to activate the monitor and restore the image on the screen.

A: If there is still no image, press the '◀' button. Then press any key on the keyboard again to activate the monitor and restore the image on the screen.

I cannot see the On Screen Display.

Q: Have you locked the On Screen Display (OSD) Menu to prevent changes?

A: Unlock the OSD by pressing the [MENU/ ] button for at least 5 seconds.

The screen shows strange colors or just black and white.

Q: Is the screen displaying only one color as if looking at the screen through a cellophane paper?

A: Check the signal cable connection.

A: Make sure the video card is fully inserted in its slot.

Q: Have the screen colors become strange after running a program or due to a crash between applications?

A: Reboot the computer.

Q: Has the video card been set properly?

A: Set the video card by referring to the video card manual.

The screen suddenly has become unbalanced.

Q: Have you changed the video card or the driver?

A: Adjust screen image position and size using the OSD.

Q: Have you adjusted the resolution or frequency to the monitor?

A: Adjust the resolution and frequency at the video card.

(Refer to the Preset Timing Modes).

Q: The screen can be unbalanced due to the cycle of the video card signals. Readjust Position by referring to the OSD.

The screen is out of focus or OSD cannot be adjusted.

Q: Have you adjusted the resolution or frequency on the monitor?

A: Adjust the resolution and frequency of the video card.

(Refer to the Preset Timing Modes).

LED is blinking but no images on the screen.

Q: Is the frequency properly adjusted when checking the Display Timing on the menu?

A: Adjust the frequency properly by referring to the video card manual and the Preset Timing Modes.

(The maximum frequency per resolution may differ from product to product.)

There are only 16 colors shown on the screen. The screen colors have changed after changing the video card.

Q: Have the Windows colors been set properly?

A: Windows XP :

Set the resolution at the Control Panel → Appearance and Themes → Display → Settings.

A: Windows ME/2000 :

Set the resolution at the Control Panel → Display → Settings.

Q: Has the video card been set properly?

A: Set the video card by referring to the video card manual.

There is a message that reads "Unrecognized monitor, Plug & Play (VE-SA DDC) monitor found".

Q: Have you installed the monitor driver?

A: Install the monitor driver according to the Driver Installation Instructions.

Q: See the video card manual to see if the Plug & Play (VESA DDC) function can be supported.

A: Install the monitor driver according to the Driver Installation Instructions.

Check when MagicTune ^TM does not function properly.

Q: MagicTune™ feature is found only on PC (VGA) with Window OS that supports Plug and Play.

A: To check whether your PC is available for MagicTune™ feature, follow the steps below (When Windows is XP);

Control Panel → Performance and Maintenance → System → Hardware → Device Manager → Monitors → After deleting Plug and Play monitor, find 'Plug and Play monitor' by searching new Hardware.

A: MagicTune™ is an additional software for the monitor. Some graphic cards may not support your monitor. When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided.

http://www.samsung.com/monitor/magictune

MagicTune™ doesn't work properly.

Q: Have you changed your PC or video graphic card?

A: Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune

Q: Did you install the program?

A: Reboot the computer after installing the program for the first time. If a copy of the program is already installed, remove it, reboot the computer, and then install the program again. You need to reboot the computer for it to operate normally after installing or removing the program.

Note

Visit the MagicTune™ website and download the installation software for MagicTune™ MAC.

Check the following items if there is trouble with the monitor.

Check if the power cord and the video cables are properly connected to the computer.

Check if the computer beeps more than 3 times when booting.

(If it does, request an a service for the main board of the computer.)

If you installed a new video card or if you assembled the PC, check if the installed the adapter(video) driver and the monitor driver.

Check if the scanning ratio of the video screen is set to between 56 Hz \~ 75 Hz.

(Do not exceed 75 Hz when using the maximum resolution.)

If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter in the "Control Panel → System → Device Administrator" and then reboot the computer to reinstall the adapter (video) driver.

Note

If problems repeatedly occur, contact an authorized service center.

Q & A

Q: How can I change the frequency?

A: The frequency can be changed by reconfiguring the video card.

A: Note that video card support can vary, depending on the version of the driver used. (Refer to the computer or the video card manual for details.)

Q: How can I adjusts the resolution?

A: Windows XP:

Set the resolution in the Control Panel → Appearance and Themes → Display → Settings.

A: Windows ME/2000:

Set the resolution in the Control Panel → Display → Settings.

* Contact the video card manufacturer for details.

Q: How can I set the Power Saving function?

A: Windows XP:

Set the resolution in the Control Panel → Appearance and Themes → Display → Screen Saver.

Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer Manual).

A: Windows ME/2000:

Set the resolution at the Control Panel → Display → Screen Saver.

Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer Manual).

Q: How can I clean the outer case/LCD Panel?

A: Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning solution or plain water.

Do not leave any detergent or scratches on the case. Do not let any water enter the monitor.

Note

Before calling for assistance, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer.

Specifications

General

General

Model Name SMT-1712

LCD Panel

Size 17 inch (43 cm)

Display area 337.920 mm (H) x 270.336 mm (V)

Pixel Pitch 0.264 mm (H) x 0.264 mm (V)

Synchronization

Horizontal 30 \~ 81 kHz

Vertical 56 \~ 75 Hz

Display Color

16.7M

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

VGA Analog

0.7 Vp-p ± 5 %

Separate H/V sync, Composite, SOG

TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)

Maximum Pixel Clock

135 MHz

Power Supply

AC 100 - 240 V\~ (+/- 10 %), 50/60 Hz ± 3 Hz

Signal Cable

15pin - to - 15pin VGA cable, Detachable

Dimensions (W x H x D) / Weight (Simple Stand)

371 x 330.6 x 69.5 mm (Without Stand)/4.2 kg

371 x 403.85 x 217.43 mm (With Stand) / 4.9 kg

VESA Mounting Interface

100 mm x 100 mm (For use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50^ 104^ (10°C \~ 40°C)

Humidity: 10%\~80%, non-condensing

Storage Temperature: -4^ 113^ ( -20^ 45^ )

Humidity : 5 % \~ 95 %, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor and the computer systems will provide the best operating conditions and monitor settings. In most cases, the monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT-LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm(one millionth) above are used for this product. But the pixels of RED, GREEN, BLUE and WHITE color appear to be bright sometimes or some black pixels may be seen. This is not from bad quality and you can use it without any problems.

For example, the number of TFT-LCD sub pixels contained in this product are 3,932,160.

Note

Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use)

This product complies with the Electromagnetic Compatibility Directives for residential use and can be used in all areas including common residential areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

State	Normal Operation Power saving mode		Power off (Power button)EPA/ENERGY 2000
Power Indicator Blue Blue blinking Off
Power Consumption	33 watts	1 watts	1 watts

ENERGY STAR

This monitor is EPA ENERGY STAR ^® compliant and EN-ERGY2000 compliant when used with a computer equipped with VESA DPM functionality.

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjusts the screen as follows.

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)
IBM, 640 x 350 31.469 70.086 25.175 +/-
IBM, 640 x 480 31.469 59.940 25.175 -/-
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 X 960 60.000 60.000 108.000			+/+
VESA, 1280 X 1024	63.981 60.020 108.000		+/+
VESA, 1280 X 1024	79.976 75.025 135.000		+/+

Cartoon illustration of a book with a rising graph and question marks, set against a blue upward arrow background (no text or symbols)

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the Horizontal Cycle and the inverse number of the Horizontal Cycle is called the Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called the Vertical Frequency or Refresh Rate. Unit: Hz

General

General
Model Name SMT-1912
LCD Panel
Size 19 inch (48 cm)
Display area 376.32 mm (H) x 301.056 mm (V)
Pixel Pitch 0.294 mm (H) x 0.294 mm (V)
Synchronization
Horizontal	30 ~ 81 kHz
Vertical 56 ~ 75 Hz
Display Color
16.7M
Resolution
Optimum resolution 1280 x 1024@60 Hz
Maximum resolution 1280 x 1024@75 Hz
Input Signal, Terminated
VGA Analog
0.7 Vp-p ± 5 %
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
135 MHz (Analog)
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 Hz
Signal Cable
15pin - to - 15pin VGA cable, Detachable
Dimensions (W x H x D) / Weight (Simple Stand)
412 x 361 x 69 mm (Without Stand)/4.8 kg
412 x 422.24 x 217.43 mm (With Stand) /5.5 kg

VESA Mounting Interface

100 mm x 100 mm (For use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50^ 104^ (10°C \~ 40°C)

Humidity: 10%\~80%, non-condensing

Storage Temperature: -4^ 113^ ( -20^ 45^ )

Humidity : 5 % \~ 95 %, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor and the computer systems will provide the best operating conditions and monitor settings. In most cases, the monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT-LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm(one millionth) above are used for this product. But the pixels of RED, GREEN, BLUE and WHITE color appear to be bright sometimes or some black pixels may be seen. This is not from bad quality and you can use it without any problems.

For example, the number of TFT-LCD sub pixels contained in this product are 3,932,160.

Note

Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use)

This product complies with the Electromagnetic Compatibility Directives for residential use and can be used in all areas including common residential areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

State	Normal Operation Power saving mode		Power off (Power button)EPA/ENERGY 2000
Power Indicator Blue Blue blinking Off
Power Consumption	36 watts	1 watts	1 watts

ENERGY STAR

This monitor is EPA ENERGY STAR ^ compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPM functionality.

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR ® guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjusts the screen as follows.

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)
IBM, 640 x 350 31.469 70.086 25.175 +/-
IBM, 640 x 480 31.469 59.940 25.175 -/-
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 X 960 60.000 60.000 108.000			+/+
VESA, 1280 X 1024	63.981 60.020 108.000		+/+
VESA, 1280 X 1024	79.976 75.025 135.000		+/+

Cartoon illustration of a book with a rising graph and question marks, set against a blue upward arrow background (no text or symbols)

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the Horizontal Cycle and the inverse number of the Horizontal Cycle is called the Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called the Vertical Frequency or Refresh Rate. Unit: Hz

Information

For Better Display

Adjust the computer resolution and screen injection rate (refresh rate) on the computer as described below to enjoy the best picture quality. You can have an uneven picture quality on screen if the best picture quality is not provided for TFT-LCD.

• Resolution: 1280 x 1024
• Vertical frequency (refresh rate): 60 Hz
TFT-LCD panels manufactured by using advanced semiconductor technology with a precision of 1ppm(one millionth) and above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without any problems.
- For example, the number of TFT-LCD sub pixels contained in this product are 3,932,160.
When cleaning the monitor and the panel outside, please apply the recommended small amount of cleanerby using a soft cloth to polish. Do not force the LCD area but rub softly.

If excessive force is applied, you may stain it.

If you are not satisfied with the picture quality, you can get better quality of picture by performing the "Auto Adjustment function" in display screen that is appeared as window termination button is pressed.

If there's still noise after the automatic adjustment, use the Fine/Coarse adjustment function.
When viewing a fixed screen for an extended period of time, a residual image or blurriness may appear.

Change the mode to energy save or set a screensaver to move the picture when you need to be away from the monitor for an extended period of time.

PRODUCT INFORMATION (Image Retention Free)

LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time.

This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.

Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

What is Image retention?

During normal operation of a LCD panel, pixel image retention doesn't occur. However, if the same image is displayed for a long time, a slight difference in electric charge accumulates between the two electrodes which encase the liquid crystal. This may cause the liquid crystal to build up in a certain areas of the display. Thus, the previous image is retained

when switching to a new video image. All display products, including LCD, are subject to image retention. This is not a product defect.

Please follow the suggestions below to protect your LCD from image retention.

Power Off, Screen Saver, or Power Save Mode

Ex)

- Turn the power off when using a stationary pattern.

• Turn the power off for 4 hours after 20 hours in use
  • Turn the power off for 2 hours after 12 hours in use

- Use a Screen saver if possible

- Screen saver in one color or a moving image is recommended.

- Set the Monitor to power off with the PC Display Properties Power Scheme.

Suggestions for specific applications

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems We recommend that you follow set up of your display system program as below:

Display Information together with Logo or Moving image cycle.

Ex) Cycle : Display Information for 1 hour followed by a Display Logo or moving image for 1 minute.

Change the Color Information periodically (Use 2 different colors).

Ex) Rotate the Color Information with 2 colors every 30 minutes.

Avoid using a combination of characters and background color with large difference in luminance.

Avoid using Grey colors, which can cause Image retention easily.

- Avoid: Colors with big difference in luminance (Black & White, Grey)

Ex)

SYSTEM : 245 STATUS : NG SYSTEM : 245 STATUS : NG

- Recommended settings: Bright colors with little difference in luminance

- Change the characters color and background color every 30 minutes

Ex)

• Every 30 minutes, change the characters with movement.

Ex)

1 KA1710 12:00 UA0110 13:30 2 AA0002 14:00 KA1710 12:00 FA7777 14:15 UA0110 13:30 3 AA0002 14:00 FA7777 14:15

The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it.

Image retention may not occur when a LCD panel is operated under normal conditions.

Normal conditions are defined as continuously changing video patterns. When the LCD panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be slight difference in voltage between electrodes that work the liquid crystal (LC) in a pixel. The voltage difference between electrodes increases with time, forcing the liquid crystal to lean. When this occurs, the previous image may be seen when the pattern is changed.

To prevent this, the accumulated voltage difference must be decreased.

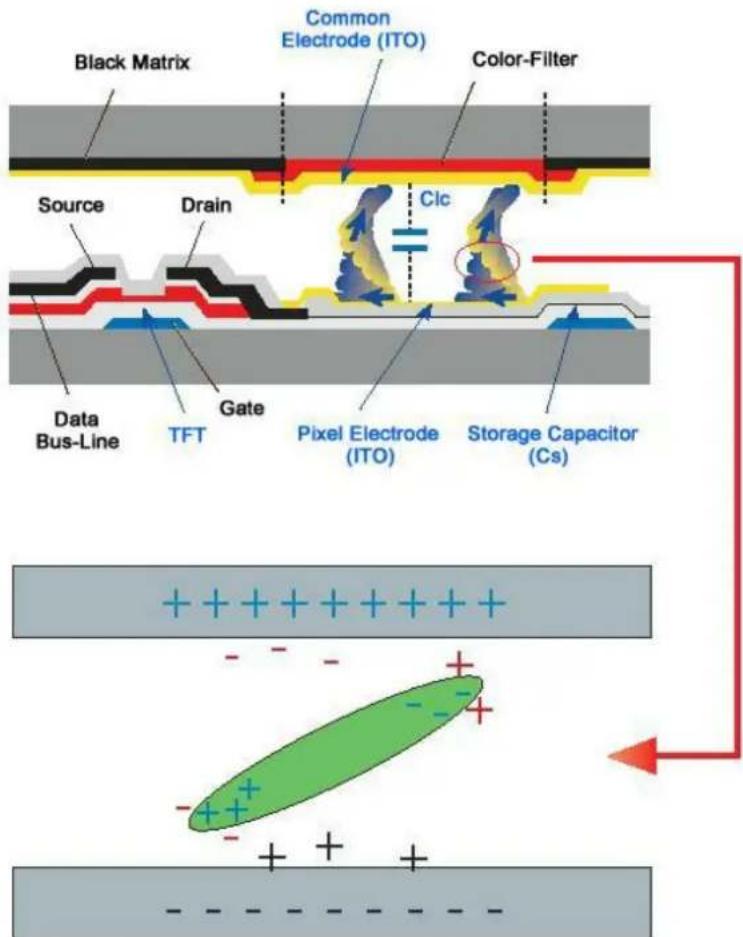

Black Matrix Common Electrode (ITO) Color-Filter Source Drain C1c Data Bus-Line TFT Gate Pixel Electrode (ITO) Storage Capacitor (Cs) +++

Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II

Appendix

Contact SAMSUNG WORLDWIDE

Note

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

North America

U.S.A 1-800-SAMSUNG(726-7864) http://www.samsung.com/us

CANADA 1-800-SAMSUNG(726-7864) http://www.samsung.com/ca

MEXICO 01-800-SAMSUNG(726-7864) http://www.samsung.com/mx

Latin America

ARGENTINE 0800-333-3733 http://www.samsung.com/ar

BRAZIL 0800-124-421

http://www.samsung.com/br

4004-0000

CHILE 800-SAMSUNG(726-7864) http://www.samsung.com/cl

COLOMBIA 01-8000112112 http://www.samsung.com/co

COSTA RICA 0-800-507-7267 http://www.samsung.com/latin

Middle East & Africa

SOUTH AFRICA 0860-SAMSUNG(726-7864) http://www.samsung.com/za

TURKEY 444 77 11 http://www.samsung.com/tr

U.A.E 800-SAMSUNG(726-7864)

http://www.samsung.com/ae

8000-4726

Terms

Dot Pitch The image on	a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm
Vertical Frequency The screen must be redrawn several times per second in order to create and display an image for the user. The frequency of this repetition per second is called the Vertical Frequency or Refresh Rate. Unit: HzExample: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.
Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Interlace and Non-Interlace Methods	Showing the horizontal lines of the screen from the top to the bottom sequentially is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs.
Plug & Play This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function.
Resolution The number of horizontal and vertical dots used to compose the screen image is called the 'resolution'. This number shows the accuracy of the display. A high resolution is good for performing multiple tasks as more image information can be shown on the screen.Example: If the resolution is 1280 x 1024 , this means the screen is composed of 1280 horizontal dots (horizontal resolution) and 1024 vertical lines (vertical resolution).

Correct Disposal

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Authority

Information in this document is subject to change without notice.

© 2007 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation; VESA, DPM and DDC are registered trademarks of Video Electronics Standard Association; the ENERGY STAR ^® name and logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR ^® Partner, Samsung Electronics Co., Ltd. has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency. All other product names mentioned herein may be the trademarks or registered trademarks of their respective owners.
