DV-SR45U - DVD player SHARP - Free user manual and instructions

Product Type	DVD Player
Brand	Sharp
Model	DV-SR45U
Dimensions (W x D x H)	430 mm x 250 mm x 50 mm
Weight	2.5 kg
Power Supply	AC 110-240V, 50/60 Hz
Power Consumption	12 W (typical)
Disc Compatibility	DVD, DVD-R/RW, CD, CD-R/RW, MP3, JPEG
Video Output	Composite, Component, S-Video
Audio Output	Stereo RCA, Digital Coaxial
Progressive Scan	Yes
Remote Control	Included
Playback Functions	Play, Pause, Stop, Skip, Search, Repeat, Shuffle, Program
Parental Control	Yes (ratings)
Cleaning	Use a soft, dry cloth for the exterior; use a lens cleaner for the optical pickup
Safety Precautions	Do not expose to moisture or heat sources; use only specified power supply
Spare Parts	Contact Sharp authorized service center for replacement parts
Repairability	Refer to qualified technician; no user-serviceable parts inside

Frequently Asked Questions - DV-SR45U SHARP

What types of discs can the Sharp DV-SR45U play?

The Sharp DV-SR45U can play DVD, DVD-R/RW, CD, CD-R/RW discs, as well as MP3 and JPEG files.

How do I connect the DVD player to my TV?

You can connect using composite video (yellow RCA), S-Video, or component video (red, green, blue) cables. For audio, use the red/white RCA or digital coaxial output.

Why is there no picture on my TV?

Ensure the TV is set to the correct input source. Check that the video cables are securely connected. Also verify the disc is clean and compatible.

How do I set parental controls?

Press the Setup button on the remote, navigate to Parental Control, enter your password (default is usually 0000 or 4737), and select the desired rating level.

Can I play MP3 files from a CD-R?

Yes, the DV-SR45U supports MP3 playback from CD-Rs. Burn the files as a data disc, not as an audio CD.

The remote control is not working. What should I do?

Replace the batteries with fresh ones. Ensure there are no obstacles between the remote and the player. Point the remote directly at the player's sensor.

How do I clean the DVD player?

Wipe the exterior with a soft, dry cloth. For the lens, use a DVD lens cleaner disc occasionally. Do not use liquids or sprays.

What does the 'progresssive scan' feature do?

Progressive scan outputs video lines sequentially, providing a clearer, flicker-free image compared to interlaced. Use with a compatible TV and component cables.

My discs skip or freeze. What can I do?

Clean the disc with a soft cloth from the center outward. Check for scratches. If the issue persists, try a different disc. The player may need lens cleaning.

Is the Sharp DV-SR45U region coded?

Yes, it is typically set to Region 1 (US/Canada). DVDs from other regions may not play. Check the disc's region code.

USER MANUAL DV-SR45U SHARP

Please read this Operation Manual carefully before using your DVD recorder.

Illustration of a silver computer monitor with ports and control buttons (no text or symbols visible)

The region number for this DVD recorder is 1.

Supplied Accessory

- Remote control (9HSNB006UD) with two "AA" size batteries

• Round Coaxial cable (9HSWPZ0901TM003)

• Audio/Video cables (9HSWX1E56B5-001)

• Operation Manual (9HS1VMN20185)

• Quick Use Guide (9HS1VMN20228)

Before you start

Precautions

For future reference, record the serial number (located on the rear of the Unit) in the space provided.

Model No.:

DV-SR45U

Serial No.:

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITAR LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user of uninsulated voltage within the unit that can cause dangerous electric shocks.

This symbol alerts the user that there are important operating and maintenance instructions in the literature accompanying this unit.

"WARNING—FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment."

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

THIS UNIT IS A CLASS 1 LASER PRODUCT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

AS THE LASER BEAM USED IN THIS UNIT IS HARMFUL TO THE EYES, DO NOT ATTEMPT TO DISASSEMBLE THE CABINET.

REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Before you start

Precautions (cont'd)

Important Safeguards

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Cleaning - Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

1. Attachments - Do not use attachments not recommended by the video product manufacturer as they may cause hazards.
2. Water and Moisture- Do not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
3. Accessories - Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
4. Transportation - A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
5. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
6. Power Sources - This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
7. Grounding or Polarization - This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
8. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
9. Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides

information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig.A)

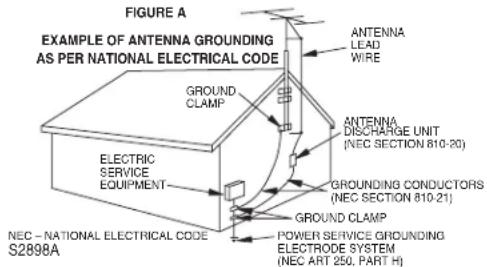

FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE ANTENNA LEAD WIRE GROUND CLAMP ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDED CONDUCTORS (NEC SECTION 810-21) GROUND CLAMP ELECTRIC SERVICE EQUIPMENT POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC - NATIONAL ELECTRICAL CODE S2898A

1. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.
2. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
3. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
4. Object and Liquid Entry - Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.
5. Servicing - Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
6. Damage Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been exposed to rain or water.
d. If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.
e. If the video product has been dropped or damaged in any way.
f. When the video product exhibits a distinct change in performance this indicates a need for service.

1. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
2. Safety Check - Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.
3. Heat - This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Before you start

Precautions (cont'd)

Location and Handling

Location and Handling

• Do not cover or place the DVD recorder in enclosed spaces to prevent excessive temperature build up.
• Do not place the DVD recorder in direct sunlight, or near heat sources.
• Depending on the use environment, the temperature of the DVD recorder may increase slightly. This is not a malfunction.
• Keep the DVD recorder away from strong magnetic objects.
• Do not stand the unit vertically. Install the unit in a horizontal and stable position.
• Do not place any object containing water or other liquids on the DVD recorder. In the event that liquid should enter the cabinet, unplug the DVD recorder immediately and contact the retailer or service centre approved by SHARP immediately.
• Do not remove the DVD recorder cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to the DVD recorder. For service and adjustment inside the cabinet, call a qualified dealer or service centre approved by SHARP.

Nonuse Periods

Location and Handling

• When the DVD recorder is not being used, switch the DVD recorder to the Standby mode.
• When left unused for a long period of time, the DVD recorder should be unplugged from the household AC outlet.
• Do not place the DVD recorder in direct sunlight, or near heat sources.

Copy Protection

This Unit supports Macrovision copy protection.

On DVD discs that include a copy protection code, if the contents of the DVD disc are copied using the DVD recorder, the copy protection code prevents the DVD copy from playing normally.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098 and 4,907,093 licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Notice for progressive scan outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user switch the connection to the 'standard definition' output. If there are questions regarding our TV set compatibility with this model 525p DVD player, please contact our customer service center.

No Fingers or Other Objects Inside

Do not put your fingers or objects on the disc tray.

Warning of Dew Formation

Moisture may form inside the DVD recorder under the following conditions:
- Immediately after a heater is turned on.
• In a steamy or humid room.
- When the DVD recorder is suddenly moved from a cold to warm environment.
If moisture forms inside this DVD recorder, it may not operate properly. In such case, turn on the power and wait for more than two hours for the moisture to evaporate.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Before you start

Precautions (cont'd)

Others

It is the intent of Sharp that this product be used in full compliance with the copyright laws of the United States and that prior permission be obtained from copyright owners whenever necessary.

"Licensed under one or more of U.S. Pat. 4,972,484, 5,214,678, 5,323,396, 5,530,655, 5,539,829, 5,544,247, 5,606,618, 5,610,985, 5,740,317, 5,777,992, 5,878,080, or 5,960,037."

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.

- You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

Maintenance

SERVICING

1. Please refer to relevant topics in the Troubleshooting on pages 92-95 before returning the product.

2. Do not attempt to service this Unit yourself. Instead, unplug it and contact a Sharp Authorized Service Center for inspection. (See Service Information on page 97.)

3. Be sure the service technician uses authorized replacement parts or their equivalents. Unauthorized parts may cause fire, electrical shock, or other hazards.

4. Following any service or repair, be sure the service technician performs safety checks to certify that this Unit is in safe operating order.

CLEANING THE CABINET

- Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.

CLEANING DISCS

- When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Do not wipe in a circular motion.

- Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.

RECOMMENDED MEASURES FOR OPTIMUM PICTURE EXCELLENCE

This Unit is a precision device constructed using extremely accurate technology.

● The disc cannot be played if the disc drive component is worn out or if the internal pick up lens is dirty.

- If this unit still does not perform properly although you refer to the relevant sections and to Troubleshooting on pages 92-95, the laser optical pickup unit may be dirty. Consult a Sharp Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

- Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

● Always store the disc in its protective case when it is not used.

Before you start

Table of contents

Before you start .....2

Precautions 2

Table of contents....6

Features 7

Functional overview ....8

Installing batteries in the remote control .....10

Using a remote control ....10

DISPLAY menu 10

SETUP/DISC/CD menu .....11

Connections .....13

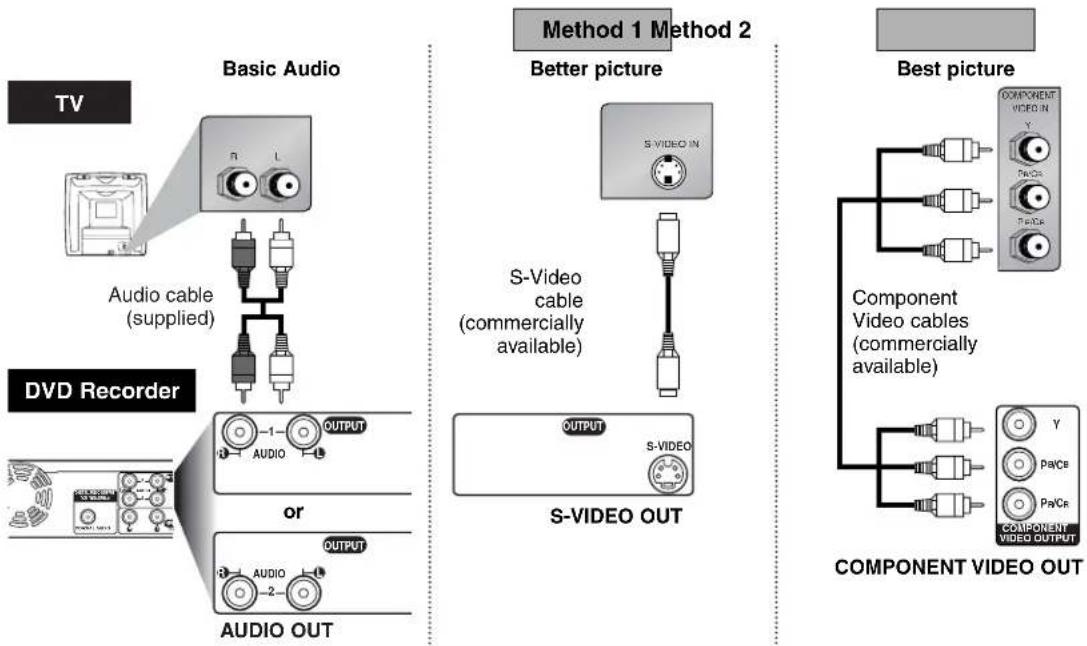

Connection to a TV....13

Connection to a cable box or satellite box ....14

When connecting to a cable box or satellite box with

only a few scrambled channels .....14

When connecting to a cable box or satellite box with

many scrambled channels .....14

Connection to an Audio System .....15

Getting started .....16

Easy DVD recording .....16

Channel setting .....18

Getting channels automatically .....18

Adding/deleting channels 19

Selecting the TV stereo or SAP .....20

Setting the clock 21

Auto Clock Setting 21

Manual Clock Setting 22

Setting the daylight saving time .....24

Selecting the TV aspect ratio .....25

Recording 26

Information on DVD recording .....26

Information 26

Recording speed 26

Restrictions on recording 26

Information on copy control 27

Making discs playable in other DVD player (Finalize) 27

Formatting a disc .....28

Choosing the recording format of a blank disc .....28

Reformatting a disc ....30

Basic recording ....31

Checking the recording picture quality .....32

One-touch timer recording ....33

Timer recording ....34

Hints for timer recording ....36

Settings for an external source .....37

Connection to an external source .....37

Recording from an external source ....38

Finalizing the discs 39

Setting a disc to protect .....40

Playing discs ....41

Information on DVD play .....41

Guide to displays 41

Basic playback 42

Playback 42

Playing discs using the disc menu 44

Playing discs using the title menu .....45

Special playback ....46

Resume play 46

Fast forward / Fast reverse .....46

Skipping TV commercials during play .....47

Pause 47

Step by step playback 48

Slow forward / Slow reverse play .....48

Zoom 49

Marker Setup 49

Search ....50

Title/Chapter search .....50

Track search 51

Time search ....51

Repeat/Random/Program playback .....52

Repeat play 52

Random playback 52

Program play 53

Selecting the format of audio and video .....54

Switching audio soundtrack ....54

Switching subtitles 55

Switching camera angles .....56

Reducing block noise 56

Editing ....57

Information on disc editing .....57

Guide to a title list .....57

Editing discs with Video mode .....57

Editing discs with VR mode .....58

Editing DVD-RW discs in Video mode .....59

Deleting titles 59

Putting names on titles 60

Setting or clearing chapter markers .....62

Editing DVD-RW discs in VR mode (Original) . .63

Deleting titles 63

Deleting parts of titles 64

Putting names on titles 65

Setting or clearing chapter markers .....67

Setting pictures for thumbnails 68

Setting titles to protect 70

Releasing titles from protecting .....71

Editing DVD-RW discs in VR mode (Playlist) ...72

Deleting titles 72

Deleting parts of titles 73

Putting names on titles 74

Setting or clearing chapter markers .....76

Setting pictures for thumbnails 77

Adding titles to a Playlist 79

Deleting a Playlist 80

Editing DVD-R discs .....81

Deleting titles .81

Putting names on titles .....82

Changing the SETUP menu .....83

Tour of the SETUP menu .....83

Language setting 84

Display setting....86

Audio setting....88

Settings for Parental lock level .....90

Others 92

Troubleshooting 92

Language code 95

Glossary 96

Specifications 97

Service Information (For the U.S.) .....97

Español .....98

Before you start

Features

This DVD unit not only plays DVDs and CDs but also offers features for you to record to DVD discs and edit them after that.

The following features are offered with this DVD recorder.

Recording

This DVD recorder is compatible with both DVD-RW, which is rewritable repeatedly, and DVD-R, which is available for recording once. You can choose either one for your convenience.

Up to 8 program recording:

You can program the DVD recorder to record up to 8 programs, up to a year in advance. Daily or weekly program recordings are also available.

One-touch timer recording:

You can easily set a recording time as you prefer. Every time the REC button pressed during recording, the recording time will be increased by 30 minutes up to 4 hours. The recording automatically stops when the recording time you set is reached.

REC MONITOR:

You can confirm the picture quality for recording in the current recording speed which you set. If you want to change the recording speed, press REC MODE button to set the desired recording mode.

Automatic Chapter marker setting:

Chapter markers will be put on recordings as you set in SETUP menu before attempting to record.

Automatic Title menu making:

The DVD recorder makes title menus automatically when finalizing the disc which are recorded in Video mode.

Automatic PLAYLIST making (VR mode):

A Playlist will be prepared from an Original list, so that you can edit titles in a Playlist as you prefer. An Original list is kept as it is.

Play

Theater surround sound in your home:

When connecting the DVD recorder to an amplifier or a decoder which is compatible with Dolby Digital or DTS, you are allowed to experience the theater surround sound from discs with surround sound system.

Quick search for what you want to watch:

You can easily find the part you want to watch using the search function. Search for a desired point on a disc by title, chapter, or time.

Start to play from Original and Playlist:

Title playing is available from either an Original list or Playlist.

Editing

Setting/Clearing chapter markers:

You can easily add chapter markers anywhere in your recordings for easy editing. (VR mode)

Making your own Playlist:

With the original remains as it is, you can edit titles on various Playlist as you prefer.

Putting names on titles

Setting pictures for thumbnails

Setting/clearing chapter markers

Deleting parts of titles etc

Protecting titles:

To avoid editing or erasing titles, the protect function is useful when it is ON in the original list.

Compatibility

Available for playing discs recorded in Video mode on a regular DVD player (Video mode):

Discs recorded in Video mode can be played on regular DVD players, including computer DVD drives compatible with DVD-Video playback*.You will need to finalize the discs recorded in Video mode to play in other DVD players.

* DVD-Video Format (Video mode) is a new format for recording on DVD-RW/R discs that was approved by the DVD Forum in 2000. Adoption of this format is optional for manufactures of DVD playback devices, and there are DVD-Video players, DVD-ROM drives or other DVD playback devices that do not play DVD-RW/R discs recorded in the DVD-Video Format.

Others

Progressive Scan system

Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional television signals.

Symbol in this operation manual

Many functions of this DVD recorder are depending on the disc type or the recording mode.

To specify for what disc type or recording mode each function is, we put the following symbols at the beginning of each item to operate.

Symbol	Description
	Available to DVD Video discs
	Available to DVD-RW in Video mode
	Available to DVD-RW in VR mode
	Available to DVD-R discs
	Available to DVD+RW in Video mode
	Available to DVD+R discs
	Available to Audio CDs
	Available to CD-RW/R discs with MP3 files

Before you start

Functional overview

Front Panel

(*) The unit can also be turned on by pressing these buttons.

1 2 3 4 5* 6* 7* 8 9 10 11 12 13 14 15

1. POWER button

Press to turn the DVD recorder on and off. If timer programmings have been set, press to set the unit in timer-standby mode.

2. CH ▼/ ▲button

Press to change the channel up and down.

3. ◀◀(REV) button

During playback, press to skip to the previous chapter or track. During playback, press and hold for 1.5 seconds to fast reverse. When playback is paused, press repeatedly to slow reverse.

4. ▶▶(FWD) button

During playback, press to skip to the next chapter or track. During playback, press and hold for 1.5 seconds to fast forward.

When playback is paused, press repeatedly to slow forward.

5. ■(STOP) button\*

Press to stop play or recording.

6. ▶(PLAY) button\*

Press to start or resume play.

7. OPEN/CLOSE ▲button\*

Press to open or close the disc tray.

8. Disc tray

Place a disc when open.

9. Display

Refer to "Front Panel Display Guide" on page 12.

10. Remote control sensor

Receive signals from your remote control so that you can control the DVD recorder from a distance.

11. REC/OTR button

Press once to start a recording. Press repeatedly to start a one-touch timer recording.

12. REC MODE button

Press to switch the recording speed.

13. AUDIO INPUT jacks (LINE2)

Use to connect external equipment with standard audio cables.

14. VIDEO INPUT jack (LINE2)

Use to connect external equipment with a standard video cable.

15. S-VIDEO INPUT jack (LINE2)

Use to connect the S-Video output of external equipment with an S-Video cable.

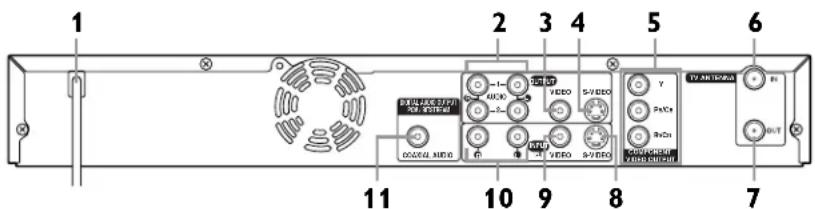

Rear Panel

1 2 3 4 5 6 11 10 9 8 7 D: 0.0000 0.0000 D: 0.0000 0.0000 D: 0.0000 0.0000 D: 0.0000 0.0000 D: 0.0000 0.0000 D: 0.0000 0.0000 D: 0.0000 0.01 D: 0.0000 0.01 D: 0.0000 0.01 D: 0.0000 0.01 D: 0.0000 0.01 D: 0.0000 0.01 D: 0.0000 0.1 D: 0.0000 1 D: 1 D: 2 D: 3 D: 4 D: 5 D: 6 D: 7 D: 8 D: 9 D: 10 D: 11 D: 12 D: 13 D: 14 D: 15 D: 16 D: 17 D: 18 D: 19 D: 20 D: 21 D: 22 D: 23 D: 24 D: 25 D: 26 D: 27 D: 28 D: 29 D: 30 D: 31 D: 32 D: 33 D: 34 D: 35 D: 36 D: 37 D: 38 D: 39 D: 40 D: 41 D: 42 D: 43 D: 44 D: 45 D: 46 D: 47 D: 48 D: 49 D: 50 D: 51 D: 52 D: 53 D: 54 D: 55 D: 56 D: 57 D: 58 D: 59 D: 60 D: 61 D: 62 D: 63 D: 64 D: 65 D: 66 D: 67 D: 68 D: 69 D: 70 D: 71 D: 72 D: 73 D: 74 D: 75 D: 76 D: 77 D: 78 D: 79 D: 80

1. AC Power Cord

Connect to a standard AC outlet to supply power to this unit.

2. AUDIO OUTPUT jacks 1, 2

Use to connect a TV monitor, AV receiver or other equipment with standard audio cables.

3. VIDEO OUTPUT jack

Use to connect a TV monitor, AV receiver or other equipment with a standard video cable.

4. S-VIDEO OUTPUT jack

Use to connect the S-Video input of a TV monitor, AV receiver or other equipment with an S-Video cable.

5. COMPONENT VIDEO OUTPUT jacks

Use to connect a TV monitor with component video inputs with component video cables.

6. TV ANTENNA IN jack

Use to connect an antenna.

7. TV ANTENNA OUT jack

Use to connect an antenna cable to pass the signal from the TV ANTENNA IN to your TV monitor.

8. S-VIDEO INPUT jack(LINE1)

Use to connect the S-Video output of external equipment with an S-Video cable.

9. VIDEO INPUT jack(LINE1)

Use to connect external equipment with a standard video cable.

10. AUDIO INPUT jacks(LINE1)

Use to connect external equipment with standard audio cables.

11. COAXIAL DIGITAL AUDIO OUTPUT jack

Use to connect an AV receiver, Dolby Digital decoder or other equipment with a coaxial digital input jack with a digital coaxial cable.

Note

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the DVD recorder.
- This unit does not have an RF modulator;

Before you start

Functional overview (cont'd)

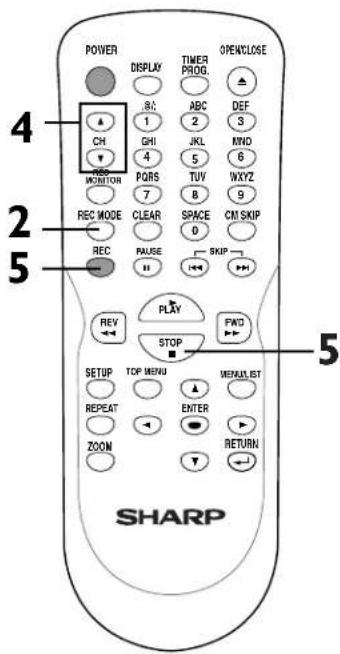

Remote Control

POWER DISPLAY TIMER PROG. OPENCLOSE 16* 17 2 3 CH ABC DEF MONITOR 1 2 3 GHI JKL MNO 4 5 6 PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 19 5 7 REC PAUSE SKIP 20 9* 10 PLAY FWD 11* REV STOP 21 12 SETUP TOP MENU MENU LIST 22 13 REPEAT ENTER 23 14 ZOOM RETURN 24 15 SHARP

(*) The unit can also be turned on by pressing these buttons.

1. POWER button

Press to turn the DVD recorder on and off. If timer programmings have been set, press to set the unit in timer-standby mode.

2. DISPLAY button

Press to display or change the on-screen display.

3. CH ▲/▼ buttons

Press to change the channel up and down.

4. REC MONITOR button

Press to check the video signal to be recorded before attempting.

5. REC MODE button

Press to switch the recording speed.

6. CLEAR button

Press to clear the password once entered or to cancel the programming for CD or to clear the selecting marker number in the marker setup mode or to clear the program once entered in the timer recording setting mode, etc.

7. REC button

Press once to start a recording. Press repeatedly to start a One-Touch timer Recording.

8. PAUSE || button

Press to pause play or recording.

9. PLAY ▶ button\*

Press to start or resume play.

10. REV ◀button

During playback, press to fast reverse. Or when playback is paused, press to play slow reverse.

11. STOP ■ button\*

Press to stop play or recording.

12. SETUP button

Press to display the setup menu. During DVD playback, press and hold for more than 3 seconds to switch to the progressive scanning mode or the interlace mode.

13. TOP MENU button

Press to display the top menu.

14. REPEAT button

Press to display the repeat setting menu.

15. ZOOM button

During playback, press to enlarge the picture on the screen.

16. OPEN/CLOSE ▲button\*

Press to open or close the disc tray.

17. TIMER PROG. button

Press to display the timer program setting menu.

18. Number buttons

Press to select channel numbers. Press to select a title/chapter/track on display or a TV channel.

Or press to enter values for the settings in the SETUP menu.

19. CM SKIP button

During playback, press to skip 30 seconds.

20. SKIP ◀◀button

During playback, press to skip to the previous chapter or track. Or when playback is paused, press to play reverse step by step.

SKIP ▶▶|button

During playback, press to skip to the next chapter or track.

Or when playback is paused, press to play forward step by step.

21. FWD ▶ button

During playback, press to play fast forward.

Or when playback is paused, press to play slow forward.

22. MENU/LIST button

Press to display the Disc menu.

To change ORIGINAL and PLAYLIST on the TV screen. (VR mode only)

23. ENTER button

Press to confirm or select menu items.

24. ▲ / ▼ / ◀ / ▶ buttons

Press to select items or settings.

25. RETURN button

Press to return to the previously displayed menu screen.

Before you start

Functional overview (cont'd)

Installing batteries in the remote control

Install two "AA" size batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

1

2

3

Note:

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Do not mix new and old batteries together.
• Do not use different kinds of batteries together, although they may look similar, different batteries may have different voltages.
  • Make sure that the plus and minus ends of each battery match the indications in the battery compartment.
• Remove batteries from equipment that is not going to be used for a month or more.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.
• Do not recharge, short-circuit, heat, burn or disassemble batteries.

Using a remote control

Keep in mind the following when using the remote control:

• Make sure that there is no obstacle between the remote control and the remote sensor on the DVD recorder.
- Use within the operating range and angle as shown.
- Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the remote sensor of the DVD recorder.
- Remote control for different devices can interfere with each other. Avoid using remote control for other equipment located close to the DVD recorder.
- Replace the batteries when you notice a fall off in the operating range of the remote control.

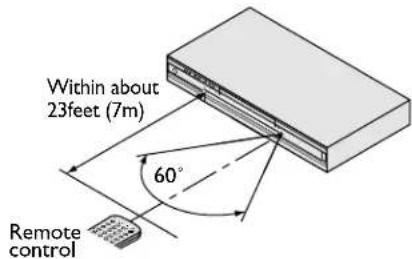

Within about 23feet (7m) 60° Remote control

Guide to Displays on screen menu

This unit uses the following on screen menu for most operations: SETUP/DISC/CD menu, Title list, and DISPLAY menu. They allow you to change the playing status of disc during play.

The DISPLAY menu also gives you information on the status of the disc.

DISPLAY menu

Press DISPLAY button to call up the display menu. This menu will give you the information on the playing disc. Some operations are available while disc is playing.

Details are on page 41.

1 1:00:00:00 DVD-RW Video mode SP 1:25 Rem.

1. Indicates a disc type and a format mode.
   NOTE: In some descriptions on this manual, only one disc type is indicated as an example.
2. Indicates a recording mode and possible recording time.

3. Indicates a title number, chapter number, and the time lapse of disc play.

4. Each icon means:

: Search

:Audio

: Subtitle

: Angle (except VR mode)

: Repeat

: Marker

: Noise Reduction

: Zoom

Before you start

Functional overview (cont'd)

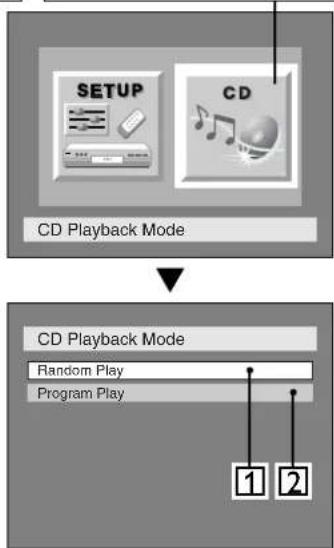

SETUP/DISC/CD menu

Press SETUP button to display the setup main menu, then choose either of SETUP/DISC/CD by ◀/▶ button. Then, press ENTER button to display each menu.

These menus provide entries to all main functions of the DVD recorder.

“DISC” is available only when a DVD-RW/R disc is inserted into the unit. When a DVD-Video disc (commercially available), new DVD-R disc, or the finalized DVD-R disc is inserted into the unit, you cannot select “DISC”.

SETUP DISC Disc Setting Disc Edit Format Finalizo Disc Protect OFF ON 1 2 3 □ 4

"CD" is available only when an Audio CD disc or a CD-RW/R disc with MP3 files is inserted into the DVD recorder.

1. Playback:

To set up the DVD recorder to play discs as you prefer.

2. Recording:

To set up the DVD recorder to record to discs as you prefer.

3. Display:

To set up the OSD screen and the front display of the DVD recorder as you prefer.

4. Select Video:

To choose a line input to record to DVD discs from other video equipment.

5. Clock:

To set up the clock of the DVD recorder as you need.

6. Channel:

To adjust the channel setting of the DVD recorder as you prefer.

1. Edit:

Turns on a title list, (When a disc with VR mode is inserted, 'Original' or 'PlayList' is available.), which shows the recorded titles on the disc.

2. Format (DVD-RW only):

Allows you to erase all of the recorded content on the disc. The disc will be completely blank.

• Erased content cannot be called back. Please make sure before you format a disc.
• A DVD-RW disc formatted with this unit cannot be used in other DVD recorders without any recording using this unit.
• If you want to use a disc only formatted with this unit on another DVD recorder, you have to re-format the disc on that recorder.

3. Finalize:

Allows you to finalize a disc containing recorded titles.

1. Disc Protect (VR mode only): Allows you to protect a disc from accidental editing or recording.

1. Random Play:

To activate the random playback feature.

2. Program Play:

To activate the programmed play-back feature.

Before you start

Functional overview (cont'd)

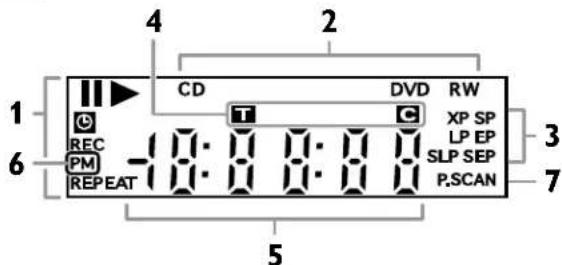

Front Panel Display Guide

1 6 4 2 CD DVD RW T C XP SP LP EP SLP SEP P.SCAN 3 7 5

1. Current status of the DVD recorder

II : Appears when disc play-back is paused.

▶ : Appears when playing a disc.

: Appears when the timer programming has been set and is proceeding.

REC : Appears during recording process.

REPEAT :

Appears during repeat play.

2. Disc type

CD : Appears when an audio CD or a disc with MP3 files is inserted in the disc tray.

DVD : Appears when a DVD disc is inserted in the disc tray.

DVD R : Appears when a DVD-R disc is inserted in the disc tray.

DVD RW : Appears when a DVD- RW disc is inserted in the disc tray.

3. Recording speed

Indicates the recording speed of the disc.

4. Title/Track and Chapter mark

T : Appears when indicating a title/track number.

C : Appears when indicating a chapter number.

5. Displays the following

• Playing time / remaining time
• Current title / chapter / track number
• Recording time
• Clock
• Channel number
  • OTR (one-touch timer recording) remaining time

6.: Appears in the afternoon with the clock displaying.

7.: P.SCAN

Appears when the progressive scan system is activated.

Display message

Appears when the DVD recorder is turned on.

Appears when the disc tray is closing.

Appears when the DVD recorder is turned off.

Appears when a disc is loaded on the disc tray.

Appears when the disc tray is opening.

Appears when data is being recorded on a disc.

Connections

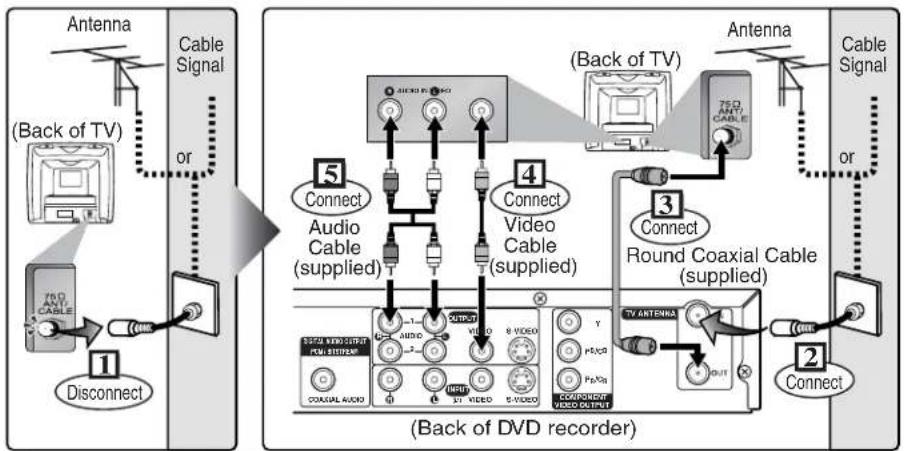

Connection to a TV

6 Plug in the AC power cord of the DVD recorder.

Make one of the following connections, depending on the capabilities of your existing equipment.

Note

• Connect this unit directly to the TV. If the A/V cables are connected to a VCR, pictures may be distorted due to the copy protection system.
• When Progressive Scan mode is selected, no video signal will be output from the VIDEO OUT or S-VIDEO OUT jack.

If your TV is compatible with Progressive Scan (480p) and you want to enjoy that high quality picture;

You must select the connection Method 2 above and Progressive Scan mode. To set the mode, press and hold the SETUP button on the remote control for more than 3 seconds during DVD playback, so that "P.SCAN" will appear on the display of this unit.

If your TV is not compatible with Progressive Scan;

Use this unit in Interlace mode. Make sure that no "P.SCAN" is on the display of this unit. If not, press and hold the SETUP button on the remote control for more than 3 seconds during DVD playback, so that "P.SCAN" on the display of this unit will disappear.

more than 3 seconds during DVD playback [Interlace mode]
[Progressive Scan mode]

Connections

Connection to a cable box or satellite box

When connecting to a cable box or satellite box with only a few scrambled channels

If you are using a cable box or satellite box with only a few scrambled channels, follow the setup on this page. If many or all the channels are scrambled, use the connection[B] on this page.

With this setup:

• You can record any unscrambled channel by selecting the channel on the DVD recorder.
• You cannot record scrambled channels that require a cable box or satellite box.

When connecting to a cable box or satellite box with many scrambled channels

If many or all the channels you receive by cable or satellite are scrambled, we recommend using this setup.

With this setup:

• You can record any unscrambled channel by selecting the channel on the cable box or satellite box. Be sure that the cable box or satellite box is turned on.
• You cannot record one channel while watching another channel.

Note to the Cable TV System Installer :

This reminder is provided to call the Cable TV system installer's attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding - in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

Connections

Connection to an Audio System

• When you change the connections, all devices should be turned off.
  • Refer to the operation manual accompanying external devices for more information.

Note

• If output is Dolby Digital encoded audio, connect to a Dolby Digital decoder and set "Dolby Digital" to "Stream" for the "Digital Out" setting in the SETUP menu. (Refer to pages 88-89.)
• If output is DTS encoded audio, connect to a DTS decoder and set "DTS" to "ON" for the "Digital Out" setting in the SETUP menu. (Refer to pages 88-89.)
• The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD or DAT deck.
• Unless connected to a Dolby Digital decoder or a DTS decoder, set "Dolby Digital" to "PCM" and "DTS" to "OFF" for the "Digital Out" setting in the SETUP menu. Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers. (Refer to pages 88-89.)

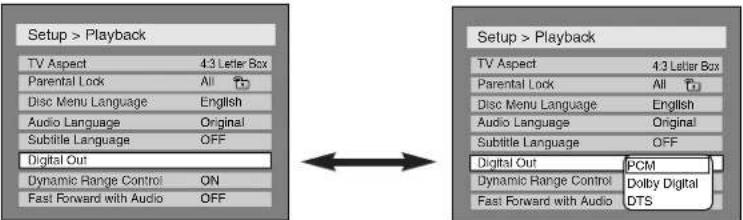

• Set "Dolby Digital" to "PCM" for the "Digital Out" setting in the SETUP menu for connecting to an MD deck or DAT deck. (Refer to pages 88-89.)
• By hooking this unit up to a Multi-channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital 5.1 channel surround sound as heard in the movie theaters.
• By hooking this unit up to the DTS decoder, you can enjoy 5.1channel surround system which reproduces the original sound as truthfully as possible. 5.1channel surround system is developed by the Digital Theater System, Inc.

Getting started

Easy DVD recording

The following will help you to understand easily how to record to DVD discs.

Note:

Make sure batteries are in the remote control and you have connected this unit and the TV correctly.

Step 1: Choose a disc type

There are several types of recordable DVD discs to choose from. Choose a recordable DVD disc type based on your playing/recording/editing requirements. See "DVD disc types" at the bottom of this page for more information on the differences between the different kinds of compatible media. This DVD recorder can record on the following type of discs.

* This unit cannot record on the following discs.

• DVD-RW Ver 1.2 / 2-4x CPRM compatible

• DVD-R General Ver 2.0 / 8x

For example, when you want to record repeatedly on the same disc, or when you want to edit the disc after recording, select the rewritable DVD-RW type disc.

When you want to save recordings without any alteration, a non-rewritable DVD-R can be your choice.

Step 2: Insert a blank disc

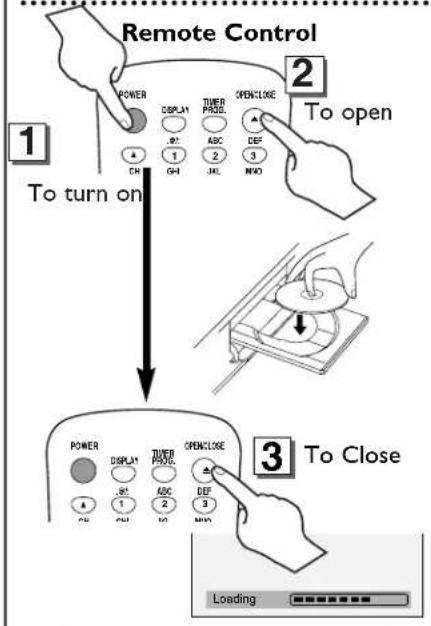


This operation may take a while to be recognized.

DVD disc types

*☆☆☆:Most suitable.

☆☆:Can be used.

☆:Some functions are limited.

—:Cannot be used.

You want to	DVD-RW VR	DVD-RW Video	DVD-R
Record TV programs	☆☆☆	☆☆☆	☆☆
Reuse by deleting unwanted contents	☆☆☆	☆☆	—
Edit recorded contents	☆☆☆	☆	☆
Edit/Record from connected equipment	☆☆☆	☆☆☆	☆☆☆
Copy discs for distribution	^*1	☆☆☆	☆☆☆
Play on other DVD equipment	^*1	☆☆☆	☆☆☆

Features	DVD-RW VR	DVD-RW Video	DVD-R
Recording
Rewritable? Yes Yes			No
Can create chapters at fixed intervals (auto.)	Yes Yes		Yes
Can create chapters wherever you like (manual)	Yes No		No
Can record 16:9 size pictures	Yes Yes		Yes
Can record Copy-Once programs	Yes No		No
Editing
Can perform basic edit functions	Yes Yes		Yes
Can perform advanced edit functions (Playlist edit)	Yes No		No

^*1 DVD-RW (VR mode) can only be played on DVD equipment that is VR compatible.

Note:

For details of the above functions and implied restrictions, see the explanations inside the manual.

Format the disc

Insert the disc in the recorder. Then, format the disc from SETUP menu. Video format (Video mode) or Video recording format (VR mode) will be available depending on the disc type inserted. This is necessary to prepare the disc for recording. Details are on pages 28-30.

* When you format, the entire contents on that disc will be erased.
• The unit automatically starts formatting when an unused disc is inserted.

Getting started

Easy DVD recording (Cont'd)

Step 3: Select the recording speed

POWER DISPLAY TIMER PROG OPP/EXLOSE ▲ ABC DEF CH 1 2 3 OH UND 4 REC MONITOR PO MXYZ 9 REC MOUNT CLEAR SPACE CM SHOP 0

SP 2:01 Rem.

Step 4: Select the desired channel

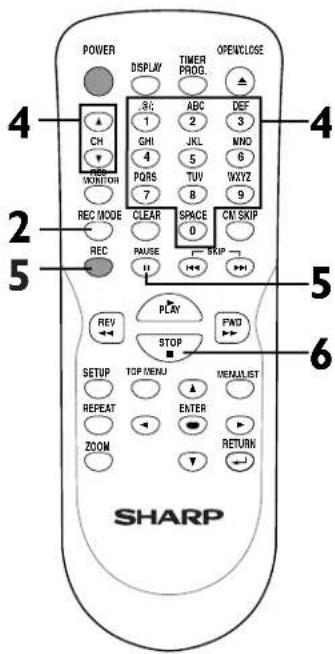

POWER DISPLAY TIMER PROD OPENCLOSE ▲ CH 1 GHI 2 OKI 3 KLI 4 5 6 7 8 9 POSS TUV WAYZ RED MONTRON GREEN SPACE RED MODE CLEAR 0 CUR SKIP

CH1

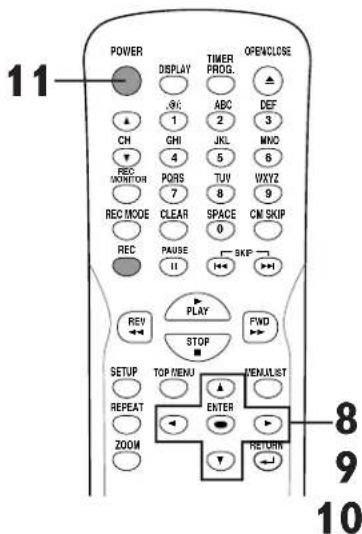

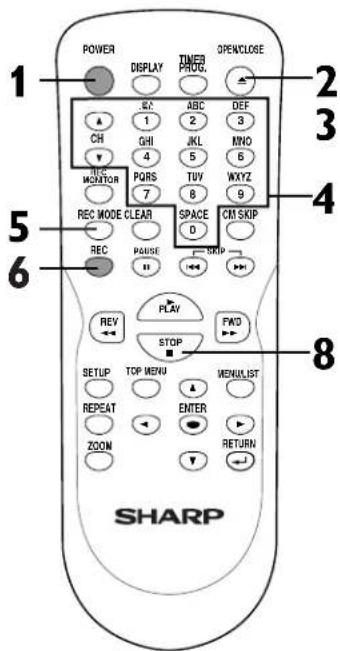

Step 5: Record to DVD discs

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ▲ 1 2 3 CH GH JOL MHO 4 5 6 WENTON POB VYZ 7 REC MODE CL 9 REV KUISE OKP 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Blank white image with a single black dot in the bottom-left corner (no text or symbols)

Hint 1: Play the recorded contents

You can select the title you want to play from a displayed menu, and immediately start to play. Recorded contents are easily accessible, with simple procedure of choosing a title on a chapter in the menu screen.

What is titles and chapters?

The contents of DVD disc are generally divided into some titles. Titles may be further divided into chapters.

Hint 2: Edit the recorded disc

You will find editing discs is easy. This unit offers convenient edit functions which are possible only with DVD-R/RW discs.

You can edit the following from a title list.

• Putting names on titles
• Setting pictures for thumbnails (VR mode)
• Setting/clearing chapter markers
• Deleting parts of titles or scenes (VR mode)

Title Delete : This deletes an entire scene permanently from the disc.

Scene Delete : This allows a user to edit within a specific scene (ex. commercials).

Original and Playlist (VR mode)

You can edit the recordings in Playlist without changing the original recordings. Playlist does not take up much disc space.

What "Original" or "Playlist" is for?

Throughout this manual, you will find Original and Playlist to refer to the actual content and the edited version.

• Original content refers to what's actually recorded on the disc.
• Playlist content refers to the edited version of the disc; how the Original content is to be played.

Finalizing a Disc

• This will allow a disc that is recorded on our unit to be played back on a different DVD player- without finalization it will not be playable on another player.
• After finalizing a disc if the recording was in video mode, you can not edit any information that is on that disc.
• If you have recorded in VR mode on DVD-RW disc then editing is still permitted after finalizing.

Step 6: Stop the record

REC NODE CLEAR 7 8 9 SPACE ON SKIP 0 REC PULSE 11 SKIP REV PLAY STOP TWO SETUP TOP MENU NEJMUST

58% Writing to Disc

This operation may take a while to be completed.

Getting started

Channel setting

All channels are stored in the DVD recorder when purchased. We recommend that you get available channels in your area stored using "Auto Preset" in the Channel Preset of the SETUP menu.

Getting channels automatically

1

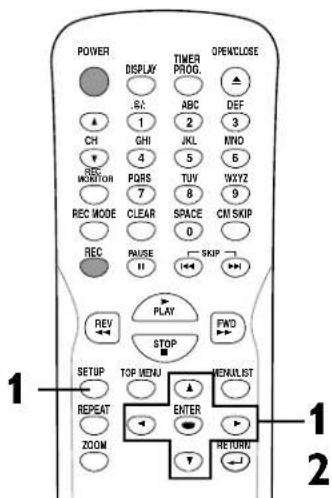

Press POWER button to turn on the DVD recorder.

2

Turn the TV on and be sure to select the input to which the DVD recorder is connected.

POWER

3

Press SETUP button to display SETUP/DISC menu. SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

4

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

5

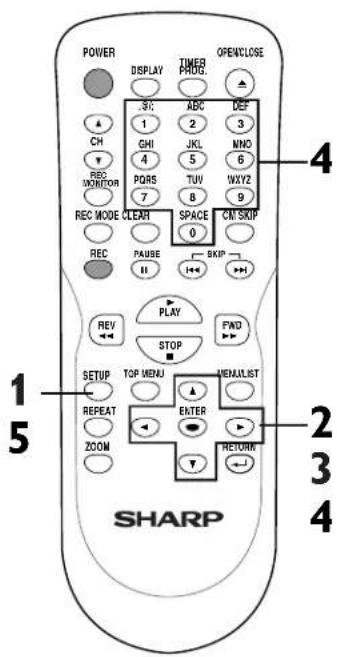

Select "Channel" using ▲/▼ / ◀/▶ buttons, then press ENTER button.

Channel Preset menu will appear.

Setup > Channel Preset Auto Preset Manual Preset TV Audio Select Stereo

6

Select "Auto Preset" using ▲ /▼buttons, then press ENTER button.

The DVD recorder will start getting channels available in your area.

CH 18 Auto Presetting Now

7

Press SETUP button to exit.

- You can select only the channels memorized in this unit by using the CHANNEL buttons.

POWER DISPLAY TIMER OPENCLOSE 1 2 ABC DEF CH GHI JKL MNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP II PLAY FWD REV STOP 3 SETUP TOP MENU REPEAT ENTER 4 ZOOM RETURN 5 SHARP 6

To select a channel

You can select a channel by directly entering channel using the Number buttons on the remote control.

Notes for using the Number buttons:

• When selecting cable channels which are higher than 99, enter channel numbers as a three-digit number.(For example: 117, press 1,1,7)
• You must precede single-digit channel numbers with a zero (For example: 02, 03, 04 and so on).
• You can select the line input mode ("L1" or "L2"). To select "L1" by pressing [0], [0], [1]. To select "L2" by pressing [0], [0], [2]. Details are on page 38.

Note

• If the auto presetting is cancelled during presetting, some channels not yet preset may not be received.
  • The selection will depend on how you receive the TV channels.

To cancel the auto preset- ting during scanning:

Press RETURN button or SETUP button to cancel.

Getting started

Channel setting (cont'd)

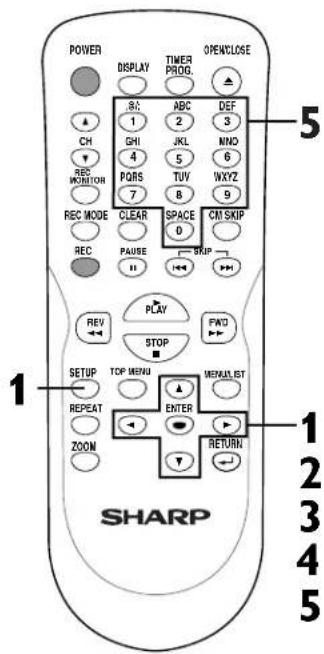

Adding/deleting channels

The channels you no longer receive or seldom watch can be deleted from the memory. You also may add channels into memory.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Channel" using ▲/▼ / ◀/▶ buttons, then press ENTER button.

Channel Preset menu will appear.

Setup > Channel Preset Auto Preset Manual Preset TV Audio Select Stereo

4

Select "Manual Preset" using ▲/▼buttons, then press ENTER button.

Manual Preset menu will appear.

Setup > Channel Preset > Manual Preset CH2 Add ✓ Delete

5

Select the channel number to add or delete.

Press ◀button to move to a lower channel number.

Press ▶ button to move to a higher channel number.

Setup > Channel Preset > Manual Preset CH18 Add Delete

6

Select "Add" or "Delete" using ▲/▼buttons, then press ENTER button.

The channel number will be added or deleted from a channel memory. Then the next channel number will appear so that you can continue adding or deleting channels.

7

Press SETUP button to exit.

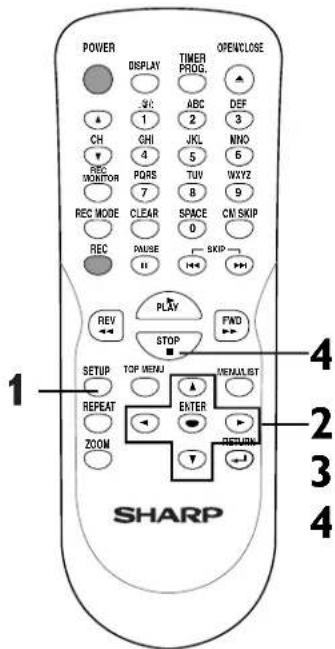

POWER DISPLAY TIMER PHUG. OPENCLOSE 3C ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 1 2 3 1 2 3 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 7 REV PLAY FWD STOP SETUP TOP MENU RETAILIST REPEAT ENTER ZOOM RETURN SHARP

Getting started

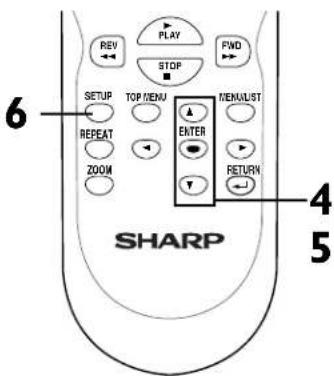

Selecting the TV stereo or SAP

You can select a sound channel to output from TV. "Stereo" has been selected as the default.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Channel" using ▲/▼ / ◀/▶ buttons, then press ENTER button.

Channel Preset menu will appear.

Setup > Channel Preset Auto Preset Manual Preset TV Audio Select Stereo

4

Select "TV Audio Select" using ▲/▼buttons, then press ENTER button.

Option window will appear.

Setup > Channel Preset Auto Preset Manual Preset TV Audio Select Stereo SAP

5

Select "Stereo" or "SAP" using ▲/▼ buttons, then press ENTER button.

Stereo:

Outputs main-audio.

SAP:

(Secondary Audio Program)

Outputs Sub-audio.

Refer to the item in "Glossary" on page 96 for more information.

6

Press SETUP button to exit.

Notes on TV channel audio

- When you record a TV program available in second audio or stereo on a DVD-RW/R, you have to select either Stereo or SAP in the Channel Preset screen beforehand. Refer to the following table to check an appropriate setting.

Selected audio	Broadcast audio	Disc recording	Audio output
Stereo	STEREO+SAP	STEREO	STEREO
	STEREO	STEREO	STEREO
	MONO+SAP	MONO	MONO
	MONO	MONO	MONO
SAP	STEREO+SAP	SAP	SAP
	STEREO	STEREO	STEREO
	MONO+SAP	SAP	SAP
	MONO	MONO	MONO

- As can be seen in the above table, when a TV program is available in second audition and you set Channel Preset to SAP, you can only play the recording in second audio.

POWER DISPLAY TIMER PROG. OPENCLOSE 3K ABC DEF 1 2 3 CH CHI JKL NNO 4 5 6 DEC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 16 PLAY FWD REV STOP SETUP TOP MENU MENALIST REPEAT ENTER ZOOM RETURN 2 3 4 5 SHARP

Getting started

Setting the clock

Set the clock before you try the timer recording. If a Public Broadcasting Station (PBS) is available in your area, follow Auto Clock Setting below. If not, follow Manual Clock Setting on pages 22-23.

Auto Clock Setting

Make sure

• The antenna/Cable TV connections are correct.
- If this unit is connected to a Cable Box or Satellite Box, select the local PBS station on them to set the clock automatically.

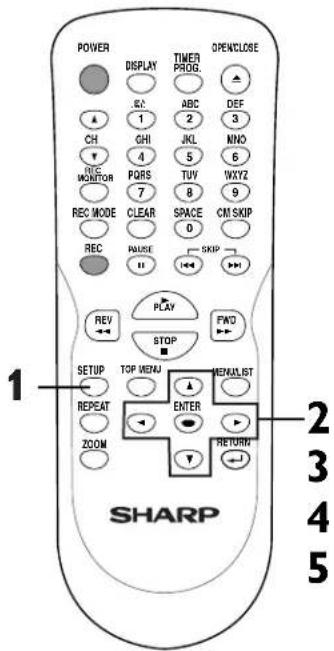

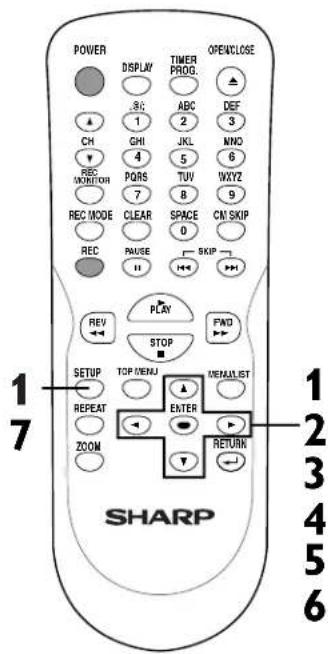

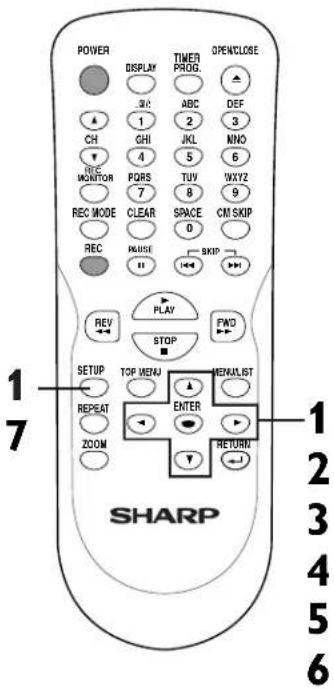

1

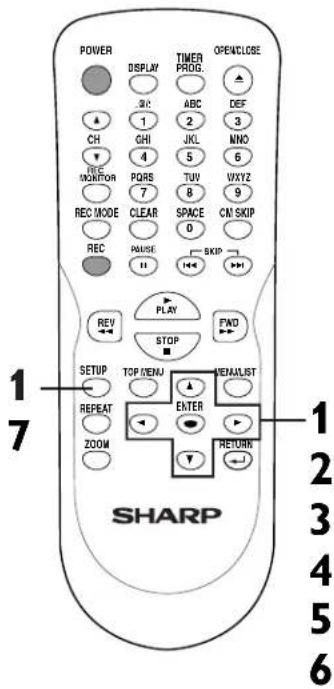

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button. SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Clock" using ▲/▼/ ◀/▶ buttons, then press ENTER button. Clock menu will appear.

Setup > Clock Clock Setting Auto Clock Setting Auto Daylight Saving Time ON

4

Select "Auto Clock Setting" using ▲/▼buttons, then press ENTER button.

Option window will appear.

Setup > Clock Clock Setting Auto Clock Setting Daylight Saving Time OFF ✓ Auto Manual

5

• If you do not know your PBS channel number, select "Auto" using ▲/▼buttons, then press ENTER button.
• If you know your PBS channel number, select "Manual" using ▲/▼buttons, then press ENTER button.

Setup > Clock Clock Setting Auto Clock Setting Daylight Saving Time Set Channel No. CH1 Manual

Enter your PBS channel number using Number or ▲ /▼ buttons, then press ENTER button.

6

Press SETUP button to exit.

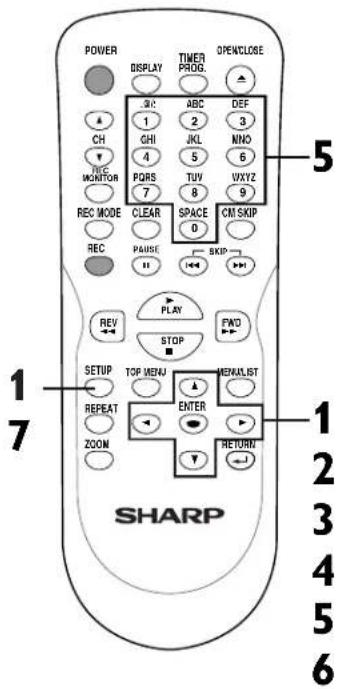

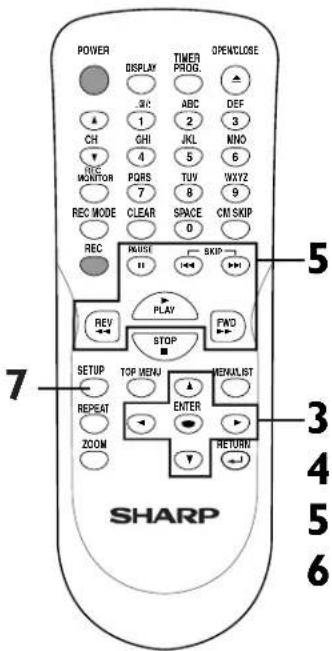

7

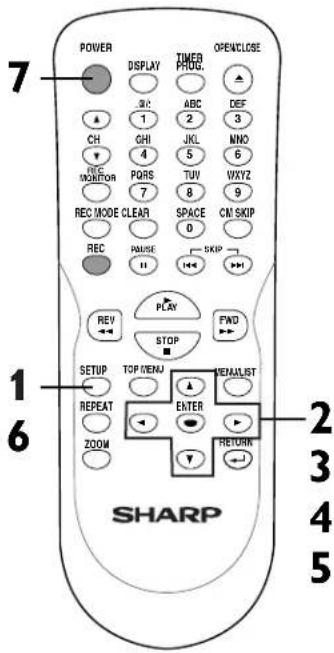

Press POWER button to turn off the DVD recorder. This unit will search for the time only when the power is off. Leave it off for several minutes to give this unit time to set the clock on the front display of the front panel.

POWER DISPLAY TIMEB PROG. OPENCLOSE 7 3C ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 REC PORS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PANSE SKIP 11 1 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

7

Note

• The clock may set itself automatically after you connect the antenna/cable signal to this unit and plug in the power cord. In this case, the current time will appear on the front panel display.
• If the current time is not displayed or the displayed clock is not correct, set the clock manually.

Getting started

Setting the clock (cont'd)

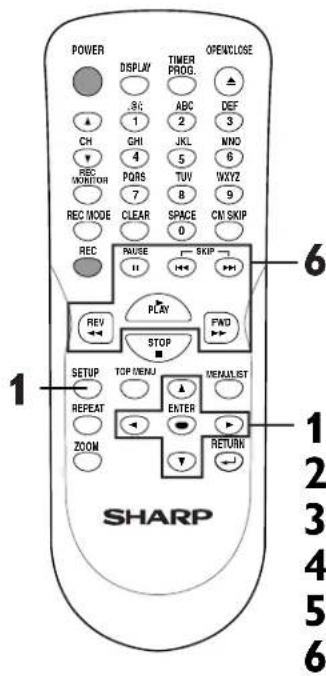

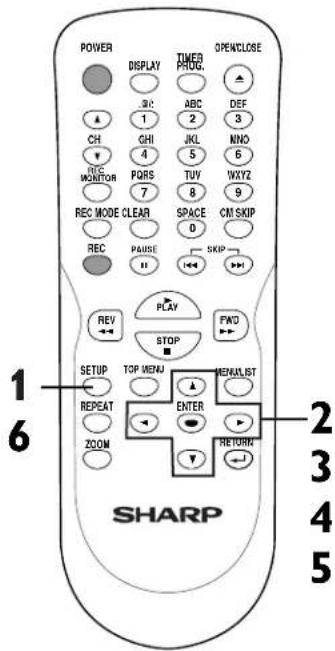

Manual Clock Setting

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Clock" using ▲/▼/

◀/▶ buttons, then press ENTER button.

Clock menu will appear.

Setup > Clock Clock Setting Auto Clock Setting Auto Daylight Saving Time ON

4

Select "Clock Setting" using ▲/▼buttons, then press ENTER button.

A clock setting window will appear.

Setup > Clock Clock Setting Auto Clock Setting Auto Daylight Saving Time ON ----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/ ----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------/----------------

Press ENTER button again.

Default date will appear.

5

Enter the date (month / day / year) using ▲/▼buttons.

Press ◀/▶ button to move the cursor.

Setup > Clock Clock Setting Auto Clock Setting Auto Daylight Saving Time ON JAN : 12: 2004 (MON) 12 : 00AM

6

Enter the time (hour / minute) using ▲/▼buttons, then press ◀/▶ buttons.

A cursor will move on AM or PM.

Setup > Clock Clock Setting Auto Clock Setting Auto Dayright Saving Time ON JAN / 12 / 2004 (MON) 09 : 24 AM

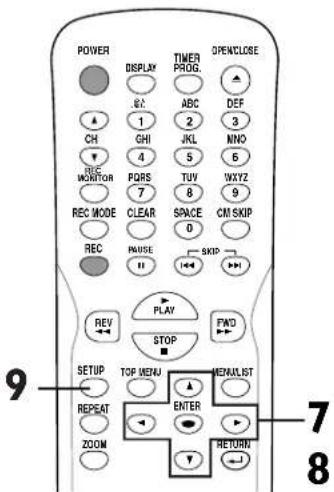

POWER DISPLAY TUNES PROG. OPENCLOSE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note

- Your clock setting will be lost if either there is a power failure or this unit has been unplugged for more than 30 seconds when you set the clock manually.

Getting started

Setting the clock (cont'd)

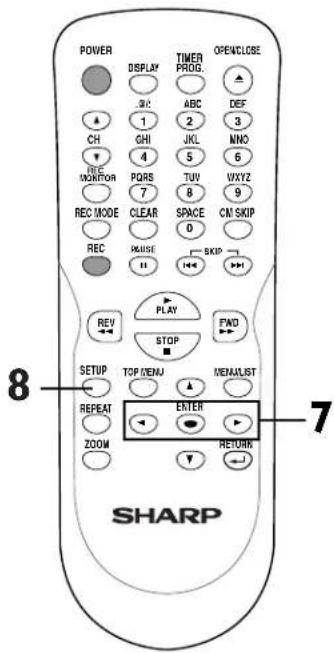

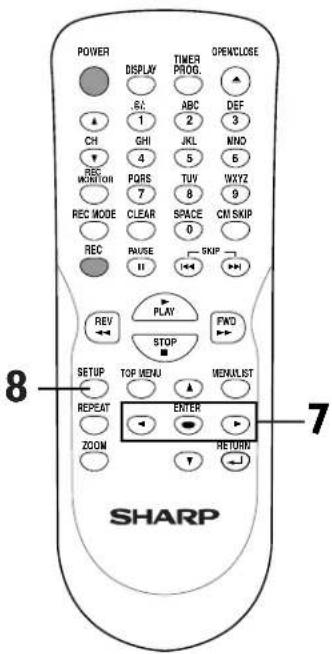

7

Press ▲/▼buttons to select AM or PM, then press ENTER button.

Clock menu will appear, then the settings will be activated.

Setup > Clock Clock Setting Auto Clock Setting Auto Daylight Saving Time ON

8

Press SETUP button to exit. Although seconds are not displayed, they begin counting from zero.

POWER DISPLAY TIMEB OPENCLOSE CH GIC ABC DEF 1 2 3 GHI JKL NNO 4 5 6 REC PORS TUV VXYZ 7 8 9 REC MODE CLEAR SPACE CMI SKIP 0 REC PAUSE SKIP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

When "Auto Clock Setting" is selected to "Auto" or "Manual", change it to "OFF" as following steps.

Repeat steps (1) to (3) in "Manual Clock Setting".

4

Select "Auto Clock Setting" using ▲/▼ buttons, then press ENTER button. Option window will appear.

Setup > Clock Clock Setting Auto Clock Setting Daylight Saving Time OFF ✓ Auto Manual

5

Select "OFF" using ▲/▼ buttons, then press ENTER button.

6

Press SETUP button to exit.

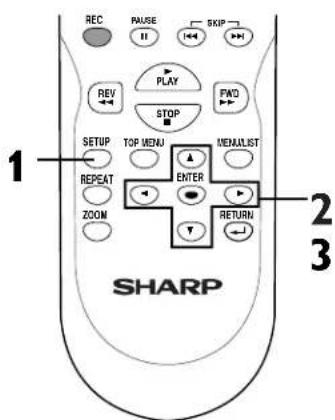

REV PLAY FWD STOP SETUP TOP/MENU MEMAUST REPEAT ENTER ZOOM RETURN SHARP 4 5

Getting started

Setting the clock (cont'd)

Setting the daylight saving time

When Daylight Saving Time is ON, the DVD recorder clock will automatically move forward one hour on the first Sunday in April and move back one hour on the last Sunday in October.

1

Press SETUP button to display SETUP/DISC menu. SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button. SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Clock" using ▲/▼/ ◀/▶buttons, then press ENTER button.

Clock menu will appear.

Setup > Clock Clock Setting Auto Clock Setting Auto Daylight Saving Time ON

4

Select "Daylight Saving Time" using ▲/▼buttons, then press ENTER button. Daylight Saving Time options will appear.

Setup > Clock Clock Setting Auto Clock Setting Daylight Saving Time ON OFF

5

Select "ON" or "OFF" using ▲/▼buttons, then press ENTER button.

Choose "ON" when currently observing the daylight saving time.

6

Press SETUP button to exit.

POWER DISPLAY TIME3 PROG. OPENCLOSE ▲ ABC 1 2 DEF 3 CH CHI JKL NINO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE 0 CMI SKIP REC PAUSE SKIP REVIEW PLAY FNO STOP SETUP TOP MENU MENALIST REPEAT ENTER ZOOM RETURN 2 3 4 5 SHARP

Getting started

Selecting the TV aspect ratio

You can select the TV aspect ratio to match the formats of what you are playing with the DVD recorder and your TV screen (4:3 standard or 16:9 widescreen TV). "4:3 Letter Box" has been selected as the default.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Playback" using ▲/▼

/ ◀/▶ buttons, then press ENTER button.

Playback menu will appear.

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF

4

Select "TV Aspect" using ▲/▼buttons, then press ENTER button.

Option window will appear.

Setup > Playback TV Aspect Parental Lock Disc Menu Language Audio Language Subtitle Language Digital Out Dynamic Range Control Fast Forward with Audio 4.3 Letter Box 4.3 Pan & Scan 16.9 Wide Original OFF ON OFF

Refer to the Note on this page.

5

Select a desired option using ▲/▼buttons, then press ENTER button.

6

Press SETUP button to exit.

If you have a standard TV:

Select "4:3 Letter Box", so that black bars appear on the top and bottom of the screen. Select "4:3 Pan & Scan" for a full height picture with both sides trimmed.

If you have a widescreen TV. Select "16:9 Wide".

Recording

Information on DVD recording

Information

This DVD recorder can record to DVD-R and DVD-RW discs. When recording, you will need to select a recording format between Video mode and VR mode depending on the disc format. The disc format for DVD-R is always "Video format," so a recording format will be "Video mode". On the other hand, when recording to DVD-RW, a recording format will be "Video mode" or "VR mode" because a disc format is available between "Video Recording format" and "Video format" for DVD-RW.

Logo Attril

utes

DVD-RW

8cm/12cm, single-sided, single layer disc Approx. max. recording time (SEP mode): 600 minutes (4.7GB) (for 12cm) 180 minutes (1.4GB) (for 8cm)

DVD-R

8cm/12cm, single-sided, single layer disc Approx. max. recording time (SEP mode): 600 minutes (4.7GB) (for 12cm) 180 minutes (1.4GB) (for 8cm)

* This unit cannot record on the following discs.
• DVD-RW Ver 1.2 / 2-4x CPRM compatible
• DVD-R General Ver 2.0 / 8x

About Video mode and VR (Video Recording) mode

Video mode is the same recording format as DVD-Video discs purchased locally, so that you can play in most DVD players. To play in other DVD players, you will need to finalize (see page 39). Unless finalized, you can play, record additionally or edit discs recorded in Video mode with this unit. VR (Video Recording) mode is a basic recording format for DVD-RW. You can record and edit repeatedly.

DVD players with a capable of playing DVD-RW recorded in VR mode.

Disc type	Disc format	Functions
		Playing, limited recording, limited editing
DVD-RW	VP - 1-	Playing, recording, Original/Playlist editing
		Playing, limited recording, limited editing
DVD-R

Recording speed

You can select a recording speed among 6 options, and the recording time will depend on the recording speed you select as follows.

Recording speed	Recording time *	Video/Sound Quality
XP	60 min	☆☆☆☆☆☆
SP	120 min	☆☆☆☆☆
LP	240 min	☆☆☆☆
EP	360 min	☆☆☆
SLP	480 min	☆☆
SEP	600 min	☆

* This table is designed for a new single-sided 12cm disc as the standard. The recording time are estimates and actual recording time may differ.
* The audio and video quality is getting poorer as the Recording time becomes longer.
* Discs recorded in SLP or SEP on this recorder may not be played back on other DVD recorders or DVD players.

Restrictions on recording

You cannot record copy-protected video using this DVD recorder. Copy-protected video includes DVD-Video discs and some satellite broadcasts. If copy-protected material is encountered during a recording, recording will pause or stop automatically and an error message will be displayed on-screen. Video that is "copy-once only" can only be recorded using a DVD-RW disc in VR mode with CPRM (see below). When recording a TV broadcast or through an external input, you can display copy control information on screen.

What is "CPRM"?

CPRM is a copy protection system with scramble system regarding the recording of "copy once" broadcast programs. CPRM stands for Content Protection for Recordable Media. This DVD recorder is CPRM compatible, which means that you can record copy-once broadcast programs, but you cannot then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR mode, and CPRM recordings can only be played on players that are specifically compatible with CPRM.

Recording

Information on DVD recording (cont'd)

Information on copy control

Some satellite broadcasts include copy-protected information. For recording these, refer to the following.

• The audio and video quality is getting poorer as the Recording time becomes longer.
• This recorder cannot record CD-RW or CD-R discs.

- DVD-RW/R and CD-RW/R discs recorded using a personal computer or a DVD or CD recorder may not play if the disc is damaged or dirty or if there is dirt of condensation on the player's lens.

- If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

• Discs recorded in Video mode on this DVD recorder cannot record additionally using other DVD recorders.

- A DVD-RW disc formatted with this unit cannot be used in other DVD recorders without any recording using this unit.

- Since the recording is made by the variable bit rate (VBR) method, depending on the picture you are recording, the actual remaining time for recording may be a little shorter than the remaining time displayed on the OSD.

Making discs playable in other DVD player (Finalize)

After recording, you must finalize disc in order to play on any other unit. (Refer to page 39.)

* You cannot finalize discs in other DVD recorders.

After finalizing:

• Once DVD-RW/R (Video mode) is finalized, you cannot record additionally or edit.
• Even if DVD-RW (VR mode) is finalized, you can record additionally or edit the disc.
• When DVD-RW/R (Video mode) is finalized, title menu will be created automatically.

To play in other DVD players, finalize discs recorded on this unit with the following condition.

Disc type Mode
DVD-RW

ver.1.1

ver.1.1 CPRM compatible

Video mode

VR mode

DVD-R

ver.2.0

Video mode

Recording

Formatting a disc

Choosing the recording format of a blank disc

When inserting a blank disc, the DVD recorder starts to initialize the blank disc.

After that, you can record to the disc with the recording format selected in SETUP menu.

You are allowed to set a specified time for chapter marks.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Recording" using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Recording menu will appear.

Setup > Recording DVD-RW Recording Format VR mode Auto Chapter 10 minutes Timer Programming

4

Select "DVD-RW Recording Format" using ▲/▼ buttons, then press ENTER button.

Option window will appear.

Setup > Recording DVD-RW Recording Form Auto Chapter Video mode ✓ VR mode Timer Programming Video mode DVD Player Compatibility mode. VR mode Editing possibility mode.

VR mode has been selected as the default.

5

Select "Video mode" or "VR mode" using ▲/▼buttons, then press ENTER button.

The recording mode will be set.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 2 3 CH GHI JKL NNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note

• When inserting a blank DVD+R or DVD+RW disc, the error message ("Disc Error") will appear. This DVD recorder is not compatible with a DVD+RW/R disc.
• PLAYLIST will be created automatically when recording on DVD-RW in VR mode.

Recording

Formatting a disc (cont'd)

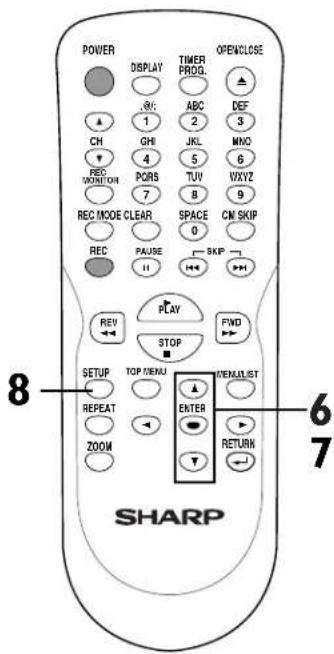

6

Select "Auto Chapter" using

▲/▼buttons, then press ENTER button.

Option window will appear.

Setup > Recording DVD-RW Recording Format Auto Chapter Timer Programming OFF 5 minutes ✓ 10 minutes 15 minutes 30 minutes 60 minutes

"10 minutes" has been selected as the default.

7

Select a desired time option using ▲/▼buttons, then press ENTER button.

Chapter marks will be put as you specified.

8

Press SETUP button to exit.

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ▲ 1 GHI ABC 2 DEF 3 CH JKL MNO 4 REC MONITOR PQRS 5 TUV 6 7 REC MODE CLEAR SPACE 8 CM SKIP 0 REC PAUSE SKIP 11 REVS PLAY STOP FWD SETUP TOP MENU ITEMLIST RESET ENTER RETURN ZOOM 6 7 SHARP

Note

• The time for chapter marks is not accurate in Video mode.
- A blank chapter may be created depending on the remaining time of the disc.

Recording

Formatting a disc (cont'd)

Reformatting a disc

If you are using a DVD-RW disc, by default it will be VR mode. You can change this to Video mode from SETUP menu.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ⭕N

* VR mode only

3

Select "Format" using ▲/▼ buttons, then press ENTER button.

Option window will appear.

Disc Edit Format Finalize Disc Protect OFF ⭕N Yes No

* VR mode only

4

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Option window will appear.

Disc Edit Format Finalize Disc Protect OFF ⬤N Yes No Are you sure? Yes No

* VR mode only

5

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Formatting will start.

Formatting 58%

6

Formatting is complete.

100% will be indicated.

Formatting 100%

This operation may take a while to be completed.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note

• When you reformat the disc, the contents of the disc will be erased.
• If you want to cancel format at step 5, select "No".

Recording

Basic recording

Follow the steps below to record TV programs.

1

Turn on the DVD recorder and load a recordable disc. Make sure that the TV input is set on the DVD recorder.

This operation may take a while to be recognized.

2

Select a recording speed using REC MODE button.

SP 2:01 Rem.

Refer to "Recording speed" on page 26.

3

Make sure that the recording format is set to the desired mode.

Refer to "Formatting a disc" on pages 28-30.

When a DVD-RW disc is loaded:

You can choose Video mode or VR mode from SETUP menu. "VR mode" has been selected as the default. Refer to "Choosing the recording format of a blank disc" on pages 28-29.

When a DVD-R disc is loaded:

DVD-R discs will always be in Video mode.

4

Select a desired channel to record using CH ▲/▼buttons or number buttons.

CH1

5

Press REC button to start recording.

REC mark will be displayed for 5 seconds.

Simple black dot centered on a white background, no text or symbols present

To pause the recording, press PAUSE ▪ button. Press REC button to restart the recording.

6

Press STOP ■ button to stop the recording.

This operation may take a while to be completed.

POWER DISPLAY TIMER PROG. OPENCLOSE 4 CH REC MOMETER JRC ABC DEF 1 2 3 GHI JKL NNO 4 5 6 PQRS TUV WXYZ 7 8 9 2 REC MODE CLEAR SPACE CM SKIP 0 5 REC PAUSE SKIP 11 12 13 14 15 5 REV PLAY FWD STOP SETUP TCP MENU INSTALLIST REPEAT ENTER RETURN ZOOM SHARP

Note

• Recording starts immediately and continues until the disc is full or you stop recording.
- When the clock setting has not been made, the space for a date and time of title names in the original or playlist will be blank.
- When you record a TV program which has Stereo and SAP audio on a DVD-RW/R (Video mode), you have to select the TV channel audio (Stereo or SAP) beforehand. Only the selected channel audio will be recorded. Refer to "Selecting the TV stereo or SAP" on page 20 for more details.
- You cannot mix two formats on one DVD-RW disc. When you load a disc once recorded before, the recording format cannot be changed even if you change it in SETUP menu.
- You cannot change the recording speed during the REC pause mode.
- You can change a channel during the REC pause mode.

Recording

Basic recording (cont'd)

Checking the recording picture quality

You can confirm the recording picture quality with the recording speed you have selected before attempting to record to a DVD disc.

1

While the DVD recorder is in STOP or REC with a DVD disc to record inserted, press REC MONITOR button.

The TV program will be on the screen in the recording picture quality with the recording speed you have selected.

CH 18 Rec Monitor XP

If you want to change the recording speed, press REC MODE button repeatedly.

The recording speed will be changed as you press the button as shown. Refer to "Recording speed" on page 26.

- You cannot change the recording speed during recording.

2

Press REC MONITOR button again to exit.

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ▲ ABC DEF 3 CH 1 2 GHI JKL MNO 4 5 REC MONITOR PDRS TUV WXYZ 7 B REC MODE CLEAR SPACE CM SKIP 0 REC IMUBE SKIP II REVIEW PLAY FWD STOP SETUP TOP MENU UNENALIST REPEAT ENTER ZOOM RETURN SHARP

1 2 1

Note

- You cannot check the recording sound with the Rec monitor function.

Recording

One-touch timer recording

This is a simple way to set the recording time in blocks of 30 minutes. Check that the disc you are recording onto has enough space for the time you set. When the recording finishes the recorder automatically goes into standby.

1

Turn on the DVD recorder and load a recordable disc. Make sure that the TV input is set on the DVD recorder.

This operation may take a while to be recognized.

2

Select a recording speed using REC MODE button. Refer to "Recording speed" on page 26.

3

Make sure that the recording format is set to the desired mode.

Refer to "Formatting a disc" on pages 28-30.

When a DVD-RW disc is loaded:

You can choose Video mode or VR mode from SETUP menu. "VR mode" has been selected as the default. Refer to pages 28-29 "Choosing the recording format of a blank disc."

When a DVD-R disc is loaded: DVD-R discs will always be in Video mode.

4

Select a desired channel to record using CH ▲/▼buttons or number buttons.

5

Press REC button, then press REC button repeatedly until a desired recording time (30 minutes to 4 hours) appears on the TV screen.

Recording will start.

When the DVD recorder reaches the specified time, it will be turned off automatically.

To change the recording length during the one touch timer recording, press REC button repeatedly until the desired length appear.

To cancel the one-touch timer recording within the specified time, press STOP ■ button.

This operation may take a while to be completed.

POWER DISPLAY TIMER PROG. OPENCLOSE AC ABC DEF CH 1 2 3 GHI JKL MND REC MOZION PQRS TUV 6 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE BZIP 5 REY PLAY STOP FWD 5 SETUP TOP MENU MERKLIST REPEAT ENTER RETURN ZOOM SHARP

Note

• The remaining recording time will appear on the display panel during an one-touch timer recording. Press DISPLAY button to see it on the TV screen.
- You cannot pause a one-touch timer recording.
- Unlike a timer recording, you can perform the following operations during a one-touch timer recording.
- Turning the power off
- Using REC, STOP ■, or RETURN buttons.
- The unit will be turned off automatically under the following conditions.
1) No space remained on the disc.
2) When a power failure occurs.

Recording

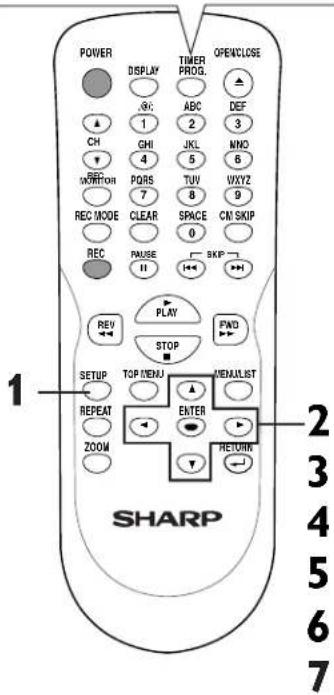

Timer recording

You can program the unit to record up to 8 programs, up to a year in advance. Daily or weekly program recordings are also available.

• Be sure to set the clock before making a timer programming.
• Insert a recordable disc.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear. Screen:

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Recording" using ▲/▼ / ◀/▶ buttons, then press ENTER button.

Recording menu will appear.

Setup > Recording DVD-RW Recording Format VR mode Auto Chapter 10 minutes Timer Programming

4

Select "Timer Programming" using ▲/▼buttons, then press ENTER button.

Timer Programming list will appear.

5

Select the program which is not set up using ▲ / ▼ buttons, then press ENTER button.

6

Enter the date using ▲/▼ buttons, then press ►button.

Setup > Recording > Timer Programming Date Start End CH Speed 1. JAN / 01 2. --- 3. --- 4. ---

e.g. January 1st

7

Enter the time to start and to end using ▲ / ▼ buttons, then press ▶ button.

Setup > Recording > Timer Programming Date Start End CH Speed 1. ---- CH810:00PMJAN12 2.--- 3.--- 4.

You can choose the timer programming menu by pressing TIMER PROG. button. In this case, continue with step 5.

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ABC DEF 1 2 3 CH GHI JKL MND 4 5 6 RESET PORS TUV VXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP II REVI PLAY STOP FND SETUP TOP MENU MENULIST REPEAT ENTER ZOOM RETURN SHARP 1 2 3 4 5 6 7

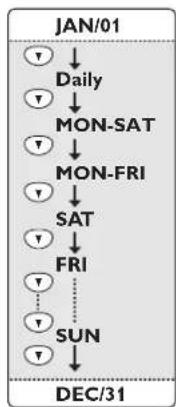

When pressing ▼ button at the current date, timer recording mode will change as follows.

Note

• If you have not set the clock yet:

A clock setting window will appear after step 4. Continue with the step 4 in "Auto Clock Setting" on page 21 or "Manual Clock Setting" on page 22 before making a timer programming.

- Press ◀or ▶buttons to move the cursor to the left and the right in the timer programming menu.

Recording

Timer recording (cont'd)

8

Select the channel number to record using ▲/▼ buttons, then press ▶ button.

To record from external input, L1 or L2.

9

Select a recording speed using ▲/▼buttons.

Refer to "Recording speed" on page 26.

10

Press ENTER button when all information required is entered. Your program setting will be stored.

• To set another program, repeat steps 5 to 10.
• To exit, press SETUP button.

11

Press POWER button to turn off. indicator will appear on the front display.

11 POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ABC DEF 2 3 CH GHI JKL MND 4 5 6 RED MONITOR PORS TUV VXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP II REV PLAY STOP FWD SETUP TOP MENU MENU/LIST REPEAT ENTER RETURN ZOOM 10 8 9

Note

• After step 11, the DVD recorder will be turned on automatically 2 minutes in advance of the recording time to start and waits to start. Then the recording will start at the recording time you set.

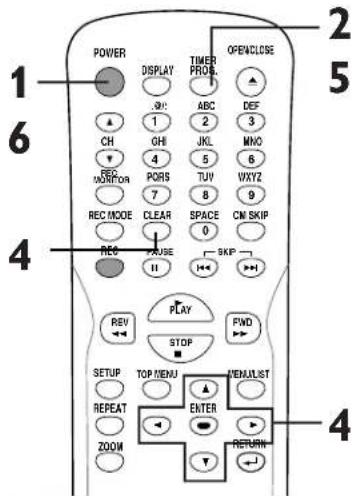

Checking, canceling, or correcting the timer programming information

1

Press POWER button so that indicator disappears from the front display.

2

Press TIMER PROG. button. Timer Programming list will appear.

3

Check the information on the list you will need.

4

To clear the timer programming, select your desired program using ▲ / ▼ buttons. Then, CLEAR button.

To correct the timer programming, select your desired program using ▲ / ▼ buttons. Then, press ENTER button. Next, correct the timer programming by using press ▲/▼/◀/▶ buttons. Finally, press ENTER button again.

5

Press TIMER PROG. button to exit.

6

Press POWER button to return to the timer standby mode.

To stop the timer recording in process

Press ■(STOP) button on the front panel of the main unit. STOP ■ button on the remote control is not effective.

POWER DISPLAY TIMER PROB. OPENCLOSE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note

- Press TIMER PROG. button to check the timer programming in process.

When the timer recording is proceeding, that program will be highlighted with red. In this case, you cannot select any other program.

Recording

Timer recording (cont'd)

Hints for timer recording

• If there is a power failure or this unit has been unplugged for more than 30 seconds, the clock setting and all timer settings will be lost.
• If a disc is not on the tray, the ⏻ indicator flashes and timer recording cannot be performed. Please insert a recordable disc.
• When all the timer recording is completed, the indicator flashes. To play or eject the recorded disc, press POWER button first, and then press PLAY▶ or OPEN/CLOSE ▲button.
• During timer recording or timer standby (☑ indicator is on the front display), any operations on the unit will not be available. To make these operations available, cancel the timer recording or timer standby first (☑ indicator disappears).
• To cancel the timer standby mode, press POWER button.
• When the Start and the End time are the same, the length of the recording will be set for 24 hours. When the disc reaches at the end during the recording, the DVD recorder turns itself off.
• When the programmed Start and End time are earlier than the current time, the recording will be set on the same date in the next year.
• If your programmed Start time is within 2 minutes from the current time, the power will turn on for recording standby right after you turn the power off.
• If the Start time is earlier and the End time is later than the current time, the recording will start right after you turn the power off.

The priority of overlapped settings

This unit records the programs according to priority if the timer programmings are overlapped. The timer programming set previously has priority.

A timer recording of lower priority will be canceled, start from the middle or stop on the way.

Check the overlapped timer programmings and change the priority if necessary.

■ A programming set previously has priority

☐ When the starting time is the same: A program set previously (PROG. 1) has priority.

□ When some programming have been made at the end time of the programming currently being recorded: A program set previously (PROG. 2) has priority.

ex.1 PROG. 1 PROG. 2 Actual recording PROG. 1 PROG

The first 30 seconds (at the longest) will be cut off The fir

■ When the recording time is partially overlapped:

PROG. 1 will start after PROG. 2 is complete to be recorded.

However, PROG. 1 will be recorded if you turn the power off for timer standby within 2 minutes to the Start time for PROG. 1.

PROG. 1 PROG. 2 Actual recording PROG. 2 PROG. The first 30 seconds (at the longest) will be cut off

■ When the recording time is entirely overlapped:

However, if you turn the power off for timer standby within 2 minutes to the Start time for PROG. 1, PROG. 1 will be recorded first, and the recording of PROG. 2 will start after the recording of PROG. 1 is completed.

PROG. 1 PROG. 2 Actual recording PROG. 2

Note

- When the recording time of two programs are overlapped, or the End time of a program and the Start time of another is the same, the first 30 seconds (at the longest) of the subsequent program will be cut off.

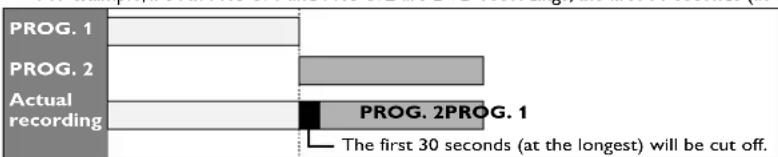

■ When the End time of the programming currently being recorded and the Start time of the subsequent program are same:

If PROG. 1 is a DVD recording program, the beginning of the PROG. 2 may be cut off.

The amount of time cut off differs depending on the recorded media.

For example, if both PROG. 1 and PROG. 2 are DVD recordings, the first 30 seconds (at the longest) will be cut off PROG.

Recording

Settings for an external source

Connection to an external source

Connect the external source properly to the DVD recorder by using input jacks either LINE2 (Front) or LINE1 (Rear).

Use commercially available S-Video or Video cable and an Audio cable for this connection.

1. Press SETUP button to display SETUP/DISC menu.
2. Select "SETUP" using ◀/▶ buttons, then press ENTER button.
3. Select "Select Video" using ▲ / ▼ / ◀/▶ buttons, then press ENTER button.

Setup > Select Video L1 (Rear) Video In L2 (Front) Video In

1. Select "L2 (Front)" using ▲/▼ buttons, then press ENTER button.

Setup > Select Video L1 (Rear) L2 (Front) ✓ Video In S-Video In

1. Select the input jack type to connect using ▲/▼buttons, then press ENTER button.

If you want to use S-VIDEO INPUT, select "S-Video In".

If you want to use VIDEO INPUT (Composite), select "Video In".

Setup > Select Video L1 (Rear) Video In L2 (Front) S-Video In

1. Press SETUP button to display SETUP/DISC menu.
2. Select "SETUP" using ◀/▶ buttons, then press ENTER button.
3. Select "Select Video" using ▲ / ▼ / ◀ / ▶ buttons, then press ENTER button.

Setup > Select Video L1 (Rear) Video In L2 (Front) Video In

1. Select "L1 (Rear)" using ▲/▼ buttons, then press ENTER button.

Setup > Select Video L1 (Rear) L2 (Front) ✓ Video In S-Video In

1. Select the input jack type to connect using ▲/▼buttons, then press ENTER button.

If you want to use S-VIDEO INPUT, select "S-Video In".

If you want to use VIDEO INPUT (Composite), select "Video In".

Setup > Select Video L1 (Rear) S-Video In L2 (Front) Video In

Recording

Settings for an external source (cont'd)

Recording from an external source

Before recording from an external source, see the instructions for the connection on page 37.

1. Turn the TV and the DVD recorder on, and be sure to select the input of the TV to which the DVD recorder is connected.
2. Press OPEN/CLOSE ▲button to open the disc tray, then place the disc to record properly.

This operation may take a while to be recognized.

1. Press OPEN/CLOSE ▲button to close the disc tray.
2. Select the input of the DVD recorder which the external equipment is connected. (L2 or L1)

- To use the input jacks on the back of this unit, select "L1" position by pressing [0], [0], [1] on the remote control or the CH ▼ / ▲ buttons.

- To use the input jacks on the front of this unit, select "L2" position by pressing [0], [0], [2] on the remote control or the CH ▼ / ▲ buttons.

1. Select a recording speed using REC MODE button. Refer to "Recording speed" on page 26.

POWER DISPLAY TIME PROG. OPENCLOSE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. Press REC button on the DVD recorder to start recording.
2. Press Play button on the external source to record from.
3. Press STOP ■button on the DVD recorder to stop recording.

This operation may take a while to be completed.

Recording

Finalizing the discs

You will need to finalize the discs recorded in Video mode to play in other DVD players.

Details are on pages 26-27.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ON

* VR mode only

3

Select "Finalize" using ▲/▼ buttons, then press ENTER button.

Option window will appear.

Disc Edit Format Finalize Disc Protect OFF ON Yes No

* VR mode only

4

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Finalizing will start.

Finalizing 58%

To cancel finalizing...

- To cancel finalizing at step 4, press STOP ■ button, select "YES", then press ENTER button. Finalizing is cancelled and the DVD recorder will be in stop mode.

- If appear when pressing STOP button, you cannot cancel finalizing because the finalizing has been in certain progress.

- When selecting "No" and press ENTER or RETURN button, finalizing will be continued.

- You cannot cancel finalizing the DVD-R disc when it has been started.

5

Finalizing is complete.

Finalizing 100%

This operation may take a while to be completed.

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ▲ QIC ABC DEF 1 2 3 CH CHI JKL NINO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note.

• Finalizing discs in Video mode automatically creates title menus.
• Once you have finalized a disc recorded in Video mode, you cannot edit or record anything else on that disc.

Discs recorded in VR mode can still be recorded and edited on this recorder even after being finalized.

- When you insert a DVD-RW disc finalized with this DVD recorder, "Undo Finalize" will appear instead of "Finalize".

To release the finalizing for the disc, select "Undo Finalize" at step 3.

Recording

Setting a disc to protect

To prevent accidental recording, editing, or erasing the titles, you can protect them from DISC menu.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

Screen:

SETUP DISC Setup Menu

2

Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ⭕N

3

Select "Disc Protect OFF → ON" using ▲ / ▼ buttons, then press ENTER button.

Option window will appear.

Disc Edit Format Finalize Disc Protect OFF ON Yes No

4

Select "Yes" using ◀/▶ buttons, then press ENTER button.

A disc will be protected.

Writing to Disc 58%

This operation may take a while to be completed.

POWER DISPLAY TUMER PROG. OPENCLOSE S: ABC DEF CH 1 2 3 GHI JKL MNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CMI SKIP D RECE PAUSE SKIP II 1 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 1 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note

- The Disc Protect setting is available only when a disc with VR mode is inserted.

To cancel the disc protect:

- When you insert a disc protected with this unit, "Disc Protect ON → OFF" will appear instead of "OFF → ON".

Disc Edit Format Finalize Disc Protect ON OFF Yes No

To release the protect for the disc, select "Disc Protect ON →OFF" at step 3, then select "Yes".

Playing discs

Information on DVD play

Before you attempt to play DVD discs, read the following information.

playable discs

This DVD recorder is compatible to play the following discs.

To play a DVD, make sure that it meets the requirements for Region Codes and Color Systems as described below. Discs that have the following logos will play on the DVD recorder. Other Disc types are not guaranteed to play.

Disc	Logo
DVD VIDEO
DVD-RW (VIDEO/VR mode)
DVD-R (VIDEO mode)
DVD+RW (VIDEO mode)
DVD+R (VIDEO mode)
CD-DA (AUDIO CD)
CD-RW (CD-DA FORMAT, MP3 files)
CD-R (CD-DA FORMAT, MP3 files)

Note:

The following discs can be played on this unit but their performance is not guaranteed :

• DVD-RW Ver 1.2 / 2-4x CPRM compatible
• DVD-R General Ver 2.0 / 8x

Guide to displays

Press DISPLAY button to call up the display menu. This menu will give you the information on the playing disc. Some operations are available while disc is playing.

1 1:00:00:00 DVD-RW Video mode SP 1:25 Rem. 1 2 3 4

1. Indicates a disc type and a format mode.
2. Indicates a recording speed and possible recording time. / Indicates a channel number.
3. Indicates a title number, chapter number, and the time lapse of disc play.

Color systems

DVDs are recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada).

This DVD Recorder uses NTSC, so DVDs you play must be recorded in the NTSC system. You cannot play DVDs recorded in other color system.

Region codes

This DVD recorder has been designed to play DVD discs with Region One (1). DVDs must be labeled for ALL regions or for Region 1 in order to play on the DVD recorder. You cannot play DVDs that are labeled for other regions. Look for the symbols below on your DVDs. If these region symbols do not appear on your DVD, you cannot play the DVD in this DVD recorder.

The number inside the globe refers to region of the world.

A DVD labeled for a specific region can only play on the DVD recorder with the same region code.

Hint for DVD playback

The contents of DVD disc are generally divided into titles. Titles may be further subdivided into chapters.

4. Each icon means:

Press POWER button on the remote control or the front panel of the DVD recorder.

When you are playing a DVD, turn the TV on and be sure to select the input to which the DVD recorder is connected.

2

Press OPEN/CLOSE ▲button to open the disc tray. The disc tray will open.

3

Place the disc onto the disc tray with its label facing up and make sure to align the disc to the disc tray guide.

disc tray guide

This operation may take a while to be recognized.

4

Press OPEN/CLOSE ▲button to close the disc tray.

5

Press TOP MENU button to display the title menu.

You can change "Original" or "Playlist" of VR mode using MENU / LIST button.

Video mode:

Title List 12 10001 1250M 10001 1500M 10001 2000M 10001 3000M 10001 4500M

VR mode:

Original JAPAN 12.00AM JAPAN 1.00AM JAPAN 2.00AM JAPAN 3.00AM JAPAN 4.00AM MENU / LIST button Playlist JAPAN 12.00AM JAPAN 1.00AM JAPAN 2.00AM JAPAN 3.00AM JAPAN 4.00AM

6

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Playing will start.

7

Press STOP ■ button to stop play.

To eject the disc, press OPEN/CLOSE ▲ button to open the disc tray, then remove the disc before turning the DVD recorder off.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 2 3 4 5 6 7 REC MOUNTOR PQRS TUV WXYZ 8 9 CRE MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 7 REV PLAY FWD STOP SETUP TOP MENU MERRILL ST 5 REPEAT ENTER 6 ZOOM RETURN SHARP

Note

- For DVD-R (Video mode) and DVD-RW (Video mode) discs which are already finalized, a title list will be displayed instead of thumbnails.

Title Menu 1 CH9612:XFAMJAN/1 2 3 4 5 6 7 8

- You can resume play from where you stopped playing the disc. (Resume play) Refer to page 46 for details about resume play.

• Some discs may start playing automatically.

Playing discs

Basic playback (cont'd)

1

Press POWER button on the remote control or the front panel of the DVD recorder.

When you are playing a DVD, turn the TV on and be sure to select the input to which the DVD recorder is connected.

2

Press OPEN/CLOSE ▲button to open the disc tray. The disc tray will open.

3

Place the disc onto the disc tray with its label facing up and make sure to align the disc to the disc tray guide.

4

Press PLAY ▶ button to start playing.

Playing will start.

If you are playing a DVD-Video disc, a menu may appear. Refer to pages 44-45 for details about a disc menu.

5

Press STOP ■button to stop playing.

POWER DISPLAY TIMER PROG. OPENCLOSE 2 3 ABC 1 2 DEF CH GHI JKL MNO 4 5 6 TUV WXYZ 7 8 9 REC MONITOR PORS SPACE CN/SKIP REC MODE CLEAR 0 PASS SKIP REC II I1 I2 I3 I4 I5 PLAY FND STOP SETUP TOP MENU IDEANLIST REPEAT ENTER ZOOM RETURN

Note

• Some discs may start playing automatically.

For MP3 playback

1

In stop mode, press TOP MENU button to call up the MP3 menu.

List of MP3 Files DISC NAME FOLDER NAME 1 FOLDER NAME 2 FOLDER NAME 3 FOLDER NAME 4 FOLDER NAME 5 FOLDER NAME 6 1. FILE NAME 1 2. FILE NAME 2 1/2

• To exit the menu, press TOP MENU button again.

2

Press ▲ / ▼ buttons to select a desired folder (group) or track, then press ENTER button.

When selecting track: Playback will start.

When selecting the folder: The files in folder will appear. Press

▲ / ▼ buttons to select the track or folder you want, then press ENTER button.
- Press PLAY▶, ENTER or▶ button to move to the lower hierarchies.
- Press ◀ button or RETURN ← button to the previous hierarchy.
- Press STOP button to return to the first item.

Hints for MP3 files:

• Folders are known as Groups, files are known as Tracks.
• Folders are accompanied by icon.
• MP3 files are accompanied by 🎶 icon. Reproduction will start from the selected track and go to the next one in turn.
  • The system can recognize up to 255 groups (or folders) and up to 255 tracks.
  • The name of group and track can be displayed in up to 32 characters. Unrecognizable characters will be replaced with asterisks.
• If there are no files in the folder, "No Files" will be displayed.

This unit recommends the files recorded under the following circumstances:

• Sampling frequency: 44.1kHz or 48kHz.
- Constant bit rate: 112kbps - 320kbps.

REC MODE CLEAR SPACE CM SKIP REC PAUSE SKIP 11 PLAY REV STOP FNO SETUP TOP MENU NEXTLIST REPEAT ENTER ZOOM RETURN 2 SHARP

Note

• The audio source of MP3 files cannot be recorded as digital sound by an MD or DAT deck.
- Files whose extension is other than “.mp3(MP3)” will not be listed in the MP3 menu.
- Some unplayable folders or tracks may be listed in the MP3 menu due to the recording status.

Playing discs

Basic playback (cont'd)

Playing discs using the disc menu

A DVD disc contains a disc menu that describes the contents or allows you to customize the play-back. For example, the menu may offer choices for subtitle languages, special features, or chapter selection.

Sometimes these are displayed automatically when you start play-back, otherwise only appear when you press MENU / LIST button.

1

Press MENU / LIST button.

The DVD main menu will appear.

If the feature is not available, Ⓧ may appear on the TV screen.

Image containing a prohibition symbol with a circle and the number 10, likely indicating no restrictions or exclusion.

2

Select an item using ▲/▼/

◀/▶ buttons, then press ENTER button to confirm.

Continue this step to set up all the features you want or to start playing the disc from the menu.

MENU / LIST button:

Displays a DVD disc menu which varies with the disc and may be the same as the 'Title menu.'

Moves the cursor around screen.

Enter button:

Selects the currently highlighted menu option.

Number buttons:

Selects a numbered menu option (some discs only). (Press ENTER button after.)

3

Press MENU / LIST button to exit the menu.

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ B: ABC DEF 1 2 3 CH GHI JKL MIND 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE 0 CM SKIP RECA PAUSE SKIP 11 REV PLAY FWD STOP SETUP TOP UNIX MERKLIST 3 REPEAT ENTER ZOOM RETURN 2 2 SHARP

Note

- Menus vary among discs. Refer to the information accompanying the disc for details.

Playing discs

Basic playback (cont'd)

Playing discs using the title menu

Some DVDs have a title menu, which lists the titles available on them. It helps you to start play at a specific title.

1

Press TOP MENU button.

The title menu will appear.

If the feature is not available, Ⓧ may appear on the TV screen.

10

2

Select a title to play using the

▲ / ▼ / ◀ / ▶ buttons, then press ENTER button.

Play will begin at the title you selected.

TOP MENU button:

Displays the 'Title menu' of a DVD disc which varies with the disc.

▲ / ▼ / ◀ / ▶ buttons:

Moves the cursor around screen.

Enter button:

Selects the currently highlighted menu option.

Number buttons:

Selects a numbered menu option (some discs only). (Press ENTER button after.)

3

Press TOP MENU button to exit the title menu.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190

Playing discs

Special playback

Resume play

You can resume play from where you stopped playing the disc last.

1

During play, press STOP ■ button.

The resume message will appear.

Screen:

Resume ON

2

Press PLAY ▶ button.

In a few seconds, play will resume from the point at which it stopped last. You can resume play at the same point even if you turn off the DVD recorder.

To cancel the resume play and start playing the disc from the beginning, press STOP ■ button the second time while the play is stopped.

S: ABC DEF CH GHI JKL NNO REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP REC PINUSE SKIP II PLAY FWD REV STOP SETUP TOP MENU UENAJLIST REPEAT ENTER RETURN ZOOM

Note

- For MP3 files, playback will resume from the beginning of the track at which playback was stopped.

Fast forward / Fast reverse

1

During play, press FWD ▶▶ or REV ◀◀ button.

Every time you press FWD ▶▶ or REV ◀◀button, approximate speed will be changed as follows. For DVD discs, sound will be output during fast forward in x2 only if you set "Fast Forward with Audio" to "ON" for the "Playback" setting in the SETUP menu.

Fast forward or fast reverse playback across titles (for DVD discs) or tracks (for MP3) is not possible.

For Audio CDs, approximate speed is fixed at x8 with sound. For MP3 files, approximate speed is fixed at x16.

To return to the normal play, press PLAY ▶ button.

CH GHI JKL MNO REC MOATOR PQRS TUV WXYZ REC MODE CLEAR SPACE CM SKIP 0 RECA PAUSE SKIP 1 PLAY FWD REV STOP SETUP TOP MENU MENU LIST REPEAT ENTER ZOOM RETURN SHARP

Note

- Forward/reverse speed will be indicated with icons as follows.

Forward (Approx. Speed)

x2:

×20:

x40:

Reverse (Approx. Speed)

x5:

×20:

x40:

Playing discs

Special playback (cont'd)

Skipping TV commercials during play

You can skip TV commercials by pressing CM SKIP button, so that you can enjoy the recorded programs without interrupting.

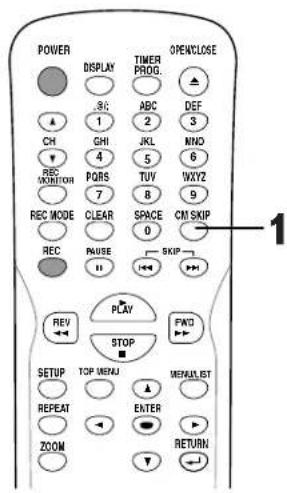

During play, press CM SKIP button.

Normal play will start at 30 seconds ahead from the point you press CM SKIP button. Every time you press CM SKIP button, the searching point will be extended by 30 seconds ahead. You can press up to 6 times (180 seconds).

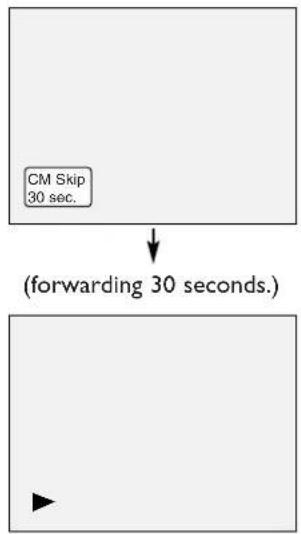

e.g. Press CM SKIP button once

Playback will restart automatically.

POWER DISPLAY TIMER PROD. OPENCLOSE ▲ 3K 1 ABC DEF 2 3 CH GHI JKL MND 4 POSS 5 WVYZ 7 TUV 8 9 REC MODE CLEAR SPACE CN SKIP 0 REC RUSSE SKIP 11 PLAY FWD STOP SETUP TOP MENU MENUIST REPEAT ENTER ZOOM RETURN

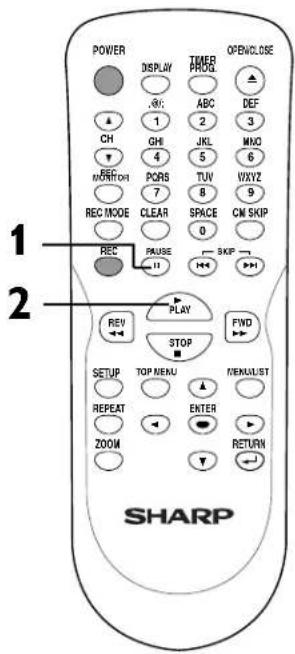

Pause

DVD-W Video VR DVD-RW DVD-RW DVD-R Video DVD+RW DVD+R CD M2

During play, press PAUSE II button.

Play will pause and sound will be muted.

"

Press PLAY ▶ button to resume play.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Playing discs

Special playback (cont'd)

Step by step playback

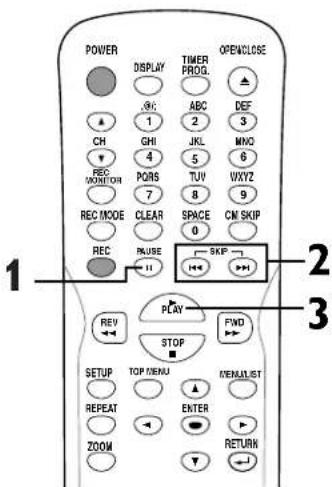

DVD-W Video VR DVD-RW DVD-RW DVD-R Video DVD+RW DVD+R 1

During play, press PAUSE II button.

Play will pause and sound will be muted.

"

2

Press SKIP ▶▶|button repeatedly.

The play will advance one frame (or step) at a time when you press the SKIP ▶▶Ibutton with the sound muted.

To play step by step backward:

Press SKIP I◄◄ button repeatedly. Every time you press the button, the play will go backward by one frame.

3

Press PLAY ▶ button to resume play.

POWER DISPLAY TIMER PROG OPENCLOSE ▲ ▲ 1 GHI ABC DEF 2 3 CH JKL MNO 4 5 6 REQ MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CN SKIP 0 RECA SKIP 11 1 2 3 REV PLAY STOP FWD SETUP TOP/VERU NATIONALIST REPEAT ENTER ZOOM RETURN

Slow forward / Slow reverse play

DVD-V Video DVD-RW VR DVD-RW DVD-R Video DVD-RW DVD+R 1

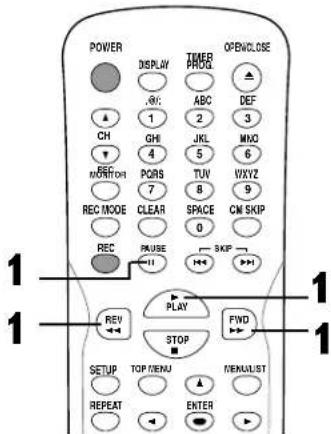

During play, press PAUSE II button, then press FWD ▶▶ or REV ◀◀button.

Every time you press FWD ▶▶ or REV ◀◀button, approximate speed will be changed as follows. (The sound will remain muted.)

To return to the normal play, press PLAY ▶ button.

POWER DISPLAY TIMER PHO OPENCLOSE ▲ ▲ CH GHI ABC DEF 1 2 3 GH JKL MNO 4 5 6 RECO PCORS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 1 PLAY FWD STOP 1 1 REV SETUP TOP MENU ITEMAUST REPEAT ENTER 1

Note

- Forward/reverse speed will be indicated with icons as follows.

Forward (Approx. Speed)

x1/16:

x1/8:

x1/2:

Reverse (Approx. Speed)

x1/16:

x1/8:

x1/4:

Playing discs

Special playback (cont'd)

Zoom

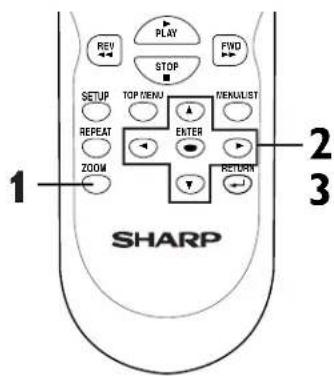

During play, press ZOOM button.

Zoom menu will appear.

Screen:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 x1.2 x1.5 x2.0 DVD-Video

There are four options (x1.0,x1.2,x1.5 and x2.0), these are displayed excluding the current zoom rate.

2

Select a desired zoom factor to zoom using ◀/▶ buttons, then press ENTER button.

The zoom area will be displayed.

Simple geometric diagram with a square and surrounding arrows (no text or symbols)

Select a desired zoom position using ▲ / ▼ / ◀ / ▶ buttons, then press ENTER button.

The zoom play will start.

1 2 3 SHARP

Note

• When selecting a smaller factor than the current one, the zoom area will not be displayed.
  • To remove the zoom menu, press ZOOM button again at step 1.
• To cancel the zoom function, select x1.0 using ◀/▶ buttons, then press ENTER button.

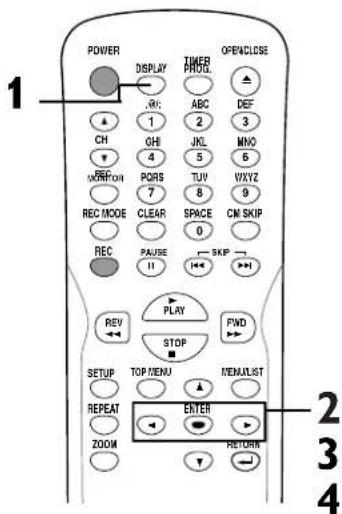

Marker Setup

This feature allows you to assign a specific point on a disc to be called back later.

During play, press DISPLAY button.

The display menu will appear.

Screen:

1 0 1 0 1:23:45 DVD-Video

Select icon using ◀/▶ buttons, then press ENTER button.

Marker setup menu will appear.

Screen for DVD:

T 1 C 1 1:23:45 DVD-Video

Screen for CD:

1 1:23:45 Audio CD

Select a desired marker number using ◀/▶ buttons. When it reaches the desired point, press ENTER button.

To return to the marker later, select the desired marker number using ◀/▶ buttons, then press ENTER button.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 .0: ABC DEF CH OH JKL MXO OK/FRON 4 5 6 PORS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP II REV PLAY FWD STOP SETUP TOP MENU NENA/LIST REPEAT ENTER 2 3 4 ZOOM RETURN

Note

• To clear a marker, select the marker number to be cleared, then press CLEAR button.
- All markers will be erased when you operate these operations listed below.
- Opening the disc tray.
- Turning off the power.
- Recording to a recordable disc.
- Changing the mode between Original and Playlist.(VR mode)
• You can mark up to 6 points.

Playing discs

Search

Title/Chapter search

Using SKIP |◀◀ / ▶▶| buttons

1

During play, press SKIP ▶▶button to skip the current title or chapter and move to the next.

The title or chapter will move forward by one at a time.

To go back to the previous title or chapter, press SKIP ◀◀◀ button. The title or chapter will move backward one title at a time.

POWER DISPLAY STC 1 CH GHI 4 REC WONDOR PQRS 7 REC MODE CLEAR REC PAUSE 11 TIMER PROG. ABC JKL 5 TUV B SPACE 0 OPENCLOSE DEF 3 MNO 6 WXYZ 9 CN SKIP SKIP PLAY STOP FWD REV

Using DISPLAY button

1

During play, press DISPLAY button.

The display menu will appear.

Screen:

2

Select icon using ◀/▶ buttons, then press ENTER button.

'T' for title will be highlighted.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200

Title:

Enter a desired title number to search using ▲ / ▼ buttons or number buttons, then press ENTER button.

Title search will start.

Chapter:

To move to 'C' for chapter, press ▶ button.

Enter a desired chapter number to search using ▲ / ▼ buttons or number buttons, then press ENTER button.

Chapter search will start.

Playing discs

Search (cont'd)

Track search

Using SKIP |◀◀ / ▶▶| buttons

1

During play, press SKIP ▶▶|button to skip the current track and move to the next.

The track will move forward one at a time.

To go back to the previous track, press SKIP▲▲ button. The track will move backward one at a time.

Using DISPLAY button

1

During play, press DISPLAY button.

The display menu will appear.

Screen:

2

Select 📄 icon using ◀/▶ buttons, then press ENTER button. 'T' for track will be highlighted.

3

Enter a desired track number to search using ▲ / ▼ buttons or number buttons, then press ENTER button.

Track search will start.

Time search

1

During play, press DISPLAY button.

The display menu will appear. Screen for DVD:

Screen for CD:

2

Select icon using buttons, then press ENTER button.

'T' for title or track will be highlighted.

To move to the clock icon, press

▶ button.

3

Enter a desired time to search using ▲ / ▼ buttons or number buttons, then press ENTER button.

Time search will start.

3C ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 REC MONITOR PQRS TUV IWXY2 7 8 9 REC MODE CLEAR SPACE CNI SKIP 0 REC PAUSE SKIP 11 REV PLAY FWD STOP 1

POWER DISPLAY TIMER AUDIO OPENCLOSE 1 ▲ CH ▲ GHI ▲ 4 REC MONITOR REC MODE CLEAR REC PAUSE 11 3C ABC 2 JKL 5 TUV 7 SPACE 0 SKIP 2 REVIEW PLAY STOP FND 2 SETUP TOP MENU MENA LIST REPEAT ENTER ZOOM RETURN Y 2 3

POWER DISPLAY TIMER PROG. OPENCLOSE 1 2 3 ABC DEF CH GHI JKL MND 4 5 6 MORTOR PQRS TUV WXYZ 7 8 REC MODE CLEAR SPACE CN SKIP 0 REC PAUSE SKIP 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11.1 PLAY FWD STOP SETUP TOP VENJ VENUA LIST REPEAT ENTER RETURN ZOOM ZOOM

Note

• Time search function is available only in the same track or title.

Playing discs

Repeat/Random/Program playback

Repeat play

1

During play, press REPEAT button.

Repeat menu will appear.

Screen:

OFF Title Chapter A-B

2

Select a desired option to repeat using ▲/▼buttons, then press ENTER button.

The selected repeat play will start.

Title:

The current title will be played repeatedly. (DVD only)

Chapter:

The current chapter will be played repeatedly. (DVD only)

All:

The current disc will be played repeatedly. (CD, MP3, DVD-RW (VR mode) only)

A-B:

The A-B point will be played repeatedly.

When pressing ENTER button while A-B is highlighted, the starting point (A) will be decided. Press ENTER button again to select the ending point (B).

Track:

The current track will be played repeatedly. (CD, MP3 only)

Group:

The current group will be played repeatedly. (MP3 only)

REC MONITOR PQRS 7 TUV 8 VXYZ 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 12 PLAY FWD STOP REV SETUP TCP MENU I/EMA/IST REPEAT ENTER ZOOM RETURN 1 2 SHARP

Note

• The A-B Repeat playback can only be set with in the current title (for DVDs), or current track (for Audio CDs).
• To cancel the repeat playback, select OFF at step 2. The repeat setting will also be cancelled when you stop play-back.
- You cannot select "Group" during the random playback of MP3 files.

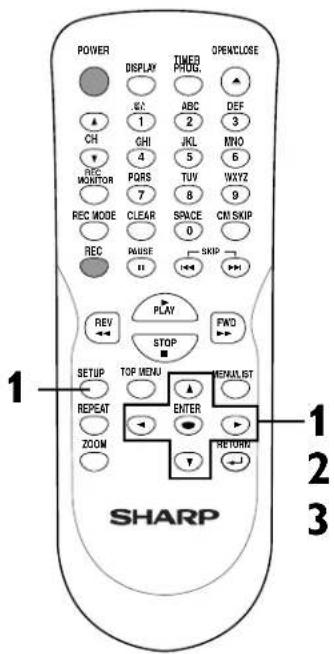

Random playback

With this function, you can play a disc randomly instead of playing in the original order.

1

Press SETUP button to display SETUP/CD menu.

SETUP/CD menu will appear.

Screen:

SETUP CD Setup Menu

2

Select "CD" using ◀/▶ buttons, then press ENTER button.

CD Playback Mode menu will appear.

3

Select "Random Play" using ▲/▼buttons, then press ENTER button.

Random play will start.

REC PAUSE SKIP II PLAY REV STOP FWD 1 SETUP TOP MENU MENALIST RESET ENTER 2 ZOOM RETURN 3 SHARP

Note

- To cancel random play, press STOP ■ button twice during random play. "Playmode OFF" appears on the screen.

Playing discs

Repeat/Random/Program playback (cont'd)

Program play

You can program the disc to play in your desired order.

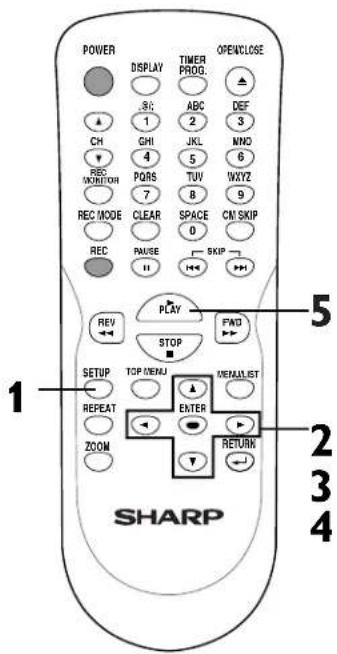

1

Press SETUP button to display SETUP/CD menu.

SETUP/CD menu will appear.

Screen:

SETUP CD Setup Menu

2

Select "CD" using ◀/▶ buttons, then press ENTER button.

CD Playback Mode menu will appear.

CD Playback Mode Random Play Program Play

3

Select "Program Play" using ▲/▼buttons, then press ENTER button.

Program play list will appear.

CD Playback Mode > Program Play Total 00:00:00

4

Select a desired track using ▲ /▼buttons, then press ENTER button or ▶button.

A cursor will move to next.

Press PLAY▶button to start program play.

Program play will start.

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 1 5 REV STOP FWD SETUP TOP/NEWJ INSTALLIST REPEAT ENTER RETURN ZOOM 2 3 4 SHARP

Playing discs

Selecting the format of audio and video

You can select the format of audio and video as you prefer depending on the contents of the disc you are playing.

Switching audio soundtrack

When playing a DVD-Video disc recorded with two or more soundtracks (these are often in different languages), you can switch them during play.

On DVD-RW discs recorded in VR mode, you can switch to main (L), sub audio (R) or a mix of both (L/R).

1

During play, press DISPLAY button.

The display menu will appear.

Screen:

T 1 C 1 1:23:45 DVD-Video G S E G

1 1:00:00:00 ✓ 1 Dolby Digital Dual L/R 2 Dolby Digital 2ch ---

3

Select a desired audio sound-track using ▲/▼buttons, then press ENTER button.

Audio soundtrack will switch.

1 1:00:00:00 ✓ 1 Dolby Digital Dual 2 Dolby Digital 2ch ✓ L/R L R DVD-RW VR Original

1

POWER DISPLAY TIMER PHOG OPENCLOSE 3C ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CN SKIP 0 REC PAUSE SKIP 11 REV PLAY STOP FWD SETUP TOP MENU MENUIST REPEAT ENTER ZOOM RETURN 2 3 4 SHARP

2

Select 📷 icon using buttons, then press ENTER button.

Audio menu will appear.

1 1:00:00:00 ✓ 1 Dolby Digital 5.1ch English 2 Dolby Digital 2ch Japanese DVD-Video

4.

Select a desired audio channel using ▲/▼ buttons, then press ENTER button.

Audio channel will switch.

Note

- Some discs will only allow you to change the sound-track from the disc's menu.

Press TOP MENU button or MENU / LIST button to display the disc's menu.

- On DVD-RW discs recorded in VR mode that may have both a main and a sub audio channel, you can switch to main (L), sub audio (R) or a mix of both (L/R).

• This unit CANNOT record in both stereo and SAP (Secondary Audio Program) at the same time.

Playing discs

Selecting the format of audio and video (cont'd)

When playing Audio CDs or MP3 files you can switch between stereo, just the left channel or just the right channel.

1

During play, press DISPLAY button.

The display menu will appear.

Screen:

1:00:00:00 Audio CD

2

Select icon using buttons, then press ENTER button.

Audio menu will appear.

3

Select a desired audio channel using ▲/▼buttons, then press ENTER button.

Audio channel will switch.

T 1:00:00:00 C ✓L/R L R Audio CD

POWER DISPLAY TIMER PHOD. OPENCLOSE 1 2 3 CH GHI JKL NNO 4 5 6 REC MONITOR PQRS TUV VXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11.1 11.2 11.3 11.4 11.5 11.6 11.7 11.8 11.9 11.10 11.11 11.12 11.13 11.14 11.15 11.16 11.17 11.18 11.19 11.20 11.21 11.22 11.23 11.24 11.25 11.26 11.27 11.28 11.29 11.30 SHARP

Switching subtitles

Many DVD Video discs have subtitles in one or more languages – the case usually tells you which subtitle languages are available. You can switch subtitle languages anytime during playback.

1

During play, press DISPLAY button.

The display menu will appear.

Screen:

T 1 C 1 1:23:45 DVD-Video C D E F G

2

Select icon using buttons, then press ENTER button.

Subtitle menu will appear.

OFF 1 English 2 Japanese

3

Select a desired subtitle language using ▲/▼buttons, then press ENTER button.

Subtitle will be displayed in the selected language.

When selecting "OFF," subtitle will disappear.

• If a 4-digit language code appears in the subtitle menu at step 2, please refer to the Language code on page 95.

Playing discs

Selecting the format of audio and video (cont'd)

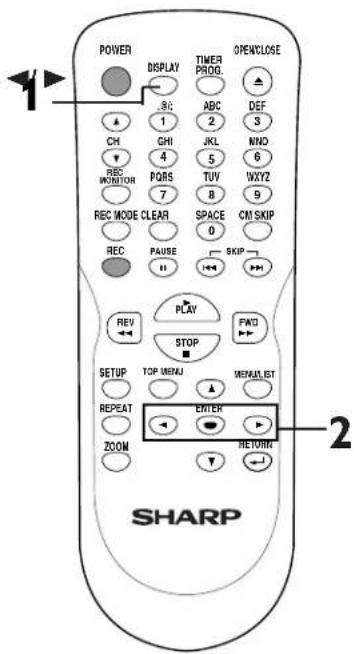

Switching camera angles

Some DVD Video discs feature scenes shot from two or more angles, check the case for details: it should be marked with a angle icon if it contains multi-angle scenes.

1

During play, press DISPLAY button.

The display menu will appear.

Screen:

T 1 C 1 1:23:45 DVD-Video ▶ 图

Angle icon appears when a switching camera angle is available.

2

Select 📁 icon using buttons, then press ENTER button.

Angle will switch each time you press ENTER button.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 ABC DEF 3 CH GHI JKL NNO 4 PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 2 3 REV PLAY STOP FWD SETUP TOP MENU MENU EST REPEAT ENTER ZOOM RETURN 2 SHARP

Reducing block noise

1

During play, press DISPLAY button.

The display menu will appear.

Screen:

T 1 C 1 1:23:45 DVD-Video G3 - 80+ G3

2

Select

icon

using

buttons, then press ENTER button.

Noise Reduction menu will appear.

1:00:00:00 OFF Type 1 Type 2 DVD-Video

3

Select a desired option using

▲/▼buttons, then press ENTER button.

Your setting will be activated.

This function reduces noise in the playback picture. When playing back discs recorded in long time mode such as SLP or SEP mode,

Effect "Type 1" or "Type 2". ("Type 2" is more effective.) When playing back discs with a few noises such as DVD-Video discs, select "OFF".

POWER DISPLAY TIMER PROG. OPENCLOSE 1 3: ABC DEF CH GHI JKL NIND REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 RECE PAUSE SKIP REV PLAY STOP FWD 2 SETUP TOP MENU MENU LIST RESET ENTER ZOOM RETURN 3 SHARP

Editing

Information on disc editing

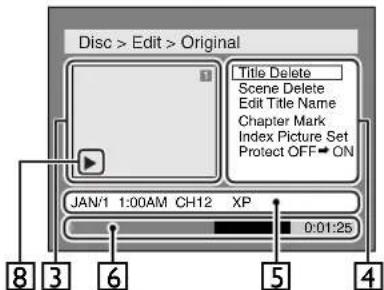

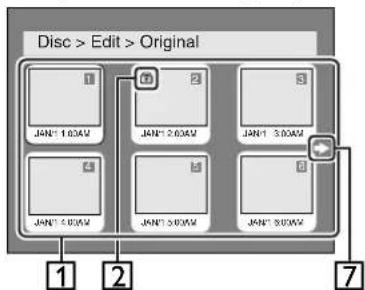

Guide to a title list

Title list allows you to check the titles recorded on the disc easily. You can choose a title to play from this screen and easily edit the titles as you prefer.

Disc > Edit > Original 1 JAN' 1.0XW 2 JAN' 2.0XW 3 JAN' 3.0XW 4 JAN' 4.0XW 5 JAN' 5.0XW 6 JAN' 6.0XW 7

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF ON JAN/1 1:00AM CH12 XP 0:01:25 8 3 6 5 4

1. Titles recorded on the disc can be selected to edit by pressing ENTER button with the cursor on the title.
2. Protect icon, which appears when the title has been protected.
3. The selected title thumbnails from the title list.
4. The selected title will be played back automatically.
   • A sound is not output.
5. The menus in here for editing titles as you prefer. The available menus depends on the disc type and the format type.
6. The details of the title, which can be changed to the title name you will edit.
7. Time status bar of the title.
8. The arrow icon, which means the title list includes a next or a previous page. Press ▶ or ◀button by following direction of the icon.
9. Playback status of the current disc.

Editing discs with Video mode

You can edit discs with Video mode for the following items. Be sure that once you edit titles, they will not remain as original.

• Deleting titles (Refer to page 59)
• Putting names on titles (Refer to pages 60-61)
• Setting or clearing chapter markers (Refer to page 62)

Note

• Once a disc is finalized, editing the disc or recording to the disc will not be available. (Except DVD-RW discs in VR mode.)
  • A playlist is not available with the DVD-R discs and DVD-RW discs in Video mode.

Editing

Information on disc editing (cont'd)

Editing discs with VR mode

For discs with VR mode, you can edit from “Original” menu or “Playlist” menu, which is created from the original.

Editing original titles

The following items can be used to edit the original titles.

• Deleting titles (Refer to page 63)
• Deleting parts of titles (Refer to pages 64-65)
• Putting names on titles (Refer to pages 65-66)
• Setting or clearing chapter markers (Refer to pages 67-68)
• Setting pictures for thumbnails (Refer to pages 68-69)
• Setting titles to protect (Refer to page 70)
• Releasing titles from protecting (Refer to page 71)

Editing playlists

You can create a playlist from original titles, so that you can edit as you prefer without losing original titles.

The following items you can edit with a playlist.

• Deleting titles (Refer to page 72)
• Deleting parts of titles (Refer to pages 73-74)
• Putting names on titles (Refer to pages 74-75)
• Setting or clearing chapter markers (Refer to pages 76-77)
• Setting pictures for thumbnails (Refer to pages 77-78)
• Adding titles to a playlist (Refer to page 79)
• Deleting a playlist (Refer to page 80)

Note

- Original titles once edited will not remain as recorded originally. When you want to leave the original as it is, edit the playlist as you prefer.

Editing

Editing DVD-RW discs in Video mode

Deleting titles

You can delete titles which you do not need anymore.

Be advised that the titles once deleted cannot be brought back to the disc.

When the last title in the title list in Video mode is deleted, the disc space to record will be increased.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize

2

Select "Edit" using ▲ / ▼ buttons, then press ENTER button.

Titlelist will appear.

Screen:

Disc > Edit 1 JAN1 1.00AM JAN1 2.00AM JAN1 3.00AM JAN1 4.00AM JAN1 5.00AM

3

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Edit menu will appear.

Disc > Edit Title Delete Edit Title Name Chapter Mark JAN'1 1:00AM CH12 XP 0:01:25

4

Select "Title Delete" using ▲ /▼buttons, then press ENTER button.

Option window will appear.

Disc > Edit Title Delete Edit Title Name Chapter Mark Yes No JAN/1 1:00AM CH12 XP 0:01:25

5

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Title will be deleted.

Disc > Edit Title Delete Edit Title Name Chapter Mark Yes No JAN/1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

6

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE S:1 ABC DEF CH GHI JKL MIND REC MONITOR PQRS TUV WXYZ 7 B 9 REC MODE CLEAR SPACE CM SKIP REC PAUSE SKIP 16 REV PLAY STOP FWD SETUP TCP MENU MEPAULIST REPEAT ENTER ZOOM RETURN 1 2 3 4 5 SHARP

Editing

Editing DVD-RW discs in Video mode (cont'd)

Putting names on titles

You can put title names on the titles and change the names from this menu.

The names you put on the titles will be displayed on a titlelist.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize

2

Select "Edit" using ▲ / ▼ buttons, then press ENTER button.

Titlelist will appear.

Screen:

Disc > Edit 0 28 JNAT 100X3 JNAT 250NM JNAT 350NM 0 JNAT 400XM JNAT 500NM

3

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Edit menu will appear.

Disc > Edit Title Delete Edit Title Name Chapter Mark JAN'1 1:00AM CH12 XP 0:01:25

4

Select "Edit Title Name" using ▲/▼buttons, then press ENTER button.

A window for entering a title name will appear.

Disc > Edit > Edit Title Name ✓ ABC abc 1 2 3 @ ! ? JAN/1 1:00AM CH12 XP 0:01:25

5

To enter a title name, follow the steps of "Guide to edit title name" on this page.

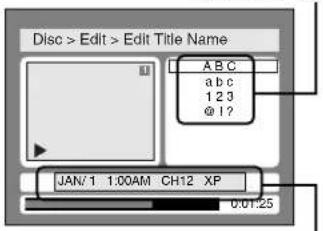

character set

Disc > Edit > Edit Title Name A B C a b c 1 2 3 @ ! ? JAN/ 1 1:00AM CH12 XP 0:01:25

area for entering title names

When you finish entering a title name, press ENTER button.

POWER DISPLAY TIMER PROG. OPENCLOSE ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 REC MOZITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 RECA PAUSE SKIP 11 REV PLAY STOP FWD 12 SETUP TCP MENU MENU LIST 13 REPEAT ENTER RETURN ZOOM 14 15 SHARP

[ Guide to edit title name ]

[Step2]: Press Number buttons following by the list below

SelectPress	ABC	abc	123	@!?
0			0
1	*1	*1	1	! "# $ %& ' ( ) *+,-./!;<= >?@ [ ] ^-{}
2	ABC	abc	2	-
3	DEF	def	3	-
4	GHI	ghi	4	-
5	JKL	jkl	5	-
6	MNO	mno	6	-
7	PQRS	pqrs	7	-
8	TUV	tuv	8	-
9	WXYZ	wxyz	9	-

*1 Press ① button, character set will be changed to the "@!? " mode automatically.
• To delete letters, press CLEAR button repeatedly. Holding CLEAR button to delete all letters.
- To go on to the next entering area for letters, press ▶ button.
• You can enter up to 30 letters.

Editing

Editing DVD-RW discs in Video mode (cont'd)

6

Select "Yes" using ◀/▶ buttons, then press ENTER button.

The name you entered will be activated for the title.

Disc > Edit > Edit Title Name A B C ✓ a b c 1 2 3 @ ! ? Yes No abc Writing to Disc

This operation may take a while to be completed.

7

After writing to disc is completed, press SETUP button to exit DISC menu.

Editing DVD-RW discs in Video mode (cont'd)

Setting or clearing chapter markers

You can put chapter markers in each title. Once a chapter is marked, you can use it for the chapter search feature. You can set chapter markers at a specified time you selected for titles with more than 5 minutes.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button. DISC menu will appear.

Disc Edit Format Finalize

2

Select "Edit" using ▲ / ▼ buttons, then press ENTER button. Titlelist will appear.

Screen:

Disc > Edit JAK1 10263 JAK1 230M JAK1 38002 JAK1 43203 JAK1 530M

3

Select a desired title using ▲/ ▼/ ◀/ ▶ buttons, then press ENTER button. Edit menu will appear.

Disc > Edit Title Delete Edit Title Name Chapter Mark JAN'1 1:00AM CH12 XP 0:01:25

4

Select "Chapter Mark" using ▲/▼buttons, then press ENTER button. Option window will appear.

Disc > Edit Title Q OFF Edit T: Chapt 5 minutes 10 minutes 15 minutes 30 minutes 60 minutes JAN' 1 1:00AM CH12 XP 0:01:25

5

Select a desired time using ▲ /▼buttons, then press ENTER button. Option window will appear.

Disc > Edit Title D OFF Edit T 5 minutes Chapter 10 minutes 15 minutes 30 minutes 60 minutes Yes No JAN' 1 1:00AM CH12 XP 0:01:25

6

Select "Yes" using ◀/▶ buttons, then press ENTER button.

A chapter marker will be added. If you select "OFF" at step 5, all the chapter markers will be erased.

7

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE ABC DEF CH 1 2 3 GHI JKL MNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 17 PLAY FWD STOP SETUP TOP MENU MENU LIST REPEAT ENTER ZOOM RETURN 1 2 3 4 5 6 SHARP

Note

• You cannot select a time for putting markers beyond a length of a title.
• The length of chapters may be slightly longer or shorter than the one specified at the step 5.
  • A chapter marker may be delayed according to the recording content.

Editing

Editing DVD-RW discs in VR mode (Original)

Deleting titles

When a title is deleted from an original list in VR mode, the disc space to record will be increased. Be advised that the titles once deleted cannot be brought back to the disc.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ON

2

Select "Edit" using ▲/▼buttons, then press ENTER button.

Original/PlayList menu will appear. Screen:

Disc > Edit Original PlayList Original

3

Select "Original" using ◀/▶ buttons, then press ENTER button.

Original list will appear.

Disc > Edit > Original JN21 1450X JN21 2800X JN21 3200X JN21 4150X JN21 5800X

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Original menu will appear.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF→ON JAN'1 1:00AM CH12 XP 0:01:25

5

Select "Title Delete" using ▲ /▼buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Protect OFF→ON Yes No JAN/1 1:00AM CH12 XP 0:01:25

6

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Title will be deleted.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Protect OFF→ON Yes No JAN/1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

7

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROD. OPENCLOSE ▲ ▲ CH GHI ABC DEF 1 2 3 JKL MNO REC 4 6 REC MONITOR PORS TUV WXYZ 7 8 REC MODE CLEAR SPACE 9 CREC 0 CHI SKIP PAUSE SKIP 11 1 REV PLAY STOP FWD SETUP TOP MENU MENU LIST REPEAT ENTER ZOOM RETURN 1 2 3 4 5 6 SHARP

Editing

Editing DVD-RW discs in VR mode (Original) (cont'd)

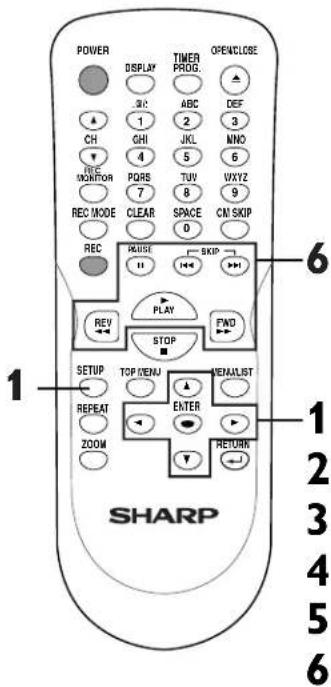

Deleting parts of titles

You can delete part of a title, the disc space to record will be increased.

Be advised that the parts once deleted cannot be brought back to the disc.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button. DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF •ON

2

Select "Edit" using ▲ / ▼ buttons, then press ENTER button.

Original/PlayList menu will appear.

Screen:

Disc > Edit Original PlayList Original

3

Select "Original" using ◀/▶ buttons, then press ENTER button.

Original list will appear.

Disc > Edit > Original 12 JN1 1000M JN1 2000M JN1 3000M JN1 4000M JN1 6000M

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Original menu will appear.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF→ON JAN' 1 1:00AM CH12 XP 0:01:25

5

Select "Scene Delete" using ▲/▼buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Original Title Delete Scene Edit Title Chapter Index P Protect Start End Preview Delete JAN 1 1:00AM CH12 XP 0:00:55

6

Use SKIP |◀◀/▶▶, REV ◀◀, FWD ▶▶, PLAY▶, and PAUSE II buttons to decide the start point, then press ENTER. Then use SKIP |◀◀/▶▶, REV ◀◀, FWD ▶▶, PLAY▶, and PAUSE II buttons again to move to the end point, and press ENTER. Press ENTER again to start the preview.

A cursor will move to "Preview."

You can check the preview by pressing ENTER.

The bar at the bottom of the screen indicates the total and the elapsed time of the title, and the area selected for deletion will be indicated in red during the preview.

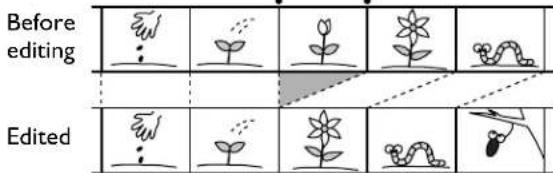

Start point End point

Before editing Edited

POWER DISPLAY TIMER PROG OPENCLOSE S: ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 REC MOZITOR PQRS TUV WAYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 1 REY PLAY FWD STOP SETUP TOP MENU MENU ST 1 2 3 4 5 1 3 4 5 6 RESET ENTER ZOOM RETURN SHARP

Editing

Editing DVD-RW discs in VR mode (Original) (cont'd)

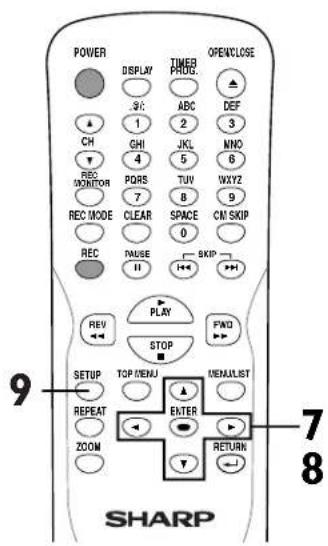

7

Select "Delete" using ▲/▼ buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Original Title Delete Scene P Start Edit Title End Chapter End Index P Preview Protect Delete Yes No JAN 1 1:00AM CH12 XP 0:01:25

8

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Selected area will be deleted, and a chapter marker is created automatically where deletion is performed.

If the thumbnail of the title is in the deleted area, the thumbnail will be set to the first picture of the title.

Playback will start from the newly created chapter marker.

Disc > Edit > Original Title Delete Scene Edit Title Chapter Index P Protect Start End Preview Delete Yes No JAN/1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

9

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY S: 3C TIMEB PUDC OPENCLOSE ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 9 PLAY STOP FWD SETUP TOP/MENU MENALIST REPEAT ENTER RETURN ZOOM SHARP

Note

- You cannot select "Scene Delete" when the number of chapter markers in the original or playlist is more than 900.

Putting names on titles

You can put title names on the titles and change the names from this menu.

The names you put on the titles will be displayed on a titlelist.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ⚪N

2

Select "Edit" using ▲/▼ buttons, then press ENTER button.

Original/PlayList menu will appear.

Screen:

Disc > Edit Original PlayList Original

POWER DISPLAY TIMER PHOD. OPENCLOSE 3C ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 MOTOR PORS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 1 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 SHARP

Instructions continue on page 66

Editing

Editing DVD-RW discs in VR mode (Original) (cont'd)

3

Select "Original" using ◀/▶ buttons, then press ENTER button.

Original list will appear.

Disc > Edit > Original JANAY 1:00AM JANAY 2:00AM JANAY 3:00AM JANAY 4:00AM JANAY 5:00AM

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Original menu will appear.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF • ON JAN' 1 1:00AM CH12 XP 0:01:25

5

Select "Edit Title Name" using ▲/▼buttons, then press ENTER button.

A window for entering a title name will appear.

Disc > Edit > Original > Edit Title Name ✓ A B C a b c 1 2 3 @ ! ? JAN/1 1:00AM CH12 XP 0:01:25

6

To enter a title name, follow the steps of "Guide to edit title name" on this page.

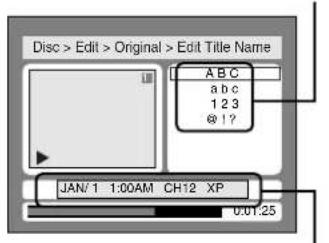

character set

Disc > Edit > Original > Edit Title Name A B C a b c 1 2 3 @ ! ? JAN/1 1:00AM CH12 XP 0.01.25

area for entering title names

When you finish entering a title name, press ENTER button.

7

Select "Yes" using ◀/▶ buttons, then press ENTER button.

The name you entered will be activated for the title.

Disc > Edit > Original > Edit Title Name A B C ✓ abc 1 2 3 @ 1 ? Yes No abc Writing to Disc

This operation may take a while to be completed.

8

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE SC ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 PLAY FWD REV STOP SETUP TOP MENU MANUAL EST REPEAT ENTER ZOOM RETURN 3 4 5 6 7 SHARP

[ Guide to edit title name ]

[Step2] Press Number buttons following by the list below.

Select Press	ABC	abc	123	@ !?
①			0
	#1	#1	1	! " # $ % & ' ( ) * + , - , / ; < = > ? @ [ ] ^ _ { | }
②	ABC	abc	2	-
③	DEF	def	3	-
④	GHI	ghi	4	-
⑤	JKL	jkl	5	-
⑥	MNO	mno	6	-
⑦	PQRS	pqrs	7	-
⑧	TUV	tuv	8	-
⑨	WXYZ	wxyz	9	-

*1 Press 1 button, character set will be changed to the "@!?" mode automatically.
• To delete letters, press CLEAR button repeatedly. Holding CLEAR button to delete all letters.
- To go on to the next entering area for letters, press ▶ button.
• You can enter up to 30 letters.

Editing

Editing DVD-RW discs in VR mode (Original) (cont'd)

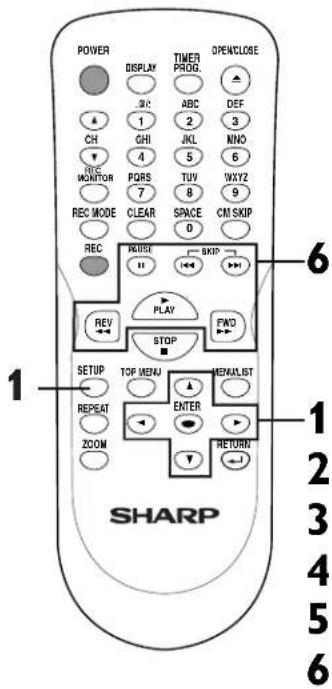

Setting or clearing chapter markers

You can put chapter markers in each title. Once a chapter is marked, you can use it for the chapter search feature. You can put a chapter marker anywhere you want. When the number of chapter markers in the original list comes to 999 in total, you cannot add any more chapter markers.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button. DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ON

2

Select "Edit" using ▲/▼buttons, then press ENTER button.

Original/PlayList menu will appear. Screen:

Disc > Edit Original PlayList Original

3

Select "Original" using ◀/▶ buttons, then press ENTER button.

Original list will appear.

Original menu will appear.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF ON JAN'1 1:00AM CH12 XP 0:01:25

5

Select "Chapter Mark" using ▲/▼buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Original Chapter 1/1 Title Delete Scene Delete Edit Title Name Chapter Add Index A Delete Protect OFF ON JAN/1 1:00AM CH12 XP 0:01:25

6

Use SKIP |◀◀/▶▶, REV ◀◀, FWD▶▶, PLAY▶, and PAUSEII buttons to decide the point at which you will create a new chapter marker. Or, use SKIP |◀◀/▶▶| to decide a chapter marker that you will delete. Select "Add" or "Delete" accordingly using ▲ / ▼ buttons, then press ENTER button. Option window will appear.

:

Disc > Edit > Original Chapter 1/1 Title Delete Scene Delete Edit Title Name Chapter Add Index P Delete Protect OFF ▼ ON Yes No JAN/1 1:00AM CH12 XP 0:01:25

POWER DISPLAY TIMER PROD. OPENCLOSE 3G ABC DEF 1 2 3 CH GHI JKL MND 4 5 6 RES MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CN SKIP 0 REC PAUSE SKIP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Instructions continue on page 68

Editing

Editing DVD-RW discs in VR mode (Original) (cont'd)

:

Disc > Edit > Original Chapter 2/2 Title Delete Scene Delete Edit Title Name Chapte Add Index F Delete Protect OFF=ON Yes No JAN 1 1:00AM CH12 XP 0:01:25

- You cannot delete the first chapter marker of each title.

7

Select "Yes" using ◀/▶ buttons, then press ENTER button. When you select "Add" at step 6, a new chapter marker will be created at the point you have decided. When you select "Delete" at step 6, the chapter marker you have selected will be deleted.

:

Disc > Edit > Original Chapter 1/1 Title Delete Scene Delete Edit Title Name Chapt: Add Index P Delete Protect OFF ON Yes No JAN/1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

The chapter marker which you selected will be deleted.

:

Disc > Edit > Original Chapter 2/2 Title Delete Scene Delete Edit Title Name Chapter Add Index P Delete Protect OFF ON Yes No JAN: 1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

8

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE ABC DEF CH 1 2 3 GHI JKL NNO 4 5 6 REC WORION PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 REVEV PLAY FND STOP SETUP TOP MENU MENU LIST REPEAT ENTER ZOOM RETURN 8 7 SHARP

Setting pictures for thumbnails

You can set a picture to each title for a thumbnail. It helps you to remember the contents of the title you are playing. The beginning picture has been selected as the default.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button. DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ⬆N

2

Select "Edit" using ▲/▼buttons, then press ENTER button.

Original/PlayList menu will appear.

Screen:

Disc > Edit Original PlayList Original

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ABC DEF 1 2 3 CH GHI JKL MVO 4 5 6 REC WORI TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note

- If a selected picture for a thumbnail is deleted by deleting a part of a title, a default picture will be selected.

Editing

Editing DVD-RW discs in VR mode (Original) (cont'd)

3

Select "Original" using ◀/▶ buttons, then press ENTER button.

Original list will appear.

Disc > Edit > Original JAN1 1.00MM JAN1 2.00MM JAN1 3.00MM JAN1 4.00MM JAN1 5.00MM

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Original menu will appear.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF→ON JAN 1 1:00AM CH12 XP 0:01:25

5

Select "Index Picture Set" using ▲/▼buttons. Use SKIP |◀◀/▶▶|, REV ◀◀, FWD ▶▶, PLAY ▶, and PAUSE II buttons to decide the picture you want to select as a thumbnail. Then press ENTER button.

Option window will appear.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF ON Yes No JAN/1 1:00AM CH12 XP 0:01:25

6

Select "Yes" using ◀/▶ buttons, then press ENTER button.

A picture for thumbnail will be set.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF→ON Yes No JAN/1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

7

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE 3C ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 REC MONITOR PDRS TUV VXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC RAUSE SKIP 5 11 12 13 PLAY FWD REV STOP SETUP TOP VIEW MEDIAIST 3 4 REPEAT ENTER ZOOM RETURN 6 3 7 SHARP

Editing

Editing DVD-RW discs in VR mode (Original) (cont'd)

Setting titles to protect

To prevent accidental editing, or erasing the titles, you can protect them from the original menu.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ⚪N

2

Select "Edit" using ▲/▼buttons, then press ENTER button.

Original/PlayList menu will appear.

Screen:

Disc > Edit Original PlayList Original

3

Select "Original" using ◀/▶ buttons, then press ENTER button.

Original list will appear.

Disc > Edit > Original JNNT 100MM JNNT 200MM JNNT 300MM JNNT 400MM JNNT 600MM

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Original menu will appear.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF ON JAN'1 1:00AM CH12 XP 0:01:25

5

Select "Protect OFF → ON" using ▲/▼ buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF ON Yes No JAN'1 1:00AM CH12 XP 0:01:25

6

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Disc > Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect OFF ON Yes No JAN 1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

7

After writing to disc is completed, press SETUP button to exit DISC menu.

To protect a whole disc (DVD-RW VR mode Only):

Select "Disc Protect" from Disc menu, then select "Yes".

Refer to "Setting a disc to protect" on page 40.

POWER DISPLAY TIMER PROG. OPENCLOSE ABC DEF CH 1 2 3 GHI JKL NNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 RECK NUAISE SKIP 11 17 PLAY FWD STOP SETUP TOP MENU MENUIST RESET ENTER ZOOM RETURN 1 2 3 4 5 6 SHARP

Note

• The protected title will be marked with a key icon in the original list.

Editing

Editing DVD-RW discs in VR mode (Original) (cont'd)

Releasing titles from protecting

You are allowed to release the titles protecting feature once protected.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button. DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ON

2

Select "Edit" using ▲/▼buttons, then press ENTER button.

Original/PlayList menu will appear. Screen:

Disc > Edit Original PlayList Original

3

Select "Original" using ◀/▶ buttons, then press ENTER button.

Original list will appear.

Disc > Edit > Original JAN1 1000M JAN1 2500M JAN1 3000M JAN1 4000M JAN1 5000M

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Original menu will appear.

Disc Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect ON OFF JAN/1 2:00AM CH12 XP 0:01:25

5

Select "Protect ON→OFF" using ▲/▼buttons, then press ENTER button.

Option window will appear.

Disc Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect ON→OFF Yes No JAN/1 2:00AM CH12 XP 0:01:25

6

Select "Yes" using ◀/▶ buttons, then press ENTER button.

The key icon will disappear from the title in the original list.

Disc Edit > Original Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Protect ON OFF Yes No JAN/1 2:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

7

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 1 17 PLAY FWD STOP SETUP TOP VENU MENALIST REPEAT ENTER ZOOM RETURN 1 2 3 4 5 6 SHARP

Editing

Editing DVD-RW discs in VR mode (Playlist)

Deleting titles

In VR mode, even when a title is deleted from a Playlist, the original title will remain in an Original list. The disc space to record will not be increased.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ⚪N

2

Select "Edit" using ▲ / ▼ buttons, then press ENTER button.

Original/PlayList menu will appear. Screen:

Disc > Edit Original PlayList Original

3

Select "PlayList" using ◀/▶ buttons, then press ENTER button.

Playlist will appear.

Disc > Edit > Playlist 1 32 JN1 1:00AM JN1 2:00AM JN1 3:00AM JN1 4:00AM JN1 5:00AM And new Tracks Played

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Playlist menu will appear.

Disc > Edit > Playlist Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set JAN 1 1:00AM CH12 XP 0:01:25

5

Select "Title Delete" using ▲ /▼buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Playlist Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set. Yes No JAN' 1 1:00AM CH12 XP 0:01:25

6

Select "Yes" using ◀/▶ buttons, then press ENTER button. Title will be deleted.

Disc > Edit > Playlist Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Yes No JAN 1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

7

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont'd)

Deleting parts of titles

You can delete a specific part of a title.

Even when a title is deleted from the playlist, the original title will remain.

The disc space to record will not be increased.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF →ON

2

Select "Edit" using ▲/▼ buttons, then press ENTER button. Original/PlayList menu will appear.

Screen:

Disc > Edit Original PlayList Original

3

Select "PlayList" using ◀/▶ buttons, then press ENTER button.

Playlist will appear.

Disc > Edit > Playlist JAT1 1.00AM JAT1 2.00AM JAT1 3.00AM JAT1 4.00AM JAT1 5.00AM Add New Trade Desk Playlist

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Playlist menu will appear.

Disc > Edit > Playlist Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set JAN/1 1:00AM CH12 XP 0:01:25

5

Select "Scene Delete" using ▲/▼buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Playlist Title Delete Scene Start Edit Time End Chapter Preview Index Delete JAN/1 1:00AM CH12 XP 0:00:55

6

Use SKIP |◀◀/▶▶|, REV◀◀, FWD▶▶, PLAY▶, and PAUSE■ button to decide the start point, then press ENTER. Then use SKIP |◀◀/▶▶|, REV◀◀, FWD▶▶, PLAY▶, and PAUSE■ buttons again to move to the end point, and press ENTER. Press ENTER again to start the preview.

A cursor will move to "Preview." You can check the preview by pressing ENTER.

The bar at the bottom of the screen indicates the total and the elapsed time of the title, and the area selected for deletion will be indicated in red during the preview.

Start point End point

Before editing Edited

POWER DISPLAY TIMER PROG. OPENCLOSE ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 REC MONITOR PORS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC MUSE SKIP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Instructions continue on page 74

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont'd)

7

Select "Delete" using ▲/▼ buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Playlist Title Delete Scene Start Edit Title End Chapter Preview Index P Delete Yes No JAN'1 1:00AM CH12 XP 0:01:25

8

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Part of a title will be deleted.

Disc > Edit > Playlist Title Delete Scene Edit Title Chapter Index P Start End Preview Delete Yes No JAN/1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

9

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE ABC DEF CH GHI JKL MNO REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP REC PAUSE 0 SKIP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note

- You cannot select "Scene Delete" when the number of chapter markers in the original or playlist is more than 900.

Putting names on titles

You can put title names on the titles and change the names from this menu.

The names you put on the titles will be displayed on a titlelist.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ⭕N

2

Select "Edit" using ▲/▼ buttons, then press ENTER button.

Original/PlayList menu will appear.

Screen:

Disc > Edit Original PlayList Original

3

Select "PlayList" using ◀/▶ buttons, then press ENTER button.

Playlist will appear.

Disc > Edit > Playlist JANET 1000M JANET 2500M JANET 3500M Add Name: TAID Delete Play Id

POWER DISPLAY TUNED PROG. OPENCLOSE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont'd)

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Playlist menu will appear.

Disc > Edit > Playlist Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set JAN/1 1:00AM CH12 XP 0:01.25

5

Select "Edit Title Name" using ▲/▼buttons, then press ENTER button.

A window for entering a title name will appear.

Disc > Edit > Playlist > Edit Title Name ✓ A B C a b c 1 2 3 @ ! ? JAN/1 1:00AM CH12 XP 0:01:25

6

To enter a title name, follow the steps of "Guide to edit title name" on this page.

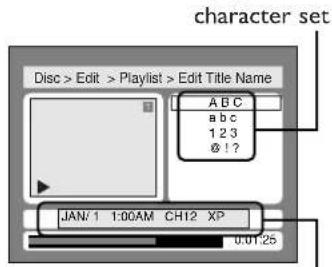

character set Disc > Edit > Playlist > Edit Title Name A B C a b c 1 2 3 @ ! ? JAN/1 1:00AM CH12 XP 0.01:25

area for entering title names

When you finish entering a title name, press ENTER button.

7

Select "Yes" using ◀/▶ buttons, then press ENTER button.

The name you entered will be activated for the title.

Disc > Edit > Playlist > Edit Title Name A B C ✓ a b c 1 2 3 @ ! ? Yes No abc Writing to Disc

This operation may take a while to be completed.

8

After writing to disc is completed, press SETUP to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE 3C ABC DEF 1 2 3 CH GHI JKL MNO 4 5 6 VCC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC AMUSE SKIP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

[ Guide to edit title name ]

[Step2]: Press Number buttons following by the list below.

SelectPress	ABC	abc	123	@!?
0			0
1	*1	*1	1	! "# $ %& ' () *+ , . . :;<= > ?@ [ ] ^- { |}
2	ABC	abc	2	-
3	DEF	def	3	-
4	GHI	ghi	4	-
5	JKL	jkl	5	-
6	MNO	mno	6	-
7	PQRS	pqrs	7	-
8	TUV	tuv	8	-
9	WXYZ	wxyz	9	-

*1 Press 1 button, character set will be changed to the "@!?" mode automatically.
• To delete letters, press CLEAR button repeatedly. Holding CLEAR button to delete all letters.
• To go on to the next entering area for letters, press ▶ button.
• You can enter up to 30 letters.

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont'd)

Setting or clearing chapter markers

You can put chapter markers in each title. Once a chapter is marked, you can use it for the chapter search feature.

You can put a chapter marker anywhere you want.

When the number of chapter markers in the playlist comes to 999 in total, you cannot add any more chapter markers.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ⚪N

2

Select "Edit" using ▲/▼buttons, then press ENTER button.

Original/PlayList menu will appear.

Screen:

Disc > Edit Original PlayList Original

3

Select "PlayList" using ◀/▶ buttons, then press ENTER button.

Playlist will appear.

Disc > Edit > Playlist JAN1 1.00AM JAN1 2.00AM JAN1 3.00AM JAN1 4.00AM JAN1 < 0.00AM Add New Delete Play Kit

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Playlist menu will appear.

Disc > Edit > Playlist Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set JAN'1 1:00AM CH12 XP 0:01:25

5

Select "Chapter Mark" using ▲/▼buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Playlist Chapter 1/1 Title Delete Scene Delete Edit Title Name Chapter Add Index R Delete JAN' 1 1:00AM CH12 XP 0:01:25

6

Use SKIP |◀◀/▶▶, REV ◀◀, FWD ▶▶, PLAY▶, and PAUSE■ button to decide the point at which you will create a new chapter marker. Or, use SKIP

|◀◀/▶▶| to decide a chapter marker that you will delete. Select "Add" or "Delete" accordingly using ▲/▼ buttons, then press ENTER button.

Option window will appear.

:

Disc > Edit > Playlist Chapter 1/1 Title Delete Scene Delete Edit Title Name Chapter Add Index R Delete Yes No JAN' 1 1:00AM CH12 XP 0:01:25

POWER DISPLAY TIMER PROG. OPENCLOSE 3C ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC MUST SKIP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont'd)

:

Disc > Edit > Playlist Chapter 2/2 Title Delete Scene Delete Edit Title Name Chapter Add Index P Delete Yes No JAN: 1 1:00AM CH12 XP 0:01:25

- You cannot delete the first chapter of each title.

7

Select "Yes" using ◀/▶ buttons, then press ENTER button.

A chapter marker will be added. When you select "Add" at step 6, a new chapter marker will be created at the point you have decided. When you select "Delete" at step 6, the chapter marker you have selected will be deleted.

:

Disc > Edit > Playlist Chapter 1/1 Title Delete Scene Delete Edit Title Name Chapter Add Index P Delete Yes No JAN/1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

The chapter marker which you selected will be deleted.

:

Disc > Edit > Playlist Chapter 2/2 Title Delete Scene Delete Edit Title Name Chapter Add Index R Delete Yes No JAN/1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

8

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ▲ ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 RE MONITOR PDRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC AMUSE SKIP 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 8 REV STOP FWD SETUP TOP MENU NEAMLIST REPEAT ENTER ZOOM RETURN SHARP

Setting pictures for thumbnails

You can set a picture to each title for a thumbnail. It helps you to remember the contents of the title you are playing. The beginning picture has been selected as the default.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ON

2

Select "Edit" using ▲/▼ buttons, then press ENTER button.

Original/PlayList menu will appear.

Screen:

Disc > Edit Original PlayList Original

WORKFOR PQRS TUV VXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP REC HOUSE SKIP 11 II PLAY REV STOP PAD SETUP TOP MENU MENULIST REPEAT ENTER ZOOM RETURN 1 2

Note

- If a selected picture for a thumbnail is deleted by deleting a part of a title, a default picture will be selected.

Instructions continue on page 78

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont'd)

3

Select "PlayList" using ◀/▶ buttons, then press ENTER button.

Playlist will appear.

Disc > Edit > Playlist JANAT 1.00/4M JANAT 2.00/4M JANAT 3.00/4M Add how to Create Tap

4

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Playlist menu will appear.

Disc > Edit > Playlist Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set JAN'1 1:00AM CH12 XP 0:01:25

6

Select "Yes" using ◀/▶ buttons, then press ENTER button.

A picture for thumbnail will be set.

Disc > Edit > Playlist Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Yes No JAN'1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

7

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE ABC DEF CH 1 2 3 CHI JKL NNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC RUSH SKIP 11 12 13 14 15 16 17 PLAY FND REV STOP SETUP TOP MENU MENALIST REPEAT ENTER ZOOM RETURN 5 3 4 5 6 7 SHARP

5

Select "Index Picture Set" using ▲/▼buttons. Use SKIP |◀◀/▶▶|, REV ◀◀, FWD ▶▶, PLAY ▶, and PAUSE || buttons to decide the picture you want to select as a thumbnail. Then press ENTER button.

Option window will appear.

Disc > Edit > Playlist Title Delete Scene Delete Edit Title Name Chapter Mark Index Picture Set Yes No JAN'1 1:00AM CH12 XP 0:01:25

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont'd)

Adding titles to a Playlist

You can add or delete a title in the playlist as you prefer. You can add titles to a Playlist up to 99.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button. DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ON

2

Select "Edit" using ▲/▼ buttons, then press ENTER button. Original/PlayList menu will appear. Screen:

Disc > Edit Original PlayList Original

3

Select "PlayList" using ◀/▶ buttons, then press ENTER button. Playlist will appear.

Disc > Edit > Playlist 1 2 JOUT 10000 JOUT 25000 JOUT 35000 JOUT 40000 JOUT 55000 Add how to Delete Playlist

4

Select "Add New Title" using ▲ / ▼ / ◀ / ▶ buttons, then press ENTER button. Original list will appear.

Disc > Edit > Playlist > Add New Title 81 24/07/10 10:30 AM 24/07/12 5:00 PM 24/07/12 6:00 PM

5

Select a desired title using ▲/▼/ ◀/▶buttons, then press ENTER button.

Disc > Edit > Playlist > Add New Title Writing to Disc 58%

Disc > Edit > Playlist JAN1 1:024M JAN1 2:00AM JAN1 3:024M JAN1 4:024M JAN1 5:00AM JAN12 6:024M

6

After writing to disc is completed, press SETUP button to exit DISC menu.

To delete a title from Playlist, refer to "Deleting titles" on page 72. To delete a Playlist, refer to "Deleting a Playlist" on page 80.

POWER DISPLAY TIMER PROG. OPENCLOSE 3C ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 REC MONITOR PQRS TUV VXYZ 7 8 REC MODE CLEAR SPACE CM SKIP 0 REC AMUSE SKIP REV PLAY FND STOP SETUP TOP VENU RENEALIST RESET ENTER ZOOM RETURN 1 2 3 4 5 SHARP

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont'd)

Deleting a Playlist

A Playlist can be deleted if no longer needed.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button. DISC menu will appear.

Disc Edit Format Finalize Disc Protect OFF ⚪N

2

Select "Edit" using ▲/▼ buttons, then press ENTER button.

Original/PlayList menu will appear. Screen:

Disc > Edit Original PlayList Original

3

Select "PlayList" using ◀/▶ buttons, then press ENTER button.

Playlist will appear.

Disc > Edit > Playlist 1 32 JN51 1400M JN51 2000M JN51 3000M JN51 4000M JN51 5000M Add New Delete Played

4

Select "Delete Playlist" using ▲ / ▼ / ◀/▶ buttons, then press ENTER button.

Option window will appear.

Disc > Edit > Playlist 12 JANET 1000AM JANET 2000AM JANET 3000AM JANET 4000AM JANET 5000AM Add New This Place Play List Yes Yes

5

Select "Yes" using ◀/▶ buttons, then press ENTER button.

A Playlist will be erased.

The unit will be in stop mode after exiting the DISC menu automatically.

POWER DISPLAY TIMER PROG. OPENCLOSE 1 2 3 CH CHI JKL NNO 4 5 6 REC MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 1 REV PLAY FND STOP SETUP TOP MENU REPEAT ENTER RETURN ZOOM 1 2 3 4 5 SHARP

Note

- Deleting a Playlist will not increase the available recording time.

Editing

Editing DVD-R discs

Deleting titles

You can delete titles which you do not need, however the disc space to record will not be changed.

Be aware to know that the titles once deleted cannot be brought back to the disc.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize

2

Select "Edit" using ▲ / ▼ buttons, then press ENTER button.

Titlelist will appear.

Screen:

Disc > Edit 1 32 JANY 1:00AM JANY 2:00AM JANY 3:00AM 4 2 JANY 4:00AM JANY 5:00AM

3

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Edit menu will appear.

Disc > Edit Title Delete Edit Title Name Chapter Mark JAN'1 1:00AM CH12 XP 0:01:25

You cannot select "Chapter Mark".

4

Select "Title Delete" using ▲ /▼buttons, then press ENTER button.

Option window will appear.

Disc > Edit Title Delete Edit Title Name Chapter Mark Yes No JAN/1 1:00AM CH12 XP 0:01:25

5

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Title will be deleted.

Disc > Edit Title Delete Edit Title Name Chapter Mark Yes No JAN/1 1:00AM CH12 XP Writing to Disc

This operation may take a while to be completed.

6

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE ▲ ▲ ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 REC MONITOR PQRS TUV VXYZ 7 8 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP 11 16 PLAY FWD REV STOP SETUP TOP MENU MENULIST REPEAT ENTER ZOOM RETURN 1 2 3 4 5 SHARP

Editing

Editing DVD-R discs (cont'd)

Putting names on titles

You can put names on the titles and change the names from this menu.

The names you put on the titles will be displayed on a titlelist.

1

Press SETUP button. Select "DISC" using ◀/▶ buttons, then press ENTER button.

DISC menu will appear.

Disc Edit Format Finalize

2

Select "Edit" using ▲/▼ buttons, then press ENTER button.

Titlelist will appear.

Screen:

Disc > Edit JAN1 1:00AM JAN1 2:00AM JAN1 3:00AM JAN1 4:00AM JAN1 5:00AM

3

Select a desired title using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Edit menu will appear.

Disc > Edit Title Delete Edit Title Name Chapter Mark JAN'1 1:00AM CH12 XP 0:01:25

You cannot select "Chapter Mark".

4

Select "Edit Title Name" using ▲/▼buttons, then press ENTER button.

A window for entering a title name will appear.

Disc > Edit > Edit Title Name ✓ ABC abc 1 2 3 @ ! ? JAN/1 1:00AM CH12 XP 0:01:25

5

To enter a title name, follow the steps of "Guide to edit title name" on this page.

character set

Disc > Edit > Edit Title Name A B C a b c 1 2 3 @ I ? JAN/1 1:00AM CH12 XP 0.01.25

area for entering title names

When you finish entering a title name, press ENTER button.

6

Select "Yes" using ◀/▶ buttons, then press ENTER button.

Disc > Edit > Edit Title Name A B C ✓ abc 1 2 3 @ 1 ? Yes No abc Writing to Disc

This operation may take a while to be completed.

7

After writing to disc is completed, press SETUP button to exit DISC menu.

POWER DISPLAY TIMER PROG. OPENCLOSE ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP II REV PLAY STOP FWD SETUP TOP MENU MENU,LIST REPEAT ENTER ZOOM RETURN 1 2 3 4 5 6 SHARP

[ Guide to edit title name ]

[Step2]: Press Number buttons following by the list below.

Select Press	ABC	abc	123	@!?
0			0
1	*1	*1	1	! " # $ % & ' ( ) * +, - / ;; <= > } @ [ ] ^ {- { | }}
2	ABC	abc	2	-
3	DEF	def	3	-
4	GHI	ghi	4	-
5	JKL	jkl	5	-
6	MNO	mno	6	-
7	PQRS	pqrs	7	-
8	TUV	tuv	8	-
9	WXYZ	wxyz	9	-

*1 Press ① button, character set will be changed to the "@!?" mode automatically.
• To delete letters, press CLEAR button repeatedly. Holding CLEAR button to delete all letters.
- To go on to the next entering area for letters, press ▶ button.
• You can enter up to 30 letters.

Changing the SETUP menu

Tour of the SETUP menu

The following table is the contents which you can set and the default settings. Refer to the following table for useful operation.

SETUP menu ContentsItems (highlight is the default)
1.Language setting→Pages 84-85	Disc Menu Language	EnglishFrenchSpanish	Set the language for disc menu.
	Audio Language	OriginalEnglishFrench	Set the language for audio.
	Subtitle Language	OFFEnglishFrench	Set the language for subtitle.
2.Display setting→Pages 86-87	OSD BackgroundTransparency	100%35%25%	Set the background transparency of OSD screen.
	OSD BackgroundColor	123	Set the OSD screen color.1 (Green), 2 (Blue), 3 (Red)
	OSD Language	EnglishFrançaisEspañol	Set the language for OSD(On Screen Display).
	FL Dimmer	AutoBrightDark	Set the brightness of front display.
	Screen Saver	OFF5 minutes10minutes	Set the time to work the screen saver onthe screen.
3.Audio setting→Pages 88-89	Digital Out	Dolby DigitalPCMStream	Set the type of sound signal which outputsfrom the digital audio output jack.
		PCMAuto48kHz96kHz	Set whether the sound recorded in 96kHzwill be down sampled in 48kHz.
		DTSONOFF	Set whether DTS signal will be output ornot.
	Dynamic RangeControl	ONOFF	Compressing the range of sound volume.
	Fast Forward withAudio	ONOFF	Outputting the sound during play in fastforward.
4.Parental setting→Pages 90-91	Parental Lock(Change password)	ALLlevel 8 to 1	Set the parental level of your DVD discs.
		Enter the currentfour-digit password	Set and change the password.

Note

- If you change the setting in SETUP menu, the information of contents stays on even when the power is switched off.

Changing the SETUP menu

Language setting

Press STOP button if you are playing a disc.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

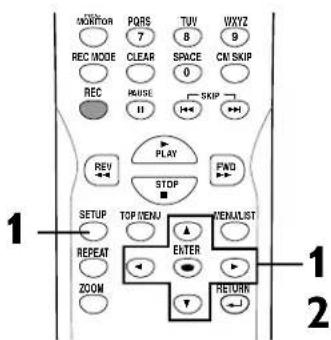

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Playback" using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Option window will appear.

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF

4

Select a desired item using ▲ / ▼ buttons, then press ENTER button.

POWER DISPLAY TINGER OPENCLOSE ▲ SIC ABC DEF 1 2 3 CH GHI JKL NNO 4 5 6 REQRS TUV WXYZ 7 8 9 REC MODE CLEAN SPACE CM SKIP 0 REC PAUSE SKIP II REV PLAY STOP FWD SETUP TOP MENU MENULIST REPEAT ENTER ZOOM RETURN SHARP

Note

• Only the languages supported by the disc can be selected.
  • Audio Language setting may not be available to some discs.
• You can change or switch off the subtitles on a DVD disc also from the disc menu if it is available.

Changing the SETUP menu

Language setting (cont'd)

Disc Menu Language (Default : English)

Set the language for Disc Menu.

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language ✓ English Audio Language French Subtitle Language Spanish Digital Out Other Dynamic Range Control ON Fast Forward with Audio OFF

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

Audio Language (Default : Original)

Set the Audio language.

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language Audio Language Subtitle Language Digital Out Dynamic Range Control ON Fast Forward with Audio OFF ✓ Original English French Spanish Other

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

- When Original is selected, the audio language will be in the disc's default language.

Subtitle Language (Default : OFF)

Set the subtitle language.

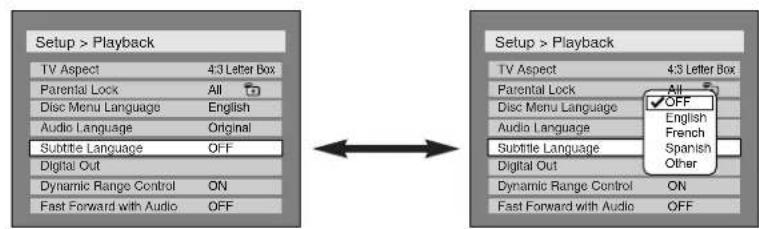

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language Audio Language Subtitle Language Digital Out Dynamic Range Control ON Fast Forward with Audio OFF OFF English French Spanish Other

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

If "Other" is selected, press 4-digit code using number buttons.

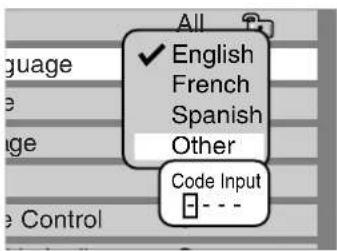

All ✓ English French Spanish Other Code Input E---

- When you finish entering the code, press ENTER button. Refer to the language code table on page 95.

5

Press SETUP button to exit SETUP menu.

Changing the SETUP menu

Display setting

Press STOP button if you are playing a disc.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Select Video Clock Channel Playback Setting

3

Select "Display" using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Option window will appear.

Setup > Display OSD Background Transparency35% OSD Background Color 1 OSD Language English FL Dimmer Bright Screen Saver 10 minutes

4

Select a desired item using ▲ / ▼ buttons, then press ENTER button.

POWER DISPLAY TIMER OPENCLOSE .9C ABC DEF CH 1 2 3 GHI JKL MNO 4 5 6 REC PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP II 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Changing the SETUP menu

Display setting (cont'd)

OSD Background Transparency (Default : 35%)

Set the background transparency of OSD screen.

You can choose one among 0% through 100%.

Setup > Display OSD Background Transparency35% OSD Background Color 1 OSD Language English FL Dimmer Bright Screen Saver 10 minutes Setup > Display OSD Background Transparency 100% OSD Background Color 85% OSD Language 70% FL Dimmer 50% Screen Saver ✓ 35% 25% 10% 0%

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

OSD Background Color (Default : 1 Green)

Set the OSD screen color.

You can choose one among 1(Green), 2(Blue), and 3(Red).

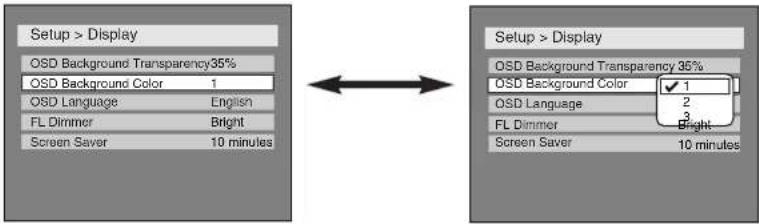

Setup > Display OSD Background Transparency 35% OSD Background Color 1 OSD Language English FL Dimmer Bright Screen Saver 10 minutes Setup > Display OSD Background Transparency 35% OSD Background Color ✓ 1 OSD Language 2 FL Dimmer Bright Screen Saver 10 minutes

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

OSD Language (Default : English)

Set the language for OSD.

Setup > Display OSD Background Transparency 35% OSD Background Color 1 OSD Language English FL Dimmer Bright Screen Saver 10 minutes Setup > Display OSD Background Transparency 35% OSD Background Color 1 OSD Language ✓ English FL Dimmer ✓ Français Screen Saver 10 minutes English Español

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

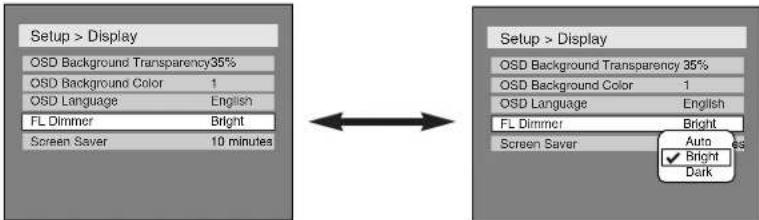

FL Dimmer (Default : Bright)

Set the brightness of front display.

You can choose one among "Auto", "Bright" and "Dark".

When "Auto" is selected, the display dims after 15 seconds of no use.

Setup > Display OSD Background Transparency 35% OSD Background Color 1 OSD Language English FL Dimmer Bright Screen Saver 10 minutes Setup > Display OSD Background Transparency 35% OSD Background Color 1 OSD Language English FL Dimmer Bright Screen Saver Auto ✓ Bright Dark

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

Screen Saver (Default : 10 minutes)

Set the time to work the screen saver function on the screen.

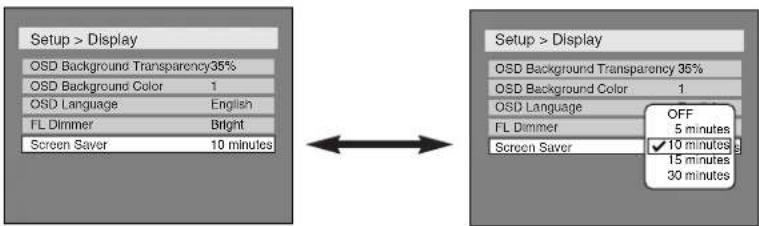

Setup > Display OSD Background Transparency 35% OSD Background Color 1 OSD Language English FL Dimmer Bright Screen Saver 10 minutes Setup > Display OSD Background Transparency 35% OSD Background Color 1 OSD Language OFF FL Dimmer 5 minutes Screen Saver ✓ 10 minutes 15 minutes 30 minutes

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

5

Press SETUP button to exit SETUP menu.

Changing the SETUP menu

Audio setting

Choose the appropriate Audio settings for your equipment. It will only affect DVD discs during playback.

Press STOP button if you are playing a disc.

1

Press SETUP button to display SETUP/DISC menu.

SETUP/DISC menu will appear.

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Recording Display Reset Video Clock Channel Playback Setting

3

Select "Playback" using ▲/▼/

◀/▶ buttons, then press

ENTER button.

Option window will appear.

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF

4

Select a desired item using ▲ / ▼ buttons, then press ENTER button.

Digital Out

Set the digital audio output.

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out PCM Dynamic Range Control Dolby Digital Fast Forward with Audio DTS

POWER DISPLAY TINGER OPENCLOSE .9C ABC DEF CH GHI JKL NNO 4 5 6 RED MONITOR PQRS TUV WXYZ 7 8 9 REC MODE CLEAR SPACE CM SKIP 0 REC PAUSE SKIP II 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note

• Dynamic Range Control function is available only on the discs which are recorded in the Dolby Digital format.

- Select a setting using ▲/▼ buttons, then press ENTER button.

Option window will appear.

Proceed to steps A, B or C.

Changing the SETUP menu

Audio setting (cont'd)

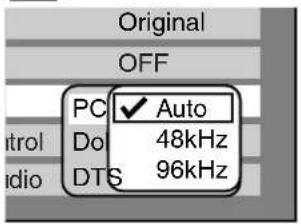

Settings for PCM (Default :Auto)

Original OFF PC ✓ Auto Do 48kHz DTS 96kHz

- Select a setting using ▲ / ▼ buttons, then press ENTER button.

Your setting will be activated.

Auto : Select "Auto" usually.

48kHz : If your amplifier/decoder is NOT compatible with 96kHz PCM, select "48kHz" 96kHz sound will be output in 48kHz.

96kHz : If your amplifier/decoder is compatible with 96kHz PCM, select "96kHz". 96kHz sound will be output.

Note

When playing disc with copyright protection

- If you select "Auto", the sound will be down sampled at 48kHz.

- If you select "96kHz", no digital sound will be output. Select "Auto", so that outputting 48kHz digital sound.

Settings for Dolby Digital (Default : Stream)

Original OFF PCM Control Do PCM Audio D-✓ Stream

- Select a setting using ▲ / ▼ buttons, then press ENTER button.

Your setting will be activated.

PCM : Convert the Dolby Digital into PCM(2 channel). When your amplifier/decoder is NOT compatible with Dolby Digital, set to "PCM".

Stream : Outputs Dolby Digital signals When your amplifier/decoder is compatible with Dolby Digital, set to "Stream".

Note

When playing a DVD-RW disc recorded in VR mode

- If the audio source on a disc is Dolby Digital format, set "Dolby Digital" to "PCM" so that you can switch to main (L), sub audio (R), or a mix of both (L/R) with your amplifier/decoder.

Settings for DTS (Default : OFF)

Original OFF PCM Do ON DTS OFF OFF

- Select a setting using ▲/▼buttons, then press ENTER button.

Your setting will be activated.

ON : Outputs DTS signals.

When your amplifier/decoder is compatible with DTS, set to "ON".

OFF : No DTS, signal is output.

When your amplifier/decoder is NOT compatible with DTS, set to "OFF".

Dynamic Range Control (Default : ON)

Set to ON to compress the range between soft and loud sounds.

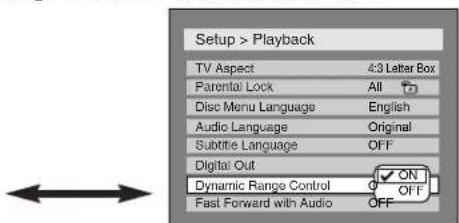

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON OFF Fast Forward with Audio OFF

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

- Dynamic Range Control function is effective only with analog audio connection.

Fast Forward with Audio (Default : OFF)

Set to ON to output the sound during play in fast forward of x2.

Setup > Playback TV Aspect 4.3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF

- Select a setting using ▲/▼ buttons, then press ENTER button.

Your setting will be activated.

5

Press SETUP button to exit SETUP menu.

Changing the SETUP menu

Settings for Parental lock level

Some DVD-Video discs feature a Parental Lock level. Playback will stop if the ratings exceed the levels you set, it will require you to enter a password before the disc will playback. This feature prevents your children from viewing inappropriate material.

Press STOP button if you are playing a disc.

1

Press SETUP button to display SETUP/DISC menu. SETUP/DISC menu will appear.

SETUP DISC Setup Menu

2

Select "SETUP" using ◀/▶ buttons, then press ENTER button.

SETUP menu will appear.

Setup Playback Setting

3

Select "Playback" using ▲/▼/ ◀/▶ buttons, then press ENTER button.

Option window will appear.

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF

4

Select "Parental Lock" using ▲ / ▼ buttons, then press ENTER button.

POWER DISPLAY TURER OPENCLOSE SIC ABC DEF 1 2 3 CH GHI JKL MNO 4 PQRS TUV WXYZ 7 8 9 REC MODE CLENT SPACE CM SKIP 0 REC PAUSE SKIP II REV PLAY FWD STOP SETUP TOP MENU MENU LIST REPEAT ENTER ZOOM RETURN 2 3 4 SHARP

Note

• Parental lock function may not be available to some discs.
• With some DVDs, it may be difficult to find if they are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.
• Record the password in case you forget it.

Changing the SETUP menu

Settings for Parental lock level (cont'd)

Parental Lock (Default :All)

Set the Parental Lock level.

Setup > Playback TV Aspect 4:3 Letter Box Parental Lock All Disc Menu Language English Audio Language Original Subtitle Language OFF Digital Out Dynamic Range Control ON Fast Forward with Audio OFF Setup > Playback TV Aspect All Letter Box Parental Lock 8 Disc Menu Language 7 Audio Language 6 Subtitle Language 5 Digital Out 4 Dynamic Range Control 3 Fast Forward with Audio OFF 2 OFF

- Change the parental level using ▲/▼buttons, then press ENTER button.

Option window will appear Proceed to steps A or B.

A password has not been set yet

- Select "Yes" using ◀/▶ buttons, then enter a new password using Number buttons.

Your setting will be activated.

- If you select "No", proceed to Step 5.

A password has been set already

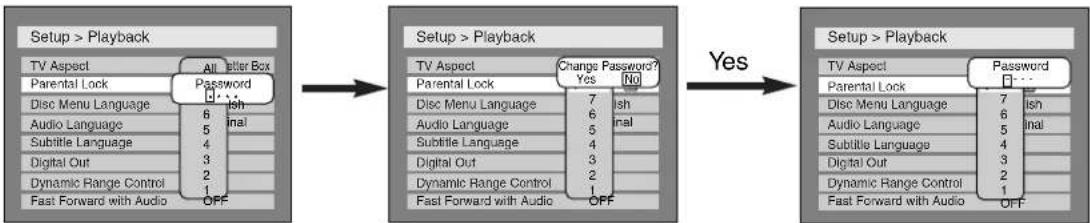

Change the password

- Enter the current password using Number buttons.

- If you select "No", proceed to Step 5.

- Select "Yes" using ◀/▶ buttons, then enter a new password using Number buttons.

Your setting will be activated.

5

Press SETUP button to exit SETUP menu.

Note

• Press CLEAR button to erase numbers entered incorrectly.
• When you forget the password or you want to clear all settings in Parental lock, enter 4,7,3,7 using Number buttons in option window. Password will be cleared and parental levels will be set to All.

Others

Troubleshooting

Before requesting service for this DVD recorder, check the table below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

Symptom Remedy
Power	The power does not turn on.	Check that the AC power cord is connected securely.(In case of power failure) Check the braker.
Picture	There is no picture.	Re-connect the connecting cord securely.The connecting cords are damaged.The Setup Display appears. Press RETURN ← button to turn off the display.Check the connection to your TV (page 13).Check if the INTERLACE/PROGRESSIVE mode is set correctly according to your TV (page 13).Switch the input selector on your TV (such as to "LINE1") so that the signal from the DVD recorder appears on the TV screen.
	Picture noise appears.	The disc is dirty or flawed.If the picture output signal from the DVD recorder passes through your VCR to get to your TV, or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience this problem even when you connect the DVD recorder directly to your TV, try connecting the DVD recorder to your TV's S-VIDEO input.
	TV program reception does not fill the screen.	Try to set the channels with "Auto Preset" in SETUP menu (page 18).Select a channel of any TV program using the CH ▲ / ▼ buttons.
	TV program pictures are distorted. • Adjust TV antenna.Adjust the picture (see the TV's instruction manual).Place the DVD recorder and TV farther apart.Place the TV and any bunched antenna cables farther apart.
	TV channels cannot be changed. • Switch the input to TV.Connect the antenna cable correctly (page 13).
	Playback picture is distorted • Keep the equipment which may cause electrical disturbances, such as a cellular phone, away.
	The playback picture or TV program from the equipment connected through the DVD recorder is distorted.	If the playback picture output from a DVD player, VCR, or tuner goes through the DVD recorder before reaching your TV, the copy-protection signal applied to some programs could affect picture quality. Disconnect the playback equipment in question and connect it directly to your TV.
Sound	There is no sound.	The disc is dirty or flawed.Re-connect all connections securely.The connecting cord is damaged.Check the connections to the amplifier input.The input source setting on the amplifier is incorrect.The recorder is in pause mode or in Slow-motion Play mode.The recorder is in fast forward or fast reverse mode.If the audio signal does not come through the DIGITAL OUT (COAXIAL) jack, check the Audio Setup settings (pages 88-89).
	Sound is noisy. • The disc is dirty or flawed.
Remote control	The remote control does not function.	Batteries are weak.There are obstacles between the remote control and the DVD recorder.The remote is far from the DVD recorder.There are no batteries in the remote.Turn on the DVD recorder.The remote control is not pointed at the remote sensor on the DVD recorder.If above remedies do not solve the problem, please call the Service Center for help.

Others

Troubleshooting (cont'd)

Symptom Remedy
PlaybackThe disc does not play.	No disc is inserted.A blank disc is inserted.The disc is upside down. Insert the disc with the labeled side facing up.The disc is not correctly inserted.The DVD recorder cannot play certain discs (such as a CD-ROM) (page 41).The region code on the DVD VIDEO does not match the DVD recorder (page 41).Moisture has condensed inside the DVD recorder. Remove the disc and leave the DVD recorder turned on for about two hours until the moisture evaporates (page 4).If the disc was recorded on another recorder, the DVD recorder cannot play the disc if it was not finalized (page 39).
Playback image freezes for a second.	During the playback of two layered disc, picture may freeze for a moment when the 1st layer switches to the 2nd layer. This is not a malfunction.
The disc does not start playback from the beginning.	Resume play was activated (page 46). Press STOP button twice.You have inserted a disc whose Title menu or DVD menu automatically appears on the TV screen when it is first insert.
The DVD recorder starts playing from the disc automatically.	The DVD VIDEO features an auto playback function.
Some functions such as Stop, Search, or Slow-motion Play cannot be performed.	Depending on the disc, you may not be able to do some of the operations above. See the instruction manual supplied with the disc.
The language for the sound track cannot be changed.	Multilingual tracks are not recorded on the DVD VIDEO, DVD-R or DVD-RW being played.The DVD VIDEO prohibits the changing of the language for the sound track.Try changing the language using the DVD VIDEO's menu.
The subtitle language cannot be changed or turned off.	Multilingual subtitle are not recorded on the DVD VIDEO.The DVD VIDEO prohibits changing of the subtitles.Try changing the subtitle using the DVD VIDEO's menu.
The angles cannot be changed. Multi-angles are not recorded on the DVD VIDEO being played.You are trying to change the angles when icon does not appear on the TV screen (page 56).The DVD VIDEO prohibits changing angles.Try changing the angle using the DVD VIDEO's menu.
Recording/Timer recording/EditingThe channel cannot be changed from the channel you are recording.	Set the TV's input to "TV."
Recording does not start immediately after you press REC button.	An unused DVD-R or DVD-RW was inserted. It takes a while for the DVD recorder to automatically format a DVD-RW.
Nothing was recorded even though you set the timer setting correctly.	There was a power failure during recording.The DVD recorder's internal clock stopped due to a power failure that lasted for more than 30 seconds.Reset the clock (pages 21-23).Disconnect the AC power cord from the AC outlet, and connect it again.The program contains copy protection signals that restricts copying.The timer setting overlapped with another setting that was set later or has priority.
Recording does not stop immediately after you press STOP button.	It will take a few seconds for the DVD recorder to input disc data before recording can stop.
Timer recording is not complete or did not start from the beginning.	The timer setting overlapped with another setting that was set later or has priority (page 36).Disc space was not enough.

Others

Troubleshooting (cont'd)

Symptom Remedy

Others
The DVD recorder does not operate properly.	When static electricity, etc., causes the DVD recorder to operate abnormally, unplug the DVD recorder and then plug it in again.
The disc tray does not open when you press OPEN/CLOSE ▲ button.	It may take a few seconds for the disc tray to open after you have recorded or edited a disc.This is because the DVD recorder is adding disc data to the disc.
"Repairing" appears on the display.	If there is a power failure or unplugging during recording, finalizing, formatting or editing, a Repairing process will begin automatically just after turning the unit on again.It may take several minutes up to about four hours.

CauseError message

Disc Error--- Please eject the disc. ---Playback feature may not be available on this Disc.	Unplayable disc is inserted in the DVD recorder.The disc is upside down.	Insert the standardized disc which bear the marks on page 41.Insert the disc with the labeled side facing up.
Region Error--- Please eject the disc. ---Playback is not authorized in your region.	Playback is not authorized in the region of the DVD-Video disc which you inserted in the DVD recorder.	Insert the DVD-Video disc with region codes 1 or ALL.
Parental Lock On--- Please eject the disc. ---The current selected parental level Prohibits playback.	The current selected parental level in the SETUP Menu prohibits playback.	Check the "Parental Lock" setting (pages 90-91).
Recording ErrorThis program is not allowed to be recorded.	The recording function encountered the copy prohibited program.	You cannot record copy prohibited programs.
Recording ErrorThis program is not recordable in Video mode.	You are trying to record the copy-once program onto the DVD-RW disc in Video mode.	Set "DVD-RW Recording Format" to "VR mode" (page 28).
Recording ErrorCan not record on this disc.	You are trying to record onto the disc which is unrecordable, or the disc status is unable to record.The disc is dirty.The disc is damaged.	Insert the recordable disc, and ensure the disc status satisfies the recording requirements (pages 26-27).Clean the disc with a cleaning cloth.Replace the disc.
Recording ErrorThis program is not allowed to be recorded on this disc.	You are trying to record the copy-once program onto the DVD-RW disc which is not compatible with CPRM.	Insert the DVD-RW disc (ver.1.1 compatible with CPRM).
Recording ErrorThis disc is protected and not recordable.	You are trying to record on to the protected disc which is set in the Disc Setting Menu.	Release the disc protect setting in the Disc Setting menu (page 40).
Recording ErrorDisc is full.(No area for new recording)	You are trying to record onto the disc which has no space for recording.	Insert the recordable disc with enough recording space.

Others

Troubleshooting (cont'd)

Error message	Cause	Solution
Recording ErrorYou cannot record more than 99 titles on one disc. (The maximum is 99)	You are trying to record onto the disc on which the number of recording titles comes up to the maximum (99).	Delete unnecessary titles (pages 59, 63, 72).
Recording ErrorYou cannot record more the 999 chapters on one disc. (The maximum is 999)	You are trying to record onto the VR mode DVD-RW disc on which the number of recording chapters comes up to the maximum (999).	Delete unnecessary chapter markers (pages 67, 76).
Recording ErrorYou cannot record on this disc as Control Information is full.	This disc has no space to write the Control Information when recording or deleting contents.When editing has been repeatedly performed, the control Information area may come up to be full even the recording area has enough space.	Delete unnecessary titles (pages 59, 63, 72).
Recording ErrorYou cannot record on the disc as Power Calibration Area is full.	When recordings are performed repeatedly onto an unstable disc, this area may come up to be full.Every time you insert a disc for recording, the disc's working area will be taken up. And if you repeat this frequently, it will be used up sooner and you may not be able to record full 99 titles.	Insert a new disc.
Recording ErrorThis disc is already finalized.	You are trying to record onto the disc already finalized.	Release the finalizing for this disc (page 39).

Language code

Language Code Language
(Afan) Oromo 6159
Abkhazian 4748
Afar 4747
Afrikaans	4752
Albanian	6563
Amharic 4759
Arabic	4764
Armenian	5471
Assamese	4765
Aymara	4771
Azerbaijani	4772
Bashkir	4847
Basque	5167
Bengali;Bangla	4860
Bhutani	5072
Bihari	4854
Bislama	4855
Breton	4864
Bulgarian	4853
Burmese	5971
Byelorussian	4851
Cambodian	5759
Catalan	4947
Chinese	7254
Corsican	4961
Croatian	5464
Czech	4965
Danish	5047
Dutch	6058
English	5160
Esperanto	5161
Estonian 5166
Faroese	5261
Fiji	5256

Code Language Code
Finnish	5255
French	5264
Frisian	5271
Galician	5358
Georgian	5747
German	5051
Greek	5158
Greenlandic	5758
Guarani	5360
Gujarati	5367
Hausa	5447
Hebrew	5569
Hindi	5455
Hungarian 5467
Icelandic	5565
Indonesian	5560
Interlingua	5547
Interlingue	5551
Inupiak	5557
Irish 5347
Italian	5566
Japanese	5647
Javanese 5669
Kannada	5760
Kashmiri	5765
Kazakh	5757
Kinyarwanda	6469
Kirghiz	5771
Kirundi	6460
Korean	5761
Kurdish	5767
Laothian	5861
Latin 5847
Latvian; Lettish	5868

age Code
Lingala	5860
Lithuanian 5866
Macedonian 5957
Malagasy	5953
Malay	5965
Malayalam	5958
Maltese	5966
Maori	5955
Marathi	5964
Moldavian	5961
Mongolian	5960
Nauru	6047
Nepali	6051
Norwegian	6061
Occitan	6149
Oriya	6164
Panjabi	6247
Pashto; Pushto 6265
Persian	5247
Polish	6258
Portuguese	6266
Quechua	6367
Rhaeto-Romance	6459
Romanian	6461
Russian	6467
Samoan	6559
Sangho	6553
Sanskrit	6547
Scots Gaelic	5350
Serbian	6564
Serbo-Croatian	6554
Sesotho	6566
Setswana	6660
Shona	6560

Sindhi	6550
Singhalese	6555
Siswat	6565
Slovak	6557
Slovenian	6558
Somali	6561
Spanish	5165
Sundanese	6567
Swahili	6569
Swedish	6568
Tagalog	6658
Tajik	6653
Tamil	6647
Tatar	6666
Telugu	6651
Thai 6654
Tibetan	4861
Tigrinya	6655
Tonga	6661
Tsonga	6665
Turkish	6664
Turkmen	6657
Twi	6669
Ukrainian	6757
Urdu	6764
Uzbek	6772
Vietnamese	6855
Volapuk	6861
Welsh	4971
Wolof	6961
Xhosa	7054
Yiddish	5655
Yoruba	7161
Zulu	7267

Others

Glossary

Analog audio

An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also Digital audio.

Aspect ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the screen is almost square); widescreen models are 16:9 (the screen is almost twice as wide as it is high).

Chapter

Just as a book is split up into several chapters, a title on a DVD disc is usually divided into chapters. See also Title.

Component video output

Each signal of luminance(Y) and component(PB/CB, PR/CR) is independent to output so that you can experience picture color as it is. Also, due to compatibility with progressive video (480p), you can experience higher-density picture than that in interlace (480i).

CPRM

(Content Protection for Recordable Media)

CPRM is a copy protection system with scramble system regarding the recording of “copy-once” broadcast programs (e.g. some satellite broadcasts).

Digital audio

An indirect representation of sound by numbers. During recording, the sound is measured at discrete intervals (44, 100 times a second for CD audio) by an analog-to-digital converter, generating a stream of numbers. On playback, a digital-to-analog converter generates an analog signal based on these numbers. See also Sampling frequency and Analog audio.

Dolby Digital

The system to compress digital sound developed by Dolby Laboratories. It offers you sound of stereo(2ch) or multi-channel audio (up to 5.1ch).

DTS (Digital Theater System)

DTS is a 5.1 channel surround sound system, but it is different from Dolby Digital. The formats were developed by Digital Theater System, Inc.

Finalize

To make DVD discs, which have been recorded on, possible to play in DVD players. With this DVD recorder, it is possible to finalize DVD-R/DVD-RW discs.

MP3 (MPEG Audio Layer 3)

MP3 is a method of compressing files. You can copy MP3 files on CD-RW/R discs from the computer and play the files on this unit.

PCM

(Pulse Code Modulation)

The most common system of encoding digital audio, found on CDs and DAT. Excellent quality, but requires a lot of data compared to formats such as Dolby Digital and MPEG audio. For compatibility with digital audio recorders (CD, MD and DAT) and AV amplifiers with digital inputs, this unit can convert Dolby Digital and MPEG audio to PCM. See also Digital audio.

Playlist

From this list you can play contents of a disc as your desired order or in sequence. Also it is allowed to search a specific scene directly.

Progressive Scan (480p)

A type of display that does not split each frame into fields, and instead scans directly through all the scanlines of each frame in order. Progressive Scan provides less flickering and higher image resolution than traditional (480i) TV signals. Refer to page 13 for instructions on selective Progressive Scan mode.

Regions code

Regions associate discs and players with particular areas of the world. This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).

Sampling frequency

The rate which sound is measured by a specified interval to turn into digital audio data. The numbers of sampling in one second defines as sampling frequency. The higher the rate, the better the sound quality as possible as it is.

SAP

(Secondary Audio Program)

Sub-audio channel which is delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.

S-Video output

It delivers independently each signal of color(C) and luminance(Y) to TV as video signals, so that higher-quality picture will be gained.

Title (DVD only)

A collection of chapters on DVD disc. See also chapter.

Track

Audio CDs use tracks to divide up the content of a disc. The DVD equivalent is called a chapter. See also Chapter.

Others

Specifications

General
System	DVD-Video, DVD-RW/R, CD-DA, CD-RW/R
Power requirements	AC120 V, 60 Hz
Power consumption	23 W (standby: 4.0 W)
Weight	6.0 lbs (2.7 kg)
Dimensions (width x height x depth)	17 1/8" x 2 5/8" x 11 3/4" (435 x 66 x 297 mm)
Operating temperature	41F° to 104F° (5°C to 40°C)
Operating humidity	5% to 85% (no condensation)
TV format	NTSC
Recording
Recording format	Video Recording format (DVD-RW only),Video format (DVD-RW, DVD-R)
Recordable discs	DVD-ReWritable, DVD-Recordable
Video recording format
Sampling frequency	13.5MHz
Compression format	MPEG
Audio recording format
Sampling frequency	48kHz
Compression format	Dolby Digital
Tuner
Receivable channels
VHF	2-13ch
UHF	14-69ch
CATV	C1-C125ch
Input/Output
VHF/UHF antenna input/output terminal	VHF/UHF set 75Ω
Video input	Input 1 (rear), 2 (front)
Input level	1Vp-p (75Ω)
Jacks	RCA jack
Video output	Output 1
Output level	1Vp-p (75Ω)
Jacks	RCA jack
S-Video input	Input 1 (rear), 2 (front)
Y (luminance) - Input level	1Vp-p (75Ω)
C (color) - Input level	286 mVp-p (75Ω)
Jacks	4 pin mini DIN
S-Video output
Y (luminance) - Output level	1Vp-p (75Ω)
C (color) - Output level	286 mVp-p (75Ω)
Jacks	4 pin mini DIN
Component video output
Output level	Y: 1.0Vp-p (75Ω), PB/CB, PR/CR: 0.7Vp-p (75Ω)
Jacks	RCA jacks
Audio input	Input 1 (rear), 2 (front) L/R
During audio input	2V rms (Input impedance: more than 22kΩ)
Jacks	RCA jacks
Audio output	Output 1,2 L/R
During audio output	2V rms (Output impedance: less than 1kΩ)
Jacks	RCA jacks
Digital audio output
Output level	500 mVp-p (75Ω)
Jacks	RCA jack

Note:

The specifications and design of this product are subject to change without notice.

Service Information (For the U.S.)

For the location of the nearest Sharp Authorized Service Center, or to obtain product literature, accessories, supplies or customer assistance, please call 1-800-BE-SHARP (1-800-237-4277) or visit SHARP's website (http://www.sharpusa.com).

Español

Precaciones

This Class B digital apparatus complies with Canadian ICES-003.

Blank white rectangle with a single black dot in the top-left corner (no text or symbols)

REC NODE CLEAR SPACE ON SKIP REC PAUSE SKIP REV PLAY STOP SETUP TOP VIEW NEM/UST

Empty white rectangle with a small black square in the top-left corner (no text or symbols)

(Valid for warranty service in the U.S. only)

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Model Specific Section

Your Product Model Number & Description: DV-SR45U DVD Recorder

(Be sure to have this information available when you need service for your Product.)

Warranty Period for this Product:

One (1) year parts and ninety (90) days labor from date of purchase.

Additional Item(s) Excluded from warranty Coverage (if any):

Non-rechargeable batteries.

Where to Obtain Service:

Call Sharp Electronics corporation toll free at 1-800-BE-SHARP for instructions on how to obtain service on your DVD recorder.

What to do to Obtain Service:

Ship your product, prepaid, as per the instruction given by the Sharp representative at the toll free number (1-800-BE-SHARP). BE sure to have your proof of purchase available. Be sure to ship the product securely packaged and insured against shipping damage.

TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, GO TO OUR WEBSITE AT www.sharpusa.com OR CALL 1-800-BE-SHARP.

SHARP®

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

Osaka, JapanOsaka, Japan
