USER MANUAL KLT-10RL Raya

Rit ring mounted on a tripod against a solid red background (no text or symbols visible)

PRECAUTIONS ⚠️

• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this unit away from water and any flammable gases or liquids.
• Do not stare directly at the lights when they are powered on.
• Clean the unit with a soft, dry cloth.
• Keep this unit away from children.
  • Make sure the item is intact and that there are no missing parts.
• All images are for illustrative purposes only.

Front

1 2

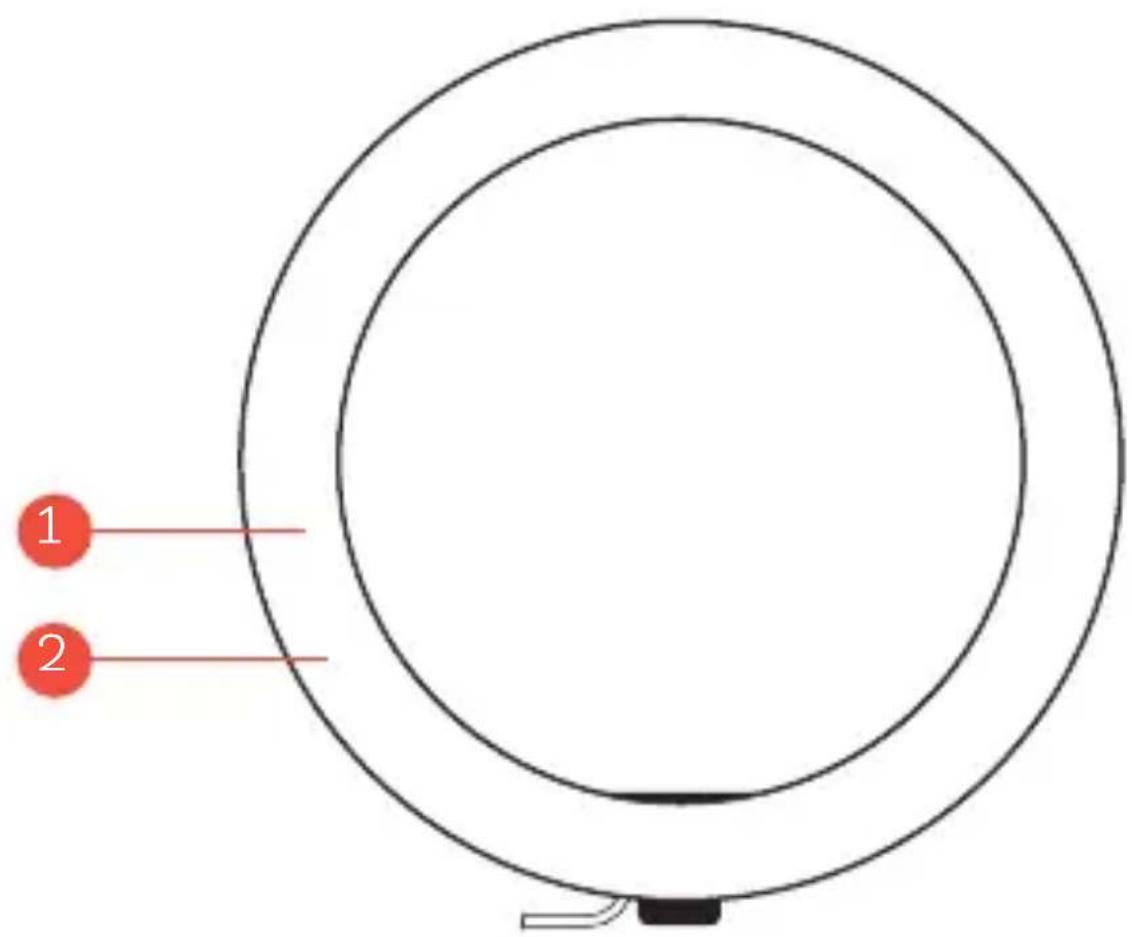

Light

1. LED array
2. Diffuser

Back

3 4 5 6 7

1. Heat vents
2. 1/4-20 phone arm mounting socket
3. 1/4-20 tripod mounting socket
4. Cold-shoe mounts
5. USB cable: connect to a powered USB port.

8 10 9

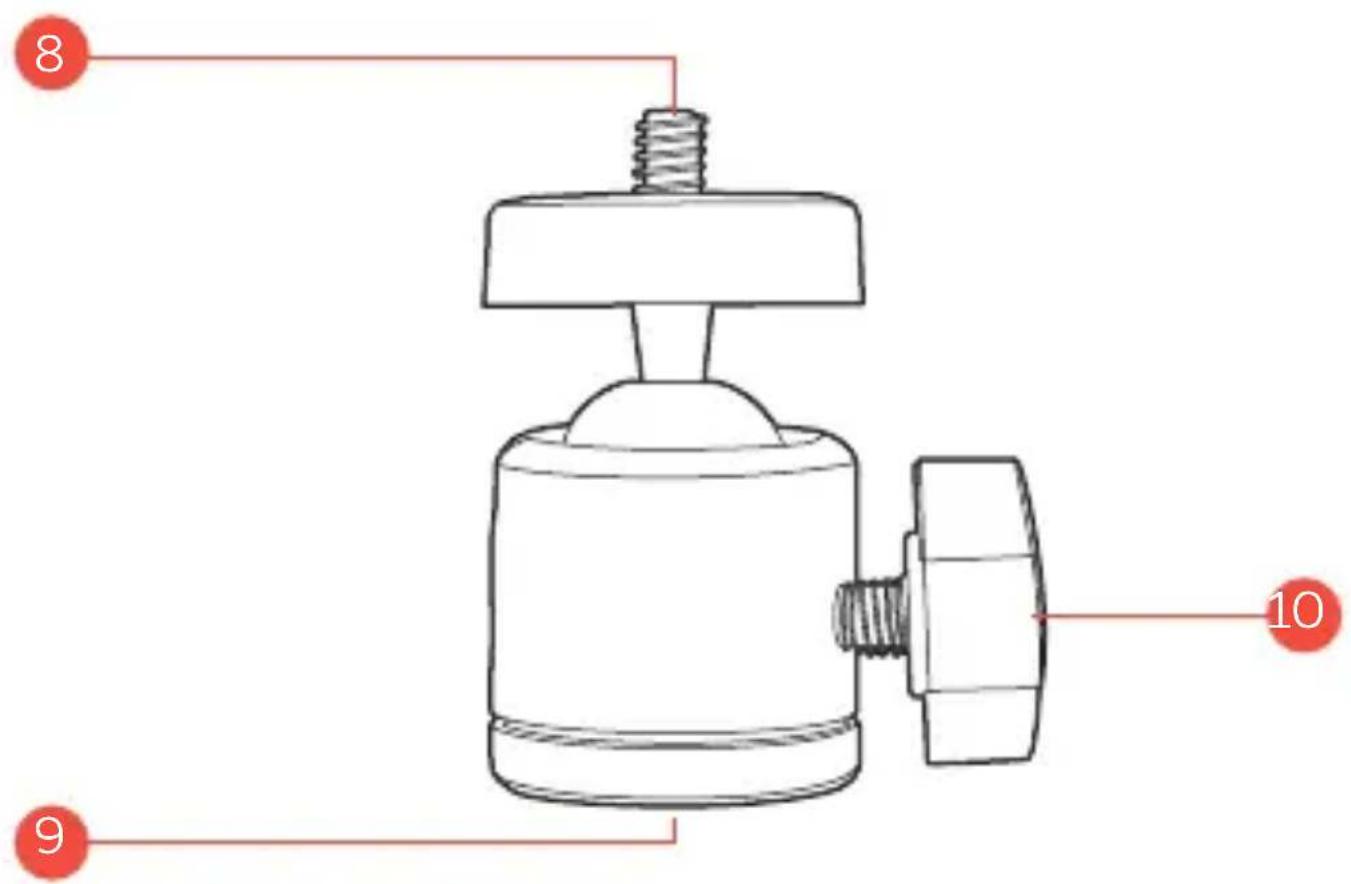

Ballhead

1. 1/4-20 screw: Attach to the ring light.
2. 1/4-20 socket: Screw onto the tabletop tripod.
3. Locking knob: Loosen to adjust the angle. Tighten to secure.

11 12

Phone Arm

1. Clamp: Fits phones up to 3.25 in. wide.
2. Locking wheel: Loosen to adjust the aim. Tighten to secure.

13 14 15

Controller

1. Color temperature: Press repeatedly for cool, warm, and neutral color temperature settings.
2. Power button: Press to turn the light on or off.
3. Brightness: Press to increase or decrease the brightness.

16 17

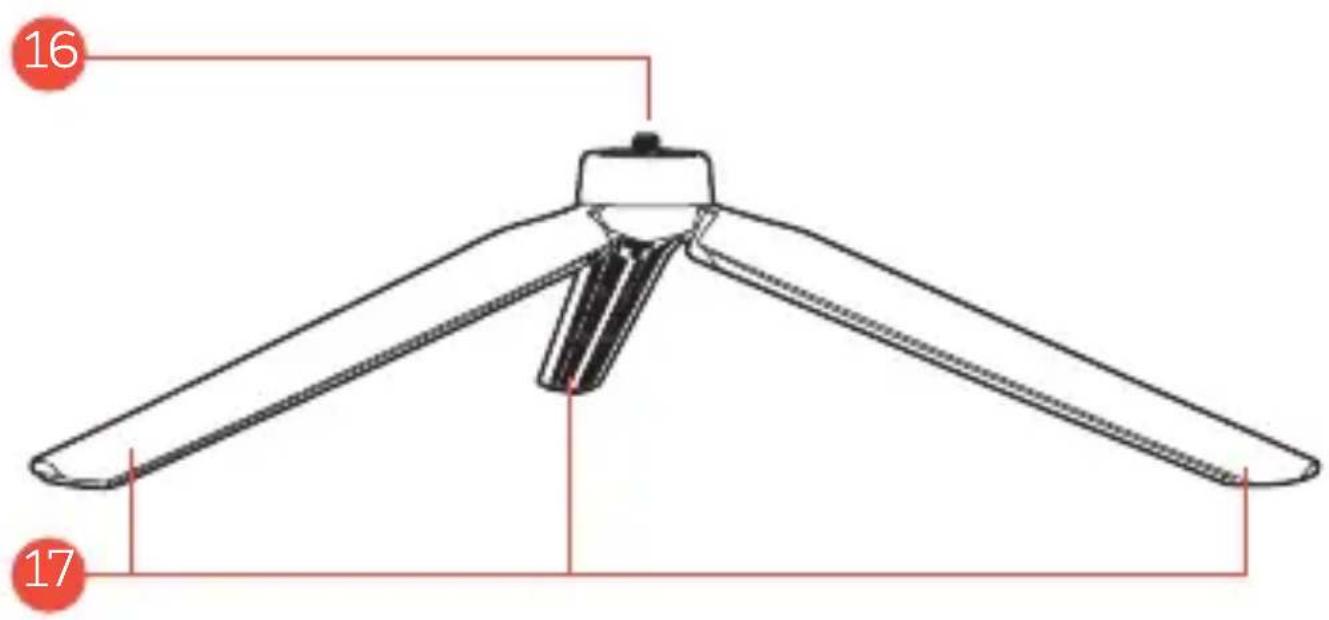

Tabletop Tripod Stand

1. 1/4-20 screw
2. Legs: Spread the legs for tabletop tripod support. Collapse them together to use the tripod as a handheld grip for the light.

18 19 20 22 21

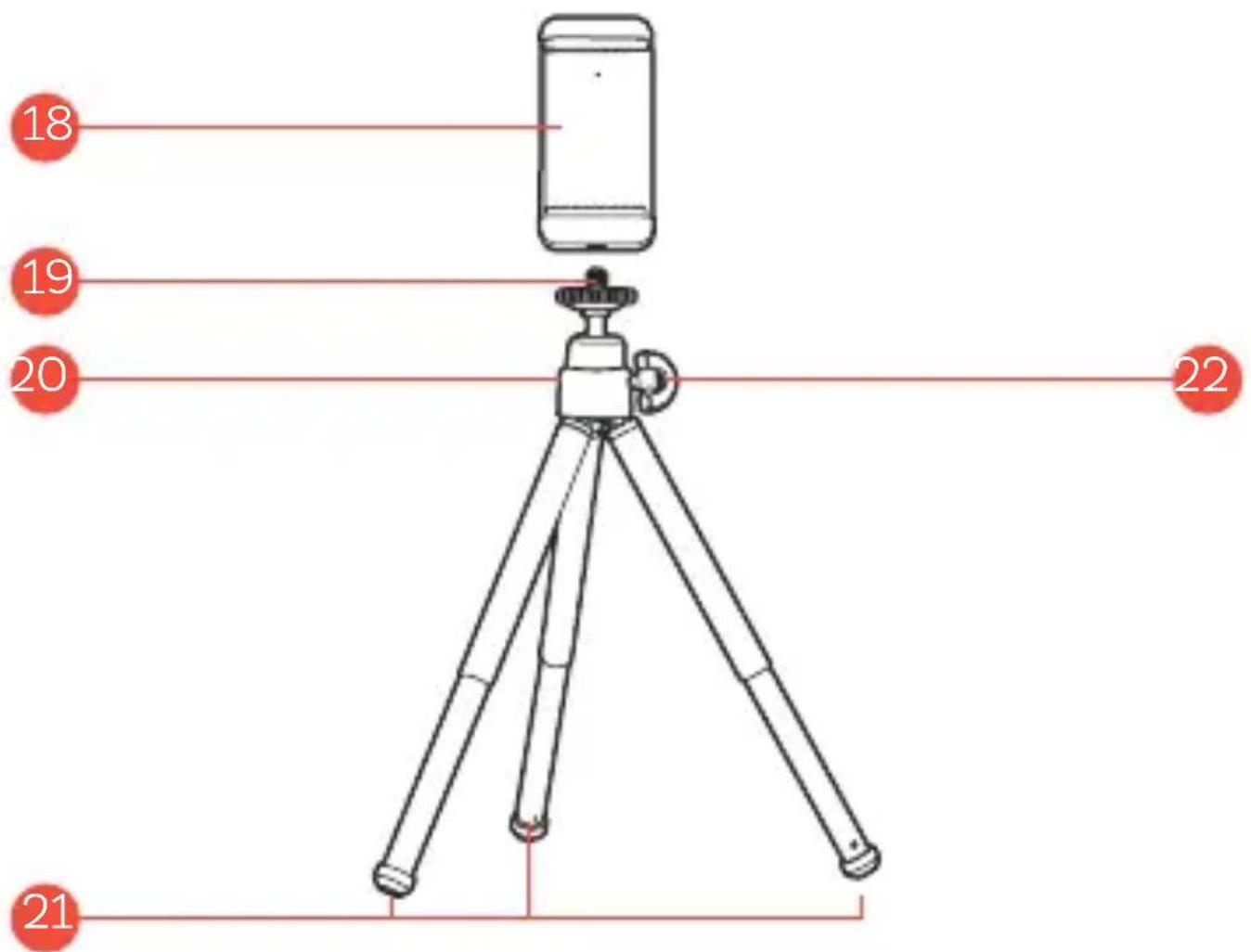

Mini Tripod

1. Phone clamp: Fits phones up to 3.25 in. wide and has two 1/4-20 sockets.
2. 1/4-20 screw
3. Ballhead
4. Adjustable-height legs: Pull from the bottom to adjust the height.
5. Locking wheel

SPECIFICATIONS

Light Intensity @ 3 ft.	134 lx (5600 K)
Input 5 V
Power Connector	USB Standard-A male
Color Temperature	3 step (cool, warm, neutral)
Smartphone Compatibility	3.25 in. (8.2 cm) max width
Cable Length 6.25 ft. (1.9 m)
Dimensions Diameter: 10 in. (25.4 cm)Depth: 1.1 in. (2.8 cm)Phone Arm Length: 7 in. (17.8 cm)Ballhead Height: 1.9 in. (4.8 cm)
Weight 1.4 lb. (635 g)
