KHMB732OB - Blender KITCHENAID - Free user manual and instructions

Product type	Immersion blender
Brand	KitchenAid
Model	KHMB732OB
Speeds	7 speeds + turbo
Power	260 W
Power supply	220-240 V, 50-60 Hz
Dimensions (L x W x H)	40 x 7 x 8 cm
Weight	1.2 kg
Shaft material	Stainless steel
Included accessories	Mixing attachment, whisk, measuring cup (1 L)
Main functions	Blend, emulsify, puree, milkshake
Care and cleaning	Removable shaft dishwasher-safe, wipe the motor unit with a damp cloth
Safety	Safety lock, non-slip handle
Spare parts and repairability	Shaft, whisk, cup sold separately; repairability score 8.2/10
Warranty	2 years

Frequently Asked Questions - KHMB732OB KITCHENAID

How to use the KitchenAid KHMB732OB immersion blender?

Plug in the appliance, insert the shaft into the food, select the desired speed (1 to 7) or use the turbo mode. Hold down the start button while operating. Do not run for more than 1 minute continuously.

What accessories are included with the KHMB732OB model?

The appliance comes with a stainless steel blending shaft, a whisk, and a 1-liter measuring cup.

How to clean the KitchenAid immersion blender?

Unplug the appliance. Detach the shaft and whisk: they are dishwasher-safe (top rack). Clean the motor unit with a damp cloth, never immerse it in water.

Can I blend hot foods with this blender?

Yes, but let cool to below 80°C to avoid splattering and do not exceed the maximum cup capacity.

What to do if the appliance does not start?

Check that the shaft is properly attached (click). Ensure the outlet works. If the problem persists, contact KitchenAid customer service.

Can the shaft be used to crush ice?

No, the shaft is not designed for ice. Use a standard blender for ice cubes to avoid damaging the appliance.

What is the power of this immersion blender?

The power is 260 watts, with 7 speeds and a turbo mode for thick mixtures.

Are the accessories compatible with other KitchenAid models?

The shafts and whisks for the KHMB732OB are specific to this series. Check compatibility with the manufacturer before using parts from other models.

How to store the immersion blender?

Store it in a dry place, away from dust. You can attach the whisk or shaft via the storage clip on the motor unit (depending on version).

Where to find spare parts for the KHMB732OB?

Spare parts (shaft, whisk, cup) are available on the official KitchenAid website or from authorized dealers. Always use original parts.

USER MANUAL KHMB732OB KITCHENAID

7 Speed Cordless Hand Mixer

KHMB732

Exterior view of a modern kitchen blender with a wire whisk and power cord (no text or symbols visible)

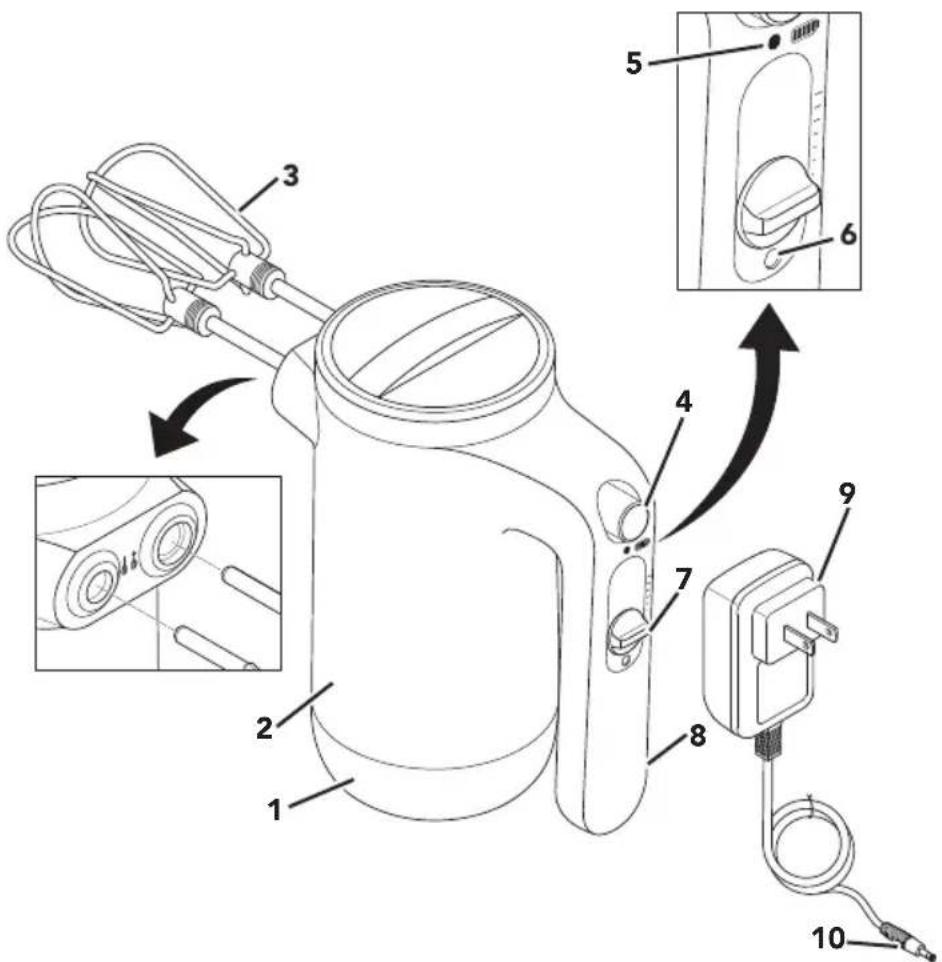

PARTS AND FEATURES

Technical diagram of a device with numbered components and exploded view, showing internal wiring and component assembly.

1 Upright Stance
2 Motor Body
3 Stainless Steel Turbo Beaters ^TM II
4 Eject Button
5 Battery Status Indicator

6 Charging Port
7 Speed Controller
8 Handle
9 Charger Adapter
10 Charger Adapter Pin

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put the Motor Body of Cordless Hand Mixer, Charger Adapter, cord, or electrical plug in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Turn the appliance OFF before assembling or disassembling parts and before cleaning. To unplug the charger, grasp the plug and pull from the outlet. Never pull from the power cord.
5. Do not use an extension cord. Plug charger directly into an electric outlet.
6. Use only with the charger provided with the appliance. Do not attempt to use this charger with any other product. Likewise, do not attempt to charge this appliance with any other charger.
7. Do not incinerate this appliance even if it is severely damaged. The batteries can explode in a fire.
8. Avoid contacting moving parts. Keep hands, hair clothing, as well as spatulas and other utensils away from beaters and accessories during operation to reduce the risk of injury to persons or damage to the Cordless Hand Mixer.

PRODUCT SAFETY

1. Do not operate any appliance or Charger Adapter with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.
2. The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.
3. Do not use the appliance outdoors.
4. Do not let cord hang over edge of table or counter.
5. Never leave the appliance unattended while it is in operation.
6. Do not let cord contact hot surface, including the stove.
7. Remove beaters or accessories from the Cordless Hand Mixer before washing.
8. Refer to the “Care and Cleaning” section for instructions on cleaning the surfaces in contact with food.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

Charger Adapter:

Input: 120 Volts 60 Hz

Cordless Hand Mixer:

Voltage: 12 V\~

NOTE: If the plug does not fit fully in the outlet, contact a qualified electrician. Do not modify the plug in any way.

LITHIUM-ION BATTERY OPERATED PRODUCT DISPOSAL

Always dispose the battery operated products according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations.

GETTING STARTED

BEFORE FIRST USE

1. Charge the battery until the Battery Status Indicator turns solid green.
2. Clean all the parts. (see "Care and Cleaning" section).
3. Remove all packaging materials, if present.

BATTERY STATUS

Battery Status	% Battery Status Full Charge*	Quick Charge**
Green	30 % to 100 %	200 cookies 1	cake batter
Yellow	15 % - 30 % (Consider Charging)
Red	Lower than 15 % (Need to charge soon)

*Full Charge:

The Cordless Hand Mixer will be fully charged in 2 hours and 40 minutes. The Battery Status Indicator pulses when it charges and turns to solid green with a full charge.

The Cordless Hand Mixer will prepare approximately 200 cookies, based on 4 batches of chocolate chip cookies when following the recommended battery maintenance.

**Quick Charge:

In 10 minutes the Cordless Hand Mixer will quick charge. The Cordless Hand Mixer will stir up a cake batter recipe with one quick charge when following the recommended battery maintenance.

NOTE: Make sure to charge the battery, when the Battery status indicator is yellow.

NOTE: It is best to store the Cordless Hand Mixer at room temperature.

BATTERY CHARGING

Technical line drawing of a mechanical component with no visible text or symbols

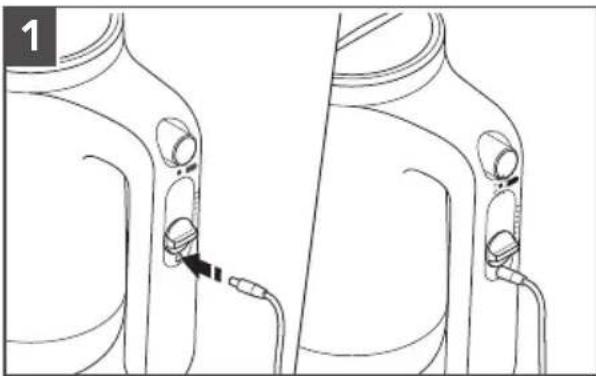

First, slide the Speed Controller to "O" position and insert the Charger Adapter pin into the Charging Port.

Illustration of a power outlet with two socket switches, no text or symbols present

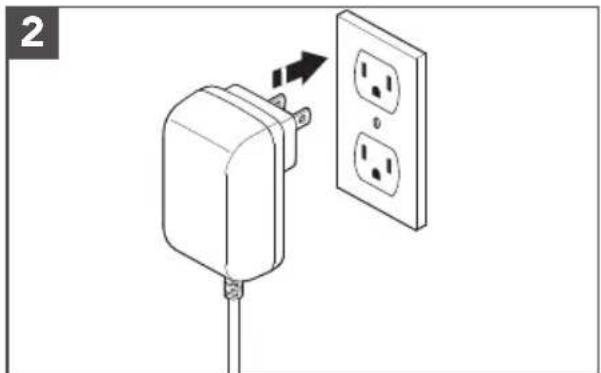

Plug the Charger Adapter into a grounded electrical outlet.

BATTERY CHARGING

Technical line drawing of two mechanical components with mounting holes and connecting rods (no text or symbols)

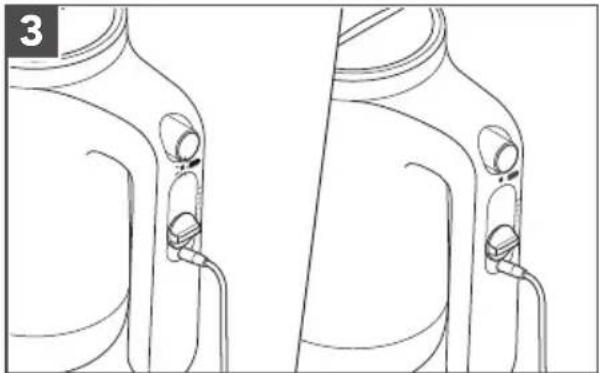

The Battery Status Indicator pulses when it charges. It will be fully charged in 2 hours and 40 minutes and the Battery Status Indicator turns solid green.

PRODUCT ASSEMBLY

Simple line drawing of a device with a circular component and downward arrow, no text or symbols present.

IMPORTANT: Make sure that the Speed Controller is at "O" position before attaching and removing Stainless Steel Turbo Beaters™ II.

2 A B

There are two Stainless Steel Turbo Beaters™ II. One is without a collar (A) and another with a collar (B).

3 C A B D

Insert the Stainless Steel Turbo Beaters ^TM II without a collar (A) into the smaller opening (C) and Stainless Steel Turbo Beaters ^TM II with a collar (B) into the larger opening (D). Align and push to lock into place. Both the Stainless Steel Turbo Beaters ^TM II will click in.

PRODUCT USAGE

NOTE: Make sure the Cordless Hand Mixer is charged before use.

1

Pure diagram of a vertical cylindrical device with an arrow pointing upward, no text or symbols present.

Always start mixing at the lowest speed, and by sliding the Speed Controller, increase the speed according to the recipes.

2

Diagram showing two identical mechanical components with arrows indicating upward and downward motion (no text or symbols)

To increase the speed, slide the Speed Controller forward (↑). To decrease the speed, slide the Speed Controller backward (↓).

3

Pure diagram of a thermometer with a downward arrow, no text or symbols present

When finished, slide the Speed Controller to "O" position.

CARE AND CLEANING

IMPORTANT: Make sure the Speed Controller is at "O" before attaching or removing Stainless Steel Turbo Beaters™ II.

1

Line drawing of a hand holding a kitchen mixer with a black arrow indicating motion (no text or symbols)

Press the Eject Button to release the Stainless Steel Turbo Beaters™ II from the Cordless Hand Mixer.

2

Always remove the Stainless Steel Turbo Beaters™ II from the Cordless Hand Mixer before cleaning. Wash in dishwasher, or by hand in warm, soapy water. Rinse and wipe dry.

CARE AND CLEANING

3 Wipe the Cordless Hand Mixer with a damp cloth. Dry with a soft cloth.

NOTE: To avoid damage to the Cordless Hand Mixer, do not immerse in water.

For detailed information about the Cordless Hand Mixer:

Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, and tips on how to use and clean your Cordless Hand Mixer.

TROUBLESHOOTING GUIDE

Problem Solution
If the Cordless Hand Mixer fails to start:	Check if the product is charged.Charge the battery when the Battery status indicator is red or when the Battery is completely drained.
If the Cordless Hand Mixer is not getting charged:	If you have a circuit breaker box, make sure that the circuit is closed.
If the problem cannot be corrected:	See the “Warranty and Service” sections.Do not return the Cordless Hand Mixer to the retailer.Retailers do not provide service.

WARRANTY AND SERVICE

KITCHENAID® CORDLESS HAND MIXER WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for the Cordless Hand Mixer operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Cordless Hand Mixer See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1.800.541.6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship.Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Cordless Hand Mixer is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Cordless Hand Mixer to an Authorized Service Center.D. Replacement parts or repair labor costs for the Cordless Hand Mixers operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Cordless Hand Mixer should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Cordless Hand Mixer returned to us. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your Cordless Hand Mixer should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at

1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Cordless Hand Mixer, use the carton and packing materials to pack up your original Cordless Hand Mixer.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Cordless Hand Mixer should fail within the first year of ownership, KitchenAid Canada will replace your Cordless Hand Mixer with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your Cordless Hand Mixer should fail within the first year of ownership, take the Cordless Hand Mixer or ship collect to an Authorized KitchenAid Service Center.

In the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement Cordless Hand Mixer will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner call our toll-free Customer eXperience Center at 1-800-807-6777.

Or write to us at: Customer eXperience Center KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico: For service information, or to order accessories or replacement parts, call tollfree at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Cordless Hand Mixer for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

Or write to: Customer eXperience Center KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

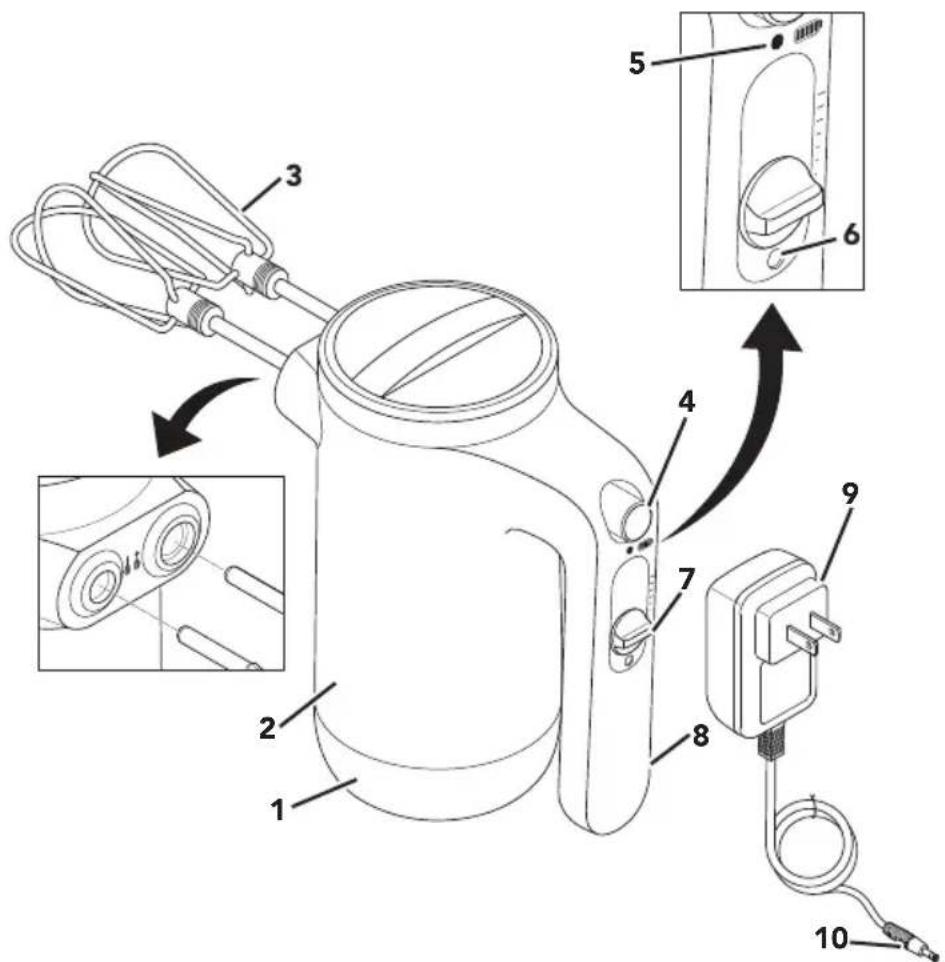

PIÈCES ET CARACTÉRISTIQUES

Technical diagram of a mechanical device with numbered components and exploded view, showing internal parts and wiring connections.

Technical line drawing of two mechanical components with mounting holes and connecting rods (no text or symbols)

ASSEMBLAGE DU PRODUIT

1

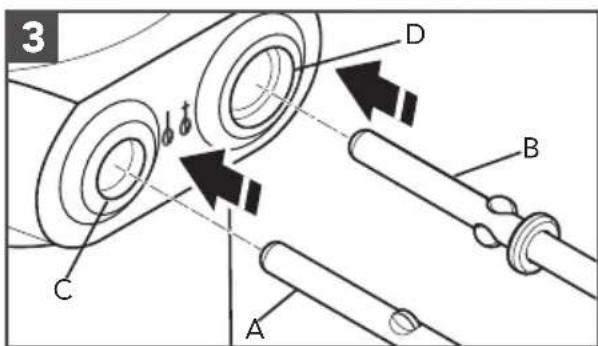

There are two Stainless steel turbo beaters ^™ II. One is without a collar (A) and another with a collar (B).

3 C A B D

Pure diagram of a vertical cylindrical device with an arrow pointing upward, no text or symbols present.

Diagram showing two identical mechanical components with arrows indicating upward and downward motion (no text or symbols)

Pure diagram of a thermometer with no text or symbols, showing a circular dial and downward arrow (no readable text or labels)

Line drawing of a hand using a kitchen mixer with a black arrow indicating motion (no text or symbols)

Diagram showing a mechanical device with grid layout and a separate wire meshing device (no text or symbols)

Line drawing of a hand holding a camera lens (no text or symbols)

Technical diagram of a mechanical device with numbered components and exploded view, showing internal wiring and assembly steps.

Technical line drawing of two mechanical components with mounting holes and connecting rods (no text or symbols)

Pure diagram of a vertical cylindrical device with an arrow pointing upward, no text or symbols present.

Diagram showing two identical mechanical components with arrows indicating upward and downward motion (no text or symbols)

Pure diagram of a vertical cylindrical device with internal components and a downward arrow, no text or symbols present.

Line drawing of a hand using a kitchen mixer with a black arrow indicating the handle (no text or symbols)

White silhouette of a telephone handset on black background (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

MEXICO: KitchenAid.com.mx

LATIN AMERICA: KitchenAid-Latam.com

Silhouette of a kitchen mixer and bowl (no text or symbols)

KitchenAid®

®/TM ©2022 KitchenAid. All rights reserved. Used under license in Canada.
