Please read this instruction carefully before operating it

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions.... 1
2. Installation 5

2.1 Site 5
2.2 Ventilation....6
2.3 Change of the hinge position....6

1. Operation....7

3.1 Appliance and control panel....7
3.2 Before initial operation....8
3.3 Temperature setting....8
3.4 Operation parameters....8
3.5 Helpful hints/energy saving....9

1. Cleaning and maintenance....9
   4.1 Replacing of the illuminant 10
2. Trouble shooting....11
3. Decommissioning....12

- The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for commercial use.
i The appliance is intended for cooling beverages.
i The appliance is intended for indoor-use only.

The appliance is not intended to be operated during camping and in public transport.
Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.
3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

⚠ WARNING!

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

2. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

3. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.

4. Do not use a socket board or a multi socket when connecting the appliance to the mains.

5. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

6. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

7. The technical data of your energy supplier must meet the data on the model plate of the appliance.

8. Your domestic circuit must be equipped with an automatic circuit breaker.

9. Do not modify the appliance.

10. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

11. Disconnect the appliance from the mains before you clean or maintain it.

12. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

13. Do not put any heat-radiating appliances onto your appliance.

14. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.

15. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

16. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

17. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

18. Gildren must never play with the appliance.

19. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate

20. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time

2. Do not touch the extremely cooled surfaces with wet or damp hands, beca use your skin may stick on these surfaces.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Do not tilt the appliance more than 45.
3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
5. Never use the door for moving the appliance as you will damage the hinges.
6. The appliance must be transported and installed by at least two persons
7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. Do not put hot liquids or hot foodstuff into the appliance.
11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
12. Condensation may form on the glass door, this is normal and is due to high humidity of the surrounding area.
13. Body on both side of the cooler may gets warm or hot, it is normal due to hot pipes embedded to prevent body from getting rusty.

2.1 Site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. Completely remove the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
4. Check that the appliance and the power cord are not damaged.
5. Install the appliance in a dry and well-ventilated place.
6. Protect the appliance from direct sunlight.
7. The doors must open completely and without hindrance.
8. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
9. Connect the appliance to the mains properly.
10. The nameplate is situated inside the appliance or at the back.

2.2 Ventilation

Minimum distances required for proper ventilation:

A. Back ↔ wall Min. 5 cm
B. Right/left ↔ any piece of furniture/wall	Min. 1 cm

2.3 Change of the hinge position

WARNING!

Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

CAUTION!

The change of the position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance.

Preparation

1. Empty the appliance completely.
2. Tools required: Cross slot screwdriver, flathead screwdriver, hexagonal spanner.
3. Set the adjustable feet to their highest position.
4. You must tilt the appliance backwards to remove the door. Lean the appliance against a solid construction and block it, so the appliance cannot slide away while you are working.
5. The appliance must not tip over or lie on one of its sides. Otherwise you may cause serious damage to the cooling system.
6. Keep all de-installed parts in a safe place.

Change

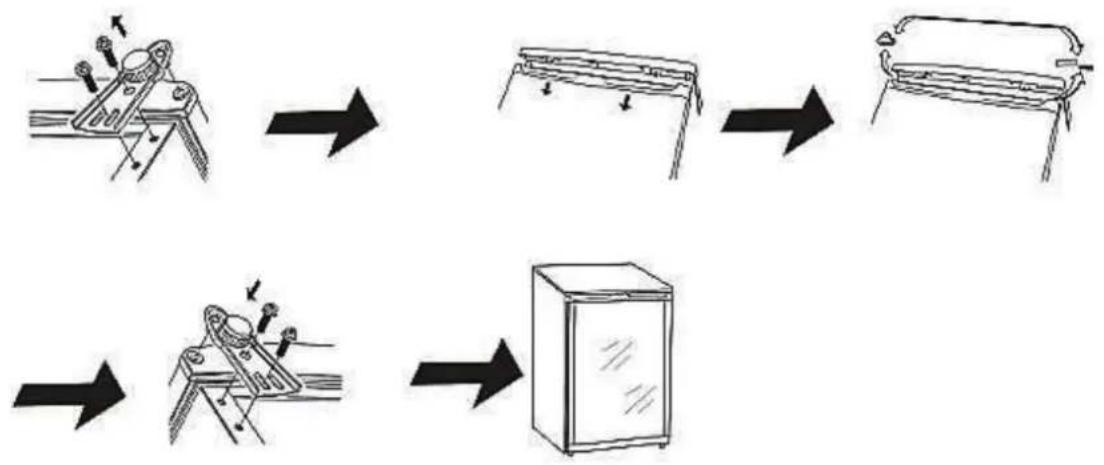

1. Remove the screws and hinge bracket on the base.
2. Let the door slide down. Remove the door.
3. Remove the top hinge pin (inside the door) and refit it on the opposite side.
4. Place the door on the top hinge. Install the bottom hinge on the opposite side.
5. Check proper horizontal and vertical adjustment of the door and perfect fit of the door seal before you tighten the bottom hinge.
6. Check again that the door is adjusted properly so you can open/close the door smoothly.

3.1 Appliance and control panel

After installation wait 4-6 hours before you connect your appliance to the mains!

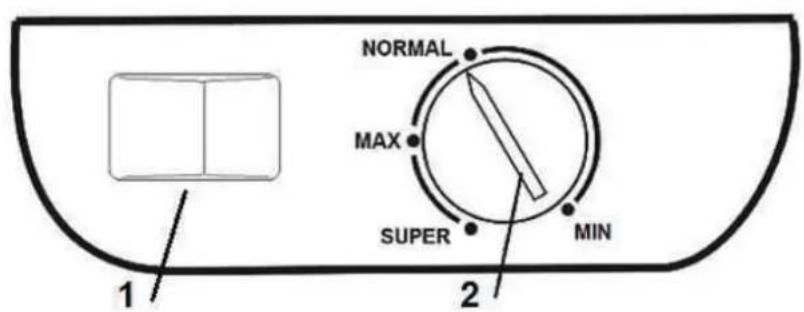

NORMAL MAX SUPER MIN 1 2

1 Light on/off

2 Rotary knob

MIN Lowest setting (warmest cooling temperature)

MAX Highest setting (coldest cooling temperature)

SUPER Super cooling

NORMAL Recommended setting at cool ambient temperatures

- Initial operation: Plug in the appliance and turn the rotary knob clockwise.

3.2 Before initial operation

1. Clean the appliance thoroughly. Be very careful especially inside the appliance (look at chapter CLEANING AND MAINTENANCE).
2. If the accessories inside the appliance are not fitted in their correct position, replace them according to the image in chapter 4.
3. The appliance must be connected to the mains properly.
4. If the appliance was disconnected from the energy supply, wait 5 minutes before you restart it.
5. Do not overfill the appliance

3.3 Temperature setting

Initial operation: Set the thermostat to MAX until the desired cooling temperature has been reached; then set the thermostat to NORMAL. Correcting the temperature will be easier at a later point in time.

Super: This setting accelerates the cooling process. This setting is not intended for permanent operation!

- You can additionally use a fridge-thermometer to check the cooling temperature.

3.4 Operation parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
c. the appliance is properly positioned.

f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

3.5 Helpful hints/energy saving

• Try opening the door as little as possible, especially when the weather is warm and humid.
• If you open the door, close it as soon as possible.
• Permanently check, if the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
• Set the temperature control from a high to a low position as soon as it is possible. This depends on the amount of contents and the room temperature.
• Encrusted ice causes a higher energy consumption. Defrost encrusted ice if its diameter is more than 3 mm (1/8").
• Occasionally clean the rear of your appliance with a brush or a vacuum cleaner to avoid an increased energy consumption.
• Disconnect the appliance from the mains if you do not operate it. Always keep the door seals clean and in a proper condition.

4. Cleaning and maintenance

1. △WARNING! Disconnect the appliance from the mains before you clean or maintain it.
2. Always keep the appliance clean so that unpleasant odours do not occur.
3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

1. Do not use any harsh, abrasive detergents.
2. Do not use any aggressive detergents.
3. Do not use any solvents.
4. These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a mild, non-acrid detergent.

2. Use clear water to rinse.

3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the other removable parts with warm water and a mild, non-acrid detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Clean the interior with baking soda (3 tablespoons per 1 litre of water) or with water and a mild, non-acrid detergent.
5. Use clear water to rinse.
6. Dry the cleaned surfaces with a cloth.
7. Check the water drain and clean it if needed.

Door seals

- Clean with warm water and a mild, non-acrid detergent.

4.1 Replacing of the illuminant

1. Set the thermostat to MIN and disconnect the appliance from the mains, before you change the illuminate
2. Remove the screw of the illuminant cover with a screwdriver.
3. Remove the illuminant cover.
4. Unscrew the old illuminant (anticlockwise direction).
5. Replace the old illuminant with a new one of the same kind and power (10W SES).
6. Reinstall the cover.

Diagram showing a device being inserted into a container with a screwdriver (no text or symbols present)

MALFUNCTION POSSIBLE CAUSE MEASURE

The appliance does not work at all.

• The plug of the appliance is not connected to the socket.

• The plug has become loose. The socket is not supplied with energy.
  • The fuse is switched off.
  • The voltage is too low.

• Check the corresponding socket by connecting it with another appliance.

• Check the fuse box.
• Compare the data on the model plate with the data of your energy supplier.

The compressor does not work at all.

- Incorrect energy supply.

- Check the energy supply.

The compressor operates for too long.

• The appliance has been switched off for a while.

• Doors opened too often or too long.

• The appliance needs some time to reach the preset temperature.

• Do not open the door too often/too long.

Unsatisfactory cooling capacity.

• The door was frequently opened.
- Select a different setting if necessary.
• The door is not properly closed.
- Check the door/door seals.
• Encrusted ice inside the appliance.
• Defrost the appliance.
- The current temperature setting is too warm
- Warm or hot beverages inside the appliance.
• The appliance is overfilled.
• The door seals are damaged.

Strong formation of encrusted ice.

• The door is not properly closed.
- Close the door.
• The door seal is damaged or soiled.
- Clean/replace the door seal.

The door makes a strange sound when opened.

• The door seals are soiled.

- Clean the seals.

Unusual noise.

- The appliance is not installed on a level, dry and solid floor.

• Realign the appliance.

- The appliance is in contact with a wall or another item. The bottles are incorrectly positioned.

- Readjust the appliance.

- Realign the bottles

- Some items have dropped behind the appliance.

- Remove these items.

- If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the shop you purchased the appliance at.

i

The operating procedures described below are normal and do not indicate a malfunction.

• The refrigerant generates a sound similar to flowing water.
• Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
• The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you run the appliance for the first time or the temperature falls below a certain level the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

Clicking

You will hear the compressor click when it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking/snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

6. Decommissioning

Decommissioning, temporarily

- If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.

3. Dry the inside of the appliance with a cloth and leave the door open for a few days.
   • While away on an average vacation/holiday (21 days):

4. Do the same as described above

5. let the appliance operate.

a. remove all perishable food from the cooling compartment.
b. clean the cooling compartment.
c. freeze all food which is suitable to be frozen.

• If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the fee of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter 12.

Corberó
