| Product type | DLP video projector |
| Brand | Panasonic |
| Model | PT-D7500U |
| Native resolution | SXGA+ (1400 x 1050) |
| Brightness | 7000 ANSI lumens |
| Contrast ratio | 2000:1 |
| Display technology | 3-chip DLP 0.95" |
| Lens | Motorized zoom, vertical/horizontal lens shift |
| Lamp life | 2000 hours (normal mode), 3000 hours (eco mode) |
| Lamp power | 300 W UHM |
| Video inputs | RGB (2x), DVI-D, S-Video, Composite, Component |
| Audio inputs | Stereo RCA, 3.5 mm mini-jack |

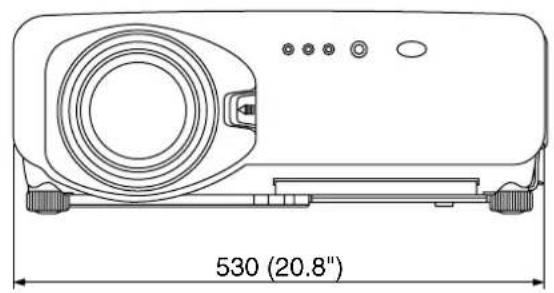

| Dimensions (W x D x H) | 530 x 440 x 190 mm |
| Weight | 16.5 kg |
| Power supply | 100-240 V AC, 50/60 Hz, 750 W (max) |
| Standby power consumption | 0.5 W (eco mode) |
| Noise level | 35 dB (normal mode), 30 dB (eco mode) |
| Main features | Keystone correction, scaling, color calibration, picture-in-picture |
| Maintenance and cleaning | Clean the air filter every 100 hours, use a soft dry cloth |
| Security | Menu lock, Kensington anti-theft bracket, auto shutdown |
| Spare parts and repairability | Replaceable lamp, accessible filter, optional lens kit |
Frequently Asked Questions - PT-D7500U PANASONIC

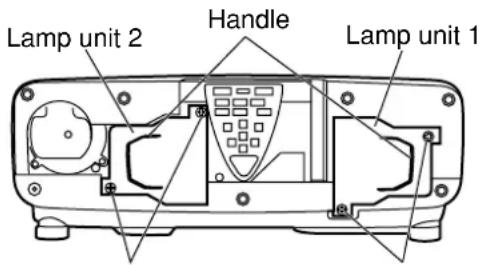

How to replace the lamp of the Panasonic PT-D7500U?
Turn off the projector and unplug it. Wait 30 minutes for cooling. Open the lamp cover, remove the old lamp and insert the new one (model ET-LAD60). Close and reset the lamp counter via the menu.
What is the maximum supported resolution?
The projector has a native resolution of SXGA+ (1400 x 1050) and can accept up to UXGA (1600 x 1200) via DVI-D.

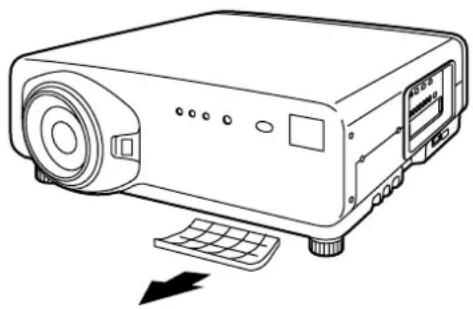

How to clean the air filter?
Remove the filter at the back of the projector. Wash it with warm water and mild detergent, dry it completely, then replace it. Clean every 100 hours of use.

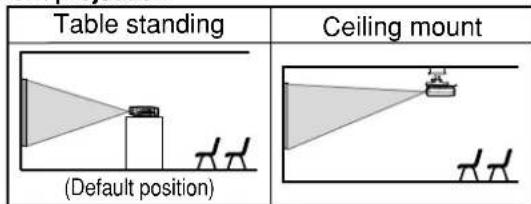

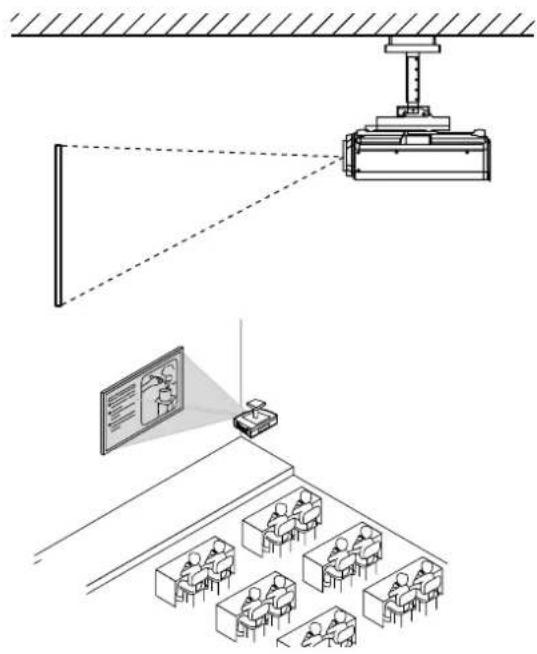

Can I use this projector for a fixed ceiling installation?
Yes, the PT-D7500U is designed for ceiling installation. Use the optional mounting kit ET-PKD100S. Make sure the bracket is securely attached.

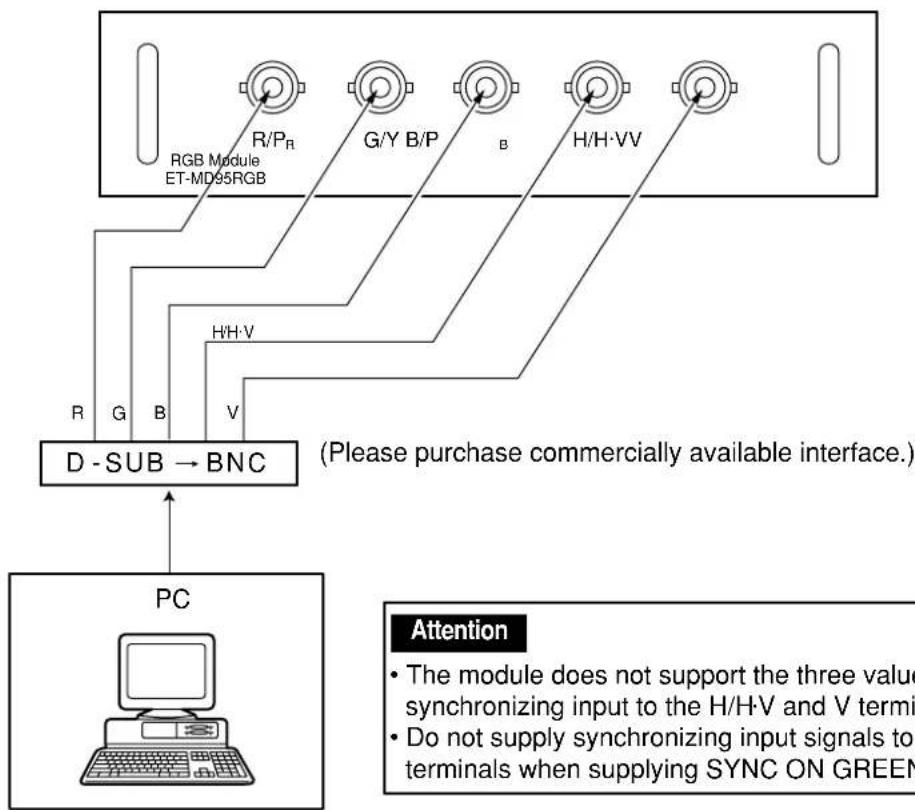

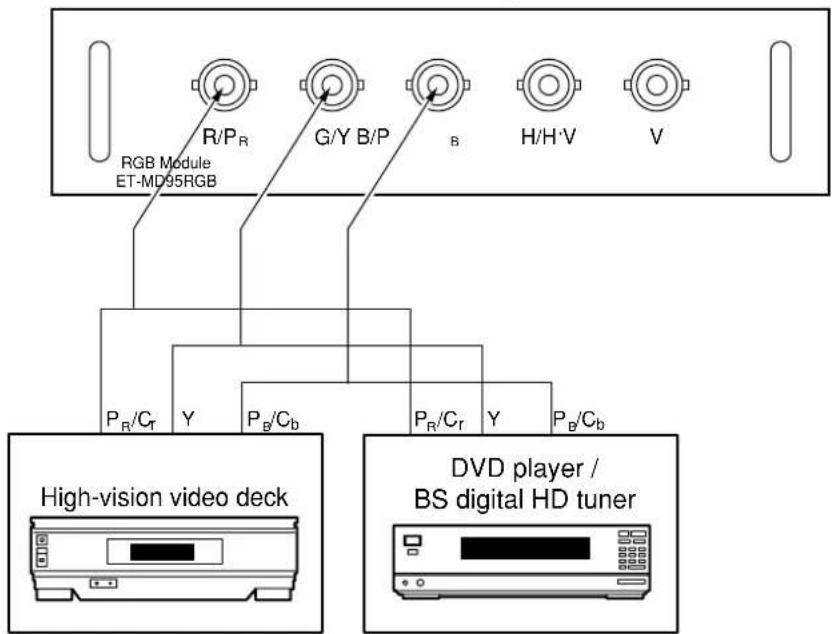

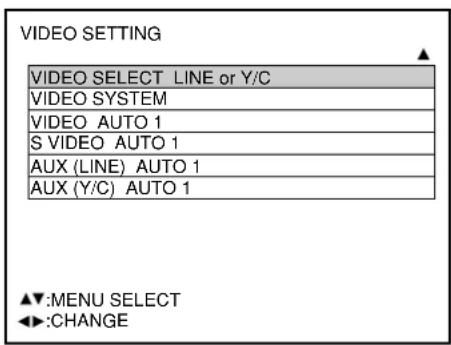

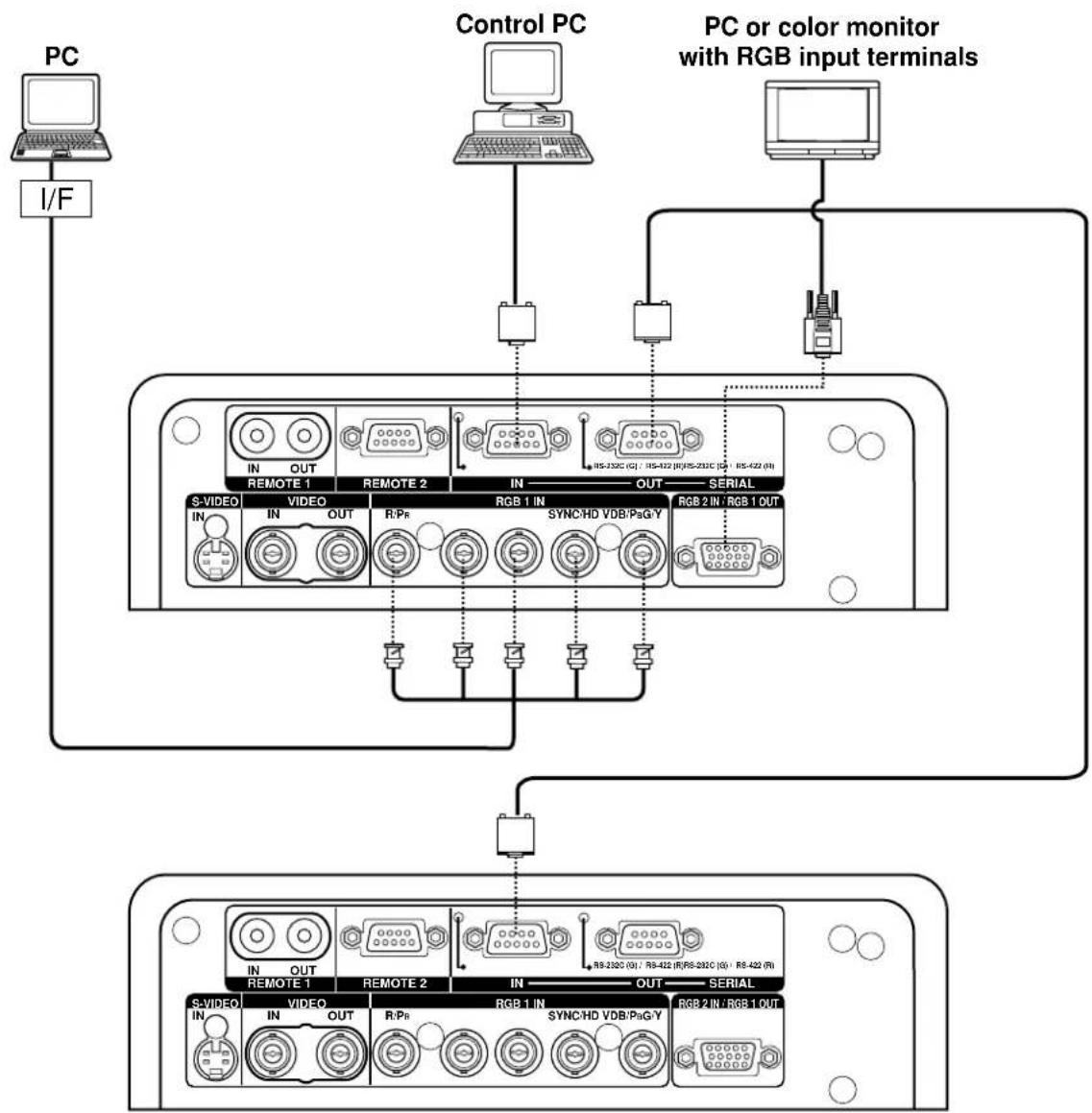

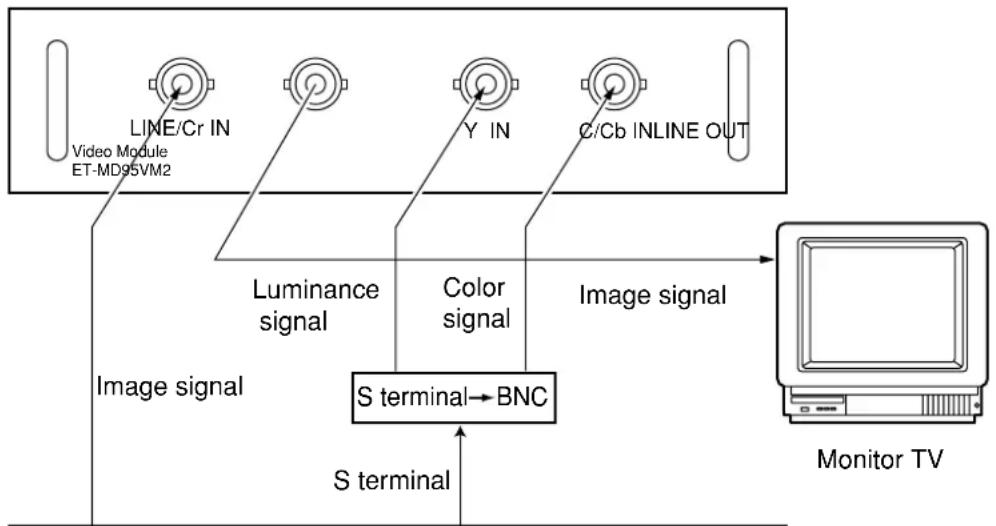

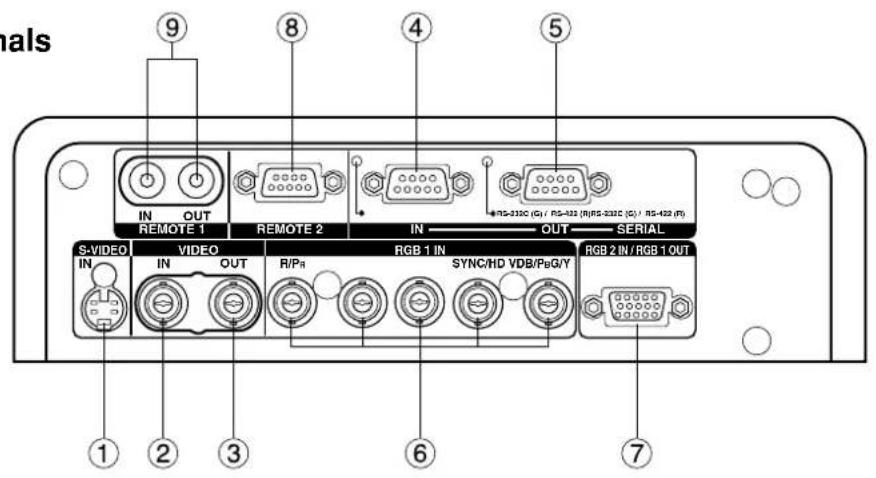

What types of video cables can I use?
You can use RGB (VGA), DVI-D, S-Video, Composite (RCA), and Component (YUV) cables. For the best quality, use DVI-D.

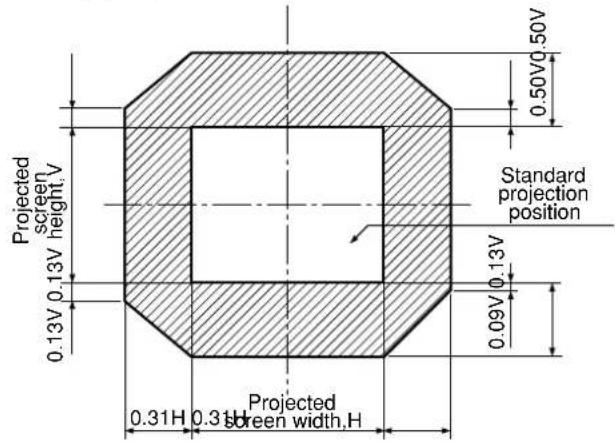

How to adjust the lens shift?
Use the manual shift knobs on the lens. Vertical shift allows up to ±30% and horizontal up to ±10%.

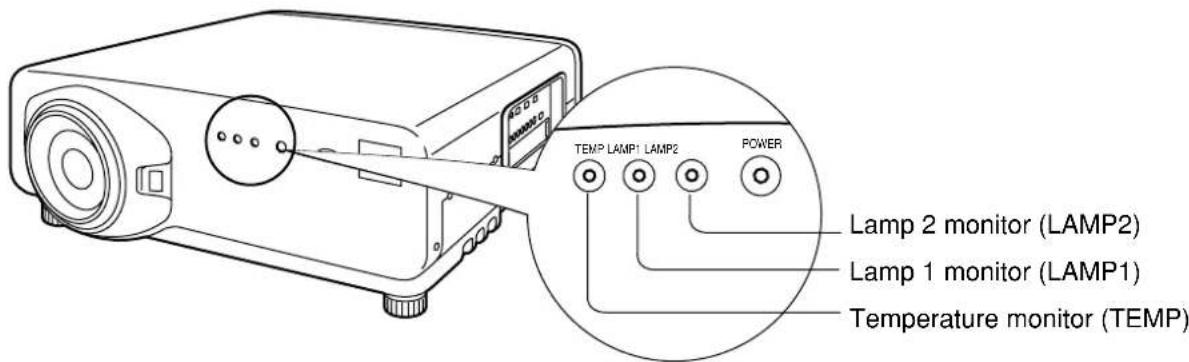

What to do if the projector does not turn on?
Check that the power cord is plugged in and the power indicator is on. If the LED is blinking, refer to the error code in the manual. Try to reset the projector by unplugging it for 10 minutes.
How to reduce fan noise?
Activate eco mode in the menu. This reduces brightness but lowers noise level to about 30 dB.
Can I connect external speakers?
The projector has a 3.5mm mini-jack audio output and a stereo RCA output. Connect your speakers or an amplifier.
Where to find spare parts?
Contact an authorized Panasonic service center or visit the official website. Common parts like the lamp (ET-LAD60) and filter (ET-ACF10) are available.
