Product Type	Mounting Bracket (Tilt Wall Mount)
Brand	Peerless-AV
Model	XHB432-EUK
Display Size Compatibility	32" - 65"
VESA Compatibility	200x200 to 600x400 mm
Load Capacity	75 kg (165 lbs)
Material	Cold Rolled Steel
Finish	Black Powder Coat
Wall Plate Dimensions	675 x 115 mm
Package Weight	3.6 kg (7.9 lbs)
Bracket Depth from Wall	28 mm (1.1")
Max Tilt Angle	12°
Level Adjustment	±3°
Key Features	Cable management, security locking knobs, universal mounting pattern
Installation	Wall plate mounts to concrete, wood studs, or steel studs (hardware included)
Warranty	5 years
Compliance	UL listed, TUV approved

Frequently Asked Questions - XHB432-EUK Peerless-AV

What is the VESA pattern supported by the Peerless-AV XHB432-EUK?

The mount supports VESA patterns from 200x200 mm up to 600x400 mm, covering most flat-screen TVs and monitors.

What is the maximum weight capacity of this mount?

The XHB432-EUK can safely hold displays up to 75 kg (165 lbs).

What type of walls can this mount be installed on?

It can be mounted on concrete, wood studs, or steel studs. Hardware for these wall types is included.

Does the mount allow tilting?

Yes, it offers a tilt range of 12° forward/backward for optimal viewing angle.

Is this mount compatible with curved TVs?

Yes, the universal design adapts to both flat and curved screens with VESA up to 600x400 mm.

Does the mount include a cable management system?

Yes, it features integrated cable clips and channels to keep wires organized and hidden.

Can the mount be locked for security?

Yes, it includes security locking knobs that prevent the display from being removed without a tool.

What tools are required for installation?

You will need a drill, spirit level, socket wrench, and screwdriver. All mounting hardware is included.

What is the distance from the wall to the back of the TV?

The mount keeps the TV just 28 mm (1.1 inches) from the wall, providing a low-profile appearance.

Does the mount come with a warranty?

Yes, Peerless-AV offers a 5-year warranty covering defects in materials and workmanship.

USER MANUAL XHB432-EUK Peerless-AV

12:54 Friday 05 July 64°F Sat Sun Mon Tue Wed BREAKING NEWS LIVE BREAKING NEWS LIVE

SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS

Electrical Code

Note: To the display system installer: This reminder is provided to call attention to Article 820-44 of the National Electric Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the facility. Outlet shall be installed near the equipment and shall be easily accessible.

NEC National Electric Code Ground clamp Electric service equipment Ground clamps Antenna lead-in wire Antenna discharge unit (NEC Section 810-20) Grounding conductors (NEC Section 810-21) Power service grounding electrode system (NEC Art 250 Part H)

Note: Installation shall incorporate UL Listed external surge protection rated 2500 Vpk or less, for 150 to 300 Vac mains, installed in accordance with Article 285 of ANSI/NFPA 70 or applicable local codes.

Power Source

The display must be connected to a mains socket outlet with a protective grounding connection.

The mains plug is used as the disconnect device and shall remain readily accessible.

Electrical installation shall be in accordance with the applicable parts of Chapter 8 of ANSI/NFPA70.

An outdoor antenna should not be located near overhead electrical lines or any electrical circuits.

If an outside antenna is connected to the receiver, confirm that the antenna system is grounded to protect against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No 70-1984, provides information with respect to proper grounding for the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

This display operates on 100-240 volts 50-60 Hz, AC current. Insert the power cord into a 220-240 volt 50 Hz outlet. Never connect the display to direct current or anything other than the specified voltage.

To prevent electric shock from the display, do not use with an extension cord, receptacle, or other outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.

All secondary lines must be routed through grounded conduit and kept separate from AC line.

FCC CAUTION

To assure continued compliance and possible undesirable interference, ferrite cores may be used when connecting this display to video equipment; maintain at least 400mm (15.75 inches) spacing to other peripheral devices.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with these instructions, may cause harmful interference to radio communications; however, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/display technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

Relevant Information

Record your display's model and serial number here for future reference. Keep this user manual in an accessible location in the event service is required.

Note: Your display's serial number can be found on the box and underneath the rear cover plate.

Model Number ____

Serial Number ____

GENERAL SAFETY PRECAUTIONS

Read before operating equipment

Thank you for purchasing our product. Before using it, please read this user guide carefully and follow the instructions for safe operation. Please keep this manual for future reference and always include it when transferring or transporting this product to a different location.

WARNING

In case of emergency such as fire or electric shock caused by the product, immediately contact 911 or proper emergency police/fire service agencies in your country.

To reduce the risk of electric shock or fire, heed the following:

• In case of product malfunction or unusual events such as electrical burning smell, smoke, or loss of content signals due to internal overheating, immediately turn off, unplug the electrical cord and contact the manufacturer.
• Do NOT disassemble, modify or service product in any way other than that contained in this instruction. Any unauthorized modifications made to the product automatically void product warranty.
• Do NOT touch antenna lines or wires, electrical cables or plugs when lightning or thunder is present or with wet hands
• Do NOT submerge in water.
• Do NOT destroy, process, or place close to any heat source.
• Do NOT install near poisonous gas or chemically unstable atmosphere.
• Do NOT install near strong magnetic or electrical current field.
• Do NOT install the product in unstable locations or near moving objects, constantly vibrating equipment, or uneven surfaces.
• Do NOT leave any fire source, such as candles, close to or on the product.
• Do NOT operate the product if it has been dropped or struck. Severe physical impact to the product may cause components to fall out of place within and break.
• Do NOT bend or twist electrical cords, electrical plugs, cables, or wires with excessive force.
• Do NOT block ventilation slots or place any heavy object on the product.
• Use properly rated electrical voltage.
• Do NOT use any electrical sockets or power strips with many other devices jointly plugged in. Use a single, directly dedicated and rated GFCI electrical outlet for the product for safe operation.
• Do NOT move or transport with any cables (electrical, content connectivity) plugged in to the source devices.
• Always connect the electrical plug firmly and completely. When disconnecting any cables, always pull on the plug and not the cord.
• Always leave the power off when plugging or unplugging the electrical cords or connection cables.
• Do not defeat the safety purpose of the polarized or grounding type electrical plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the electrical cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

WARNING

• Never apply pressure to the exterior of the LCD screen.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.
• Do NOT climb on the product.
• Do NOT install within five feet from a body of water.
• Do NOT use if ambient air temperature exceeds the operating limits.
• Do NOT install in enclosure or recessed cavity with less than 2 inches of airflow around the display. Air inside fully encased display must be ventilated.
• The product is to be secured to building before operation.
• Product must be carried and supported by at least two persons.
• Periodically clean dust off the electrical plug to keep it clean and dry, ensuring proper and safe operation.
• Only use attachments/accessories specified by the manufacturer.

CONTENTS

System Installation And Electrical Requirements 2

Electrical Code 2

Power Source 2

FCC Caution....3

FCC Statement....3

Relevant Information ....3

General Safety Precautions 4

Set Up Instructions....7

Parts List 7

Removing Cord Cover 8

Installing Power Cord 9

Installing IR Extender 9

Installing ALS Extender 9

Connecting Cords....10

Replacing Cord Cover 12

Replacing Handle Hardware ....13

Connect To The Power Source....13

Prepare The Display For Mounting ....14

Remote Control Battery Installation And Replacement 16

Operating Instructions ....17

Power On/Off the Display....17

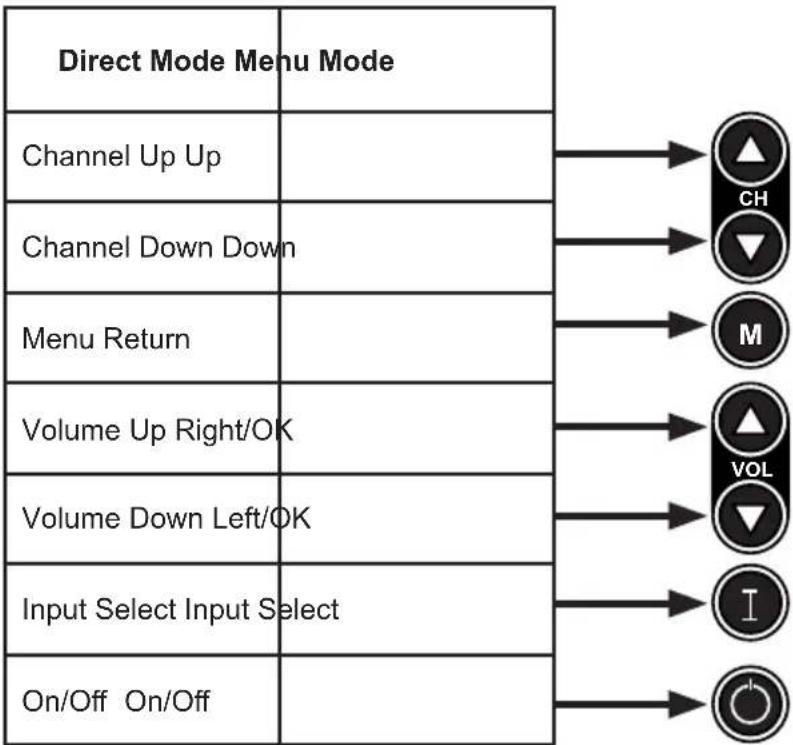

Onboard Controls....17

Navigating The On-Screen Menu ....18

Picture 18

Audio 18

Time 19

Setup 19

Lock 20

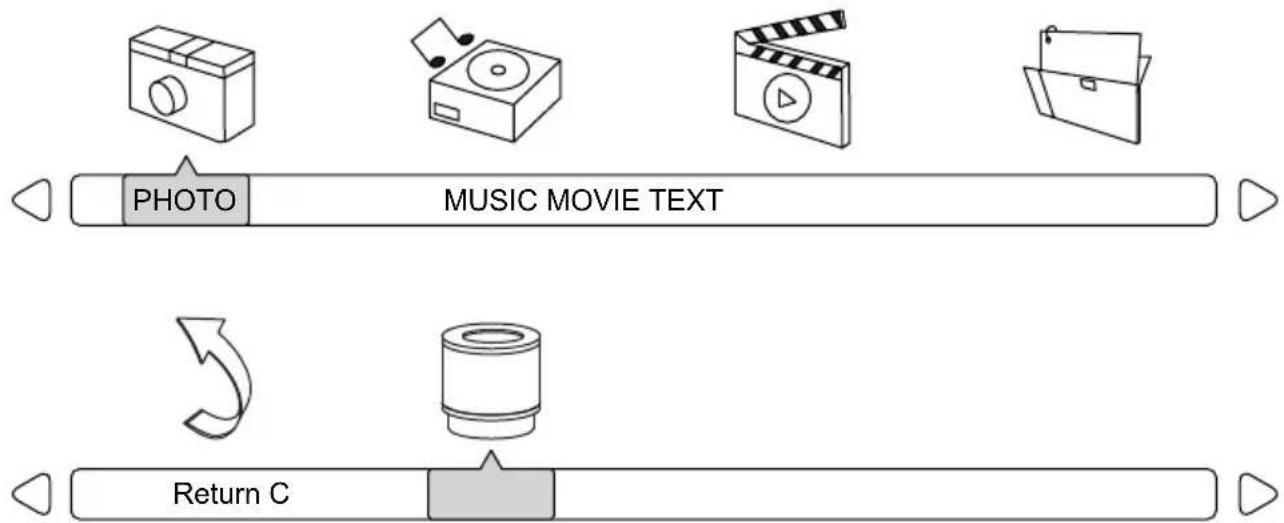

USB Functionality 22

(RS-232C) Serial Control Of The Display 24

Maintenance 25

Care Of The Screen 25

Mobile Telephone Caution 25

End Of Life Directives 25

Product Specifications 26

Display....26

Power 26

Display Controller Features ....26

Environmental 26

Mechanical 27

Input/Output Connections ......27

Warranty 28

SET UP INSTRUCTIONS

Parts List
Description Qty		XHB432-EUK Part #	XHB492-EUK Part #	XHB552-EUK Part #
A display 1 180-W1678-3 180-W1679-3 180-W1680-3
B remote 1 410-0049 410-0049 410-0049
C 4mm allen wrench 1 560-9646 560-9646 560-9646
D M6 x 12mm 4 560-D1734 560-D1734 560-D1734
E IR extender 1 600-0711 600-0711 600-0711
F AU power cord	1 410-1205 410-1205 410-1205
G EU power cord	1	410-1198	410-0198	410-0198
H UK power cord	1	410-1199	410-0199	410-0199
I user guide (not shown)	1	180-9120	180-9120	180-9120
J remote guide (not shown)	1	180-9098	180-9098	180-9098
K monitoring addendum (not shown)	1 180-9020 180-9020 180-9020
L technical support insert (not shown)	1 983-0721 983-0721 983-0721
M accessory insert (not shown)	1	983-0738	983-0738	983-0738

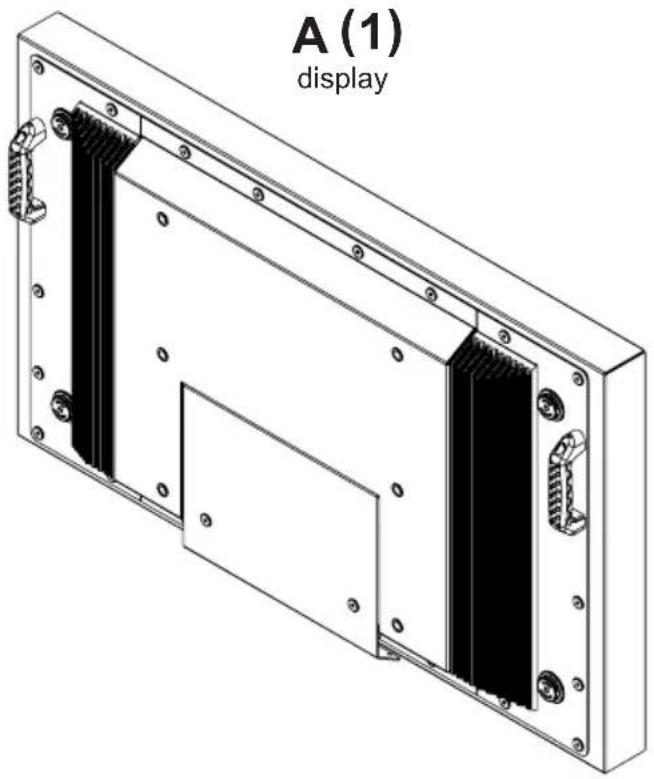

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

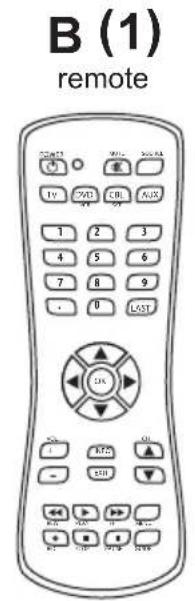

B (1) remote

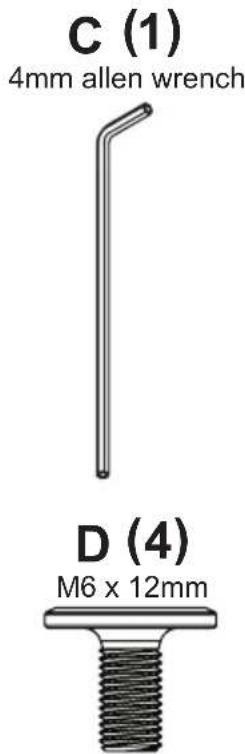

C (1) 4mm allen wrench D (4) M6 x 12mm

F (1) power cord (AU) H (1) power cord (UK) G (1) power cord (EU)

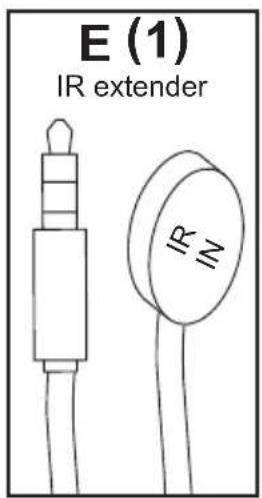

E (1) IR extender IR IN

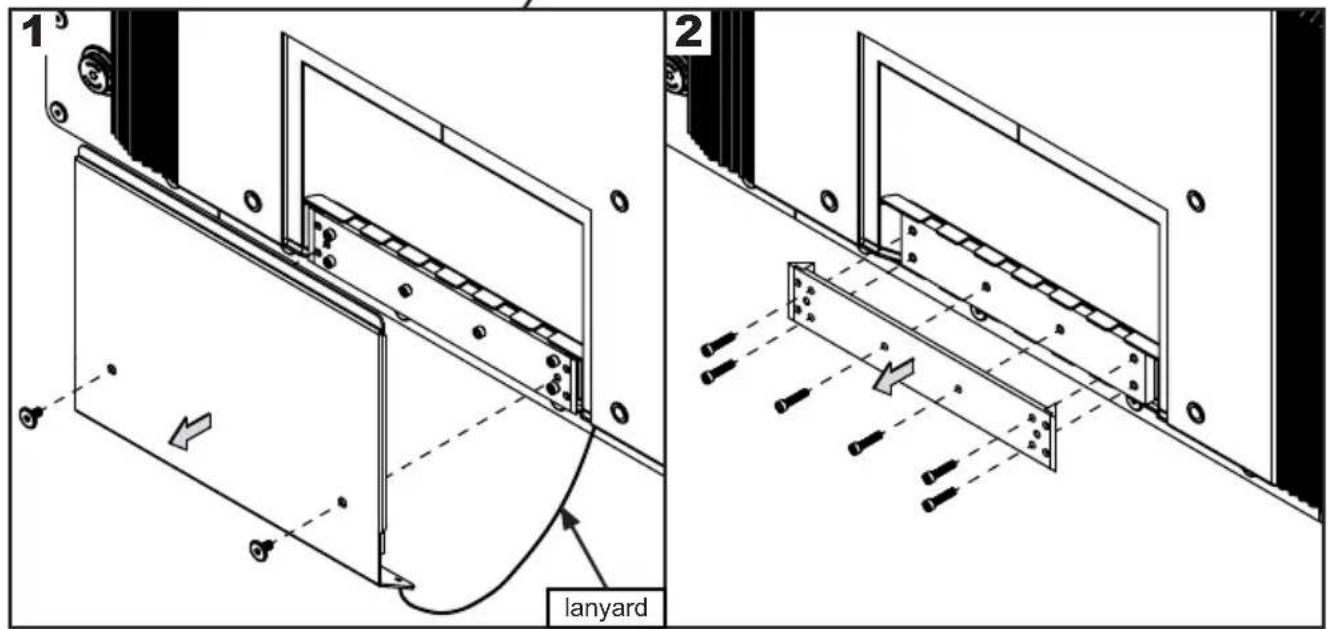

Removing Cord Cover

1. Remove (2) M6 low-profile hex screws and rear cover plate using 4mm allen wrench (C). Do not disconnect lanyard.
2. Remove (6) M5 hex screws and cord cover using 4mm allen wrench (C).

A

Technical diagram of a mechanical or electronic component with vertical strips and mounting holes, no visible text or symbols.

1 lanyard 2

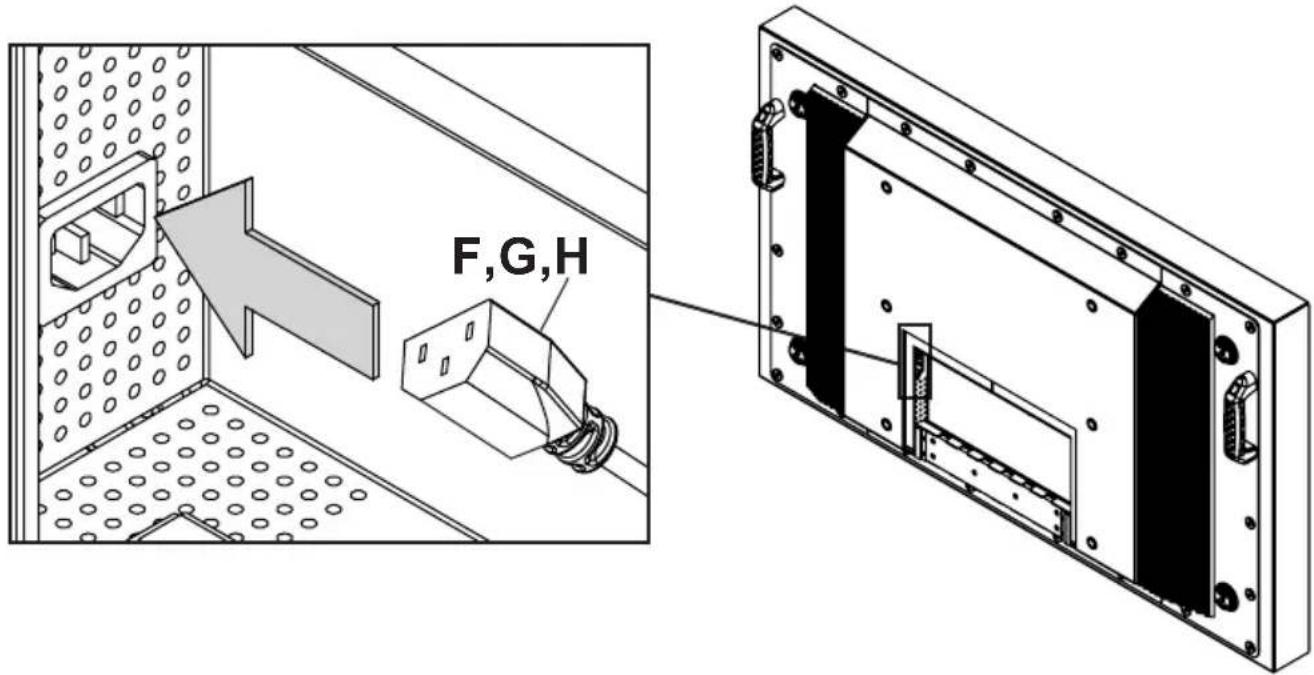

Installing Power Cord

Insert female end of power cord (F,G,H) into power port located inside the input compartment.

F,G,H

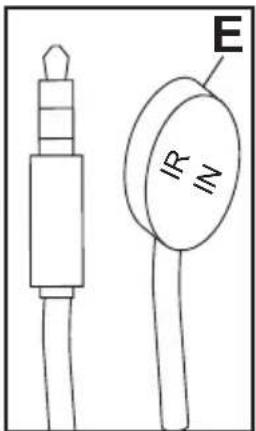

Installing IR Extender (Optional)

Insert the 3.5mm end of the included 5V IR extender into the IR Extender port on the input panel of the display. IR extender port may not be compatible with other 3 ^rd party extenders.

E IR IN

Installing Ambient Light Sensor (ALS) Extender (Optional)

Insert the 3.5mm end of the ALS Extender (ACCD-ALS sold separately) into the ALS Extender port on the input panel of the display. Connecting the ALS Extender will disable the ALS that is built into the display.

Technical line drawing of two electronic components: a pin connector and a plug (no text or symbols)

Connecting Cords

Connect source devices to appropriate display input. Make all connections prior to powering on the display. The USB 2.0 Data port is for service and media only. For 5VDC power, use the 5VDC power port.

16 14 15 117 4 ALS Extender IR Extender LAN RS232C Audio Out USB 2.0 Data Display Port HDMI 1 HDMI 2 HDMI 3 VGA 3 8 9 16 11 18 13 27 Audio In S/PDIF Optical USB Power 5V =2400mA

1. 2.5mm DC Power Port – Provides 12 VDC @ 2.5 A for powering locally stored extenders and source devices. 12 VDC accessory kits (ACCD-12K) are sold separately from Peerless-AV by contacting Customer Care at [phone]. Accessory DC outputs are only active when display is on.

2. USB DC Power Port – Provides 5 VDC @ 2.4 A for powering locally stored extenders and source devices. 5 VDC accessory kits (ACCD-05K) are sold separately from Peerless-AV by contacting Customer Care at [phone].

3. RS232C DB9 Port – Allows for control of the display using RS232 commands from a connected PC or control system. Pin Out: Pin 2 (RX), Pin 3 (TX), Pin 5 (GROUND)

4. 3.5mm IR Extender Port – Allows flexibility for integration with controls systems. The IR extender can be used to position the IR receiver in a convenient position in the event the IR receiver on the front of the display is obscured.

5. 3.5mm Analog Audio Out Port – Provides analog stereo audio for soundbars, headphones, and amplifiers.

6. USB 2.0 Data Port – Allows content to be displayed using a USB flash drive. This feature supports text, photo, audio and video. This port also serves as a service port for firmware upgrades. This port should not be used for powering 5 VDC devices.

7. DisplayPort – Connects a digital source device with the display and allows for FHD video and digital audio to be output on the display. DisplayPort is version 1.2 and is HDCP 1.3 compliant.

8. HDMI 1 (ARC) - Connects a digital source device with the display and allows for FHD video and digital audio signal to be output to the display. HDMI 1 is HDMI version 2.0 and is HDCP 2.2 compliant. All 3 of the HDMI inputs also support consumer electronics control (CEC). CEC allows for intelligent communication between CEC-enabled devices through the use of the HDMI connection. HDMI 1 also supports the audio return channel (ARC) allowing audio content from the display to be back-fed to an audio amplifier using a single HDMI connection.

9. HDMI 2 - Connects a digital source device with the display and allows for FHD video and digital audio signal to be output to the display. HDMI 2 is HDMI version 2.0 and is HDCP 2.2 compliant. All 3 of the HDMI inputs also support consumer electronics control (CEC). CEC allows for intelligent communication between CEC-enabled devices through the use of the HDMI connection.

10. HDMI 3 - Connects a digital source device with the display and allows for FHD video and digital audio signal to be output to the display. All 3 of the HDMI inputs also support consumer electronics control (CEC). CEC allows for intelligent communication between CEC-enabled devices through the use of the HDMI connection. HDMI 3 is HDMI version 2.0 and is HDCP 2.2 compliant. HDMI 3 also supports mobile high definition link (MHL3.0) allowing MHL compatible mobile devices to output HD content to the display, transport control and charge the connected device.

Connecting Cords

1. VGA – Connects an analog source device with the display and allows FHD video signals to be output to the display. VGA does not support audio. When using a VGA connection the audio output from the source device will need to be connected to the 3.5mm Audio In port on the display.
2. 3.5mm Analog Audio In – Accepts the incoming stereo analog audio signal coming from a VGA connected source device.
3. S/PDIF Optical Output – Outputs uncompressed digital audio to a connected soundbar or AVR with an optical digital audio input.
4. 3.5mm Mini AV – Connects an analog source device with the display and allows for SD video and analog stereo audio signals to be output to the display. This connection also supports the audio portion of a connected component device. Requires a 3.5mm to RCA female composite accessory dongle. Analog accessory kits (ACCD-ALG) are sold separately from Peerless-AV by contacting Customer Care at [phone].
5. 3.5mm Mini Component – Connects an analog source device with the display and allows for HD video and analog stereo audio signals to be output to the display. Requires a 3.5mm to RCA female component accessory dongle for video signals. If audio is required when using the component connection, the stereo audio signal will need to connect to the red and white female RCA connectors on the composite accessory dongle. Analog accessory kits (ACCD-ALG) are sold separately from Peerless-AV by contacting Customer Care at [phone].
6. LAN Port – Supports Network Control via TCP/IP (refer to Network Command section). Future Use: Health and Wellness monitoring of the display (see Monitoring Addendum).
7. 3.5mm Ambient Light Sensor (ALS) Extender – Automatically adjusts the brightness of the display based on ambient lighting conditions. The ALS extender overrides the built-in ambient light sensor when it is connected allowing flexibility for installations where the built-in ALS may have shadows being cast on it by surrounding structures or vegetation. The ALS extender can be placed in a location that is more representative of the actual ambient light conditions. ALS Extenders (ACCD-ALS) are sold separately from Peerless-AV by contacting Customer Care at [phone].

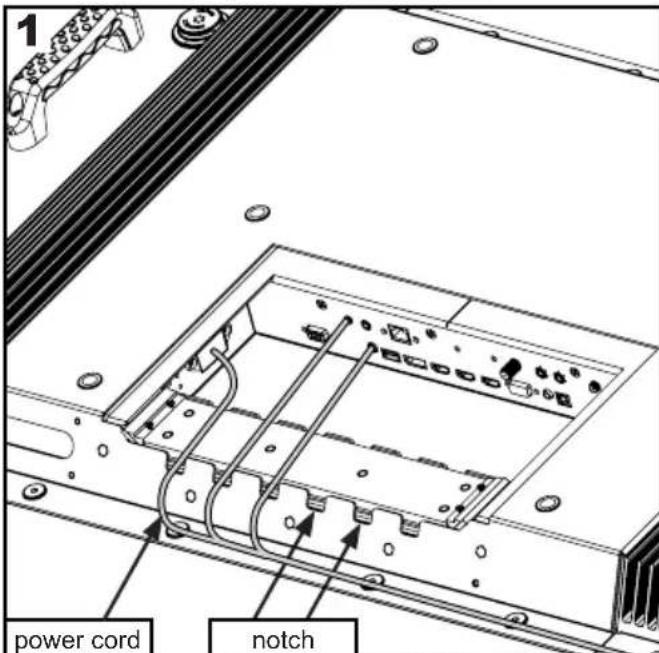

Replacing Cord Cover

1. Run power and signal cords through notches. To prevent unwanted interference, route the power cord through the left most notch (see image 1 below).
2. Place the cord cover over the cords being careful not to pinch any of the cords. Loosely install (6) M5 hex cap screws then tighten screws on the cord cover using 4mm allen wrench (C) until the gasket on the cover is fully compressed to the cord gasket.
3. Replace the rear cover plate ensuring that the cords are running through the notches on the display and not getting pinched. Fasten the (2) hex screws on the rear cover plate to secure it in place using 4mm allen wrench (C). Ensure that rear cover plate is fully compressed to the back of the display.

1 power cord notch

M5 hex cap screw

Technical line drawing of an electronic device chassis with labeled components (no text or symbols)

CAUTION

Failure to follow these instructions can result in the product being damaged or destroyed, voiding the warranty.

CAUTION

• Ensure cord bend radius does not exceed limits set by the manufacturer.
• Ensure cords are seated properly in the cable channels to avoid potential damage to cords when rear cover plate is installed.
• Do not remove lanyard that connects the rear cover plate to the display.
• Ensure cables exiting input compartment are routed downward when installing display in portrait orientation. If the installation requires the cabling to be routed upward, ensure that the cables are routed with a drip loop.

Do not overtighten screws

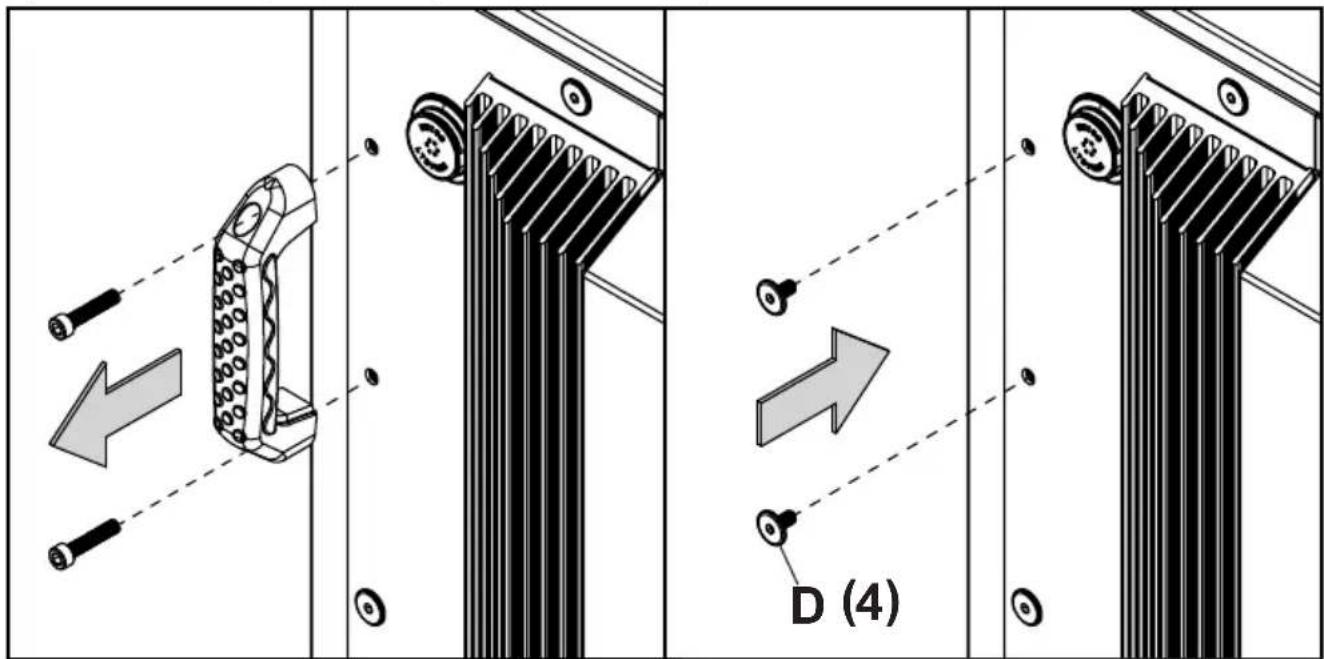

Replacing Handle Hardware

Optional: If removing handles, replace with hardware provided.

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

CAUTION

Failure to follow these instructions can result in the product being damaged or destroyed, voiding the warranty.

Connect To The Power Source

Connect power cord to GFCI outlet.

Pure electrical circuit lines without any symbols

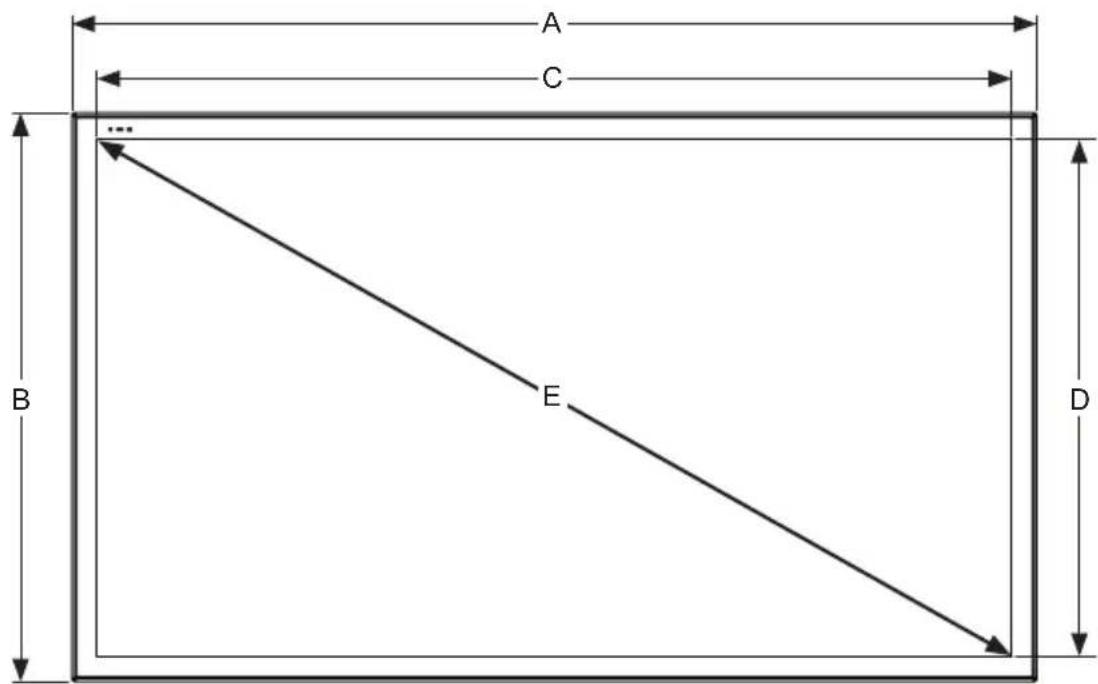

Prepare The Display For Mounting

Install cords prior to mounting your display. Input panel may be obstructed once the display is mounted.

A mounting solution is sold separately. Contact your Peerless-AV representative for an outdoor rated mounting solution for your particular application.

For your safety, only install an outdoor-rated mount that is suitable for the application and supports the weight of the display. When mounting a display outdoors, use proper environmentally rated mounts to ensure longevity in harsh environments.

Examine the chart below to determine the mounting specifications for your display:

Model	Mounting Hole Pattern	Required Mounting Screws
XHB432-EUK	400x200mm	(4) M8 screws
XHB492-EUK	400x400mm	(25mm long)
XHB552-EUK

Model A B C D E F
XHB432-EUK	15.75"(400mm)	15.75"(400mm)	11.87"(302mm)	3.77"(96mm)	4.89"(124mm)	7.87"(200mm)
XHB492-EUK	15.75"(400mm)	15.75"(400mm)	14.49"(368mm)	5.24"(133mm)	3.92"(100mm)	7.87"(200mm)
XHB552-EUK	15.75"(400mm)	15.75"(400mm)	17.16"(436mm)	6.74"(171mm)	3.92"(100mm)	7.87"(200mm)

A C E B D F REAR VIEW SIDE VIEW

Prepare The Display For Mounting

Model A B	C D E F
XHB432-EUK	39.50"(1003mm)	23.28"(591mm)	37.06"(941mm)	20.84"(529mm)	42.51"(1080mm)	0.33"(8mm)
XHB492-EUK	44.72"(1136mm)	26.22"(666mm)	42.27"(1074mm)	23.78"(604mm)	48.50"(1232mm)	0.33"(8mm)
XHB552-EUK	50.07"(1272mm)	29.23"(742mm)	47.62"(1210mm)	26.79"(680mm)	54.64"(1388mm)	0.42"(11mm)

A C ... B E D

FRONT VIEW

1.51" (38mm) 1.22" (31mm) 1.22" (31mm) F

BEZEL / IR DETAIL VIEW

The remote control is powered by two 1.5V AAA batteries installed at the factory.

To install or replace batteries:

1. To remove the battery module of the remote control, remove the two screws on the end of the battery module. Slide the battery module out of the remote control.
2. Insert two new "AAA" size batteries into the battery module.
3. Slide the battery module back into the remote control and reinsert the two screws in the end of the battery module.

CAUTION

Incorrect usage of batteries can result in leaks or bursting. Peerless-AV recommends the following battery use:

• Do not mix battery brands.
• Do not combine new and old batteries. This can shorten the battery life or cause battery acid leaks.
• Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.
• Do not touch exposed battery acid as it may injure skin.
• Remove the batteries if you do not intend to use the remote control for a long period of time.
• Do not expose the batteries to excessive heat from sunlight, fire or other heat sources or batteries could explode.
• Fully tighten screws to maintain the ingress protection rating of the remote.

B ECCRTS 4 T0 1 2 3 4 5 6 7 8 9 0 LAST OK + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

OPERATING INSTRUCTIONS

Power On/Off The Display

Power on your display by using the remote control or the power button on the bottom, left-hand side of the display. The display will power on but image may not appear for several seconds as it completes its power up sequence.

Point the remote control at the IR sensor located at the top, left-hand corner of the display when in landscape, or the top right-hand corner when in portrait, then press the power button.

Line drawing of a remote control with keypad and door, no text or symbols present

LED Light	TV Status
Solid	Off
Blinking	Boot up
Off On

Onboard Controls

Direct Mode: Allows for quick access to source selection, volume settings and channel selection.

Menu Mode: Press the Menu button to access Menu Mode and activate the On Screen Display (OSD). For a description of OSD operation refer to the next section.

The keypad buttons are assigned as indicated in the table below.


Picture Mode TheaterPersonalStandardDynamic

Color Temp. NormalWarmPersonalCool

HDMI Mode Video ModePC Mode

Screen H PositionV PositionClockPhaseAuto

Zoom Mode 4:316:9CinemaZoomPoint to Point

Backlight 0 - 100

DLC (Dynamic On / OffBacklight)

Color Range Auto0 - 25516 - 235

3DNR OffWeakMiddleStrong

ECO Low (25 brightness)(Set ambient Middle (50 brightness)light output High (75 brightness)levels using ALS Personalextender) Auto

Audio

Equalizer StandardMusicMovieSportsPersonal
Digital Output (Optical)	PCM / Raw / Off
Surround On / Off
Audio Only On / Off
AVC On / Off

Digital Output (Optical)	PCM / Raw / Off
Surround On / Off
Audio Only On / Off
AVC On / Off

Time
Sleep Timer off	60 min
5 min	90 min
10 min	120 min
15 min	180 min
30 min	240 min
Time Zone Atlantic	Pacific
Eastern	Alaska
Central	Hawaii
Mountain	Korean
Time Format 12-hour
24-hour
Auto Sync On / Off
Clock Enter Current Time
Wake Up Enter desired time when display will turn on

OK

EXIT

MENU

Navigate Enter Exit Return

Setup
Menu	English	Italian
Languages	Spanish	German
	French	Russian
Transparent	0%
(Menu	25%
Transparency)	50%
	75%
	100%
Restore Defaults Factory reset all options
Setup Wizard
Software Update Yes / No
CEC
CEC Control On / Off
Device Auto	On / Off
Power Off
TV Auto	On / Off
Power On
Audio Receiver On / Off
Device Lists Lists connected CEC devices
Connect (future use)
Root Menu	Menu of connected souce device
No Signal Auto	On / Off / Backlight
Power Off

Lock
System LockEnter Password to enter System Lock settingsDefault Password: 0000
Change password	Allows the password to be changed
System Lock	On / Off
Input Block	AV, Component, DP, HDMI1, HDMI 2, HDMI 3, PC, USB
Hotel ModeEnter password to enter hotel mode settingsDefault Password: 0000
Hotel Mode	On / Off
Change Password	Allows the password to be changed
Picture Mode	Standard, Dynamic, Theater, Personal
Sound Mode	Standard, Music, Movie, Sports, Personal
Key Lock	On / Off
Power On Source	AV, Component, DP, HDMI1, HDMI 2, HDMI 3, PC, USB
Power On Volume	Set volume that display will output when turned on

Navigate Enter Exit Return

1

ENG Insert USB flash drive into USB 2.0 Data port on the input panel of the display.

USB 2.0 Data

2

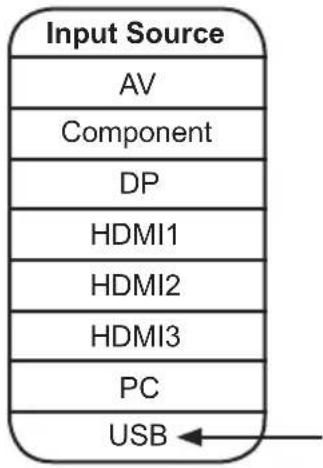

ENG Select USB source to access content.

3

ENG Select media type and folder where content is stored.

4

Photos – To view a single photo, select photo and press play. To view a slide show, select multiple photos and press play. Use on screen menu to control slide show.

Movies – To view a single video, select video and press play. To view a playlist, select multiple videos and press play. Use on screen menu to control playlist.

Music – To listen to a single song, select song and press play. To listen to a playlist, select multiple songs and press play. Use on screen menu to control playlist.

Text – To view to a single text file, select file and press play. To view a playlist, select multiple files and press play. Use on screen menu to control playlist.

Simple curved arrow pointing right, with a square marker nearby (no text or symbols)

Simple line drawing of a folder with a checkmark icon (no text or symbols)

Simple line drawing of a folder with a checkmark icon (no text or symbols)

Simple line drawing of a folder and a square (no text or symbols)

Navigate Enter Exit Hide Menu

(RS-232C) Serial Control Of The Display

Attach an RS-232C cable (straight through type) to the supplied D-Sub RS-232C to utilize serial control function. Control via RS232 should only be utilized by experts familiar with RS232 programing.

Menu:	A0, F0, 55, FF, 4E, B1
Right:	A0, F0, 55, FF, 05, FA
OK:	A0, F0, 55, FF, 02, FD
Down:	A0, F0, 55, FF, 0D, F2
Up:	A0, F0, 55, FF, 17, E8
Left:	A0, F0, 55, FF, 0C, F3
Source:	A0, F0, 55, FF, 01, FE
(1):	A0, F0, 55, FF, 42, BD
(2):	A0, F0, 55, FF, 43, BC
(3):	A0, F0, 55, FF, 0F, F0
(4):	A0, F0, 55, FF, 1E, E1
(5):	A0, F0, 55, FF, 1D, E2
(6):	A0, F0, 55, FF, 1C, E3
(7):	A0, F0, 55, FF, 18, E7
(8):	A0, F0, 55, FF, 45, BA
(9):	A0, F0, 55, FF, 4C, B3
(0):	A0, F0, 55, FF, 56, A9
Exit:	A0, F0, 55, FF, 1B, E4
Power On:	A0, F0, 55, FF, AE, 51
Power Off:	A0, F0, 55, FF, AD, 52
Power On/Off:	A0, F0, 55, FF, 0B, F4
Volume +:	A0, F0, 55, FF, 0A, F5
Volume -:	A0, F0, 55, FF, 40, BF
Surround:	A0, F0, 55, FF, C7, 38
Info:	A0, F0, 55, FF, 50, AF

Mute:	A0, F0, 55, FF, 14, EB
Sleep:	A0, F0, 55, FF, 53, AC
AV:	A0, F0, 55, FF, ED, 12
VGA:	A0, F0, 55, FF, EA, 15
HDMI Toggle:	A0, F0, 55, FF, EC, 13
HDMI1:	A0, F0, 55, FF, DE, 21
HDMI2:	A0, F0, 55, FF, DF, 20
HDMI3:	A0, F0, 55, FF, E0, 1F
DisplayPort:	A0, F0, 55, FF, E4, 1B
Component:	A0, F0, 55, FF, E7, 18
USB:	A0, F0, 55, FF, 57, A8
PMODE:	A0, F0, 55, FF, 4B, B4
Zoom:	A0, F0, 55, FF, 51, AE
SMODE:	A0, F0, 55, FF, 5B, A4
VOL 0%:	A0, F0, 55, FF, 20, DF
VOL 25%:	A0, F0, 55, FF, 21, DE
VOL 50%:	A0, F0, 55, FF, 22, DD
VOL 75%:	A0, F0, 55, FF, 23, DC
VOL 100%:	A0, F0, 55, FF, 24, DB
Brightness 0%:	A0, F0, 55, FF, 25, DA
Brightness 25%:	A0, F0, 55, FF, 26, D9
Brightness 50%:	A0, F0, 55, FF, 27, D8
Brightness 75%:	A0, F0, 55, FF, 28, D7
Brightness 100%:	A0, F0, 55, FF, 29, D6
Dash:	A0, F0, 55, FF, 2E, D1

COM Settings

Baud Rate 38400

Data Bits 8

Parity None

Stop Bits 1

Network Commands Of The Display
Attach an ethernet cable (straight through type) to the ethernet port to utilize network command function. Control via TCP/IP should only be utilized by experts familiar with TCP/IP programming.

Menu:	0252433030304D454E03
Left:	0252433030304C454603
Right:	02524330303052494703
Up:	0252433030302D555003
Down:	025243303030444F5703
OK:	0252433030302D4F4B03
Exit:	02524330303045584903
Power On:	0252433030302D4F4E03
Power Off:	0252433030304F464603
Volume +:	025243303030564F2B03
Volume -:	025243303030564F2D03
Mute:	0252433030304D555403
Source:	025243303030534F5503
HDMI 1:	02524330303048443103
HDMI 2:	02524330303048443203
HDMI 3:	02524330303048443303

DP:	0252433030302D445003
VGA:	02524330303056474103
USB:	02524330303055534203
Volume 0%:	02524330303056303003
Brightness 0%:	02524330303042303003
Onekey Sw Info:	0252433030304F4B4903
Onekey Aging:	0252433030304F4B4103
Key Lock On:	0252433030304B4C4E03
Key Lock Off:	0252433030304B4C4603
12V Toggle On:	02524330303050313103
12V Toggle Off:	02524330303050313003
5V Toggle On:	02524330303050323103
5V Toggle Off:	02524330303050323003

MAINTENANCE

Care Of The Screen

Do not rub or strike the screen with anything hard as this may scratch, mark, or even damage the screen permanently. Ensure that the display is installed in a location where it will be safe from abrasives and flying debris, which could damage the LCD panel. Never use ammonia or any product containing ammonia, as it will damage the anti-glare coating on the face of the display. Only use an approved screen cleaner to clean the display face. Unplug the power cord before cleaning the screen. Dust the display by wiping the screen and the cabinet with a soft, clean cloth. If the screen requires additional cleaning, use a clean, damp cloth. Do not use aerosol cleaners, or solvents of any kind. Do not use any chemical such as paint thinner or benzene to clean the product's exterior. It may cause scratches on the surface, erasing proper indications, identification labels, or instructions on the exterior, which may cause misuse and improper operation of the product.

Mobile Telephone Caution

Keep your mobile telephone away from your display to avoid disturbances in the picture or sound, possibly causing permanent damage to your display.

End Of Life Directives

In an effort to produce environmentally friendly products, your new display contains materials that can be recycled and reused. At the end of your display's life, specialized companies can minimize display waste by separating reusable materials from non-reusable materials. Please ensure you dispose of your display according to local regulations.

PRODUCT SPECIFICATIONS

Specifications subject to change without notice.

Display
Screen Size (diagonal)	XHB432-EUK: 43" XHB492-EUK: 49" XHB552-EUK: 55"
Aspect Ratio	16:9
Resolution	1920 x 1080
Brightness	2,500 cd/m ^2
Contrast Ratio	1300:1
Viewing Angle	178° vertical / horizontal
Response Time (gray to gray)	XHB432-EUK: 12ms XHB492-EUK: 8ms XHB552-EUK: 12ms
Refresh Rate	60 Hz

Power
AC Input	100 VAC to 240 VAC,50 to 60 Hz

Environmental
Operating Temperature	-31°F to 118°F (-35°C to 48°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
IP Rating	P68
Safety/EMC	FCC Class A

Display Controller Features
Display System	NTSC
Picture Adjustment	Brightness, Contrast, Tint, Sharpness, Color
Picture Mode	Standard, Dynamic, Theater, Personal
Color Temperature Adjustment	Cool, Normal, Warm, Personal
Screen Adjustment	16:9, Full, Zoom, 4:3, Point to Point
ECO	Low, Middle, High, Personal, Auto
Clock, Sleep Timer	Yes
Mute	Yes
OSD Language	English, Spanish, French, German, Italian, Russian
Backlight Adjustment	Manual and Automatic Control
Mechanical
Display Size:	(W x H x D)
XHB432-EUK	39.5" x 23.28" x 4.89"(1003 x 591 x 124mm)
XHB492-EUK	44.72" x 26.22" x 3.92"(1136 x 666 x 100mm)
XHB552-EUK	50.07" x 29.23" x 3.92"(1272 x 742 x 100mm)
Enclosure Color Black
VESA Mount 400x200mm, 400x400mm
Net Weight
XHB432-EUK	88 lbs. (39.91kg)
XHB492-EUK	92 lbs. (41.70kg)
XHB552-EUK	133 lbs. (60.00kg)
Shipping Size	(W x H x D)
XHB432-EUK	45.5" x 28.25" x 10.63"(1156 x 718 x 270mm)
XHB492-EUK	50.25" x 30.75" x 10.63"(1276 x 781 x 270mm)
XHB552-EUK	55.625" x 34.125" x 10.63"(1413 x 867 x 270mm)
Shipping Weight:
XHB432-EUK	98 lbs. (44.45kg)
XHB492-EUK	103 lbs. (46.72kg)
XHB552-EUK	145 lbs. (65.77kg)
Glass IK10 R	Rated, Tempered & Anti-reflective

Input/Output Connections
VGA Input	15 pin D-SUB (x1), up to 1920x1080@60Hz
HDMI Input	HDMI (x3), 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
DisplayPort	DisplayPort (x1), 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
CVBS Input	3.5mm (x1), 480i, 576i
YPbPr Input	3.5mm (x1), 480i, 480p, 576i, 576p, 720p, 1080i
VGA Stereo Audio Input	3.5mm Analog Audio (x1)
Audio Output	3.5mm Stereo Headphone (x1)
RS232 Control	9 pin D-SUB (Female) (x1)
TosLink Digital Audio Output	Optical (x1)
IR Extender	3.5mm (x1)
USB 2.0 Data	USB A (Female) (x1)
5VDC 2.4A Output (USB Power)	USB A (Female) (x1)
12VDC 2.5A Output	Barrel 2.5mm (ID) 5.5mm (OD) (x1)
LAN Input	RJ45 (x1)
ALS Extender	3.5mm (x1)

LIMITED TWO-YEAR WARRANTY

TWO-YEAR PARTS & LABOR LIMITED WARRANTY

Terms of Peerless-AV®

The Peerless-AV Outdoor TV/Display is warranted to be free of defects in material and workmanship from the time of purchase by the original owner. If this product is proven to be defective under the terms and conditions of this warranty, Peerless-AV will repair or replace defective parts with new and/or reconditioned parts at no charge for the parts and labor to the original owner, subject to the terms and conditions of this Limited Warranty. This Limited Warranty covers failures due to defects in material or workmanship that occur during normal use as follows:

• Parts – the warranty period for parts is: two (2) years from the date of original purchase. During the applicable Limited Warranty period for parts, defective parts will be replaced at no charge. Parts used for the repair will be warranted for the remainder of the original warranty period for those parts.
• Labor – the warranty period for labor is: two (2) years from the date of original purchase. During the applicable Limited Warranty period for labor, Peerless-AV will provide the labor for warranty repair at no charge for a period of two (2) years from the date of original purchase.
• Original owner must provide verification of the date of purchase when requesting Limited Warranty Services. A copy of the original Dated Sales Receipt is required together with the product serial number to obtain service under this Limited Warranty.
• All repairs must be performed by a Peerless-AV Authorized Service Provider.
• Customer is responsible for returning (including any freight and shipping cost) defective unit to Peerless-AV Authorized Service Provider. If the product is found to have no defects, the customer will be responsible for return shipping costs as well the diagnostic bench fee. If the product is found to be covered by the manufacturer's warranty, Peerless will assume responsibility for return freight charges.

THIS LIMITED WARRANTY DOES NOT COVER:

• Labor to uninstall and reinstall the display / TV.
- Shipping damage.
- Damage caused during customer unpacking, and/or removal of protective packing materials.
- Damage due to improper, incorrect or insufficient AC voltage, power surges or lightning strikes.
- Damage due to inadequate signal pickup, incorporation into other products or repairs by anyone other than a Peerless-AV Technician.
- Damage due to tampering or removal of any gasket material, including but not limited to the cable gland gaskets within the cable entry way.
- Damage which results from fire, flood, lightning, tornado, hurricane, large hail, extremely gusty winds, sand storms, vandalism, terrorism or other acts of nature.
- Any unit which has been modified or damaged due to improper installation or failure to obey the operating instructions provided in the User Manual.
- Any failure, loss, damage or personal injury due to accident, neglect, misuse, abuse, improper operation, improper storage, alteration to the unit, or failure by the consumer to follow operating instructions provided in the User Manual.
- Any owner other than the original owner.
- Any unit purchased from an unauthorized seller.
- If the original product serial number has been removed, defaced or tampered with in any way.
- Any packaging or transportation charges incurred in connection with warranty services.
- Indirect, consequential, or special damages except as required by federal or state laws.
- Any unit tampered with, modified, adjusted, or repaired by any party other than the Peerless-AV Authorized Service Provider.
- Any cosmetic damages to the surface or exterior that has been defaced or faded, or caused by normal wear and tear or exposure to chemicals, acid rain, large hail or adverse weather conditions.
- Minor cabinet blemishes or minor scratches to the exterior of the unit or other cosmetic imperfections that are not within the viewable area of the LCD.

• Failure due to installation in areas with insufficient heat dissipation and/or ventilation
• The LCD is a Class 2 ISO panel. As such, the Pixel Fault for Class II Panels states:

• Type 1 = Hot Pixel (always on - white);
• Type 2 = Dead Pixel (always off – black); or
- Type 3 = A Stuck Pixel (one or more sub-pixels (red, blue or green) are always on or always off.
• The total number of permitted defects per 2 million pixels:

• Type 1 = (4)
• Type 2 = (4)
• Type 3 = (10)

• Picture quality when installed in direct sunlight where sun is shining directly on the face of the LCD.
- Any damage, scratches or blemishes to the face of the LCD and/or exterior cabinet due to end-user cleaning.
- Dirty air waves, and/or unusual signal interference due to weak signal from multi-wire runs, weak signal from cable or satellite service providers, or unusual signal interference.
- Any damage incurred through improper packaging. If the Outdoor TV/Display needs to be returned, original packaging is required. (If packaging is needed, the end user is required to contact a Peerless-AV Care Customer Representative to request a new box to be delivered to customer shipping site)

- Return shipping when no defect is found.

For Non-Warrantied Repairs, or for claims found to not be covered by the Limited Warranty, the customer will be responsible for the diagnostic bench fee, the cost of replacement parts, and any applicable shipping charges. Repaired Non-Warrantied claims require payment in full before repaired products are returned to customer.

Peerless-AV and its representatives or agents shall in no event be liable for any general, indirect or consequential damages arising out of/or caused by the use of/or inability to use this product.

The Warranty is made in lieu of all other warranties, expressed or implied, and all other liabilities on the part of Peerless-AV. Any other warranties, including warranties of merchantability and fitness for a particular purpose are hereby disclaimed by Peerless-AV and its representatives and/or agents.

The laws of some states do not allow exclusion of implied warranties; therefore, this warranty shall be deemed modified to be consistent with such laws. This limited Warranty gives you specific legal rights. You may also have other rights that vary from state to state.

All warranty inspections and repairs must be performed by Peerless-AV or its authorized service representatives.

Please call [phone] so that the Peerless-AV technical support team can assist with proper troubleshooting steps. Please have your receipt and serial number available during the time of call while onsite. Technical support will determine whether the product will need to be replaced or returned for repair. If a repair is needed Customer Care will issue a Return Material Authorization (RMA) number. The product will need to be in the original packaging and banded to a skid in the upright position. If the product is not covered by the warranty, Peerless-AV will contact you with repair estimates after inspection.

© 2018 Peerless Industries, Inc. All rights reserved.

peerless-AV®

Peerless-AV

2300 White Oak Circle

Aurora, IL 60502

Email: [e-mail]

Ph: [phone]

Fax: [phone]

www.peerless-av.com

Peerless-AV Europe

Unit 3 Watford Interchange,

Colonial Way, Watford, Herts.

WD24 4WP, United Kingdom

Customer Care

44 (0) 1923 200 100

www.peerless-av.com

Peerless-AV de Mexico
