USER MANUAL PU-515PLTX-1H CYP

HDBaseT™ LITE Transmitter with simultaneous HDMI output (HDMI, IR & RS-232 with POC, up to 60m)

OPERATION MANUAL

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 10/01/14	Preliminary Release

CONTENTS

1. Introduction......1
2. Applications......1
3. Package Contents ...... 1
4. System Requirements......1
5. Features....2
6. Operation Controls and Functions......3

6.1 Front Panel....3
6.2 Rear Panel....4
6.3 IR Cable Pin Assignment......5
6.4. D-Sub 9-Pin Definitions .....5

1. Connection Diagram ...... 6
2. Specifications ...... 7

8.1 CAT5e/6/7 Cable Specification .....8

1. Acronyms....8

1. INTRODUCTION

The PU-515PLTX-1H Transmitter allows uncompressed HDMI signals and to be transmitted over a Single CAT5e/6/7 cable. This device allows the distribution of Video, Audio, Power over Cable (PoC), RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 60 metres. This variant of the PU-515PL-TX Transmitter has a simultaneous HDMI output enabling a local HDMI display to be connected whilst simultaneously distributing the signals over a single CAT5e/6/7 to a compatible HDBaseT Receiver.

2. APPLICATIONS

• Household entertainment sharing and control
- Lecture room display and control
• Showroom display and control
- Meeting room presentation and control
• Classroom display and control

3. PACKAGE CONTENTS

• HDMI over HDMI & CAT5e/6/7 Transmitter
- IR Blaster x 1
• 3.5mm Phone Jack to RS-232 Cable
• 24V DC Power Adaptor
• Operation Manual

4. SYSTEM REQUIREMENTS

• Source equipment with HDMI output connector
• Display TV/Monitor with HDMI input connector
  • HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables

5 FEATURES

• HDCP 2.2 Compliant
• HDMI, HDCP, & DVI compliant
• Supports all v1.4 HDMI resolutions plus 4k.
• Supports uncompressed video/audio up to 10.2Gbps
- Simultaneous HDMI and CAT5e/6/7 outputs
- Supports resolutions VGA\~WUXGA, 480i\~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings)
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate)
• Supports distances up to 60 meters through CAT5e/6/7 cables
• Supports 3D signals

Note:

1. This system was tested with CAT6/23AWG cables, results may vary with cables of a different specification.
2. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable and display in order for proper image displaying.
3. This device obtain the last memory function therefore, the device will use last CAT5e/6/7 output port's EDID when CAT5e/6/7 output is not connected to a display after power cycling.

The unit will detect CAT5e/6/7 output's EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. If the CAT5e/6/7 output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the signal that all outputs can accept.

6. OPERATION CONTROLS AND FUNCTIONS

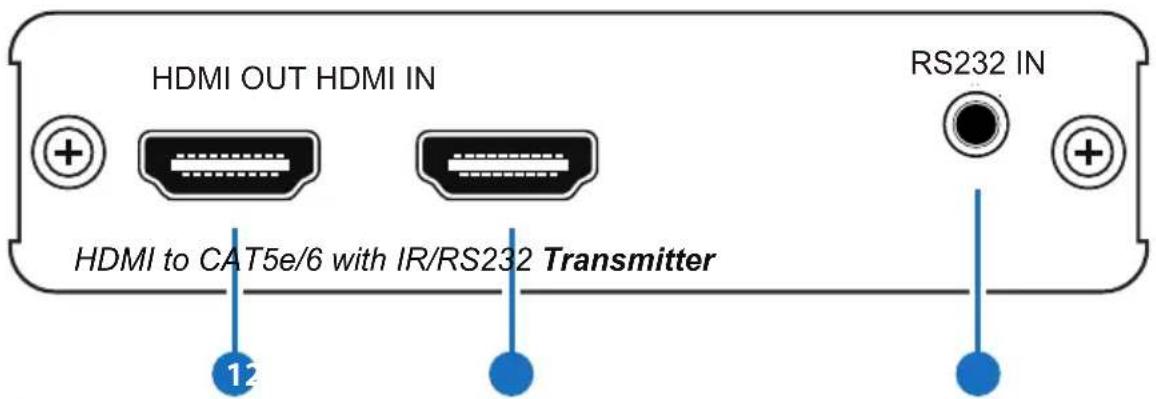

6.1 Front Panel

HDMI OUT HDMI IN RS232 IN HDMI to CAT5e/6 with IR/RS232 Transmitter 12

1 HDMI OUT:

Connect to HDMI display for instant image display or cascade with another family type Transmitter. The unit will detect CAT5e/6/7 output's EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. If CAT5e/6/7 output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the signal that all outputs can accept.

This device obtain the last memory function therefore, the device will use the last CAT5e/6/7 output port's EDID when CAT5e/6/7 output port is not connected after power cycling.

2 HDMI IN:

Connect with source equipment such as DVD/Blu-ray or PS3 player.

3 RS-232 IN:

Connect to a PC/Laptop or RS-232 enabled device (with supplied 3.5mm Phone Jack to D-Sub 9-Pin female adaptor) to transmit of RS-232 commands.

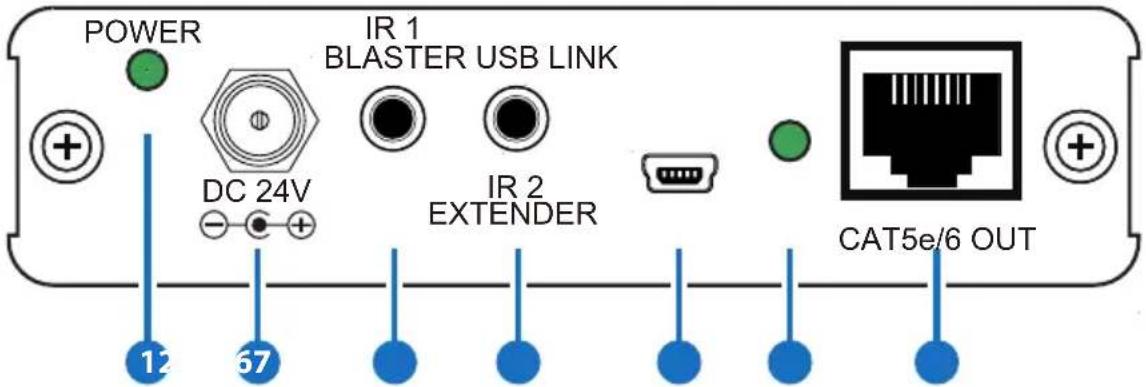

6.2 Rear Panel

POWER IR 1 BLASTER USB LINK DC 24V IR 2 EXTENDER CAT5e/6 OUT

1 POWER LED:

Once the power supply is connected the LED will illuminate.

2 DC 24V:

Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet.

3 IR 1 BLASTER:

Connect with the supplied IR Blaster to blast out the IR signal received from the Receiver side. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.

4 IR 2 EXTENDER:

Connect with the supplied IR Extender to receive IR signal from Transmitter side and blast out at Receiver side. Ensure that remote controller being used is within the direct line-of-sight of the IR Extender.

5 USB:

This slot is reserved for firmware update only.

6 LINK LED:

This LED will illuminate when both the input source and output display signals are connected through CAT cable. When it blinks regularly it states the display is NOT sending signals to Receiver but the Transmitter and Receiver are linked and if it blink irregularly it states an error has occurred.

7 CAT5e/6/7 OUT:

Connect this port to CAT5e/6/7 to HDMI Receiver with CAT5e/6/7 cable to extend the signal up to 60m.

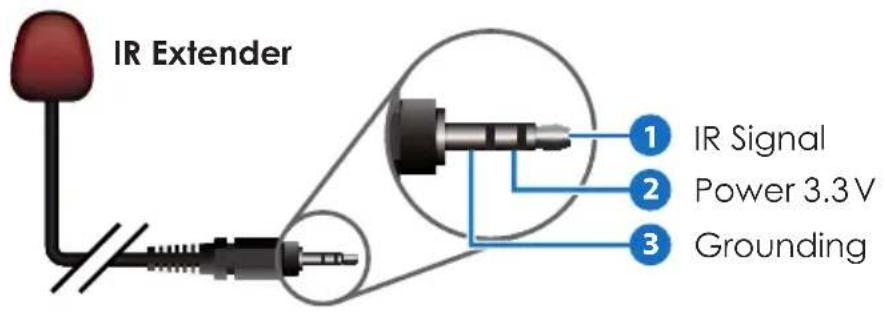

6.3 IR Cable Pin Assignment

IR Blaster 1 Power 3.3 V 2 IR Blaster Signal 3 NC

IR Extender 1 IR Signal 2 Power 3.3V 3 Grounding

6.4. D-Sub 9 Pin Definitions

Pin Defi ne TX / RX
1 N/C
2 TxD/RxD
3 RxD/TxD
4	NC
5 GND
6	NC
7	NC
8	NC
9	NC

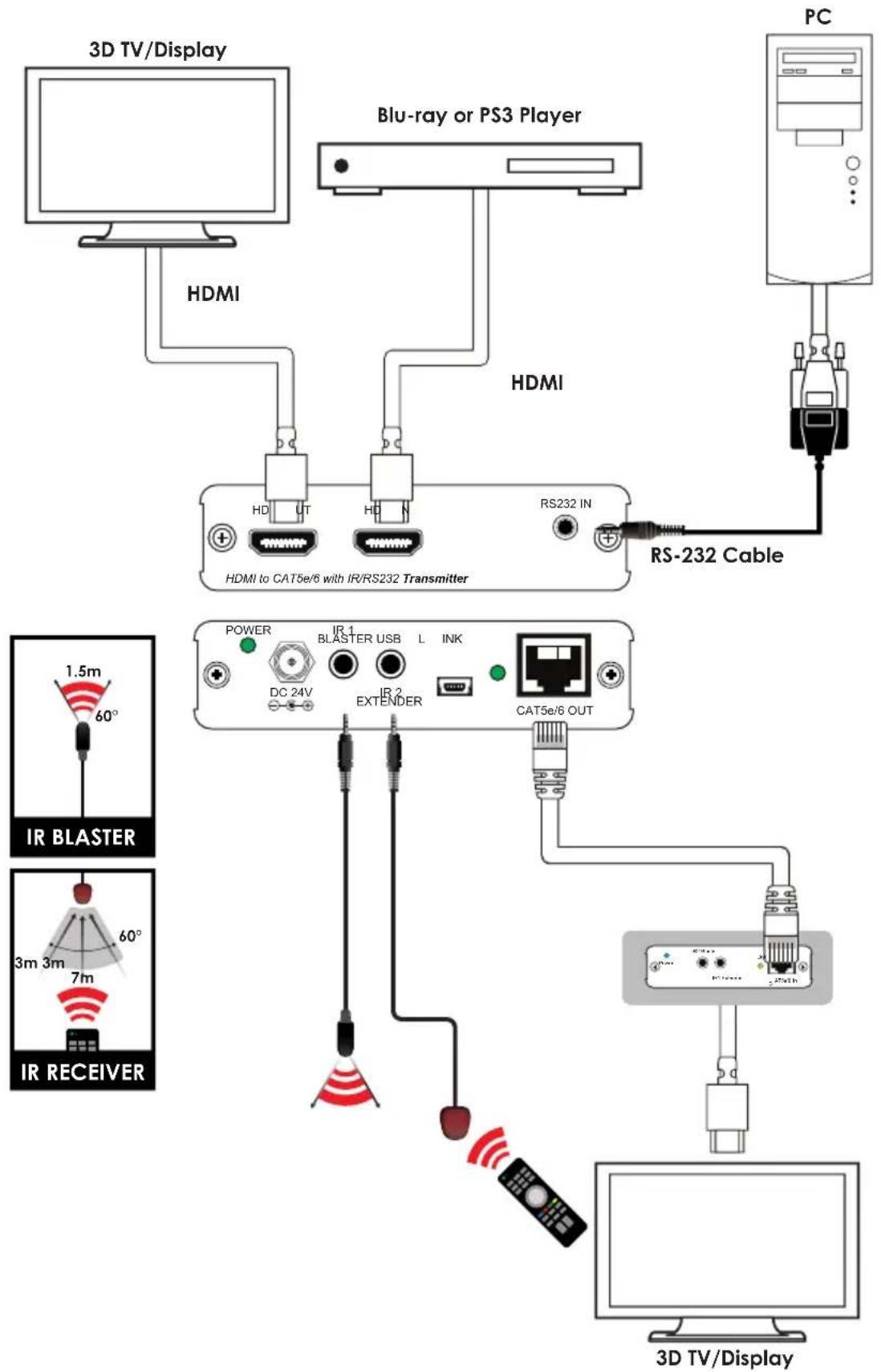

7. CONNECTION DIAGRAM

3D TV/Display Blu-ray or PS3 Player HDMI HDMI RS-232 Cable PC HDMI to CAT5e/6 with IR/RS232 Transmitter POWER IR 1 BLASTER USB L INK DC 24V IR 2 EXTENDER CAT5e/6 OUT IR BLASTER IR RECEIVER 3m 3m 7m 3D TV/Display

8. SPECIFICATIONS

Video Bandwidth 340Mbps/10.2Gbps

Input ports 1 x HDMI,

1 x 3.5mm Phone Jack for RS-232, 1 x IR IN, 1 x USB (Service only)

Output ports 1 x HDMI,

1 x IR OUT, 1 x CAT5e/6/7

Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/4096x2160@24Hz)

HDMI Input & Output Up to 10m@8 or12-bit 1080p Cable Distance

CAT5e/6/7 Output Up to 60 m Cable Distance

IR Frequency 30\~50kHz

Power Supply 24V / 1.25A DC (US/EU standards, CE/FCC/UL certified)

Dimensions 102 mm(W) x 102 mm(D) x 25 mm(H)/Jacks Excluded 102 mm(W) x 110 mm(D) x 25 mm(H)/Jacks Included

Weight 244 g

Chassis Material Metal

Silkscreen Color Gray

ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)

Operating Temperature 0°C \~ 40°C

Storage Temperature -20°C \~ 60°C / -4 °F \~ 140 °F

Relative Humidity 20 \~ 90% RH (non-condensing)

Power Consumption 6.3W

8.1 CAT5e/6/7 Cable Specification

Cable Type	Range	Pixel clock rate	Video Data Rate	Supported Video
CAT5e/6/7	60 m <=2	25 MHz <=5.3	Gbps (HD Video)	Up to 1080p, 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225MHz TMDS clock)
	40 m >2	25 MHz >5.3	Gbps (Ultra HD Video)	4K2K, 30Hz video formats
CAT6/7 60 m	>225 MHz	>5.3 Gbps	(Ultra HD Video)	4K2K, 30Hz video formats

1. ACRONYMS

ACRONYM COMPLETE TERM

4Kx2K 3840x2160 / 4096x2160

DTS Digital Theater System

EDID Extended Display Identification Data

HDCP High-bandwidth Digital Content Protection

HDMI High-Definition Multimedia Interface

HDTV High-Definition Television
