HTZ252DVD - Home Theater PIONEER - Free user manual and instructions

Product Type	Home Cinema System
Model	HTZ252DVD
Brand	Pioneer
Amplifier Power Output	60 W per channel (Front/Center/Surround, 1 kHz, 10% THD, 4 Ω); 50 W per channel (1 kHz, 10% THD, 6 Ω); Subwoofer 60 W (100 Hz, 10% THD, 4 Ω)
Main Unit Dimensions (W x H x D)	420 mm x 60 mm x 330 mm
Main Unit Weight	3.1 kg
Power Consumption	44 W (operation), 0.38 W (standby)
Power Supply	AC 220-240 V, 50/60 Hz (Taiwan model: AC 110 V, 50/60 Hz)
Disc Compatibility	DVD-Video, DVD-R/RW, Audio CD, Video CD, CD-R/RW, DVD+R/RW, MP3, WMA, MPEG-4 AAC, DivX, JPEG
USB Playback	Yes (FAT16/32, MP3/WMA/MPEG-4 AAC/JPEG)
Tuner	FM/AM with 30 presets
Audio Decoding	Dolby Digital, DTS, Dolby Pro Logic II
Video Outputs	Composite, S-Video, Component (interlaced/progressive)
Speaker System	5.1 channel (Front L/R, Center, Surround L/R, Subwoofer)
Front/Surround Speakers	7.7 cm cone, 6 Ω (Front: 90 Hz-20 kHz; Surround: 100 Hz-20 kHz); Max input 60 W
Center Speaker	7.7 cm cone, 6 Ω, 90 Hz-20 kHz, max input 60 W
Subwoofer	16 cm cone, 6 Ω, 30 Hz-2 kHz, max input 60 W
Frequency Response (Digital Audio)	4 Hz to 44 kHz (96 kHz sampling) / 4 Hz to 22 kHz (48 kHz sampling)
Remote Control	Included
Special Features	Sleep timer, display dimmer, key lock, parental lock, DivX VOD

Frequently Asked Questions - HTZ252DVD PIONEER

How do I set up the speakers for optimal surround sound?

Place the speakers as per the standard 5-spot setup: front left/right, center, surround left/right, and subwoofer. For the XV-DV151 model, you can also use a front surround 3-spot setup if rear placement is not possible. After placement, press TEST TONE and adjust channel levels using the cursor buttons to equalize volume from each speaker at your listening position.

What disc formats are supported?

This system plays DVD-Video, DVD-R/RW, Audio CD, Video CD/Super VCD, CD-R/RW, and DVD+R/RW discs. It also supports MP3, WMA, MPEG-4 AAC, DivX video, and JPEG files on CD/DVD or USB, provided the correct file extensions are used (.mp3, .wma, .m4a, .avi/.divx, .jpg).

How can I play audio from a USB device?

Press USB on the remote or front panel, connect your USB mass storage device (FAT16/32) to the front USB port, then press ▶ (play) to start playback. Compatible formats are MP3, WMA, and MPEG-4 AAC. Note that DivX files are not playable via USB.

How do I reset the system to factory defaults?

With the system on, press the STANDBY/ON button on the front panel while holding down the ▶/II USB button. The next time you turn on the system, all settings will be reset to factory defaults.

How can I improve poor FM reception?

First, fully extend the FM wire antenna and position it for best reception. If still weak, switch to mono mode: press SETUP, use ←/→ to select FM MODE, then choose FM MONO. You can also connect an outdoor FM antenna using a PAL connector.

How to set up parental lock?

Press HOME MENU, select Initial Settings, then Options and Parental Lock. Register a 4-digit password, then set a level (1-8) or country/area code. Discs with a higher level than the player's setting will require the password to play.

What should I do if there is no sound from the surround or center speakers?

Check that the speakers are properly connected. Ensure you are playing a multichannel source (DVD/CD or USB) and that the listening mode is not set to STEREO. Adjust channel levels using TEST TONE (see page 9). Also verify that the speaker settings are correct.

How to play DivX® VOD content?

First, generate a DivX VOD registration code from the player: press HOME MENU, select Initial Settings, then Options and DivX(R) VOD. Display the code and register it with your DivX VOD provider. Content with limited plays will show remaining count on-screen.

Can I adjust the bass and treble?

Yes. Press SOUND, then use ←/→ to select BASS or TREBLE. Adjust with ↑/↓ and confirm with ENTER. You can also boost bass with BASSMODE options: MUSIC or CINEMA.

How do I use the sleep timer?

Press SLEEP repeatedly to cycle between SLP ON (auto shut-off after about 1 hour) and SLP OFF (cancel). After selecting SLP ON, you can press SLEEP again to check remaining time indicated by dashes.

USER MANUAL HTZ252DVD PIONEER

Operating Instructions

操作手册

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Location: bottom of the unit

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1 En-A

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A_En

WARNING:

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230V or 120V) written on the rear panel. D3-4-2-1-4_Er

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b_A_En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a_A_En

CAUTION

This product is a class 1 laser product, but this product contains a laser diode higher than Class 1.

To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your unit.

Location: top of the unit

[Taiwanese model]

CAUTION : CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN, AVOID EXPOSURE TO THE BEAM.

CLASS 1 LASER PRODUCT

D3-4-2-1-8_B_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041 En

Operating Environment

Operating environment temperature and humidity: +5 °C - +35 °C (+41 °F - +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c_A_En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

Contents

01 Controls and displays

Front panel 6

Remote control....6

Display 8

02 Getting started

Home theater sound setup 9

Setting the channel levels 9

Using the on-screen displays 10

Playing discs 10

Basic playback controls 10

Resume and Last Memory 11

DVD-Video disc menus.... 11

Video CD/Super VCD PBC menus ..... 11

Listening to the radio 12

Improving poor FM reception 12

Memorizing stations.... 12

Listening to station presets 12

Listening to other sources 12

Setting the sleep timer 13

Dimming the display.... 13

03 Listening to your system

Auto listening mode 14

Listening in surround sound 14

Using Front Surround.... 14

Listening in stereo 15

Listening with headphones 15

Using the SFC modes.... 15

Adjusting the bass and treble 15

Boosting the bass level 15

04 Disc playback features

Scanning discs.... 16

Playing in slow motion 16

Frame advance/frame reverse.... 16

Playing a JPEG slideshow.... 16

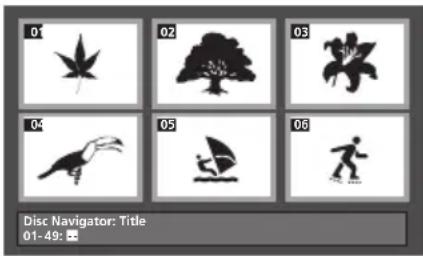

Browsing DVD or Video CD/Super VCD discs with the Disc Navigator.... 17

Browsing WMA, MP3, MPEG-4 AAC, DivX video and JPEG files with the Disc

Navigator 18

Looping a section of a disc 18

Using repeat play 18

Using random play 19

Creating a program list.... 19

Other functions available from the program menu 20

Searching a disc 20

Switching subtitles 20

Switching language / audio channels ..... 20

Zooming the screen 21

Switching camera angles 21

Displaying disc information 21

05 USB playback

Using the USB interface 22

Basic playback controls 22

Scanning files 23

Playing a JPEG slideshow 23

Browsing files with the Navigator 23

06 Audio Settings and Video Adjust menus

Audio Settings menu....24

Audio DRC 24

Video Adjust menu 24

07 Initial Settings menu

Using the Initial Settings menu 25

Video Output settings 25

Language settings....25

Display settings....26

Options settings 26

Speakers settings 26

Parental Lock 26

About DivX® VOD content 27

Speaker Distance 28

08 Other connections

Connecting external antennas....29

Connecting auxiliary audio components .... 29

Connecting the S-video output .....29

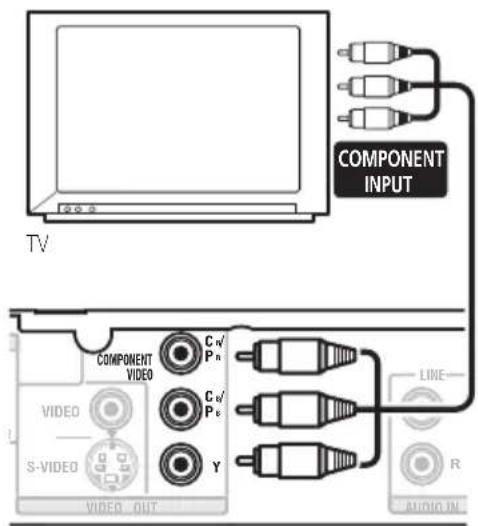

Connecting using the component video output....30

About progressive scan video 30

09 Additional information

Disc / content format playback compatibility .... 31

Disc compatibility table 31

About DVD+R/DVD+RW compatibility ... 32

About DivX 32

About MPEG-4 AAC 33

About WMA 33

Using and taking care of discs 33

DVD Video regions 34

Installation and maintenance 34

Hints on installation 34

Cleaning the pickup lens 34

Problems with condensation 34

Moving the system unit....34

Screen sizes and disc formats....35

TV system setting 35

Frequency step setting 35

Troubleshooting 36

General 36

DVD/CD/Video CD player 37

Tuner 38

USB connection 38

Error Messages....39

Resetting the system....39

Setting the Key Lock 39

Switching off the demo....39

Using the language code list....39

Language code list 40

Country/Area code list....40

Specifications 41

Chapter 1

Controls and displays

Front panel

1 ▲ OPEN/CLOSE

Opens/closes the disc tray.

2 ▶/II DVD/CD

Selects the DVD/CD function and starts/pauses/resumes playback.

3

Stops playback.

4 ▶/II USB

Selects the USB function and starts/pauses playback.

5 VOLUME buttons

6 ⏻ STANDBY/ON

Switches the system on or into standby.

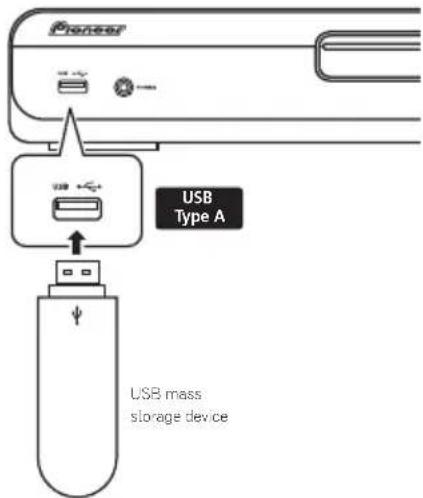

7 USB interface

Connect a USB device for playback (see USB playback on page 22).

8 PHONES jack

Connect headphones.

9 Display

See Display below.

Remote control

1 ⏻ STANDBY/ON

Switches the system on or into standby.

2 Function select buttons

Selects the source you want to listen to (DVD/CD, TUNER, USB, LINE).

3 Number buttons / CLEAR / DISPLAY

CLEAR

Clears an entry.

DISPLAY

Displays/changes disc information shown on-screen (page 21).

4 TOP MENU

Displays the top menu of a DVD disc in the play position—this may be the same as pressing MENU (page 11).

5 Cursor buttons, ENTER and tuning buttons

Cursor buttons

Use the cursor buttons ( //←/→ ) to navigate on-screen displays and menus.

ENTER

Selects an option or executes a command.

TUNE +/-

Tunes the radio.

ST +/-

Selects station presets when listening to the radio.

6 HOME MENU

Displays (or exits) the on-screen menu for Initial Settings, Play Mode functions, etc.

7 Setup and other sound controls

SETUP

Use to make various system and surround sound settings (page 9, 12, 14, 35 and 39).

TEST TONE

Outputs the test tone (for speaker setup) (page 9).

SURROUND

Selects a Surround mode (page 14) or switches to stereo playback (page 15).

SOUND

Accesses the sound menu to adjust the SFC Mode, bass and treble, etc. (page 15)

8 Playback controls

See Basic playback controls on page 10, Disc playback features on page 16 and USB playback on page 22 for an explanation of these controls.

9 TV CONTROL buttons

These control Pioneer plasma displays.

10 MUTE

Mutes the sound (press again to cancel).

11 ▲ OPEN/CLOSE

Opens/closes the disc tray.

12 DVD controls

AUDIO

Selects audio channel/language (page 20).

SUBTITLE

Displays/changes the subtitles (page 20).

ANGLE

Changes camera angle during DVD multi-angle scene playback (page 21).

ZOOM

Changes the screen zoom level (page 21).

13 MENU

Press to display a DVD disc or USB menu, or the Navigator (page 17 and 23).

14 RETURN

Returns to a previous menu screen.

15 SLEEP

Press to set the sleep timer (page 13).

16 VOLUME +/-

Adjusts the volume.

Display

1 DTS

Lights during playback of a DTS source (page 14).

2 PRGSVE

Lights when progressive scan video output is selected (page 30).

3 SOUND

Lights when the SFC Modes or the tone controls (treble, bass or bass boost) are active (page 15).

4 F.SURR. (XV-DV151 model only)

Lights when the Front Surround listening mode is selected (page 14).

5 RPT and RPT -1

RPT lights during repeat play. RPT-1 lights during repeat one-track play (page 18).

6 PGM

Lights during program play (page 19).

7 Tuner indicators

^irc – Lights when a broadcast is being received.

- Lights when a stereo FM broadcast is being received in auto stereo mode.

- Lights when FM mono reception is selected.

8 RDM

Lights during random play (page 19).

9 kHz / MHz

Indicates the frequency unit shown in the character display (kHz for AM, MHz for FM).

10 Character display

11

Lights when sleep timer is active (page 13).

12 ▶

Lights during playback.

13 □□ PL II

Lights during Dolby Pro Logic II decoding (page 14).

14 D D

Lights during playback of a Dolby Digital source (page 14).

Chapter 2

Getting started

Home theater sound setup

Place your speakers as shown below for optimal surround sound (see the Speaker Setup Guide for more placement tips).

- Standard surround 5-spot setup – This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound.

XV-DV151 only: Depending on the size and characteristics of your room, you can choose to use the following setup option: ¹

- Front surround 3-spot setup – This setup is ideal when rear surround speaker placement isn't possible or you want to avoid running long speaker cables in your listening area. Use this setup together with the Front Surround modes to take advantage of wall and ceiling reflections for a very realistic surround effect.

After placing your speakers, complete Setting the channel levels below then refer to Speakers settings on page 26 to complete your surround sound setup.

Setting the channel levels

Set the relative channel levels from your main listening position. ²

1 Press TEST TONE.

The test tone is output in the following order (from the speakers active in the current listening mode):

• L – Front left speaker
• C – Center speaker
• R – Front right speaker
• SR – Right surround speaker
  • SL – Left surround speaker
• SW – Subwoofer ³

2 Use the VOLUME +/- button to adjust the volume to an appropriate level.

3 Use ↑/↓ to adjust the speaker levels in turn.

You should hear the test tone at the same volume from each speaker when seated in the main listening position. The channel level range is ± 10 dB.

4 When you're done, press ENTER to exit test tone setup.

Note

1 When using this setup, make sure the front surround mode is switched on (page 14) before selecting any surround mode.
2 • This is only available when DVD/CD is selected and playback is stopped. Also make sure headphones are unplugged.
- To adjust the overall balance while listening to any sound source you want, press SETUP, use ↔/→ to select CH LEVEL then press ENTER. Use ↔/→ to move channel to channel, and / to adjust the channel levels. Press ENTER when you're finished. 3 Since the subwoofer produces ultra-low frequencies its sound may seem quieter than it actually is.

Using the on-screen displays

For ease of use, this system makes extensive use of graphical on-screen displays (OSDs).

All the screens are navigated in basically the same way, using , , ↔ , → to change the highlighted item and pressing ENTER to select it. ¹

Important

- Throughout this manual, 'Select' means use the cursor buttons to highlight an item on-screen, then press ENTER.

Button	What it does
HOME MENU	Displays/exits the on-screen display
←↑↓→	Changes the highlighted menu item
ENTER	Selects the highlighted menu item
RETURN	Returns to the main menu without saving changes

Tip

- The button guide at the bottom of every OSD screen shows you which buttons you'll need to use for that screen.

Playing discs

The basic playback controls for playing DVD, CD, Video CD/Super VCD, DivX video and WMA/MP3/MPEG-4 AAC discs are covered here. Further functions are detailed in chapter 4.

1 If the player isn't already on, switch it on.

If you're playing a disc with video, also turn on your TV and make sure that it is set to the correct video input.

2 Press ▲ OPEN/CLOSE to load a disc.

Load a disc with the label side facing up, using the disc tray guide to align the disc (if you're loading a double-sided DVD disc, load it with the side you want to play face down).

3 Press ▶ (play) to start playback.

If you're playing a DVD or Video CD/Super VCD, a menu may appear. See DVD-Video disc menus and Video CD/Super VCD PBC menus on page 11 to navigate these.

If you loaded a disc containing JPEGs, a slideshow will start. See Playing a JPEG slideshow on page 16 for more on this.

- If a disc contains a mixture of DivX video and other media file types (MP3, for example), first select whether to play the DivX video files (DivX) or the other media file types (MP3 / WMA / JPEG / MPEG-4 AAC) from the on-screen display.

4 Adjust the volume.

Use the VOLUME control.

Basic playback controls

The following table shows the basic controls on the remote for playing discs ² . You can find other playback features in the chapter 4.

Button What it does

Starts/resumes normal playback.If the display showsRESUMEorLAST MEM playback starts from the resume or last memory point (see Resume and Last Memory below).
■	Stops playback or cancels the resume function (if the display showsRESUME).

Note

1 The screen saver will appear after five minutes of inactivity.
2 You may find with some DVD discs that some playback controls don't work in certain parts of the disc.

Button	What it does
◀◀	Press to start fast reverse scanning.
▶▶	Press to start fast forward scanning.
I◀◀	Skips to the start of the current track or chapter, then previous tracks/chapters.
▶▶I	Skips to the next track or chapter.
Numbers	Use to enter a title/chapter/track number. Press ENTER to select.• If the disc is stopped, playback starts from the selected title (for DVD) or track (for CD/Video CD/Super VCD).• If the disc is playing, playback jumps to the start of the selected title (VR mode DVD-RW), chapter (DVD-Video) or track (CD/Video CD/Super VCD).

Resume and Last Memory

When you stop playback of a disc, RESUME shows in the display indicating that you can resume playback from that point. With DVDs and Video CD/Super VCDs, even if ejected, the play position is stored in memory. ¹ The next time you load the disc, the display shows LAST MEM and you can resume playback. If you want to clear the resume point, press ■ (stop) while RESUME is displayed.

DVD-Video disc menus

Many DVD-Video discs contain menus from which you can select what you want to watch. Sometimes DVD-Video menus are displayed automatically when you start playback; others only appear when you press MENU or TOP MENU.

Button	What it does
TOP MENU	Displays the ‘top menu’ of a DVD disc—this varies with the disc.

Button	What it does
MENU	Displays a DVD disc menu—this varies with the disc and may be the same as the ‘top menu’.
←↑↓→	Moves the cursor around the screen.
ENTER	Selects the current menu option.
RETURN	Returns to the previously displayed menu screen.
Numbers	Highlights a numbered menu option (some discs only). Press ENTER to select.

Video CD/Super VCD PBC menus

Some Video CD/Super VCDs have menus from which you can choose what you want to watch. These are PBC (Playback control) menus.

You can play a PBC Video CD/Super VCD without having to navigate the PBC menu by starting playback using a number button to select a track, rather than the ▶ (play) button.

Button	What it does
RETURN	Displays the PBC menu.
Numbers	Selects numbered menu options. Press ENTER to select.
|◀◀	Displays the previous menu page (if there is one).
▶▶|	Displays the next menu page (if there is one).

Note

1 • The Last Memory function may not work with some discs.
- For DVD-Video discs (except VR mode DVD-R/RW), the player stores the play position of the last five discs.

Listening to the radio

The tuner can receive both FM and AM broadcasts, and lets you memorize your favorite stations so you don't have to manually tune in every time you want to listen.

1 Press TUNER to switch to the tuner, then press repeatedly to select the AM or FM band. The display shows the band and frequency.

2 Tune to a frequency.

There are three tuning modes—manual, auto, and high-speed:

• Manual tuning: Press TUNE +/- repeatedly to change the displayed frequency.
• Auto tuning: Press and hold TUNE +/- until the frequency display starts to move, then release. The tuner will stop on the next station it finds. Repeat to keep searching.
• High-speed tuning: Press and hold TUNE +/- until the frequency display starts to move rapidly. Keep the button held down until you reach the frequency you want. If necessary, fine tune the frequency using the manual tuning method.

Improving poor FM reception

If you're listening to an FM station in stereo but the reception is weak, you can improve the sound quality by switching to mono.

1 Tune to an FM radio station then press SETUP.

2 Use ←/→ to choose FM MODE then press ENTER.

3 Use ↑/↓ to select FM MONO then press ENTER.

The mono indicator ( lights when the tuner is in mono reception mode.

Select FM AUTO above to switch back to auto-stereo mode (the stereo indicator (lights when receiving a stereo broadcast).

Memorizing stations

You can save up to 30 station presets so that you always have easy access to your favorite stations without having to tune in manually each time.

1 Tune to an AM or FM radio station.

For the FM band, select mono or auto-stereo reception as necessary. This setting is saved along with the preset.

2 Press SETUP and use ←/→ to choose 'ST.MEM.' then press ENTER.

3 Use ↑/↓ to select the station preset you want then press ENTER.

Listening to station presets

1 Make sure the TUNER function is selected.

2 Use the ST +/- buttons to select a station preset.

- You can also use the number buttons to do this.

Listening to other sources

You can connect auxiliary sources (TV, satellite receiver, etc.) to this unit for playback through the speaker system. See Connecting auxiliary audio components on page 29 for more on this.

- To connect a USB device to the USB terminal, see USB playback on page 22.

1 Make sure that the external source (TV, satellite receiver, etc.) is switched on.

2 Press LINE to select the source.

3 If necessary, start playback of the source.

Setting the sleep timer

The sleep timer switches off the system after about an hour so you can fall asleep without worrying about it. ¹

- PressSLEEP repeatedly to select an option then press ENTER.

Choose between the following options:

• SLP ON – Switches off after about an hour
• SLP OFF – Cancels the sleep timer

After selecting SLP ON, you can press SLEEP again to check how much time is left. Each line indicates approximately 12 minutes (remaining):

SLP ---

Dimming the display

You can dim the display if you find it too bright.

1 PressSETUP and use ←/→ to choose DIMMER then press ENTER.
This is shown in the front panel display.
2 Use ↑/↓ to select LIGHT or DARK then press ENTER.

Chapter 3

Listening to your system

Auto listening mode

The Auto listening mode is the simplest way to listen to any source as it was mastered: the output from the speakers mirrors the channels in the source material.

- Press SURROUND to select the AUTO listening mode. ¹

Listening in surround sound

You can listen to stereo or multichannel sources in surround sound. ² Surround sound is generated from stereo sources using one of the Dolby Pro Logic decoding modes.

- Press SURROUND repeatedly to select a listening mode. ¹

The choices that appear in the display will vary according to the type of source that's playing.

• AUTO – Auto listening mode (see above)
- DOLBY PL (Dolby Pro Logic) – 4.1 channel surround sound (use with any two-channel source)
• MOVIE (Dolby Pro Logic II Movie) – Pro Logic II 5.1 channel surround sound, especially suited to movie sources (use with any two-channel source)

• MUSIC (Dolby Pro Logic II Music) – Pro Logic II 5.1 channel surround sound, especially suited to music sources (use with any two-channel source)
  • STEREO – See Listening in stereo below

Using Front Surround

XV-DV151 only

The Front Surround mode is effective when DVD/CD or USB is selected as the input source and you are using the Front surround 3-spot speaker setup as described in Home theater sound setup on page 9 and the Speaker Setup Guide.

- The surround speakers should be placed on top of the front speakers and oriented towards the walls.

1 Press SETUP and use ↔/→ to choose 'F.SURR' then press ENTER. ³

2 Use ↑/↓ to select MODE ON or MODE OFF then press ENTER.⁴

After selecting MODE ON, you can use the surround listening modes with Front Surround.

Note

1 If the source is Dolby Digital or DTS, the corresponding indicator lights in the front panel display.
2 Note that the input source must be switched to DVD/CD or USB for multichannel playback.
3 Note that the F.SURR option does not appear when headphones are connected.
4 When set to MODE ON, make sure to follow the Setup Guide for best surround sound.

Listening in stereo

You can listen to any source—stereo or multichannel—in stereo. When playing a multichannel source, all channels are downmixed to the front left/right speakers and the subwoofer.

- Press SURROUND repeatedly until STEREO shows in the display.

Listening with headphones

When headphones are connected, only the STEREO mode is available.

Using the SFC modes

The SFC (Sound Field Control) modes can be used with any multichannel or stereo source for a variety of additional surround sound effects.

1 Press SOUND.

2 Use ←/→ to select SFC MODE then press ENTER.

3 Press ↑/↓ then ENTER to select an SFC Sound Mode.

Select between OFF, ACTION, DRAMA, ROCK, POP, HALL or LIVE.

Adjusting the bass and treble

Use the bass and treble controls to adjust the overall tone.

1 Press SOUND.

2 Use ←/→ to select BASS or TREBLE then press ENTER.

3 Use ↑/↓ to adjust the sound then press ENTER to confirm.

Boosting the bass level

There are two bass modes you can use to enhance the bass in a source.

1 Press SOUND.

2 Use ←/→ to select BASSMODE then press ENTER.

3 Use ↑/↓ to adjust the sound then press ENTER to confirm.

Select between OFF, MUSIC or CINEMA.

Chapter 4

Disc playback features

Important

• Many of the functions covered in this chapter apply to DVD discs, Video CDs/ Super VCDs, CDs, DivX video and WMA/ MP3/MPEG-4 AAC/JPEG discs, although the exact operation of some varies slightly with the kind of disc loaded.
• Some DVDs restrict the use of some functions (random or repeat, for example) in some or all parts of the disc. This is not a malfunction.
• When playing Video CD/Super VCDs, some of the functions are not available during PBC playback. If you want to use them, start the disc playing using a number button to select a track.

Scanning discs

You can fast-scan discs forward or backward at various different speeds. ¹

- During playback, press ◀◀ or ▶▶ to start scanning.

Press repeatedly to increase the scanning speed (shown on-screen).

- To resume playback, press ▶ (play). ²

Playing in slow motion

You can play DVDs, Video CD/Super VCDs and DivX video at four different forward slow motion speeds. DVD discs can also be played in reverse slow motion.

1 During playback, press II(pause).
2 Press and hold ◀/◄◄ or |►/|► until slow motion playback starts.

Press repeatedly to change the slow motion speed (shown on-screen).

• To resume playback, press ▶ (play). ²

Frame advance/frame reverse

You can advance or back up DVD discs frame-by-frame. With Video CD/Super VCDs and DivX video you can only use frame advance.

1 During playback, press Ⅲ(pause).

2 Press ◀/◄◄ or ||►/|► to reverse or advance a frame at a time.

- To resume playback, press ▶ (play). ²

Playing a JPEG slideshow

After loading a disc containing JPEG pictures, press ▶ to start a slideshow from the first folder/picture on the disc. ³ The player displays the pictures in each folder in alphabetical order.

- If the disc contains WMA/MP3/MPEG-4 AAC files, playback of the slideshow and audio files repeats. During audio playback, you can still use the skip (◀◀/▶▶), scan (◀◀/▶▶) and pause (■) functions.

Pictures are automatically adjusted so that they fill as much of the screen as possible.

Note

1 Only one speed is available for DivX video discs.

2 • Depending on the disc, normal playback may automatically resume when a new chapter is reached on a DVD disc.
- With Video CD/Super VCDs in PBC mode or a WMA/MP3/MPEG-4 AAC track, playback automatically resumes at the end or beginning of the track.
3 • The time it takes for the player to load a file increases with large file sizes.
• Discs can contain up to 299 folders and up to 648 folders and files combined.

While the slideshow is running:

Button	What it does
||	Pauses the slideshow (or audio); press again to restart.
|◀◀	Jumps to the previous picture (or audio file with audio playback).
▶▶|	Jumps to the next picture (or audio file with audio playback).
←/→/↑/↓	Pauses the slideshow and rotates/flips the displayed picture (press ▶ (play) to restart slideshow).
ZOOM	Pauses the slideshow and zooms the picture. Press again to toggle between 1x, 2x and 4x zoom (press ▶ (play) to restart slideshow).
MENU	Displays the Disc Navigator screen (see below).

Browsing DVD or Video CD/ Super VCD discs with the Disc Navigator

Use the Disc Navigator to browse through the contents of a DVD or Video CD/Super VCD disc to find the part you want to play.

1 During playback, press HOME MENU and select 'Disc Navigator' from the on-screen menu.

2 Select a view option.

The options available depend on the kind of disc loaded and whether the disc is playing or not, but include:

• Title – Titles from a DVD-Video disc.
• Chapter – Chapters from the current title of a DVD-Video disc.
• Track – Tracks from a Video CD/Super VCD disc.
• Time – Thumbnails from a Video CD/Super VCD disc at 10 minute intervals.
• Original: Title – Original titles from a VR mode DVD-RW disc.
• Playlist: Title – Playlist titles from a VR mode DVD-RW disc.
• Original: Time – Thumbnails from the Original content at 10 minute intervals.
• Playlist: Time – Thumbnails from the Playlist at 10 minute intervals.

The screen shows up to six moving thumbnail images displayed one after another. To display the previous/next six thumbnails, press ◀◀◀/ ▶▶|.

3 Select the thumbnail image for what you want to play.

You can use either ↑/↓/←/→ and ENTER to select a thumbnail, or the number buttons.

To select using the number buttons, enter a two-digit number then press ENTER.

Browsing WMA, MP3, MPEG-4 AAC, DivX video and JPEG files with the Disc Navigator

Use the Disc Navigator to find a particular file or folder by filename.

1 Press HOME MENU and select 'Disc Navigator' from the on-screen menu.

2 Use ↑/↓/←/→ and ENTER to navigate.

Use ↑/↓ to move up and down the folder/file list.

Use ← to return to the parent folder. ¹

Use ENTER or → to open a highlighted folder.

- When a JPEG file is highlighted, a thumbnail image is displayed on the right.

3 To play the highlighted track or DivX video file or display the highlighted JPEG file, press ENTER.

• When a WMA/MP3/MPEG-4 AAC or DivX video file is selected, playback begins from that file, and continues until the end of the folder.
• When a JPEG file is selected, a slideshow begins, starting with that file, and continues to the end of the folder.

Tip

• You can also play a JPEG slideshow while listening to WMA/MP3/MPEG-4 AAC playback. Simply select the audio file you want to listen to followed by the JPEG from which you want the slideshow to start. Playback of both the slideshow and the audio files repeats. Playback controls are effective for the JPEG slideshow only.
• To play the contents of the whole disc rather than just the current folder, exit the Disc Navigator and start playback using the ▶ (play) button.

Looping a section of a disc

The A-B Repeat function allows you to specify two points (A and B) within a track (CD, Video CD/Super Video CD) or title (DVD) that form a loop which is played over and over.

1 During playback, press HOME MENU and select 'Play Mode'.

2 Select 'A-B Repeat'.

3 Press ENTER on 'A(Start Point)' to set the loop start point.

4 Press ENTER on 'B(End Point)' to set the loop end point.

After pressing ENTER, playback jumps back to the start point and plays the loop.

5 To resume normal playback, select 'Off'.

Using repeat play

In addition to various repeat play options, it's also possible to use repeat play together with program play (see Creating a program list on page 19).

Note

1 You can also do this by going to the '..' folder at the top, then pressing ENTER.

1 During playback, press HOME MENU and select 'Play Mode'.
2 Select 'Repeat' then select a repeat play option. ¹

If program play is active, select Program Repeat to repeat the program list, or Repeat Off to cancel.

• For DVD discs, select Title Repeat or Chapter Repeat.
• For CDs and Video CD/Super VCDs, select Disc Repeat or Track Repeat.
• For DivX video discs, select Title Repeat (or Repeat Off).

Using random play

Use this function to play titles or chapters (DVD-Video) or tracks (CD and Video CD/Super VCD) in a random order. ²

1 During playback, press HOME MENU and select 'Play Mode'.
2 Select 'Random' then select an option.

- For DVD discs, select Random Title or Random Chapter.

- For CDs and Video CD/Super VCDs, select On or Off to switch random play on or off.

Tip

- Use the following controls during random play:

Button	What it does
▶▶I	Selects a new track/title/chapter at random.

Button	What it does
	Returns to the beginning of the current track/title/chapter; further presses select another random track/title/chapter.

- Random play remains in effect until you select Random Off from the random play menu options.

Creating a program list

This feature lets you program the play order of titles/chapters/tracks on a disc. ³

1 During playback, press HOME MENU and select 'Play Mode'.
2 Select 'Program' then select 'Create/Edit' from the list of program options.
3 Use ↑/↓/←/→ and ENTER to select a title, chapter or track for the current step in the program list.

For a DVD disc, you can add a title or a chapter.

- For a CD or Video CD/Super VCD, select a track to add to the program list.

After pressing ENTER to select the title/chapter/track, the step number automatically moves down one.

4 Repeat step 3 to build up a program list.

A program list can contain up to 24 steps.

• You can insert steps by just highlighting the position where you want the new step to appear and entering a title/chapter/track number.
  • To delete a step, highlight it and press CLEAR.

Note

1 You can't use repeat play with WMA/MP3/MPEG-4 AAC discs.
2 • You can set the random play option when a disc is playing or stopped. However, you can't use random play together with program play.
- You can't use random play with VR format DVD-R/RW discs, WMA/MP3/MPEG-4 AAC discs, DivX video discs, or while a DVD disc menu is being displayed.
3 You can't use Program play with VR format DVD-R/RW discs, WMA/MP3/MPEG-4 AAC discs, DivX video discs, or while a DVD disc menu is being displayed.

5 To play the program list, press ▶ (play).

Program play remains active until you turn off program play (see below), erase the program list (see below), eject the disc or switch off.

Tip

- Use the following controls during program play:

Button	What it does
HOME MENU	Save the program list and exit without starting playback.
▶▶I	Skip to the next step in the program list.

Other functions available from the program menu

There are a number of other options in the program menu in addition to Create/Edit.

• Playback Start – Starts playback of a saved program list
• Playback Stop – Turns off program play, but does not erase the program list
• Program Delete – Erases the program list and turns off program play

Searching a disc

You can search DVD discs by title or chapter number, or by time; CDs and Video CD/Super VCDs by track number or time; DivX video discs by time.

1 Press HOME MENU and select 'Play Mode'.

2 Select 'Search Mode'.

The search options that appear depend on the kind of disc loaded.

3 Select a search mode.

- The disc must be playing in order to use time search.

4 Use the number buttons to enter a title, chapter or track number, or a time.

- For a time search, enter the number of minutes and seconds into the currently playing title (DVD/ DivX video) or track (CD/ Video CD/Super VCD) you want playback to resume from. For example, press 4, 5, 0, 0 to have playback start from 45 minutes into the disc. For 1 hour, 20 minutes and 30 seconds, press 8, 0, 3, 0.

5 Press ENTER to start playback.

Switching subtitles

Some DVD discs and DivX video discs have subtitles in one or more languages; the disc box will usually tell you which subtitle languages are available. You can switch subtitle language during playback. ¹

- Press SUBTITLE repeatedly to select a subtitle option.

• To set subtitle preferences, see Language settings on page 25.
  • See Displaying DivX subtitle files on page 32 for more on DivX subtitles.

Switching language / audio channels

When playing discs recorded with dialog in two or more languages, or with dual-mono audio ² you can switch these during playback. ³

- Press AUDIO repeatedly to select an audio language option.

- To set audio language preferences, see Language settings on page 25.

Note

1 Some discs only allow you to change subtitle language from the disc menu. Press TOP MENU orMENU to access.
2 Some Super VCDs have two soundtracks. With these discs you can switch between the two soundtracks as well as individual channels in each.
3 Some discs only allow you to change audio language from the disc menu. Press TOP MENU or MENU to access.

Zooming the screen

Using the zoom feature you can magnify a part of the screen by a factor of 2 or 4, while watching a DVD, DivX video title or Video CD/ Super VCD or playing a JPEG disc.

1 During playback, use the ZOOM button to select the zoom factor (Normal, 2x or 4x).

2 Use ↑/↓/←/→ to change the zoomed area.

You can change the zoom factor and the zoomed area freely during playback. ¹

Switching camera angles

Some DVD discs feature scenes shot from two or more angles—check the disc box for details.

When a multi-angle scene is playing, a 📄 icon appears on screen (this can be switched off if you prefer—see Display settings on page 26).

- During playback (or when paused), press ANGLE to switch angle.

Displaying disc information

Various track, chapter and title information can be displayed on-screen during playback.

- To show/switch/hide the information displayed, press DISPLAY repeatedly.

Limited disc information also appears in the front panel display. Press DISPLAY to change the displayed information.

Note

1 • Since DVD, Video CD/Super VCD, DivX video title and JPEG pictures have a fixed resolution, picture quality will deteriorate, especially at 4x zoom. This is not a malfunction.
- If the navigation square at the top of the screen disappears, press ZOOM again to display it.

Chapter 5

USB playback

Using the USB interface

It is possible to listen to two-channel audio ¹ and watch JPEG files using the USB interface on the front of this unit. Connect a USB mass storage device ² as shown below.

1 With the player switched on, press USB.

Make sure your TV is on and set to the correct video input.

2 Connect your USB device.

The USB terminal is located on the front panel.

3 Press ▶ (play) to start playback.

If your USB device contains JPEGs, a slideshow will start. See Playing a JPEG slideshow on page 23 for more on this.

- Make sure USB DATA is showing in the front panel display (or the system is in standby) when disconnecting.

Important

If a USB ERR message lights in the display, it may mean that the power requirements of the USB device are too high for this player, or that the device is incompatible. Try the following:

• Switch the player off, then on again.
• Reconnecting the USB device with the player switched off.
• Selecting to another input source (like DVD/CD), then back to USB.
• Using a dedicated AC adapter (supplied with the device) for USB power.

If this doesn't remedy the problem, it is likely your USB device is incompatible.

Basic playback controls

The following table shows the basic controls on the remote for USB playback.

Button What it does

►	Starts normal playback.
II	Pauses/unpauses playback.
■	Stops playback.
◀◀	Press to start fast reverse scanning.
▶▶	Press to start fast forward scanning.
I◀◀	Skips to the start of the current file, then previous files.
▶▶I	Skips to the next file.

Note

1 This includes playback of WMA/MP3/MPEG-4 AAC files (except files with copy-protection or restricted playback). It is not possible to play DivX files through the USB terminal.
2 • Compatible USB devices include external magnetic hard drives, portable flash memory (particularly keydrives) and digital audio players (MP3 players) of format FAT16/32. It is not possible to connect this unit to a personal computer for USB playback.
- Pioneer cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit.
- With large amounts of data, it may take longer for the system to read the contents of a USB device.

Scanning files

You can fast-scan forward or backward at various different speeds.

- During playback, press ◀◀ or ▶▶ to start scanning.

Press repeatedly to increase the scanning speed (shown on-screen).

- To resume playback, press ▶ (play). ¹

Playing a JPEG slideshow

Press ▶ to start a slideshow from the first folder/picture. ² The pictures in each folder are displayed in order.

- If the device contains WMA/MP3/MPEG-4 AAC files, playback of the slideshow and audio files repeats. During audio playback, you can still use the skip (I◄◄/►►), scan (◄◄/►►) and pause (■) functions.

Pictures are automatically adjusted so that they fill as much of the screen as possible.

While the slideshow is running:

Button What it does
II	Pauses the slideshow (or audio); press again to restart.
|◀◀	Jumps to the previous picture (or audio file with audio playback).
▶▶|	Jumps to the next picture (or audio file with audio playback).
←/→/↑/↓	Pauses the slideshow and rotates/flips the current picture. (press ▶ to restart slideshow).
ZOOM	Pauses the slideshow and zooms the picture. Press again to toggle between 1x, 2x and 4x zoom. (press ▶ to restart slideshow).

Button	What it does
MENU	Displays the Navigator screen (see below).

Browsing files with the Navigator

Use the Navigator to find WMA, MP3, MPEG-4 AAC and JPEG files or folders by name. ³

1 Press MENU.

2 Use ↑/↓/←/→ and ENTER to navigate.

Use ↑/↓ to move up/down the folder/file list.

Use ← to return to the parent folder. ⁴

Use ENTER or → to open a highlighted folder.

- When a JPEG file is highlighted, a thumbnail image is displayed on the right.

3 To play the highlighted track or display the highlighted JPEG file, press ENTER.

• When a WMA/MP3/MPEG-4 AAC file is selected, playback begins from that file, and continues until the end of the folder.
• When a JPEG file is selected, a slideshow begins, starting with that file, and continues to the end of the folder.

Tip

• You can also play a JPEG slideshow while listening to WMA/MP3/MPEG-4 AAC playback. Simply select the audio file you want to listen to followed by the JPEG from which you want the slideshow to start. Playback of both the slideshow and the audio files repeats. Playback controls are effective for the JPEG slideshow only.
• To play all of the contents, rather than just the current folder, exit the Navigator and start playback using the ▶ (play) button.

Note

1 With WMA/MP3/MPEG-4 AAC tracks, playback automatically resumes at the end or beginning of the track.
2 • The time it takes for the player to load a file increases with large file sizes.
- USB devices can contain up to 299 folders and up to 648 folders and files combined.
3 Filenames may be displayed incorrectly with some digital audio players.
4 You can also do this by going to the ‘..’ folder at the top, then pressing ENTER.

Chapter 6

Audio Settings and Video Adjust menus

Audio Settings menu

The Audio Settings menu offers features for adjusting the way discs sound.

1 Press HOME MENU and select 'Audio Settings' from the on-screen display.

Audio Settings

2 Select and change settings using ↑/↓/←/→ and ENTER.

Audio DRC

- Settings: High, Medium, Low, Off (default)

When watching Dolby Digital DVDs at low volume, it's easy to lose the quieter sounds completely—including some of the dialog. Switching Audio DRC (Dynamic Range Control) to on can help by bringing up the quieter sounds, while controlling loud peaks.

How much of a difference you hear depends on the material you're listening to. If the material doesn't have wide variations in volume, you may not notice much change. ¹

Video Adjust menu

From the Video Adjust screen you can adjust settings that affect picture presentation.

1 Press HOME MENU and select 'Video Adjust' from the on-screen display.

Video Adjust

2 Make settings using //←/→ and ENTER.

Video Adjust
Sharpness	Standard
Brightness	0
Contrast	0
Gamma	Off
Hue	0
Chroma Level	0

You can adjust the following settings:

• Sharpness – Adjusts the sharpness of edges in the picture (Fine, Standard, Soft)
• Brightness – Adjusts the overall brightness (-20 to +20)
• Contrast – Adjusts the contrast between light and dark ( -16 to +16)
• Gamma – Adjusts the ‘warmth’ of the picture (High, Medium, Low, Off)
• Hue – Adjusts the red/green balance (Green 9 to Red 9)
• Chroma Level – Adjusts how saturated colors appear (-9 to +9)

Adjust the Brightness, Contrast, Hue and Chroma Level settings using ↔/→ .

Brightness min max 0

3 Press ENTER to return to the Video Adjust screen, or HOME MENU to exit.

Note

1 Audio DRC is only effective with Dolby Digital audio sources.

Chapter 7

Initial Settings menu

Using the Initial Settings menu

The Initial Settings menu provides audio and video output settings, parental lock settings, and display settings, among others.

If an option is grayed out it means that it cannot be changed at the current time. This is usually because a disc is playing. Stop the disc, then change the setting.

1 Press DVD/CD.
2 With playback stopped, press HOME MENU and select 'Initial Settings'.

3 Use ↑/↓/←/→ and ENTER to select the setting and option you want to set.

All the settings and options are explained on the following pages. ¹

Video Output settings

Setting	Option What it means
TV Screen(See also Screen sizes and disc formats on page 35.)	4:3 (Letter Box)	Set if you have a conventional 4:3 TV. Widescreen movies are shown with black bars top and bottom.
	4:3 (Pan & Scan)	Set if you have a conventional 4:3 TV. Widescreen movies are shown with the sides cropped so that the image fills the screen.
	16:9 (Wide)	Set if you have a widescreen TV.
Component Out(See also Connecting using the component video output on page 30.)	Interlace	Set if your TV is not compatible with progressive scan video.
	Progressive	Set if your TV is compatible with progressive scan video (see your TV's instruction manual for details). Press ENTER once more to confirm (or RETURN to cancel).Note that progressive scan video is only output from the component video jacks.

Language settings

Setting	Option What it means
Audio Language English	(all other models) / Chinese (Taiwanese model)	If there is the specified language soundtrack on the disc, it is played.
	Languages as displayed	If there is a language selected on the disc, it is played.
	Other Language	Select to choose a language other than the ones displayed (see Using the language code list on page 39).

Note

1 • In the table, the default setting is shown in bold: other settings are shown in italics.

- Some settings, such as TV Screen, Audio Language and Subtitle Language may be overridden by the DVD disc. Often these settings can also be made from the DVD disc menu.

Setting	Option What it means
Subtitle Language English Chinese (all other models) / (Taiwanese model)		If there are subtitles in the specified language on the disc they are displayed.
Other Language		Select to choose a language other than the ones displayed (see Using the language code list on page 39).
DVD Menu Language	w/Subtitle Lang.	DVD disc menus are displayed in the same language as your selected subtitle language, if possible.
	Languages as displayed	DVD menus are displayed in the selected language, if possible.
	Other Language	Select to choose a language other than the ones displayed (see Using the language code list on page 39).
Subtitle Display On		Subtitles are displayed in your selected subtitle language.
	Off	Subtitles are always off by default when you play a DVD disc.

Display settings

Setting Option What it means
OSD Language English	(all other models) / 中文 (Taiwanese model)	On-screen displays are shown in the language specified.
	Languages as displayed	On-screen displays are shown in the language selected.
Angle Indicator On		A camera icon is displayed on-screen during multi-angle scenes on a DVD disc.
	Off	No multi-angle indication is shown.

Options settings

Setting	Option What it means
Parental Lock –	See Parental Lock below.
DivX(R) VOD Display	See About DivX® VOD content below.

Speakers settings

Setting	Option What it means
Speaker Distance –		Specify the distance of your speakers from your listening position (seeSpeaker Distanceon page 28).

Parental Lock

• Default level: Off; Default password: none; Default Country/Area code: us (2119)

To give you some control over what your children watch on your DVD player, some DVD-Video discs feature a Parental Lock level. If your player is set to a lower level than the disc, the disc won't play.

Some discs also support the Country/Area Code feature. The player does not play certain scenes on these discs, depending on the Country/Area Code you set.

Registering a new password

Register a password to change the Parental Lock level or enter a Country/Area code. ¹

1 Select 'Password'.

2 Use the number buttons to input a 4-digit password then press ENTER.

Changing your password

To change your password, confirm your existing password then enter a new one.

1 Select 'Password Change', input your existing password, then press ENTER.

2 Enter a new password and press ENTER.

Setting/changing the Parental Lock

1 Select 'Level Change'.

2 Use number buttons to enter your password, then press ENTER.

3 Select a new level and press ENTER.

- Press ← repeatedly to lock more levels (more discs will require the password); press → to unlock levels. You can't lock level 1.

Setting/changing the Country/Area code

You can find the Country/Area code list on page 40.

1 Select 'Country Code', input your password, then press ENTER.

2 Select a Country/Area code then press ENTER.

There are two ways you can do this:

• Select by code letter: Use ↑/↓ to change the Country/Area code.
• Select by code number: Press → then use the number buttons to enter the 4-digit Country/Area code.

The new Country/Area code takes effect after ejecting the disc once.

About DivX ^® VOD content

In order to play DivX VOD (video on demand) content on this player, you first need to register the player with your DivX VOD content provider. You do this by generating a DivX VOD registration code, which you submit to your provider. ²

Important

• DivX VOD content is protected by a DRM (Digital Rights Management) system. This restricts playback of content to specific, registered devices.
• If you load a disc that contains DivX VOD content not authorized for your player, the message Authorization Error is displayed and the content will not play.

Note

1 • Not all discs use Parental Lock, and will play without requiring the password first.
- If you forget your password, you'll need to reset the player to register a new password (see Resetting the system on page 39). 2 Resetting the player (as described in Resetting the system on page 39) will not cause you to lose your registration code.

Displaying your DivX VOD registration code

1 Press HOME MENU and select 'Initial Settings'.

2 Select 'Options', then 'DivX (R) VOD'.

3 Select 'Display'.

Your 8-digit registration code is displayed. Make a note of the code as you will need it when you register with a DivX VOD provider.

Playing DivX® VOD content

Some DivX VOD content may only be playable a fixed number of times. When you load a disc containing this type of DivX VOD content, the remaining number of plays is shown on-screen and you then have the option of playing the disc (thereby using up one of the remaining plays), or stopping. If you load a disc that contains expired DivX VOD content (for example, content that has zero remaining plays), the message Rental Expired is displayed.

If your DivX VOD content allows an unlimited number of plays, then you may load the disc into your player and play the content as often as you like, and no message will be displayed.

Speaker Distance

- Default setting: 3.0 m

To get the best surround sound from your system, you should set up the speakers equal distances from your listening position.

1 Press HOME MENU and select 'Initial Settings'.

2 Select 'Speakers', then 'Speaker Distance'.

3 Use ↑/↓ to select a speaker.

4 Press → to change the speaker distance for the highlighted speaker.

5 Use ↑/↓ to change the distance.

• When you change the distance settings of the front left (L) or front right (R) speakers, all the other speaker distances change relative to it.
• Front left/right (L/R) speaker distances can be set from 30 cm to 9 m in 30 cm increments. ¹
• The center speaker (C) can be set from -2.1 m to 0 m relative to the front left/right speakers.
• Surround left/right (SL/SR) speakers can be set from -6.0 m to 0 m relative to the front left/right speakers. ²
• The subwoofer (SW) can be set from -2.1 m to 0 m relative to the front left/right speakers.

6 Press ← to go back to the speaker list if you want to modify another speaker, or press ENTER to exit the Speaker Distance screen.

Note

1 The L and R speakers are paired; you can't set them differently.
2 XV-DV151 only – Make sure to set them the same distance when using Front Surround (page 14).

Chapter 8

Other connections

Connecting external antennas

For an external AM antenna, use 5 m to 6 m of vinyl-insulated wire and set up either indoors or outdoors. Leave the loop antenna connected.

For an external FM antenna, use a PAL connector to hook up an external FM antenna.

Connecting auxiliary audio components

Using the stereo analog inputs, you can connect an external component such as a tape deck or MD player for playback through this system.

Tape deck, etc.

XV-DV151/252

- Connect the AUDIO IN jacks to the analog outputs of an external playback component.

Connect using RCA pin-plug stereo cables.

• These jacks are labeled LINE on the rear panel.

Connecting the S-video output

If your TV has an S-video input, you can use this instead of the standard video output for a better quality picture.

- Use an S-video cable to connect the S-VIDEO OUT to an S-video input on your TV.

Line up the small triangle above the jack with the same mark on the plug before plugging in.

XV-DV151/252

Connecting using the component video output

If your TV has component video inputs, you can use these instead of the standard video output to connect this system to your TV. ¹ This should give you the best quality picture from the three types of video output available.

- Use a component video cable to connect the COMPONENT VIDEO OUT to a set of component inputs on your TV.

XV-DV151/252

About progressive scan video

Compared to interlace video, progressive scan video effectively doubles the scanning rate of the picture, resulting in a very stable, flicker-free image. Progressive scan video is available only from the component video output.

Compatibility of this player with progressive-scan and high-definition TVs.

This player is compatible with progressive video Macro Vision System Copy Guard. ²

Note

1 The component video output is switchable between interlaced and progressive formats. See Video Output settings on page 25. 2 Consumers should note that not all high-definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user switch the connection to the 'standard definition' output (Interlace). If there are questions regarding our TV set compatibility with this model, please contact our customer service center.

Chapter 9

Additional information

Disc / content format playback compatibility

This player is compatible with a wide range of disc types (media) and formats. Playable discs will generally feature one of the following logos on the disc and/or disc packaging. Note however that some disc types, such as recordable CD and DVD, may be in an unplayable format.

See the Disc compatibility table below for more information.

DVD-Video

DVD-R

DVD-RW

Audio CD

Video CD

CD-R

CD-RW

Fujicolor CD

• This unit will play DVD+R/+RW discs.
  • is a trademark of Fuji Photo Film Co. Ltd.
  • DVD is a trademark of DVD Format/Logo Licensing Corporation.
  • Also compatible with KODAK Picture CD.

This player supports the IEC's Super VCD standard for superior picture quality, dual soundtracks, and widescreen support.

Super Video CD (Super VCD)

About DualDisc playback

A DualDisc is a new two-sided disc, one side of which contains DVD content video, audio, etc. while the other side contains non-DVD content such as digital audio material.

The non-DVD, audio side of the disc is not compliant with the CD Audio specification and therefore may not play.

The DVD side of a DualDisc plays in this product. DVD-Audio content will not play.

For more detailed information on the DualDisc specification, please refer to the disc manufacturer or disc retailer.

Disc compatibility table

Media	Compatible formats
CD-R/RW	CD-Audio, Video CD/Super VCD, ISO 9660 CD-ROM**ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible.Multi-session playback: NoUnfinalized disc playback: No
DVD-R/RW	DVD-Video (Video mode), Video Recording (VR)*, UDF Bridge DVD-ROM* Edit points may not play exactly as edited; screen may go momentarily blank at edited points.Multi Border playback: NoUnfinalized playback: No
PC-created disc	Discs recorded using a PC may not be playable due to the setting of the software used to create the disc. In these instances, check the DVD-R/RW or CD-R/RW software manual or disc boxes for more on compatibility.Discs recorded in packet write mode are not compatible.
Compressed audio	MPEG-1 Audio Layer 3 (MP3), Windows Media Audio (WMA), MPEG-4 AACSampling rates: 32 kHz / 44.1 kHz / 48 kHzBit-rates: Any (128 kbps or higher recommended)VBR (variable bit rate) MP3/WMA/MPEG-4 AAC playback: NoWMA lossless encoding: NoDRM (Digital Rights Management) compatible: Yes (DRM-protected audio files will not play in this player).File extensions: .mp3, .wma, .m4a (these must be used for the player to recognize MP3/WMA/MPEG-4 AAC files)File structure (may differ): Up to 299 folders on a disc; up to 648 folders and files (combined) within each folder
JPEG file	Baseline JPEG and EXIF 2.2* still image files up to a resolution of 3072 x 2048.*File format for digital still camerasProgressive JPEG compatible: NoFile extensions: .jpg (must be used for the player to recognize JPEG files)File structure (may differ): Up to 299 folders on a disc; up to 648 folders and files (combined) within each folder

About DVD+R/DVD+RW compatibility

Only DVD+R/DVD+RW discs recorded in 'Video Mode (DVD Video Mode)' which have been finalized, can be played back. However, some editing made during the recording may not be played back accurately.

About DivX

DivX is a compressed digital video format created by the DivX ^® video codec from DivX, Inc. This player can play DivX video files burned on CD-R/RW and DVD-R/RW/ROM discs. Keeping the same terminology as DVD-Video, individual DivX video files are called 'Titles'. When naming files/titles on a CD-R/RW or DVD-R/RW disc prior to burning, keep in mind that by default they will play in alphabetical order.

DivX video compatibility

• Official DivX® Certified product.
• Plays all versions of DivX video (including DivX 6) with standard playback of DivX media files. ¹
• File extensions: .avi and .divx (these must be used for the player to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this player.

Displaying DivX subtitle files

The font sets listed below are available for DivX external subtitle files. You can see the proper font set on-screen by setting the Subtitle Language (in Language settings on page 25) to match the subtitle file. ²

Group 1: Albanian (sq), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Faroese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romanic (rm), Scottish (gd), Spanish (es), Swedish (sv)

Group 2: Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl)

Note

1 Playback of .avi video files larger than 4 GB is not possible.

2 • For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): .srt, .sub, .ssa, .smi

• Some external subtitle files may be displayed incorrectly or not at all.
• The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file.
• The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10.

Group 3: Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk)

Group 4: Hebrew (iw), Yiddish (ji)

Group 5: Turkish (tr)

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

About MPEG-4 AAC

Advanced Audio Coding (AAC) is at the core of the MPEG-4 AAC standard, which incorporates MPEG-2 AAC, forming the basis of the MPEG-4 audio compression technology. The file format and extension used depend on the application used to encode the AAC file. This unit plays

back AAC files encoded by iTunes ^® bearing the extension '.m4a'. DRM-protected files will not play, and files encoded with some versions of iTunes ^® may not play, or filenames may display incorrectly.

Apple and iTunes are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

About WMA

The Windows Media ^® logo printed on the box indicates that this player can playback Windows Media Audio content.

WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA content can be encoded by using Windows

Media ^® Player version 7, 7.1, Windows Media ^® Player for Windows ^® XP, or Windows Media ^® Player 9 Series.

Microsoft, Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Using and taking care of discs

Handling discs

Hold the disc by its edges when handling so as not to leave fingerprints, dirt or scratches on either side of the disc. Damaged or dirty discs can affect playback performance.

If a disc becomes marked with fingerprints, dust, etc., clean using a soft, dry cloth.

Wipe lightly from the center of the disc using straight strokes. Don't wipe the disc surface with circular strokes.

If necessary, use a cloth soaked in alcohol, or a commercially available CD/DVD cleaning kit to clean a disc more thoroughly. Never use benzine, thinner or other cleaning agents such as those designed for cleaning vinyl records.

Storing discs

Avoid leaving discs in excessively cold, humid, or hot environments (including under direct sunlight). Don't glue paper or put stickers onto the disc, or use a pencil, ball-point pen or other sharp-tipped writing instrument. These could all damage the disc.

Discs to avoid

Discs spin at high speed inside the player. If a disc is cracked, chipped, warped, or otherwise damaged, don't risk using it in your player—you could end up damaging the unit.

This unit is designed for use with conventional, fully circular discs only. Pioneer disclaims all liability arising in connection with the use of shaped discs.

DVD Video regions

All DVD Video discs carry a region mark that indicates which region(s) of the world the disc is compatible with. Your DVD system also has a region mark (on the rear panel). Discs from incompatible regions will not play in this player. In this instance, the following message appears on-screen:

Incompatible disc region number

Can't play disc

Discs marked ALL play in any player.

Installation and maintenance

Hints on installation

We want you to enjoy using this system for years to come, so please bear in mind the following points when choosing a location:

Do...

√ Use in a well-ventilated room.
√ Place on a solid, flat, level surface, such as a table, shelf or stereo rack.

Don't...

✗ Use in a place exposed to high temperatures or humidity, including near radiators and other heat-generating appliances.
✗ Place on a window sill or other place where the system will be exposed to direct sunlight.
✗ Use in an excessively dusty or damp environment.
✗ Place directly on top of an amplifier, or other component in your stereo system that becomes hot in use.
✗ Use near a television or monitor as you may experience interference—especially if the television uses an indoor antenna.
✗ Use in a kitchen or other room where the system may be exposed to smoke or steam.
✗ Use on a thick rug or carpet, or cover with cloth—this may prevent proper cooling of the system unit.

✗ Place on an unstable surface, or one that is not large enough to support all four of the system unit's feet.

Cleaning the pickup lens

The DVD player's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners are commercially available, we do not recommend using them since some may damage the lens.

Problems with condensation

Condensation may form inside the player if it is brought into a warm room from outside, or if the temperature of the room rises quickly. Although the condensation won't damage the player, it may temporarily impair performance. Leave it to adjust to the warmer temperature for about an hour before switching on.

Moving the system unit

If you need to move the main unit, first remove a disc if there's one in the player, then press Ⓧ STANDBY/ON on the front panel to turn the system off. Wait for GOOD BYE to disappear from the display, then unplug the power cord. ¹ Never lift or move the unit during playback—discs rotate at high speeds and may damage.

Note

1 Unplugging the unit before GOOD BYE disappears from the display may cause the system to return to the factory settings.

Screen sizes and disc formats

DVD-Video discs come in different screen aspects, ranging from TV programs, which are generally 4:3, to CinemaScope widescreen movies ¹ , with an aspect ratio of up to about 7:3. Televisions also come in different aspect ratios; 'standard' 4:3 and widescreen 16:9. ²

Set to 4:3 (Letter Box), widescreen discs are shown with black bars top and bottom.

Set to 4:3 (Pan&Scan), widescreen discs are shown with the left and right sides cropped. Although the picture looks larger, you don't actually see the whole picture.

TV system setting

Not applicable to the Taiwanese model

The default setting of this system is AUTO, and unless you notice that the picture is distorted when playing some discs, you should leave it set to AUTO. If you find picture distortion with some discs, set the TV system to match your country or region's system. However, this may restrict the kinds of disc you can watch. See the table for the kinds of discs compatible with each setting (AUTO, PAL and NTSC). ³

1 Switch the unit into standby, then press SETUP.
2 Use ←/→ to choose TV SYS then press ENTER.

Note

1 Many widescreen discs override the system's settings so that the disc is shown in letterbox format regardless of the setting.
2 • Using the 16:9 (Wide) setting with a standard 4:3 TV, or one of the 4:3 settings with a widescreen TV, will result in distortion.
- When you watch discs recorded in 4:3 format, you can use the TV controls to select how the picture is presented. Your TV may offer various zoom and stretch options; see the instructions that came with your TV for details.
- Some movie aspect ratios are wider than 16:9, so even with a widescreen TV, these discs will still play in a 'letterbox' style. 3 Most models of the newly developed countdown PAL TV system detect 50Hz (PAL)/60 Hz (NTSC) and automatically switch vertical amplitude, resulting in a display without vertical shrinkage. However, in some cases, the image may appear without color. If your PAL TV does not have a V-Hold control, you may not be able to watch NTSC discs because of picture roll. If the TV has a V-Hold control, adjust it until the picture stops rolling. On some TVs, the picture may shrink vertically, leaving black bands at the top and bottom of the screen.
4 You have to switch the player into standby (press ⏻ STANDBY/ON) before each change.

The TV system changes as follows:

• AUTO → NTSC
• NTSC → PAL
• PAL → AUTO

The system automatically switches on and you'll see the new TV system setting in the display after seeing WELCOME. ⁴

Media Type	Format	Player setting
		NTSC PAL AUTO
DVD/Super VCD/Video CD/DivX Video	NTSC PAL	NTSC PAL	NTSC PAL
CD/MP3/WMA/MPEG-4 AAC/JPEG/no disc	—	NTSC PAL	NTSC or PAL

Frequency step setting

If you find that you can't tune into stations successfully, the frequency step may not be suitable for your country/region.

1 Switch the unit into standby, then press SETUP.
2 Use ←/→ to choose AM 9K/10K then press ENTER.
3 Use ↑/↓ to select AM 9K or AM 10K then press ENTER.

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

- If the system does not operate normally due to external effects such as static electricity disconnect the plug from the outlet and insert again to return to normal operating conditions.

General

Problem	Remedy
The power does not turn on, or switches off suddenly (an error message may be displayed at startup).	Wait for one minute before switching back on.Make sure there are no loose strands of wire touching the unit. This could cause the system to shut off automatically.Check that the speakers are connected correctly.Make sure the voltage of the mains power source is correct for the model.Try reducing the volume level.If the problem persists, take it to your nearest Pioneer authorized service center or your dealer for servicing.
No sound is output when a function is selected.	If you're using the line input, make sure the component is connected correctly (see Connecting auxiliary audio components on page 29).Press MUTE on the remote control to turn muting off.
No sound from surround or center speakers.	Refer to Setting the channel levels on page 9 to check the speaker levels.When TUNER or LINE is selected, you can only hear the source in stereo. Switch the input source to DVD/CD or USB for multichannel sound.Check that you haven't selected the STEREO mode (see Listening in surround sound on page 14).Connect the speakers properly (refer to the Setup Guide).
Can't operate the remote control.	Replace the batteries (refer to the Setup Guide).Operate within 7 m, 30° of the remote sensor (refer to the Setup Guide).Remove any obstacles or operate from another position.Avoid exposing the remote sensor on the front panel to direct light.
TRAYLOCK shows in the display and the tray can't be ejected.	Press and hold ▲ (eject) on the front panel for about eight seconds. Then the tray can be opened/closed using ▲ (eject).
SND. DEMO shows in the display and the unit can't be controlled.	Press and hold ■ (stop) on the front panel for about five seconds. The disc tray ejects automatically to indicate the Sound Demo mode is disabled.

DVD/CD/Video CD player

Problem	Remedy
The disc is ejected automatically after loading.	Clean the disc and align the disc properly in the disc guide.If the region number on a DVD-video disc does not match the number on the player, the disc cannot be used (seeDVD Video regionson page 34). In this instance, the following message appears on screen:Incompatible disc region number/ Can't play disc.Allow time for any condensation inside the player to evaporate. Avoid using the player near an air-conditioning unit.
Playback not possible.	If the disc is loaded upside down, reload the disc with label side face up.
Picture playback stops and buttons cannot be used.	Press ■ (stop), then ▶ (play) to start playback again.Switch the power off once, then on again using the front panel ⏻ STANDBY/ON button.
Settings are canceled.	When the power is cut, settings will be canceled.
No picture/No color.	Check that connections are correct and that plugs are inserted fully.Check the manual of the TV/monitor to make sure the settings are correct.If theProgressivesetting is selected and you have used component video cables to connect a TV that is not compatible with a progressive scan signal, you will not be able to see any picture at all. With your TV connected using either the composite or S-video terminals, change theComponent Outsetting to Interlace(see Video Output settings on page 25).
Screen is stretched or aspect doesn't change.	TheTV Screensetting is incorrect. Set the TV Screen option to match the TV/ monitor you're using (see Video Output settings on page 25).
When recorded on a VCR or passed through an AV selector, there is disturbance in the playback picture.	This system uses copy-protection technology which may prevent recording or cause picture problems when connected through a VCR or AV selector. This is not a malfunction.
Picture disturbance during playback or dark.	This player is compatible with Macro-Vision System copy guard. Some discs include a copy prevention signal, and when this type of disc is played back, stripes etc., may appear on some sections of the picture depending on the TV. This is not a malfunction.Discs respond differently to particular player functions. This may result in the screen becoming black for a brief instant or shaking slightly when the function is executed. These problems are largely due to differences between discs and disc content and are not malfunctions of this player.
Noticeable difference in DVD and CD volume.	DVDs and CDs use different recording methods. This is not a malfunction.
CD-ROM disc is not recognized.	Make sure that the CD-ROM was recorded using the ISO 9660 disc format. SeeDisc compatibility tableon page 31 for more on disc compatibility.
DVD-ROM disc is not recognized.	Make sure that the DVD-ROM was recorded using the UDF bridge format. SeeDisc compatibility tableon page 31 for more on disc compatibility.

Additional information

Problem	Remedy
Files don't show up in the Disc Navigator/ Photo Browser.	The files on the disc must be named with the correct file extension: .mp3 for MP3 files; .wma for WMA files; .m4a for MPEG-4 AAC files; .jpg for JPEG files (upper or lower-case is OK). SeeDisc compatibility tableon page 31.
Can't play WMA or MPEG-4 AAC files.	The files were recorded using DRM (digital rights management). This is not a malfunction.

Tuner

Problem Remedy
Considerable noise in radio broadcasts.	Connect the AM antenna (refer to the Setup Guide) and adjust the direction and position for best reception. You may also connect an additional internal or external AM antenna (refer to Connecting auxiliary audio components on page 29).Fully extend the FM wire antenna, position for best reception, and secure to a wall. You may also connect an outdoor FM antenna (see Connecting external antennas on page 29).Turn off other equipment that may be causing the noise or move it further away.The tuning interval is incorrect for your country or region. See Frequency step setting on page 35 to switch the tuning interval.
Auto tuning does not pick up some stations.	The radio signal is weak. Auto tuning will only detect radio stations with a good signal. For more sensitive tuning, connect an outdoor antenna.

USB connection

Problem	Remedy
USB mass storage device is not recognized by the system.	Make sure you have completely inserted the USB connector to this unit.Check that the memory format is FAT16 or FAT32.USB devices with an internal USB hub are not supported.
Files don't show up in the Navigator/Photo Browser.	The files must have the correct file extension: .mp3 for MP3 files; .wma for WMA files; .m4a for MPEG-4 AAC files; .jpg for JPEG files (upper or lower-case is OK).Make sure the file permission hasn't been restricted (through a password, etc.).
Can't play WMA or MPEG-4 AAC files.	The files were recorded using DRM (digital rights management). This is not a malfunction.

Error Messages

Message	Description
SND. DEMO	The sound demo is on. See General in Troubleshooting on page 36.
CANNOT	An operation is prohibited because DVD/CD isn't selected, headphones are connected, or TEST TONE is pressed during disc playback.
MUTING	An operation is prohibited because the sound is muted (press MUTE).
STEREO	An operation is prohibited because the DVD/CD or USB function isn't selected.
TRAYLOCK	The tray lock is on. SeeGeneral in Troubleshooting on page 36.
USB ERR	See Important in Using the USB interface on page 22 for more on this.
EEP ERR	Contact your Pioneer authorized service center or your dealer for servicing.
EXIT	Appears when a menu is automatically exited after a set period of inactivity.

Resetting the system

Use the front panel controls to reset all system settings to the factory default.

- With the system on, press ⏻ STANDBY/ON while holding down ▶/II USB.

The next time you switch on, all the system settings should be reset.

Setting the Key Lock

You can disable the front panel buttons by switching the Key Lock feature on.

1 With the system in standby, press SETUP and use ↔/→ to choose KEYLOCK then press ENTER.

This is shown in the front panel display.

2 Use ↑/↓ to select LOCK ON or LOCK OFF then press ENTER.

Switching off the demo

Follow the steps below to switch the automatic demo feature off (this starts when you plug in for the first time):

1 With the unit in standby, press SETUP.
2 Use ↔/→ to choose DEMO then press ENTER.
3 Use ↑/↓ to select DEMO OFF and press ENTER.

Using the language code list

Some of the language options (see Language settings on page 25) allow you to set your preferred language from any of the 136 languages in the Language code list below.

1 Select 'Other Language'.
2 Use ↔/→ to select either a code letter or a code number.
3 Use ↑/↓ to select a code letter or a code number.

See the Language code list (next page) for a complete list of languages and codes.

Language code list

Language (Language code letter), Language code

Japanese (ja), 1001	Estonian (et), 0520	Lingala (ln), 1214	Slovak (sk), 1911
English (en), 0514	Basque (eu), 0521	Laothian (lo), 1215	Slovenian (sl), 1912
French (fr), 0618	Persian (fa), 0601	Lithuanian (lt), 1220	Samoan (sm), 1913
German (de), 0405	Finnish (fi), 0609	Latvian (lv), 1222	Shona (sn), 1914
Italian (it), 0920	Fiji (fj), 0610	Malagasy (mg), 1307	Somali (so), 1915
Spanish (es), 0519	Faroese (fo), 0615	Maori (mi), 1309	Albanian (sq), 1917
Dutch (nl), 1412	Frisian (fy), 0625	Macedonian (mk), 1311	Serbian (sr), 1918
Russian (ru), 1821	Irish (ga), 0701	Malayalam (ml), 1312	Siswati (ss), 1919
Chinese (zh), 2608	Scots-Gaelic (gd), 0704	Mongolian (mn), 1314	Sesotho (st), 1920
Korean (ko), 1115	Galician (gl), 0712	Moldavian (mo), 1315	Sundanese (su), 1921
Greek (el), 0512	Guarani (gn), 0714	Marathi (mr), 1318	Swedish (sv), 1922
Afar (aa), 0101	Gujarati (gu), 0721	Malay (ms), 1319	Swahili (sw), 1923
Abkhazian (ab), 0102	Hausa (ha), 0801	Maltese (mt), 1320	Tamil (ta), 2001
Afrikaans (af), 0106	Hindi (hi), 0809	Burmese (my), 1325	Telugu (te), 2005
Amharic (am), 0113	Croatian (hr), 0818	Nauru (na), 1401	Tajik (tg), 2007
Arabic (ar), 0118	Hungarian (hu), 0821	Nepali (ne), 1405	Thai (th), 2008
Assamese (as), 0119	Armenian (hy), 0825	Norwegian (no), 1415	Tigrinya (ti), 2009
Aymara (ay), 0125	Interlingua (ia), 0901	Occitan (oc), 1503	Turkmen (tk), 2011
Azerbaijani (az), 0126	Interlingue (ie), 0905	Oromo (om), 1513	Tagalog (tl), 2012
Bashkir (ba), 0201	Inupiak (ik), 0911	Oriya (or), 1518	Setswana (tn), 2014
Byelorussian (be), 0205	Indonesian (in), 0914	Panjabi (pa), 1601	Tonga (to), 2015
Bulgarian (bg), 0207	Icelandic (is), 0919	Polish (pl), 1612	Turkish (tr), 2018
Bihari (bh), 0208	Hebrew (iw), 0923	Pashto, Pushto (ps), 1619	Tsonga (ts), 2019
Bislama (bi), 0209	Yiddish (ji), 1009	Portuguese (pt), 1620	Tatar (tt), 2020
Bengali (bn), 0214	Javanese (jw), 1023	Quechua (qu), 1721	Twi (tw), 2023
Tibetan (bo), 0215	Georgian (ka), 1101	Rhaeto-Romance (rm), 1813	Ukrainian (uk), 2111
Breton (br), 0218	Kazakh (kk), 1111	Kirundi (rn), 1814	Urdu (ur), 2118
Catalan (ca), 0301	Greenlandic (kl), 1112	Romanian (ro), 1815	Uzbek (uz), 2126
Corsican (co), 0315	Cambodian (km), 1113	Kinyarwanda (rw), 1823	Vietnamese (vi), 2209
Czech (cs), 0319	Kannada (kn), 1114	Sanskrit (sa), 1901	Volapük (vo), 2215
Welsh (cy), 0325	Kashmiri (ks), 1119	Sindhi (sd), 1904	Wolof (wo), 2315
Danish (da), 0401	Kurdish (ku), 1121	Sangho (sg), 1907	Xhosa (xh), 2408
Bhutani (dz), 0426	Kirghiz (ky), 1125	Serbo-Croatian (sh), 1908	Yoruba (yo), 2515
Esperanto (eo), 0515	Latin (la), 1201	Sinhalese (si), 1909	Zulu (zu), 2621

Country/Area code list

Country/Area, Country/Area code, Country/Area code letter

Argentina, 0118, ar

Australia, 0121, au

Austria, 0120, at

Belgium, 0205, be

Brazil, 0218, br

Canada, 0301, ca

Chile, 0312, cl

China. 0314, cn

Denmark, 0411, dk

Finland, 0609, fi

France, 0618, fr

Germany, 0405, de

Hong Kong, 0811, hk

India, 0914, in

Indonesia, 0904, id

Italy, 0920, it

Japan, 1016, jp

Korea, Republic of, 1118, kr

Malaysia, 1325, my

Mexico, 1324, mx

Netherlands, 1412, nl

New Zealand, 1426, nz

Norway, 1415, no

Pakistan, 1611, pk

Philippines, 1608, ph

Portugal, 1620, pt

Russian Federation, 1821, ru

Singapore, 1907, sg

Spain, 0519, es

Switzerland, 0308, ch

Sweden, 1905, se

Taiwan, 2023, tw

Thailand, 2008, th

United Kingdom, 0702, gb

United States of America, 2119, us

Specifications

- Amplifier section

RMS Power Output:

Front, Center, Surround . . . 60 W per channel

(1 kHz, 10 % T.H.D., 4 Ω)

50 W per channel

(1 kHz, 10 % T.H.D., 6 Ω)

Subwoofer .. 60 W (100 Hz, 10 % T.H.D., 4 Ω)

50 W (100 Hz, 10 % T.H.D., 6 Ω)

- Disc section

Digital audio

characteristics .....DVD fs: 96 kHz, 24-bit

Type. . . . . . . DVD system, Video CD/Super VCD

system and Compact Disc digital audio system Frequency

response. . . . 4 Hz to 44 kHz (96 kHz sampling) /

4 Hz to 22 kHz (48 kHz sampling)

Wow and Flutter.....Limit of measurement

(±0.001 % W.PEAK) or less (JEITA)

- FM tuner section

Frequency range ..... 87.5 MHz to 108 MHz

Antenna 75 Ω, unbalanced

- AM tuner section

Frequency range:

With 9 kHz step ..... 531 kHz to 1602 kHz

With 10 kHz step ..... 530 kHz to 1700 kHz

Antenna.... Loop antenna

- Miscellaneous

Power requirements:

Singapore, Indonesia, Hong Kong, Malaysia,

Philippines models

AC 220 V to 240 V, 50 Hz / 60 Hz

Taiwanese model. . . . AC 110 V, 50 Hz / 60 Hz

Power consumption 44 W

Power consumption in standby ..... 0.38 W

Dimensions .. 420 mm (W) x 60 mm (H) x 330 mm (D)

Weight 3.1 kg

• Accessories (DVD/CD receiver)

Remote control 1

AA/R6 dry cell batteries

(to confirm system operation) 2

Video cable (yellow plugs) 1

AM loop antenna 1

FM antenna 1

Power cord 1

Setup Guide

These operating instructions

S-DV151 Speaker system

- Front speakers

Enclosure .... Closed-box bookshelf type (magnetically shielded)

System....7.7 cm 1-way system

Speakers 7.7 cm cone type

Nominal impedance. 6 Ω

Frequency range 90 Hz to 20 kHz

Maximum input power....60 W

Dimensions. 105 mm (W) x 115 mm (H) x 114 mm (D)

Weight 0.6 kg

- Center speaker

Enclosure .... Closed-box bookshelf type (magnetically shielded)

System....7.7 cm 1-way system

Speakers 7.7 cm cone type

Nominal impedance. 6 Ω

Frequency range 90 Hz to 20 kHz

Maximum input power....60 W

Dimensions. 115 mm (W) x 105 mm (H) x 114 mm (D)

Weight 0.6 kg

- Surround speakers

Enclosure .... Closed-box bookshelf type (magnetically shielded)

System....7.7 cm 1-way system

Speakers 7.7 cm cone type

Nominal impedance....6Ω

Frequency range 100 Hz to 20 kHz

Maximum input power....60 W

Dimensions. 105 mm (W) x 118 mm (H) x 114 mm (D)

Weight 0.63 kg

- Subwoofer

Enclosure ..... Bass-reflex floorstanding type

System..... 16 cm 1-way system

Speaker....16 cm cone type

Nominal impedance. 6 Ω

Frequency range 30 Hz to 2.0 kHz

Maximum Input Power....60 W

Dimensions. 190 mm (W) x 360 mm (H) x 317 mm (D)

Weight 4.2 kg

Additional information

- Accessories

Non-skid pads (small).... 12

Non-skid pads (large) 4

Mounting brackets 4

Screws (for mounting brackets) 4

S-DV1T, S-DV252SW Speaker system

- Front/surround speakers (S-DV1T)

Enclosure.....Closed-box floorstanding type (magnetically shielded)

System 2-way system

Speakers:

Woofer 7.7 cm cone typex2

Tweeter .....2.6 cm semi-dome type

Nominal impedance.... 4 Ω

Frequency range 70 Hz to 20 kHz

Maximum input power 100 W

Dimensions 260 mm (W) x 1096.5 mm (H) x 260 mm (D)

Weight 4.2 kg

• Center speaker (S-DV1T)

Enclosure.....Closed-box bookshelf type (magnetically shielded)

System....7.7 cm 1-way system

Speakers 7.7 cm cone type

Nominal impedance. 4 Ω

Frequency range 75 Hz to 20 kHz

Maximum input power 100 W

Dimensions...270 mm (W) x 96 mm (H) x 90 mm (D)

Weight 0.78 kg

- Subwoofer (S-DV252SW)

Enclosure..... Bass-reflex floorstanding type System..... 16 cm 1-way system

Speaker 16 cm cone type

Nominal impedance....4Ω

Frequency range .....30 Hz to 2.5 kHz

Maximum Input Power....60 W

Dimensions.. 190 mm (W) x 360 mm (H) x 320 mm (D)

Weight 4.0 kg

- Accessories

Speaker cables 5

Speaker cables (for S-DV252SW) 1

Small non-skid pads (for center speaker)....4

Large non-skid pads

(for front and surround speakers)....16

Large non-skid pads (for subwoofer) ..... 4

Speaker stand bases 4

Screws (for bases) 12

Note

- Specifications and design subject to possible modification without notice, due to improvements.

This product includes FontAvenue® fonts licenced by NEC corporation. FontAvenue is a registered trademark of NEC Corporation.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

DRM (digital rights management) copy protection is a technology designed to prevent unauthorized copying by restricting playback, etc. of compressed audio files on devices other than the PC (or other recording equipment) used to record it. For detailed information, please see the instruction manuals or help files that came with your PC and/or software.

Additional information

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc.

位置：本機下面板上。

重要

Abstract black-and-white geometric pattern with interlocking arrows (no text or symbols)

「廢電池請回收」

電源線注意事項

CLASS 1 LASER PRODUCT

D3-4-2-1-8_A_ChH

4 Hz 至 22 kHz (48 kHz 取様

抖動率 (Wow & Flutter) ..... 測量限

(± 0.001 % W.PEAK)以下 (JEITA)

- FM 調諧器部分

“DTS”和“DTS Digital Surround”爲數碼影

Published by Pioneer Corporation. Copyright © 2006 Pioneer Corporation. All rights reserved.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]

K002_A_En
