Product Type	Home Cinema System (DVD/CD Receiver + Speaker System)
Model Number	HTZ363DVD (Receiver: XV-DV767, Speakers: S-DV363)
Amplifier Power Output	100 W per channel (Front, Center, Surround) at 4 Ω, 100 W (Subwoofer) at 4 Ω
Total System Power	600 W (5 x 100 W + 100 W)
Power Consumption	55 W (Standby: 0.30 W)
Power Requirements	AC 110 V, 50/60 Hz
Disc Compatibility	DVD-Video, DVD-R/RW, Audio CD, Video CD/Super VCD, CD-R/RW, MP3, WMA, MPEG-4 AAC, DivX, JPEG
Tuner	FM/AM with 30 station presets
Video Outputs	HDMI, Component, S-Video, Composite
Audio Inputs	LINE (analog stereo), USB (front), Microphone (MCACC)
Speaker Configuration	5.1 channel (Front L/R, Center, Surround L/R, Subwoofer)
Satellite Speaker Dimensions (Front/Surround)	100 mm (W) x 100 mm (H) x 100 mm (D) each
Satellite Speaker Weight	0.54 kg each
Center Speaker Dimensions	100 mm (W) x 100 mm (H) x 100 mm (D)
Center Speaker Weight	0.54 kg
Subwoofer Dimensions	220 mm (W) x 375 mm (H) x 348 mm (D)
Subwoofer Weight	3.7 kg
Surround Sound Modes	Dolby Digital, DTS, Dolby Pro Logic II, Front Stage Surround Advance, Advanced Surround
Auto Calibration	MCACC (Multi-Channel Acoustic Calibration) with included microphone
USB Playback	WMA, MP3, MPEG-4 AAC, JPEG (not DivX)
Remote Control	Included with full function buttons

Frequently Asked Questions - HTZ363DVD PIONEER

How do I set up the speakers for optimal surround sound?

Place the front left and right speakers at equal distance from the TV, with the center speaker directly above or below the TV. Surround speakers should be placed to the sides or slightly behind the listening position. The subwoofer can be placed in a corner for better bass. Refer to the Speaker Setup Guide for detailed placement options including Standard surround and Front surround setups.

How do I use the Auto MCACC setup?

Connect the supplied microphone to the MCACC MIC jack on the rear panel. Place the microphone at your listening position at ear height. Press SHIFT+MCACC on the remote. The system will output test tones and automatically adjust speaker levels, distances, and equalization. Ensure the room is quiet during the process. When complete, COMPLETE appears in the display.

Can I play DivX or WMA files?

Yes, this system supports DivX video files and WMA audio files when played from a disc (DVD/CD). For USB playback, only WMA, MP3, MPEG-4 AAC, and JPEG are supported; DivX files cannot be played via USB.

Why is there no sound from the surround or center speakers?

Check that the speaker wires are properly connected. Ensure you are not using a stereo-only listening mode (e.g., STEREO or AUTO with a stereo source). Select a surround mode like DOLBY PRO LOGIC or DTS. Also verify the channel levels in the Setup menu (press SHIFT+SETUP). The tuner source only outputs stereo.

How can I improve FM reception?

Fully extend the FM wire antenna and position it for best reception. You can also connect an outdoor FM antenna using a PAL connector. If reception is weak, switch to mono mode: press SHIFT+SETUP, select FM MODE, then FM MONO. For AM, use the Noise Cut feature to reduce noise.

How do I set the sleep timer?

Press the SLEEP button on the remote repeatedly to cycle through options: SLP ON (turns off after about one hour) or SLP OFF (cancel). The display dims when the timer is active. To check remaining time, press SLEEP again; one bar represents approximately 12 minutes.

How do I reset the system to factory defaults?

Switch the system to standby. Press and hold the STANDBY/ON button on the front panel for about 5 seconds until RESET appears in the display. Alternatively, you can unplug the power cord for a few minutes. Note that this will clear all custom settings including presets and parental lock.

Can I connect a USB device for playback?

Yes, connect a USB mass storage device (FAT16/32 format) to the USB port on the front panel. Press USB on the remote to select the source. Supported file types: WMA, MP3, MPEG-4 AAC (audio) and JPEG (picture). DivX files are not supported via USB. Ensure USB DATA is displayed before disconnecting.

How do I change subtitle language during DVD playback?

During playback, press SHIFT+SUBTITLE repeatedly to cycle through available subtitle languages. You can also set a default subtitle language in the Initial Settings menu: press HOME MENU, select Initial Settings, then Language and choose Subtitle Language.

What should I do if a disc won't play?

Check that the disc is inserted with the label side up and is not scratched or dirty. Clean the disc with a soft cloth from the center outward. Ensure the disc format is compatible (e.g., DVD-Video, CD-DA). If the region code of a DVD does not match the player's region, it will not play. Unfinalized CD-R/RW discs may also not play. If the problem persists, try a different disc.

USER MANUAL HTZ363DVD PIONEER

Pioneer sound.vision.soul

HTZ363DVD

DVD/CD Receiver | DVD/CD 接收器

XV-DV767

Speaker System | 揚聲器系統

S-DV363

HTZ565DVD

DVD/CD Receiver | DVD/CD 接收器

XV-DV767

Speaker System | 揚聲器系統

S-DV2T

S-DV2SW

HTZ767DVD

DVD/CD Receiver | DVD/CD 接收器

XV-DV767

Speaker System | 揚聲器系統

S-DV4T

S-DV2SW

Operating Instructions

操作手册

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Location: bottom of the unit

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_En-A

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4_A_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b A En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a A En

CAUTION

This product is a class 1 laser product, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel. The following caution label appears on your unit. Location: top of the unit

CAUTION : CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN, AVOID EXPOSURE TO THE BEAM.

CLASS 1 LASER PRODUCT

D3-4-2-1-8_B_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. 5002_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041 En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c_A_En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

Contents

01 Controls and displays

Front panel 6

Remote control ....7

Display....9

02 Getting started

Home theater sound setup .....10

Using the Auto MCACC setup for optimal surround sound....10

Using the on-screen displays....11

Playing discs 12

Basic playback controls.....12

Resume and Last Memory....13

DVD-Video disc menus .....13

Video CD/Super VCD PBC menus .....13

Listening to the radio....13

Improving poor FM reception .....14

Reducing AM reception noise .....14

Memorizing stations .....14

Listening to station presets .....14

Listening to other sources .....14

03 Listening to your system

Auto listening mode .....15

Listening in surround sound .....15

Dolby Pro Logic II Music settings .....15

Using Front Stage Surround Advance ....16

Using Advanced Surround....16

Listening in stereo .....16

Listening with headphones .....16

Listening with Acoustic Calibration EQ ...16

Using the Sound Retriever.....17

Enhancing dialog....17

Using the Tone controls....17

Adjusting the bass and treble .....17

Quiet and Midnight modes .....17

Boosting the bass level .....17

04 Disc playback features

Scanning discs 18

Playing in slow motion 18

Frame advance/frame reverse ..... 18

Playing a JPEG slideshow 18

Browsing DVD or Video CD/Super VCD discs with the Disc Navigator ..... 19

Browsing WMA, MP3, MPEG-4 AAC,

DivX video and JPEG files with the

Disc Navigator....20

Using Playlists....20

Programming playlists .... 20

Listening to playlists 21

Clearing files from a playlist ..... 21

Looping a section of a disc ..... 21

Using repeat play 21

Using random play 21

Creating a program list 22

Other functions available from the program menu 22

Searching a disc 23

Switching subtitles 23

Switching language/audio channels ..... 23

Zooming the screen 23

Switching camera angles 24

Displaying disc information....24

05 USB playback

Using the USB interface ..... 25

Basic playback controls 25

Scanning files 26

Playing a JPEG slideshow 26

Browsing files with the Navigator ..... 26

06 Surround sound settings

Using the Setup menu 27

07 Video Adjust menu

Video Adjust menu 28

08 Initial Settings menu

Using the Initial Settings menu ..... 29

Video Output settings.... 29

Language settings 30

Display settings 30

Options settings.... 31

Parental Lock.... 31

About DivX® VOD content.... 32

09 Other connections

Connecting external antennas ..... 33

Connecting auxiliary audio

components.... 33

Recording mode 33

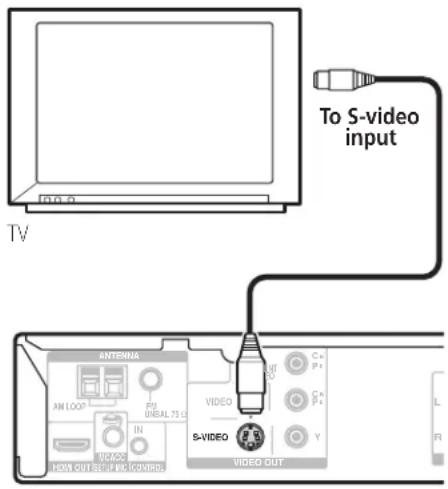

Connecting the S-video output.... 34

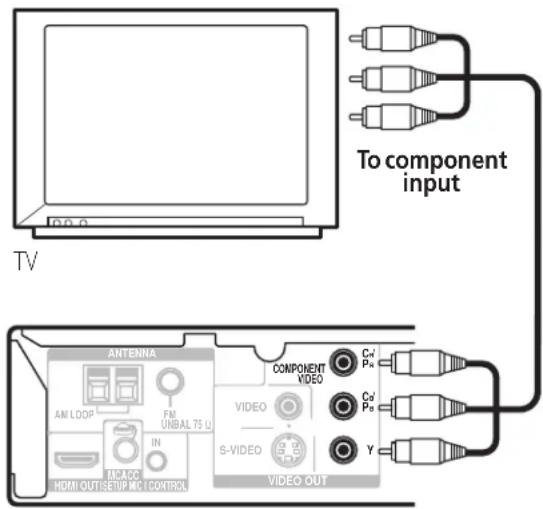

Connecting using the component video output 34

About progressive scan video 34

Connecting using HDMI.... 35

Switching the HDMI audio setting ..... 35

Resetting the HDMI connection.... 35

About HDMI 35

Using this unit with a Pioneer plasma television 36

SR+ Setup for Pioneer plasma televisions 36

Switching on the SR+ mode ..... 37

About control out connections.... 37

10 Additional information

Optional system settings .....38

Setting the sleep timer....38

Dimming the display .....39

Disc/content format playback compatibility ....39

Disc compatibility table....39

About DVD+R/DVD+RW compatibility .....40

About DivX ....40

About MPEG-4 AAC....41

About WMA .....41

Using and taking care of discs....41

DVD Video regions .....42

Installation and maintenance .....42

Hints on installation .....42

Cleaning the pickup lens....42

Problems with condensation....42

Moving the system unit .....42

Screen sizes and disc formats .....43

Troubleshooting....44

General 44

DVD/CD/Video CD player.....45

Tuner....46

USB connection .....46

HDMI connection .....46

Error Messages ....47

Resetting the system .....48

Using the language code list .....48

Language code list .....49

Country/Area code list .....49

Specifications ....50

Chapter 1

Controls and displays

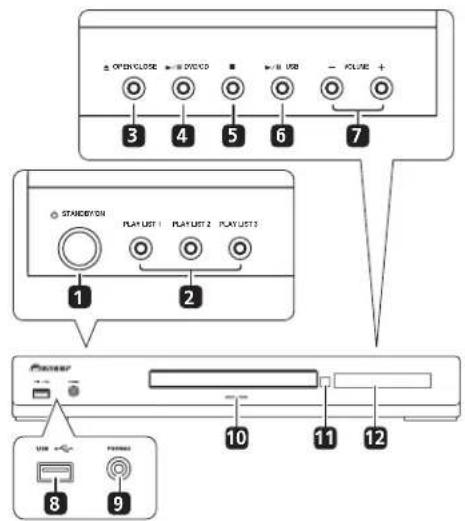

Front panel

1 ⏻ STANDBY/ON

Switches the system on or into standby.

2 PLAY LIST buttons

Add tracks (during playback), or select a playlist (while stopped) (page 20).

3 ▲ OPEN/CLOSE

Opens/closes the disc tray.

4 ▶/II DVD/CD

Selects the DVD/CD function and starts/pauses/resumes playback.

5 ■

Stops playback.

6 ▶/II USB

Selects the USB function and starts/pauses playback.

7 VOLUME +/- buttons

8 USB interface

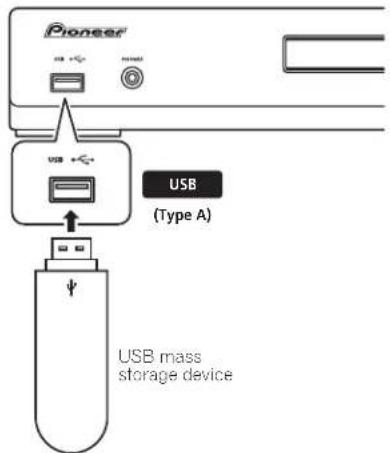

Connect a USB device for playback (see USB playback on page 25).

9 PHONES jack

Connect headphones.

10 Indicator

Lights blue when the power is on (except when the dimmer/sleep timer is active).

11 Remote Sensor

12 Display

See Display below.

Controls and displays

Remote control

1 ⏻ STANDBY/ON

Switches the system on or into standby.

2 Function select buttons

Selects the source you want to listen to (DVD/CD, TUNER, USB, LINE).

3 Number buttons, CLEAR, DISPLAY and DVD controls

CLEAR

Clears an entry.

DISPLAY

Displays/changes disc information shown on-screen (page 24).

SHIFT+AUDIO

Selects audio channel/language (page 23).

SHIFT+SUBTITLE

Displays/changes the subtitles (page 23).

SHIFT+ANGLE

Changes camera angle during DVD multi-angle scene playback (page 24).

SHIFT+ZOOM

Changes the screen zoom level (page 23).

4 TOP MENU – Displays the top menu of a DVD disc in the play position — this may be the same as pressing MENU (page 13).

SHIFT+SETUP – Use to make various system and surround sound settings (page 14, 27 and 39).

5 Cursor, ENTER and tuning buttons

↑/↓/←/→ – Use the cursor buttons to navigate on-screen displays and menus.

ENTER – Selects an option or executes a command.

TUNE +/- - Tunes the radio.

ST +/- - Selects station presets when listening to the radio.

6 HOME MENU – Displays (or exits) the on-screen menu for Initial Settings, Play Mode functions, etc.

SHIFT+MCACC – Starts the Auto MCACC setup (page 10).

7 Sound controls

F.S.SURR – Selects Front Stage Surround Advance mode (page 16).

SURROUND – Selects a Surround mode (page 15) or switches to stereo playback (page 16).

ADVANCED – Selects a Pioneer original surround mode (page 16).

SOUND – Accesses the sound menu to adjust the tone, bass and treble, etc. (page 15 to 17 and 33).

Controls and displays

8 Playback controls

See Basic playback controls on page 12, Disc playback features on page 18 and USB playback on page 25 for an explanation of these controls.

9 TV CONTROL buttons

These control Pioneer plasma televisions.

10 SHIFT

Press to access the controls highlighted in green.

11 SOUND RETRIEVER – Press to restore CD quality sound to compressed audio sources (page 17).
12 ▲ OPEN/CLOSE

Opens/closes the disc tray.

13 PLAYLIST buttons

Add tracks (during playback), or select a playlist (while stopped) (page 20).

14 MENU – Press to display a USB menu, or the Navigator (page 13, 18 and 26).

SHIFT+SR+ – Switches the SR+ mode on/off (page 36).

15 RETURN – Returns to a previous menu screen.

SHIFT+TEST TONE – Outputs the test tone (for speaker setup) (page 27).

16 SLEEP

Press to set the sleep timer (page 38).

17 MUTE

Mutes the sound (press again to cancel).

18 VOLUME +/-

Adjusts the volume.

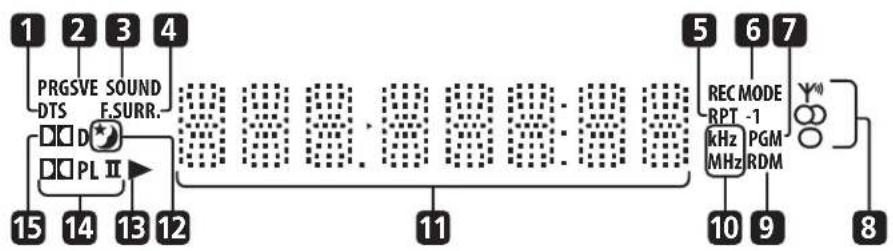

Display

1 DTS

Lights during playback of a DTS source (page 15).

2 PRGSVE

Lights when progressive scan video output is selected (page 29).

3 SOUND

Lights when the Sound Retriever is active (page 17).

4 SURR.

Lights when one of the Advanced surround listening modes is selected (page 16).

F.SURR.

Lights when one of the Front Stage Surround Advance mode is selected (page 16).

5 RPT and RPT-1

RPT lights during repeat play. RPT-1 lights during repeat one-track play (page 21).

6 REC MODE

Lights when Recording mode is on (page 33).

7 PGM

Lights during program play (page 20 and 22).

8 Tuner indicators

⁰ – Lights when a broadcast is being received.

- Lights when a stereo FM broadcast is being received in auto stereo mode.

- Lights when FM mono reception is selected.

9 RDM

Lights during random play (page 21).

10 kHz/MHz

Indicates the frequency unit shown in the character display (kHz for AM, MHz for FM).

11 Character display

12

Lights when sleep timer is active (page 38).

13 ▶

Lights during playback.

14 □□ PL II

Lights during Dolby Pro Logic II decoding (page 15).

15 D D

Lights during playback of a Dolby Digital source (page 15).

Chapter 2

Getting started

Home theater sound setup

Place your speakers as shown below for optimal surround sound (see the Speaker Setup Guide for more placement tips).

- Standard surround setup – This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound.

Depending on the size and characteristics of your room, you can choose to use the following setup option: ¹

- Front surround setup – This setup is ideal when rear surround speaker placement isn't possible or you want to avoid running long speaker cables in your listening area.

For HTZ363DVD:

For HTZ565DVD and HTZ767DVD:

After placing your speakers, see Using the Auto MCACC setup for optimal surround sound below to complete your surround setup.

Using the Auto MCACC setup for optimal surround sound

The Multichannel Acoustic Calibration (MCACC) system measures the acoustic characteristics of your listening area, taking into account ambient noise and testing for channel delay and channel level. After you have set up the microphone provided with your system, the receiver uses the information from a series of test tones to optimize the speaker settings and equalization (Acoustic Calibration EQ) for your particular room. ²

Important

- These test tones are loud; however, do not turn the volume down during setup as this may result in a sub-optimal calibration.

Note

1 See Using Front Stage Surround Advance on page 16 to select a front surround mode when using this setup.

2 You only need to use the Auto MCACC setup once (unless you change the placement of your speakers or your room layout).

Getting started

- Make sure the mic and speakers are not moved during the MCACC setup.

1 Connect the microphone to the MCACC MIC jack on the rear panel.

2 Place the microphone at your normal listening position.

Place it about ear height, and make sure it is level by using a table or chair.

Make sure there are no obstacles between the speakers and the microphone.

3 If the system is off, press ○ STANDBY/ON to turn the power on.

If the tuner is selected, switch the input source.

4 Press SHIFT+MCACC.

Try to be as quiet as possible after pressing SHIFT+MCACC. The volume increases automatically and the system outputs a series of test tones.

- Press SHIFT+MCACC to cancel and revert to the previous Auto MCACC settings.

- If the noise level is too high, NOISY blinks in the display for five seconds. To exit and check the noise levels ¹ , press SHIFT+MCACC, or to try again, press ENTER when RETRY shows in the display.

- If you see an ERR MIC or ERR SP message in the display, there may be a problem with your mic or the speaker connections. To try again, press ENTER when you see RETRY ²

When the MCACC setup is complete, the volume level returns to normal and COMPLETE ³ shows in the display, indicating that the MCACC setup is complete and Acoustic Calibration EQ has been activated. ⁴

Using the on-screen displays

For ease of use, this system makes extensive use of graphical on-screen displays (OSDs). All the screens are navigated in basically the same way, using ↑, ↓, ←, → to change the highlighted item and pressing ENTER to select it.⁵

Important

- Throughout this manual, 'Select' means use the cursor buttons to highlight an item on-screen, then press ENTER.

Button	What it does
HOME MENU	Displays/exits the on-screen display
←↑↓→	Changes the highlighted menu item
ENTER	Selects the highlighted menu item

Note

1 • If the room environment is not optimal for the Auto MCACC setup (too much ambient noise, echo off the walls, obstacles blocking the speakers from the microphone) the final settings may be incorrect. Check for household appliances (air conditioner, fridge, fan, etc.), that may be affecting the environment and switch them off if necessary.
- Some older TVs may interfere with the operation of the mic. If this seems to be happening, switch off the TV during the Auto MCACC setup.
2 If this doesn't work, press SHIFT+MCACC, turn off the power, and check the problem indicated by the error message, then try the Auto MCACC setup again.
3 If COMPLETE doesn't appear, it is likely an error occurred during the setup. Please check all connections and try again.
4 See Listening with Acoustic Calibration EQ on page 16 to switch on/off Acoustic Calibration EQ.
5 The screen saver will appear after five minutes of inactivity.

Getting started

Button What it does

RETURN Returns to the main menu without saving changes

Tip

- The button guide at the bottom of every OSD screen shows you which buttons you'll need to use for that screen.

Playing discs

The basic playback controls for playing DVD, CD, Video CD/Super VCD, DivX video and WMA/MP3/MPEG-4 AAC discs are covered here. Further functions are detailed in chapter 4.

1 If the player isn't already on, switch it on.

If you're playing a disc with video, also turn on your TV and make sure that it is set to the correct video input.

2 Press ▲ OPEN/CLOSE to load a disc.

Load a disc with the label side facing up, using the disc tray guide to align the disc (if you're loading a double-sided DVD disc, load it with the side you want to play face down).

3 Press ▶ (play) to start playback.

If you're playing a DVD or Video CD/Super VCD, a menu may appear. See DVD-Video disc menus and Video CD/Super VCD PBC menus on page 13 to navigate these.

If you loaded a disc containing JPEGs, a slideshow will start. See Playing a JPEG slideshow on page 18 for more on this.

- If a disc contains a mixture of DivX video and other media file types (MP3, for example), first select whether to play the DivX video files (DivX) or the other media file types (MP3/WMA/JPEG/MPEG-4 AAC) from the on-screen display.

4 Adjust the volume.

Use the VOLUME control.

Basic playback controls

The following table shows the basic controls on the remote for playing discs ¹ . You can find other playback features in the chapter 4.

Button What it does

►	Starts/resumes normal playback.• If the display shows RESUME or LAST MEM playback starts from the resume or last memory point (see Resume and Last Memory below).
II	Pauses/unpauses a disc.
■	Stops playback or cancels the resume function (if the display shows RESUME).
◄◄	Press to start fast reverse scanning.
►►	Press to start fast forward scanning.
I◄◄	Skips to the start of the current track or chapter, then previous tracks/chapters.
►►I	Skips to the next track or chapter.
Numbers	Use to enter a title/chapter/track number. Press ENTER to select.• If the disc is stopped, playback starts from the selected title (for DVD) or track (for CD/Video CD/Super VCD).• If the disc is playing, playback jumps to the start of the selected title (VR mode DVD-R/-RW), chapter (DVD-Video) or track (CD/Video CD/Super VCD).

Note

1 You may find with some DVD discs that some playback controls don't work in certain parts of the disc.

Getting started

Resume and Last Memory

When you stop playback of a disc, RESUME shows in the display indicating that you can resume playback from that point. With DVDs and Video CD/Super VCDs, even if ejected, the play position is stored in memory. ¹ The next time you load the disc, the display shows LAST MEM and you can resume playback. If you want to clear the resume point, press (stop) while RESUME is displayed.

DVD-Video disc menus

Many DVD-Video discs contain menus from which you can select what you want to watch. Sometimes DVD-Video menus are displayed automatically when you start playback; others only appear when you press MENU or TOP MENU.

Button	What it does
TOP MENU	Displays the 'top menu' of a DVD disc — this varies with the disc.
MENU	Displays a DVD disc menu — this varies with the disc and may be the same as the 'top menu'.
←↑↓→	Moves the cursor around the screen.
ENTER	Selects the current menu option.
RETURN	Returns to the previously displayed menu screen.
Numbers	Highlights a numbered menu option (some discs only). Press ENTER to select.

Video CD/Super VCD PBC menus

Some Video CD/Super VCDs have menus from which you can choose what you want to watch. These are PBC (Playback control) menus.

You can play a PBC Video CD/Super VCD without having to navigate the PBC menu by starting playback using a number button to select a track, rather than the ▶ (play) button.

Button	What it does
RETURN	Displays the PBC menu.
Numbers	Selects numbered menu options. Press ENTER to select.
|◀◀	Displays the previous menu page (if there is one).
▶▶|	Displays the next menu page (if there is one).

Listening to the radio

The tuner can receive both FM and AM broadcasts, and lets you memorize your favorite stations so you don't have to manually tune in every time you want to listen.

1 Press TUNER to switch to the tuner, then press repeatedly to select the AM or FM band. The display shows the band and frequency.

2 Tune to a frequency.

There are three tuning modes — manual, auto, and high-speed:

• Manual tuning: Press TUNE +/- repeatedly to change the displayed frequency.
• Auto tuning: Press and hold TUNE +/- until the frequency display starts to move, then release. The tuner will stop on the next station it finds. Repeat to keep searching.
• High-speed tuning: Press and hold TUNE +/- until the frequency display starts to move rapidly. Keep the button held down until you reach the frequency you want. If necessary, fine tune the frequency using the manual tuning method.

Note

1 • The Last Memory function may not work with some discs.

- For DVD-Video discs (except VR mode DVD-R/-RW), the player stores the play position of the last five discs.

Getting started

Improving poor FM reception

If you're listening to an FM station in stereo but the reception is weak, you can improve the sound quality by switching to mono.

1 Tune to an FM radio station then press SHIFT+SETUP.
2 Use ←/→ to choose FM MODE then press ENTER.
3 Use ↑/↓ to select FM MONO then press ENTER.

The mono indicator ( ) lights when the tuner is in mono reception mode.

Select FM AUTO above to switch back to auto-stereo mode (the stereo indicator (lights when receiving a stereo broadcast).

Reducing AM reception noise

If AM reception seems particularly poor, or the AM radio station you're listening to seems noisy, try using the Noise Cut feature for better sound quality.

1 Tune to an AM radio station then press SHIFT+SETUP.
2 Use ←/→ to choose NOISECUT then press ENTER.
3 Use ↑/↓ to select the noise cut mode then press ENTER.

Select an effect level between 1 and 3.

Memorizing stations

You can save up to 30 station presets so that you always have easy access to your favorite stations without having to tune in manually each time.

1 Tune to an AM or FM radio station.
Select mono or auto-stereo reception (FM) or the Noise Cut mode (AM) as necessary. These settings are saved along with the preset.
2 Press SHIFT+SETUP and use ←/→ to choose 'ST.MEM.' then press ENTER.

3 Use ↑/↓ to select the station preset you want then press ENTER.

Listening to station presets

1 Make sure the TUNER function is selected.
2 Use the ST +/- buttons to select a station preset.

- You can also use the number buttons to do this.

Listening to other sources

You can connect auxiliary sources (TV, satellite receiver, etc.) to this unit for playback through the speaker system. See Connecting auxiliary audio components on page 33 for more on this.

- To connect a USB device to the USB terminal, see USB playback on page 25.

1 Make sure that the external source (TV, satellite receiver, etc.) is switched on.
2 Press LINE to select the source.
3 If necessary, start playback of the source.

Chapter 3

Listening to your system

Auto listening mode

The Auto listening mode is the simplest way to listen to any source as it was mastered: the output from the speakers mirrors the channels in the source material.

- If you set up the system for Front surround (page 10), the Front Surround modes will give the best results.

- Press SURROUND to select the AUTO listening mode. ¹

Listening in surround sound

You can listen to stereo or multichannel sources in surround sound. ² Surround sound is generated from stereo sources using one of the Dolby Pro Logic decoding modes.

- If you set up the system for Front surround (page 10), the Front Surround modes will give the best results.

- Press SURROUND repeatedly to select a listening mode. ¹

The choices that appear in the display will vary according to the type of source that's playing.

• AUTO – Auto listening mode (see above)
- DOLBY PL (Dolby Pro Logic) – 4.1 channel surround sound (use with any two-channel source)

• MOVIE (Dolby Pro Logic II Movie) – Pro Logic II 5.1 channel surround sound, especially suited to movie sources (use with any two-channel source)
- MUSIC (Dolby Pro Logic II Music) – Pro Logic II 5.1 channel surround sound, especially suited to music sources (use with any two-channel source)
• STEREO – See Listening in stereo below

Dolby Pro Logic II Music settings

When listening in Dolby Pro Logic II Music mode, there are three settings you can adjust: Center Width, Dimension, and Panorama.

1 With Dolby Pro Logic II Music mode active, press SOUND.
2 Use ←/→ to select 'C WIDTH', 'DIMEN.' or 'PANORAMA' then press ENTER to confirm.

• C WIDTH (Center Width) – Provides a better blend of the front speakers by spreading the center channel between the front right and left speakers, making it sound wider (higher settings) or narrower (lower settings).
• DIMEN. (Dimension) – Adjusts the depth of the surround sound balance from front to back, making the sound more distant (minus settings), or more forward (positive settings).
• PANORAMA – Extends the front stereo image to include the surround speakers for a 'wraparound' effect.

Note

1 If the source is Dolby Digital or DTS, the corresponding indicator lights in the front panel display. 2 Note that when the tuner is selected, multichannel playback is not possible.

Listening to your system

Using Front Stage Surround Advance

The Front Stage Surround Advance modes are effective when you are using the Front surround speaker setup as described on page 10. ¹

- Press F.S.SURR to select a Front Stage Surround Advance mode.

Press repeatedly to select FOCUS5.1, WIDE5.1 or EXTRAPWR.

• FOCUS5.1 – Use to provide a rich surround sound effect directed to the center area where the left and right speakers' sound projection converges.
• WIDE5.1 – Use to provide a surround sound effect to a wider area than FOCUS5.1 mode.
• EXTRAPWR – Outputs stereo sound (in the case of multi-channel sources, down-mixed stereo sound) from the surround speakers for powerful stereo effect.

Using Advanced Surround

The Advanced Surround effects can be used with any multichannel or stereo source for a variety of additional surround sound effects. ¹ These modes are designed to provide optimum listening effect when using the Standard surround setup described on page 10.

- Press ADVANCED to select an Advanced Surround mode. Press repeatedly to select ACTION, UNPLUGED, EXPANDED, TV SURR., SPORTS, ADV.GAME, VIRTUAL or X-STEREO (Extended Stereo).

Listening in stereo

You can listen to any source — stereo or multichannel — in stereo. When playing a multichannel source, all channels are downmixed to the front left/right speakers and the subwoofer.

- Press SURROUND repeatedly until STEREO shows in the display.

Listening with headphones

When headphones are connected, only the STEREO (default) and PHONES SURROUND (virtual surround sound for headphones) modes are available.

- With headphones connected, press ADVANCED to select PHONES SURROUND or SURROUND to select STEREO.

Listening with Acoustic Calibration EQ

You can listen to sources using the Acoustic Calibration Equalization set in Using the Auto MCACC setup for optimal surround sound on page 10. ²

1 Press SOUND and use ↔/→ to select MCACC EQ then press ENTER.

Note

1 Note that when the tuner is selected, multichannel playback is not possible.
2 Acoustic Calibration EQ is not available when headphones are connected.

Listening to your system

2 Use ↑/↓ to select EQ ON or EQ OFF then press ENTER to confirm.

• If you select EQ OFF, equalization is set to off but speaker settings (channel delay and channel level) remain in effect.
• EQ ON is selected automatically after the Auto MCACC setup is completed.

Using the Sound Retriever

When audio data is removed during the WMA/MP3/MPEG-4 AAC compression process, sound quality often suffers from an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2-channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression.

- While listening to a stereo source, press SOUND RETRIEVER to switch the sound retriever on or off.

Enhancing dialog

The Dialog Enhancement feature is designed to make the dialog stand out from other background sounds in a TV or movie soundtrack.

1 Press SOUND and use ↔/→ to select DIALOGUE then press ENTER.

2 Use ↑/↓ to select the amount of dialog enhancement then press ENTER to confirm. Select between OFF, MID or MAX.

Using the Tone controls

You can change the tonal balance of the sound by using the tone control menu.

1 Press SOUND and use ↔/→ to select TONE then press ENTER.

2 Use ↑/↓ to select the option you want to adjust and press ENTER.

The Bass/Treble, Quiet and Midnight features cannot be used at the same time.

Adjusting the bass and treble

Use the tone controls to adjust the bass and treble.

- Use ↔/→ to select BASS or TREBLE then use / to adjust the tone. Press ENTER to confirm.

Quiet and Midnight modes

The Quiet listening feature reduces excessive bass or treble in a sound source.

The Midnight listening feature allows you to hear effective surround sound of movies at low volume levels.

• After pressing ENTER, the setting switches on/off.
- To cancel the Quiet or Midnight listening modes, select BASS/TRE.

Boosting the bass level

There are two bass modes you can use to enhance the bass in a source. ¹

1 Press SOUND and use ↔/→ to select BASSMODE then press ENTER.

2 Use ↑/↓ to adjust the sound then press ENTER to confirm.

Select between OFF, MUSIC or CINEMA.

Note

1 The Bass Mode is not available when headphones are connected.

Chapter 4

Disc playback features

Important

• Many of the functions covered in this chapter apply to DVD discs, Video CDs/ Super VCDs, CDs, DivX video and WMA/ MP3/MPEG-4 AAC/JPEG discs, although the exact operation of some varies slightly with the kind of disc loaded.
• Some DVDs restrict the use of some functions (random or repeat, for example) in some or all parts of the disc. This is not a malfunction.
• When playing Video CD/Super VCDs, some of the functions are not available during PBC playback. If you want to use them, start the disc playing using a number button to select a track.

Scanning discs

You can fast-scan discs forward or backward at various different speeds. ¹

- During playback, press ◀◀ or ▶▶ to start scanning.

Press repeatedly to increase the scanning speed (shown on-screen).

• To resume playback, press ▶ (play). ²

Playing in slow motion

You can play DVDs, Video CD/Super VCDs and DivX video at four different forward slow motion speeds. DVD discs can also be played in reverse slow motion.

1 During playback, press Ⅱ (pause).

2 Press and hold ◀/◄◄ or ►/► until slow motion playback starts.

Press repeatedly to change the slow motion speed (shown on-screen).

• To resume playback, press ▶ (play). ²

Frame advance/frame reverse

You can advance or back up DVD discs frame-by-frame. With Video CD/Super VCDs and DivX video you can only use frame advance.

1 During playback, press II (pause).

2 Press ◀/◀ or ||▶/I▶ to reverse or advance a frame at a time.

• To resume playback, press ▶ (play), ²

Playing a JPEG slideshow

After loading a disc containing JPEG pictures, press ▶ to start a slideshow from the first folder/picture on the disc. ³ The player displays the pictures in each folder in alphabetical order.

- If the disc contains WMA/MP3/MPEG-4 AAC files, playback of the slideshow and audio files repeats. During audio playback, you can still use the skip (I◄◄/►►), scan (◄◄/►►) and pause (■) functions.

Pictures are automatically adjusted so that they fill as much of the screen as possible.

Note

1 Only one speed is available for DivX video discs.
2 • Depending on the disc, normal playback may automatically resume when a new chapter is reached on a DVD disc.
- For Video CDs/Super VCDs in PBC mode and WMA/MP3/MPEG-4 AAC tracks (in Scan Mode only), normal playback resumes when you reach the beginning or the end of a track.
3 • The time it takes for the player to load a file increases with large file sizes.
• Discs can contain up to 299 folders and up to 648 folders and files combined.

Disc playback features

While the slideshow is running:

Button	What it does
||	Pauses the slideshow (or audio); press again to restart.
|◀◀	Jumps to the previous picture (or audio file with audio playback).
▶▶|	Jumps to the next picture (or audio file with audio playback).
↔/→/↑/↓	Pauses the slideshow and rotates/flips the displayed picture (Press ▶ (play) to restart slideshow).
SHIFT+ZOOM	Pauses the slideshow and zooms the picture. Press again to toggle between 1x, 2x and 4x zoom (Press ▶ (play) to restart slideshow).
MENU	Displays the Disc Navigator screen (see below).

Browsing DVD or Video CD/ Super VCD discs with the Disc Navigator

Use the Disc Navigator to browse through the contents of a DVD or Video CD/Super VCD disc to find the part you want to play.

1 During playback, press HOME MENU and select 'Disc Navigator' from the on-screen menu.

2 Select a view option.

The options available depend on the kind of disc loaded and whether the disc is playing or not, but include:

• Title – Titles from a DVD-Video disc.
- Chapter – Chapters from the current title of a DVD-Video disc.
- Track – Tracks from a Video CD/Super VCD disc.
- Time – Thumbnails from a Video CD/Super VCD disc at 10 minute intervals.
- Original: Title – Original titles from a VR mode DVD-R/-RW disc.
- Playlist: Title – Playlist titles from a VR mode DVD-R/-RW disc.
- Original: Time – Thumbnails from the Original content at 10 minute intervals.
- Playlist: Time – Thumbnails from the Playlist at 10 minute intervals.

The screen shows up to six moving thumbnail images displayed one after another. To display the previous/next six thumbnails, press ◀◀◀/▶◀.

3 Select the thumbnail image for what you want to play.

You can use either ↑/↓/←/→ and ENTER to select a thumbnail, or the number buttons.

To select using the number buttons, enter a two-digit number then press ENTER.

Disc playback features

Browsing WMA, MP3, MPEG-4 AAC, DivX video and JPEG files with the Disc Navigator

Use the Disc Navigator to find a particular file or folder by filename.

1 Press HOME MENU and select 'Disc Navigator' from the on-screen menu.

2 Use ↑/↓/←/→ and ENTER to navigate.

Use ↑/↓ to move up and down the folder/file list.

Use ← to return to the parent folder. ¹

Use ENTER or → to open a highlighted folder.

- When a JPEG file is highlighted, a thumbnail image is displayed on the right.

3 To play the highlighted track or DivX video file or display the highlighted JPEG file, press ENTER.

- When a WMA/MP3/MPEG-4 AAC or DivX video file is selected, playback begins from that file, and continues until the end of the folder.

- When a JPEG file is selected, a slideshow begins, starting with that file, and continues to the end of the folder.

Tip

- You can also play a JPEG slideshow while listening to WMA/MP3/MPEG-4 AAC playback. Simply select the audio file you want to listen to followed by the JPEG from which you want the slideshow to start. Playback of both the slideshow and the audio files repeats. Playback controls are effective for the JPEG slideshow only.

- To play the contents of the whole disc rather than just the current folder, exit the Disc Navigator and start playback using the ▶ (play) button.

Using Playlists

With this feature, you can make up to three playlists of 30 files each for discs containing WMA, MP3, MPEG-4 AAC and JPEG files. Since this unit will remember all playlists for the last ten discs you have loaded, this is useful for if you have a large number of files that you want to organize quickly and easily. ²

Programming playlists

1 With the disc stopped, press HOME MENU and select 'Disc Navigator' from the on-screen menu.

2 Select the file you want to add to the playlist.

See Browsing WMA, MP3, MPEG-4 AAC, DivX video and JPEG files with the Disc Navigator above if you don't know how to do this.

3 Press PLAY LIST 1, 2 or 3.

The file is added to the playlist you select.

4 Repeat steps 2 and 3 until you're done.

Note

1 You can also do this by going to the ‘..’ folder at the top, then pressing ENTER.

2 The disc must be loaded for the files in your playlist to play back.

Disc playback features

Tip

- To add files without the on-screen display, simply press PLAY LIST 1, 2 or 3 during normal playback of the file you want (except when a JPEG slideshow is playing at the same time as audio).

Listening to playlists

- With playback stopped, press PLAY LIST 1, 2 or 3.

During playback, PGM lights in the front panel display. If no playlist has been programmed, NO LIST shows in the display.

- If the playlist contains both JPEG and audio files, playback of the slideshow and audio files starts.

Clearing files from a playlist

1 Start playback of your playlist.

2 From the 'Disc Navigator' screen, select the file you want to remove from the playlist and press CLEAR.

Looping a section of a disc

The A-B Repeat function allows you to specify two points (A and B) within a track (CD, Video CD/Super Video CD) or title (DVD) that form a loop which is played over and over.

1 During playback, press HOME MENU and select 'Play Mode'.

Play Mode

2 Select 'A-B Repeat'.

3 Press ENTER on 'A(Start Point)' to set the loop start point.

4 Press ENTER on 'B(End Point)' to set the loop end point.

After pressing ENTER, playback jumps back to the start point and plays the loop.

5 To resume normal playback, select 'Off'.

Using repeat play

In addition to various repeat play options, it's also possible to use repeat play together with program play (see Creating a program list on page 22).

1 During playback, press HOME MENU and select 'Play Mode'.

2 Select 'Repeat' then select a repeat play option. ¹

If program play is active, select Program Repeat to repeat the program list, or Repeat Off to cancel.

• For DVD discs, select Title Repeat or Chapter Repeat.
• For CDs and Video CD/Super VCDs, select Disc Repeat or Track Repeat.
• For DivX video discs, select Title Repeat (or Repeat Off).

Using random play

Use this function to play titles or chapters (DVD-Video) or tracks (CD and Video CD/Super VCD) in a random order. ²

1 During playback, press HOME MENU and select 'Play Mode'.

Note

1 You can't use repeat play with WMA/MP3/MPEG-4 AAC discs.
2 • You can set the random play option when a disc is playing or stopped. However, you can't use random play together with program play.
- You can't use random play with VR format DVD-R/-RW discs, WMA/MP3/MPEG-4 AAC discs, DivX video discs, or while a DVD disc menu is being displayed.

Disc playback features

2 Select 'Random' then select an option.

• For DVD discs, select Random Title or Random Chapter.
• For CDs and Video CD/Super VCDs, select On or Off to switch random play on or off.

Tip

- Use the following controls during random play:

Button What it does

▶▶	Selects a new track/title/chapter at random.
◀◀	Returns to the beginning of the current track/title/chapter; further presses select another random track/title/chapter.

- Random play remains in effect until you select Random Off from the random play menu options.

Creating a program list

This feature lets you program the play order of titles/chapters/tracks on a disc. ¹

1 During playback, press HOME MENU and select 'Play Mode'.

2 Select 'Program' then select 'Create/Edit' from the list of program options.

3 Use ↑/↓/←/→ and ENTER to select a title, chapter or track for the current step in the program list.

• For a DVD disc, you can add a title or a chapter.
• For a CD or Video CD/Super VCD, select a track to add to the program list.

After pressing ENTER to select the title/chapter/track, the step number automatically moves down one.

4 Repeat step 3 to build up a program list.

A program list can contain up to 24 steps.

• You can insert steps by just highlighting the position where you want the new step to appear and entering a title/chapter/track number.
  • To delete a step, highlight it and press CLEAR.

5 To play the program list, press ▶ (play).

Program play remains active until you turn off program play (see below), erase the program list (see below), eject the disc or switch off.

Tip

- Use the following controls during program play:

Button	What it does
HOMEMENU	Save the program list and exit without starting playback.
▶▶I	Skip to the next step in the program list.

Other functions available from the program menu

There are a number of other options in the program menu in addition to Create/Edit.

• Playback Start – Starts playback of a saved program list
• Playback Stop – Turns off program play, but does not erase the program list
• Program Delete – Erases the program list and turns off program play

Note

1 You can't use Program play with VR format DVD-R/-RW discs, WMA/MP3/MPEG-4 AAC discs, DivX video discs, or while a DVD disc menu is being displayed.

Disc playback features

Searching a disc

You can search DVD discs by title or chapter number, or by time; CDs and Video CD/Super VCDs by track number or time; DivX video discs by time.

1 Press HOME MENU and select 'Play Mode'.

2 Select 'Search Mode'.

The search options that appear depend on the kind of disc loaded.

3 Select a search mode.

- The disc must be playing in order to use time search.

4 Use the number buttons to enter a title, chapter or track number, or a time.

- For a time search, enter the number of minutes and seconds into the currently playing title (DVD/ DivX video) or track (CD/ Video CD/Super VCD) you want playback to resume from. For example, press 4, 5, 0, 0 to have playback start from 45 minutes into the disc. For 1 hour, 20 minutes and 30 seconds, press 8, 0, 3, 0.

5 Press ENTER to start playback.

Switching subtitles

Some DVD discs and DivX video discs have subtitles in one or more languages; the disc box will usually tell you which subtitle languages are available. You can switch subtitle language during playback. ¹

- Press SHIFT+SUBTITLE repeatedly to select a subtitle option.

- To set subtitle preferences, see Language settings on page 30.

• See Displaying DivX subtitle files on page 40 for more on DivX subtitles.

Switching language/audio channels

When playing discs recorded with dialog in two or more languages, or with dual-mono audio ² you can switch these during playback. ³

- Press SHIFT+AUDIO repeatedly to select an audio language option.

• To set audio language preferences, see Language settings on page 30.

Zooming the screen

Using the zoom feature you can magnify a part of the screen by a factor of 2 or 4, while watching a DVD, DivX video title or Video CD/ Super VCD or playing a JPEG disc.

1 During playback, use the SHIFT+ZOOM button to select the zoom factor (Normal, 2x or 4x).

2 Use ↑/↓/←/→ to change the zoomed area.

You can change the zoom factor and the zoomed area freely during playback. ⁴

Note

1 Some discs only allow you to change subtitle language from the disc menu. Press TOP MENU or MENU to access.
2 Some Super VCDs have two soundtracks. With these discs you can switch between the two soundtracks as well as individual channels in each.
3 Some discs only allow you to change audio language from the disc menu. Press TOP MENU or MENU to access.
4 • Since DVD, Video CD/Super VCD, DivX video title and JPEG pictures have a fixed resolution, picture quality will deteriorate, especially at 4x zoom. This is not a malfunction.
- If the navigation square at the top of the screen disappears, press SHIFT+ZOOM again to display it.

Disc playback features

Switching camera angles

Some DVD discs feature scenes shot from two or more angles — check the disc box for details.

When a multi-angle scene is playing, a 📄 icon appears on screen (this can be switched off if you prefer — see Display settings on page 30).

- During playback (or when paused), press SHIFT+ANGLE to switch angle.

Displaying disc information

Various track, chapter and title information can be displayed on-screen during playback.

- To show/switch/hide the information displayed, press DISPLAY repeatedly.

Limited disc information also appears in the front panel display. Press DISPLAY to change the displayed information.

Chapter 5

USB playback

Using the USB interface

It is possible to listen to two-channel audio ¹ and watch JPEG files using the USB interface on the front of this unit. Connect a USB mass storage device ² as shown below.

1 With the player switched on, press USB.

Make sure your TV is on and set to the correct video input.

2 Connect your USB device.

The USB terminal is located on the front panel.

3 Press ▶ (play) to start playback.

If your USB device contains JPEGs, a slideshow will start. See Playing a JPEG slideshow on page 26 for more on this.

- Make sure USB DATA is showing in the front panel display (or the system is in standby) when disconnecting.

Important

If a USB ERR message lights in the display, it may mean that the power requirements of the USB device are too high for this player, or that the device is incompatible. Try the following:

• Switch the player off, then on again.
• Reconnecting the USB device with the player switched off.
• Selecting to another input source (like DVD/CD), then back to USB.
• Using a dedicated AC adapter (supplied with the device) for USB power.

If this doesn't remedy the problem, it is likely your USB device is incompatible.

Basic playback controls

The following table shows the basic controls on the remote for USB playback.

Button What it does

►	Starts normal playback.
■	Pauses/unpauses playback.
■	Stops playback.
◀◀	Press to start fast reverse scanning.
▶▶	Press to start fast forward scanning.
◀◀◀	Skips to the start of the current file, then previous files.
▶▶▶	Skips to the next file.

Note

1 This includes playback of WMA/MP3/MPEG-4 AAC files (except files with copy-protection or restricted playback). It is not possible to play DivX files through the USB terminal.
2 • Compatible USB devices include external magnetic hard drives. portable flash memory (particularly keydrives) and digital audio players (MP3 players) of format FAT16/32. It is not possible to connect this unit to a personal computer for USB playback.
- Pioneer cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit.
- With large amounts of data, it may take longer for the system to read the contents of a USB device.

USB playback

Scanning files

You can fast-scan forward or backward at various different speeds.

- During playback, press ◀◀ or ▶▶.

Press repeatedly to increase the scanning speed (shown on-screen).

• To resume playback, press ▶ (play). ¹

Playing a JPEG slideshow

Press ▶ to start a slideshow from the first folder/picture. ² The pictures in each folder are displayed in order.

- If the device contains WMA/MP3/MPEG-4 AAC files, playback of the slideshow and audio files repeats. During audio playback, you can still use the skip (|◀◀/▶▶|), scan (◀◀/▶▶) and pause (■) functions.

Pictures are automatically adjusted so that they fill as much of the screen as possible. While the slideshow is running:

Button	What it does
||	Pauses the slideshow (or audio); press again to restart.
|◀◀	Jumps to the previous picture (or audio file with audio playback).
▶▶I	Jumps to the next picture (or audio file with audio playback).
←/→/↑/↓	Pauses the slideshow and rotates/flips the current picture (Press ▶ to restart slideshow).
SHIFT+ZOOM	Pauses the slideshow and zooms the picture. Press again to toggle between 1x, 2x and 4x zoom (Press ▶ to restart slideshow).

Button What it does

MENU	Displays the Navigator screen(see below).

Browsing files with the Navigator

Use the Navigator to find WMA, MP3, MPEG-4 AAC and JPEG files or folders by name. ³

1 Press MENU then use ↑/↓/←/→ and ENTER to navigate.

Use ↑/↓ to move up/down the folder/file list.

Use ← to return to the parent folder. ⁴

Use ENTER or → to open a highlighted folder.

- When a JPEG file is highlighted, a thumbnail image is displayed on the right.

2 To play the highlighted track or display the highlighted JPEG file, press ENTER.

• When a WMA/MP3/MPEG-4 AAC file is selected, playback begins from that file, and continues until the end of the folder.
• When a JPEG file is selected, a slideshow begins, starting with that file, and continues to the end of the folder.

Tip

- You can also play a JPEG slideshow while listening to WMA/MP3/MPEG-4 AAC playback. Simply select the audio file you want to listen to followed by the JPEG from which you want the slideshow to start. Playback of both the slideshow and the audio files repeats. Playback controls are effective for the JPEG slideshow only. - To play all of the contents, rather than just the current folder, exit the Navigator and start playback using the ▶ (play) button.

Note

1 With WMA/MP3/MPEG-4 AAC tracks, playback automatically resumes at the end or beginning of the track.
2 • The time it takes for the player to load a file increases with large file sizes.
- USB devices can contain up to 299 folders and up to 648 folders and files combined.
3 Filenames may be displayed incorrectly with some digital audio players.
4 You can also do this by going to the ' ..' folder at the top, then pressing ENTER.

Chapter 6

Surround sound settings

Using the Setup menu

From the Setup menu you can access all the surround sound settings of the system ¹ , including channel levels, speaker distances and dynamic range adjustment. The Auto MCACC feature (page 10) should give you the best surround sound setup. However you may find that by further adjustment of the surround sound settings you can improve the surround sound in your listening room.

1 Press SHIFT+SETUP and use ←/→ then ENTER to choose the setting you want to adjust.

The available settings are shown in the front panel display. ²

2 Use ↑/↓ to adjust then press ENTER to confirm and exit.

- Note that using the Auto MCACC (page 10) again overwrites the speaker settings.

Channel level setting

Set the relative channel levels from your main listening position. ³

Use ↔/→ to switch between channels in the following order:

• L-Front left speaker
  • C – Center speaker
  • R – Front right speaker
  • SR – Surround right speaker

• SL – Surround left speaker

• SW – Subwoofer

The channel level range is ±10 dB.

Speaker distance setting

Specifies the distance from your listening position to your speakers.

When DISTANCE appears, press ENTER, then use ↑/↓ to adjust the distance, and ←/→ to switch between the following speakers:

• L – Front left speaker
• C - Center speaker
• R – Front right speaker
  • SR – Surround right speaker
  • SL – Surround left speaker
• SW – Subwoofer

Each speaker can be adjusted between 0.3 m and 9.0 m. The default setting is 3.0 m.

Dynamic Range Control

Specifies dynamic range adjustment to Dolby Digital or some DTS soundtracks. If low level sound or dialog seem difficult to hear properly, this can help by bringing up the low level sounds, while controlling high level peaks.

• DRC OFF (default) – No dynamic range adjustment (use when listening at higher volumes)
  • DRC MID – Mid setting
• DRC HIGH – Dynamic range is reduced (loud sounds are reduced in volume while quieter sounds are increased)

Note

1 There are other settings you can adjust from the Setup menu; these are explained in Improving poor FM reception on page 14 and Dimming the display on page 39.
2 The setup menu is exited automatically after 5 minutes of inactivity.
3 • You can't adjust center/surround when Stereo or Virtual playback is selected (or with stereo sources using the Auto mode).
• The Channel level setting is not available when headphones are connected.
- The speaker volume can be adjusted at any time by pressing SHIFT+TEST TONE and then using ↑/↓ to adjust the channel levels. The test tone automatically moves from speaker to speaker in the order listed above. You should hear the test tone at the same volume from each speaker when seated in the main listening position. Press ENTER when you're finished.
- Since the subwoofer produces ultra-low frequencies it may seem quieter than it actually is.

Chapter 7

Video Adjust menu

Video Adjust menu

From the Video Adjust screen you can adjust settings that affect picture presentation.

1 Press HOME MENU and select 'Video Adjust' from the on-screen display.

Video Adjust

2 Make settings using //←/→ and ENTER.

You can adjust the following settings:

• Sharpness – Adjusts the sharpness of edges in the picture (Fine, Standard, Soft)
• Brightness – Adjusts the overall brightness (-20 to +20)
• Contrast – Adjusts the contrast between light and dark (-16 to +16)
• Gamma – Adjusts the 'warmth' of the picture (High, Medium, Low, Off)
• Hue – Adjusts the red/green balance (Green 9 to Red 9)
• Chroma Level – Adjusts how saturated colors appear (-9 to +9)

Adjust the Brightness, Contrast, Hue and Chroma Level settings using ↔/ .

Brightness min 1111111.... max 0

3 Press ENTER to return to the Video Adjust screen, or HOME MENU to exit.

Chapter 8

Initial Settings menu

Using the Initial Settings menu

The Initial Settings menu provides audio and video output settings, parental lock settings, and display settings, among others.

If an option is grayed out it means that it cannot be changed at the current time. This is usually because a disc is playing. Stop the disc, then change the setting.

1 Press DVD/CD.
2 With playback stopped, press HOME MENU and select 'Initial Settings'.

Initial Settings

3 Use ↑/↓/←/→ and ENTER to select the setting and option you want to set.

All the settings and options are explained on the following pages. ¹

Video Output settings

Setting	Option What it means
TV Screen(See also Screen sizes and disc formals on page 43.)	4:3 (Letter Box)	Set if you have a conventional 4:3 TV. Widescreen movies are shown with black bars top and bottom.
	4:3 (Pan & Scan)	Set if you have a conventional 4:3 TV. Widescreen movies are shown with the sides cropped so that the image fills the screen.
	16:9 (Wide)	Set if you have a widescreen TV.
	16:9 (Compressed)	Set if you have a widescreen TV. 4:3 material is shown with black bars on either side of the screen. 2
HDMI Resolution(See Connecting using HDMI on page 35.)	1920x1080i	Set if your TV supports 1920 x 1080 pixel interlace video.
	1280x720p	Set if your TV supports 1280 x 720 pixel progressive-scan video.
	720x480p	Set if your TV supports 720 x 480 pixel progressive-scan video.
	720x480i	Set if your TV supports 720 x 480 pixel interlace video.
HDMI Color*(See Connecting using HDMI on page 35.)* Default changes depending on device connected.	Full range RGB	If colors are weak, this gives brighter colors and deeper black (default setting for HDMI-compatible DVI devices).
	RGB	Use this setting if colors appear overly rich on the Full Range RGB setting.
	Component	Outputs 8-bit component video format (default setting for HDMI-compatible devices).

Note

1 • In the table, the default setting is shown in bold: other settings are shown in italics.

- Some settings, such as TV Screen, Audio Language and Subtitle Language may be overridden by the DVD disc. Often these settings can also be made from the DVD disc menu.

- The HDMI Resolution and HDMI Color settings only need to be set if you connected this player to an HDMI-compatible component using the HDMI connector.

2 This setting can only be used when you are connected via HDMI and have the HDMI resolution set to 1920x1080i or 1280x720p. When using this setting, only the HDMI connection is available.

Initial Settings menu

Setting	Option What it means
Component Out(See also Connecting using the component video output on page 34.)	Interlace	Set if your TV is not compatible with progressive scan video.
	Progressive	Set if your TV is compatible with progressive scan video (see your TV's instruction manual for details). Press ENTER once more to confirm (or RETURN to cancel).Note that progressive scan video is only output from the component video jacks.

Language settings

Setting	Option What it means
Audio Language	English	If there is an English soundtrack on the disc, it is played.
	Chinese	If there is a Chinese soundtrack on the disc, it is played.
	Other Language	Select to choose a language other than the ones displayed (see Using the language code list on page 48).
Subtitle Language	English	If there are English subtitles on the disc they are displayed.
	Chinese	If there are Chinese subtitles on the disc they are displayed.
	Other Language	Select to choose a language other than the ones displayed (see Using the language code list on page 48).
DVD Menu Language	w/Subtitle Lang.	DVD disc menus are displayed in the same language as your selected subtitle language, if possible.
	Languages as displayed	DVD menus are displayed in the selected language, if possible.
	Other Language	Select to choose a language other than the ones displayed (see Using the language code list on page 48).
Subtitle Display On		Subtitles are displayed in your selected subtitle language.
	Off	Subtitles are always off by default when you play a DVD disc.

Display settings

Setting	Option What it means
OSD Language	English	On-screen displays of the player are in English.
	中文	On-screen displays of the player are in Chinese.
Angle Indicator On		A camera icon is displayed on-screen during multi-angle scenes on a DVD disc.
	Off	No multi-angle indication is shown.

Initial Settings menu

Setting	Option What it means
Angle Indicator On		A camera icon is displayed on-screen during multi-anglescenes on a DVD disc.
	Off	No multi-angle indication is shown.

Options settings

Setting	Option What it means
Parental Lock –	See Parental Lock below.
DivX(R) VOD Display	See About DivX® VOD content below.

Parental Lock

- Default level: Off; Default password: none; Default Country/Area code: us (2119)

To give you some control over what your children watch on your DVD player, some DVD-Video discs feature a Parental Lock level. If your player is set to a lower level than the disc, the disc won't play.

Some discs also support the Country/Area Code feature. The player does not play certain scenes on these discs, depending on the Country/Area Code you set.

Registering a new password

Register a password to change the Parental Lock level or enter a Country/Area code. ¹

1 Select 'Password'.

2 Use the number buttons to input a four-digit password then press ENTER.

Changing your password

To change your password, confirm your existing password then enter a new one.

1 Select 'Password Change', input your existing password, then press ENTER.
2 Enter a new password and press ENTER.

Setting/changing the Parental Lock

1 Select 'Level Change'.
2 Use number buttons to enter your password, then press ENTER.
3 Select a new level and press ENTER.

- Press ← repeatedly to lock more levels (more discs will require the password); press → to unlock levels. You can't lock level 1.

Note

1 • Not all discs use Parental Lock, and will play without requiring the password first.
- If you forget your password, you'll need to reset the player to register a new password (see Resetting the systemon page 48).

Initial Settings menu

Setting/changing the Country/Area code

You can find the Country/Area code list on page 49.

1 Select 'Country Code', input your password, then press ENTER.

2 Select a Country/Area code then press ENTER.

There are two ways you can do this:

• Select by code letter: Use ↑/↓ to change the Country/Area code.
• Select by code number: Press → then use the number buttons to enter the four-digit Country/Area code.

The new Country/Area code takes effect after ejecting the disc once.

About DivX® VOD content

In order to play DivX VOD (video on demand) content on this player, you first need to register the player with your DivX VOD content provider. You do this by generating a DivX VOD registration code, which you submit to your provider. ¹

Important

• DivX VOD content is protected by a DRM (Digital Rights Management) system. This restricts playback of content to specific, registered devices.
• If you load a disc that contains DivX VOD content not authorized for your player, the message Authorization Error is displayed and the content will not play.

Displaying your DivX VOD registration code

1 Press HOME MENU and select 'Initial Settings'.

2 Select 'Options', then 'DivX (R) VOD'.

3 Select 'Display'.

Your eight-digit registration code is displayed. Make a note of the code as you will need it when you register with a DivX VOD provider.

Playing DivX® VOD content

Some DivX VOD content may only be playable a fixed number of times. When you load a disc containing this type of DivX VOD content, the remaining number of plays is shown on-screen and you then have the option of playing the disc (thereby using up one of the remaining plays), or stopping. If you load a disc that contains expired DivX VOD content (for example, content that has zero remaining plays), the message Rental Expired is displayed.

If your DivX VOD content allows an unlimited number of plays, then you may load the disc into your player and play the content as often as you like, and no message will be displayed.

Note

Resetting the player (as described in Resetting the system on page 48) will not cause you to lose your registration code.

Chapter 9

Other connections

Connecting external antennas

For an external AM antenna, use 5 m to 6 m of vinyl-insulated wire and set up either indoors or outdoors. Leave the loop antenna connected. Only use the included AM loop antenna.

For an external FM antenna, use a PAL connector to hook up an external FM antenna.

Connecting auxiliary audio components

Using the stereo analog inputs, you can connect an external component such as a tape deck or MD player for playback through this system.

- Connect the AUDIO IN jacks to the analog outputs of an external playback component. Connect using RCA pin-plug stereo cables.

Recording mode

The recording mode allows you to make surround-compatible analog recordings from the LINE OUT jacks ¹ . Dolby multichannel sources are downmixed to stereo for improved playback with systems that can provide matrix-decoding (like Dolby Pro Logic).

1 Press SOUND.

2 Use / to select a REC MODE, then press ENTER.

3 Use / to choose MODE ON or MODE OFF and then press ENTER to confirm.

- MODE ON – A surround-compatible downmix (left-total/right-total, or Lt/Rt) of Dolby multichannel sources is output, (suitable for Dolby Surround Pro Logic or other matrix decoding).

- MODE OFF – A simple stereo downmix (left-only/right-only, or Lo/Ro) is output (suitable for playback on a two-channel stereo system or on headphones).

Note

1 • When the recording mode is on, most sound features cannot be used. The display will briefly blink use a prohibited function while the recording mode is on.

REC MODE if you try and

• When the recording mode is off, the audio from the analog output jacks may be interrupted, depending on the operation.
  • The recording mode switches off if you change the input function ( DVD/CD, TUNER, etc.) or switch the power off.

Other connections

Connecting the S-video output

If your TV has an S-video input, you can use this instead of the standard video output for a better quality picture.

- Use an S-video cable to connect the S-VIDEO OUT to an S-video input on your TV.

Line up the small triangle above the jack with the same mark on the plug before plugging in.

Connecting using the component video output

If your TV has component video inputs, you can use these instead of the standard video output to connect this system to your TV. ¹ This should give you a higher quality picture than the S-video output.

- Use a component video cable to connect the COMPONENT VIDEO OUT to a set of component inputs on your TV.

About progressive scan video

Compared to interlace video, progressive scan video effectively doubles the scanning rate of the picture, resulting in a very stable, flicker-free image. Progressive scan video is available only from the component video output.

Compatibility of this player with progressive-scan and high-definition TVs

This player is compatible with progressive video Macro Vision System Copy Guard. ²

Note

1 The component video output is switchable between interlaced and progressive formats. See Video Output settings on page 29.
2 Consumers should note that not all high-definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user switch the connection to the 'standard definition' output (Interlace). If there are questions regarding our TV set compatibility with this model, please contact our customer service center.

Connecting using HDMI

If you have a HDMI or DVI (with HDCP) equipped monitor or display, you can connect it to this player using a commercially available HDMI cable for high quality digital video. ¹

See About HDMI below for more about the HDMI connection.

- Use an HDMI cable to connect the HDMI OUT interconnect on this player to an HDMI interconnect on a HDMI-compatible monitor.

- The arrow on the cable connector body should be face up for correct alignment with the connector on the player.

You can also adjust the HDMI settings for resolution and color. For more on these settings see Video Output settings on page 29.

Switching the HDMI audio setting

To listen to audio from the HDMI interconnect, make sure you've specified the HDMI audio output setting.

1 Switch the system into standby.
2 Press SHIFT+SETUP and use ←/→ to choose HDMI OUT then press ENTER.
3 Use ↑/↓ to choose the setting you want then press ENTER.

• AUDIO ON – Audio signals are output through the HDMI interconnect

• AUDIO OFF – Switches off HDMI audio

Resetting the HDMI connection

If you get an error message (the display shows HDMI ERR) or if the screen goes blank (for example, after changing the resolution), check the troubleshooting guide on page 46. If this doesn't solve the problem, follow the steps below to reset the HDMI connection.

1 Switch the system into standby.
2 Press SHIFT+SETUP and use ←/→ to choose HDMI INI then press ENTER.

The system will restart and the HDMI settings are automatically reset to the factory defaults. See Video Output settings on page 29 for more on these settings.

About HDMI

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant displays.

Note

1 • An HDMI connection can only be made with DVI-equipped components compatible with both DVI and High Bandwidth Digital Content Protection (HDCP). If you choose to connect to a DVI connector, you will need a separate adaptor (DVI → HDMI) to do so. A DVI connection, however, does not support audio signals. Consult your local audio dealer for more information.
- Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers.
- When you change the component connected to the HDMI output, you will also need to change the HDMI settings to match the new component (see Video Output settings on page 29 to do this).

Other connections

HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multichannel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

Using this unit with a Pioneer plasma television

If you have a Pioneer plasma television ¹ , you can use an SR+ cable ² to connect it to this unit and take advantage of various convenient features, such as controlling this unit via the plasma television's remote sensor, automatic video input switching of the plasma television, and automatic volume muting on the plasma television.

Important

• When using the CONTROL IN jack for the first time, you must first remove the protective seal that covers the jack.
• With an SR+ cable connected, the remote must now be pointed towards your plasma television rather than the remote sensor of this unit in order to control this system.

- Use a 3-ringed miniplug SR+ cable to connect the CONTROL IN jack of this unit through a media receiver to the CONTROL OUT jack of your plasma television. ³

Before you can use the extra SR+ features, you need to make a few settings in the unit. See SR+ Setup for Pioneer plasma televisions below for detailed instructions.

SR+ Setup for Pioneer plasma televisions

Make the following settings if you have connected a Pioneer plasma television to this unit using an SR+ cable. Note that the number of video inputs available will depend on the plasma television you've connected.

1 Press SHIFT+SR+ on the remote.

2 Use the ←/→ to select SETUP, then press ENTER.

3 Use ↑/↓ to select the setting you want.

• VoL.C OFF – This unit does not control the volume of the plasma television.
• VOL.C ON – When this unit is switched to one of the inputs that use the plasma television (DVD, or another one of functions below), the volume on the plasma television is muted so only sound from this system is heard.

Note

4 Assign any input source connected to the plasma television to the corresponding input number.

Use ←/→ to select the source (DVD, LN (LINE) or USB), then ↑/↓ to select the input number.

This matches this unit's input source with a numbered video input on the plasma television. ¹ For example, select the LN PDP3 setting if the video output of your line component is connected to video input 3 on the plasma television. TVTN switches the plasma television to its built-in tuner and NONE leaves the plasma television input as is (no switching takes place).

5 When you're finished, press ENTER.2

Switching on the SR+ mode

1 Press SHIFT+SR+ on the remote.

2 Use ←/→ to select SR+ ON then press ENTER.

To switch SR+ control off, select SR+ OFF.

- If you disconnect the SR+ cable or switch the plasma television off while SR+ is on, the SR+ ON setting remains.

- The SR+ setting is maintained even after switching this system into standby then back on. Automatic muting will be effective when this system is switched on.

About control out connections

Many Pioneer components support SR CONTROL connections, by which you can use the remote controls of any connected components by aiming them at the sensor of just one component. When you use a remote control, the control signal is passed along the chain to the appropriate component. This can be useful when you have multiple components contained inside an entertainment center.

If you choose to use this feature, you must make sure that you also have at least one set of analog audio jacks connected to another component for grounding purposes.

• Using a cable with mono mini-plugs on either side (sold separately), connect the CONTROL IN jack on another Pioneer component to the CONTROL OUT jack on this unit.

This will allow you to control the other component by pointing its remote at this unit. When this unit is connected to both another device and a plasma television with an SR+ cable, you can control all components by pointing their respective remote controls at the sensor for the plasma television.

Note

1 Note that certain PDP inputs (ex. PDP7) may be referred to on your plasma display as 'PC Input'.

2 • The SR+ setting remains in effect even in standby.

• The SR+ setting does not affect the FM/AM tuner function.

Chapter 10

Additional information

Optional system settings

All the available settings in the standby setup menu are listed below. See the notes in each section for more information about the settings. The first setting in each section is the default.

1 Switch the system into standby.

2 Press SHIFT+SETUP and use ←/→ then ENTER to choose the setting you want to adjust.

The available settings are shown in the front panel display. ¹

3 Use ↑/↓ to adjust then press ENTER to confirm and exit.

System demo setting

Switches the automatic demo feature on or off (this starts when you plug in for the first time):

• DEMO ON – Switches the demo feature on.
• DEMO OFF – Switches the demo feature off.

Frequency step setting

If you find that you can't tune into stations successfully, the frequency step may not be suitable for your country/region.

• AM 9K
• AM 10K

DTS CD setting

If you play a DTS-encoded CD, you will need to change this setting to hear the decoded signal.

• NORMAL – Regular CD playback; some DTS-encoded CDs output a noisy signal.
• DTS-CD – Proper decoding of DTS-encoded CDs; the beginning of regular CD tracks may be skipped.

Key lock setting

• LOCK ON – Makes the front panel buttons and controls inoperative.
• LOCK OFF – Restores regular use of the front panel buttons and controls.

Setting the sleep timer

The sleep timer switches off the system after about an hour so you can fall asleep without worrying about it. ²

- Press SLEEP repeatedly to select an option.

Choose between the following options:

• SLP ON – Switches off after about an hour
• SLP OFF – Cancels the sleep timer

After selecting SLP ON, you can press SLEEP again to check how much time is left. Each line indicates approximately 12 minutes (remaining):

SLP ---

Note

1 The setup menu is exited automatically after 5 minutes of inactivity.
2 The display dims when the sleep timer is set, and the power indicator is turned off.

Dimming the display

You can adjust the brightness of the text in the front panel display. When the display is set to a darker color, the Power Indicator is turned off.

1 Press SHIFT+SETUP and use ←/→ to select DIMMER then press ENTER.

2 Use ↑/↓ to adjust then press ENTER to confirm and exit.

• LIGHT – Brighter setting
- DARK – Darker setting

Disc/content format playback compatibility

This player is compatible with a wide range of disc types (media) and formats. Playable discs will generally feature one of the following logos on the disc and/or disc packaging. Note however that some disc types, such as recordable CD and DVD, may be in an unplayable format.

See the Disc compatibility table below for more information.

DVD-Video

DVD-R

DVD-RW

Audio CD

Video CD

CD-R

CD-RW

FUJICOLOR CD COMPATIBLE

FUJICOLOR CD COMPATIBLE

Fujicolor CD

• This unit will play DVD+R/+RW discs.
• is a trademark of FUJIFILM Corporation.
• DVD is a trademark of DVD Format/Logo Licensing Corporation.
- Also compatible with KODAK Picture CD.

This player supports the IEC's Super VCD standard for superior picture quality, dual soundtracks, and widescreen support.

Super Video CD (Super VCD)

About DualDisc playback

A DualDisc is a new two-sided disc, one side of which contains DVD content video, audio, etc. while the other side contains non-DVD content such as digital audio material.

The non-DVD, audio side of the disc is not compliant with the CD Audio specification and therefore may not play.

The DVD side of a DualDisc plays in this product. DVD-Audio content will not play.

For more detailed information on the DualDisc specification, please refer to the disc manufacturer or disc retailer.

Disc compatibility table

Media	Compatible formats
CD-R/-RW	CD-Audio, Video CD/Super VCD, ISO 9660 CD-ROM**ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible.Multi-session playback: NoUnfinalized disc playback: No
DVD-R/-RW	DVD-Video (Video mode), Video Recording (VR)*, UDF Bridge DVD-ROM* Edit points may not play exactly as edited; screen may go momentarily blank at edited points.Multi Border playback: NoUnfinalized playback: No

Additional information

Media Compatible formats

PC-created disc	Discs recorded using a PC may not be playable due to the setting of the software used to create the disc. In these instances, check the DVD-R/-RW or CD-R/-RW software manual or disc boxes for more on compatibility.Discs recorded in packet write mode are not compatible.
Compressed audio	MPEG-1 Audio Layer 3 (MP3), Windows Media Audio (WMA), MPEG-4 AACSampling rates: 32 kHz/44.1 kHz/48 kHzBit-rates: Any (128 kbps or higher recommended)VBR (variable bit rate) MP3/WMA/MPEG-4 AAC playback: NoWMA lossless encoding: NoDRM (Digital Rights Management) compatible: Yes (DRM-protected audio files will not play in this player.)File extensions: .mp3, .wma, .m4a (these must be used for the player to recognize MP3/WMA/MPEG-4 AAC files)File structure (may differ): Up to 299 folders on a disc; up to 648 folders and files (combined) within each folder
JPEG file	Baseline JPEG and EXIF 2.2* still image files up to a resolution of 3072 x 2048*File format for digital still camerasProgressive JPEG compatible: NoFile extensions: .jpg (must be used for the player to recognize JPEG files)File structure (may differ): Up to 299 folders on a disc; up to 648 folders and files (combined) within each folder

About DVD+R/DVD+RW compatibility

Only DVD+R/DVD+RW discs recorded in 'Video Mode (DVD Video Mode)' which have been finalized, can be played back. However, some editing made during the recording may not be played back accurately.

About DivX

DivX is a compressed digital video format created by the DivX ^® video codec from DivX, Inc. This player can play DivX video files burned on CD-R/-RW and DVD-R/-RW/-ROM discs. Keeping the same terminology as DVD-Video, individual DivX video files are called 'Titles'. When naming files/titles on a CD-R/-RW or DVD-R/-RW disc prior to burning, keep in mind that by default they will play in alphabetical order.

DivX video compatibility

• Official DivX® Certified product.
• Plays all versions of DivX video (including DivX 6) with standard playback of DivX media files. ¹
• File extensions: .avi and .divx (these must be used for the player to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this player.

Note

En

Playback of .avi video files larger than 4 GB is not possible.

Additional information

Displaying DivX subtitle files

The font sets listed below are available for DivX external subtitle files. You can see the proper font set on-screen by setting the Subtitle

Language (in Language settings on page 30) to match the subtitle file. ¹

Group 1: Albanian (sq), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Farcese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romanic (rm), Scottish (gd), Spanish (es), Swedish (sv)

Group 2: Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl)

Group 3: Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk)

Group 4: Hebrew (iw), Yiddish (ji)

Group 5: Turkish (tr)

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

About MPEG-4 AAC

Advanced Audio Coding (AAC) is at the core of the MPEG-4 AAC standard, which incorporates MPEG-2 AAC, forming the basis of the MPEG-4 audio compression technology. The file format and extension used depend on the application used to encode the AAC file. This unit plays back AAC files encoded by iTunes® bearing the extension '.m4a'. DRM-protected files will not play, and files encoded with some versions of iTunes® may not play, or filenames may display incorrectly.

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

About WMA

This player can playback Windows Media Audio content.

WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA content can be encoded by using Windows Media® Player version 7.7.1, Windows Media® Player for Windows® XP, or Windows Media® Player 9 series.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

Using and taking care of discs

Handling discs

Hold the disc by its edges when handling so as not to leave fingerprints, dirt or scratches on either side of the disc. Damaged or dirty discs can affect playback performance.

If a disc becomes marked with fingerprints, dust, etc., clean using a soft, dry cloth.

Wipe lightly from the center of the disc using straight strokes. Don't wipe the disc surface with circular strokes.

If necessary, use a cloth soaked in alcohol, or a commercially available CD/DVD cleaning kit to clean a disc more thoroughly. Never use benzine, thinner or other cleaning agents such as those designed for cleaning vinyl records.

Note

1 • For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): .srt, .sub, .ssa, .smi

• Some external subtitle files may be displayed incorrectly or not at all.
• The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file.
• The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10.

Additional information

Storing discs

Avoid leaving discs in excessively cold, humid, or hot environments (including under direct sunlight). Don't glue paper or put stickers onto the disc, or use a pencil, ball-point pen or other sharp-tipped writing instrument. These could all damage the disc.

Discs to avoid

Discs spin at high speed inside the player. If a disc is cracked, chipped, warped, or otherwise damaged, don't risk using it in your player—you could end up damaging the unit.

This unit is designed for use with conventional, fully circular discs only. Pioneer disclaims all liability arising in connection with the use of shaped discs.

DVD Video regions

All DVD Video discs carry a region mark that indicates which region(s) of the world the disc is compatible with. Your DVD system also has a region mark (on the rear panel). Discs from incompatible regions will not play in this player. In this instance, the following message appears on-screen:

Incompatible disc region number Can't play disc

Discs marked ALL play in any player.

Installation and maintenance

Hints on installation

We want you to enjoy using this system for years to come, so please bear in mind the following points when choosing a location:

Do...

√ Use in a well-ventilated room.
√ Place on a solid, flat, level surface, such as a table, shelf or stereo rack.

Don't...

✗ Use in a place exposed to high temperatures or humidity, including near radiators and other heat-generating appliances.
✗ Place on a window sill or other place where the system will be exposed to direct sunlight.
✗ Use in an excessively dusty or damp environment.
✗ Place directly on top of an amplifier, or other component in your stereo system that becomes hot in use.
✗ Use near a television or monitor as you may experience interference — especially if the television uses an indoor antenna.
✗ Use in a kitchen or other room where the system may be exposed to smoke or steam.
✗ Use on a thick rug or carpet, or cover with cloth — this may prevent proper cooling of the system unit.
✗ Place on an unstable surface, or one that is not large enough to support all four of the system unit's feet.

Cleaning the pickup lens

The DVD player's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners are commercially available, we do not recommend using them since some may damage the lens.

Problems with condensation

Condensation may form inside the player if it is brought into a warm room from outside, or if the temperature of the room rises quickly. Although the condensation won't damage the player, it may temporarily impair performance. Leave it to adjust to the warmer temperature for about an hour before switching on.

Additional information

Moving the system unit

If you need to move the main unit, first remove a disc if there's one in the player, then press ⏻ STANDBY/ON on the front panel to turn the system off. Wait for GOOD BYE to disappear from the display, then unplug the power cord. ¹ Never lift or move the unit during playback — discs rotate at high speeds and may damage.

Screen sizes and disc formats

DVD-Video discs come in different screen aspects, ranging from TV programs, which are generally 4:3, to CinemaScope widescreen movies ² , with an aspect ratio of up to about 7:3. Televisions also come in different aspect ratios; 'standard' 4:3 and widescreen 16:9. ³

Set to 4:3 (Letter Box), widescreen discs are shown with black bars top and bottom.

Set to 4:3 (Pan&Scan), widescreen discs are shown with the left and right sides cropped. Although the picture looks larger, you don't actually see the whole picture.

Note

1 Unplugging the unit before GOOD BYE disappears from the display may cause the system to return to the factory settings. 2 Many widescreen discs override the system's settings so that the disc is shown in letterbox format regardless of the setting.
3 • Using the 16:9 (Wide) setting with a standard 4:3 TV, or one of the 4:3 settings with a widescreen TV, will result in distortion.
- When you watch discs recorded in 4:3 format, you can use the TV controls to select how the picture is presented. Your TV may offer various zoom and stretch options; see the instructions that came with your TV for details.
- Some movie aspect ratios are wider than 16:9, so even with a widescreen TV, these discs will still play in a 'letterbox' style.

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

- If the system does not operate normally due to external effects such as static electricity disconnect the plug from the outlet and insert again to return to normal operating conditions.

General

Problem	Remedy
The power does not turn on, or switches off suddenly (an error message may be displayed at startup).	Wait for one minute before switching back on.Make sure there are no loose strands of wire touching the unit. This could cause the system to shut off automatically.Check that the speakers are connected correctly.Make sure the voltage of the mains power source is correct for the model.Try reducing the volume level.If the problem persists, take it to your nearest Pioneer authorized service center or your dealer for servicing.
No sound is output when a function is selected.	If you're using the line input, make sure the component is connected correctly (see Connecting auxiliary audio components on page 33).Press MUTE on the remote control to turn muting off.Turn up the volume.
No sound from surround or center speakers.	Refer to Channel level setting on page 27 to check the speaker levels.When TUNER is selected, you can only hear the source in stereo.Check that you haven't selected the AUTO, STEREO or VIRTUAL mode (see Listening to your system on page 15).Connect the speakers properly (refer to the Setup Guide).If the source is 96 kHz, it will be played in stereo.
Can't operate the remote control.	Replace the batteries (refer to the Setup Guide).Operate within 7 m, 30° of the remote sensor (refer to the Setup Guide).Remove any obstacles or operate from another position.Avoid exposing the remote sensor on the front panel to direct light.Check that there's nothing mistakenly plugged into the CONTROL IN jack.If the system is connected to a Pioneer plasma television with an SR+ cable, check that the plasma television is switched on. Point the remote control at the plasma television in order to operate the system.To operate other Pioneer components, make sure that the control cable and analog audio cable are connected.
TRAYLOCK shows in the display and the tray can't be ejected.	Press and hold ▲ OPEN/CLOSE on the front panel for about eight seconds. Then the tray can be opened/closed using ▲ OPEN/CLOSE.

Additional information

Problem	Remedy
SND. DEMO shows in the display and the unit can't be controlled.	Press and hold ■ (stop) on the front panel for about five seconds. The disc tray ejects automatically to indicate the Sound Demo mode is disabled.

DVD/CD/Video CD player

Problem Remedy
The disc is ejected automatically after loading.	Clean the disc and align the disc properly in the disc guide.If the region number on a DVD-video disc does not match the number on the player, the disc cannot be used (see DVD Video regionson page 42). In this instance, the following message appears on screen:Incompatible disc region number/Can't play disc.Allow time for any condensation inside the player to evaporate. Avoid using the player near an air-conditioning unit.
Playback not possible.	If the disc is loaded upside down, reload the disc with label side face up.
Picture playback stops and buttons cannot be used.	Press ■ (stop), then ▶ (play) to start playback again.Switch the power off once, then on again using the front panel○ STANDBY/ON button.
Settings are canceled.	When the power is cut, settings will be canceled.
No picture/No color.	Check that connections are correct and that plugs are inserted fully.Check the manual of the TV/monitor to make sure the settings are correct.If theProgressivesetting is selected and you have used component video cables to connect a TV that is not compatible with a progressive scan signal, you will not be able to see any picture at all. With your TV connected using either the composite or S-video terminals, change theComponent Outsetting to Interlace(see Video Output settings on page 29).
Screen is stretched or aspect doesn't change.	TheTV Screensetting is incorrect. Set the TV Screen option to match the TV/monitor you're using (see Video Output settings on page 29).
When recorded on a VCR or passed through an AV selector, there is disturbance in the playback picture.	This system uses copy-protection technology which may prevent recording or cause picture problems when connected through a VCR or AV selector. This is not a malfunction.
Picture disturbance during playback or dark.	This player is compatible with Macro-Vision System copy guard. Some discs include a copy prevention signal, and when this type of disc is played back, stripes etc., may appear on some sections of the picture depending on the TV. This is not a malfunction.Discs respond differently to particular player functions. This may result in the screen becoming black for a brief instant or shaking slightly when the function is executed. These problems are largely due to differences between discs and disc content and are not malfunctions of this player.
Noticeable difference in DVD and CD volume.	DVDs and CDs use different recording methods. This is not a malfunction.

Additional information

Problem	Remedy
CD-ROM disc is not recognized.	Make sure that the CD-ROM was recorded using the ISO 9660 disc format. See Disc compatibility table on page 39 for more on disc compatibility.
DVD-ROM disc is not recognized.	Make sure that the DVD-ROM was recorded using the UDF bridge format. See Disc compatibility table on page 39 for more on disc compatibility.
Files don’t show up in the Disc Navigator/ Photo Browser.	The files on the disc must be named with the correct file extension: .mp3 for MP3 files; .wma for WMA files; .m4a for MPEG-4 AAC files; .jpg for JPEG files (upper or lower-case is OK). See Disc compatibility table on page 39.
Can’t play WMA or MPEG-4 AAC files.	The files were recorded using DRM (digital rights management). This is not a malfunction.

Tuner

Problem Remedy
Considerable noise in radio broadcasts.	Connect the AM antenna (refer to the Setup Guide) and adjust the direction and position for best reception. You may also connect an additional internal or external AM antenna (refer to Connecting external antennas on page 33).Fully extend the FM wire antenna, position for best reception, and secure to a wall. You may also connect an outdoor FM antenna (see Connecting external antennas on page 33).Turn off other equipment that may be causing the noise or move it further away.The tuning interval is incorrect for your country or region. See Frequency step setting on page 38 to switch the tuning interval.
Auto tuning does not pick up some stations.	The radio signal is weak. Auto tuning will only detect radio stations with a good signal. For more sensitive tuning, connect an outdoor antenna.

USB connection

Problem	Remedy
USB mass storage device is not recognized by the system.	Make sure you have completely inserted the USB connector to this unit.Check that the memory format is FAT16 or FAT32.USB devices with an internal USB hub are not supported.
Files don’t show up in the Navigator/Photo Browser.	The files must have the correct file extension: .mp3 for MP3 files; .wma for WMA files; .m4a for MPEG-4 AAC files; .jpg for JPEG files (upper or lower-case is OK).Make sure the file permission hasn’t been restricted (through a password, etc.).
Can’t play WMA or MPEG-4 AAC files.	The files were recorded using DRM (digital rights management). This is not a malfunction.

HDMI connection

Problem	Remedy
No HDMI audio output. • See Switching the HDMI audio setting on page 35 to make sure that AUDIO ON is selected.

Additional information

Problem	Remedy
No HDMI video output.	Make sure that you've selected this player as the HDMI input in the settings for the component you're using (refer to the component's instruction manual).Check that the HDMI cable is connected properly and isn't damaged.Check that components connected using the HDMI interface are switched on and HDMI compatible (components must be compatible with both DVI and High Bandwidth Digital Content Protection (HDCP)).Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers.Make sure the resolution on this player matches that of the component you have connected using HDMI. See Video Output settings on page 29 to change the HDMI resolution.If the screen goes blank after changing the resolution, it means the you selected a resolution incompatible with your monitor. See Resetting the HDMI connection on page 35 to reset to the factory defaults.
Color problems occur with your monitor after changing the HDMI Color setting (page 30).	Depending on the connected equipment, some HDMI Color settings may cause the picture to be displayed incorrectly. In this case, use the TV's own video input settings to select RGB, if possible. Alternatively, revert to the previous HDMI Color setting.

Error Messages

Message Description
2CH ONLY	• An operation is prohibited because it is only applicable to 2 channel sources, while the current source is a multichannel source.
96K	• An operation is prohibited because the source is 96 kHz digital.
REC MODE	• An operation is prohibited because the Recording mode is on (page 33).
SND. DEMO	• The sound demo is on. See General in Troubleshooting on page 44.
NOISY	• Background noise is too high to complete MCACC setup successfully.
ERR MIC	• An error occurred during MCACC setup because the microphone is not connected or is not connected properly.
ERR SP	• An error occurred during MCACC setup because the speakers are not connected or are not connected properly.
MUTING	• An operation is prohibited because the sound is muted (press MUTE).
STEREO	• An operation is prohibited because the tuner is selected.
TRAYLOCK	• The tray lock is on. See General in Troubleshooting on page 44.
KEYLOCK	• The key lock is enabled. See Key lock setting on page 38.
PHONESIN	• An operation is prohibited because the headphones are connected.
HDMI ERR	• See HDMI connection above for troubleshooting tips. See also Resetting the HDMI connection on page 35 if the problem persists.
USB ERR	• See Important in Using the USB interface on page 25 for more on this.

©

Language code list

Language (Language code letter), Language code

Japanese (ja), 1001	Estonian (et), 0520	Lingala (ln), 1214	Slovak (sk), 1911
English (en), 0514	Basque (eu), 0521	Laothian (lo), 1215	Slovenian (sl), 1912
French (fr), 0618	Persian (fa), 0601	Lithuanian (lt), 1220	Samoan (sm), 1913
German (de), 0405	Finnish (fi), 0609	Latvian (lv), 1222	Shona (sn), 1914
Italian (it), 0920	Fiji (fj), 0610	Malagasy (mg), 1307	Somali (so), 1915
Spanish (es), 0519	Faroese (fo), 0615	Maori (mi), 1309	Albanian (sq), 1917
Dutch (nl), 1412	Frisian (fy), 0625	Macedonian (mk), 1311	Serbian (sr), 1918
Russian (ru), 1821	Irish (ga), 0701	Malayalam (ml), 1312	Siswati (ss), 1919
Chinese (zh), 2608	Scots-Gaelic (gd), 0704	Mongolian (mn), 1314	Sesotho (st), 1920
Korean (ko), 1115	Galician (gl), 0712	Moldavian (mo), 1315	Sundanese (su), 1921
Greek (el), 0512	Guarani (gn), 0714	Marathi (mr), 1318	Swedish (sv), 1922
Afar (aa), 0101	Gujarati (gu), 0721	Malay (ms), 1319	Swahili (sw), 1923
Abkhazian (ab), 0102	Hausa (ha), 0801	Maltese (mt), 1320	Tamil (ta), 2001
Afrikaans (af), 0106	Hindi (hi), 0809	Burmese (my), 1325	Telugu (te), 2005
Amharic (am), 0113	Croatian (hr), 0818	Nauru (na), 1401	Tajik (tg), 2007
Arabic (ar), 0118	Hungarian (hu), 0821	Nepali (ne), 1405	Thai (th), 2008
Assamese (as), 0119	Armenian (hy), 0825	Norwegian (no), 1415	Tigrinya (ti), 2009
Aymara (ay), 0125	Interlingua (ia), 0901	Occitan (oc), 1503	Turkmen (tk), 2011
Azerbaijani (az), 0126	Interlingue (ie), 0905	Oromo (om), 1513	Tagalog (tl), 2012
Bashkir (ba), 0201	Inupiak (ik), 0911	Oriya (or), 1518	Setswana (tn), 2014
Byelorussian (be), 0205	Indonesian (in), 0914	Panjabi (pa), 1601	Tonga (to), 2015
Bulgarian (bg), 0207	Icelandic (is), 0919	Polish (pl), 1612	Turkish (tr), 2018
Bihari (bh), 0208	Hebrew (iw), 0923	Pashto, Pushto (ps), 1619	Tsonga (ts), 2019
Bislama (bi), 0209	Yiddish (ji), 1009	Portuguese (pt), 1620	Tatar (tt), 2020
Bengali (bn), 0214	Javanese (jw), 1023	Quechua (qu), 1721	Twi (tw), 2023
Tibetan (bo), 0215	Georgian (ka), 1101	Rhaeto-Romance (rm), 1813	Ukrainian (uk), 2111
Breton (br), 0218	Kazakh (kk), 1111	Kirundi (rn), 1814	Urdu (ur), 2118
Catalan (ca), 0301	Greenlandic (kl), 1112	Romanian (ro), 1815	Uzbek (uz), 2126
Corsican (co), 0315	Cambodian (km), 1113	Kinyarwanda (rw), 1823	Vietnamese (vi), 2209
Czech (cs), 0319	Kannada (kn), 1114	Sanskrit (sa), 1901	Volapük (vo), 2215
Welsh (cy), 0325	Kashmiri (ks), 1119	Sindhi (sd), 1904	Wolof (wo), 2315
Danish (da), 0401	Kurdish (ku), 1121	Sangho (sg), 1907	Xhosa (xh), 2408
Bhutani (dz), 0426	Kirghiz (ky), 1125	Serbo-Croatian (sh), 1908	Yoruba (yo), 2515
Esperanto (eo), 0515	Latin (la), 1201	Sinhalese (si), 1909	Zulu (zu), 2621

Country/Area code list

Country/Area, Country/Area code, Country/Area code letter

Argentina, 0118, ar

Australia, 0121, au

Austria, 0120, at

Belgium, 0205, be

Brazil, 0218, br

Canada, 0301, ca

Chile, 0312, cl

China, 0314, cn

Denmark, 0411, dk

Finland, 0609, fi

France, 0618, fr

Germany, 0405, de

Hong Kong, 0811, hk

India, 0914, in

Indonesia, 0904, id

Italy, 0920, it

Japan, 1016, jp

Korea, Republic of, 1118, kr

Malaysia, 1325, my

Mexico, 1324, mx

Netherlands, 1412, nl

New Zealand, 1426, nz

Norway, 1415, no

Pakistan, 1611, pk

Philippines, 1608, ph

Portugal, 1620, pt

Russian Federation, 1821, ru

Singapore, 1907, sg

Spain, 0519, es

Switzerland, 0308, ch

Sweden, 1905, se

Taiwan, 2023, tw

Thailand, 2008, th

United Kingdom, 0702, gb

United States of America, 211

Additional information

Specifications

- Amplifier section

RMS Power Output:

Front, Center, Surround . . . 100 W per channel (1 kHz, 10 % T.H.D., 4 Ω)

Subwoofer...100 W (100 Hz, 10 % T.H.D., 4 Ω)

- Disc section

Digital audio

characteristics ..... DVD fs: 96 kHz, 24-bit

Type ..... DVD system, Video CD/Super VCD

system and Compact Disc digital audio system

Frequency response

..... 4 Hz to 44 kHz (96 kHz sampling) / 4 Hz to 22 kHz (48 kHz sampling)

Wow and Flutter ..... Limit of measurement

(±0.001 % W.PEAK) or less (JEITA)

- FM tuner section

Frequency range ..... 87.5 MHz to 108 MHz

Antenna....75 Ω, unbalanced

- AM tuner section

Frequency range:

With 9 kHz step. . . . . . . 531 kHz to 1602 kHz

With 10 kHz step. . . . . . 530 kHz to 1700 kHz

Antenna....Loop antenna

- Miscellaneous

Power requirements. . . . AC 110 V, 50 Hz/60 Hz

Power consumption 55 W

Power consumption in standby.....0.30 W

Dimensions

• Accessories (DVD/CD receiver)

Remote control 1

AA/R6 dry cell batteries 2

(to confirm system operation)

Video cable (yellow plugs) 1

AM loop antenna 1

FM antenna 1

Microphone (for Auto MCACC setup)..... 1

Power cord 1

Setup Guide

These operating instructions

S-DV363 Speaker system

- Front/surround speakers

Enclosure .....Closed-box bookshelf type (magnetically shielded)

System 7.7 cm 1-way system

Speakers....7.7 cm cone type

Nominal impedance 4 Ω

Frequency range .....80 Hz to 20 kHz

Maximum input power .....100 W

Dimensions

Enclosure .....Closed-box bookshelf type (magnetically shielded)

System 7.7 cm 1-way system

Speakers.... 7.7 cm cone type

Nominal impedance 4 Ω

Frequency range .....75 Hz to 20 kHz

Maximum input power .....100 W

Dimensions

System 16 cm 1-way system

Speaker....16 cm cone type

Nominal impedance 4 Ω

Frequency range ..... 30 Hz to 2.5 kHz

Maximum Input Power .....100 W

Dimensions

Screws (for brackets)....4

Non-skid pads (small) 16

Non-skid pads (large) 4

S-DV2T Speaker system

- Front speakers

Enclosure .....Closed-box floorstanding type (magnetically shielded)

System 2-way system

Additional information

Speakers:

Woofer 7.7 cm cone typex2

Tweeter 2.6 cm semi-dome type

Nominal impedance 4 Ω

Frequency range ..... 70 Hz to 20 kHz

Maximum input power .....100 W

Dimensions

260 mm (W) × 1096.3 mm (H) × 260 mm (D)

Weight 4.1 kg

- Center speaker

Same as S-DV363 Center speaker (see above).

- Surround speakers

Enclosure . . . . . . . Closed-box bookshelf type (magnetically shielded)

System 7.7 cm 1-way system

Speakers. 7.7 cm cone type

Nominal impedance 4 Ω

Frequency range ..... 80 Hz to 20 kHz

Maximum input power....100 W

Dimensions

.100 mm (W) × 100 mm (H) × 100 mm (D)

Weight 0.54 kg

- Accessories

Speaker cables....5

Non-skid pads (small) 8

Non-skid pads (large) 8

Speaker stand bases....2

Screws (for bases)....6

S-DV4T Speaker system

- Front/surround speakers

Same as S-DV2T Front speakers (see above).

- Center speaker

Same as S-DV363 Center speaker (see above).

- Accessories

Speaker cables. 5

Non-skid pads (large) 16

Speaker stand bases. 4

Screws (for bases)....12

S-DV2SW Speaker system

- Subwoofer

Same as S-DV363 Subwoofer (see above).

- Accessories

Speaker cables 1

Non-skid pads (large)....4

Note

- Specifications and design subject to possible modification without notice, due to improvements.

This product includes FontAvenue® fonts licenced by NEC corporation. FontAvenue is a registered trademark of NEC Corporation.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

DRM (digital rights management) copy protection is a technology designed to prevent unauthorized copying by restricting playback, etc. of compressed audio files on devices other than the PC (or other recording equipment) used to record it. For detailed information, please see the instruction manuals or help files that came with your PC and/or software.

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Surround" are registered trademarks of DTS, Inc.

Published by Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

All rights reserved.

感謝您購買本台先鋒產品。

CLASS 1 LASER PRODUCT

D3-4-2-1-8_A_ChH

Abstract geometric pattern with interlocking arrows forming a symmetrical design (no text or symbols)

「廢電池請回收」

目錄

01 控制與顯示

前面板 6

遙控器 7

顯示屏 9

02 開始操作

家庭劇院音效設置 10

2 請將麥克風放在您一般聆聽的位置上。

重要提示

Published by Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

All rights reserved.

PIONEER CORPORATION

4-1,Meguro 1-Chome,Meguro-ku,Tokyo 153-8654,Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]

K002_B_En

Printed in
