Introducing the USB Extender

The USB Extender extends the distance to your USB device up to 50 meters.

Features and Benefits

• Plug and Play, no driver installation needed
• Powered through the USB bus, not additional power adapter needed
• Extends USB distance up to 50 meters via CAT5 cable
• Transparent to user and software
• USB 1.1 and 2.0 compliant

System Requirements

• A n available USB 1.1 or 2.0 port

Package Contents

• USB Extender (1-local, 1-remote)
  • USB 2.0 cable (Type A to B, 1.5M)
• Quick Installation Guide

Layout

RJ-45 Type A USB port Type B USB port RJ-45

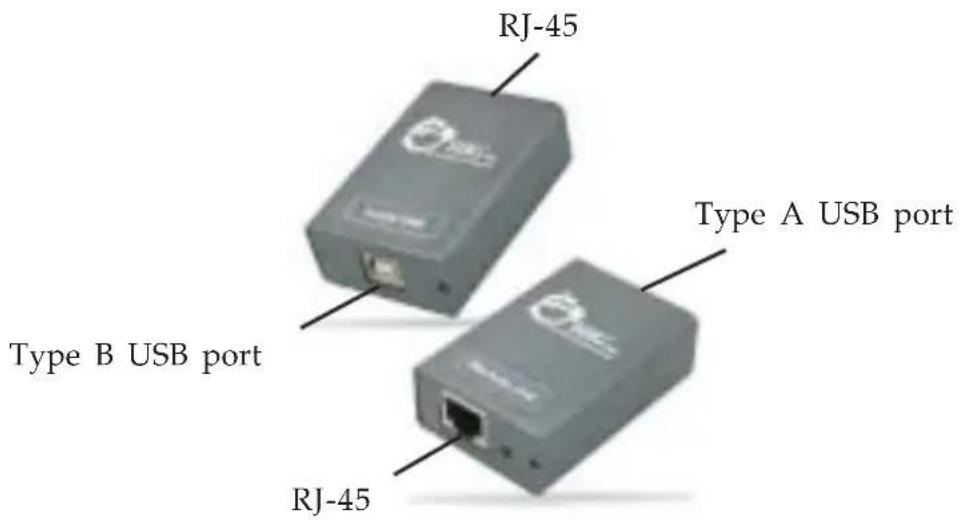

Figure 1: USB Extender Layout

• Type B USB port: connects to an available USB port on your computer
• Type A USB port: plug your USB device into this port
• RJ-45: plug your your CAT5 cable into this port, up to 50 meters

Hardware Installation

General instructions for installing the card are provided below.

Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer case for a few seconds.

1. Connect your CAT5 cable to the RJ-45 port of each extender.
2. Plug the USB cable into the Type B USB port, then plug the other end into your computer
3. Plug your USB device into the Type A USB port.
