USER MANUAL SP X4 Mr. Coffee

4-Cup Removable Reservoir Coffeemaker

©2002 Sunbeam Products, Inc. All rights reserved. MR. C∅FFEE® Is a registered trademark of Sunbeam Products, Inc. Distributed by Sunbeam Products, Inc., Boca Raton, Florida 33431.

©2002 Sunbeam Products, Inc. Todos los derechos reservados. MR. C#FEE® es una marca registrada de Sunbeam Products, Inc. Distribuido por Sunbeam Products, Inc., Boca Raton, Florida 33431.

Illustration of two modern coffee ovens with digital display (no text or symbols)

IMPORTANT SAFEGUARDS

When using electrical appliances, to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully before using the Coffeemaker.
2. Do not touch the Coffeemaker's hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not place cord, plug or Coffeemaker in water or any other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to an authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by MR. COFFEE may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch hot surfaces.

10. To reduce the risk of fire or electric shock, do not remove rating label cover. No user-serviceable parts inside. Repairs should be done by authorized service personnel only.

11. Do not place on or near hot gas or electric burner, or in a heated oven.

12. Always plug cord into the wall outlet before turning on any controls. To disconnect, turn power off, then remove plug from wall outlet.

13. Always use cold water to make coffee. Warm water or other liquids could cause damage to the Coffeemaker.

14. Scalding may occur if the cover is lifted or brew basket is removed during the brewing cycle.

15. Do not use this appliance for other than intended use.

16. Do not immerse appliance in any liquid.

WARNING

TO AVOID DAMAGE OF, OR INJURY FROM CARAFE, FOLLOW THESE PRECAUTIONS:

• Do not set a hot carafe on a wet or cold surface.
• Do not place hot carafe on or near paper, cloth or other flammable material.
• Never use the carafe on a range top or in a conventional microwave oven.
• Do not allow liquid to evaporate from carafe. Do not heat carafe when empty.
• Do not move entire unit when carafe contains hot liquid.
• Use the lid on the carafe while brewing and pouring coffee.
• Discard carafe if damaged in any manner, or a carafe having a loose or weakened handle.
• Do not clean carafe with scouring powders, steel wool pads or other abrasive materials.

WARNING:

To reduce the risk of fire or electric shock, do not remove any service covers. There are no user-serviceable parts inside the Coffeemaker. Only authorized personnel should repair the Coffeemaker.

Special Cord Set Instructions

A short power supply cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord.

• An extension cord may be used if care is exercised in its use.
• If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. The extension cord should be arranged so that it does not drape over the counter or tabletop where it can be pulled on by children or tripped over accidentally. The electrical rating of the Coffeemaker is listed on the bottom panel of the unit.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

SAVE THESE INSTRUCTIONS

Precautions When Using This Coffeemaker Things To Do –

• Avoid areas of the Coffeemaker that may become hot or emit steam when the machine is ON, particularly the filter basket and the water reservoir.
• Avoid jerking or straining the power cord when unplugging. Grasp the molded plug to unplug.
• Unplug the unit when not in use.
• Unplug the unit when wiping the exterior. Use only a damp cloth to wipe.
• Place machine well back from edge of counter.

Things Not To Do -

• Do not place a cloth or otherwise restrict airflow beneath the Coffeemaker.
• Never reheat a beverage by passing it through the brewing system.
• Do not use abrasive or caustic cleaning compounds to clean the exterior of the unit.
• Do not store the machine until warming plate has cooled.

- In order to avoid contact with any fluid, do not place your hand underneath the filter basket.

- Do not permit children to use this machine without close adult supervision.

- The use of chemically softened water can inhibit proper filtration. This will affect the beverage flavor and will cause a long drip time from the filter basket. Avoid using chemically softened water.

Simple line drawing of a teapot and a mug with the word 'coffee' on the cup (no additional text or symbols)

Introduction

Congratulations! You are the owner of the MR. COFFEE® 4-Cup Removable Reservoir Coffeemaker. Please read all of the instructions in this booklet carefully before you begin to use this appliance. Proper care and maintenance will insure the long life of this appliance and its trouble-free operation. Save these instructions and refer to them often for cleaning and care tips.

Table of Contents

Important Safeguards 2
To Avoid Damage or Injury 3
Special Cord Set Instructions 3
Precautions When Using This Coffeemaker 4
Introduction 5
Table of Contents 5
Setting Up Your Coffeemaker 6
Diagram of Parts 7
Preparing Your Coffeemaker for Use 8
Preparing Coffeemaker for Brewing Coffee 8
Programming Your Coffeemaker 9
Brewing Coffee 9
Filling the Water Reservoir 9
Putting In the Coffee 9
Suggested Coffee Measurement Chart 10
Brewing Your Coffee 10
Cleaning Instructions....12
Using MR. COFFEE® Cleaner 12
Troubleshooting....13
Service and Maintenance 14
Questions, Comments and Suggestions .... 14
Warranty Information 15

Allows you to interrupt the brewing cycle and pour a cup of coffee before the entire carafe is finished brewing. To restart the brewing process, return carafe to warming plate and coffee will automatically begin flowing through filter basket. Make sure carafe is placed all the way on the warming plate.

CAUTION: Do not remove carafe for longer than

30 seconds or the filter basket may overflow.

- Removable Water Reservoir

The water reservoir can be removed for easy cleaning or filling.

• Lighted On/Off Switch

Lighted On/Off switch allows you to know when the Coffeemaker is ON for safe operation (SP3 and SP4 only).

- Removable Filter Insert (SP3 and SP4 only)

The removable filter basket insert allows you to easily lift the filter basket from the brew basket to add or remove filter and ground coffee.

• Audible Ready Signal

• 1 Hour Auto-Off

This feature keeps your coffee warm for one hour after brewing and then automatically shuts off your coffeemaker (SPX3 and SPX4 only).

• Programmable Controls (SPX3 and SPX4 only)

Clock: The LED clock serves as a handy kitchen clock, and also allows you to set the timer.

Timer: Would you like to wake up to a fresh pot of coffee? The timer allows you to preset when you would like the coffeemaker to brew your coffee automatically, up to 24 hours in advance.

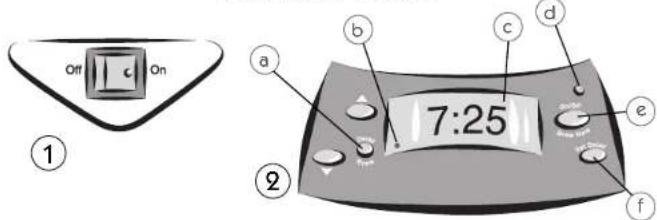

Coffeemaker Features

1. ON/OFF Switch

2. Control Panel

(Programmable Models Only)
a. Delay Brew Button
b. PM Indicator
c. Clock Display
d. On-Off Indicator
e. On/Off Button
1. Set Delay Button

1. Removable Filter Insert
2. Brew Basket
3. Removable Water Reservoir
4. Power Cord
5. Warming Plate

6. Decanter

7. MR. COFFEE® Brand 4-Cup Basket Style Coffee Filters

Preparing Your Coffeemaker for Use

• Carefully unpack the Coffeemaker and remove all packaging materials.
• Before making coffee in your new MR. COFFEE® Coffeemaker, thoroughly clean the carafe, carafe lid, filter holder and detachable water tank with warm, soapy water. Rinse and dry. Do not use harsh or abrasive cleaners.

NOTE: CARAFE, WATER RESERVOIR, CARAFE LID AND FILTER BASKET ARE DISHWASHER SAFE.

• You may wipe the warming plate with a clean, damp cloth. However, do not immerse the Coffeemaker in water or any other liquid.

- Prior to brewing your first pot of coffee, operate Coffeemaker once or twice with water but without ground coffee or a paper filter. This will remove any dust that may have settled inside the Coffeemaker which might affect the flavor of the coffee.

IMPORTANT – Use Cold Water for Best Results

- Wash decanter, removable water reservoir, decanter lid and removable filter basket insert with a mixture of mild detergent and water. Rinse each thoroughly.

PREPARING COFFEEMAKER FOR BREWING COFFEE

- Place your MR. COFFEE® Coffeemaker on a flat, level surface away from any edge.

- Plug the unit into a 120 Volt, 60 Hz AC only outlet.

- The lid of the carafe must be properly snapped on during the brewing process and the carafe must be set on the warming plate.

- The filter basket must be properly locked in during the brewing process.

CAUTION: If the filter basket is not completely inserted, the Pause 'n Serve feature will not function properly. It could cause hot water or hot coffee to overflow.

- Do not re-use coffee grounds since this will greatly impair coffee flavor.

- Reheating coffee is not recommended. Coffee is at its peak flavor immediately after brewing.

- Small oil droplets on the surface of brewed black coffee are due to the extraction of oil from the coffee grounds. Oiliness may occur more frequently if heavily roasted coffees are used. Over-extraction may also cause oiliness, indicating a need to clean your Coffeemaker.

PROGRAMMING YOUR COFFEEMAKER

- To set your clock, press down and hold the SET button, while alternately pressing the UP and DOWN buttons (indicated by arrows), until you reach your desired time. Once you reach your desired time, release the SET button and your clock will be programmed (SPX3 and SPX4 only).

Brewing Coffee

FILLING THE WATER RESERVOIR

- Remove water reservoir, open hinged lid and add the appropriate amount of water. Place removable water reservoir at the top of the unit and flush against it. Push down until plastic notches insert into slots on the Coffeemaker on both sides.

NOTE: The amount of brewed coffee after the brewing process will always be slightly less than the amount of water placed into the Coffeemaker, since some water is absorbed by the coffee grounds and filter. Add a little extra water at the beginning so that you have the exact number of cups desired or you can remove the detachable water tank from the Coffeemaker to fill with cool water.

PUTTING IN THE COFFEE

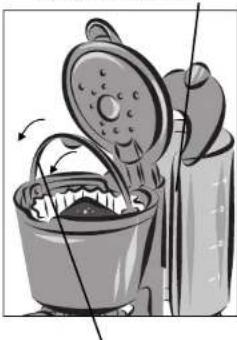

• Lift brew basket lid. Insert a standard flat paper filter into the filter basket or a pre-prepared coffee pack.
  • After using your Coffeemaker several times, the amount of coffee may be adjusted to suit your particular taste, by decreasing or increasing the amount of coffee used. Be sure to use coffee ground specifically for automatic-drip Coffeemakers.

CAUTION: Do not operate your Coffeemaker

if the basket is not inserted completely. If the basket does not insert completely, check to see that the filter packet is properly seated and basket is locked into place.

Place reservoir flush against unit and push down.

Illustration of a bucket being cleaned with a lid, showing material transfer (no text or symbols)

Push handle of basket down completely then close lid.

Suggested Coffee Measurement Chart

For best results, use level coffee scoop of fresh coffee beans.

When using pre-ground coffee, use level tablespoon (tbsp.) or level coffee scoops of drip grind or a grind recommended for automatic drip coffeemakers.

To Brew

WHOLE COFFEE BEANS

USE THIS AMOUNT OF GROUND COFFEE

4 cups 3 scoops 5 tablespoons or 2-1/2 scoops

2 cups 2 scoops 3 tablespoons or 1-1/2 scoops

Use more or less coffee to suit your taste

2 level tablespoons = 1 level coffee scoop

Brewing Your Coffee

(SP3 and SP4 only)

- Once you have inserted your desired level of coffee and water, push the ON button to start the brew cycle. The ON Light will go on, indicating that the Coffeemaker has begun the brewing cycle. In a few minutes the Coffeemaker will complete the brewing cycle and switch over to the warming mode.

- Turn your switch to the OFF position when the carafe is empty or when the Coffeemaker is not in use.

Brewing Your Coffee

(SPX3 and SPX4 only)

BREW COFFEE NOW

• Insert desired level of water and coffee (See Instructions on pages 9 and 10).
• Press the BREW NOW button and the LED light will illuminate indicating the coffeemaker has begun the brewing process. In a few minutes the coffeemaker will complete the brewing cycle and switch over to the warming mode.

BREW COFFEE LATER

• To set the time that you would like to brew your coffee, press the DELAY BREW button and a clock icon will appear on the LED screen.
- Press and hold down SET button while pressing the UP and DOWN buttons (indicated by arrows), until you reach your desired brew time.
- Release the SET button and your desired brew time will be programmed.
- Press the BREW NOW button to then activate the delayed brewing process. A Clock Icon will remain on the LED screen until the brewing cycle has been completed.

BREWING COFFEE AFTER DELAY BREW IS ACTIVATED

• After activating the Delay Brew mode, should you desire to brew your coffee at an earlier time, simply press the BREW NOW button and your coffeemaker will begin its brew cycle immediately. This will effectively cancel out the programmed brew setting.

CANCEL DELAY BREW SETTING

- To cancel your programmed brew time without brewing coffee, simply press the BREW NOW button twice. This action will momentarily turn your coffeemaker on and then off again. The Clock Icon will disappear from the LED screen and the programmed brew time will be cancelled.

Cleaning Instructions After Initial Use

Your Coffeemaker must be cleaned when you begin to notice excessive steaming or the brewing time increases considerably. This condition is caused by a buildup of lime and mineral deposits from your water. If the pumping action stops before all the water has been pumped out of the machine, then the appliance requires cleaning.

The frequency of cleaning depends on the hardness of water used. The following table gives suggested cleaning intervals.

SUGGESTED CLEANING INTERVAL

Type of Water Cleaning Frequency

Soft Water Every 80 Brew Cycles

Hard Water Every 40 Brew Cycles

Your Coffeemaker may be cleaned by using MR. COFFEE® CLEANER or vinegar. For best results, use MR. COFFEE® CLEANER, it is superior to vinegar and has no unpleasant odor.

Using MR. COFFEE® CLEANER

(Read caution statement on side panel of MR. COFFEE® CLEANER box before use.)

1) Fill the decanter with 4 to 5 decanter cups of warm water.
2) Empty contents of one packet of MR. COFFEE® CLEANER into the decanter and stir with a plastic or wooden spoon until the cleaner is completely dissolved. This will make a clear blue solution.
3) Pour the blue solution into the water reservoir.
4) Place the empty decanter on the warming plate. The lid access filter basket should be closed.
5) Turn your Coffeemaker on by pushing the switch to the ON position so that the switch illuminates.
6) When the blue solution has stopped flowing, turn your Coffeemaker off by pushing the switch to the OFF position.
7) Discard the blue solution and thoroughly rinse the decanter, decanter lid, filter basket and filter basket lid.
8) Repeat Steps 1 through 7 with clean water only (no blue solution). Continue to rinse out the unit until you see no remaining traces of the blue solution.
9) If a normal brewing flow rate is not achieved, repeat cleaning Steps No. 1 through No. 8.

TROUBLESHOOTING

POTENTIAL PROBLEMS	PROBABLE CAUSE
“ON” LIGHT DOES NOT ILLUMINATE • Unplugged• Power outage
COFFEE IS NOT BREWING • Unplugged• Power outage• The water reservoir is empty; check water window• The filter basket is not properly inserted• Carafe is not placed all the way on the warming plate
COFFEEMAKER ONLY BREWS WATER • No grounds in filter basket
COFFEEMAKER BREWS SLOWLY • Coffeemaker needs cleaning
FILTER BASKET OVERFLOWS • The filter basket is not properly inserted• Carafe is not placed all the way on the warming plate• Carafe lid not on carafe• Too many grounds placed in filter• Carafe was removed from warming plate longer than 30 seconds
BURNING COFFEE SMELL	• Empty carafe was left on hot warming plate• Coffee was spilled on a warming plate
COFFEE IS NOT HOT	• Power outage• The Automatic Shut-Off function has been activated
COFFEE TASTES BAD	• Coffee ground other than for automatic-drip Coffeemaker was used• Ground coffee-to-water ratio was unbalanced
GROUNDS ARE IN COFFEE	• Paper filter not properly seated in basket• Filter overflowed

Questions? You can call us toll-free at 1-800-672-6333.

Service and Maintenance

Replacement Parts

- Filters

For better tasting coffee and tea, we recommend that you use MR. COFFEE® brand 4-cup paper filters or MR. COFFEE® brand permanent filters. These filters are available at most grocery stores.

- Decanters

You can usually purchase a replacement decanter from the store where you purchased your Coffeemaker. If you are unable to find a replacement, please call 1-800 MR COFFEE (1-800-672-6333) in the U.S. and Canada for information on where you can find a store that carries replacement decanters.

Repairs

If your Coffeemaker requires service, do not return it to the store where you purchased it. All repairs must be made by Sunbeam or by an authorized MR. COFFEE® Service Center. If you live in the U.S. or Canada, please call us at the following toll-free telephone number to find the location of the nearest authorized service center:

1-800 MR COFFEE (1-800-672-6333)

To assist us in serving you, please have the model number (SP3, SP4, SPX3 or SPX4) and date of purchase information when you call.

Questions, Comments and Suggestions

We welcome your thoughts; please include your complete name, address and telephone number when you write or e-mail us at:

[e-mail]

You may also visit our website and discover the secret to brewing the perfect cup of coffee. You'll also find a rich blend of gourmet recipes, entertaining tips and the latest information on MR. COFFEE® products.

www.mrcoffee.com

Consumer Affairs Department

MR. COFFEE®

A Product of Sunbeam Corporation

P.O. Box 948389

Maitland, FL 32794-8389

One-Year Limited Warranty

Sunbeam Products, Inc. ("Sunbeam") warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or in any way change the terms or conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized service center. Further, the warranty does not cover acts of nature, such as fire, flood, hurricanes and tornadoes.

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitation on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

How to Obtain Warranty Service

Take the product to an authorized Sunbeam service center. You may obtain a list of service centers and other repair/replacement instructions by calling 1-800-672-6333 or send an e-mail to [e-mail]. Please include name, address, telephone number, product model number and description of the problem.

For products purchased in the United States –

SUNBEAM SERVICE CENTER

c/o Warranty Center

117 Industrial Row

Purvis, MS 39475

For products purchased in Canada –

SUNBEAM CANADA CORP., LTD.

c/o Service Trek

1351 Matheson Blvd. East, Units 5 & 6

Mississauga, ON L4W 2A1

DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE

Questions, Comments and Suggestions

We welcome your thoughts, please include your complete name,

address and telephone number when you e-mail or write us at:

e-mail: [e-mail]

Mail:

Consumer Service Department

MR. COFFEE

A Product of Sunbeam Products, Inc.

P. O. Box 948389

Maitland, FL 32794-8389

Do not send product to the above address

©2001 Sunbeam Products, Inc. All rights reserved.

SUNBEAM® and MR. COFFEE® are registered trademarks of Sunbeam Products, Inc.

Made in China

PRECAUCIONES IMPORTANTES

Simple line drawing of a teapot and a mug with the word 'café' on the cup (no text or symbols on the shapes)

Introducción

Preparando Su Cafetera para Usarla

Illustration of a bucket being inserted into a container with a lid, showing material transfer (no text or symbols)

[e-mail]

Consumer Affairs Department

MR. COFFEE®

A Product of Sunbeam Corporation

P.O. Box 948389

Maitland, FL 32794-8389

1351 Matheson Blvd. East, Units 5 & 6

Mississauga, ON L4W 2A1

[e-mail]

Por Correo:

Consumer Service Department

MR. COFFEE

A Product of Sunbeam Products, Inc.

P.O.Box 948389

Maitland, FL 32794-8389
