Product Type	Coffee Maker
Brand	Mr. Coffee
Model	ISS12
Capacity	12 Cups (60 oz)
Wattage	900 W
Voltage	120 V ~ 60 Hz
Dimensions (L x W x H)	10 x 8 x 14 inches
Weight	5 lb (2.3 kg)
Color	Black / Stainless Steel
Material	Plastic and Stainless Steel
Water Reservoir	Removable, 12-cup capacity
Filter Type	Basket filter (paper or permanent)
Programmable Timer	24-hour programmable
Auto Shut-Off	After 2 hours
Pause and Serve	Yes, removable carafe
Brew Strength Selector	Regular / Bold
Carafe	Glass carafe with markings
Warming Plate	Automatic keep-warm
Cord Length	2 ft (0.6 m)
Cleaning	Descale every 3 months with vinegar or descaling solution
Safety Features	Automatic shut-off, cool-touch handle
Replacement Parts	Carafe (FT12), Filter basket, Water reservoir lid
Warranty	1 year limited

Frequently Asked Questions - ISS12 Mr. Coffee

How do I clean my Mr. Coffee ISS12?

Regular cleaning prevents buildup. Wash the carafe, filter basket, and reservoir with warm soapy water. For deep cleaning, use a vinegar and water solution (1:1 ratio) and run a brew cycle, followed by two cycles of fresh water.

How do I set the programmable timer?

Press the Program button. The clock will flash. Use the Hour and Min buttons to set the desired brew time. Press Program again to confirm. Ensure the clock is set to the correct time first.

Why is my coffee weak?

Weak coffee usually means too few coffee grounds. Use the recommended amount (2 tablespoons per 6 oz cup). Also, clean the machine to remove mineral deposits that affect extraction.

How do I descale the coffee maker?

Mix equal parts white vinegar and water and fill the reservoir. Run a brew cycle without coffee. Let it sit for 30 minutes, then run two full cycles with fresh water to rinse.

Can I use a permanent filter?

Yes, the ISS12 accepts both paper basket filters and permanent gold-tone filters. Using a permanent filter reduces waste.

Why does my coffee maker stop brewing mid-cycle?

This may happen if the Pause and Serve feature is activated. If you remove the carafe for more than 30 seconds, the brew will pause. Replace the carafe to resume. Also check if the water level is too low.

How do I set the clock?

Press and hold the Clock button until the display flashes. Use the Hour and Min buttons to set the correct time. Press Clock again to save.

What is the auto shut-off time?

The auto shut-off activates after 2 hours to save energy and prevent overheating. The warming plate will turn off automatically.

Where can I buy replacement parts?

You can order genuine Mr. Coffee parts like the glass carafe (FT12), filter basket, and water reservoir lid from the Mr. Coffee website or authorized retailers.

Why does my coffee taste bitter?

Bitterness may be due to over-extraction, using too fine a grind, or leaving coffee on the warming plate too long. Try a coarser grind and remove the carafe immediately after brewing.

USER MANUAL ISS12 Mr. Coffee

15-0906-796_TS_TnsLrMan_v4,qx 11/27/06 17:37 PM Page 44

©2006 Sunbeam Products, Inc., doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Sunbeam Products, Inc., doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431. U.S. 1-800-MR COFFEE (1-800-672-6333) Canada 1-800-667-8623

Visit us at www.mrcoffee.com You will find exciting and entertaining tips and ideas, Including great recipes!

SPR-112206

Black and silver coffee maker with digital display and control buttons (no visible text or symbols on device body)

Printed in China/Impreso en China

P.N. 120228 rev.1

www.mrcoffee.com

IMPORTANT SAFEGUARDS

To reduce the risk of fire, electric shock and/or injury to persons, basic safety precautions should always be followed when using electrical appliances, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING THE COFFEEMAKER.
2. Do not touch the coffeemaker's hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse the power cord, power plug or coffeemaker in water or in any other liquid.
4. Close adult supervision is necessary when this appliance is used by or near children.

5. Turn the coffeemaker OFF and unplug the power cord from the power source when the coffeemaker and clock are not in use and before cleaning. Allow the coffeemaker parts to cool before putting on or taking off parts and before cleaning the appliance.

6. Do not operate any appliance with a damaged power cord or power plug, or operate it after the appliance malfunctions, or has been damaged in any manner. Return this appliance only to the nearest Authorized Service Center for examination, repair or adjustment.

7. The use of accessory attachments other than MR. COFFEE ^* brand products may cause hazards or injuries.

8. Do not use the coffeemaker outdoors.

9. Do not let the power cord hang over edge of table or counter, or allow it to come into contact with hot surfaces.

10. Do not place this coffeemaker on or near a hot gas stove or electric burner or in a heated oven.

11. To disconnect the coffeemaker, turn it OFF, then remove the power plug from the power supply.

12. Place the appliance on a hard, flat level surface to avoid interruption of airflow underneath the coffeemaker.

13. Avoid contact with any moving parts.

14. This coffeemaker is designed for household use only.

15. Do not use appliance for other than intended use.

DECANTER USE AND CARE

Follow the instructions below to reduce or eliminate the chance of breaking the glass decanter or thermal carafe:

• This decanter is designed for use with your MR. COFFEE® coffeemaker and therefore must never be used on a range top or in any oven, including
  a microwave oven.

- Do not set a hot decanter on a wet or cold surface.

- Do not use a cracked decanter or a decanter having a loose or weakened handle.

- Do not clean the decanter with abrasive cleaners, steel wool pads or other abrasive materials.

- Discard the decanter immediately if it is ever boiled dry.

- Protect the decanter from sharp blows, scratches or rough handling.

WARNING! To reduce the risk of fire or electric shock, do not remove any

service covers. There are no user serviceable parts inside the coffeemaker. Only authorized personne should repair the coffeemaker.

Please read ALL of the instructions in this manual carefully before you begin to use this appliance. Proper care and maintenance will ensure a long life and a trouble-free operation for this appliance. Please save these instructions and refer to them for cleaning and care tips.

SAVE THESE INSTRUCTIONS

INTRODUCTION

Welcome and congratulations on the purchase of your new MR. COFFEE ^® Coffeemaker. Your new IS Series coffeemaker will wake up with you in the morning and provide you breaks and treats during your hectic daily activities. How you enjoy your MR. COFFEE ^® Coffeemaker is up to you!

SPECIAL CORD SET INSTRUCTIONS

1. A short power supply cord is provided to reduce the hazards resulting from a person or pet becoming entangled in, or tripping over, a longer cord.
2. An extension cord may be purchased and used if care is exercised in its use.
3. If an extension cord is used, the marked electrical rating of the extension cord must be at least 10 amps and 120 volts. The resulting extended cord must be arranged so that it will not drape over a countertop or tabletop where it can be pulled on by children or tripped over accidentally.
4. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

You can customize the length of the power cord so that it is the exact length you desire. To increase the length of the power cord: grasp the power cord (not the power plug) and gently lift it out of the slot, then pull it away from the coffeemaker. To decrease the length of the power cord: grasp the power cord (not the power plug), lift it out of the slot and gently feed it into the coffeemaker. Lock the cord in the slot when finished.

Table of Contents

Important Safeguards....2

Decanter Use and Care....2

Introduction 3

Special Cord Set Instructions....3

Table of Contents 4

Parts Diagram 5

Coffeemaker Features and Benefits 7

Clean Your Coffeemaker Before Using the First Time....8

Setting The Clock and Delay Brew Time....9

Preparing for Use 10

• Suggested Coffee Measurement Chart

- Adding Water and Ground Coffee

• Water Filtration System

Brewing Coffee Now....13

Brewing Coffee Later (Delay Brew) 14

Cleaning and Maintaining Your Coffeemaker 16

Troubleshooting Your Mr. Coffee® Coffeemaker....18

Service and Maintenance 20

Warranty Information 21

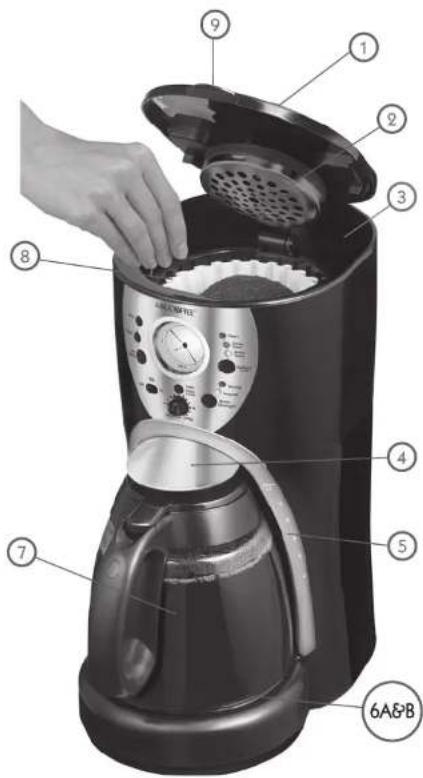

PARTS DIAGRAM

1. Brew Basket Lid
2. Shower Head Cover
3. Water Reservoir
4. Pause 'n Serve
5. Dual Water Windows
6. Warming Plate A. Glass carafe models auto-off 2-hours after brewing cycle. B. Thermal carafe models auto-off immediately after brewing cycle.
7. Decanter
8. Removable Filter Basket
9. Pour Through Reservoir Lid

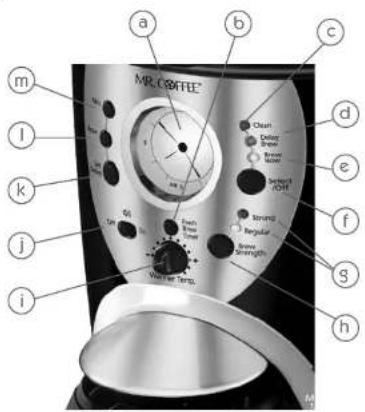

Control Panel

a. Clock Display / Fresh Brew™ Timer Display
b. Clock Display / Fresh Brew™ Timer Display Button
c. Clean Cycle Indicator
d. Delay Brew Indicator
e. Brew Now Indicator
f. Select Button
g. Brew Strength Indicators (Regular/Strong)
h. Brew Strength Button
i. Warmer Temperature Knob (not on thermal models)
j. On / Off Audible Signal
k. Set Delay Button
1. Hour Button
m. Minute Button

Coffeemaker Extras

(not included with all models)

Water Filtration System

Mr. Coffee® Brand Permanent Filter

Mr. Coffee® Brand 10-12 Cup Basket-Style Paper Filters

COFFEEMAKER FEATURES AND BENEFITS

Your new MR. COFFEE ^™ coffeemaker has the following features:

• Brewing Capacity
• 12 Cups - glass decanter series
• 10 Cups - thermal carafe series
• Removable Filter Basket – The filter basket lifts out for fast and easy cleaning and filling.
• Pause 'n Serve – Can't wait for the coffee to finish brewing? The Pause 'n Serve feature allows you up to 30 seconds to pour a cup of coffee while the coffeemaker is still brewing. Carefully remove the decanter and the Pause 'n Serve feature will be automatically activated, temporarily stopping the flow of coffee into the decanter.
• Dual Water Windows – Show amount of water in the reservoir for accurate filling.
• Non-Stick Warmer Plate – (not on thermal models) This feature allows you to keep your coffee hot after brewing. The non-stick attribute prevents the decanter from sticking to the surface of the warming plate.
• Brew Strength Selector – Adjusts the brewing time to create a more full-flavored coffee.
• Water Filtration System – Great tasting coffee begins with great water! Improves the taste of your coffee by removing 97% of the chlorine from the water you use for brewing.
• Cord Storage – Safely stores excess cord to keep your countertop neat.

• Two-Hour Auto Shut-Off – Keeps your coffee hot for two hours, then automatically shuts off. (Thermal models shut off immediately after brewing cycle is completed.)
  • Programmable Controls:

• Clock - The clock serves as a handy kitchen clock and allows you to set the Delay Brew feature and functions as the FRESH BREW™ TIMER feature.

• Fresh Brew™ Timer feature – Lets you know how long your coffee has been waiting for you.
• On / Off Audible Signal - Choose to be alerted at the end of brew or clean cycle.

15-0906-796_TS_TneLrMan_v4,qx 11/27/06 17:37 PM Page 8

• Delay Brew - Would you like to wake up to a fresh pot of coffee? The timer allows you to preset when you would like the coffeemaker to automatically begin brewing your coffee, up to 24 hours in advance.
• Adjustable Warmer Plate – (not on thermal models) This feature allows you to keep your coffee hot after brewing and adjust the temperature to fit your taste.
• Special Cleaning Cycle – Enables you to easily maintain and clean mineral deposits from your coffeemaker.

NOTE: If you have selected any of the operating functions, the coffeemaker will act upon the last operation selected if the power is restored within 10 seconds after a power outage.

CLEAN YOUR COFFEEMAKER BEFORE USING THE FIRST TIME

Make sure your first cup of coffee is as good as can be by cleaning your MR. COFFEE® Coffeemaker before its first use. Just follow these simple steps:

1. Wash the decanter, decanter lid and the filter basket in a mixture of mild detergent and water. Rinse each thoroughly (please refer to the Parts Diagram).
2. Replace all the parts and close the lid. Then, run a brew cycle with water only, without adding coffee and coffee filter.
3. When brewing is complete, turn your coffeemaker off, discard the water in the decanter and rinse the decanter, decanter lid, and filter basket.

Your coffeemaker is now ready to use. Enjoy it!

SETTING THE CLOCK AND DELAY BREW TIME

To Set the Clock:

1. Plug the power cord into a standard electrical outlet. The clock will flash on the control panel to indicate that the time has not been set yet.
2. Press and hold the HOUR and MINUTE buttons until you reach the current time. The AM or PM indicator will light at the bottom of the display (Figures 1 and 2).

The clock is now set!

NOTE: Pressing any button before setting the clock will cause the clock to start keeping time from 12:00 a.m. You must set the clock if you want to use the Delay Brew feature.

To Set the Delay Brew Time:

While the display is in the clock mode, simply press the SET DELAY button (Figure 3) and, while the DELAY BREW yellow light is flashing, set the brew time by pressing the HOUR and MINUTE buttons (Figure 4). The AM or PM indicator will light at the bottom of the clock display.

Within a few seconds the display will change to the current time.

The Delay Brew Time is now set!

NOTE: To activate the DELAY BREW cycle, see the Brewing Coffee Later section.

To check the programmed time, push the SET DELAY button. The display will show the time you have programmed the coffee to brew. If you press the SET DELAY button again or wait a few seconds, the display will switch back.

FIGURE 1

FIGURE 2

FIGURE 3

FIGURE 4

15-0906-796_TS_Tn8LrMan_v4,qx 11/27/06 12:37 PM Page 10

PREPARING FOR USE

Selecting and Measuring Ground Coffee

For best results, use a level tablespoon for ground coffee measurement. Make sure you use medium grind coffee for a perfect brew.

A. Suggested Coffee Measurement Chart

To Brew Ground Coffee
12 Cups 9 tbsp.
10 Cups 7.5 tbsp.
8 Cups 6.5 tbsp.
6 Cups 4.5 tbsp.
4 Cups 3 tbsp.
1 level tablespoon (tbsp) = 5 gr./0.17 oz.1 cup = 5 fl. oz. of brewed coffeeUse more or less coffee to suit your taste.

B. Water Filtration System

Congratulations! You are the owner of a MR. COFFEE® water filtration system. This carbon-based water filter improves the taste of your coffee by removing up to 97% of the chlorine from the water you may use to brew your coffee.

First, look for the MR. COFFEE® Filtration Friendly symbol (the bottom of your filter basket. If you do not see this symbol, please call 1-800-672-6333.

To use the water filtration system in your MR. COFFEE® Coffeemaker, please follow these steps:

1. Align the red indicator on the frame to the letter that corresponds with the month that you are using the disk for the first time. This serves to remind you to change the disk every month (approx. 30 brewing cycles).

NOTE: For optimum results, use the water filtration system with a permanent filter.

1. Rinse the water filter in fresh water before first use.

2. Follow Adding Water and Coffee instructions.

3. When you are done brewing your coffee, rinse the water filter with fresh water. Do not put your water filter in the dishwasher.

To replace the water filter disks, twist the gray disk cover from your water filtration system. Remove the used disk. Insert the new disk into the frame and twist the cover back into place.

Frame

Filter Disk

Disk Cover

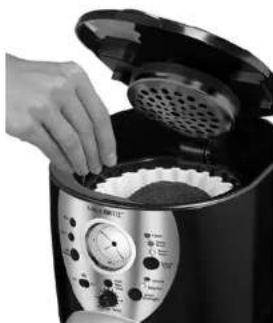

C. Adding Water and Ground Coffee

1. Open the brew basket lid. For your convenience, you can lift out the removable filter basket.
2. Place a MR. COFFEE® brand 10-12 cup paper basket-style filter or a MR. COFFEE® permanent filter into the removable filter basket (Figure 5).

NOTE: If using paper filters, it is important that the sides of the filter fit flush against the side of the filter basket. If filter collapse occurs, dampen the filter before placing in the filter basket and adding ground coffee and water.

1. Add the desired amount of coffee and gently shake to level the coffee. See the Suggested Coffee Measurement Chart.

Close-up of a hand placing food into a black rice cooker with control panel (no visible text or symbols)

FIGURE 5

1. After following instructions in the Water Filtration System, place the MR. COFFEE® water filter in the basket, making sure that the side marked "this side up" faces you and that the water filter is level.
2. Be sure the removable filter basket is properly centered and all the way down in the brew basket and close the lid.
3. Fill the decanter with cold, fresh water to the desired capacity (1 cup equals 5 ounces) For easy and accurate filling, the water markings on the glass decanter and on the dual water windows show the amount of water needed to make the corresponding desired number of cups. Do not fill past the "12 cup MAX line" or water will flow out of the overfill hole in the back of the coffeemaker.

The amount of coffee brewed will always be slightly less than the amount of water poured in the water reservoir. This is due to the minimum absorption of water by the coffee grounds.
7. Lift the pour through reservoir lid and pour the water into the water reservoir. Close the lid and place the empty decanter onto the warmer plate.

NOTE: Make sure the decanter is fully placed on the warming plate or the water and the grounds will overflow from the filter basket. An overflow may cause personal injury or damage to property.

CAUTION! To reduce the risk of damaging the decanter and/or the risk of personal injury, do not add cold water to the decanter if the decanter is already hot. Allow the decanter to cool before using.

BREWING COFFEE NOW

1. After completing the steps in the Adding Water and Coffee section and with the glass decanter and the filter basket securely in place, turn the coffeemaker on by pressing the SELECT button once. The BREW NOW green light will turn on to signal that the coffeemaker is on and brewing (Figure 6).
2. To enjoy a more full flavored cup of coffee, press the Brew Strength button once. The red STRONG Brew Strength indicator light will turn on. The coffeemaker will remain in the Brew Strength you have selected until you change it back to regular strength by pressing the Brew Strength button or until you unplug the machine (Figure 7).
3. After the used coffee grounds have cooled, carefully remove the filter basket and discard them.

NOTE: The shower head is hot after brewing. Always allow the coffeemaker to cool down before cleaning.

FIGURE 6

FIGURE 7

15-0906-796_TS_TnsLrMan_v4,qx 11/27/06 17:37 PM Page 14

1. Prior to making a second pot of coffee, turn the coffeemaker off. This will reset the FRESH BREW™ TIMER feature. To turn the coffeemaker off, press the SELECT button until all lights turn off.
2. Make sure the decanter is empty before starting to brew coffee.
3. Be sure to turn your coffeemaker off when no longer using it.

The Fresh Brew™ Timer Feature

The FRESH BREW™ TIMER feature lets you know how long your coffee has been waiting for you. At the start of the brew cycle, the FRESH BREW™ TIMER feature will automatically be activated and the clock display will change to show the time since brewing began. Incremental segments of the FRESH BREW™ TIMER feature will start to darken as an indication of how long the coffee has been waiting for you.

Press the FRESH BREW™ TIMER button once (Figure 8) to go back to the clock function (while on the clock mode, the FRESH BREW™ TIMER feature will keep counting). The display will automatically change back to the clock after 2 hours or when the unit is turned off.

NOTE: The BREW NOW green light must be on for the FRESH BREW™ TIMER feature to operate. The time and delay brew time cannot be set when the fresh brew time is displayed.

On/Off Audible Ready Signal

The coffeemaker will beep three times at the end of the brew or clean cycle. You may choose not to be alerted by turning the audible ready signal off (Figure 9).

FIGURE 8

FIGURE 9

BREWING COFFEE LATER

1. You must first set the time for when you would like the coffeemaker to begin brewing your coffee as described in Setting the Clock and the Delay Brew Timer section.
2. Prepare your coffeemaker as described in Adding Water and Ground Coffee section.
3. To activate DELAY BREW and program your coffeemaker to brew coffee at a later time, press the SELECT button twice. The yellow DELAY BREW light will turn on (Figure 10). The coffeemaker is now set to automatically brew coffee at the pre-set later time. At this time the brew strength light will turn on. You can select the strength that you desire by pressing the BREW STRENGTH button.
4. At the pre-set time, the green BREW NOW light will turn on and the DELAY BREW yellow light will turn off, indicating the brewing has started in the selected brew strength. The FRESH BREW ^™ TIMER feature will start.
5. The coffeemaker warmer plate will keep your coffee hot for 2 hours and then automatically turn off. Thermal models will turn off at the end of the brew cycle.

As a safety feature, your coffeemaker will NOT start again automatically the next day. If you want your coffee to brew at the same time the following day, simply add a new filter, coffee and water and set DELAY BREW, by repeating Steps 2 and 3 above.

To cancel DELAY BREW:

Press the SELECT button until all lights turn off (Figure 10).

FIGURE 10

CLEANING AND MAINTAINING YOUR COFFEEMAKER

Daily Cleaning

Always unplug the coffeemaker and allow to cool before cleaning.

Remove the filter basket, permanent filter (not included on all models), decanter and decanter lid and wash them in a solution of hot water and mild liquid soap.

Never use abrasive cleansers, steel wool pads or other abrasive materials. Dishwasher top rack safe parts: glass decanter, decanter lid, filter basket and permanent filter. The water filter disk is not dishwasher safe.

CAUTION! Never immerse the coffeemaker itself in water, in any other liquid or place in the dishwasher.

Regular Cleaning and Maintenance

Decalcifying your MR. COFFEE® Coffeemaker

Minerals (calcium/limestone) found in water will leave deposits in your coffeemaker and affect its performance. It's recommended that you regularly remove these deposits using MR. COFFEE ^® Cleaner or vinegar. MR. COFFEE ^® Cleaner is available online at www.mrcoffee.com, many retail stores or by calling the MR. COFFEE ^® Consumer Service Department at 1-800-MR COFFEE (1800-672-6333).

1. Follow package instructions to prepare one batch of MR. COFFEE ^® Cleaner. Pour the mixture into the water reservoir. Before decalcifying, remove the water filtration disk from the machine.
   NOTE: 4 cups or 20 fl. oz. of undiluted, white household vinegar may be used as a substitute for the cleaner.
2. Place an empty MR. COFFEE ^® 10-12 cup basket-style paper filter or MR. COFFEE ^® permanent filter into the filter basket and close the brew basket lid.
3. Place the empty decanter back in the unit, centered on the warmer plate.
4. Press the SELECT button until the red CLEAN indicator light turns on (Figure 11).

For your convenience the cleaning cycle is automatic. The entire cycle will take 45-60 minutes to complete. During the cleaning your coffeemaker will:

a. Slow brew approx. 3 cups of cleaning solution.
b. Pause for 30 minutes (the CLEAN light will remain on to alert you that the process is active).
c. After 30 minutes, your coffeemaker will brew the remainder of the cleaning solution.
d. When complete, the CLEAN light will turn off and your coffeemaker will turn off.

FIGURE 11

1. Discard the cleaning solution and rinse the decanter thoroughly with clean water.
2. Fill the water reservoir with clean, fresh water.
3. Place the empty decanter back on the coffeemaker, centered on the warming plate.
4. Remove and discard the paper filter used during the cleaning cycle. If a Mr. Coffee ^® permanent filter was used during cleaning, remove it and rinse it thoroughly before replacing it in the filter basket.

5. Begin brewing and allow the full brew cycle to complete.

6. Repeat steps 5 through 9 one more time.

Your coffeemaker is now clean and ready to brew the next pot of delicious, hot coffee!

Suggested Decalcifying Interval

Type of Water Cleaning Frequency

Soft Water Every 80 Brew Cycles

Hard Water Every 40 Brew Cycles

or when red light is flashing (programmable models).

Water Filtration Disk Replacement

Your water filtration disk will need to be replaced once a month (approx. 30 brew cycles). If the machine will not be in use for an extended period of time, rinse the water filter with running water and clean the coffeemaker before use.

Cleaning the Decanter

Hard water can leave a whitish stain on the decanter, and coffee may then turn this stain brown.

To remove decanter stains:

1. Fill the decanter with a solution of equal parts water and vinegar and let the solution stand in the decanter for approximately 20 minutes.
2. Discard the solution, then wash and rinse the decanter.

Do not use harsh abrasive cleaners that may scratch the decanter, scratches may cause the decanter to break.

TROUBLESHOOTING YOUR MR. COFFEE® COFFEEMAKER

Your MR. COFFEE® Coffeemaker has been carefully designed to give you many years of trouble-free service. In the unlikely event that your new coffeemaker does not operate satisfactorily, please review the following potential problems and try the steps recommended BEFORE you call an Authorized Sunbeam Service Center.

PROBLEM POSSIBLE CAUSE SOLUTION

THE "BREW NOW"/ON • The appliance is unplugged. • PLUG UNIT IN.LIGHT DOES NOT LIGHT UP • There's a power outage. • WAIT FOR POWER TOBE RESTORED.
THE COFFEE IS • The appliance is unplugged. • PLUG UNIT IN.NOT BREWING • There's a power outage. • WAIT FOR POWER TO
	• The water reservoir is empty. • CHECK THE WATERWINDOWS.
	• The filter basket is not • INSERT FILTER BASKETproperly inserted. CORRECTLY.
	• The decanter is not • PLACE DECANTERplaced all the way on CORRECTLY ONthe warmer plate. WARMER PLATE.
THE COFFEEMAKERONLY BREWS WATER	• There are no coffee groundsin the filter basket.	• ADD THE DESIREDAMOUNT OF COFFEETO THE FILTER.
THE COFFEEMAKERBREWS SLOWLY	• The coffeemaker needs cleaning.	• CLEAN COFFEEMAKERAS DESCRIBED IN"CLEANING ANDMAINTAINING" SECTION.
THE FILTER BASKETOVERFLOWS	• The filter basket is not • INSERT FILTER BASKETproperly inserted. CORRECTLY.
	• The decanter is not • PLACE DECANTERplaced all the way onthe warmer plate. WARMER PLATE.	CORRECTLY ON
	• The decanter lid isnot on decanter.	• PLACE LID ON THEDECANTER.
	• Too many coffee groundswere placed in the filter. GROUNDS. IF PAPERFILTER, REPLACE. IFPERMANENT FILTER,RINSE. BEGIN BREWINGPROCESS AGAIN.
	• The decanter was removed fromthe warmer plate for more than30 seconds.	• TURN OFF AND UNPLUGTHE UNIT. ALLOW TOCOOL. WIPE UP THESPILL. DO NOT SET HOTDECANTER BACK ON THEWET WARMER PLATE ORIT MIGHT CRACK.

TROUBLESHOOTING YOUR MR. COFFEE® COFFEEMAKER

PROBLEM POSSIBLE CAUSE SOLUTION

THE COFFEE IS NOT HOT	There's a power outage.WAIT FOR POWER TO BE RESTORED.Auto SHUT-OFF has been activated.FOR BEST RESULTS,BREW A FRESH POT OF COFFEE.

Do you still have questions? You can call us toll-free at the MR. COFFEE*

Consumer Service Department, 1-800-MR COFFEE (1-800-672-6333) or you can visit us at

www.mrcoffee.com.

SERVICE AND MAINTENANCE

Replacement Parts

• Coffee Filters – For better tasting coffee, we recommend that you use a MR. COFFEE® brand 10-12 cup basket-style paper filter or a MR. COFFEE™ brand permanent filter. These filters are available at most grocery stores.
• Water Filtration – Replacement water filtration disks can be purchased through your local retailer, online at www.mrcoffee.com, or by calling 1-800MR COFFEE (1-800-672-6333) in the U.S. or 1-800-667-8623 in Canada.
• Decanters – You can usually purchase a replacement decanter from the store where you purchased your coffeemaker. If you are unable to find a replacement, please visit us online at www.mrcoffee.com, or call 1-800-MR COFFEE (1-800-672-6333) in the U.S. or 1-800-667-8623 in Canada for information on where you can find a store that carries replacement decanters.

Repairs

If your coffeemaker requires service, do not return it to the store where you purchased it. All repairs and replacements must be made by Sunbeam or an authorized Sunbeam Service Center. If you live in the U.S. or Canada, please call us at the following toll-free telephone numbers to find the location of the nearest authorized service center:

U.S. 1-800-MR COFFEE (1-800-672-6333) Canada 1-800-667-8623

You may also visit our website at www.mrcoffee.com for a list of service centers.

To assist us in serving you, please have the coffeemaker model number and date of purchase available when you call. The model number is stamped on the bottom metal plate of the coffeemaker.

We welcome your questions, comments or suggestions. In all your communications, please include your complete name, address and telephone number and a description of the problem.

Visit our website at www.mrcoffee.com and discover the secret to brewing the perfect cup of coffee. You will also find a rich blend of gourmet recipes, entertaining tips and the latest information on MR. COFFEE ^® products.

WARRANTY INFORMATION

1-YEAR LIMITED WARRANTY

Sunbeam Products, Inc., doing business as Jarden Consumer Solutions, or if in Canada, Sunbeam Corporation (Canada) Limited, doing business as Jarden Consumer Solutions, (collectively "JCS") warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty from JCS.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tomatoes.

What are the Limits on JCS's Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.

JCS disclaims all other warranties, or conditions or representations, express, implied, statutory or otherwise.

JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for damages arising from any tort, including negligence or gross negligence, or fault committed by JCS, its agents or employees or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service

In the U.S.A.

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-672-6333 and a convenient service center address will be provided to you.

In Canada

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc., doing business as Jarden Consumer Solutions, located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited, doing business as Jarden Consumer Solutions, located at 5975 Falbourne Street, Mississagua, Ontario L5R 3Y8.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE

15-0906-796_TS_TnsLrMan_v4,qx 11/27/06 17:37 PM Page 72

1. Tapa de la Canasta del Filtro
2. Cubierta de la Regadera
3. Tanque de Agua
4. Detenga y Sirvase (Pause 'n Serve)
5. Ventanilla Doble del Nivel de Agua
6. Plato Calefactor
7. Jarra
8. Canasta Removable del Filtro
9. Tapa para Verter del Tanque de Agua

Panel de Controles

- 12 Cups - glass decanter series

- 10 Cups - thermal carafe series

Close-up of a hand placing food into a rice cooker with a digital kitchen control panel (no visible text or symbols)

FIGURA 5

COLANDO CAFÉ AHORA

FIGURA 7

FIGURA 8

FIGURA 9

15-0905-796_T3_InstLnMan_v4.qx 11/27/06 12:38 PM Page 36

COLANDO CAFÉ LUEGO
