USER MANUAL MACBOOK AIR MC233 APPLE

Congratulations, you and your MacBook Air were made for each other.

Say hello to your MacBook Air.

www.apple.com/macbookair

Finder

Browse your files like you browse your music with Cover Flow.

Mac Help

finder

Built-in iSight camera Video chat with friend family anywhere in th Mac Help isight MacBook Air

Built-in iSight camera and iChat

Video chat with friends and family anywhere in the world.

Mac Help

isight

Blue icon set showing a video call interface with speaker and chat icons, no text or symbols present.

Multi-Touch trackpad

Scroll through files, adjust images, and enlarge text using just your fingers.

Mac Help

trackpad

Illustration of a hand with two blue upward arrows indicating finger movement (no text or symbols)

Scroll

Swipe

Rotate

Four fingers swipe

Pinch and expand

Mac OS X Leopard

www.apple.com/macosx

Time Machine

Automatically back up and restore your files.

Mac Help

time machine

Quick Look

Instantly preview your files.

Mac Help

quick look

Spotlight

Find anything on your Mac instantly.

Mac Help

spotlight

Safari

Experience the web with the fastest browser in the world.

Mac Help

safari

iLife '08

www.apple.com/ilife

iPhoto

Share photos on the web or create books, cards, and calendars.

iPhoto Help

photos

iMovie

Make a movie and share it on the web with ease.

iMovie Help

movie

GarageBand

Create your own song with musicians on a virtual stage.

GarageBand Help

record

iWeb

Build websites with photos, movies, blogs, and podcasts.

iWeb Help

website

Contents

Chapter 1: Ready, Set Up, Go

8 Welcome
9 What's in the Box
10 Setting Up Your MacBook Air
15 Setting Up DVD or CD Sharing
16 Migrating Information to Your MacBook Air
19 Getting Additional Information onto Your MacBook Air
22 Putting Your MacBook Air to Sleep or Shutting It Down

Chapter 2: Life with Your MacBook Air

26 Basic Features of Your MacBook Air
28 Keyboard Features of Your MacBook Air

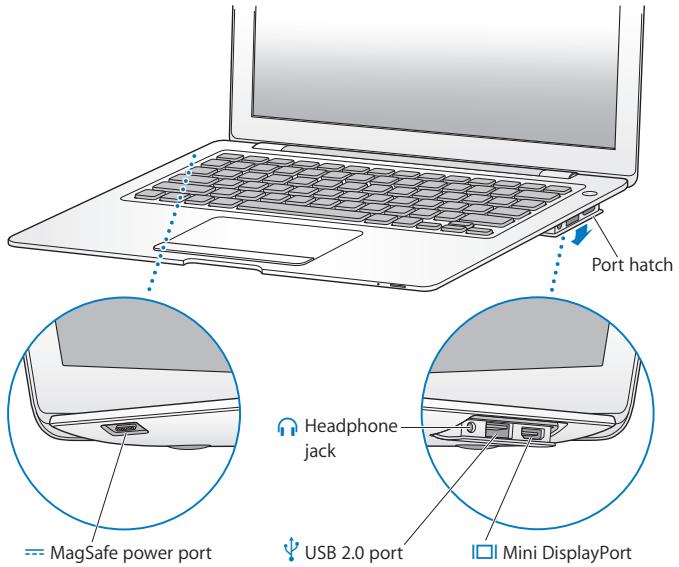

30 Ports on Your MacBook Air
32 Using the Trackpad and Keyboard
35 Running Your MacBook Air on Battery Power
36 Getting Answers

Chapter 3: Problem, Meet Solution

40 Problems That Prevent You from Using Your MacBook Air

43 Using Apple Hardware Test

44 Reinstalling Software Using Remote Install Mac OS X
49 Reinstalling Software Using the MacBook Air SuperDrive
50 Problems with AirPort Extreme Wireless Communication
50 Problems with Your Internet Connection
52 Keeping Your Software Up to Date
52 Learning More, Service, and Support
55 Locating Your Product Serial Number

Chapter 4: Last, but Not Least

58 Important Safety Information
61 Important Handling Information
62 Understanding Ergonomics
64 Apple and the Environment
65 Regulatory Compliance Information

Looking for Something?

70 Index

1

Ready, Set Up, Go

Welcome

Congratulations on purchasing a MacBook Air. Your MacBook Air is streamlined for portability and a completely wireless experience. Read this chapter for help getting started setting up and using your MacBook Air.

• If you know you won't be migrating information from another Mac, and you'd like to get started using your MacBook Air right away, you can follow the Setup Assistant to set up your MacBook Air quickly.
• If you want to migrate information from another Mac or get content from DVDs or CDs onto your MacBook Air, you can set up one or more Mac or Windows computers to partner with your MacBook Air. Then follow the Setup Assistant and use DVD or CD Sharing to use your MacBook Air and the information from the other computer.

Important: Read all the installation instructions (and the safety information starting on page 57) carefully before you first use your computer.

Many answers to questions can be found on your computer in Mac Help. For information about getting Mac Help, see “Getting Answers” on page 36. Apple may release new versions and updates to its system software, so the images shown in this book may be slightly different from what you see onscreen.

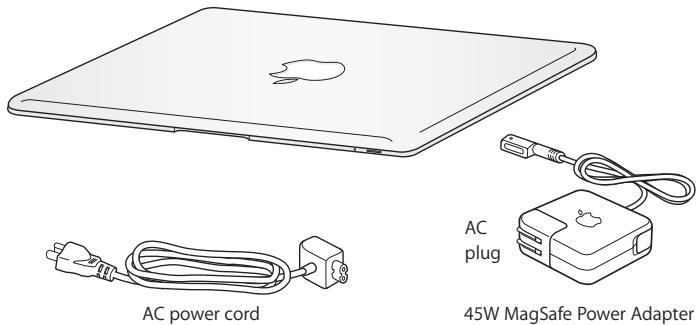

What's in the Box

AC power cord 45W MagSafe Power Adapter AC plug

Important: Remove the protective film covering the 45W MagSafe Power Adapter before setting up your MacBook Air.

About Optical Discs

Although your MacBook Air doesn't have an optical disc drive, it does include DVD discs with important software. You can easily access this software, as well as install applications and access data from other optical discs, using the optical disc drive on another Mac or Windows computer and the Remote Disc feature on your MacBook Air. You can also use the optional MacBook Air SuperDrive, an external optical disc drive.

Setting Up Your MacBook Air

Your MacBook Air is designed so that you can set it up quickly and start using it right away. The following pages take you through the setup process, including these tasks:

• Plugging in the 45W MagSafe Power Adapter
• Turning on your MacBook Air and using the trackpad
• Using Setup Assistant to access a network and configure a user account and other settings
• Setting up the Mac OS X desktop and preferences

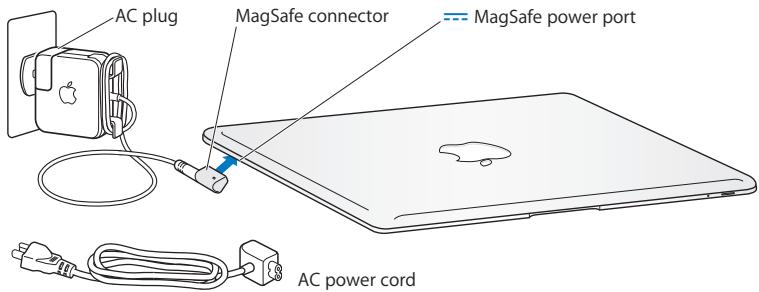

Step 1: Plug in the 45W MagSafe Power Adapter to provide power to the MacBook Air and charge the battery.

Insert the AC plug of your power adapter into a power outlet and the MagSafe connector into the MagSafe power port, located on the back left side of your MacBook Air. As the MagSafe connector gets close to the port, you'll feel a magnetic pull drawing it in.

AC plug MagSafe connector MagSafe power port AC power cord

To extend the reach of your power adapter, replace the AC plug with the AC power cord. First pull the AC plug up to remove it from the adapter, and then attach the included AC power cord to the adapter, making sure it is seated firmly. Plug the other end into a power outlet.

When disconnecting the power adapter from an outlet or from the computer, pull the plug, not the cord.

When you connect the power adapter to your MacBook Air, an indicator light on the MagSafe connector starts to glow. An amber light indicates that the battery is charging. A green light indicates that the battery is fully charged. If you don't see a light, make sure the connector is seated properly and the power adapter is plugged into a power outlet.

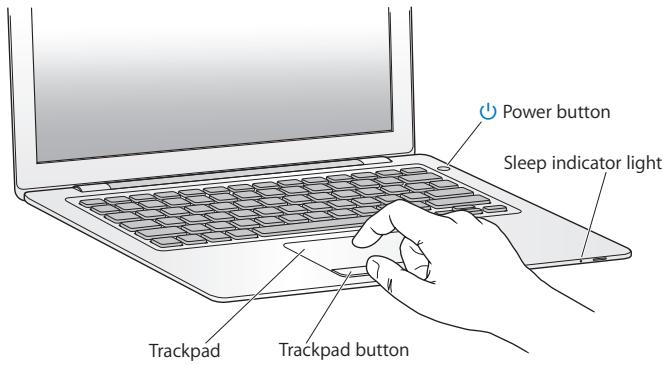

Step 2: Press the power (⏻) button briefly to turn on your MacBook Air.

When you turn on the computer, you'll hear a tone and see the sleep indicator light turn on.

Power button Sleep indicator light Trackpad Trackpad button

It takes the computer a few moments to start up. After it starts up, Setup Assistant opens automatically.

If your computer doesn't turn on, see "If your MacBook Air doesn't turn on or start up" on page 42.

Step 3: Configure your MacBook Air with Setup Assistant

The first time you turn on your MacBook Air, Setup Assistant starts. Setup Assistant helps you enter your Internet information and set up a user account on your MacBook Air. You can also migrate information from another Mac during setup.

Note: If you don't use Setup Assistant to transfer information when you first start up your MacBook Air, you can do it later using Migration Assistant. Go to the Applications folder, open Utilities, and double-click Migration Assistant.

To set up your MacBook Air:

1 In the Setup Assistant, follow the onscreen instructions until you get to the "Do You Already Own a Mac?" screen.
2 Do a basic setup or a setup with migration:

• To do a basic setup, select "Do not transfer my information now" and click Continue. Follow the remaining prompts to select your wireless network, set up an account, and exit Setup Assistant.
• To do a setup with migration, partner with another Mac that has an optical drive and supports DVD or CD Sharing. (You may have to install software if the other Mac doesn't have Mac OS X version 10.5.5 or later installed. See "Setting Up DVD or CD Sharing" on page 15.) Then go to page 16, "Migrating Information to Your MacBook Air."

Note: After you start Setup Assistant on your MacBook Air, you can leave it mid-process without quitting, move to the other computer if you need to install the DVD or CD Sharing Setup software, and then return to your MacBook Air to complete the setup.

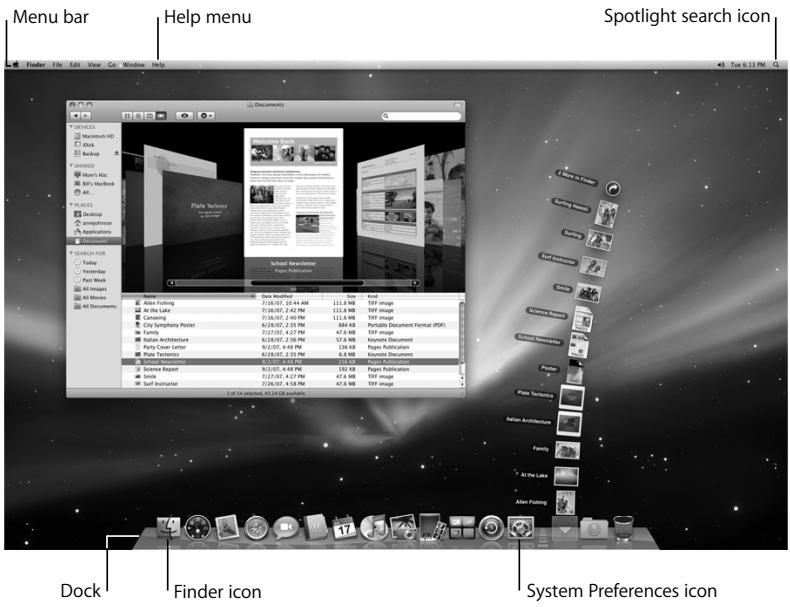

Step 4: Customize the Mac OS X desktop and set preferences.

You can quickly make the desktop look the way you want using System Preferences. Choose Apple (💡) > System Preferences from the menu bar or click the System Preferences icon in the Dock. System Preferences is your command center for most settings on your MacBook Air.

Menu bar Help menu Spotlight search icon Finder File Edit View Copy Window Help Documents File Edit View Help Window Help USEXES Macintosh HD Disk Skip Flashbox Maser Mac My's MacBook AI PLACES Desktop Amphibrotron Applications SEARCH FILE Today Tuesday Past Week All Images All Movies All Documents Dune Modified Size: 100 Kind: 100 ETF image Albin Echelig 7/18/07, 10.4K PM 111.8KPM ETF image At the Labs 7/18/07, 2.42 PM 111.8KPM ETF image Cannaring 7/18/07, 2.40 PM 111.8KPM ETF image City Symphony Poster 6/18/07, 2.35 PM 69.4KPM Portable Document Format (POP) Fably 7/27/07, 4.27 PM 45.8KPM ETF image Italian Architecture 6/18/07, 2.36 PM 57.6KPM Keynote Document Perry Crouch Letter 9/2/07, 4.48 PM 53.6KPM Page Publication Penny Technologies 6/18/07, 2.35 PM 6.8KPM Keynote Document Sonic Expressors 7/27/07, 4.48 PM 55.6KPM Portfolio Architecture Science Report 9/2/07, 4.48 PM 59.9KPM Page Publication Snits 7/27/07, 4.27 PM 47.6KPM ETF image Surf Instructor 7/18/07, 4.58 PM 47.6KPM ETF image 3 of 18 seconds, 43.24 GB available Dock Finder icon System Preferences icon

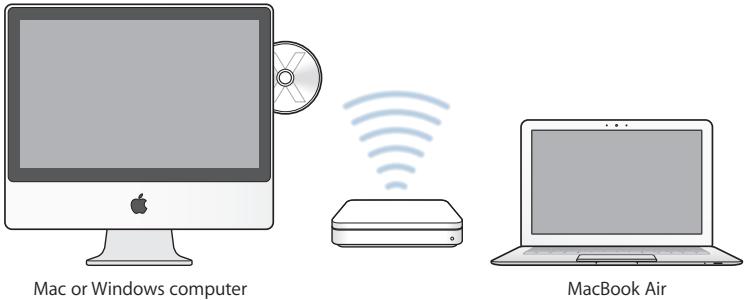

Setting Up DVD or CD Sharing

You can partner your MacBook Air with another Mac or Windows computer that has an optical disc drive and is on the same wired or wireless network. Use this other computer to:

• Migrate information to your MacBook Air, if the other computer is a Mac (see "Migrating Information to Your MacBook Air" on page 16)
• Share the contents of DVDs or CDs or install applications (see "Sharing Discs with DVD or CD Sharing" on page 19)
• Remotely install Mac OS X (see "Reinstalling Software Using Remote Install Mac OS X" on page 44) or use Disk Utility (see "Using Disk Utility" on page 48)

The computer with the optical drive can be a Mac with Mac OS X v10.4.11 or later, or a Windows XP or Windows Vista computer. If the Mac has Mac OS X v10.5.5 or later, DVD or CD Sharing is already installed. You can partner with more than one other computer.

Mac or Windows computer MacBook Air

If the other computer is a Windows computer or a Mac with a Mac OS X version earlier than 10.5.5, insert the Mac OS X Install DVD that came with your MacBook Air to install the DVD or CD Sharing Setup, which includes software for DVD or CD Sharing, Migration Assistant, and Remote Install Mac OS X:

• If the other computer is a Windows computer, choose "DVD or CD Sharing" from the Install Assistant that starts automatically.
• If the other computer is a Mac, double-click the DVD or CD Sharing Setup package on the Mac OS X Install DVD.

Important: After you install the DVD or CD Sharing Setup package on your other Mac, make sure you have the latest software by choosing Apple (✗) > Software Update. Install any available Mac OS X updates.

Migrating Information to Your MacBook Air

You can migrate existing user accounts, files, applications, and other information from another Mac computer.

To migrate information to your MacBook Air:

1 Configure the other Mac (see page 15), and then make sure that it is turned on and that it is on the same wired or wireless network as your MacBook Air.

Check the AirPort (💡) status icon in the menu bar at the top of the other Mac screen to see what wireless network you're connected to. Choose the same network for your MacBook Air during setup.

2 On your MacBook Air, follow the Setup Assistant onscreen instructions until you get to the "Do You Already Own a Mac?" screen. Select "from another Mac" as the source of the information you want to transfer. On the next screen, choose your wireless network, and then click Continue.
3 When you see the Connect To Your Other Mac screen with a passcode displayed, do the remaining steps on the other Mac. You will enter the passcode in Migration Assistant on the other Mac.

Connect To Your Other Mac

On your other Mac, do the following steps:

Insert the Mac OS X Install DVD that came with this computer and install the DVD or CD Sharing Setup software.

Join the same AirPort network as this computer (MacBook Air).

Open Migration Assistant (located in the Utilities folder inside the Applications folder) and follow the onscreen instructions.

Enter the following passcode:

640256

Looking for other computers...

Learn More

Go Back

Continue

4 On the other Mac, open Migration Assistant (located in /Applications/Utilities/), and then click Continue.

5 When you are prompted for a migration method, select "To another Mac", and then click Continue.

6 On the other Mac, quit any other open applications and then click Continue.
7 On the other Mac, enter the six-digit passcode displayed in Setup Assistant on your MacBook Air.

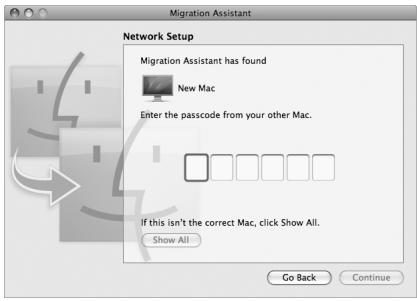

Migration Assistant Network Setup Migration Assistant has found New Mac Enter the passcode from your other Mac. If this isn't the correct Mac, click Show All. Show All Go Back Continue

You can choose the items (user accounts, documents, movies, music, photos, and so on) that you want to migrate to your MacBook Air.

8 Click Continue to start the migration.

Important: Don't use the other Mac for anything else until the migration is complete. If the connection is terminated during migration, you can resume the migration at a later time using Migration Assistant on your MacBook Air and your other Mac.

Getting Additional Information onto Your MacBook Air

Your MacBook Air comes with several applications installed, including the iLife suite. Many other applications can be downloaded from the Internet. If you want to install third-party applications from a DVD or CD, you can:

• Install applications onto your MacBook Air or share information using the optical disc drive on another Mac or Windows computer (if DVD or CD Sharing is set up and enabled). Read the next section for more information.
• Attach the MacBook Air SuperDrive (an external USB optical disc drive available separately at www.apple.com/store) to the USB port on your MacBook Air, and insert your installation disc.

Sharing Discs with DVD or CD Sharing

You can enable DVD or CD Sharing on a Mac or Windows computer to use the Remote Disc feature of MacBook Air. Remote Disc allows you to share the discs you insert into the optical disc drive of the other computer. Some discs, such as DVD movies and game discs, may be copy-protected and therefore unusable through DVD or CD Sharing.

Make sure DVD or CD Sharing is already set up on any Mac or Windows computer you want to partner with. See page 15 for information.

To enable DVD or CD Sharing, if your other computer is a Mac:

1 Make sure the other Mac and your MacBook Air are on the same wireless network. Check the AirPort (💡) status icon in the menu bar to see what network you're connected to.

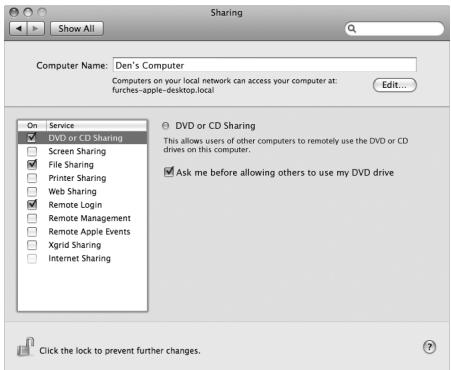

2 On the other Mac, choose Apple ( Apple ) > System Preferences and then open Sharing.

Share Show All Computer Name: Den's Computer Computers on your local network can access your computer at: furches-apple-desktop,local Edit... On Service DVD or CD Sharing Screen Sharing File Sharing Printer Sharing Web Sharing Remote Login Remote Management Remote Apple Events Xgrid Sharing Internet Sharing DVD or CD Sharing This allows users of other computers to remotely use the DVD or CD drives on this computer. Ask me before allowing others to use my DVD drive Click the lock to prevent further changes.

3 In the Sharing panel, select "DVD or CD Sharing" in the Service list. If you want other users to request permission to share a DVD or CD, select "Ask me before allowing others to use my DVD drive."

To enable DVD or CD Sharing, if your other computer is a Windows computer:

1 Make sure your MacBook Air and the Windows computer are on the same wireless network.

2 On the Windows computer, open the DVD or CD Sharing control panel.

DVD or CD Sharing ✓ Enable DVD or CD Sharing This allows users of other computers to use this computer's DVD or CD drives remotely. ✓ Ask me before allowing others to use my DVD drive

3 Select "Enable DVD or CD Sharing." If you want other users to request permission to share a DVD or CD, select "Ask me before allowing others to use my DVD drive."

To use a shared DVD or CD:

1 On the other computer, insert a DVD or CD into the optical disc drive.

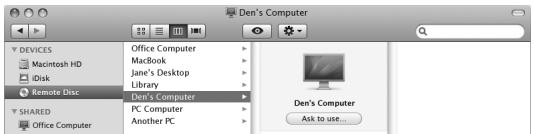

2 On your MacBook Air, select the Remote Disc when it appears under Devices in the Finder sidebar. If you see the "Ask to use" button, click it.

Den's Computer DEVICES Macintosh HD iDisk Remote Disc Office Computer MacBook Jane's Desktop Library Den's Computer PC Computer Another PC ShareD Office Computer Den's Computer Ask to use...

3 On the other computer, when prompted, click Accept to allow your MacBook Air to use the DVD or CD.
4 On your MacBook Air, use the disc as you normally would once it becomes available. If you try to shut down the other computer or eject the shared DVD or CD while your MacBook Air is using it, you'll see a message telling you that the disc is in use. To proceed, click Continue.

Putting Your MacBook Air to Sleep or Shutting It Down

When you finish working with your MacBook Air, you can put it to sleep or shut it down.

Putting Your MacBook Air to Sleep

If you'll be away from your MacBook Air for only a short time, put it to sleep. When the computer is in sleep, you can quickly wake it and bypass the startup process.

To put your MacBook Air to sleep, do one of the following:

• Close the display.
• Choose Apple ( Apple ) > Sleep from the menu bar.
• Press the power (⏻) button and click Sleep in the dialog that appears.
• Choose Apple ( Apple ) > System Preferences, click Energy Saver, and set a sleep timer.

NOTICE: If your MacBook Air has a hard drive, wait a few seconds until the sleep indicator light on the front of your MacBook Air starts pulsing (indicating that the computer is in sleep and the hard disk has stopped spinning) before you move your MacBook Air. Moving your computer while the hard disk is spinning can damage it, causing loss of data or the inability to start up from the hard disk.

To wake your MacBook Air:

• If the display is closed, simply open it to wake your MacBook Air.
• If the display is already open, press the power (⏻) button or any key on the keyboard.

When your MacBook Air wakes from sleep, your applications, documents, and computer settings are exactly as you left them.

Shutting Down Your MacBook Air

If you aren't going to use your MacBook Air for a day or two, it's best to shut it down. The sleep indicator light goes on briefly during the shutdown process.

To shut down your MacBook Air, do one of the following:

• Choose Apple ( Apple ) > Shut Down from the menu bar.
• Press the power (⏻) button and click Shut Down in the dialog that appears.

If you plan to store your MacBook Air for an extended period of time, see “Important Handling Information” on page 61 for information about how to prevent your battery from draining completely.

2

Life with Your MacBook Air

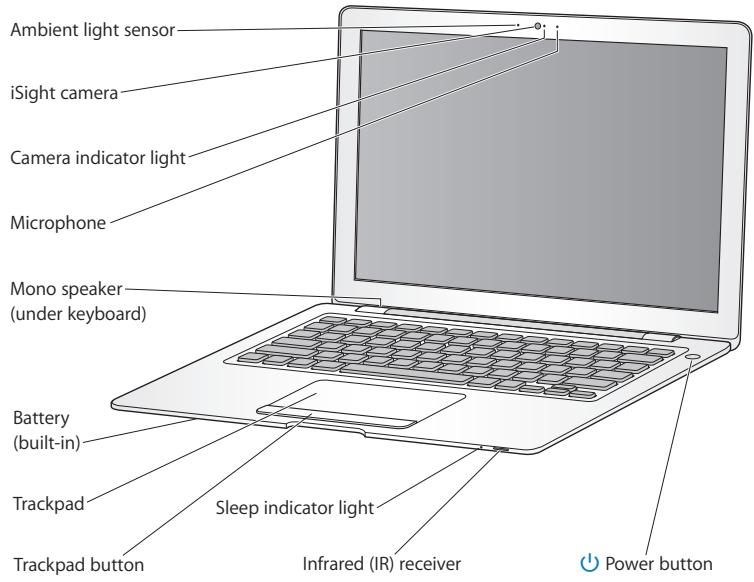

Basic Features of Your MacBook Air

Ambient light sensor iSight camera Camera indicator light Microphone Mono speaker (under keyboard) Battery (built-in) Trackpad Sleep indicator light Trackpad button Infrared (IR) receiver Power button

	Ambient light sensorThe ambient light sensor adjusts the illuminated keyboard and the display brightness according to the available light in your operating environment.
	Built-in iSight camera and camera indicator lightVideoconference with others using iChat, snap pictures with Photo Booth, or capture video with iMovie. The indicator light glows green when the iSight camera is operating.
	Built-in microphoneCapture sounds directly with the microphone (located to the right of the iSight camera) or talk with friends live using the included iChat application.
	Built-in mono speakerListen to music, movies, games, and multimedia files.
	Built-in rechargeable batteryRun your MacBook Air using battery power when you are away from a power outlet.
	Trackpad and trackpad buttonMove the pointer, click, double-click, scroll, zoom, and more, using one or more fingers on the trackpad. For details, see “Using the Trackpad and Keyboard” on page 32.
	Sleep indicator lightA white light pulses when your MacBook Air is in sleep.
	Built-in infrared (IR) receiverUse an optional Apple Remote (available separately) with the IR receiver to control Front Row and Keynote on your MacBook Air.
	Power buttonTurn your MacBook Air on or off, or put it to sleep. Press and hold to restart your MacBook Air during troubleshooting.

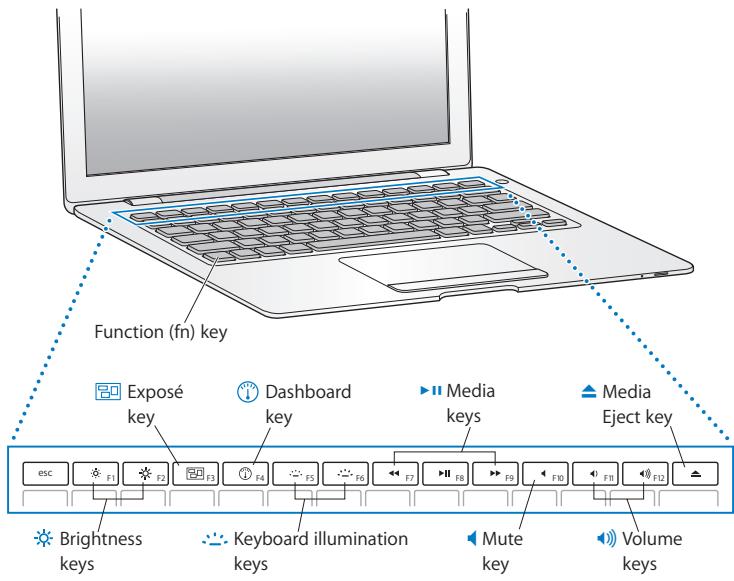

Keyboard Features of Your MacBook Air

Function (fn) key Exposé key Dashboard key Media keys Media Eject key esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Brightness keys Keyboard illumination keys Mute key Volume keys

	Function (fn) keyPress and hold this key to activate customized actions assigned to the function keys (F1 to F12). To learn how to customize function keys, choose Help > Mac Help from the menu bar and search for “function keys.”
	Brightness keys (F1, F2)Increase (*) or decrease (*) the brightness of your MacBook Air display.
	Exposé key (F3)Open Exposé for quick access to all your open windows.
	Dashboard key (F4)Open Dashboard to access your widgets.
	Keyboard illumination keys (F5, F6)Increase (-:-) or decrease (-:-) the brightness of the keyboard illumination.
	Media keys (F7, F8, F9)Rewind (◀◀), play or pause (▶◀◀), or fast-forward (▶◀◀) a song, movie, or slideshow.
	Mute key (F10)Mute the sound coming from the built-in speaker or headphone jack.
	Volume keys (F11, F12)Increase (◀◀◀) or decrease (◀◀) the volume of the sound coming from the built-in speaker or headphone jack.
	Media Eject keyPress and hold this key to eject a disc from a MacBook Air SuperDrive (available separately). You can also eject a disc by dragging its icon from the desktop to the Trash.

Ports on Your MacBook Air

Port hatch Headphone jack USB 2.0 port Mini DisplayPort MagSafe power port

---	MagSafe power portPlug in the included 45W MagSafe Power Adapter to recharge the MacBook Air battery.
	Port hatchOpen the port hatch to use the headphone jack, USB 2.0 port, and Mini DisplayPort.
∩	Headphone jackConnect external speakers or headphones.
ψ	USB (Universal Serial Bus) 2.0 portConnect an external optical disc drive, USB to Ethernet adapter, modem, iPod, mouse, keyboard, and more to your MacBook Air. You can also connect USB 1.1 devices.
|□|	Mini DisplayPort (video out)Connect an external display or projection device that uses a DVI or VGA connector. You can purchase adapters for supported video formats.

Note: Adapters and other accessories are sold separately at www.apple.com/store.

Using the Trackpad and Keyboard

Use the trackpad to move the pointer and to scroll, tap, double-tap, and drag. The speed of the pointer varies based on how quickly you move your finger across the trackpad. To fine-tune the tracking speed and set other trackpad options, choose Apple (✗) > System Preferences and then click Trackpad.

Here are some useful keyboard and trackpad tips and shortcuts:

- Forward deleting deletes characters to the right of the insertion point. Pressing the Delete key deletes characters to the left of the insertion point.

To forward delete, hold down the Function (fn) key while you press the Delete key.

- Two-finger scrolling lets you drag to scroll quickly up, down, or sideways in the active window. This option is on by default.

Illustration of a hand pressing a tablet with bidirectional arrows (no text or symbols)

- Secondary clicking or "right-clicking" lets you access shortcut menu commands. To secondary click, place two fingers on the trackpad while clicking the trackpad button. If Tap to Click is enabled, just tap two fingers on the trackpad.

Line drawing of a hand pressing a button on a tablet device (no text or symbols)

Line drawing of a hand pressing a button on a computer screen (no text or symbols)

You can also secondary click by holding down the Control key while you click.

The following trackpad gestures work in certain applications. When you perform these gestures, slide your fingers lightly on the surface of the trackpad. For more information, see Trackpad preferences or choose Help > Mac Help and search for "trackpad."

- Two-finger pinching lets you zoom in or out on PDFs, images, photos, and more.

Hand holding a tablet device with blue directional arrows indicating movement (no text or symbols)

Hand holding a tablet with a blue arrow pointing to the screen (no text or symbols)

- Two-finger rotating lets you rotate photos, pages, and more.

Illustration of a hand holding a device with a blue curved arrow indicating rotation (no text or symbols)

- Three-finger swiping lets you rapidly page through documents, move to the previous or next photo, and more.

Illustration of two hands holding a curved object with blue arrows indicating rotation (no text or symbols)

- Four-finger swiping works in the Finder and all applications. Swiping four fingers to the left or right activates Application Switcher so you can cycle through open applications. Swiping four fingers up or down causes Exposé to show the desktop or display all open windows.

Illustration of two fingers pressing a button with blue curved arrows indicating motion (no text or symbols)

Illustration of two fingers holding a blue upward arrow on a laptop screen (no text or symbols)

Running Your MacBook Air on Battery Power

When the 45W MagSafe Power Adapter isn't connected, your MacBook Air draws power from its built-in rechargeable battery. The length of time that you can run your MacBook Air varies, depending on the applications you use and the external devices connected to your MacBook Air. Turning off features such as AirPort Extreme or Bluetooth® wireless technology can help conserve battery charge.

If the battery runs low while you are working, attach the power adapter that came with your MacBook Air and let the battery recharge. When the power adapter is connected, the battery recharges whether the computer is on, off, or in sleep. The battery recharges more quickly, however, when the computer is off or in sleep.

You can determine whether the battery needs charging by looking at the indicator light on the MagSafe connector. If the light is glowing amber, the battery needs to be charged. If the light is glowing green, the battery is fully charged.

You can also check the amount of battery charge left by viewing the Battery (◀) status icon in the menu bar. The battery charge level displayed is based on the amount of power left in the battery with the applications, peripheral devices, and system settings you are currently using.

To conserve battery power, close applications and disconnect peripheral devices not in use, and adjust your Energy Saver settings. For more information about battery conservation and performance tips, go to www.apple.com/batteries/notebooks.html.

Important: The battery is replaceable only by an Apple Authorized Service Provider.

Getting Answers

Much more information about using your MacBook Air is available in Mac Help and on the Internet at www.apple.com/support/macbookair.

To get Mac Help:

1 Click the Finder icon in the Dock (the bar of icons along the edge of the screen).

2 Click the Help menu in the menu bar and do one of the following:

a Type a question or term in the Search field, and select a topic from the returned list or select Show All Results to see all topics.
b Choose Mac Help to open the Mac Help window, where you can click links or type a search question.

More Information

For more information about using your MacBook Air, see the following:

To learn about	See
Troubleshooting your MacBook Air if you have a problem	Chapter 3, “Problem, Meet Solution,” on page 39.
Finding service and support for your MacBook Air	“Learning More, Service, and Support” on page 52. Or go to the Apple Support website at www.apple.com/support/macbookair.
Using Mac OS X	The Mac OS X website at www.apple.com/macosx. Or search for “Mac OS X” in Mac Help.
Moving from a PC to a Mac	“How to move to Mac” at www.apple.com/getamac/movetomac.
Using iLife applications	The iLife website at www.apple.com/ilife. Or open an iLife application, open Help for the application, and then type a question in the search field.
Changing System Preferences	System Preferences by choosing Apple (✗) > System Preferences. Or search for “system preferences” in Mac Help.
Using your trackpad	Mac Help and search for “trackpad.” Or open System Preferences, and then click Trackpad.
Using the iSight camera	Mac Help and search for “iSight.”
Using AirPort Extreme wireless technology	The AirPort Support page at www.apple.com/support/airport. Or open Mac Help and search for “AirPort.”
Using Bluetooth wireless technology	The Bluetooth Support page at www.apple.com/support/bluetooth. Or open the Bluetooth File Exchange application, located in the Utilities folder within the Applications folder, and choose Help > Bluetooth Help.
Connecting a printer	Mac Help and search for “printing.”
USB connections	Mac Help and search for “USB.”
Connecting to the Internet	Mac Help and search for “Internet.”
Connecting an external display	Mac Help and search for “DisplayPort.”
Apple Remote (sold separately at www.apple.com/store)	Mac Help and search for “remote.”
Front Row	Mac Help and search for “Front Row.”
Specifications	The Specifications page at www.apple.com/support/specs. Or open System Profiler by choosing Apple (✗) > About This Mac from the menu bar, and then click More Info.
Apple news, free downloads, and online catalogs of software and hardware	The Apple website at www.apple.com.
Instructions, technical support, and manuals for Apple products	The Apple Support website at www.apple.com/support.

3

Problem, Meet Solution

Occasionally you may have a problem while working with your MacBook Air. Read on to find some solutions to try when you have a problem. You can also find more troubleshooting information in Mac Help and on the MacBook Air Support website at www.apple.com/support/macbookair.

If you experience a problem with your MacBook Air, there's usually a simple and quick solution. Think about the conditions that led up to the problem. Making a note of things you did before the problem occurred will help you narrow down possible causes and find the answers you need. Things to note include:

• The applications you were using when the problem occurred. Problems that occur only with a specific application might indicate that the application is not compatible with the version of the Mac OS installed on your computer.
• Any new software that you installed, especially software that added items to the System folder.

Problems That Prevent You from Using Your MacBook Air

If your MacBook Air doesn't respond or the pointer doesn't move

On rare occasions, an application might "freeze" on the screen. Mac OS X provides a way to quit a frozen application without restarting your computer.

To force an application to quit:

1 Press Command (⌘)-Option-Esc or choose Apple (✗) > Force Quit from the menu bar. The Force Quit Applications dialog appears with the application selected.

2 Click Force Quit.

The application quits, leaving all other applications open.

If you need to, you can also relaunch the Finder from this dialog.

Next, save your work in any open applications and restart the computer to make sure the problem is entirely cleared up.

If the problem occurs frequently, choose Help > Mac Help from the menu bar at the top of the screen. Search for the word "freeze" to get help for instances when the computer freezes or doesn't respond.

If the problem occurs only when you use a particular application, check with the application's manufacturer to see if it is compatible with your computer. To get support and contact information for the software that came with your MacBook Air, go to www.apple.com/guide.

If you know an application is compatible, you might need to reinstall your computer's system software. See "Reinstalling the Software That Came with Your MacBook Air" on page 46.

If your MacBook Air freezes during startup, or you see a flashing question mark, or the display is dark and the sleep indicator light is glowing steadily (not in sleep) The flashing question mark usually means that the computer can't find the system software on the hard disk or on any disks attached to the computer.

- Wait a minute or two. If the computer still doesn't start up, shut it down by pressing and holding the power (⏻) button for about 8 to 10 seconds. Disconnect all external peripherals and try restarting by pressing the power (⏻) button while holding down the Option key. When your computer starts up, click the hard disk icon, and then click the right arrow. After the computer starts up, open System Preferences and click Startup Disk. Select a local Mac OS X System folder.

- If that doesn't work, try using Disk Utility to repair the disk. For more information, see "Using Disk Utility" on page 48.

If your MacBook Air doesn't turn on or start up

Try the following suggestions in order until your computer turns on:

• Make sure the power adapter is plugged into the computer and into a functioning power outlet. Be sure to use the 45W MagSafe Power Adapter that came with your MacBook Air. If the power adapter stops charging and you don't see the indicator light on the power adapter turn on when you plug in the power cord, try unplugging and replugging the power cord to reseat it.
• Check whether the battery needs to be recharged. If the light on the power adapter glows amber, the battery is charging. See "Running Your MacBook Air on Battery Power" on page 35.
• If the problem persists, return the computer to its factory settings (while still preserving your files) by pressing the left Shift key, left Option (alt) key, left Control key, and the power (⏻) button simultaneously for five seconds until the computer restarts.
• If the problem still persists, press and release the power (⏻) button and immediately hold down the Command (⌘), Option, P, and R keys simultaneously until you hear the startup sound a second time. This resets the parameter RAM (PRAM).
• If you still can't start up your MacBook Air, see "Learning More, Service, and Support" on page 52 for information about contacting Apple for service.

If the screen suddenly goes black or your MacBook Air freezes

Try restarting your MacBook Air.

1 Unplug any devices that are connected to your MacBook Air, except the power adapter.
2 Press the power (⏻) button to restart the system.
3 Let the battery charge to at least 10 percent before plugging in any external devices and resuming your work.

To see how much the battery has charged, look at the Battery (◀) status icon in the menu bar.

The screen might also darken if you have energy saver features set for the battery.

If your MacBook Air can't connect to another computer's optical disc drive

To use services such as Migration Assistant, DVD or CD Sharing, Remote Install Mac OS X, and iTunes music sharing, both your MacBook Air and the other computer must be connected to the same network. If your MacBook Air is connected wirelessly and the other computer is connected to a third-party router by Ethernet, check your router documentation to make sure it supports bridging a wireless to wired connection.

Using Apple Hardware Test

If you suspect a problem with the MacBook Air hardware, you can use the Apple Hardware Test application to help determine if there's a problem with one of the computer's components, such as the memory or processor.

To use Apple Hardware Test on your MacBook Air:

1 Disconnect all external devices from your computer except the power adapter.
2 Restart your MacBook Air while holding down the D key.
3 When the Apple Hardware Test chooser screen appears, select the language you want to use.
4 Press the Return key or click the right arrow button.
5 When the Apple Hardware Test main screen appears (after about 45 seconds), follow the onscreen instructions.
6 If Apple Hardware Test detects a problem, it displays an error code. Make a note of the error code before pursuing support options. If Apple Hardware Test doesn't detect a hardware failure, the problem may be software related.

If this procedure doesn't work, you can open Apple Hardware Test using Remote Install OS X and the Applications Install DVD. For more information about Apple Hardware Test, see the Apple Hardware Test Read Me file on the Applications Install DVD that came with your computer.

Reinstalling Software Using Remote Install Mac OS X

Use Remote Install Mac OS X on the partner computer whose optical disc drive you want to share (installation instructions for this and other components of the DVD or CD Sharing Setup software are on page 15) when you want to do one of the following tasks on your MacBook Air:

• Reinstall Mac OS X and other software that came with your MacBook Air
• Reset your password

- Use Disk Utility to repair the MacBook Air hard disk

Note: You can also do these tasks using a MacBook Air SuperDrive (available separately at www.apple.com/store). See page 49.

To use Remote Install Mac OS X:

1 Insert the Mac OS X Install DVD into the optical disc drive of the other computer.
2 If the other computer is a Mac, open /Applications/Utilities/Remote Install Mac OS X. (Unless the other Mac already has Mac OS X v10.5.5, you might need to install this application.) On Windows, choose "Remote Install Mac OS X" from the Install Assistant.

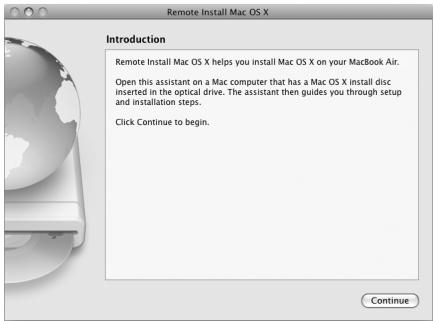

Remote Install Mac OS X Introduction Remote Install Mac OS X helps you install Mac OS X on your MacBook Air. Open this assistant on a Mac computer that has a Mac OS X install disc inserted in the optical drive. The assistant then guides you through setup and installation steps. Click Continue to begin. Continue

3 Read the introduction and click Continue.
4 Select the installation disc you want to use, and click Continue.
5 Select a network connection: AirPort, if you are using an AirPort network, or Ethernet, if the other computer is on an Ethernet network and you have an optional Apple USB Ethernet Adapter connecting your MacBook Air to the same network. Click Continue.

6 Restart your MacBook Air and hold down the Option key as it starts up, until you see a list of available startup disks.
7 Click Continue in Remote Install Mac OS X.
8 If you chose AirPort as your network in step 5, on your MacBook Air choose your AirPort network from the pop-up list.

If the network is secure, you are prompted for a password. You can enter a private network name by choosing the ellipsis (...) and typing the name.

9 If you chose AirPort as your network in step 5, when you see the AirPort status icon indicating signal strength, click Continue in Remote Install Mac OS X.
10 On your MacBook Air, click the arrow button beneath the installer icon and then do one of the following:

• If you want to reinstall Mac OS X, go to "Reinstalling the Software That Came with Your MacBook Air" on page 46.
• If you forgot your password and need to reset it, go to "Resetting Your Password" on page 48.
• If you want to run Disk Utility, go to "Using Disk Utility" on page 48.

Reinstalling the Software That Came with Your MacBook Air

You can use the software installation discs that came with your computer to reinstall Mac OS X and any applications that came with your computer. Use the Mac OS X Install DVD to reinstall Mac OS X. You can choose "Archive and Install," which saves your existing files and settings, or "Erase and Install," which erases all your data.

Important: If you want to reinstall the bundled applications, use DVD or CD Sharing with the Applications Install DVD. See "Setting Up DVD or CD Sharing" on page 15.

Before you install Mac OS X:

1 Back up your essential files.

Apple recommends that you back up the information on your hard disk before restoring software. You can do this by connecting the MacBook Air SuperDrive and burning important information to DVDs or CDs, or by attaching an external hard drive to the USB port on your MacBook Air. Apple is not responsible for any lost data.

2 Make sure your power adapter is connected and plugged in.

To install Mac OS X using a partner computer:

1 Follow the procedure for using Remote Install Mac OS X beginning on page 45.
2 Click Continue in Remote Install Mac OS X.

Status messages appear on the other computer's screen during installation.

3 Click Customize to select what to install, or click Install to perform a basic installation.
4 Follow the onscreen instructions, selecting your MacBook Air as the destination volume for installation.

Note: To restore Mac OS X on your computer to the original factory settings, click Options in the "Select a Destination" pane of the Installer, and then select "Erase and Install." This option erases your MacBook Air hard disk, so be sure you've backed up important information. If you choose this option, you'll need to use DVD or CD Sharing and the Applications Install DVD to reinstall the bundled applications.

5 Click OK in Remote Install Mac OS X, and, when installation is done, click Quit to exit Remote Install Mac OS X.

Resetting Your Password

You can reset your administrator password and passwords for all other accounts.

To reset your password, using a partner computer and Remote Install Mac OS X:

1 Follow the procedure for using Remote Install Mac OS X beginning on page 45.
2 Click Continue in Remote Install Mac OS X.
3 On your MacBook Air, choose Utilities > Reset Password from the menu bar and follow the onscreen instructions. When you finish, quit Mac OS X Installer.
4 On the other computer, click Quit to exit Remote Install Mac OS X.

Using Disk Utility

When you need to repair, verify, or erase your MacBook Air hard disk, use Disk Utility by sharing the optical disc drive of another computer.

To use Disk Utility from a partner computer:

1 Follow the procedure for using Remote Install Mac OS X beginning on page 45.
2 Click Continue in Remote Install Mac OS X.
3 On your MacBook Air, choose Installer > Open Disk Utility and then follow the instructions in the First Aid pane to see if Disk Utility can repair the disk. When you finish, quit Mac OS X Installer on your MacBook Air.
4 On the other computer, click Quit to exit Remote Install Mac OS X.

If using Disk Utility doesn't help, try reinstalling your computer's system software. See "Reinstalling the Software That Came with Your MacBook Air" on page 46.

Reinstalling Software Using the MacBook Air SuperDrive

To install Mac OS X and the applications that came with your MacBook Air, using a MacBook Air SuperDrive:

1 Connect the MacBook Air SuperDrive to your MacBook Air and insert the Mac OS X Install DVD to install Mac OS X or the Applications Install DVD to install the bundled applications.
2 To install Mac OS X, double-click Install Mac OS X. To install applications, double-click Install Bundled Software.
3 Follow the onscreen instructions, selecting your MacBook Air as the destination volume for installation.

Note: To restore Mac OS X on your computer to the original factory settings, click Options in the "Select a Destination" pane of the Installer, and then select "Erase and Install."

To reset your password, using a MacBook Air SuperDrive:

1 Connect the MacBook Air SuperDrive to your MacBook Air and insert the Mac OS X Install DVD.
2 Restart your MacBook Air and hold down the C key as it starts up.
3 Choose Utilities > Reset Password from the menu bar. Follow the onscreen instructions.

To use Disk Utility from a MacBook Air SuperDrive:

1 Connect the MacBook Air SuperDrive to your MacBook Air and insert the Mac OS X Install DVD.
2 Restart your MacBook Air and hold down the C key as it starts up.

3 Choose Installer > Open Disk Utility. When Disk Utility opens, follow the instructions in the First Aid pane.

Problems with AirPort Extreme Wireless Communication

If you have trouble using AirPort Extreme wireless communication:

• Make sure the computer or network you are trying to connect to is running and has a wireless access point.
• Make sure you have properly configured the software according to the instructions that came with your base station or access point.
• Make sure you are within range of the other computer or the network. Nearby electronic devices or metal structures can interfere with wireless communication and reduce this range. Repositioning or rotating the computer might improve reception.
• Check the AirPort (💡) status icon in the menu bar. Up to four bars appear, indicating signal strength. If signal strength is low, try changing your location.
• See AirPort Help (choose Help > Mac Help, and then choose Library > AirPort Help from the menu bar). Also see the instructions that came with the wireless device for more information.

Problems with Your Internet Connection

Your MacBook Air has a Network Setup Assistant application to help you set up an Internet connection. Open System Preferences and click Network. Click the "Assist me" button to open Network Setup Assistant.

If you have trouble with your Internet connection, try using Network Diagnostics.

To use Network Diagnostics:

1 Choose Apple ( Apple ) > System Preferences.
2 Click Network and then click "Assist me."
3 Click Diagnostics to open Network Diagnostics.
4 Follow the onscreen instructions.

If Network Diagnostics can't resolve the problem, there may be a problem with the Internet service provider (ISP) you are trying to connect to, with an external device you are using to connect to your ISP, or with the server you are trying to access.

If you have two or more computers sharing an Internet connection, be sure that your wireless network is set up properly. You need to know if your ISP provides only one IP address or if it provides multiple IP addresses, one for each computer.

If only one IP address is provided, then you must have a router capable of sharing the connection, also known as network address translation (NAT) or "IP masquerading." For setup information, check the documentation provided with your router or ask the person who set up your network. You can use an AirPort Base Station to share one IP address among multiple computers. For information about using an AirPort Base Station, check Mac Help or visit the Apple AirPort website at www.apple.com/support/airport.

If you cannot resolve the issue using these steps, contact your ISP or network administrator.

Keeping Your Software Up to Date

You can connect to the Internet and automatically download and install the latest free software versions, drivers, and other enhancements from Apple.

When you are connected to the Internet, Software Update checks Apple's Internet servers to see if any updates are available for your computer. You can set your MacBook Air to check the Apple servers periodically, and download and install updated software.

To check for updated software:

1 Open System Preferences.
2 Click the Software Update icon and follow the instructions on the screen.

• For more information, search for "Software Update" in Mac Help.
• For the latest information about Mac OS X, go to www.apple.com/macosx.

Learning More, Service, and Support

Your MacBook Air does not have any user-serviceable or user-replaceable parts. If you need service, contact Apple or take your MacBook Air to an Apple Authorized Service Provider. You can find more information about the MacBook Air through online resources, onscreen help, System Profiler, or Apple Hardware Test.

Online Resources

For online service and support information, go to www.apple.com/support. Choose your country from the pop-up menu. You can search the AppleCare Knowledge Base, check for software updates, or get help on Apple's discussion forums.

Onscreen Help

You can often find answers to your questions, as well as instructions and troubleshooting information, in Mac Help. Choose Help > Mac Help.

System Profiler

To get information about your MacBook Air, use System Profiler. It shows you what hardware and software is installed, the serial number and operating system version, how much memory is installed, and more. To open System Profiler, choose Apple (✗) > About This Mac from the menu bar and then click More Info.

AppleCare Service and Support

Your MacBook Air comes with 90 days of technical support and one year of hardware repair warranty coverage at an Apple Store retail location or an Apple-authorized repair center, such as an Apple Authorized Service Provider. You can extend your coverage by purchasing the AppleCare Protection Plan. For information, visit www.apple.com/support/products or visit the website address for your country listed below.

If you need assistance, AppleCare telephone support representatives can help you with installing and opening applications, and basic troubleshooting. Call the support center number nearest you (the first 90 days are complimentary). Have the purchase date and your MacBook Air serial number ready when you call.

Your 90 days of complimentary telephone support begins on the date of purchase and telephone fees may apply.

Country	Phone	Website
United States	1-800-275-2273	www.apple.com/support
Australia	(61) 1-300-321-456	www.apple.com/au/support
Canada (English)(French)	1-800-263-3394	www.apple.com/ca/supportwww.apple.com/ca/fr/support
Ireland	(353) 1850 946 191	www.apple.com/ie/support
New Zealand	00800-7666-7666	www.apple.com/nz/support
United Kingdom	(44) 0870 876 0753	www.apple.com/uk/support

Telephone numbers are subject to change, and local and national telephone rates may apply. A complete list is available on the web:

www.apple.com/contact/phone_contacts.html

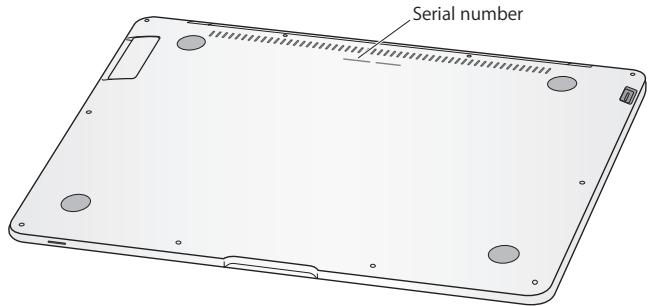

Locating Your Product Serial Number

Use one of these methods to find your computer's serial number:

- Turn your MacBook Air over. The serial number is etched into the case, near the hinge.

Serial number

• Choose Apple (✗) > About This Mac, and then click the version number beneath the words "Mac OS X" to cycle through the Mac OS X version number, the build version, and the serial number.
• Open System Profiler (in /Applications/Utilities/) and click Hardware.

4

Last, but Not Least

For your safety and that of your equipment, follow these rules for handling and cleaning your MacBook Air and for working more comfortably. Keep these instructions handy for reference by you and others.

Important Safety Information

WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage.

Proper handling Set up your MacBook Air on a stable work surface that allows for adequate air circulation under and around the computer. Do not operate your MacBook Air on a pillow or other soft material, as the material can block the airflow vents. Never place anything over the keyboard when operating your computer. Never push objects into the ventilation openings.

The bottom of your MacBook Air may become very warm during normal use. If your MacBook Air is on your lap and gets uncomfortably warm, remove it from your lap and place it on a stable work surface.

Water and wet locations Keep your computer away from sources of liquid, such as drinks, washbasins, bathtubs, shower stalls, and so on. Protect your computer from dampness or wet weather, such as rain, snow, and fog.

45W MagSafe Power Adapter Make sure the AC plug or AC power cord is fully inserted into the power adapter and the electrical prongs on your AC plug are in their completely extended position before plugging the adapter into a power outlet. Use only the power adapter that came with your MacBook Air, or an Apple-authorized power adapter that is compatible with this product. The AC power cord provides a grounded connection. The power adapter may become very warm during normal use. Always put the power adapter directly into a power outlet, or place it on the floor in a well-ventilated location.

Disconnect the power adapter and disconnect any other cables if any of the following conditions exists:

• You want to clean the case (use only the recommended procedure described on page 61).
• The power cord or plug becomes frayed or otherwise damaged.
• Your MacBook Air or power adapter is exposed to rain, excessive moisture, or liquid spilled into the case.
• Your MacBook Air or power adapter has been dropped, the case has been damaged, or you suspect that service or repair is required.

The MagSafe power port contains a magnet that can erase data on a credit card, iPod, or other device. To preserve your data, do not place these and other magnetically sensitive material or devices within 1 inch (25 mm) of this port.

If debris gets into the MagSafe power port, remove it gently with a dry cotton swab.

Battery Discontinue use of your battery if your MacBook Air is dropped or if your battery appears crushed, bent, deformed, or damaged. Do not expose the battery to temperatures above 212^ F or 100^ C. Do not remove the battery from your MacBook Air. The battery should be replaced only by an Apple Authorized Service Provider.

Hearing damage Permanent hearing loss may occur if earbuds or headphones are used at high volume. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use earbuds or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

High-risk activities This computer system is not intended for use in the operation of nuclear facilities, aircraft navigation or communications systems, air traffic control systems, or for any other uses where a failure of the computer system could lead to death, personal injury, or severe environmental damage.

Important Handling Information

NOTICE: Failure to follow these handling instructions could result in damage to your MacBook Air or other property.

Carrying your MacBook Air If you carry your MacBook Air in a bag or briefcase, make sure that there are no loose items (such as paper clips or coins) that could accidentally get inside the computer through vent openings or get stuck inside a port. Also, keep magnetically sensitive items away from the MagSafe power port.

Using connectors and ports Never force a connector into a port. When connecting a device, make sure the port is free of debris, that the connector matches the port, and that you have positioned the connector correctly in relation to the port.

Storing your MacBook Air If you are going to store your MacBook Air for an extended period of time, keep it in a cool location (ideally, 71°F or 22°C) and discharge the battery to 50 percent. When storing your computer for longer than five months, discharge the battery to approximately 50 percent. To maintain the capacity of the battery, recharge the battery to 50 percent every six months or so.

Cleaning your MacBook Air When cleaning the outside of your computer and its components, first shut down your MacBook Air, and then unplug the power adapter. Then use a damp, soft, lint-free cloth to clean the computer's exterior. Avoid getting moisture in any openings. Do not spray liquid directly on the computer. Do not use aerosol sprays, solvents, or abrasives that might damage the finish.

Cleaning your MacBook Air screen To clean your MacBook Air screen, first shut down your MacBook Air and unplug the power adapter. Then use the cleaning cloth that came with your MacBook Air to wipe the screen. Dampen the cloth with water if necessary. Do not spray liquid directly on the screen.

Understanding Ergonomics

Here are some tips for setting up a healthy work environment.

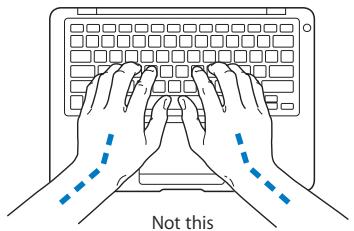

Keyboard and Trackpad

When you use the keyboard and trackpad, your shoulders should be relaxed. Your upper arm and forearm should form an angle that is slightly greater than a right angle, with your wrist and hand in roughly a straight line.

This

Not this

Use a light touch when typing or using the trackpad and keep your hands and fingers relaxed. Avoid rolling your thumbs under your palms.

This

Not this

Change hand positions often to avoid fatigue. Some computer users might develop discomfort in their hands, wrists, or arms after intensive work without breaks. If you begin to develop chronic pain or discomfort in your hands, wrists, or arms, consult a qualified health specialist.

External Mouse

If you use an external mouse, position the mouse at the same height as the keyboard and within a comfortable reach.

Chair

An adjustable chair that provides firm, comfortable support is best. Adjust the height of the chair so your thighs are horizontal and your feet are flat on the floor. The back of the chair should support your lower back (lumbar region). Follow the manufacturer's instructions for adjusting the backrest to fit your body properly.

You might have to raise your chair so that your forearms and hands are at the proper angle to the keyboard. If this makes it impossible to rest your feet flat on the floor, you can use a footrest with adjustable height and tilt to make up for any gap between the floor and your feet. Or you can lower the desktop to eliminate the need for a footrest. Another option is to use a desk with a keyboard tray that's lower than the regular work surface.

Built-In Display

Adjust the angle of the display to minimize glare and reflections from overhead lights and windows. Do not force the display if you meet resistance. The display is not designed to open past 125 degrees.

You can adjust the brightness of the screen when you take the computer from one work location to another, or if the lighting in your work area changes.

More information about ergonomics is available on the web:

www.apple.com/about/ergonomics

Apple and the Environment

Apple Inc. recognizes its responsibility to minimize the environmental impacts of its operations and products.

More information is available on the web:

www.apple.com/environment

Regulatory Compliance Information

FCC Compliance Statement

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See instructions if interference to radio or television reception is suspected.

Radio and Television Interference

This computer equipment generates, uses, and can radiate radio-frequency energy. If it is not installed and used properly—that is, in strict accordance with Apple's instructions—it may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

You can determine whether your computer system is causing interference by turning it off. If the interference stops, it was probably caused by the computer or one of the peripheral devices. If your computer system does cause interference to radio or television reception, try to correct the interference by using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.
• Move the computer to one side or the other of the television or radio.
• Move the computer farther away from the television or radio.
• Plug the computer in to an outlet that is on a different circuit from the television or radio. (That is, make certain the computer and the television or radio are on circuits controlled by different circuit breakers or fuses.)

If necessary, consult an Apple Authorized Service Provider or Apple. See the service and support information that came with your Apple product. Or consult an experienced radio/television technician for additional suggestions.

Important: Changes or modifications to this product not authorized by Apple Inc. could void the EMC compliance and negate your authority to operate the product.

This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables (including Ethernet network cables) between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, television sets, and other electronic devices.

Responsible party (contact for FCC matters only):

Apple Inc. Corporate Compliance

1 Infinite Loop M/S 26-A

Cupertino, CA 95014-2084

Wireless Radio Use

This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz frequency band.

Exposure to Radio Frequency Energy

The radiated output power of the AirPort Extreme technology is below the FCC radio frequency exposure limits. Nevertheless, it is advised to use the wireless equipment in such a manner that the potential for human contact during normal operation is minimized.

FCC Bluetooth Wireless Compliance

The antenna used with this transmitter must not be colocated or operated in conjunction with any other antenna or transmitter subject to the conditions of the FCC Grant.

Bluetooth Industry Canada Statement

This Class B device meets all requirements of the Canadian interference-causing equipment regulations.

Industry Canada Statement

Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada.

Europe—EU Declaration of Conformity

See: www.apple.com/euro/compliance

Korea Warning Statements

Singapore Wireless Certification

Complies with IDA Standards DB00063

Taiwan Wireless Statements

無線設備的警告聲明

Taiwan Class B Statement

Class B 設備的警告聲明

NIL

Russia

ME67

VCCI Class B Statement

情報処理装置等電波障害自主規制について

When connecting your MacBook Air to the phone line using an external USB modem, refer to the telecommunications agency information in the documentation that came with your modem.

ENERGY STAR® Compliance

energy ENERGY STAR

As an ENERGY STAR® partner, Apple has determined that standard configurations of this product meet the ENERGY STAR® guidelines for energy efficiency. The ENERGY STAR® program is a partnership with electronic equipment manufacturers to promote energy-efficient products. Reducing energy consumption of products saves money and helps conserve valuable resources.

This computer is shipped with power management enabled with the computer set to sleep after 10 minutes of user inactivity. To wake your computer, click the mouse or trackpad button or press any key on the keyboard.

For more information about ENERGY STAR ^® , visit: www.energystar.gov

中国

有毒或有害物质	零部件
	电路板	显示屏	电池组	附件	电源适配器
铅 (Pb)	X	X	X	X	X
汞 (Hg)	O	O	O	O	O
镉 (Cd)	O	O	O	O	O
六价铬 (Cr, VI)	O	O	O	O	O
多溴联苯 (PBB)	O	O	O	O	O
多溴二苯醚 (PBDE)	O	O	O	O	O

Disposal and Recycling Information

This symbol indicates that your product must be disposed of properly according to local laws and regulations. When your product reaches its end of life, contact Apple or your local authorities to learn about recycling options.

For information about Apple's recycling program, go to www.apple.com/environment/recycling.

Battery Disposal Information

Dispose of batteries according to your local environmental laws and guidelines.

European Union—Disposal Information:

The symbol above means that according to local laws and regulations your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Some collection points accept products for free. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

Looking for Something?

Index

A

AC plug 10, 11

AC power adapter. See power adapter

AC power cord 11

adjusting your display 29

AirPort Extreme troubleshooting 50

ambient light sensor 27

AppleCare 53

Apple Hardware Test, using 43

Apple Remote 27, 38

application freeze 40

applications

Front Row 27,38

iChat 27

iLife 37

Keynote 27

B

battery

charging 35

location 27

performance 35

storing 61

blinking question mark 41

brightness keys 29

built-in speaker 27

button, power 12, 27

C

camera. See iSight video camera

carrying your computer 61

changing

the desktop 14

password 48, 49

System Preferences 14

charging the battery 35

cleaning

the display 62

your computer 61

cleaning cloth 62

computer

disposal 68

freezes 41

putting to sleep 22

shutting down 23

turning on 12

won't turn on 42

connection problems with another computer 43

Control-click 33

cord, AC power 11

D

Dashboard 29

desktop, customizing 14

discs

software installation 46

Disk Utility 48, 49

display

adjusting settings 29

cleaning 62

external 31

goes black 43

disposing of your computer 68

Dock 36

downloading software 52

DVD or CD Sharing 19, 20

DVD or CD Sharing Setup software, installing 16

E

environmental impact 64

erasing a disk 48

ergonomics 62

Exposé key 29

external display port 31

F

F1 to F12 function keys 29

Fast-forward key 29
flashing question mark 41
Force Quit 40
forward delete 32
four-finger swiping 35
Front Row application 27, 38
frozen application 40
Function (fn) key 29

H

hand positions 62

headphone jack 31

Help, finding answers 36

|

iChat application 27

iLife applications 37

illuminated keyboard 27

infrared receiver (IR) 27

installation discs 9

installing DVD or CD Sharing Setup 16

iSight video camera 27

K

keyboard

ALS sensor 27

ergonomics 62

features 28

shortcuts 33

See also keys

keyboard illumination keys 29

Keynote application 27
keys
brightness 29
Dashboard 29
Exposé 29
function 29
keyboard illumination 29
media 29
Media Eject 29
Mute 29
volume control 29

L

lights, sleep indicator 27

M

Mac Help 36

Mac OS X installation discs 9

Mac OS X website 37

MagSafe power adapter. See power adapter

MagSafe power port 31

Media Eject key 29

media keys 29

microphone 27

migrating information 16

Migration Assistant 16

Mini DisplayPort 31

mouse 31,63

See also trackpad

Mute key 29

N

Network Diagnostics 50

Network Setup Assistant 50

0

online resources 52

optical discs for system software 9, 69

optical disc sharing. See DVD or CD Sharing

P

paging through documents using trackpad 34, 35

partner computer

connection problems 43

Disk Utility 48

DVD or CD Sharing Setup software 16

installing Mac OS X 44

resetting your password 48

password, resetting 48, 49

pinching to zoom 33

Play/Pause key 29

plug, AC 10, 11

port hatch 31

ports

hatch 31

headphone 31

MagSafe power 31

Mini DisplayPort 31

USB 2.0 31

power adapter

plugging in 59

port 31

using 10

power button 12, 27

problems

computer freezes 41

computer won't turn on 42

connecting to partner computer 43

display goes black 43

pointer won't move 40

trouble using AirPort 50

putting your computer to sleep 22

Q

question mark, flashing 41

R

rechargeable battery 35

Remote Disc 9, 19, 21

Remote Install Mac OS X

Disk Utility 48

installing Mac OS X 44

resetting your password 48

repairing a disk 48

resetting your password 48, 49

Rewind key 29

right click 33

rotating objects using

trackpad 34

S

safety

general safety instructions 58

important information 8

power adapter 59

screen. See display

scrolling trackpad feature 27

scrolling with two fingers 32

secondary click 33

serial number, locating 55

service and support 53

Setup Assistant 13

shared optical disc 19, 20

sharing files 19, 20

shutting down 23

sleep mode

indicator light 27

putting computer to sleep 22

software

installation discs 46

software, updating 52

Software Update preferences 52

speaker 27

specifications 38

stopping

an application 40

the computer 23

storing your computer 61

support 53

swiping to move quickly through documents 34, 35

System Preferences

customizing the desktop 14

Energy Saver 22

Software Update 52

System Profiler 53

T

three-finger swiping 34, 35

trackpad

location 27

paging 34

scrolling 27

shortcuts 33

swiping 34

zooming 27

troubleshooting

AirPort 50

AppleCare 53

computer freezes 41

computer won't turn on 42

display goes black 43

hardware problems 43

partner computer 43

pointer won't move 40

service and support 52

using Mac Help 53

See also problems

turning on your computer 12

two-finger pinching 33

two-finger rotating 34

typing position 62

U

updating software 52

USB

connections 38

ports 31

V

verifying a disk 48

video

camera indicator light 27

Mini DisplayPort 31

volume control keys 29

W

waking your computer 22

Z

zooming using the

trackpad 27,33

Apple Inc.

© 2008 Apple Inc. All rights reserved.

Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Apple.

Every effort has been made to ensure that the information in this manual is accurate. Apple is not responsible for printing or clerical errors.

Apple

1 Infinite Loop

Cupertino, CA 95014-2084

408-996-1010

www.apple.com

Apple, the Apple logo, AirPort, AirPort Extreme, Cover Flow, Exposé, GarageBand, iCal, iChat, iLife, iMovie, iPhoto, iPod, iSight, iTunes, Keynote, Mac, MacBook, Macintosh, Mac OS, MagSafe, Photo Booth, and SuperDrive are trademarks of Apple Inc., registered in the U.S. and other countries.

Finder, iWeb, MacBook Air, Multi-Touch, Spotlight, and Time Machine are trademarks of Apple Inc.

AppleCare, Apple Store, and iTunes Store are service marks of Apple Inc., registered in the U.S. and other countries.

ENERGY STAR ^® is a U.S. registered trademark.

Intel, Intel Core, and Xeon are trademarks of Intel Corp. in the U.S. and other countries.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Apple Inc. is under license.

Other company and product names mentioned herein are trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Apple assumes no responsibility with regard to the performance or use of these products.

Manufactured under license from Dolby Laboratories. "Dolby," "Pro Logic," and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works, © 1992–1997 Dolby Laboratories, Inc. All rights reserved.

The product described in this manual incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098 and 4,907,093 licensed for limited viewing uses only.

Simultaneously published in the United States and Canada.
