USER MANUAL TWSL6E201 AEG-ELECTROLUX

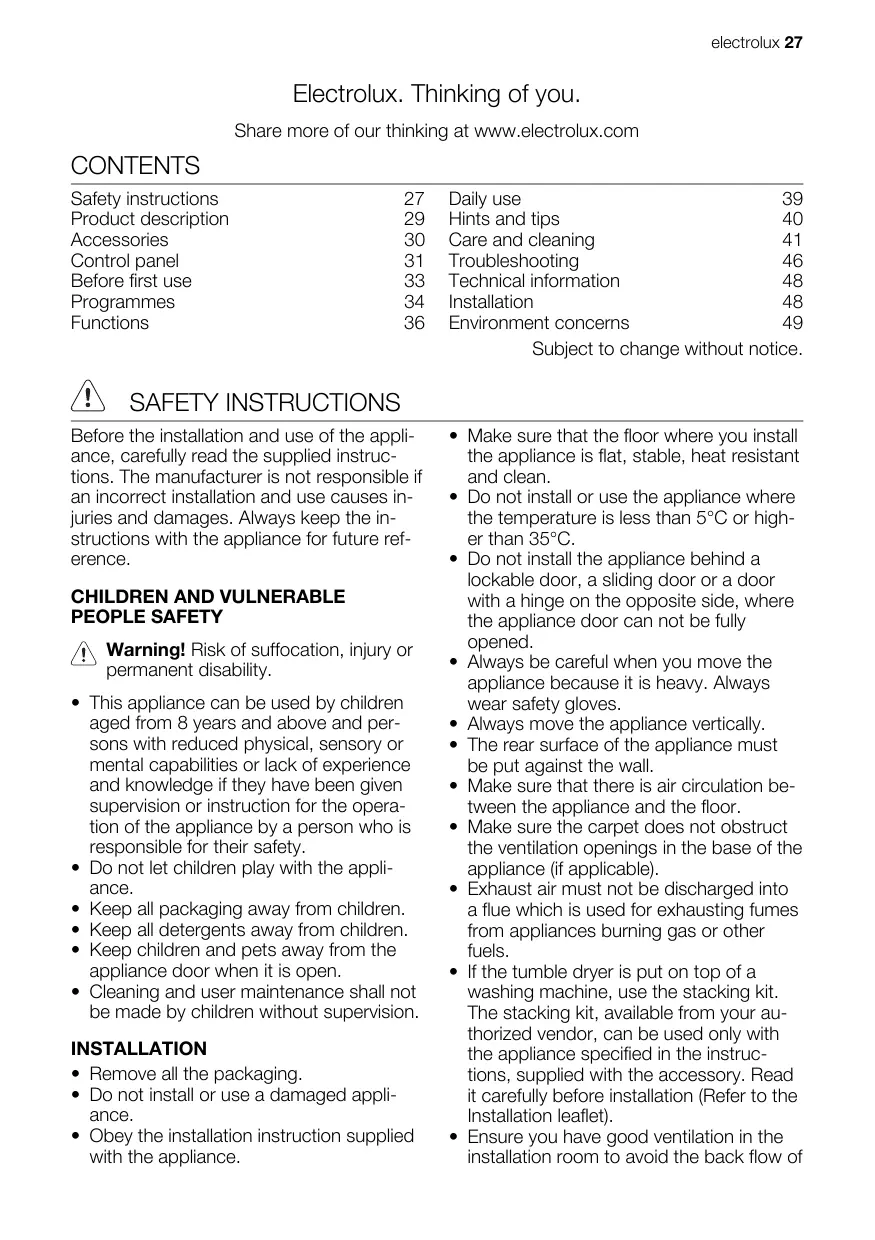

electrolux 27 Electrolux. Thinking of you. Share more of our thinking at www.electrolux.com CONTENTS Safety instructions 27 Daily use 39 Product description 29 Hints and tips 40 Accessories 30 Care and cleaning 41 Control panel 31 Troubleshooting 46 Before first use 33 Technical information 48 Programmes 34 Installation 48 Functions 36 Environment concerns 49

AN SAFETY INSTRUCTIONS

Subject to change without notice. Before the installation and use of the appli- ance, carefully read the supplied instruc- tions. The manufacturer is not responsible if an incorrect installation and use causes in- juries and damages. Always keep the in- structions with the appliance for future ref- erence.

CHILDREN AND VULNERABLE

PEOPLE SAFETY À Warning! Risk of suffocation, injury or permanent disability. + This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction for the opera- tion of the appliance by a person who is responsible for their safety. Do not let children play with the appli- ance. Keep all packaging away from children. Keep all detergents away from children. Keep children and pets away from the appliance door when it is open. Cleaning and user maintenance shall not be made by children without supervision. INSTALLATION + Remove all the packaging. + Do not install or use a damaged appli- ance. + Obey the installation instruction supplied with the appliance. Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean. Do not install or use the appliance where the temperature is less than 5°C or high- er than 35°C. Do not install the appliance behind a lockable door, a sliding door or a door With a hinge on the opposite side, where the appliance door can not be fully opened. Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Always move the appliance vertically. The rear surface of the appliance must be put against the wall. Make sure that there is air circulation be- tween the appliance and the floor. Make sure the carpet does not obstruct the ventilation openings in the base of the appliance (if applicable). Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your au- thorized vendor, can be used only with the appliance specified in the instruc- tions, supplied with the accessory. Read it carefully before installation (Refer to the Installation leaflet). + Ensure you have good ventilation in the installation room to avoid the back flow of

28 electrolux gases into the room from appliances burning other fuels, including open fires. + The appliance can be installed as free- standing or below the kitchen counter with correct space (Refer to the Installa- tion leaflet). When the appliance is put in its perma- nent position, check if it is fully level with the aid of a spirit level. If it is not, adjust the feet until it is. Electrical connection À Warning! Risk of fire and electrical shock. + The appliance must be earthed. + Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. + Always use a correctly installed shock- proof socket. Do not use multi-plug adapters and ex- tension cables. Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre. Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. Do not touch the mains cable or the mains plug with wet hands. This appliance complies with the E.E.C. Directives. USE Warning! Risk of fire, explosion, electric shock or damage to the appliance + Use this appliance in a household only. + Do not change the specification of this appliance. + The final part of the drying cycle occurs without heat (cool down cycle) to ensure that the items will not be damaged. If you stop the appliance before the end ofthe drying cycle, immediately remove and spread out all items, so that the heat can dissipate. If you use fabric softener or similar prod- ucts, obey the instructions on the pack- aging. Do not run the appliance without a filter. Clean the lint filter before or after each use. Wipe away lint that has accumulated around the appliance. Do not dry the damaged items which contain padding or fillings. Do not dry items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads.. Before drying items that have been in contact with substances such as cooking oil, acetone, alcohol , petrol, kerosene, spot removers, turpentine, waxes and wax removers, wash them in hot water with an extra amount of detergent. Do not dry items in the appliance if indus- trial chemicals have been used for clean- ing. Make sure that no gas lighters or match- es have been left in the pockets of the clothing. Only dry fabrics which are applicable to dry in the tumble dryer. Follow the in- structions on the fabric label. Do not dry not washed items in the appli- ance. If you have washed your laundry with a stain remover start an extra rinse cycle before you start the dryer. Do not drink or prepare food with the condensed water. It can cause health problems to people and pets. Do not sit or stand on the open door. Obey the maximum load volume of 8 kg {refer to the “Programme chart” chapter). Do not dry dripping wet clothes in the tumble dryer.

À Warning! Risk of injury or damage to the appliance. + Before maintenance, deactivate the ap- pliance and disconnect the mains plug from the mains socket.

+ Do not use water spray and steam to clean the appliance. + Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. INTERNAL LIGHT VAN Warning! Risk of injury. Visible LED radiation, do not look di- rectly into the beam. (à) The type of light bulb or halogen lamp used for this appliance, is only for household appliances. Do not use it for house lighting. To replace the internal light, contact the Service. DISPOSAL f\ Warning! Risk of injury or suffocation. fl g Jury PRODUCT DESCRIPTION electrolux 29 + Disconnect the appliance from the mains Supply. + Cut off the mains cable and discard it. + Remove the door catch to prevent chil- dren and pets to get closed in the appli- ance. Compressor Warning! Risk of damage of the appliance. + The compressor and its system in the tumble dryer is filed with the special agent which is free from fluoro-chloro-hy- drocarbons. This system must stay tight. The damage of the system can cause a leakage. Water container Control panel El un ont Load door (reversible) Primary filter

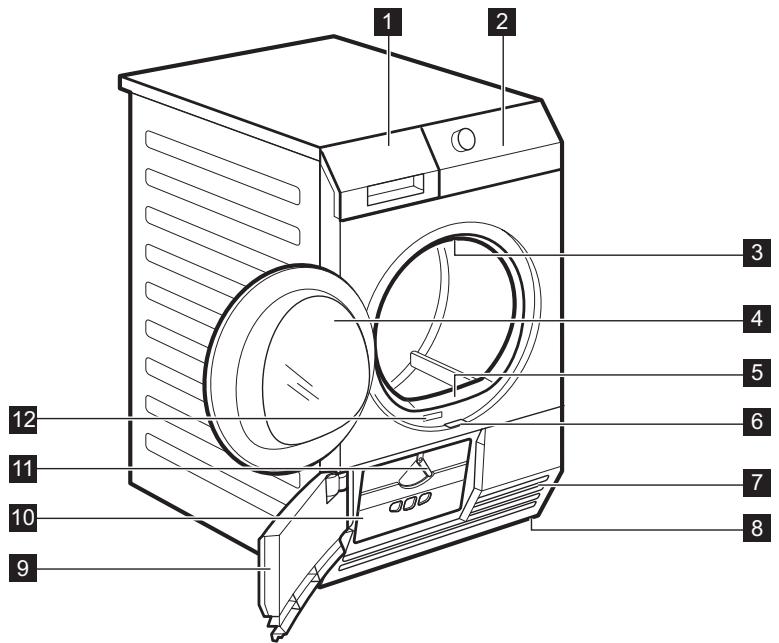

30 electrolux Sliding button to open the heat ex- changer door [7 BAMENS Adjustable feet Heat exchanger door ACCESSORIES Heat exchanger filters cover Lock knob Rating plate STACKING KIT Accessory name: SKP11, STAB, STA9 Available from your authorized vendor. Stacking kit can be used only with the washing machines specified in the leaflet. See the leaflet attached. Read carefully the instructions supplied with the accessory. DRAINING KIT Accessory name: DK11. It is available from your authorized vendor (can be attached to some types of the tum- ble dryers) The accessory for through draining of the condensed water into a basin, siphon, gully, etc. After the installation, the water contain er is drained automatically. The water con- tainer must stay in the appliance. The installed hose must be on the height from minimum of 50 cm to maximum of 1 m from floor level. The hose cannot be in loop. Decrease the length of the hose if necessary. Read carefully the instructions supplied with the accessory.

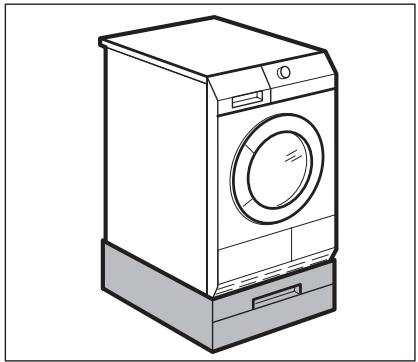

PEDESTAL WITH THE DRAWER

Accessory name: PDSTP10. It is available from your authorized vendor. To put the appliance higher at the level which helps to easy load and remove the laundry. The drawer can be used for laundry storage e.g. : towels, cleaning products and more. Read carefully the instructions supplied with the accessory.

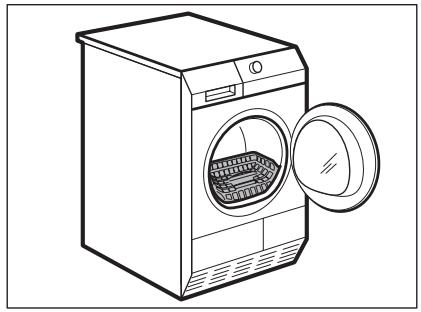

DRYING RACK Accessory name: RA5, RA6, RA11, RA12 CONTROL PANEL electrolux 31 It is available from your authorized vendor (can be attached to some types of the tum- ble dryers). Do the check with the vendor or on the web site if the accessory is compaiti- ble with your appliance. Drying rack accessory let to dry safely in the tumble dryer: + sport shoes + wool + soft toys + lingerie Read carefully the instructions supplied with the accessory.

oo! The programme dial [2 | The touch panel with the display E The programme indicators The On/Off (D push button with the Auto Off function

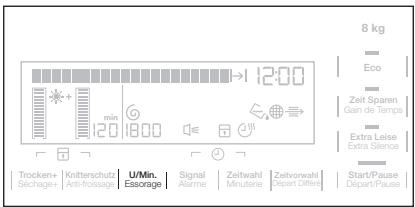

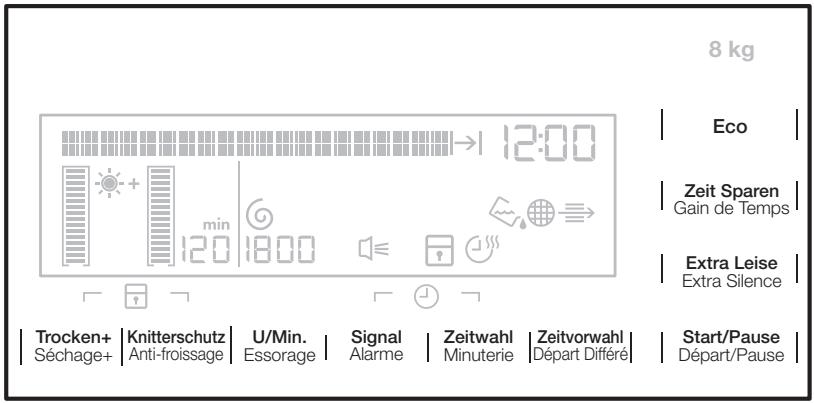

32 electrolux TOUCH PANEL | Eco | Zeit Sparen Gain de Temps | [Extra Leise Extra Slence Trocken+ [Kniterschutz| U/Min. | Signal | Zeïtwahl | Zeïtvorwahl Start/Pause Séchage: [noise | Essorage | Ame | Minaene |bépatOiee| | DéparPause As alternative for the buttons to set the marks. Do not wear gloves when you function you must touch the area with the touch the panel to set the function. function name. Each area between the ver- Make sure the panel is always clean tical marks senses the user finger. and dry.

5) For accurate selection touch the center

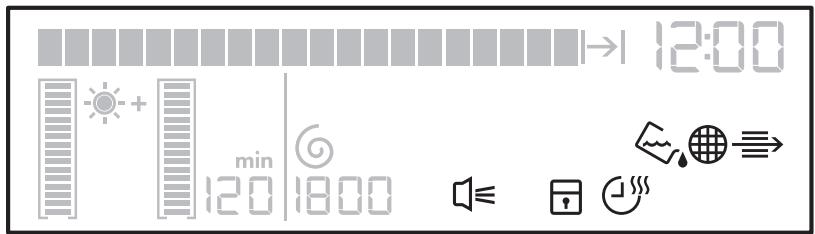

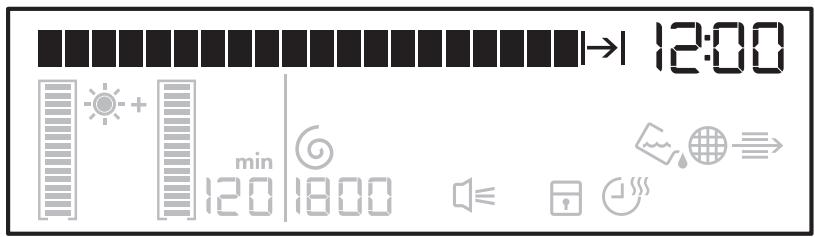

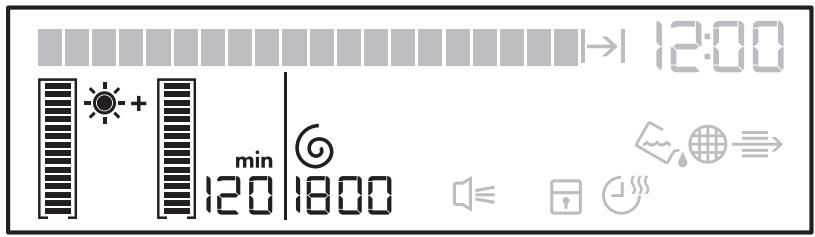

point of the area between the vertical DISPLAY Pl 1200

buzzer activated child lock activated

drain the water container indicator clean the main filter indicator clean the heat exchanger filters indicator time drying function activatedl Clean the tumble dryer drum with a moist cloth or set a short programme (e.g. 30 mi- nutes time programme) with the load of moist cloths. At the beginning of drying cycle (8-5 min.) there could be a slightly higher sound level. It is because of start of the compressor that is normal for compressor powered applian- ces such: refrigerators, freezers . LANGUAGE The first time you activate the appliance the default language comes into the view on the display. You can confirm it or set the different language from available languages. To set the different language:

1. Turn the programme dial to set your

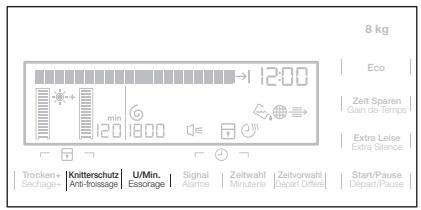

34 electrolux You can change the language each time you want. To set the different language:

1. Touch at the same time 2 functions

(see the illustration) and hold down until you see the language name on the dis- play.

2. Turn the programme dial to set the new

Start/Pause function. CLOCK The first time you activate the appliance the default time comes into the view on the dis- play. You can confirm it or set the different time. To set the different time: 1... Turn the programme dial to set the

3. Turn the programme dial to set the mi-

Start/Pause function. You can change the time each time you want. To set the different time:

1. Touch at the same time 2 functions

(see the illustration) and hold down until you see the hour digit starts to flash. Tageszeit

2. Turn the programme dial to set the

4. Turn the programme dial to set the mi-

hour. Start/Pause function. PROGRAMMES Cottons (Baumwolle) Extra Dry (Ex- : h . teresren) 8kg To dry cotton clothing. Drying level: extra dry. Cupboard Dry (Schranktrock- 8kg To dry cotton clothing. Drying level: cupboard dy. PÉE) Iron Dry (Bügel- | \ on ; [je] trocken) ? 8kg To dry cotton clothing. Drying level: applicable to iron. To dry leisure clothing such as jeans, sweat-shirts of differ- [e] O Jeans 8kg ent material thicknesses (e.g. at the neck, cuffs and seams). Bed Linen 3kg To dry bed linen such as: single and double sheet, pillow- (Bettwäsche) 9 case, bedspread Duvets (Dau- 3k To dry single or double duvet and pillows (with feather, nen) 9 down or synthetic filings).

1) maximal weight of dry clothes

electrolux 35 CE A EE To dry laundry with the time set by the user. The time val- ue must be related to the load. To dry one item or small el quantities of the laundry we recommend to use short times. To dry cotton and synthetic fabrics, uses low temperature. Synthetics (Mischgewebe) To dry synthetic clothing. Drying level: extra dry. To dry synthetic clothing. Drying level: applicable to iron. To dry easy care fabrics such shirts and blouses; for mini- mum ironing effort. The results can be different for to the different types of fabric and its finish. Put fabrics in the tumble dryer straight. After the cycle, immediately remove died fabrics and put on a cloths hanger. (e] [e] [e] [o] To dry synthetic clothing. Drying level: cupboard dry, O

le] (e] To dry outdoor pieces of clothing, technical, sports, pile fabrics, waterproof and breathable jackets, shell jacket teamed with a removable fleece or inner insulation. To dry sportswear, thin and light fabrics, microfiber, poly- ester, which are not ironed. To dry sik/ingerie with warm air and gentie movement. To dy the cloths made of wool . The cloths become soft and cosy. We recommend to remove the cloths immedi- ately after the programme end. The wool drying cycle of this tumble drying machine has been tested and approved by The Woolmark Company. The cycle is suitable to dry wool garments which are label- led "hand wash" provided that the garments are washed in a Woolmark endorsed hand washing cycle and tumble died according to the instructions issued by the manufac- turer. (M1129). To increase or to decrease the level of the remaining mois- ture of the laundry you can use the function Dry Plus Trocken+) . WOOLMARK APPAREL CARE

To make a performance test use the standard programmes which are specified in the EN 61121 document. Ifis necessary lo correct the remaining moisture level of the laundry, adjust the programme with the Dry Plus (Trocken +) function . Clean the primary filter and heat exchanger filter after each cycle.

3) In accordance to EU Regulation 982/2012

The “ Cupboard Dry (Schranktrocken) " is the “Standard Cotton Programme" His applicable to dy wet cotton laundry with the most satisfactory energy consumption. FUNCTIONS

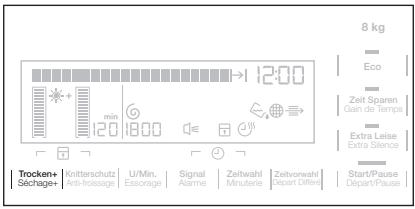

THE DRY PLUS (TROCKEN+) FUNCTION

This function helps to get the laundry more dried. There are 3 possible selections: minimum - the default selection which is re- lated to the programme. moderate — the selection to get the more dried laundry. maximum — the selection to get the much more dried laundry.

THE ANTICREASE (KNITTERSCHUTZ) FUNCTION

Extends of 30, 60, 90 or 120 minutes the standard anticrease phase (30 minutes) at the end of the drying cycle. This function prevents the laundry from creases. The laundry can be removed during the anti- crease phase. THE SPUN AT RPM (U/MIN.) FUNCTION This function helps to set the best condition to dry the laundry. If you know the initial spin speed when you washed you can use this function. Higher spin speed causes that the laundry contains less water.

THE BUZZER (SIGNAL) FUNCTION

When the buzzer function is activated you can hear the buzzer at the: + cycle end + _anti-crease phase start and end + cycle interruption The buzzer function is by default always on. You can use this function to activate or de- activate the sound.

Operates only with the Time (Zeitprog- ramm) programme. Lets the user to set special time of drying programme from minimum 10 min. to maximum of 2 hours {in 10 min. steps).

THE DELAY START (ZEITVORWAHL) FUNCTION

(G) Let to delay the start of a drying pro- gramme from minimum of 30 minutes to maximum of 20 hours.

1. Set the drying programme and func-

ton again and again until the necessary time of the delay come into the view on the display (e.g. | hf the programme has to start after 12 hours.)

3. To activate the Delay start (Zeitvorwahl)

function, push the Start/Pause button. The time to start decreases on the dis- play. This function is on by default with all the programmes. Does not include the Extra Quick Mixed (Mix Extra Kurz) programme. The power consumption is at the minimum level. The function Eco is off when the function Time Saving (Zeit Sparen) or Extra Silent (Extra Leise) are on.

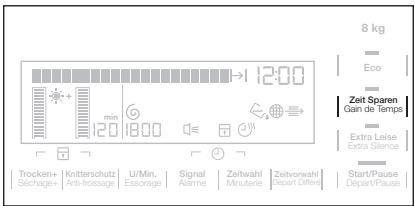

THE TIME SAVING (ZEIT SPAREN) FUNCTION

Decreases the time of the cycle without the effect on the drying quality. The cycle time can be shorter by 30% on the cottons and 40% on synthetics. The appliance operates with the higher energy consumption.

1) Together with the programme you can set 1 or more functions.

2) The function is off when the function Time Saving (Zeit Sparen) or Extra Silent (Extra Leise) are on.

3) Only with the drying rack — see chapter ACCESSORIES

Important! Dry only the laundry applicable to dry in the tumble dryer. Make sure if the laundry is applicable to dry in the tumble dryer. Do the check of the fabric mark on the clothes.

O Applicable to dry in the tumble dryer GO Applicable to dry in the tumble dryer at standard temperature lo] Applicable to dry in the tumble dryer at decreased temperature & Not applicable to dry in the tumble dryer Correctly prepare the laundry: + close zips, button up duvet covers and attach loose ties or ribbons (e.g. ribbons of aprons) - laundry can tangle make sure the pockets are empty - re- move metal items (paper clips, safety pins, etc.). turn items with 2 fabric layers inside out (e.g. cotton lined anoraks, the cotton fab- ric layer must be external). Dry only: + _cotton and linen with Cottons (Baum- wolle) programmes synthetic and mixtures with Synthetic (Mischgewebe) programmes separately the strong coloured textiles and the light coloured textiles - colours can bleed cotton jersey and knitwear only with the applicable programmes - items can Shrink Important! Do not put more laundry than the maximum load which is 8kg.

2. Load loosely the laundry.

3. Close the appliance door.

VAN Caution! Do not lock the laundry in between the appliance door and rubber seal.

SWITCHING ON THE APPLIANCE

Push the On/Off (D button to activate or to deactivate the appliance. When the appli- ance is on, some indications come in to the view on the display.

To decrease the energy consumption, the Auto Off function deactivates automatically the appliance: + ifthe Start/Pause button was not pushed in the time of 5 minutes. + after 5 minutes from the programme end. Push the On/Off (D button to activate the appliance. SETTING À PROGRAMME NI7/

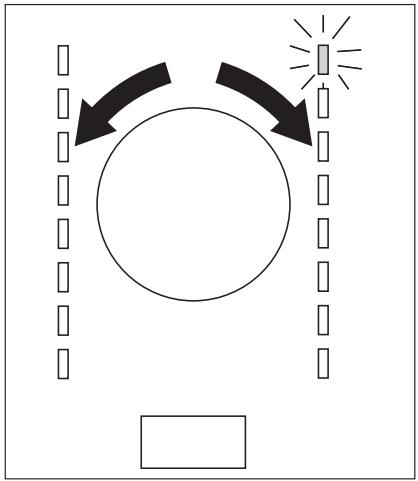

See Use the programme dial to set the pro- gramme. The possible time to complete the programme come into view on the display. (à) The drying time you see is related to the load of 5 kg for cotton and jeans programmes. For the other pro- grammes the drying time is related to the recommended loads. The drying time of the cotton and jeans pro- grammes with the load more than 5 kg is longer.

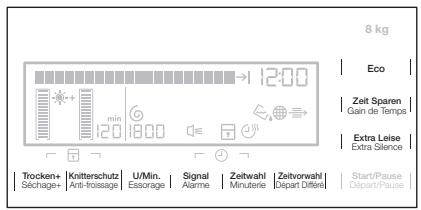

40 electrolux SPECIAL FUNCTIONS Together with the programme you can set 1 or more special functions. To activate or deactivate the function touch the applicable function name. When the function is activated the applica- ble symbol comes into the view on the dis- play.

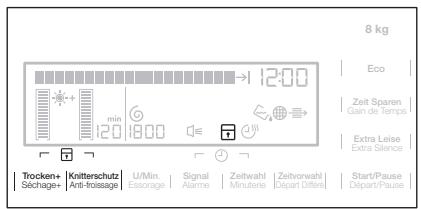

The child lock can be set to prevent the children to play with the appliance. The child lock function locks all functions and the programme dial (this function does not lock D On/Off button). To activate the child lock function touch the Dry Plus (Trocken+) and Anticrease (Knitterschutz) function sur- faces at the same time. When the function is active the symbol f} comes into view on the display.

+ after you touch the Start/Pause function - all the push buttons and the programme dial are deactivated

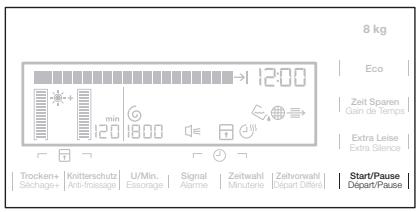

STARTING A PROGRAMME

To activate the programme touch the Start/ Pause function surface as on the illustra- tion. The LED above starts to illuminate per- manently in red colour.

To change a programme, push the (D On/ Off button to deactivate appliance. Push the D On/Of to activate the appliance and then set the programme again.

AT THE END OF PROGRAMME

When the drying cycle is completed, the {} symbol flashes on the display. If the Buzzer (Signal) function is on, an acoustic signal sounds intermittently for one minute. To remove the laundry:

1. Push the Auto/Off button for 2 seconds

to deactivate the appliance.

2. Open the appliance door.

3. Remove the laundry.

4. Close the appliance door.

Important! After each drying cycle: + clean the filters +_drain the water container (See chapter CARE AND CLEANING.) ECOLOGICAL HINTS Do not use fabric softener to wash and then dry. In the tumble dryer laundry be- comes soft automatically. Use the condensate as distilled water, e.g. for steam ironing. If it is necessary clean the condensate before (e.g. with a coffee filter) to remove possible small pieces of fluff. + Always keep the airflow slots on the bot- tom of the appliance clear. + Use the load volumes which are specified in the programmes chapter.

+ Make sure that is good airflow in the ap- pliance installation position. + Clean the filters after each drying cycle. + Spin good the laundry before drying.

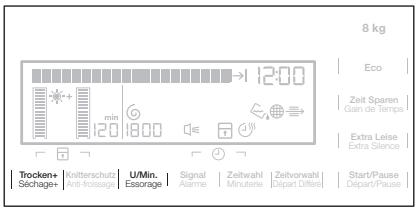

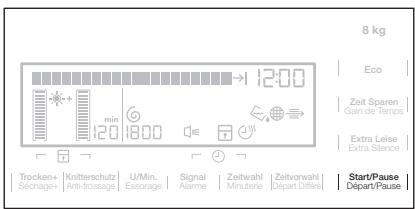

CONDUCTIVITY Water hardness can be different for differ- ent locations. Water hardness has an effect on the water conductivity and the operation ofthe conductivity sensor in the appliance. If you know the value of the water conduc- tivity you can adjust the sensor to dry with the better results. To change the sensor conductivity: 1... Turn the programme dial to available programme.

2. Touch at the same time 2 functions

(see the illustration). Hold down until one of the symbols come into view on the display: — CZ low conductivity <300 1S/

3. Touch the Start/Pause again and again

until you set necessary level:

4. To memorise the setting touch at the

same time 2 functions as are specified in the point 2.

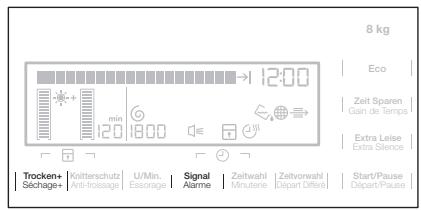

WATER CONTAINER FULL —

INDICATION By default the indication &, is always on. It comes into the view at the end of the cycle or when the water container is full. When you use an external equipment to drain the container, the indication can be off. To activate or deactivate the indication: 1... Turn the programme dial to available programme.

2. Touch at the same time 2 functions

(see the illustration) and hold down until you see the correct setting: — the indication &, is off and the indi- cator _ _[ comesinto the view — the indication &, is permanently off — the indication &, is on and the indi- cator _ __ | comesinto the view — the indication &, is activated

CLEANING THE PRIMARY FILTER

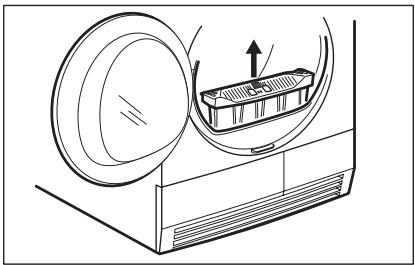

At the end of each cycle the indicator € (clean the primary filter) is on to tell you that the primary filter must be cleaned. [&) The fier colects the fluff. The fluff oc- curs while the cloths are dried in the tumble dryer.

42 electrolux To clean the primary filter:

4. Use a moist hand to clean the filter.

5. If necessary clean the filter with warm

water using a brush. Close the filter.

Caution! Do not operate the tumble dryer without the primary filter or with damaged or blocked filter. Important! Clean the primary filter after each drying cycle. Clogged filter increases the cycle time and causes higher energy consumption.

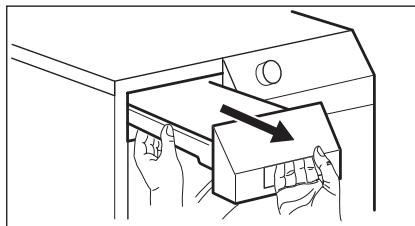

DRAINING THE CONDENSED WATER

CONTAINER Drain the condensed water container after each drying cycle. To drain the condensed water container: Warning! Risk of poisoning. The condensed water is not applicable to drink or to prepare food. [ä) The condensed water can be used as distilled water, e.g. for steam ironing. If necessary filter the condensed water (e.g. with a coffee filter) to remove pos- sible residue and small pieces of fluff. electrolux 43

6. Remove fluff from the filter socket. For

this a vacuum cleaner can be used.

7. Put the filter inside the filter socket.

If the condensed water container is full, the programme breaks off automatically and the indicator &,, drain the condensed water container is on. To continue the pro- gramme, drain the condensed water con- tainer and press the start button. [ä) To drain the condensed water contain- er automatically you can install draining accessory (see chapter: ACCESSO- RIES) Pull the condensed water container and keep it in horizontal position.

2. Move the plastic connection out and

drain the condensed water container into a sink or equivalent receptacle.

3. Move plastic connection in and install

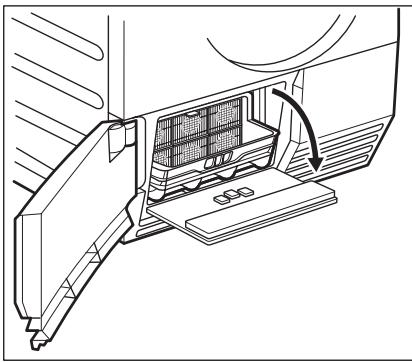

CLEANING THE HEAT EXCHANGER

FILTERS If the indicator = clean the heat ex- changer filters is on, the filters must be cleaned. The frequency to clean the filters is related to the laundry type and its quantity. If you dry with the maximum load, clean the filters after each cycle.

44 electrolux To clean the filters: Open the loading door.

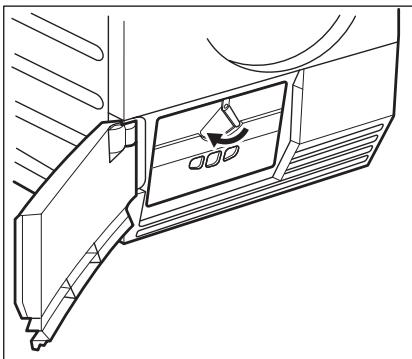

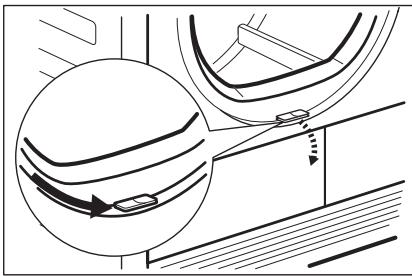

2. Move the release button on the bottom

of the door opening and open the heat exchanger door.

3. Turn the blockage to unlock the heat

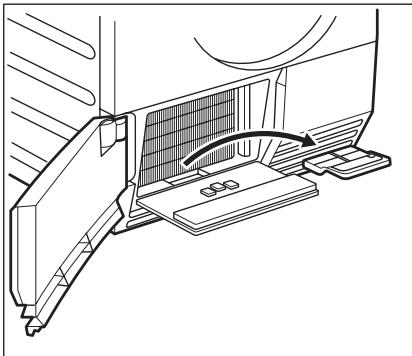

4. Lower the heat exchanger filters cover.

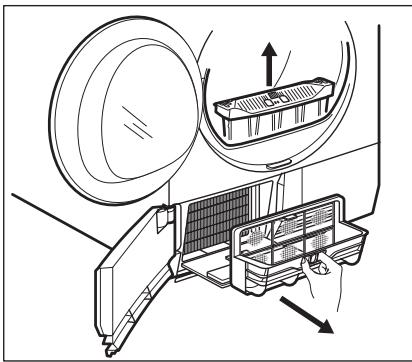

5. Lift the primary filter. Hold the heat ex-

changer filter and pull it out from the bottom compartment.

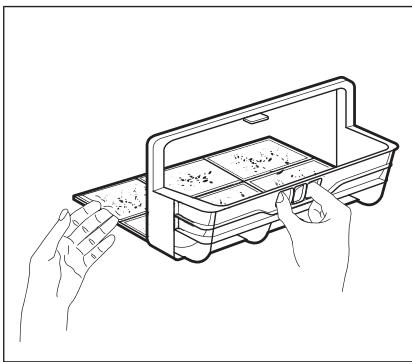

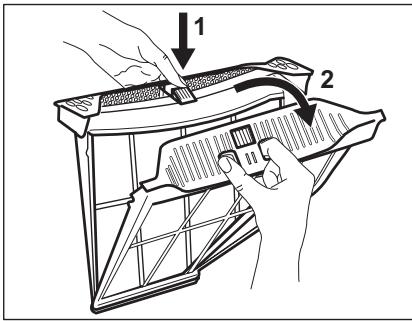

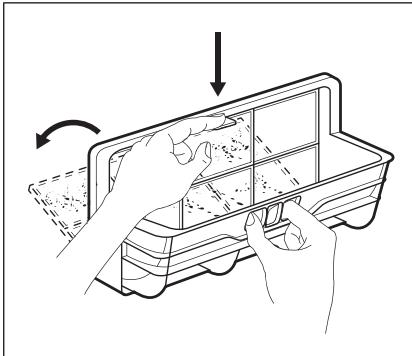

6. Push the hook to open the filter.

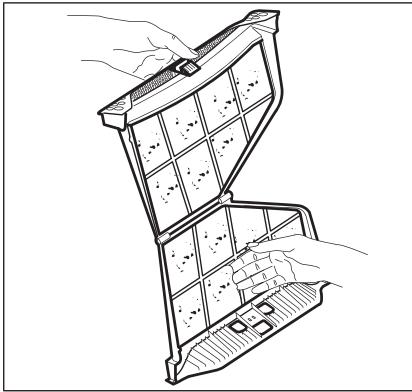

7. Use a moist hand to clean the filter. If

necessary clean the filter with warm water using a brush. Close the filter.

8. Clean the small filter from the base

46 electrolux Caution! Do not operate the tumble dryer when the heat exchanger filters are blocked with fluff. This could cause the damage to the tumble dryer. This also increases energy consumption. Do not use sharp objects to clean the heat exchanger compartment. Do not operate the tumble dryer with- out the filters.

VAN Warning! Disconnect the appliance before you clean it. Use a standard neutral soap detergent to clean the inner surface of the drum and TROUBLESHOOTING

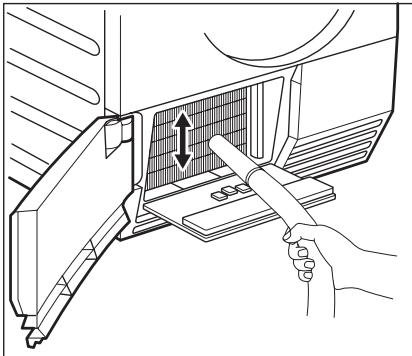

9. Ifnecessary, one time for each 6

months, remove the fluff from the heat exchanger compartment. You can use a vacuum cleaner.

10. Put the small filter and heat exchanger

11. Close the heat exchanger cover.

12. Lock the blockage until it snaps.

13. Close the heat exchanger filters cover.

14. Close the heat exchanger door.

15. Put the primary filter.

drum ribs. Dry the cleaned surfaces with a soft cloth. Caution! Do not use abrasive materials or steel wool to clean the drum.

CLEANING THE CONTROL PANEL AND

HOUSING Use a standard neutral soap detergent to clean the control panel and housing. Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth. VAN Caution! Do not use furniture cleaning agents or cleaning agents which can cause corrosion to clean the appliance. TROUBLESHOOTING The tumble dryer is not connected to Connect in at mains socket. Check fuse mains supply. in fuse box (domestic installation). The tumble The loading door is opened. Close the loading door. dryer does not operate. The (D On/Of button was not pushed. Push the (D On/Of button. The Stañ/Pause function was not act activate the Start/Pause function. vated.

Problem‘) Unsatisfactory. drying results. The door does not close. Err (Error) on the display. No drum light Abnormally. elapsing time on the dis- play. Programme inactive. Drying cycle 100 short. Drying cycle +00 long 5} Possible cause The appliance is in the stand-by mode Incorrect programme selection. The filter is clogged. The Dry Plus function was in minimum mode. The heat exchanger fiters is clogged Too high volume of the load. The airflow gril is clogged. Dirt on the inner surface of the drum. Too high water hardness. The filter not locked in the position. The laundry is locked between the door and the seal. You try to change the programme or the function after the start of the cycle. The function you try to activate is not applicable with the selected pro- gramme. Defective drum light. The time to end is calculated on the ba- sis ofthe volume and dampness ofthe laundry. The water container is full. Too small laundry volume. The laundry is too dry. The flters are clogged. Too high volume of the load. The laundry not spun sufficientiy. Very high room temperature - this is not the appliance malfunction. electrolux 47 Push the (D On/Off button. Do the selection of the applicable pro- gramme. 2) Clean the filter. % Change the Dry Plus function to the moderate or maximum mode. Clean the heat exchanger filters. 3) Obey the maximum load volume. Clean the airflow gril in the bottom of the appliance. Clean the inner surface of the drum. Set applicable water hardness4) Put the fier in the correct position. Put the load correctly in the drum. Turn the tumble dryer off and on. Make the new selection. Turn the tumble dryer off and on. Make the new selection. Contact the service centre to replace the drum light. The automatic procedure — this is not the appliance malfunction. Drain the water container), activate the Start/Pause function. Do the selection of time programme. Do the selection of time programme or higher drying level (e.g. Extra Dry ) Clean the fiers. Obey the maximum load volume. Spin correctiy the laundry. If possible, lower the room temperature.

1) Ithere is an error message on the display (e.g. E51 ): Turn the tumble dryer off and on. Make a selection of the

new programme. Activate the Start/Pause function. Does not operate? - contact the service centre and give the error code.

2) follow the programme description — see PROGRAMMES chapter

3) see CARE AND CLEANING chapter

4) see section WATER HARDNESS in HINTS AND TIPS chapter

5) Note: After maximum 5 hours the drying cycle ends automatically (see Drying cycle complete section)

maximum depth with the load door opened 1090 mm maximum width with the load door opened 950 mm adjustable height 850 mm (+ 15 mm - feet regulation) the appliance weight 57 kg maximum load volume 8kg voltage 280 V frequency 50 Hz necessary fuse SA total power 1000 W energy efficiency class A energy consumption kWh/cycle 1) 1,52 kWn annual energy consumption?) 89,4 kWn type of use Domestic permitted ambient temperature + 5°C to + 85°C

1) 8 kg of cotton, centrifuged at 1000 rpm with reference to EN 61121

2) The sum of approximate energy consumption to dy:

160 kg of the cotton laundry with cupboard dry programme + 280 kg with iron dry programme + 160 Kg of synthetic laundry with cupboard ary programme. This is approximate consumption for the 4 person household which correctiy use the tumble dryer. INSTALLATION UNPACKING A\ Caution! Before use all parts of the transport pack- aging must be removed. To remove the polystyrene blockages:

1. Open the load door.

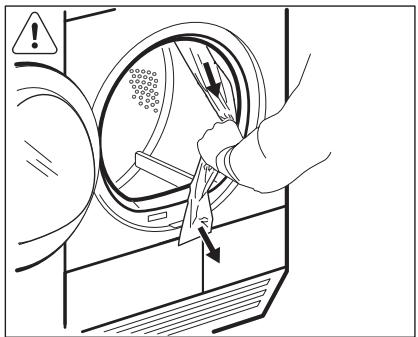

2. Pull plastic hose with the polystyrene

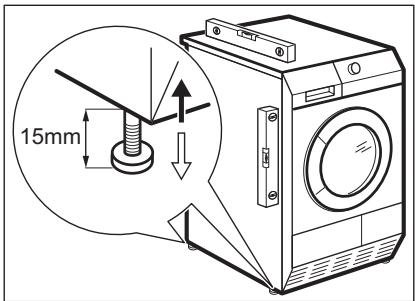

blockages out from the drum. It is possible to adjust the height of the tum- ble dryer. To do that adjust the feet (see picture).

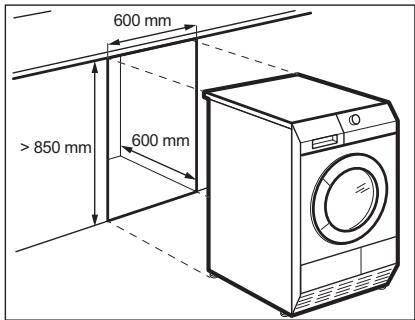

The appliance can be installed as free- standing or below the kitchen counter with correct space (see picture). ENVIRONMENT CONCERNS

THE LOAD DOOR REVERSAL

The load door can be installed by the user in the opposite side. It can help to easily put and remove the laundry or if there is a limit to install the appliance. (see separate leaf- let). The symbol E on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. PACKAGING MATERIALS Recycle the materials with the symbol € . Put the packaging in applicable containers to recycle it.
