USER MANUAL EOC3485AAX AEG-ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. A Warning / Caution-Safety information (&) General information and tips ($) Environmental information Subject to change without notice.

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes in- juries and damages. Always keep the instructions with the appliance for future reference.

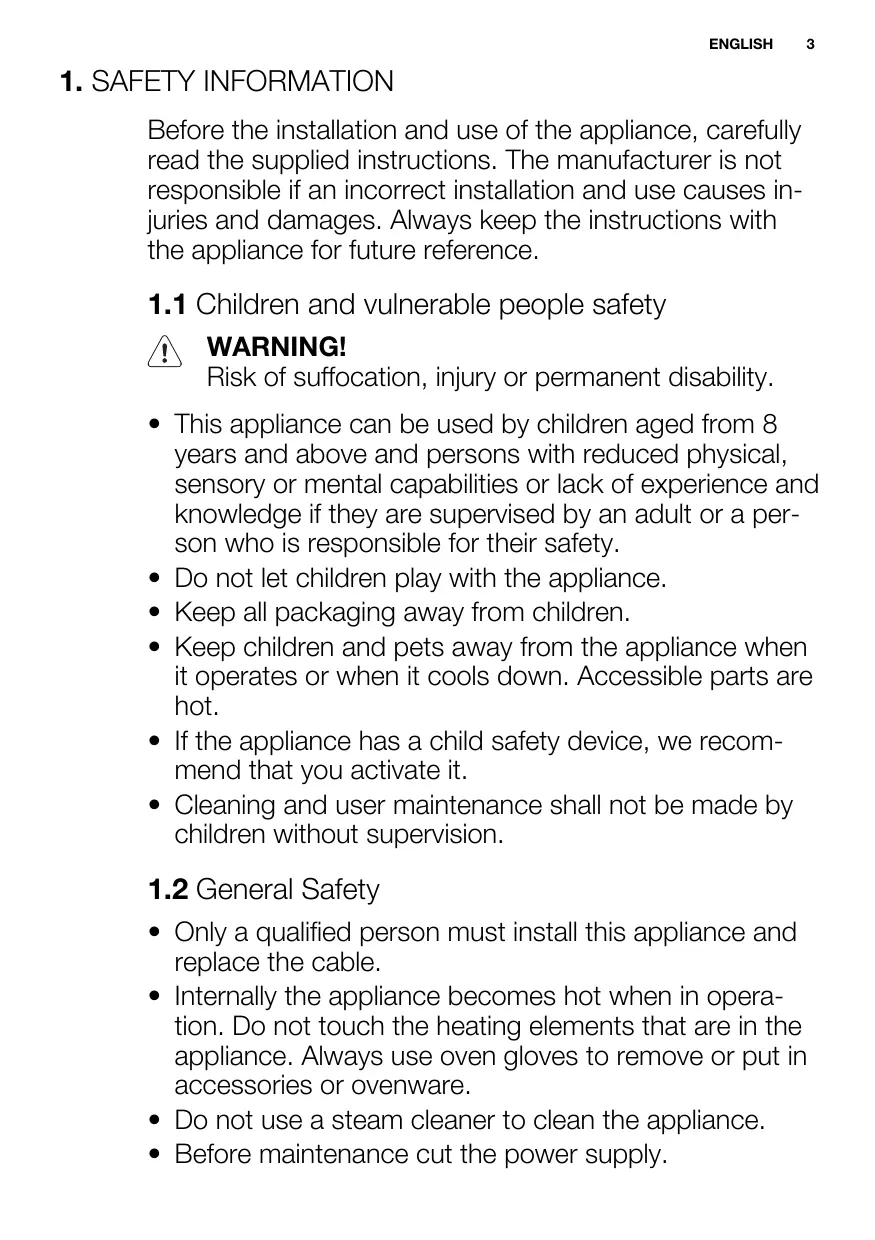

1.1 Children and vulnerable people safety

WARNING! Risk of suffocation, injury or permanent disability. *_ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a per- son who is responsible for their safety. + Do not let children play with the appliance.

• Keep all packaging away from children. + Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot. *_lfthe appliance has a child safety device, we recom- mend that you activate it. ° Cleaning and user maintenance shall not be made by children without supervision.

° Only a qualified person must install this appliance and replace the cable. + _Internally the appliance becomes hot when in opera- tion. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware. + Do not use a steam cleaner to clean the appliance. + Before maintenance cut the power supply.

4 www-electrolux.com + Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass. . Excess spillage must be removed before the pyrolytic cleaning. Remove all parts from the oven.

2. /\ SAFETY INSTRUCTIONS

WARNING! Only a qualfied person must in- tal this appliance. Remove all the packaging. Do not install or use a damaged appli- ance. Obey the installation instruction sup- plied with the appliance. Always be careful when you move the appliance because it is heawy. Always wear safety gloves. Do not pull the appliance by the handle. Keep the minimum distance from the other appliances and units. Make sure that the appliance is installed below and adjacent safe structures. The sides of the appliance must stay adjacent to appliances or to units with the same height. Electrical connection WARNING! Risk of fire and electrical shock. All electrical connections should be made by a qualified electrician. The appliance must be earthed Make sure that the electrical information on the rating plate agrees with the pow- er supply. If not, contact an electrician. Always use a correctly installed shock- proof socket. Do not use multi-plug adapters and ex- tension cables. Make sure not to cause damage to the mains plug and to the mains cable Contact the Service or an electrician to change a damaged mains cable. Do not let mains cables to come in touch with the appliance door, specially when the door is hot. The shock protection of live and insula- ted parts must be fastened in such a way that it cannot be removed without tools. Connect the mains plug to the mains socket only at the end of the installa- tion. Make sure that there is access to the mains plug after the installation. Ifthe mains socket is loose, do not connect the mains plug Do not pull the mains cable to discon- nect the appliance. Always pull the mains plug. Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holden), earth leakage trips and contactors. The electrical installation must have an isolation device which lets you discon- nect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm: Fully close the oven door before you connect the appliance to mains.

WARNING! Risk of injury, burns or electric shock or explosion. + Use this appliance in a household envi- ronment. + Do not change the specification of this appliance.

Make sure that the ventilation openings are not blocked. Do not let the appliance stay unatten- ded during operation. Deactivate the appliance after each use. Be careful when you open the appli- ance door while the appliance is in op- eration. Hot air can release. Do not operate the appliance with wet hands or when it has contact with wa- ter. Do not apply pressure on the open door. Do not use the appliance as a work surface or as a storage surface. Always keep the appliance door closed when the appliance is in operation. Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air. Do not let sparks or open flames to come in contact with the appliance when you open the door. Do not put flammable products or items that are wet with flammable products in, near or on the appliance. WARNING! Risk of damage to the appliance. + To prevent damage or discoloration to the enamel: — do not put ovenware or other objects in the appliance directly on the bottom. — do not put aluminium foil directly on the bottom of the appliance. — do not put water directly into the hot appliance. — do not keep moist dishes and food in the appliance after you finish the cook- ing. — be careful when you remove or install the accessories. Discoloration of the enamel has no ef- fect on the performance of the appli- ance. It is not a defect in the sense of the warranty law. Use a deep pan for moist cakes. Fruit juices cause stains that can be perma- nent. ENGLISH 5

2.3 Care and Cleaning

WARNING! Risk of injury, fire or damage to the appliance. + Before maintenance, deactivate the ap- pliance and disconnect the mains plug from the mains socket. Make sure the appliance is cold. There is the risk that the glass panels can break. Replace immediately the door glass panels when they are damaged. Con- tact the Service. Be careful when you remove the door from the appliance. The door is heavy! Clean regularly the appliance to prevent the deterioration of the surface material. Remaining fat or food in the appliance can cause fire. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal ob- jects. If you use an oven spray, obey the safe- ty instructions on the packaging. Do not clean the catalytic enamel (if ap- plicable) with any kind of detergent.

Pyrolytic cleaning WARNING! Risk of fire and burns. + Before carrying out a Pyrolitic self- cleaning function or the First Use func- tion please remove from the oven cavi-

— Any excess food residues, oil or grease spills / deposits. — Any removable objects (including shelves, side rails etc., provided with the product) particularly any non- stick pots, pans, trays, utensils etc. Read carefully all the instructions for Pyrolytic cleaning. Keep children away from the appliance while the Pyrolytic cleaning is in opera- tion. The appliance becomes very hot. Pyrolitic cleaning is a high temperature operation that can release fumes from cooking residues and construction ma-

6 www-electrolux.com terials, as such consumers are strongly advised to: — Provide good ventilation during and after each Pyrolytic cleaning. — Provide good ventilation during and after the first use at maximum tem- perature operation. — Remove any pets (especially birds) from the vicinity of the appliance lo- cation during and after the Pyrolytic cleaning and first use maximum tem- perature operation to a well ventiated area. Unlike all humans, some birds and rep- tiles can be extremely sensitive to po- tential fumes emitted during the clean- ing process of all Pyrolytic Ovens. Small pets can also be highly sensitive to the localzed temperature changes in the vicinity of all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for low level harmful fumes. Fumes released from all Pyrolytic Ovens / Cooking Residues as descri-

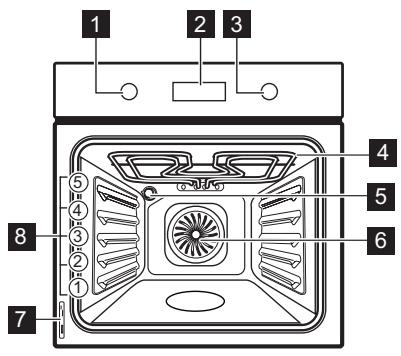

Lol BOE A Ko» for the oven functions Electronic programmer bed are not harmful to humans, includ- ing infants or persons with medical con- ditions.

+ The type of light bulb or halogen lamp used for this appliance, is only for household appliances. Do not use it for house lighting. WARNING! Risk of electrical shock. + Before replacing the lamp, disconnect the appliance from the power supply. + Only use lamps with the same specif- cations.

WARNING! Risk of injury or suffocation. + Disconnect the appliance from the mains supply. + Out off the mains cable and discard it + Remove the door catch to prevent chil- dren and pets to get closed in the ap- pliance. Knob for the temperature Gril ocre raie pete EI Sc" positions

8.1 Oven accessories

+ Wire shelf For cookware, cake tins, roasts. + Grill- / Roasting pan To bake and roast or as pan to collect fat.

WARNING! Refer to the Safety chapters.

4.1 Initial cleaning

+ Remove all accessories and removable shelf supports (if applicable) + Clean the appliance before first use. Refer to the chapter "Care and cleaning”.

4.2 Setting the time of day

The display shows hr and 12:00. 12 flashes.

1. Press + or - to set the correct hour.

2. Press (D to confirm. This is necessa-

ry only When you first set the time. Af- terwards, the new time value is saved automatically after five seconds. The display shows min and the set hour. 00 flashes.

3. Press + or - to set the correct mi-

4. Press (D to confirm. This is necessa-

ry only when you first set the time. Af- terwards, the new time value is saved automatically after five seconds.

WARNING! Refer to the Safety chapters. To use the appliance, push the knob. The knob comes out.

5.1 Activating and deactivating

to an oven function. ENGLISH 7 The display shows the new time. Changing the time of day You can change the time of day only if the appliance is off. Press (D again and again until the indica- tor for the time of day @ flashes in the display. To set the new time, follow the procedure given in "Setting the time of day”

Preheat the empty appliance to burn off the remaining grease. 1: Set the function ©] and the maximum temperature.

2. Let the appliance operate for 45 mi-

4. Let the appliance operate for 15 mi-

nutes. Accessories can become hotter than usu- ally. The appliance can emit an odour and smoke. This is normal. Make sure that the airflow is sufficient.

2. Turn the knob for the temperature to

set the temperature. To deactivate the appliance, turn the knob for the oven functions to the off position.

Oven function Application 0 Off position The appliance is off. To roast or roast and bake food with the same cooking | True Fan Cook- temperature, on more than one shelf, without flavour g transference. ——] Conventional To bake and roast on one oven level. The top and bot- (= Cooking tom heating elements operate at the same time. FT Grillin To grill flat food items in small quantities in the middle of g the shelf. To make toast. = To grill flat food items in large quantities. To make toast. Fest Griling The full grill element operates. a To cook large pieces of meat. The grill element and the YF Turbo Grilling oven fan operate one after the other and circulate hot air around the food. @) Pizza Setting To make pizza, quiche or pie. mn Meat To prepare very tender and juicy roasts. ep Warm o keep the food warm. ÿ Keep W: To keep the food Ve Defrost To thaw frozen food. sos To clean the oven. The high temperature burns off the Pyrolysis residual dirt. You can then remove it with a cloth when the appliance is cold.

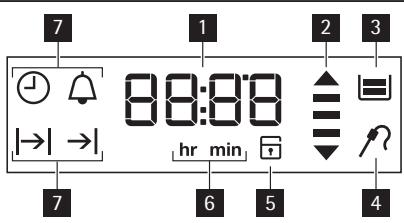

Heat-up and residual heat indicator Water tank (selected models only) A Core temperature sensor (selected models only) El 00°: lock (selected models only) Hours / minutes HA Cock functions

Button Function Description [0] Clock To set a clock function.

5.5 Heat-up and residual heat

indicator When you activate an oven function, the bars in the display à come on one by one. The bars show that the oven temper- ature increases or decreases.

When you deactivate the appliance, the display shows the residual heat indicator & ifthe temperature in the oven is more than 40 °C. Tum the temperature knob left or right to show the oven temperature on the display. Sym- Function bol Description {1 Minute Minder To set a countdown time. © Time of day To set, change or check the time of day. Refer to "Set- ting the time of day". Pl Duration To set how long the appliance must operate. First set an oven function before you set this function. | End To set when the appliance must be deactivated. First set an oven function before you set this function. You can use Duration and End at the same time (Time Delay) to set the time when the appliance must be activated and then deactivated. (i) Press (D again and again to change the clock function. (à) Press (D to confirm the settings of the clock functions, or wait 5 seconds for the setting to be con- firmed automatically.

6.1 Setting the Duration or End

function 1: Press (D again and again until the symbol |-5{or 1 fashes in the dis- play. Press + or - to set the minutes. Press (D to confirm. Press + or - to set the hour. Press (D to confirm. When the set time ends, the symbol 1Blor | and the set time flash. The acoustic signal sounds for two mi- nutes. The appliance deactivates. ph N Press a button or open the appliance door to stop the signal. (à) I you press (D while setting the time for Duration ||, the appli- ance switches to setting the End =] function.

6.2 Setting the Minute Minder

Used to set a countdown time. The maxi- mum time you can set is 23 hours 59 mi- nutes. This function has no effect on the operation of the oven. You can set the Mi- nute Minder at any time, also if the appli- ance is off. 1: Press (D again and again until À and 00 flash in the display.

2. Press + or - to set the Minute Minder.

At first the time is calculated in mi- nutes and seconds. When the time you set is longer than 60 minutes, the symbol hr comes on in the display.

10 wwwelectrolux.com The appliance then calculates the time in hours and minutes.

8. The Minute Minder starts automatical-

ly after five seconds.

4. When the set time ends, the acoustic

signal sounds for two minutes. 00:00 and À flash in the display. Press a button to stop the signal

When the Child Lock is on, you cannot operate the oven. This is to make sure that children do not accidentally activate the appliance. Activating and deactivating the Child Lock function:

1. Do not set an oven function.

2. Press and hold (D and + at the same

time for two seconds.

8. An acoustic signal sounds. SAFE and

F5 come on or go out in the display {when you activate or deactivate the Child Lock. Gi) Ifthe oven has the Pyrolytic clean- ing function, the door is locked SAFE and FF} come on in the dis- play when you turn a knob or press a button.

7.2 Automatic switch-off

For safety reasons the appliance deacti- vates after some time: +_Ifan oven function operates. + Hf you do not change the oven tempera- ture. Oven tempera- Switch-off time ture 30-115 °C 12.5h

Use the Count Up Timer to monitor how long the oven operates. It is on immedi- ately when the oven starts to heat. To reset the Count Up Timer, press and hold + and -. The timer starts to count up again. You cannot use the Count Up Timer when the Duration |-| or End | function operates. Oven tempera- Switch-off time ture

After an automatic switch-off, press a but- ton to activate the appliance again The automatic switch-off works with all oven functions, except Du- ration, End and Time Delay.

When the appliance operates, the cooling fan activates automatically to keep the surfaces of the appliance cool. you de- activate the appliance, the cooling fan continues to operate until the temperature in the appliance cools down.

7.4 Safety thermostat

incorrect operation of the appliance or de- fective components can cause dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven activates again automatically when the temperature drops.

The appliance has five sheff levels. Count the shelf levels from the bottom of the appliance floor. The appliance has a special system which circulates the air and constantiy recycles the steam. With this system you can cook in a steamy environment and keep the food soft inside and crus- ty outside. It decreases the cooking time and energy consumption to a mini- mum. Moisture can condense in the appliance or on the door glass panels. This is nor- mal. Always stand back from the appli- ance when you open the appliance door while cooking. To decrease the condensation, operate the appliance for 10 minutes before cooking. Clean the moisture after each use of the appliance. Do not put the objects directly on the appliance floor and do not put alumini- um foil on the components when you cock. This can change the baking re- suïts and cause damage to the enamel.

+ Do not open the oven door before 3/4 ofthe set cooking time is up.

8.4 Baking and roasting table

CAKES ENGLISH 11 If you use two baking trays at the same time, keep one empty level between them. + The Conventional Cooking function at the default temperature is ideal for bread baking.

8.2 Cooking meat and fish

Use a deep pan for very fatty food to prevent the oven from stains that can be permanent. Leave the meat for approximately 15 minutes before carving so that the juice does not seep out. To prevent too much smoke in the oven during roasting, add some water into the deep pan. To prevent the smoke condensation, add water each time af- ter it dries Up.

Cooking times depend on the type of food, its consistency, and volume. Initially, monitor the performance when you cook. Find the best settings (heat set- ing, cooking time, etc.) for your cook- ware, recipes and quantities when you use this appliance. Conventional True Fan Cook- . TYPE OF Cooking ing Cooking DISH time Notes Shelf Temp Shelfpo- Temp [min] position [°C] ion [°c] Whisked 2 170 S(2and4) 160 45 - 60 In a cake recipes mould Shortbread 2 170 S(2and4) 160 20 - 30 In a cake dough mould Buttermilk 1 170 165 60-80 In a 26 cm cheesecake cake mould Apple cake 2 170 (leftand 160 80-100 JIntwo 20cm (Apple pie) right) cake moulds on a wire shelfi)

1) Preheat for 10 minutes.

Conventional True Fan Cook- . TYPE OF Cooking ing CES ime otes DISH Shelf Temp Shelfpo- Temp [min] position [°C] sition FC] White bread 1 190 L 190 60-70 1-2 pieces, 500 gr per piece} Rye bread 1 190 L 180 30-45 Inabreadtin Bread rolls 2 190 2(2and4) 180 25-40 6-B8rollsina baking tray1) Pizza 1 230 - L 230- 10-20 In a baking 250 250 tray or a deep pan) Scones 3 200 3 190 10-20 In a baking tray1)

1) Preheat for 10 minutes.

1) Preheat for 10 minutes.

ñ Further de- TYPE OF Defrosting " à DISH [9] time [min] frosting time Notes [min] Place the chicken on an upturned saucer Chicken 1000 100 - 140 20 - 30 placed on a large plate. Turn halfway through. Meat 1000 100 - 140 20 - 30 Turn halfway through. Meat 500 90 - 120 20 - 30 Turn halfway through. Trout 150 25 - 85 10-15 = Strawberries 300 30 - 40 10-20 = Butter 250 30 - 40 10-15 = Cream can also be : : whipped when still Cream 2 x 200 80 - 100 10-15 slightiy frozen in pla- ces. Gateau 1400 60 60 =

8.8 Drying - True Fan Cooking

Cover the oven sheives with baking parchment. VEGETABLES TYPE OF Shelf position Temperature : 0 Time [hr DISH 1 level 2 levels FC] [nr] Beans 3 1/4 60 - 70 6-8 Peppers 3 1/4 60 - 70 5-6 Vegetables for : : soup 3 1/4 60 - 70 5-6 Mushrooms 3 1/4 50 - 60 Herbs 3 1/4 40 - 50 2-8

18 wwwelectrolux.com FRUIT TYPE OF Temperature 0, Time [hr] DISH 1 level 2 levels rc] mi Plums 3 1/4 60 - 70 8-10 Apricots 8 1/4 60 - 70 8-10 Apple slices 8 1/4 60 - 70 6-8 Pears 3 1/4 60 - 70 6)

9. CARE AND CLEANING

WARNING! CAUTION! Refer to the Safety chapters. Clean the front of the appliance with a soft cloth with warm water and a clean- ing agent. To clean metal surfaces use a usual cleaning agent. Clean the oven interior after each use. Then you can remove dirt more easily and it does not burn on. Clean stubbom dirt with a special oven cleaner. Clean all oven accessories after each use and let them dry. Use a soft cloth with warm water and a cleaning agent. If you have nonstick accessories, do not clean them using aggressive agents, sharp-edged objects or a dish- washer. it can destroy nonstick coating Gi) Stainless steel or aluminium appliances: Ciean the oven door with a wet sponge only. Dry it with a soft cloth. Do not use steel wool, acids or abrasive materials, as they can cause damage to the oven sur- face. Clean the oven control panel with the same precautions.

WARNING! The appliance becomes very hot. There is a risk of bus.

Ha hob is installed with the appli- ance, do not use it at the same times as the Pyrolysis function. lt can cause damage to the appli- ance Remove the removable shelf supports (f applicable) and accessories from the appliance. Refer to “Removing the shelf supports”. CAUTION! Do not let the removable shelf supports stay in the appliance during the cleaning procedure There is a risk of damage. Remove the worst dirt manually. Fuly close the oven door. The cleaning procedure cannot start if you do not close the oven door. Set the function Pyrolysis. Refer to “Oven functions" When |-{fiashes, press + or - to set the necessary procedure: — P1 = ifthe oven is not very dirty. The procedure is 1 h long. — P2- if the oven is more dirty. The procedure is 1 h 30 min long. Press (D to start the procedure. You can use the End function to delay the start of the cleaning. When the oven is at the set tempera- ture, the door locks. The display shows the symbol F5; and the bars of the heat indicator.

To stop Pyrolysis before it is com- pleted, turn the knob for the oven functions to the off position. When Pyrolysis is completed, the display shows the time of day. The oven door stays locked. When the appliance is cool again, an acoustic signal sounds and the door unlocks. During the Pyrolysis the oven lamp is off. Cleaning reminder To remind you that Pyrolysis is necessary, PYR flashes in the display for 10 seconds after each activation and deactivation of the appliance. The cleaning reminder goes off the display: + After the end of the Pyrolysis function + If you press + and - at the same time while PYR flashes in the display.

AN WARNING! Be careful when you change the oven lamp. There is a risk of elec- trical shock. Before you change the oven lamp: + Deactivate the oven. ENGLISH 19 + Remove the fuses in the fuse box or deactivate the circuit breaker. (i) Put a cloth on the bottom of the oven to prevent damage to the oven light and glass cover. Always hold the halogen lamp with a cloth to prevent grease res- idue from burning on the lamp.

1. Turn the glass cover counterclock-

2. Clean the glass cover.

3. Replace the oven light bulb with an

applicable 300 °C heat-resistant oven light bulb. Use the same oven lamp type.

4. Install the glass cover.

9.3 Cleaning the oven door

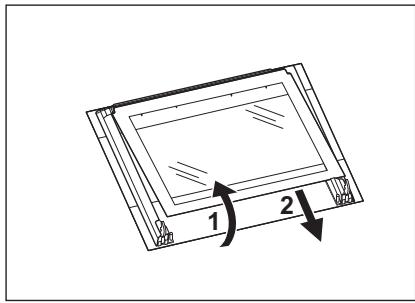

The oven door has four glass panels. You can remove the oven door and the inter- nal glass panels to clean them. AN CAUTION! Do not use the appliance without the glass panels. The oven door can close if you try to remove the glass panels before you remove the oven door. Removing the oven door and the glass panel

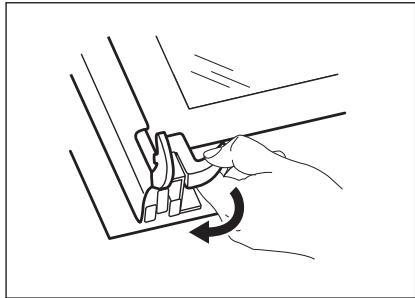

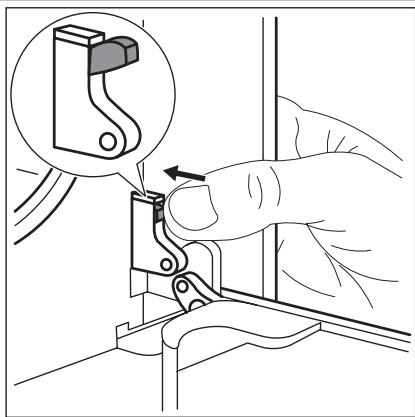

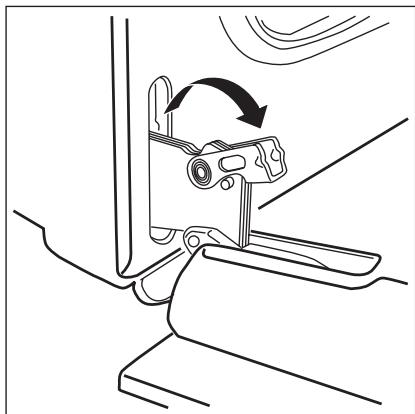

Fully open the door and identify the hinge to the right side of the door. Push the tightening component until it pulls back.

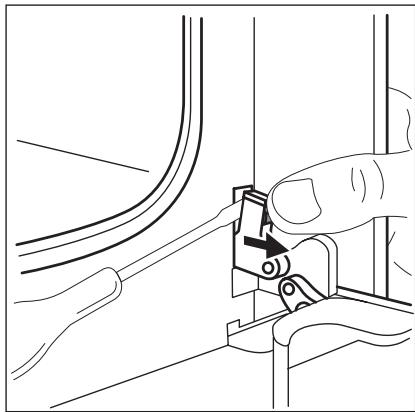

Hold the pushed component with one hand. Use a screwchiver with the other hand to lift and turn the right side hinge lever. Identify the hinge to the left side of the door. Lift and tum the lever on the left hinge

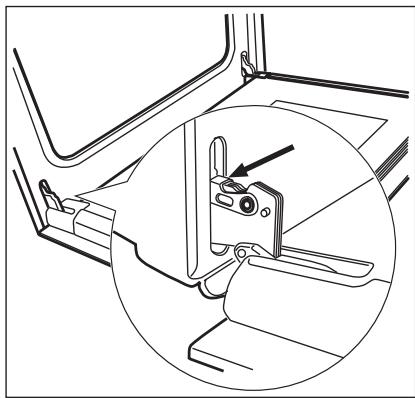

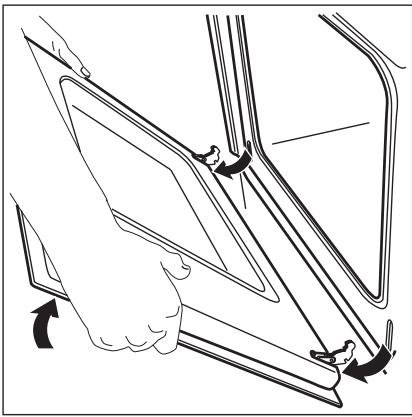

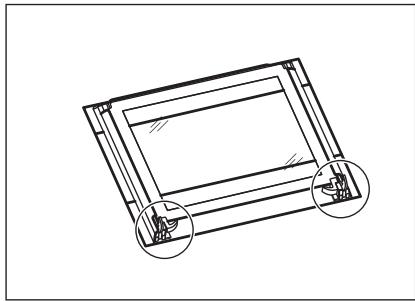

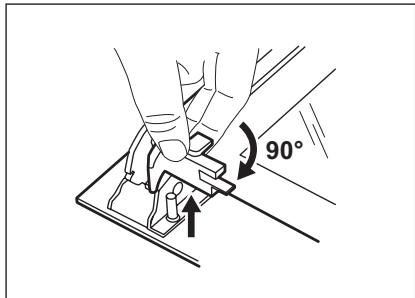

ENGLISH 21 Close the oven door to the first open- ing position {hatfway). Then pull for- ward and remove the door from its seat. Put the door on a soft cloth on a sta- ble surface. Release the locking system to re- move the glass panels. Tum the two fasteners by 90° and re- move them from their seats.

22 www-electrolux.com

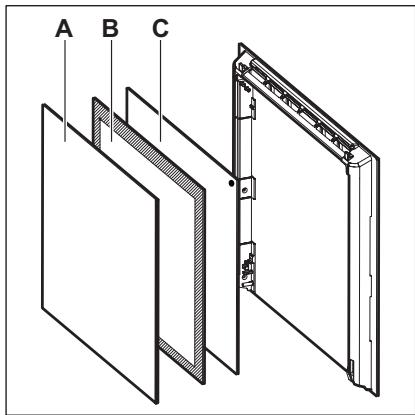

10. Carefully lft (step 1) and remove (step

2) the glass panels one by one. Start

11. Clean the glass panels with water

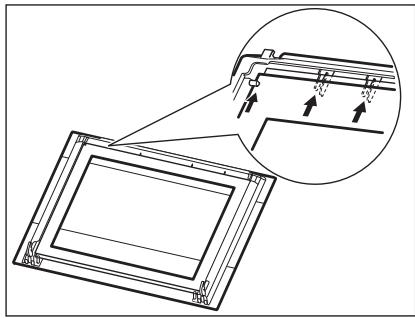

and soap. Dry the glass panels care- fuly. Installing the door and the glass panels When the cleaning is completed, install the glass panels and the oven door. Do the above steps in the opposite se- quence. Make sure that you put the glass panels (A, B and C) back in the correct se- quence. The middle panel (B) has a deco- rative frame. The screen-printing zone must face the inner side of the door. Make sure that after the installation the surface of the glass panel frame (B) on the screen-printing zones is not rough when you touch it. Make sure that you instal the top panel in the seats correctiy.

10. WHAT TO DO IF...

WARNING! Refer to the Safety chapters. Problem Possible cause Remedy The oven does not heat The appliance is deacti- Activate the appliance. up. vated.

ENGLISH 23 Problem Possible cause Remedy The oven does not heat The clock is not set. Set the clock. Refer to Up. "Setting the time of day". The oven does not heat Up. The necessary settings are not set. Make sure that the set- tings are correct. The oven does not heat Up. The automatic switch-off is on. Refer to "Automatic switch-off". The oven does not heat Up. The Child Lock is on. Refer to "Deactivating the Child Lock”. The oven does not heat Up. The fuse in the fuse box is released. Do a check of the fuse. If the fuse is released more than one time, contact a qualified electrician. The oven lamp does not operate. The oven lamp is defec- tive. Replace the oven lamp. The Pyrolysis does not start. The display shows C3. The door is not fully closed or the door lock is defective. Fully close the door. The display shows F102. The door is not fully closed or the door lock is defective.

1. Fully close the door.

2. Deactivate the appli-

ance with the house fuse or the safety switch in the fuse box and activate it again.

3. lfthe display shows

F102 again, contact the service centre. The oven does not heat up. The display shows Demo. The demo mode is acti- vated.

2. Press and hold the

signal sounds, turn the knob for the oven functions to the first function. Demo flashes in the display.

4. Turn the knob for the

oven functions to the off position. . Release the button +.

6. Turn the knob for the

temperature clock- wise three times. The acoustic signal sounds three times. The demo mode is deactivated.

24 www-electrolux.com Problem Possible cause Remedy The display shows an er- ror code that is not on this list. There is an electronic fault.

1. Deactivate the appli-

ance with the house fuse or the safety switch in the fuse box and activate it again.

2. lfthe display shows

the error code again, contact the service centre. Steam and condensation collect on the food and in the oven. You left the dish in the oven for too long. Do not keep the dishes in the oven for longer than

15 - 20 minutes after the

cooking ends. If you cannot find a solution to the prob- lem yourseff, contact your dealer or the service centre. The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance cavity. We recommend that you write the data here: Model (MOD.) Product number (PNC) Serial number (S.N.)

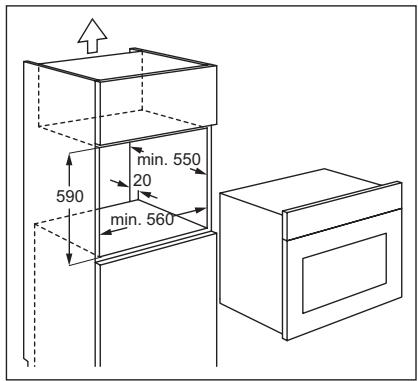

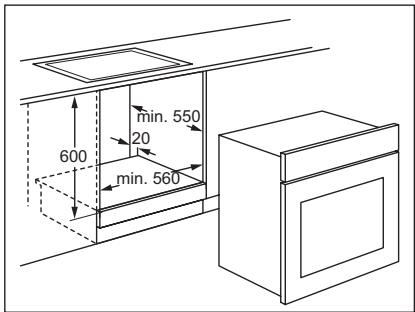

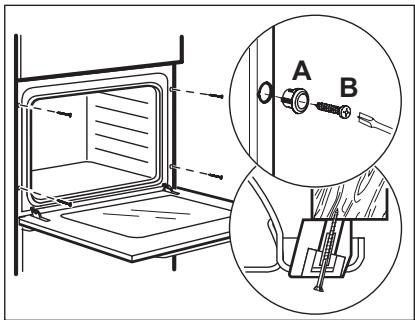

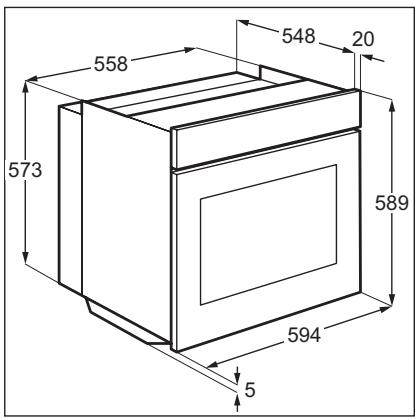

WARNING! Refer to the Safety chapters.

ENGLISH 25 This appliance is supplied with a main plug and a main cable.

Cable types applicable for installation or replacement: HO7 AN-F, HOS RN-F, H05 RRF, HO5 W-F, HO V2V2-F (T90), H0S BBF. For the section of the cable refer to the total power (on the rating plate) and to the table

11.2 Electrical installation

AN WARNING! Only a qualtied person must do the electrical installation. The manufacturer is not responsi- ble if you do not follow the safety precautions from the chapter Safety Information”.

12. ENVIRONMENT CONCERNS

Recycle the materials with the symbol € - Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical Section of the ca- ble 3 x 0.75 mm? Total power maximum 1380 maximum 2300 3 x 1 mm?

maximum 3680 3 x 1.5 mm? The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables). and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
