Brand	AEG-ELECTROLUX
Model	X66453MV0
Product type	Cooker hood
Power supply	220-240 V / 50-60 Hz (check on rating plate)
Installation class	Grounding mandatory
Minimum safety distance	650 mm between hob and hood
Air outlet diameter	≥ 120 mm
Max pressure drop in the room	0.04 mbar
Number of motor speeds	3 normal speeds + 1 intensive speed (5 min)
Lighting	Integrated lighting system (on/off)
Delayed automatic shut-off	15 minutes (motor + lighting)
Remote control	Activate/deactivate via button G (press 5s)
Keypad lock	Activate via button B (press 5s)
Metal grease filters	Cleaning recommended every 2 months
Active carbon filter	Replacement recommended every 4 months
Filter saturation alarm	Fixed LED = metal filters saturated (100h); flashing = carbon filter saturated (200h)
Filter alarm reset	Button H (press 2s, hood off)
Materials	Cleanable surfaces with damp cloth and neutral detergent
Spare parts	Use only original parts
Use	Domestic only, elimination of cooking odors

Frequently Asked Questions - X66453MV0 AEG-ELECTROLUX

How to clean the grease filters of my AEG-ELECTROLUX X66453MV0 hood?

The metal grease filters must be cleaned every 2 months. Use a damp cloth and neutral detergent. Before any operation, disconnect the hood.

When should I replace the active carbon filter?

The active carbon filter must be replaced every 4 months to ensure good odor removal. LED H flashes after 200 hours of operation to signal saturation.

How to reset the filter saturation alarm?

To reset the alarm, press the button H for about 2 seconds when the hood is off. The LED will go off after reset.

What to do if the LED of button H flashes?

A flashing LED H indicates that the active carbon filter is saturated (200h of operation). Replace the filter then reset the alarm.

How to activate the intensive speed on my hood?

Press the button F to activate intensive speed. It lasts 5 minutes then the hood automatically returns to the previous speed. To stop it before, press F again or turn off the motor.

Can I use a remote control with this hood?

Yes, the remote control can be activated/deactivated by pressing the button G for 5 seconds when the hood is off (motor + lighting). An LED confirms activation (2 flashes of buttons C+B) or deactivation (1 flash).

How to lock the keypad to prevent unintended operations?

Press the button B for 5 seconds when the hood is off. All LEDs flash twice to confirm lock. To unlock, press B again for 5 seconds.

What minimum distance should I maintain between my hood and the hob?

The minimum safety distance is 650 mm between the hob and the hood. Respect this distance to avoid fire risk.

Can I cook with open flames under the hood?

No, never leave free flames under the hood. Ensure flames do not exceed the bottom of the pots to avoid fire risk.

How to activate the delayed automatic shut-off?

Press the button G to activate the delayed automatic shut-off of the motor and lighting after 15 minutes. Ideal to eliminate residual odors. To cancel, press G again or turn off the motor.

USER MANUAL X66453MV0 AEG-ELECTROLUX

EN USER MANUAL 3
DE GEBRAUCHSANLEITUNG 6
FR MANUEL D'UTILISATION 9
NL GEBRUKSAANWIJZING 12
ES MANUAL DE USO 15
PT LIVRO DE INSTRUÇÉS PARA UTILIZAZão 18
IT LIBRETTO DI USO 21
SV ANVÄNDNINGSHANDBOK 24
NO BRUKSVEILEDNING 27
FI KAYTTOOHJEET 30
DA BRUGSVEJLEDNING 33
RU PYKOBODCTBO NO 3KcPJIYATAUIN 36
ET KASUTUSJUHEND 39
LV LIETOSANAS PAMACIBA 42
LT NAUDOTOJO VADOVAS 45
UK IHCTPYKlI3 EKCnIyATAIJI 48
HU HASNZALATI UTMUTATO 51
CS NAVOD KPOUZITI 54
SK NAVOD NA POUZIVANIE 57
RO MANUAL DE FOLOSIRE 60
PL INSTRUKCJA UZYTKOWANIA 63
HR KNJIZICA S UPUTAMA 66
SL NAVODILO ZA UPORABO 69
EL OAHIEXPHES
TR KULLANIM KITAPCIIGI 75
BG PbKOBOCTBO HA NOTPEBNTELI 78
KKIaJAAHUbI HYCKAYbIFbl 81
MK YNATCTBO 3A KOPINCHIK. 84
SQUDHEZUESPERPERDORIMIN 87
SR KOPINCHINKO YIYTCTBO 90
AR 93

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Visit the webshop at:

www.aeg.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containersto recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility orcontact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available

The information can be found on the rating plate.

Model

PNC

Serial Number

RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• "CAUTION: Accessible parts may become hot when used with cooking appliances".

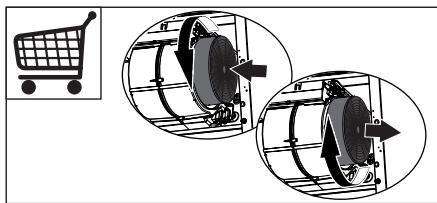

MAINTENANCE

1. Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

2. Clean and/or replace the Filters after the specified time period (Fire hazard).

3. 4 months: for the Activated Charcoal Filters.

- 2 months: for the Metal Grease Filters.

• Control lights, if present.

• Clean the hood using a damp cloth and a neutral liquid detergent.

CONTROLS

-	①	Y1	Y2	Y3			F/C
|	|	|	|	|	|	|	|
A	B	C	D	E	F	G	H

Button	Function	Led
A	Turns the Lighting System on and off. If pressed and held for 5 seconds with the hood turned off and no alarm, do: Enables the Activated Charcoal Filter Alarm. Disables the Activated Charcoal Filter Alarm.	On or Off 2 Flashes Led buttom H 1 Flash Led buttom H
B	Turns the Motor on and off. Enables Keyboard Lock mode if pressed and held for 5 seconds. It is disabled by pressing the button for 5 seconds.	On or Off All the Leds flash twice and during Keyboard Lock the Leds light up in sequence. All the Leds flash once.
C	Activates speed one.	On.
D	Activates speed two.	On.
E	Activates speed three.	On.
F	Activates intensive speed from any other speed, including motor off. This speed is timed to run for 5 minutes, after which the system will return to the speed that was previously set. Suitable to deal with se-vere cooking fumes. It is deactivated by pressing the button or turning the motor off.	On.
G	Activates delayed automatic shutdown of the motor and the lighting system after 15 minutes. Suitable to complete the elimination of residual odours, it is deactivated by press-ing the button of turning the motor off. If pressed and held for 5 seconds with the hood and lightturned off and no alarm, do: Enables the Remote control. Disables the Remote control.	On. 2 Flashes Led buttom C + B 1 Flash Led buttom C + B
H	Performs a Reset of the Filter saturation alarm when the button is pressed for ap-proximately 2 seconds with the hood turned off.	After 100 hours operation the LED lights up continuously to indicate saturation of the Metal Grease Filters. After 200 hours operation the LED flashes to indicate saturation of the Activated Charcoal Filters.

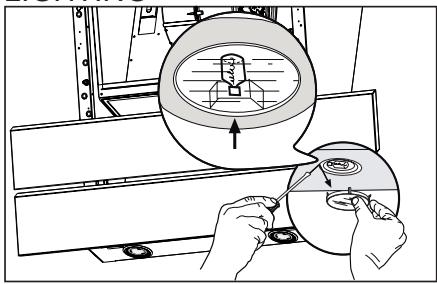

LIGHTING
