PRODUCT DESCRIPTION 65

DAILY USE 68

HELPFUL HINTS AND TIPS 71

CARE AND CLEANING 74

TROUBLESHOOTING 75

INSTALLATION 76

TECHNICAL INFORMATION 78

ENVIRONMENT CONCERNS 79

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

WARNING!

Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.

INSTALLATION

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Keep the minimum distance from the other appliances and units.
  Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.

• Protect the bottom of the appliance from steam and moisture.

• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.

• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• Make sure that the ventilation space of 5 mm, between the worktop and the front of the below unit, is free. The warranty does not cover damages caused by the lack of an adequate ventilation space.
• The bottom of the appliance can get hot. We recommend to install a non-combustile separation panel under the appliance to prevent access to the bottom.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• All electrical connections must be made by a qualified electrician.
• Before every wiring make sure the main terminal of the appliance is not live.
• Make sure the appliance is installed correctly. Loose and incorrect plug and socket can make the terminal become too hot.
• Make sure that a shock protection is installed.
• Do not let the electricity bonds touch the appliance or hot cookware, when you connect the appliance to the near sockets.
• Do not let the electricity bonds tangle.
• Use a strain relief clamp on cable.
• Use the correct mains cable.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contractors.

USE

WARNING!

Risk of injury, burns or electric shock.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Do not use an external timer or a separate remote-control system to operate the appliance.
• Do not let the appliance stay unattended during operation.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Set the cooking zone to "off" after each use. Do not rely on the pan detector.
• Do not use the appliance as a work surface or as a storage surface.
• If there is a crack on the surface, disconnect power supply to prevent the electrical shock.
• Users with a pacemaker must keep a distance of minimum 30~cm from the induction cooking zones when the appliance is in operation.

WARNING!

Risk of fire or explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not try to extinguish a fire with water. Disconnect the appliance and cover the flame with a lid or a fire blanket.

WARNING!

Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Be careful not let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

CARE AND CLEANING

WARNING!

Risk of damage to the appliance.

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

DISPOSAL

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

PRODUCT DESCRIPTION

• You can hear noises when the appliance operates. The noises are normal and do not refer to appliance malfunction.

• If you use the appliance frequently, a small unevenness can form in the middle of the cooking surface where the 2 zones touch. This is not a defect in the cooking surface and its operation is not affected. Therefore:

• Do not put cookware in the middle of the cooking surface between the zones, as the unevenness can make them unsteady.

• Frying on the surface, where the zones touch, can cause in uneven browning (e. g. with pancakes).

THE MOST IMPORTANT FEATURES OF YOUR APPLIANCE

• The cooking surface has 2 layers of stainless steel with a layer of aluminium between them. It has a high thermal capacity, which prevents temperatures from quickly decreasing (e.g. when you prepare meat directly from the refrigerator).
  Each Teppan Yaki grill surface is unique because they are made by hand and grounded by grinding specialists. Differ

ences in the grinding pattern are normal and do not cause problems in how the appliance operates. Also, the more you use your grill, the more valuable it looks.

• The groove around the edge:

• Decreases the temperature of the installation surfaces, which lets you install the cooking surface into different types of kitchen worktops.

• Absorbs some of the expansion of the heated cooking surface through its indentation.
• Collects small food remnants and liquids which you can easily remove after the operation.
• The necessary temperature can be kept constant by the thermostat with a readable temperature setting. This prevents overheating of the food and permits low-fat cooking that keeps the nutritional values of the food.
• The food is heated directly on the cooking surface, with or without oil. There is also the option of cooking with pots or pans.
• The grill surface heats to a temperature of 180^ in approximately 4 minutes. The temperature of the grill surface decreases from 180^ to 100^ in approximately 25 minutes, and to 60^ in approximately 60 minutes.
• You must always preheat the cooking surface before an operation.

GENERAL OVERVIEW

1 Rear roasting zone
2 Front roasting zone
3 Control panel

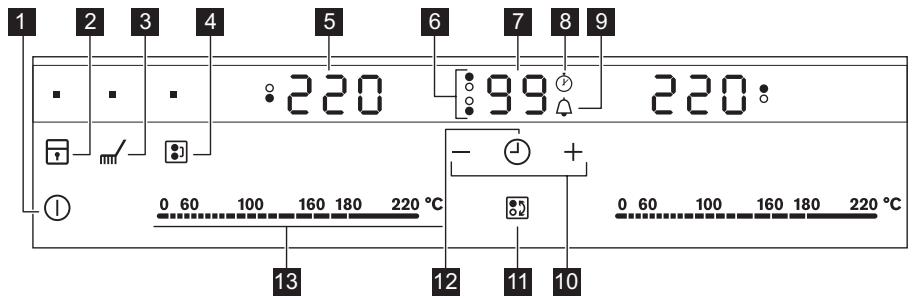

CONTROL PANEL LAYOUT

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

	sensor field	function
1	①	To activate and deactivate the appliance.
2		To lock/unlock the control panel.
3	mm/	To activate and deactivate the cleaning function.
4		To activate and deactivate the Bridge function.
5	Temperature display	To show the temperature.
6	Timer indicators of cooking zones	To show for which of the roasting zones you set the time.
7	Timer display	To show the time in minutes.
8		To show that the Count Up operates (1 to 59 minutes).
9		To show that the Count Down Timer oper-ates (1 to 99 minutes) or to show that Minute Minder operates.
10	+/-	To increase or decrease the time.
11	82	To set the roasting zone for the Timer function.
12		To set the Timer functions.
13	Control bar	To set the heat temperature.

DISPLAYS

Display	Description
□	The roasting zone is off.
60 - 220	The roasting zone operates.
E + digit	There is a malfunction.
E/ E/ E	3 step residual heat indicator: continue cooking/keep warm/residual heat.
L	The lock/child safety device is on.
-	The Automatic Switch-Off is on.

OPTIHEAT CONTROL (3 STEP RESIDUAL HEAT INDICATOR)

WARNING!

Risk of burns from residual heat!

OptiHeat Control indicates the level of the residual heat. The induction cooking zones make the heat necessary for cooking directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

DAILY USE

ON AND OFF

Touch ① for 1 second to start or stop the appliance.

AUTOMATIC SWITCH OFF

The function deactivates the appliance automatically if:

• All roasting zones are deactivated .
• You do not set the temperature after you activate the appliance.
• You spill something or put something on the control panel for more than 10 seconds, (a pan, a cloth, etc.). The sound operates some time and the appliance deactivates. Remove the object or clean the control panel.
• You do not deactivate a roasting zone or change the temperature. After 90 minutes comes on and the appliance deactivates. Before next use, set the roasting zone to 0 .

THE HEAT SETTING

Touch the control bar at the heat setting. Change to the left or the right, if it is necessary. Do not release before you have a correct heat setting. The display shows the heat setting.

If you set the temperature, the display flashes until the roasting zone reaches the temperature. Then a signal sounds and the display shows the temperature.

BRIDGE FUNCTION

The Bridge function connects two roasting zones to have them operate as one.

First set the heat setting for one of the roasting zones.

To activate the Bridge function, touch 3 . To set or change the heat setting, touch one of the control sensors.

To deactivate the Bridge function, touch [3]. The cooking zones operate independently.

THE TIMER

The Count Down Timer.

Use the Count Down Timer to set how long the roasting zone operates for only this one time.

Set the Count Down Timer after the selection of the roasting zone.

The selection of Timer function is possible for roasting zones that are active and the heat setting is set.

To set the roasting zone: touch again and again until the indicator of a necessary roasting zone comes on.
When this function is activated, comes on.
- To activate the Count Down Timer: touch + of the timer to set the time ( 00 - 99 minutes). When the indicator of the roasting zone starts to flash slow, the time counts down.
- To see the remaining time: set the roasting zone with 82 . The indicator of the roasting zone starts to flash quickly. The display shows the remaining time.
- To change the Count Down Timer: set the roasting zone with 0 touch + or - .
- To deactivate the Count Down Timer: set the roasting zone with 82 . Touch —. The remaining time counts back to 00 . The indicator of the roasting zone goes out.

When the timer countdown comes to an end, the sound operates and 00 flashes. The roasting zone deactivates.

To deactivate the sound: touch

The Count Up Timer

Use the Count Up Timer to monitor how long the roasting zone operates.

• The selection of the roasting zone (if more than 1 roasting zone operates): touch again and again until the indicator of a necessary roasting zone comes on.

When this function is activated, comes on.

• To activate the Count Up Timer:

Touch

The symbol goes out and comes on.

• To see how long the roasting zone operates: set the roasting zone with 5 . The indicator of the roasting zone starts to flash quickly. The display shows the time that the zone operates. The display shows the time of the roasting zone that operates for longer period of time.
• To deactivate the Count Up Timer: set the roasting zone with 85 and touch + . The symbol goes out and comes on.
  To reset the Count Up Timer: touch —. The time counts back to 00 .

When the two Timer functions operate at the same time, the display shows the Count Up Timer first.

The Minute minder.

You can use the timer as a minute minder while the roasting zones do not operate. Touch ① Touch + or - of the timer to set the time. When the time comes to an end, the sound operates and 00 flashes.

• To stop the sound: touch

LOCK

You can lock the control panel, but not ① . It prevents an accidental change of the heat setting.

First set the heat setting.

To start this function touch l . The symbol l comes on for 4 seconds.

The Timer stays on.

To stop this function touch . The heat setting that you set before comes on. When you stop the appliance, you also stop this function.

THE CHILD SAFETY DEVICE

This function prevents an accidental operation of the hob.

Starting the child safety device

• Start the hob with ① . Do not set the heat settings.
• Touch for 4 seconds. The symbol comes on.
• Stop the hob with ①.

Switching off the child safety device

• Start the hob with ① . Do not set the heat settings. Touch for 4 seconds. The symbol comes on.
• Stop the hob with ①.

Overriding the child safety device for one cooking session

• Start the hob with ① . The symbol L comes on.
• Touch for 4 seconds. Set the heat setting in less than 10 seconds. You can operate the hob.
• When you stop the hob with ① , the child safety device operates again.

OFFSOUND CONTROL (DEACTIVATION AND ACTIVATION OF THE SOUND)

Deactivation of the sounds

Deactivate the appliance.

Touch ① for 3 seconds. The displays come on and go out. Touch ⑦ for 3 seconds. ⑥ comes on, the sound is on. Touch ^+ , ⑤ comes on, the sound is off. When this function operates, you can hear the sounds only when:

• you touch ①
• the Minute Minder comes down
• the Count Down Timer comes down
• you put something on the control panel.

Activation of the sounds

Deactivate the appliance.

Touch ① for 3 seconds. The displays come on and go out. Touch ⑦ for 3 seconds. b comes on, because the sound is off. Touch + , b comes on. The sound is on.

HELPFUL HINTS AND TIPS

ÖKO TIMER (ECO TIMER)

To save energy, the heater of the roasting zone deactivates before the count down timer sounds. The difference in the operation time depends on the heat setting level and the length of the cooking operation.

PREPARED FOOD WITH THE TEPPAN YAKI

You prepare the food directly on the roasting surface, with or without oil. You can also use pots or pans, but the cookware does not heat up as quickly as it does on a glass-ceramic hob or a gas hob. You can cook or keep warm side dishes or sauces in pots or pans. Put them directly on the cooking surface.

The manufacturer does not recommend that you boil large quantities of water on the roasting surface (e.g. for spaghetti).

The noises are normal and are not the result of an appliance malfunction.

EXAMPLES OF COOKING APPLICATIONS

Using fats and oils

When the temperature is too high, the fat begins to produce smoke. This temperature is called the smoke point.

Fats/Oils	Max. temperature (℃)	Smoke point (℃)
Butter	130	150
Pork fat	170	200
Beef fat	180	210
Olive oil	180	200
Sunflower oil	200	220
Groundnut oil	200	235
Coconut oil	200	240

Always preheat the appliance.

Food to be cooked	Temperature (℃)	Time / Tips
Fish and shellfish	140–160	Preheat the appliance.
Salmon fillets	160	8 minutes, turn after 4 min- nutes.
King prawns (without shell)	140	6 minutes, turn after 3 mi- nutes.
Shark steaks, approx. 2.5 cm thick	160	10 minutes, turn after 5 minutes.
Sole, Müllerin Art (fried in butter)	140	8 minutes, turn after 4 min- nutes, light side first.
Plaice files	140	6 minutes, turn after 3 mi- nutes.
Veal	140–180	Preheat the appliance.
Food to be cooked	Temperature (°C)	Time / Tips
Veal chop	180	10 minutes, turn after 5 minutes.
Veal medallions, 4 cm thick	160	10 minutes, turn after 5 minutes.
Veal steaks, 3 - 4 cm thick	160	6 minutes, turn after 3 minutes.
Veal escalopes, natural	180	5 minutes, turn after 2½ minutes.
Veal fricasee in cream sauce	180	6 minutes, turn after 3 minutes. The meat strips must not be stuck to each other.
Beef	160-180	Preheat the appliance.
Beef steak blau, very rare	180	2 minutes, turn after 1 minute.
Beef steak blutig, rare	180	6 minutes, turn after 3 minutes.
Beef steak rosa, medium	180	8 minutes, turn after 2 minutes.
Beef steak darch, well done	180	8 minutes, turn after 4 minutes. Without fatty substances, the roasting time increases by approximately 20%.
Hamburger	160	6 - 8 minutes, turn after 3 - 4 minutes.
Châteaubriand	160 then 100	Sauté the meat in oil on all sides (turn only when the meat does not stick to the pan). Finish off on one side for 10 minutes (100 °C).
Pork	160-180	Preheat the appliance.
Pork medallions	160	8 minutes, turn after 4 minutes (depending on the thickness).
Pork steaks	180	8 minutes, turn after 4 minutes.
Pork escalopes	160	6 minutes, turn after 3 minutes.
Spare ribs	160	8 - 10 minutes, turn several times.
Pork skewer	160	6 - 8 minutes, sauté well on all sides.
Food to be cooked	Temperature (℃)	Time / Tips
Lamb	160–180	Preheat the appliance.
Lamb chops	180	10 minutes, turn after 5 minutes.
Filet of lamb	160	10 minutes, turn after 5 minutes. The filet must be fried on both sides.
Lamb steaks	160	6 - 8 minutes, turn after 3 - 4 minutes.
Poultry	140–160	Preheat the appliance.
Chicken supreme	140	8 - 10 minutes, turn after 4 - 5 minutes.
Turkey breast strips	160	6 minutes, turn several times.
Sausages	160	Preheat the appliance.
Fried egg	140	Preheat the appliance.
Crepes/Omelettes	140-160	Preheat the appliance.
Fruits	140-160	Preheat the appliance.
Vegetables	140-160	10 – 20 minutes, turn several times.
Vegetables	140-160	10 - 15 minutes, under a cooking lid (turn halfway through).
Cooking precooked rice	140-160	10 – 15 minutes, turn several times.
Cooking precooked noo-dles	140-160	15 - 20 minutes, turn halfway through.

Information on acrylamides

Important! According to the newest scientific knowledge, if you brown food (specially the one which contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.

CARE AND CLEANING

Clean the appliance after each use.

Always use cookware with clean bottom.

CLEANING FUNCTION

1. Touch m / . Each zone is set to 80^ . The display flashes until the temperature is 80^ . The function locks the control panel, but not m / .
2. When the temperature is 80^ , an acoustic signal sounds, and the control panel becomes unlocked.
3. Put ice cubes one by one on the roasting zone (you can use also cold water). At the same time, use a spatula to remove the remaining roasting pieces and push all pieces into the trough.
4. Dry the appliance with a clean cloth.

CLEANING WHEN THE APPLIANCE IS COLD

1. Apply a usual cleaning agent to the roasting surface and let it set for 5 minutes.
2. Remove the cooking residue with a spatula.
3. Clean the appliance with a moist cloth
4. Dry the appliance with a clean cloth.
5. When the appliance is dry, rub the roasting surface with some cooking oil.

TROUBLESHOOTING

Problem	Possible cause	Remedy
You cannot activate the appliance or operate it.		Activate the appliance again and set the heat setting in less than 7 seconds.
	You touched 2 or more sensor fields at the same time.	Touch only one sensor field.
	There is water or fat stains on the control panel.	Clean the control panel.
An acoustic signal sounds and the appliance deactivates. An acoustic signal sounds when the appliance is deactivated.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The appliance deactivates.	You put something on the sensor field ①.	Remove the object from the sensor field.
The residual heat indicator does not come on.	The cooking zone is hot because it operated only for a short time.	If the cooking zone operated sufficiently long to be hot, speak to the service centre.
There is no signal when you touch the panel sensor fields.	The signals are deactivated.	Activate the signals (refer to "OffSound control").
□ comes on	The Automatic Switch Off operates.	Deactivate the appliance and activate it again.
L comes on	The Child Safety Device or the Lock function operates.	Refer to the chapter "Operating instructions".
E and number come on.	There is an error in the appliance.	Disconnect the fuse from the electrical system of the house in order to disconnect the appliance from the electrical supply for some time. Connect it again. If E comes on again, speak to the service centre.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the Customer Care Department. Give the data from the rating plate, three-digit-letter code for the glass ceramic (it is in the corner of the cooking surface) and an error message that comes on.
If you operated the appliance incorrectly, the servicing by a customer service technician or dealer will not be free of charge, even during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

INSTALLATION

WARNING!

Refer to "Safety information" chapter.

Before the installation

Before the installation of the appliance, record the information below from the rating plate. The rating plate is on the bottom of the appliance casing.

Model
- PNC
- Serial number

BUILT-IN APPLIANCES

• Only use the built-in appliances after you assemble the appliance into correct

ASSEMBLY

built-in units and work surfaces that align to the standards.

CONNECTION CABLE

• The appliance is supplied with the connection cable.
• Replace the damaged mains cable with a special cable (type H05BB-F Tmax 90^ ; or higher). Speak to your local Service Centre.

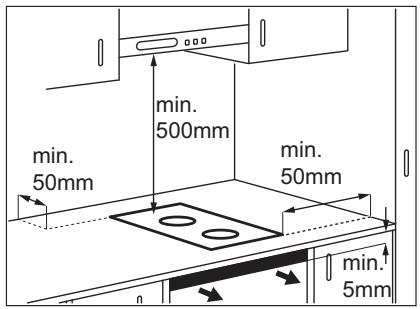

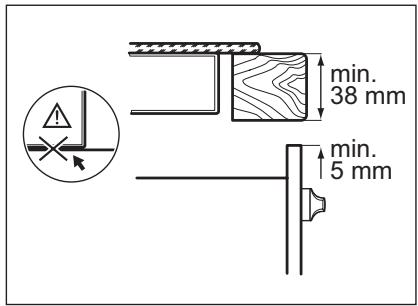

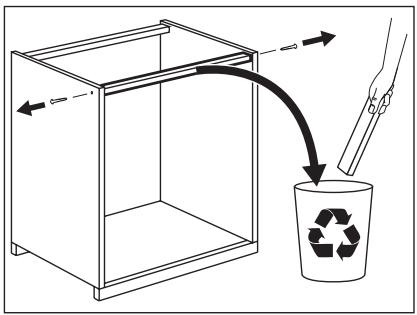

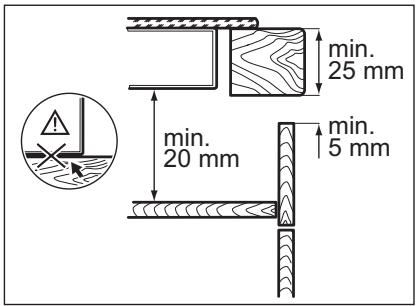

If, you use the accessory frame C-FRAME, first read the instruction supplied with the frame before you install the appliance.

• Seal the gap between the worktop and glass ceramic with silicone.

• Put some soapy water on the silicone.

• Pull off the excess silicone with the scraper.

THE INSTALLATION OF MORE THAN ONE APPLIANCE

Added parts: connection bar(s), heat resistant silicon, rubber shape, sealing strap.

i Only use special a heat - resistant silicon.

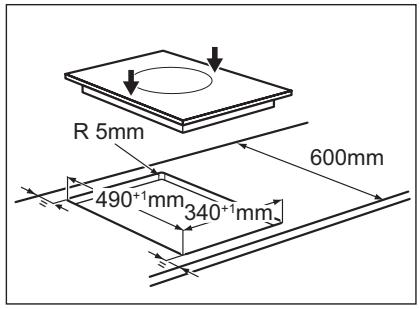

The worktop cut out

Distance from the wall : minimum 50 mm

Depth : 490 mm

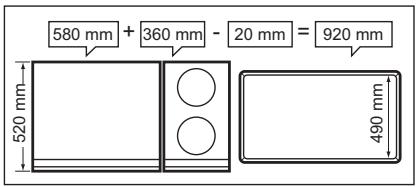

Width : sum widths of all the appliances tobe built-in and subtract 20 mm (see also

"Overview of all appliance widths")

The installation of more than one appliance

1. Put down the dimension of the worktop cut out and saw it out.
2. Put the appliances one at time on some soft surface, a blanket for example, with the bottom side up.

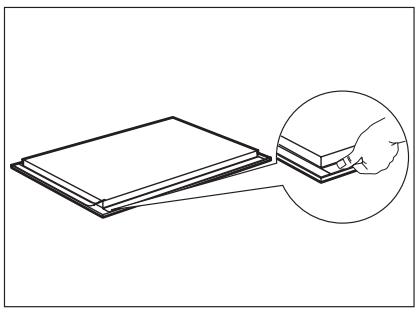

3. Put the seal stripe around the lower edge of the appliance along the outer edge of the glass ceramic.

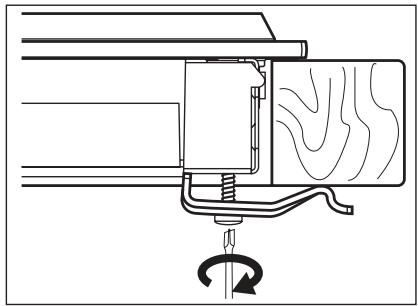

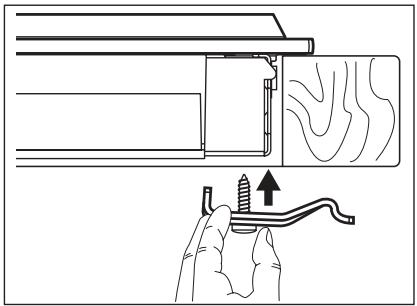

4. Loosely screw the fixing plates into the appropriate holes in the protective casing.

1. Put the first appliance in the worktop cut out. Put the connection bar in the worktop cut out and push up half of the width against the appliance.
2. Loosely turn in fixing plates from below on the worktop and on the connection bar.
3. Put the subsequent appliance in the worktop cut out. Make sure that the front ends of the appliances are on the same level.
4. Tighten the fixing plate / retaining grip screws.
5. Seal the gap between the worktop and appliances and between appliances with silicone.
6. Put some soapy water on the silicon.
7. Press the rubber shape with some strength against the glass ceramic and move it slowly along the space.
8. Do not touch the silicon until it becomes hard, it can last about a day.
9. Carefully remove silicon that came out with a shaving blade.
10. Clean glass ceramic fully.

TECHNICAL INFORMATION

Serie EQT4520BOG

Typ 55 TEP 02 AO

Induction 1.8 kW

Ser.Nr.

Electrolux

Roasting zones power

Roasting zone	Nominal Power (Max heat setting) [W]
Rear	900 W
Front	900 W

ENVIRONMENT CONCERNS

Recycle the materials with the symbol

Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical

and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

C E
