USER MANUAL EGW9353NOK AEG-ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylsh, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that your get great results every time. Welcome to Electrolux. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. L\ Waming / Caution-Safety information (&) General information and tips (2) Environmental information Subject to change without notice.

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes in- juries and damages. Always keep the instructions with the appliance for future reference.

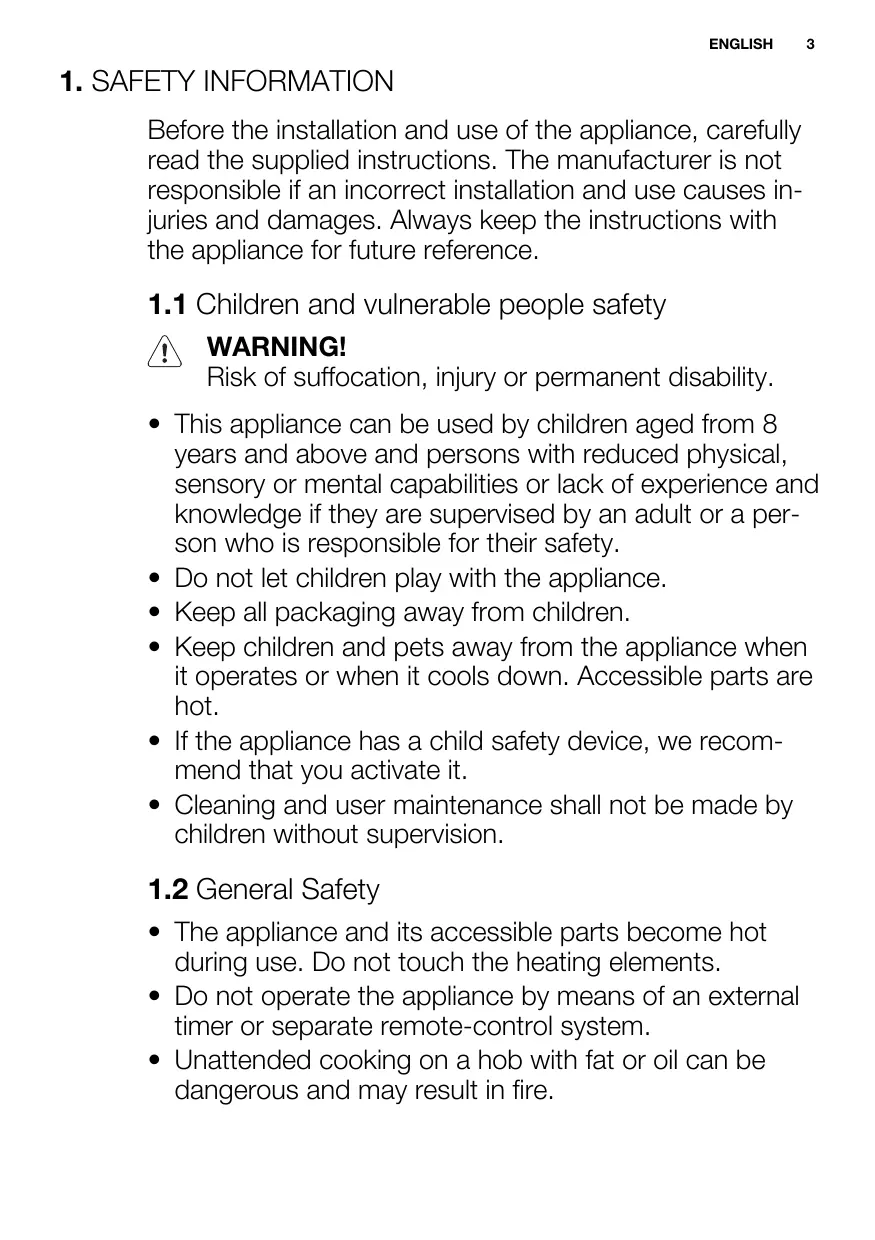

1.1 Children and vulnerable people safety

WARNING! Risk of suffocation, injury or permanent disability. *_ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a per- son who is responsible for their safety. + Do not let children play with the appliance.

• Keep all packaging away from children. + Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot. *_lfthe appliance has a child safety device, we recom- mend that you activate it. ° Cleaning and user maintenance shall not be made by children without supervision.

• The appliance and its accessible parts become hot during use. Do not touch the heating elements. + Do not operate the appliance by means of an external timer or separate remote-control system. + Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

4 www-electrolux.com + Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a

fire blanket. + Do not store items on the cooking surfaces. + Do not use a steam cleaner to clean the appliance. + Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. + _Ifthe glass ceramic surface is cracked, switch off the appliance to avoid the possibility of electric shock. SAFETY INSTRUCTIONS This applian markets: is suitable for the following

WARNING! Only a qualfied person must in- tal this appliance. Remove all the packaging. Do not install or use a damaged appli- ance. Obey the installation instruction sup- plied with the appliance. Keep the minimum distance from the other appliances and units. Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Seal the cut surfaces with a sealant to prevent moisture to cause swelling. Protect the bottom of the appliance from steam and moisture. Do not install the appliance adjacent to a door or under a window. This pre- vents hot cookware to fall from the ap- pliance when the door or the window is opened. Ifthe appliance is installed above draw- ers make sure that the space, between the bottom of the appliance and the up- per drawer, is sufficient for air circula- tion +_ The bottom of the appliance can get hot. We recommend to install a non- combustile separation panel under the appliance to prevent access to the bot- tom. Electrical connection WARNING! Risk of fire and electrical shock. + Al electrical connections must be made by a qualiied electrician. The appliance must be earthed. Before canying out any operation make sure that the appliance is disconnected from the power supply. Use the correct electricity mains cable. Do not let the electricity mains cable tangle. Make sure the mains cable or plug (if applicable) does not touch the hot ap- pliance or hot cookware, when you connect the appliance to the near sock- ets Make sure the appliance is installed correctiy. Loose and incorrect electricity mains cable or plug (f applicable) can make the terminal become too hot. Make sure that a shock protection is in- stalled. Use the strain relief clamp on cable.

Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact the Service or an electrician to change a damaged mains cable. The electrical installation must have an isolation device which lets you discon- nect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm. Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors. Gas connection All gas connections should be made by a qualified person. Make sure that there is air circulation around the appliance. The information about the gas supply is on the rating plate. This appliance is not connected to a device, which evacuates the products of combustion. Make sure to connect the appliance according to current in- stallation regulations. Pay attention to requirements regarding adequate venti- lation.

WARNING! Risk of injury, burns or electric shock. Use this appliance in a household envi- ronment. Do not change the specification of this appliance. Do not use an external timer or a sepa- rate remote-control system to operate the appliance. Do not let the appliance stay unatten- ded during operation. Do not operate the appliance with wet hands or when it has contact with wa- ter. Do not put cutlery or saucepan lids on the cooking zones. They become hot. Set the cooking zone to “off” after use. Do not use the appliance as a work surface or as a storage surface. ENGLISH 5 + _Ifthe surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock. WARNING! Risk of fire or explosion.

Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them. The vapours that very hot oil releases can cause spontaneous combustion. Used oil, that can contain food rem- nants, can cause fire at a lower temper- ature than oil used for the first time. Do not put flammable products or items that are wet with flammable products in, near or on the appliance. Do not try to extinguish a fire with wa- ter. Disconnect the appliance and cover the flame with a lid or a fire blanket. WARNING! Risk of damage to the appliance.

Do not keep hot cookware on the con- trol panel. Do not let cookware to boil dry. Be careful not to let objects or cook- ware fall on the appliance. The surface can be damaged. Do not activate the cooking zones with empty cookware or without cookware. Do not put aluminium foil on the appli- ance. Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface. Provide good ventilation in the room where the appliance is installed. Make sure that the ventilation openings are not blocked. Use only stable cookware with the cor- rect shape and diameter larger than the dimensions of the burners. There is a risk of overheating and rupture of the glass plate (if applicable). Make sure the flame does not go out when you quickly turn the knob from the maximum to the minimum position.

6 www-electrolux.com + Make sure pots are centrally positioned on the rings and do not stick out over edges of the cooking surface. + Use only the accessories supplied with the appliance. + Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, soivents or metal ob- jects. + Do not install a flame diffuser on the burner.

WARNING! Risk of injury or suffocation.

2.3 Care and Cleaning

WARNING! Risk of damage to the appliance.

Contact your municipal authority for in- formation on how to discard the appli- ance correctly. Disconnect the appliance from the mains supply. Out off the mains cable and discard it Flat the external gas pipes. + Clean regularly the appliance to prevent the deterioration of the surface material. + Do not use water spray and steam to clean the appliance. + Do not clean the bumers in the dlish- washer.

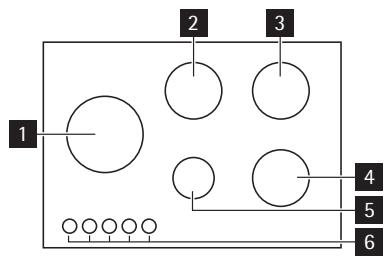

Symbol Description minimum gas no gas supply / (l Sup e off position ignition position / maximum gas supply x 0

WARNING! Refer to “Safety information" chapter.

4.1 lgnition of the burner

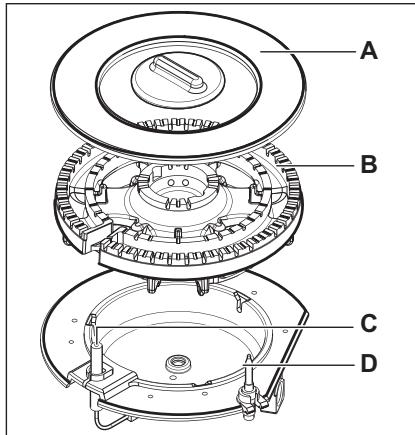

WARNING! Be very careful when you use open fire in kitchen environment. Manufacturer decline any respon- sibility in case misuse of the flame Always light the burner before you put cookware. To light the burner:

Tu the control knob counterclock- wise to the maximum position ( À () } and push it down. Keep the control knob pushed for ap- proximately 5 seconds; this will let thermocouple to warm up. If not, the gas supply will be interrupted. Adjust the flame after it is regular. If after some tries the burner does not light, check if the crown and its cap are in correct positions. A) Burner cap and crown B) Thermocouple C) lgnition candle ENGLISH 7 A) Burner cap B) Burner crown C) Ignition candle D) Thermocouple

WARNING! Do not keep the control knob pushed for more than 15 sec- onds. Ifthe burner does not light after 15 seconds, release the control knob, turn it into off position and try to light the burner again after minimum 1 minute. In the absence of electricity you can ignite the burner without elec- trical device; in this case approach the burner with a flame, push the relevant knob down and turn it counter-clockwise to maximum gas release position. Ifthe burner accidentally goes out, turn the control knob to the off position and try to light the burner again after minimum 1 minute. The spark generator can start au- tomatically when you switch on the mains, after installation or a power cut. It is normal.

4.2 Turning the burner off

To put the flame out, turn the knob to the symbol @ .

8 www-electrolux.com WARNING! Always tum the flame down or switch it off before you remove the pans from the burner.

WARNING! Refer to “Safety information" chapter.

+ H possible, always put the lids on the pans. + When the liquid starts to boil, tu down the flame to barely simmer the liquid. Use cockware with diameters applicable to the size of bumners. Burner Diameters of cookware Triple Crown 180 - 300 Semi-rapid (rear left) 120 - 240 Semi-rapid (rear right) 120 - 240 Semi-rapid (front right) 120 - 220 Auxiliary 80 - 180 mm WARNING!

Do not use cast iron pans, pot- stones, gril or toaster plates on gas burners. WARNING! Do not put the same pan on two burners. EX axe WARNING! Make sure pot handies do not protrude over the front edge of the cooktop and that pots are centrally positioned on the rings in order to achieve maximum stabil- ty and to obtain lower gas con- sumption. Do not place unstable or deformed pots on the rings to prevent from spill and in- Jury. WARNING! Liquids spilt during cooking can cause the glass to break Information on acrylamides Important! According to the newest scientific knowledge, if you brown food (special the one which contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much

6. CARE AND CLEANING

AN WARNING! Refer to “Safety information" chapter. /\ ARNINGI Deactivate the appliance and let it cool down before you clean it. Disconnect the appliance from the electrical supply before you do cleaning or maintenance work. (à) Scratches or dark stains on the surface have no effect on how the appliance operates. You can remove the pan supports to easily clean the hob. To clean the enamelled parts, cap and crown, wash them with warm soapy water and dry them carefully before you put them back Wash stainless steel parts with water, and then dry them with a soft cloth. The pan supports are not dishwasher proof. They must be washed by hand. When you wash the pan supports by hand, take care when you dry them as the enamelling process occasionally leaves rough edges. necessary, re- move stubborn stains using a paste cleaner. Make sure you position the pan sup- ports correctiy after cleaning. To make the bumers work correctly, make sure that the arms of the pan supports are in the centre of the burner. Be very careful when you replace the pan supports to prevent the hob top from damage. After cleaning, dry the appliance with a soft cloth. Removing the dirt:

— Remove immediately: melting plastic, plastic foil, and food con- taining sugar. ENGLISH 9 — Stop the appliance and let it cool down before you clean: lime- scale rings, water rings, fat stains, shiny metallic discolorations. Use a special cleaner applicable for sur- face of hob. Clean the appliance with a damp cloth and some detergent.

3. Atthe end rub the appliance dry

with a clean cloth. A\ WARNING! Do not use knives, scrapers or similar instruments to clean the surface of the glass or between the rims of the burners and the frame (if applicable). AN WARNING! Do not slide cookware over the glass because it could scratch the surface. Also, do not let hard or sharp objects fall onto the glass or hit the edge of the hob.

6.1 Cleaning of the spark plug

This feature is obtained through a ceramic ignition candle with a metal electrode. Keep these components well clean to prevent diffcuit lighting and check that the buner crown holes are not obstructed.

6.2 Periodic maintenance

Periodically speak your local Service Force Centre to check the conditions of the gas supply pipe and the pressure ad- juster, if fitted.

Problem Possible cause Remedy There is no spark when lighting the gas There is no electrical Supply + Make sure that the unit is connected and the electrical supply is switched on. Control the fuse. If the fuse is released more than one time, refer to a qualified electrician. Burner cap and crown are placed uneven Make sure that the burner cap and crown are in correct positions. The flame is blow out im- mediately after ignition Thermocouple is not heated sufficient After lightning the flame, keep the knob pushed for approxi- mately 5 seconds. The gas ring burns un- evenly dues Burner crown is blocked with food resi- Make sure that the in- jector is not blocked and the burner crown is clear of food parti- cles. Ifthere is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, speak your dealer or the local Service Force Centre.

If you operated the appliance in- correctiy, or the installation was not carried out by a registered en- gineer, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period. These data are necessary to help you quickly and correctly. These data are available on the supplied rating plate. + Model description + Product number (PNC) . + Serial Number (S.N.) Use the original spare parts only. They are available at Service Force Centre and ap- proved spare parts shops.

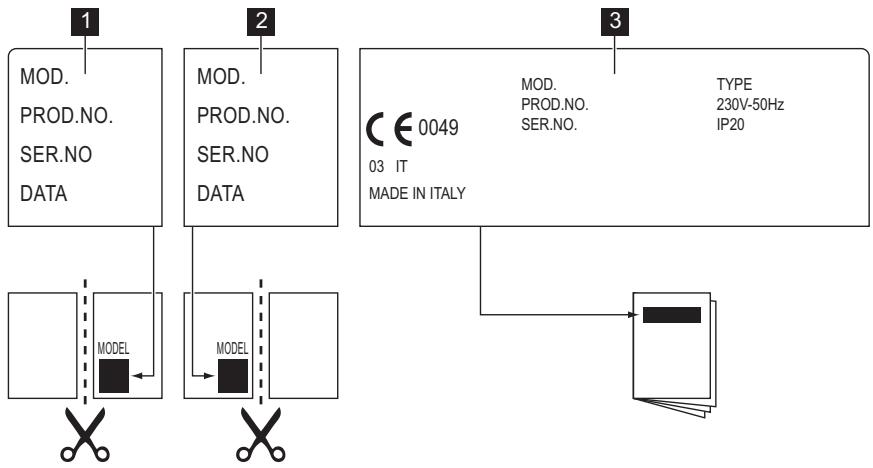

7.1 Labels supplied with the

accessories bag Stick the adhesive labels as indicated be- low:

CHE HA Sick it on Guarantee Card and send this part Stick it on Guarantee Card and keep this part

WARNING! Refer to “Safety information" chapter.

WARNING! The following instructions about installation, maintenance and ven- tilation must be carried out by qualified personnel in compliance with the regulation in force (UNI- CIG 7129 - 7131). Make sure that the kitchen is well ventilated: keep natural ventilation holes open (at least 100 om?) or install a me- chanical extractor hood.

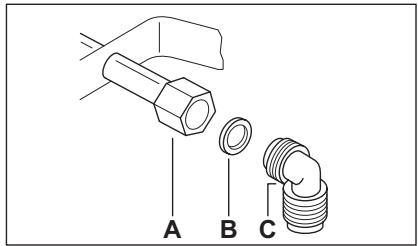

Choose fixed connections or use a flexible pipe in stainless steel in compliance with the regulation in force. If you use flexible metalic pipes, be careful they do not come in touch with mobile parts or they are not squeezed. Also be careful when the hob is put together with an oven. Make sure that the gas supply pressure of the appliance obeys the recommended values. Stick it on instruction booklet Ithe supplied pressure has not the speci- fied value, it is necessary to assemble a proper pressure regulator in compliance With the standard UNI EN 88. For Liquid Gas (LPG) the use of pressure regulator is allowed only if they are in compliance with UNI EN 12864. The adjustable connection is fixed to the comprehensive ramp by means of a threaded nut G 1/2". Screw the parts without force, adijust the con- nection in the necessary direction and tighten everything. A) End of shaît with nut B) Washer C) Elbow

Rigid connection: Carry out connection by using metal rigid pipes (copper with mechanical end) (UNI- CIG 7129). Flexible connection: Use a flexible pipe in stainless steel (UNI- CIG 9891) with a maximum length 2 m.

When installation is complete, make sure that the seal of each pipe fitting is correct. Use a soapy solution, not a flame!

8.2 Injectors replacement

1. Remove the pan supports.

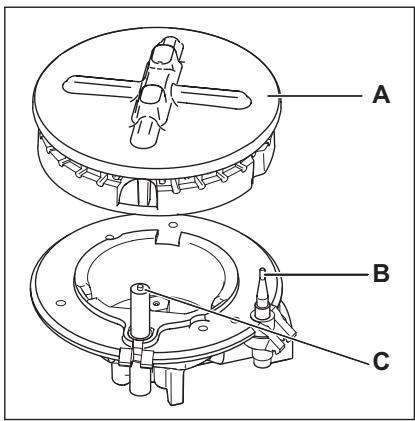

2. Remove the caps and crowns of the

injectors and replace them with the ones which are necessary for the type of gas you use (see table in "Techni- cal Information" chapter).

4. Assemble the parts, follow the same

procedure backwards.

5. Replace the rating plate (it is near the

gas supply pipe) with the one for the new type of gas supply. You can find this plate in the package supplied with the appliance. Ifthe supply gas pressure is changeable or different from the necessary pressure, you must fit an applicable pressure ad- juster on the gas supply pipe.

8.3 Adjustment of minimum level

To adjust the minimum level of the burn- ers:

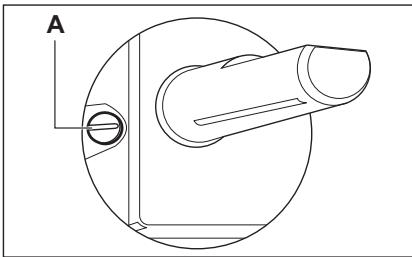

4. With a thin screwdriver, adjust the by-

pass screw position. A) The by-pass screw + If you change from natural gas G20 20 mbar to liquid gas, fully tighten the by- pass screw in. + If you change from liquid gas to natural gas G20 20 mbar, undo the by-pass screw approximately 1/4 of a turn (1/2 of a turn for Triple Crown burner), AN WARNING! Make sure the flame does not go out when you quickly turn the knob from the maximum position to the minimum position.

8.4 Electrical connection

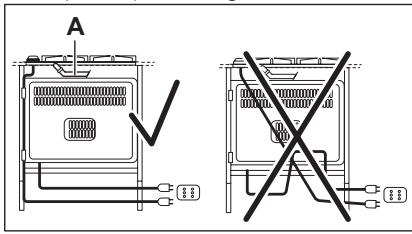

Ground the appliance according to safety precautions. Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply. This appliance is supplied with a mains cable. It has to be supply with a correct plug, able to support the load marked on the rating plate. The plug has to be fitted in a correct socket. + Any electrical component must be in- stalled or replaced by the Service Force Centre technician or qualified service personnel. + Always use a correctly installed shock- proof socket. Make sure that there is an access to the mains plug after installation. Do not pull the mains cable to discon- nect the appliance. Always pull the mains plug. The appliance must not be connected with an extension cable, an adapter or a multiple connection (risk of fire), Check that the ground connection is in conformity with the standard and regu- lations force.

The power cable must be placed in such a way that it does not touch any hot part. Connect the appliance to the mains with a device that lets to disconnect the appliance from the mains at all poles with a contact opening width of mini- mum 3 mm, eg. automatic line protect- ing cut-out, earth leakage trips or fuse. No part of the power cable must heat to a temperature of more than 90° C. Use clamps installed on the side of the cabinet to prevent contact with the equip- ment below the cooktop. See an example of an optimal path in Figure. ENGLISH 13 A) Rigid copper pipe or flexible pipe in stainless steel

8.5 Replacement of the

connection cable To replace the connection cable use only HO5V2V2-F T90 or equivalent type. Make sure that the cable section is applicable to the voltage and the working temperature. The yellow/green earth wire must be ap- proximately 2 cm longer than the brown {or black) phase wire.

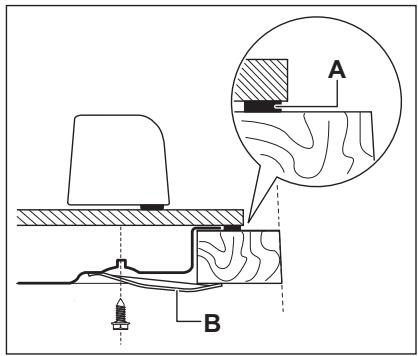

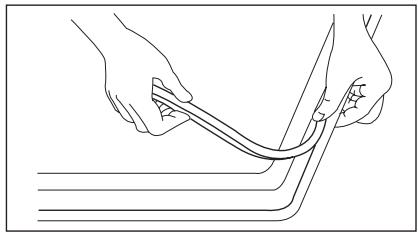

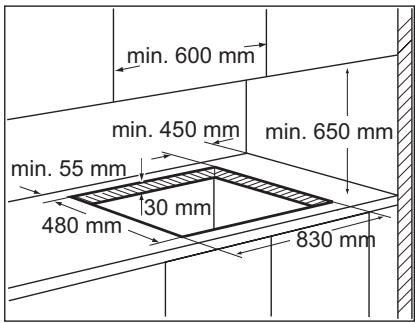

min. 600 mr min. 450 mm| min. 650 mm A) supplied seal B) supplied brackets AN CAUTION! Install the appliance only on a worktop with flat surface. If you install the hob under a hood, please see the installation instructions of the hood for the minimum distance between the appliances.

8.7 Possibilities for insertion

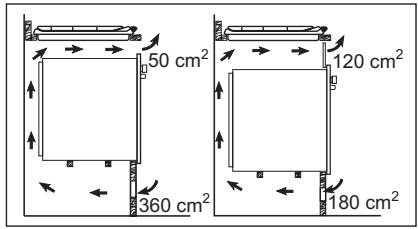

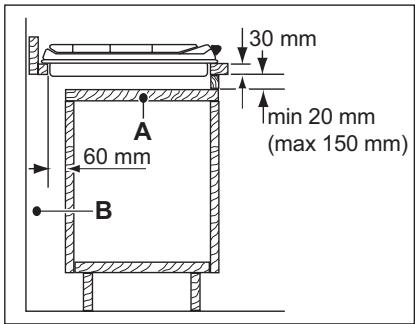

Kitchen unit with door The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary.

14 wwwelectrolux.com be equipped with vents to let a continu- ÿ50 mm ous supply of air. The electrical connec- l— 25 ion ofihe Rob and he aven must be in. stalled separately for safety reasons and Î Ain 20 mm to let easy remove oven from the unit {max 150 mm) 60 mm 4 n ++ 50 cm2|# ? 7 120 cm? 4 k ñ k s ee Je 2 [860 em? 180 cm A) Removable panel B) Space for connections Kitchen unit with oven The hob recess dimensions must obey the indication and the kitchen unit must
