USER MANUAL WNAP-6325 Planet

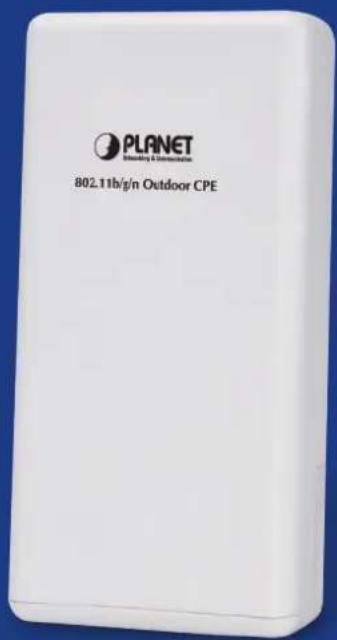

300Mbps 802.11n Wireless Outdoor CPE

WNAP-6325

Woman in business attire using a laptop on stairs (no visible text or symbols)

PLANET Streaming & Communication 802.11b/g/n Outdoor CPE

Copyright

Copyright © 2015 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.

PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. Any changes or modifications not expressly approved by PLANET could void the user's authority to operate this equipment under the rules and regulations of the FCC.

FCC Caution:

To assure continued compliance, (for example, use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired operation.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Energy Saving Note of the Device

This power required device does not support Standby mode operation. For energy saving, please remove the DC-plug to disconnect the device from the power circuit. Without removing the DC-plug, the device still consumes power from the power circuit. In view of Saving the Energy, it is strongly suggested to remove the DC-plug for the device if this device is not intended to be active.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) as of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

WEEE regulation

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and thus, WEEE has to be collected separately.

Revision

User's Manual of PLANET 300Mbps 802.11n Wireless Outdoor CPE

Model: WNAP-6325

Rev: 1.0 (January, 2015)

Part No. EM-WNAP-6325_v1.0 (2081-E10590-000)

CONTENTS

Chapter 1.Product Introduction......8

1.1 Package Contents....8
1.2 Product Description....9
1.3 Product Features....10
1.4 Product Specifications 11

Chapter 2. Hardware Installation .... 13

2.1 Hardware Description....13

2.1.1 The Bottom Panel – Port 14

Chapter 3. Connecting to the AP ...... 17

3.1 Preparation before Installation 17

3.1.1 Professional Installation Required 17

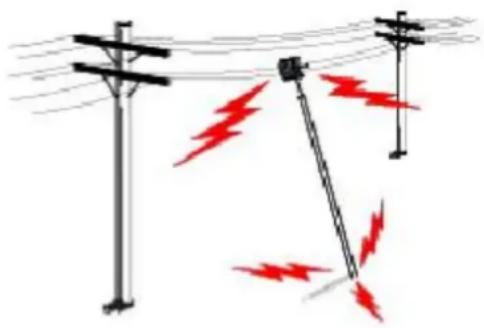

3.1.2 Safety Precautions....17

3.2 Installation Precautions....17

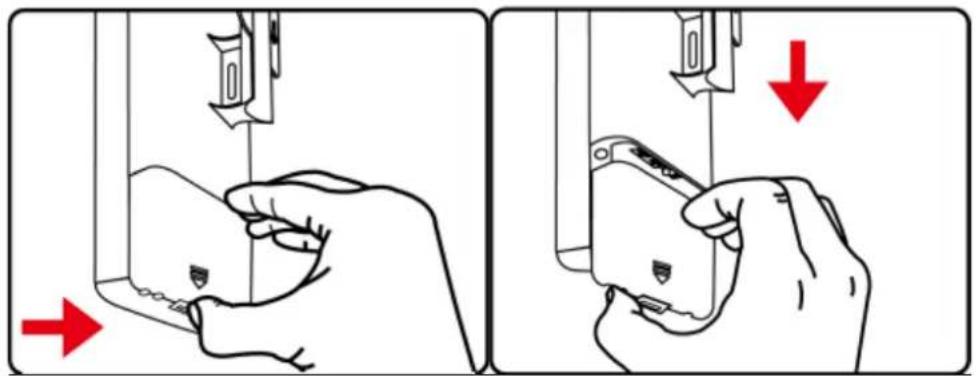

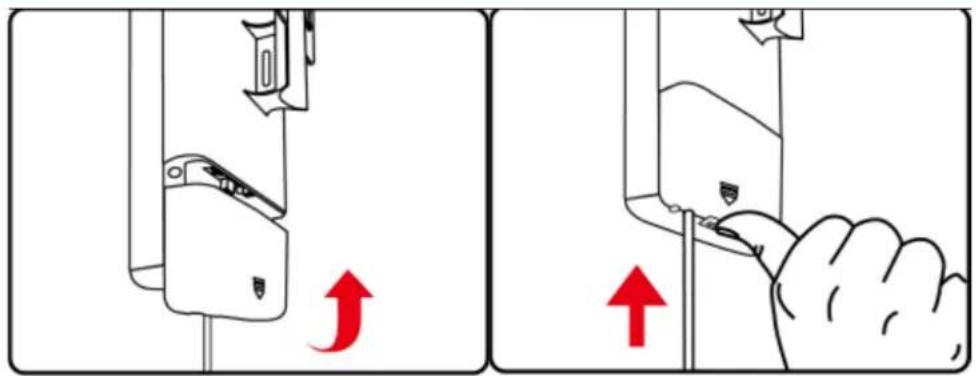

3.3 Installing the AP 19

Chapter 4. Quick Installation Guide ...... 21

4.1 Manual Network Setup - TCP/IP Configuration....21

4.1.1 Configuring the IP Address Manually 21

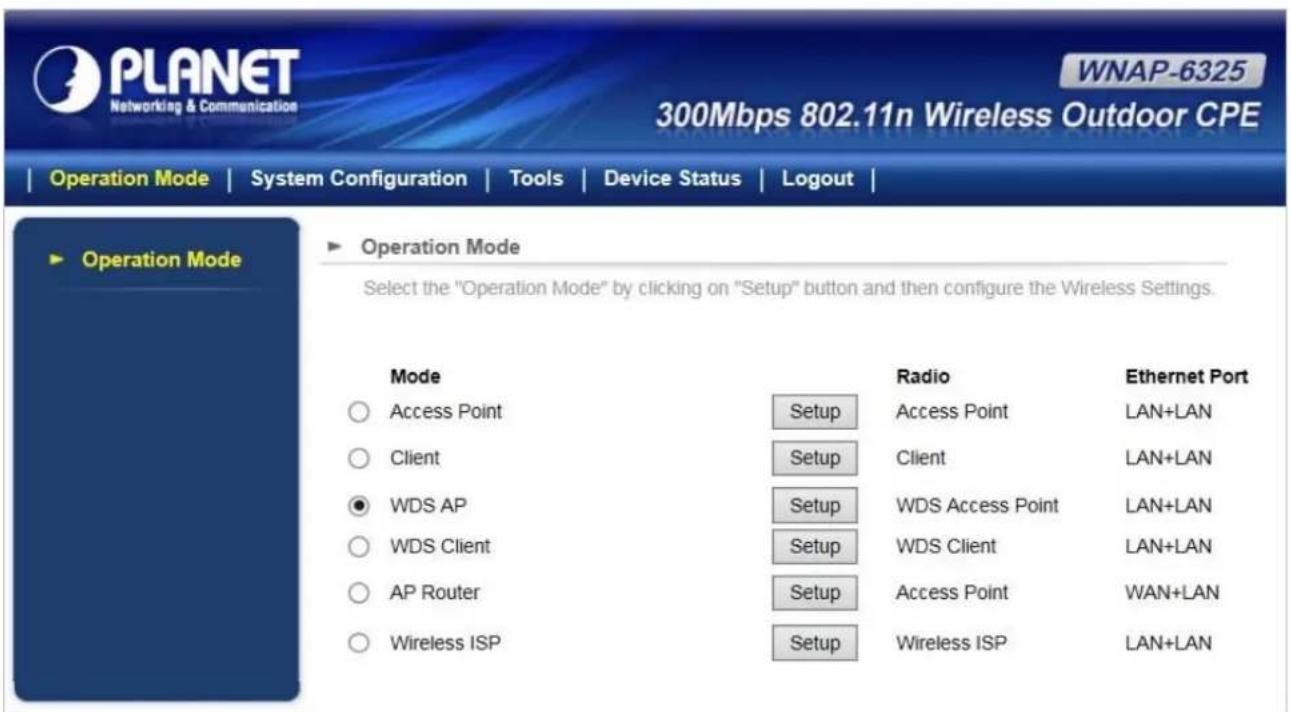

4.2 Starting Setup in the Web UI....24

Chapter 5.Configuring the AP....28

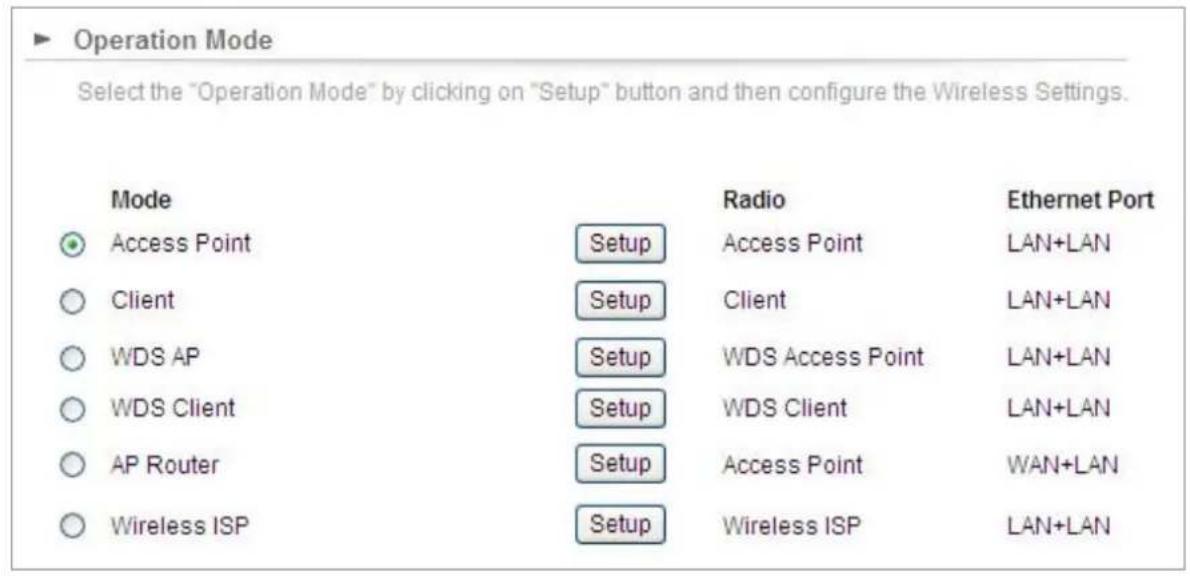

5.1 Operation Mode....28

5.1.1 Access Point....28
5.1.2 Client....30

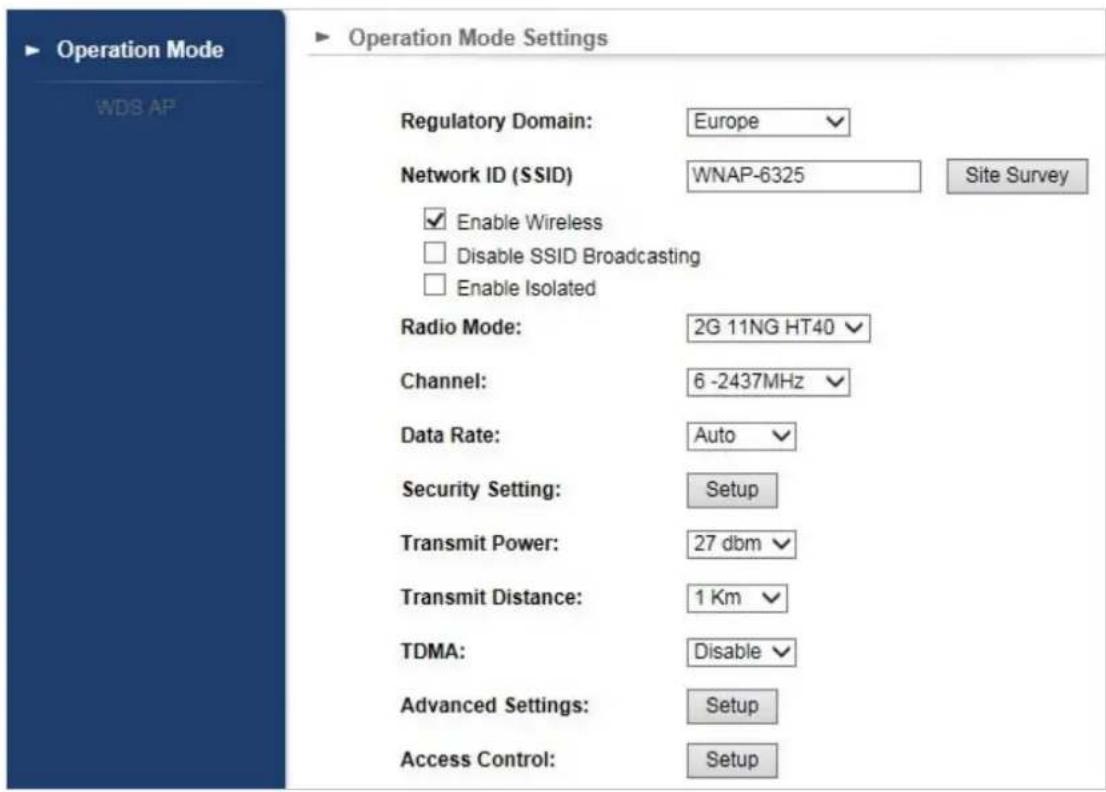

5.1.3 WDS AP 31

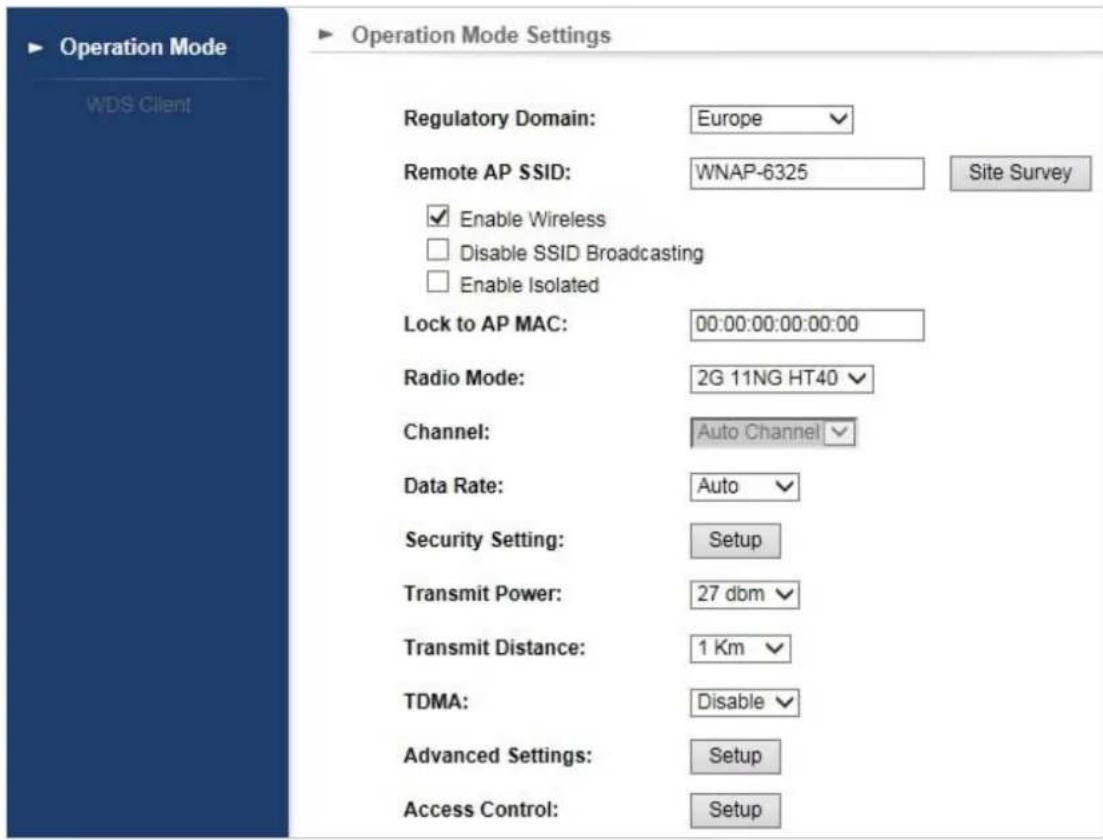

5.1.4 WDS Client 32
5.1.5 AP Router 33
5.1.6 Wireless ISP 34
5.1.7 Security Setting....35

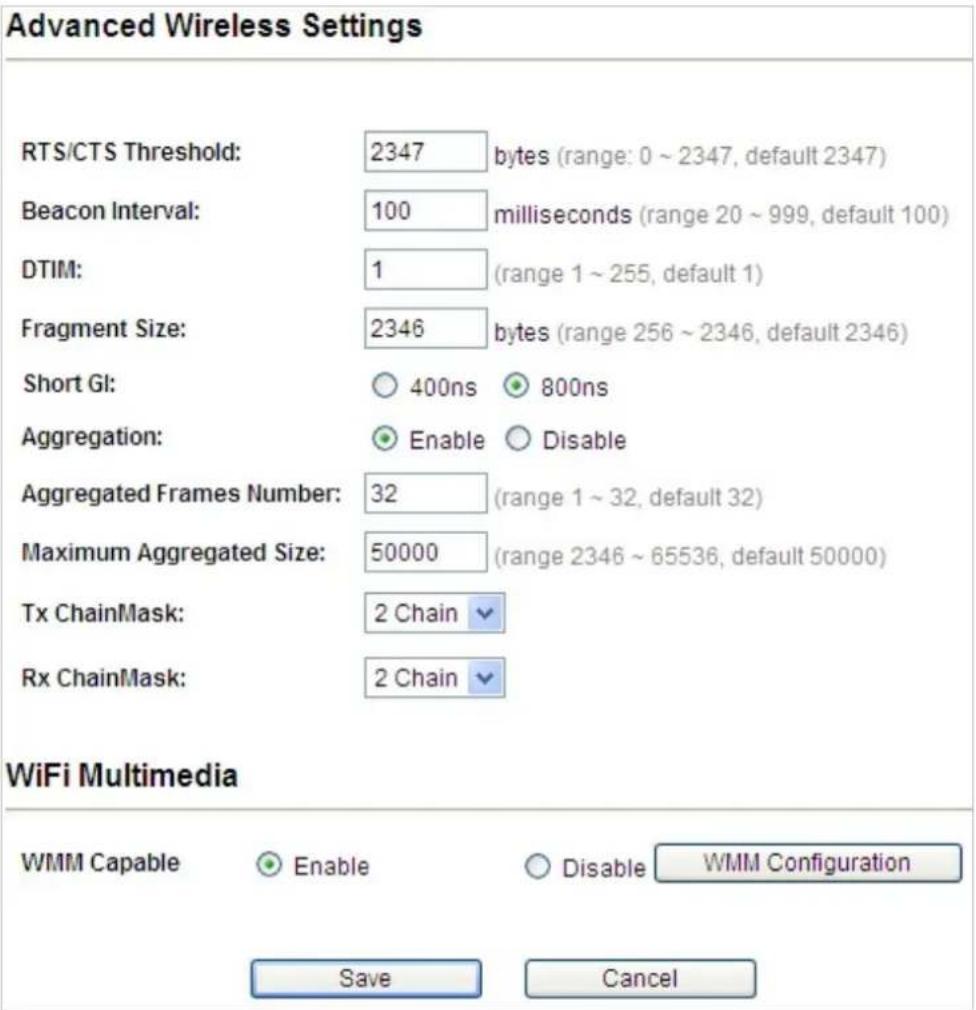

5.1.8 Advanced Settings....39

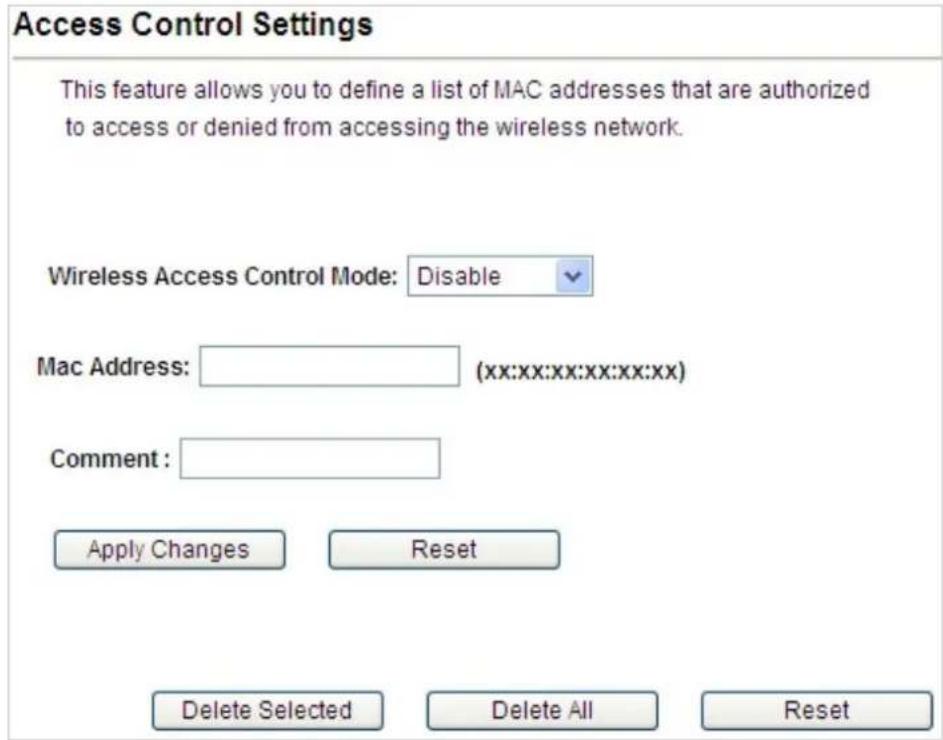

5.1.9 Access Control....42
5.1.10 WAN Port Settings 43
5.1.11 Dynamic DNS Settings 45
5.1.12 Remote Management 50
5.1.13 DHCP Server Settings....50
5.1.14 DMZ Settings 51
5.1.15 Virtual Server Settings....52
5.1.16 IP Filtering Settings....52

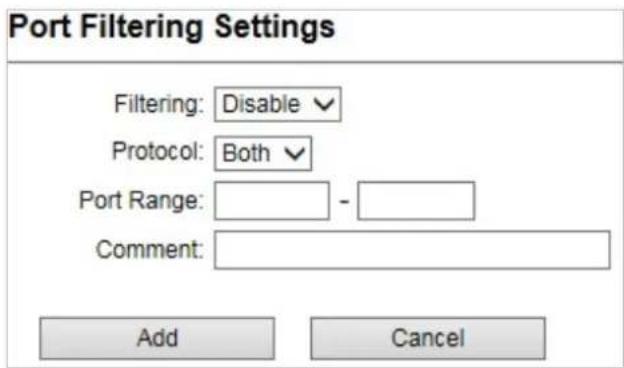

5.1.17 Port Filtering Settings 53
5.1.18 MAC Filtering Settings....53

5.1.19 Bandwidth Control .... 54
5.1.20 SNMP....55

5.2 System Configuration....56

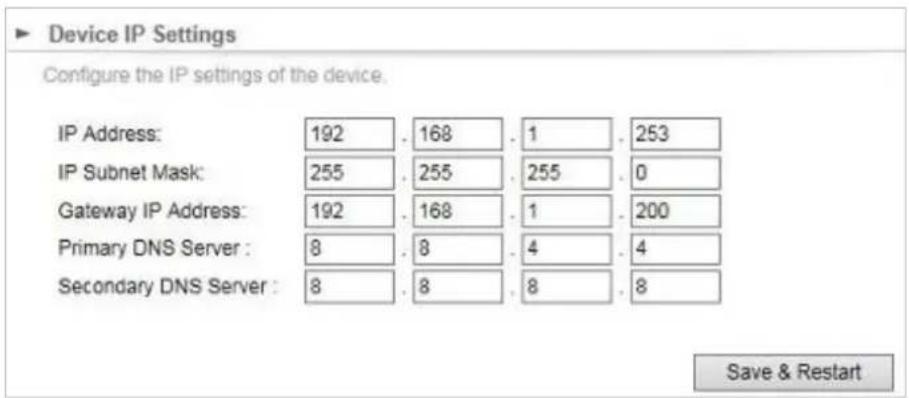

5.2.1 Default IP Settings 56

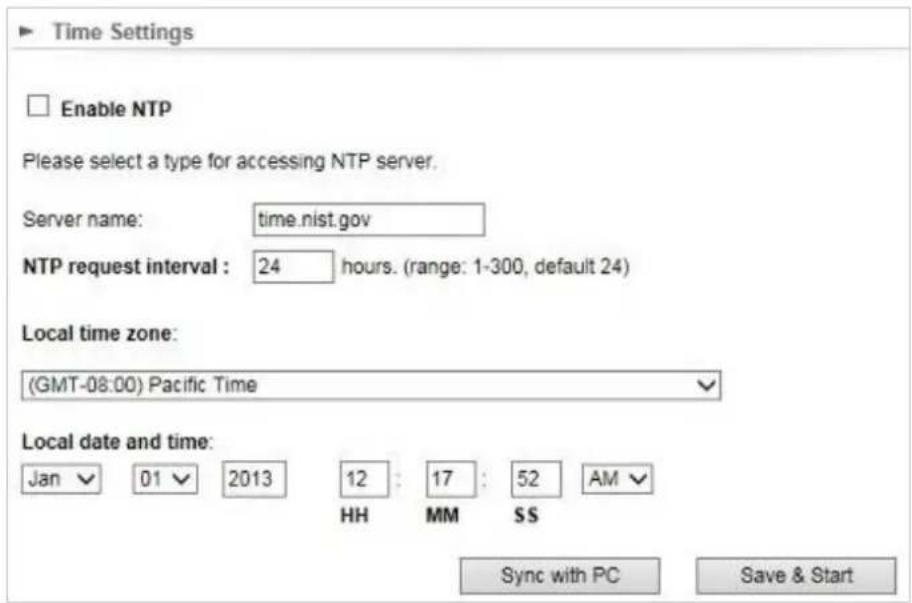

5.2.2 Time Settings....57

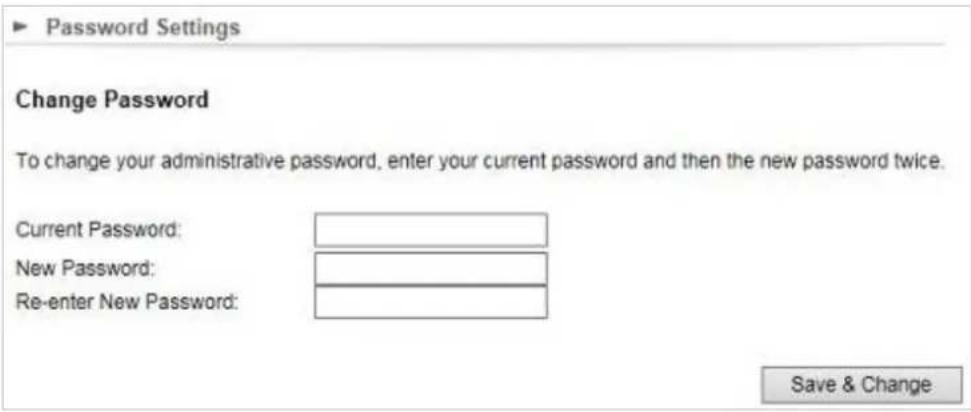

5.2.3 Password Settings 58
5.2.4 System Management....58
5.2.5 Ping Watchdog....59

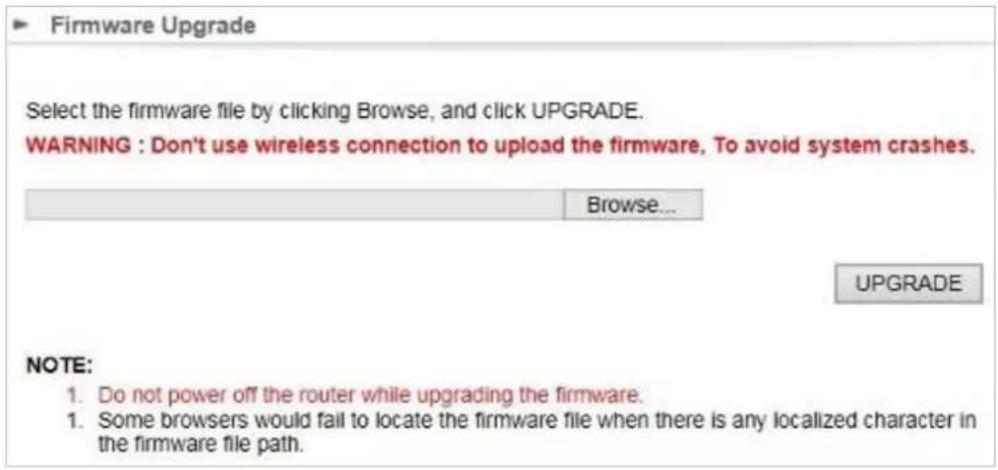

5.2.6 Firmware Upgrade 60
5.2.7 Configuration Save and Restore 60

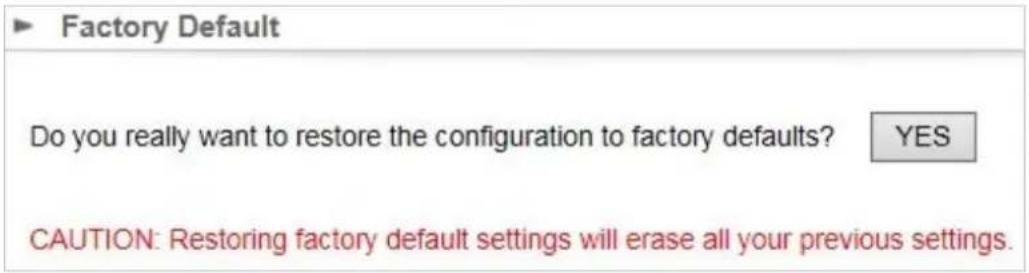

5.2.8 Factory Default 61
5.2.9 Reboot System 61
5.2.10 Schedule Reboot 61

5.3 Tools....64

5.3.1 Network Ping 64
5.3.2 Network Traceroute 64

5.4 Device Status....66

5.4.1 Device Information....66
5.4.2 Wireless Information....67
5.4.3 LAN Information....68

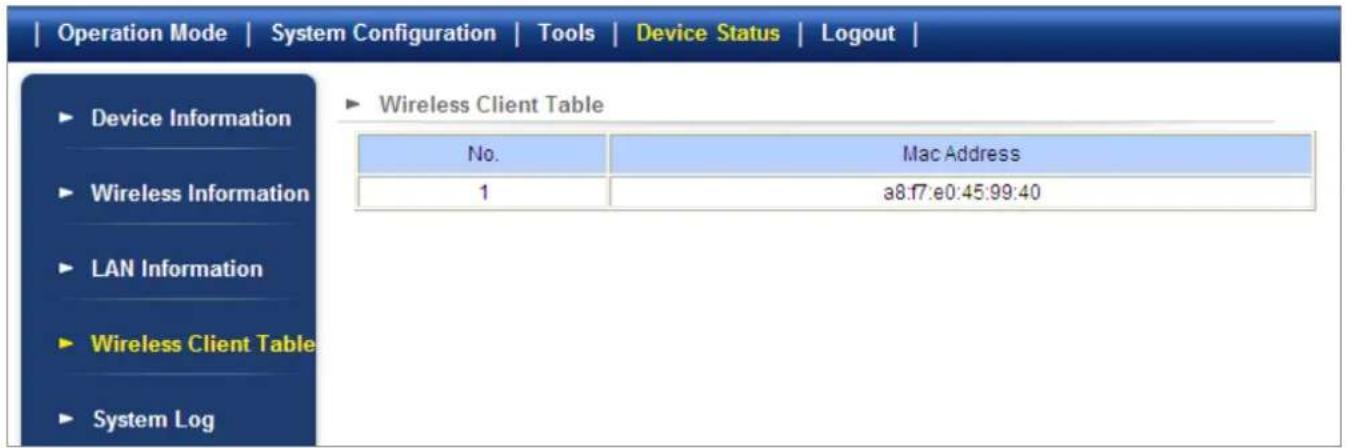

5.4.4 Wireless Client Table 69

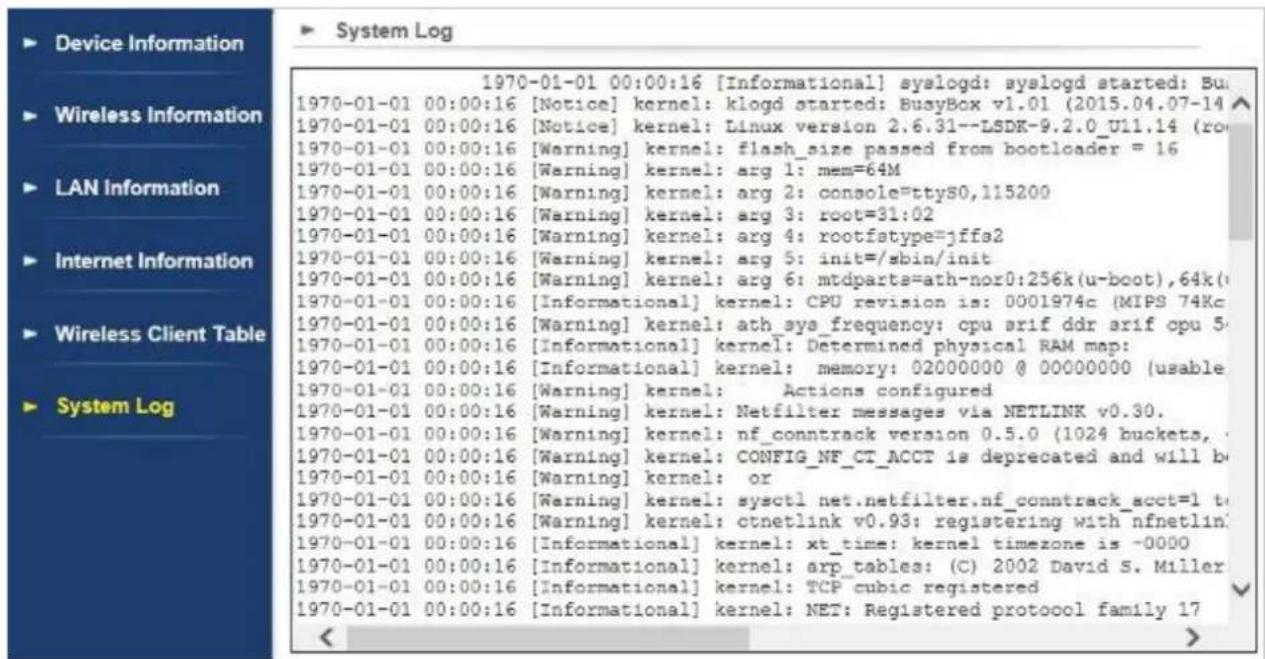

5.4.5 System Log....70

5.5 Logout....71

Appendix A: Troubleshooting....72

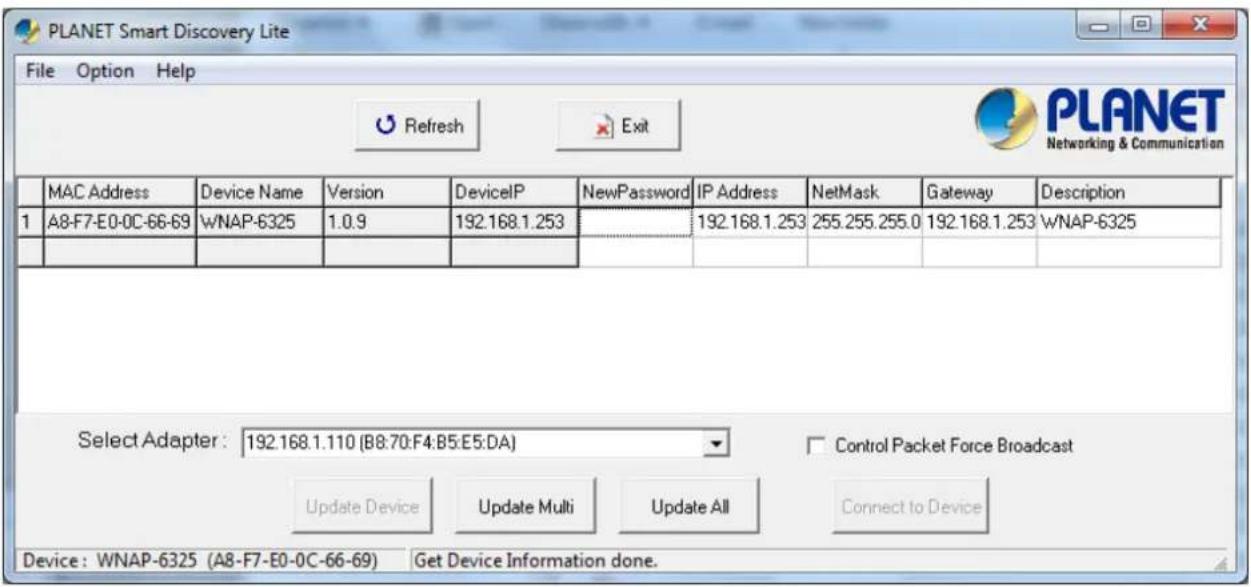

Appendix B: Use Planet Smart Discovery to find AP 74

Appendix C: FAQ....75

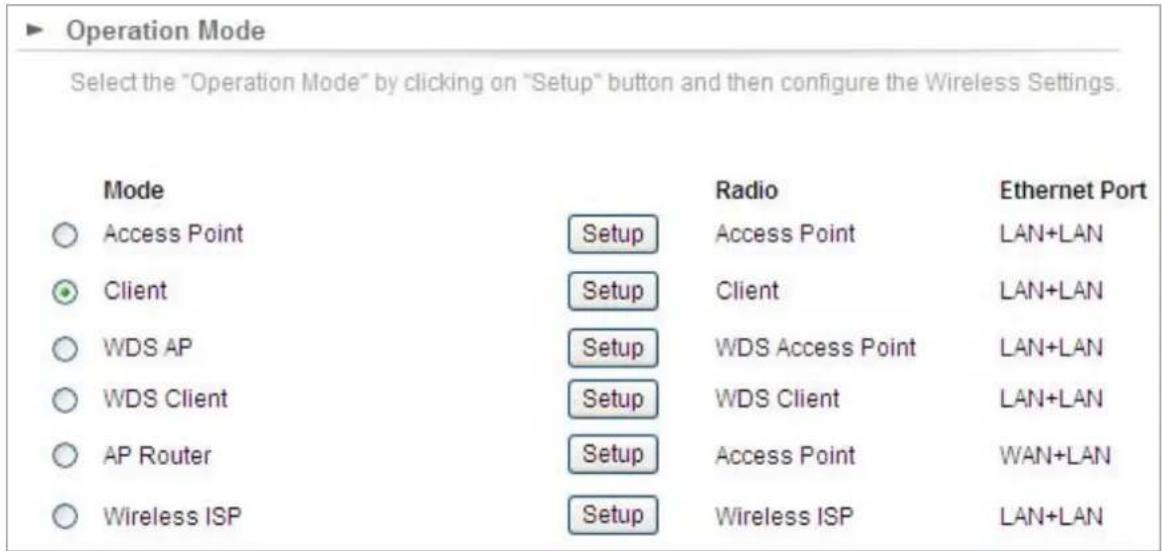

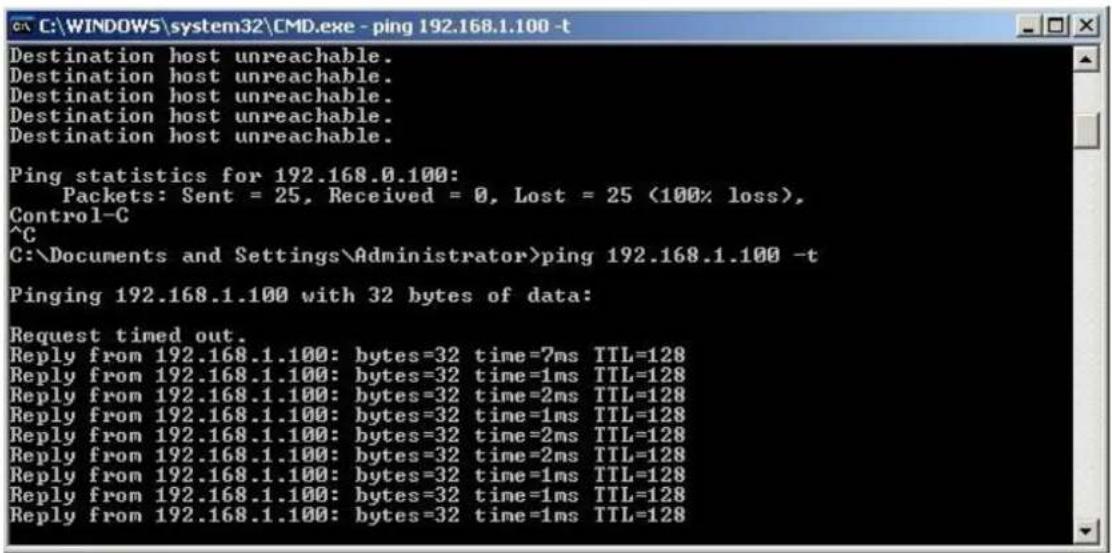

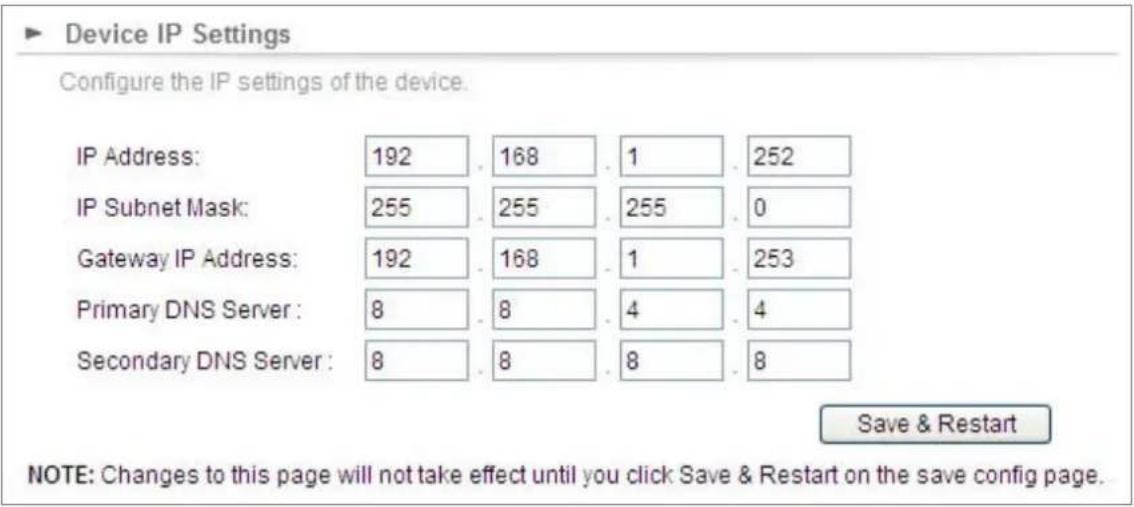

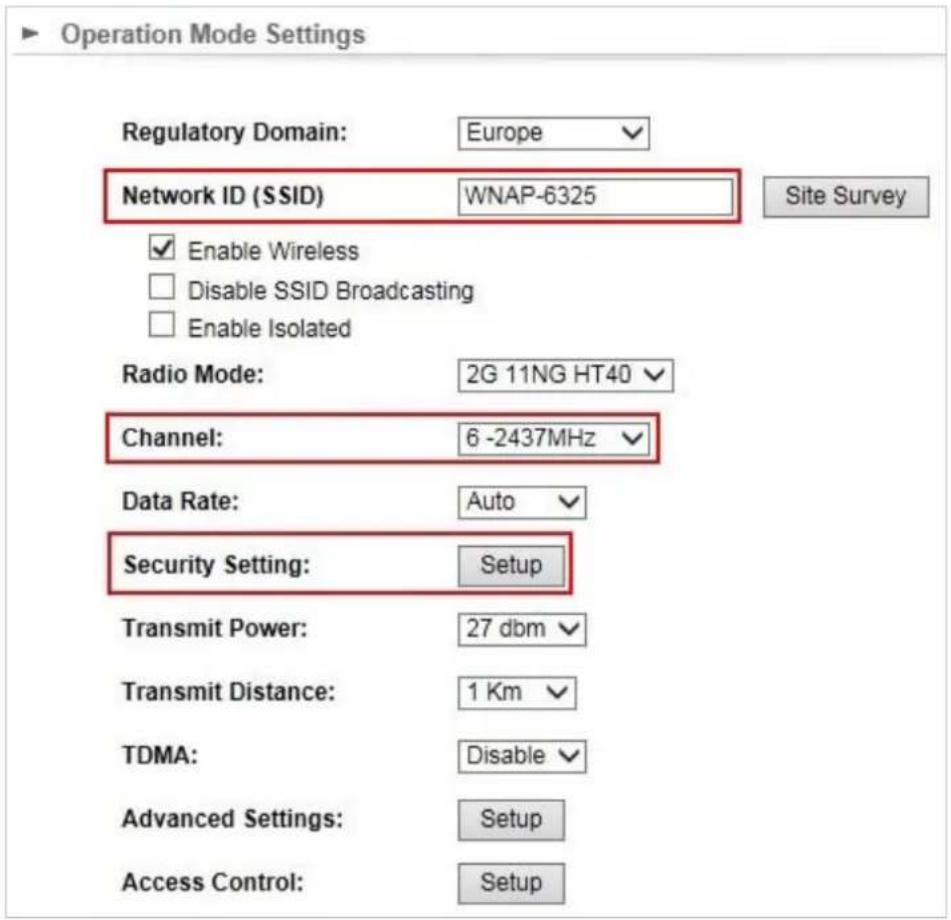

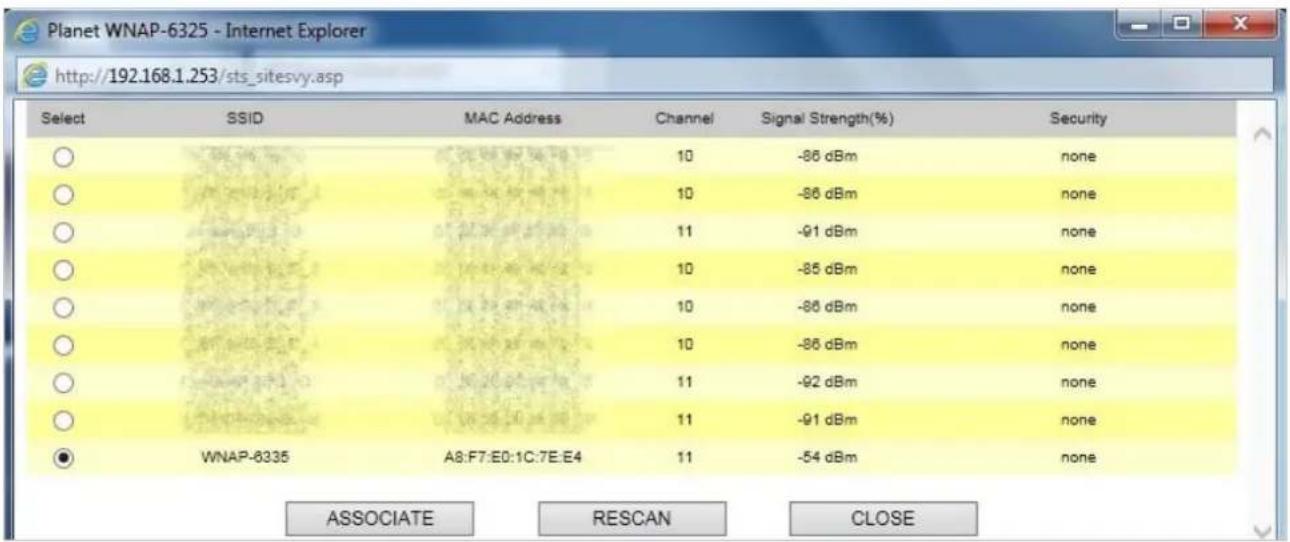

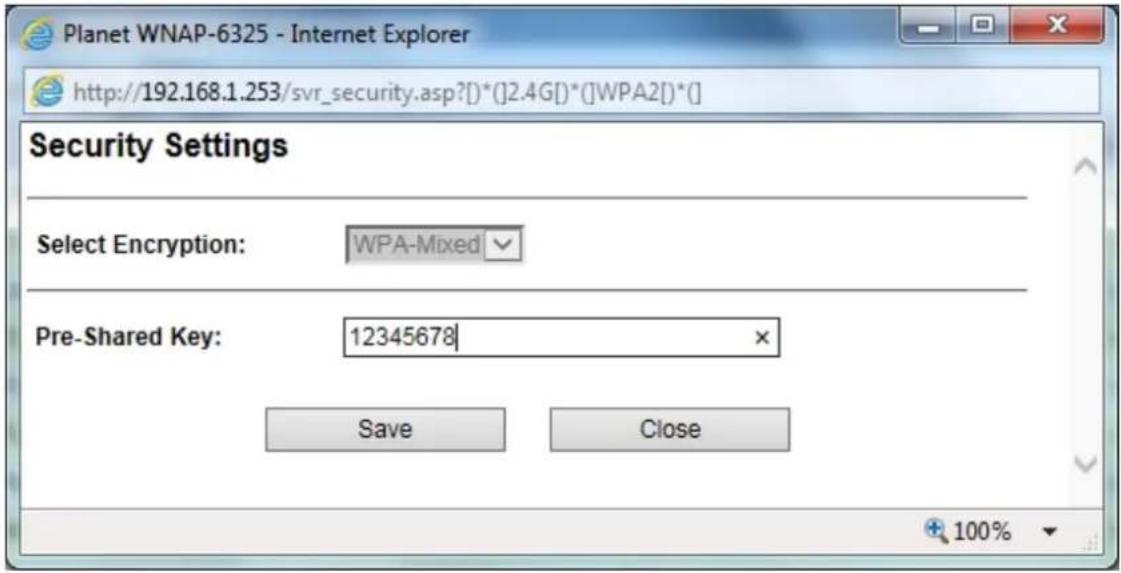

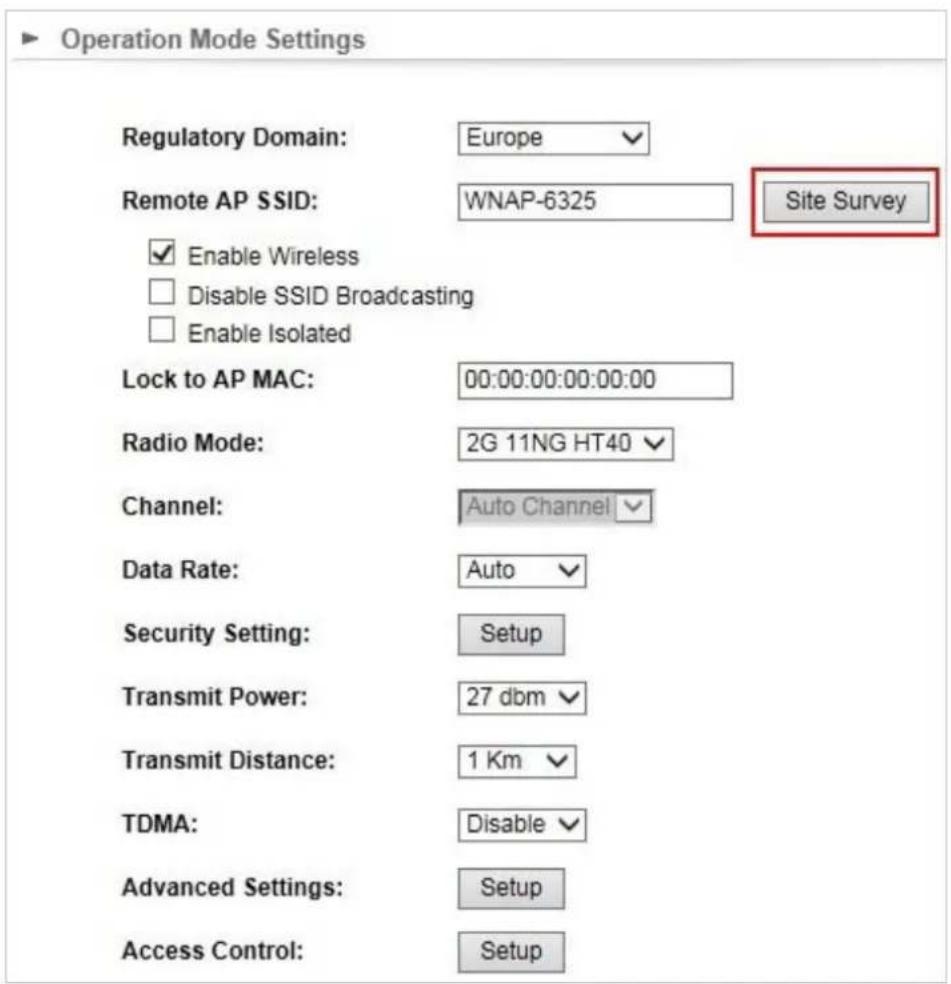

Q1: How to set up the AP Client Connection....75
Q2: How to set up the WDS Connection....83

FIGURES

FIGURE 2-1 THREE-WAY VIEW....13

FIGURE 2-2 LED 14

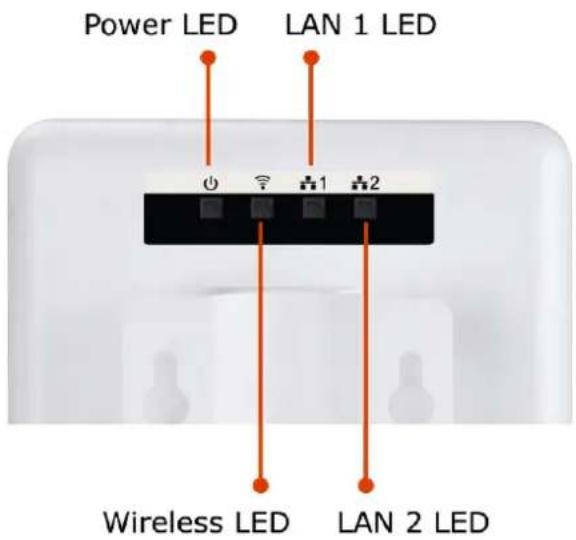

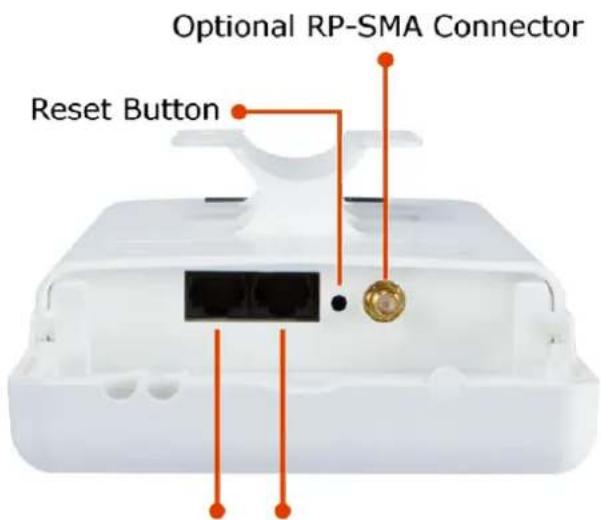

FIGURE 2-3 BOTTOM PANEL....15

FIGURE 2-4 POE INJECTOR....15

FIGURE 3-1 CONNECT THE ANTENNA....19

FIGURE 3-2 CONNECT THE ETHERNET CABLE....19

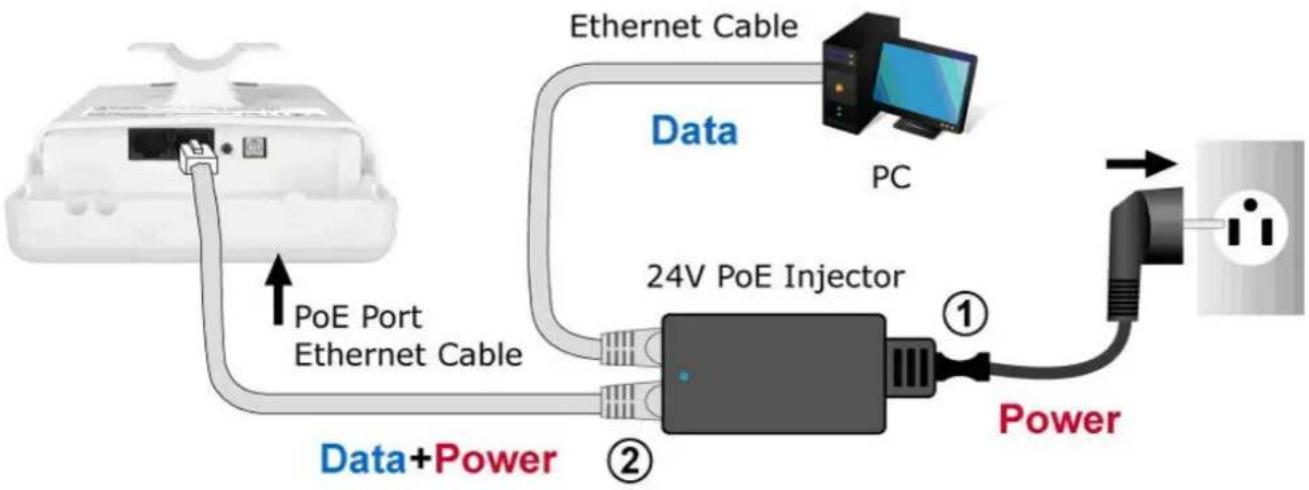

FIGURE 3-3 CONNECT THE POE INJECTOR....20

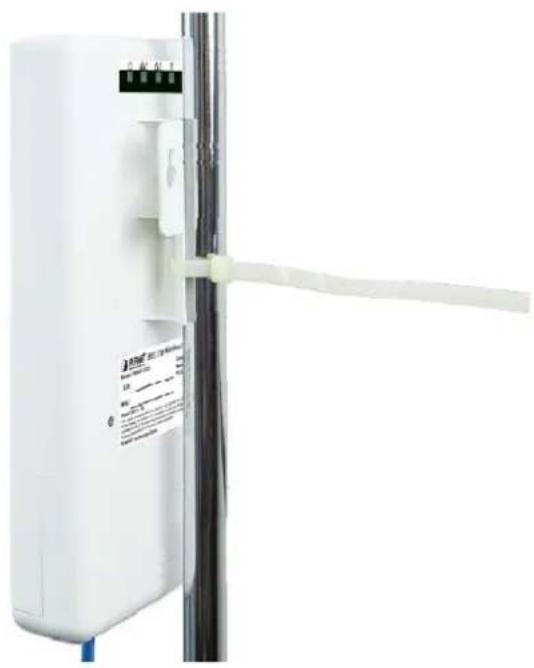

FIGURE 3-4 POLE MOUNTING....20

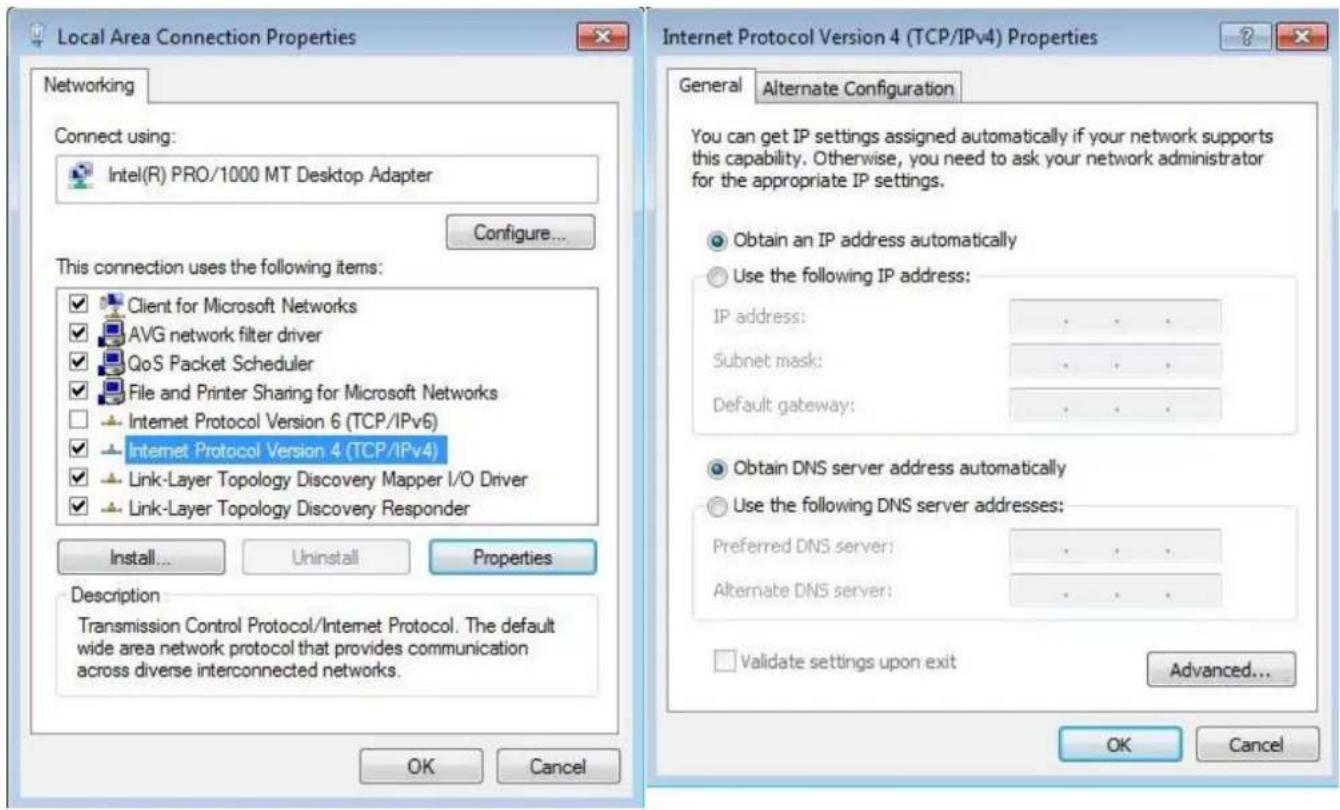

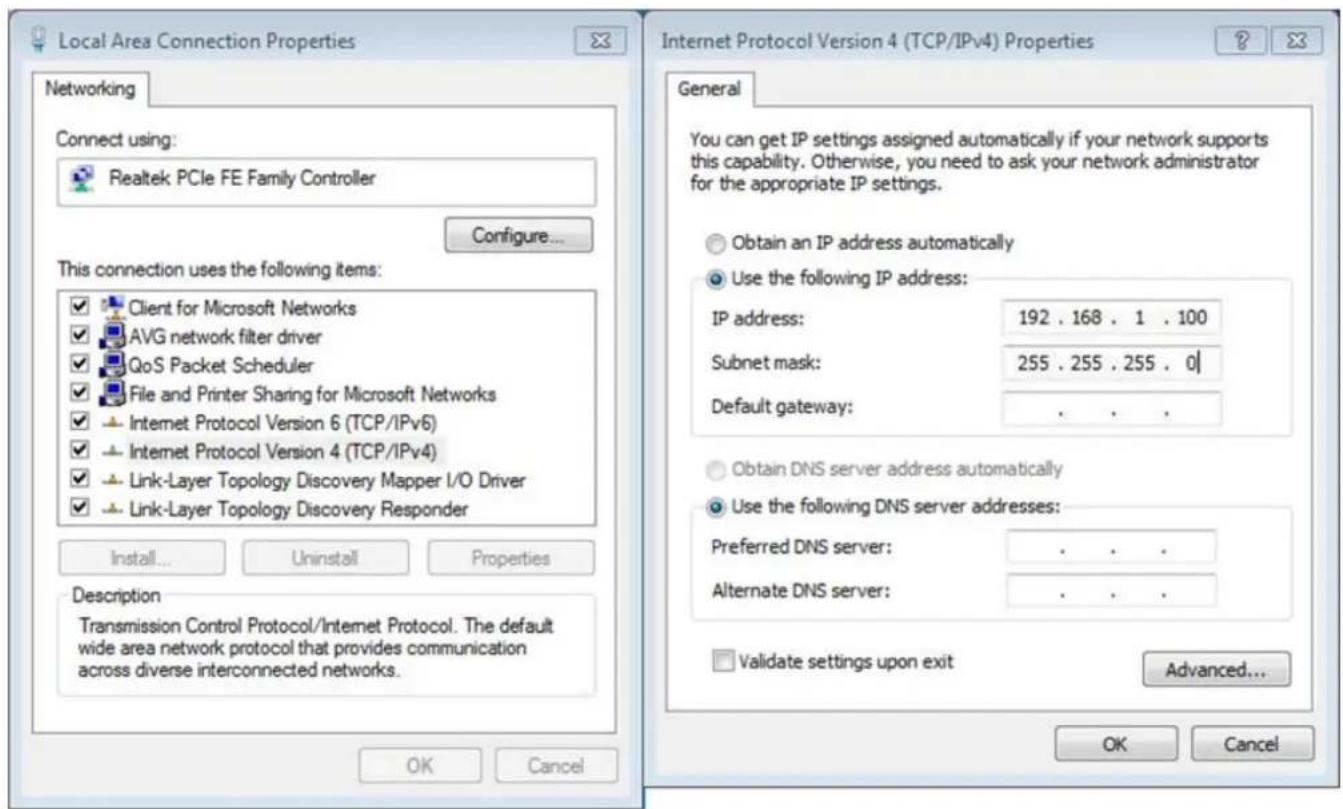

FIGURE 4-1 TCP/IP SETTING....22

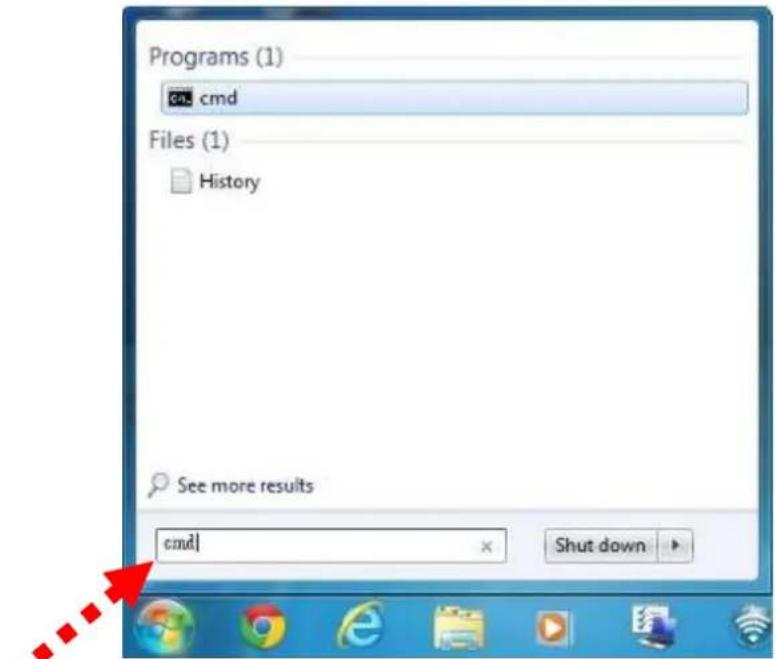

FIGURE 4-2 WINDOWS START MENU ....23

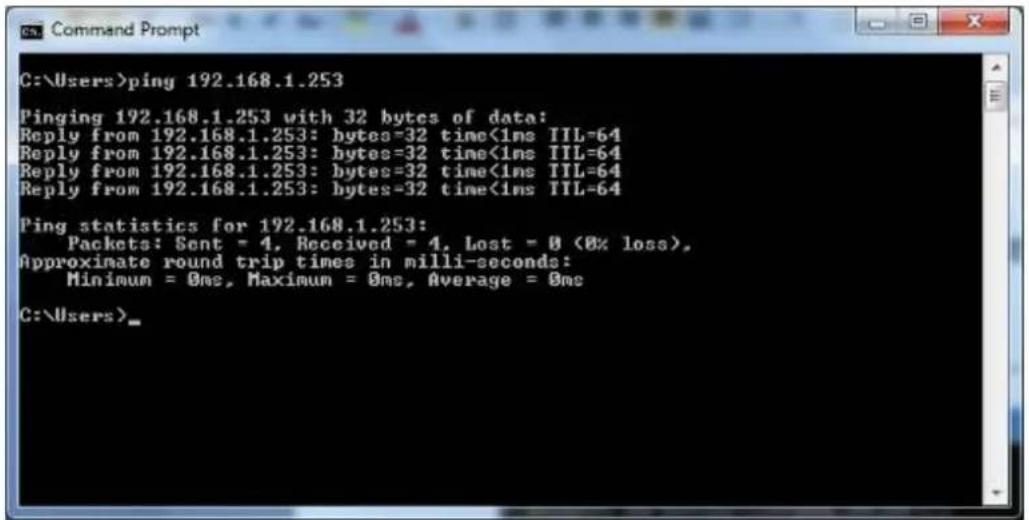

FIGURE 4-3 SUCCESSFUL RESULT OF PING COMMAND ....23

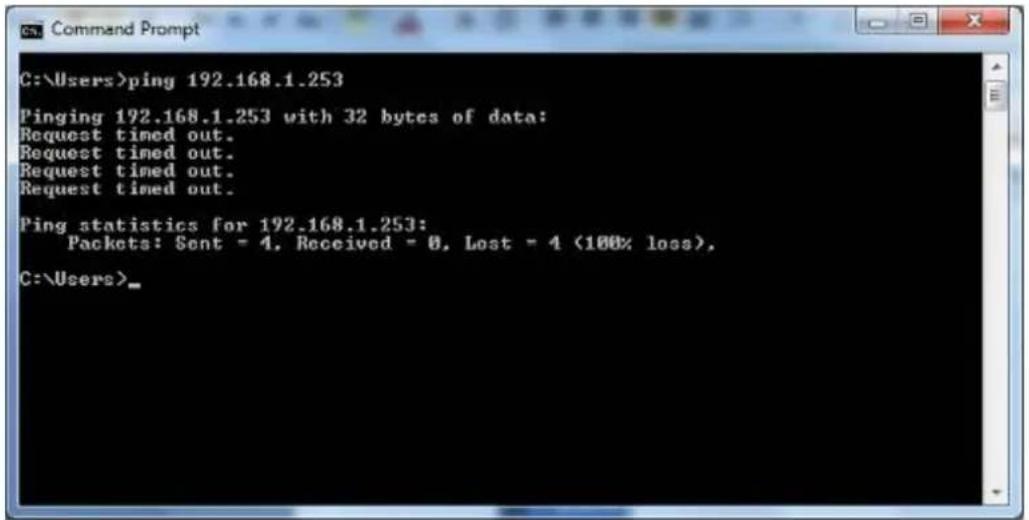

FIGURE 4-4 FAILED RESULT OF PING COMMAND ....24

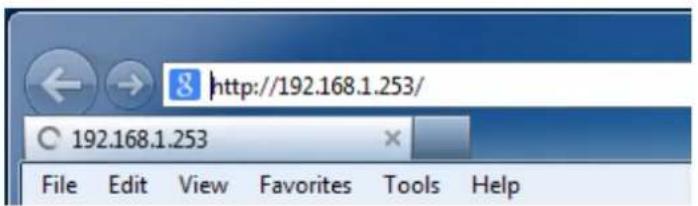

FIGURE 4-5 LOGIN BY DEFAULT IP ADDRESS....24

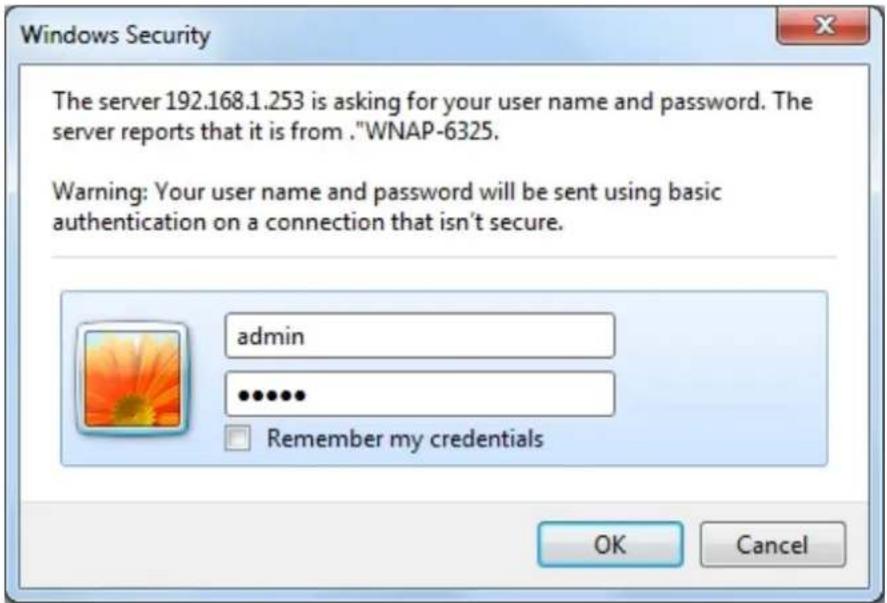

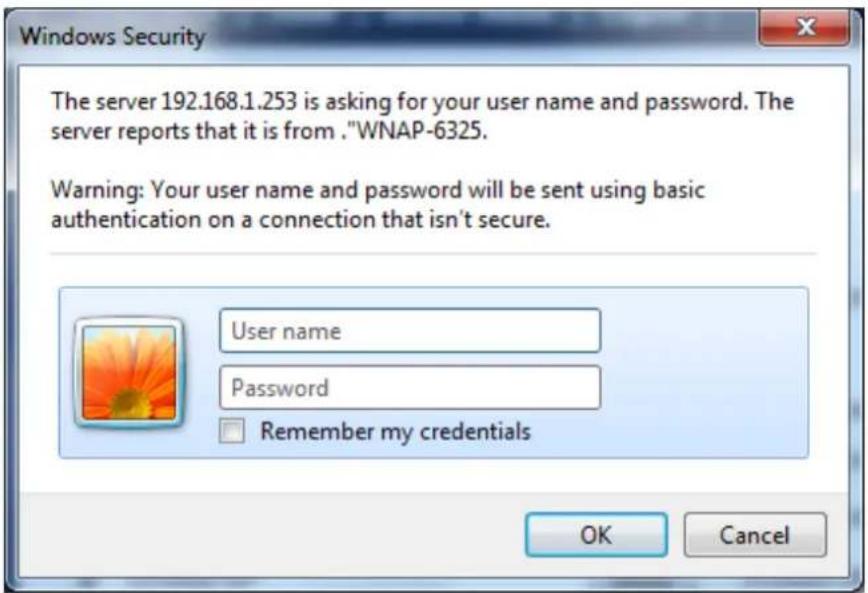

FIGURE 4-6 LOGIN WINDOW....25

FIGURE 4-7 WNAP-6325 WEB UI SCREENSHOT 26

FIGURE 4-8 CHOOSE OPERATION MODE....26

FIGURE 4-9 CONFIGURE WIRELESS SETTINGS....27

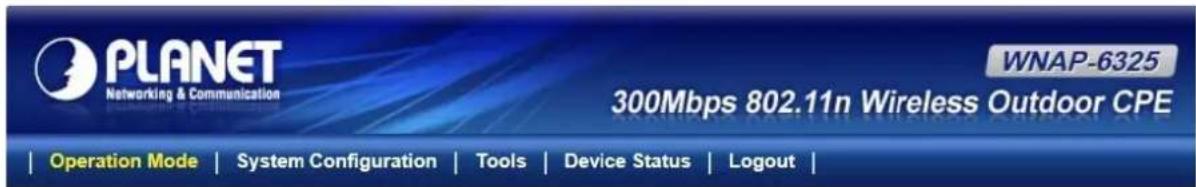

FIGURE 5-1 MAIN MENU ....28

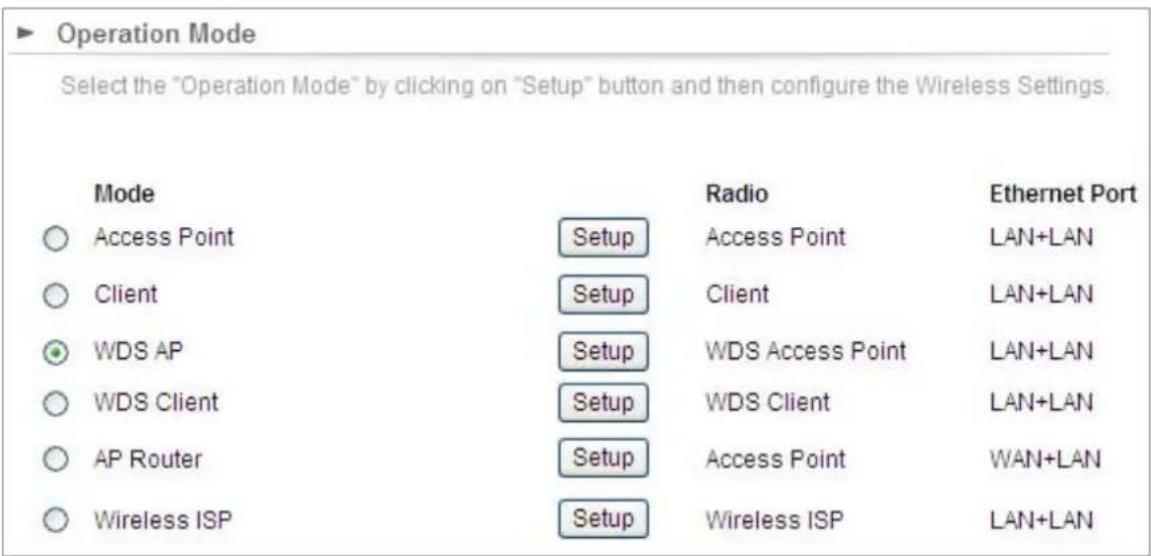

FIGURE 5-2 OPERATION MODE....28

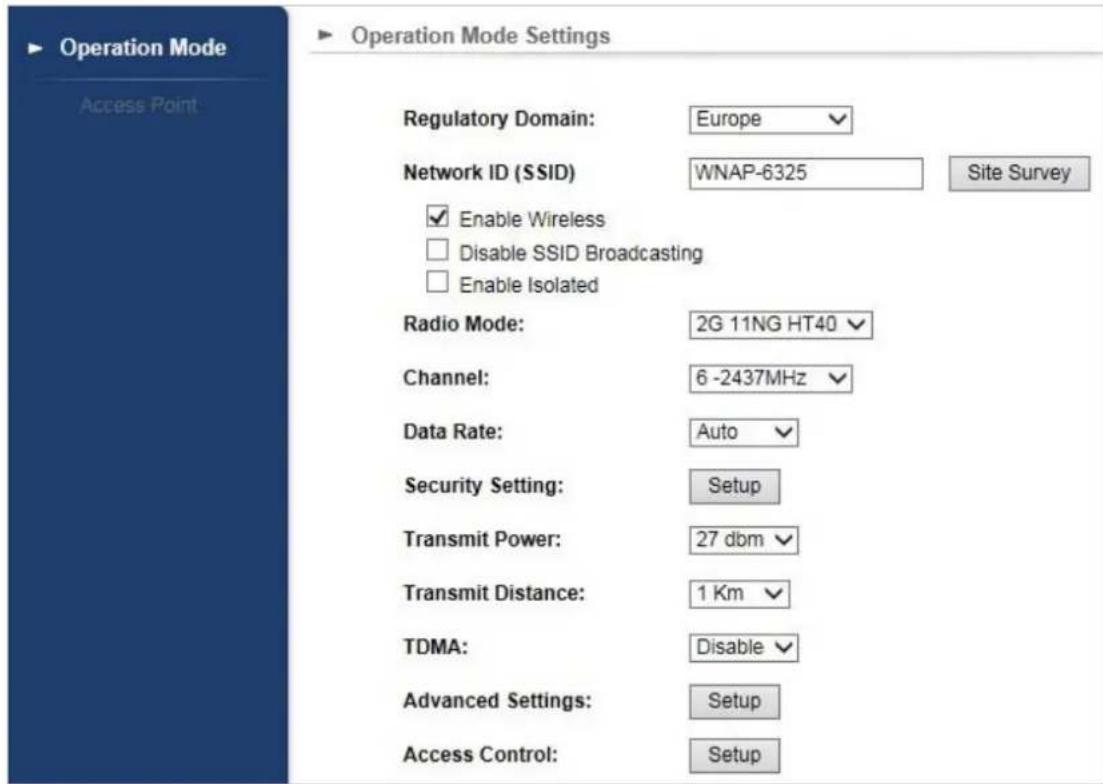

FIGURE 5-3 BASIC SETTINGS - AP....29

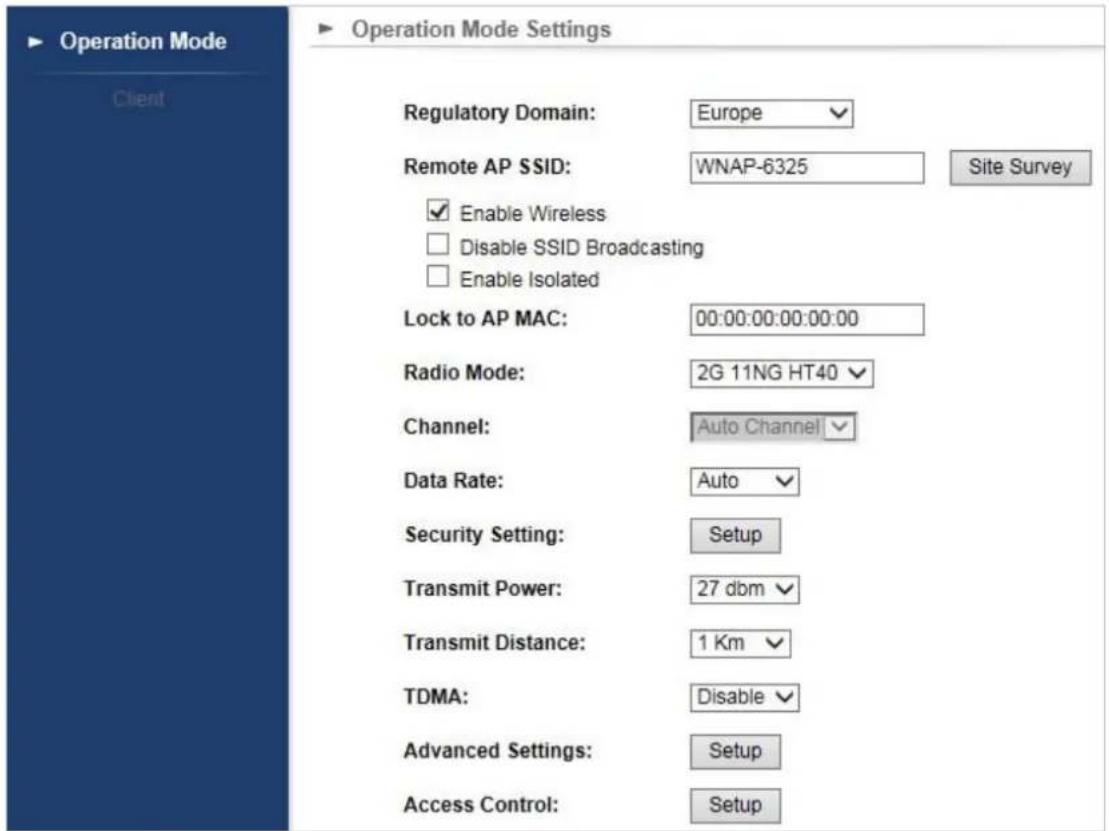

FIGURE 5-4 BASIC SETTINGS - CLIENT....30

FIGURE 5-5 BASIC SETTINGS – WDS AP....32

FIGURE 5-6 BASIC SETTINGS – WDS CLIENT....33

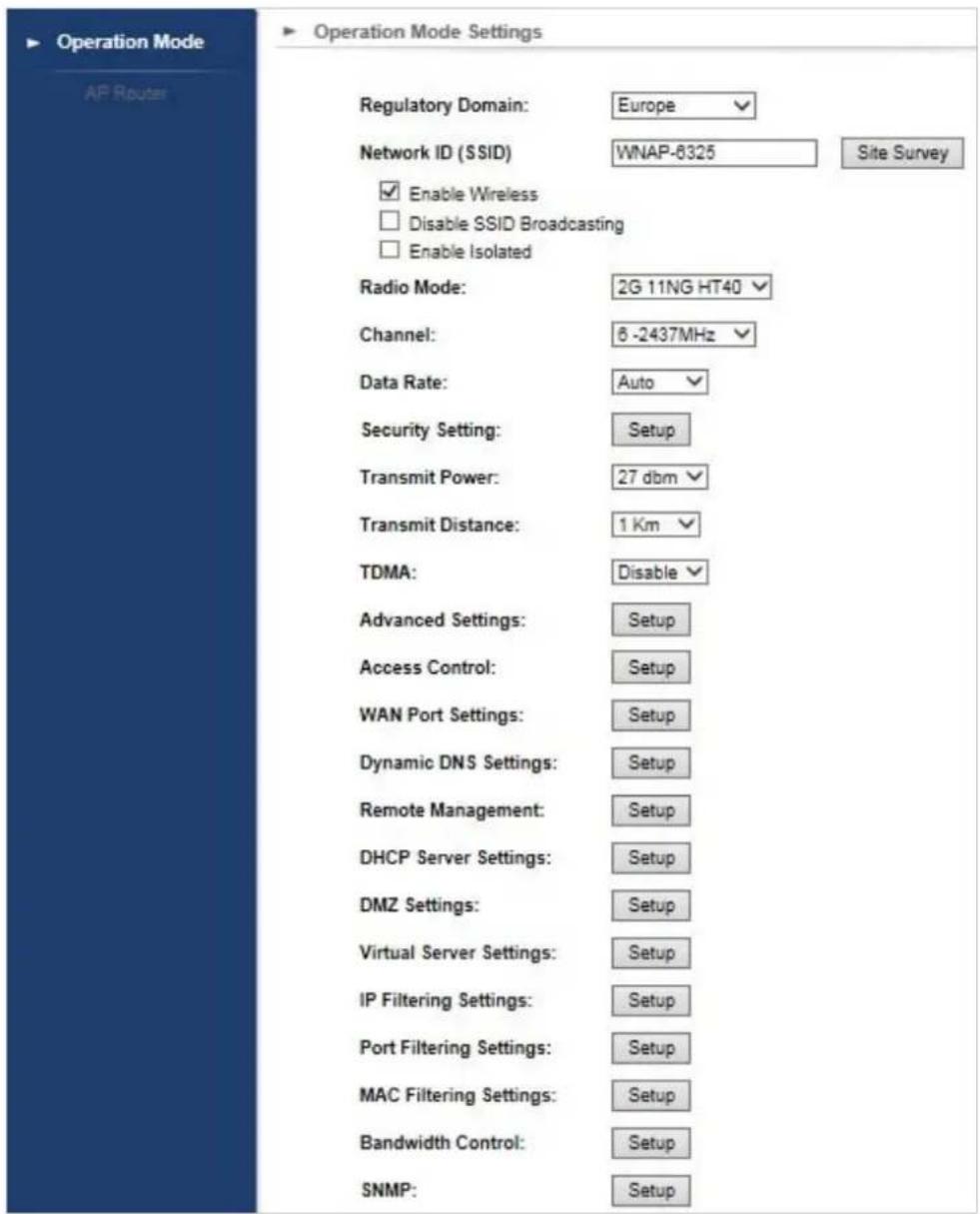

FIGURE 5-7 BASIC SETTINGS – AP ROUTER ...... 34

FIGURE 5-8 BASIC SETTINGS – WISP ....35

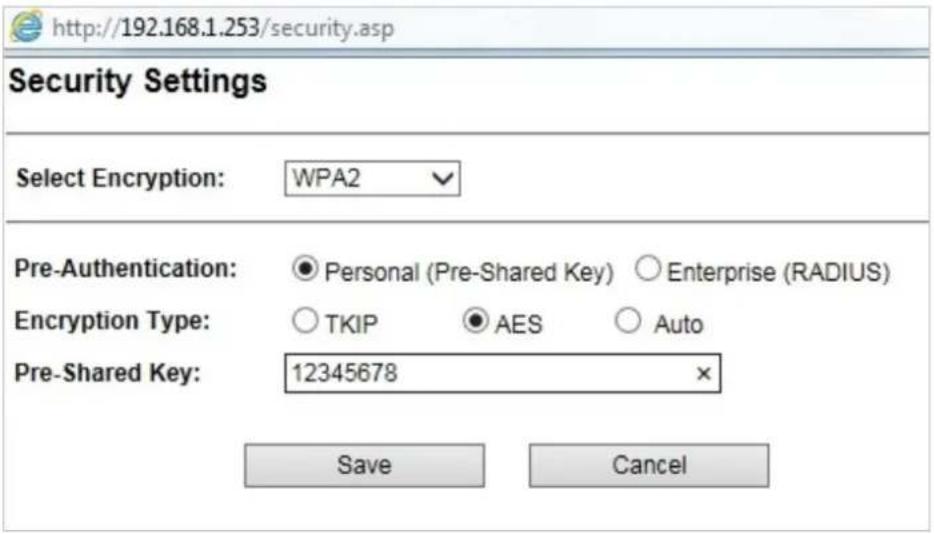

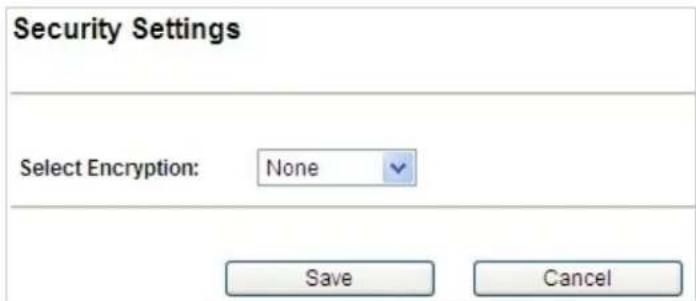

FIGURE 5-9 SECURITY SETTINGS ....35

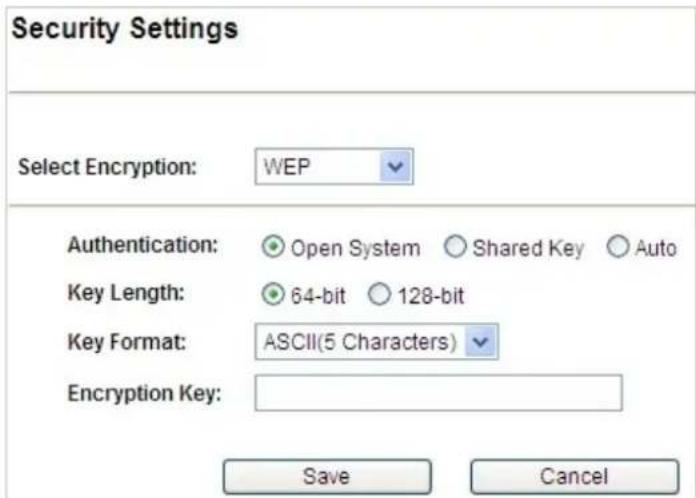

FIGURE 5-10 SECURITY SETTINGS – WEP ......36

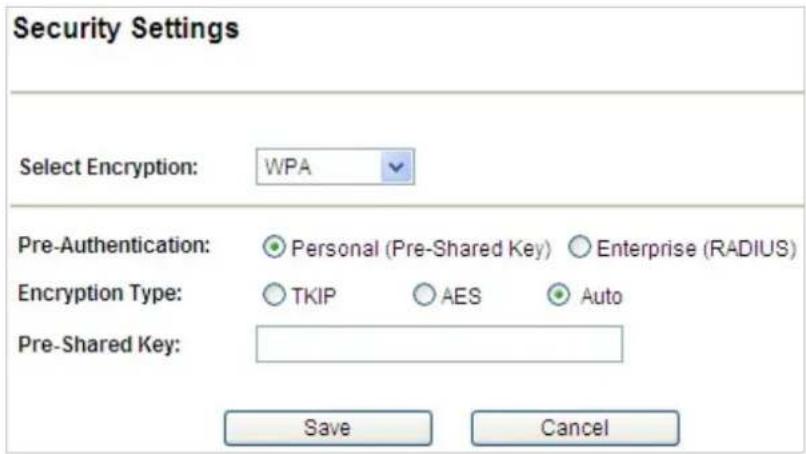

FIGURE 5-11 SECURITY SETTINGS – WPA PERSONAL....37

FIGURE 5-12 SECURITY SETTINGS – WPA ENTERPRISE ...... 37

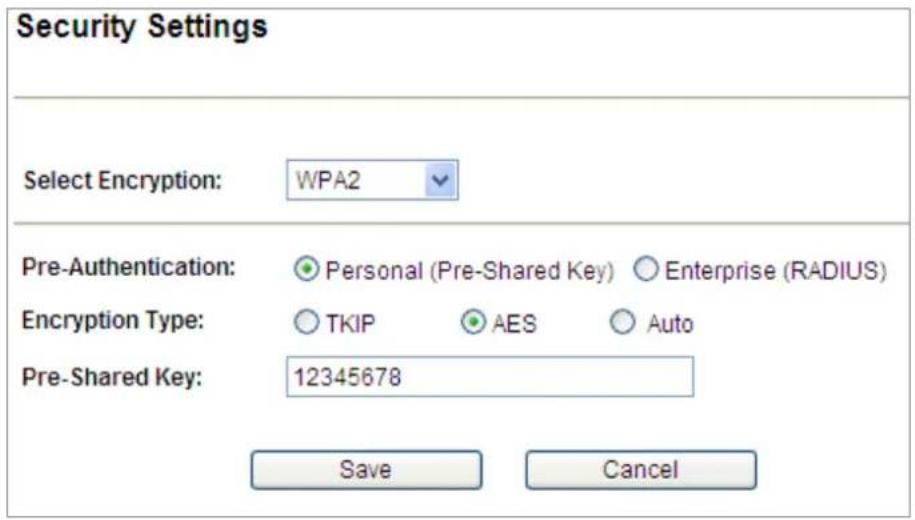

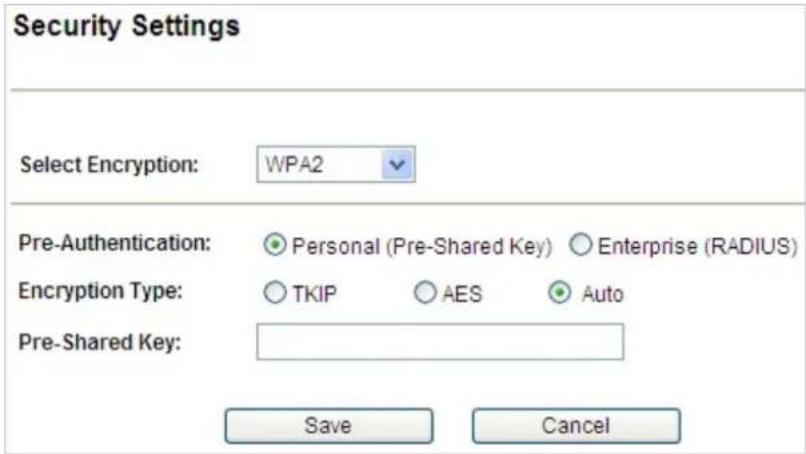

FIGURE 5-13 SECURITY SETTINGS – WPA2 PERSONAL....38

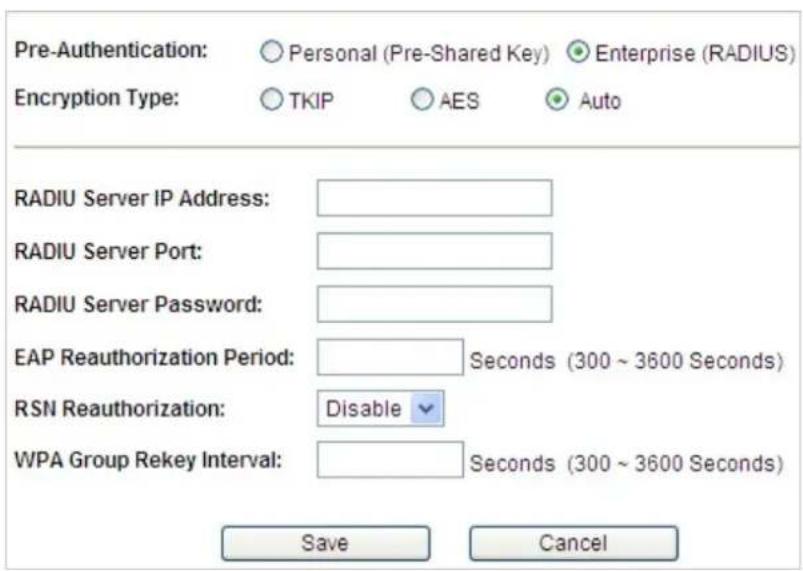

FIGURE 5-14 SECURITY SETTINGS – WPA2 ENTERPRISE....38

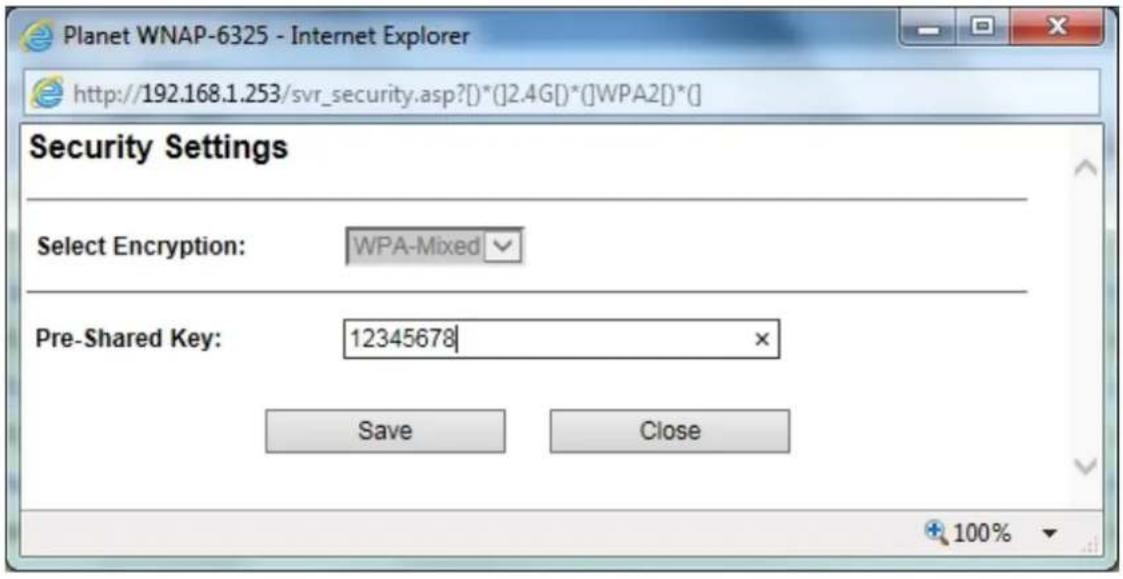

FIGURE 5-15 SECURITY SETTINGS – WPA-MIXED PERSONAL....39

FIGURE 5-16 SECURITY SETTINGS – WPA-MIXED ENTERPRISE....39

FIGURE 5-17 ADVANCED SETTINGS ....40

FIGURE 5-18 WMM CONFIGURATION ....41

FIGURE 5-19 ACCESS CONTROL ....43

FIGURE 5-20 WAN PORT SETTINGS – DHCP 43

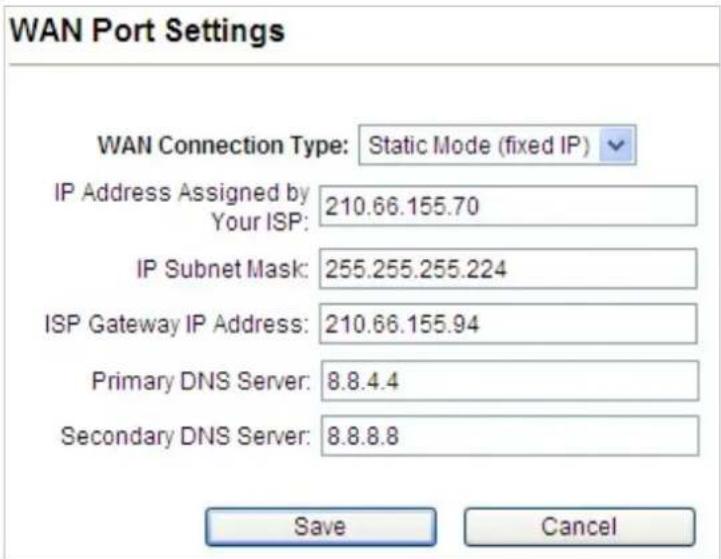

FIGURE 5-21 WAN PORT SETTINGS – STATIC IP....44

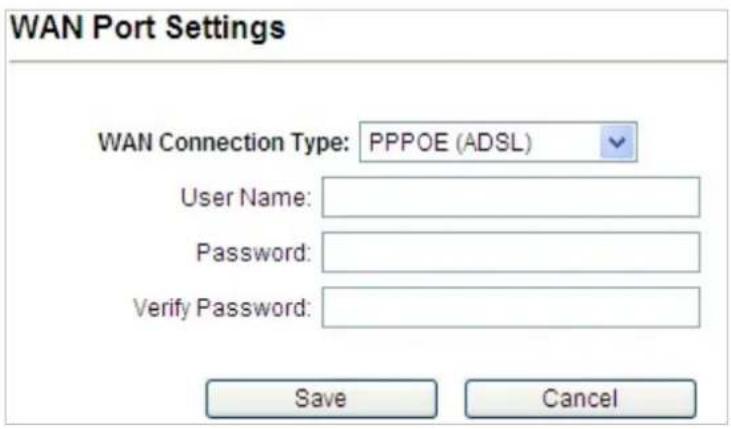

FIGURE 5-22 WAN PORT SETTINGS – PPPOE....45

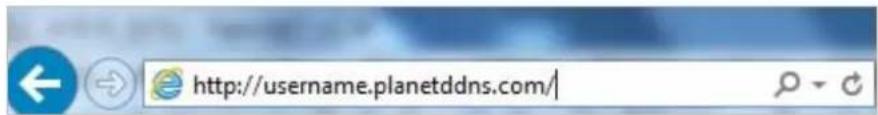

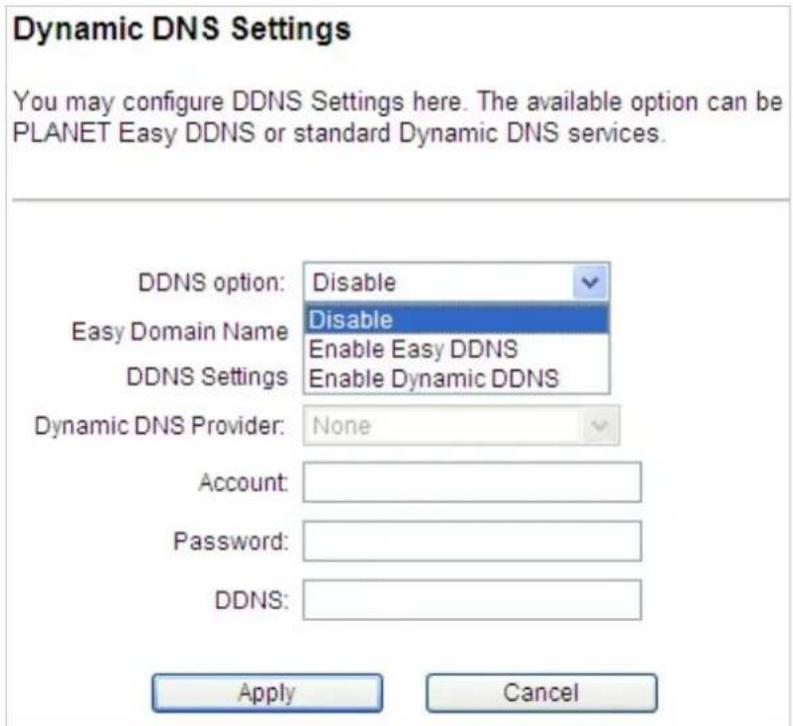

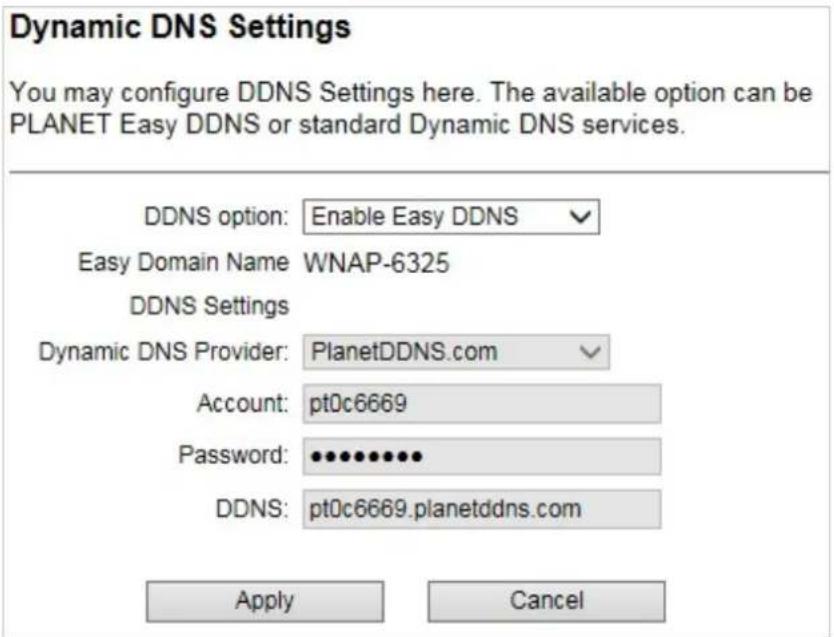

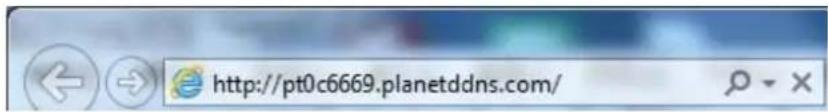

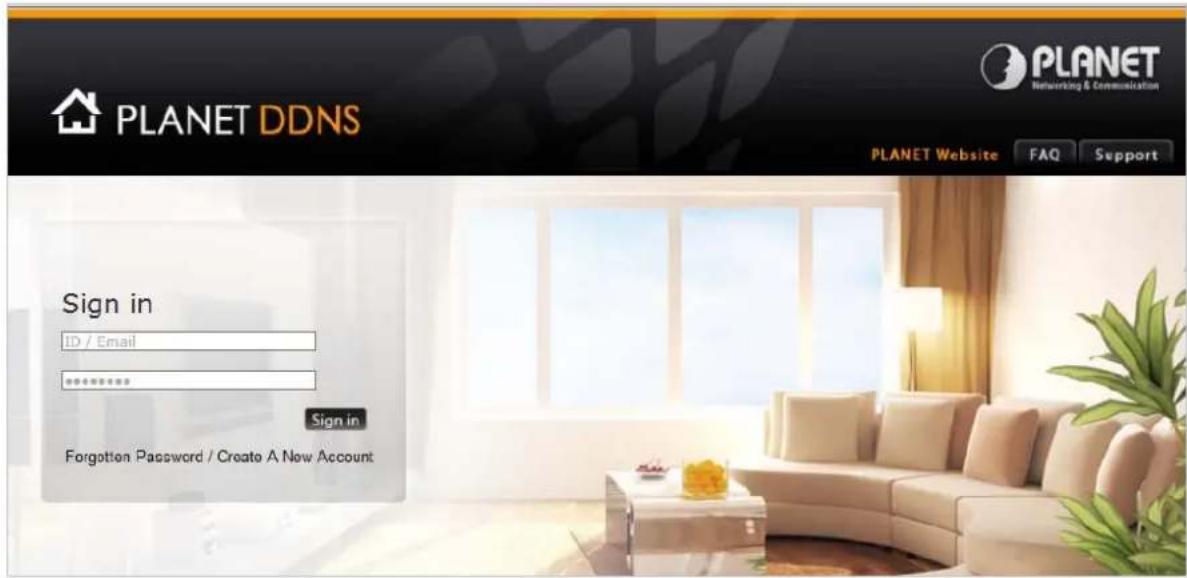

FIGURE 5-23 DYNAMIC DNS SETTINGS ....45

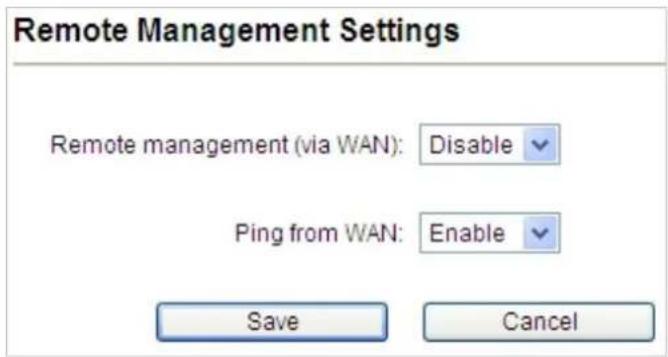

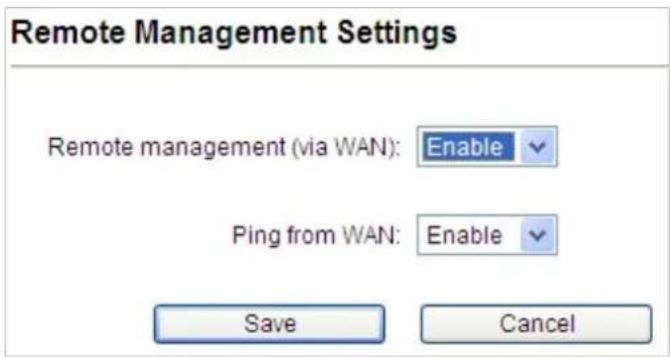

FIGURE 5-24 REMOTE MANAGEMENT .... 50

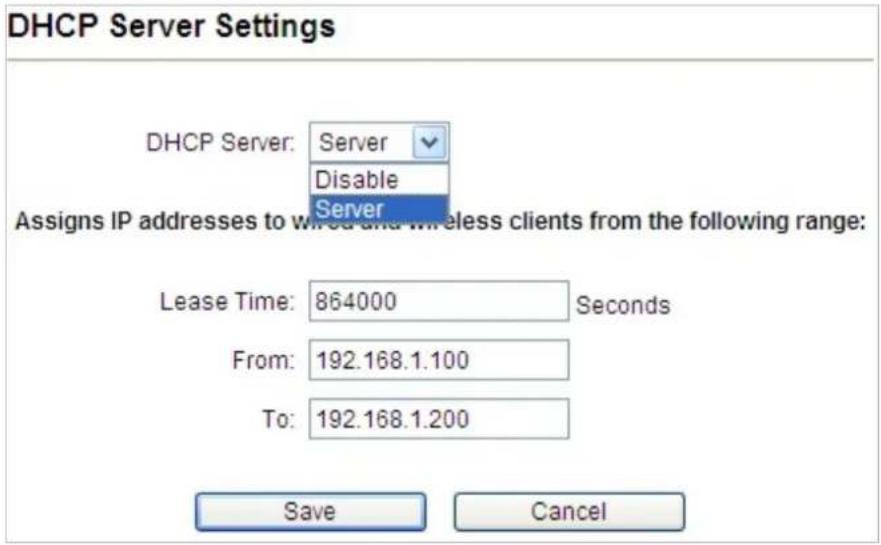

FIGURE 5-25 DHCP SERVER SETTINGS....51

FIGURE 5-26 DMZ SETTINGS....51

FIGURE 5-27 VIRTUAL SERVER SETTINGS....52

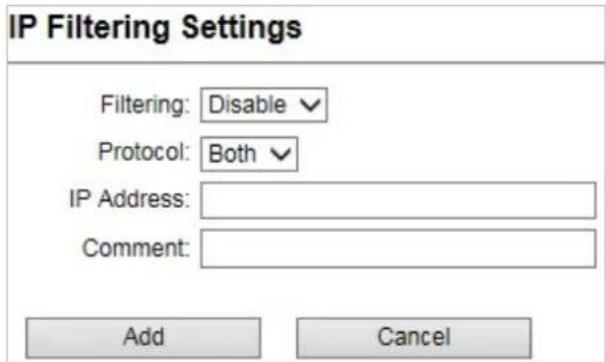

FIGURE 5-28 IP FILTERING SETTINGS....52

FIGURE 5-29 PORT FILTERING SETTINGS....53

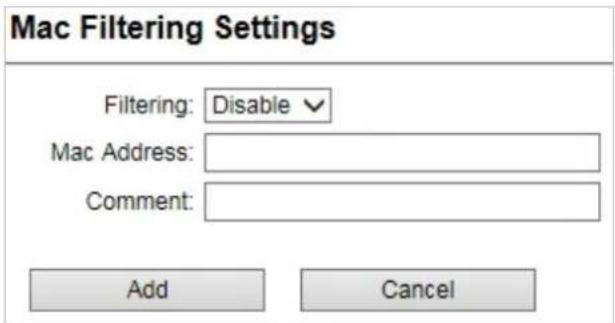

FIGURE 5-30 MAC FILTERING SETTINGS ....53

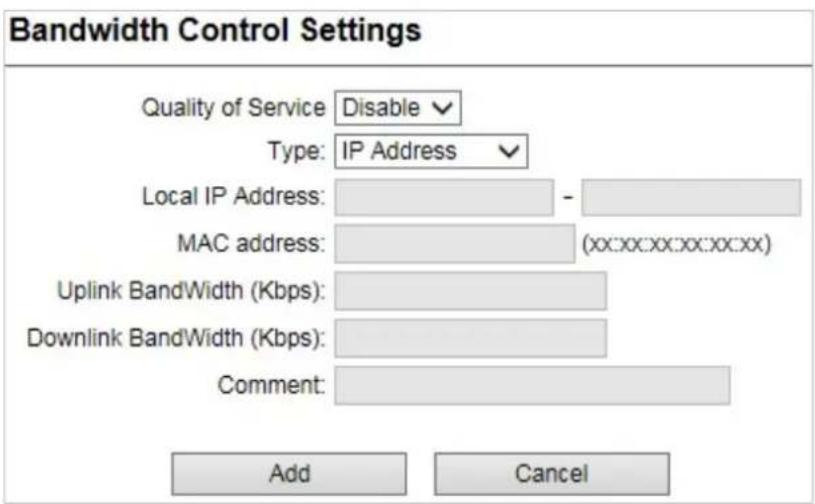

FIGURE 5-31 BANDWIDTH CONTROL SETTINGS....54

FIGURE 5-32 SNMP SETTINGS....55

FIGURE 5-33 SYSTEM CONFIGURATION DEFAULT PAGE 56

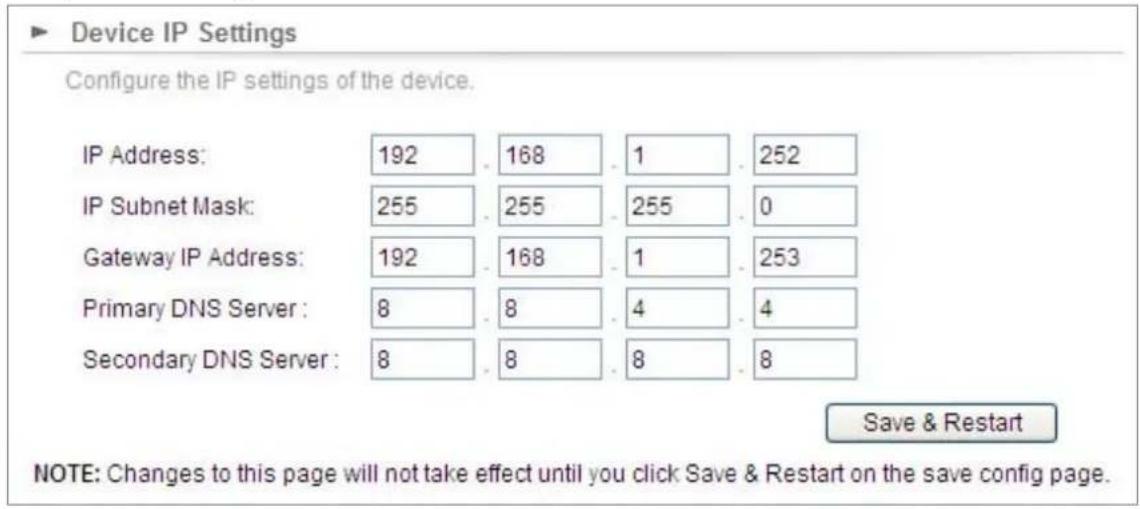

FIGURE 5-34 DEFAULT IP SETTINGS....56

FIGURE 5-35 TIME SETTINGS....57

FIGURE 5-36 PASSWORD SETTINGS ....58

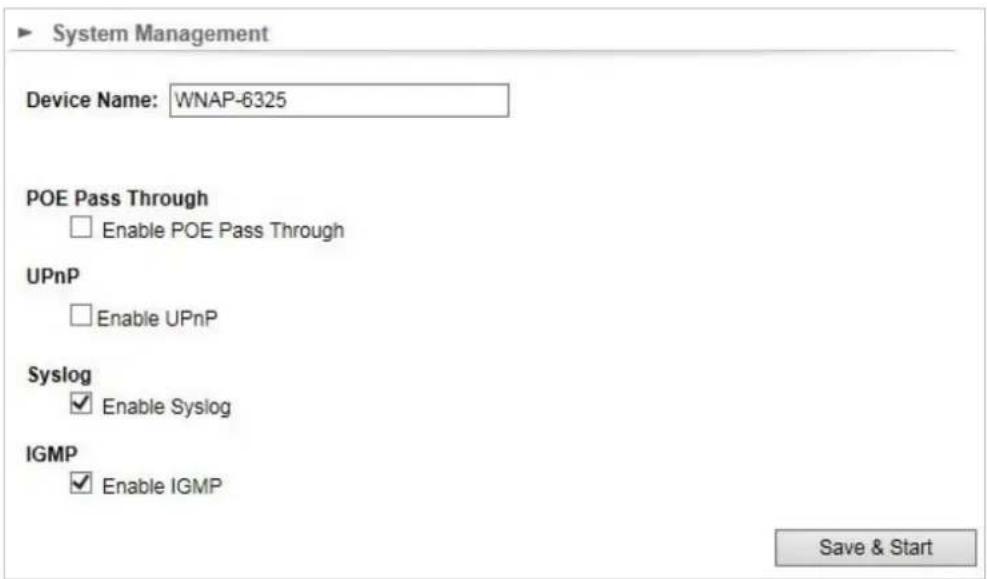

FIGURE 5-37 SYSTEM MANAGEMENT....58

FIGURE 5-38 PING WATCHDOG 59

FIGURE 5-39 FIRMWARE UPGRADE 60

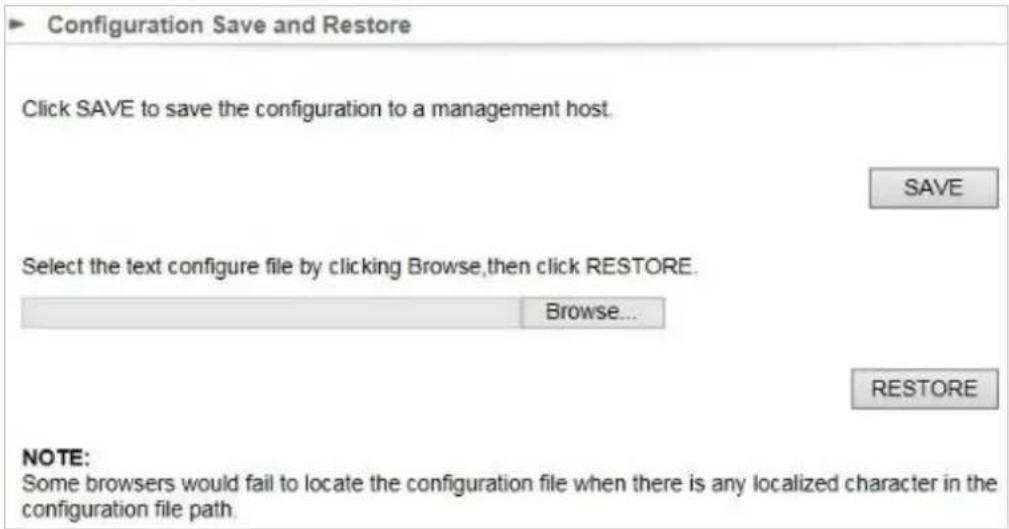

FIGURE 5-40 CONFIGURATION SAVE AND RESTORE....60

FIGURE 5-41 FACTORY DEFAULT....61

FIGURE 5-42 REBOOT SYSTEM 61

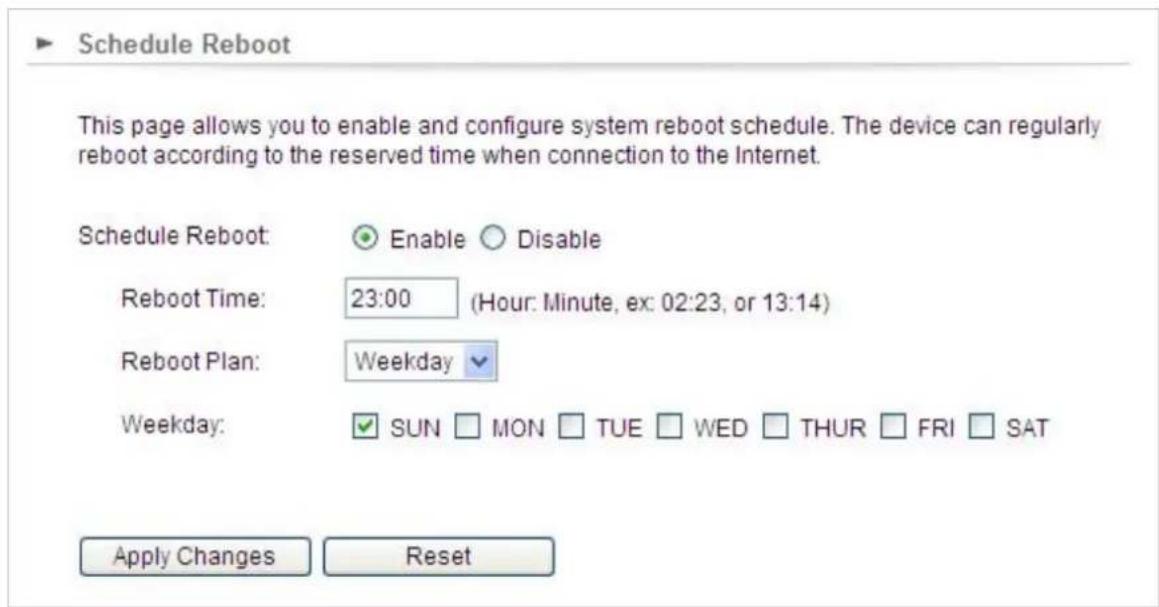

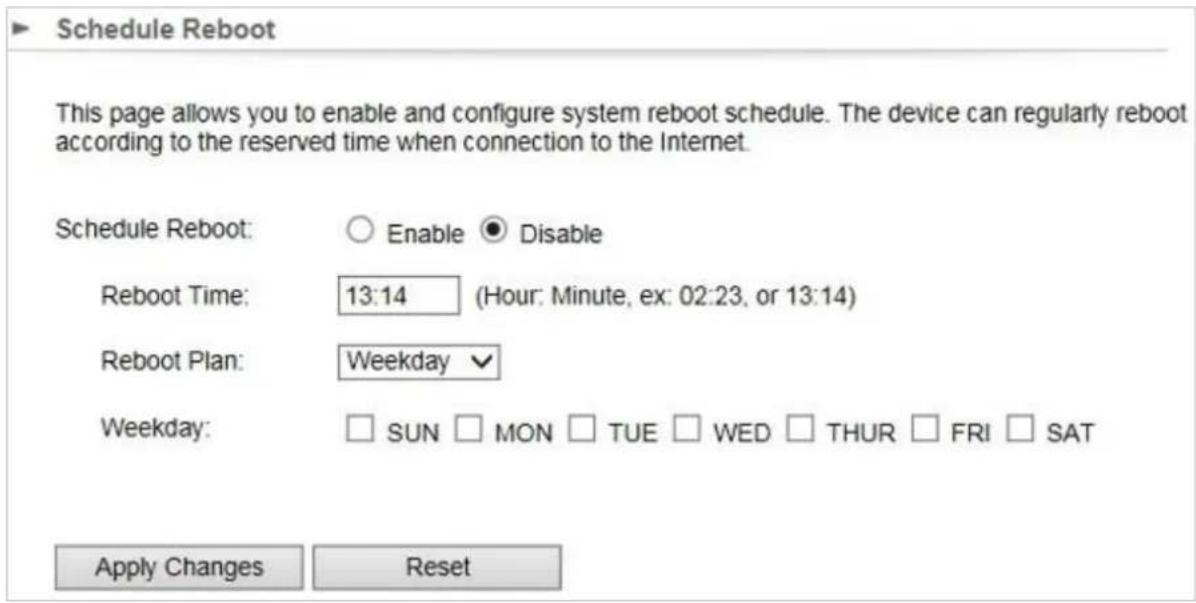

FIGURE 5-43 SCHEDULE REBOOT ....62

FIGURE 5-44 SCHEDULE REBOOT - EXAMPLE 63

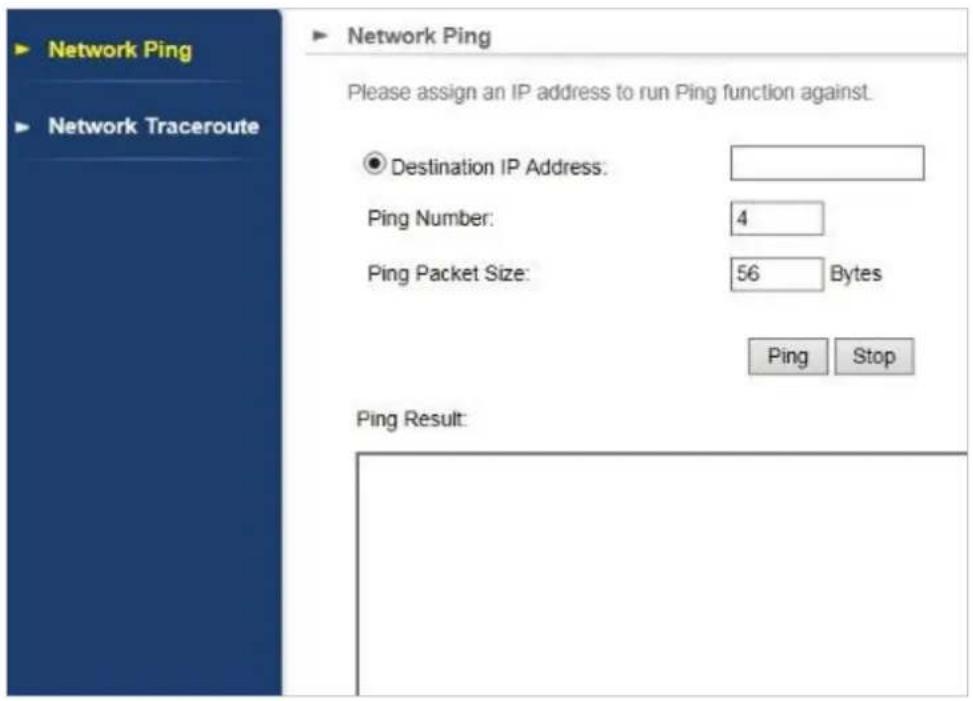

FIGURE 5-45 NETWORK PING 64

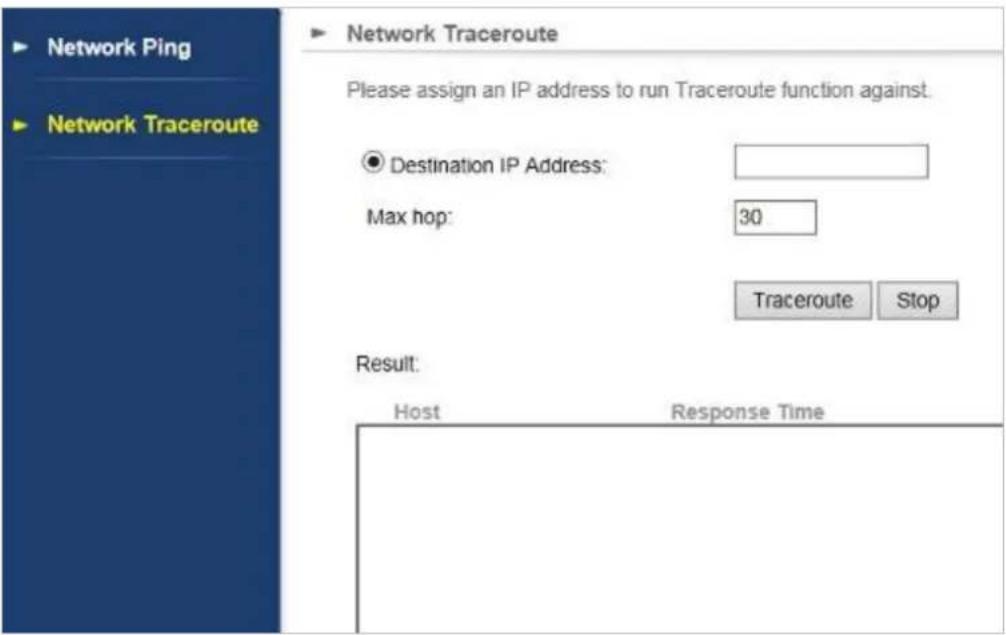

FIGURE 5-46 NETWORK TRACEROUTE....65

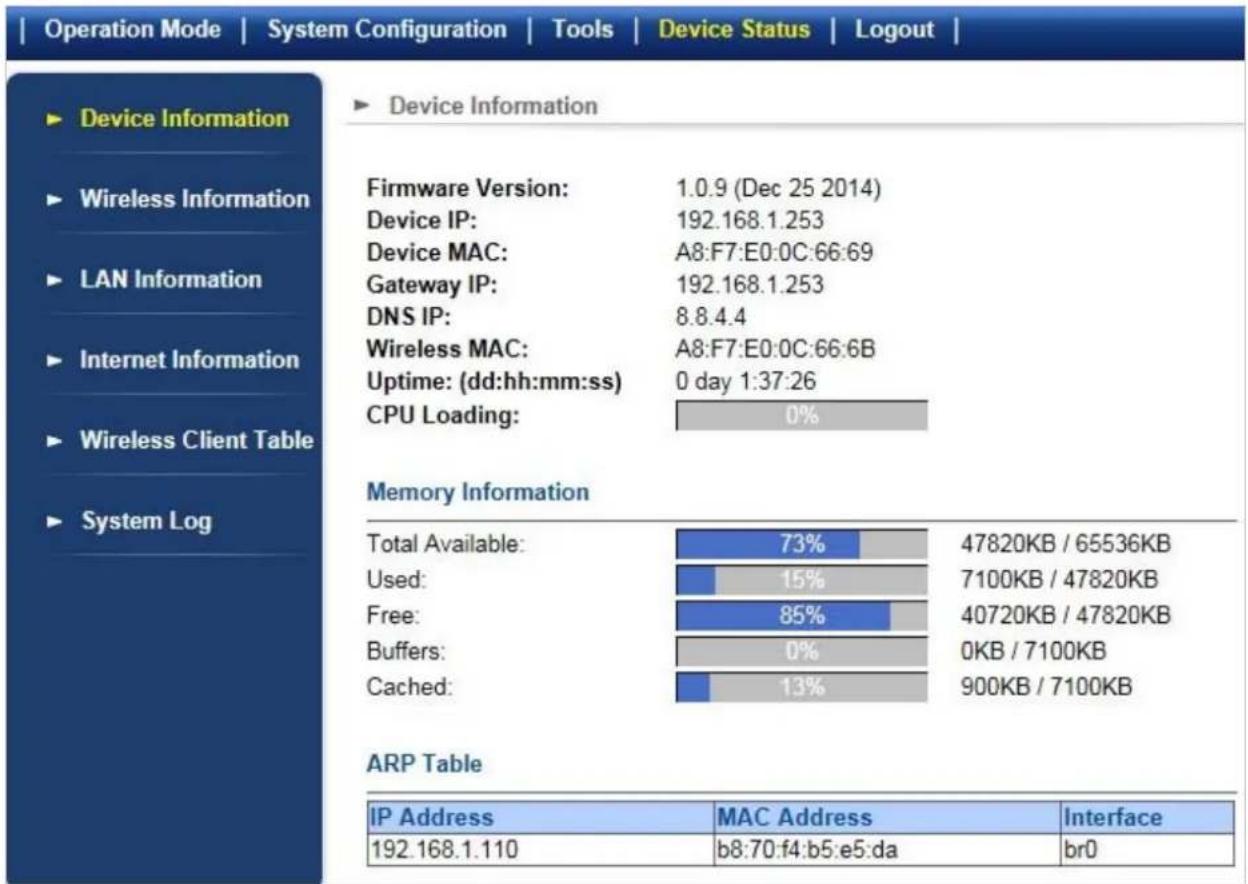

FIGURE 5-47 DEVICE STATUS....66

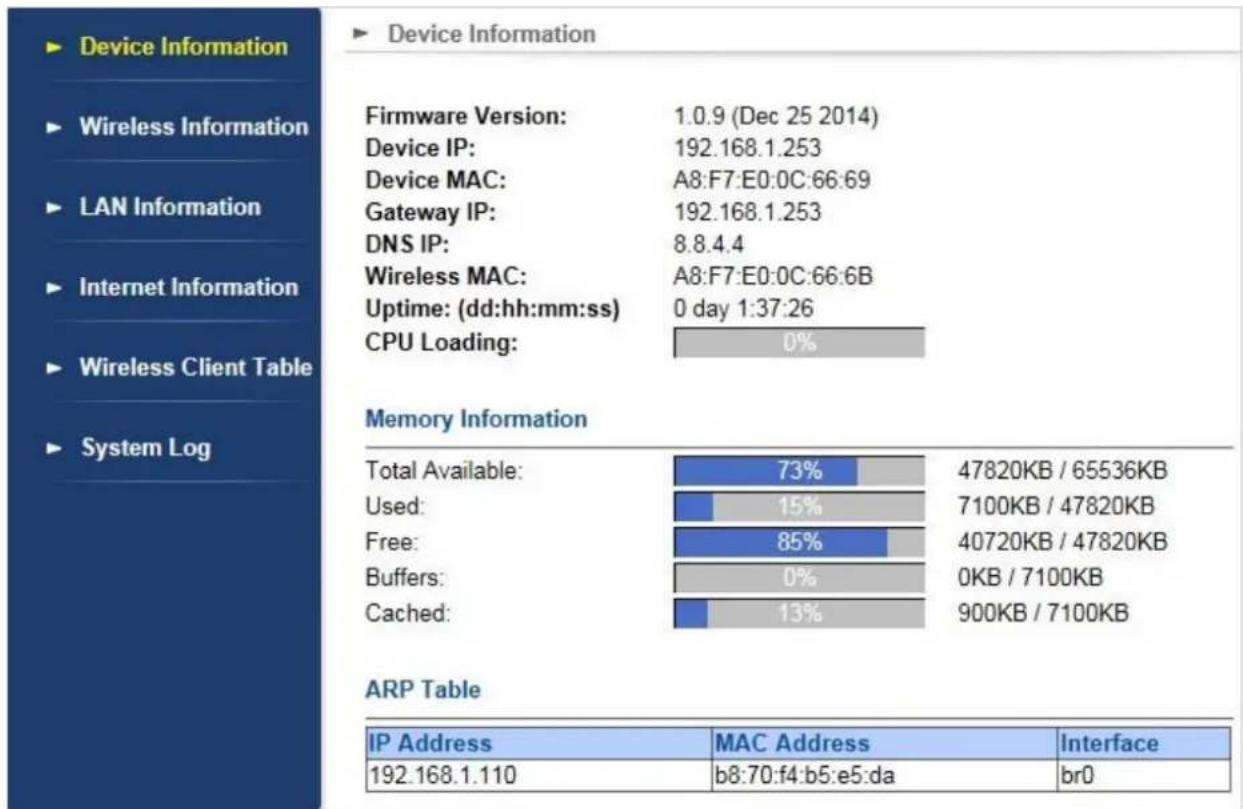

FIGURE 5-48 DEVICE INFORMATION....67

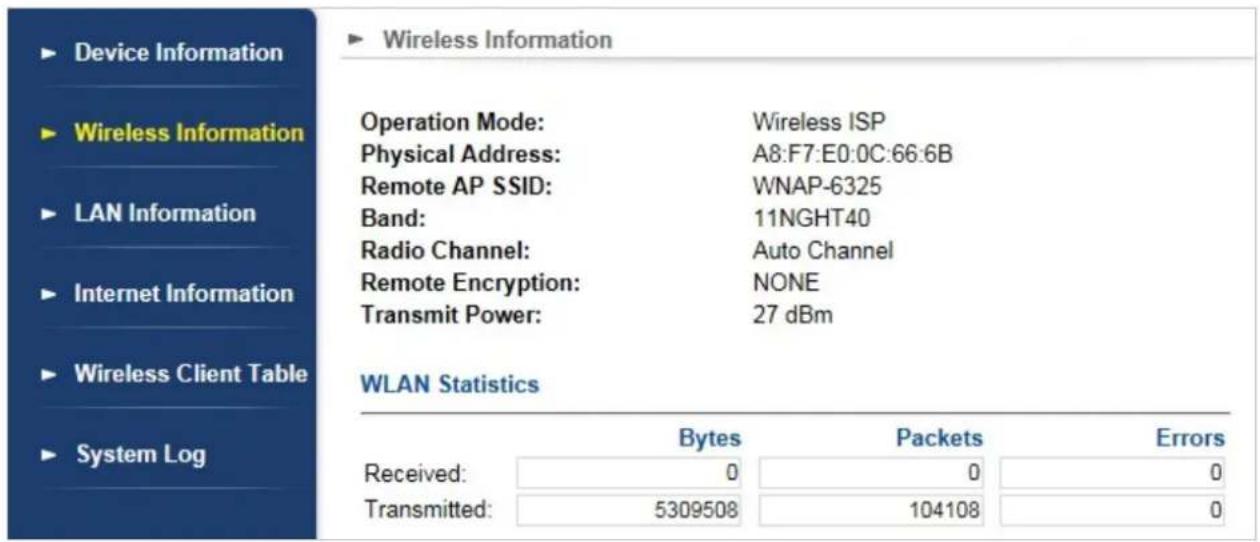

FIGURE 5-49 WIRELESS INFORMATION ......68

FIGURE 5-50 LAN INFORMATION....69

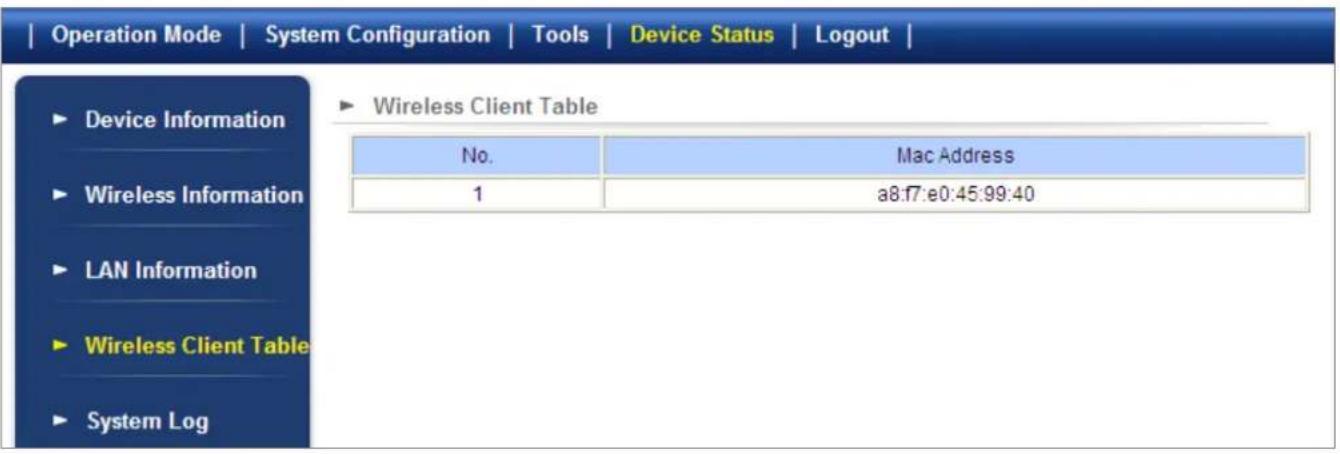

FIGURE 5-51 WIRELESS CLIENT TABLE....69

FIGURE 5-52 SYSTEM LOG ....70

FIGURE 5-53 LOGOUT....71

FIGURE 5-54 RE-LOGIN ....71

Chapter 1. Product Introduction

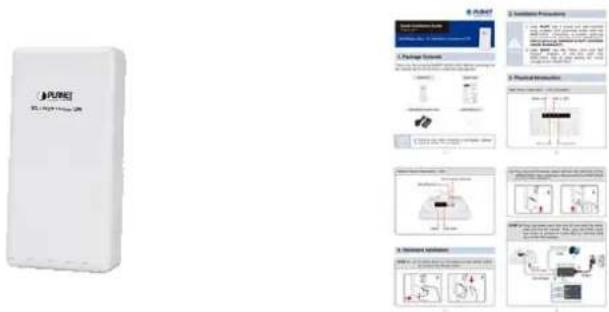

1.1 Package Contents

Thank you for choosing PLANET WNAP-6325. Before installing the AP, please verify the contents inside the package box.

WNAP-6325 Quick Installation Guide

Product packaging and technical diagrams of a PureE device, including package system, physical instructions, and circuitry.

PoE Injector & Power Cord Plastic Strap x 1

Two electronic devices: a black rectangular device with cable and a wire-wrapped cable (no visible text or symbols)

If there is any item missing or damaged, please contact the seller immediately.

1.2 Product Description

PLANET Outdoor CPE 802.1 High

Cost-effective Wireless Solution with Superior Performance

PLANET WNAP-6325 is designed to provide a highly-stable, better performance and cost-effective wireless solution in outdoor wireless deployment. With the same transmission power, it offers better significant range and excellent throughput than those of the traditional 802.11g wireless device. Via the embedded 12dBi dual-polarization (vertical and horizontal) directional antenna, it provides good diversity coverage and better noise immunity effect, thus heightening the performance of a long-distance, outdoor connectivity even though the environment is flooded with many 2.4GHz wireless equipment.

Designed for Various Requirements

The WNAP-6325 is dedicatedly designed for WISP solution that provides CPE users with Internet access via the WISP provider in rural areas. Besides, it caters to various wireless communication connectivities (AP / Client / WDS PtP / WDS PtMP / WISP), thus meeting users' application requirements.

Advanced Security and Rigorous Authentication

The WNAP-6325 supports WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established. In addition, with the multiple-SSIDs feature, you can set up different wireless networks. The WNAP-6325 can therefore serve as a virtual access point for segmented networks tailored to any industrial need.

Flexible and Reliable Outdoor Characteristics

The WNAP-6325 is definitely suitable for such applications as IP surveillance, backhaul link of building to building and backbone of public service. Additionally, the self-healing/schedule reboot capability keeps connection alive all the time. Meeting the IP55 rating for outdoor UV resistant enclosure, the WNAP-6325 can perform normally under rigorous weather conditions, meaning it can be installed in any harsh, outdoor environments. With the proprietary Power over Ethernet (PoE) design, the WNAP-6325 can be easily installed in the areas where power outlets are not available.

Easy Deployment and Management

With user-friendly Web UI and step-by-step setup wizard, the WNAP-6325 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with the Planet Smart Discovery Utility and SNMP-based management interface, the WNAP-6325 is convenient to be managed and configured remotely.

1.3 Product Features

Industrial Compliant Wireless LAN and LAN

■ Compliant with the IEEE 802.11n wireless technology (with data rate of up to 300Mbps)
■ Backward compatible with 802.11g standard
■ Equipped with 10/100Mbps RJ45 ports for LAN and WAN; auto MDI/ MDI-X supported

xed-network Broadband Router

■ Supported connection types: Dynamic IP, Static IP, PPPoE
■ Supports virtual server and DMZ for various networking applications
■ Supports DHCP server, UPnP and Planet DDNS

▶ Interface Characteristics

■ Built-in 12dBi dual-polarization antenna
■ High output power up to 500mW with multiply-adjustable transmit power control

Outdoor Environmental Characteristics

IP55 enclosure
■ Passive Power over Ethernet design
■ Operating temperature: -20\~70°C

Multiple Operations and Wireless Modes

■ Multiple operation modes: Bridge, WISP
■ Multiple wireless modes: AP, Client CPE (WISP), WDS PtP, WDS PtMP
■ Supports multiple SSIDs to allow users to access different networks through a single AP
■ Supports WMM (Wi-Fi multimedia)

▶ Secure Network Connection

■ Supports software Wi-Fi Protected Setup (WPS)
■ Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES) and 802.1x RADIUS authentication
■ Supports IP / Protocol-based access control and MAC filtering

Easy Installation and Management

■ Web-based UI and quick Setup Wizard for easy configuration
■ Planet Smart Discovery Utility allows administrator to discover and locate each AP
■ SNMP-based management interface
■ System status monitoring includes DHCP Client and System Log

1.4 Product Specification

Product	WNAP-6325300Mbps 802.11n Wireless Outdoor CPE
Hardware
Standard Support	IEEE802.11b/g/nIEEE 802.3IEEE 802.3uIEEE 802.3x
Chipset	Atheros AR9344
Memory	64 Mbytes DDR SDRAM16 Mbytes Flash
PoE	Passive PoE
Interface	Wireless IEEE802.11b/g/n, 2T2RPoE LAN (LAN 1): 1 x 10/100BASE-TX, auto-MDI/MDIX, passive PoELAN 2: 1 x 10/100BASE-TX, auto-MDI/MDIX, passive PoE out pass-through
Antenna	Built-in 12dBi Dual-Polarization Antenna- Horizontal: 30 degrees- Vertical: 20 degrees
Data Rate	IEEE 802.11b: 1, 2, 5.5, 11MbpsIEEE 802.11g: up to 54MbpsIEEE 802.11n (20MHz): up to 150MbpsIEEE 802.11n (40MHz): up to 300Mbps
Media Access Control	CSMA/CA
Modulation	Transmission/Emission type: OFDMData modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
Frequency Band	2.412GHz ~ 2.484GHz
Operating Channel	America/ FCC: 2.414~2.462GHz (11 Channels)Europe/ ETSI: 2.412~2.472GHz (13 Channels)Japan/ TELEC: 2.412~2.484GHz (14 Channels)
RF Output Power (dBm)	IEEE 802.11b: up to 26 ± 1dBmIEEE 802.11g: up to 23 ± 1dBmIEEE 802.11n: up to 22 ± 1dBm
Receiver Sensitivity (dBm)	IEEE 802.11b: -94dBmIEEE 802.11g: -91dBmIEEE 802.11n: -89dBm
Output Power Control	12~27Bm
Power Consumption	12W
Power Requirements	LAN 24VDC, 1A/	Passive PoEPin 4,5 VDC+Pin 7,8 VDC-Pin 3 Reset
Environment & Certification

Operating Temperature	-20~70°C
Operating Humidity	10~95% non-condensing
IP Level	IP55
Regulatory	CE, FCC, RoHS
Software
LAN	Built-in DHCP server supporting static IP address distributing
	Support 802.1d STP (Spanning Tree)
WAN	■ Static IP■ Dynamic IP■ PPPoE
Operation Modes	■ Bridge■ WISP
Firewall	NAT firewall with SPI (Stateful Packet Inspection)
	Built-in NAT server supporting Virtual Server, and DMZ
	Built-in firewall with Port/ IP address/ MAC/ URL filtering
Wireless Modes	■ AP■ Client■ WDS PTP■ WDS PTMP■ WISP
Channel Width	20MHz / 40MHz
Wireless Isolation	Enable it to isolate each connected wireless client so that they cannot access mutually.
Encryption Type	64/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security	Provides wireless LAN ACL (Access Control List) filtering
	Wireless MAC address filtering
	Enable/Disable SSID Broadcast
Max. Wireless Clients	25
Max. WDS AP	8
Max. Wired Clients	60
WMM	Supports Wi-Fi multimedia
QoS	Supports Quality of Service for bandwidth control
NTP	Network Time Management
Self Healing	Supports Schedule Reboot
Management	Web UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP
Diagnostic Tool	System Log, Ping Watchdog

Chapter 2. Hardware Installation

Please follow the instructions below to connect the WNAP-6325 to the existing network devices and your computers.

2.1 Hardware Description

■ Dimensions: 127 x 63 x 254 mm (W x D x H)

PLANET Rehearing & Communication 802.11b/g/n Outdoor CPE PLANET 802.11n Wireless Outdoor CPE Model: WRAP-8325 Default SP: 102.109.1.1 S/N: Name & Password: admin. MID: Input: SW = .TA This device contains both the ID and the ISO code. Transmits a label in the territory by compliance. (1) The device has not always transmitted to the device or its corresponding device. This device has also been connected to PLANT Technology Corp. FCC CE © 2017

Figure 2-1 Three-way View

Rear Panel – LED

Power LED LAN 1 LED Wireless LED LAN 2 LED

Figure 2-2 LED

LED Definition

LED State Meaning
Power	On	System On
	Off	System Off
Wireless	On	Wi-Fi On
	Off	Wi-Fi Off
LAN 1	On Port linked.
	Off No link.
LAN 2	On Port linked.
	Off No link.

Table 2-1 The LED indication

2.1.1 The Bottom Panel – Port

The Bottom panel provides the physical connectors connected to the power adapter and any other network device. Figure 2-3 shows the bottom panel of the WNAP-7325.

Bottom Panel

Optional RP-SMA Connector Reset Button

LAN2 PoE LAN
Figure 2-3 Bottom Panel

PoE Injector

Close-up of a black rectangular device with two Ethernet ports and an orange circular mark highlighting a port (no text or symbols visible)

Reset Button

Black rectangular device with a blue light source and a small connector attached (no visible text or symbols)

Figure 2-4 PoE Injector

H/W Interface Definition

Object Description
PoE LAN(Passive PoE)	10/100Mbps RJ45 port, auto MDI/ MDI-X and passive PoE supportedConnect LAN port to the PoE injector to power on the device.Pin assignment:Pin 4, 5 (+)Pin 7, 8 (-)Pin 3 (Reset)
LAN 2	10/100Mbps RJ45 port, auto MDI/ MDI-XConnect this port to the network equipment.※When the option “Enable POE Passthrough” on the System Management page is checked, the LAN2 can supply passive PoE power to the second WNAP-7325 or WNAP-6325 through LAN 2.
Reset	Press the Reset button on the device or on the PoE injector over 5 seconds to return to factory default setting.※ If you have connected with the thunder protector like PLANET ELA-100, please DO NOT press the reset button on the PoE injector to prevent the ELA-100 from being damaged. Remove the thunder protector before push the reset button.

Table 2-2 The PoE Injector Indication

Chapter 3. Connecting to the AP

3.1 Preparation before Installation

3.1.1 Professional Installation Required

Please seek assistance from a professional installer who is well trained in the RF installation and knowledgeable in the local regulations.

3.1.2 Safety Precautions

1. To keep you safe and install the hardware properly, please read and follow these safety precautions.
2. If you are installing the WNAP-6325 for the first time, for your safety as well as others', please seek assistance from a professional installer who has received safety training on the hazards involved.
3. Keep safety as well as performance in mind when selecting your installation site, especially where there are electric power and phone lines.
4. When installing the WNAP-6325, please note the following things:

♦ Do not use a metal ladder;
♦ Do not work on a wet or windy day;
◆ Wear shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.

1. When the system is operational, avoid standing directly in front of it. Strong RF fields are present when the transmitter is on.

3.2 Installation Precautions

■ Users MUST use a proper and well-installed surge arrestor and grounding kit with WNAP-6325; otherwise, a random lightning could easily cause fatal damage to the WNAP-6325. EMD (Lightning) DAMAGE IS NOT COVERED UNDER WARRANTY.
- Users MUST use the “Power cord and PoE Injector” shipped in the box with the WNAP-6325. Use of other options will cause damage to the WNAP-6325.

OUTDOOR INSTALLATION WARNING

IMPORTANT SAFETY PRECAUTIONS:

LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with the equipment you are installing.

CONTACTING POWER LINES CAN BE LETHAL. Make sure no power lines are anywhere where possible contact can be made. Antennas, masts, towers, guy wires or cables may lean or fall and contact these lines. People may be injured or killed if they are touching or holding any part of equipment when it contacts electric lines. Make sure that equipment or personnel do not come in contact directly or indirectly with power lines.

Illustration of three utility poles with red lightning bolts indicating electric shock waves (no text or symbols)

The horizontal distance from a tower, mast or antenna to the nearest

power line should be at least twice the total length of the mast/antenna combination. This will ensure that the mast will not contact power if it falls either during installation or later.

TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE GROUND.

• Select equipment locations that will allow safe, simple equipment installation.
• Don't work alone. A friend or co-worker can save your life if an accident happens.
• Use approved non-conducting lasers and other safety equipment. Make sure all equipment is in good repair.
• If a tower or mast begins falling, don't attempt to catch it. Stand back and let it fall.
• If anything such as a wire or mast does come in contact with a power line, DON'T TOUCH IT OR ATTEMPT TO MOVE IT. Instead, save your life by calling the power company.
• Don't attempt to erect antennas or towers on windy days.

MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND ELECTRICAL CABLES CONNECTED TO ANTENNAS HAVE LIGHTNING ARRESTORS. This will help prevent fire damage or human injury in case of lightning, static build-up, or short circuit within equipment connected to the antenna.

• The base of the antenna mast or tower must be connected directly to the building protective ground or to one or more approved grounding rods, using 1 OAWG ground wire and corrosion-resistant connectors.
• Refer to the National Electrical Code for grounding details.

IF A PERSON COMES IN CONTACT WITH ELECTRICAL POWER, AND CANNOT MOVE:

• DON'T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.
• Use a non-conductive dry board, stick or rope to push or drag them so they no longer are in contact with electrical power.

Once they are no longer contacting electrical power, administer CPR if you are certified, and make sure that emergency medical aid has been requested.

3.3 Installing the AP

Please install the AP according to the following Steps. Don't forget to pull out the power plug and keep your hands dry.

Step 1. Push the latch on the bottom of the WNAP-6325 to remove the sliding cover.

Diagram illustrating a sewing process with labeled arrows indicating direction of movement or repair steps

Figure 3-1 Connect the Antenna

Step 2. Plug the RJ45 Ethernet cable into the PoE LAN Port of the WNAP-6325. Then, slide back the cover of the WNAP-6325 to finish the installation.

Diagram showing two-step robotic arm manipulation process with red arrows indicating movement direction

Figure 3-2 Connect the Ethernet cable

Step 3. Plug the power cord into the DC port and the other end into the AC socket. Then, plug the RJ45 cable (as shown in picture 4 under Step 1) into the POE port of the PoE injector.

Figure 3-3 Connect the PoE injector

Step 4. Pole Mounting:

Place the strap through the slot on the back of the WNAP-6325 and then around the pole. Tighten the strap to secure the WNAP-6325.

White industrial air purifier device with attached piping and control panel (no visible text or symbols)

Figure 3-4 Pole Mounting

Chapter 4. Quick Installation Guide

This chapter will show you how to configure the basic functions of your AP within minutes.

A computer with wired Ethernet connection to the Wireless AP is required for the first-time configuration.

4.1 Manual Network Setup - TCP/IP Configuration

The default IP address of the WNAP-6325 is 192.168.1.253. And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description.

Connect the WNAP-6325 with your PC via an Ethernet cable which is then plugged into a LAN port of the PoE injector with one end and into a LAN port of the PC with the other end. Then power on the WNAP-6325 via PoE injector or PoE switch.

In the following sections, we'll introduce how to install and configure the TCP/IP correctly in Windows 7. And the procedures in other operating systems are similar. First, make sure your Ethernet adapter is working, and refer to the Ethernet adapter's manual if needed.

4.1.1 Configuring the IP Address Manually

Summary:

■ Set up the TCP/IP Protocol for your PC.
Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is any number from 2 to 252), Subnet Mask is 255.255.255.0, and Gateway is 192.168.1.253 (The AP's default IP address)

1 Select Use the following IP address radio button.
2 If the AP's LAN IP address is 192.168.1.1, enter IP address 192.168.1.x (x is from 2 to 254), and Subnet mask 255.255.255.0.
3 Select Use the following DNS server addresses radio button. In the Preferred DNS Server field, you can enter the DNS server IP address which has been provided by your ISP

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 100 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

Figure 4-1 TCP/IP Setting

Now click OK to save your settings.

Now, you can run the ping command in the command prompt to verify the network connection between your PC and the AP. The following example is in Windows 7 OS. Please follow the Steps below:

1. Click on Start > Run.
2. Type "cmd" in the Search box.

Programs (1) cmd Files (1) History See more results cmd x Shut down

Figure 4-2 Windows Start Menu

1. Open a command prompt and type ping 192.168.1.253, and then press Enter.

If the result displayed is similar to Figure 4-3, it means the connection between your PC and the AP has been established well.

C:\Users>ping 192.168.1.253 Pinging 192.168.1.253 with 32 bytes of data: Reply from 192.168.1.253: bytes=32 time<1ns TIL=64 Reply from 192.168.1.253: bytes=32 time<1ns TIL=64 Reply from 192.168.1.253: bytes=32 time<1ns TIL=64 Reply from 192.168.1.253: bytes=32 time<1ns TIL=64 Ping statistics for 192.168.1.253: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 0ms, Maximum = 0ms, Average = 0ms C:\Users>

Figure 4-3 Successful result of Ping command

If the result displayed is similar to Figure 4-4, it means the connection between your PC and the AP has failed.

C:\Users>ping 192.168.1.253 Pinging 192.168.1.253 with 32 bytes of data: Request timed out. Request timed out. Request timed out. Request timed out. Ping statistics for 192.168.1.253: Packets: Sent = 4, Received = 0, Lost = 4 (100% loss), C:\Users>

Figure 4-4 Failed result of Ping command

If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your AP. Some firewall software programs may block a DHCP request on newly installed adapters.

4.2 Starting Setup in the Web UI

It is easy to configure and manage the WNAP-6325 with the web browser.

Step 1. To access the configuration page, open a web browser and enter the default IP address http://192.168.1.253 in the web address field of the browser.

http://192.168.1.253/ 192.168.1.253 File Edit View Favorites Tools Help

Figure 4-5 Login by default IP address

After a moment, a login window will appear. Enter admin for the User Name and Password, both in lower case letters. Then click the OK button or press the Enter key.

Windows Security The server 192.168.1.253 is asking for your user name and password. The server reports that it is from . "WNAP-6325. Warning: Your user name and password will be sent using basic authentication on a connection that isn't secure. admin ...... Remember my credentials OK Cancel

Figure 4-6 Login Window

Default IP Address: 192.168.1.253

Default User Name: admin

Default Password: admin

If the above screen does not pop up, it may mean that your web browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.

After entering the username and password, the Operation Mode page screen appears as in Figure 4-8

PLANET Networking & Communication WNAP-6325 300Mbps 802.11n Wireless Outdoor CPE Operation Mode | System Configuration | Tools | Device Status | Logout | ▶ Operation Mode ▶ Operation Mode Select the "Operation Mode" by clicking on "Setup" button and then configure the Wireless Settings. Mode Access Point Client WDS AP WDS Client AP Router Wireless ISP Setup Radio Access Point Client WDS Access Point WDS Client Access Point Wireless ISP Ethernet Port LAN+LAN LAN+LAN LAN+LAN LAN+LAN WAN+LAN LAN+LAN

Figure 4-7 WNAP-6325 Web UI Screenshot

Step 2. You can choose an Operation Mode. Please refer to the instructions in the next chapter for configuring the other Operation Modes.

PLANET Networking & Communication WNAP-6325 300Mbps 802.11n Wireless Outdoor CPE Operation Mode | System Configuration | Tools | Device Status | Logout | ▶ Operation Mode ▶ Operation Mode Select the "Operation Mode" by clicking on "Setup" button and then configure the Wireless Settings. Mode Access Point Client WDS AP WDS Client AP Router Wireless ISP Setup Radio Access Point Client WDS Access Point WDS Client Access Point Wireless ISP Ethernet Port LAN+LAN LAN+LAN LAN+LAN WAN+LAN LAN+LAN

Figure 4-8 Choose Operation Mode

Step 3. Please enter the SSID and configure your Encryption Settings, Pre-Shared Key, etc. Then click the Save button to make the configuration take effect immediately.

http://192.168.1.253/security.asp Security Settings Select Encryption: WPA2 Pre-Authentication: ● Personal (Pre-Shared Key) ○ Enterprise (RADIUS) Encryption Type: ○ TKIP ● AES ○ Auto Pre-Shared Key: 12345678 × Save Cancel

Figure 4-9 Configure Wireless Settings

Chapter 5. Configuring the AP

This chapter delivers a detailed presentation of AP's functionalities and features under 4 main menus (Operation Mode, System Configuration, Tools and Device Status) below, allowing you to manage the AP with ease.

PLANET Networking & Communication WNAP-6325 300Mbps 802.11n Wireless Outdoor CPE Operation Mode | System Configuration | Tools | Device Status | Logout |

Figure 5-1 Main Menu

5.1 Operation Mode

On this page, you can select different operation modes of the WNAP-6325, including Access Point, Client, WDS AP, WDS Client, AP Router and Wireless ISP.

PLANET Networking & Communication WNAP-6325 300Mbps 802.11n Wireless Outdoor CPE Operation Mode | System Configuration | Tools | Device Status | Logout | ▶ Operation Mode ▶ Operation Mode Select the "Operation Mode" by clicking on "Setup" button and then configure the Wireless Settings. Mode Access Point Client WDS AP WDS Client AP Router Wireless ISP Setup Radio Access Point Client WDS Access Point WDS Client Access Point Wireless ISP Ethernet Port LAN+LAN LAN+LAN LAN+LAN LAN+LAN WAN+LAN LAN+LAN

Figure 5-2 Operation Mode

5.1.1 Access Point

Click "Operation Mode" → "Access Point" and the following page will be displayed. This section allows you to configure the Access Point mode.

Operation Mode Access Point ▶ Operation Mode Settings Regulatory Domain: Europe Network ID (SSID) WNAP-6325 Site Survey ✓ Enable Wireless □ Disable SSID Broadcasting □ Enable Isolated Radio Mode: 2G 11NG HT40 Channel: 6 -2437MHz Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup

Figure 5-3 Basic Settings - AP

Object Description
• Regulatory Domain	Select your domain from the list.
• Network SSID	It is the wireless network name. The default SSID is WNAP-6325.
• Site Survey	Click “Site Survey” to check the signal of remote sites.
• Enable Wireless	Check it to enable Wireless function.
• Disable SSID Broadcasting	Check it to disable SSID broadcasting.
Enable Isolated	Check it to isolate each connected wireless clients so that they cannot access each other.
Radio Mode	Select the channel width to “Auto Select”, “2G 11NG HT20” or “2G 11NG HT40”
• Channel	Select the operating channel you would like to use. The channel range will be changed by selecting a different domain.
• Data Rate	Select MCS0~15 or Auto from the pull-down menu. The default is “Auto”.
• Security Setting	Press “Setup” for more configurations. Please refer to 5.1.7 Security Setting for more information.
• Transmit Power	The range of transmit power is “12~27 dbm”. In case of shortening the distance and the coverage of the wirelessnetwork, input a smaller value to reduce the radio transmission power.
• Transmit Distance	Select a specified distance of the two nodes.
• TDMA	Displays the System Time.
• Advanced Settings	Press “Setup” for more configurations. Please refer to 5.1.8 Advanced Settings for more information.
• Access Control	Press “Setup” for more configurations. Please refer to 5.1.9 Access Control for more information.

5.1.2 Client

Click "Operation Mode" → "Client" and the following page will be displayed. This section allows you to configure the Client mode.

Operation Mode Settings Regulatory Domain: Europe Remote AP SSID: WNAP-6325 Site Survey ✓ Enable Wireless □ Disable SSID Broadcasting □ Enable Isolated Lock to AP MAC: 00:00:00:00:00:00 Radio Mode: 2G 11NG HT40 Channel: Auto Channel Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup

Figure 5-4 Basic Settings - Client

Object Description
• Regulatory Domain	Select your domain from the list.
• Network SSID	It is the wireless network name. The default SSID is WNAP-6325.
• Site Survey	Click “Site Survey” to find the remote sites to associate.
• Enable Wireless	Check it to enable Wireless function.
Disable SSID Broadcasting	Check it to disable SSID broadcasting.
Enable Isolated	Check it to isolate each connected wireless clients so that they cannot access each other.
Lock to AP MAC	Enter the Mac address of the remote AP.
Radio Mode	Select the channel width to “Auto Select”, “2G 11NG HT20” or “2G 11NG HT40”
Data Rate	Select MCS0~15 or Auto from the pull-down menu. The default is “Auto”.
Security Setting	Press “Setup” for more configurations. Please refer to 5.1.7 Security Setting for more information.
Transmit Power	The range of Transmit power is “12~27 dbm”. In case of shortening the distance and the coverage of the wireless network, input a smaller value to reduce the radio transmission power.
Transmit Distance	Select a specified distance of the two nodes.
TDMA	Displays the System Time.
Advanced Settings	Press “Setup” for more configurations. Please refer to 5.1.8 Advanced Settings for more information.
Access Control	Press “Setup” for more configurations. Please refer to 5.1.9 Access Control for more information.

5.1.3 WDS AP

Click "Operation Mode" → "WDS AP" and the following page will be displayed. This section allows you to configure the WDS AP mode. For each wireless parameter, please refer to section 5.1.1 AP for more information.

Operation Mode WDS AP ▶ Operation Mode Settings Regulatory Domain: Europe Network ID (SSID) WNAP-6325 Site Survey ✓ Enable Wireless ☐ Disable SSID Broadcasting ☐ Enable Isolated Radio Mode: 2G 11NG HT40 Channel: 6 -2437MHz Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup

Figure 5-5 Basic Settings – WDS AP

5.1.4 WDS Client

Click "Operation Mode" → "WDS Client" and the following page will be displayed. This section allows you to configure the WDS Client mode. For each wireless parameter, please refer to section 5.1.2 Client for more information.

Operation Mode WDS Client ▶ Operation Mode Settings Regulatory Domain: Europe Remote AP SSID: WNAP-6325 Site Survey ✓ Enable Wireless □ Disable SSID Broadcasting □ Enable Isolated Lock to AP MAC: 00:00:00:00:00:00 Radio Mode: 2G 11NG HT40 Channel: Auto Channel Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup

Figure 5-6 Basic Settings – WDS Client

5.1.5 AP Router

Click "Operation Mode" → "AP Router" and the following page will be displayed. This section allows you to configure the AP Router mode.

Operation Mode AP Router ▶ Operation Mode Settings Regulatory Domain: Europe Network ID (SSID) WNAP-8325 Site Survey Enable Wireless Disable SSID Broadcasting Enable Isolated Radio Mode: 2G 11NG HT40 Channel: 6 -2437MHz Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup WAN Port Settings: Setup Dynamic DNS Settings: Setup Remote Management: Setup DHCP Server Settings: Setup DMZ Settings: Setup Virtual Server Settings: Setup IP Filtering Settings: Setup Port Filtering Settings: Setup MAC Filtering Settings: Setup Bandwidth Control: Setup SNMP: Setup

Figure 5-7 Basic Settings – AP Router

5.1.6 Wireless ISP

Click "Operation Mode" → "Wireless ISP" and the following page will be displayed. This section allows you to configure the Wireless ISP mode.

Operation Mode Wireless ISP Regulatory Domain: Europe Remote AP SSID: WNAP-6325 Site Survey Enable Wireless Disable SSID Broadcasting Enable Isolated Lock to AP MAC: 00:00:00:00:00:00 Radio Mode: 2G 11NG HT40 Channel: Auto Channel Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup WAN Port Settings: Setup Dynamic DNS Settings: Setup Remote Management: Setup DHCP Server Settings: Setup DMZ Settings: Setup Virtual Server Settings: Setup IP Filtering Settings: Setup Port Filtering Settings: Setup MAC Filtering Settings: Setup Bandwidth Control: Setup SNMP: Setup

Figure 5-8 Basic Settings – WISP

5.1.7 Security Setting

Choose the operation mode you required, and then enter "Security Setting" by clicking the Setup button next to it and the following page will be displayed. This section allows you to configure the wireless security settings.

Security Settings Select Encryption: None Save Cancel

Figure 5-9 Security Settings

Object Description
• Select Encryption	Select the encryption that you need.None: No security requiredWEP: Input 5, 13 (ASCII) or 10, 26 (HEX) character for WEP key.WPA: Enter ASCII characters between 8 and 63 character or 8 to 64 hexadecimal characters.WPA2: Enter ASCII characters between 8 and 63 character or 8 to 64 hexadecimal characters.WPA-Mixed: Enter ASCII characters between 8 and 63 character or 8 to 64 hexadecimal characters.

■ None

Authentication is disabled and no password/key is required to connect to the access point.

■ WEP

WEP (Wired Equivalent Privacy) is a basic encryption. For a higher level of security consider using the WPA encryption.

Security Settings Select Encryption: WEP Authentication: Open System Shared Key Auto Key Length: 64-bit 128-bit Key Format: ASCII(5 Characters) Encryption Key: Save Cancel

Figure 5-10 Security Settings – WEP

Object Description
• Authentication	You can select Open System, Shared Key or Auto.
• Key Length	Choose the WEP key length. You can choose 64-bit or 128-bit.
• Key Format	You can choose ASCII or Hex.
• Encryption Key	Enter the keys in the fields.

WPA

Security Settings Select Encryption: WPA Pre-Authentication: ○ Personal (Pre-Shared Key) ○ Enterprise (RADIUS) Encryption Type: ○ TKIP ○ AES ○ Auto Pre-Shared Key: Save Cancel

Figure 5-11 Security Settings – WPA Personal

Pre-Authentication: ○ Personal (Pre-Shared Key) ● Enterprise (RADIUS) Encryption Type: ○ TKIP ○ AES ● Auto RADIU Server IP Address: RADIU Server Port: RADIU Server Password: EAP Reauthorization Period: Seconds (300 ~ 3600 Seconds) RSN Reauthorization: Disable WPA Group Rekey Interval: Seconds (300 ~ 3600 Seconds) Save Cancel

Figure 5-12 Security Settings – WPA Enterprise

Object Description
• Pre-Authentication	Select “Personal (Pre-Shared Key)” or “Enterprise (RADIUS)” encryption type.
• Encryption Type	Set the WPA to be TKIP, AES or Auto.
• Pre-Shared Key	Enter the keys in the fields.
• RADIU Server IP Address	Enter the RADIUS server host IP address.
• RADIU Server Port	Set the UDP port used in the authentication protocol of the RADIUS server. Value must be between 1 and 65535.
• RADIU Server Password	Enter a shared secret/password between 1 and 99 characters in length.
EAPReauthorizationPeriod	Set duration of session timeout in seconds between 300 and 3600.
RSNReauthorization	Enable or disable RSN reauthorization.
WPA Group RekeyInterval	Set duration of session timeout in seconds between 300 and 3600.

■ WPA2

Please refer to WPA for more information.

Security Settings Select Encryption: WPA2 Pre-Authentication: ● Personal (Pre-Shared Key) ○ Enterprise (RADIUS) Encryption Type: ○ TKIP ○ AES ● Auto Pre-Shared Key: Save Cancel

Figure 5-13 Security Settings – WPA2 Personal

Pre-Authentication: Personal (Pre-Shared Key) Enterprise (RADIUS) Encryption Type: TKIP AES Auto RADIU Server IP Address: RADIU Server Port: RADIU Server Password: EAP Reauthorization Period: Seconds (300 ~ 3600 Seconds) RSN Reauthorization: Disable WPA Group Rekey Interval: Seconds (300 ~ 3600 Seconds) Save Cancel

Figure 5-14 Security Settings – WPA2 Enterprise

■ WPA-Mixed

Please refer to WPA for more information.

Security Settings Select Encryption: WPA-Mixed Pre-Authentication: ● Personal (Pre-Shared Key) ○ Enterprise (RADIUS) Encryption Type: ○ TKIP ○ AES ○ Auto Pre-Shared Key: Save Cancel

Figure 5-15 Security Settings – WPA-Mixed Personal

Pre-Authentication: ○ Personal (Pre-Shared Key) ● Enterprise (RADIUS) Encryption Type: ○ TKIP ○ AES ● Auto RADIU Server IP Address: RADIU Server Port: RADIU Server Password: EAP Reauthorization Period: Seconds (300 ~ 3600 Seconds) RSN Reauthorization: Disable WPA Group Rekey Interval: Seconds (300 ~ 3600 Seconds) Save Cancel

Figure 5-16 Security Settings – WPA-Mixed Enterprise

5.1.8 Advanced Settings

Choose the operation mode you require, and then enter "Advanced Settings" by clicking Setup button next to it and the following page will be displayed. This section allows you to configure the wireless advanced settings.

Advanced Wireless Settings RTS/CTS Threshold: 2347 bytes (range: 0 ~ 2347, default 2347) Beacon Interval: 100 milliseconds (range 20 ~ 999, default 100) DTIM: 1 (range 1 ~ 255, default 1) Fragment Size: 2346 bytes (range 256 ~ 2346, default 2346) Short GI: ○ 400ns ● 800ns Aggregation: ● Enable ○ Disable Aggregated Frames Number: 32 (range 1 ~ 32, default 32) Maximum Aggregated Size: 50000 (range 2346 ~ 65536, default 50000) Tx ChainMask: 2 Chain ▼ Rx ChainMask: 2 Chain ▼ WiFi Multimedia WMM Capable ○ Enable ○ Disable WMM Configuration Save Cancel

Figure 5-17 Advanced Settings

Object Description
• RTS/CTS Threshold	When the length of a data packet exceeds this value, the router will send an RTS frame to the destination wireless node, and the latter will reply with a CTS frame, and thus they are ready to communicate. The default value is 2347.
• Beacon Interval	Set beacon interval, the value range is from 20 to 999. The default value is 100.
• DTIM	Set the DTIM (delivery traffic indication message) period value of the wireless radio. The default value is 1.
• Fragment Size	A data packet that exceeds this value in length will be divided into multiple packets. The number of packets influences wireless network performance. Avoid setting this value low. Default at 2346.
• Short GI	Guard intervals are used to ensure that distinct transmissions do not interfere with one another. Only effect under Mixed Mode.
• Aggregation	A part of the 802.11n standard that allows sending multiple frames persingle access to the medium by combining frames together into one larger frame. It creates the larger frame by combining smaller frames with the same physical source, destination end points, and traffic class (QoS) into one large frame with a common MAC header
• Aggregated Frames Number	Determines the number of frames combined in the new larger frame.
• Maximum Aggregated Size	Determines the size (in bytes) of the larger frame.
• Tx ChainMask	Displays the number of independent spatial data streams the device is transmitting (TX) and receiving (RX) simultaneously within one spectral channel of bandwidth. Multiple chains increase data transfer performance significantly.
• Rx ChainMask	Displays the number of independent spatial data streams the device is transmitting (TX) and receiving (RX) simultaneously within one spectral channel of bandwidth. Multiple chains increase data transfer performance significantly.
• WMM Capable	Wi-Fi Multimedia (WMM) is a Wi-Fi Alliance interoperability certification based on the IEEE 802.11e standard, which provides Quality of Service (QoS) features to IEE 802.11 networks. WMM prioritizes traffic according to four categories: background, best effort, video and voice.

WMM Parameters of Station
	Aifsn	CWMin	CWMax	Txop
AC_BE	3	4	6	0
AC_BK	7	4	10	0
AC_VI	1	3	4	3008
AC_VO	1	2	3	1504
WMM Parameters of Access Point
	Aifsn	CWMin	CWMax	Txop
AC_BE	3	4	6	0
AC_BK	7	4	10	0
AC_VI	1	3	4	3008
AC_VO	1	2	3	1504

Figure 5-18 WMM Configuration

WMM Capable
BE Traditional IP data, medium	throughput and delay.
BK High throughput, non time	sensitive bulk data e.g. FTP
VI Time sensitive video data with minimum time delay.
VO Time sensitive data such as	VoIP and streaming media with minimum time delay.
Aifsn Arbitration Inter-Frame	Space (milliseconds): Specifies additional time between when a channel goes idle and the AP/client sends data frames. Traffic with a lower AIFSN value has a higher priority.
CWMin	Maximum Contention Window (milliseconds): This value is the upper limit to random backoff value doubling (see above).
CWMax Arbitration Inter-Frame	Space (milliseconds): Specifies additional time between when a channel goes idle and the AP/client sends data frames. Traffic with a lower AIFSN value has a higher priority.
Txop	Transmission Opportunity (milliseconds): The maximum interval of time an AP/client can transmit. This makes channel access more efficiently prioritized. A value of 0 means only one frame per transmission. A greater value effects higher priority.

5.1.9 Access Control

Choose the operation mode you require, and then enter "Access Control" by clicking the Setup button next to it and the following page will be displayed. This section allows you to configure the wireless access control settings.

Access Control Settings This feature allows you to define a list of MAC addresses that are authorized to access or denied from accessing the wireless network. Wireless Access Control Mode: Disable Mac Address: (xx:xx:xx:xx:xx:xx) Comment : Apply Changes Reset Delete Selected Delete All Reset

Figure 5-19 Access Control

Object Description
Wireless AccessControl Mode	You can choose “Disable”, “Allow Listed” or “Deny Listed”.
Mac Address The MAC address to be filtered.
Comment Enter a comment of this setting.

5.1.10 WAN Port Settings

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "WAN Port Settings" by clicking the Setup button next to it. This section allows you to configure the internet connection settings.

■ DHCP (Auto Config)

Choose "DHCP" and the router will automatically obtain IP addresses, subnet masks and gateway addresses from your ISP.

WAN Port Settings WAN Connection Type: DHCP (Auto Config) Host Name(optional) : WNAP-6325 Save Cancel

Figure 5-20 WAN Port Settings – DHCP

■ Static Mode (Fixed IP)

If your ISP offers you static IP Internet connection type, select "Static Mode" and then enter IP address, subnet mask, primary DNS and secondary DNS information provided by your ISP in the corresponding fields.

WAN Port Settings WAN Connection Type: Static Mode (fixed IP) IP Address Assigned by 0.0.0.0 Your ISP: IP Subnet Mask: 0.0.0.0 ISP Gateway IP Address: 0.0.0.0 Primary DNS Server: 8.8.4.4 Secondary DNS Server: 8.8.8.8 Save Cancel

Figure 5-21 WAN Port Settings – Static IP

Object Description
IP Address Assigned by Your ISP	Enter the WAN IP address provided by your ISP. Enquire your ISP if you are not clear.
IP Subnet Mask	Enter WAN Subnet Mask provided by your ISP.
ISP Gateway IP Address	Enter the WAN Gateway address provided by your ISP.
Primary DNS Server	Enter the necessary DNS address provided by your ISP. Default is 8.8.4.4.
Secondary DNS Server	Enter the other DNS address if your ISP provides you with 2 such addresses. Default is 8.8.8.8.

■ PPPOE (ADSL)

Select PPPOE if your ISP is using a PPPoE connection and provide you with PPPoE user name and password info.

WAN Port Settings WAN Connection Type: PPPOE (ADSL) User Name: Password: Verify Password: Save Cancel

Figure 5-22 WAN Port Settings – PPPOE

Object Description
User Name	Enter the User Name provided by your ISP.
Password	Enter the password provided by your ISP.
Verify Password	Enter the password again to verify if it is correct.

5.1.11 Dynamic DNS Settings

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "Dynamic DNS Settings" by clicking the Setup button next to it. This section allows you to configure the DDNS settings.

Dynamic DNS Settings You may configure DDNS Settings here. The available option can be PLANET Easy DDNS or standard Dynamic DNS services. DDNS option: Disable Easy Domain Name Disable Enable Easy DDNS DDNS Settings Enable Dynamic DDNS Dynamic DNS Provider: None Account: Password: DDNS: Apply Cancel

Figure 5-23 Dynamic DNS Settings

Object Description
• DDNS option	Disable: Disable DDNS functionEnable Easy DDNS: Enable PLANET Easy DDNSEnable Dynamic DDNS: You are allowed to modify the DDNS settings.
• Dynamic DNS Provider	Select a server provider or disable the existing server.
• Account	Enter the DDNS user name of the DDNS account.
• Password	Enter the DDNS password of the DDNS account.
• DDNS	Enter the host name or domain name provided by DDNS provider.

Example of Planet DDNS Settings:

Note

Please go to http://www.planetddns.com/ to register a Planet DDNS account.

Please refer to the FAQ (http://www.planetddns.com/index.php/faq) for how to register a free account.

PLANET DDNS Sign in ID / Email ****** Sign in Forgotten Password / Create A New Account

Click "Operation Mode" → "AP Router" or "Wireless ISP", select Dynamic DNS Settings and press "Setup".

Dynamic DNS Settings:

Setup

Step 1. Select "Enable Dynamic DDNS" and "PlanetDDNS.com" from the list of Dynamic DNS Provider to use the Planet DDNS service.

Dynamic DNS Settings You may configure DDNS Settings here. The available option can be PLANET Easy DDNS or standard Dynamic DNS services. DDNS option: Enable Dynamic DDNS Easy Domain Name: Disable Enable Easy DDNS DDNS Settings: Enable Dynamic DDNS Dynamic DNS Provider: PlanetDDNS.com Account: username Password: ******** DDNS: username Apply Cancel

Step 2. Configure the DDNS account that has been registered in Planet DDNS website.

Account: Enter your DDNS host (format: xxx.planetddns.com, xxx is the registered domain name)

Password: Enter the password of your account.

DDNS: Enter your DDNS host again.

Step 3. Go to "Remote Management" to enable remote access from WAN port.

Remote Management Settings Remote management (via WAN): Enable Ping from WAN: Enable Save Cancel

Step 4. Go to "WAN Port Settings" to configure WAN connection to Static Mode (fixed IP).

WAN Port Settings WAN Connection Type: Static Mode (fixed IP) IP Address Assigned by 210.66.155.70 Your ISP: IP Subnet Mask: 255.255.255.224 ISP Gateway IP Address: 210.66.155.94 Primary DNS Server: 8.8.4.4 Secondary DNS Server: 8.8.8.8 Save Cancel

Step 5. Save the setting and connect your WAN port of the Wireless AP to the internet via Ethernet cable. In a remote computer, enter the DDNS host name as the figure shown below. Then, you should be able to login the WNAP-6325 remotely.

http://username.planetddns.com/

Example of Easy DDNS Settings:

This service is not required to register any DDNS account.

Please refer to the procedure listed as follows to configure using Planet Easy DDNS service.

Step 1. Select "Enable Easy DDNS" to use the Planet Easy DDNS service.

Easy Domain Name: Display the specified domain name for this device. (Format: ptxxxxxx.planetddns.com, xxxxxx is the last six-digit of the WAN Port MAC address)

Dynamic DNS Settings You may configure DDNS Settings here. The available option can be PLANET Easy DDNS or standard Dynamic DNS services. DDNS option: Enable Easy DDNS Easy Domain Name: WNAP-6325 DDNS Settings Dynamic DNS Provider: PlanetDDNS.com Account: pt0c6669 Password: •••••••••• DDNS: pt0c6669.planetddns.com Apply Cancel

Step 2. Go to "Remote Management" to enable remote access from WAN port.

Remote Management Settings Remote management (via WAN): Enable Ping from WAN: Enable Save Cancel

Step 3. Go to "WAN Port Settings" to configure WAN connection to Static Mode (fixed IP).

WAN Port Settings WAN Connection Type: Static Mode (fixed IP) IP Address Assigned by 210.66.155.70 Your ISP: IP Subnet Mask: 255.255.255.224 ISP Gateway IP Address: 210.66.155.94 Primary DNS Server: 8.8.4.4 Secondary DNS Server: 8.8.8.8 Save Cancel

Step 6. Save the setting and connect your WAN port of the Wireless AP to the internet via Ethernet cable. In a remote computer, enter the Easy Domain Name displayed in Step 1. Then, you should be able to login the WNAP-6325 remotely.

http://pt0c6669.planetddns.com/

5.1.12 Remote Management

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "Remote Management" by clicking the Setup button next to it. This section allows you to enable or disable the remote management through the WAN port.

Remote Management Settings Remote management (via WAN): Disable Ping from WAN: Enable Save Cancel

Figure 5-24 Remote Management

Object Description
• Remote management (via WAN)	Enable or Disable this function.
• Ping from WAN	Enable or Disable this function.

5.1.13 DHCP Server Settings

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "DHCP Server Settings" by clicking the Setup button next to it. This section allows you to configure the DHCP server.

DHCP Server Settings DHCP Server: Server Disable Server Assigns IP addresses to wired and wireless clients from the following range: Lease Time: 864000 Seconds From: 192.168.1.100 To: 192.168.1.200 Save Cancel

Figure 5-25 DHCP Server Settings

Object Description
DHCP Server	Select as DHCP server or disable the function.
Lease Time	Select the time for using one assigned IP from the dropdown list. After the lease time, the AP automatically assigns new IP addresses to all connected computers.
From	The start IP address of all the available successive IPs.
To	The end IP address of all the available successive IPs.

5.1.14 DMZ Settings

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "DMZ Settings" by clicking the Setup button next to it. This section allows you to configure the DMZ server.

DMZ Settings DMZ Settings: Disable DMZ IP Address: Save Cancel

Figure 5-26 DMZ Settings

Object Description
• DMZ Setting	Disable or Enable DMZ function.
• DMZ IP Address	Enter the DMZ IP address.

5.1.15 Virtual Server Settings

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "Virtual Server Settings" by clicking the Setup button next to it. This section allows you to configure the virtual server.

Virtual Server Settings

This allows you to specify one or more applications running on server computers on the LAN that may be accessed by any Internet user.Internet data destined for the specified public port will be directed to the specified private port number on the LAN client with the specified private IP address.

Virtual Server: Disable Protocol: Both IP Address: Port Range: - Comment: Add Cancel

Figure 5-27 Virtual Server Settings

Object Description
• Virtual Server	Enable or disable Virtual Server.
• Protocol	You can choose TCP, UDP or Both.
• IP Address	Enter the LAN IP.
• Port Range	Set the range of public port.
• Comment	Set a name for the rule.

5.1.16 IP Filtering Settings

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "IP Filtering Settings" by clicking the Setup button next to it. This section allows you to configure the IP filtering settings.

IP Filtering Settings Filtering: Disable Protocol: Both IP Address: Comment: Add Cancel

Figure 5-28 IP Filtering Settings

Object Description
• Filtering	Enable or disable IP Filtering.
• Protocol	You can choose TCP, UDP or Both.
• IP Address	Enter the IP address to be filtered.
• Comment	Set a name for the rule.

5.1.17 Port Filtering Settings

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "Port Filtering Settings" by clicking the Setup button next to it. This section allows you to configure the port filtering settings.

Port Filtering Settings Filtering: Disable Protocol: Both Port Range: - Comment: Add Cancel

Figure 5-29 Port Filtering Settings

Object Description
• Filtering	Enable or disable IP Filtering.
• Protocol	You can choose TCP, UDP or Both.
• Port Range	Enter the range of Port to be filtered.
• Comment	Set a name for the rule.

5.1.18 MAC Filtering Settings

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "Mac Filtering Settings" by clicking the Setup button next to it. This section allows you to configure the MAC filtering settings.

Mac Filtering Settings Filtering: Disable Mac Address: Comment: Add Cancel

Figure 5-30 Mac Filtering Settings

Object Description
• Filtering	Enable or disable Mac Filtering.
• Mac Address	Enter the Mac address to be filtered.
• Comment	Set a name for the rule.

5.1.19 Bandwidth Control

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "Bandwidth Control" by clicking the Setup button next to it. This section allows you to configure the bandwidth control.

Bandwidth Control Settings Quality of Service Disable Type: IP Address Local IP Address: - MAC address: (xx:xx:xx:xx:xx:xx) Uplink BandWidth (Kbps): Downlink BandWidth (Kbps): Comment: Add Cancel

Figure 5-31 Bandwidth Control Settings

Object Description
Quality of Service	Enable or disable the QoS service.
Type	Select QoS type IP Address or Mac Address.
Local IP Address	The IP address segment which uses this QoS rule.
MAC Address	The Mac address which uses this QoS rule.
Uplink BandWidth (Kbps)	Set the maximum uplink bandwidth allowed by the listed QoS rules.
Downlink BandWidth (Kbps)	Set the maximum downlink bandwidth allowed by the listed QoS rules.
Comment	Set a name for the rule.

5.1.20 SNMP

Click "Operation Mode" → "AP Router" or "Wireless ISP" and then enter the "SNMP" by clicking the Setup button next to it. This section allows you to configure the SNMP.

SNMP Settings SNMP Disable Read Community: public Write Community: public Trap IP 1: 192.168.1.253 Trap Community 1: private Save Cancel

Figure 5-32 SNMP Settings

Object Description
• SNMP	Enable or disable the SNMP service.
• Read Community	Enter a Read Community name for verification with the SNMP manager for SNMP Read requests.
• Write Community	Enter a Write Community name for verification with the SNMP manager for SNMP Write requests.
• Trap IP 1	Enter the Trap IP address.
• Trap Community	Enter an SNMP Trap Community name for verification with the SNMP manager for SNMP Trap requests.

5.2 System Configuration

On this page, you can configure the system of the WNAP-6325, including IP settings, Time settings, Password settings, System management, Ping Watchdog, Firmware upgrade, Configuration save and restore, Factory default, Reboot and Schedule reboot.

PLANET Networking & Communication WNAP-6325 300Mbps 802.11n Wireless Outdoor CPE Operation Mode | System Configuration | Tools | Device Status | Logout | ► Device IP Settings ► Time Settings ► Password Settings ► System Management ► Ping Watchdog ► Firmware Upgrade ► Configuration Save and Restore ► Factory Default ► Reboot System ► Schedule Reboot ► Device IP Settings Configure the IP settings of the device. IP Address: 192 . 168 . 1 . 253 IP Subnet Mask: 255 . 255 . 255 . 0 Gateway IP Address: 192 . 168 . 1 . 253 Primary DNS Server : 8 . 8 . 4 . 4 Secondary DNS Server : 8 . 8 . 8 . 8 Save & Restart NOTE: Changes to this page will not take effect until you click Save & Restart on the save config page.

Figure 5-33 System Configuration default page

5.2.1 Default IP Settings

Click "System Configuration" → "Device IP Settings" and the following page will be displayed.

Device IP Settings Configure the IP settings of the device. IP Address: 192 . 168 . 1 . 253 IP Subnet Mask: 255 . 255 . 255 . 0 Gateway IP Address: 192 . 168 . 1 . 200 Primary DNS Server : 8 . 8 . 4 . 4 Secondary DNS Server : 8 . 8 . 8 . 8 Save & Restart

Figure 5-34 Default IP Settings

The page includes the following fields:

Object Description
IP Address	WNAP-6325's LAN IP.The default is 192.168.1.253. You can change it according to your needs.
IP Subnet Mask	WNAP-6325's LAN subnet mask.
Gateway IP Address	The Gateway IP address of WNAP-6325.
Primary DNS Server	Enter the DNS server. The default is 8.8.4.4.
Secondary DNS Server	Enter the DNS server. The default is 8.8.8.8.

5.2.2 Time Settings

Click "System Configuration" → "Time Settings" and the following page will be displayed.

Time Settings Enable NTP Please select a type for accessing NTP server. Server name: time.nist.gov NTP request interval : 24 hours. (range: 1-300, default 24) Local time zone: (GMT-08:00) Pacific Time Local date and time: Jan 01 2013 12 17 52 AM HH MM SS Sync with PC Save & Start

Figure 5-35 Time Settings

Object Description
Enable NTP	Enable it to support NTP (Network Time Protocol) for automatic time and date setup.
Server Name	Enter the host name or IP address of the time server if you wish.
NTP Request Interval	Specify a frequency (in hours) for the access point to update/synchronize with the NTP server.
Local Time Zone	Select the time zone of your country/ region. If your country/region is not listed, please select another country/region whose time zone is the same as yours.
Local Date and Time	Set the access point's date and time manually.

5.2.3 Password Settings

Click "System Configuration" → "Password Settings" and the following page will be displayed.

▶ Password Settings Change Password To change your administrative password, enter your current password and then the new password twice. Current Password: New Password: Re-enter New Password: Save & Change

Figure 5-36 Password Settings

Object Description
Current Password	Set the access point's administrator password. This is used to log in to the browser based on the configuration interface.
New Password	Enter a new password.
Re-enter New Password	Enter the new password again.

5.2.4 System Management

Click "System Configuration" → "System Management" and the following page will be displayed.

▶ System Management Device Name: WNAP-6325 POE Pass Through □ Enable POE Pass Through UPnP □ Enable UPnP Syslog ✓ Enable Syslog IGMP ✓ Enable IGMP Save & Start

Figure 5-37 System Management

Object Description
• Device Name	Enter a name for this access point. Default is WNAP-6325.
• POE Passthrough	Enable the POE Passthrough function.※ When the option “Enable POE Passthrough” in the System Management page is checked, the LAN2 can supply passive PoE power to the second WNAP-7325 or WNAP-6325 through the LAN 2.
• UPnP	Check to enable the UPnP function.The UPnP feature allows the devices, such as Internet computers,to access the local host resources or devices as needed. UPnP devices can be automatically discovered by the UPnP service application on the LAN. This option is only available in AP Router mode.
• Syslog	Check to enable Syslog function.
• IGMP	Check to enable the IGMP Proxy function.This option is only available in AP Router mode.

5.2.5 Ping Watchdog

Click "System Configuration" → "Ping Watchdog" and the following page will be displayed.

Ping Watchdog The Ping Watchdog will ping the specified IP address for connection status. If the remote IP address does not respond to Ping, the device will power reboot. Ping Watchdog: Enable Disable IP Address 1: 192 . 168 . 1 . 1 Ping Frequency: 120 Seconds (10 to 999, default is: 120) Failed tries: 2 (default is 2 tries) Action: Power Reboot NOTE: Watchdog will take effect 10 minutes after startup. when filled. IP Address 1 must fail to respond for watchdog to take action. Save

Figure 5-38 Ping Watchdog

Object Description
• Ping Watchdog	Enable or Disable this function.
• IP Address 1	Enter the IP address which pings every time interval
• Ping Frequency	Set times from 10 to 999.
• Failed tries	Select failed tries from 1 to 5.
Action	System will reboot when failing to ping the IP.

5.2.6 Firmware Upgrade

Click "System Configuration" → "Firmware Upgrade" and the following page will be displayed.

Firmware Upgrade Select the firmware file by clicking Browse, and click UPGRADE. WARNING : Don't use wireless connection to upload the firmware, To avoid system crashes. Browse... UPGRADE NOTE: 1. Do not power off the router while upgrading the firmware. 2. Some browsers would fail to locate the firmware file when there is any localized character in the firmware file path.

Figure 5-39 Firmware Upgrade

Object Description
• Browse	ClickBrowseto select the firmware file, and clickUpgradeto upgrade the firmware.

5.2.7 Configuration Save and Restore

Click "System Configuration" → "Configuration Save and Restore" and the following page will be displayed.

Configuration Save and Restore Click SAVE to save the configuration to a management host. SAVE Select the text configure file by clicking Browse,then click RESTORE. Browse... RESTORE NOTE: Some browsers would fail to locate the configuration file when there is any localized character in the configuration file path.

Figure 5-40 Configuration Save and Restore

Object Description
SAVE	Click SAVE to save the configuration to a management host.
Browse	Click Browse to select the configuration file, and click Restore to restore the configuration file.

5.2.8 Factory Default

Click "System Configuration" → "Factory Default" and the following page will be displayed.

Press YES to restore to factory default.

Factory Default Do you really want to restore the configuration to factory defaults? YES CAUTION: Restoring factory default settings will erase all your previous settings.

Figure 5-41 Factory Default

5.2.9 Reboot System

Click "System Configuration" → "Reboot System" and the following page will be displayed.

Press YES to reboot the system.

▶ Reboot System Do you really want to reboot the Planet WNAP-6325 Wireless Broadband Router ? YES

Figure 5-42 Reboot System

5.2.10 Schedule Reboot

Click "System Configuration" → "Schedule Reboot" and the following page will be displayed.

This page allows you to enable and configure system reboot schedule. The device can regularly reboot according to the reserved time when connecting to the Internet.

Schedule Reboot This page allows you to enable and configure system reboot schedule. The device can regularly reboot according to the reserved time when connection to the Internet. Schedule Reboot: ○ Enable ● Disable Reboot Time: 13:14 (Hour: Minute, ex: 02:23, or 13:14) Reboot Plan: Weekday ▼ Weekday: □ SUN □ MON □ TUE □ WED □ THUR □ FRI □ SAT Apply Changes Reset

Figure 5-43 Schedule Reboot

Object Description
Schedule Reboot	Enable or Disable this function.
Reboot Time	Enter the time that you want to reboot this device.
Reboot Plane	Select Weekday to reboot in the day you choose or Every day.
Weekday	Select the day that you want to reboot.

1. This setting will only take effect when the Internet connection is accessible and the GMT time is configured correctly.
2. You must select at least one day when choosing "Weekday" as your reboot plan.
3. When choosing "Every day" as your reboot plan, the "Weekday" will be grayed out (disabled), which means Every day will auto reboot at the time that you schedule.

■ Example of how to configure Schedule Reboot. Please take the following Steps:

Before configuring schedule reboots, please ensure the Internet connection is accessible and the GMT time is configured correctly according to NTP Settings page.

Step 1. Enable the "Schedule Reboot".

Step 2. Enter the Reboot Time (24-hour format) to enable this function to take effect. For example, if you want this function to work at 23:00 every Sunday, choose "Weekday" in the Reboot Plan field.

Schedule Reboot This page allows you to enable and configure system reboot schedule. The device can regularly reboot according to the reserved time when connection to the Internet. Schedule Reboot: Enable Disable Reboot Time: 23:00 (Hour: Minute, ex: 02:23, or 13:14) Reboot Plan: Weekday Weekday: SUN MON TUE WED THUR FRI SAT Apply Changes Reset

Figure 5-44 Schedule Reboot - Example

Step 3. Click the "Apply Changes" button to take this function effect.

5.3 Tools

5.3.1 Network Ping

Click "Tools" → "Network Ping" and the following page will be displayed.

Ping is a network tool used to test whether a particular host is reachable across an IP network.

Enter the IP, Ping Count, and click "Ping" to diagnostic your internet connection.

Network Ping Network Traceroute Network Ping Please assign an IP address to run Ping function against. Destination IP Address: Ping Number: 4 Ping Packet Size: 56 Bytes Ping Stop Ping Result:

Figure 5-45 Network Ping

5.3.2 Network Traceroute

Click "Tools" → "Network Traceroute" and the following page will be displayed.

Traceroute is a computer network diagnostic tool for displaying the route (path) and measuring transit delays of packets across an Internet Protocol (IP) network. It can help identify connection problems. Enter the IP and click "Traceroute" to diagnostic your internet connection.

Network Ping Network Traceroute Network Traceroute Please assign an IP address to run Traceroute function against. Destination IP Address: Max hop: 30 Traceroute Stop Result: Host Response Time

Figure 5-46 Network Traceroute

5.4 Device Status

Figure 5-47 Device Status

5.4.1 Device Information

Click "Device Status" → "Device Information" and the following page will be displayed.

Figure 5-48 Device Information

The page includes the following fields:

Object Description
• Firmware Version	Displays current F/W version.
• Device IP	Displays IP of AP.
• Device MAC	Displays AP's LAN MAC address.
• Gateway IP	Displays Gateway IP of AP.
• DNS IP	Displays DNS IP of AP.
• Wireless MAC	Displays AP's Wireless MAC address.
• Uptime	Display the uptime of AP.
• CPU Loading	Display the CPU loading of AP.

5.4.2 Wireless Information

Click "Device Status" → "Wireless Information" and the following page will be displayed.

► Device Information ► Wireless Information ► LAN Information ► Internet Information ► Wireless Client Table ► System Log ► Wireless Information Operation Mode: Wireless ISP Physical Address: A8:F7:E0:0C:66:6B Remote AP SSID: WNAP-6325 Band: 11NGHT40 Radio Channel: Auto Channel Remote Encryption: NONE Transmit Power: 27 dBm WLAN Statistics Received: Bytes Packets Errors Received: 0 0 0 Transmitted: 5309508 104108 0

Figure 5-49 Wireless Information

The page includes the following fields:

Object Description
Operation Mode	Displays current Operation Mode.
Physical address	Displays AP's Wireless MAC address.
SSID	It is the wireless network name. The default SSID is WNAP-6325.
Band	Display operating channel width which is 11NG HT20 or 11NG HT40.
Radio Channel	Display the channel you would like to use. The channel range will be changed by selecting different domain.
Wireless Encryption	Display the encryption type that you would like to use.
Transmit Power	Display the TX power that you would like to use.

5.4.3 LAN Information

Click "Device Status" → "LAN Information" and the following page will be displayed.

► Device Information
► Wireless Information
► LAN Information
► Internet Information
► Wireless Client Table
► System Log
	LAN Statistics
		Bytes	Packets	Errors
Received:	10551	81	0
Transmitted:	41497	348	0

Figure 5-50 LAN Information

The page includes the following fields:

Object Description
Physical Address	Displays AP's LAN MAC address.
IP Address	Displays IP of AP.
Network Mask	Displays Network Mask of AP.
Default Gateway	Displays Gateway IP of AP.
DHCP Server	Enable or Disable DHCP server.
DHCP Start IP Address	Enter the starting IP address for the DHCP server's IP assignment.
DHCP Finish IP Address	Enter the ending IP address for the DHCP server's IP assignment.

5.4.4 Wireless Client Table

Click "Device Status" → "Wireless Client Table" and the following page will be displayed.

No.	Mac Address	Connection Speed(Mbps)	Signal Strength (dB)
1	80:e6:50:1d:c2:ac	265	-52

Figure 5-51 Wireless Client Table

The page includes the following fields:

Object Description
No.	Displays the number of connecting device.
Mac Address	Displays Mac address of AP.
Connection Speed	Displays connection speed of device.
Signal Strength	Display signal strength of device.The signal strength between “-30 and 70” can setup a reliable connection.

5.4.5 System Log

Choose menu "Device Status → "System Log" to view the logs of the Wireless AP.

Device Information Wireless Information LAN Information Internet Information Wireless Client Table System Log 1970-01-01 00:00:16 [Informational] syslogd: syslogd started: Bu 1970-01-01 00:00:16 [Notice] kernel: klogd started: BuayBox v1.01 (2015.04.07-14) 1970-01-01 00:00:16 [Notice] kernel: Linux version 2.6.31--LSDK-9.2.0_U11.14 (ro 1970-01-01 00:00:16 [Warning] kernel: flash_size passed from bootloader = 16 1970-01-01 00:00:16 [Warning] kernel: arg 1: mem=64M 1970-01-01 00:00:16 [Warning] kernel: arg 2: console=tty80,115200 1970-01-01 00:00:16 [Warning] kernel: arg 3: root=31:02 1970-01-01 00:00:16 [Warning] kernel: arg 4: rootfstype=jffa2 1970-01-01 00:00:16 [Warning] kernel: arg 5: init=/sbin/init 1970-01-01 00:00:16 [Warning] kernel: arg 6: mtdparts=ath-nor0:256k(u-boot),64k(/ 1970-01-01 00:00:16 [Informational] kernel: CPU revision is: 0001974c (MIPS 74Kc 1970-01-01 00:00:16 [Warning] kernel: ath_sys_frequency: cpu arif ddr arif opu 5 1970-01-01 00:00:16 [Informational] kernel: Determined physical RAM map: 1970-01-01 00:00:16 [Informational] kernel: memory: 02000000 @ 00000000 (usable 1970-01-01 00:00:16 [Warning] kernel: Actions configured 1970-01-01 00:00:16 [Warning] kernel: Netfilter messages via NETLINK v0.30. 1970-01-01 00:00:16 [Warning] kernel: nf_conntrack version 0.5.0 (1024 buckets, 1970-01-01 00:00:16 [Warning] kernel: CONFIG_NF_CT_ACCT is deprecated and will be 1970-01-01 00:00:16 [Warning] kernel: or 1970-01-01 00:00:16 [Warning] kernel: sysctl net.netfilter.nf_conntrack_acct=1 to 1970-01-01 00:00:16 [Warning] kernel: otnetlink v9.93; registering with nfnetlin 1970-01-01 00:00:16 [Informational] kernel: xt_time: kernel timezone is -OOOO 1970-01-01 00:00:16 [Informational] kernel: arp_tables: (C) 2O2 David S. Miller 1970-01-01 0O:O:O:O:O[Informational] kernel: TCP cubic registered 197O-OTI OO:CNET Registered protocol family 17

Figure 5-52 System Log

5.5 Logout

Select "Logout" to logout the system.

PLANET Networking & Communication WNAP-6325 300Mbps 802.11n Wireless Outdoor CPE Operation Mode | System Configuration | Tools | Device Status | Logout | ▶ Operation Mode ▶ Operation Mode Select the "Operation Mode" by clicking on "Setup" button and then configure the Wireless Settings. Mode Access Point Client WDS AP WDS Client AP Router Wireless ISP Setup Radio Access Point Client WDS Access Point WDS Client Setup Access Point Wireless ISP Ethernet Port LAN+LAN LAN+LAN LAN+LAN WAN+LAN LAN+LAN

Figure 5-53 Logout

Windows Security The server 192.168.1.253 is asking for your user name and password. The server reports that it is from . "WNAP-6325. Warning: Your user name and password will be sent using basic authentication on a connection that isn't secure. User name Password Remember my credentials OK Cancel

Figure 5-54 Re-login

Appendix A: Troubleshooting

If you found the AP is working improperly or stop responding to you, please read this troubleshooting first before contacting the Planet Tech Support for help. Some problems can be solved by yourself within very short time.

Scenario Solution
The AP is not responding to me when I want to access it by web browser.	a. Please check the connection of the power cord and the Ethernet cable of this AP. All cords and cables should be correctly and firmly inserted to the AP.b. If all LEDs on this AP are off, please check the status of power adapter, and make sure it is correctly powered.c. You must use the same IP address section that AP uses.d. Are you using MAC or IP address filter? Try to connect the AP by another computer and see if it works; if not, please reset the AP to the factory default settings (Press the ‘reset’ button for over 10 seconds).e. Set your computer to static IP address, and see if the Planet Smart Discovery can find the AP or not.f. If you did a firmware upgrade and this happens, contact the Planet Tech Support for help.g. If all the solutions above don’t work, contact the Planet Tech Support for help.
I can’t get connected to the Internet.	a. Check the Internet connection status from the router that is connected with the AP.b. Please be patient. Sometimes Internet is just that slow.c. If you have connected a computer to Internet directly before, try to do that again, and check if you can get connected to Internet with your computer directly attached to the device provided by your Internet service provider.d. Check PPPoE / L2TP / PPTP user ID and password in your router again.e. Call your Internet service provider and check if there’s something wrong with their service.f. If you just can’t connect to one or more website, but you can still use other internet services, please check URL/Keyword filter.g. Try to reset the AP and try again later.h. Reset the device provided by your Internet service provider.i. Try to use IP address instead of hostname. If you can use IP address to communicate with a remote server, but can’t use hostname, please check DNS setting.
I can’t locate my AP by my wirelessdevice.	a. ‘Broadcast ESSID’ set to off?b. The antenna is properly secured.c. Are you too far from your AP? Try to get closer.d. Please remember that you have to input ESSID on your wireless client manually, if ESSID broadcast is disabled.
File downloading is very slow or breaks frequently.	a. Are you using QoS function? Try to disable it and try again.b. Internet is slow sometimes; try to be patient.c. Try to reset the AP and see if it's better after that.d. Try to know what computers do on your local network. If someone's transferring big files, other people will think Internet is really slow.e. If this never happens before, call you Internet service provider to know if there is something wrong with their network.
I can't log into the web management interface; The password is wrong.	a. Make sure you're connecting to the correct IP address of the AP.b. Password is case-sensitive. Make sure the 'Caps Lock' light is not illuminated.c. If you really forget the password, do a hard reset.
The AP becomes hot	a. This is not a malfunction, if you can keep your hand on the AP's case.b. If you smell something wrong or see the smoke coming out from AP or A/C power adapter, please disconnect the AP and A/C power adapter from utility power (make sure it's safe before you're doing this!), and call your dealer for help.

Appendix B: Use Planet Smart Discovery to find AP

To easily discover the WNAP-6325 in your Ethernet environment, the Planet Smart Discovery Utility from user's manual CD-ROM is an ideal solution.

The following install instructions will guide you to running the Planet Smart Discovery Utility.

Step 1: Deposit the Planet Smart Discovery Utility in administrator PC.

Step 2: Execute this utility.

Planet_Utility.exe PLANET Corp.

Step 3: Click the "Refresh" button as shown below to update the list of the currently connected devices.

PLANET Smart Discovery Lite File Option Help Refresh Exit MANET Networking & Communication MAC Address Device Name Version DeviceP NewPassword IP Address NetMask Gateway Description 1 A8-F7-E0-0C-66-69 WNAP-6325 1.0.9 192.168.1.253 192.168.1.253 255.255.255.0 192.168.1.253 WNAP-6325 Select Adapter: 192.168.1.110 (B8:70:F4:B5:E5:DA) Control Packet Force Broadcast Update Device Update Multi Update All Connect to Device Device: WNAP-6325 (A8-F7-E0-0C-66-69) Get Device Information done.

Figure C-1

Step 3: Select the WNAP-6325 from the list and then click the “Connect to Device” button to login to the Web Management Configuration Page.

Note

The fields in white background can be modified directly, and then you can apply the new setting by clicking the "Update Device" button.

Appendix C: FAQ

Q1: How to set up the AP Client Connection

Topology:

Step 1. Use static IP in the PCs that are connected with AP-1 (Site-1) and AP-2 (Site-2). In this case, Site-1 is "192.168.1.100", and Site-2 is "192.168.1.200".

Local Area Connection Properties Networking Connect using: Realtek PCIe FE Family Controller Configure... This connection uses the following items: Client for Microsoft Networks AVG network filter driver QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 100 Subnet mask: 255 . 255 . 255 . 0 | Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel Internet Protocol Version 4 (TCP/IPv4) Properties OK Cancel

Step 2. In AP-1, go to "Operation Mode" to configure it to Access Point Mode.

※ You can also configure it in "AP Router" mode if you want to connect the WAN port of the AP to the internet directly.

▶ Operation Mode Select the "Operation Mode" by clicking on "Setup" button and then configure the Wireless Settings. Mode Access Point Client WDS AP WDS Client AP Router Wireless ISP Setup Radio Access Point Client WDS Access Point WDS Client Access Point Wireless ISP Ethernet Port LAN+LAN LAN+LAN LAN+LAN LAN+LAN WAN+LAN LAN+LAN

Step 3. Click "Setup" to configure the following parameters and then click Save & Restart to save the settings.

1) Network ID (SSID): set to a unique value
2) Channel: set to a fixed one
3) Security Setting: strongly suggested to configure it.
In this case, we configure it to WPA2-PSK, AES

Operation Mode Settings Regulatory Domain: Europe Network ID (SSID) WNAP-6325 Site Survey Enable Wireless Disable SSID Broadcasting Enable Isolated Radio Mode: 2G 11NG HT40 Channel: 6 -2437MHz Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup

Security Settings Select Encryption: WPA2 Pre-Authentication: ● Personal (Pre-Shared Key) ○ Enterprise (RADIUS) Encryption Type: ○ TKIP ● AES ○ Auto Pre-Shared Key: 12345678 Save Cancel

Step 4. In AP-2, modify the default IP to the same IP range but different from AP-1.

In this case, the IP is changed to 192.168.1.252.

Device IP Settings Configure the IP settings of the device. IP Address: 192 . 168 . 1 . 252 IP Subnet Mask: 255 . 255 . 255 . 0 Gateway IP Address: 192 . 168 . 1 . 253 Primary DNS Server : 8 . 8 . 4 . 4 Secondary DNS Server : 8 . 8 . 8 . 8 Save & Restart NOTE: Changes to this page will not take effect until you click Save & Restart on the save config page.

Step 5. In AP-2, configure it in "Client" mode and click "Setup".

▶ Operation Mode Select the "Operation Mode" by clicking on "Setup" button and then configure the Wireless Settings. Mode Access Point Client WDS AP WDS Client AP Router Wireless ISP Setup Radio Access Point Client WDS Access Point WDS Client Setup Access Point Wireless ISP Ethernet Port LAN+LAN LAN+LAN LAN+LAN WAN+LAN LAN+LAN

Step 6. Click "Setup" and then click Site Survey to find AP-1.

Operation Mode Settings Regulatory Domain: Europe Remote AP SSID: WNAP-6325 Site Survey ✓ Enable Wireless □ Disable SSID Broadcasting □ Enable Isolated Lock to AP MAC: 00:00:00:00:00:00 Radio Mode: 2G 11NG HT40 Channel: Auto Channel Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup

Step 7. Select AP-1 from the list.

Planet WNAP-6325 - Internet Explorer http://192.168.1.253/sts_sitesvy.asp Select SSID MAC Address Channel Signal Strength(%) Security ○ 01:00:00 10 -86 dBm none ○ 01:00:00 10 -86 dBm none ○ 01:00:00 11 -91 dBm none ○ 01:00:00 10 -85 dBm none ○ 01:00:00 10 -86 dBm none ○ 01:00:00 10 -86 dBm none ○ 01:00:00 11 -92 dBm none ○ 01:00:00 11 -91 dBm none ● WNAP-6335 A8:F7:E0:1C:7E:E4 11 -54 dBm none ASSOCIATE RESCAN CLOSE

Step 8. Click "SET SECURITY" to configure the Pre-Shared Key and then click "Save" to close the window.

Planet WNAP-6325 - Internet Explorer http://192.168.1.253/svr_security.asp?[]*[]2.4G[]*[]WPA2[]*[] Security Settings Select Encryption: WPA-Mixed Pre-Shared Key: 12345678 Save Close 100%

Step 9. Click "OK" and "Save & Restart" to apply the setting.

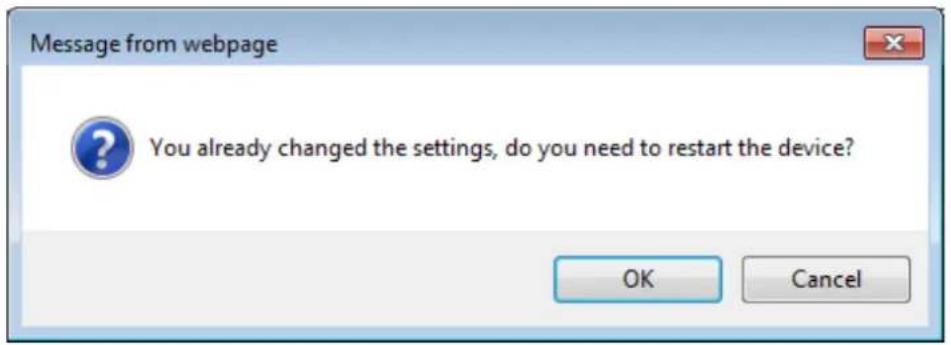

Message from webpage You already changed the settings, do you need to restart the device? OK Cancel

Step 10. In AP-1, go to "Device Status-> Wireless Client Table" to check whether AP-2 should be in the list.

Operation Mode | System Configuration | Tools | Device Status | Logout | ► Device Information ► Wireless Information ► LAN Information ► Wireless Client Table ► System Log ► Wireless Client Table No. Mac Address 1 a8:f7:e0:45:99:40

Step 11. Use command line tool to ping each other to ensure the link is successfully established. From Site-1, ping 192.168.1.200; and in Site-2, ping 192.168.1.100.

Destination host unreachable. Destination host unreachable. Destination host unreachable. Destination host unreachable. Destination host unreachable. Ping statistics for 192.168.0.100: Packets: Sent = 25, Received = 0, Lost = 25 (100% loss), Control-C ^C C:\Documents and Settings\Administrator>ping 192.168.1.100 -t Pinging 192.168.1.100 with 32 bytes of data: Request timed out. Reply from 192.168.1.100: bytes=32 time=7ms TTL=128 Reply from 192.168.1.100: bytes=32 time=1ms TTL=128 Reply from 192.168.1.100: bytes=32 time=2ms TTL=128 Reply from 192.168.1.100: bytes=32 time=1ms TTL=128 Reply from 192.168.1.100: bytes=32 time=2ms TTL=128 Reply from 192.168.1.100: bytes=32 time=2ms TTL=128 Reply from 192.168.1.100: bytes=32 time=1ms TTL=128 Reply from 192.168.1.100: bytes=32 time=1ms TTL=128

Step 12. Configure the TCP/IP settings of Site-2 to "Obtain an IP address automatically".

Local Area Connection Properties Networking Connect using: Intel(R) PRO/1000 MT Desktop Adapter Configure... This connection uses the following items: Client for Microsoft Networks AVG network filter driver QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Internet Protocol Version 4 (TCP/IPv4) General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: . . . Subnet mask: . . . Default gateway: . . . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . . . Alternate DNS server: . . . Validate settings upon exit Advanced... OK Cancel Internet Protocol Version 4 (TCP/IPv4) Properties OK Cancel

Step 13. Use command line tool to ping the DNS (e.g. Google) to ensure Site-2 can access internet through the wireless connection.

C:\Windows\system32\cmd.exe - ping 192.168.1.1 -t Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1; bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from (192.168.1.1: bytes=32 time<1ms TTL=64) Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 192.168.1.1: bytes=32 time<1ms TTL=64 Reply from 8.8.8.8: bytes=32 time=37ms TTL=53 Reply from 8.8.8.8: bytes=32 time=38ms TTL=53 Reply from 8.8.8.8: bytes=32 time=36ms TTL=53 Reply from 8.8.8.8: bytes=32 time=36ms TTL=53 Reply from 8.8.8.8: bytes=32 time=38ms TTL=53 Reply from 8.8.8.8: bytes=32 time=37ms TTL=53 Reply from 8.8.8.8: bytes=32 time=37ms TTL=53 Reply from 8.8.8.8: bytes=32 time=37ms TTL=53 Reply from 8.8.8.8: bytes=32 time=37ms TTL=53 Reply from 8.8.8.8: bytes=32 time=38ms TTL=53 Reply from 8.8.8.8: bytes=32 time=38ms TTL=53 Reply from 8.8.8.8: bytes=32 time=37ms TTL=53 Reply from 8.8.8.8: bytes=32 time=37ms TTL=53 Reply from 8.8.8.8: bytes=32 time=35ms TTL=53 Reply from 8.8.8.8: bytes=32 time=37ms TTL=53 Reply from 8.8.8.8: bytes=32 time=37ms TTL=53

The attention of the following hints should be paid:

1) The encryption method must be the same as that of both sites if configured.
2) Both sites should be Line-of-Sight.
3) For the short distance connection less than 1km, please reduce the "Transmit power" of both sites.
4) For the long distance connection over 1km, please adjust the "Transmit Distance" to the actual distance or double of the actual distance.

Q2: How to set up the WDS Connection

Topology:

Step 1. Use static IP in the PCs that are connected with WNAP-6325-1 (Site-1) and WNAP-6325-2 (Site-2). In this case, Site-1 is "192.168.1.100", and Site-2 is "192.168.1.200".

Local Area Connection Properties Networking Connect using: Realtek PCIe FE Family Controller Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ AVG network filter driver ✓ QoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol Version 6 (TCP/IPv6) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 100 Subnet mask: 255 . 255 . 255 . 0 | Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel OK Cancel

Step 2. In AP-1, go to "Operation Mode" to configure it Access Point Mode.

▶ Operation Mode Select the "Operation Mode" by clicking on "Setup" button and then configure the Wireless Settings. Mode Access Point Client WDS AP WDS Client AP Router Wireless ISP Setup Radio Access Point Client WDS Access Point WDS Client Access Point Wireless ISP Ethernet Port LAN+LAN LAN+LAN LAN+LAN WAN+LAN LAN+LAN

Step 3. Click "Setup" to configure the following parameters and then click Save & Restart to save the settings.

4) Network ID (SSID): set to a unique value
5) Channel: set to a fixed one
6) Security Setting: strongly suggested to configure it.
In this case, we configure it to WPA2-PSK, AES

Operation Mode Settings Regulatory Domain: Europe Network ID (SSID) WNAP-6325 Site Survey Enable Wireless Disable SSID Broadcasting Enable Isolated Radio Mode: 2G 11NG HT40 Channel: 6 -2437MHz Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup

Security Settings Select Encryption: WPA2 Pre-Authentication: ● Personal (Pre-Shared Key) ○ Enterprise (RADIUS) Encryption Type: ○ TKIP ○ AES ○ Auto Pre-Shared Key: 12345678 Save Cancel

Step 4. In AP-2, modify the default IP to the same IP range but different from AP-1.

In this case, the IP is changed to 192.168.1.252.

Device IP Settings Configure the IP settings of the device. IP Address: 192 . 168 . 1 . 252 IP Subnet Mask: 255 . 255 . 255 . 0 Gateway IP Address: 192 . 168 . 1 . 253 Primary DNS Server : 8 . 8 . 4 . 4 Secondary DNS Server : 8 . 8 . 8 . 8 Save & Restart NOTE: Changes to this page will not take effect until you click Save & Restart on the save config page.

Step 5. In AP-2, configure it in "Client" mode and click "Setup".

▶ Operation Mode Select the "Operation Mode" by clicking on "Setup" button and then configure the Wireless Settings. Mode Access Point Client WDS AP WDS Client AP Router Wireless ISP Setup Radio Access Point Client WDS Access Point WDS Client Access Point Wireless ISP Ethernet Port LAN+LAN LAN+LAN LAN+LAN WAN+LAN LAN+LAN

Step 6. Click "Setup" and then click Site Survey to find AP-1.

Operation Mode Settings Regulatory Domain: Europe Remote AP SSID: WNAP-6325 Site Survey ✓ Enable Wireless □ Disable SSID Broadcasting □ Enable Isolated Lock to AP MAC: 00:00:00:00:00:00 Radio Mode: 2G 11NG HT40 Channel: Auto Channel Data Rate: Auto Security Setting: Setup Transmit Power: 27 dbm Transmit Distance: 1 Km TDMA: Disable Advanced Settings: Setup Access Control: Setup

Step 7. Select AP-1 from the list.

Planet WNAP-6325 - Internet Explorer http://192.168.1.253/sts_sitesvy.asp Select SSID MAC Address Channel Signal Strength(%) Security ○ 07:45:00 07:45:00 10 -86 dBm none ○ 07:45:00 07:45:00 10 -86 dBm none ○ 07:45:00 07:45:00 11 -91 dBm none ○ 07:45:00 07:45:00 10 -85 dBm none ○ 07:45:00 07:45:00 10 -86 dBm none ○ 07:45:00 07:45:00 10 -86 dBm none ○ 07:45:00 07:45:00 11 -92 dBm none ○ 07:45:00 07:45:00 11 -91 dBm none ● WNAP-6335 A8:F7:E0:1C:7E:E4 11 -54 dBm none ASSOCIATE RESCAN CLOSE

Step 8. Click "SET SECURITY" to configure the Pre-Shared Key and then click "Save" to close the window.

Planet WNAP-6325 - Internet Explorer http://192.168.1.253/svr_security.asp?[]*()2.4G[]*()WPA2[]*() Security Settings Select Encryption: WPA-Mixed Pre-Shared Key: 12345678 Save Close + 100%

Step 9. Click "OK" and click "Save & Restart" to apply the setting.

Message from webpage You already changed the settings, do you need to restart the device? OK Cancel

Step 10. In AP-1, go to "Device Status-> Wireless Client Table" to check whether AP-2 should be in the list.

Operation Mode | System Configuration | Tools | Device Status | Logout | ► Device Information ► Wireless Information ► LAN Information ► Wireless Client Table ► System Log ► Wireless Client Table No. Mac Address 1 a8:47:e0:45:99:40

Step 11. Use command line tool to ping each other to ensure the link is successfully established.

From Site-1, ping 192.168.1.200; and in Site-2, ping 192.168.1.100.

C:\WINDOWS\system32\CMD.exe - ping 192.168.1.100 -t Destination host unreachable. Destination host unreachable. Destination host unreachable. Destination host unreachable. Destination host unreachable. Ping statistics for 192.168.0.100: Packets: Sent = 25, Received = 0, Lost = 25 (100% loss), Control-C ^C C:\Documents and Settings\Administrator>ping 192.168.1.100 -t Pinging 192.168.1.100 with 32 bytes of data: Request timed out. Reply from 192.168.1.100: bytes=32 time=7ms TTL=128 Reply from 192.168.1.100: bytes=32 time=1ms TTL=128 Reply from 192.168.1.100: bytes=32 time=2ms TTL=128 Reply from 192.168.1.100: bytes=32 time=1ms TTL=128 Reply from 192.168.1.100: bytes=32 time=2ms TTL=128 Reply from 192.168.1.100: bytes=32 time=1ms TTL=128

The attention of the following hints should be paid:

1) The encryption method must be the same as that of both sites if configured.
2) Both sites should be Line-of-Sight.
3) For the short distance connection less than 1km, please reduce the "Transmit power" of both sites.
4) For the long distance connection over 1km, please adjust the "Transmit Distance" to the actual distance or double of the actual distance.

EC Declaration of Conformity

English	Hereby, PLANET Technology Corporation, declares that this 300Mbps 802.11n Wireless Outdoor CPE is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.	Lietuviškai	Šiuo PLANET Technology Corporation,, skelbia, kad 300Mbps 802.11n Wireless Outdoor CPE tenkina visus svarbiasius 1999/5/EC direktyvos reikalavimus ir kitas svarbias nuostatas.
Česky	Společnost PLANET Technology Corporation, tímto prohlašuje, že tato 300Mbps 802.11n Wireless Outdoor CPE splňuje základní požadavky a další příslušná ustanovení směrnice 1999/5/EC.	Magyar	A gyártó PLANET Technology Corporation, kijelenti, hogy ez a 300Mbps 802.11n Wireless Outdoor CPE megfelel az 1999/5/EK irányelv alapkövetelményeinek és a kapcsolódó rendelkezéseknek.
Dansk	PLANET Technology Corporation, erklærer herved, at følgende udstyr 300Mbps 802.11n Wireless Outdoor CPE overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF	Malti	Hawnhekk, PLANET Technology Corporation, jiddikjara li dan 300Mbps 802.11n Wireless Outdoor CPE jikkonforma mal-htigijiet essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC
Deutsch	Hiermit erklärt PLANET Technology Corporation, dass sich dieses Gerät 300Mbps 802.11n Wireless Outdoor CPE in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)	Nederlands	Hierbij verklaart , PLANET Technology orporation, dat 300Mbps 802.11n Wireless Outdoor CPE in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG
Eestikeeles	Käesolevaga kinnitab PLANET Technology Corporation, et see 300Mbps 802.11n Wireless Outdoor CPE vastab Euroopa Nõukogu direktiivi 1999/5/EC põhinõuetele ja muudele olulistele tingimustele.	Polski	Niniejszym firma PLANET Technology Corporation, oświadcza, že 300Mbps 802.11n Wireless Outdoor CPE spełnia wszystkie istotne wymogi i klauzule zawarte w dokumencie „Directive 1999/5/EC”.
Ελληνικά	ME THN ΠΑΡΟΥΣΑ , PLANET Technology Corporation, ΔΗΛΩΝΕΙ ΟΤΙ ΑΥΤΟ 300Mbps 802.11n Wireless Outdoor CPEΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/EK	Português	PLANET Technology Corporation, declara que este 300Mbps 802.11n Wireless Outdoor CPE está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Español	Por medio de la presente, PLANET Technology Corporation, declara que 300Mbps 802.11n Wireless Outdoor CPE cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE	Slovensky	Výrobca PLANET Technology Corporation, týmto deklaruje, že táto 300Mbps 802.11n Wireless Outdoor CPE je v súlade so základnými požiadavkami a ďalšími relevantnými predpismi smernice 1999/5/EC.
Français	Par la présente, PLANET Technology Corporation, déclare que les appareils du 300Mbps 802.11n Wireless Outdoor CPE sont conformes aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE	Slovensko	PLANET Technology Corporation, s tem potrjuje, da je ta 300Mbps 802.11n Wireless Outdoor CPE skladen/a z osnovnimi zahtevami in ustreznimi določili Direktive 1999/5/EC.
Italiano	Con la presente , PLANET Technology Corporation, dichiara che questo 300Mbps 802.11n Wireless Outdoor CPE è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.	Suomi	PLANET Technology Corporation, vakuuttaa täten että 300Mbps 802.11n Wireless Outdoor CPE typpinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sită koskevien direktiivin muiden ehtojen mukainen.
Latviski	Ar šo PLANET Technology Corporation, apliecina, ka šī 300Mbps 802.11n Wireless Outdoor CPE atbilst Direktivas 1999/5/EK pamatprasibām un citiem atbilstošiem noteikumiem.	Svenska	Härmed intygar, PLANET Technology Corporation, att denna 300Mbps 802.11n Wireless Outdoor CPE stár i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
