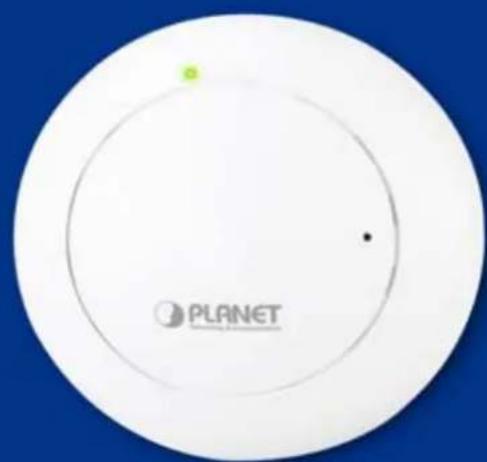

Circular device with a green dot and a black dot on its surface, labeled 'PLANET' at the bottom (no other text or symbols visible)

Copyright

Copyright © 2014 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.

PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.

FCC Caution

To assure continued compliance, use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference
(2) This Device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) as of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

National Restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reasons/remarks
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use; limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required
Luxembourg	None	General authorization required for network and service supply(not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation	None Only for indoor applications

Note: Please don't use the product outdoors in France.

WEEE regulation

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

User Manual for PLANET 1200Mbps 11ac Dual Band Ceiling Mount Wireless Access Point

Model: WDAP-C7200AC

Rev: 1.0 (May, 2014)

Part No. EM-WDAP-C7200AC_v1.0 (2080-E11010-000)

CONTENTS

Chapter 1.Product Introduction....1

1.1 Package Contents .... 1
1.2 Product Description....2
1.3 Product Features....6
1.4 Product Specifications ....7

Chapter 2. Hardware Installation .... 10

2.1 Product Outlook....10

2.1.1 Panel Layout.... 11
2.1.2 Hardware Description 11

Chapter 3. Connecting to the AP ...... 12

3.1 System Requirements .... 12
3.2 Installing the AP 12

Chapter 4. Quick Installation Guide ...... 15

4.1 Manual Network Setup - TCP/IP Configuration 15
4.1.1 Configuring the IP Address Manually 15
4.2 Starting Setup in the Web UI....19

Chapter 5.Configuring the AP....20

5.1 Setup Wizard....20
5.2 TCP / IP Settings....27

5.2.1 LAN Settings....27

5.3 WLAN1 (5GHz)....29

5.3.1 Basic Settings....29
5.3.2 Advanced Settings....46
5.3.3 RF Output Power 47
5.3.4 Security....48
5.3.5 Access Control....50
5.3.6 WDS....52
5.3.7 Site Survey 55
5.3.8 WPS....55
5.3.9 Schedule....59

5.4 WLAN2 (2.4GHz)....60

5.4.1 Basic Settings....60
5.4.2 Advanced Settings....77
5.4.3 RF Output Power 79
5.4.4 Security 80
5.4.5 Access Control....82

5.4.6 WDS....84
5.4.7 Site Survey 87
5.4.8 WPS....87
5.4.9 Schedule....91

5.5 Management....92

5.5.1 Status....92
5.5.2 Statistics....93
5.5.3 NTP Settings....94
5.5.4 Schedule Reboot 96
5.5.5 LOG 98
5.5.6 Upgrade Firmware....99
5.5.7 Reload Settings 99
5.5.8 Password 101
5.5.9 LED Control 102
5.5.10 Logout....102

Chapter 6. Quick Connection to a Wireless Network....103

6.1 Windows XP (Wireless Zero Configuration)....103
6.2 Windows 7 (WLAN AutoConfig)....105
6.3 Mac OS X 10.x....108
6.4 iPhone / iPod Touch / iPad 112

Appendix A: Planet Smart Discovery Utility....115

Appendix B: Troubleshooting....116

Appendix C: Glossary....118

FIGURE

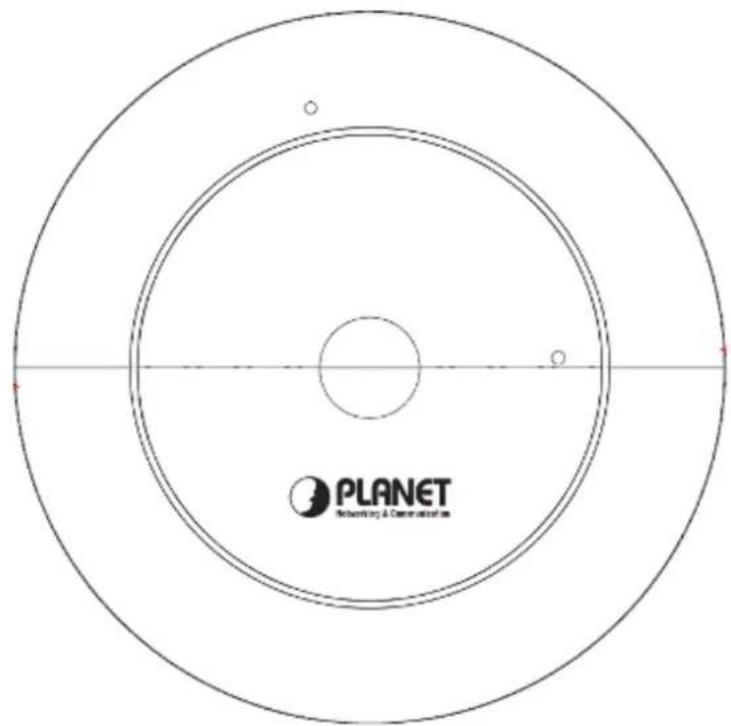

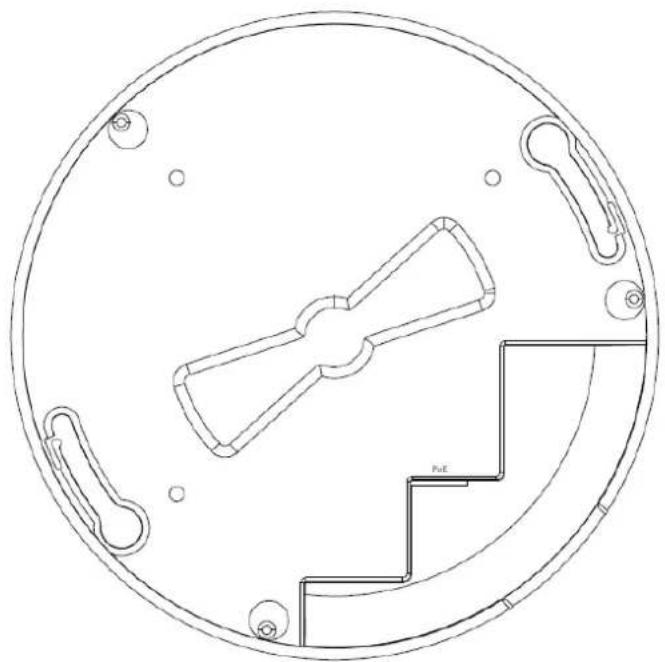

FIGURE 2-1 WDAP-C7200AC PRODUCT DRAWING....10

FIGURE 2-2 WDAP-C7200AC PANEL LAYOUT .... 11

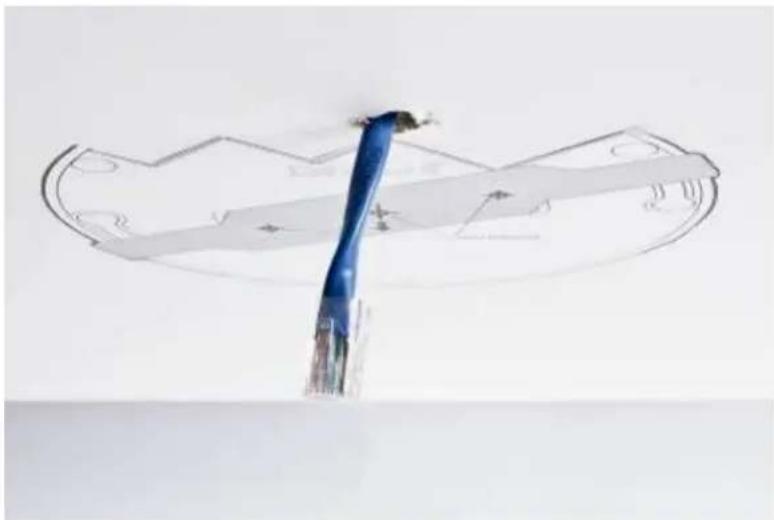

FIGURE 3-1 WDAP-C7200AC INSTALLATION DIAGRAM 1....12

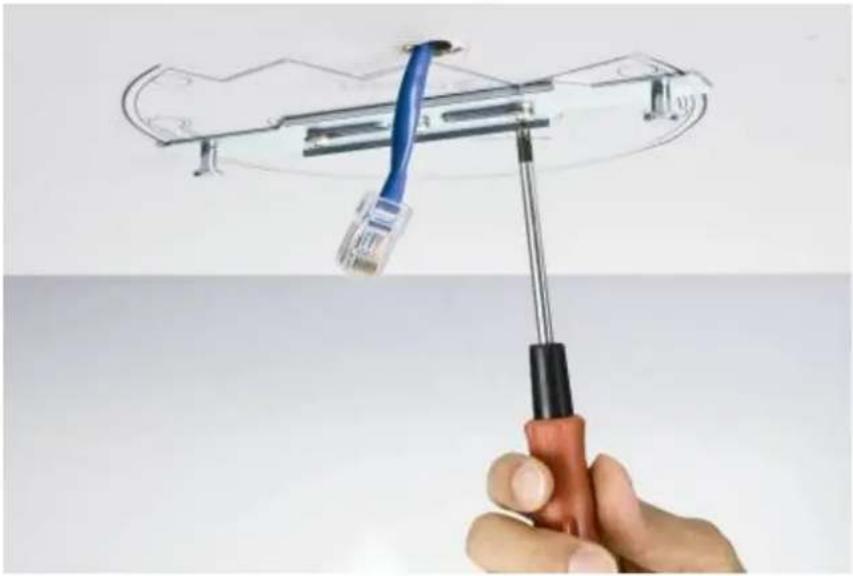

FIGURE 3-2 WDAP-C7200AC INSTALLATION DIAGRAM 2....13

FIGURE 3-3 WDAP-C7200AC INSTALLATION DIAGRAM 3....13

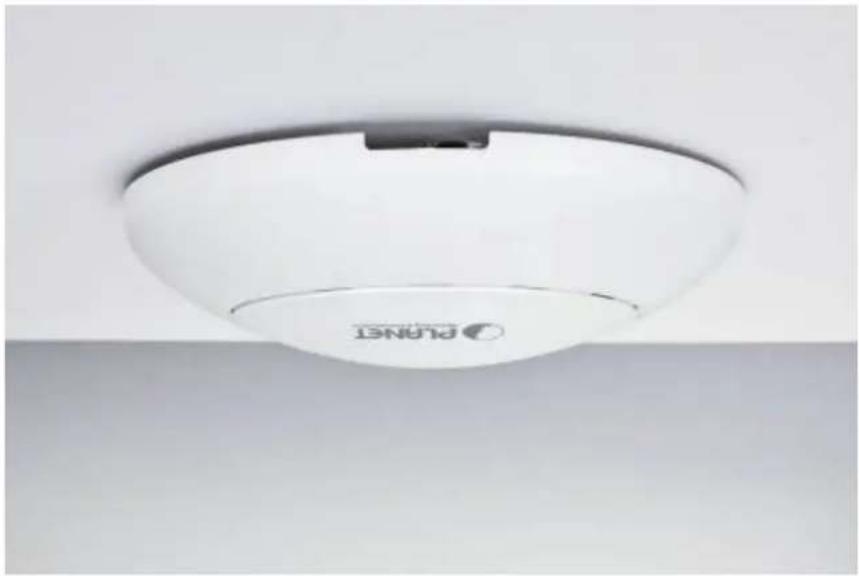

FIGURE 3-4 WDAP-C7200AC INSTALLATION DIAGRAM 4....14

FIGURE 3-5 WDAP-C7200AC INSTALLATION DIAGRAM 4....14

FIGURE 4-1 TCP/IP SETTING....16

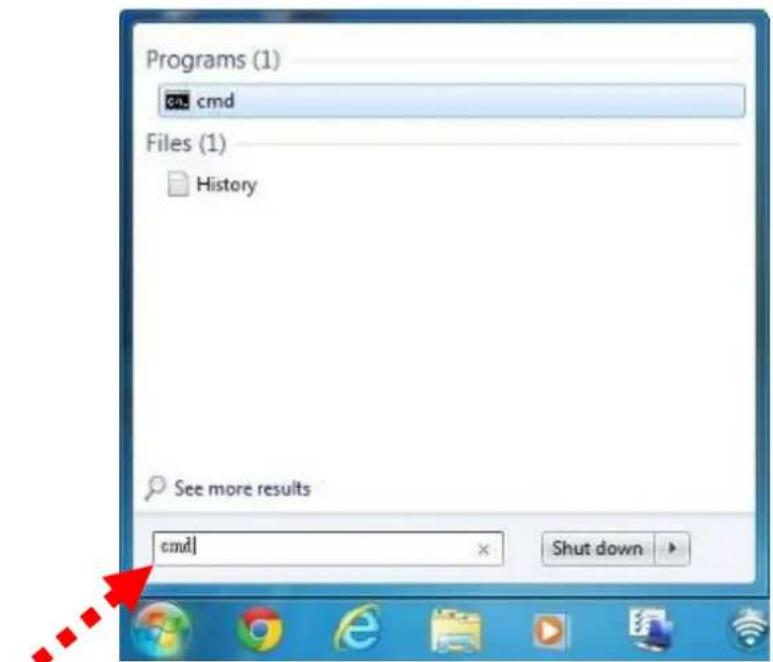

FIGURE 4-2 WINDOWS START MENU ....17

FIGURE 4-3 SUCCESSFUL RESULT OF PING COMMAND ....17

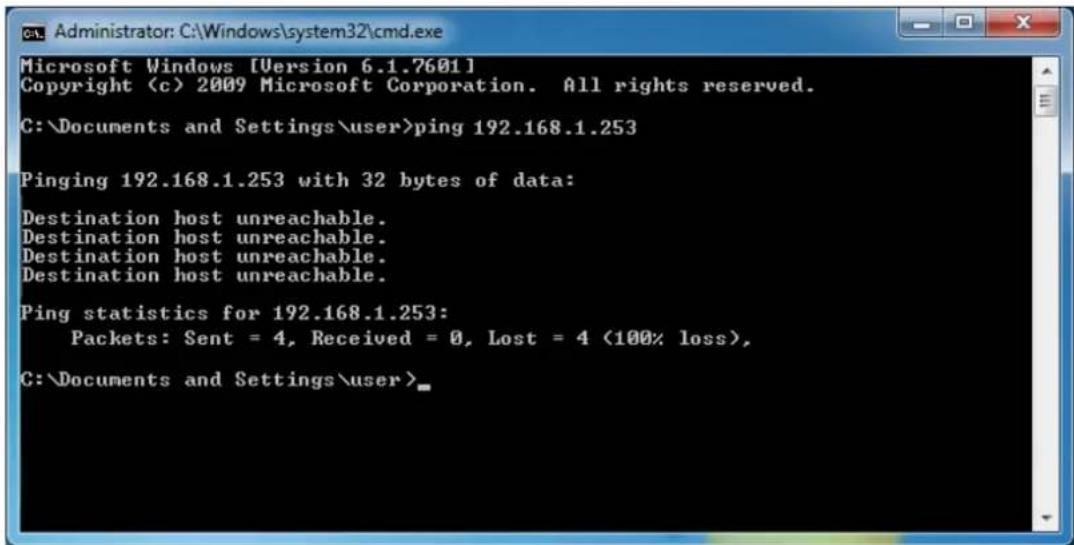

FIGURE 4-4 FAILED RESULT OF PING COMMAND .... 18

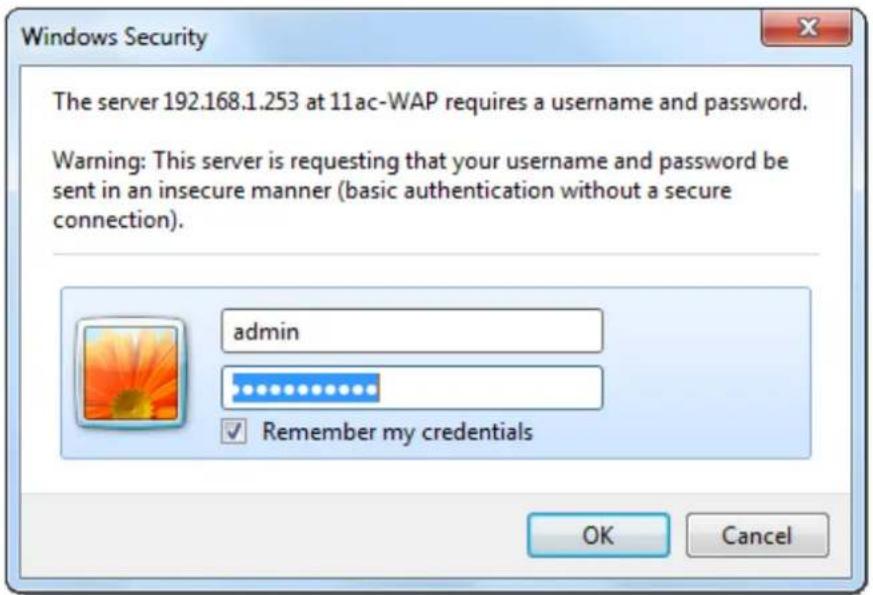

FIGURE 4-5 LOGIN BY DEFAULT IP ADDRESS....19

FIGURE 4-6 LOGIN WINDOW....19

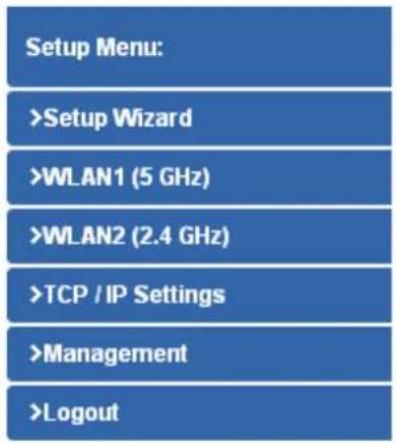

FIGURE 5-1 MAIN MENU ....20

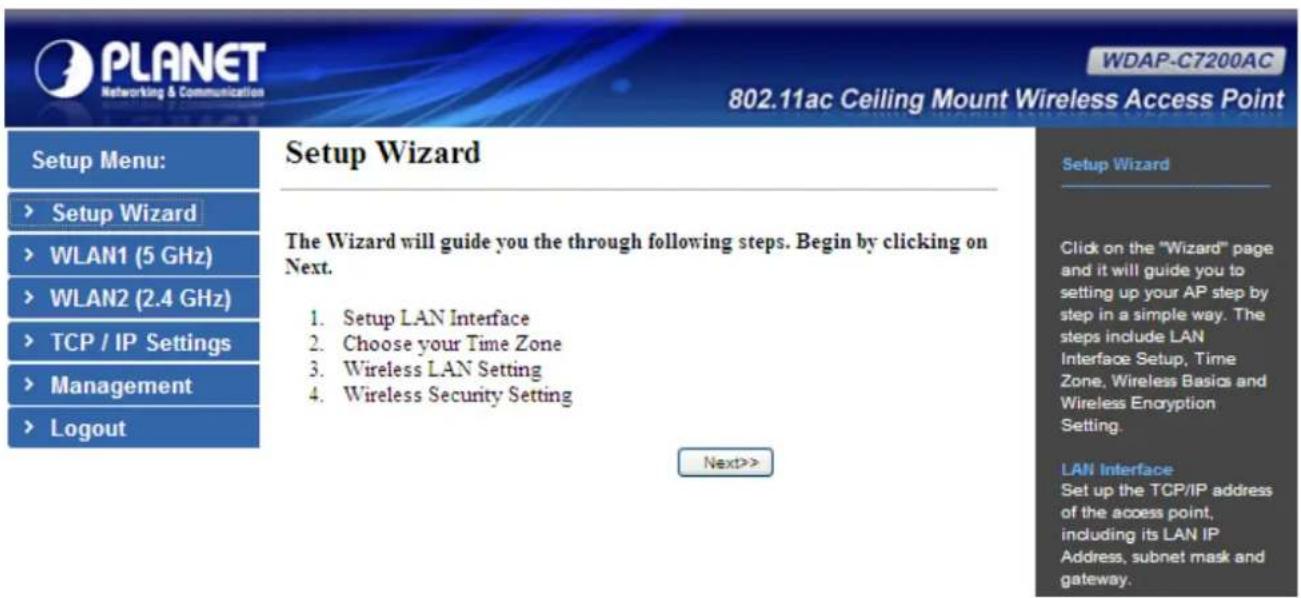

FIGURE 5-2 SETUP WIZARD ....20

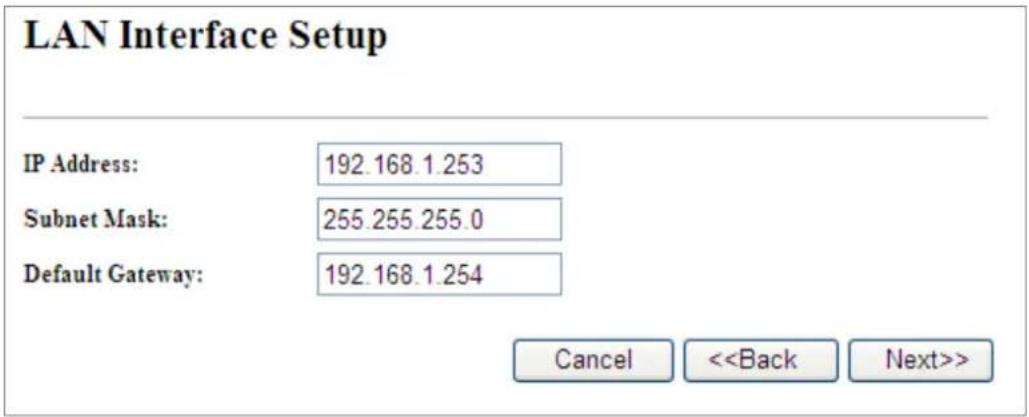

FIGURE 5-3 LAN INTERFACE SETUP TOPOLOGY ....21

FIGURE 5-4 WIZARD – LAN INTERFACE SETUP ....21

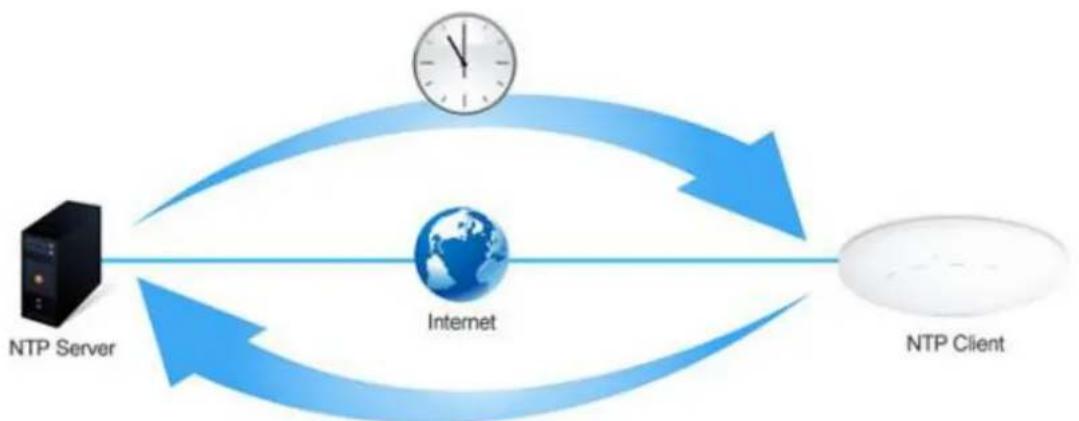

FIGURE 5-5 TIME ZONE SETUP TOPOLOGY ......21

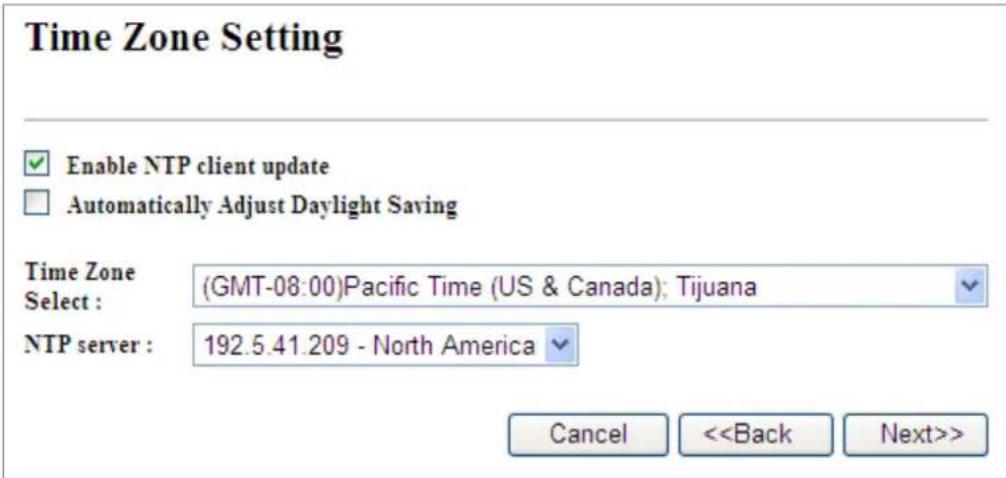

FIGURE 5-6 WIZARD – TIME ZONE SETUP....22

FIGURE 5-7 WIZARD – WIRELESS 5GHz BASIC SETTINGS ....22

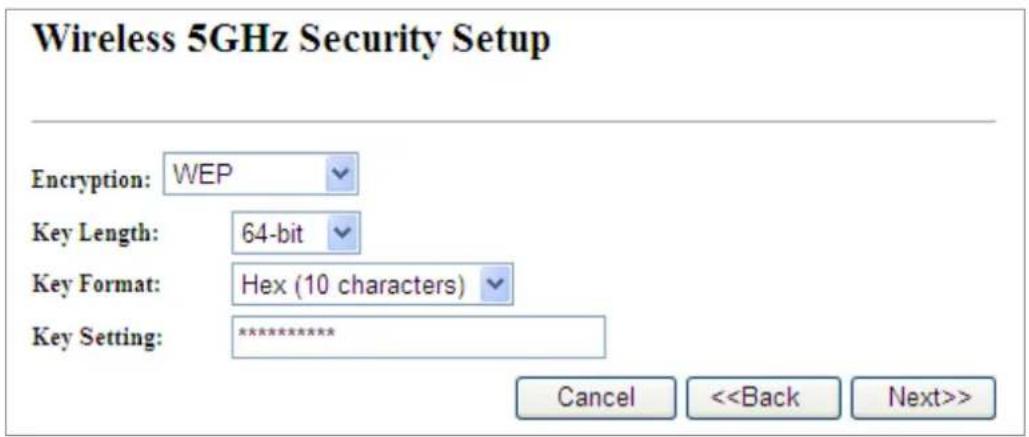

FIGURE 5-8 WIZARD – WIRELESS 5GHz SECURITY SETUP ....23

FIGURE 5-9 5GHz WIRELESS SECURITY SETUP – WEP SETTING ......23

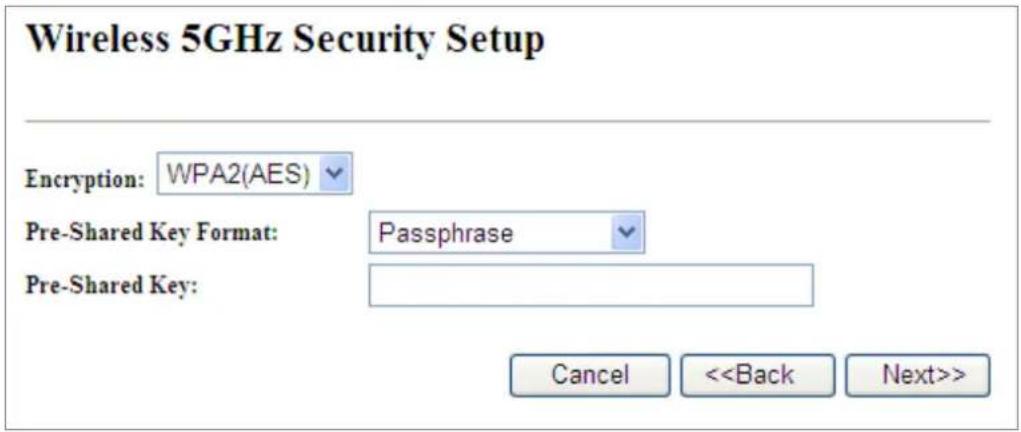

FIGURE 5-10 5GHz WIRELESS SECURITY SETUP – WPA SETTING ...... 24

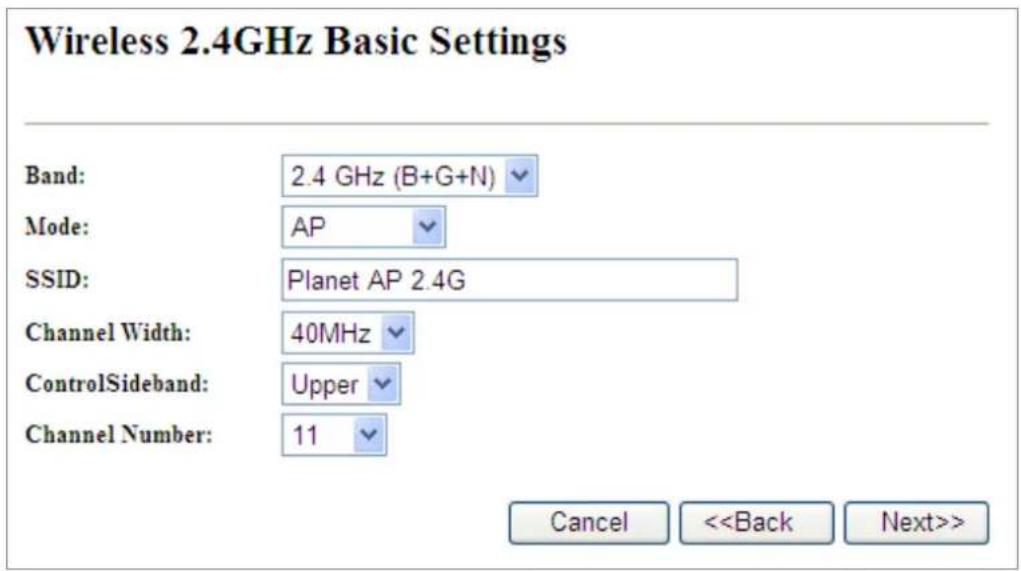

FIGURE 5-11 WIZARD – WIRELESS 2.4GHz BASIC SETTINGS ....24

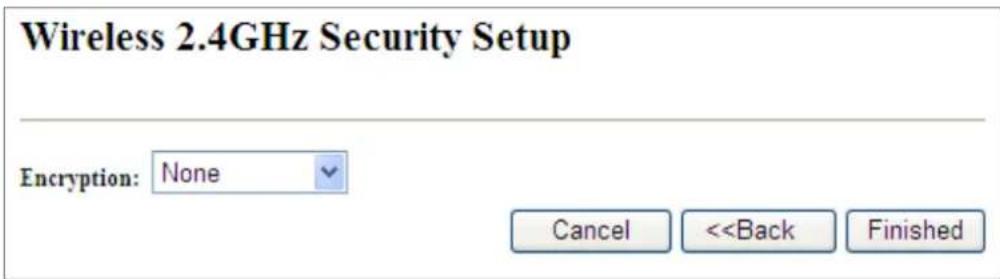

FIGURE 5-12 WIZARD – WIRELESS 2.4GHz SECURITY SETUP....25

FIGURE 5-13 2.4GHz WIRELESS SECURITY SETUP – WEP SETTING....25

FIGURE 5-14 2.4GHz WIRELESS SECURITY SETUP – WPA SETTING ...... 26

FIGURE 5-15 SETUP WIZARD - FINISHED 26

FIGURE 5-16 LAN SETTING ....27

FIGURE 5-17 5GHz WIRELESS MAIN MENU....29

FIGURE 5-18 5GHz WIRELESS BASIC SETTINGS OF AP 30

FIGURE 5-19 5GHz WIRELESS BASIC SETTINGS – MULTIPLE AP 32

FIGURE 5-20 5GHz MULTIPLE-SSID....33

FIGURE 5-21 5GHz UNIVERSAL REPEATER-1 ....34

FIGURE 5-22 5GHz UNIVERSAL REPEATER-2 ....35

FIGURE 5-23 5GHz UNIVERSAL REPEATER-3 ....35

FIGURE 5-24 5GHz UNIVERSAL REPEATER-4 35

FIGURE 5-25 5GHz UNIVERSAL REPEATER-5 36

FIGURE 5-26 5GHz WIRELESS BASIC SETTINGS – CLIENT ....37

FIGURE 5-27 CLIENT – SURVEY ......39

FIGURE 5-28 CLIENT - AP LIST....40

FIGURE 5-29 CLIENT – SECURITY....40

FIGURE 5-30 CLIENT – STATUS ....41

FIGURE 5-31 5GHz WIRELESS BASIC SETTINGS – WDS....42

FIGURE 5-32 5GHz WIRELESS BASIC SETTINGS – WDS+AP....44

FIGURE 5-33 WIRELESS ADVANCED SETTINGS - 5GHz....46

FIGURE 5-34 RF OUTPUT POWER - 5GHz....48

FIGURE 5-35 WIRELESS SECURITY SETTINGS – 5GHz....49

FIGURE 5-36 WIRELESS ACCESS CONTROL - 5GHz ....50

FIGURE 5-37 WIRELESS ACCESS CONTROL – DENY....51

FIGURE 5-38 WDS MODE - 5GHz....53

FIGURE 5-39 WDS SETTINGS – 5GHz....53

FIGURE 5-40 WDS – SET SECURITY ....54

FIGURE 5-41 SITE SURVEY – 5GHz ....55

FIGURE 5-42 WPS-PBC - 5GHz-1 .... 57

FIGURE 5-43 WPS-PBC - 5GHz-2 57

FIGURE 5-44 WPS-PIN - 5GHz-1....58

FIGURE 5-45 WPS-PIN - 5GHz-2....58

FIGURE 5-46 WPS-PIN - 5GHz-3....58

FIGURE 5-47 SCHEDULE - 5GHz....59

FIGURE 5-48 2.4GHz WIRELESS MAIN MENU....60

FIGURE 5-49 2.4GHz WIRELESS BASIC SETTINGS – AP 61

FIGURE 5-50 2.4GHz WIRELESS BASIC SETTINGS – MULTIPLE AP 63

FIGURE 5-51 2.4GHz MULTIPLE-SSID 64

FIGURE 5-52 2.4GHz UNIVERSAL REPEATER-1 65

FIGURE 5-53 2.4GHz UNIVERSAL REPEATER-2 65

FIGURE 5-54 2.4GHz UNIVERSAL REPEATER-3 66

FIGURE 5-55 2.4GHz UNIVERSAL REPEATER-4 66

FIGURE 5-56 2.4GHz UNIVERSAL REPEATER-5 66

FIGURE 5-57 2.4GHz WIRELESS BASIC SETTINGS – CLIENT ....68

FIGURE 5-58 CLIENT – SURVEY ....70

FIGURE 5-59 CLIENT – AP LIST....71

FIGURE 5-60 CLIENT – SECURITY....72

FIGURE 5-61 CLIENT - STATUS 72

FIGURE 5-62 2.4GHz WIRELESS BASIC SETTINGS – WDS....73

FIGURE 5-63 2.4GHz WIRELESS BASIC SETTINGS – WDS+AP....75

FIGURE 5-64 WIRELESS ADVANCED SETTINGS - 2.4GHz....77

FIGURE 5-65 RF OUTPUT POWER - 2.4GHz 79

FIGURE 5-66 WIRELESS SECURITY SETTINGS - 2.4GHz....80

FIGURE 5-67 WIRELESS ACCESS CONTROL - 2.4GHz 82

FIGURE 5-68 WIRELESS ACCESS CONTROL – DENY....83

FIGURE 5-69 WDS MODE - 2.4GHz....85

FIGURE 5-70 WDS SETTINGS - 2.4GHz 85

FIGURE 5-71 WDS – SET SECURITY ....86

FIGURE 5-72 SITE SURVEY - 2.4GHz 87

FIGURE 5-73 WPS-PBC - 2.4GHz-1 89

FIGURE 5-74 WPS-PBC - 2.4GHz-2 89

FIGURE 5-75 WPS-PIN - 2.4GHz-1....90

FIGURE 5-76 WPS-PIN - 2.4GHz-2....90

FIGURE 5-77 WPS-PIN - 2.4GHz-3....90

FIGURE 5-78 SCHEDULE - 2.4GHz....91

FIGURE 5-79 MANAGEMENT – MAIN MENU ...... 92

FIGURE 5-79 STATUS....93

FIGURE 5-80 STATISTICS ......94

FIGURE 5-81 TIME ZONE SETTINGS....95

FIGURE 5-82 SCHEDULE REBOOT ......96

FIGURE 5-83 SCHEDULE REBOOT - EXAMPLE 97

FIGURE 5-84 SYSTEM LOG 98

FIGURE 5-85 UPGRADE FIRMWARE 99

FIGURE 5-86 SAVE/RELOAD SETTINGS....100

FIGURE 5-87 PASSWORD SETUP....101

FIGURE 5-88 LED CONTROL....102

FIGURE 5-89 LOGOUT....102

FIGURE 6-1 SYSTEM TRAY – WIRELESS NETWORK ICON ...... 103

FIGURE 6-2 CHOOSE A WIRELESS NETWORK ....103

FIGURE 6-3 ENTER THE NETWORK KEY ....104

FIGURE 6-4 CHOOSE A WIRELESS NETWORK -- CONNECTED ....104

FIGURE 6-5 NETWORK ICON....105

FIGURE 6-6 WLAN AUTOCONFIG....105

FIGURE 6-7 TYPE THE NETWORK KEY 106

FIGURE 6-8 CONNECTING TO A NETWORK....106

FIGURE 6-9 CONNECTED TO A NETWORK....107

FIGURE 6-10 MAC OS – NETWORK ICON 108

FIGURE 6-11 HIGHLIGHT AND SELECT THE WIRELESS NETWORK ...... 108

FIGURE 6-12 ENTER THE PASSWORD .... 109

FIGURE 6-13 CONNECTED TO THE NETWORK....109

FIGURE 6-14 SYSTEM PREFERENCES....110

FIGURE 6-15 SYSTEM PREFERENCES -- NETWORK 110

FIGURE 6-16 SELECT THE WIRELESS NETWORK 111

FIGURE 6-17 IPHONE – SETTINGS ICON....112

FIGURE 6-18 Wi-Fi SETTING....112

FIGURE 6-19 WI-FI SETTING – NOT CONNECTED 113

FIGURE 6-20 TURN ON WI-FI 113

FIGURE 6-21 IPHONE -- ENTER THE PASSWORD.... 114

FIGURE 6-22 IPHONE -- CONNECTED TO THE NETWORK 114

Chapter 1. Product Introduction

1.1 Package Contents

Thank you for choosing PLANET WDAP-C7200AC. Before installing the AP, please verify the contents inside the package box.

WDAP-C7200AC Quick Guide CD-ROM

Circular white object with two small dots and a 'PLANET' logo on the front face (no text or symbols on the object itself)

Scanned document page with four panels showing technical diagrams and descriptions of mechanical components, likely from a technical or engineering report.

(User Manual included)

PUNET Wireless AP PUNET Wireless AP

Quick Guide Mounting Kit

If there is any item missing or damaged, please contact the seller immediately.

1.2 Product Description

Ceiling Mount Designed for Highly-efficient Wireless Coverage

Featuring attractive flying saucer appearance and ceiling-mount design, the WDAP-C7200AC can be firmly installed on the ceiling or the wall conveniently. The ceiling-mount design is smartly integrated into the environment. Its streamlined body without the protruding antennas also gives effects of embellishment in the surroundings. Moreover, the WDAP-C7200AC is compliant with the IEEE 802.3at PoE standard, so it is easy and flexible in client-side installation. It is definitely nice to have this eye-catching access point mount on the ceilings and walls of villas, hotels, exhibit halls, and other establishments.

2.4GHz b g n 300 Mbps 5GHz ac a n 867 Mbps

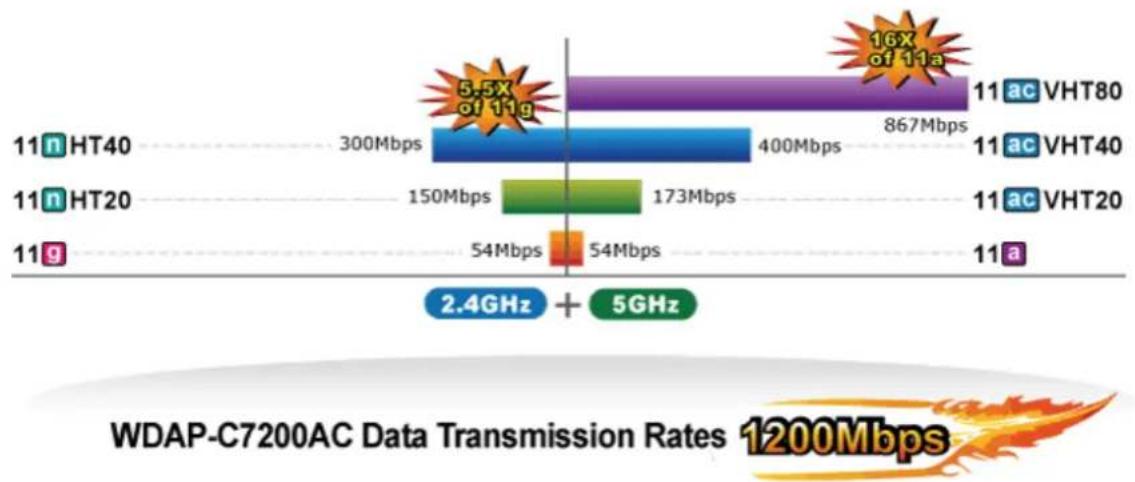

Brand-new 11ac Wireless Technology

The WDAP-C7200AC supports IEEE 802.11a/b/g/n/ac dual band standards with 2T2R MIMO technology; therefore, it provides the wireless speed up to 300+867Mbps, which is 16X faster than the 11a access point at 5GHz frequency and 5.5X faster than the 11g access point at 2.4GHz frequency. Moreover, the WDAP-C7200AC is equipped with Gigabit Ethernet Port. Compared with the general wireless APs, the WDAP-C7200AC offers faster transmission speed for the network applications and less interference to enhance data throughput. The incredible wireless speed makes it ideal for handling multiple HD movie streams, high-resolution on-line games, stereo music, VoIPs and data streams at the same time stably and smoothly.

11ac Innovations Bring Excellent Data Link Speed

The WDAP-C7200AC is built-in with high power amplifier and 4 highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. To provide extremely high-speed user experience, the WDAP-C7200AC adopts IEEE 802.11ac technology to extend the 802.11n 40MHz channel binding to 80MHz and the implementation of 256-QAM modulation where higher transmitting/receiving rates go up to 867Mbps in 5GHz less interference frequency band. In addition, the WDAP-C7200AC is equipped with gigabit LAN port to eliminate the restriction of 100Mbps Fast Ethernet wired connection to let users fully enjoy the high speed provided by wireless. The IEEE 802.11ac also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.

Go faster in wired & wireless

Take Advantage of 11ac to Optimize Data Link Speed

Full Support of Wireless Security Encryption and Wireless Value-added Features

In aspect of security, besides 64/128-bit WEP encryption, the WDAP-C7200AC is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x Radius authority to secure and protect your wireless LAN. It provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection. Being an access point, the WDAP-C7200AC supports the VLAN function to allow multiple SSIDs (10 sets of SSIDs) to access Internal VLAN topology. Moreover, its Wi-Fi Multimedia (WMM) mechanism provides enhanced QoS over wireless connection for better performance in multimedia transmission like on-line gaming and video streaming, which are classified as a top priority.

5GHz 802.11a/n/ac

2.4GHz 802.11b/g/n

Multiple Operation Modes for Various Applications

The WDAP-C7200AC supports AP, Client, WDS Bridge, Repeater and Universal Repeater modes, through which it provides more flexibility for users when wireless network is established. Compared with general wireless access point, the WDAP-C7200AC offers more powerful and flexible capability for wireless clients.


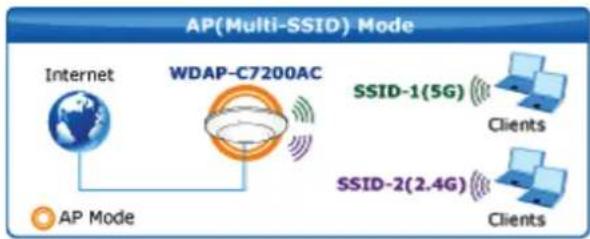

    A["Internet"] --> B["AP Mode"]
    B --> C["WPAP-C7200AC"]
    C --> D["SSID-1(5G)"]
    C --> E["SSID-2(2.4G)"]
    D --> F["Clients"]
    E --> G["Clients"]

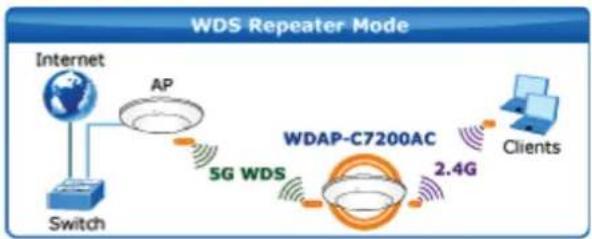

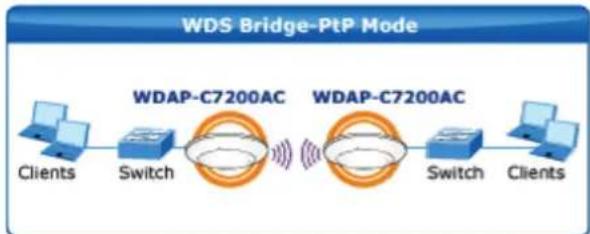


5GHz AP/Client Link 5GHz WDS Link 2.4GHz AP/Client Link

Flexible Deployment with PoE Feature

Compliant with the IEEE 802.3at Power over Ethernet standard, the WDAP-C7200AC can be powered and networked by a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on

the wall, ceiling or any other place where it is difficult to reach. The wireless network deployment becomes more flexible and worry-free from the power outlet locations.

Easy Installation and Management

With user-friendly Web UI and step-by-step Quick Setup Wizard, the WDAP-C7200AC is easy to install, even for users who never experience setting up a wireless network. Furthermore, with SNMP-based management interface, the WDAP-C7200AC is convenient to be managed and configured remotely in a small business wireless network.

1.3 Product Features

standard Compliant Hardware Interface

■ Complies with IEEE 802.11ac (draft 2.0) and IEEE 802.11a/b/g/n standards
■ 1 x 10/100/1000Base-TX Port with 1-port PoE (PD, Powered Device)
■ IEEE 802.3at Power over Ethernet design

▶ Interface Characteristics

■ Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) concurrent dual band for more efficiency of carrying high load traffic
■ 2T2R MIMO technology for enhanced throughput and coverage
■ Provides multiple adjustable transmit power control
■ High speed up to 1.2Gbps (300Mbps for 2.4GHz + 867Mbps for 5GHz) wireless data rate

Comprehensive Wireless Advanced Features

■ Multiple Wireless Modes: AP, Client, WDS PtP/ PtMP, WDS Repeater, Universal Repeater
■ Supports up to 10 multiple-SSIDs (2.4GHz+5GHz) to allow users to access different networks through a single AP
■ Supports VLAN function to limit the clients to access the specific internal network resource
■ Supports WMM (Wi-Fi Multimedia) and wireless QoS to enhance the efficiency of multimedia application
■ Supports IAPP (Inter Access Point Protocol) and wireless roaming to enable clients to roam across different wireless networks
■ Supports 5-level Transmitting Power Control to adapt various environments
■ Supports wireless schedule to automatically enable or disable the wireless function based on predefined schedule

▶ Secure Network Connection

■ Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES encryption) and 802.1x Radius Authentication
■ Supports MAC address filtering

Easy Installation & Management

■ Flexible deployment with standard 802.3at PoE/ PD supported
■ Web-based UI and Quick Setup Wizard for easy configuration
■ Remote Management allows configuration from a remote site
■ SNMP-based management interface
■ System status monitoring includes DHCP Client and System Log

1.4 Product Specifications

Product	WDAP-C7200AC1200Mbps 802.11ac Dual Band Ceiling Mount Wireless Access Point
Hardware Specifications
Interfaces LAN		1 x 10/100/1000Base-T RJ45 portAuto-negotiation and Auto MDI/MDI-X
Antennas Gain:		2 x 2.4GHz 3dBi PCBA antenna2 x 5GHz 2.5dBi PCBA antenna
Reset Button	Reset button on the top coverPress over 7 seconds to reset the device to factory default
LED Indicators	PWRAllow LED to turn off via software control
Material Plastic
Dimensions (Φ x H)	194 x 49 mm
Weight 300 ±5g
Power Requirements 802.3at PoE, 48-56V DC input
Power Consumption 20W (max.)
Mounting Ceiling Mount
Wireless Interface Specifications
Standard	IEEE 802.11ac (Draft 2.0) 5GHzIEEE 802.11a/n 5GHzIEEE 802.11b/g/n 2.4GHz
Antenna Structure	802.11ac: 2T2R MU-MIMO802.11n: 2T2R MIMO
Modulation DSSS
Data Modulation	802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)802.11b: DSSS (DBPSK / DQPSK / CCK)
Band Mode	2.4G / 5G concurrent mode
Frequency Range	2.4GHz	America/ FCC: 2.412~2.462GHzEurope/ ETSI: 2.412~2.484GHz
	5GHz	America/ FCC: 5.180~5.240GHz, 5.725~5.850GHzEurope/ ETSI: 5.180~5.240GHz
Operating Channels	2.4GHz	America/ FCC: 1~11Europe/ ETSI: 1~13
	5GHz	America/ FCC:36, 40, 44, 48, 149, 153, 157, 161, 165Europe/ ETSI:36, 40, 44, 485GHz channel list will vary in different countries according to their regulations.
Channel Width	802.11ac: 20/40/80MHz802.11n: 20/40MHz
Data Transmission Rates	802.11ac (VHT20, Nss2-MCS8): Up to 173.3Mbps802.11ac (VHT40, Nss2-MCS9): Up to 400Mbps802.11ac (VHT80, Nss2-MCS9): Up to 867Mbps
	802.11n (HT40): 270/243/216/162/108/81/54/27Mbps135/121.5/108/81/54/40.5/27/13.5Mbps (dynamic)
	802.11n (HT20): 130/117/104/78/52/39/26/13Mbps65/58.5/52/39/26/19.5/13/6.5Mbps (dynamic)
	802.11g: 54/48/36/24/18/12/9/6Mbps (dynamic)
	802.11b: 11/5.5/2/1Mbps (dynamic)
Transmission Distance	802.11ac (draft): up to 30m802.11n: up to 70m802.11g: up to 30mThe estimated transmission distance is based on the theory. The actual distance will vary in different environments.
Max. RF Power	5GHz:802.11ac (VHT20): 22dBm802.11ac (VHT40): 22dBm802.11ac (VHT80): 22dBm802.11n (HT20): 22dBm802.11n (HT40): 22dBm802.11a: 22dBm
	2.4GHz:802.11n: 17 ±2.5dBm802.11b/g: 20 ±2.5dBm
Receive Sensitivity	5GHz:802.11ac (VHT20): -91dBm @ Nss1-MCS0, -64dBm @ Nss2-MCS8802.11ac (VHT40): -89dBm @ Nss1-MCS0, -59dBm @ Nss2-MCS9802.11ac (VHT80): -86dBm @ Nss1-MCS0, -56dBm @ Nss2-MCS9802.11n (HT20): -92dBm @ MCS0, -71dBm @ MCS7802.11n (HT40): -89dBm @ MCS0, -66dBm @ MCS15802.11a: -93 @ 6Mbps, -75dBm @ 54Mbps
	2.4GHz:802.11n 20MHz (MCS7): -69dBm @10% PER802.11n 40MHz (MCS15): -66dBm @10% PER802.11g (54Mbps): -74dBm @10% PER802.11b (11Mbps): -88dBm @10% PER
Software Features
Wireless Mode	■ Universal Repeater(AP+Client) ■ WDS PTP (Point to Point)■ Repeater(WDS+AP) ■ WDS PTMP (Point to Multipoint)■ AP (Access Point)■ Client
Encryption Security	■ WEP (64/128-bit) encryption security■ WPA / WPA2 (TKIP/AES)■ WPA-PSK / WPA2-PSK (TKIP/AES)
Wireless Security	Provides wireless LAN ACL (Access Control List) filtering
	Wireless MAC address filtering
	Supports WPS (Wi-Fi Protected Setup)
	Enable/ Disable SSID Broadcast
Wireless Advanced	WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
	Multiple SSID: up to 5 at 2.4GHz and 5GHz, respectively
	Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other
	IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming
	Provides Wireless Statistics
Max. Clients	Wire: 2532.4GHz Wireless: 325GHz Wireless: 32
LAN	Built-in DHCP server supporting static IP address distributing
	Supports UPnP
	Supports 802.1d Spanning Tree
	Supports 802.1Q VLAN
System Management	Web-based (HTTP) management interface
	SNTP time synchronize
	Easy firmware upgrade
	Supports Scheduling Reboot
	Supports Smart Discovery Utility
Standards Conformance
IEEE Standards	IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps)IEEE 802.11n (2T2R, up to 300Mbps)IEEE 802.11gIEEE 802.11bIEEE 802.11iIEEE 802.3 10Base-TIEEE 802.3u 100Base-TXIEEE 802.3ab 1000Base-TIEEE 802.3x Flow Control
Other Protocols and Standards	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP
Environment & Certification
Temperature	Operating: 0 ~ 50 degrees CStorage: -40 ~ 70 degrees C
Humidity	Operating: 10 ~ 90% (non-condensing)Storage: 5 ~ 90% (non-condensing)
Regulatory	FCC Part 15B & 15C, IC, RoHS

Chapter 2. Hardware Installation

Please follow the instructions below to connect WDAP-C7200AC to the existing network devices and your computers.

2.1 Product Outlook

■ Dimensions: 194 x 49 mm (Φ x H)
■ Drawing :

PLANET Networking & Communication

Technical line drawing of a circular mechanical component with a central fan-like structure and stepped base (no text or symbols)

Figure 2-1 WDAP-C7200AC Product Drawing

2.1.1 Panel Layout

The front and rear panel provide a simple interface monitoring the AP. Figure 2-2 shows the hardware interface of the WDAP-C7200AC.

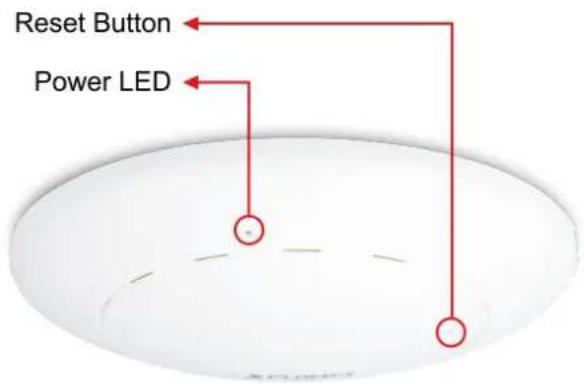

Hardware Interface

Reset Button Power LED

PoE LAN

Figure 2-2 WDAP-C7200AC Panel Layout

2.1.2 Hardware Description

LED definition

LED COLOR STATUS FUNCTION
PWR	Green	On	Device power on
	Green	Off Device power off (control by S/W)
	Orange	On System initializing, turned it off when system completed
	Orange	Blinking	Detect and identify the LED (control by S/W)1) Position LED on: LED blinks continuously.2) Position LED off: the LED is off.

Button definition

Object Description
Reset	To restore to the factory default setting, press and hold the Reset Button over 7 seconds, and then release it.

Port definition

Object Description
PoE Port(802.3at PoE)	10/100/1000Mbps RJ-45 port , Auto MDI/ MDI-XConnect PoE port to the IEEE 802.3at PSE to power on the device.

Chapter 3. Connecting to the AP

3.1 System Requirements

■ Broadband Internet Access Service (Cable/xDSL/Ethernet connection)
One IEEE 802.3at PoE switch (supply power to the WDAP-C7200AC)
■ PCs with a working Ethernet Adapter and an Ethernet cable with RJ-45 connectors
■ PCs running Windows 98/ME, NT4.0, 2000/XP, Windows Vista / Win 7, MAC OS 9 or later, Linux, UNIX or other platforms compatible with TCP/IP protocols

1. The AP in the following instructions refers to PLANET WDAP-C7200AC.
2. It is recommended to use Internet Explore 7.0 or above to access the AP.

3.2 Installing the AP

Before installing the AP, make sure your PoE switch is connected to the Internet through the broadband service successfully at this moment. If there is any problem, please contact your local ISP. After that, please install the AP according to the following steps. Don't forget to pull out the power plug and keep your hands dry.

Step 1. Drill the outlet hole indicated on the mounting label and stick the given mounting label to the installation location to let the Ethernet cable penetrate the outlet hole. Then, drill the mounting holes as indicated on the label.

Illustration of a blue pen-like device with a transparent screen and control panel, mounted on a white surface (no text or symbols)

Figure 3-1 WDAP-C7200AC Installation Diagram 1

Step 2. Take the mounting bracket, put it on the target place by aligning the holes and fix it with the supplied

screws. ✉ IEEE 802.3at PoE switch is required.

Hand holding a screwdriver with a blue cable inserted into a transparent cylindrical device (no text or symbols visible)

Figure 3-2 WDAP-C7200AC Installation Diagram 2

Step 3. Plug the RJ-45 Ethernet cable into the PoE port of the WDAP-C7200AC.

Hand holding a white electronic device with exposed internal components and blue cable wrapped around it (no text or symbols visible)

Figure 3-3 WDAP-C7200AC Installation Diagram 3

Step 4. Load the device into the mounting bracket, and be sure the device is mated with two fixed screws. Then, rotate the device clockwise to lock it in position.

Exterior view of a modern air conditioner unit (no signage or text visible)

Figure 3-4 WDAP-C7200AC Installation Diagram 4

Step 5. Plug the other end of the Ethernet cable into the PoE switch.

Hand holding a black PL Planet network switch with Ethernet ports, no visible text or symbols on the device itself.

Figure 3-5 WDAP-C7200AC Installation Diagram 4

Chapter 4. Quick Installation Guide

This chapter will show you how to configure the basic functions of your AP within minutes.

A computer with wired Ethernet connection to the Wireless AP is required for the first-time configuration.

4.1 Manual Network Setup - TCP/IP Configuration

The default IP address of the WDAP-C7200AC is 192.168.1.253. And the default Subnet Mask is 255.255.255.0. These values can be changed as you want. In this guide, we use all the default values for description.

Connect the WDAP-C7200AC with your PC by an Ethernet cable plugging in LAN port on one side and in LAN port of PC on the other side. Please power on the WDAP-C7200AC by PoE switch through the PoE port.

In the following sections, we'll introduce how to install and configure the TCP/IP correctly in Windows 7. And the procedures in other operating systems are similar. First, make sure your Ethernet Adapter is working, and refer to the Ethernet adapter manual if needed.

4.1.1 Configuring the IP Address Manually

Summary:

■ Set up the TCP/IP Protocol for your PC.
- Configure the network parameters. The IP address is 192.168.1.xxx (if the default IP address of the WDAP-C7200AC is 192.168.1.253, and the DSL router is 192.168.1.254, the "xxx" can be configured to any number from 1 to 252), Subnet Mask is 255.255.255.0.

1 Select Use the following IP address radio button, and then configure the IP address of the PC.

2 For example, as the default IP address of the WDAP-C7200AC is 192.168.1.253 and the DSL router is 192.168.1.254, you may choose from 192.168.1.1 to 192.168.1.252.

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 100 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

Figure 4-1 TCP/IP Setting

Now click OK to save your settings.

Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the AP. The following example is in Windows 7 OS. Please follow the steps below:

1. Click on Start > Run.
2. Type "cmd" in the Search box.

Programs (1) cmd Files (1) History See more results cmd Shut down

Figure 4-2 Windows Start Menu

1. Open a command prompt, type ping 192.168.1.253 and then press Enter.

If the result displayed is similar to Figure 4-3, it means the connection between your PC and the AP has been established well.

Microsoft Windows [Version 6.1.7601] Copyright (c) 2009 Microsoft Corporation. All rights reserved. C:\>ping 192.168.1.253 Pinging 192.168.1.253 with 32 bytes of data: Reply from 192.168.1.253: bytes=32 time=17ms TTL=64 Reply from 192.168.1.253: bytes=32 time=18ms TTL=64 Reply from 192.168.1.253: bytes=32 time=18ms TTL=64 Reply from 192.168.1.253: bytes=32 time=18ms TTL=64 Ping statistics for 192.168.1.253: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 17ms, Maximum = 18ms, Average = 17ms C:\>

Figure 4-3 Successful result of Ping command

If the result displayed is similar to Figure 4-4, it means the connection between your PC and the AP has failed.

Microsoft Windows [Version 6.1.7601] Copyright 2009 Microsoft Corporation. All rights reserved. C:\Documents and Settings\user>ping 192.168.1.253 Pinging 192.168.1.253 with 32 bytes of data: Destination host unreachable. Destination host unreachable. Destination host unreachable. Destination host unreachable. Ping statistics for 192.168.1.253: Packets: Sent = 4, Received = 0, Lost = 4 (100% loss), C:\Documents and Settings\user>

Figure 4-4 Failed Result of Ping Command

If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your AP. Some firewall software programs may block a DHCP request on newly installed adapters.

4.2 Starting Setup in the Web UI

It is easy to configure and manage the AP with the web browser.

Step 1. To access the configuration utility, open a web-browser and enter the default IP address http://192.168.1.253 in the web address field of the browser.

http://192.168.1.253/ 192.168.1.253 File Edit View Favorites Tools Help

Figure 4-5 Login by default IP address

After a moment, a login window will appear. Enter admin for the User Name and Password, both in lower case letters. Then click the OK button or press the Enter key.

Windows Security The server 192.168.1.253 at 11ac-WAP requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). admin Remember my credentials OK Cancel

Figure 4-6 Login Window

Default IP Address: 192.168.1.253

Default User name: admin

Default Password: admin

If the above screen does not pop up, it may mean that your web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings on the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.

Chapter 5. Configuring the AP

This chapter delivers a detailed presentation of AP's functionalities and features under 6 main menus below, allowing you to manage the AP with ease.

Setup Menu: >Setup Wizard >WLAN1 (5 GHz) >WLAN2 (2.4 GHz) >TCP / IP Settings >Management >Logout

Figure 5-1 Main Menu

During operation, if you are not clear about a certain feature, you can refer to the "Help" section in the right side of the screen to read all related helpful info.

5.1 Setup Wizard

The Setup Wizard will guide the user to configure the WDAP-C7200AC easily and quickly. Select the Setup Wizard on the left side of the screen and by clicking on Next on the Setup Wizard screen shown below, you will then name your WDAP-C7200AC and set up its security.

PLANET Networking & Communication WDAP-C7200AC 802.11ac Ceiling Mount Wireless Access Point Setup Menu: > Setup Wizard > WLAN1 (5 GHz) > WLAN2 (2.4 GHz) > TCP / IP Settings > Management > Logout Setup Wizard The Wizard will guide you the through following steps. Begin by clicking on Next. 1. Setup LAN Interface 2. Choose your Time Zone 3. Wireless LAN Setting 4. Wireless Security Setting Next>> Setup Wizard Click on the "Wizard" page and it will guide you to setting up your AP step by step in a simple way. The steps include LAN Interface Setup, Time Zone, Wireless Basics and Wireless Encryption Setting. LAN Interface Set up the TCP/IP address of the access point, including its LAN IP Address, subnet mask and gateway.

Figure 5-2 Setup Wizard

Step 1: LAN Interface Setup

Figure 5-3 LAN Interface SetupTopology

LAN Interface Setup IP Address: 192.168.1.253 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.254 Cancel <>

Figure 5-4 Wizard – LAN Interface Setup

The page includes the following fields:

Object Description
IP Address	Displays the current IP address of the AP. (Default = 192.168.1.253)
Subnet Mask	Displays LAN mask of the AP. (Default = 255.255.255.0)
Default Gateway	IP address of the associated router. (Default = 192.168.1.254)

Step 2: Time Zone Setting

Figure 5-5 Time Zone Setup Topology

Time Zone Setting Enable NTP client update Automatically Adjust Daylight Saving Time Zone Select : (GMT-08:00)Pacific Time (US & Canada); Tijuana NTP server : 192.5.41.209 - North America Cancel <>

Figure 5-6 Wizard – Time Zone Setup

The page includes the following fields:

Object Description
Enable NTP client update	Check this box to connect NTP Server and synchronize internet time.
Automatically adjust Daylight Saving	Check this box and system will adjust the daylight saving automatically.
Time Zone Select	Select the Time Zone from the drop-down menu.
NTP Server	Select the NTP Server from the drop-down menu.
Enable NTP client update	Check this box to connect NTP Server and synchronize internet time.

Step 3: Wireless 5GHz Basic Settings

Wireless 5GHz Basic Settings Band: 5 GHz (A+N+AC) Mode: AP SSID: Planet AP 5G Channel Width: 80MHz ControlSideband: Lower Channel Number: 149 Cancel <>

Figure 5-7 Wizard – Wireless 5GHz Basic Settings

The page includes the following fields:

Object Description
Band	Supports 802.11a, 802.11n, 802.11ac and mixed. Please choose its band according to your clients.
Mode	Supports AP, Client, WDS and AP+WDS mode.
SSID	Service Set Identifier identifies your wireless network.
Channel Width	Select 80MHz if you use 802.11ac; select 40MHz if you use 802.11n; otherwise, 20MHz for the 802.11a mode.
Control Sideband	It is only valid when you choose channel width 40MHz.
Channel Number	Indicates the channel setting for the AP.

Step 4: Wireless 5GHz Security Settings

Secure your wireless network by turning on the WPA or WEP security feature on the router. For this section you can set WEP and WPA-PSK security mode.

Wireless 5GHz Security Setup Encryption: None Cancel <>

Figure 5-8 Wizard – Wireless 5GHz Security Setup

■ Encryption: WEP

The following picture shows how to set the WEP security.

Wireless 5GHz Security Setup Encryption: WEP Key Length: 64-bit Key Format: Hex (10 characters) Key Setting: ******** Cancel <>

Figure 5-9 5GHz Wireless Security Setup – WEP Setting

The page includes the following fields:

Object Description
Key length	WEP supports 64-bit or 128-bit security key.
Key Format	User can enter key in ASCII or Hex format.
Key Setting	Enter the key whose format is limited by the Key format, ASCII or Hex.

■ Encryption: WPA-PSK

The following picture shows how to set up WPA-PSK security. You can select WPA (TKIP), WPA2 (AES) and Mixed mode.

Wireless 5GHz Security Setup Encryption: WPA2(AES) Pre-Shared Key Format: Passphrase Pre-Shared Key: Cancel <>

Figure 5-10 5GHz Wireless Security Setup – WPA Setting

The page includes the following fields:

Object Description
Pre-Shared Key Format	Specify the format of the key, pass phrase or hex.
Pre-Shared Key	Enter the key whose format is limited by the key format.

Step 5: Wireless 2.4GHz Basic Settings

Wireless 2.4GHz Basic Settings Band: 2.4 GHz (B+G+N) Mode: AP SSID: Planet AP 2.4G Channel Width: 40MHz ControlSideband: Upper Channel Number: 11 Cancel <>

Figure 5-11 Wizard – Wireless 2.4GHz Basic Settings

The page includes the following fields:

Object Description
Band	Supports 802.11b, 802.11g, 802.11n and mixed. Please choose its band according to your clients.
Mode	Supports AP, Client, WDS and AP+WDS mode.
SSID	Service Set Identifier, it identifies your wireless network.
Channel Width	Select 40MHz if you use 802.11n, otherwise 20MHz for the 802.11b/g mode.
Control Sideband	It is only valid when you choose channel width 40MHz.
Channel Number	Indicates the channel setting for the AP.

Step 6: Wireless 2.4GHz Security Settings

Secure your wireless network by turning on the WPA or WEP security feature on the router. For this section you can set WEP and WPA-PSK security mode.

Wireless 2.4GHz Security Setup Encryption: None Cancel < Figure 5-12 Wizard – Wireless 2.4GHz Security Setup

■ Encryption: WEP

The following picture shows how to set the WEP security.

Wireless 2.4GHz Security Setup Encryption: WEP Key Length: 64-bit Key Format: Hex (10 characters) Key Setting: ******** Cancel < Figure 5-13 2.4GHz Wireless Security Setup – WEP Setting The page includes the following fields:

Object Description
Key Length	WEP supports 64-bit or 128-bit security key.
Key Format	User can enter key in ASCII or Hex format.
Key Setting	Enter the key whose format is limited by the Key format, ASCII or Hex.

■ Encryption: WPA-PSK

The following picture shows how to set WPA-PSK security. You can select WPA (TKIP), WPA2 (AES) and Mixed mode.

Wireless 2.4GHz Security Setup Encryption: WPA2(AES) Pre-Shared Key Format: Passphrase Pre-Shared Key: Cancel < Figure 5-14 2.4GHz Wireless Security Setup – WPA Setting The page includes the following fields:

Object Description
Pre-Shared Key Format	Specify the format of the key, pass phrase or hex.
Pre-Shared Key	Enter the key whose format is limited by the key format.

Click the Finished button to make your wireless configuration to take effect and finish the Setup Wizard.

PLANET Networking & Communication WDAP-C7200AC 802.11ac Ceiling Mount Wireless Access Point Setup Menu: > Setup Wizard > WLAN1 (5 GHz) > WLAN2 (2.4 GHz) > TCP / IP Settings > Management > Logout Change setting successfully! Do not turn off or reboot the Device during this time. Please wait 20 seconds ... Setup Wizard Click on the "Wizard" page and it will guide you to setting up your AP step by step in a simple way. The steps include LAN Interface Setup, Time Zone, Wireless Basics and Wireless Encryption Setting. LAN Interface Set up the TCP/IP address of the access point, including its LAN IP Address, subnet mask and gateway.

Figure 5-15 Setup Wizard - Finished After rebooting, please check whether you can access the Internet or not on the "Status" page.

5.2 TCP / IP Settings

This page is used to configure the parameters for local area network which connects to the LAN port of your AP. Here you may change the setting for IP address, subnet mask, DHCP, etc.

5.2.1 LAN Settings

On the LAN Settings page, you can configure the IP parameters of the LAN on the screen as shown below.

LAN Interface Setup

This page is used to configure the parameters for local area network which connects to the LAN port of your Access Point. Here you may change the setting for IP address, subnet mask, DHCP, etc..

PC PoE Switch Default IP: 192.168.1.253


IP Address: 192.168.1.253 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.254 DHCP: Disabled DHCP Client Range: 192.168.1.100 - 192.168.1.200 Show Client DHCP Lease Time: 480 (1 ~ 10080 minutes) Static DHCP: Set Static DHCP Domain Name: Planet 802.1d Spanning Tree: Disabled Clone MAC Address: 000000000000 UPnP Enable: Enabled Apply Changes Reset

Figure 5-16 LAN Setting The page includes the following fields:

Object Description
IP Address	The default LAN IP address of the WDAP-C7200AC is 192.168.1.253.You can change it according to your request.
Subnet Mask	Default is 255.255.255.0. You can change it according to your request.
Default Gateway	Default is 192.168.1.253. You can change it according to your request.
DHCP	You can select a Disabled, Client, and Server. Default is Disabled, meaning the WDAP-C7200AC must connect to a router to assign IP addresses to clients.
DHCP Client Range	For the Server mode, you must enter the DHCP client IP address range in the field. And you can click the “Show Client” button to show the Active DHCP Client Table.
Static DHCP	Click the “Set Static DHCP” button and you can reserve some IP addresses for those network devices with the specified MAC addresses anytime when they request IP addresses.
Domain Name	Default is Planet.
802.1d Spanning Tree	You can enable or disable the Spanning Tree function.
Clone MAC Address	You can input an MAC address here for using clone function.
UPnP Enable	You can enable or disable the UPnP function.The UPnP feature allows the devices, such as Internet computers, to access the local host resources or devices as needed. UPnP devices can be automatically discovered by the UPnP service application on the LAN.

 Note If you change the IP address of LAN, you must use the new IP address to login the AP.  Note When the IP address of the WDAP-C7200AC is changed, the clients on the network often need to wait for a while or even reboot before they can access the new IP address. For an immediate access to the AP, please flush the netbios cache on the client computer by running the "nbtstat -r" command before using the device name of the WDAP-C7200AC to access its Web Management page.

5.3 WLAN1 (5GHz)

The wireless menu of WLAN1 (5GHz) contains submenus of the settings about wireless network. Please refer to the following sections for the details.

WLAN1 (5 GHz) > Basic Settings > Advanced Settings > RF Output Power > Security > Access Control > WDS Settings > Site Survey > WPS > Schedule

Figure 5-17 5GHz Wireless Main Menu

5.3.1 Basic Settings

Choose menu "WLAN1 (5GHz) → Basic Settings" and you can configure the 5GHz basic settings for the wireless network on this page. After the configuration is done, please click the "Apply Changes" button to save the settings. First of all, the wireless AP supports multiple wireless modes for different network applications, which include: AP ■ Multiple SSIDs ■ Universal Repeater ■ Client WDS AP+WDS It is so easy to combine the WDAP-C7200AC with the existing wired network. The WDAP-C7200AC definitely provides a total network solution for the home and the SOHO users.  Standard Access Point

AP(Multi-SSID) Mode

Internet  WDAP-C7200AC  SSI D-1 (5G)  Clients SSI D-2(2.4G)  Clients  AP Mode

Wireless Basic Settings - WLAN1 (5 GHz)

This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters.  Disable Wireless LAN Interface Band: 5 GHz (A+N+AC)  Mode: AP  MultipleAP Network Type: Infrastructure  SSID: Planet AP 5G Add to Profile Channel Width: 80MHz  Control Auto Sideband: 149  Channel Number: Broadcast SSID: Enabled  WMM: Enabled  Data Rate: Auto  TX restrict: 0 Mbps (0:no restrict) RX restrict: 0 Mbps (0:no restrict) Associated Clients: Show Active Clients  Enable Mac Clone (Single Ethernet Client)  Enable Universal Repeater Mode (Acting as AP and client ltaneously) SSID of Extended Interface: Planet Rpt0 Add to Profile Apply Changes Reset Figure 5-18 5GHz Wireless Basic Settings of AP The page includes the following fields:

Object Description
Disable Wireless LAN Interface	Check the box to disable the wireless function.
Band	Select the desired mode. Default is “5GHz (A+N+AC)”. It is strongly recommended that you set the Band to “5GHz (A+N+AC)”, and all of 802.11a, 802.11n, and 802.11ac wireless stations can connect to the WDAP-C7200AC.■ 5 GHz (A): 802.11a mode, rate is up to 54Mbps■ 5 GHz (N): 802.11n mode, rate is up to 300Mbps■ 5 GHz (AC): 802.11n mode, rate is up to 867Mbps(2T2R)■ 5 GHz (A+N): 802.11a/n mode, rate is up to 300Mbps■ 5 GHz (N+AC): 802.11n/ac mode, rate is up to 300Mbps or 867Mbps■ 5 GHz (A+N+AC): 802.11a/n/ac mode, rate is up to 54Mbps, 300Mbps, or 867Mbps
Mode	There are four kinds of wireless mode selections:■ AP■ Client■ WDS■ AP+WDSIf you select WDS or AP+WDS, please click “WDS Settings” submenu for the related configuration. Furthermore, click the “Multiple AP” button to enable multiple SSID functions.
SSID	The ID of the wireless network. User can access the wireless network through it only. However, if you switch to Client Mode, this field becomes the SSID of the AP you want to connect with.Default: Planet AP 5G
Channel Width	You can select 20MHz, 40MHz or 80MHz.
Channel Number	You can select the operating frequency of wireless network.Default: 149
Broadcast SSID	If you enable “Broadcast SSID”, every wireless station located within the coverage of the AP can discover its signal easily. If you are building a public wireless network, enabling this feature is recommended. In private network, disabling “Broadcast SSID” can provide better wireless network security.Default is “Enabled”.
Data Rate	Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this valueunless you know what will happen after modification.Default is “Auto”.
Associated Clients	Click the “Show Active Clients” button to show the status table of active wireless clients.
Enable Universal Repeater Mode(Acting as AP and client simultaneously)	Universal Repeater is a technology used to extend wireless coverage.To enable Universal Repeater Mode, check the box and enter the SSID you want to broadcast in the field below. Then please click “Security” submenu for the related settings of the AP you want to connect with.

■ multiple-SSID

Enable multiple-SSID can broadcast multiple WLAN SSID's using virtual interfaces. You can have different encryption settings for each WLAN and you can restrict what they have access to.

Choose menu "WLAN1 (5GHz) → Basic Settings → Multiple AP" to configure the device as a general wireless access point with multiple SSIDs.

Wireless Basic Settings - WLAN1 (5 GHz) This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters. Disable Wireless LAN Interface Band: 5 GHz (A+N+AC) Mode: AP MultipleAP Network Type: Infrastructure SSID: Planet AP 5G Add to Profile

Figure 5-19 5GHz Wireless Basic Settings – Multiple AP The device supports up to four multiple Service Set Identifiers. You can back to the Basic Settings page to set the Primary SSID. The SSID's factory default setting is Planet 5G VAP1\~4 (Multiple-SSID 1\~4). The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network. When the information for the new SSID is finished, click the Apply Changes button to let your changes take effect.

Multiple APs Multiple APs - WLAN1 (5 GHz) This page shows and updates the wireless setting for multiple APs. No. Enable Band SSID Data Rate Broadcast WMM Access Tx Restrict Rx Restrict Active Client LAN AP1 ✓ 5 GHz (A+N+AC) ✓ Planet 5G VAP Auto ✓ Enabled ✓ Enabled ✓ LAN ✓ 0 0 Show AP AP2 ✓ 5 GHz (A+N+AC) ✓ Planet 5G VAP Auto ✓ Enabled ✓ Enabled ✓ LAN ✓ 0 0 Show AP AP3 ✓ 5 GHz (A+N+AC) ✓ Planet 5G VAP Auto ✓ Enabled ✓ Enabled ✓ LAN ✓ 0 0 Show AP AP4 ✓ 5 GHz (A+N+AC) ✓ Planet 5G VAP Auto ✓ Enabled ✓ Enabled ✓ LAN ✓ 0 0 Show AP Apply Changes Reset

Figure 5-20 5GHz Multiple-SSID Once you have applied and saved those settings, you can then go to the "WLAN1 (5GHz) → Security" page on the AP to set up security settings for each of the SSIDs.

■ universal Repeater

This mode allows the AP with its own BSS to relay data to a root AP to which it is associated with WDS disabled. The wireless repeater relays signal between its stations and the root AP for greater wireless range.

1. Example of how to configure Universal Repeater Mode. Please take the following steps: To configure each wireless parameter, please go to the "WLAN1 (5GHz) → Basic Settings" page. Step 1. Configure wireless mode to "AP" and then check "Enable Universal Repeater Mode (Acting as AP and client simultaneously)". Click "Apply Changes" to take effect.

Wireless Basic Settings - WLAN1 (5 GHz) Disable Wireless LAN Interface Band: 5 GHz (A+N+AC) Mode: AP MultipleAP Network Type: Infrastructure SSID: Planet AP 5G Add to Profile Enable Mac Clone (Single Ethernet Client) Enable Universal Repeater Mode (Acting as AP and client simultaneously) SSID of Extended Interface: Planet Rpt0 Add to Profile Apply Changes Reset

Figure 5-21 5GHz Universal Repeater-1 Step 2. Go to 5GHz Site Survey page to find the root AP. Select the root AP that you want to repeat the signal and then click "Next".

Wireless Site Survey - WLAN1 (5GHz)

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.

Wireless Router Site Survey



Range Extender

SSID	BSSID	Channel	Type	Encrypt	Signal	Select
WDRT-1200AC-5G	00:30:4f:74:20:08	149(A+N+AC)	AP	WPA2-PSK	67
Default_5G_1	00:30:4f:b4:c4:a8	157 (A+N)	AP	WPA2-PSK	30

Figure 5-22 5GHz Universal Repeater-2 Step 3. Select the correct encryption method and enter the security key. Then, click "Connect".

Wireless Site Survey - WLAN1 (5GHz) This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled. Wireless Router Recommended Signal Strength >70% Range Extender Encryption: WPA2 Authentication Mode: WPA2 Cipher Suite: Pre-Shared Key Format: Pre-Shared Key: < Figure 5-23 5GHz Universal Repeater-3 Step 4. Check "Add to Wireless Profile" and click "Reboot Now".

Connect successfully! ✓ Add to Wireless Profile Reboot Now Reboot Later

Figure 5-24 5GHz Universal Repeater-4 Step 5. Go to "Management-> Status" page to check whether the state of Repeater interface should be "Connected".

Wireless 1 Repeater Interface Configuration
Mode	Infrastructure Client
SSID	Default_5G_1
Encryption	WPA2
BSSID	00:30:4f:b4:c4:a8
State	Connected

Figure 5-25 5GHz Universal Repeater-5

■ ient (Infrastructure)

Combine the Wireless Router to the Ethernet devices such as TV, game player, or HDD and DVD, to make them be wireless stations.


Wireless Basic Settings - WLAN1 (5 GHz) Disable Wireless LAN Interface Band: 5 GHz (A+N+AC) Mode: Client Network Type: Infrastructure MultiAP SSID: Planet AP 5G Add to Profile Channel Width: 40MHz Control Auto Sideband: Channel Number: 36 Broadcast SSID: Enabled WMM: Enabled Data Rate: Auto TX restrict: 0 Mbps (0:no restrict) RX restrict: 0 Mbps (0:no restrict) Associated Clients: Show Active Clients Enable Mac Clone (Single Ethernet Client) SSID of Extended Interface: Planet Rpt0 Add to Profile Enable Wireless Profile Wireless Profile List: SSID Encrypt Select Delete Selected DeleteAll

Figure 5-26 5GHz Wireless Basic Settings – Client The page includes the following fields:

Object Description
Disable Wireless LAN Interface	Check the box to disable the wireless function.
Band	Select the desired mode. Default is “5GHz (A+N+AC)”. It is strongly recommended that you set the Band to “5GHz (A+N+AC)”, and all of 802.11a, 802.11n, and 802.11ac wireless stations can connect to the WDAP-C7200AC.■ 5 GHz (A): 802.11a mode, rate is up to 54Mbps■ 5 GHz (N): 802.11n mode, rate is up to 300Mbps■ 5 GHz (AC): 802.11n mode, rate is up to 867Mbps(2T2R)■ 5 GHz (A+N): 802.11a/n mode, rate is up to 300Mbps■ 5 GHz (N+AC): 802.11n/ac mode, rate is up to 300Mbps or 867Mbps■ 5 GHz (A+N+AC): 802.11a/n/ac mode, rate is up to 54Mbps, 300Mbps, or 867Mbps
Mode	There are four kinds of wireless mode selections:■ AP■ Client■ WDS■ AP+WDSIf you select WDS or AP+WDS, please click “WDS Settings” submenu for the related configuration. Furthermore, click the “Multiple AP” button to enable multiple SSID function.
Network Type	In Infrastructure, the wireless LAN serves as a wireless station. And the user can use the PC equipped with the WDAP-C7200AC to access the wireless network via other access points. In Ad hoc, the wireless LAN will use the Ad-hoc mode to operate.Default is “Infrastructure”.Note: Only while the wireless mode is set to “Client”, then the Network Type can be configured.
SSID	The ID of the wireless network. User can access the wireless network via its ID. However, if you switch to Client mode, this field becomes the SSID of the AP you want to connect with.Default: Planet AP 5G
Broadcast SSID	If you enable “Broadcast SSID”, every wireless station located within the coverage of the WDAP-C7200AC can discover its signal easily. If you are building a public wireless network, enabling this feature is recommended. In private network, disabling “Broadcast SSID” can provide better wireless network security.Default is “Enabled”.
Data Rate	Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this value unless you know what will happen after modification.Default is “Auto”.
Enable Mac Clone (Single Ethernet Client)	Enable Mac Clone.

Example of how to configure Client Mode. Please take the following steps: To configure each wireless parameter, please go to the "WLAN1 (5GHz) → Basic Settings" page. Step 1. Go to "WLAN1 (5GHz) → Site Survey" page and click "Site Survey" button.

Wireless Site Survey - WLAN1 (5GHz)

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.

Wireless Router



Range Extender

Site Survey

SSID	BSSID	Channel	Type	Encrypt	Signal
None

Figure 5-27 Client – Survey Step 2. Choose the root AP from the list. If the root AP is not listed in the table, re-click "Site Survey" to update the list.

Wireless Site Survey - WLAN1 (5GHz)

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.

SSID	BSSID	Channel	Type	Encrypt	Signal	Select
WDRT-1200AC-5G	00:30:4f:1c:7e:e4	149 (A+N+AC)	AP	WPA2- PSK	40
Default_5G_1	00:30:4f:b4:c4:a8	157 (A+N)	AP	WPA2- PSK	30

Next>> Figure 5-28 Client – AP List

Step 3. Enter the Security Key of the root AP and then click "Connect".

Wireless Site Survey - WLAN1 (5GHz)

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.  Encryption: WPA2 Authentication Mode: WPA2 Cipher Suite: Pre-Shared Key Format: Pre-Shared Key: < Connect successfully! Add to Wireless Profile Reboot Now Reboot Later

Figure 5-30 Client – Status

DS

Connect this Wireless AP with up to 8 WDS-capable wireless APs to expand the scope of network.


Wireless Basic Settings - WLAN1 (5 GHz) This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters. Disable Wireless LAN Interface Band: 5 GHz (A+N+AC) Mode: WDS MultipleAP Network Type: Infrastructure SSID: Planet AP 5G Add to Profile Channel Width: 80MHz Control Auto Sideband: Channel Number: 149 Broadcast SSID: Enabled WMM: Enabled Data Rate: Auto TX restrict: 0 Mbps (0:no restrict) RX restrict: 0 Mbps (0:no restrict) Associated Clients: Show Active Clients Enable Mac Clone (Single Ethernet Client) Enable Universal Repeater Mode (Acting as AP and client simultaneously) SSID of Extended Add to Profile Interface: Planet Rpt0 Apply Changes Reset

Figure 5-31 5GHz Wireless Basic Settings – WDS The page includes the following fields:

Object Description
Disable Wireless LAN Interface	Check the box to disable the wireless function.
Band	Select the desired mode. Default is “5GHz (A+N+AC)”. It is strongly recommended that you set the Band to “5GHz (A+N+AC)”, and all of 802.11a, 802.11n, and 802.11ac wireless stations can connect to theWDAP-C7200AC.■ 5 GHz (A): 802.11a mode, rate is up to 54Mbps■ 5 GHz (N): 802.11n mode, rate is up to 300Mbps■ 5 GHz (AC): 802.11n mode, rate is up to 867Mbps(2T2R)■ 5 GHz (A+N): 802.11a/n mode, rate is up to 300Mbps■ 5 GHz (N+AC): 802.11n/ac mode, rate is up to 300Mbps or 867Mbps■ 5 GHz (A+N+AC): 802.11a/n/ac mode, rate is up to 54Mbps, 300Mbps, or 867Mbps
Mode	There are four kinds of wireless mode selections:■ AP■ Client■ WDS■ AP+WDSIf you select WDS or AP+WDS, please click “WDS Settings” submenu for the related configuration. Furthermore, click the “Multiple AP” button to enable multiple SSID function.
Channel Width	You can select 20MHz, 40MHz or 80MHz.
Control Sideband	You can select Upper or Lower.
Channel Number	You can select the operating frequency of wireless network.
Data Rate	Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this value unless you know what will happen after modification.Default is “Auto”.

AP+WDS

Connect this wireless AP with up to 8 WDS-capable wireless APs, and connect another AP to provide service for all wireless stations within its coverage. WDS Repeater Mode

Wireless Basic Settings - WLAN1 (5 GHz)

Disable Wireless LAN Interface Band: 5 GHz (A+N+AC) Mode: AP+WDS MultipleAP Network Type: Infrastructure SSID: Planet AP 5G Add to Profile Channel Width: 80MHz Control Auto Sideband: Channel Number: 149 Broadcast SSID: Enabled WMM: Enabled Data Rate: Auto TX restrict: 0 Mbps (0:no restrict) RX restrict: 0 Mbps (0:no restrict) Associated Show Active Clients Clients: Enable Mac Clone (Single Ethernet Client) Enable Universal Repeater Mode (Acting as AP and client simultaneously) SSID of Extended Add to Profile Interface: Planet Rpt0 Apply Changes Reset

Figure 5-32 5GHz Wireless Basic Settings – WDS+AP The page includes the following fields:

Object Description
Disable Wireless LAN Interface	Check the box to disable the wireless function.
Country	Select your region from the pull-down list.This field specifies the region where the wireless function of the Router can be used. It may be illegal to use the wireless function of the Router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance.
Band	Select the desired mode. Default is “5GHz (A+N+AC)”. It is strongly recommended that you set the band to “5GHz (A+N+AC)”, and all of 802.11a, 802.11n, and 802.11ac wireless stations can connect to the WDAP-C7200AC.■ 5 GHz (A): 802.11a mode, rate is up to 54Mbps■ 5 GHz (N): 802.11n mode, rate is up to 300Mbps■ 5 GHz (AC): 802.11n mode, rate is up to 867Mbps(2T2R)■ 5 GHz (A+N): 802.11a/n mode, rate is up to 300Mbps■ 5 GHz (N+AC): 802.11n/ac mode, rate is up to 300Mbps or 867Mbps■ 5 GHz (A+N+AC): 802.11a/n/ac mode, rate is up to 54Mbps, 300Mbps, or 867Mbps
Mode	There are four kinds of wireless mode selections:■ AP■ Client■ WDS■ AP+WDSIf you select WDS or AP+WDS, please click “WDS Settings” submenu for the related configuration. Furthermore, click the “Multiple AP” button to enable multiple SSID functions.
SSID	The ID of the wireless network. User can access the wireless network via its ID only. However, if you switch to Client Mode, this field becomes the SSID of the AP you want to connect with.Default: Planet AP 5G
Channel Width	You can select 20MHz, 40MHz or 80MHz.
Control Sideband	You can select Upper or Lower.
Channel Number	You can select the operating frequency of wireless network.
Broadcast SSID	If you enable “Broadcast SSID”, every wireless station located within the coverage of the WDAP-C7200AC can discover its signal easily. If you are building a public wireless network, enabling this feature isrecommended. In private network, disabling “Broadcast SSID” can provide better wireless network security.Default is “Enabled”.
Data Rate	Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this value unless you know what will happen after modification.Default is “Auto”.
Associated Clients	Click the “Show Active Clients” button to show the status table of active wireless clients.
Enable Universal Repeater Mode(Acting as AP and client simultaneously)	Universal Repeater is a technology used to extend wireless coverage. To enable Universal Repeater mode, check the box and enter the SSID you want to broadcast in the field below. Then please click “Security” submenu for the related settings of the AP you want to connect with.

5.3.2 Advanced Settings

Choose menu "WLAN1 (5GHz)→ Advanced Settings" and you can configure the 5GHz advanced settings for the wireless network on this page. After the configuration, please click the "Apply" button to save the settings.

Wireless Advanced Settings - WLAN1 (5GHz) These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your Access Point. Fragment Threshold: 2346 (256-2346) RTS Threshold: 2347 (0-2347) Beacon Interval: 100 (20-1024 ms) IAPP: Enabled Disabled Protection: Enabled Disabled Aggregation: Enabled Disabled Short GI: Enabled Disabled WLAN Partition: Enabled Disabled STBC: Enabled Disabled LDPC: Enabled Disabled Apply Changes Reset

Figure 5-33 Wireless Advanced Settings – 5GHz The page includes the following fields:

Object Description
Fragment Threshold	You can specify the maximum size of packet during the fragmentation of data to be transmitted. If you set this value too low, it will result in bad performance.Default is “2346”.
RTS Threshold When the	packet size is smaller than the RTS threshold, the access point will not use the RTS/CTS mechanism to send this packet.Default is “2347”.
Beacon Interval The interval	val of time that this access point broadcasts a beacon.Beacon is used to synchronize the wireless network. Default is “100”.
IAPP IAPP (Inter-Access	Point Protocol) enabled is recommended as itdescribes an optional extension to IEEE 802.11 that provides wireless access-point communications among multivendor systems.Default is “Enabled”.
Protection It is recommended to enable the protection mechanism. This mechanism can decrease the rate of data collision between 802.11b and 802.11g wireless stations. When the protection mode is enabled, the throughput of the AP will be a little lower due to the transmission of heavy frame traffic.Default is “Disabled”.
Aggregation It is a function where the values of multiple rows are grouped together.Default is “Enabled”
Short GI It is used to set the time that the receiver waits for RF reflections to settle out before sampling data.Default is “Enabled”
WLAN Partition	This feature is also called “WLAN isolation” or “Block Relay”. If this is enabled, wireless clients cannot exchange data through the WDAP-C7200AC.Default is “Disabled”.
STBC	Activate Space Time Blocking Code (STBC) which does not need channel statement information (CSI).Default Setting: "Enabled"
LDPC	Low-density Parity-check Code is wireless data transmit algorithm.Default Setting: "Enabled"

5.3.3 RF Output Power

Choose menu "WLAN1 (5GHz) → RF Output Power" to adjust to different levels of transmitting power for the wireless network according to various environments on this page. After the configuration, please click the "Apply Changes" button to save the settings.

Wireless RF Output Power - WLAN1 (5GHz)

RF Output Power Control provides the flexibility to control the WiFi Transmit power to optimize the wireless range. Wifi power consumption for a Access Point could be reduced to up to 75% from its peak power consumption for serving a small to medium size home, while boosted to maximum power for a large homes and businesses. The WDAP-C7200AC supports output power control levels up to 5. You can change the RF output power level here depends on the various environments and signal strength.  Figure 5-34 RF Output Power - 5GHz RF Output Power Control provides the flexibility to control the Wi-Fi transmit power to optimize the wireless range. Wi-Fi power consumption for an Access Point could be reduced to up to 75% from its peak power consumption for serving small to medium size homes, while boosted to maximum power for large homes and businesses. The WDAP-C7200AC supports output power control levels up to 5. You can change the RF output power level here in accordance with various environments and signal strength.

5.3.4 Security

Choose menu “WLAN1 (5GHz) → Security” and you can configure the settings of wireless security for the wireless network on this page. After the configuration, please click the “Apply Changes” button to save the settings.

Wireless Security Setup - WLAN1 (5GHz) This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - Planet AP 5G Apply Changes Reset Wireless Router Internet Home Network 5GHz Wi-Fi Network Encryption: Disable 802.1x Authentication:

Figure 5-35 Wireless Security Settings – 5GHz The page includes the following fields:

Object Description
Select SSID	Select the SSID you want to configure the wireless security function, which includes the root one and the client one.
Encryption	■ Disable:No security setup for wireless connection.
	■ VEP:It is based on the IEEE 802.11 standard. And the default setting of authentication is Automatic, which can select Open System or Shared Key authentication type automatically based on the wireless station's capability and request. Furthermore, you can select Key Length and enter 10 and 26 Hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 5 and 13 ASCII characters in the Encryption Key field.
	■ VPA:WPA is a medium level encryption and is supported by most wireless devices and operating systems.
	■ VPA2:WPA2 is a high level encryption and is supported by most wireless devices and operating systems.
	■ VPA / WPA2 / WPA-Mixed:WPA Mixed Mode allows the use of both WPA and WPA2 at the same time.
Authentication Mode	■ Enterprise (RADIUS)When you select the authentication mode based on Enterprise (Radius Server), please enter the IP Address, Port, and Password of the Radius Server.
	■ Personal (Pre-Shared Key)When you select the other authentication mode based on Personal (Pre-Shared Key), please enter at least 8 ASCII characters (Passphrase) or 64 Hexadecimal characters. All of the Cipher Suites support TKIP and AES.
802.1x Authentication	Enable 802.1x authentication function and then please enter the IP Address, Port, and Password of the Radius Server.

5.3.5 Access Control

Choose menu "WLAN1 (5GHz) → Access Control" to allow or deny the computer of specified MAC address to connect with the WDAP-C7200AC on this page. After the configuration, please click the "Apply Changes" button to save the settings.

Wireless Access Control - WLAN1 (5GHz) If you choose 'Allowed Listed', only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point. When 'Deny Listed' is selected, these wireless clients on the list will not be able to connect the Access Point. Wireless Access Control Mode: Disable Disable MAC Address: Allow Listed Deny Listed Apply Changes Reset Current Access Control List: MAC Address Comment Select Delete Selected Delete All Reset

Figure 5-36 Wireless Access Control – 5GHz The page includes the following fields:

Object Description
Wireless Access Control Mode	You can choose to set the Allowed-List, Denied-List, or disable this function.
MAC Address	Enter the MAC address you want to allow or deny connection to the WDAP-C7200AC in the field.
Comment	You can make some comment on each MAC address on the list.
Current Access Control List	You can select some MAC addresses and click the “Delete Selected” button to delete it.

To deny a PC at the MAC address of 00:30:4F:00:00:01 (for example) to connect to your wireless network, do as follows: Step 1. Select "Deny" from MAC Address Filter drop-down menu. Step 2. Enter 00:30:4F:00:00:01 in the MAC address box and click "Add". Step 3. Click the "OK" button to save your settings and you can add more MAC addresses, if you like, simply repeat the above steps.

Wireless Access Control - WLAN1 (5GHz) If you choose 'Allowed Listed', only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point. When 'Deny Listed' is selected, these wireless clients on the list will not be able to connect the Access Point. Wireless Access Control Mode: Deny Listed MAC Address: Comment: Apply Changes Reset Current Access Control List: MAC Address Comment Select 00:30:4f:00:00:01 deny Delete Selected Delete All Reset

Figure 5-37 Wireless Access Control – Deny

5.3.6 WDS

WDS (Wireless Distribution System) feature can be used to extend your existing 2.4G or 5G wireless network coverage. Here we present you how to configure such feature in 2.4GHz, which also applies to 5GHz. WDS Repeater Mode

WDS Bridge-PtMP Mode

WDS Repeater Mode

Before configuring the WDS Setting page, you have to select the wireless mode to "WDS" on the WLAN1 (5GHz) -> Basic Settings web page.

Wireless Basic Settings - WLAN1 (5 GHz) Disable Wireless LAN Interface Band: 5 GHz (A+N+AC) Mode: WDS MultipleAP Network Type: Infrastructure SSID: Planet AP 5G Add to Profile Channel Width: 80MHz

Figure 5-38 WDS Mode - 5GHz Choose menu "WLAN1 (5GHz) → WDS Settings" to configure WDS to connect the WDAP-C7200AC with another AP on this page. After the configuration, please click the "Apply Changes" button to save the settings.

WDS Settings - WLAN1 (5GHz) Wireless Distribution System uses wireless media to communicate with other APs, like the Ethernet does. To do this, you must set these APs in the same channel and set MAC address of other APs which you want to communicate with in the table and then enable the WDS. Enable WDS MAC Address: Data Rate: Auto Comment: Apply Changes Reset Set Security Show Statistics Current WDS AP List: MAC Address Tx Rate (Mbps) Comment Select 00:30:4f:11:11:11 Auto peer-1 00:30:4f:22:22:22 Auto peer-2 00:30:4f:33:33:33 Auto peer-3 00:30:4f:44:44:44 Auto peer-4 00:30:4f:55:55:55 Auto peer-5 00:30:4f:66:66:66 Auto peer-6 00:30:4f:77:77:77 Auto peer-7 00:30:4f:88:88:88 Auto peer-8 Delete Selected Delete All Reset

Figure 5-39 WDS Settings – 5GHz

WDS Security Setup -wlan1 This page allows you setup the wireless security for WDS. When enabled, you must make sure each WDS device has adopted the same encryption algorithm and Key. Encryption: None WEP Key Format: ASCII (5 characters) WEP Key: Pre-Shared Key Format: Passphrase Pre-Shared Key: Apply Changes Reset

Figure 5-40 WDS – Set Security The page includes the following fields:

Object Description
Enable WDS	Check the box to enable the WDS function. Please select WDS or AP+WDS in the Mode of Wireless Basic Settings before you enable WDS on this page.
MAC Address You can enter the MAC address of the AP you want to connect with.
Data Rate Default is “Auto”.
Comment You can make some comment for each MAC address on the list.
Set Security	Click the “Set Security” button to configure the wireless security parameters of the AP you want to connect via WDS.
Show Statics Click the “Show Statics” button to show the WDS AP.
Current WDS AP List	You can select some MAC addresses of the AP and click the “Delete Selected” button to delete it.

 Note WDS feature can only be implemented between 2 wireless devices that both support the WDS feature. Plus, channel, security settings and security key must be the same on both such devices.  Note To encrypt your wireless network, click "Set Security". For the detail of wireless security, see section 5.3.3. Do remember to reboot the device after you save your wireless security settings; otherwise, the WDS feature may not function.

5.3.7 Site Survey

Choose menu "WLAN1 (5GHz) → Site Survey" to scan the available local AP. If any Access Point is found, you could choose any one to connect with manually when the Client Mode is enabled.

Wireless Site Survey - WLAN1 (5GHz)

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.

Wireless Router



Range Extender

Site Survey

SSID	BSSID	Channel	Type	Encrypt	Signal	Select
WDRT-1200AC-5G	00:30:4f:26:60:80	149(A+N+AC)	AP	WPA2-PSK	67
WDRT-1200AC-5G	00:30:4f:1c:7e:e4	149(A+N+AC)	AP	WPA2-PSK	40
Default_5G_1	00:30:4fb4:c4:a8	157 (A+N)	AP	WPA2-PSK	30

Next>> Figure 5-41 Site Survey – 5GHz

5.3.8 WPS

WPS (Wi-Fi Protected Setup) is designed to ease setup of security Wi-Fi networks and subsequently network management. This Wireless Router supports WPS features for AP mode, AP+WDS mode, Infrastructure-Client mode, and the wireless root interface of Universal Repeater mode. Simply enter a PIN code or press the software PBC button or hardware WPS button (if any) and a secure wireless connection is established. ■ PBC: If you find the WPS LED blinking for 2 minutes after you press the hardware WPS button on the device, it means that PBC encryption method is successfully enabled. And an authentication will be performed between your router and the WPS/PBC-enabled wireless client device during this time; if it succeeds, the wireless client device connects to your device, and the WPS LED turns off. Repeat steps mentioned above if you want to connect more wireless client devices to the device. ■ PIN : To use this option, you must know the PIN code from the wireless client and enter it in corresponding field on your device while using the same PIN code on client side for such connection. The page includes the following fields:

Object Description
Disable WPS	You can check the box to disable the WPS function.
WPS Status	Here you can check if the connection via WPS is established or not.
Self-PIN Number	It is the PIN number of the WDAP-C7200AC here.
Push Button Configuration	Click the “Start PBC” to activate WPS as well in the client device within 2 minutes.
Client PIN Number	In addition to the PBC method, you can also use the PIN method to activate the WPS. Just enter the PIN number of the client device in the field and click the “Start PIN” button.

 The WPS encryption can be implemented only between your Router and another WPS-capable device. Example of how to establish wireless connection using WPS. Please take the following steps: Step 1. Choose menu “WLAN1 (5GHz) → WPS” to configure the setting for WPS. After the configuration, please click the “Apply Changes” button to save the settings. Step 2. Add a new device. If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and AP using either Push Button Configuration (PBC) method or PIN method.  To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function. A. By Push Button Configuration (PBC) i. Click the "Start PBC" Button on the WPS page of the AP.

WPS Status: Configured UnConfigured Reset to UnConfigured Auto-lock-down state: unlocked Unlock Self-PIN Number: 15051813 Push Button Configuration: Start PBC STOP WSC Stop WSC Client PIN Number: Start PIN

Figure 5-42 WPS-PBC - 5GHz-1

Start PBC successfully! You have to run Wi-Fi Protected Setup in client within 2 minutes. OK

Figure 5-43 WPS-PBC - 5GHz-2 ii. Press and hold the WPS Button equipped on the adapter directly for 2 or 3 seconds. Or you can click the WPS button with the same function in the configuration utility of the adapter. The process must be finished within 2 minutes. iii. Wait for a while until the next screen appears. Click OK to complete the WPS configuration.

B. By PIN

If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Method One: Enter the PIN of your Wireless adapter into the configuration utility of the AP i. Enter the PIN code of the wireless adapter in the field behind Client PIN Number in the following figure. Then click Start PIN.  The PIN code of the adapter is always displayed on the WPS configuration screen.

WPS Status: Configured UnConfigured Reset to UnConfigured Auto-lock-down state: unlocked Unlock Self-PIN Number: 15051813 Push Button Configuration: Start PBC STOP WSC Stop WSC Client PIN Number: Start PIN

Figure 5-44 WPS-PIN - 5GHz-1

Applied WPS PIN successfully! You have to run Wi-Fi Protected Setup within 2 minutes. OK

Figure 5-45 WPS-PIN - 5GHz-2 ii. For the configuration of the wireless adapter, please choose the option that you want to enter PIN into the AP (Enrollee) in the configuration utility of the WPS and click Next until the process finishes. Method Two: Enter the PIN of the AP into the configuration utility of your Wireless adapter i. Click the "Start PBC" Button on the WPS page of the AP. Get the Current PIN code of the AP in WPS page (each AP has its unique PIN code).

WPS Status: Configured UnConfigured Reset to UnConfigured Auto-lock-down state: unlocked Unlock Self-PIN Number: 15051813 Enter this PIN into the wireless adapter's configuration page. Push Button Configuration: Start PBC STOP WSC Stop WSC Client PIN Number: Start PIN

Figure 5-46 WPS-PIN - 5GHz-3 ii. For the configuration of the wireless adapter, please choose the option that you want to enter the PIN of the AP (Registrar) in the configuration utility of the Wireless adapter and enter it into the field. Then click Next until the process finishes.

5.3.9 Schedule

Wireless Schedules will enable or disable your wireless access at a set time based on your predefined schedule. This feature is often used for restricting access to all users (such as children, employees and guests) during specific times of the day for parental control or security reasons. Choose menu "WLAN1 (5GHz) → Schedule" to configure the schedule rule of enabling wireless function. After the configuration, please click the "Apply Changes" button to save the settings.

Wireless Schedule - WLAN1 (5GHz)

This page allows you setup the wireless schedule rule. Please do not forget to configure system time before enable this feature.  Enable Wireless Schedule

Schedulable Wireless ON/OFF Control

Enable	Day	From				To
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)	00
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)	00
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)	00
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour) 00	√ (min)
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)	00
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)	00
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)00	√ (min)
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)	00
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)	00
	Sun	√	00	√ (hour)	00	√ (min)	100	√ (hour)	00
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)	00
	Sun	√	00	√ (hour)	00	√ (min)	00	√ (hour)	00

Apply Changes Reset Figure 5-47 Schedule - 5GHz  When setting the Wireless Schedule, it is important to ensure that your System Clock settings have been configured. If not, your Wireless Schedule will not function correctly.

5.4 WLAN2 (2.4GHz)

The Wireless menu contains submenus of the settings about wireless network. Please refer to the following sections for the details.

WLAN2 (2.4 GHz) > Basic Settings > Advanced Settings > RF Output Power > Security > Access Control > WDS Settings > Site Survey > WPS > Schedule

Figure 5-48 2.4GHz Wireless Main Menu

5.4.1 Basic Settings

Choose menu "WLAN2 (2.4GHz) → Basic Settings" to configure the 2.4GHz basic settings for the wireless network on this page. After the configuration is done, please click the "Apply Changes" button to save the settings. First of all, the wireless AP supports multiple wireless modes for different network applications, which include: AP ■ Multiple SSIDs ■ Universal Repeater ■ Client WDS AP+WDS It is so easy to combine the WDAP-C7200AC with the existing wired network. The WDAP-C7200AC definitely provides a total network solution for the home and the SOHO users.  Standard Access Point

AP(Multi-SSID) Mode

Internet  WDAP-C7200AC  SSID-1(5G)  Clients SSI D-2(2.4G)  Clients  AP Mode

Wireless Basic Settings - WLAN2 (2.4GHz)

□ Disable Wireless LAN Interface Band: 2.4 GHz (B+G+N)  Mode: AP  MultipleAP Network Type: Infrastructure  SSID: Planet AP 2.4G Add to Profile Channel Width: 40MHz  Control Upper  Sideband: Channel Number: 11  Broadcast SSID: Enabled  WMM: Enabled  Data Rate: Auto  TX restrict: Mbps (0:no restrict) RX restrict: 0 Mbps (0:no restrict) Associated Clients: Show Active Clients Enable Mac Clone (Single Ethernet Client) ☐ Enable Universal Repeater Mode (Acting as AP and client simultaneously) SSID of Extended Interface: Planet Rpt1 Add to Profile Apply Changes Reset Figure 5-49 2.4GHz Wireless Basic Settings – AP The page includes the following fields:

Object Description
Disable Wireless LAN Interface	Check the box to disable the wireless function.
Band	Select the desired mode. Default is “2.4GHz (B+G+N)”. It is strongly recommended that you set the Band to “2.4GHz (B+G+N)”, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the WDAP-C7200AC.■ 2.4 GHz (B): 802.11b mode, rate is up to 11Mbps■ 2.4 GHz (G): 802.11g mode, rate is up to 54Mbps■ 2.4 GHz (N): 802.11n mode, rate is up to 300Mbps(2T2R)■ 2.4 GHz (B+G): 802.11b/g mode, rate is up to 11Mbps or 54Mbps■ 2.4 GHz (G+N): 802.11g/n mode, rate is up to 54Mbps or 300Mbps■ 2.4 GHz (B+G+N): 802.11b/g/n mode, rate is up to 11Mbps, 54Mbps, or 300Mbps
Mode	There are four kinds of wireless mode selections:■ AP■ Client■ WDS■ AP+WDSIf you select WDS or AP+WDS, please click “WDS Settings” submenu for the related configuration. Furthermore, click the “Multiple AP” button to enable multiple SSID function.
SSID	The ID of the wireless network. User can access the wireless network via the ID only. However, if you switch to Client Mode, this field becomes the SSID of the AP you want to connect with.Default: Planet AP 2.4G
Channel Width	You can select 20MHz, or 40MHz.
Channel Number	You can select the operating frequency of wireless network.Default: 11
Broadcast SSID	If you enable “Broadcast SSID”, every wireless station located within the coverage of the AP can discover its signal easily. If you are building a public wireless network, enabling this feature is recommended. In private network, disabling “Broadcast SSID” can provide better wireless network security.Default is “Enabled”.
Data Rate	Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this value unless you know what will happen after modification.Default is “Auto”.
Associated Clients	Click the “Show Active Clients” button to show the status table of active wireless clients.

Enable Universal Repeater Mode (Acting as AP and client simultaneously) Universal Repeater is a technology used to extend wireless coverage. To enable Universal Repeater mode, check the box and enter the SSID you want to broadcast in the field below. Then please click "Security" submenu for the related settings of the AP you want to connect with.

- multiple-SSID

Enable multiple-SSID can broadcast multiple WLAN SSID's using virtual interfaces. You can have different encryption settings for each WLAN and you can restrict what they have access to.

Choose menu "WLAN1 (2.4GHz) → Basic Settings → Multiple AP" to configure the device as a general wireless access point with multiple SSIDs.

Wireless Basic Settings - WLAN2 (2.4GHz) Disable Wireless LAN Interface Band: 2.4 GHz (B+G+N) Mode: AP MultipleAP Network Type: Infrastructure SSID: Planet AP 2.4G Add to Profile

Figure 5-50 2.4GHz Wireless Basic Settings – Multiple AP The device supports up to four multiple Service Set Identifiers. You can back to the Basic Settings page to set the Primary SSID. The SSID's factory default setting is Planet 2.4G VAP1\~4 (Multiple-SSID 1\~4). The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network. When the information for the new SSID is finished, click the Apply Changes button to let your changes take effect.

Multiple APs Multiple APs - WLAN2 (2.4GHz)

This page shows and updates the wireless setting for multiple APs.

No. Enable Band SSID Data Rate Broadcast SSID WMM Access Tx Restrict (Mbps) Rx Restrict (Mbps) Active Client List WLAN mode AP1 ✓ 2.4 GHz (B+G+N) ✓ Planet 2.4G VA Auto ✓ Enabled ✓ Enabled ✓ LAN ✓ 0 0 Show AP AP2 ✓ 2.4 GHz (B+G+N) ✓ Planet 2.4G VA Auto ✓ Enabled ✓ Enabled ✓ LAN ✓ 0 0 Show AP AP3 ✓ 2.4 GHz (B+G+N) ✓ Planet 2.4G VA Auto ✓ Enabled ✓ Enabled ✓ LAN ✓ 0 0 Show AP AP4 ✓ 2.4 GHz (B+G+N) ✓ Planet 2.4G VA Auto ✓ Enabled ✓ Enabled ✓ LAN ✓ 0 0 Show AP Apply Changes Reset

Figure 5-51 2.4GHz Multiple-SSID Once you have applied and saved those settings, you can then go to the "WLAN1 (2.4GHz) → Security" page on the AP to set up security settings for each of the SSIDs.

niversal Repeater

This mode allows the AP with its own BSS to relay data to a root AP to which it is associated with WDS disabled. The wireless repeater relays signal between its stations and the root AP for greater wireless range.

2. Example of how to configure Universal Repeater Mode. Please take the following steps: To configure each wireless parameter, please go to the "WLAN2 (2.4GHz) → Basic Settings" page. Step 1. Configure wireless mode to "AP" and then check "Enable Universal Repeater Mode (Acting as AP and client simultaneously)". Click "Apply Changes" to take effect.

Wireless Basic Settings - WLAN2 (2.4GHz) This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters. Disable Wireless LAN Interface Band: 2.4 GHz (B+G+N) Mode: AP MultipleAP Network Type: Infrastructure SSID: Planet AP 2.4G Add to Profile Enable Mac Clone (Single Ethernet Client) Enable Universal Repeater Mode (Acting as AP and client simultaneously) SSID of Extended Interface: Planet Rpt1 Add to Profile Apply Changes Reset

Figure 5-52 2.4GHz Universal Repeater-1 Step 2. Go to 2.4GHz Site Survey page to find the root AP. Select the root AP that you want to repeat the signal, and then click "Next".

Wireless Site Survey - WLAN2 (2.4GHz)

 Figure 5-53 2.4GHz Universal Repeater-2

Step 3. Select the correct encryption method and enter the security key. Then, click "Connect".

Wireless Site Survey - WLAN2 (2.4GHz)

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.  Encryption: WPA2 Authentication Mode: WPA2 Cipher Suite: Pre-Shared Key Format: Pre-Shared Key: <Step 4. Check "Add to Wireless Profile" and click "Reboot Now".  Connect successfully! Add to Wireless Profile Reboot Now Reboot Later Figure 5-55 2.4GHz Universal Repeater-4

Step 5. Go to "Management-> Status" page to check whether the state of Repeater interface should be "Connected".

Wireless 2 Repeater Interface Configuration
Mode	Infrastructure Client
SSID	Default_2.4G_1
Encryption	WPA2
BSSID	00:30:4f:b4:c4:a0
State	Connected

Figure 5-56 2.4GHz Universal Repeater-5

ient (Infrastructure)

Combine the Wireless Router to the Ethernet devices such as TV, Game player, or HDD and DVD, to make them be wireless stations.


Wireless Basic Settings - WLAN2 (2.4GHz) Disable Wireless LAN Interface Band: 2.4 GHz (B+G+N) Mode: Client Network Type: Infrastructure MultiAP SSID: Planet AP 2.4G Add to Profile Channel Width: 40MHz Control Sideband: Upper Channel Number: 11 Broadcast SSID: Enabled WMM: Enabled Data Rate: Auto TX restrict: 0 Mbps (0:no restrict) RX restrict: 0 Mbps (0:no restrict) Associated Clients: Show Active Clients Enable Mac Clone (Single Ethernet Client) SSID of Extended Interface: Default_2.4G_1 Add to Profile Enable Wireless Profile Wireless Profile List: SSID Encrypt Select Delete Selected DeleteAll

Figure 5-57 2.4GHz Wireless Basic Settings – Client The page includes the following fields:

Object Description
Disable Wireless LAN Interface	Check the box to disable the wireless function.
Band	Select the desired mode. Default is “2.4GHz (B+G+N)”. It is strongly recommended that you set the Band to “2.4GHz (B+G+N)”, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the WDAP-C7200AC.■ 2.4 GHz (B): 802.11b mode, rate is up to 11Mbps■ 2.4 GHz (G): 802.11g mode, rate is up to 54Mbps■ 2.4 GHz (N): 802.11n mode, rate is up to 300Mbps(2T2R)■ 2.4 GHz (B+G): 802.11b/g mode, rate is up to 11Mbps or 54Mbps■ 2.4 GHz (G+N): 802.11g/n mode, rate is up to 54Mbps or 300Mbps■ 2.4 GHz (B+G+N): 802.11b/g/n mode, rate is up to 11Mbps, 54Mbps, or 300Mbps
Mode	There are four kinds of wireless mode selections:■ AP■ Client■ WDS■ AP+WDSIf you select WDS or AP+WDS, please click “WDS Settings” submenu for the related configuration. Furthermore, click the “Multiple AP” button to enable multiple SSID function.
Network Type	In Infrastructure, the wireless LAN serves as a wireless station. And the user can use the PC equipped with the WDAP-C7200AC to access the wireless network via other access points. In Ad hoc, the wireless LAN will use the Ad-hoc mode to operate.Default is “Infrastructure”.Note: only while the wireless mode is set to “Client”, then the Network Type can be configured.
SSID	The ID of the wireless network. User can access the wireless network via the ID only. However, if you switch to Client Mode, this field becomes the SSID of the AP you want to connect with.Default: Planet AP 2.4G
Broadcast SSID	If you enable “Broadcast SSID”, every wireless station located within the coverage of the WDAP-C7200AC can discover its signal easily. If you are building a public wireless network, enabling this feature is recommended. In private network, disabling “Broadcast SSID” can provide better wireless network security.Default is “Enabled”.
Data Rate	Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this value unless you know what will happen after modification.Default is “Auto”.
Enable Mac Clone (Single Ethernet Client)	Enable Mac Clone.

Example of how to configure Client Mode. Please take the following steps: To configure each wireless parameter, please go to the "WLAN2 (2.4GHz) → Basic Settings" page. Step 1. Go to "WLAN2 (2.4GHz) → Site Survey" page and click "Site Survey" button.

Wireless Site Survey - WLAN2 (2.4GHz)

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.  Site Survey Figure 5-58 Client – Survey Step 2. Choose the root AP from the list. If the root AP is not listed in the table, re-click "Site Survey" to update the list.

Wireless Site Survey - WLAN2 (2.4GHz)

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.

Wireless Router



Range Extender

Site Survey

SSID	BSSID	Channel	Type	Encrypt	Signal	Select
WDRT-1200AC-5G	00:30:4f:74:20:08	6(B+G+N)	AP	WPA2-PSK	78	[008T]
WDRT-1200AC-5G	00:30:4f:76:20:08	6(B+G+N)	AP	WPA2-PSK	78	[SW73]
WiFiRepeater-001	00:30:4f:91:1c:44	1(B+G+N)	AP	no	60	[00AW]
Default_2.4G_1	00:30:4fb4:c4:a0	11(B+G+N)	AP	WPA2-PSK	52	[1X212]
WDRT-1200AC-2.4G	00:30:4f:1c:7e:e4	6(B+G+N)	AP	WPA2-PSK	44	[SW16]
ADN-4100_ENM	00:30:4f:9c:a3:25	1(B+G+N)	AP	WPA-PSK/WPA2-PSK	44	[24A]
PLANET_11F_AP	00:30:4f:81:ed:88	11(B+G+N)	AP	WPA2-PSK	29	[1X34]

Next>> Figure 5-59 Client – AP List Step 3. Enter the Security Key of the root AP and then click "Connect".

Wireless Site Survey - WLAN2 (2.4GHz)


Wireless Router Recommended Signal Strength >70% Range Extender Encryption: WPA2 Authentication Mode: WPA2 Cipher Suite: Pre-Shared Key Format: Pre-Shared Key: < Figure 5-60 Client – Security Step 4. Wait until the connection established. Check the "Add to Wireless Profile" option and then reboot it.

Connect successfully! Add to Wireless Profile Reboot Now Reboot Later

Figure 5-61 Client – Status

DS

Connect this Wireless AP with up to 8 WDS-capable wireless APs to expand the scope of network.
WDS Bridge-PtMP Mode

Wireless Basic Settings - WLAN2 (2.4GHz)

This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters. □ Disable Wireless LAN Interface

Band: 2.4 GHz (B+G+N) Mode: WDS MultipleAP Network Type: Infrastructure SSID: Planet AP 2.4G Add to Profile Channel Width: 40MHz Control Upper Sideband: Channel Number: 11 Broadcast SSID: Enabled WMM: Enabled Data Rate: Auto TX restrict: 0 Mbps (0:no restrict) RX restrict: 0 Mbps (0:no restrict) Associated Clients: Show Active Clients Enable Mac Clone (Single Ethernet Client) Enable Universal Repeater Mode (Acting as AP and client simultaneously) SSID of Extended Interface: Default_2.4G_1 Add to Profile Apply Changes Reset

Figure 5-62 2.4GHz Wireless Basic Settings – WDS The page includes the following fields:

Object Description
Disable Wireless LAN Interface	Check the box to disable the wireless function.
Band	Select the desired mode. Default is “2.4GHz (B+G+N)”. It is strongly recommended that you set the Band to “2.4GHz (B+G+N)”, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the WDAP-C7200AC.■ 2.4 GHz (B): 802.11b mode, rate is up to 11Mbps■ 2.4 GHz (G): 802.11g mode, rate is up to 54Mbps■ 2.4 GHz (N): 802.11n mode, rate is up to 300Mbps(2T2R)■ 2.4 GHz (B+G): 802.11b/g mode, rate is up to 11Mbps or 54Mbps■ 2.4 GHz (G+N): 802.11g/n mode, rate is up to 54Mbps or 300Mbps■ 2.4 GHz (B+G+N): 802.11b/g/n mode, rate is up to 11Mbps, 54Mbps, or 300Mbps
Mode	There are four kinds of wireless mode selections:■ AP■ Client■ WDS■ AP+WDSIf you select WDS or AP+WDS, please click “WDS Settings” submenu for the related configuration. Furthermore, click the “Multiple AP” button to enable multiple SSID function.
Channel Width	You can select 20MHz, or 40MHz
Control Sideband	You can select Upper or Lower.
Channel Number	You can select the operating frequency of wireless network.
Data Rate	Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this value unless you know what will happen after modification.Default is “Auto”.

P+ WDS

Connect this Wireless AP with up to 8 WDS-capable wireless APs, and connect another AP to provide service for all wireless stations within its coverage.

WDS Repeater Mode

Internet

Wireless Basic Settings - WLAN2 (2.4GHz)

This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters. □ Disable Wireless LAN Interface Band: 2.4 GHz (B+G+N) Mode: AP+WDS MultipleAP Network Type: Infrastructure SSID: Planet AP 2.4G Add to Profile Channel Width: 40MHz 40MHz Control Upper Sideband: 11 Channel Number: Broadcast SSID: Enabled WMM: Enabled Data Rate: Auto TX restrict: 0 Mbps (0:no restrict) RX restrict: 0 Mbps (0:no restrict) Associated Clients: Show Active Clients Enable Mac Clone (Single Ethernet Client) ☐ Enable Universal Repeater Mode (Acting as AP and client simultaneously) SSID of Extended Interface: Default\_2.4G\_1 Add to Profile Apply Changes Reset Figure 5-63 2.4GHz Wireless Basic Settings – WDS+AP The page includes the following fields:

Object Description
Disable Wireless LAN Interface	Check the box to disable the wireless function.
Country	Select your region from the pull-down list.This field specifies the region where the wireless function of the Router can be used. It may be illegal to use the wireless function of the Router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance.
Band	Select the desired mode. Default is “2.4GHz (B+G+N)”. It is strongly recommended that you set the Band to “2.4GHz (B+G+N)”, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the WDAP-C7200AC.■ 2.4 GHz (B): 802.11b mode, rate is up to 11Mbps■ 2.4 GHz (G): 802.11g mode, rate is up to 54Mbps■ 2.4 GHz (N): 802.11n mode, rate is up to 300Mbps(2T2R)■ 2.4 GHz (B+G): 802.11b/g mode, rate is up to 11Mbps or 54Mbps■ 2.4 GHz (G+N): 802.11g/n mode, rate is up to 54Mbps or 300Mbps■ 2.4 GHz (B+G+N): 802.11b/g/n mode, rate is up to 11Mbps, 54Mbps, or 300Mbps
Mode	There are four kinds of wireless mode selections:■ AP■ Client■ WDS■ AP+WDSIf you select WDS or AP+WDS, please click “WDS Settings” submenu for the related configuration. Furthermore, click the “Multiple AP” button to enable multiple SSID function.
SSID	The ID of the wireless network. User can access the wireless network via the ID only. However, if you switch to Client Mode, this field becomes the SSID of the AP you want to connect with.Default: Planet AP 2.4G
Channel Width	You can select 20MHz, or 40MHz
Control Sideband	You can select Upper or Lower.
Channel Number	You can select the operating frequency of wireless network.
Broadcast SSID	If you enable “Broadcast SSID”, every wireless station located within the coverage of the WDAP-C7200AC can discover its signal easily. If you are building a public wireless network, enabling this feature is recommended. In private network, disabling “Broadcast SSID” canprovide better wireless network security.Default is “Enabled”.
Data Rate	Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this value unless you know what will happen after modification.Default is “Auto”.
Associated Clients	Click the “Show Active Clients” button to show the status table of active wireless clients.
Enable Universal Repeater Mode (Acting as AP and client simultaneously)	Universal Repeater is a technology used to extend wireless coverage. To enable Universal Repeater Mode, check the box and enter the SSID you want to broadcast in the field below. Then please click “Security” submenu for the related settings of the AP you want to connect with.

5.4.2 Advanced Settings

Choose menu "WLAN2 (2.4GHz)→ Advanced Settings" to configure the 2.4GHz advanced settings for the wireless network on this page. After the configuration, please click the "Apply" button to save the settings.

Wireless Advanced Settings - WLAN2 (2.4GHz) These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your Access Point. Fragment Threshold: 2346 (256-2346) RTS Threshold: 2347 (0-2347) Beacon Interval: 100 (20-1024 ms) Preamble Type: Long Preamble Short Preamble IAPP: Enabled Disabled Protection: Enabled Disabled Aggregation: Enabled Disabled Short GI: Enabled Disabled WLAN Partition: Enabled Disabled STBC: Enabled Disabled LDPC: Enabled Disabled 20/40MHz Coexist: Enabled Disabled Apply Changes Reset

Figure 5-64 Wireless Advanced Settings - 2.4GHz The page includes the following fields:

Object Description
Fragment Threshold	You can specify the maximum size of packet during the fragmentation of data to be transmitted. If you set this value too low, it will result in bad performance.Default is “2346”.
RTS Threshold When the	packet size is smaller than the RTS threshold, the access point will not use the RTS/CTS mechanism to send this packet.Default is “2347”.
Beacon Interval The interval	val of time that this access point broadcasts a beacon.Beacon is used to synchronize the wireless network. Default is “100”.
IAPP IAPP (Inter-Access	Point Protocol) enabled is recommended as itdescribes an optional extension to IEEE 802.11 that provides wireless access-point communications among multivendor systems.Default is “Enabled”.
Protection It is recommended to enable the protection mechanism. This mechanism can decrease the rate of data collision between 802.11b and 802.11g wireless stations. When the protection mode is enabled, the throughput of the AP will be a little lower due to the transmission of heavy frame traffic.Default is “Disabled”.
Aggregation It is a function where the values of multiple rows are grouped together.Default is “Enabled”
Short GI It is used to set the time that the receiver waits for RF reflections to settle out before sampling data.Default is “Enabled”
WLAN Partition	This feature also called “WLAN isolation” or “Block Relay”. If this is enabled, wireless clients cannot exchange data through the WDAP-C7200AC.Default is “Disabled”.
STBC	Activate Space Time Blocking Code (STBC) which does not need channel statement information (CSI).Default Setting: "Enabled"
LDPC	Low-density Parity-check Code is wireless data transmit algorithm.Default Setting: "Enabled"
20/40MHz Coexist Configure	20/40MHz coexisting scheme.If you set up as "Enabled", "20MHz" and "40MHz" will coexist.Default Setting: "Disabled"

5.4.3 RF Output Power

Choose menu "WLAN2 (2.4GHz) → RF Output Power" to adjust to different levels of transmitting power for the wireless network according to various environment on this page. After the configuration, please click the "Apply Changes" button to save the settings.

Wireless RF Output Power - WLAN2 (2.4GHz)

RF Output Power Control provides the flexibility to control the WiFi Transmit power to optimize the wireless range. Wifi power consumption for a Access Point could be reduced to up to 75% from its peak power consumption for serving a small to medium size home, while boosted to maximum power for a large homes and businesses. The WDAP-C7200AC supports output power control levels up to 5. You can change the RF output power level here depends on the various environments and signal strength.  Figure 5-65 RF Output Power - 2.4GHz RF Output Power Control provides the flexibility to control the Wi-Fi Transmit power to optimize the wireless range. Wi-Fi power consumption for an Access Point could be reduced to up to 75% from its peak power consumption for serving small to medium size homes, while boosted to maximum power for large homes and businesses. The WDAP-C7200AC supports output power control levels up to 5. You can change the RF output power level here in accordance with various environments and signal strength.

5.4.4 Security

Choose menu "WLAN2 (2.4GHz) → Security" to configure the settings of wireless security for the wireless network on this page. After the configuration, please click the "Apply Changes" button to save the settings.

Wireless Security Setup - WLAN2 (2.4GHz) This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - Planet AP 2.4G Apply Changes Reset Wireless Router Internet Home Network 2.4GHz Wi-Fi Network Encryption: Disable 802.1x Authentication:

Figure 5-66 Wireless Security Settings – 2.4GHz The page includes the following fields:

Object Description
Select SSID	Select the SSID you want to configure the wireless security function, which includes the root one and the client one.
Encryption	Disable:No security setup for wireless connection.
	■ VEP:It is based on the IEEE 802.11 standard. And the default setting of authentication is Automatic, which can select Open System or Shared Key authentication type automatically based on the wireless station's capability and request. Furthermore, you can select Key Length and enter 10 and 26 Hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 5 and 13 ASCII characters in the Encryption Key field.
	■ VPA:WPA is a medium level encryption and is supported by most wireless devices and operating systems.
	■VPA2:WPA2 is a high level encryption and is supported by most wireless devices and operating systems.
	■VPA / WPA2 / WPA-Mixed:WPA Mixed Mode allows the use of both WPA and WPA2 at the same time.
Authentication Mode	■Enterprise (RADIUS)When you select the authentication mode based on Enterprise (Radius Server), please enter theIP Address, Port, andPasswordof the Radius Server.
	■Personal (Pre-Shared Key)When you select the other authentication mode based on Personal (Pre-Shared Key), please enter at least 8 ASCII characters (Passphrase) or 64 Hexadecimal characters. All of the Cipher Suites supportTKIPandAES.
802.1x Authentication	Enable 802.1x authentication function and then enter theIP Address, Port, andPasswordof the Radius Server.

5.4.5 Access Control

Choose menu "WLAN2 (2.4GHz) → Access Control" to allow or deny the computer of specified MAC address to connect with the WDAP-C7200AC on this page. After the configuration, please click the "Apply Changes" button to save the settings.

Wireless Access Control - WLAN2 (2.4GHz) If you choose 'Allowed Listed', only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point. When 'Deny Listed' is selected, these wireless clients on the list will not be able to connect the Access Point. Wireless Access Control Mode: Disable Disable Allow Listed Deny Listed MAC Address: Apply Changes Reset Current Access Control List: MAC Address Comment Select Delete Selected Delete All Reset

Figure 5-67 Wireless Access Control - 2.4GHz The page includes the following fields:

Object Description
Wireless Access Control Mode	You can choose to set the Allowed-List, Denied-List, or disable this function.
MAC Address	Enter the MAC address you want to allow or deny connection to the WDAP-C7200AC in the field.
Comment	You can make some comment on each MAC address on the list.
Current Access Control List	You can select some MAC addresses and click the “Delete Selected” button to delete it.

■ Wireless Access Control example:

To deny a PC at the MAC address of 00:30:4F:00:00:01 to connect to your wireless network, do as follows: Step 1. Select "Deny" from MAC Address Filter drop-down menu. Step 2. Enter 00:30:4F:00:00:01 in the MAC address box and click "Add". Step 3. Click the "OK" button to save your settings and you can add more MAC addresses, if you like, simply repeat the above steps.

Wireless Access Control - WLAN2 (2.4GHz) If you choose 'Allowed Listed', only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point. When 'Deny Listed' is selected, these wireless clients on the list will not be able to connect the Access Point. Wireless Access Control Mode: Deny Listed MAC Address: Comment: Apply Changes Reset Current Access Control List: MAC Address Comment Select 00:30:4f:00:00:01 deny Delete Selected Delete All Reset

Figure 5-68 Wireless Access Control – Deny

5.4.6 WDS

WDS (Wireless Distribution System) feature can be used to extend your existing 2.4G or 5G wireless network coverage. Here we present you how to configure such feature in 2.4GHz, which also applies to 2.4GHz. WDS Bridge-PtP Mode

WDS Bridge-PtMP Mode

WDS Repeater Mode

Before configuring the WDS Setting page, you have to select the wireless mode to "WDS" on the WLAN2 (2.4GHz) -> Basic Settings web page.

Wireless Basic Settings - WLAN2 (2.4GHz) Disable Wireless LAN Interface Band: 2.4 GHz (B+G+N) Mode: WDS MultipleAP Network Type: Infrastructure SSID: Planet AP 2.4G Add to Profile Channel Width: 40MHz

Figure 5-69 WDS Mode - 2.4GHz Choose menu "WLAN2 (2.4GHz) → WDS Settings" to configure WDS to connect the WDAP-C7200AC with another AP on this page. After the configuration, please click the "Apply Changes" button to save the settings.

WDS Settings - WLAN2 (2.4GHz) Wireless Distribution System uses wireless media to communicate with other APs, like the Ethernet does. To do this, you must set these APs in the same channel and set MAC address of other APs which you want to communicate with in the table and then enable the WDS. Enable WDS MAC Address: Data Rate: Auto Comment: Apply Changes Reset Set Security Show Statistics Current WDS AP List: MAC Address Tx Rate (Mbps) Comment Select 00:30:4E:11:11:11 Auto peer-1 00:30:4E:22:22:22 Auto peer-2 00:30:4E:33:33:33 Auto peer-3 00:30:4E:44:44:44 Auto peer-4 00:30:4E:55:55:55 Auto peer-5 00:30:4E:66:66:66 Auto peer-6 00:30:4E:77:77:77 Auto peer-7 00:30:4E:88:88:88 Auto peer-8 Delete Selected Delete All Reset

Figure 5-70 WDS Settings - 2.4GHz

WDS Security Setup -wlan2 This page allows you setup the wireless security for WDS. When enabled, you must make sure each WDS device has adopted the same encryption algorithm and Key. Encryption: None WEP Key Format: ASCII (5 characters) WEP Key: Pre-Shared Key Format: Passphrase Pre-Shared Key: Apply Changes Reset

Figure 5-71 WDS – Set Security The page includes the following fields:

Object Description
Enable WDS	Check the box to enable the WDS function. Please select WDS or AP+WDS in the Mode of Wireless Basic Settings before you enable WDS on this page.
MAC Address You can enter the MAC address of the AP you want to connect with.
Data Rate Default is “Auto”.
Comment You can make some comment for each MAC address on the list.
Set Security	Click the “Set Security” button to configure the wireless security parameters of the AP you want to connect via WDS.
Show Statics Click the “Show Statics” button to show the WDS AP.
Current WDS AP List	You can select some MAC addresses of the AP and click the “Delete Selected” button to delete it.

 WDS feature can only be implemented between 2 wireless devices that both support the WDS feature. Plus, channel, security settings and security key must be the same on both such devices.  To encrypt your wireless network, click "Set Security". For the detail of wireless security, see section 5.5.4 Do remember to reboot the device after you save your wireless security settings; otherwise, the WDS feature may not function.

5.4.7 Site Survey

Choose menu "WLAN2 (2.4GHz) → Site Survey" to scan the available local AP. If any Access Point is found, you could choose any one to connect with manually when the Client Mode is enabled.

Wireless Site Survey - WLAN2 (2.4GHz)

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled.

Wireless Router



Range Extender

Site Survey

SSID	BSSID	Channel	Type	Encrypt	Signal	Select
WDRT-1200AC-5G	00:30:4f:74:20:08	6(B+G+N)	AP	WPA2-PSK	78
WDRT-1200AC-5G	00:30:4f:76:20:08	6(B+G+N)	AP	WPA2-PSK	78
WiFiRepeater-001	00:30:4f:91:1c:44	1(B+G+N)	AP	no	60
Default_2.4G_1	00:30:4f:b4:c4:a0	11(B+G+N)	AP	WPA2-PSK	52
WDRT-1200AC-2.4G	00:30:4f:1c:7e:e4	6(B+G+N)	AP	WPA2-PSK	44
ADN-4100_ENM	00:30:4f:9c:a3:25	1(B+G+N)	AP	WPA-PSK/WPA2-PSK	44
PLANET_11F_AP	00:30:4f:81:ed:88	11(B+G+N)	AP	WPA2-PSK	29

Next>> Figure 5-72 Site Survey - 2.4GHz

5.4.8 WPS

WPS (Wi-Fi Protected Setup) is designed to ease setup of security Wi-Fi networks and subsequently network management. This Wireless Router supports WPS features for AP mode, AP+WDS mode, Infrastructure-Client mode, and the wireless root interface of Universal Repeater mode. Simply enter a PIN code or press the software PBC button or hardware WPS button (if any) and a secure wireless connection is established. ■ PBC: If you find the WPS LED blinking for 2 minutes after you press the hardware WPS button on the device, it means that PBC encryption method is successfully enabled. And an authentication will be performed between your router and the WPS/PBC-enabled wireless client device during this time; if it succeeds, the wireless client device connects to your device, and the WPS LED turns off. Repeat steps mentioned above if you want to connect more wireless client devices to the device. ■ PIN : To use this option, you must know the PIN code from the wireless client and enter it in corresponding field on your device while using the same PIN code on client side for such connection. The page includes the following fields:

Object Description
Disable WPS	You can check the box to disable the WPS function.
WPS Status	Here you can check if the connection via WPS is established or not.
Self-PIN Number	It is the PIN number of the WDAP-C7200AC here.
Push Button Configuration	Click the “Start PBC” to activate WPS as well in the client device within 2 minutes.
Client PIN Number	In addition to the PBC method, you can also use the PIN method to activate the WPS. Just enter the PIN number of the client device in the field and click the “Start PIN” button.

 Note The WPS encryption can be implemented only between your Router and another WPS-capable device. Example of how to establish wireless connection using WPS. Please take the following steps: Step 1. Choose menu “WLAN2 (2.4GHz) → WPS” to configure the setting for WPS. After the configuration, please click the “Apply Changes” button to save the settings. Step 2. Add a new device. If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and AP using either Push Button Configuration (PBC) method or PIN method.  Note To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function.

A. By Push Button Configuration (PBC)

i. Click the "Start PBC" Button on the WPS page of the AP.

WPS Status: Configured UnConfigured Reset to UnConfigured Auto-lock-down state: unlocked Unlock Self-PIN Number: 15051813 Push Button Configuration: Start PBC STOP WSC Stop WSC Client PIN Number: Start PIN

Figure 5-73 WPS-PBC - 2.4GHz-1

Start PBC successfully! You have to run Wi-Fi Protected Setup in client within 2 minutes. OK

Figure 5-74 WPS-PBC - 2.4GHz-2 ii. Press and hold the WPS Button equipped on the adapter directly for 2 or 3 seconds. Or you can click the WPS button with the same function in the configuration utility of the adapter. The process must be finished within 2 minutes. iii. Wait for a while until the next screen appears. Click OK to complete the WPS configuration.

B. By PIN

If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Method One: Enter the PIN of your Wireless adapter into the configuration utility of the AP i. Enter the PIN code of the wireless adapter in the field behind Client PIN Number in the following figure and then click Start PIN.  The PIN code of the adapter is always displayed on the WPS configuration screen.

WPS Status: Configured UnConfigured Reset to UnConfigured Auto-lock-down state: unlocked Unlock Self-PIN Number: 15051813 Push Button Configuration: Start PBC STOP WSC Stop WSC Client PIN Number: Start PIN

Figure 5-75 WPS-PIN - 2.4GHz-1

Applied WPS PIN successfully! You have to run Wi-Fi Protected Setup within 2 minutes. OK

Figure 5-76 WPS-PIN - 2.4GHz-2 ii. For the configuration of the wireless adapter, please choose the option that you want to enter PIN into the AP (Enrollee) in the configuration utility of the WPS and click Next until the process finishes. Method Two: Enter the PIN of the AP into the configuration utility of your Wireless adapter i. Click the "Start PBC" Button on the WPS page of the AP. Get the Current PIN code of the AP in WPS page (each AP has its unique PIN code).

WPS Status: Configured UnConfigured Reset to UnConfigured Auto-lock-down state: unlocked Unlock Self-PIN Number: 15051813 Enter this PIN into the wireless adapter's configuration page. Push Button Configuration: Start PBC STOP WSC Stop WSC Client PIN Number: Start PIN

Figure 5-77 WPS-PIN - 2.4GHz-3 ii. For the configuration of the wireless adapter, please choose the option that you want to enter the PIN of the AP (Registrar) in the configuration utility of the Wireless adapter and enter it into the field. Then click Next until the process finishes.

5.4.9 Schedule

Wireless Schedules will enable or disable your wireless access at a set time based on your predefined schedule. This feature is often used for restricting access to all users (such as children, employees and guests) during specific times of the day for parental control or security reasons. Choose menu "WLAN2 (2.4GHz) → Schedule" to configure the schedule rule of enabling wireless function. After the configuration, please click the "Apply Changes" button to save the settings.

Wireless Schedule - WLAN2 (2.4GHz)

This page allows you setup the wireless schedule rule. Please do not forget to configure system time before enable this feature.  Enable Wireless Schedule

Internet Wireless Scheduled Disable Smart Phone Laptop Smart Phone Laptop Wireless in Use

Schedulable Wireless ON/OFF Control

Enable	Day	From				To
	Sun	00	(hour)	00	(min)	00	(hour)	00	(min)
	Sun	00	(hour)	00	(min)	00	(hour)	00	(min)
	Sun	00	(hour)	00	(min)	00	(hour)	00	(min)
	Sun	00	(hour)	00	(min)	00	(hour)	00	(min)
	Sun	00	(hour)	(00)	(min)	00	(hour)	00	(min)
	Sun	00	(hour)	00	(min)	00	(hour)	00	(min)
	Sun	00	(hour)	00	(min)	00	(hour)	00	(min)
	Sun	00	(hour)	00	(min)	00	(hour)	00
	Sun	00	(hour)	00	(min)	00	(hour)	00	(min)
	Sun	00	(hour)	00	(min)	00	(hour)	00	(min)
	Sun	00	(hour)	00	(min)	00	(hour)	00	(min)

Apply Changes Reset Figure 5-78 Schedule - 2.4GHz  When setting the Wireless Schedule, it is important to ensure that your System Clock settings have been configured. If not, your Wireless Schedule will not function correctly.

5.5 Management

This section focuses on how to maintain AP, including Restore to Factory Default Setting, Backup/Restore, Firmware Upgrade, Reboot, Password Change and Syslog.

Management > Status > Statistics > NTP Settings > Schedule Reboot > LOG > Upgrade Firmware > Reload Settings > Password > LED Control

Figure 5-79 Management – Main Menu

5.5.1 Status

You can use this function to realize the instantaneous information of the Wireless AP. The Information displayed here may vary on different configurations. Choose menu “Management → Status” to show the current status and some basic settings of the WDAP-C7200AC.

Access Point Status

System

Uptime	0day:1h:28m:36s
Firmware Version	WDAP-C7200AC_v20140425
Build Time	Wed Mar 5 21:16:12 CST 2014

Wireless 1 Configuration

Mode	AP
Band	5 GHz (A+N+AC)
SSID	Planet AP 5G
Channel Number	149
Encryption	WPA2
BSSID	00:30:4f:77:88:9a
Associated Clients	0

Wireless 2 Configuration

Mode	AP
Band	2.4 GHz (B+G+N)
SSID	Planet AP 2.4G
Channel Number	11
Encryption	WPA2
BSSID	00:30:4f:77:88:9b
Associated Clients	0

LAN Configuration

Attain IP Protocol	Fixed IP
IP Address	192.168.1.253
Subnet Mask	255.255.255.0
Default Gateway	192.168.1.254
DHCP Server	Disabled
MAC Address	00:30:4f:77:88:99

Figure 5-80 Status

5.5.2 Statistics

Choose menu "Management → Statistics" to show the packet counters for transmission and reception regarding wireless and Ethernet network.

Statistics

This page shows the packet counters for transmission and reception regarding to wireless and Ethernet networks.

Wireless 1 LAN	Sent Packets	647
	Received Packets	23482
Wireless 1 Repeater LAN	Sent Packets	594
	Received Packets	3032
Wireless 2 LAN	Sent Packets	2161
	Received Packets	33980
Ethernet LAN	Sent Packets	0
	Received Packets	0

Refresh Figure 5-81 Statistics The page includes the following fields:

Object Description
Wireless LAN Sent Packets	It shows the statistic count of sent packets on the wireless LAN interface.
Wireless LAN Received Packets	It shows the statistic count of received packets on the wireless LAN interface.
Ethernet WAN Sent Packets	It shows the statistic count of sent packets on the Ethernet WAN interface.
Ethernet WAN Received Packets	It shows the statistic count of received packets on the Ethernet WAN interface.
Refresh Click the refresh the statistic counters on the screen.

5.5.3 NTP Settings

This section assists you in setting the Wireless AP's system time. You can either select to set the time and date manually or automatically obtain the GMT time from Internet. Choose menu "Management → NTP Settings" to configure the system time. You can also maintain the system time by synchronizing with a public time server over the Internet. After the configuration, please click the "OK" button to save the settings.  The configured time and date settings are lost when the Wireless AP is powered off.

Time Zone Setting

You can maintain the system time by synchronizing with a public time server over the Internet.


Current Time : 2014 / 3 / 6 (YYYY/MM/DD) 1 : 13 : 46 (hh:mm:ss) Copy Computer Time Time Zone Select : (GMT-08:00)Pacific Time (US & Canada); Tijuana

□ Automatically Adjust Daylight Saving □ Enable NTP client update NTP server :

192.5.41.209 - North America (Manual IP Setting)

Apply Change Reset Refresh Figure 5-82 Time Zone Settings The page includes the following fields:

Object Description
Current Time	Input current time manually.You can click “Copy Computer Time” button to copy the PC's current time to the AP.
Time Zone Select	Select the time zone of the country you are currently in. The router will set its time based on your selection.
Automatically Adjust Daylight Saving	Select the time offset, if your location observes daylight saving time.
Enable NTP client update	Check to enable NTP update. Once this function is enabled, AP will automatically update current time from NTP server.
NTP Server	User may select prefer NTP sever or input address of NTP server manually.

 If the AP loses power for any reason, it cannot keep its clock running, and will not have the correct time when it is started again. To maintain correct time for schedules and logs, either you must enter the correct time after you restart the AP, or you must enable the NTP Server option.

5.5.4 Schedule Reboot

This page allows you to enable and configure system reboot schedule. The device can regularly reboot according to the reserved time when connecting to the Internet.

Schedule Reboot

This page allows you to enable and configure system reboot schedule. The device can regularly reboot according to the reserved time when connecting to the Internet.

Automatically Reboot Every Friday 23:00 S M T W T F S System Reboot ON OFF ON CPU/Buffer Load 85% ↓ CPU/Buffer Load 10% 23:00 Schedule Reboot Setting: Enable Disable Reboot Time: 00:00 (Hour: Minute, ex: 02:23, or 13:14) Reboot Plan: Weekday Weekday: SUN. MON. TUE. WED. THUR. FRI. SAT. Apply Changes Reset

Figure 5-83 Schedule Reboot The page includes the following fields:

Object Description
Schedule Reboot Setting	Enable or disable the Schedule Reboot function.
Reboot Time	Enter the Reboot Time (24-hour format) to enable this function to take effect.
Reboot Plan	There are two Reboot Plans supported in the AP:Weekday: select this option to let the device reboot automatically according to the reserved time in one or more days of a week.Every day: select this option to let the device reboot automatically according to the reserved time every day.

Weekday

Check one or more days to let the device auto reboot on schedule. When choosing "Every day" as your reboot plan, the "Weekday" will be grayed out (disabled), which means Every day will auto reboot at the time that you scheduled.  1. This setting will only take effect when the Internet connection is accessible and the GMT time is configured correctly. 2. You must select at least one day when choosing "Weekday" as your reboot plan. 3. When choosing "Every day" as your reboot plan, the "Weekday" will be grayed out (disabled), which means Every day will auto reboot at the time that you schedule. ■ Example of how to configure Schedule Reboot. Please take the following steps: Before configured schedule reboots, please ensure the Internet connection is accessible and the GMT time is configured correctly according to NTP Settings page. Step 1. Select the Schedule Reboot Setting checkbox. Step 2. Enter the Reboot Time (24-hour format) to enable this function to take effect. For example, if you want this function to work at 23:00 every Sunday, choose "Weekday" in the Reboot Plan field.

Schedule Reboot This page allows you to enable and configure system reboot schedule. The device can regularly reboot according to the reserved time when connecting to the Internet. Automatically Reboot Every Friday 23:00 SMTWTFSS 23:00 System Reboot ON OFF ON CPU/Buffer Load 85% ↓ CPU/Buffer Load 10% Schedule Reboot Setting: Enable Disable Reboot Time: 23:00 (Hour: Minute, ex: 02:23, or 13:14) Reboot Plan: Weekday Weekday: SUN. MON. TUE. WED. THUR. FRI. SAT. Apply Changes Reset

Figure 5-84 Schedule Reboot - Example Step 3. Click the "Apply Changes" button to take this function effect.

5.5.5 LOG

Choose menu "Management → LOG" to configure the settings of system log. You can check the box of the items you want to record it in the log. After the configuration, please click the "Apply" button to save the settings.

System Log

This page can be used to set remote log server and show the system log.  Enable Log  System all  Wireless  Enable Remote Log Log Server IP Address: Apply Changes

Mar	6 02:01:52 wlan0-vxd: Open and authenticated
Mar	6 02:01:52 wlan0-vxd: Roaming...
Mar	6 02:01:52 wlan0-vxd: WPA-none PSK authentication in progress...
Mar	6 02:01:52 wlan0-vxd: Open and authenticated
Mar	6 02:01:52 Register Realtek Simple Config
Mar	6 02:01:52 [phy_RF6052_Config_ParaFile][RadioA_8812_n_ultra_hp]
Mar	6 02:01:52 [phy_RF6052_Config_ParaFile][RadioB_8812_n_ultra_hp]
Mar	6 02:01:52 <=== FirmwareDownload8812()
Mar	6 02:01:52 [ 5G] : AntDiv Type = CG_TRX_HW_ANTDIV
Mar	6 02:01:52 Register Realtek Simple Config
Mar	6 02:01:52 Register Realtek Simple Config
Mar	6 02:01:52 Register Realtek Simple Config
Mar	6 02:02:07 wlan0-vxd: WPA-none PSK authentication in progress...
Mar	6 02:02:07 wlan0-vxd: Open and authenticated

Refresh Clear Figure 5-85 System Log The page includes the following fields:

Object Description
Enable Log	Check to enable log function.
System all	Check this option to display all the system logs.
Wireless	Check this option to display only the logs related to wireless module.
Enable Remote Log	Enable this option if you have a syslog server currently running on the LAN and wish to send log messages to it.
Log Server IP Address	Enter the LAN IP address of the Syslog Server.
Refresh	Click this button to update the log.
Clear	Click this button to clear the current log.

5.5.6 Upgrade Firmware

This page allows you upgrade the Access Point firmware to new version. Please note, do not power off the device during the upload because it may crash the system. Choose menu "Management → Upgrade Firmware" to upgrade the firmware of the WDAP-C7200AC. Select the new firmware file downloaded from the PLANET website and then click "Upload" button to upgrade it.

Upgrade Firmware This page allows you upgrade the Access Point firmware to new version. Please note, do not power off the device during the upload because it may crash the system. Software Version: Select File: WDAP-C7200AC_v20140425 Browse... Upload Reset

Figure 5-86 Upgrade Firmware The page includes the following fields:

Object Description
Select File	Browse and select file you want to upgrade and press Upload to perform upgrade.Please wait till the related information is shown on the screen after upgrade is finished.

 Do not disconnect the Wireless AP from your management PC (the PC you use to configure the device) or power off it during the upgrade process; otherwise, it may be permanently damaged. The Wireless AP will restart automatically when the upgrade process, which takes several minutes, to complete.

5.5.7 Reload Settings

Choose menu "Management → Reload Settings" to back up or reset the configuration of the WDAP-C7200AC. Once you have configured the Wireless AP the way you want it, you can save these settings to a configuration file on your local hard drive that can later be imported to your Wireless AP in case the device is restored to factory default settings.

Save/Reload Settings

This page allows you save current settings to a file or reload the settings from the file which was saved previously. Besides, you could reset the current configuration to factory default. Save Settings to File: Save... Load Settings from File: Browse... Upload Reset Settings to Default: Reset Figure 5-87 Save/Reload Settings The page includes the following fields:

Object Description
Save Settings to File	Click the “Save...” button to back up the configuration of the WDAP-C7200AC and then save the “config.dat” in your computer.
Load Settings from File	Select the configuration file of the WDAP-C7200AC and then click the “Upload” button to reload the configuration back into the WDAP-C7200AC.
Reset Settings to Default	Click the “Reset” button to reset all settings of the WDAP-C7200AC to factory default.Factory Default Settings:User Name: adminPassword: adminIP Address: 192.168.1.253Subnet Mask: 255.255.255.0Default Gateway: 192.168.1.254DHCP: Disabled5GHz SSID: Planet AP 5G2.4GHz SSID: Planet AP 2.4GWireless Security: None

 Note To activate your settings, you need to reboot the Wireless AP after you reset it.

5.5.8 Password

To ensure the Wireless AP's security, you will be asked for your password when you access the Wireless AP's Web-based Utility. The default user name and password are "admin". This page will allow you to add or modify the user name and password. Choose menu "Management → User Management" to change the user name and password which is inputted to access the web UI of the WDAP-C7200AC.

Password Setup This page is used to set the account to access the web server of Access Point. Empty user name and password will disable the protection. User Name: New Password: Confirmed Password: Apply Changes Reset

Figure 5-88 Password Setup The page includes the following fields:

Object Description
User Name	Enter user name.
New Password	Input password for this user.
Confirmed Password	Confirm password again.

 Note For the sake of security, it is highly recommended that you change default login password and user name.

5.5.9 LED Control

This section allows the user to determine the router packets are talking to particular host.

LED Control This is a LED control function, and it is control your LED On, Off or Blink. Power LED ON Position LED ON Position LED Blink Power LED: Off On Position LED: Off On Blink OK

Figure 5-89 LED Control The page includes the following fields:

Object Description
Power LED	Click On or Off to turn on/off the Power LED.
Position LED	The LED to detect and identify the AP.1) Position LED on: the position LED is on.2) Position LED blink: the position LED blinks continuously.2) Position LED off: the position LED is off.

5.5.10 Logout

To logout the WDAP-C7200AC, please select "Logout" from the left-side menu.

Logout This page is used to logout. Do you want to logout ? Apply Change

Figure 5-90 Logout

Chapter 6. Quick Connection to a Wireless Network

In the following sections, the default SSID of the WDAP-C7200AC is configured to "default".

6.1 Windows XP (Wireless Zero Configuration)

Step 1: Right-click on the wireless network icon displayed in the system tray

Wireless Network Connection Not connected. Right-click here for more options.

Figure 6-1 System Tray – Wireless Network Icon

Step 2: Select [View Available Wireless Networks]

Step 3: Highlight and select the wireless network (SSID) to connect (1) Select SSID [default] (2) Click the [Connect] button

Wireless Network Connection Choose a wireless network Click an item in the list below to connect to a wireless network in range or to get more information. Network Tasks Refresh network list Set up a wireless network for a home or small office Related Tasks Learn about wireless networking Change the order of preferred networks Change advanced settings default Security-enabled wireless network (WPA) To connect to this network, click Connect. You might need to enter additional information. Connect

Figure 6-2 Choose a wireless network

Step 4: Enter the encryption key of the Wireless AP

(1) The Wireless Network Connection box will appear (2) Enter the encryption key that is configured in section 5.3.3 (3) Click the [Connect] button

Wireless Network Connection The network 'PLANET' requires a network key (also called a WEP key or WPA key). A network key helps prevent unknown intruders from connecting to this network. Type the key, and then click Connect. Network key: •••••••••••••••• Confirm network key: •••••••••••••••• Connect Cancel

Figure 6-3 Enter the network key

Step 5: Check if "Connected" is displayed


Wireless Network Connection Choose a wireless network Click an item in the list below to connect to a wireless network in range or to get more information. default Connected Security-enabled wireless network (WPA) Security-enabled wireless network (WPA) Security-enabled wireless network Security-enabled wireless network Unsecured wireless network Unsecured wireless network Connect

Figure 6-4 Choose a wireless network -- Connected  Some laptops are equipped with a "Wireless ON/OFF" switch for the internal wireless LAN. Make sure the hardware wireless switch is switched to "ON" position.

6.2 Windows 7 (WLAN AutoConfig)

WLAN AutoConfig service is built-in in Windows 7 that can be used to detect and connect to wireless network. This built-in wireless network connection tool is similar to wireless zero configuration tool in Windows XP.

Step 1: Right-click on the network icon displayed in the system tray


Not connected - Connections are available EN 3:57 PM 5/17/2012

Figure 6-5 Network icon

Step 2: Highlight and select the wireless network (SSID) to connect

(1) Select SSID [default] (2) Click the [Connect] button

Not connected Connections are available Dial-up and VPN Office VPN Wireless Network default Connect automatically Connect Open Network and Sharing Center

Figure 6-6 WLAN AutoConfig  If you will be connecting to this Wireless AP in the future, check [Connect automatically].

Step 4: Enter the encryption key of the Wireless AP

(1) The Connect to a Network box will appear (2) Enter the encryption key that is configured in section 5.3.3 (3) Click the [OK] button

Connect to a Network Type the network security key Security key: Hide characters You can also connect by pushing the button on the router. OK Cancel

Figure 6-7 Type the network key

Connect to a Network Connecting to default ... Cancel

Figure 6-8 Connecting to a Network

Step 5: Check if "Connected" is displayed


Currently connected to: default Internet access Dial-up and VPN Office VPN Wireless Network default Connected Open Network and Sharing Center

Figure 6-9 Connected to a Network

6.3 Mac OS X 10.x

In the following sections, the default SSID of the WDAP-C7200AC is configured to "default". Step 1: Right-click on the network icon displayed in the system tray The AirPort Network Connection menu will appear

Screenshot of a macOS desktop with application icons and a white arrow pointing to a location on the keyboard.

Figure 6-10 Mac OS – Network icon Step 2: Highlight and select the wireless network (SSID) to connect (1) Select and SSID [default] (2) Double-click on the selected SSID

AirPort: On Turn AirPort Off No network selected default Join Other Network... Create Network... Open Network Preferences...

Figure 6-11 Highlight and select the wireless network Step 4: Enter the encryption key of the Wireless AP (1) Enter the encryption key that is configured in section 5.3.3 (2) Click the [OK] button

The network "default" requires a WPA password. Password: ******** Show password Remember this network Cancel OK

Figure 6-12 Enter the Password  If you will be connecting to this Wireless AP in the future, check [Remember this network]. Step 5: Check if the AirPort is connected to the selected wireless network. If "Yes", then there will be a "check" symbol in the front of the SSID.

AirPort: On Turn AirPort Off ✓default Join Other Network... Create Network... Open Network Preferences...

Figure 6-13 Connected to the Network There is another way to configure the MAC OS X Wireless settings: Step 1: Click and open the [System Preferences] by going to Apple > System Preference or Applications

Applications 1 of 50 selected, 22.92 GB available T DEVICES Macintosh HD iDisk Remote Disc BOOTCAMP Public T SHARFID 192.168.101.40 T PLACIS Desktop Kint Applications Documents T SEARCH FOR Today Yesterday Past Week Quick Note QuickTime Player Remote Desktop Connection Safari Stickies System Preferences TextEdit Time Machine Utilities VLC WindowKeys Windows Applications

Figure 6-14 System Preferences Step 2: Open Network Preference by clicking on the [Network] icon

System Preferences Show All Personal Appearance Desktop & Screen Saver Dock Exposé & Spaces Language & Text Security Spotlight Hardware CDs & DVDs Displays Energy Saver Keyboard Mouse Trackpad Print & Fax Sound Internet & Wireless MobileMe Network Bluetooth Sharing System Accounts Date & Time Parental Controls Software Update Speech Startup Disk Time Machine Universal Access Other MacFUSE

Figure 6-15 System Preferences -- Network

Step 3: Check Wi-Fi setting and select the available wireless network

(1) Choose the AirPort on the left-menu (make sure it is ON) (2) Select Network Name [default] here If this is the first time to connect to the Wireless AP, it should show "Not network selected".

Network Show All Location: Automatic USB Ethernet Not Connected 802.11...dapter Not Connected AirPort On Home VPN Not Connected Status: On Turn AirPort Off AirPort is turned on but is not connected to a network. Network Name ✓ No network selected default Join Other Network... Create Network... ✓ Show AirPort status in menu bar Advanced... Click the lock to prevent further changes. Assist me... Revert Apply

Figure 6-16 Select the Wireless Network

6.4 iPhone / iPod Touch / iPad

In the following sections, the default SSID of the WDAP-C7200AC is configured to "default". Step 1: Tap the [Settings] icon displayed in the home screen

Notes Maps iTunes Settings

Figure 6-17 iPhone – Settings icon Step 2: Check Wi-Fi setting and select the available wireless network (3) Tap [General] \ [Network] (4) Tap [Wi-Fi] If this is the first time to connect to the Wireless AP, it should show "Not Connected".

iPad 10:35 AM Settings Airplane Mode OFF Wi-Fi Not Connected Notifications On Carrier Cellular Data Brightness & Wallpaper Picture Frame General Mail, Contacts, Calendars Safari General About > Usage > Sounds > Network > Bluetooth Off > Location Services On > Spotlight Search >

Figure 6-18 Wi-Fi Setting

iPad 10:35 AM Settings Airplane Mode OFF Wi-Fi Not Connected Notifications On Carrier Cellular Data Brightness & Wallpaper Picture Frame General Mail, Contacts, Calendars Safari Network VPN Not Connected > Wi-Fi Not Connected >

Figure 6-19 Wi-Fi Setting – Not Connected Step 3: Tap the target wireless network (SSID) in "Choose a Network..." (1) Turn on Wi-Fi by tapping "Wi-Fi" (2) Select SSID [default]

iPad 11:23 PM Settings Network Wi-Fi Networks Airplane Mode OFF Wi-Fi Not Connected Notifications On Location Services On Cellular Data Brightness & Wallpaper Picture Frame General Wi-Fi ON Choose a Network... default Other... Ask to Join Networks ON Known networks will be joined automatically. If no known networks are available, you will be asked before joining a new network.

Figure 6-20 Turn on Wi-Fi Step 4: Enter the encryption key of the Wireless AP (1) The password input screen will be displayed (2) Enter the encryption key that is configured in section 5.3.3 (3) Tap the [Join] button

Enter the password for "default" Enter Password Password ************ 1 2 3 4 5 6 7 8 9 0 - / : ; ( ) $ & @ Join #+= undo . , ? ! ' " ABC ABC

Figure 6-21 iPhone -- Enter the Password Step 5: Check if the device is connected to the selected wireless network. If "Yes", then there will be a "check" symbol in the front of the SSID.

iPad 11:25 PM Settings Airplane Mode OFF Wi-Fi default Notifications On Location Services On Cellular Data Brightness & Wallpaper Picture Frame General Network Wi-Fi Networks Wi-Fi ON Choose a Network... ✓ default Other... Ask to Join Networks ON Known networks will be joined automatically. If no known networks are available, you will be asked before joining a new network.

Figure 6-22 iPhone -- Connected to the Network

Appendix A: Planet Smart Discovery Utility

To easily list the WDAP-C7200AC in your Ethernet environment, the Planet Smart Discovery Utility from user's manual CD-ROM is an ideal solution. The following installation instructions guide you to running the Planet Smart Discovery Utility. Step 1: Deposit the Planet Smart Discovery Utility in administrator PC. Step 2: Run this utility and the following screen appears.  Planet\_Utility.exe PLANET Corp. Step 3: Press "Refresh" button for the current connected devices in the discovery list as shown in the following screen:

PLANET Smart Discovery Lite File Option Help Refresh Exit MANET Networking & Communication MAC Address Device Name Version DeviceIP NewPassword IP Address NetMask Gateway Description 1 00-30-4F-63-54-5C WDAP-C7200A/ WDAP-C7200A/ 192.168.1.253 192.168.1.253 255.255.255.0 192.168.1.254 Planet Select Adapter: 192.168.1.100 (EC:A8:6B:D6:99:C4) Control Packet Force Broadcast Update Device Update Multi Update All Connect to Device Device: WDAP-C7200AC (00-30-4F-63-54-5C) Get Device Information done.

Step 3: Press "Connect to Device" button and then the Web login screen appears.  The fields in white background can be modified directly and then you can apply the new setting by clicking the "Update Device" button.

Appendix B: Troubleshooting

If you find the AP is working improperly or stop responding to you, please read this troubleshooting first before contacting the dealer for help. Some problems can be solved by yourself within a very short time.

Scenario Solution
The AP is not responding to me when I want to access it by Web browser.	a. Please check the connection of the power cord and the Ethernet cable of this AP. All cords and cables should be correctly and firmly inserted to the AP.b. If all LED on this AP is off, please check the status of power adapter, and make sure it is correctly powered.c. You must use the same IP address section which AP uses.d. Are you using MAC or IP address filter? Try to connect the AP by another computer and see if it works; if not, please reset the AP to the factory default settings (pressing ‘reset’ button for over 7 seconds).e. Use the Smart Discovery Tool to see if you can find the AP or not.f. If you did a firmware upgrade and this happens, contact your dealer of purchase for help.g. If all the solutions above don’t work, contact the dealer for help.
I can’t get connected to the Internet.	a. Go to ‘Status’ -> ‘Internet Connection’ menu on the router connected to the AP, and check Internet connection status.b. Please be patient, sometimes Internet is just that slow.c. If you’ve connected a computer to Internet directly before, try to do that again, and check if you can get connected to Internet with your computer directly attached to the device provided by your Internet service provider.d. Check PPPoE / L2TP / PPTP user ID and password entered in the router’s settings again.e. Call your Internet service provider and check if there’s something wrong with their service.f. If you just can’t connect to one or more website, but you can still use other internet services, please check URL/Keyword filter.g. Try to reset the AP and try again later.h. Reset the device provided by your Internet service provider too.i. Try to use IP address instead of host name. If you can use IP address to communicate with a remote server, but can't use host name, please check DNS setting.
I can't locate my AP by my wireless device.	a. 'Broadcast ESSID' set to off?b. Both two antennas are properly secured.c. Are you too far from your AP? Try to get closer.d. Please remember that you have to input ESSID on your wireless client manually, if ESSID broadcast is disabled.
File downloading is very slow or breaks frequently.	a. Are you using QoS function? Try to disable it and try again.b. Internet is slow sometimes. Please be patient.c. Try to reset the AP and see if it's better after that.d. Try to know what computers do on your local network. If someone's transferring big files, other people will think Internet is really slow.e. If this never happens before, call you Internet service provider to know if there is something wrong with their network.
I can't log into the web management interface; the password is wrong.	a. Make sure you're connecting to the correct IP address the AP!b. Password is case-sensitive. Make sure the 'Caps Lock' light is not illuminated.c. If you really forget the password, do a hard reset.
The AP becomes hot	a. This is not a malfunction, if you can keep your hand on the AP's case.b. If you smell something wrong or see the smoke coming out from AP or A/C power adapter, please disconnect the AP and power source from utility power (make sure it's safe before you're doing this!), and call your dealer of purchase for help.

Appendix C: Glossary

802.11ac - 802.11ac is a wireless networking standard in the 802.11 family (which is marketed under the brand name Wi-Fi), developed in the IEEE Standards Association process, providing high-throughput wireless local area networks (WLANs) on the 5 GHz band. 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium (EWC) [3] was formed to help accelerate the IEEE 802.11n development process and promote a technology specification for interoperability of next-generation wireless local area networking (WLAN) products. 802.11a - 802.11a was an amendment to the IEEE 802.11 wireless local network specifications that defined requirements for an orthogonal frequency division multiplexing (OFDM) communication system. It was originally designed to support wireless communication in the unlicensed national information infrastructure (U-NII) bands (in the 5–6 GHz frequency range) as regulated in the United States by the Code of Federal Regulations, Title 47, Section 15.407. 802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks. 802.11g - specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP encryption for security. DDNS (Dynamic Domain Name System) - The capability of assigning a fixed host and domain name to a dynamic Internet IP Address. DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the TCP/IP parameters for the all the PC(s) that are connected to a DHCP server. DMZ (Demilitarized Zone) - A Demilitarized Zone allows one local host to be exposed to the Internet for a special-purpose service such as Internet gaming or videoconferencing. DNS (Domain Name System) - An Internet Service that translates the names of websites into IP addresses. Domain Name - A descriptive name for an address or group of addresses on the Internet. DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over existing traditional phone lines. ISP (Internet Service Provider) - A company that provides access to the Internet. MTU (Maximum Transmission Unit) - The size in bytes of the largest packet that can be transmitted. NAT (Network Address Translation) - NAT technology translates IP addresses of a local area network to a different IP address for the Internet. - PPPoE (Point to Point Protocol over Ethernet) - PPPoE is a protocol for connecting remote hosts to the Internet over an always-on connection by simulating a dial-up connection. SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name. WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard. Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among 802.11b devices. WLAN (Wireless Local Area Network) - A group of computers and associated devices communicate with each other wirelessly, which network serving users are limited in a local area. EC Declaration of Conformity

English	Hereby, PLANET Technology Corporation, declares that this 11ac Wireless AP is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.	Lietuviškai	Šiuo PLANET Technology Corporation,, skelbia, kad 11ac Wireless AP tenkina visus svarbiausius 1999/5/EC direktyvos reikalavimus ir kitas svarbias nuostatas.
Česky	Společnost PLANET Technology Corporation, tímto prohlašuje, že tato 11ac Wireless AP splňuje základní požadavky a další příslušná ustanovení směrnice 1999/5/EC.	Magyar	A gyártó PLANET Technology Corporation, kijelenti, hogy ez a 11ac Wireless AP megfelel az 1999/5/EK irányelv alapkövetelményeinek és a kapcsolódó rendelkezéseknek.
Dansk	PLANET Technology Corporation, erklærer herved, at følgende udstyr 11ac Wireless AP overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF	Malti	Hawnhekk, PLANET Technology Corporation, jiddikjara li dan 11ac Wireless AP jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC
Deutsch	Hiermit erklärt PLANET Technology Corporation, dass sich dieses Gerät 11ac Wireless AP in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)	Nederlands	Hierbij verklaart , PLANET Technology orporation, dat 11ac Wireless AP in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG
Eestikeeles	Käesolevaga kinnitab PLANET Technology Corporation, et see 11ac Wireless AP vastab Euroopa Nõukogu direktiivi 1999/5/EC põhinõuetele ja muudele olulistele tingimustele.	Polski	Niniejszym firma PLANET Technology Corporation, oświadcza, že 11ac Wireless AP spełnia wszystkie istotne wymogi i klauzule zawarte w dokumencie „Directive 1999/5/EC”.
Ελληνικά	ME THN ΠΑΡΟΥΣΑ , PLANET Technology Corporation, ΔΗΛΩΝΕΙ ΟΤΙΑΥΤΟ 11ac Wireless APΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/EK	Português	PLANET Technology Corporation, declara que este 11ac Wireless AP está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Español	Por medio de la presente, PLANET Technology Corporation, declara que 11ac Wireless AP cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE	Slovensky	Výrobca PLANET Technology Corporation, týmto deklaruje, že táto 11ac Wireless AP je v súlade so základnymi požiadavkami a dálšími relevantnymi predpismi smernice 1999/5/EC.
Français	Par la présente, PLANET Technology Corporation, déclare que les appareils du 11ac Wireless AP sont conformes aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE	Slovensko	PLANET Technology Corporation, s tem potrjuje, da je ta 11ac Wireless AP skladen/a z osnovnimi zahtevami in ustreznimi določili Direktive 1999/5/EC.
Italiano	Con la presente , PLANET Technology Corporation, dichiara che questo 11ac Wireless AP è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.	Suomi	PLANET Technology Corporation, vakuuttaa täten että 11ac Wireless AP typpinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Latviski	Ar šo PLANET Technology Corporation, apliecina, ka šī 11ac Wireless AP atbilst Direktīvas 1999/5/EK pamatprasībām un citiem atbilstošiem noteikumiem.	Svenska	Härmed intygar, PLANET Technology Corporation, att denna 11ac Wireless AP står i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
