Quick Install Procedure

This procedure is provided for those who are already familiar with the IQ System and would like to install the IQ-INT 3 in the shortest time possible. Less experienced installers or those wishing a full explanation of the installation procedure are encouraged to refer to Section 3.

Mounting:

1 Mount the unit into a standard 19-inch (48.3-cm) equipment rack or cabinet, or it can be stacked.

Install the wiring:

2 Connect the IQ Bus loops to the IQ-INT 3 (see Section 3.1).
3 Connect the IQ-INT 3 either to a host computer via RS232 (see Section 3.2) or to a modem via RS232 (see Section 3.2.1).
4 Connect the unit to the AC receptacle.

Configure the IQ-INT 3:

5 Set the communication baud rate (see Section 3.2.2).

CONTENTS

Quick Install Procedure....5

1 Welcome 7

1.1 Unpacking 7

2 Controls, Connectors and Indicators .... 7

3 Installation....8

3.1 Connecting to a IQ Bus Loop 8
3.2 Connecting to a Host Computer 10
3.2.1 Connecting to a Modem 10
3.2.2 Baud Rate Setting 12

4 Technical Information .... 13

5 Specifications .... 14

6 Service 15

ILLUSTRATIONS

2.1 IQ-INT 3 Controls, Connectors and Indicators 7
3.1 An IQ System with a Host Computer and a IQ-INT 3 8
3.2 RJ-45 Plug 9
3.3 RJ-45 Output to RJ-45 Input 9
3.4 RJ-45 Output to Din Input 9
3.5 RJ-45 Output to Terminal Block Input 10
3.6 Din Output to RJ-45 Input 10
3.7 Terminal Block Output to RJ-45 Input 10
3.8 RS232 Cable Wiring 10
3.9 IQ Bus Wiring "Loop" from Output to Input of Each IQ Component ... 11
3.10 Modem Hookup 11
3.11 IQ System with a Modem.... 11
3.12 Baud Rate Settings for the IQ-INT 3 11

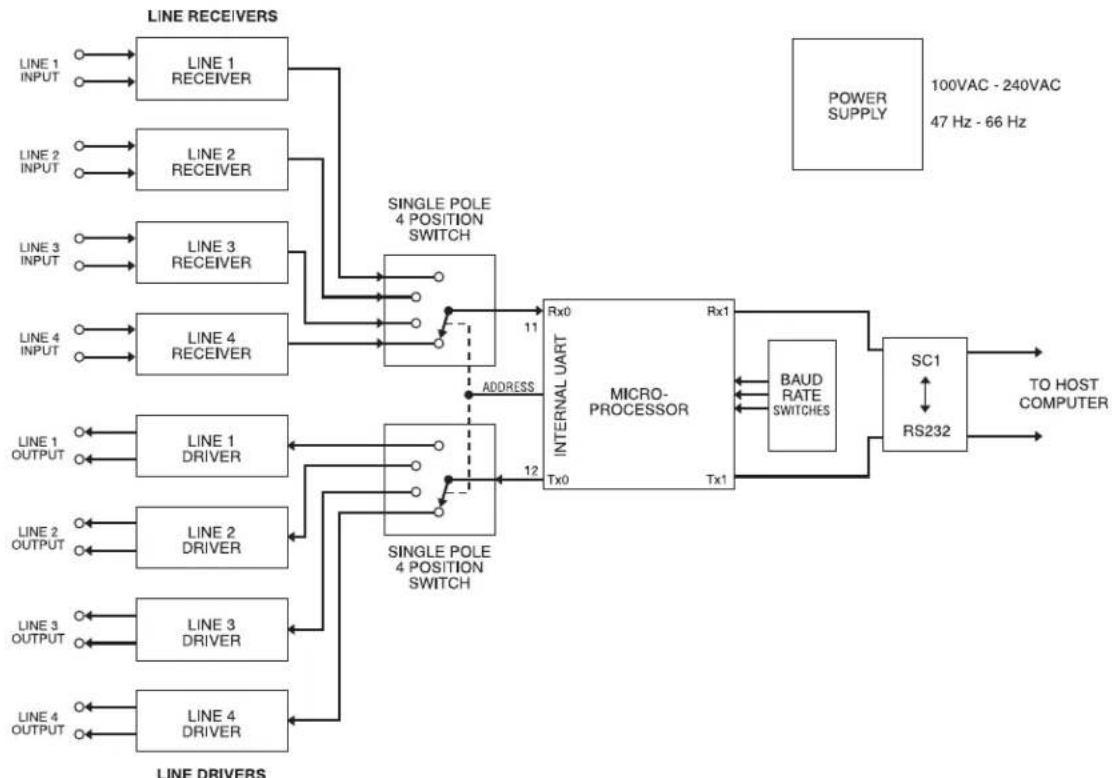

4.1 IQ-INT 3 Block Diagram 13

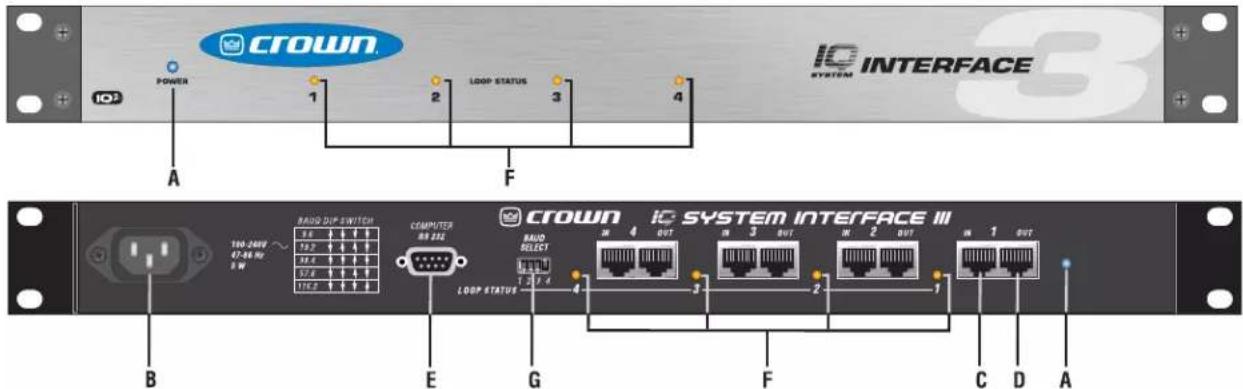

Figure 2.1 IQ-INT 3 Controls, Connectors and Indicators

1 Welcome

The Crown ^® IQ-INT 3 is an IQ System ^® interface that connects up to four different IQ Bus loops to a host computer. It is a self-contained unit with its own IQ Bus drivers, RS232 drivers and power supply. It has a microprocessor that can be directed by the host computer to send and receive commands and data to and from IQ components connected to its IQ Bus loops.

This manual will help you successfully install and use your new interface. Please read all the instructions, warnings and cautions contained within it. Consult the IQ for Windows software documentation for descriptions of the software controls for this unit. Also, for your protection, please send in the warranty registration card today. And save the bill of sale—it is your official proof of purchase.

3D illustration of a box with open lid and visible brand mark 'Crown' on the side (no text or symbols on main body)

1.1 Unpacking

Please inspect the unit for any damage that may have occurred during transit. If damage is found, notify the transportation company immediately. Only you, the consignee, may initiate a claim with the carrier for shipping damage. Crown will cooperate fully as needed. Save the shipping carton as evidence of damage for the shipper's inspection.

Please save all packing materials. NEVER SHIP THE UNIT WITHOUT THE FACTORY PACK.

2 Controls, Connectors and Indicators

A. Power Indicator

Blue front and rear panel LEDs light when the power cord is connected to the AC mains and the unit is receiving power. The IQ-INT 3 has no on/off switch.

B. AC Line Connector

A rear panel IEC320 connector for attaching the power cord. The IQ-INT 3 has a universal power supply, and may be operated on AC line voltages from 100VAC to 240VAC at 47 Hz to 66 Hz.

C. IQ Bus Input Connector

An RJ-45 connector provides input connection to each of four separate IQ Bus loops.

D. IQ Bus Output Connector

An RJ-45 connector provides output connection to each of four separate IQ Bus loops.

E. Computer RS232 Connector

A female, 9-pin D-subminiature connector provides serial connection to a host computer.

F. Loop Status Indicators

Yellow front and rear panel LEDs for each IQ Loop indicate data activity.

G. Baud Select DIP Switch

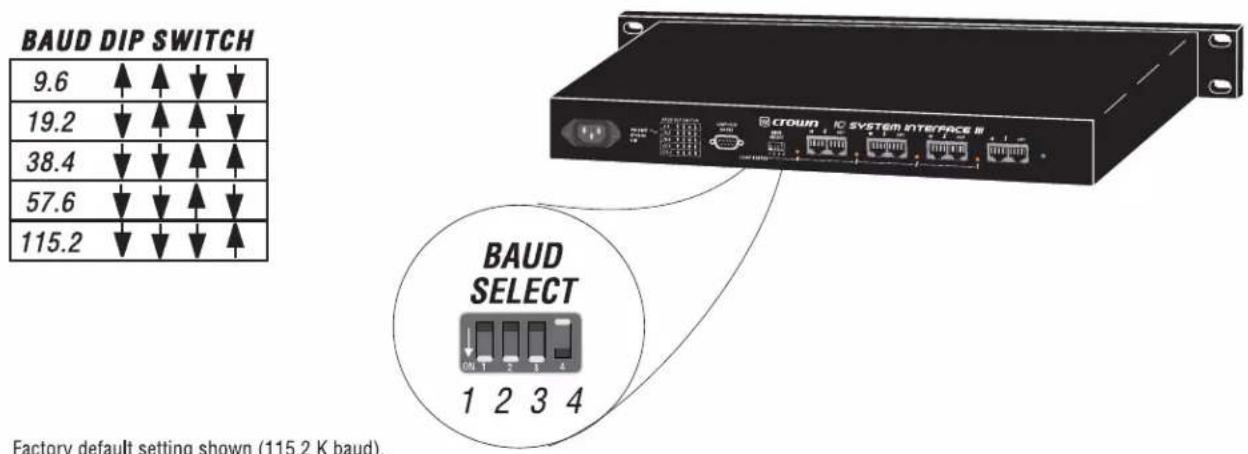

A four-segment DIP switch located on the rear panel used to set the data rate for communication with the host computer. Available data rates are 9,600, 19,200, 38,400, 57,600 and 115,200 baud. Factory default setting is 115,200 baud.


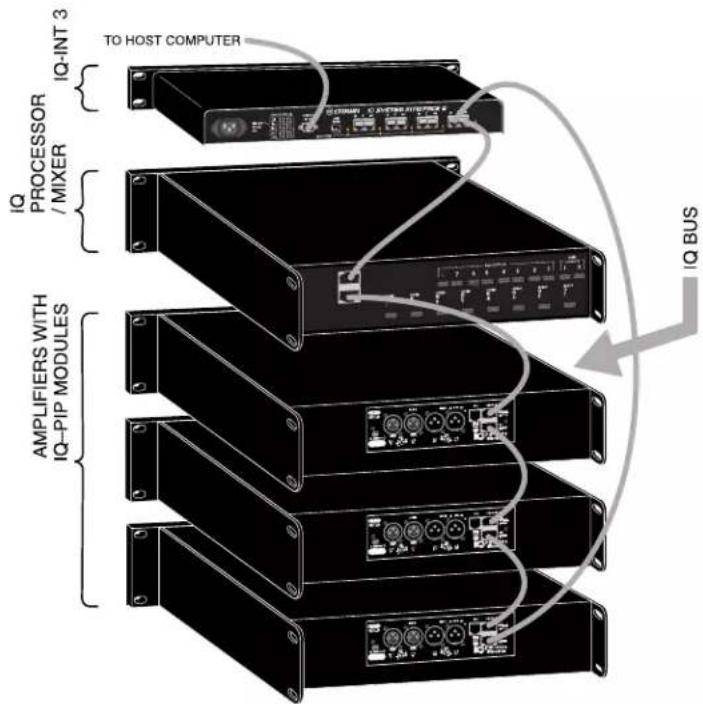

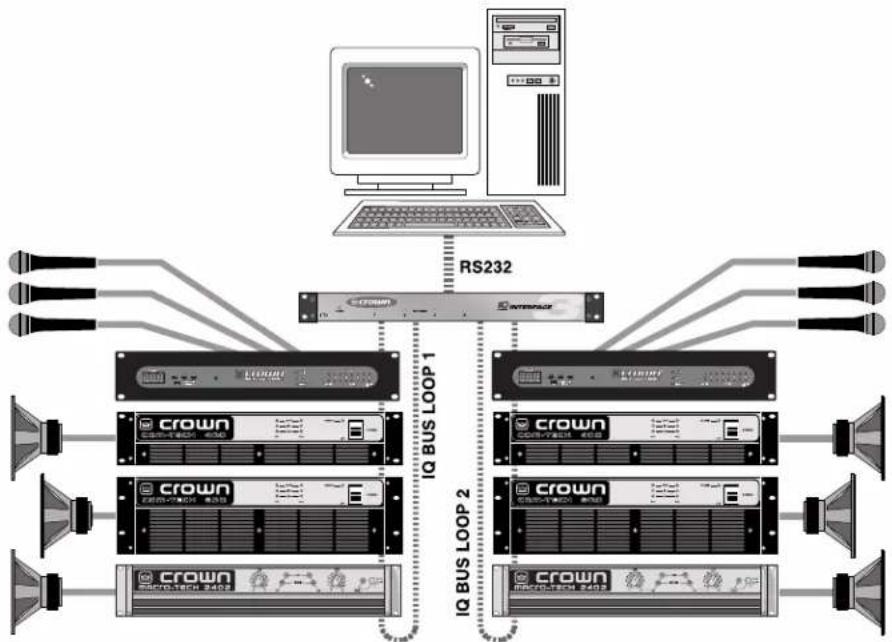

Figure 3.1 An IQ System with a Host Computer and an IQ-INT 3

3 Installation

IQ-INT 3 installation can be divided into the following major parts: Connecting to one or more IQ Bus loops, connecting to the host computer or modem, and setting the communication baud rate.

3.1 Connecting to an IQ Bus Loop

The IQ Bus is a serial communication loop designed to transmit IQ commands and data. As a communication standard, it is independent of its wiring. This characteristic allows you to wire an IQ Bus loop with either fiber optic cabling or with inexpensive twisted-pair wire, whichever is most appropriate. One IQ System can have more than one IQ Bus loop, and each loop must be unbroken for proper operation.

The IQ-INT 3 supports up to four IQ Bus loops. This makes it possible to divide the system into zones, each with its own loop. Single and multiple IQ Bus loops each have their own advantages that are listed next.

Multiloop Advantages

• A break in communication in one loop does not affect other loops.
  • Over 250 IQ components of the same model can be used in a system.
• The same IQ address can be used more than once (once for each type of unit on each loop).

- Larger areas can often be covered without using repeaters or fiber optic cabling.

Single Loop Advantages

• The IQ-INT 3 can send and receive data slightly faster using a single loop.
• "Real-time" levels can be displayed for a greater number of units.

The IQ-INT 3 is designed to work with inexpensive twisted-pair wire, so it implements the IQ Bus as a 20-milliamp current loop operating at a baud rate of 38,400. If you want to use fiber optic cabling, contact Crown's Technical Support Group for information on the appropriate transceivers.

Here are some guidelines for twisted-pair wiring:

- An IQ Bus loop must be unbroken to carry commands and data to and from connected units.

- Never cross-connect IQ Bus loops. Each IQ Bus loop is an independent serial communication circuit. An IQ Bus output is connected to the input of the first IQ component on the loop. Each unit's output connects to the next unit's input until the loop returns to the interface where it is connected to the input for the same loop.

• Use twisted-pair wire at least 26 AWG in size. Use twisted-pair wire with a shield when interference is a concern. The wire should be of good quality and should have low capacitance (30 picofarads/foot or less). In most cases, interference is not a problem and unshielded wire is a better choice because of its lower capacitance. When used with the IQ Bus, a shield serves two purposes: it helps prevent data signals from being transmitted to nearby audio wiring, and helps prevent high external RF levels from interfering with data transmissions. If you must install shielded wire, use a low-capacitance shielded data wire.
• The total capacitance for each loop should be 30 nanofarads or less. Add up the loop's total capacitance based on the wire's rating in picofarads per foot, and allow approximately 60 picofarads for each connected IQ component. Experience has shown that loops with 50 or more components usually require at least one repeater.

Bus: 20mA Current Loop

Loop Calculator

Loop Capacitance =

$$ \left[ \binom {\text { Wire }} {\text { Length (in ft.) }} \times \binom {\text { Capacitance of Wire per foot (in pf / ft) }} \right] + \left[ \binom {\text { Number of IQ components On Loop }} \right. \times (6 0 \mathrm{pf}) ] $$

Loop Capacitance =

$$ \left[ \binom {\text { Wire }} {\text { Length (in Meters) }} X \binom {\text { Capacitance of Wire per meter (in pf / M) }} \right] + \left[ \binom {\text { Number of IQ components On Loop }} \right] X (6 0 \mathrm{pf}) $$

H A Harman International Company

• Add an IQ Repeater for long loops greater than 1,000 feet (305 m) or when required by high-capacitance wire. Although repeaters are recommended for loops longer than 1,000 feet, it is often possible to set up reliable loops of 2,000 feet (610 m) or more without a repeater. Although we recommend shielded wire, unshielded wire typically has less capacitance and can support longer loops.
• Never use the ground wire in a mic snake. At times, it may be convenient to run IQ Bus data signals to and from stage monitor amplifiers along unused wires in a mic snake. If this is done, do not use the ground wire which is normally connected to pin 1 on an XLR connector, or data noise will be

added to the audio lines. Use only the signal lines which normally connect to pins 2 and 3 of the XLR's. Note: Because typical mic cables have higher capacitance, the maximum possible IQ Bus loop will be shorter than low-capacitance twisted-pair wire.

Outside RF interference is seldom a problem for an IQ Bus loop—especially if shielded twisted-pair wire is used. However, there are extreme situations when fiber optic wiring is recommended. For example, locating an IQ Bus loop next to an AM radio transmission line may require fiber optic transceivers and cabling. It may also be more practical to use fiber optics for extremely long IQ Bus loops when distances exceed several miles.

Three different types of connectors are used for IQ Bus wiring on IQ components. These include RJ-45 connectors, DIN connectors and removable terminal block connectors. The IQ-INT 3 uses RJ-45 connectors that accept standard RJ-45 plugs like the one shown in Figure 3.2, allowing the use of industry-standard straight-thru type network cables for input and output wiring.

Figure 3.2 RJ-45 Plug

Figures 3.3 through 3.7 show how to connect IQ components the IQ Bus inputs and outputs.

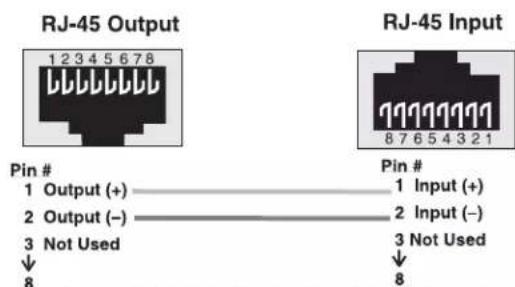

Figure 3.3 RJ-45 Output to RJ-45 Input

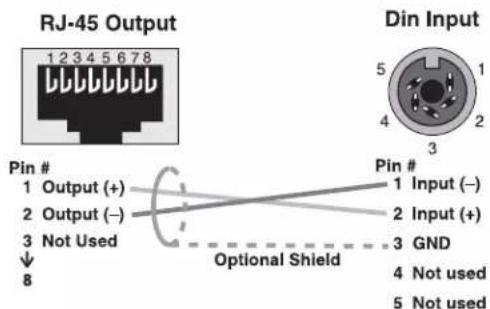

Figure 3.4 RJ-45 Output to Din Input

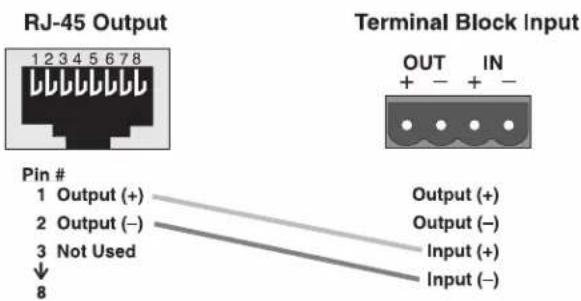

Figure 3.5 RJ-45 Output to Terminal Block Input

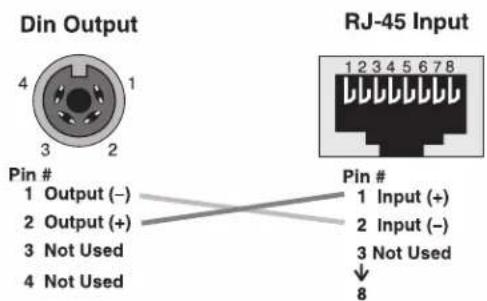

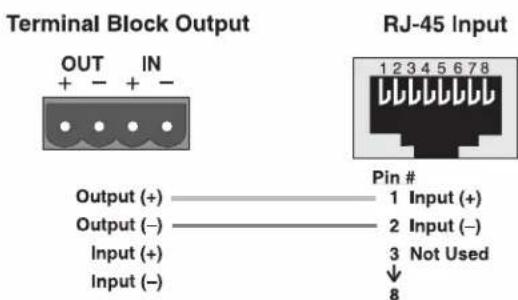

Figure 3.6 Din Output to RJ-45 Input

Figure 3.7 Terminal Block Output to RJ-45 Input

The IQ components on each IQ Bus loop are connected in succession. Each loop begins and ends with the IQ-INT 3. The output of the interface connects to the input of the first unit, then each unit's output is connected to the next unit's input until the loop returns to the interface. This is shown in Figure 3.9.

3.2 Connecting to a Host Computer

RS232 is the communication standard supported by the IQ-INT 3 for serial communication with a host computer.

RS232 is commonly used with IBM® PCs and compatibles. Because it uses unbalanced signal wiring, it cannot be used for distances over 50 feet (15.2 m). You can use an RS232-to-RS422 adapter for serial communication across distances of greater than 50 feet (15.2 m). Contact the Crown Technical Support Group if you need more information about using an RS232-to-RS422 adapter.

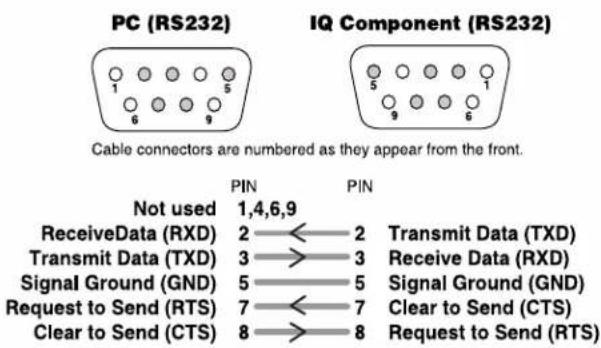

Figure 3.8 shows how to connect the IQ-INT 3 to the host RS232 serial port.

IMPORTARDATE host computer serial interface must have a 16550-compatible UART.

Figure 3.8 RS232 Cable Wiring

3.2.1 Connecting to a Modem

The IQ-INT 3 is also modem compatible. The IQ-INT3 periodically sends out an "AT" command string {ATS0=1} that automatically initializes a connected modem to its max baud rate and auto-answer mode. A standard null modem cable should be used between the interface and modem. Refer to the diagram in Figure 3.10 for modem wiring detail. Figure 3.11 shows an example IQ System with a modem.

Figure 3.9 IQ Bus Wiring "Loop" from Output to Input of Each IQ Component

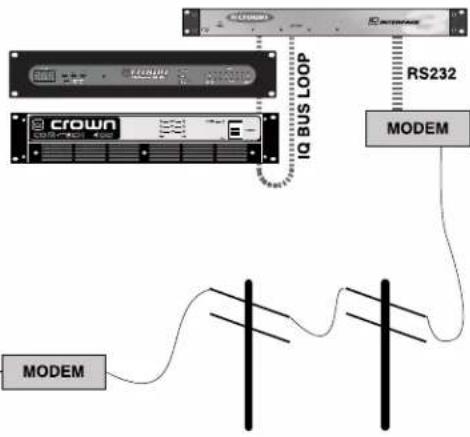

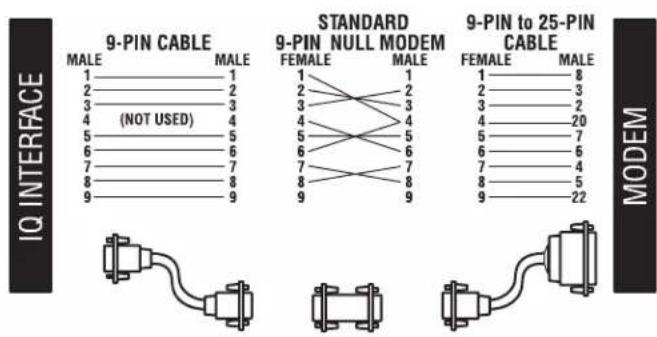

Figure 3.10 Modem Hookup

Figure 3.11 IQ System with a Modem

Figure 3.12 Baud Rate Settings for the IQ-INT 3

3.2.2 Baud Rate Setting

IMPORTANT: Be sure to disconnect the AC power from the unit before changing the communication standard or parameters.

Setting the baud rate for RS232 serial communication is accomplished using the four-segment DIP switch shown in Figure 3.12. Switch settings for all possible baud rate settings are shown in the table in Figure 3.12. Use the fastest baud rate possible.

IMPORTANT: The communication standard and parameters of the IQ-INT 3 and the host computer must be the same. Any mismatch will prevent communication from taking place.

The communication parameters of the host computer are set automatically by IQ for Windows software. Please refer to the IQ for Windows documentation for details.

IMPORTANT: The IQ-INT 3 is compatible with IQ for Windows, version 5.0 or newer. Older versions of the software cannot recognize the interface. For the most current version of IQ for Windows software, visit www.iqaudiosystems.com.

Here are some important guidelines when configuring serial communication:

- The IQ-INT 3 should be set at one baud rate below the host computer (refer to the IQ for Windows documentation). The IQ-INT 3 can be

set as high as 115.2 K baud. Use the highest baud rate possible, but be aware that the communication circuitry (UART) in some PC's cannot function over 9600 baud. We strongly recommend using a host computer serial interface with a 16550-compatible UART.

• Do not use twisted-pair wire for RS232 cables because the unbalanced wiring of RS232 is susceptible to crosstalk. Instead use an untwisted cable, ribbon cable, or a certified RS232 cable.
• If the host computer fails to communicate or reports communication errors with the IQ-INT 3 and the communication standard and parameters are identical, try reducing the baud rate for the interface and the computer. This may be especially useful when configuring for communication via modem. IMPORTANT: The IQ-INT 3 should be set at one baud rate slower than the modem is set for accurate communication. (Example: 38.4 K modem, set the IQ INT 3 at 19.2 K.)
• If communication problems persist, check the serial cable for improper wiring or possible shorted or broken wires.
• For further assistance, refer to the IQ for Windows documentation, or contact Crown's Technical Support Group.

4 Technical Information

The purpose of the IQ-INT 3 is to provide a means for the IQ System host computer to communicate with the IQ components. The interface supports the RS232 serial data standard. It accepts host computer communication rates from 9,600 to 115,200 baud, and can drive up to four independent IQ Bus loops for a high level of fault tolerance. In addition, the IQ-INT 3 supports both the original IQ System and the newer IQ ^2 (Ucode) protocols, and it provides Crown's own robust network transport layer.

Figure 4.1 shows a block diagram of the IQ-INT 3.

The interface is equipped with an auto-reset feature. The microprocessor generates an auto-reset signal that can be used as a reliable power-on reset and an automatic "warm" reset in case control is lost due to noise or other anomalies.

The baud rate for communication with the host computer is determined by the baud rate generator which is controlled by a four-segment DIP switch (SW1).

The interface's microprocessor communicates with other IQ components using its internal UART to drive each loop at 38,400 baud.

Data from the host computer arrives at the IQ-INT 3 serial port which accepts the RS232 data standard. From here the signal goes to the serial input, Sci1 (Rx) of the microprocessor. Next, the interface takes care of any required checksum calculations and other transport layer processing. Finally, all of the data bytes are dumped out the microprocessor's Sci0 port (the Tx. pin) at 38,400 baud.

The microprocessor controls the input and output selectors that control which loop will receive data. Data sent to the selected line driver, which sends the data onto the current loop to the appropriate IQ component.

The line receiver takes incoming data from IQ components and sends it through the input selector to the microprocessor's Sci0 input Rx. pin. The microprocessor stores the data in memory and handles the required transport layer processing. The remaining protocol data is then sent to the serial output buffer for transmission to the host computer via the Sci1 (Tx.) pin.

Figure 4.1 IQ-INT 3 Block Diagram

5 Specifications

General

Controls: A four-segment DIP switch located on the rear panel is used to configure the data rate for communication with the host computer. Factory default setting is 115,200 baud.

Connectors: IQ Bus Input: Four RJ-45 connectors. IQ Bus Output: Four RJ-45 connectors. (The IQ Bus Input and Output connectors are grouped in pairs to accommodate four different loops.) Computer: Female 9-pin "D-shell" connector. AC Power: IEC320 connector for AC power cord. All connectors are located on the rear panel.

Indicators: A blue front and rear panel Power indicator shows that the unit is plugged in and receiving power. Yellow front and rear panel indicators for each IQ Loop show loop data activity.

Power Supply: Universal input switching power supply.

Power Requirements: 100VAC to 240VAC, 47 Hz to 66 Hz.

Power Consumption:

60 Hz 60 Hz 50 Hz 50 Hz

100VAC 3.70W 3.71W

120VAC 3.92W 3.92W

220VAC 5.03W 5.03W

230VAC 5.23W 5.18W

240VAC 5.59W 5.41W

Crown Bus Data Communication

Protection: The auto-reset feature is controlled by the microprocessor. Optically coupled 20-milliamp current loop receivers provide ground isolation.

Data Rate: 38.4 K baud.

Data Format: Asynchronous binary serial data with 1 start bit, 1 stop bit, 8 data bits and no parity check.

Interface Type: 20-milliamp current loop.

Operation: Half duplex.

Intelligence: 16-bit microprocessor.

Transmission Distance: Variable up to 3,000 feet (914 meters) depending on wire capacitance. 1,000 feet (305 meters) is typical with shielded 26 AWG twisted pair wire. IQ repeaters or fiber optic transceivers can be used to cover greater distances.

Host Computer Data Communication

Data Rate: 9,600, 19,200, 38,400, 57,600 or 115,200 baud.

Data Format: Asynchronous binary serial data with 1 start bit, 1 stop bit, 8 data bits and no parity check.

Interface Type: RS232.

Operation: Half duplex.

Data Buffer: 255 bytes.

Intelligence: 16-bit microprocessor.

RS232 Transmission Distance: 50 feet (15.2 m).

Mechanical

Finish: Charcoal powder-coated steel chassis and front panel with Lexan® front and rear overlays.

Dimensions: 19-inch (48.3 cm) standard rack mount width (EIA RS-310-B), 1.75-inch (4.4 cm) height and 6.5-inch (16.5 cm) depth.

Weight,

Net: 6 lbs., 4 oz (2.8 kg);

Shipping: 9 lbs., 5 oz (4.21 kg).

6 Service

Crown IQ products are quality units that rarely require servicing. Before returning your unit for servicing, please contact Crown Technical Support to verify the need for servicing.

This unit has very sophisticated circuitry which should only be serviced by a fully trained technician. This is one reason why each unit bears the following label:

CAUTION: To prevent electric shock, do not remove covers. No user serviceable parts inside. Refer servicing to a qualified technician.

6.1 Worldwide Service

Service may be obtained from an authorized service center. (Contact your local Crown/Amcron representative or our office for a list of authorized service centers.) To obtain service, simply present the bill of sale as proof of purchase along with the defective unit to an authorized service center. They will handle the necessary paperwork and repair.

Remember to transport your unit in the original factory pack.

6.2 US and Canada Service

Service may be obtained in one of two ways: from an authorized service center or from the factory. You may choose either. It is important that you have your copy of the bill of sale as your proof of purchase.

6.2.1 Service at a US or Canada Service Center

This method usually saves the most time and effort. Simply present your bill of sale along with the defective unit to an authorized service center to obtain service. They will handle the necessary paperwork and repair. Remember to transport the unit in the original factory pack. A list of authorized service centers in your area can be obtained from our Technical Support Group.

6.2.2 Factory Service

To obtain factory service, fill out the service information page posted in the back of this manual and send it along with your proof of purchase and the defective unit to the Crown factory.

For warranty service, we will pay for ground shipping both ways in the United States. Contact Crown Factory Service or Technical Support to obtain prepaid shipping labels prior to sending the unit. Or, if you prefer, you may prepay the cost of shipping, and Crown will reimburse you. Send copies of the shipping receipts to Crown to receive reimbursement.

Your repaired unit will be returned via UPS ground. Please contact us if other arrangements are required.

Always use the original factory pack to transport the unit.

Factory Service Shipping Instructions

1. Before sending a Crown product to the factory for service, first call the Crown Service Department for a return authorization (RA) number.
2. Be sure to fill out the service information form that follows and enclose it with your shipment, either inside the box or in a packing slip envelope securely attached to the outside of the shipping carton. Do not send the service information form separately.
3. To ensure the safe transportation of your unit to the factory, ship it in an original factory packing container. If you don't have the original carton, you may obtain a product service foam-in-place shipping pack from the Crown Factory Service Department at the number listed below. For non-warranty service, you may also provide your own shipping pack. Minimum recommended requirements for materials are as follows: 275 P.S.I. burst test Double-Wall carton that allows for 2-inch solid Styrofoam on all six sides of unit or 3 inches of plastic bubble wrap on all six sides of unit; securely seal the package with an adequate carton sealing tape. Do not use light boxes or "peanuts." Damage caused by poor packing cannot be covered under warranty.
4. Do not ship the unit in any kind of cabinet (wood or metal). Ignoring this warning may result in extensive damage to the unit and the cabinet. Accessories are not needed—do not send the product documentation, cables and other hardware.

If you have any questions, please call or write the Crown Technical Support Group.

Crown Customer Service

Technical Support / Factory Service Plant 2 SW, 1718 W. Mishawaka Rd., Elkhart, Indiana 46517 U.S.A.

Telephone: [phone] (North America, Puerto Rico, and Virgin Islands only)

Facsimile: 574-294-8301 (Technical Support) 574-294-8124 (Factory Service)

Internet: http://www.crownaudio.com Email: [e-mail]

Crown Factory Service Information

Shipping Address: Crown Factory Service, 1718 W. Mishawaka Rd., Elkhart, IN 46517

Phone: [phone] or 1-574-294-8200 Fax: [phone]

Owner's Name: ____

Shipping Address ____

Phone Number: ____ Fax Number: ____

Email: ____

Model: ____ Serial Number: ____

Purchase Date: ____

NATURE OF PROBLEM

(Be sure to describe the conditions that existed when the problem occurred and what attempts were made to correct it.)

Other equipment in system: ____

IF WARRANTY HAS EXPIRED, PAYMENT WILL BE:

□ Cash/Check □ VISA □ MasterCard □ C.O.D. □ Purchase Order for Crown Dealer

Card Number: ____ Exp. Date: ____

Signature: ____

ENCLOSE THIS PORTION WITH THE UNIT. DO NOT MAIL SEPARATELY.
