Product Type	Tripod
Brand	Vello
Model	CG-GX9
Material	Aluminum alloy
Maximum Height	Approx. 150 cm (59 in)
Folded Length	Approx. 45 cm (17.7 in)
Weight	Approx. 1.5 kg (3.3 lbs)
Load Capacity	Up to 3 kg (6.6 lbs)
Head Type	Pan-tilt head with 3-way movement
Quick Release Plate	Yes, standard 1/4\" screw
Leg Sections	3 sections
Leg Lock Type	Flip locks
Bubble Level	Yes, built-in
Camera Mount	Standard 1/4\"-20 screw
Color	Black
Cleaning	Wipe with a soft dry cloth; avoid solvents
Safety	Do not exceed load capacity; use on stable ground
Spare Parts	Contact Vello customer support
Warranty	1 year limited manufacturer warranty
Designed For	Cameras, camcorders, and smartphones with adapter

Frequently Asked Questions - CG-GX9 Vello

How do I set up the Vello CG-GX9 tripod?

Extend the legs one by one by unlocking the flip locks, adjust the height, then lock them securely. Attach the camera to the quick release plate and slide it into the head. Use the pan-tilt handles to position the camera.

What is the maximum height of this tripod?

The maximum height is approximately 150 cm (59 inches) when fully extended with the center column raised.

What is the weight capacity of the CG-GX9?

The tripod can support up to 3 kg (6.6 lbs), suitable for most DSLRs and mirrorless cameras with standard lenses.

How do I clean and maintain the tripod?

Wipe the legs and head with a soft, dry cloth. Avoid using harsh chemicals. Periodically check and tighten all screws and locks. Lubricate moving parts with a silicone-based lubricant if needed.

Can I store the tripod in a bag or case?

Yes, the folded length is 45 cm (17.7 inches), so it fits in most standard tripod bags. Store in a cool, dry place.

What type of head does the tripod have?

It features a pan-tilt head with three independent handles for horizontal pan, vertical tilt, and lateral tilt, allowing precise framing.

Is the quick release plate compatible with other Arca-Swiss style plates?

No, the supplied plate uses a proprietary design. It is recommended to use only the original Vello plate for secure mounting.

How do I level the tripod on uneven ground?

Adjust each leg independently to compensate for slope. Use the built-in bubble level on the base to check horizontality before attaching the camera.

What is the warranty period for the Vello CG-GX9?

Vello offers a 1-year limited warranty against manufacturing defects. Keep your proof of purchase.

Can I use this tripod with a smartphone?

Yes, with a compatible smartphone adapter that mounts to the quick release plate. The tripod's load capacity is sufficient for most phones.

USER MANUAL CG-GX9 Vello

Close-up of a black camera with a circular lens and attached bracket, showing no visible text or symbols.

VELLO®

CAMERA GRIP

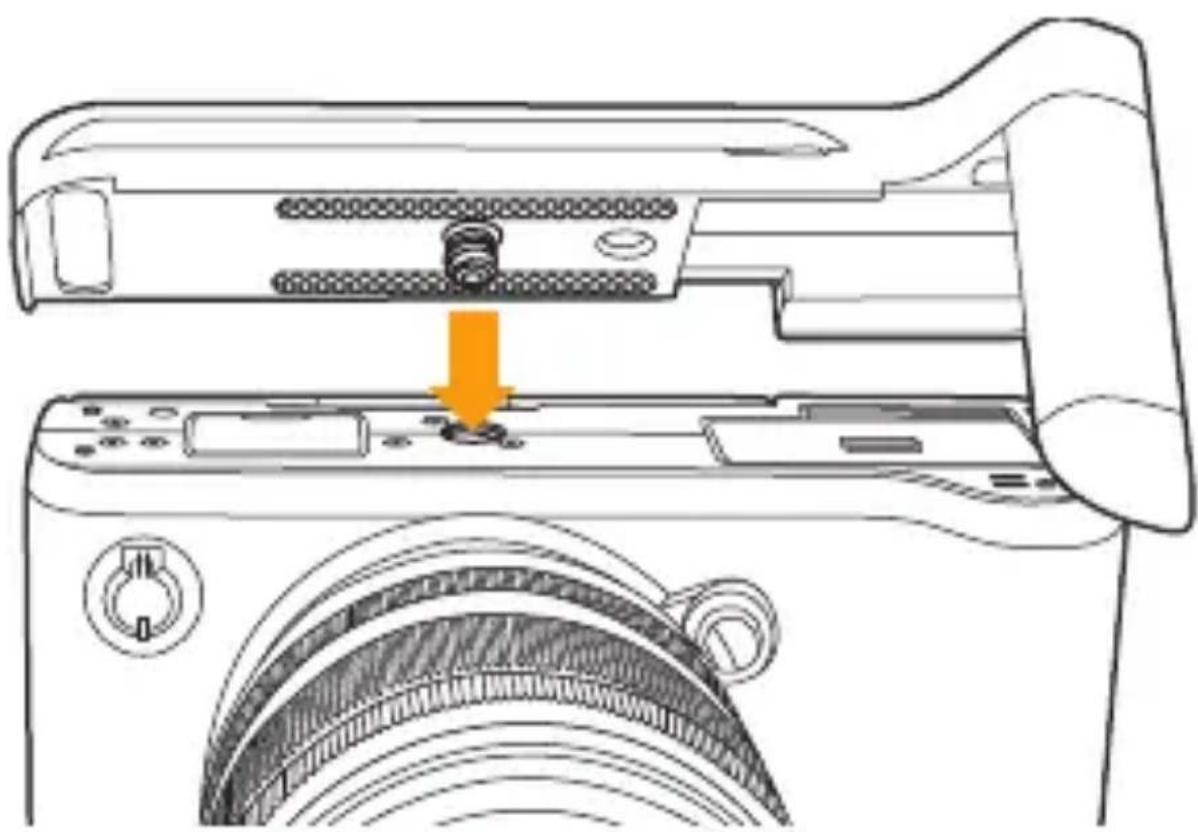

Align the grips's screw to your camera's tripod socket and screw it in.

Technical line drawing of a mechanical device with a highlighted component (no text or symbols)

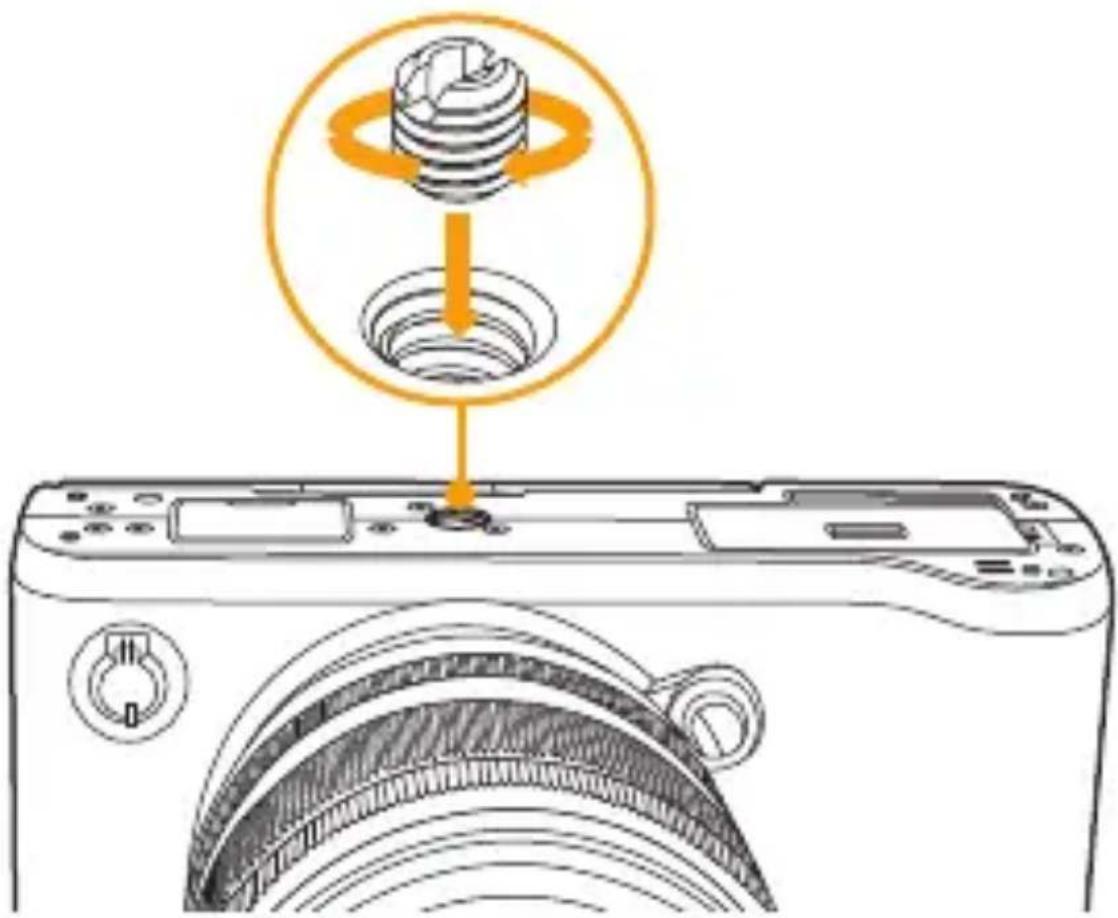

Note: Some Vello Camera Grip models require an included bushing you'll need to install into your camera's tripod socket before attaching the grip.

Diagram of a washing machine with a circular component and mechanical parts, showing no text or symbols.

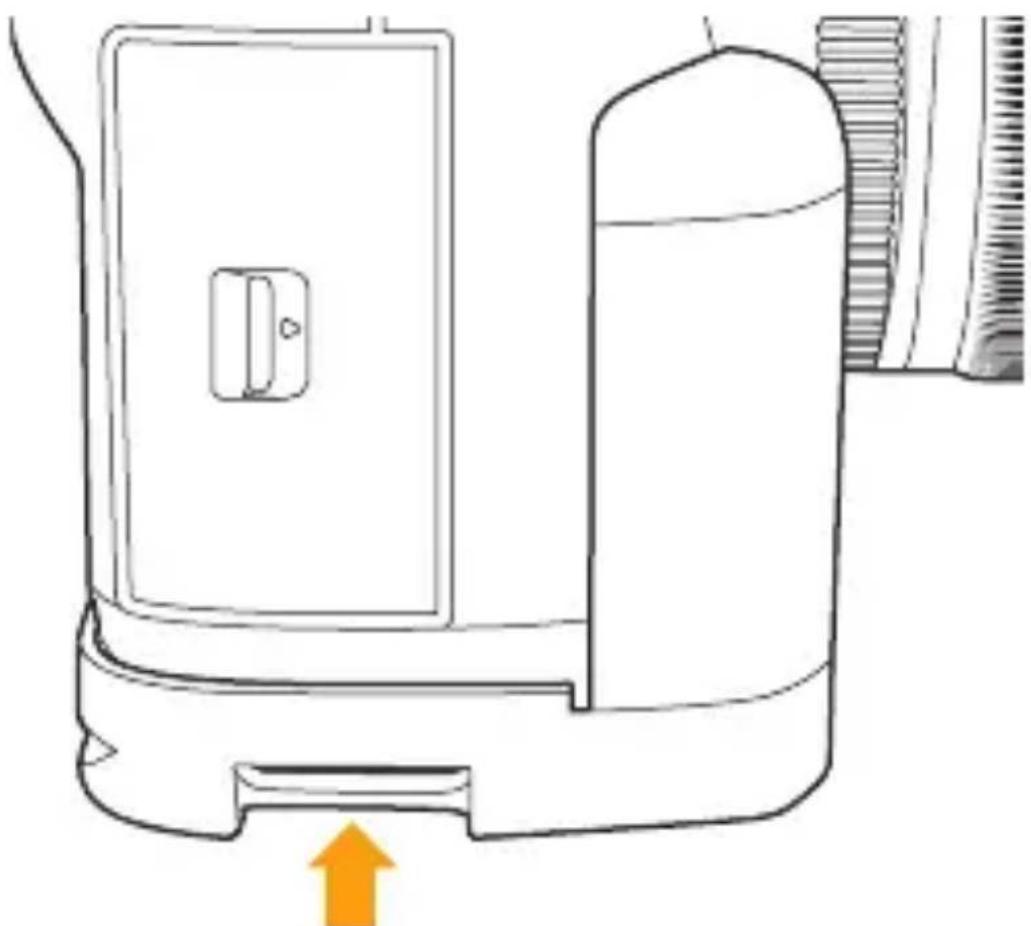

Some models offer a strap attachment.

Line drawing of a toilet with a door and outlet, showing a yellow arrow pointing to the outlet (no text or symbols)

GG1
