KS2510S - Fridge VOX - Free user manual and instructions

Product Type	Refrigerator
Brand	VOX
Model	KS2510S
Total Net Capacity	251 L
Fridge Net Capacity	210 L
Freezer Net Capacity	41 L
Energy Efficiency Class	E (EU 2019)
Annual Energy Consumption	220 kWh
Noise Level	40 dB(A)
Climate Class	N-ST
Dimensions (H x W x D)	177 x 54 x 57 cm
Weight	58 kg
Power Supply	220-240 V, 50 Hz
Current	0.6 A
Refrigerant	R600a
Defrost Type	Automatic (fridge), Manual (freezer)
Cooling System	Static
Interior Light	LED
Adjustable Shelves	3 tempered glass shelves
Door Storage	4 door balconies
Crisper Drawers	1 vegetable drawer
Reversible Door	Yes
Cleaning and Maintenance	Clean interior with mild detergent; defrost freezer when frost exceeds 5 mm; clean condenser coils yearly
Safety Features	Temperature control thermostat, door open alarm (if applicable)
Spare Parts Availability	Thermostat, shelves, door gaskets, light bulb available from manufacturer
Repairability Index	7.5/10 (estimated)

Frequently Asked Questions - KS2510S VOX

How do I adjust the temperature on my VOX KS2510S refrigerator?

Use the thermostat dial inside the fridge compartment. Turn it to a higher number for colder temperature, lower for warmer. Recommended setting is 3-4 for normal use.

Why is my refrigerator making unusual noises?

Refrigerators typically make clicking, humming, or gurgling sounds from the compressor and refrigerant flow. If the noise is loud or persistent, check if the appliance is level and away from walls.

How often should I defrost the freezer?

Defrost when the frost layer reaches 5 mm thickness. Turn off the appliance, remove food, and let ice melt naturally. Do not use sharp tools to remove frost.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to move hinges and handles to the opposite side. You may need a screwdriver and some assistance.

What does the climate class N-ST mean?

N-ST means the refrigerator operates optimally in ambient temperatures from 16°C to 38°C. Avoid placing it in very hot or cold rooms.

How do I clean the interior of my refrigerator?

Unplug the appliance, remove all food and shelves. Wash interior with a mixture of warm water and mild detergent. Rinse and dry thoroughly before restocking.

What should I do if the interior light does not work?

Check if the door switch is stuck. If not, the LED bulb may need replacement. Contact VOX service for a compatible replacement part.

How can I save energy with my refrigerator?

Place the fridge away from heat sources, keep doors closed, allow hot food to cool before storing, and defrost regularly. Also ensure door seals are clean and tight.

Why is there water pooling inside my refrigerator?

This may be due to a clogged defrost drain. Clean the drain hole at the back of the fridge with a pipe cleaner or warm water. Also check if the drain pan is properly positioned.

What is the recommended temperature for storing food?

Fridge compartment: 2-5°C (35-41°F). Freezer: -18°C (0°F) or lower. Use a thermometer to verify settings.

USER MANUAL KS2510S VOX

VOX ELECTRONICS

SRB

HRV

GBR

SVN

KS-2510/2510S

UPUTSTVO ZA UPOTREBU FRIŽIDER OPERATING INSTRUCTIONS LARDER UPUTSTVO ZA UPOTREBU HLADNJAK NAVODILA ZA UPORABO HLADILNIK

Red circular logo with white diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ŽIVIMO ZAJEDNO

Uputstvo za upotrebu

Frižider KS 2510/KS 2510S

Sadržaj
Bezbednosne1. informacije	strana 1-5
2. Opšti izgled uređaja	strana 6
3. Promenljiva stranaotvaranja vrata	strana 7-9
4. Instalacija	strana 10 -11
5. Svakodnevna upotreba	strana 12-15

Simple line drawing of a desk with a label 'MUSCOW' and an arrow pointing to the base (no other text or symbols)

Simple line drawing of a refrigerator with a lid and frontrest (no text or symbols)

Line drawing of a mechanical device with a tool and circular component (no text or symbols)

1. Uklonite gornju šarku, sklonite vrata i

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

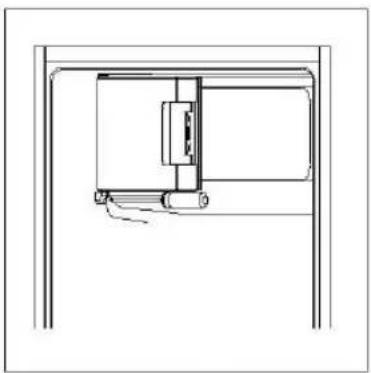

1. Odšrafite donju šarku na vratima

zamrzivača, zatim skinite vrata, odloživši ih na meku podlogu.

1. Premestite ručku za vrata sa leve na desnu stranu.

Diagram showing a pipe connection with a valve and a component, before and after modification (no text or symbols)

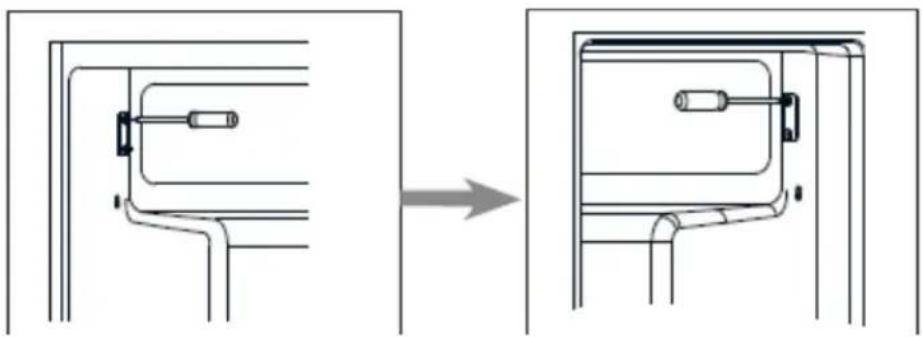

1. Prebacite poklopce za rupe šarke sa leve na desnu stranu.

Pure diagram of layered panels with no text, numbers, or symbols

1. Zarotirajte vrata zamrzivača i postavite šarku na levu stranu, zatim pričvrstite vrata.

Simple line drawing of a mechanical assembly or frame structure (no text or symbols)

Simple line drawing of a mechanical structure with an inset showing a circular component (no text or symbols)

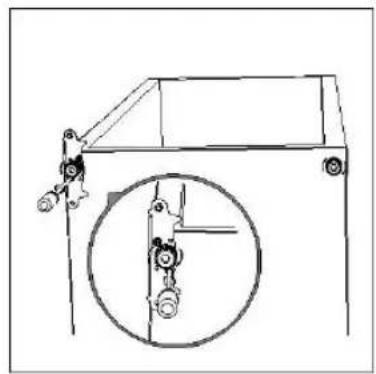

1. Skinite donju šarku, zatim uklonite nogare za nivelisanje.

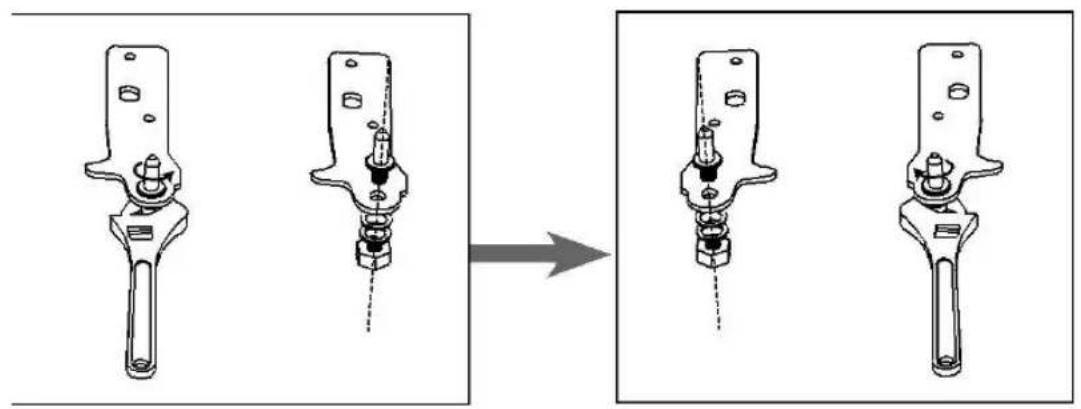

2. Odvijte i uklonite donju šarku, okrenite nosač i zamenite ga.

Odvrtanje Zavrtanje

1. Vratite i podesite nosač podešavajući donju šarku. Zamenite obe nogice za nivelisanje. Premestite donja vrata na odgovarajuće mesto.

Technical line drawing of a vehicle suspension system with an inset circular detail (no text or symbols)

1. Stavite vrata, i proverite da li dolazi do vertikalnog i horizontalnog podudaranja i da li su zaptivke dobro zatvorene.

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

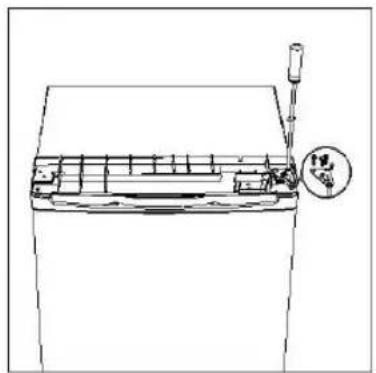

1. Stavite poklopac i ponovo zašrafite.

Line drawing of a rectangular box with a handle and lid, no text or symbols present

Postavljanje ručke za vrata (ukoliko je ručka prisutna kod modela)

Diagram showing two labeled containers with checkmarks and crosses, likely indicating cancellation or rejection status.

Postavljanje

Diagram of a sewing machine needle with blade and cutting tool, showing rotational motion (no text or labels)

Svakodnevna upotreba

Red circular logo with white diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ŽIVIMO ZAJEDNO

Upute za uporabu

Hladnjak KS 2510/KS 2510S

Simple line drawing of a desk with a label 'MUSCOW' and an arrow pointing to the base (no other text or symbols)

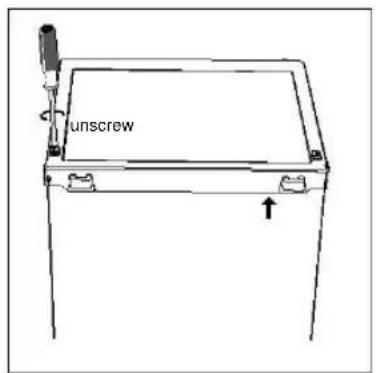

1. Uklonite dva vijka na

stražnjoj strani poklopca, zatim ih izvucite

Simple line drawing of a rectangular appliance with a lid and base (no text or symbols)

Technical line drawing of a mechanical component with a tool and circular symbol (no text or labels)

1. Uklonite gornju šarku, sklonite vrata i

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

1. Odšrafite donju šarku na vratima

zamrzivača, zatim skinite vrata, odloživši ih na meku podlogu.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

1. Prebacite poklopce za rupe šarke s lijeve na desnu stranu.

Pure diagram of layered panels with no text, numbers, or symbols

1. Zarotirajte vrata zamrzivača i postavite šarku na lijevu stranu, zatim pričvrstite vrata.

Simple line drawing of a mechanical assembly or frame structure (no text or symbols)

Simple line drawing of a mechanical structure with an inset showing a circular component (no text or symbols)

1. Skinite donju šarku, zatim uklonite nogare za niveliranje.

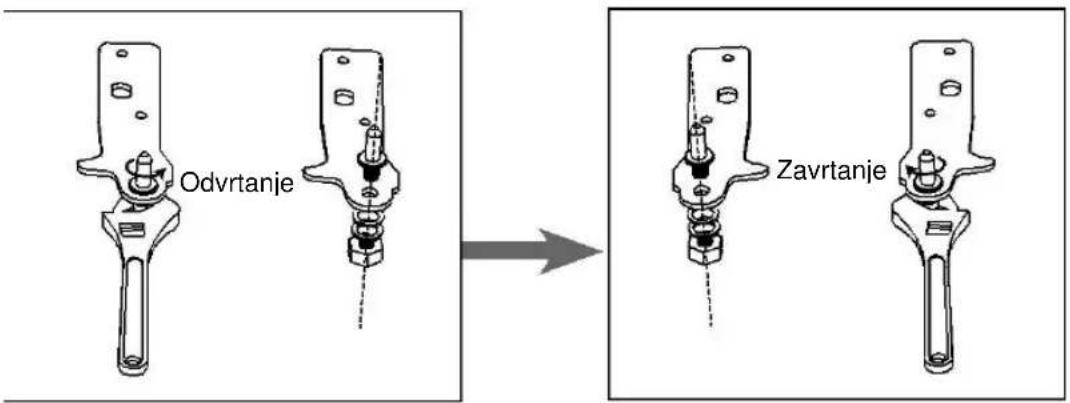

2. Odvijte i uklonite donju šarku, okrenite nosač i zamjenite ga.

Odvrtanje Zavrtanje

1. Vratite i podesite nosač podešavajući donju šarku. Zamenite obje nogice za niveliranje. Premjestite donja vrata na odgovarajuće mjesto.

Technical line drawing of a mechanical device with an inset circular detail showing internal components (no text or symbols)

1. Stavite vrata, i proverite da li dolazi do vertikalnog i horizontalnog podudaranja i da li su zaptivke dobro zatvorene.

Line drawing of a mechanical device with a hanging component and base plate (no text or symbols)

1. Stavite poklopac i ponovo zašrafite.

Line drawing of a rectangular box with a handle and lid, no text or symbols present

Postavljanje ručke za vrata (ukoliko je ručka prisutna kod modela)

Diagram showing two containers with checkmarks and a cross symbol, likely indicating cancellation or rejection status.

Postavljanje

Diagram of an airplane inside a circular frame with directional arrows indicating rotation (no text or symbols)

Svakodnevna uporaba

• Nemojte dozvoliti da takve tvari dodju u kontakt s dijelovima uređaja.
  • Nemojte koristiti nikakva abrazivna sredstva.
• Odstranite hranu iz zamrzivača. Čuvajte je na hladnom mjestu, dobro pokrivenu.
• Isključite uređaj i uklonite utikač iz utičnice.

- Očistite uređaj i unutarnje dijelove krpom i mlakom vodom. Nakon čišćenja obrišite čistom vodom i dobro osušite.

Red circular logo with white diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ŽIVIMO ZAJEDNO

User manual

Fridge KS 2510/KS 2510S

Content
1. Safety Information	Page 1~5
2. Overview	Page 6
3. Reverse Door	Page 7~9
4. Installation	Page 10~11
5. Daily Use	Page 12~15

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

avoid open flames and sources of ignition

thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as

staff kitchen areas in shops, offices and other working environments;

farm houses and by clients in hotels, motels and other residential type environments;

bed and breakfast type environments;

catering and similar non-retail applications.

WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
⚠ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1

Safety information

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily\_use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. ^1)
• Store pre-packed frozen food in accordance with the frozen food manufacture's instructions. ^1)
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)

Care\_and\_cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance. ^2

Safety information

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
  • The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Safety information

Environment\_Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol △ are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

Freezer Thermostat and light Glass shelves Balconies Crisper cover Crisper Leveling feet

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

• Remove two screws at rear side of top cover.

• Remove top cover and place it aside.

• Unscrew top hinge and then remove door and place it on a soft pad to avoid scratch.

• Unscrew bottom hinge of freezer door. Then remove the door and place it on a soft pad to avoid scratch.

unscrew

Line drawing of a rectangular appliance with a lid and base, no text or symbols present

Line drawing of a mechanical device with a dial indicator (no text or symbols)

Simple line drawing of a monitor mounted on a stand, no text or symbols present

Reverse Door

1. Move door holder from left side to right side.

Technical line drawing showing a pipe connection with a cylindrical component, before and after assembly (no text or symbols)

1. Move hinge hole cover from left side to right side.

Pure technical line drawing of a door or panel with no text, numbers, or symbols

1. Rotate freezer door and place hinge side at left side. And then fix the door by holder.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

1. Unscrew bottom hinge. Then remove the adjustable feet from both side.

Note: remove this screw if it presents.

Reverse Door

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Unscrew Screw

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a mechanical device with a circular inset showing a pulley mechanism (no text or symbols)

1. Place the door back on. Ensure the door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the top hinge.

Line drawing of a mechanical device with a mounted sensor and a circular component (no text or symbols)

1. Put the top cover and fix it with 2 screws on the back.

Line drawing of a mechanical device with a lever and base, showing no text or symbols

Installation

Install door external handle (if external handle is present)

Rear spacer

Screw the rear spacers at the rear of the unit.

SCREW

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 8 settings . 1 is warmest setting and 7 is coldest setting and 0 is off.
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under “rising time”, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Illustration of a hand holding a rectangular object over a shelf, with no visible text or symbols

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Daily Use

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

- not open the door frequently or leave it open longer than absolutely necessary.

- once defrosted, food deteriorates rapidly and cannot be re-frozen;

- do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour
  • Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc....: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

Clean drain hole

To avoid defrost water overflowing into the fridge, periodically clean the drain hole at back of fridge compartment. Use a cleaner to clean the hole as showed in right picture.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed.

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• pull out the plug from the socket;
• remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
• keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
• when defrosting is completed, dry the interior thoroughly
• replace the plug in the power socket to run the appliance again.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
	Temperature regulation knob is set at number “0”.	Set the knob at other number to switch on the appliance.
Appliance does not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning section.
Side panel is hot	Condenser is inside the panel.	It's normal.

If the malfunction shows again, contact the Service Center.

Red circular logo with white diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ŽIVIMO ZAJEDNO

Navodila za uporabo

Hladilnik KS 2510/KS 2510S

Simple line drawing of a laboratory apparatus with a label 'MUSCHN' on the top panel (no other text or symbols)

vijaka, ki pridržujeta pokrov na hrbtni strani.

Simple line drawing of a refrigerator with a lid and handle (no text or symbols)

1. Odvijte

2. Odstranite pokrov in ga odložite.

Technical line drawing of a mechanical component with a tool and circular detail (no text or symbols)

1. Odvijte zgornji tečaj in šarku, dvignite vrata

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

1. Zavrtite vrata zamrzovalnika in postavite tečaj na levi strani, nato pritrdite vrata.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a mechanical structure with an inset showing a bracket detail (no text or symbols)

1. Odstranite spodnji tečaj, nato odstranite noge za izravnavo.

2. Odvijte spodnji tečaj, obrnite stojalo in ga nadomestiti.

Mechanical component assembly diagram showing four sequential steps from pinning to mounting bracket (no text or labels)

Line drawing of a mechanical device with a mounted sensor and a circular gauge (no text or symbols)

Technical line drawing of a mechanical device with an inset circular detail showing internal components (no text or symbols)

Line drawing of a rectangular box with a handle and clasp (no text or symbols)

Ustrezen prostor

Technical line drawing of a mechanical assembly with a magnified inset showing rotational motion (no text or symbols)

xxxmm

Uravnanost

Diagram showing two labeled containers with checkmarks and crosses, likely indicating cancellation or rejection status.

Namestitev

Aparat postavite v suh in zračen prostor. Pravilno deluje pri temperaturah okolice, ki so podane v tabeli. Razred je naveden na etiketi z osnovnimi podatki o aparatu:

Razred	Temperatura °C
T	od 16 do 43
ST	od 16 do 38
N	od 16 do 32
SN	od 10 do 32

Ustrezen prostor

Diagram of a mechanical or fluidic system inside a heart-shaped container, showing directional arrows and components (no text or labels)
