USER MANUAL VL-2X JVC

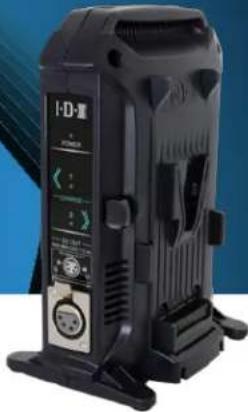

2 Channel Sequential Li-ion V-Mount Charger with 36W DC Output
The VL-2X is a budget friendly sequential 2 channel Li-ion V-Mount battery charger with a 36W DC output (4pin XLR). Featuring 'Recovery Charge' mode, the VL-2X will safely charge low voltage batteries by applying a low amperage 'pre-charge' current until the battery voltage reaches a level safe enough for higher charge currents; this feature minimizes cell damage when charging low voltage batteries. The charger is designed with an external AC adaptor allowing for a fanless and silent operation. The eco-friendly charger supports automatic power-management - a feature that powers down the charger when inactive. The durable, compact, and feather weight design makes the VL-2X the perfect travel charger for shooters on the go.
Features
Sequential: Charges 1 Battery at a time or outputs 36W DC
Charge Current: 2.7A
DC Output (4pin XLR): 36W (15V, 2.4A)
Recovery Charge: Protects and safely charges low voltage batteries
Auto Power-management: Automatically shuts off when inactive
Silent: Fanless design
Travel friendly: Compact and feather weight design
IDX Battery Charge Time Chart
| Model | Charge Time. |
| CUE-D75 | 170 min. |
| E-HL9 | |
| E-HL10DS | 210 min. |
| CUE-D95 | |
| DUO-95 / DUO-C95 | |
| ELITE | |
| CUE-D150 | 300 min. |
| DUO-150 | |
| DUO-C190 | 375 min. |
Technical Specifications
Interface
V-Mount
Chemistry
Li-ion
AC Input Voltage
100\~240V 50/60Hz
Power Consumption
MAX 140 VA
Charge Current
2.7A
DC Output (4pin XLR)
MAX 36W / 15V, 2.4A
Operating Temperature
0\~40°C / 32\~104°F
Weight
430g / 0.95 lbs.
Dimensions
87.4 (W) × 183 (H) × 126 (D) mm
3.44(W) × 7.22(H) × 4.98(D) in.
Design and specifications are subject to change without notice.
http://www.idx.tv
IDX Company, Ltd.: 6-28-11 Shukugawara, Tamaku, Kawasaki-shi, Kanagawa-ken 214-0021 Japan
Tel: +81-44-850-8801 Fax: +81-44-850-8838 E-mail: idx.japan@idx.tv
IDX System Technology, Inc.: 19001 Harborgate Way, Suite 105, Torrance, CA 90501 USA
Tel: +1-310-328-2850 Fax: +1-310-328-8202 E-mail: idx.usa@idx.tv
IDX Technology Europe, Ltd.: Unit 9, Langley Park, Waterside Drive, Langley, Berkshire SL3 6AD England
Tel: +44-1753-547692 Fax: +44-1753-546660 E-mail: idx.europe@idx.tv
