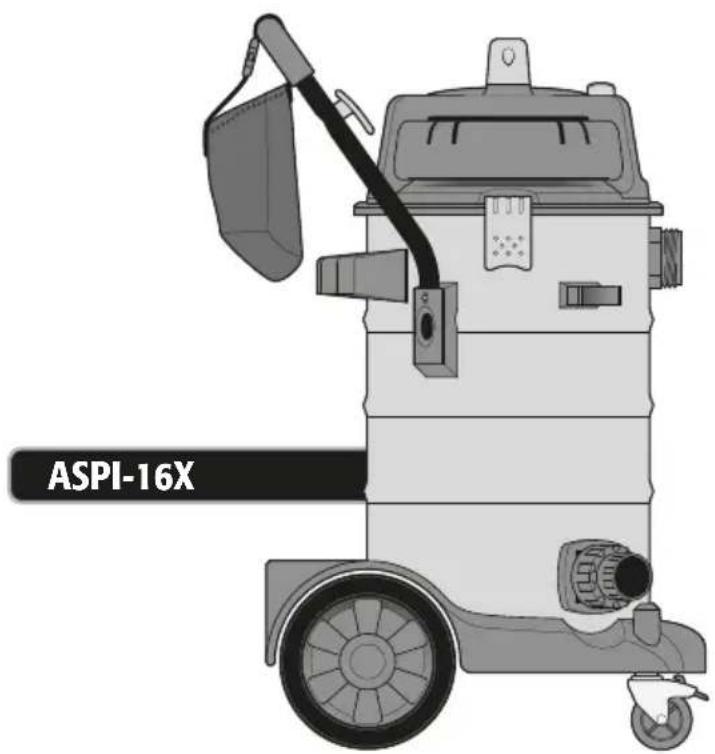

USER MANUAL ASPI-16X Truper

Electrical outlet diagram showing a power plug connected to a wall with three socket outlets (no text or labels)

Pure mechanical assembly diagram without any text, numbers, or symbols

TRUPER

I

Technical line drawing of a TRUPER vacuum cleaner with attached hoses and wheels (no text or symbols)

Illustration of a TRUPER vacuum cleaner with coiled hose and wheels (no text or symbols on the device itself)

Technical data 3

Power requirements 3

General power tool safety warnings 4

Safety warnings for vacuums 5

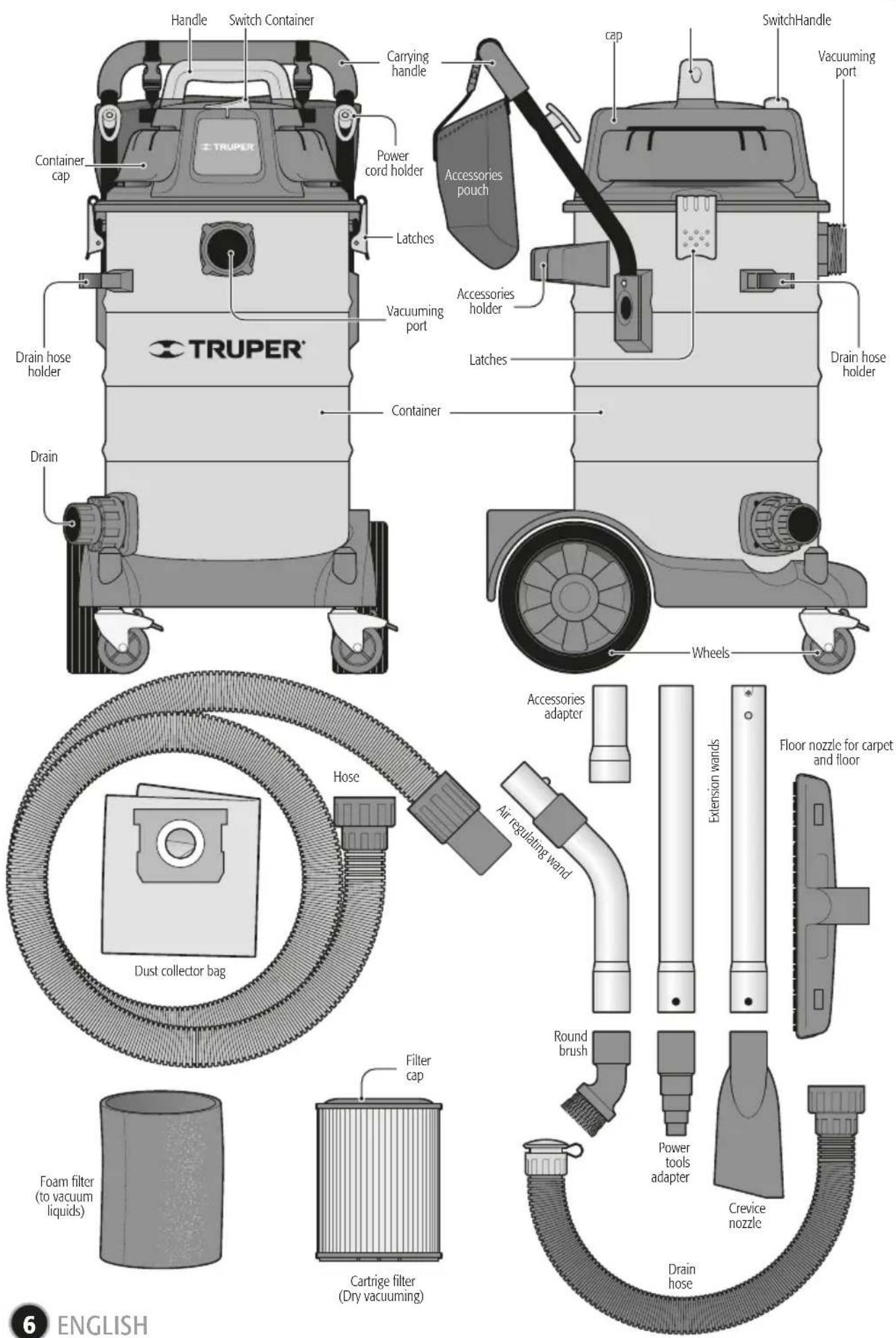

Parts 6

Assembly 7

Start up 8

Maintenance 9

Troubleshooting 9

Notes 10

Authorized Service Centers 11

Warranty Policy 12

CAUTION

To gain the best performance of the tool, prolong the duty life, make the Warranty valid if necessary, and to avoid hazards of fatal injuries please read and understand this Manual before using the tool.

Keep this manual for future references.

The illustrations in this manual are for reference only. They might be different from the real tool.

ASPI-16X

Code	12089
Description	Vacuum
Voltage	120 V ~
Frequency	60 Hz
Current	10.8 A
Maximum power	6.5 Hp
Rated power	1.7 Hp
Vacuuming pressure	2.5 PSI
Duty Cycle	60 minutes work per 20 minutes idle. Maximum 8 hours per day.
Conductors	16 AWG x 2C with insulating temperature of 221 °F
Insulating	Class II IP Grade IPX4

Power Cord Grips Type: Y.

Build Quality: Double Insulation.

Thermal Insulation on Motor Winding: Class R.

WARNING Avoid the risk of electric shock or severe injury. When the power cable gets damaged it should only be replaced by the manufacturer or at a TRUPER Authorized Service Center.

The build quality of the electric insulation is altered if spills or liquid gets into the tool while in use. Do not expose to rain, liquids and/or dampness.

WARNING Before gaining access to the terminals all power sources should be disconnected.

Power requirements

WARNING Tools with double insulation and reinforced insulation are equipped with a polarized plug (one prong is wider than the other). This plug will only fit in the right way into a polarized outlet. If the plug cannot be introduced into the outlet, reverse the plug. If it still doesn't fit, call a qualified electrician to install for you a polarized outlet. Do not alter the plug in any way. Both insulation types eliminate the need of both a grounded third power cord with three prongs or a grounded power connection.

Illustration of a power outlet connected to a wall-mounted socket (no text or symbols)

WARNING When using an extension cable, verify the gauge is enough for the power that your product needs. A lower gauge cable will cause voltage drop in the line, resulting in power loss and overheating. The following table shows the right size to use depending on cable's length and the ampere capability shown in the tool's nameplate. When in doubt use the next higher gauge.

Ampere Capacity

from 0 A and up to 10 A

from 10 A and up to 13 A

from 13 A and up to 15 A

from 15 A and up to 20 A

Number of Conductors

3 (one grounded)

Extension gauge

from 6 ft to 49 ft	| higher than 49 ft
18 AWG(*)	16 AWG
16 AWG	14 AWG
14 AWG	12 AWG
8 AWG	6 AWG

* It is safe to use only if the extensions have a built-in artifact for over current protection.
AWG = American Wire Gauge. Reference: NMX-J-195-ANCE-2006

WARNING When operating power tools outdoors, use a volteck grounded extension cable labeled "For Outdoors Use". These extensions are specially designed for operating outdoors and reduce the risk of electric shock.

WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.

Work area

Keep your work area clean, and well lit.

Cluttered and dark areas may cause accidents.

Never use the tool in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Sparks generated by power tools may ignite the flammable material.

Keep children and bystanders at a safe distance while operating the tool.

Distractions may cause loosing control.

Electrical Safety

The tool plug must match the power outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded power tools.

Modified plugs and different power outlets increase the risk of electric shock.

Avoid body contact with grounded surfaces, such as pipes, radiators, electric ranges and refrigerators.

The risk of electric shock increases if your body is grounded.

Do not expose the tool to rain or wet conditions.

Water entering into the tool increases the risk of electric shock.

Do not force the cord. Never use the cord to carry, lift or unplug the tool. Keep the cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

When operating a tool outdoors, use an extension cord suitable for outdoor use.

Using an adequate outdoor extension cord reduces the risk of electric shock.

If operating the tool in a damp location cannot be avoided, use a ground fault circuit interrupter (GFCI) protected supply.

Using a GFCI reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of distraction while operating the tool may result in personal injury.

Use personal protective equipment. Always wear eye protection.

Protective equipment such as safety glasses, anti-dust mask, non-skid shoes, hard hats and hearing protection used in the right conditions significantly reduce personal injury.

Prevent unintentional starting up. Ensure the switch is in the "OFF" position before connecting into the power source and / or battery as well as when carrying the tool.

Transporting power tools with the finger on the switch or connecting power tools with the switch in the "ON" position may cause accidents.

Remove any wrench or vice before turning the power tool on.

Wrenches or vices left attached to rotating parts of the tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times.

This enables a better control on the tool during unexpected situations.

Dress properly. Do not wear loose clothing or jewelry. Keep hair, clothes and gloves away from the moving parts.

Loose clothes or long hair may get caught in moving parts.

If you have dust extraction and recollection devices connected onto the tool, inspect their connections and use them correctly.

Using these devices reduce dust-related risks.

Power Tools Use and Care

Do not force the tool. Use the adequate tool for your application.

The correct tool delivers a better and safer job at the rate for which it was designed.

Do not use the tool if the switch is not working properly.

Any power tool that cannot be turned ON or OFF is dangerous and should be repaired before operating.

Disconnect the tool from the power source and / or battery before making any adjustments, changing accessories or storing.

These measures reduce the risk of accidentally starting the tool.

Store tools out of the reach of children. Do not allow persons that are not familiar with the tool or its instructions to operate the tool.

Power tools are dangerous in the hands of untrained users.

Service the tool. Check the mobile parts are not misaligned or stuck. There should not be broken parts or other conditions that may affect its operation. Repair any damage before using the tool.

Most accidents are caused due to poor maintenance to the tools.

Keep the cutting accessories sharp and clean.

Cutting accessories in good working conditions are less likely to bind and are easier to control.

Use the tool, components and accessories in accordance with these instructions and the projected way to use it for the type of tool when in adequate working conditions.

Using the tool for applications different from those it was designed for, could result in a hazardous situation.

Service

Repair the tool in a TRUPER Authorized Service Center using only identical spare parts.

This will ensure that the safety of the power tool is maintained.

Children or people with reduced physical, sensory or mental capabilities shall not operate the tool, neither inexperienced people or without knowledge in the use of the tool, unless supervised by a person responsible of their safety or if receiving previous instructions about the tool operation.

Children shall be kept under supervision to double-check they will not play with the tool. Tight supervision shall be used with children or disabled persons to prevent from using or being close to any household tool.

Dangerous materials

WARNING • Do not vacuum or use the vacuum cleaner near flammable liquids, gases or explosive fumes such as gasoline or other types of fuel, lighter fluid, hot liquids, cleaners, oil-based paint, natural gas, hydrogen or explosive dust such as coal dust, magnesium dust, grain dust or gunpowder. Sparks inside the motor can ignite flammable vapors or dust.

WARNING vacuum any burning or smoke-producing materials like cigarettes, matches or hot ashes.

CAUTION • To reduce health hazards do not vacuum toxic materials.

- Do not vacuum masonry dust or fireplace soot. Those are very fine dusts that cannot get trapped into the filter and will damage the motor. When vacuuming fine dust use a filter suitable for dust (sold separately).

Power cord

• Do not pull the vacuum cleaner or carry it grasping the power cord. Do not use the power cord in place of a handle. Do not close doors trapping the power cord. Do not pass the power cord trough sharp edges.
• Keep the power cord away from warm surfaces.
• Do not disconnect the vacuum cleaner pulling the power cord. To disconnect grasp the plug, not the power cord.
• Do not use the vacuum cleaner if the power cord or plug is in bad repair.
• Do not pass the vacuum cleaner over the power cord.
• Do not grasp the plug or the vacuum cleaner with wet hands.
• To reduce the risk of injury due to accidental start up disconnect the power cord before replacing or cleaning the filter.

Unpacking

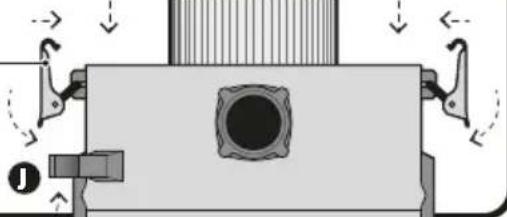

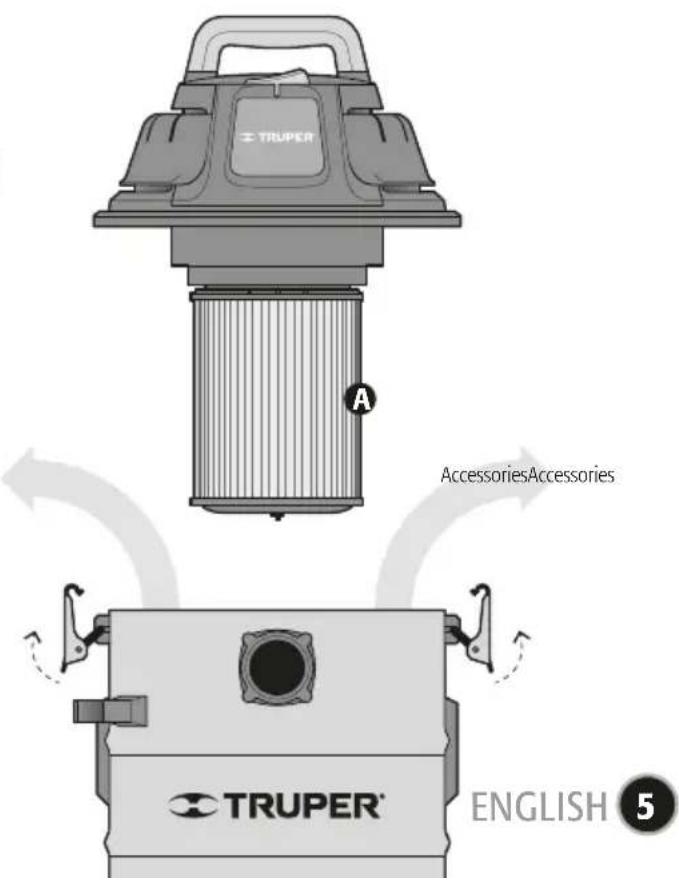

• To open the vacuum cleaner pull both latches outwards and from the bottom.
• Remove all the accessories from inside the container.
• The cartridge filter for dry vacuuming (A) is factory built-in. Remember to use the vacuum cleaner with one of the installed filters otherwise the motor gets damaged and the Warranty will be void.

When operating the vacuum

CAUTION • Keep hair, loose clothing, fingers or any other part of your body away from the openings and mobile parts.

• Do not use or store near hazardous materials.
• Do not leave the vacuum cleaner running unattended.
• Do not leave the vacuum cleaner unattended when plugged to the power source.
• Do not set any object onto the ventilation slots.
• Do not operate the vacuum cleaner with blocked ventilation slots. Keep them free of dust, balls of fluff, hair or any other thing that can reduce the airflow.
• Do not use the vacuum cleaner if the filter is ripped or without the filter. The only exception is when vacuuming liquids as described in the Operation Section in this Manual.
  • To reduce the risk of falls use extreme care when vacuuming stairs.
• If and when the vacuum cleaner is not working properly, is missing parts, has been dropped or is damaged, was left outdoors or got wet, take it to a TRUPER® thorized Service Center.
• Turn OFF the vacuum cleaner before unplugging.
• Unplug from the power source when not in use or before servicing.
• Do not use the machine as a toy. Exercise special care when children use it or when they are near by.
• Do not expose the vacuum cleaner to rain. Store indoors.
• Wear hearing protectors when working with noise level above 85 dB.

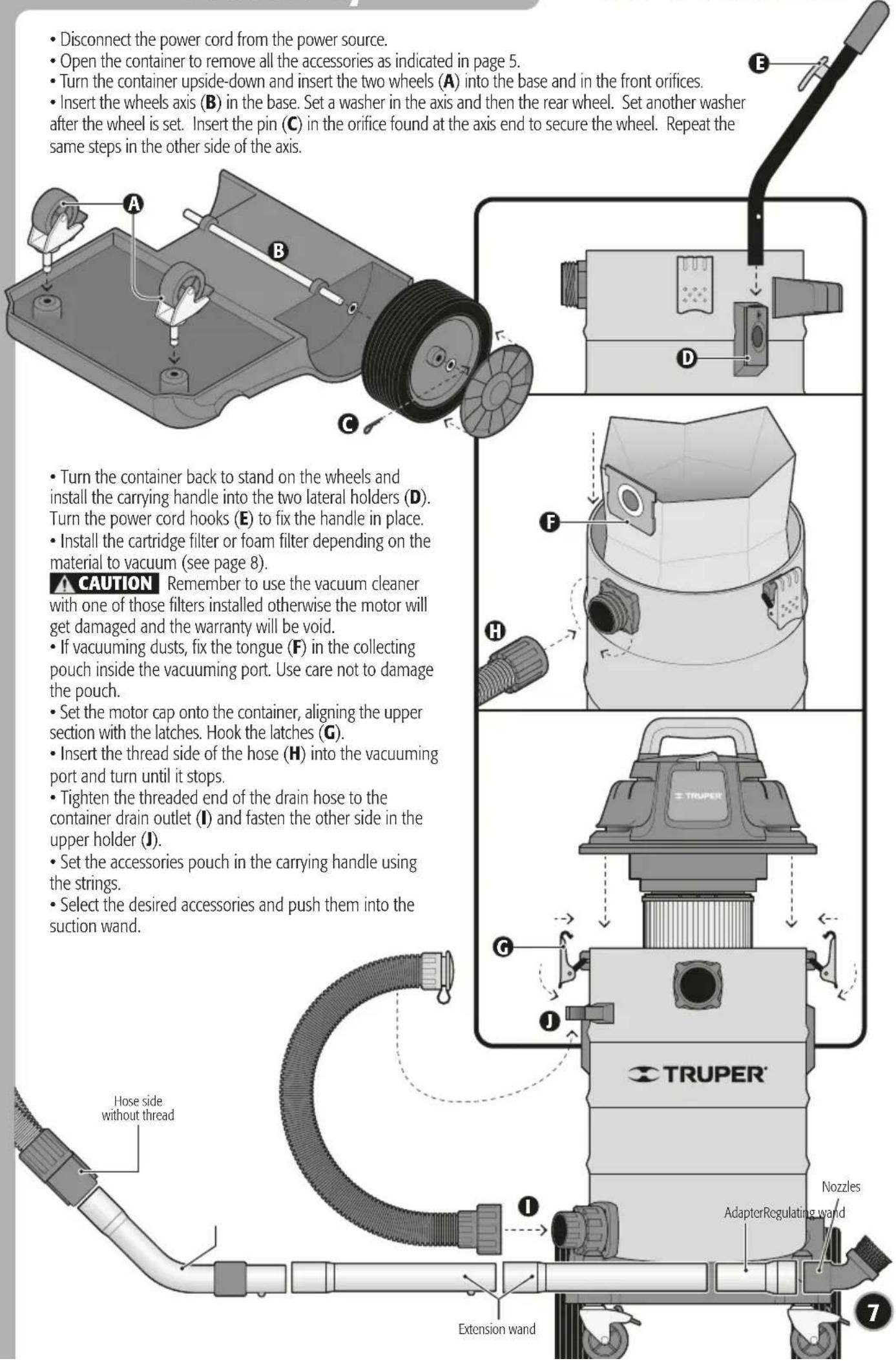

Assembly

TRUPER®

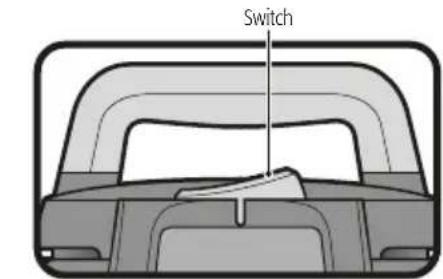

ON and OFF

• To start the vacuum cleaner, connect the power cord into the power outlet.
• Set the switch in the on position "1" (ON).
• To turn the vacuum off, set the switch in the off position "0" (OFF), and disconnect the power cord from the power source.

CAUTION double-check the switch is in the off position before connecting the power cord in the power source.

Dry vacuuming

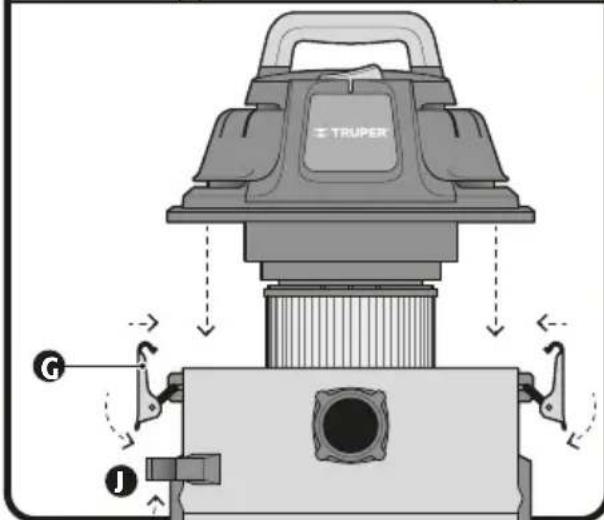

• Open the vacuum cleaner as indicated in page 5. Verify the cartridge filter for dry vacuuming is properly fit.
• Otherwise put the container cap upside-down.

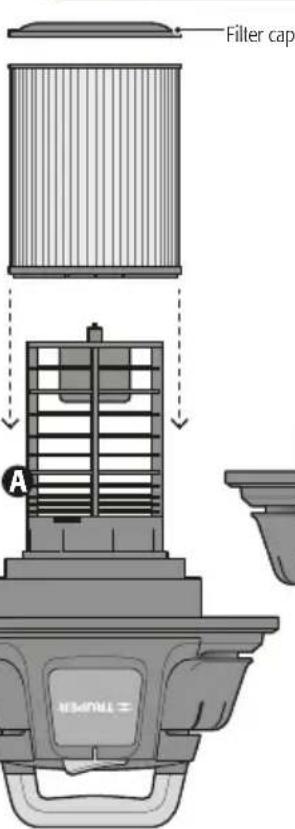

• Set the filter into the filter cage (A) as indicated in the figure. Then set the motor cover back in place.
• Verify that the collection bag is in its place otherwise see sheet 7, for installation.

WARNING acuum or work near toxic, flammable or explosive materials as indicated in the Safety Warnings in page 5.

CAUTION • When dry vacuuming do not use the foam filter for liquid vacuuming.

- When the vacuuming job is done empty the container before storing the vacuum cleaner.

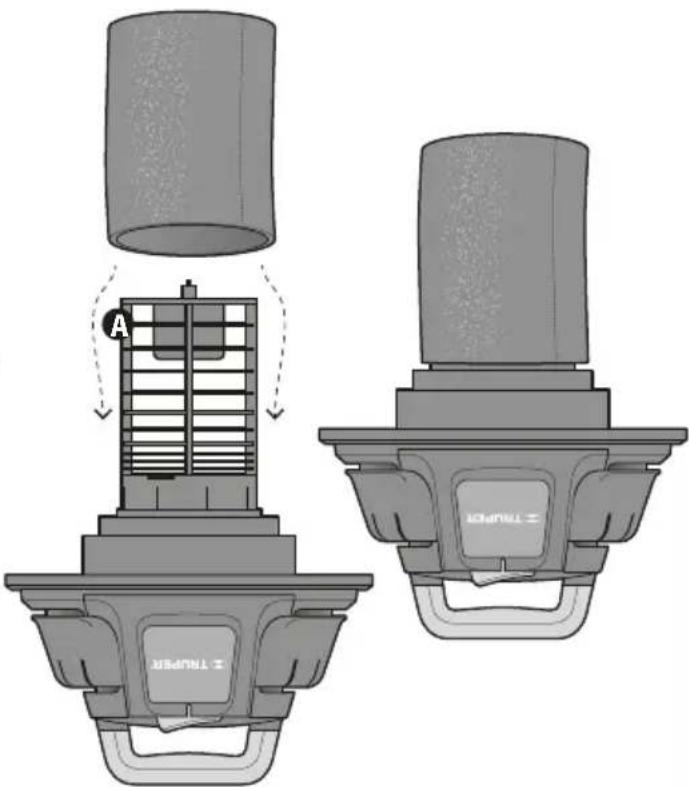

Liquid vacuuming

• Open the vacuum cleaner as indicated in page 5 to install the foam filter for liquid vacuuming.
• Set the container cap upside-down.
• Remove the cartridge filter and set the foam filter in the filter cage (A) as indicated in the image.

CAUTION • Remove the dust-collecting pouch. Do not use it when vacuuming liquids. Then set the motor cover back in place.

WARNING vacuum or work near toxic, flammable or explosive materials as indicated in the Safety Warnings in page 5.
CAUTION • To vacuum liquids do not use the cloth filter for dry vacuuming.
CAUTION • When vacuuming liquids do not immerse the full nozzle into the liquid. Leave some space in the tip of the nozzle opening to allow airflow. The tool is built with a float valve to stop the suction action when the container reaches its maximum capacity. A speed increase in the motor is noticed. When it occurs stop the machine, disconnect the power cord from the power source; open the vacuum cleaner and pour into a receptacle or gutter the liquid stored in the container.
- When the vacuuming is finished open the drain to empty the container. Clean and dry the inside of the container. Remove the foam filter. Set the cartridge filter in place and close the drain cap before storing the tool.

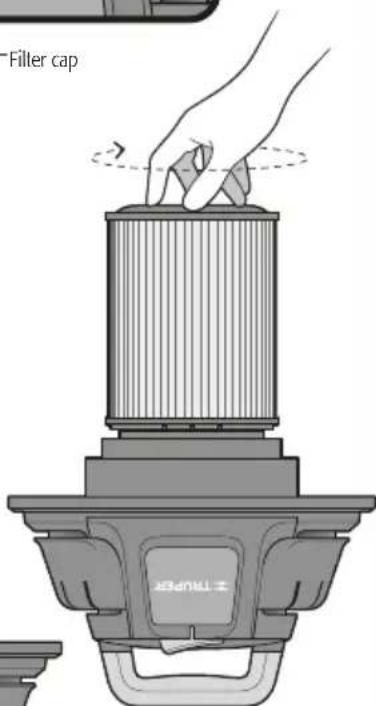

To secure the filter in place turn cap clockwise. To remove the filter, turn in the opposite direction.

Technical illustration of a mechanical device with two views (A and B) showing internal components and assembly, no text or symbols present.

Cleansing and Care

• To guarantee adequate cooling of the motor always keep the ventilation slots clean and free of obstructions.
• Clean all residues or dirt from the container and hose before storing the vacuum cleaner.
• Double-check any damage in the hose, accessories and power cord.

Cartridge filter cleansing :

• Remove the cartridge filter as indicated in page 8.
• Clean the filter tapping carefully or using a brush to remove residues. This type of cleansing shall not be made indoors or in the living areas. Installing a new filter is recommended to gain the best performance.
• Set a clean or new filter in place as indicated in page 8.
• Wet filters shall be removed from the container. Let dry 24 hours before installing in the filter cage.

Foam filter cleansing:

• Remove the foam filter as indicated in page 8.
• Use a soft soap and water solution to clean the filter. Rinse with clean water.
• Put the filter outdoors to dry completely before installing and using it again.

Service

• The tool should only be serviced in a TRUPER® Authorized Service Center. Service and maintenance made by not qualified people may be dangerous and could cause severe personal injury. It also makes the product Warranty void.

Carbon brush replacement

• Checked periodically the carbon brushes when worn. Replace only at a TRUPER® Authorized Service Center.
  • After replacing the carbons ask the technician to double-check the new carbon brushes can move freely in the carbon housing. Ask to have the tool turned on and keep it running 5 minutes to make even the contact of carbons and commuter.
• Use only original TRUPER® spare carbon brushes, designed specifically with the right strength and electric resistance for each type of motor. Carbon brushes with different specifications may damage the motor.
• When replacing carbon brushes both carbons should be replaced simultaneously.

Troubleshooting

Problem Cause Solution

The vacuum cleaner is not working.

Dust is coming out through the motor cover.

Reduction of efficiency and motor vibration / speed.

• There is no power.
• Defective power cord.
• The container is full.

- The cartridge filter is not set or is damaged.

- There is blockage in the nozzle, hose or container inlet. - The cartridge filter is clogged with fine dust.

• Check the power supply, cables, circuit switches, and fuses.
• Unplug and check the power cord. If damaged repair in a TRUPER® Authorized Service Center.
• Empty the container.

- Set or replace the cartridge filter.

• Inspect for blockages in the nozzle, hose and container entry.
• Remove the filter and clean or replace.

In the event of any problem contacting a Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 01(800) 690-6990 or 01 [phone] to get information about the nearest TRUPER Authorized Service Center.

This product, its parts and components have a three years warranty against defects in its manufacture, operation and workmanship, except when: the product has been used in conditions other than those recommended, or has not been operated according to the instructions, or has been altered or repaired by personnel not authorized by TRUPER. In order to make the warranty valid or to purchase components and spare parts, you must present the product and its proof of purchase at Av. San Isidro #110, Col. Industrial San Antonio, ALC. Azcapotzalco, C.P. 02760, CDMX, Mex. or at the store where you bought it, or at a TRUPER service center listed in the attached warranty policy and/or at www.truper.com. Transportation costs resulting from compliance of this warranty will be covered by TRUPER. For questions or comments, call 01-800-690-6990.

Imported by: Truper, S.A. de C.V., Parque Industrial #1, Jilotepec, Edo. de México, México. C.P. 54240, Made in China

Stamp of the business:

3 YEARS

Delivery date:
